Sony BC-L100, BC-L100CE Users guide

BATTERY CHARGER

BC-L100
BC-L100CE

OPERATION AND MAINTENANCE MANUAL
2nd Edition
Serial No. 10001 and Higher

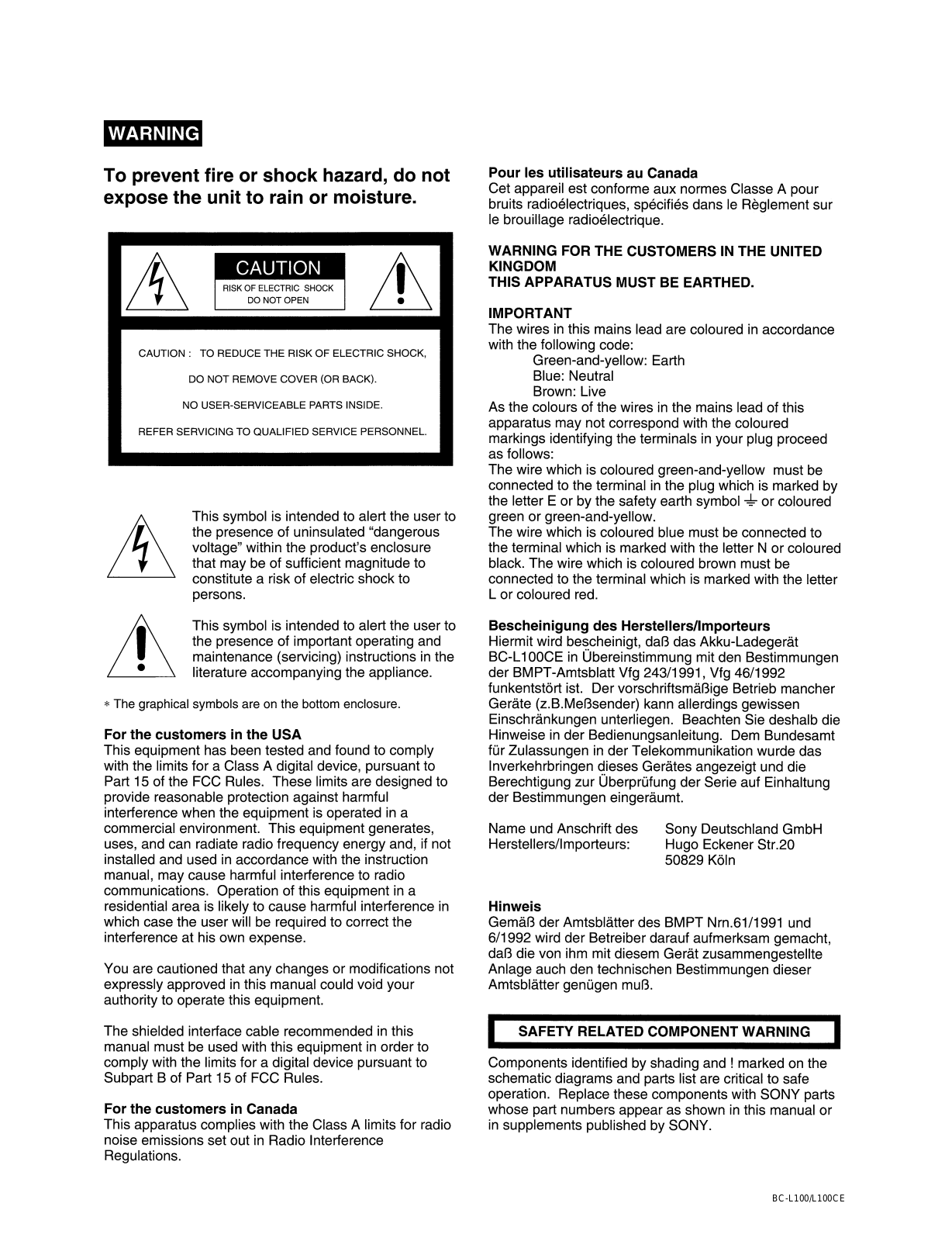

BC-L100/L100CE

BC-L100/L100CE

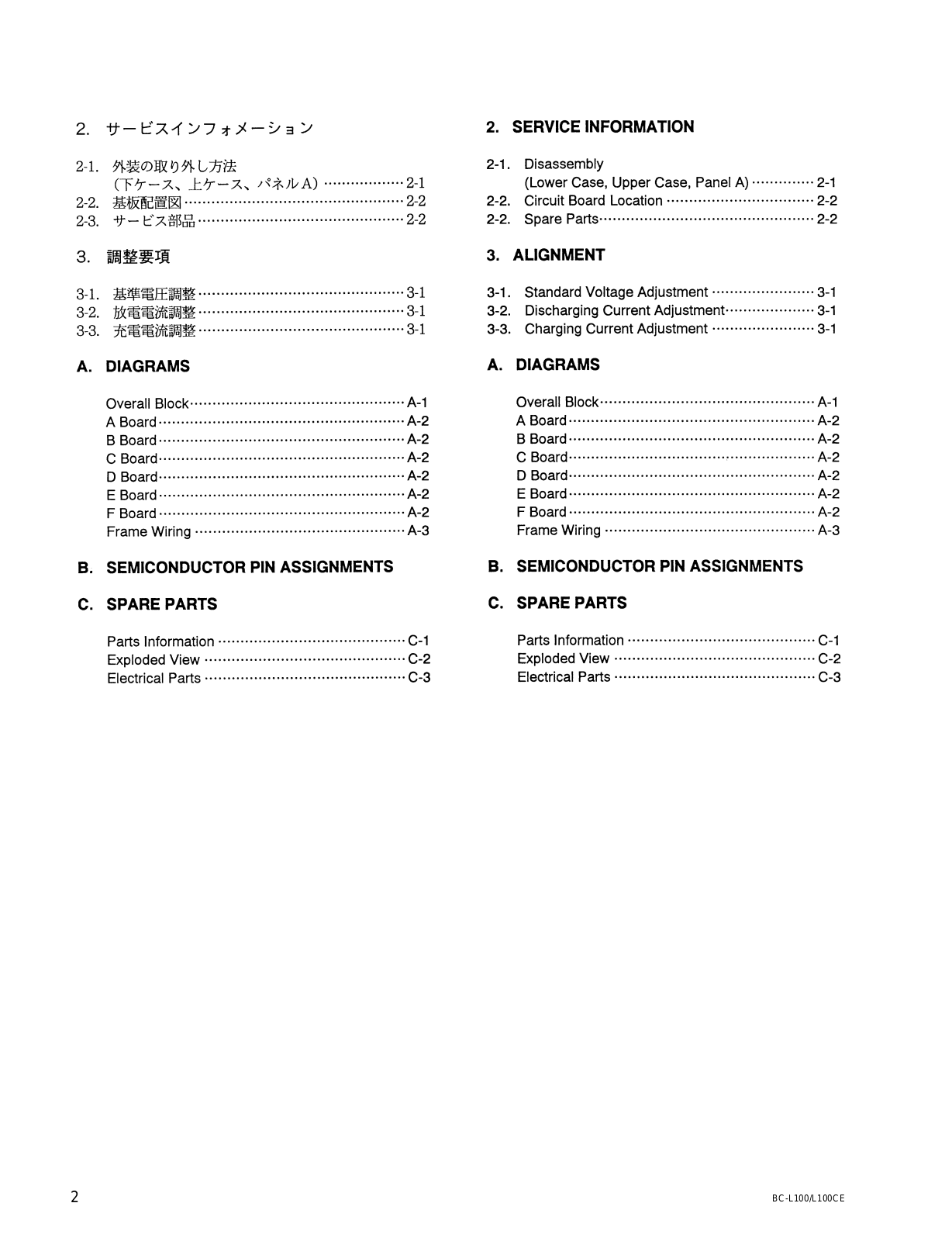

1

2

BC-L100/L100CE

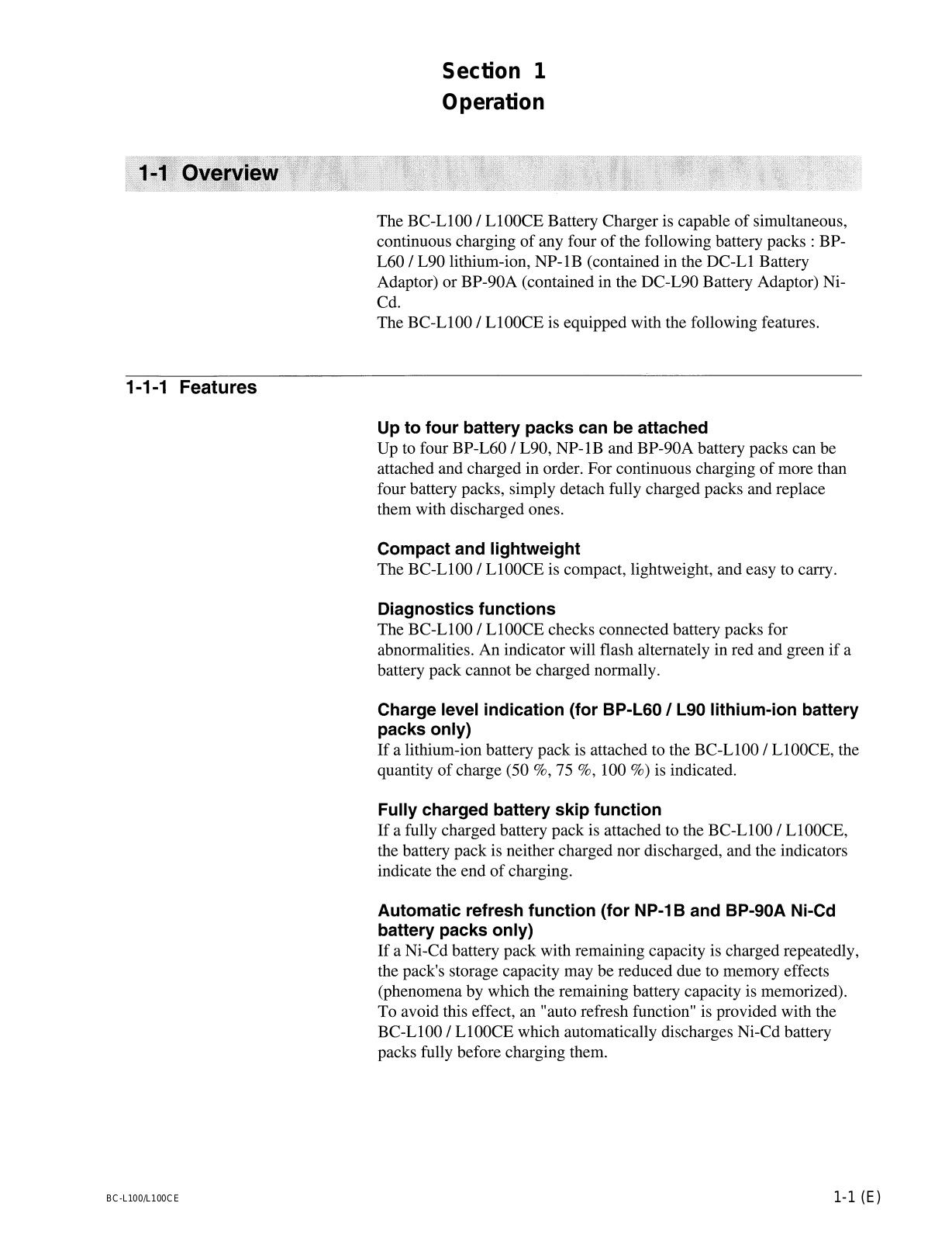

Section 1 Operation

BC-L100/L100CE

1-1 (E)

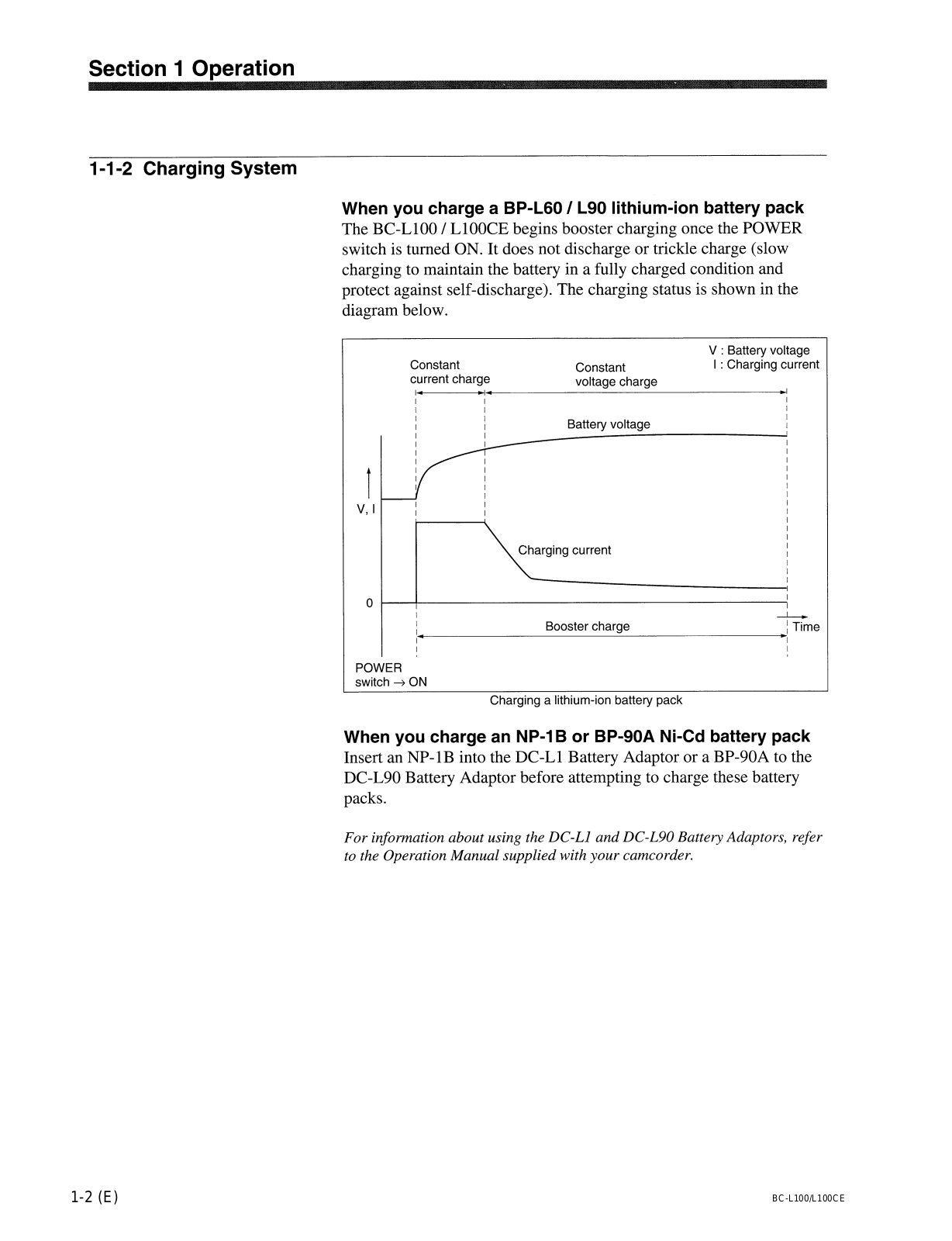

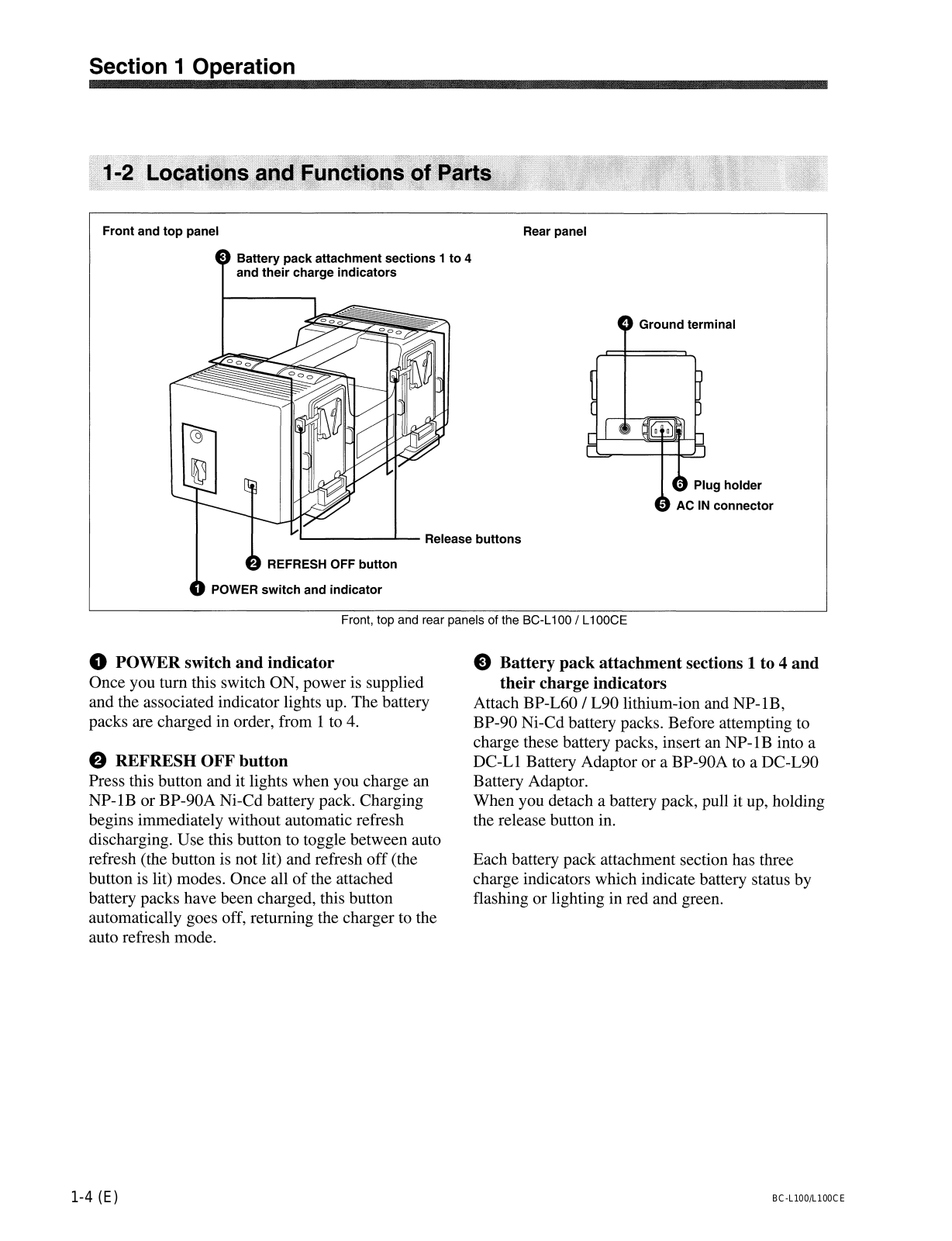

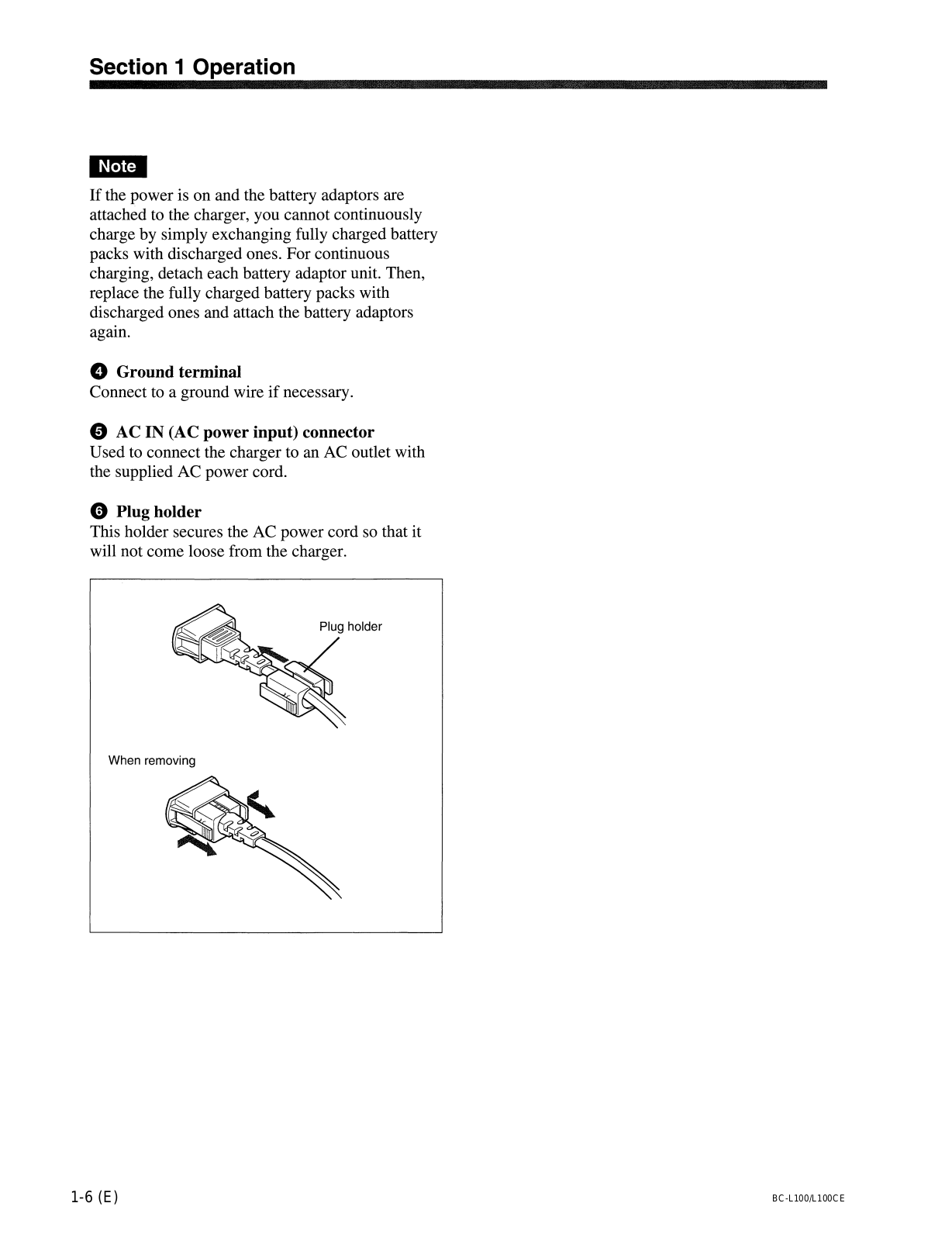

1-2 (E)

BC-L100/L100CE

BC-L100/L100CE

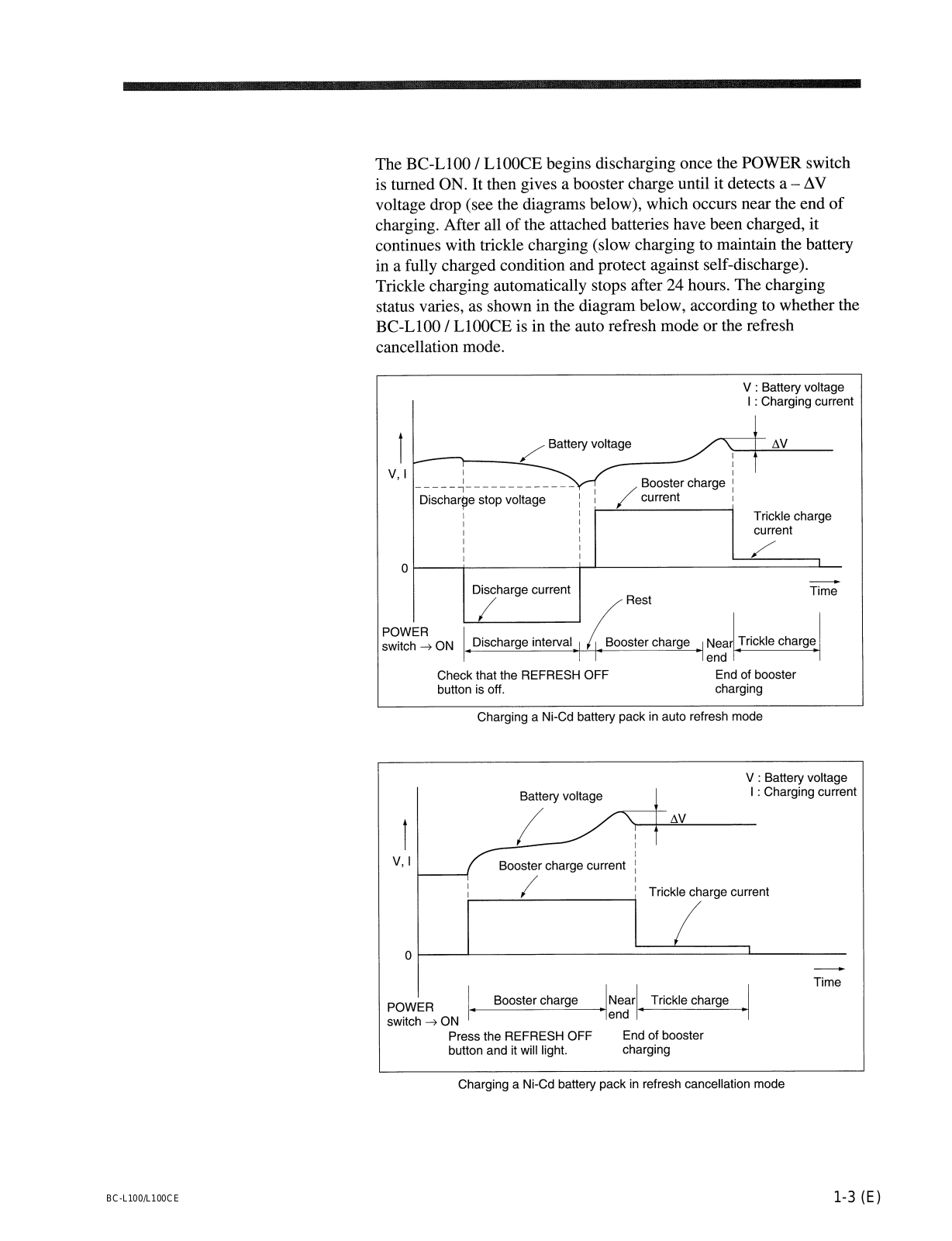

1-3 (E)

1-4 (E)

BC-L100/L100CE

BC-L100/L100CE

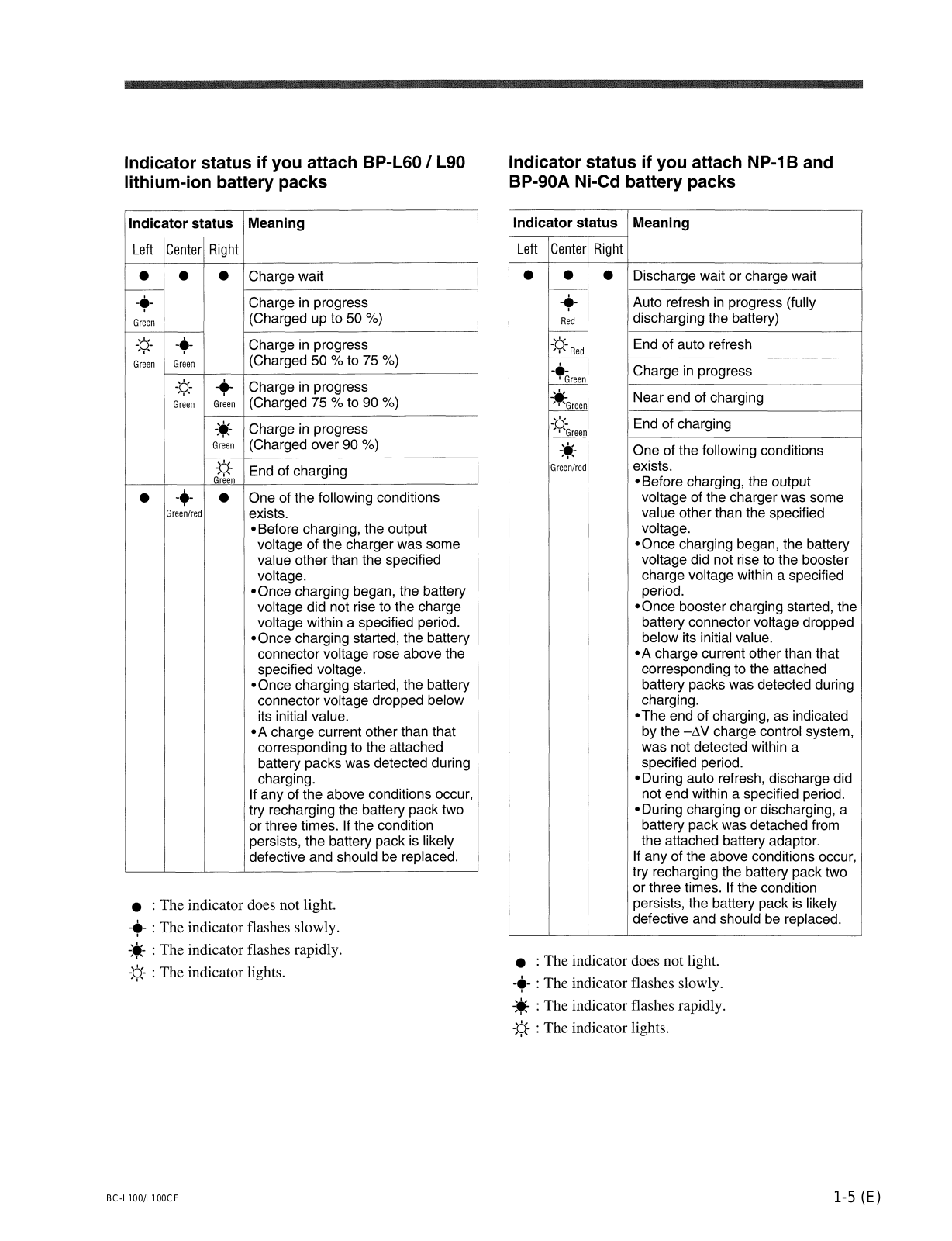

1-5 (E)

1-6 (E)

BC-L100/L100CE

BC-L100/L100CE

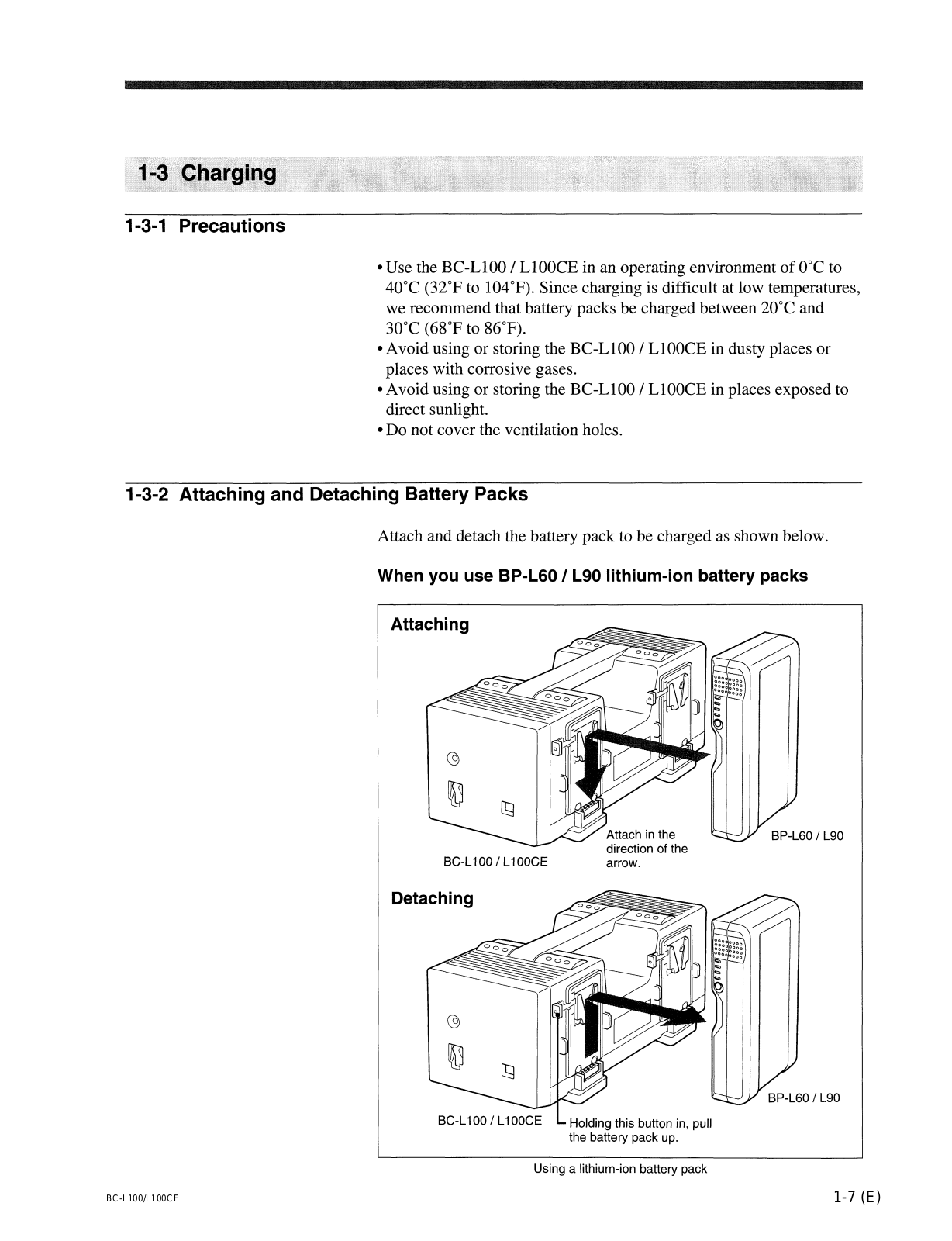

1-7 (E)

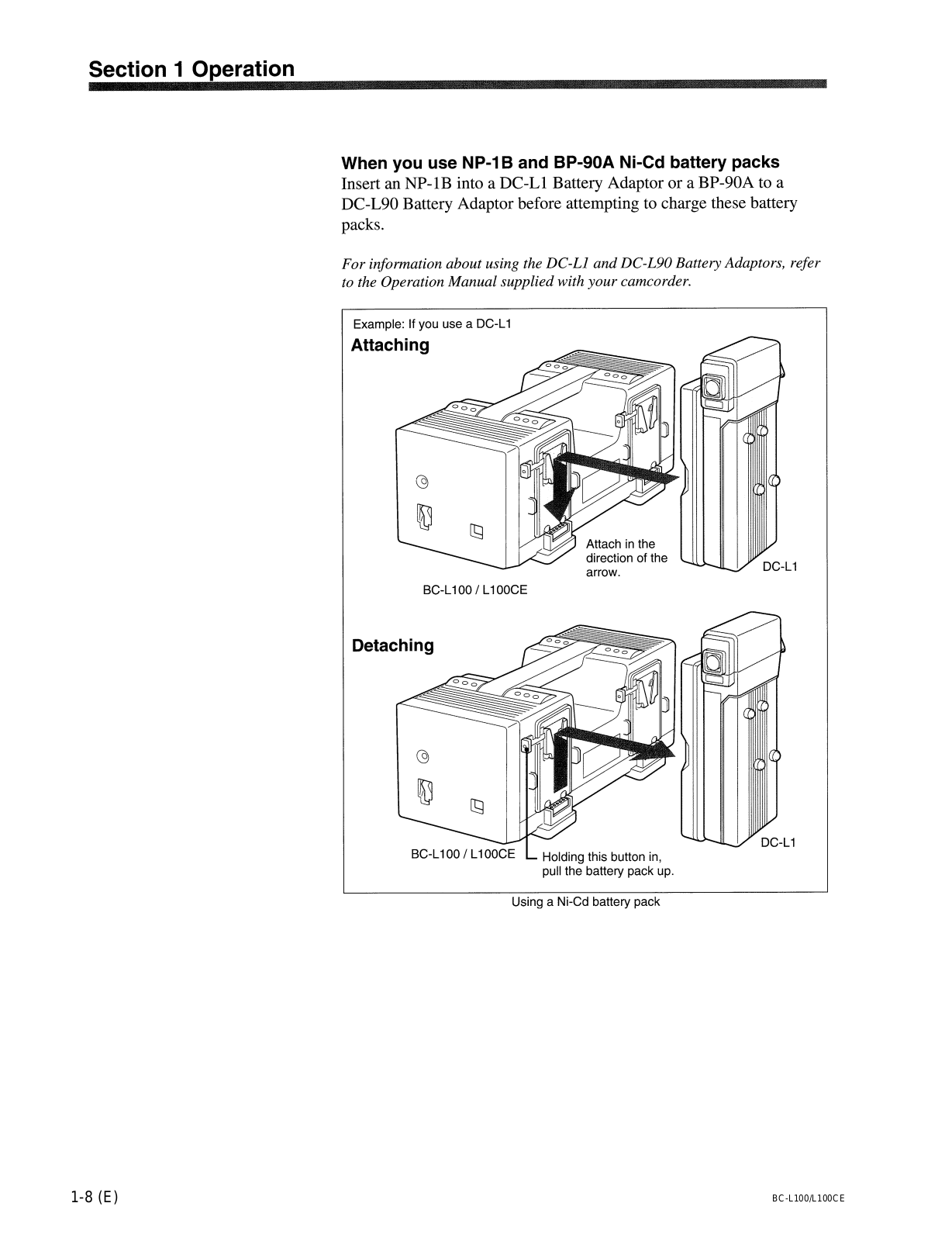

1-8 (E)

BC-L100/L100CE

BC-L100/L100CE

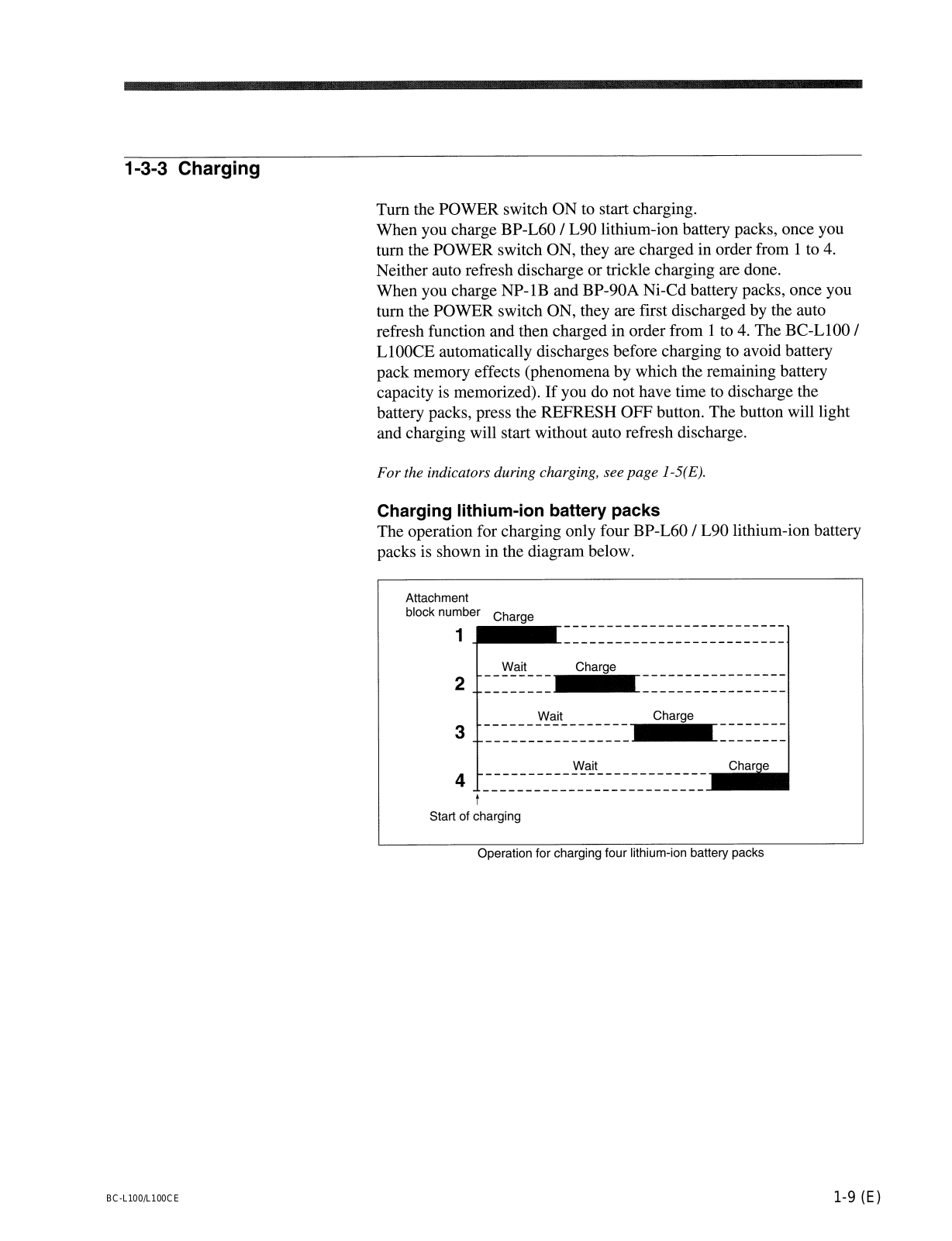

1-9 (E)

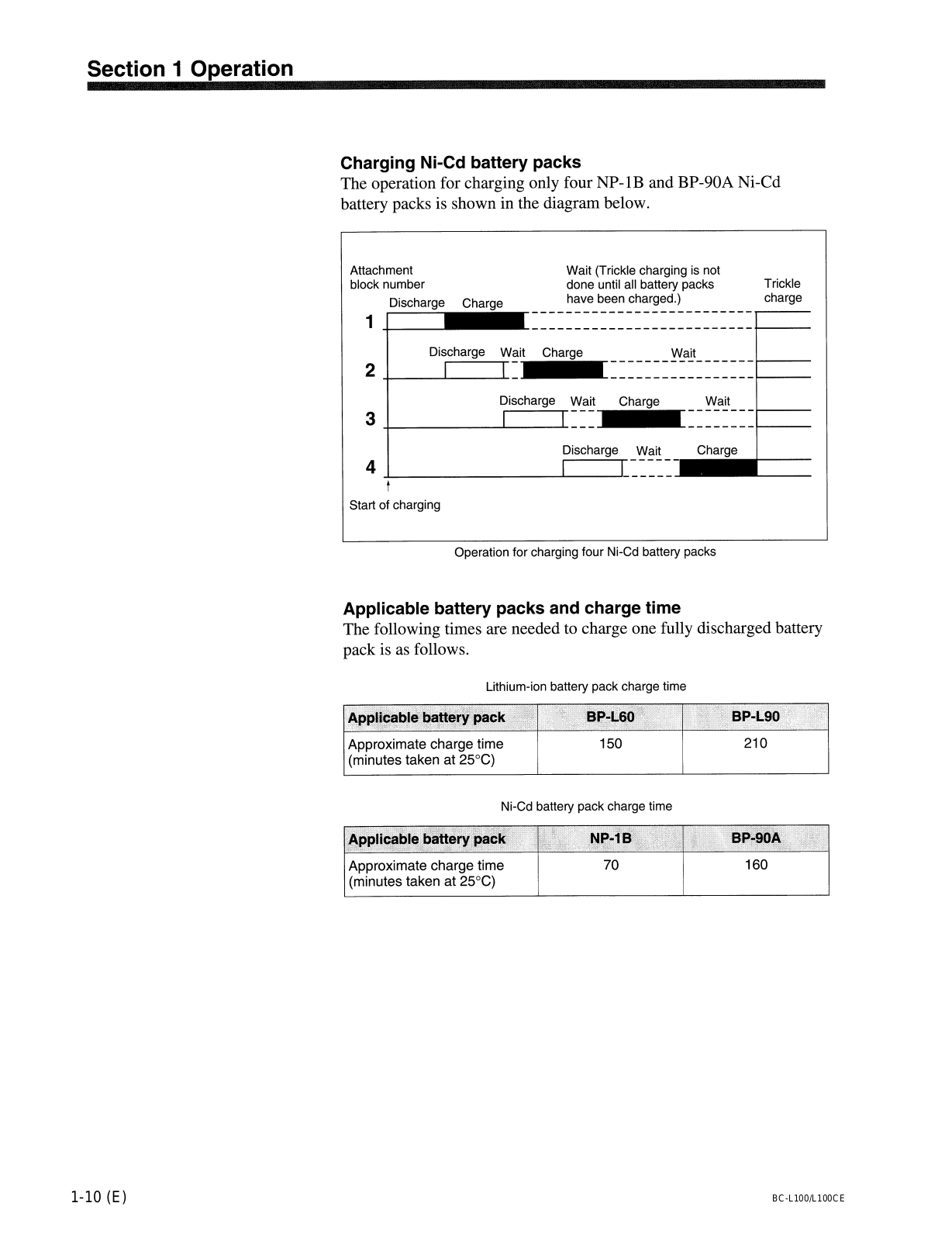

1-10 (E)

BC-L100/L100CE

BC-L100/L100CE

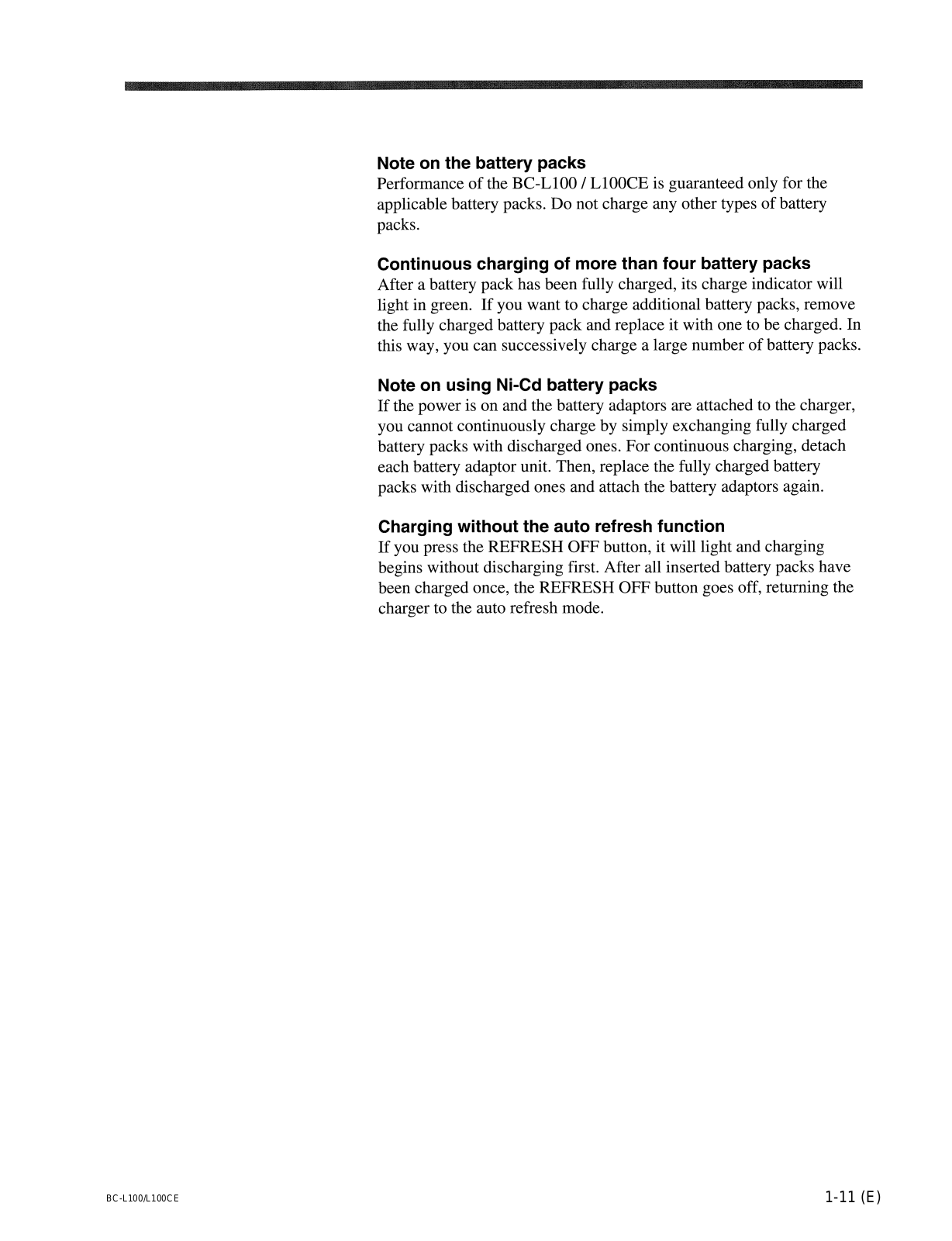

1-11 (E)

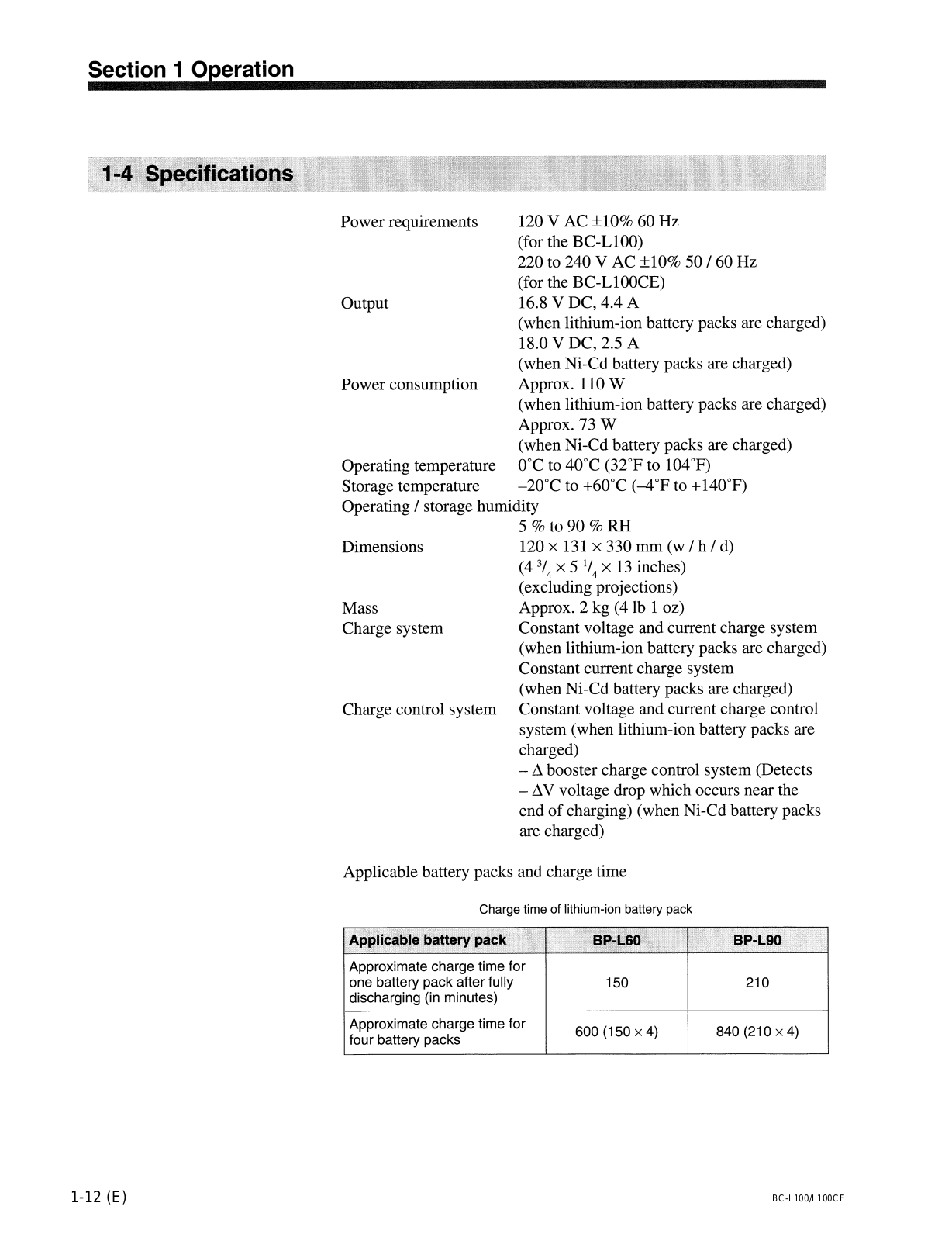

1-12 (E)

BC-L100/L100CE

BC-L100/L100CE

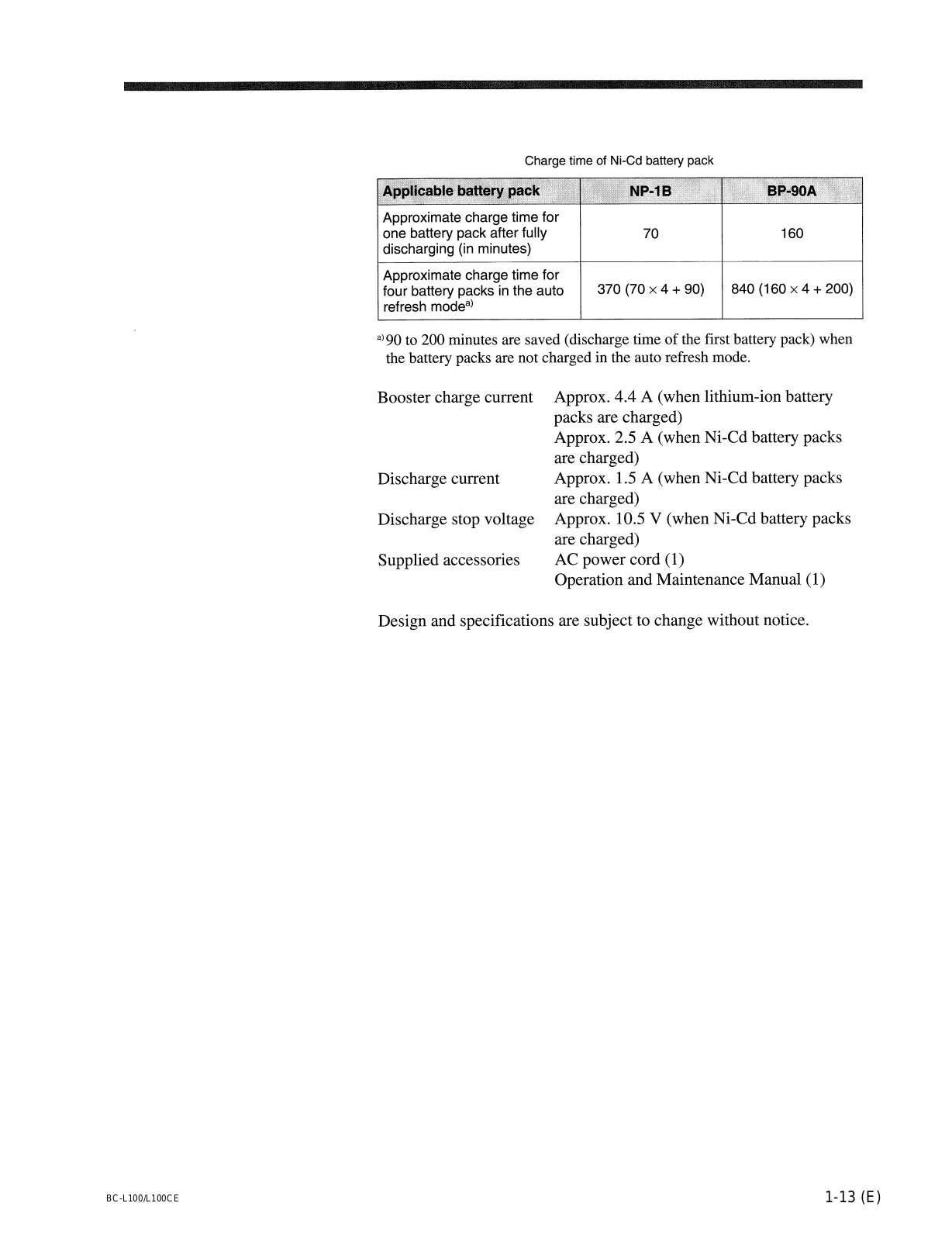

1-13 (E)

Section 1

Mise en service

BC-L100/L100CE

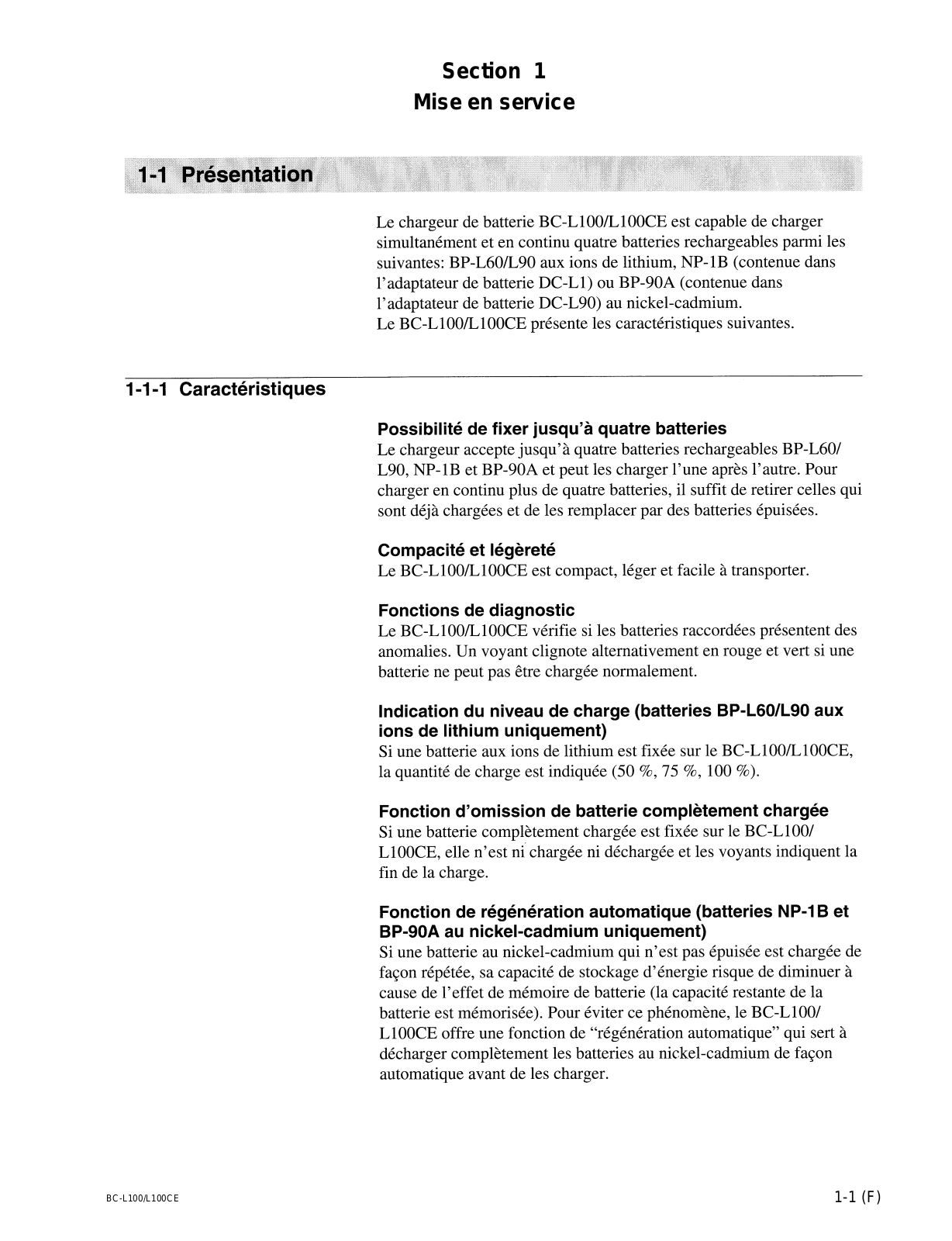

1-1 (F)

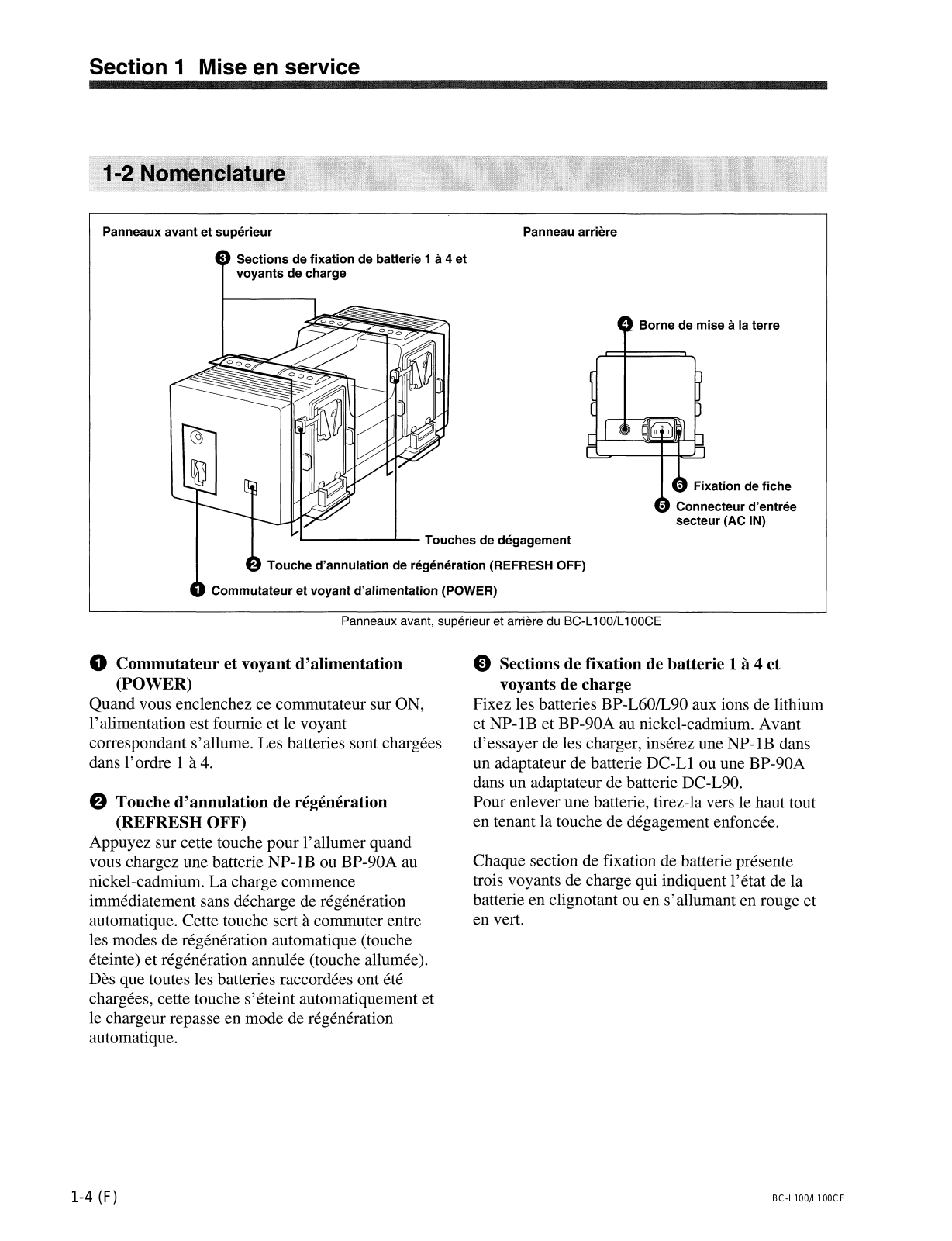

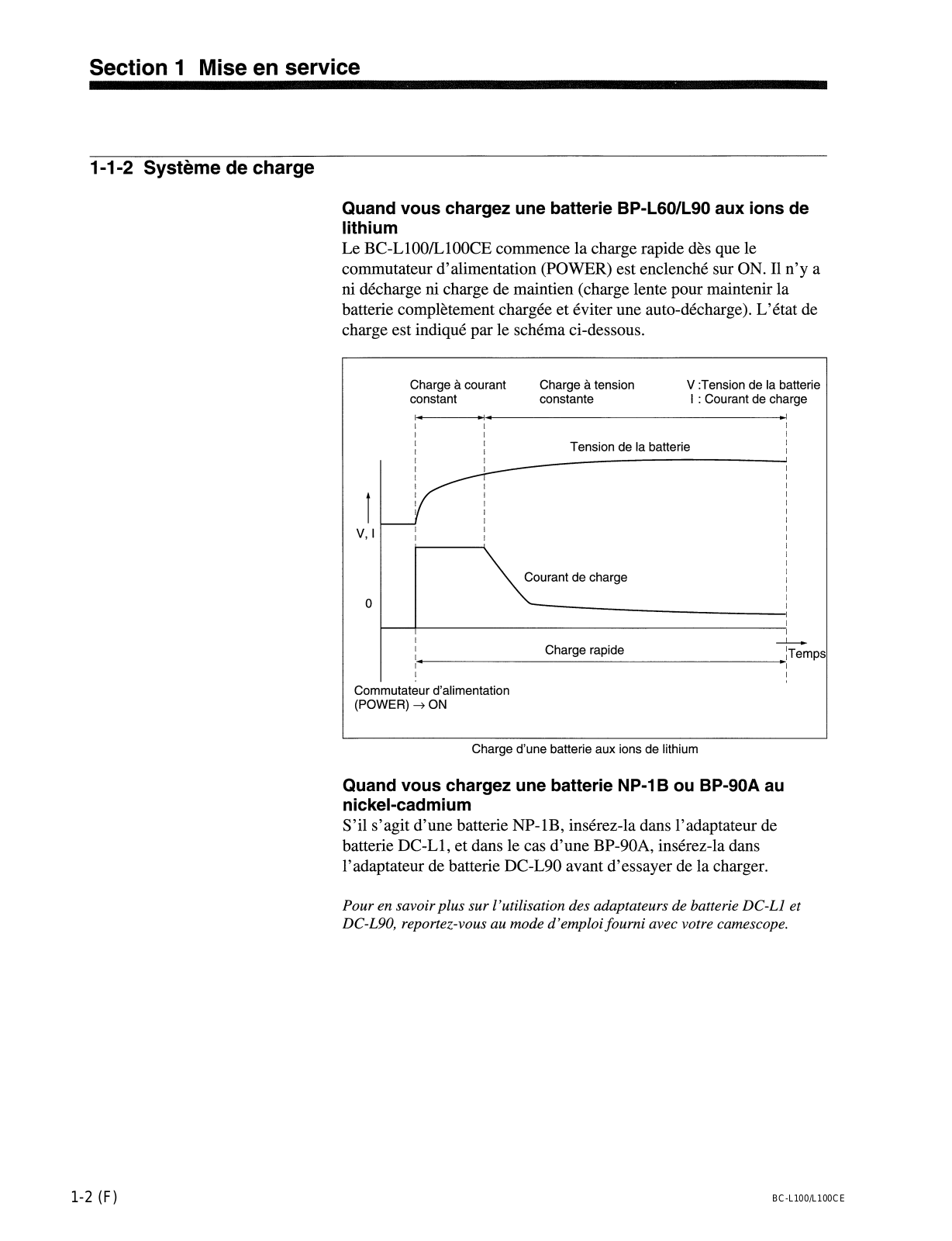

1-2 (F)

BC-L100/L100CE

BC-L100/L100CE

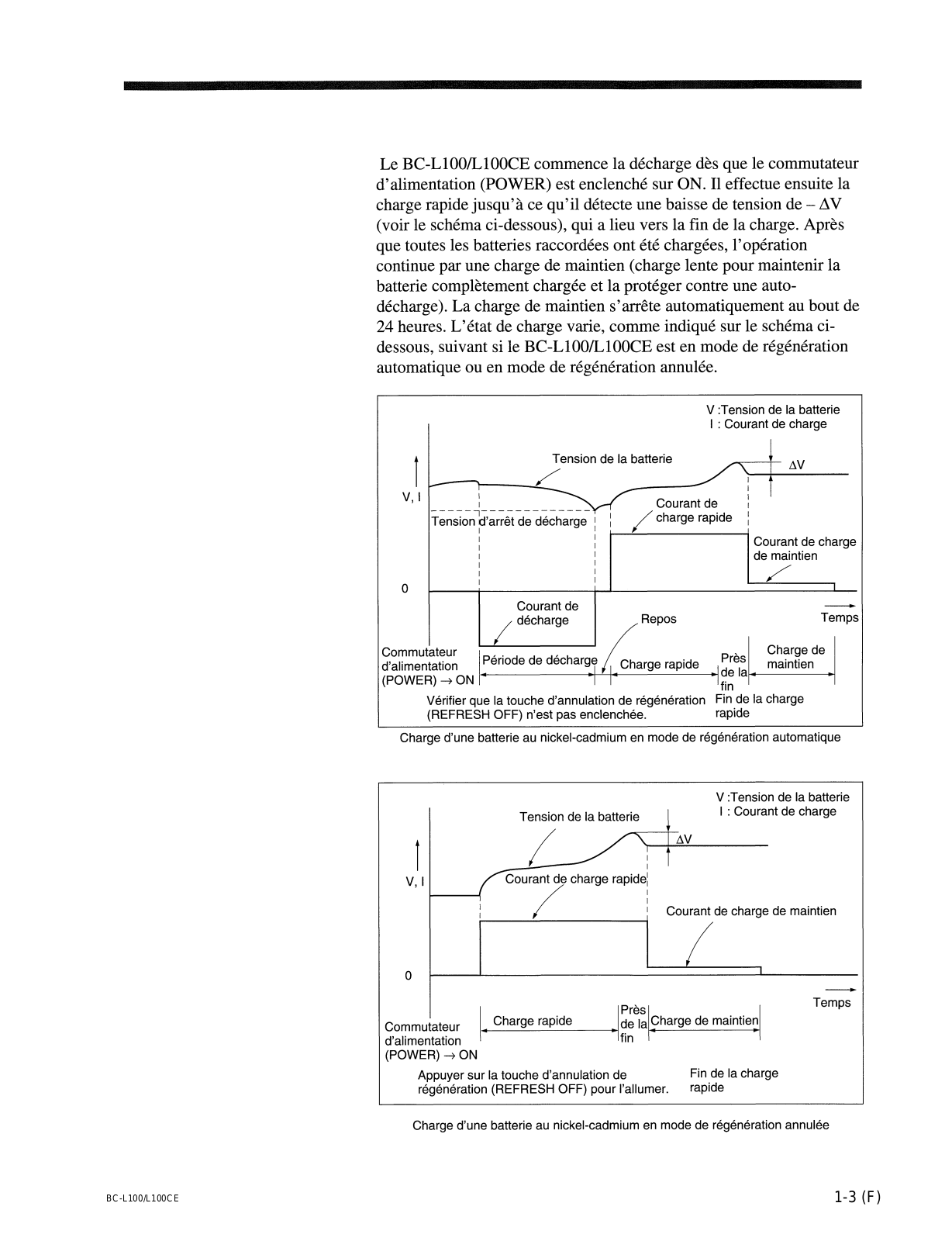

1-3 (F)

1-4 (F)

BC-L100/L100CE

BC-L100/L100CE

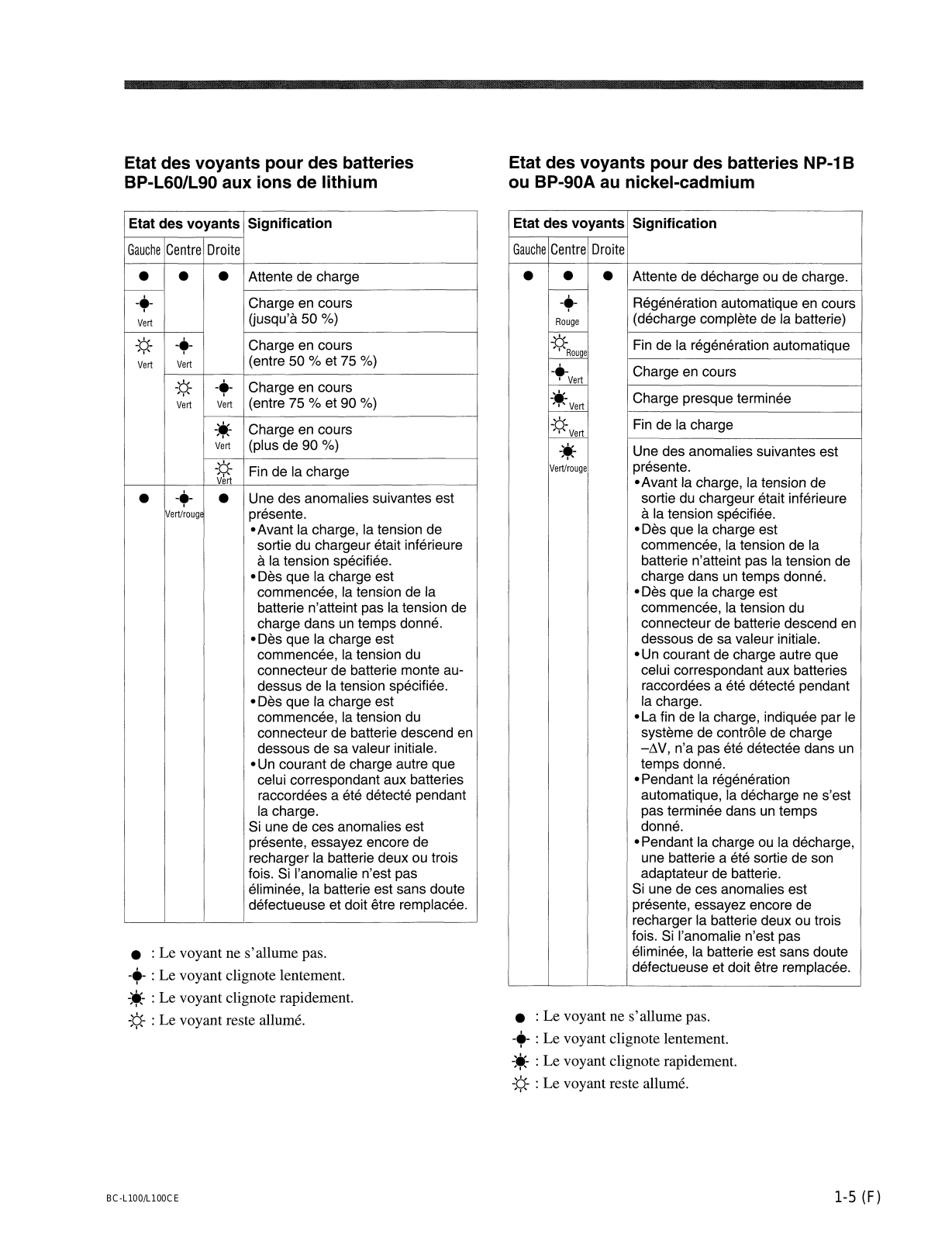

1-5 (F)

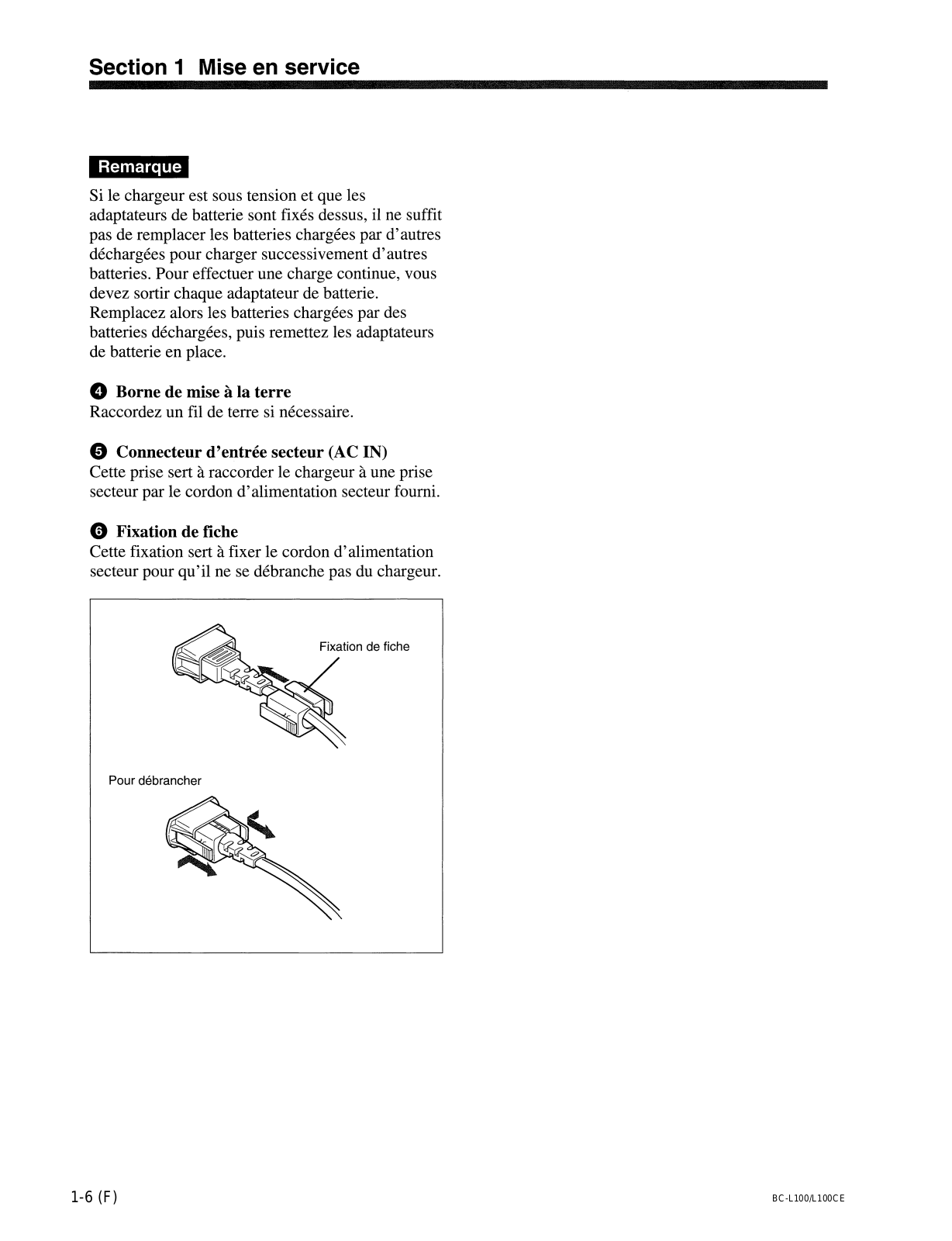

1-6 (F)

BC-L100/L100CE

BC-L100/L100CE

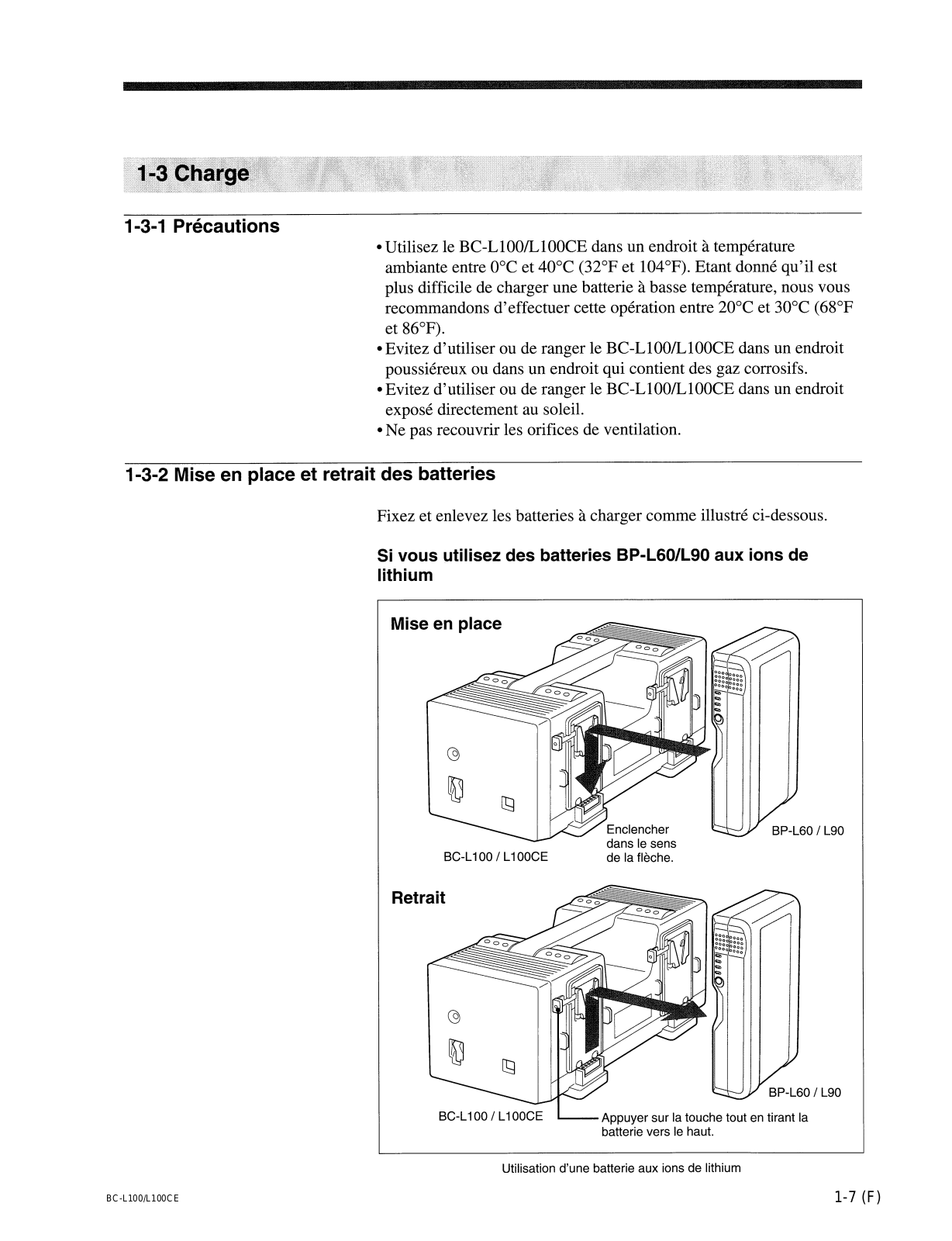

1-7 (F)

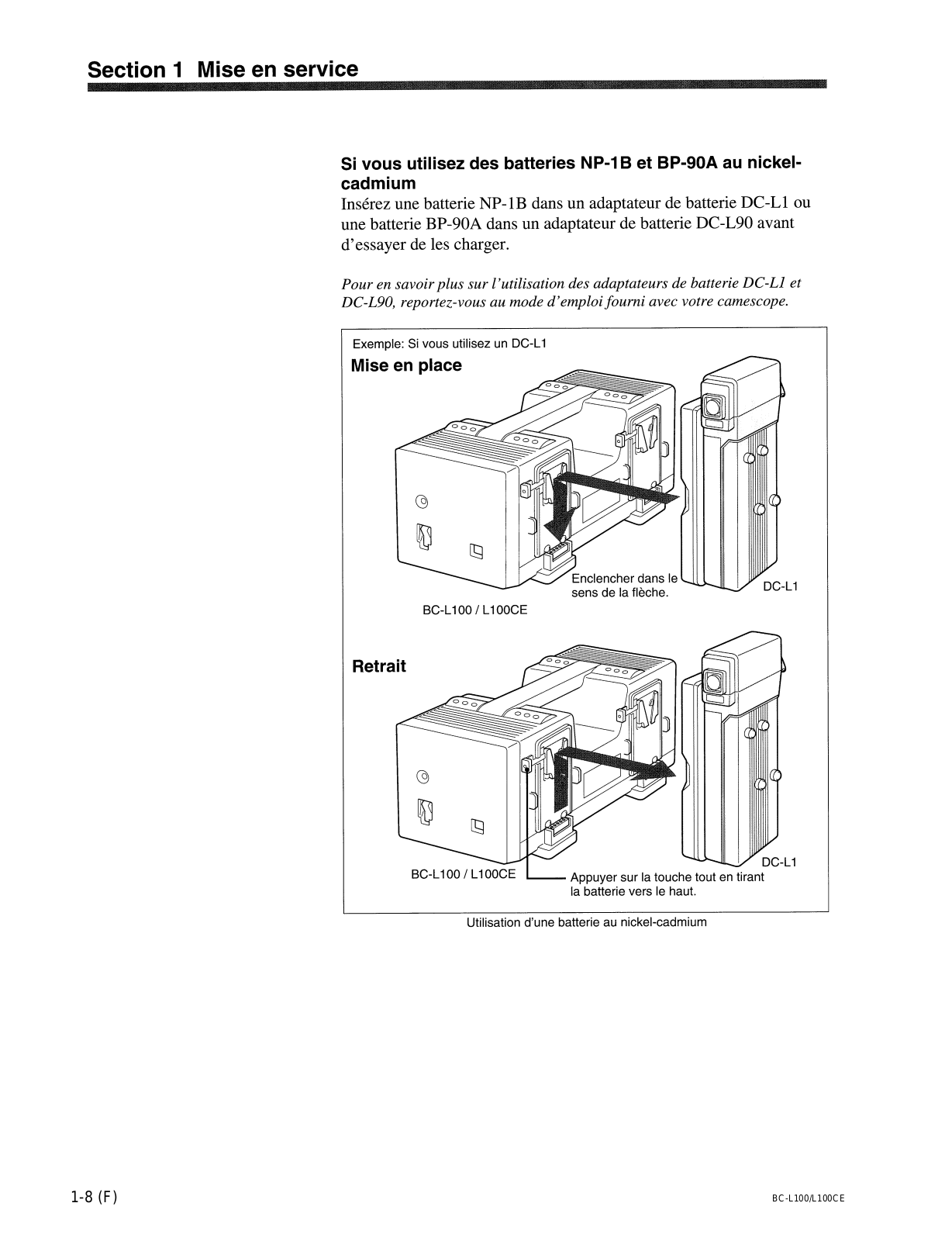

1-8 (F)

BC-L100/L100CE

BC-L100/L100CE

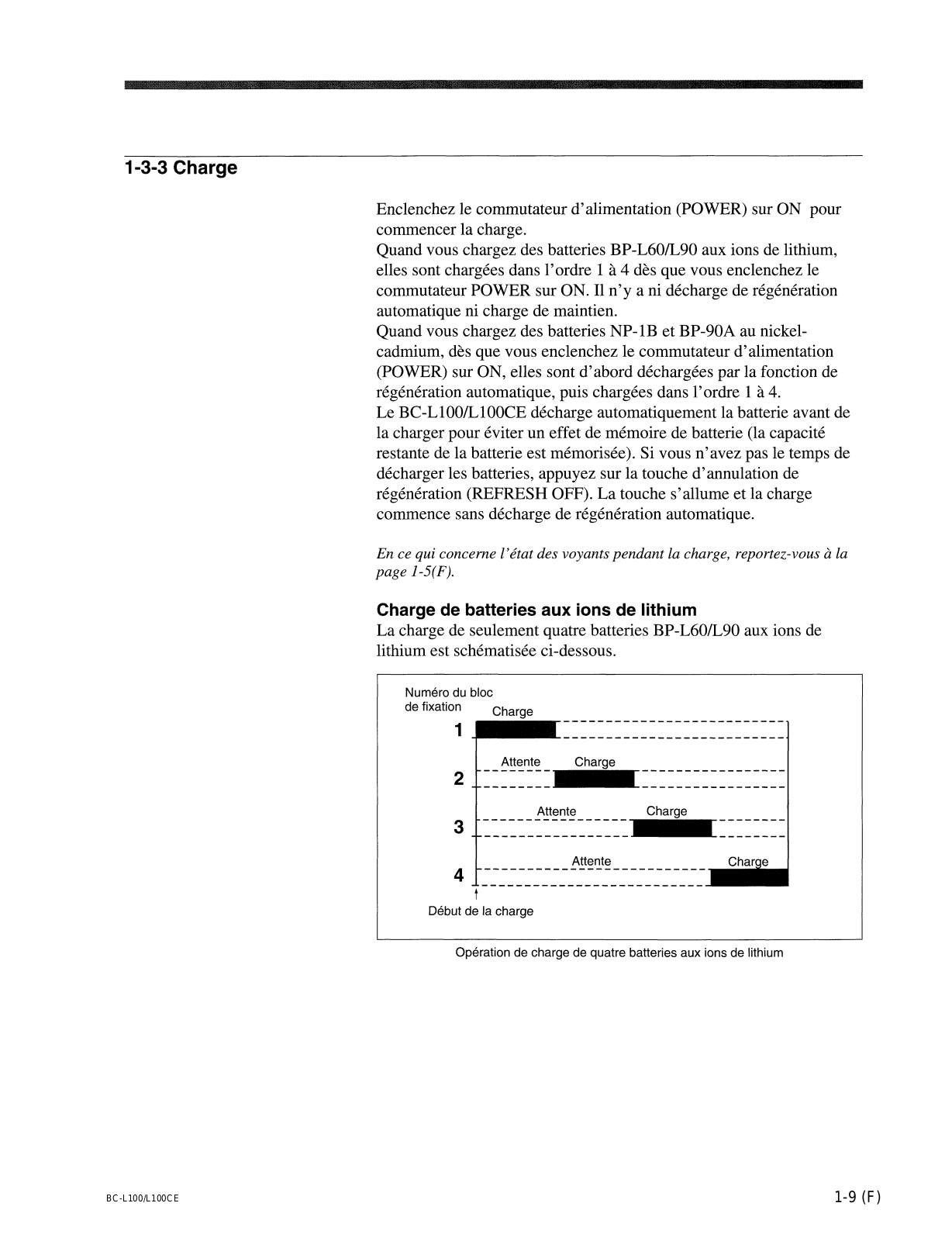

1-9 (F)

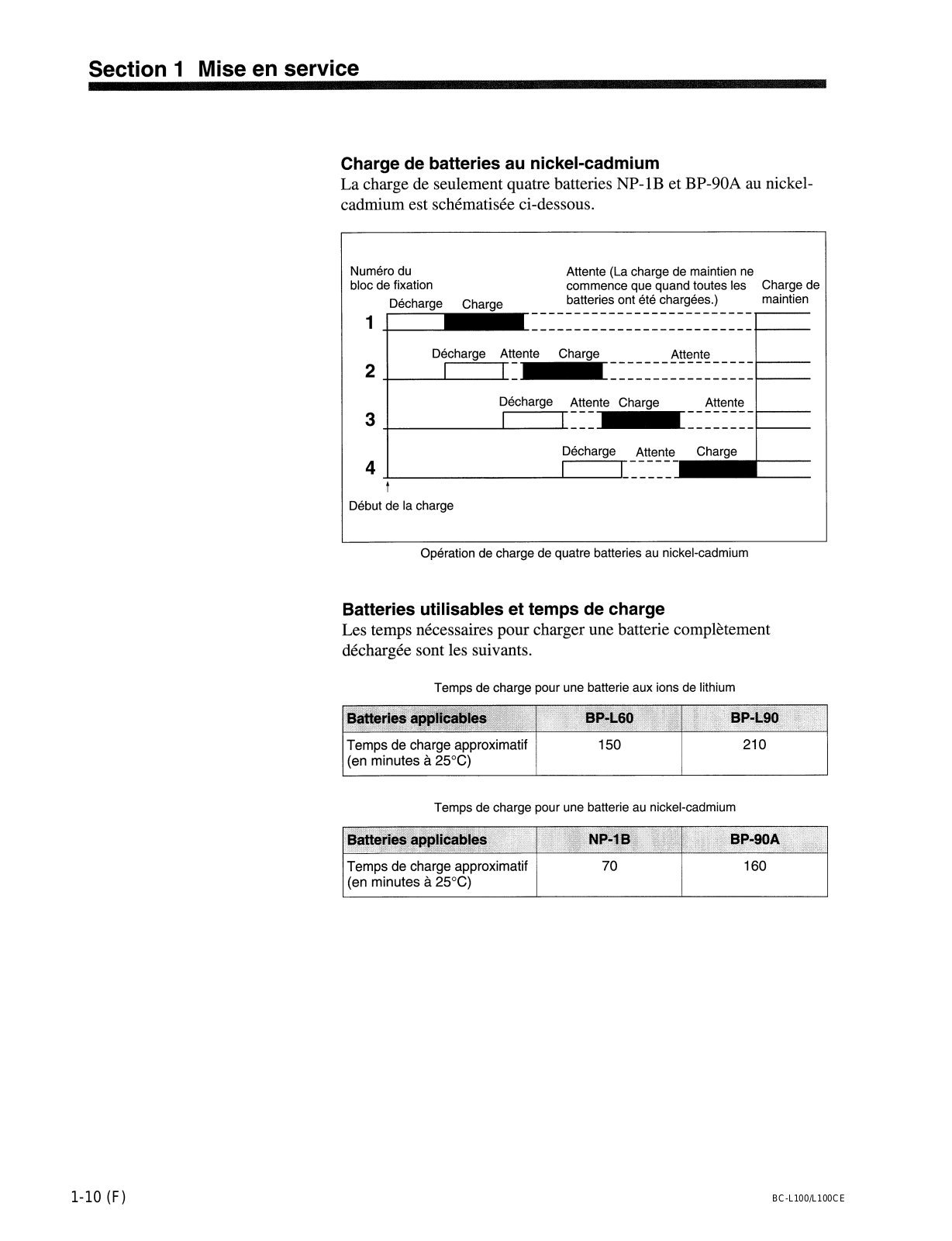

1-10 (F)

BC-L100/L100CE

BC-L100/L100CE

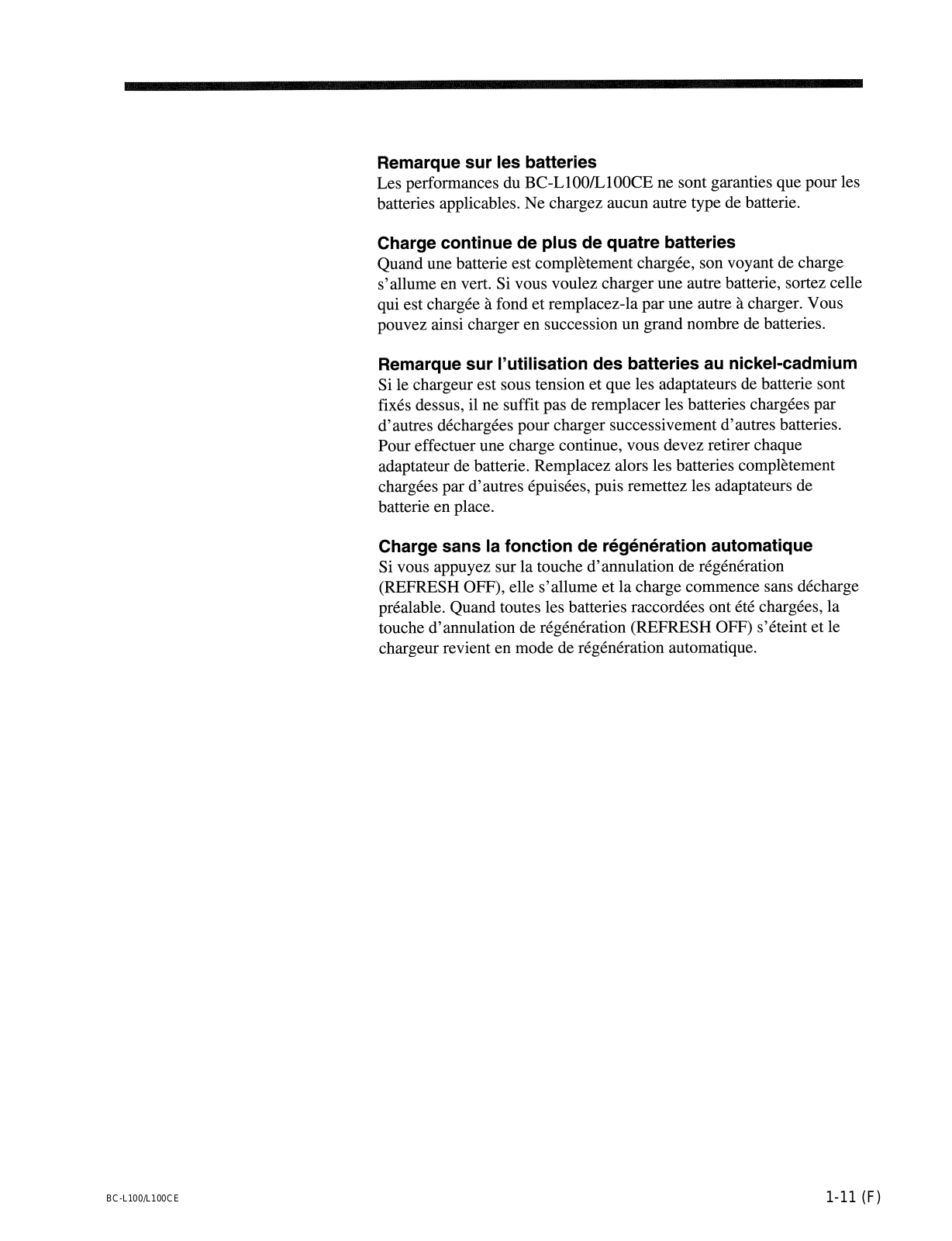

1-11 (F)

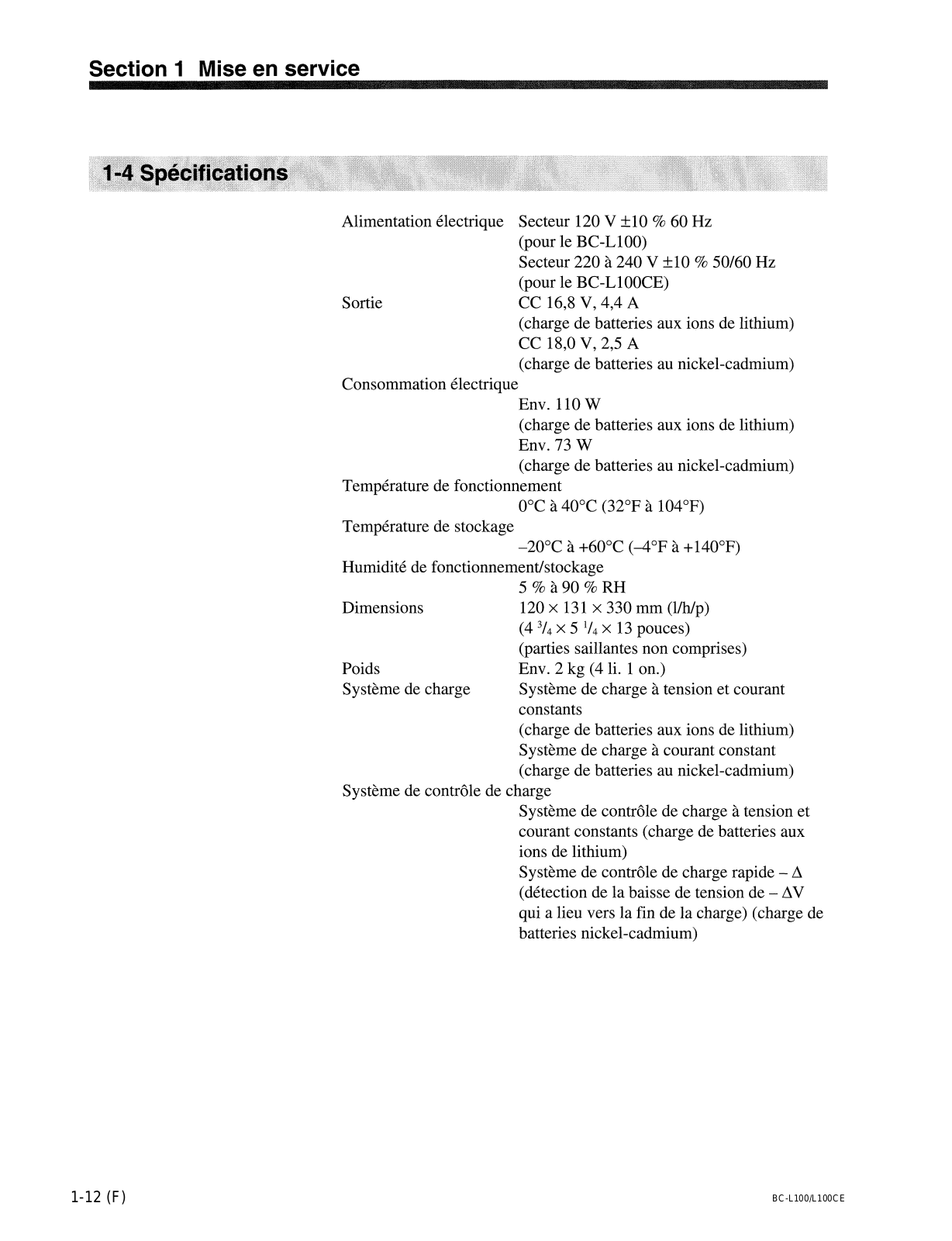

1-12 (F)

BC-L100/L100CE

BC-L100/L100CE

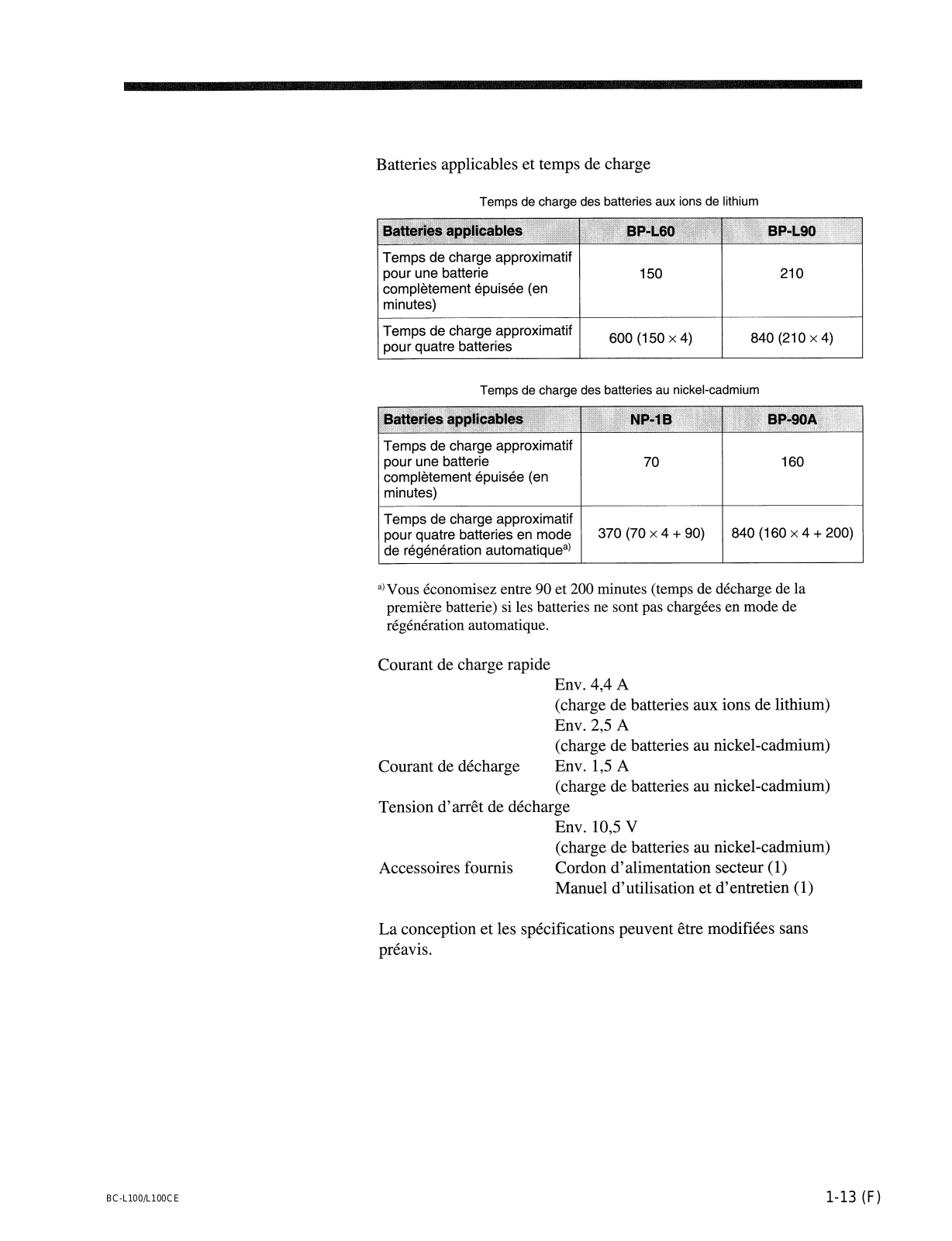

1-13 (F)

Teil 1

Betrieb

BC-L100/L100CE

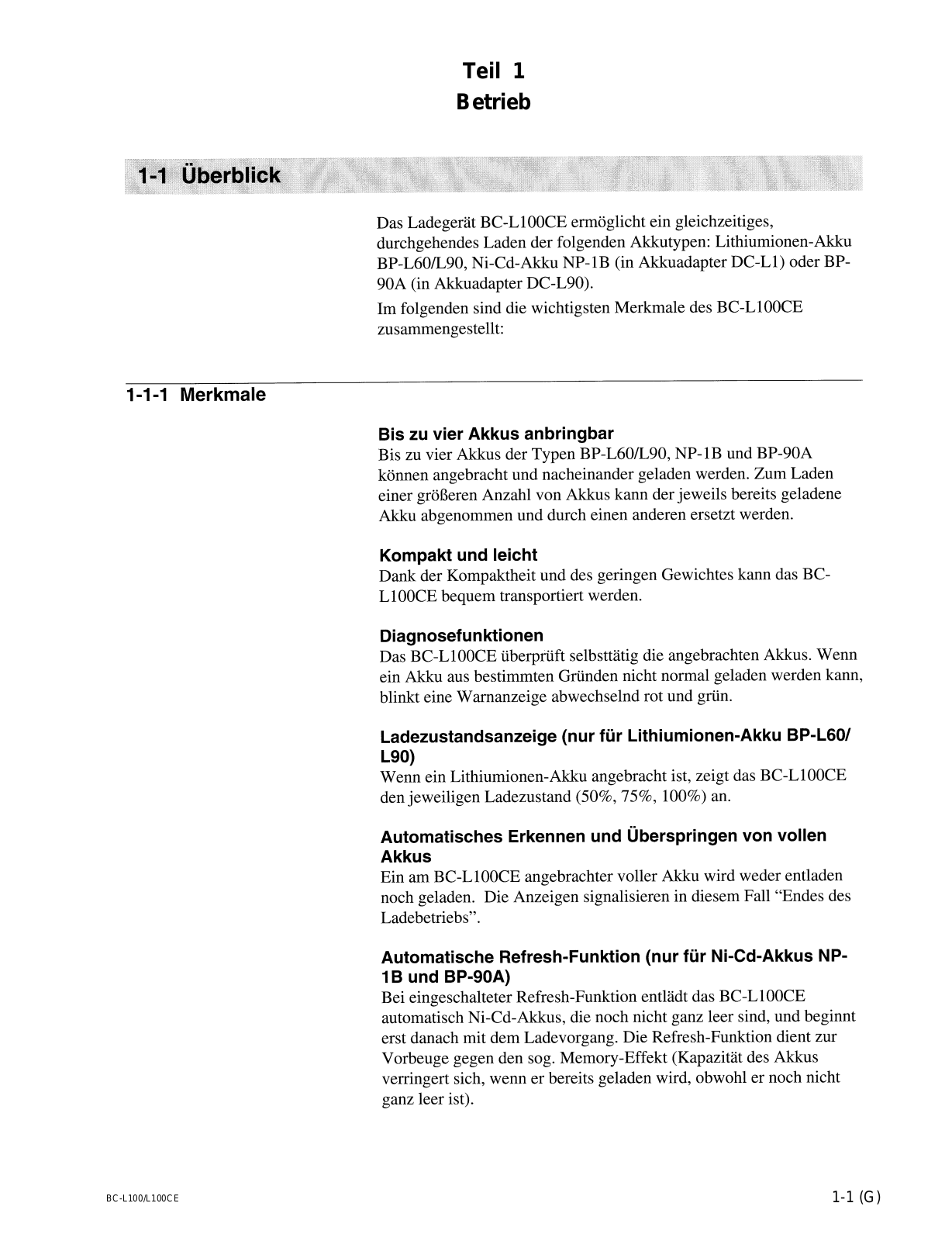

1-1 (G)

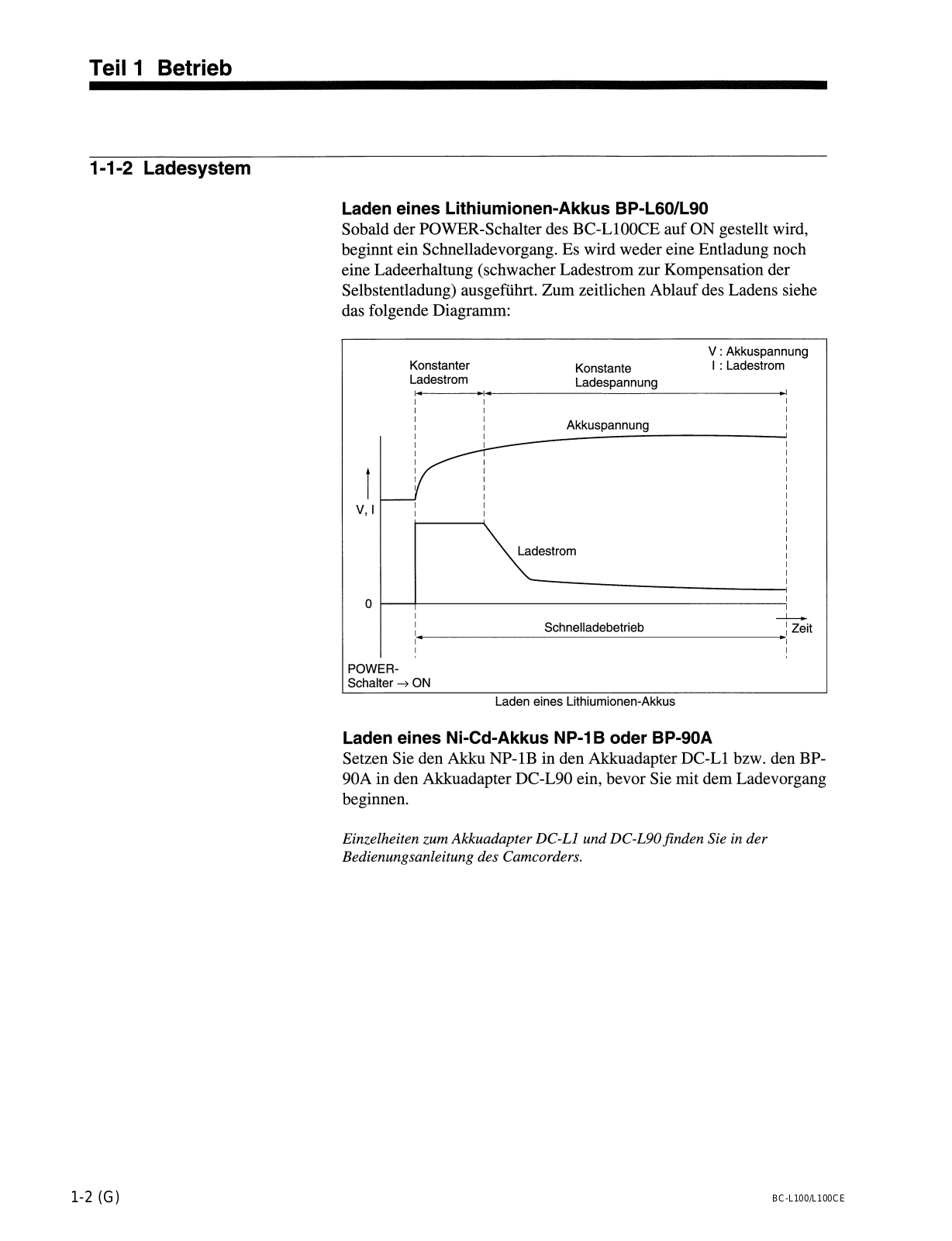

1-2 (G)

BC-L100/L100CE

BC-L100/L100CE

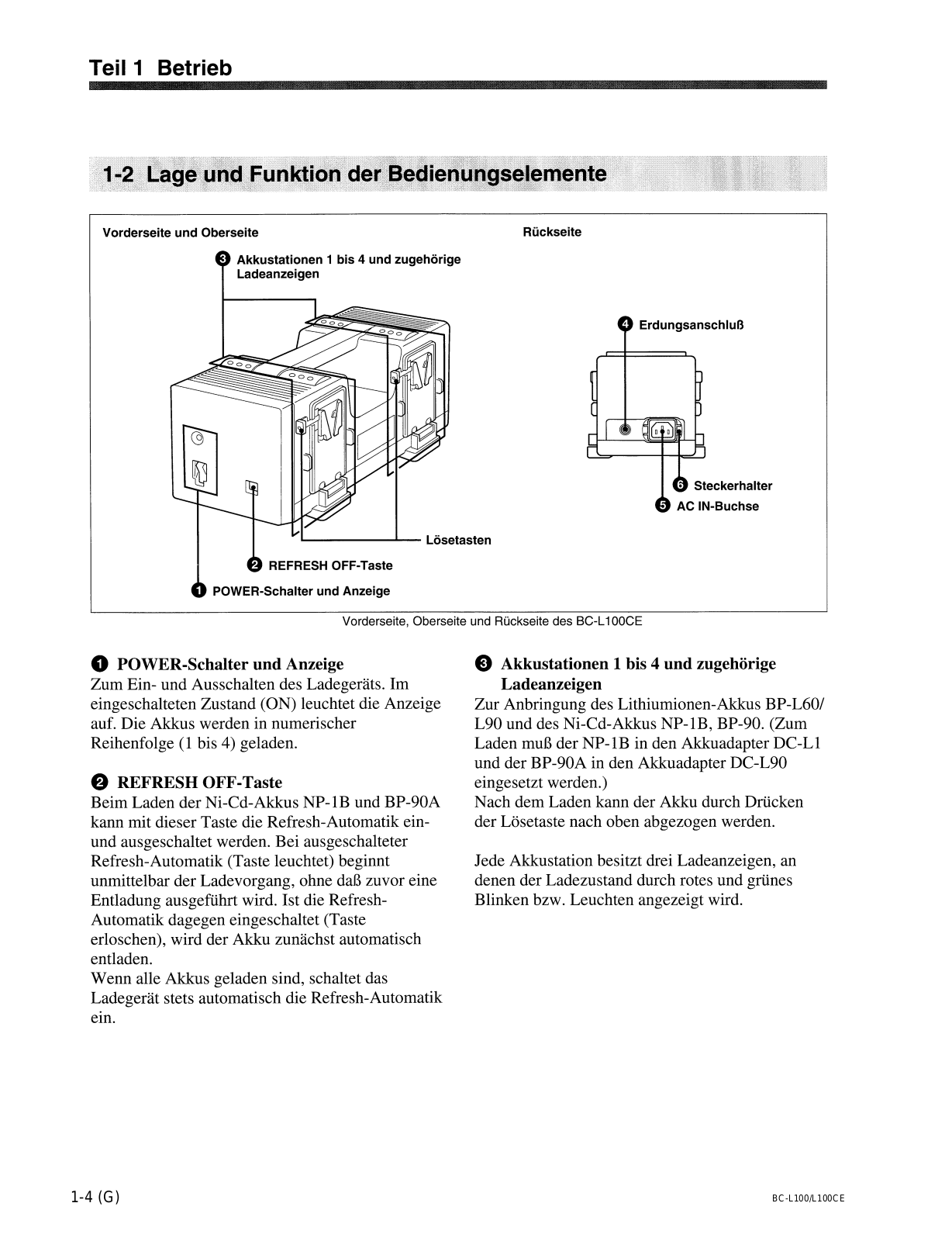

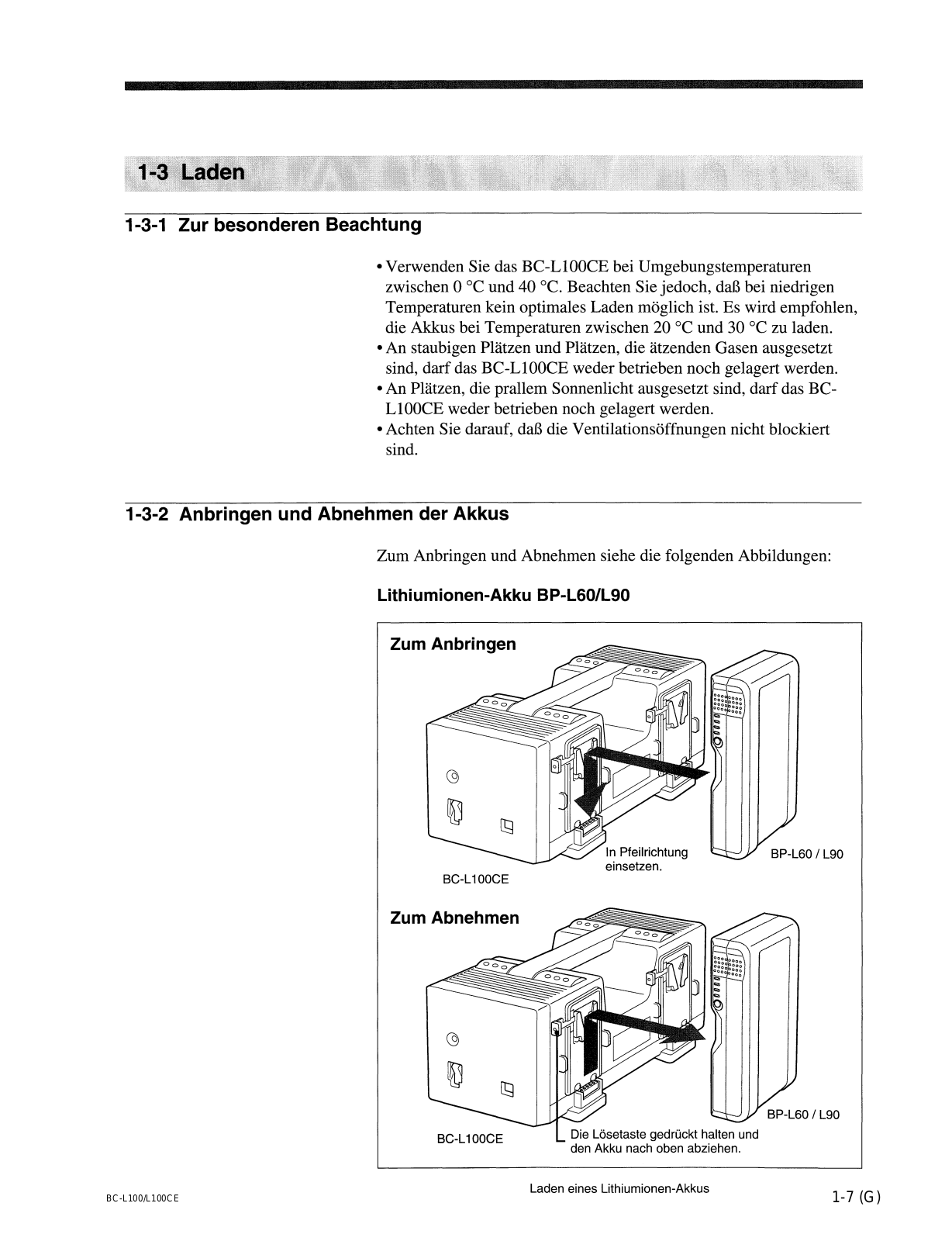

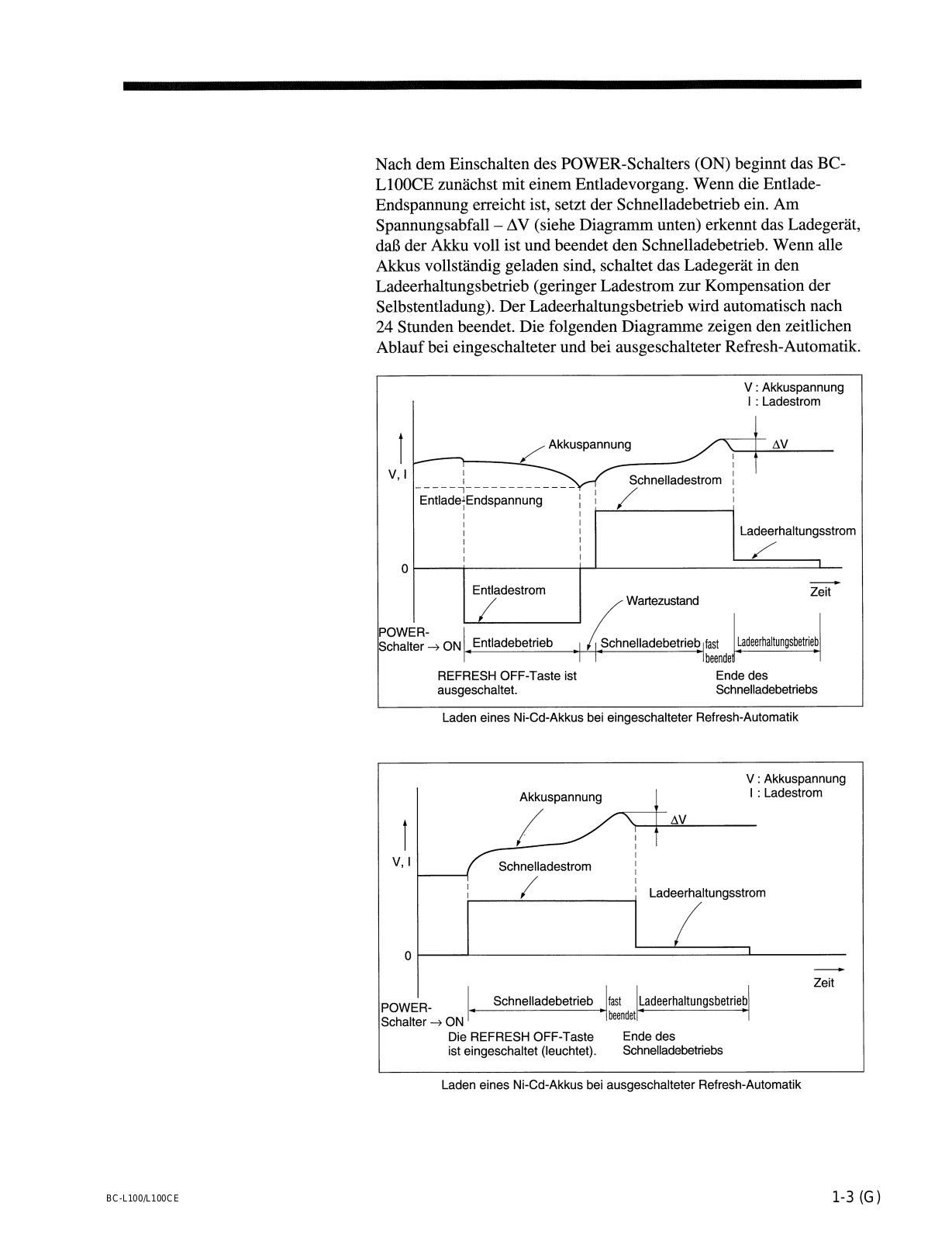

1-3 (G)

1-4 (G)

BC-L100/L100CE

BC-L100/L100CE

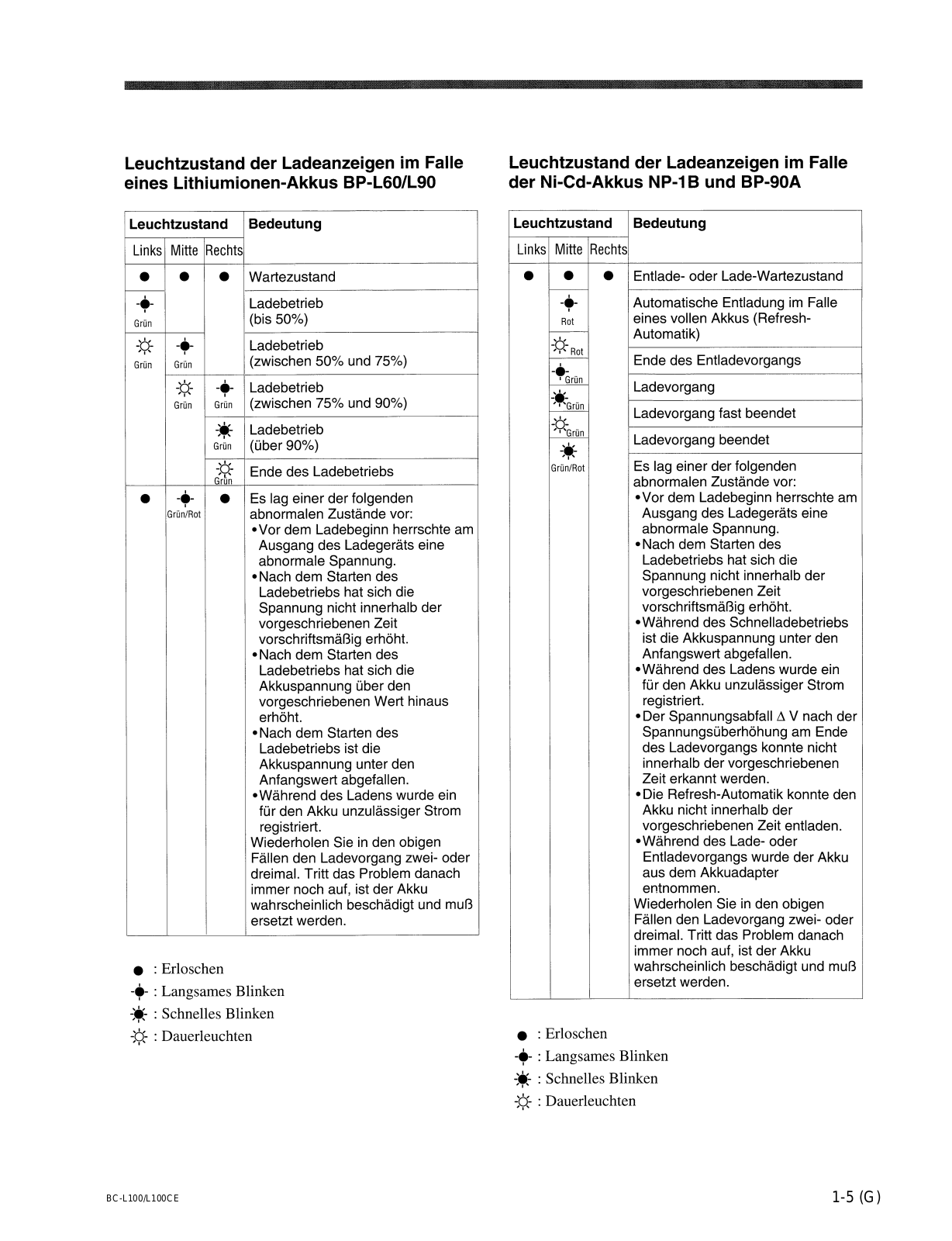

1-5 (G)

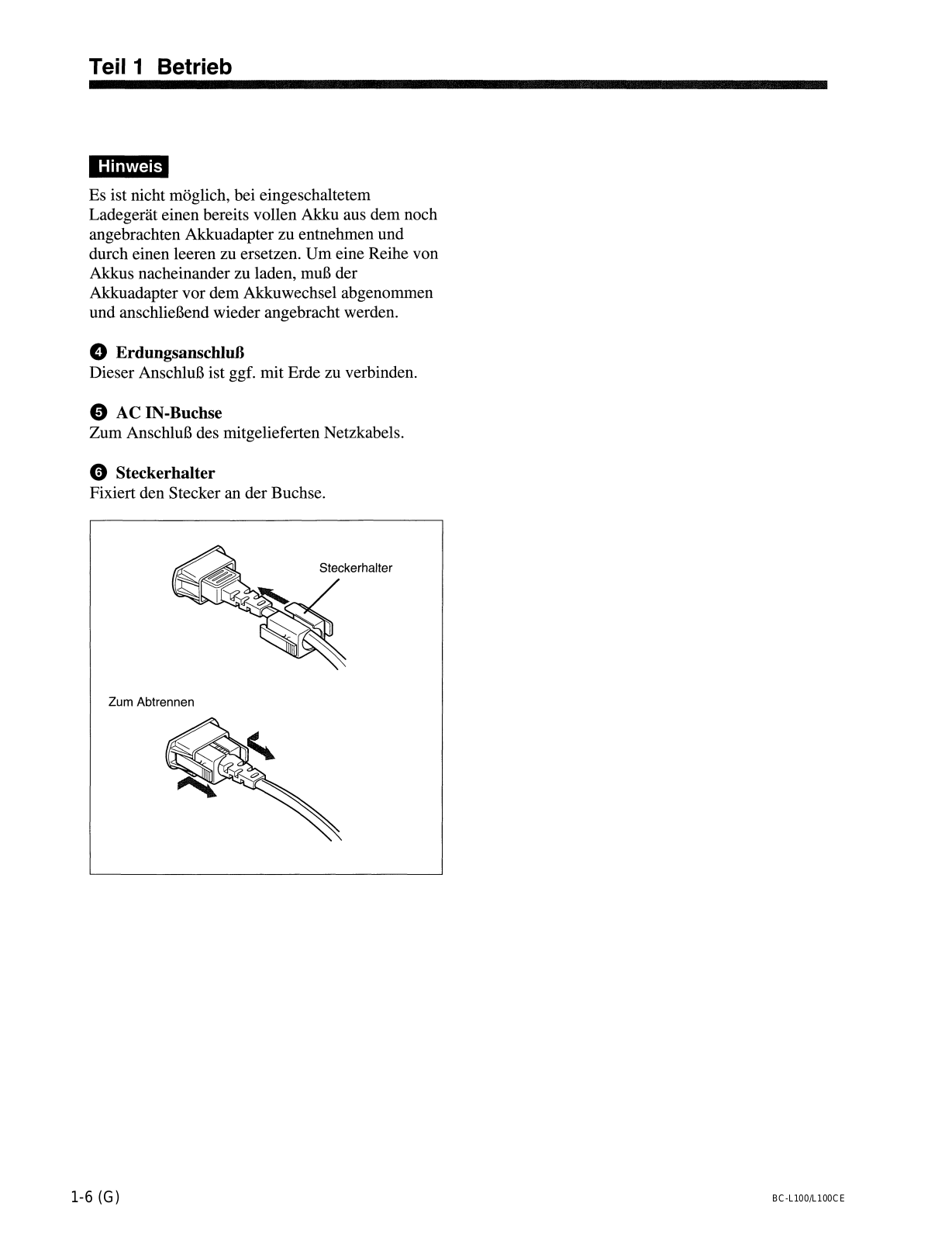

1-6 (G)

BC-L100/L100CE

BC-L100/L100CE

1-7 (G)

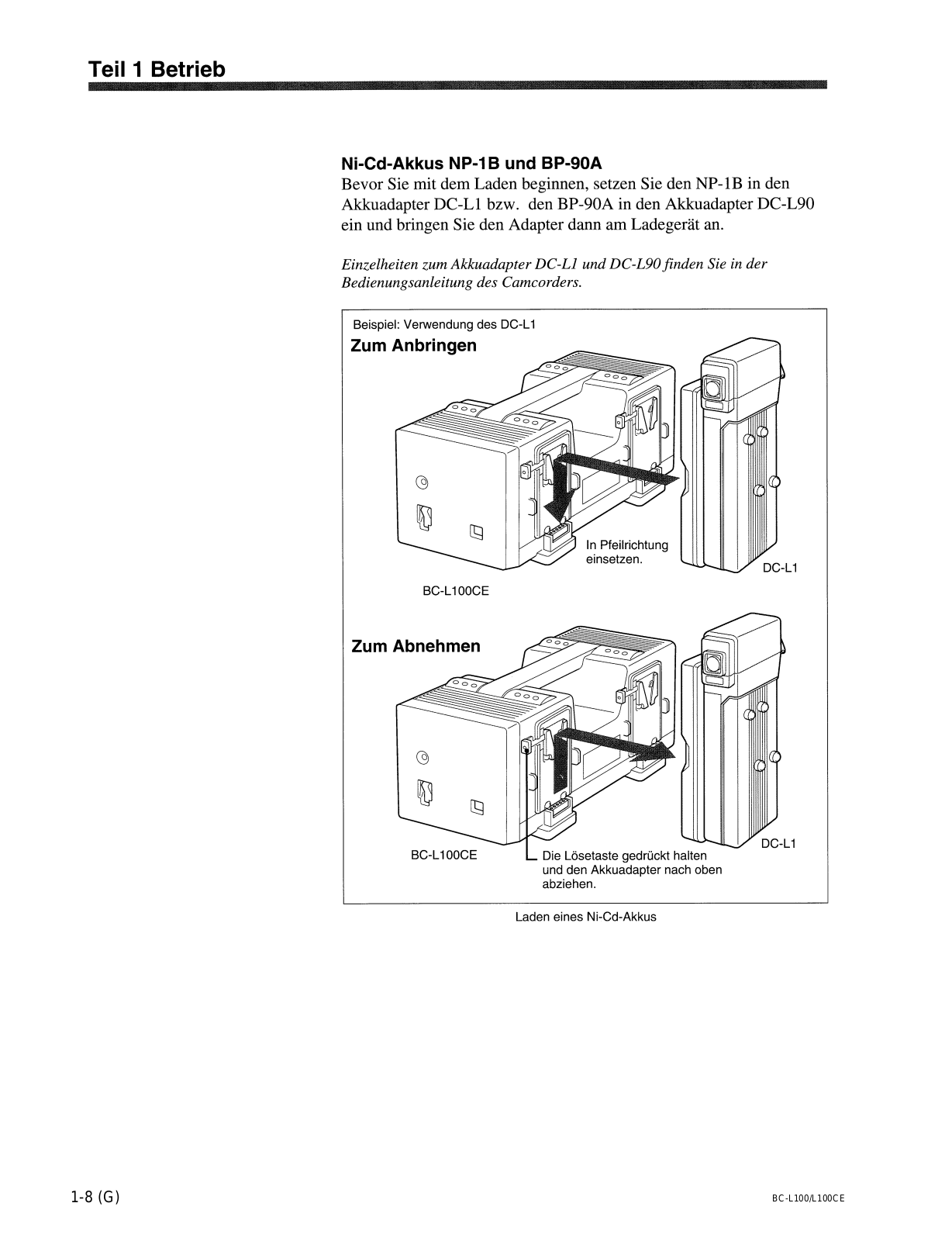

1-8 (G)

BC-L100/L100CE

BC-L100/L100CE

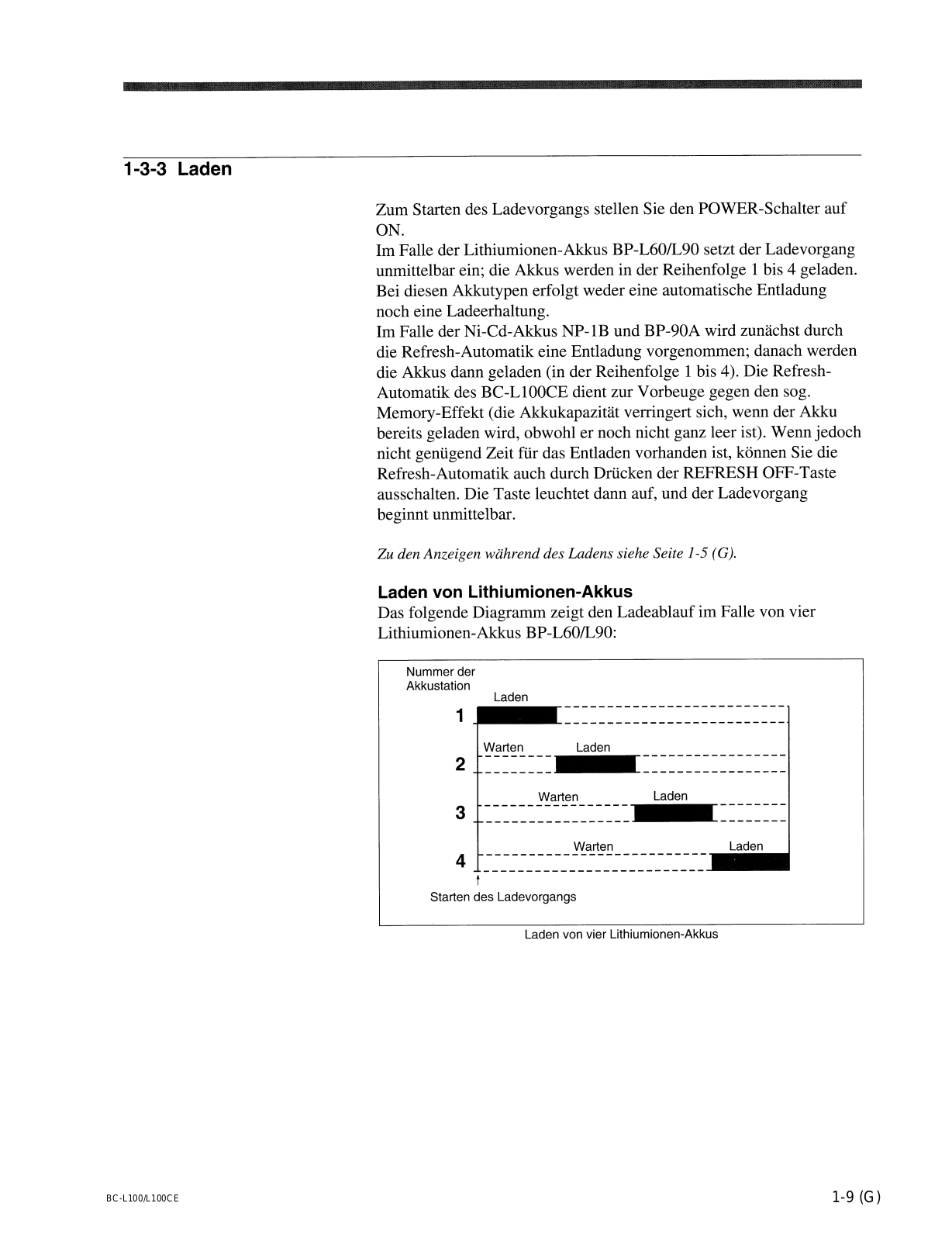

1-9 (G)

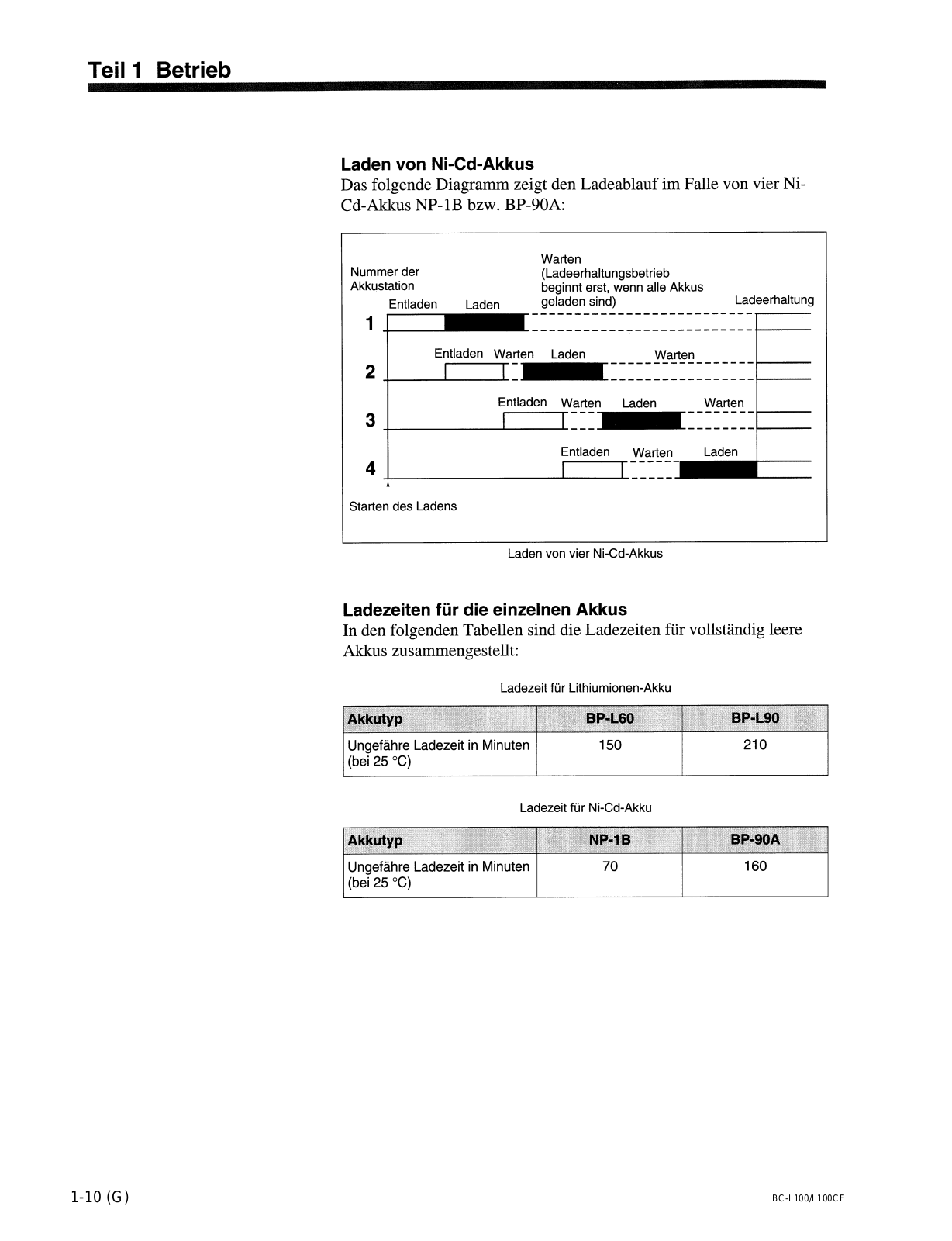

1-10 (G)

BC-L100/L100CE

BC-L100/L100CE

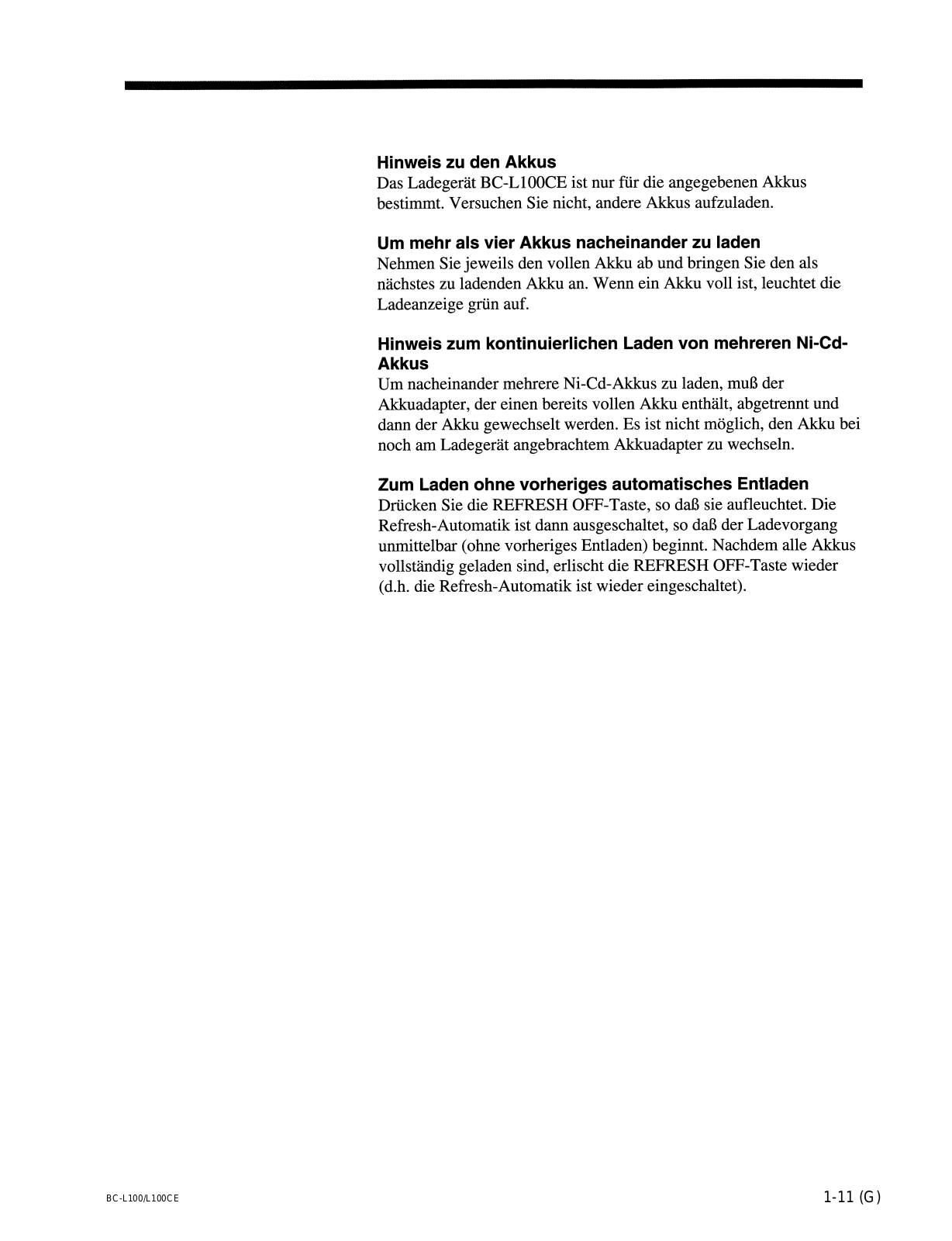

1-11 (G)

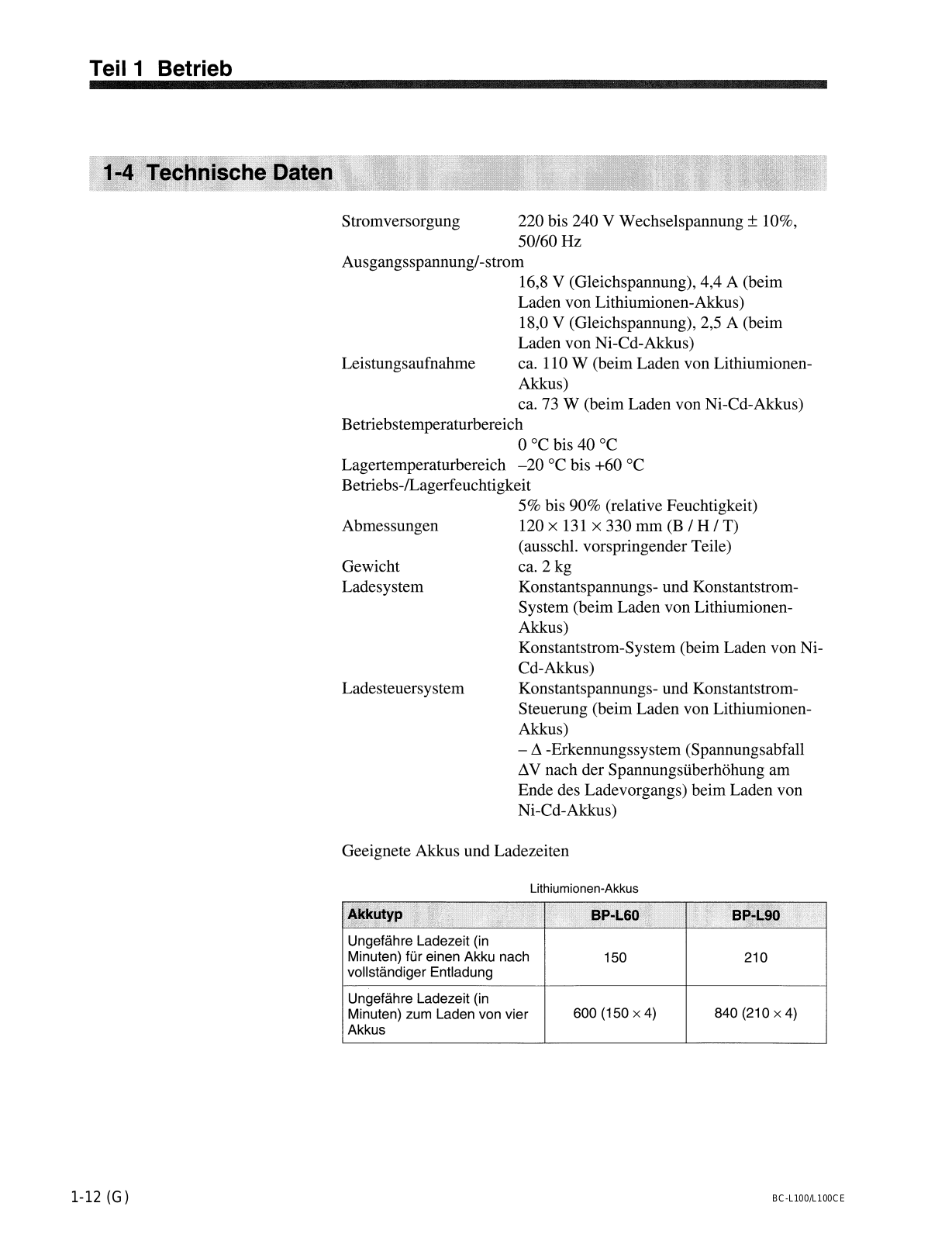

1-12 (G)

BC-L100/L100CE

BC-L100/L100CE

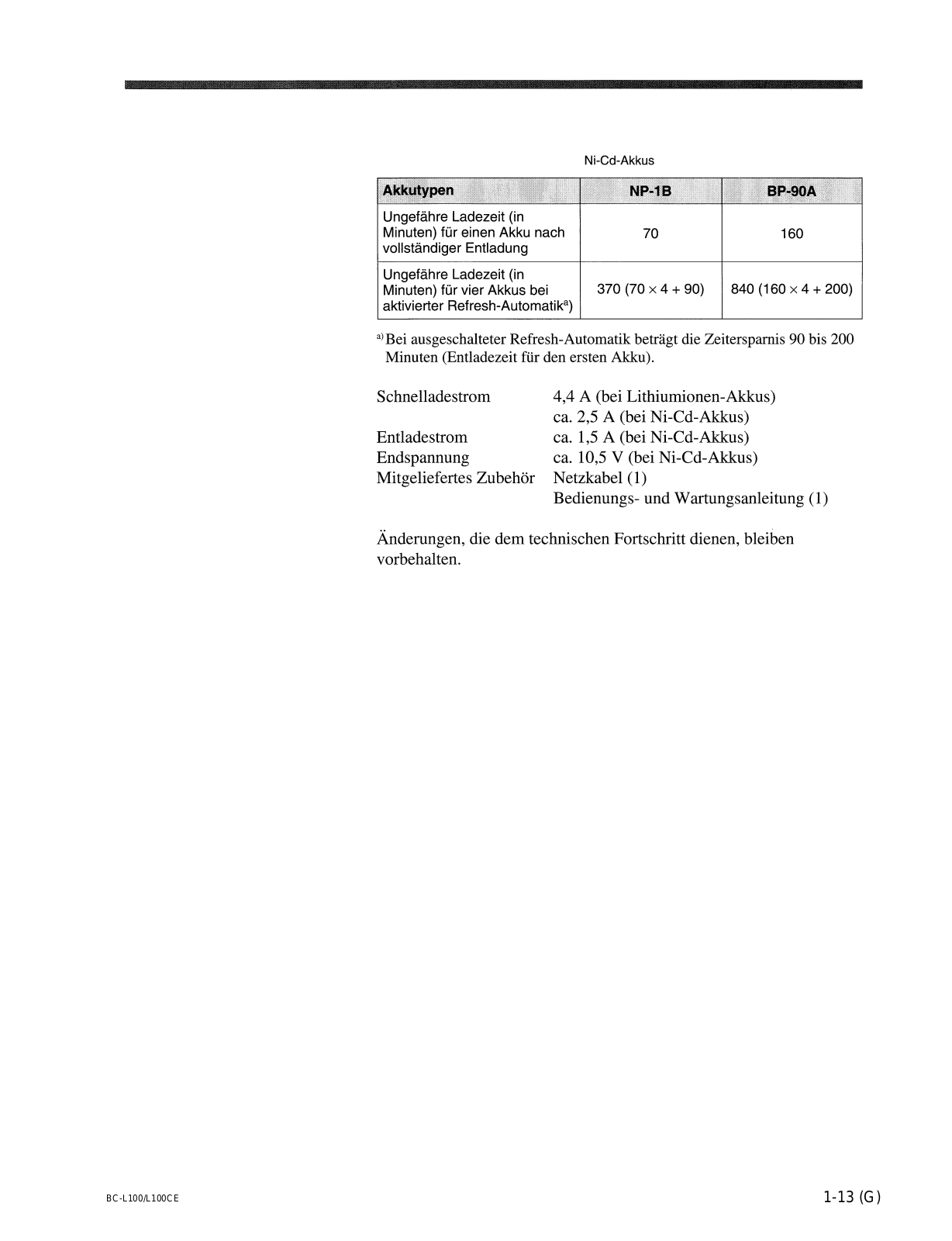

1-13 (G)

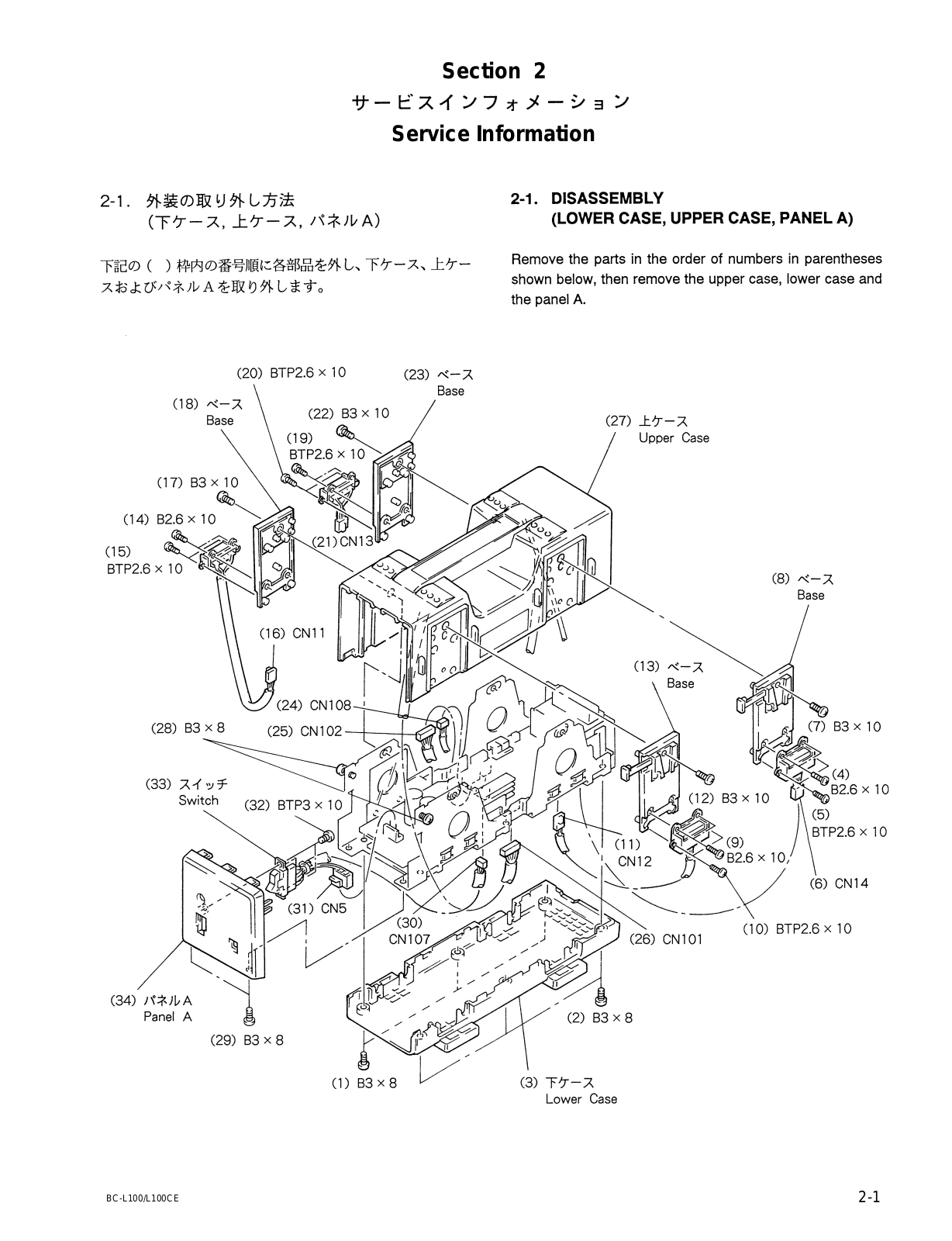

Section 2

Service Information

BC-L100/L100CE

2-1

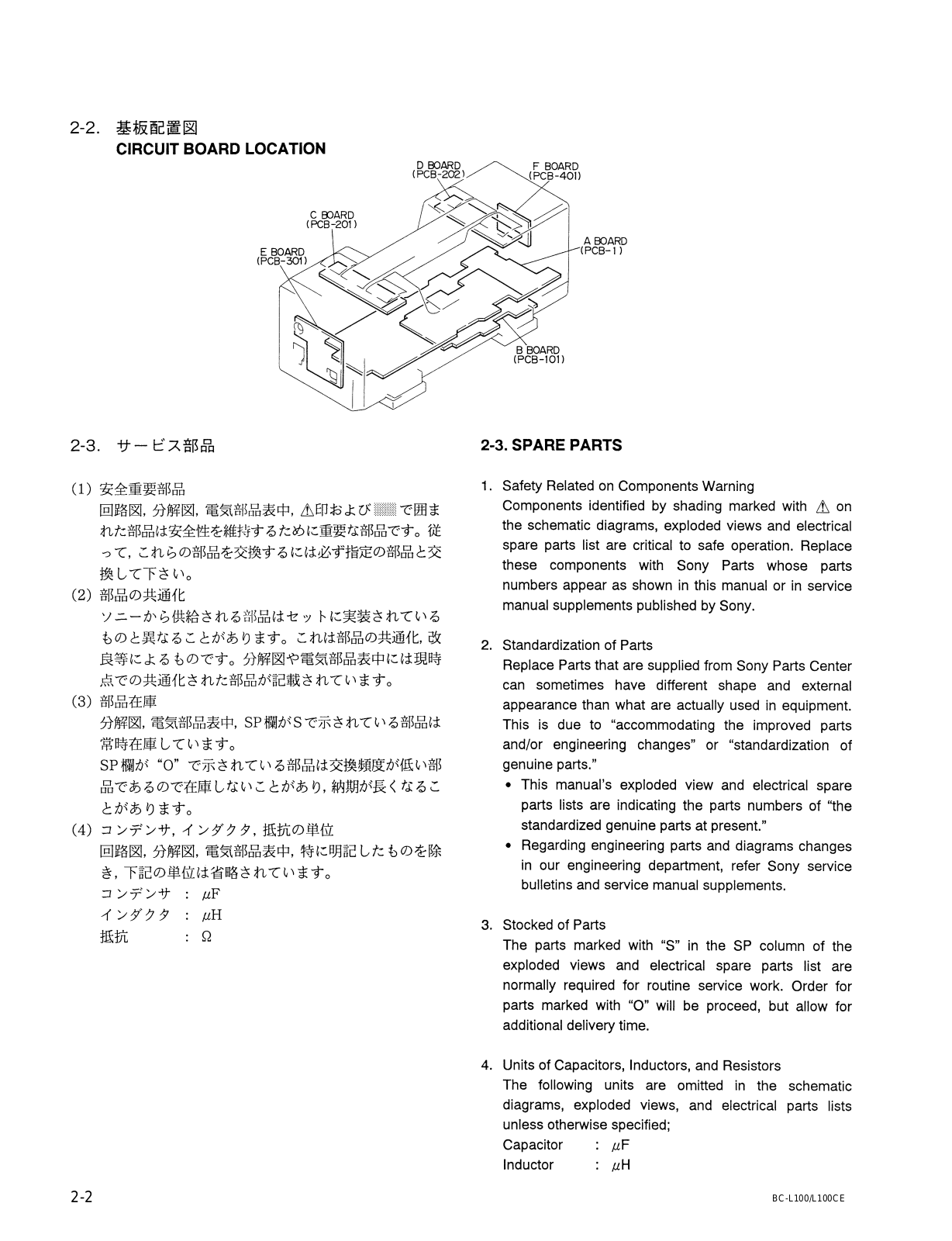

2-2

BC-L100/L100CE

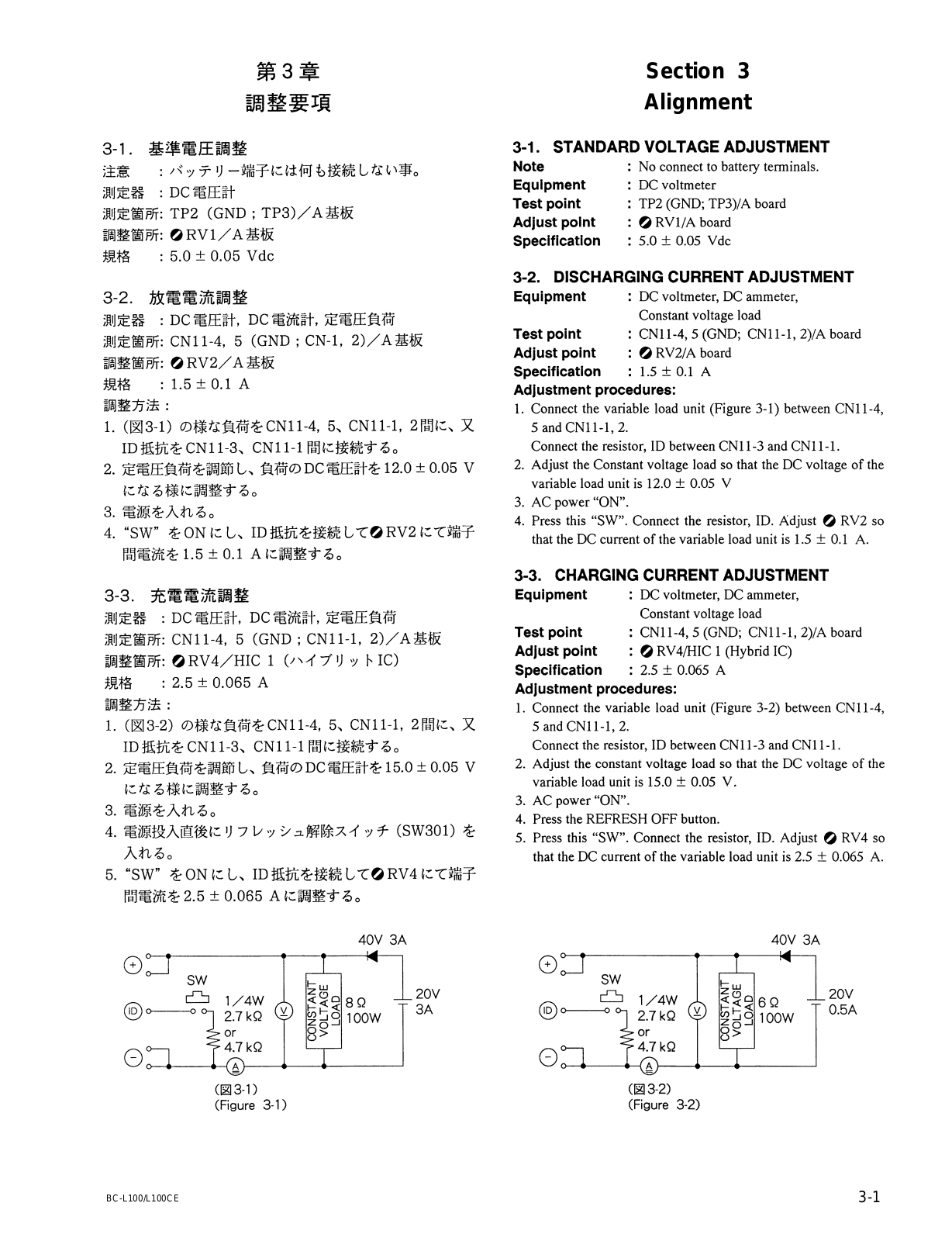

Section 3

Alignment

BC-L100/L100CE

3-1

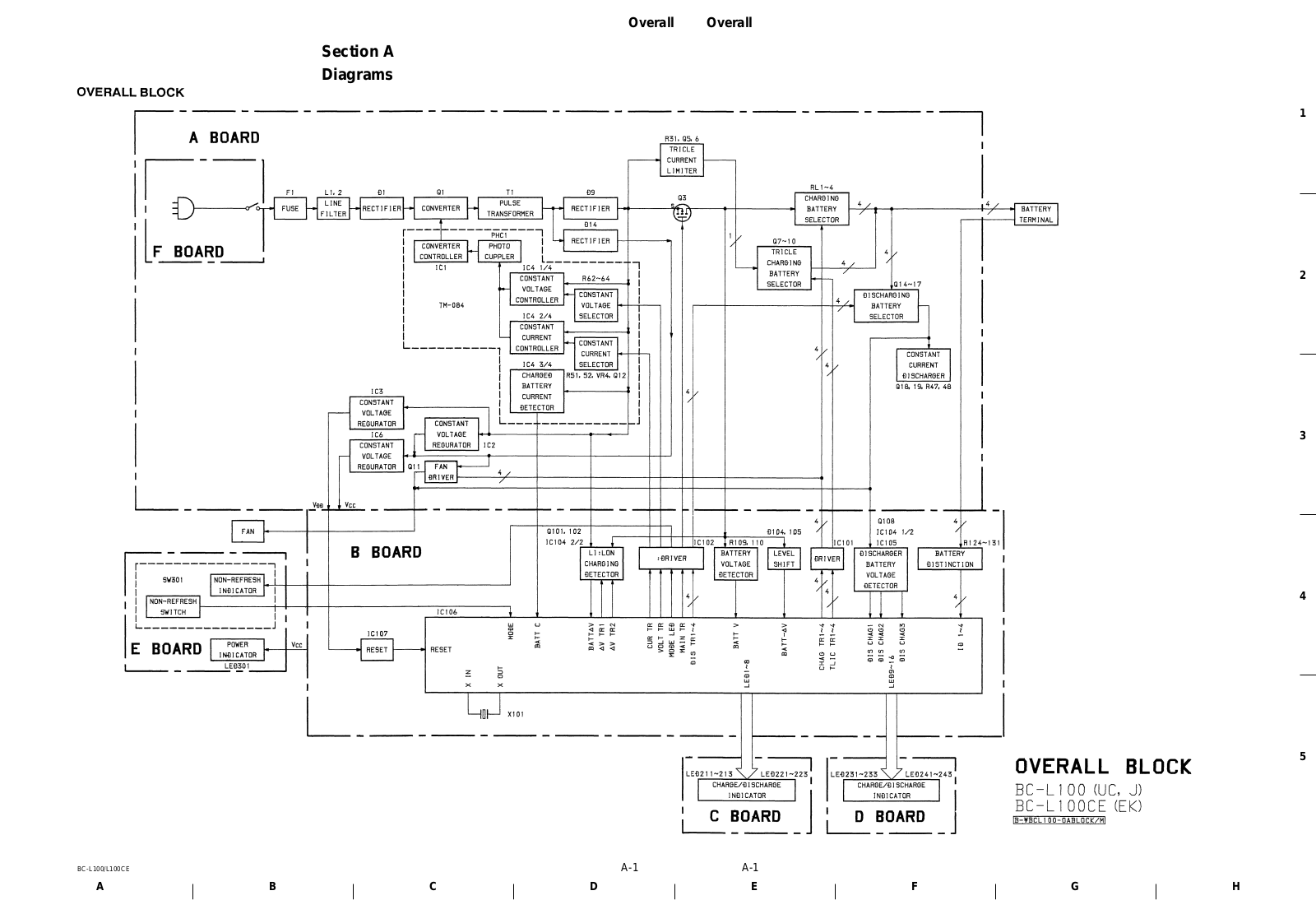

Section A Diagrams

OverallOverall

1

2

3

4

5

BC-L100/L100CE

A B C D E F G H

A-1 A-1

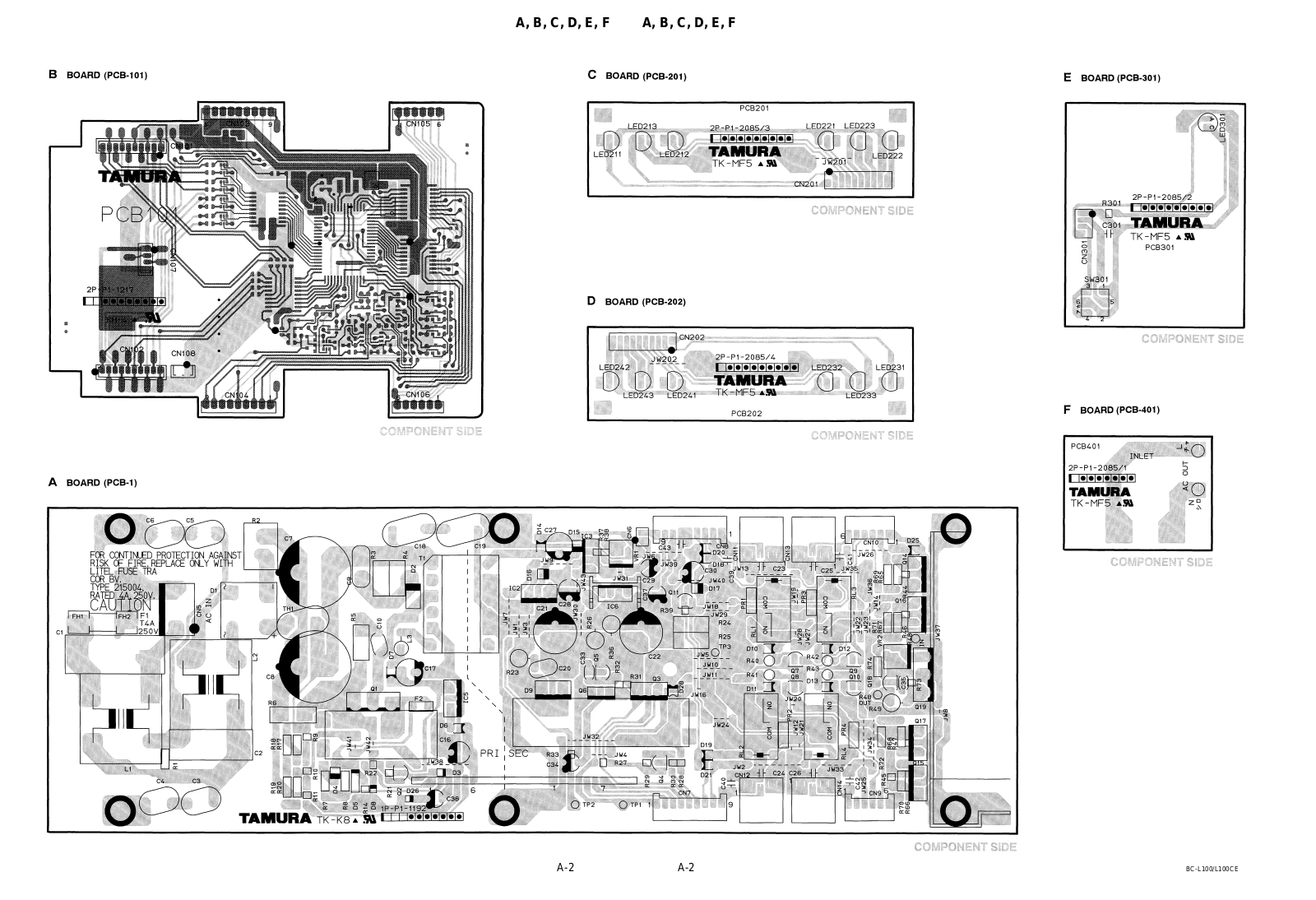

A, B, C, D, E, FA, B, C, D, E, F

A-2A-2

BC-L100/L100CE

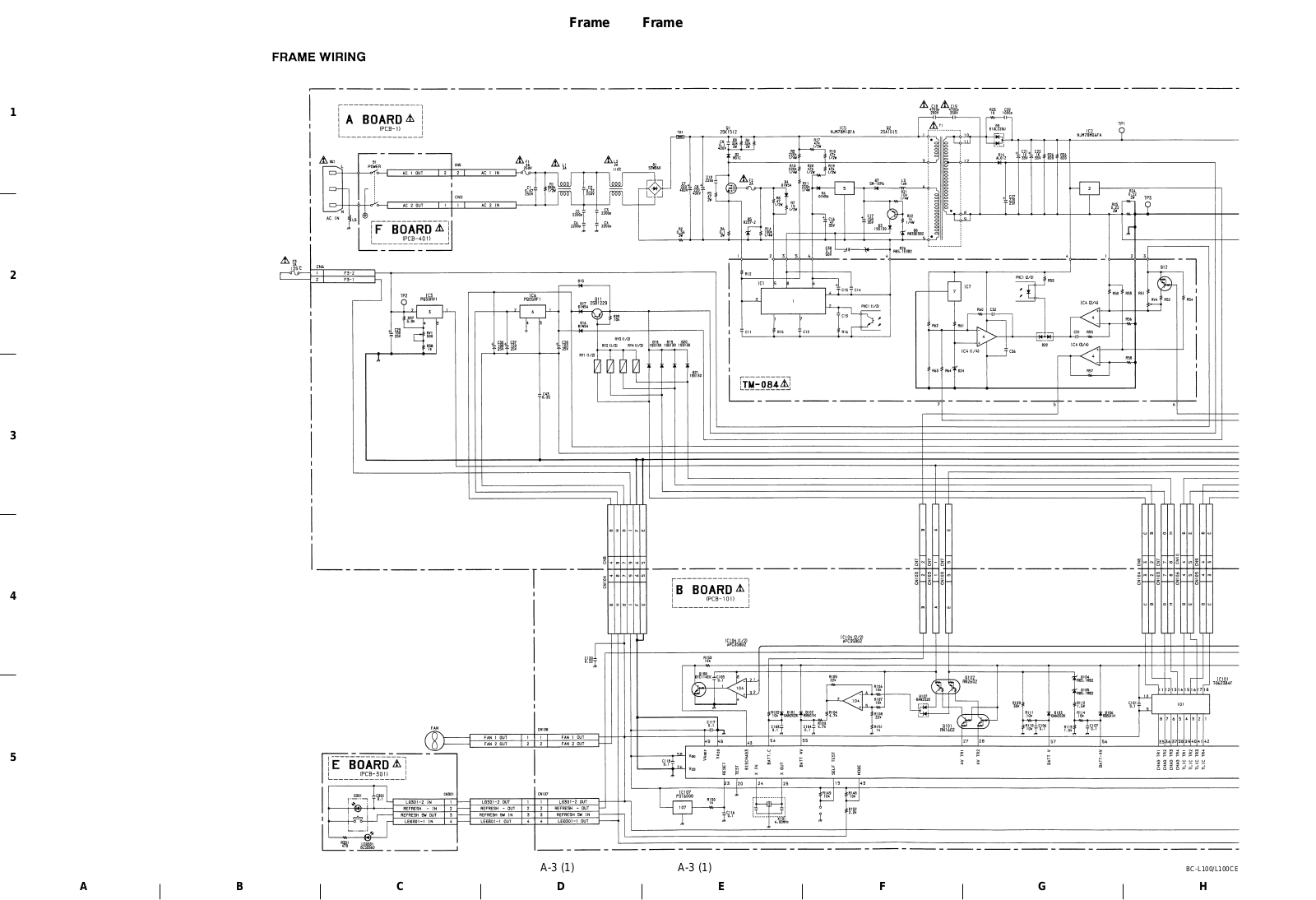

FrameFrame

1

2

3

4

5

A-3 (1)A-3 (1)

BC-L100/L100CE

A B C D E F G H

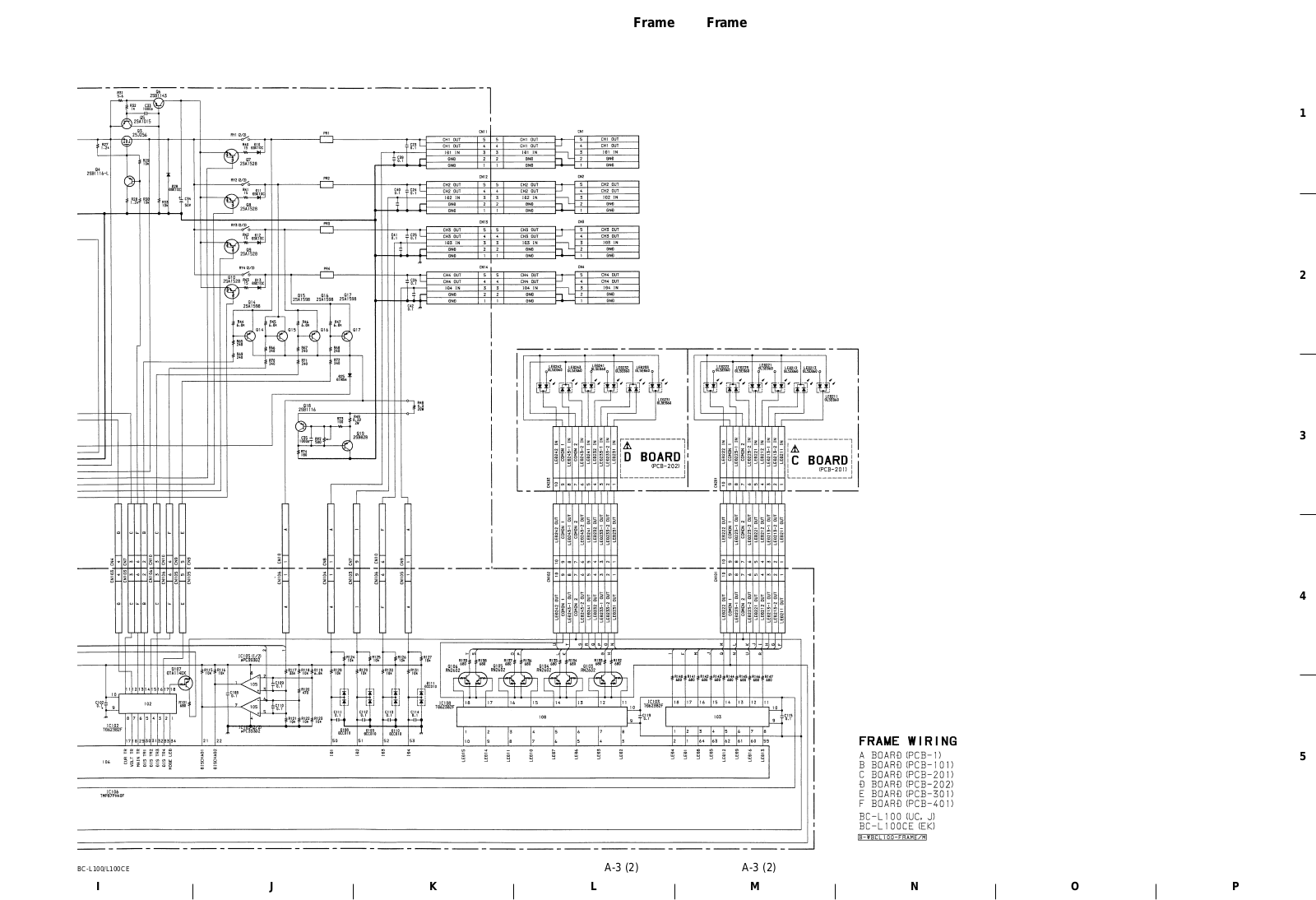

FrameFrame

1

2

3

4

5

BC-L100/L100CE

A-3 (2) A-3 (2)

I J K L M N O P

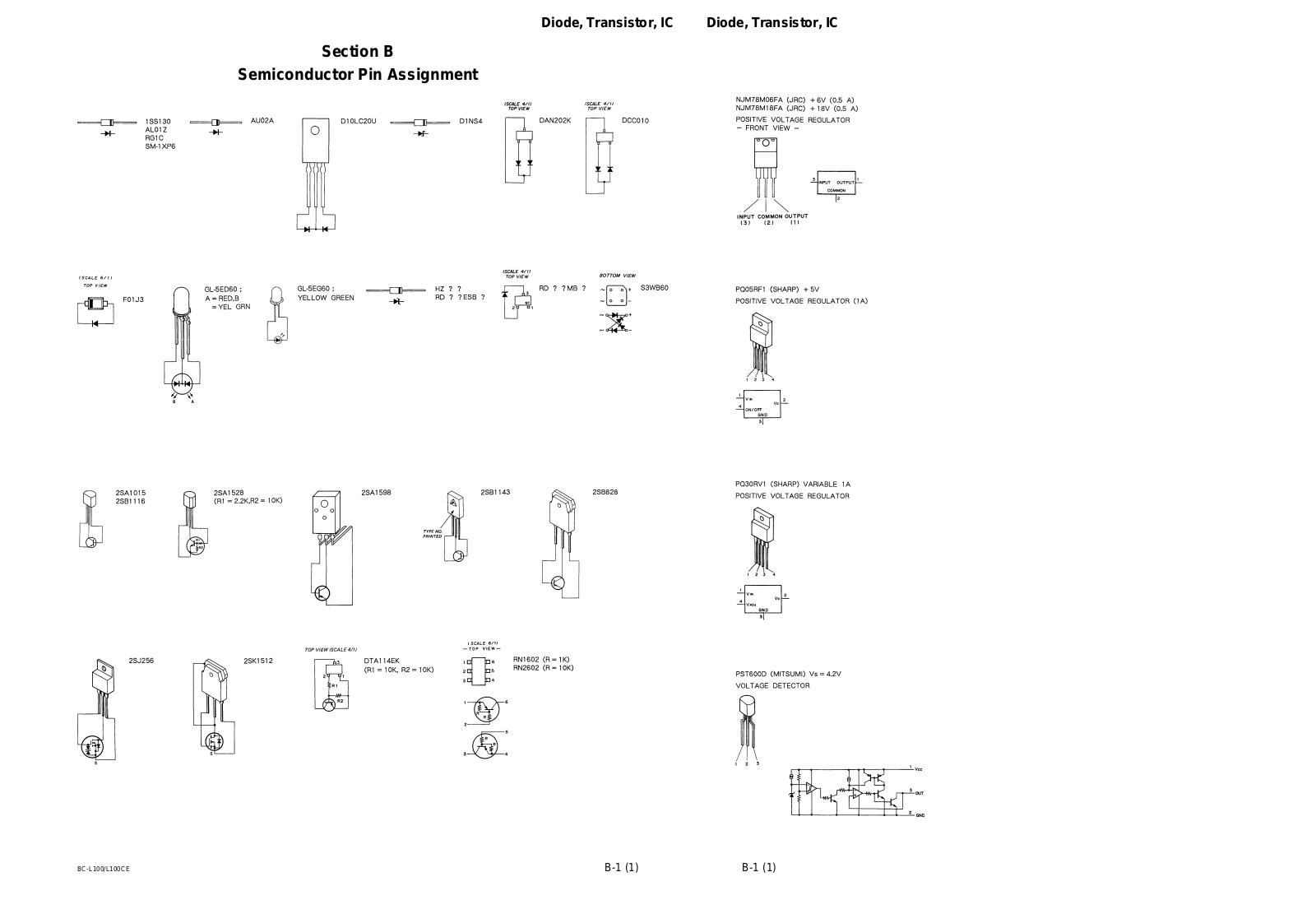

Section B

Semiconductor Pin Assignment

Diode, Transistor, ICDiode, Transistor, IC

BC-L100/L100CE

B-1 (1) B-1 (1)

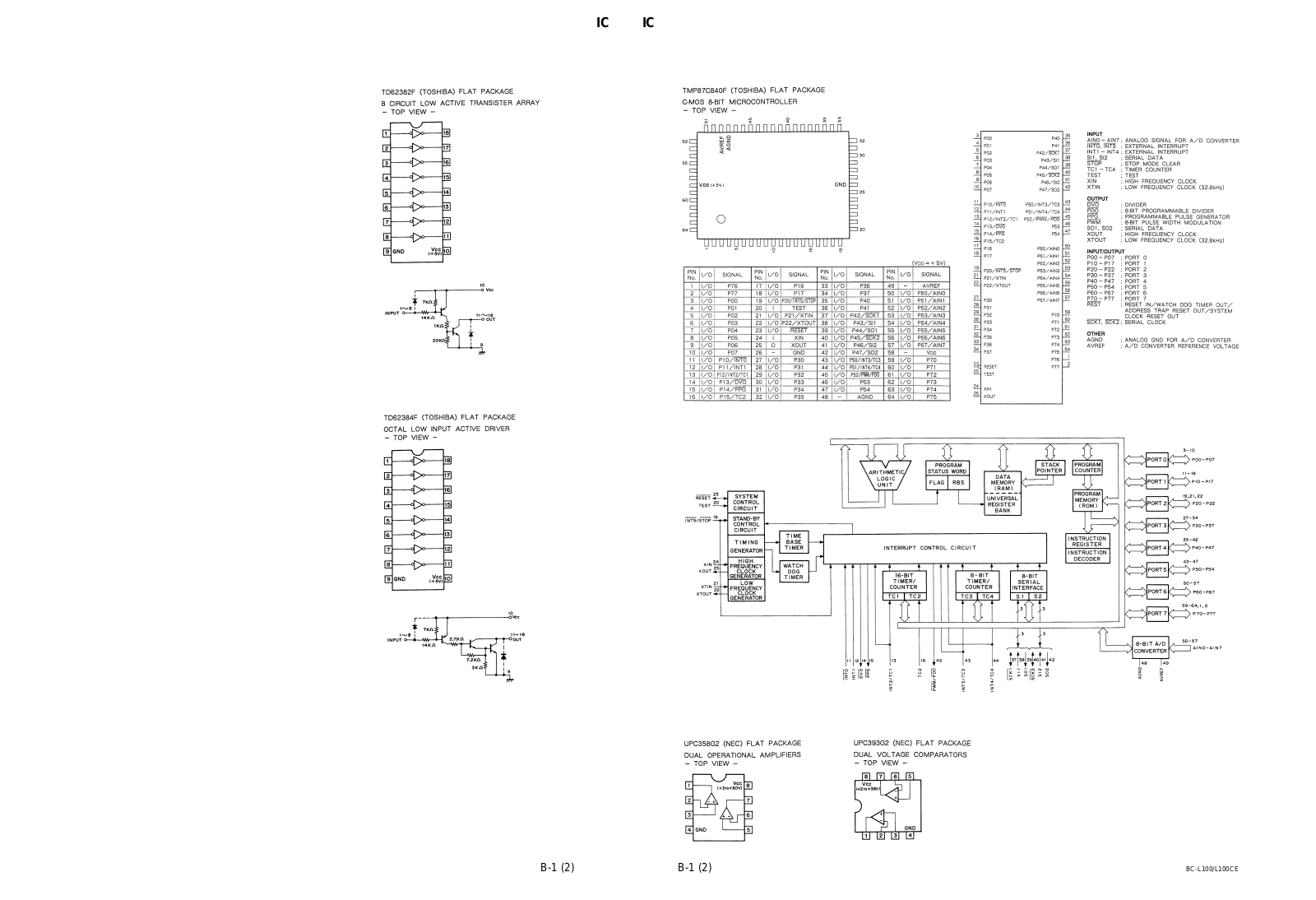

ICIC

B-1 (2)B-1 (2)

BC-L100/L100CE

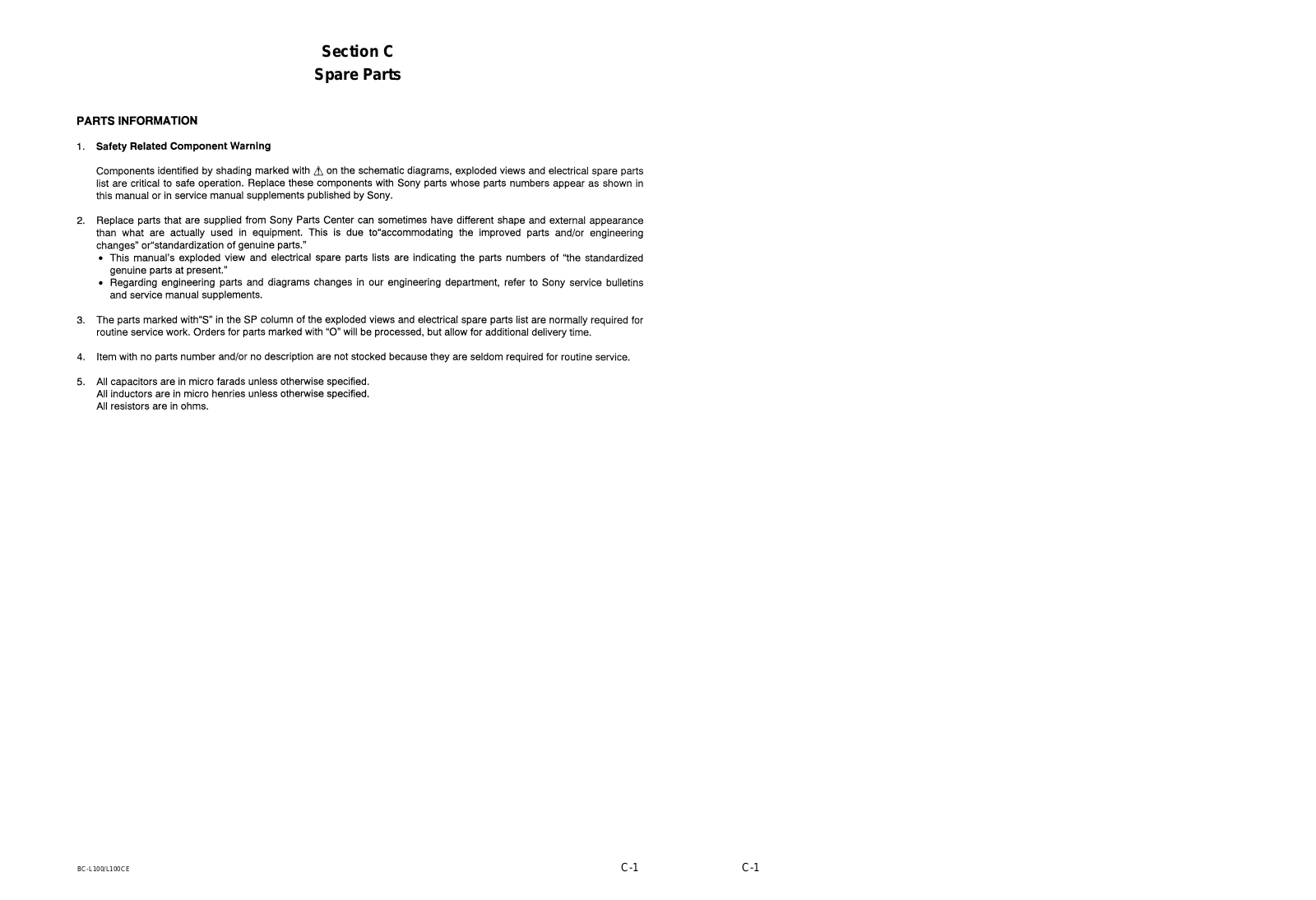

Section C

Spare Parts

BC-L100/L100CE

C-1 C-1

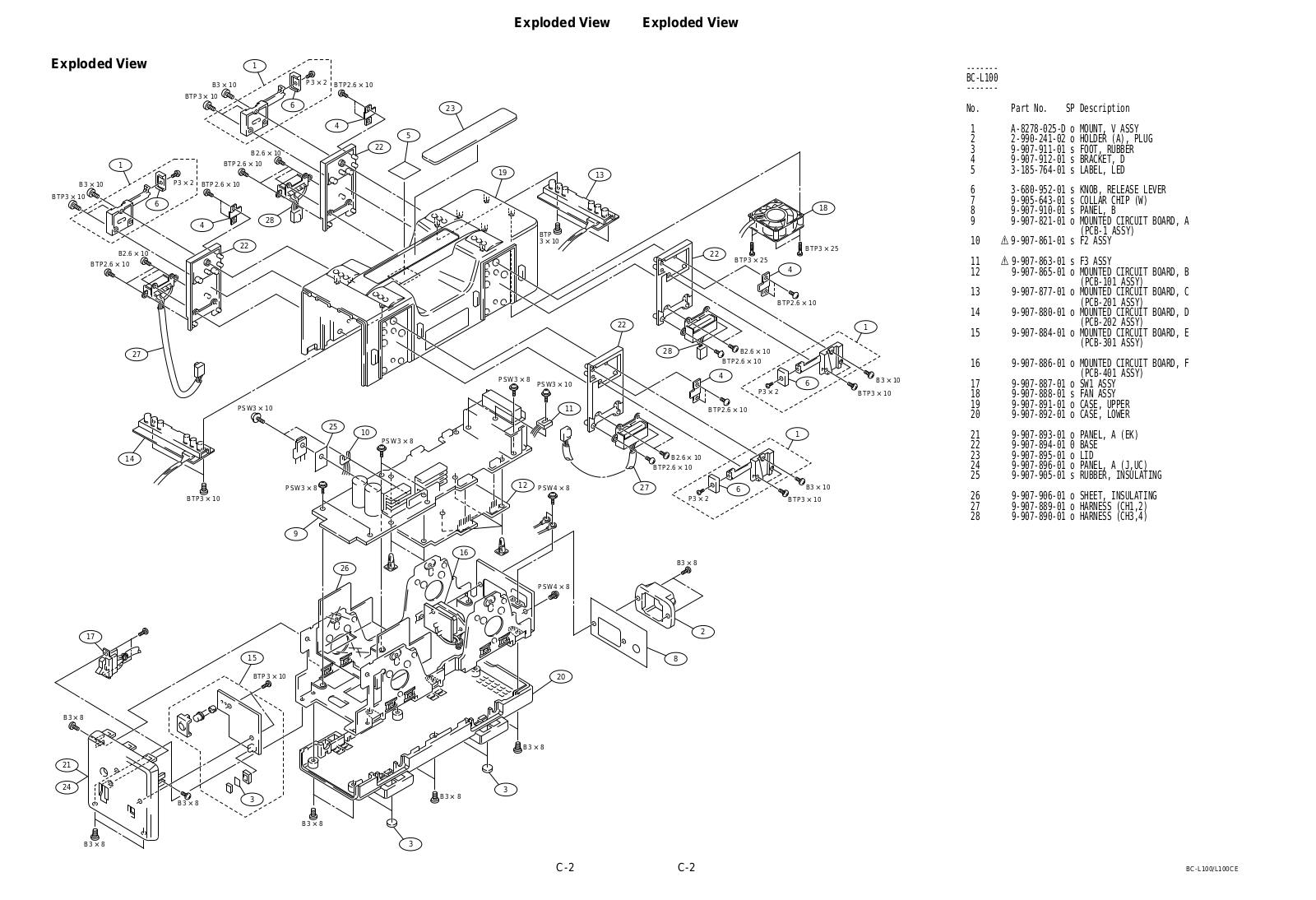

Exploded ViewExploded View

Exploded View

1

B3 x 10

BTP3 x 10

B2.6 x 10

BTP2.6 x 10

27

14

1

B3 x 10

BTP3 x 10

B2.6 x 10

BTP2.6 x 10

P3 x 2

BTP2.6 x 10

6

4

28

22

P3 x 2

BTP2.6 x 10

6

4

5

22

23

19

BTP
3 x 10

13

18

22

BTP3 x 25

BTP3 x 25

4

------­BC-L100

------­No. Part No. SP Description
1 A-8278-025-D o MOUNT, V ASSY

2 2-990-241-02 o HOLDER (A), PLUG
3 9-907-911-01 s FOOT, RUBBER
4 9-907-912-01 s BRACKET, D
5 3-185-764-01 s LABEL, LED

6 3-680-952-01 s KNOB, RELEASE LEVER
7 9-905-643-01 s COLLAR CHIP (W)
8 9-907-910-01 s PANEL, B
9 9-907-821-01 o MOUNTED CIRCUIT BOARD, A
(PCB-1 ASSY)
10 ! 9-907-861-01 s F2 ASSY

11 ! 9-907-863-01 s F3 ASSY
12 9-907-865-01 o MOUNTED CIRCUIT BOARD, B
(PCB-101 ASSY)
13 9-907-877-01 o MOUNTED CIRCUIT BOARD, C

BTP2.6 x 10

(PCB-201 ASSY)
14 9-907-880-01 o MOUNTED CIRCUIT BOARD, D
(PCB-202 ASSY)
15 9-907-884-01 o MOUNTED CIRCUIT BOARD, E
(PCB-301 ASSY)

16 9-907-886-01 o MOUNTED CIRCUIT BOARD, F
(PCB-401 ASSY)
17 9-907-887-01 o SW1 ASSY
18 9-907-888-01 s FAN ASSY
19 9-907-891-01 o CASE, UPPER
20 9-907-892-01 o CASE, LOWER

21 9-907-893-01 o PANEL, A (EK)
22 9-907-894-01 0 BASE
23 9-907-895-01 o LID
24 9-907-896-01 o PANEL, A (J,UC)
25 9-907-905-01 s RUBBER, INSULATING

26 9-907-906-01 o SHEET, INSULATING
27 9-907-889-01 o HARNESS (CH1,2)

BTP3 x 10

PSW3 x 10

PSW3 x 8

22

28

PSW3 x 8

25

10

PSW3 x 8

12

PSW3 x 10

PSW4 x 8

11

B2.6 x 10

BTP2.6 x 10

27

P3 x 2

BTP2.6 x 10

4

BTP2.6 x 10

6

B2.6 x 10

P3 x 2

6

1

B3 x 10

BTP3 x 10

1

B3 x 10

BTP3 x 10

28 9-907-890-01 o HARNESS (CH3,4)

9

16

26

PSW4 x 8

B3 x 8

B3 x 8

21

24

17

B3 x 8

B3 x 8

15

BTP3 x 10

3

B3 x 8

2

8

20

B3 x 8

B3 x 8

3

3

C-2C-2

BC-L100/L100CE

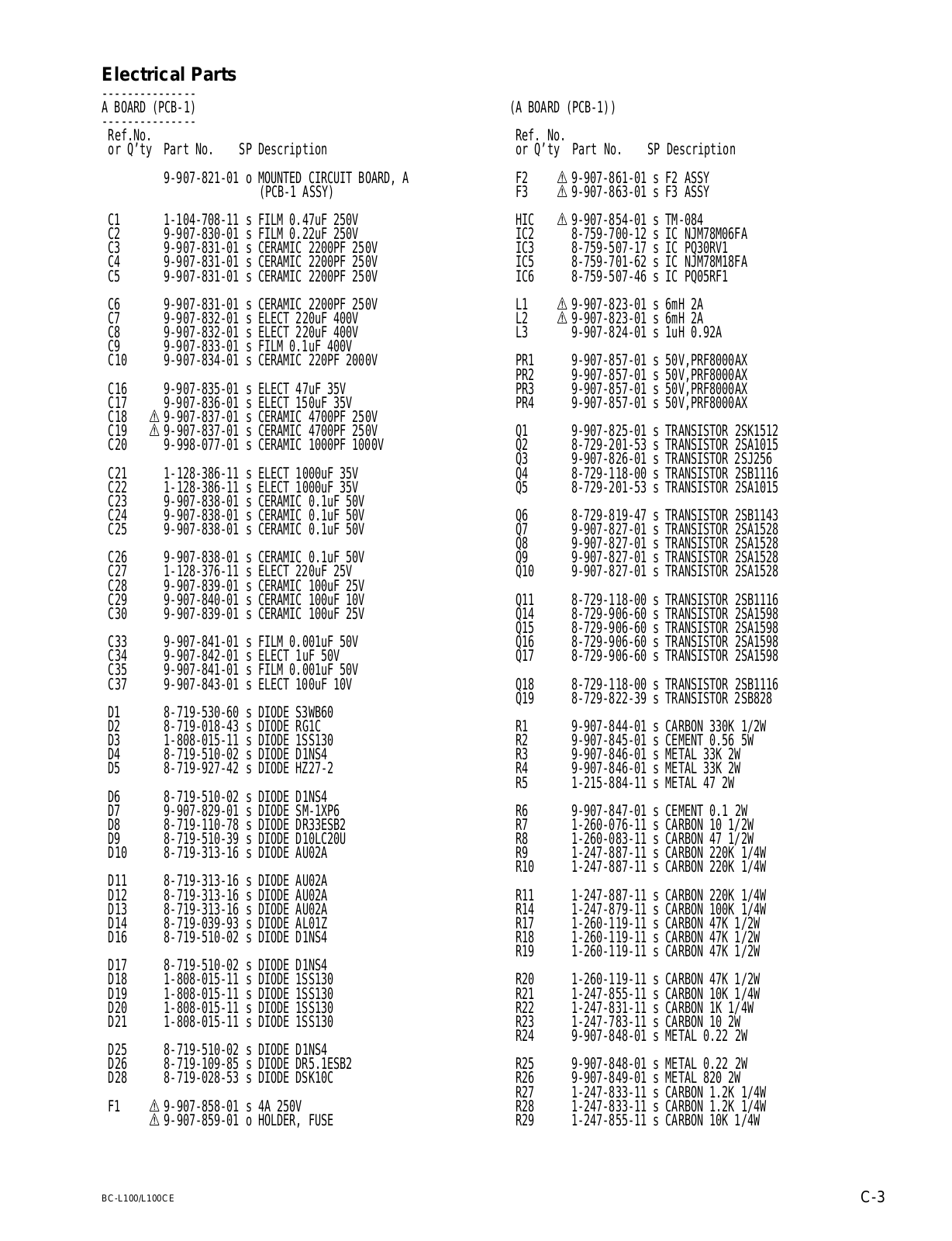

Electrical Parts

--------------­A BOARD (PCB-1)

--------------­ Ref.No.
or Q’ty Part No. SP Description

(A BOARD (PCB-1))
Ref. No.

or Q’ty Part No. SP Description

(PCB-1 ASSY)

9-907-821-01 o MOUNTED CIRCUIT BOARD, A

C1 1-104-708-11 s FILM 0.47uF 250V
C2 9-907-830-01 s FILM 0.22uF 250V
C3 9-907-831-01 s CERAMIC 2200PF 250V
C4 9-907-831-01 s CERAMIC 2200PF 250V
C5 9-907-831-01 s CERAMIC 2200PF 250V

C6 9-907-831-01 s CERAMIC 2200PF 250V
C7 9-907-832-01 s ELECT 220uF 400V
C8 9-907-832-01 s ELECT 220uF 400V
C9 9-907-833-01 s FILM 0.1uF 400V
C10 9-907-834-01 s CERAMIC 220PF 2000V

C16 9-907-835-01 s ELECT 47uF 35V
C17 9-907-836-01 s ELECT 150uF 35V
C18 ! 9-907-837-01 s CERAMIC 4700PF 250V
C19 ! 9-907-837-01 s CERAMIC 4700PF 250V
C20 9-998-077-01 s CERAMIC 1000PF 1000V

C21 1-128-386-11 s ELECT 1000uF 35V
C22 1-128-386-11 s ELECT 1000uF 35V
C23 9-907-838-01 s CERAMIC 0.1uF 50V
C24 9-907-838-01 s CERAMIC 0.1uF 50V
C25 9-907-838-01 s CERAMIC 0.1uF 50V

C26 9-907-838-01 s CERAMIC 0.1uF 50V
C27 1-128-376-11 s ELECT 220uF 25V
C28 9-907-839-01 s CERAMIC 100uF 25V
C29 9-907-840-01 s CERAMIC 100uF 10V
C30 9-907-839-01 s CERAMIC 100uF 25V

C33 9-907-841-01 s FILM 0.001uF 50V
C34 9-907-842-01 s ELECT 1uF 50V
C35 9-907-841-01 s FILM 0.001uF 50V
C37 9-907-843-01 s ELECT 100uF 10V

D1 8-719-530-60 s DIODE S3WB60
D2 8-719-018-43 s DIODE RG1C
D3 1-808-015-11 s DIODE 1SS130
D4 8-719-510-02 s DIODE D1NS4
D5 8-719-927-42 s DIODE HZ27-2

D6 8-719-510-02 s DIODE D1NS4
D7 9-907-829-01 s DIODE SM-1XP6
D8 8-719-110-78 s DIODE DR33ESB2
D9 8-719-510-39 s DIODE D10LC20U
D10 8-719-313-16 s DIODE AU02A

D11 8-719-313-16 s DIODE AU02A
D12 8-719-313-16 s DIODE AU02A
D13 8-719-313-16 s DIODE AU02A
D14 8-719-039-93 s DIODE AL01Z
D16 8-719-510-02 s DIODE D1NS4

D17 8-719-510-02 s DIODE D1NS4
D18 1-808-015-11 s DIODE 1SS130
D19 1-808-015-11 s DIODE 1SS130
D20 1-808-015-11 s DIODE 1SS130
D21 1-808-015-11 s DIODE 1SS130

D25 8-719-510-02 s DIODE D1NS4
D26 8-719-109-85 s DIODE DR5.1ESB2
D28 8-719-028-53 s DIODE DSK10C

F1 ! 9-907-858-01 s 4A 250V

! 9-907-859-01 o HOLDER, FUSE

F2 ! 9-907-861-01 s F2 ASSY
F3 ! 9-907-863-01 s F3 ASSY

HIC ! 9-907-854-01 s TM-084
IC2 8-759-700-12 s IC NJM78M06FA
IC3 8-759-507-17 s IC PQ30RV1
IC5 8-759-701-62 s IC NJM78M18FA
IC6 8-759-507-46 s IC PQ05RF1

L1 ! 9-907-823-01 s 6mH 2A
L2 ! 9-907-823-01 s 6mH 2A
L3 9-907-824-01 s 1uH 0.92A

PR1 9-907-857-01 s 50V,PRF8000AX
PR2 9-907-857-01 s 50V,PRF8000AX
PR3 9-907-857-01 s 50V,PRF8000AX
PR4 9-907-857-01 s 50V,PRF8000AX

Q1 9-907-825-01 s TRANSISTOR 2SK1512
Q2 8-729-201-53 s TRANSISTOR 2SA1015
Q3 9-907-826-01 s TRANSISTOR 2SJ256
Q4 8-729-118-00 s TRANSISTOR 2SB1116
Q5 8-729-201-53 s TRANSISTOR 2SA1015

Q6 8-729-819-47 s TRANSISTOR 2SB1143
Q7 9-907-827-01 s TRANSISTOR 2SA1528
Q8 9-907-827-01 s TRANSISTOR 2SA1528
Q9 9-907-827-01 s TRANSISTOR 2SA1528
Q10 9-907-827-01 s TRANSISTOR 2SA1528

Q11 8-729-118-00 s TRANSISTOR 2SB1116
Q14 8-729-906-60 s TRANSISTOR 2SA1598
Q15 8-729-906-60 s TRANSISTOR 2SA1598
Q16 8-729-906-60 s TRANSISTOR 2SA1598
Q17 8-729-906-60 s TRANSISTOR 2SA1598

Q18 8-729-118-00 s TRANSISTOR 2SB1116
Q19 8-729-822-39 s TRANSISTOR 2SB828

R1 9-907-844-01 s CARBON 330K 1/2W
R2 9-907-845-01 s CEMENT 0.56 5W
R3 9-907-846-01 s METAL 33K 2W
R4 9-907-846-01 s METAL 33K 2W
R5 1-215-884-11 s METAL 47 2W

R6 9-907-847-01 s CEMENT 0.1 2W
R7 1-260-076-11 s CARBON 10 1/2W
R8 1-260-083-11 s CARBON 47 1/2W
R9 1-247-887-11 s CARBON 220K 1/4W
R10 1-247-887-11 s CARBON 220K 1/4W

R11 1-247-887-11 s CARBON 220K 1/4W
R14 1-247-879-11 s CARBON 100K 1/4W
R17 1-260-119-11 s CARBON 47K 1/2W
R18 1-260-119-11 s CARBON 47K 1/2W
R19 1-260-119-11 s CARBON 47K 1/2W

R20 1-260-119-11 s CARBON 47K 1/2W
R21 1-247-855-11 s CARBON 10K 1/4W
R22 1-247-831-11 s CARBON 1K 1/4W
R23 1-247-783-11 s CARBON 10 2W
R24 9-907-848-01 s METAL 0.22 2W

R25 9-907-848-01 s METAL 0.22 2W
R26 9-907-849-01 s METAL 820 2W
R27 1-247-833-11 s CARBON 1.2K 1/4W
R28 1-247-833-11 s CARBON 1.2K 1/4W
R29 1-247-855-11 s CARBON 10K 1/4W

BC-L100/L100CE

C-3

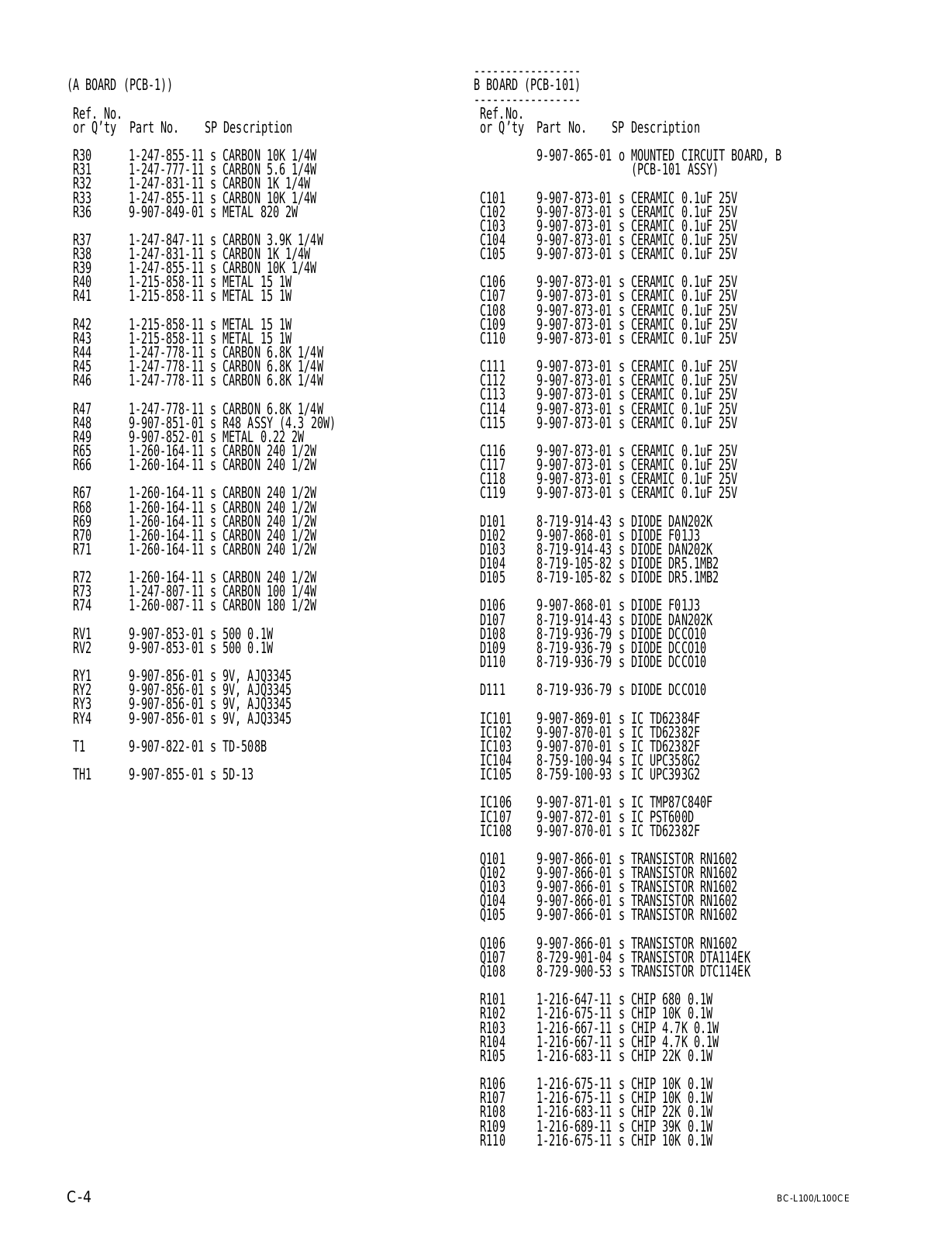

(A BOARD (PCB-1))
Ref. No.

or Q’ty Part No. SP Description

----------------­B BOARD (PCB-101)

----------------­ Ref.No.
or Q’ty Part No. SP Description

R30 1-247-855-11 s CARBON 10K 1/4W
R31 1-247-777-11 s CARBON 5.6 1/4W
R32 1-247-831-11 s CARBON 1K 1/4W
R33 1-247-855-11 s CARBON 10K 1/4W
R36 9-907-849-01 s METAL 820 2W

R37 1-247-847-11 s CARBON 3.9K 1/4W
R38 1-247-831-11 s CARBON 1K 1/4W
R39 1-247-855-11 s CARBON 10K 1/4W
R40 1-215-858-11 s METAL 15 1W
R41 1-215-858-11 s METAL 15 1W

R42 1-215-858-11 s METAL 15 1W
R43 1-215-858-11 s METAL 15 1W
R44 1-247-778-11 s CARBON 6.8K 1/4W
R45 1-247-778-11 s CARBON 6.8K 1/4W
R46 1-247-778-11 s CARBON 6.8K 1/4W

R47 1-247-778-11 s CARBON 6.8K 1/4W
R48 9-907-851-01 s R48 ASSY (4.3 20W)
R49 9-907-852-01 s METAL 0.22 2W
R65 1-260-164-11 s CARBON 240 1/2W
R66 1-260-164-11 s CARBON 240 1/2W

R67 1-260-164-11 s CARBON 240 1/2W
R68 1-260-164-11 s CARBON 240 1/2W
R69 1-260-164-11 s CARBON 240 1/2W
R70 1-260-164-11 s CARBON 240 1/2W
R71 1-260-164-11 s CARBON 240 1/2W

R72 1-260-164-11 s CARBON 240 1/2W
R73 1-247-807-11 s CARBON 100 1/4W
R74 1-260-087-11 s CARBON 180 1/2W

RV1 9-907-853-01 s 500 0.1W
RV2 9-907-853-01 s 500 0.1W

RY1 9-907-856-01 s 9V, AJQ3345
RY2 9-907-856-01 s 9V, AJQ3345
RY3 9-907-856-01 s 9V, AJQ3345
RY4 9-907-856-01 s 9V, AJQ3345

T1 9-907-822-01 s TD-508B
TH1 9-907-855-01 s 5D-13

9-907-865-01 o MOUNTED CIRCUIT BOARD, B
(PCB-101 ASSY)

C101 9-907-873-01 s CERAMIC 0.1uF 25V
C102 9-907-873-01 s CERAMIC 0.1uF 25V
C103 9-907-873-01 s CERAMIC 0.1uF 25V
C104 9-907-873-01 s CERAMIC 0.1uF 25V
C105 9-907-873-01 s CERAMIC 0.1uF 25V

C106 9-907-873-01 s CERAMIC 0.1uF 25V
C107 9-907-873-01 s CERAMIC 0.1uF 25V
C108 9-907-873-01 s CERAMIC 0.1uF 25V
C109 9-907-873-01 s CERAMIC 0.1uF 25V
C110 9-907-873-01 s CERAMIC 0.1uF 25V

C111 9-907-873-01 s CERAMIC 0.1uF 25V
C112 9-907-873-01 s CERAMIC 0.1uF 25V
C113 9-907-873-01 s CERAMIC 0.1uF 25V
C114 9-907-873-01 s CERAMIC 0.1uF 25V
C115 9-907-873-01 s CERAMIC 0.1uF 25V

C116 9-907-873-01 s CERAMIC 0.1uF 25V
C117 9-907-873-01 s CERAMIC 0.1uF 25V
C118 9-907-873-01 s CERAMIC 0.1uF 25V
C119 9-907-873-01 s CERAMIC 0.1uF 25V

D101 8-719-914-43 s DIODE DAN202K
D102 9-907-868-01 s DIODE F01J3
D103 8-719-914-43 s DIODE DAN202K
D104 8-719-105-82 s DIODE DR5.1MB2
D105 8-719-105-82 s DIODE DR5.1MB2

D106 9-907-868-01 s DIODE F01J3
D107 8-719-914-43 s DIODE DAN202K
D108 8-719-936-79 s DIODE DCCO10
D109 8-719-936-79 s DIODE DCCO10
D110 8-719-936-79 s DIODE DCCO10

D111 8-719-936-79 s DIODE DCCO10
IC101 9-907-869-01 s IC TD62384F

IC102 9-907-870-01 s IC TD62382F
IC103 9-907-870-01 s IC TD62382F
IC104 8-759-100-94 s IC UPC358G2
IC105 8-759-100-93 s IC UPC393G2

C-4

IC106 9-907-871-01 s IC TMP87C840F
IC107 9-907-872-01 s IC PST600D
IC108 9-907-870-01 s IC TD62382F

Q101 9-907-866-01 s TRANSISTOR RN1602
Q102 9-907-866-01 s TRANSISTOR RN1602
Q103 9-907-866-01 s TRANSISTOR RN1602
Q104 9-907-866-01 s TRANSISTOR RN1602
Q105 9-907-866-01 s TRANSISTOR RN1602

Q106 9-907-866-01 s TRANSISTOR RN1602
Q107 8-729-901-04 s TRANSISTOR DTA114EK
Q108 8-729-900-53 s TRANSISTOR DTC114EK

R101 1-216-647-11 s CHIP 680 0.1W
R102 1-216-675-11 s CHIP 10K 0.1W
R103 1-216-667-11 s CHIP 4.7K 0.1W
R104 1-216-667-11 s CHIP 4.7K 0.1W
R105 1-216-683-11 s CHIP 22K 0.1W

R106 1-216-675-11 s CHIP 10K 0.1W
R107 1-216-675-11 s CHIP 10K 0.1W
R108 1-216-683-11 s CHIP 22K 0.1W
R109 1-216-689-11 s CHIP 39K 0.1W
R110 1-216-675-11 s CHIP 10K 0.1W

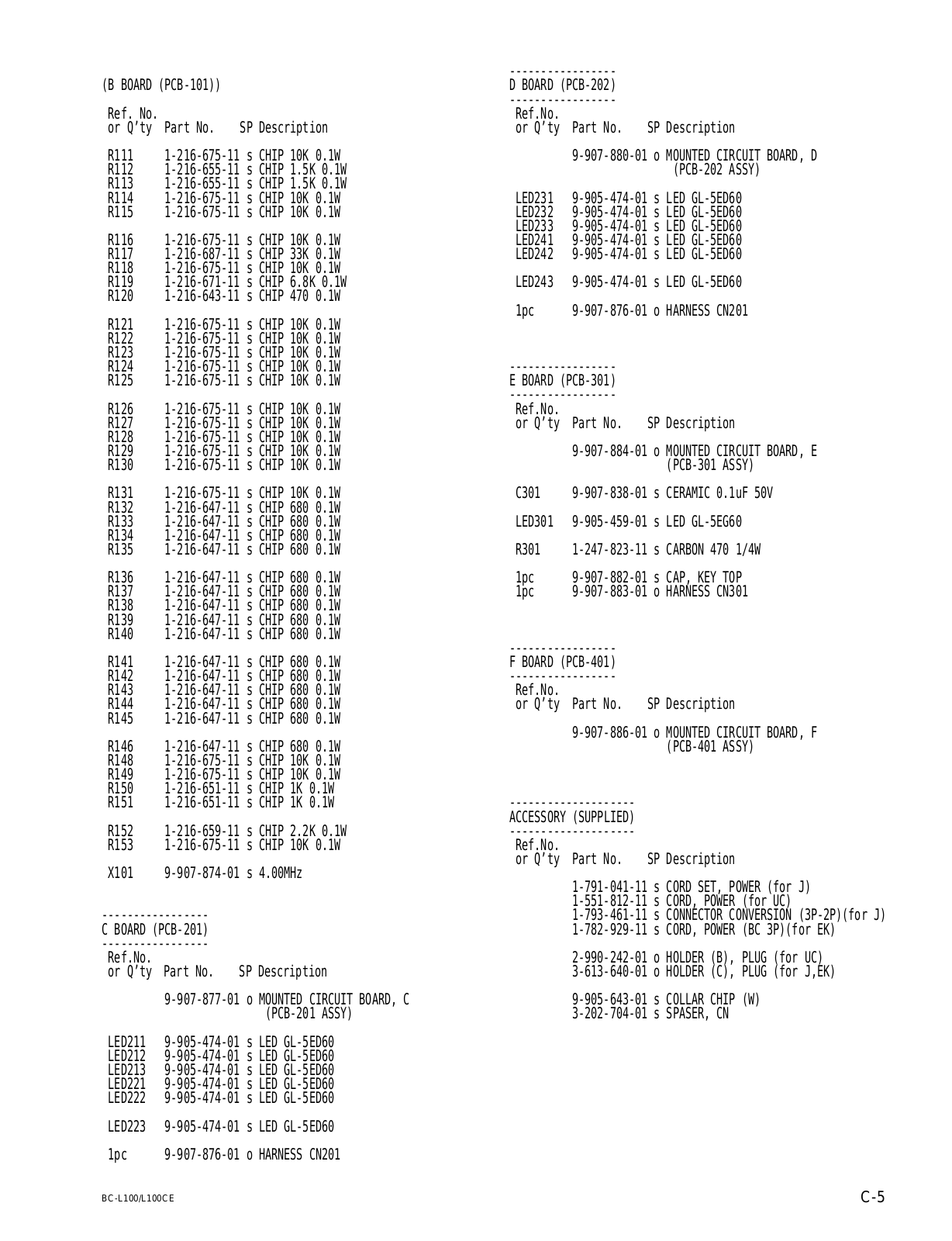

BC-L100/L100CE

(B BOARD (PCB-101))
Ref. No.

or Q’ty Part No. SP Description

----------------­D BOARD (PCB-202)

----------------­ Ref.No.
or Q’ty Part No. SP Description

R111 1-216-675-11 s CHIP 10K 0.1W
R112 1-216-655-11 s CHIP 1.5K 0.1W
R113 1-216-655-11 s CHIP 1.5K 0.1W
R114 1-216-675-11 s CHIP 10K 0.1W
R115 1-216-675-11 s CHIP 10K 0.1W

R116 1-216-675-11 s CHIP 10K 0.1W
R117 1-216-687-11 s CHIP 33K 0.1W
R118 1-216-675-11 s CHIP 10K 0.1W
R119 1-216-671-11 s CHIP 6.8K 0.1W
R120 1-216-643-11 s CHIP 470 0.1W

R121 1-216-675-11 s CHIP 10K 0.1W
R122 1-216-675-11 s CHIP 10K 0.1W
R123 1-216-675-11 s CHIP 10K 0.1W
R124 1-216-675-11 s CHIP 10K 0.1W
R125 1-216-675-11 s CHIP 10K 0.1W

R126 1-216-675-11 s CHIP 10K 0.1W
R127 1-216-675-11 s CHIP 10K 0.1W
R128 1-216-675-11 s CHIP 10K 0.1W
R129 1-216-675-11 s CHIP 10K 0.1W
R130 1-216-675-11 s CHIP 10K 0.1W

R131 1-216-675-11 s CHIP 10K 0.1W
R132 1-216-647-11 s CHIP 680 0.1W
R133 1-216-647-11 s CHIP 680 0.1W
R134 1-216-647-11 s CHIP 680 0.1W
R135 1-216-647-11 s CHIP 680 0.1W

R136 1-216-647-11 s CHIP 680 0.1W
R137 1-216-647-11 s CHIP 680 0.1W
R138 1-216-647-11 s CHIP 680 0.1W
R139 1-216-647-11 s CHIP 680 0.1W
R140 1-216-647-11 s CHIP 680 0.1W

R141 1-216-647-11 s CHIP 680 0.1W
R142 1-216-647-11 s CHIP 680 0.1W
R143 1-216-647-11 s CHIP 680 0.1W
R144 1-216-647-11 s CHIP 680 0.1W
R145 1-216-647-11 s CHIP 680 0.1W

R146 1-216-647-11 s CHIP 680 0.1W
R148 1-216-675-11 s CHIP 10K 0.1W
R149 1-216-675-11 s CHIP 10K 0.1W
R150 1-216-651-11 s CHIP 1K 0.1W
R151 1-216-651-11 s CHIP 1K 0.1W

R152 1-216-659-11 s CHIP 2.2K 0.1W
R153 1-216-675-11 s CHIP 10K 0.1W

X101 9-907-874-01 s 4.00MHz

----------------­C BOARD (PCB-201)

----------------­ Ref.No.
or Q’ty Part No. SP Description

9-907-880-01 o MOUNTED CIRCUIT BOARD, D
(PCB-202 ASSY)

LED231 9-905-474-01 s LED GL-5ED60
LED232 9-905-474-01 s LED GL-5ED60
LED233 9-905-474-01 s LED GL-5ED60
LED241 9-905-474-01 s LED GL-5ED60
LED242 9-905-474-01 s LED GL-5ED60

LED243 9-905-474-01 s LED GL-5ED60
1pc 9-907-876-01 o HARNESS CN201

----------------­E BOARD (PCB-301)

----------------­ Ref.No.
or Q’ty Part No. SP Description

9-907-884-01 o MOUNTED CIRCUIT BOARD, E
(PCB-301 ASSY)

C301 9-907-838-01 s CERAMIC 0.1uF 50V
LED301 9-905-459-01 s LED GL-5EG60
R301 1-247-823-11 s CARBON 470 1/4W
1pc 9-907-882-01 s CAP, KEY TOP

1pc 9-907-883-01 o HARNESS CN301

----------------­F BOARD (PCB-401)

----------------­ Ref.No.
or Q’ty Part No. SP Description

9-907-886-01 o MOUNTED CIRCUIT BOARD, F
(PCB-401 ASSY)

-------------------­ACCESSORY (SUPPLIED)

-------------------­ Ref.No.
or Q’ty Part No. SP Description

1-791-041-11 s CORD SET, POWER (for J)
1-551-812-11 s CORD, POWER (for UC)
1-793-461-11 s CONNECTOR CONVERSION (3P-2P)(for J)
1-782-929-11 s CORD, POWER (BC 3P)(for EK)

2-990-242-01 o HOLDER (B), PLUG (for UC)
3-613-640-01 o HOLDER (C), PLUG (for J,EK)

9-907-877-01 o MOUNTED CIRCUIT BOARD, C
(PCB-201 ASSY)

9-905-643-01 s COLLAR CHIP (W)
3-202-704-01 s SPASER, CN

LED211 9-905-474-01 s LED GL-5ED60
LED212 9-905-474-01 s LED GL-5ED60
LED213 9-905-474-01 s LED GL-5ED60
LED221 9-905-474-01 s LED GL-5ED60
LED222 9-905-474-01 s LED GL-5ED60

LED223 9-905-474-01 s LED GL-5ED60
1pc 9-907-876-01 o HARNESS CN201

BC-L100/L100CE

C-5

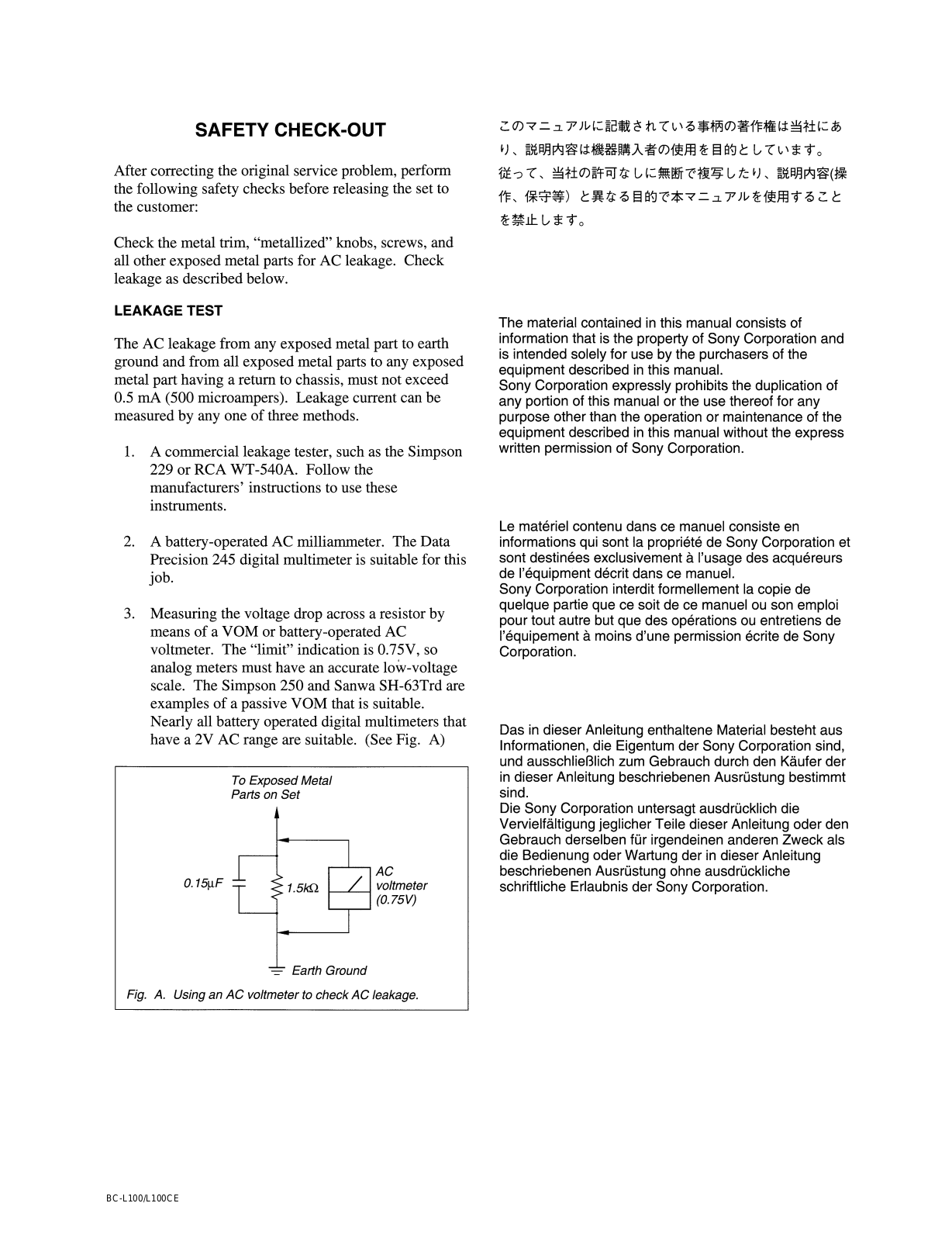

BC-L100/L100CE

BC-L100 (UC, J)
BC-L100CE (EK)
3-186-112-11

Printed in Japan

Sony Corporation 2000. 5 16

Communication System Solutions Network Company ©1994
