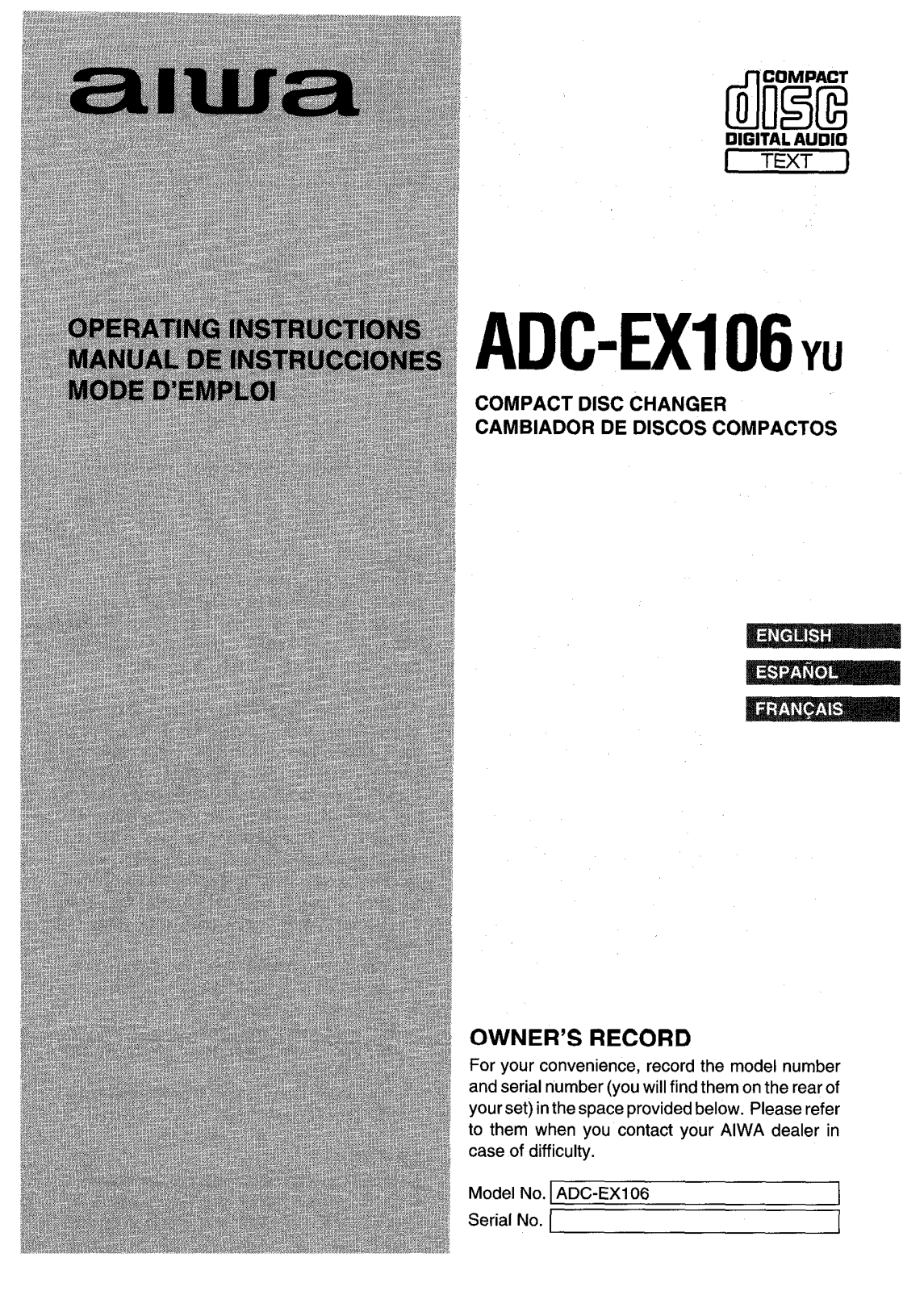

❑IGITAL AUDIO

~

ADC-EXI06YU

COMPACT DISC CHANGER
CAMBIADOR DE DISCOS COMPACTOS

.

B“

OWNER’S RECORD

For your convenience, record the model number
and serial number (you will find them on the rear of

your set) in the space provided below. Please refer
to them when you contact your AIWA dealer in
case of difficulty.

Model No. IADC-EX106
‘eria’ ‘0 ~

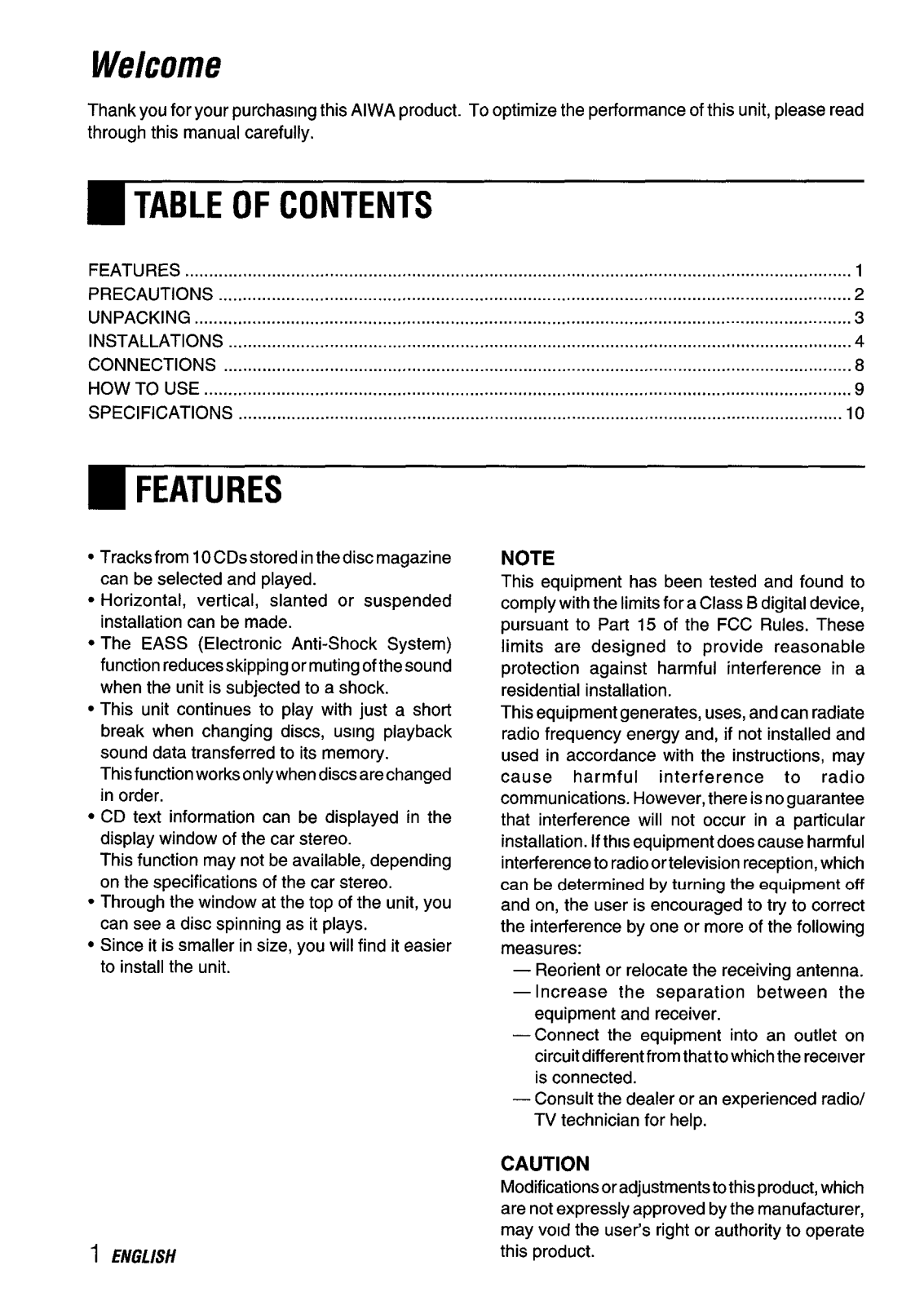

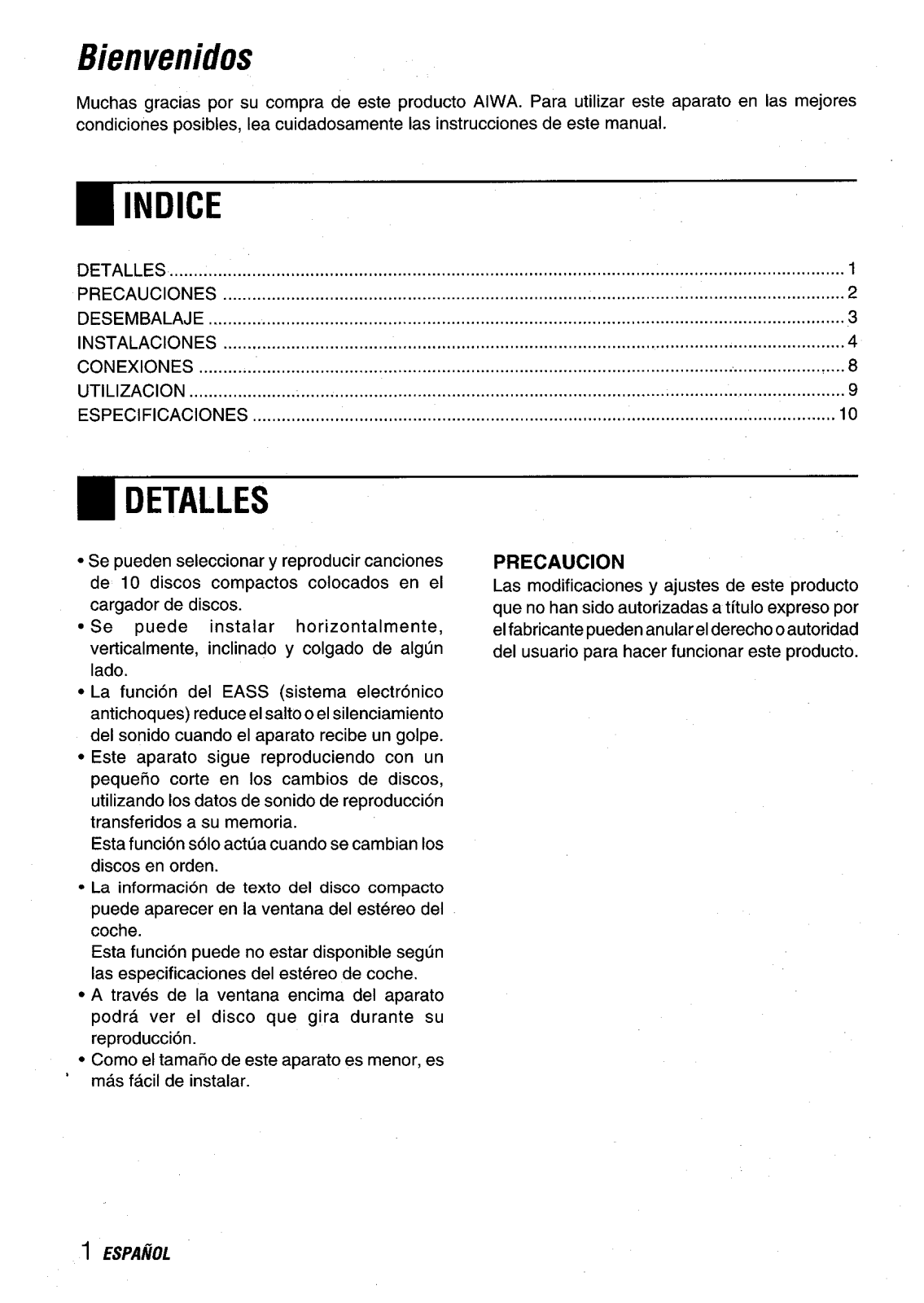

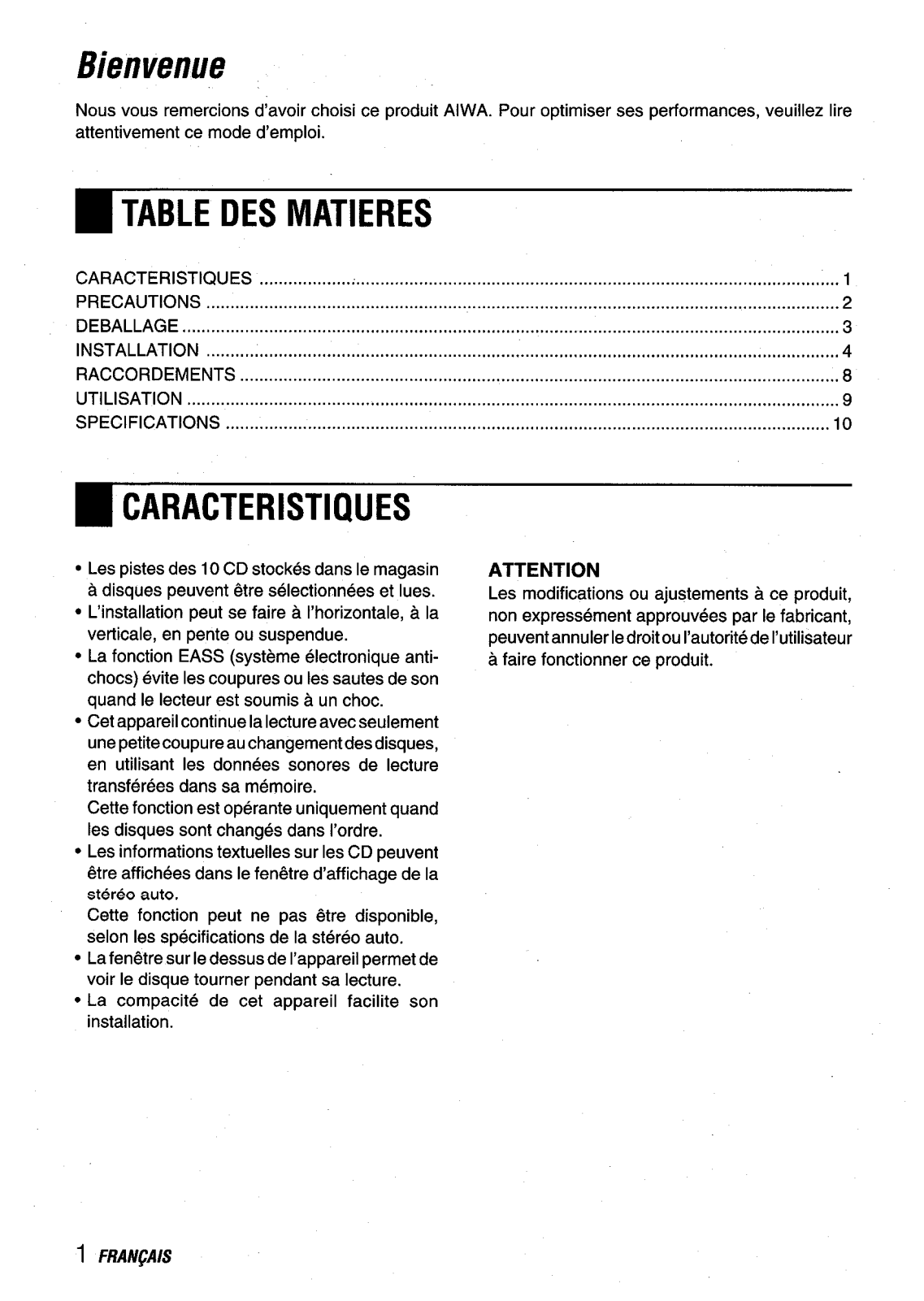

Welcome

Thank you foryourpurchasmg this AIWAproduct. Tooptimize theperformance ofthisunit, please read
through this manual carefully.

●TABLE OF CONTENTS

~ FEATURES

● Tracks from 10 CDs stored in the disc magazine

can be selected and played.

● Horizontal, vertical, slanted or suspended

installation can be made.

●The EASS (Electronic Anti-Shock System)

function reduces skipping or muting ofthe sound
when the unit is subjected to a shock.

●This unit continues to play with just a short

break when changing discs, using playback
sound data transferred to its memory.
This function works only when discs are changed
in order.

● CD text information can be displayed in the

display window of the car stereo.
This function may not be available, depending
on the specifications of the car stereo.

● Through thewindow atthetop of the unit, you

can see a disc spinning as it plays.

● Since it issmaller in size, you will find it easier

to install the unit.

1 ENGLISH

NOTE

This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there isno guarantee
that interference will not occur in a particular
installation. Ifthis equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:

— Reorient or relocate the receiving antenna.
— Increase the separation between the

equipment and receiver.

— Connect the equipment into an outlet on

circuit different from that to which the recewer
is connected.

— Consult the dealer or an experienced radio/

TV technician for help.

CAUTION

Modifications oradjustmentsto this product, which
are not expressly approved by the manufacturer,
may void the user’s right or authority to operate

this product.

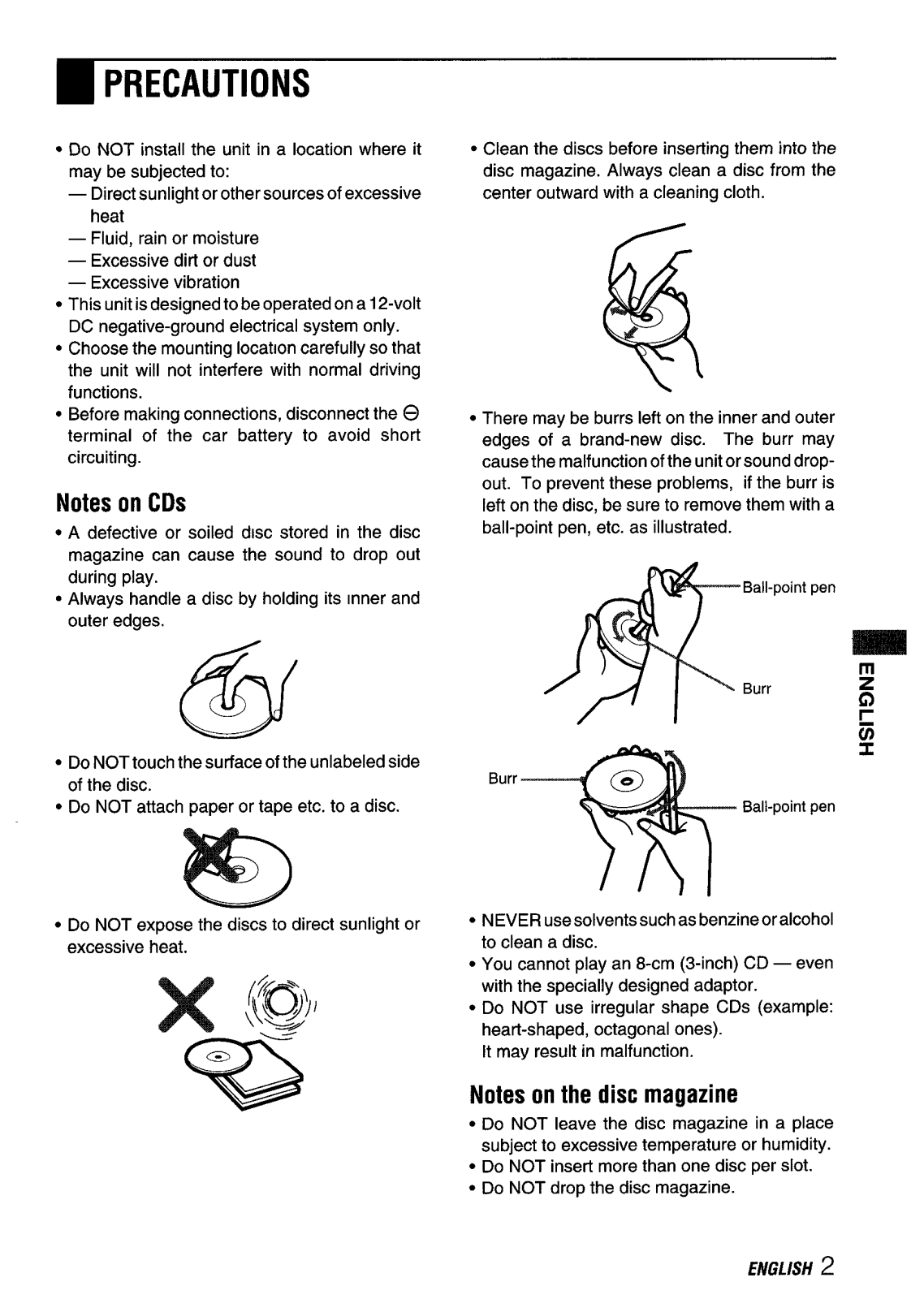

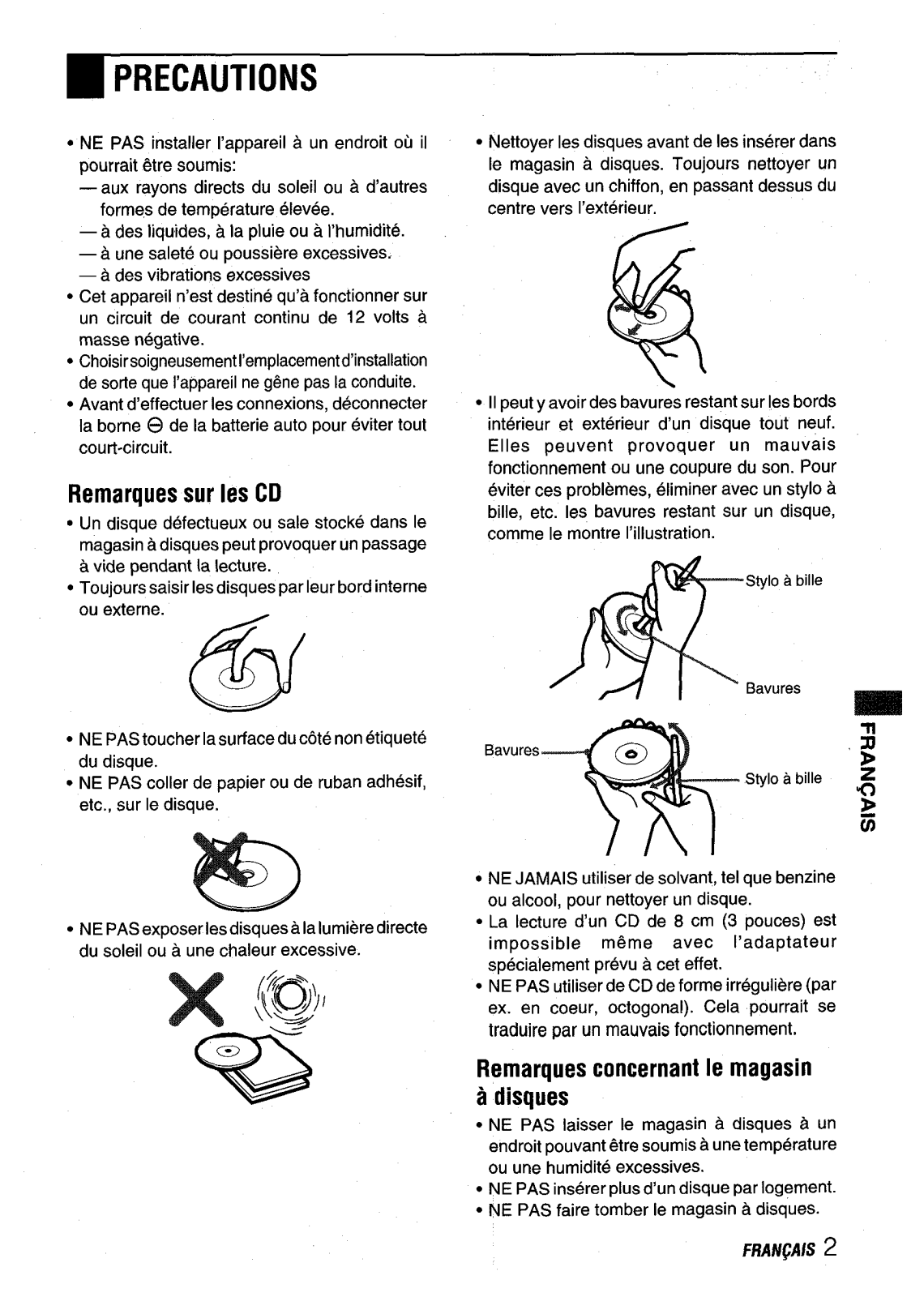

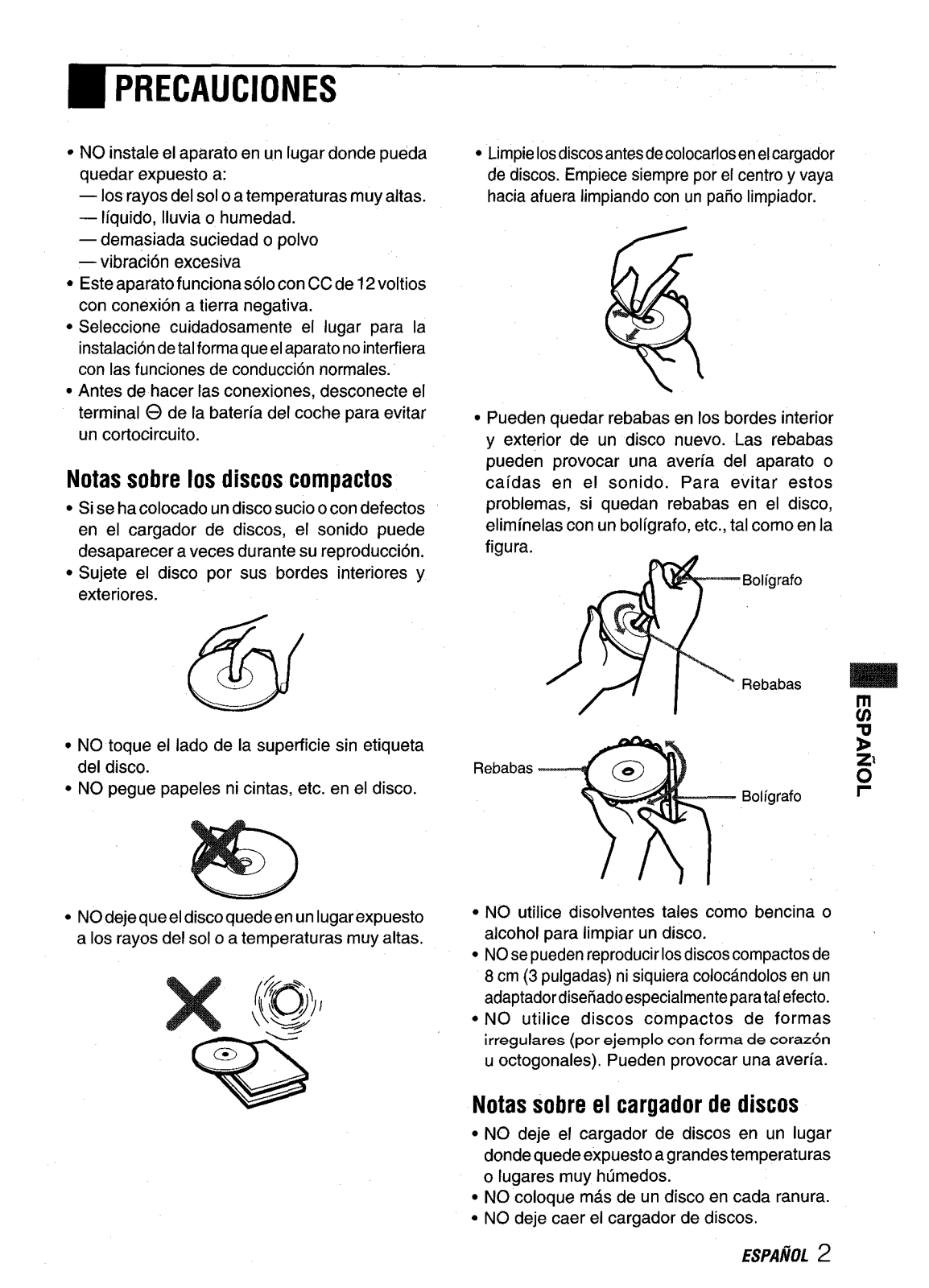

■PRECAUTIONS

● Do NOT install the unit in a location where it

may be subjected to:
— Direct sunlight or other sources of excessive

heat

— Fluid, rain or moisture
— Excessive dirt or dust
— Excessive vibration

● This unit is designed to be operated on a 12-volt

DC negative-ground electrical system only.

● Choose the mounting location carefully so that

the unit will not interfere with normal driving
functions.

● Before making connections, disconnect the @

terminal of the car battery to avoid short
circuiting.

Notes on CDs

● A defective or soiled d!sc stored in the disc

magazine can cause the sound to drop out
during play.

● Always handle a disc by holding its Inner and

outer edges.

● Do NOT touch the surface of the unlabeled side

of the disc.

● Do NOT attach paper or tape etc. to a disc.

● Clean the discs before inserting them into the

disc magazine. Always clean a disc from the
center outward with a cleaning cloth.

● There may be burrs left on the inner and outer

edges of a brand-new disc. The burr may
cause the malfunction of the unit or sound drop­out. To prevent these problems, if the burr is
left on the disc, be sure to remove them with a
ball-point pen, etc. as illustrated.

Ball-point pen

Burr

Burr

@

Ball-point

pen

● Do NOT expose the discs to direct sunlight or

excessive heat.

%

● NEVER usesolventssuch as benzineoralcohol

to clean a disc.

● You cannot play an 8-cm (3-inch) CD — even

with the specially designed adaptor.

● Do NOT use irregular shape CDs (example:

heart-shaped, octagonal ones).

It may result in malfunction.

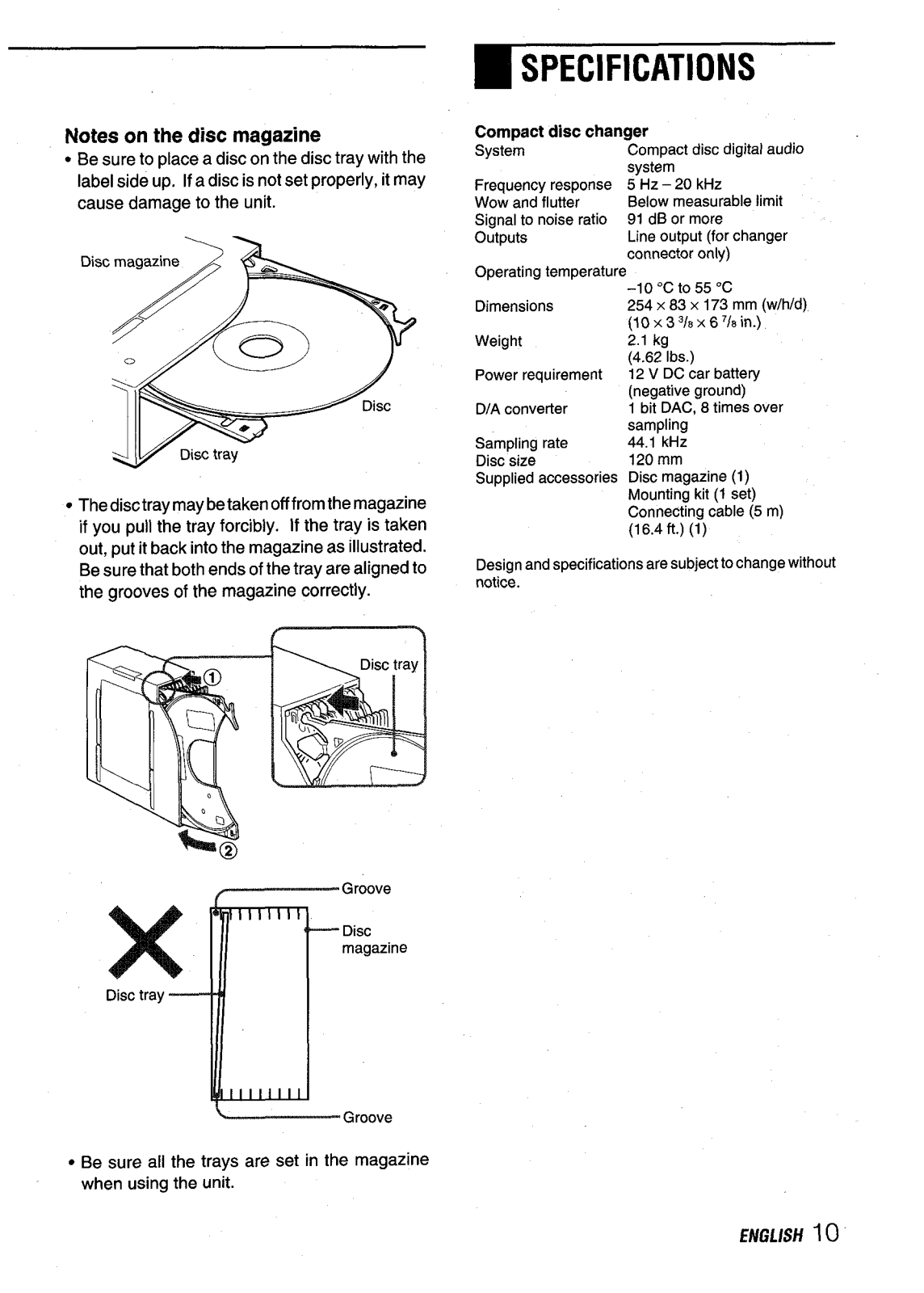

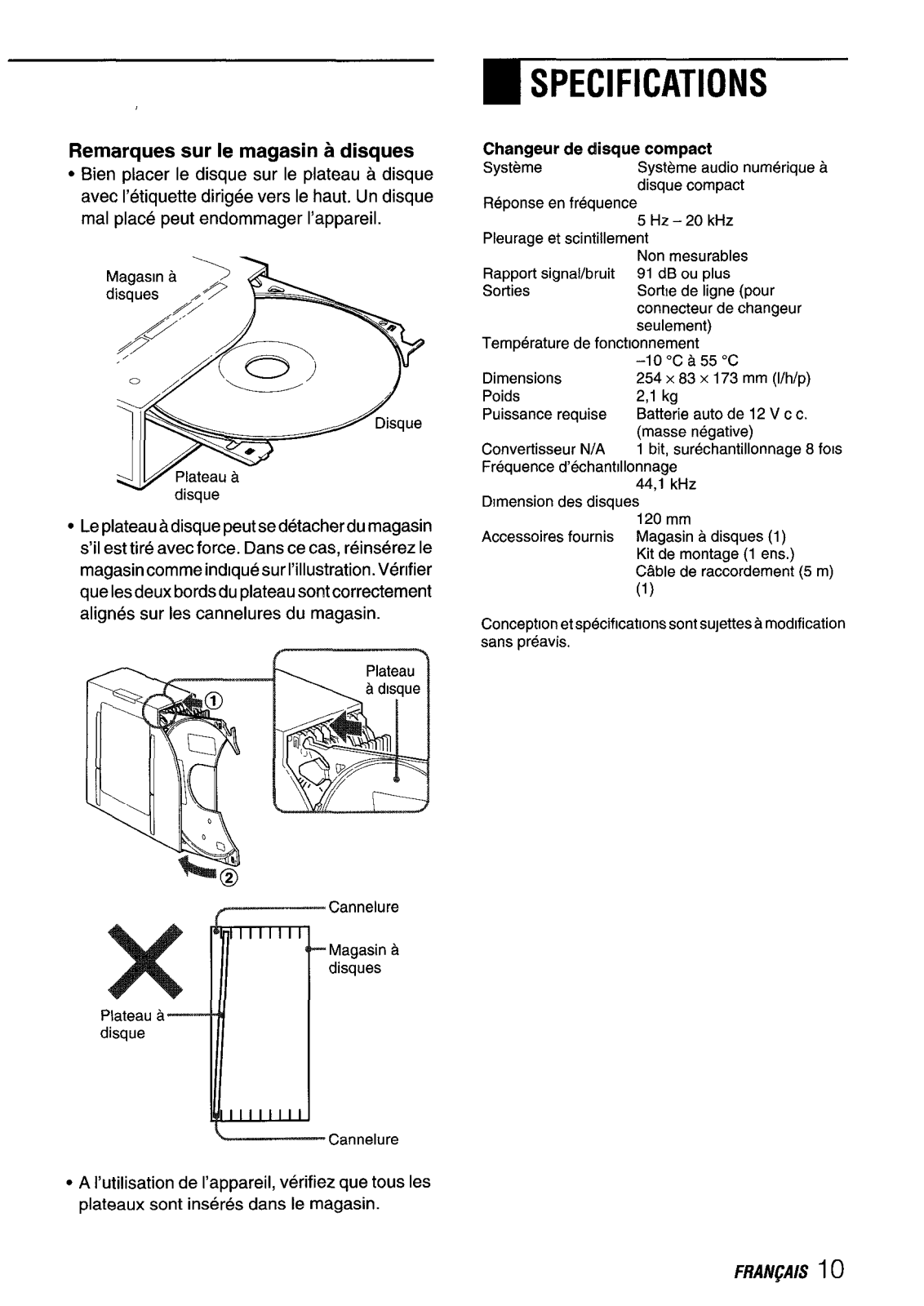

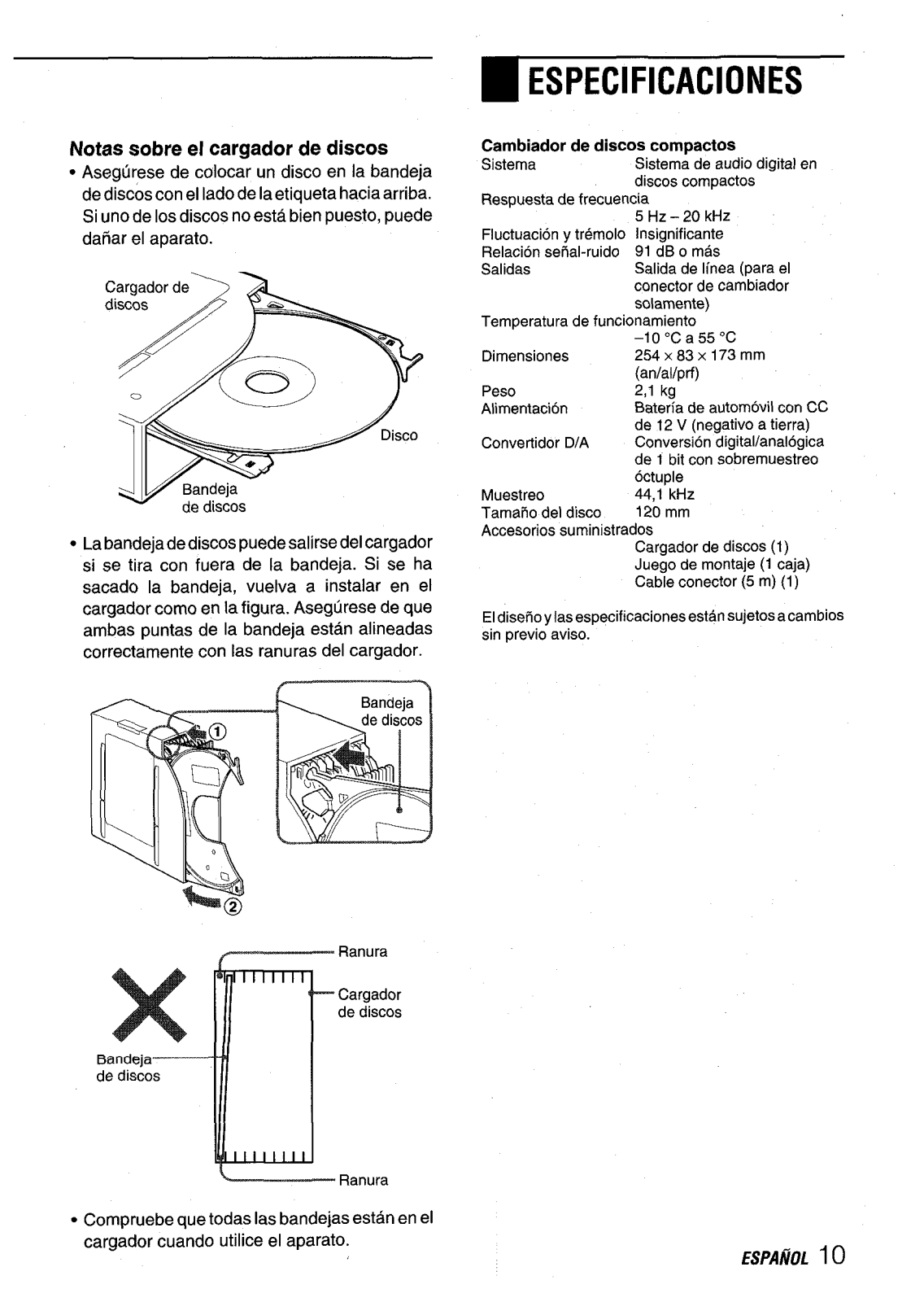

Notes on the disc magazine

● Do NOT leave the disc magazine in a place

subject to excessive temperature or humidity.

● Do NOT insert more than one disc per slot.

● Do NOT drop the disc magazine.

ENGLISH

2

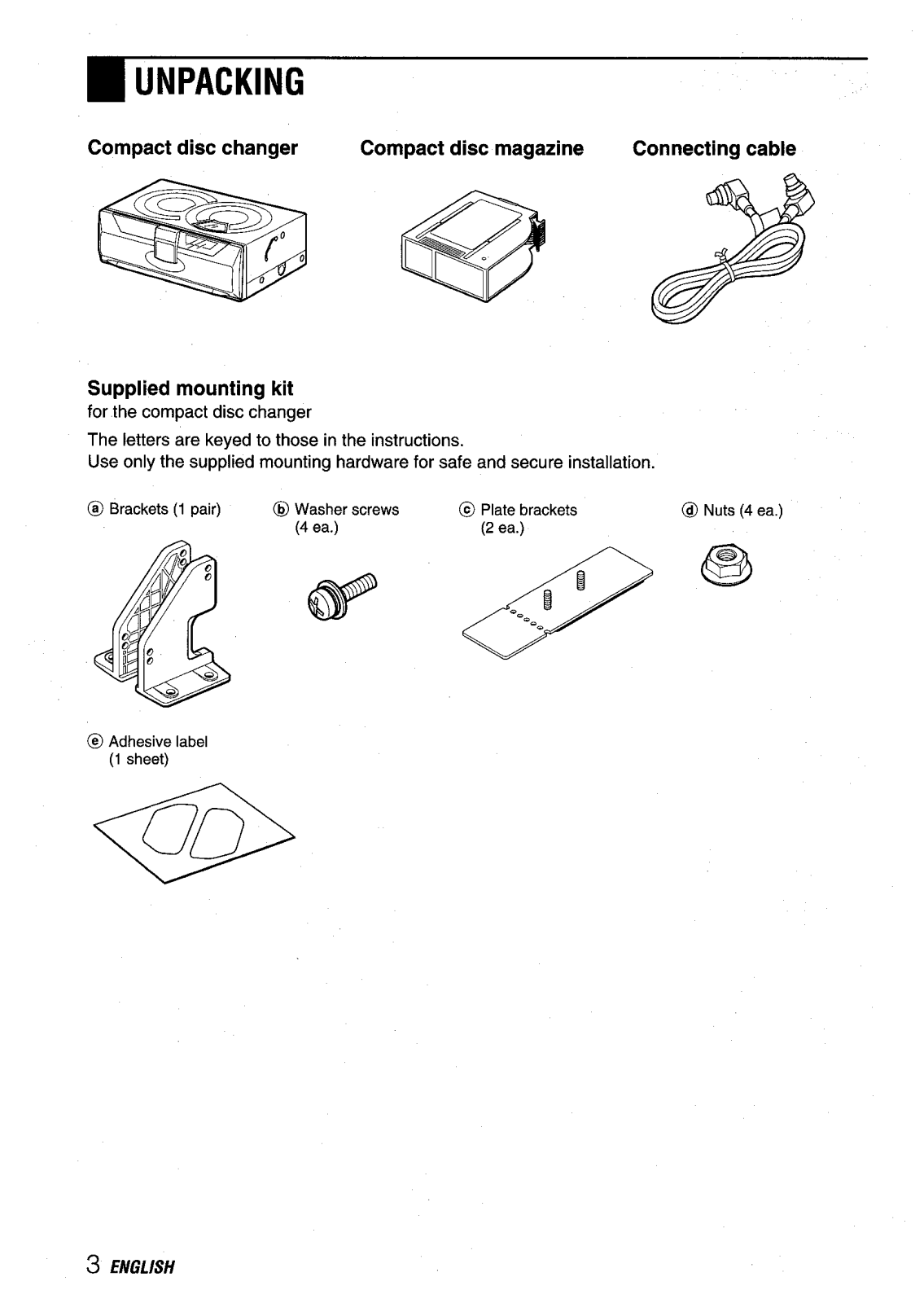

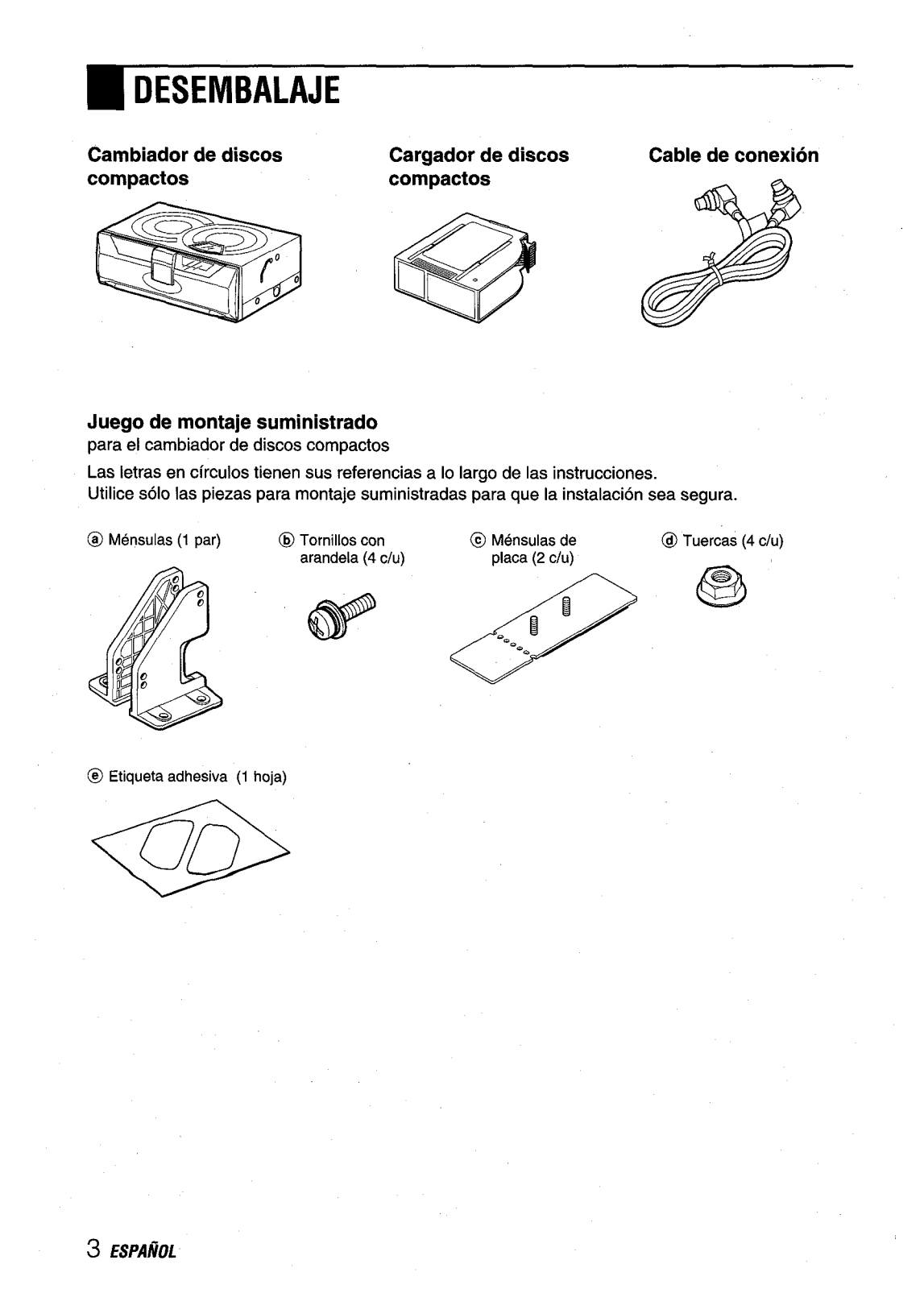

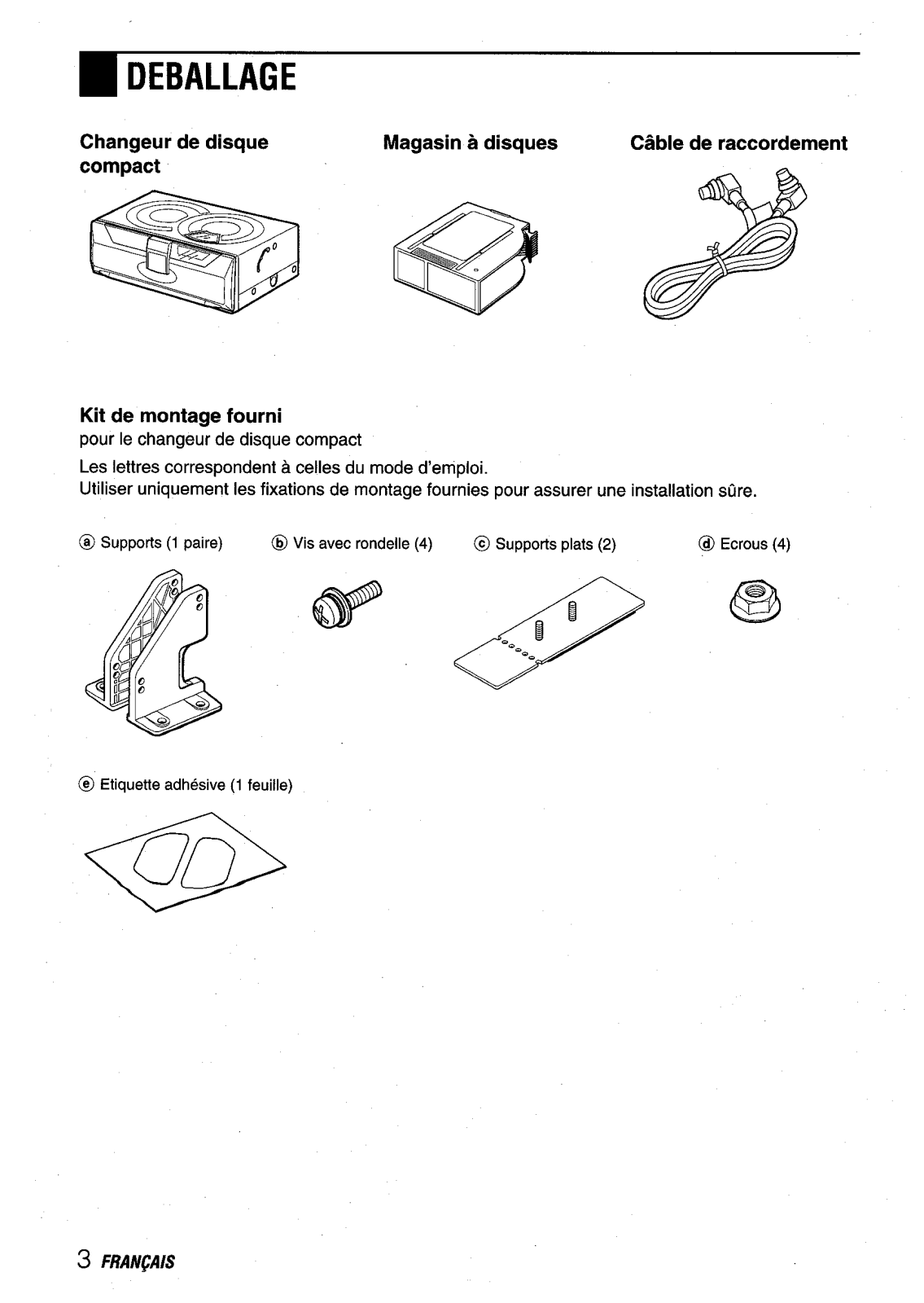

■UNPACKING

Compact disc changer

Supplied mounting kit

for the compact disc changer
The letters are keyed to those in the instructions.

Use only the supplied mounting hardware for safe and secure installation.

@ Brackets(1pair)

@ Adhesive label

(1 sheet)

@ Washer screws

Compact disc magazine

(4 ea.)

@ Platebrackets

(2 ea.)

Connecting cable

@ Nuts(4ea.)

3 ENGLISH

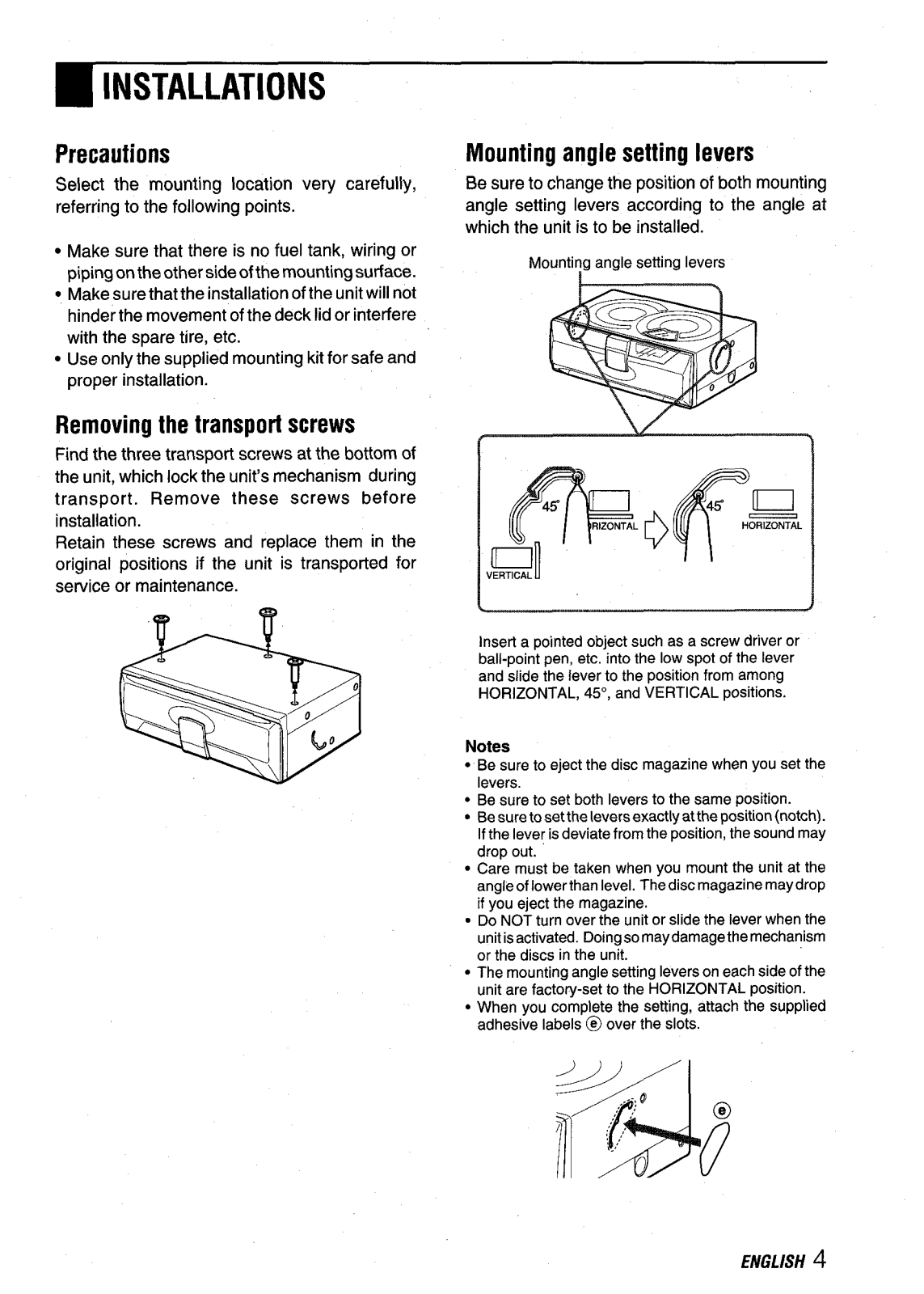

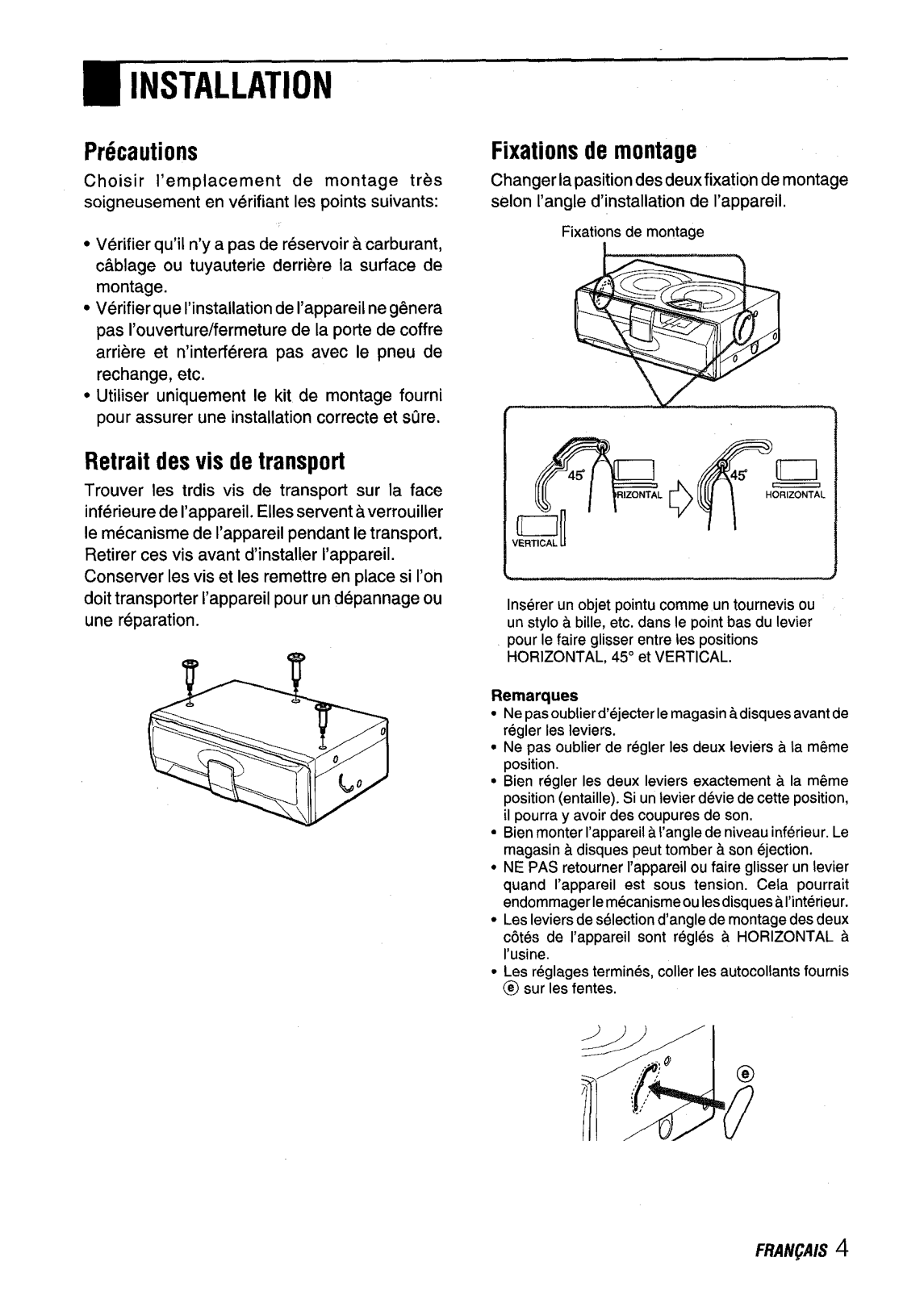

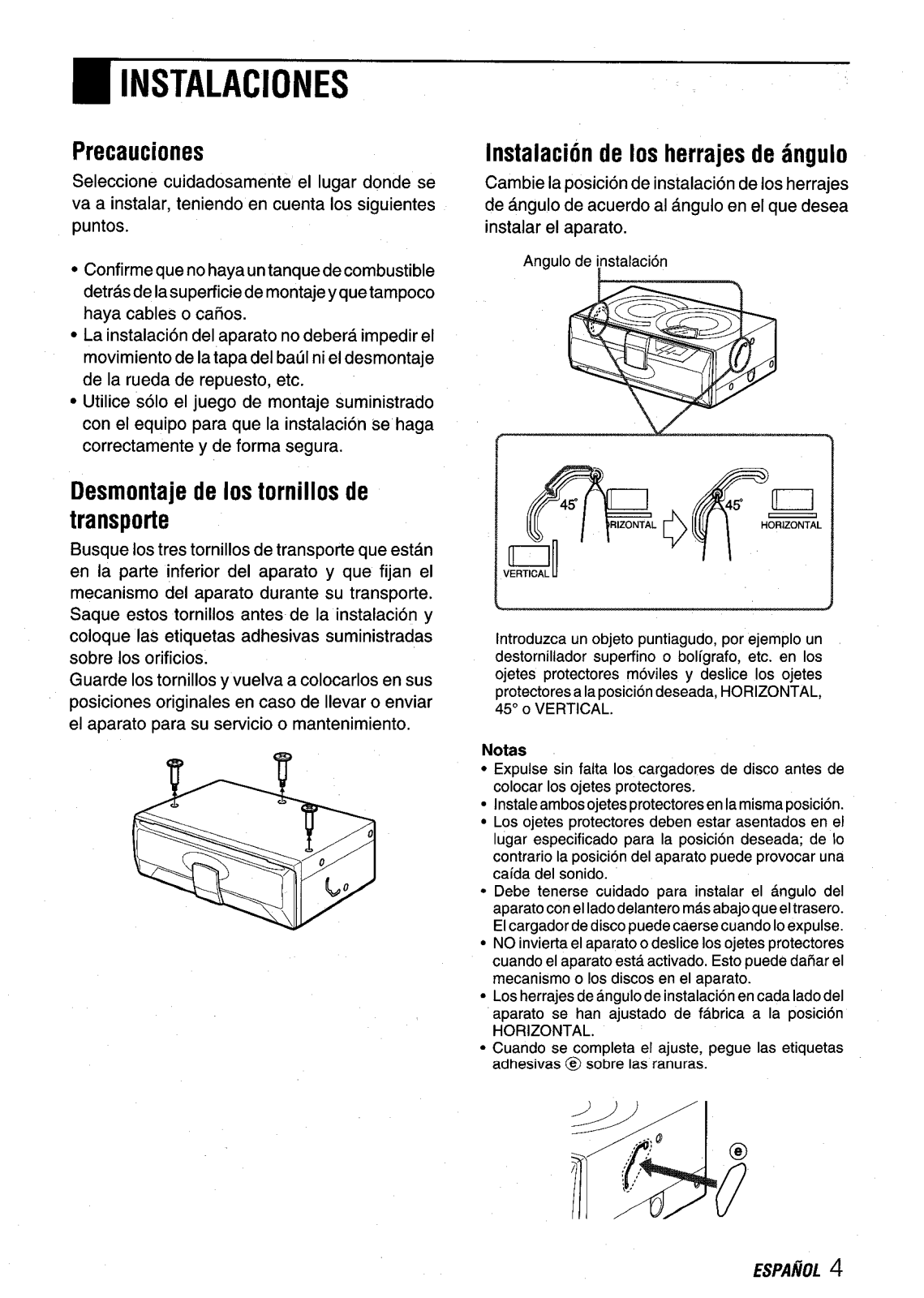

●INSTALLATIONS

Precautions

Select the mounting location very carefully,
referring to the following points.

● Make sure that there is no fuel tank, wiring or

piping on the other side ofthe mounting surface.

● Make sure that the installation of the unit will not

hinder the movement of the deck lid or interfere
with the spare tire, etc.

● Use only the supplied mounting kit for safe and

proper installation.

Removing the transpotl screws

Find the three transport screws at the bottom of
theunit, which lockthe unit’smechanism during
transport. Remove these screws before

installation.

Retain these screws and replace them in the

original positions if the unit is transported for

service or maintenance.

Mounting angle setting levers

Be sure to change the position of both mounting
angle setting levers according to the angle at
which the unit is to be installed.

Mounti~g angle

45’

n ‘if

“g

Insert a

~ointed obiect such as a screw driver or

ball-point pen, etc.-into the low spot of the lever

and slide the lever to the position from among
HORIZONTAL, 45°, and VERTICAL positions.

Notes
.

Be sure to eject the disc magazine when you set the
levers.

● Be sure to set both levers to the same position.

● Besure to set the levers exactly at the position (notch).

Ifthe lever is deviate from the position, the sound may

drop out.

● Care must be taken when you mount the unit at the

angle of lower than level. The disc magazine may drop
if you eject the magazine.

● Do NOT turn over the unit or slide the lever when the

unit is activated. Doing so maydamagethe mechanism
or the discs in the unit.

● The mounting angle setting levers on each side of the

unit are factory-set to the HORIZONTAL position.

● When you complete the setilng, attach the supplied

adhesive labels @ over the slots.

RIZONTAL

setting levers

45 Q

HORIZONTAL

0

~

,,.-,

0

,,, ,,.,

/

;,” ,

I

: ,,/

.,

i

do

@

ENGLISH 4

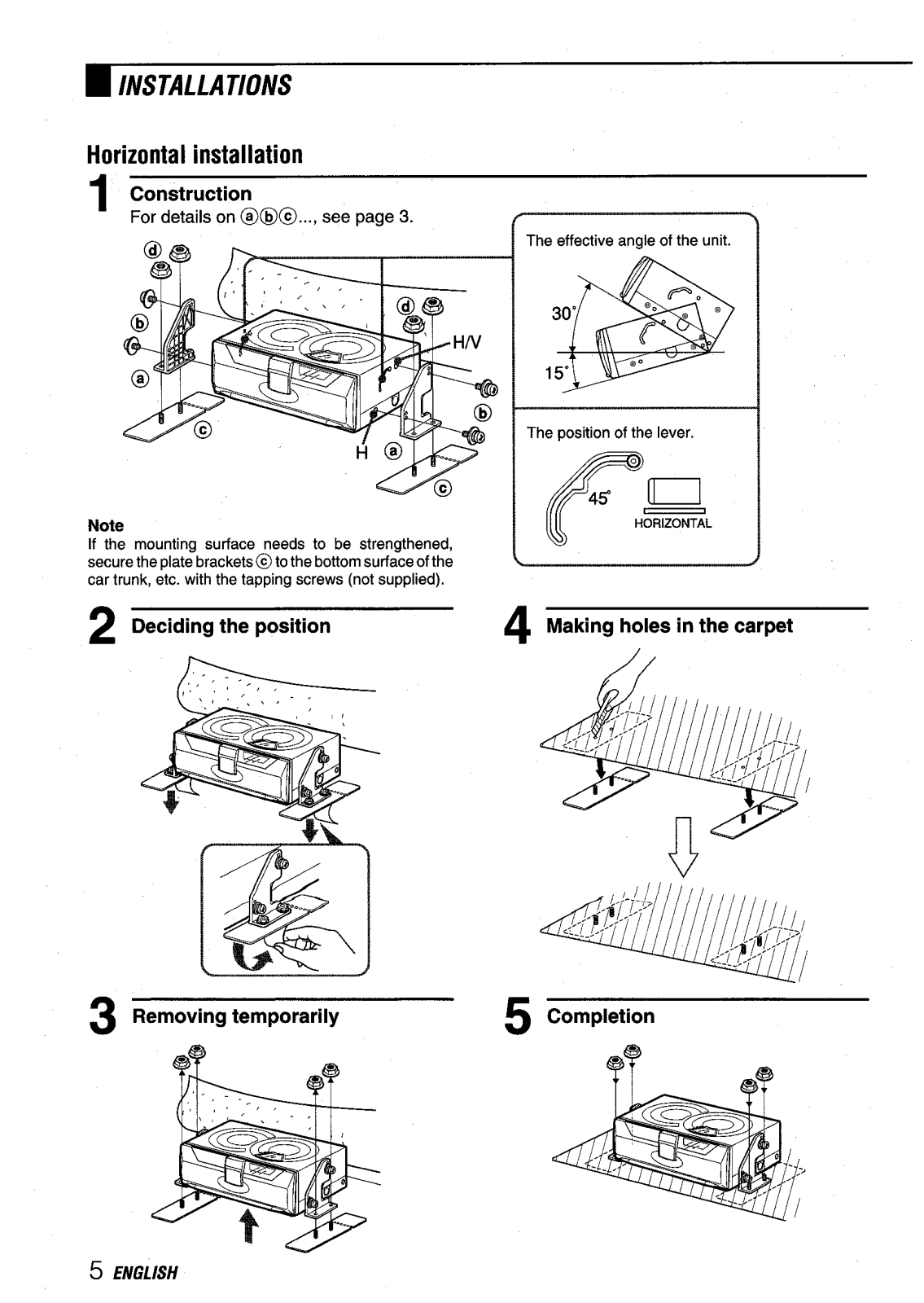

~ INSTALLATIONS

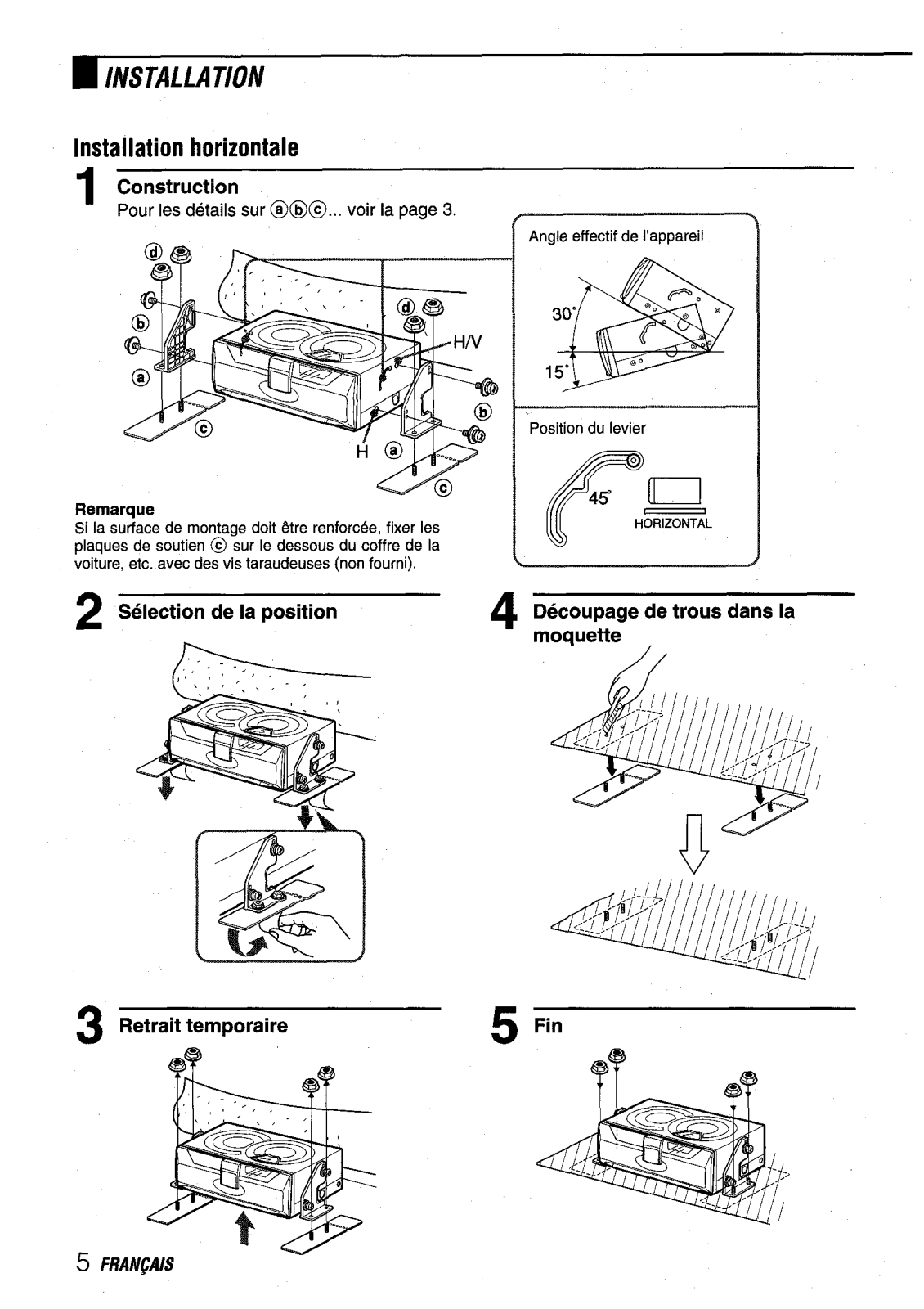

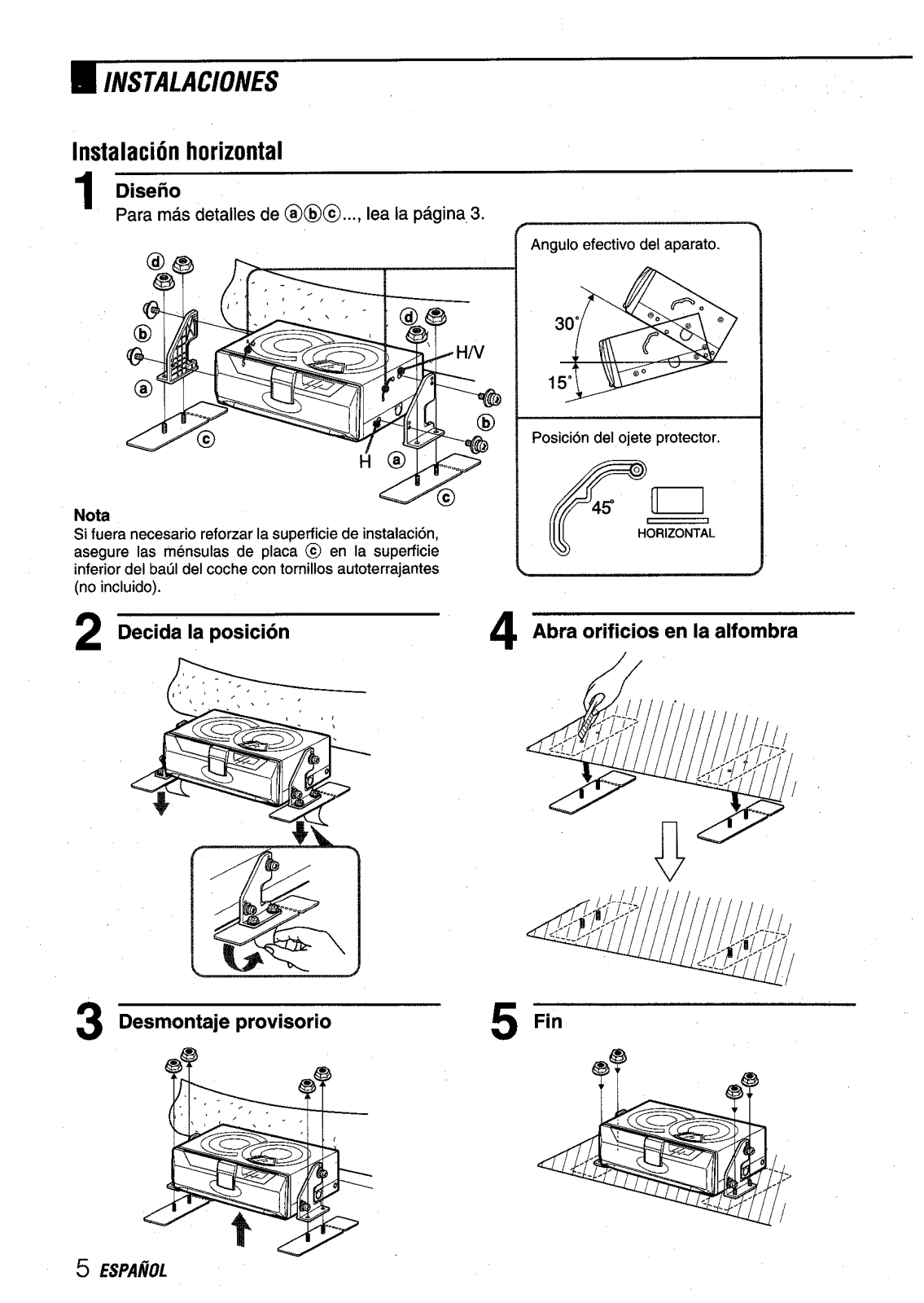

Horizontal installation

Construction

1

For details on @@@..., see page 3.

Note

If the mounting surface needs to be strengthened,
secure the plate brackets @to the bottom surfece of the
car trunk, etc. with the tapping screws (not supplied).

The effective angle of the unit.

The position of the lever.

450 ,n

r

HORIZONTAL

Deciding the position

2

Removing temporarily

Making holes in the carpet

4

/’”/

v

~ Completion

5 ENGLISH

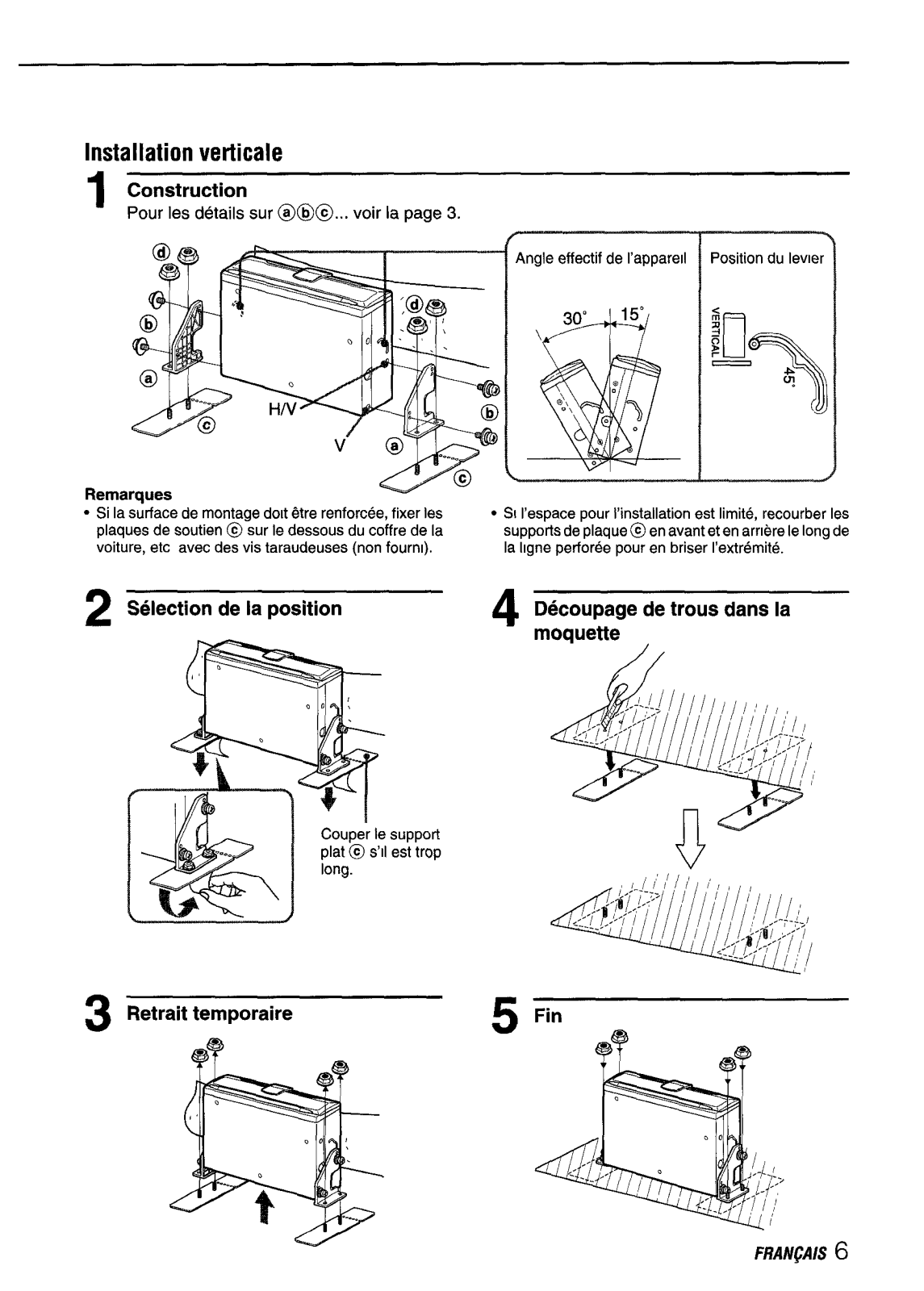

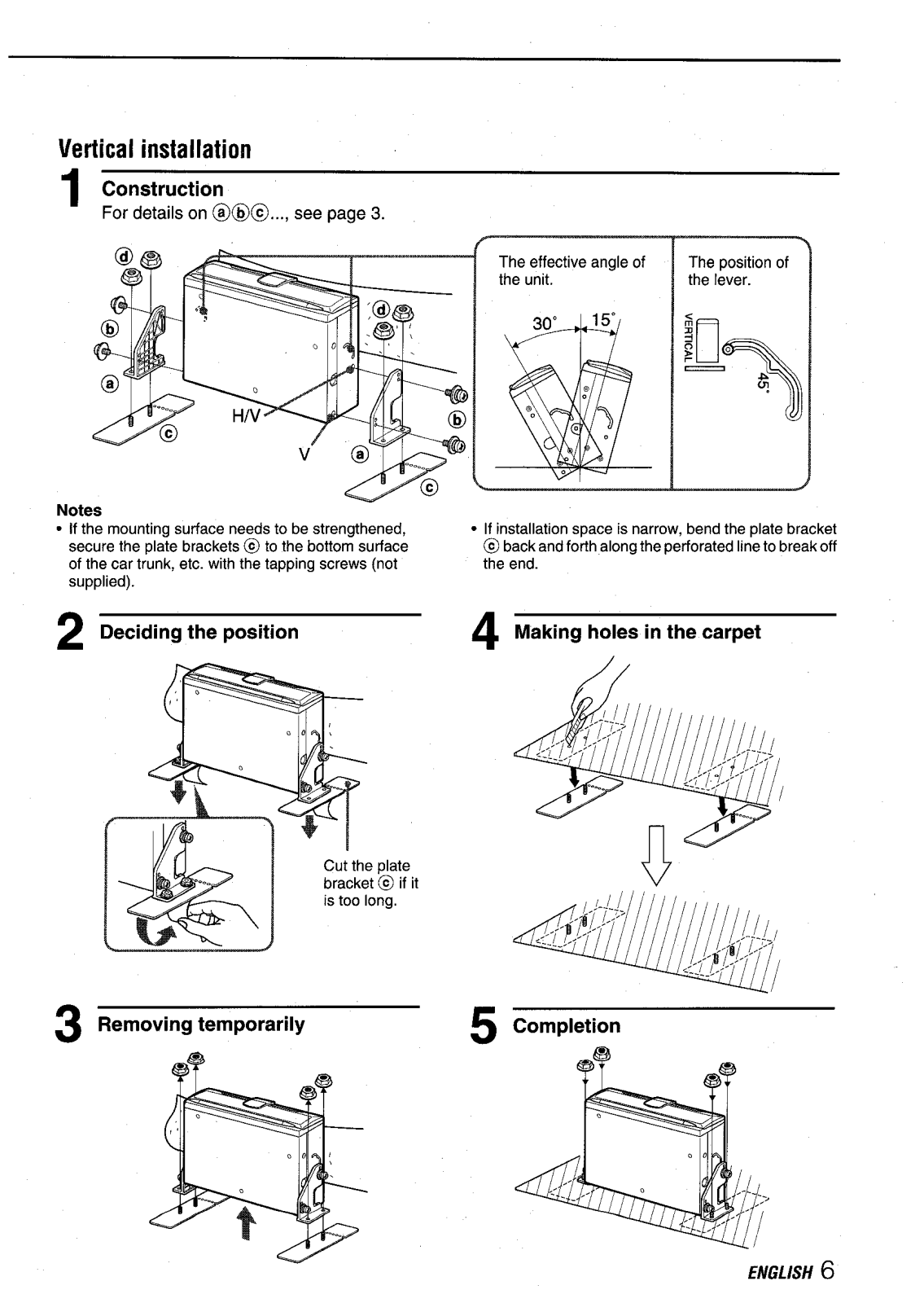

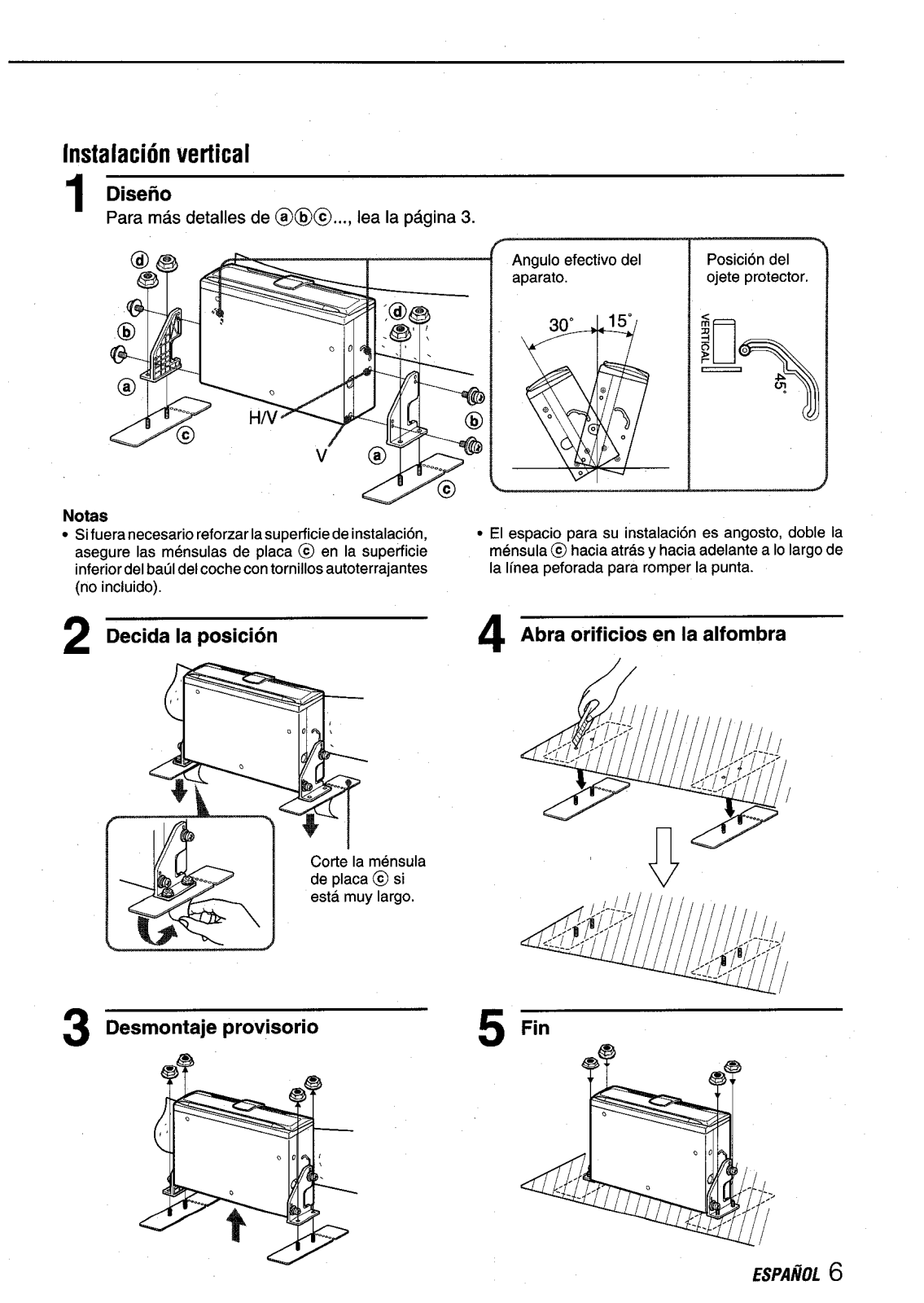

Vertical installation

Construction

1

For details on @@@..., see page 3.

Notes

● If the mounting surface needs to be strengthened,

secure the plate brackets @ to the bottom surface
of the car trunk, etc. with the tapping screws (not
suppliad).

Deciding the position

2

The effective angle of
the unit,

. If installation space is narrow, bend the plate bracket

~eb:;:and forth along the perforated line to break off

Making holes in the carpet

The position of
the lever.

I

Removing temporarily

3

Completion

ENGLISH 6

~ INSTALLATIONS

A

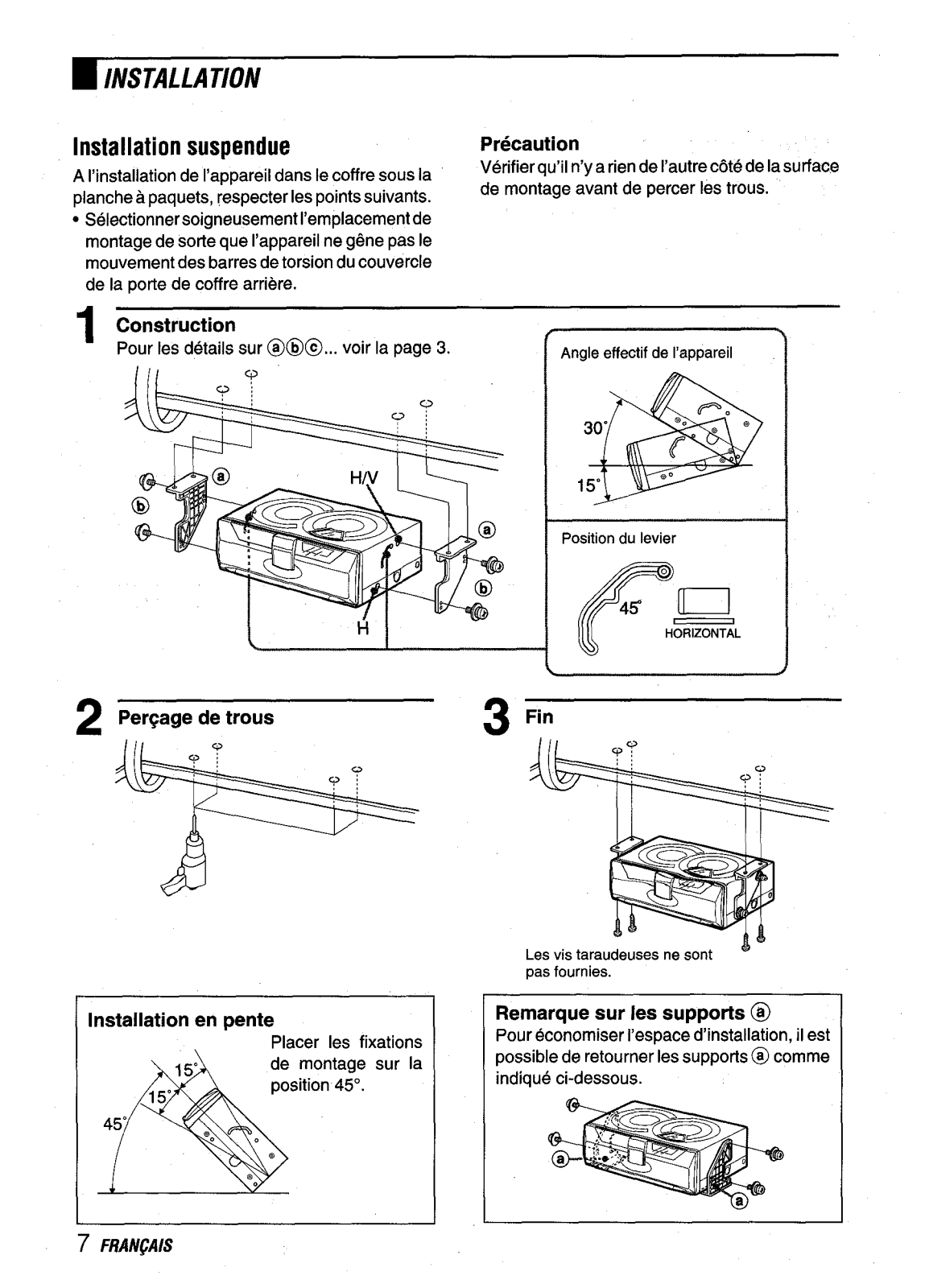

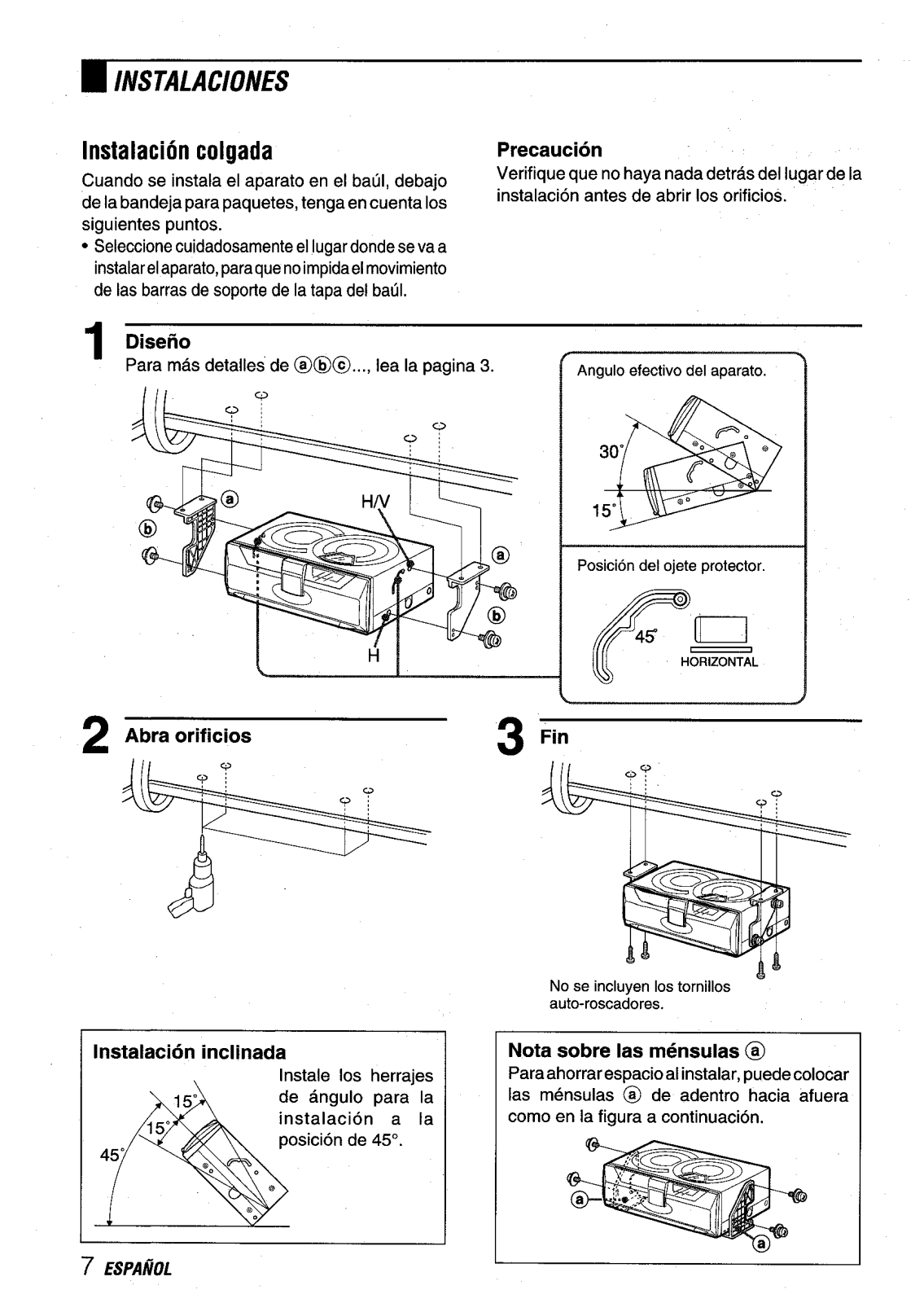

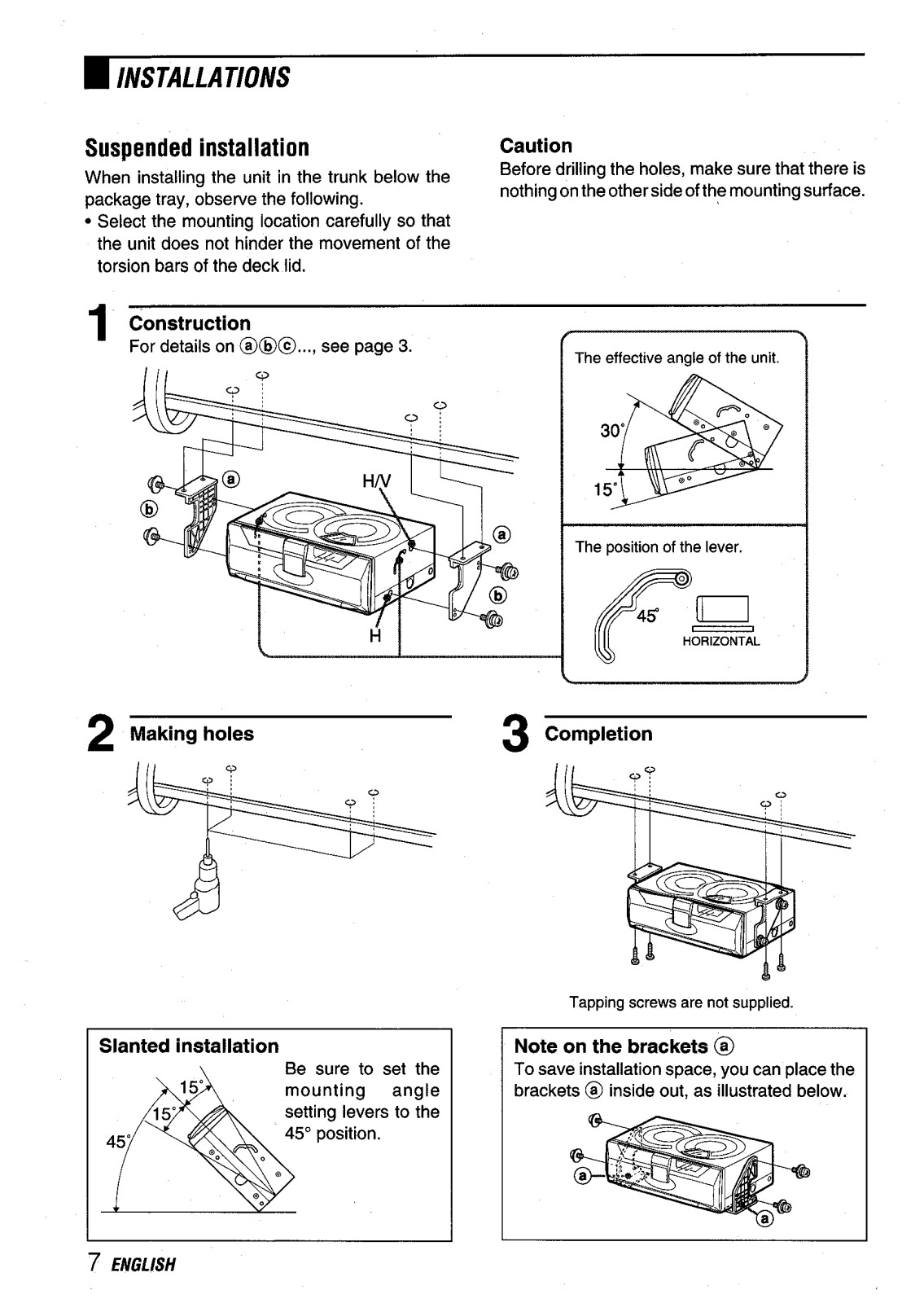

Suspended installation

When installing the unit in the trunk below the

package tray, observe the following.

● Select the mounting location carefully so that

the unit does not hinder the movement of the
torsion bars of the deck lid.

Construction

1

For details on @@@..., see page 3.

Making holes

2

Caution

Before drilling the holes, make sure that there is
nothing on the other side of the mounting surface.

9

The effective angle of the unit.

4!3 u

HORIZONTAL

3

(f”

Completion

Slanted installation

15“

15“

45”

“. .

7 ENGLISH

Be sure to set the
mounting
setting levers to the
45° position.

.

a

.

angle

Tapping screwe are not supplied.

Note on the brackets@

To save installation space, you can place the

brackets @ inside out, as illustrated below.

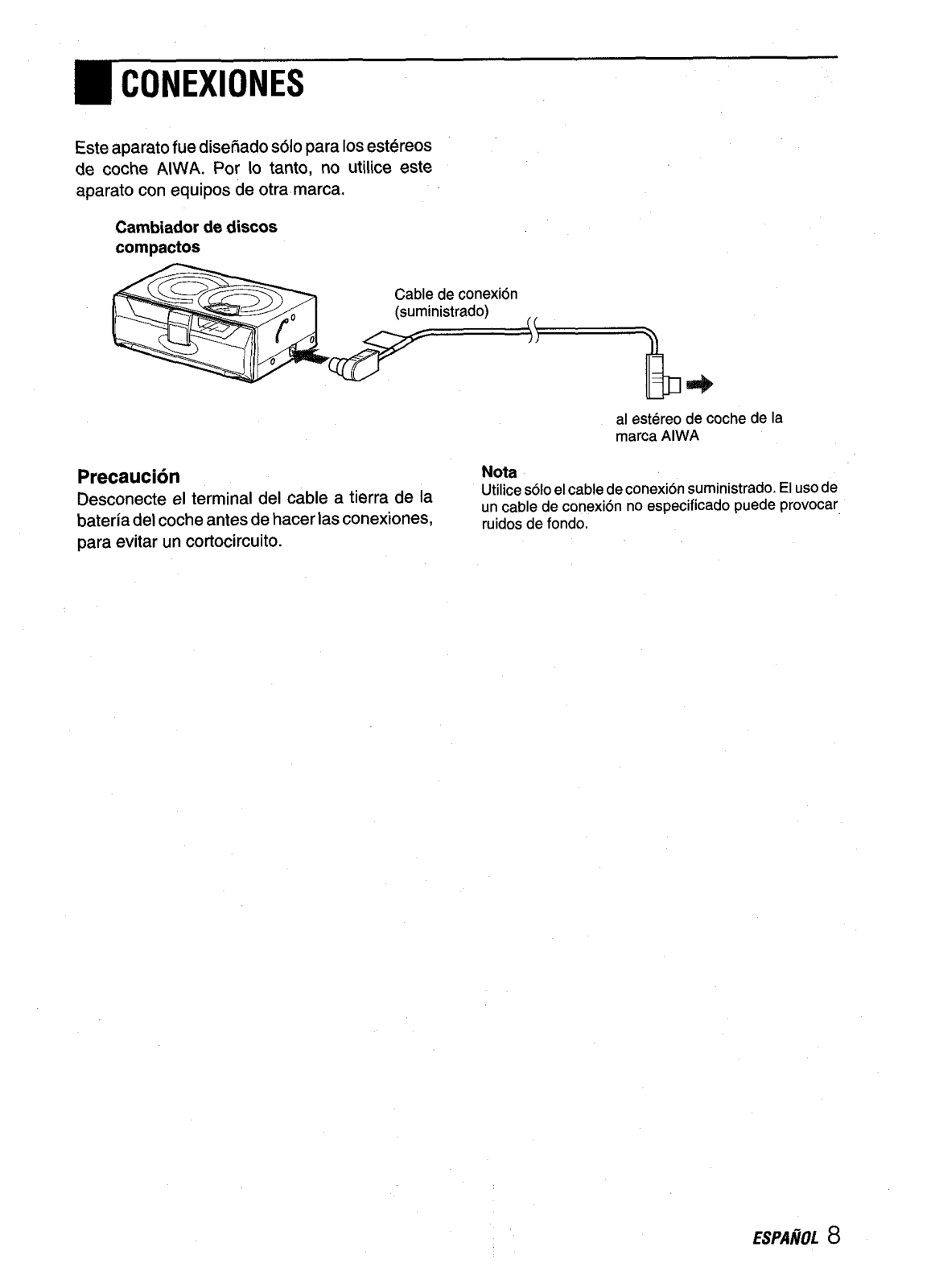

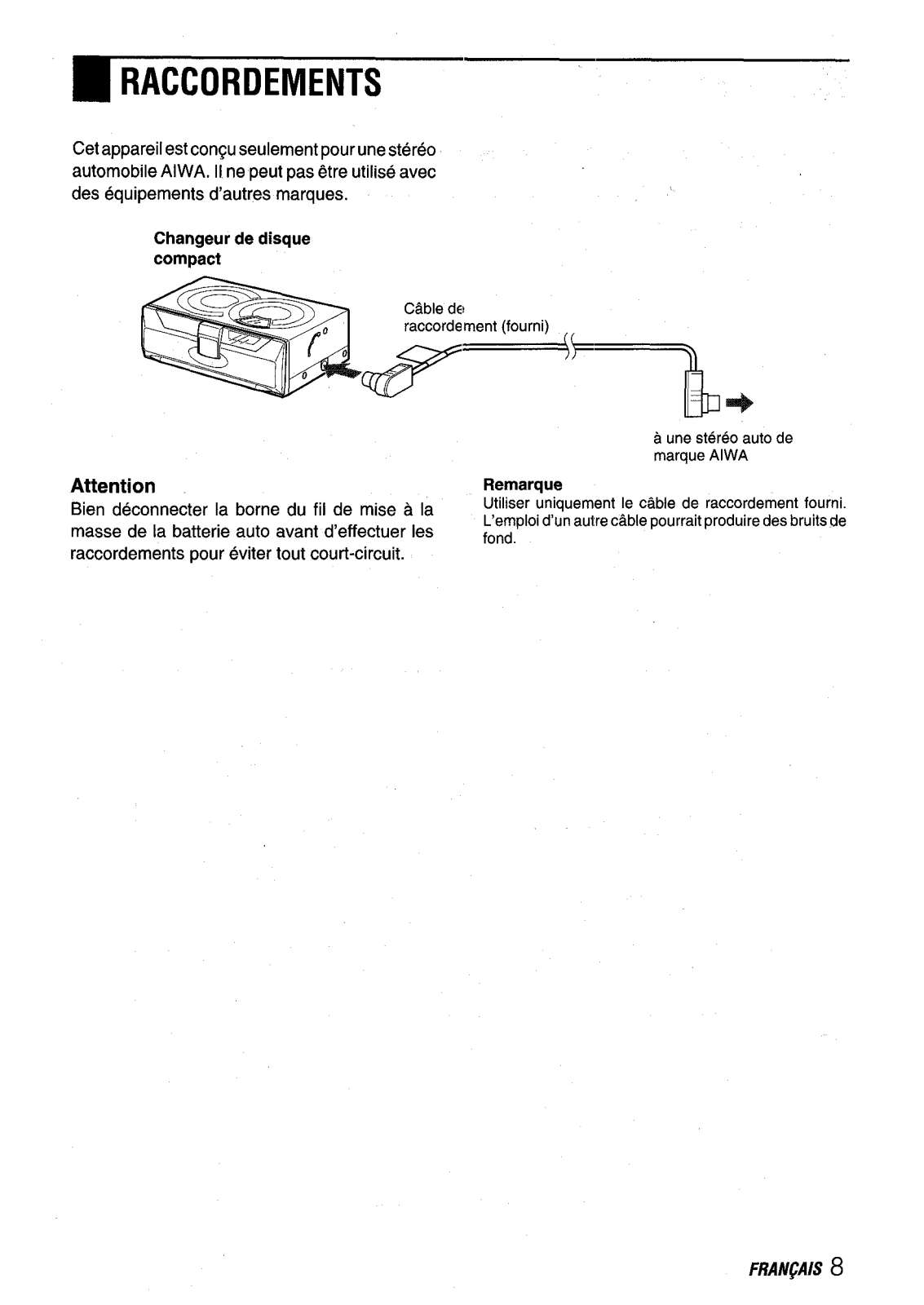

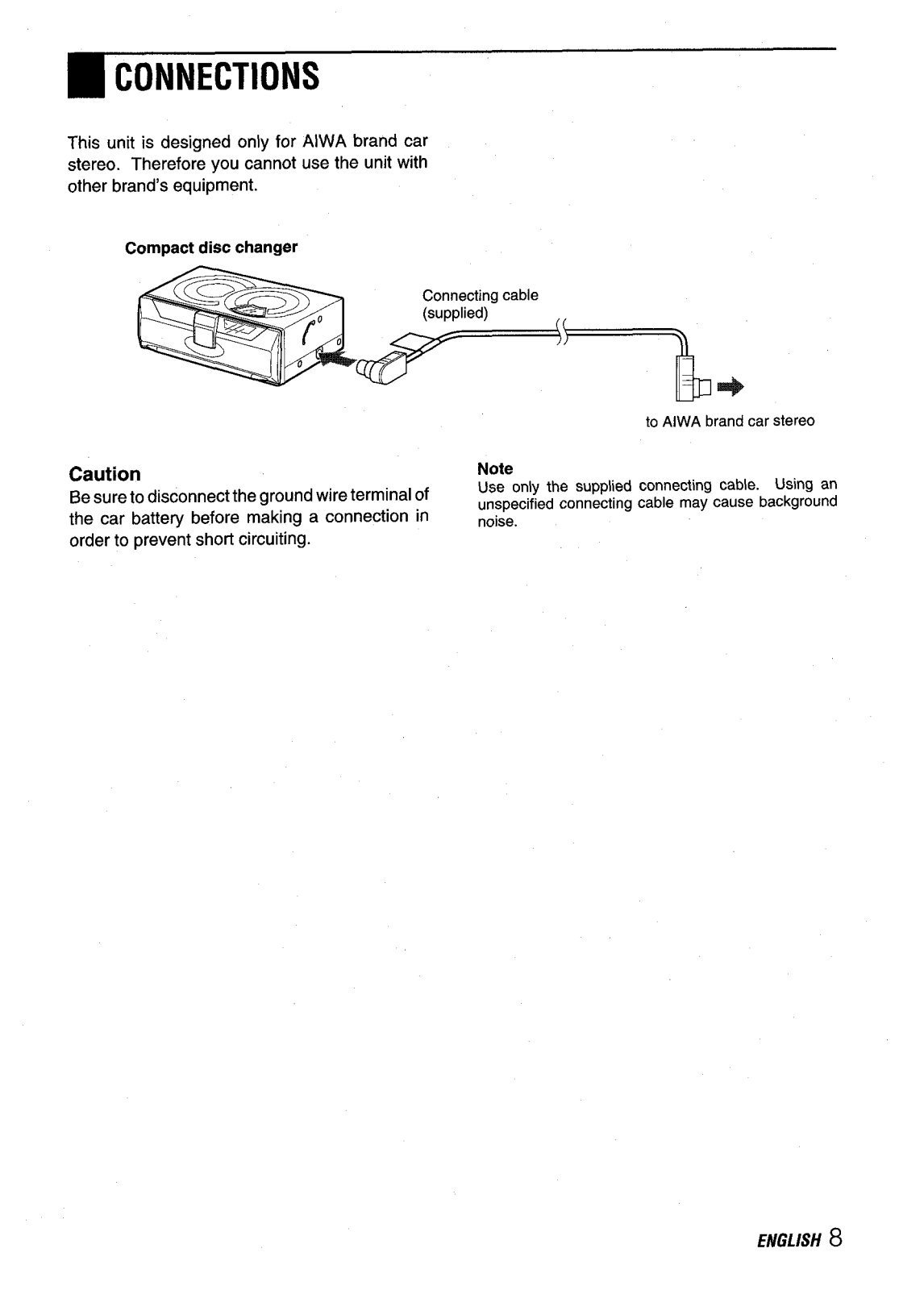

●CONNECTIONS

This unit is designed only for AIWA brand car
stereo. Therefore you cannot use the unit with
other brand’s equipment.

Compact disc changsr

to AIWA brand car stereo

Caution

Be sure to disconnect the ground wire terminal of
the car battery before making a connection in
order to prevent shorl circuiting.

Note

Use only the supplied connecting cable. Using an
unspecified connecting cable may cause background

noise.

ENGLISH

8

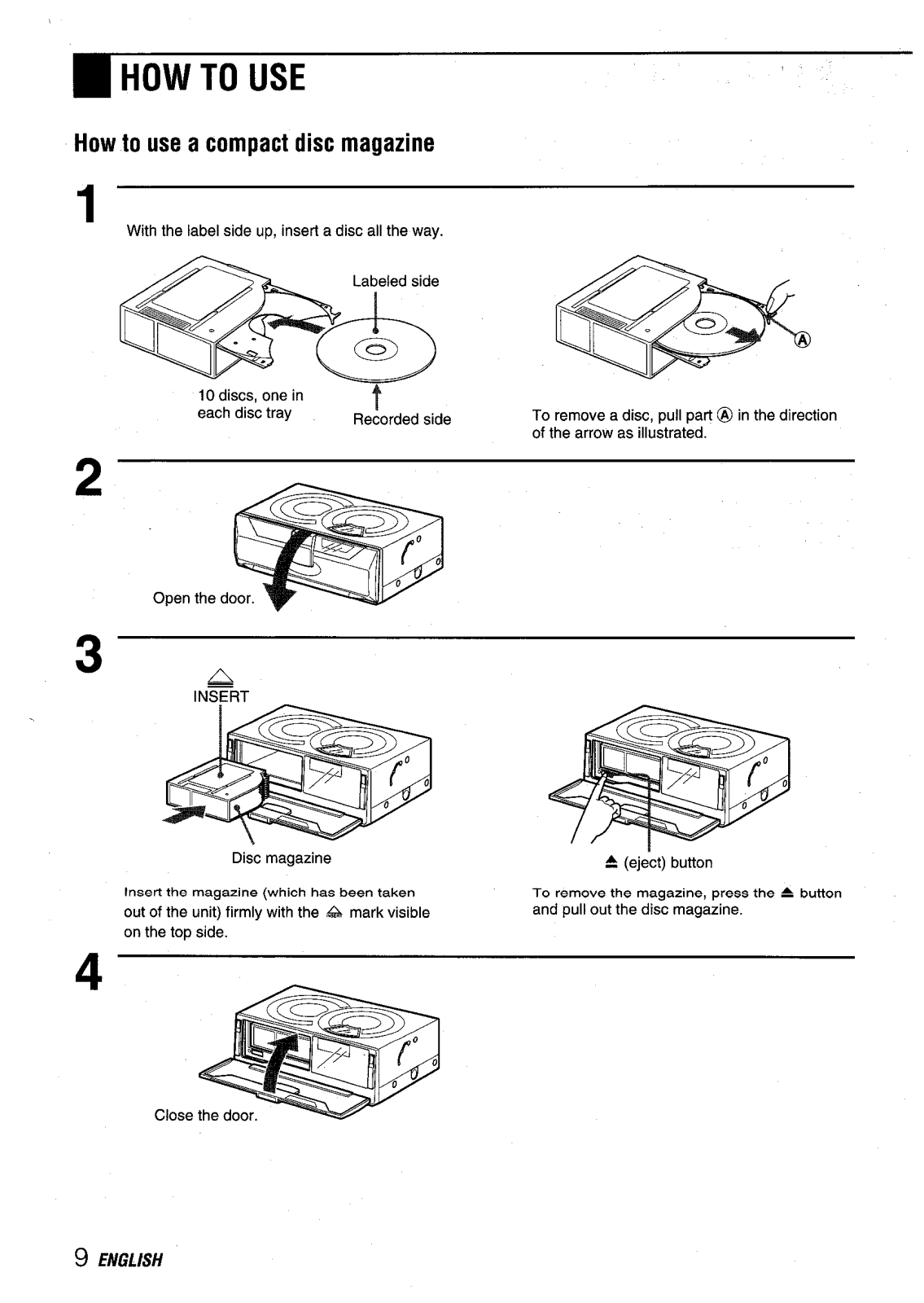

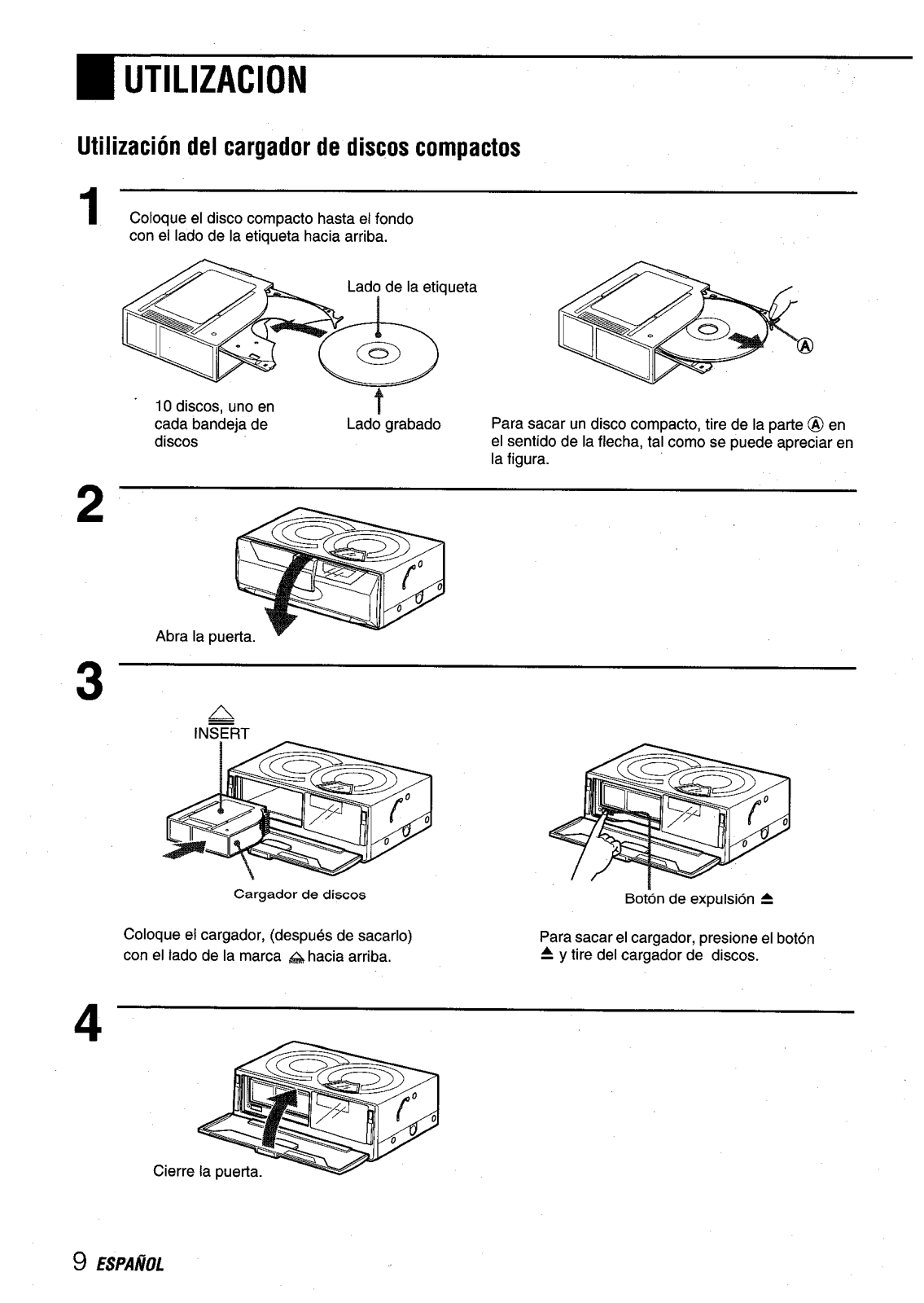

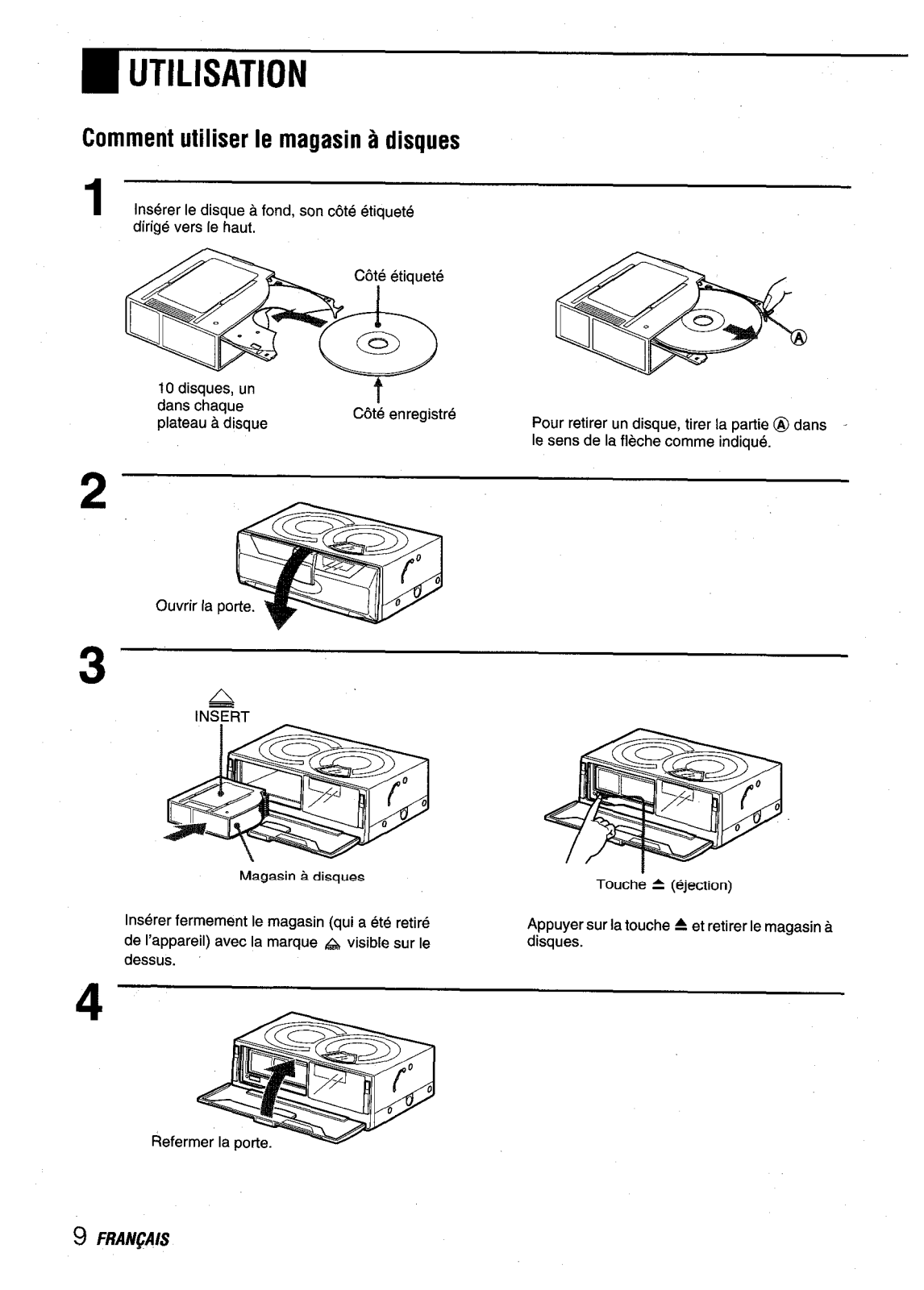

●HOW TO USE

How to use a compact disc magazine

With the label side up, inserl a disc all the way.

10discs, one in

each disc tray

2

Open the d

3

Insert the magazine (which has been taken

out of the unit) firmly with the LA mark visible

on the top side.

&

INSERT

Disc magazine

7

Recorded side

To remove a disc, pull part@ in the direction
of the arrow as illustrated.

A (eject) button

To remove the magazine, press the A button

and pull out the disc magazine.

9 ENGLtSH

Close
