Congratulations on your purchase of the Sony Ericsson W850. Enjoy your music and the latest 3G services wherever you go. In addition to the pre-installed W850 content, you have more waiting for you at www.sonyericsson.com/fun.
And if you register at www.sonyericsson.com/register, you get an exclusive offer. Don’t miss out. Go there now.
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 2 Friday, June 9, 2006 2:30 PM
Added dimensions – Accessories from Sony Ericsson
Stereo Bluetooth™ Headset HBH-
DS970
Rich digital sound for wireless music and call handling.
Music Desk Stand MDS-60
Designed for rich sound at home or away.
Music Power Pack MPP-60
Just plug and play.
The full range of accessories may not be available in every market.
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 1 Friday, June 9, 2006 2:30 PM
Contents
Getting started ................... |
4 |
SIM card, battery, turning on, help, calls, keypad lock, Memory Stick PRO Duo™ and more.

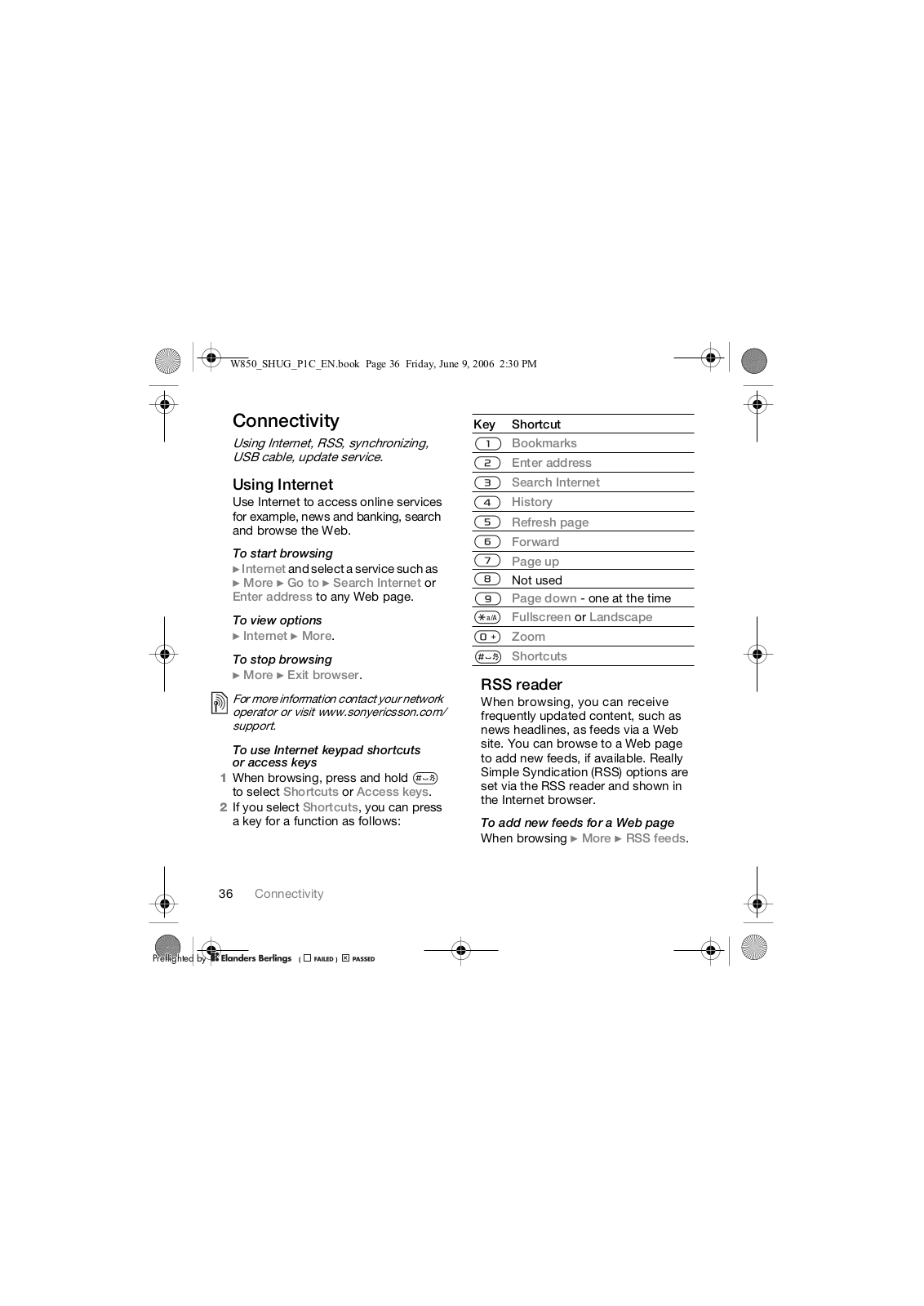

Connectivity ..................... |
36 |

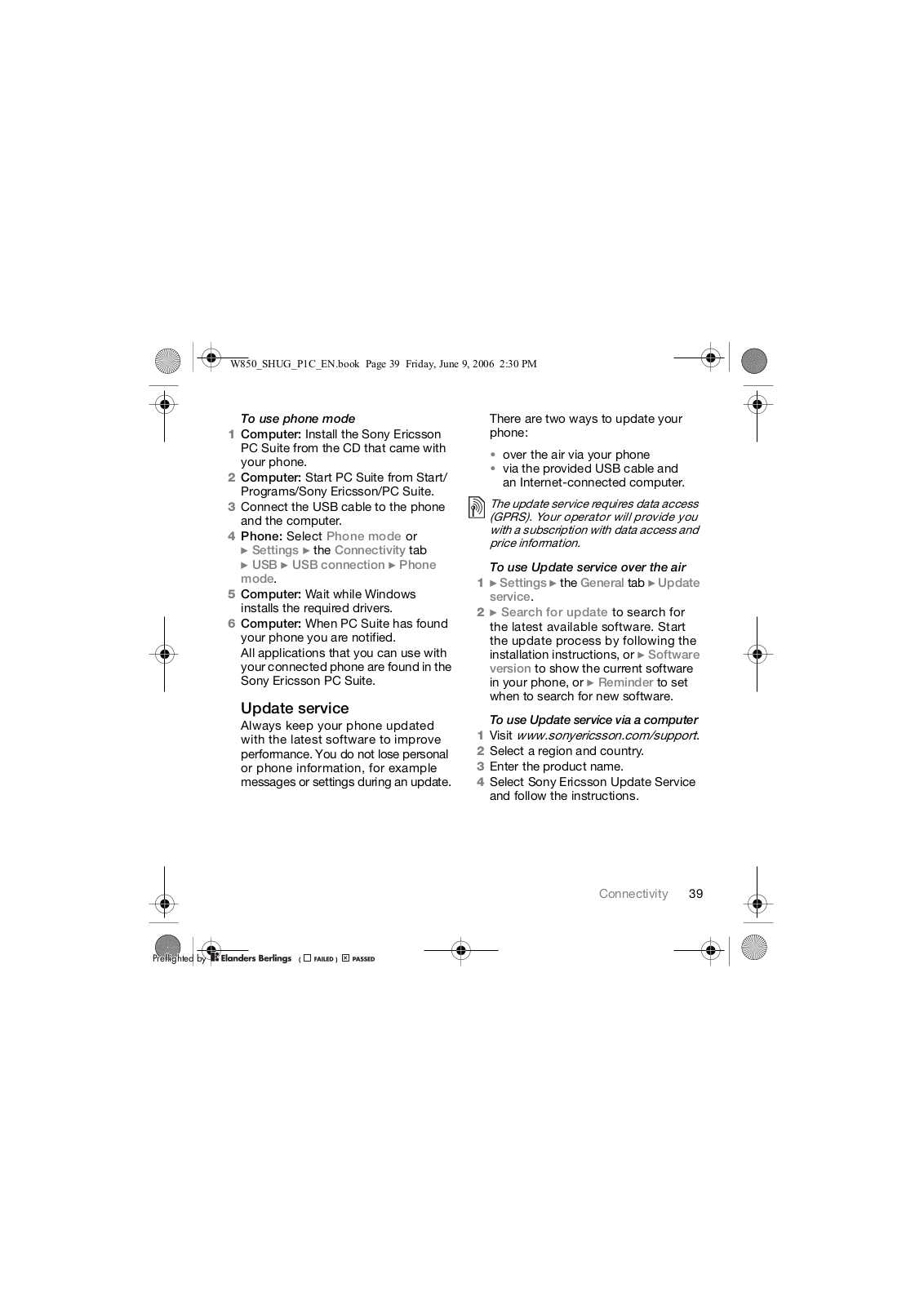

Using Internet, RSS, synchronizing, USB cable, update service.
Getting to know the phone .. 8
Phone overview, menus, navigation, entering letters, activity menu, file manager.

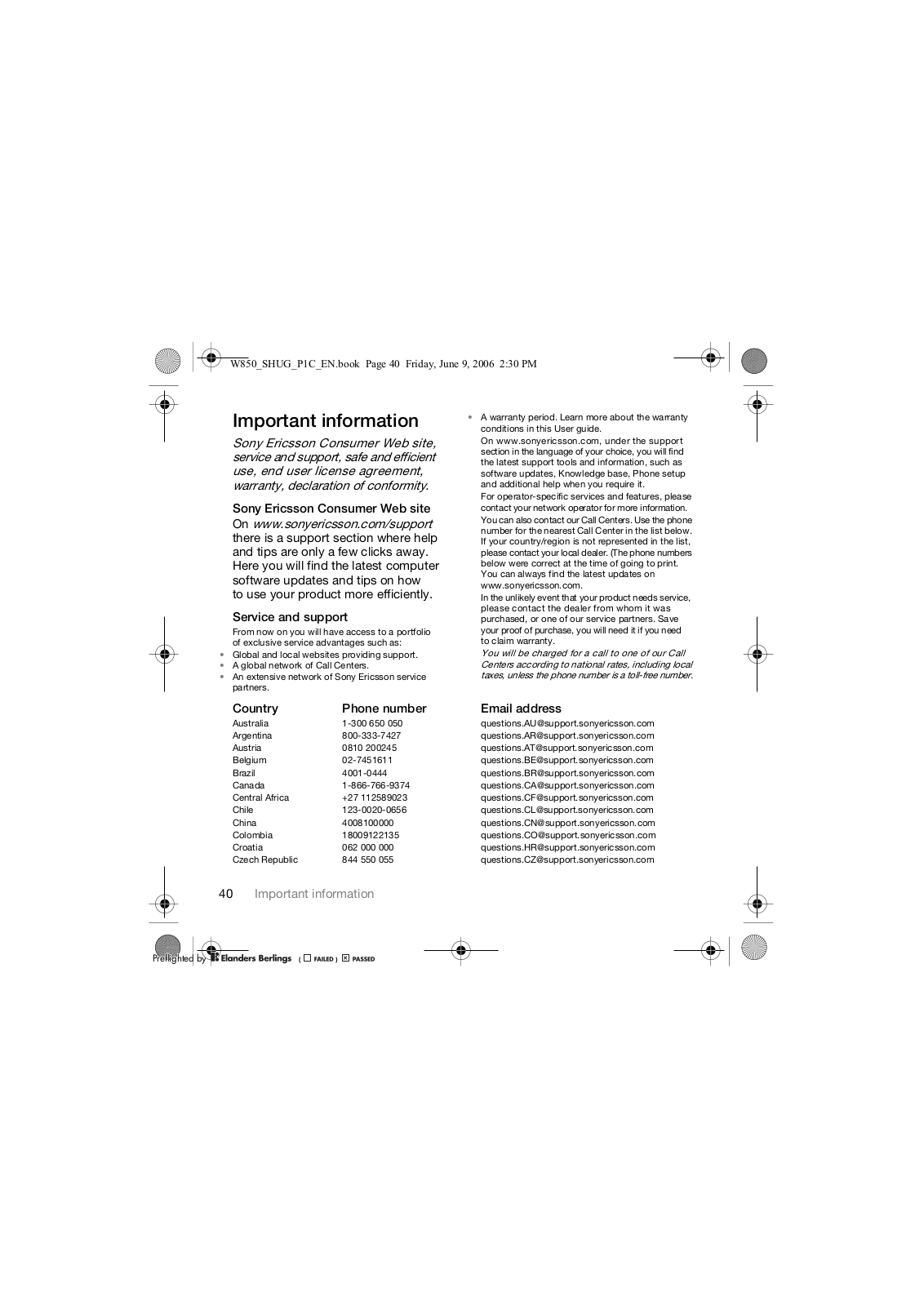

Important information ...... |
40 |
Sony Ericsson Consumer Web site, service and support, safe and efficient use, end user license agreement, warranty, declaration of conformity.
Calling ............................... |
17 |
Calls, video calls, contacts. |
|

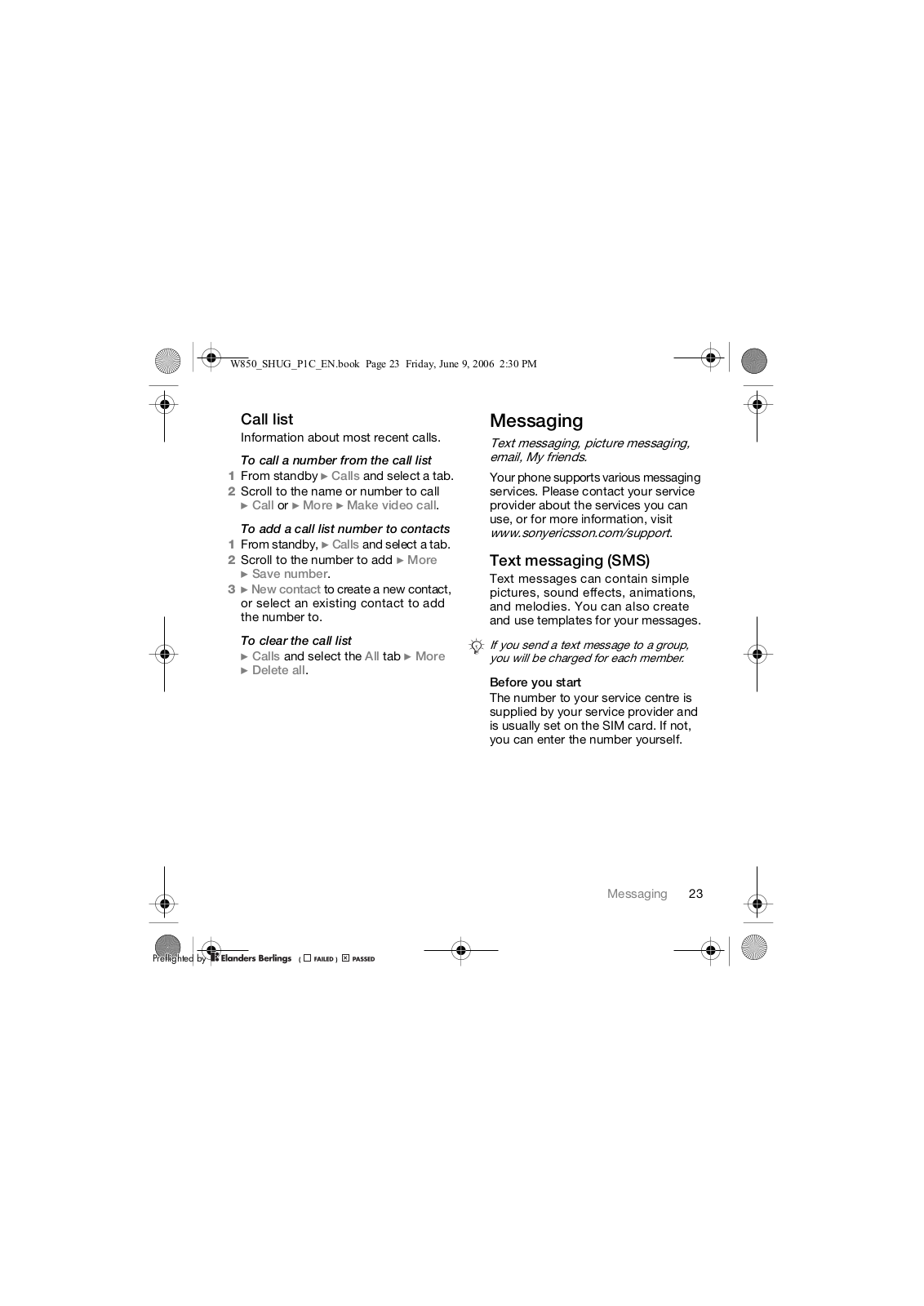

Messaging ........................ |
23 |

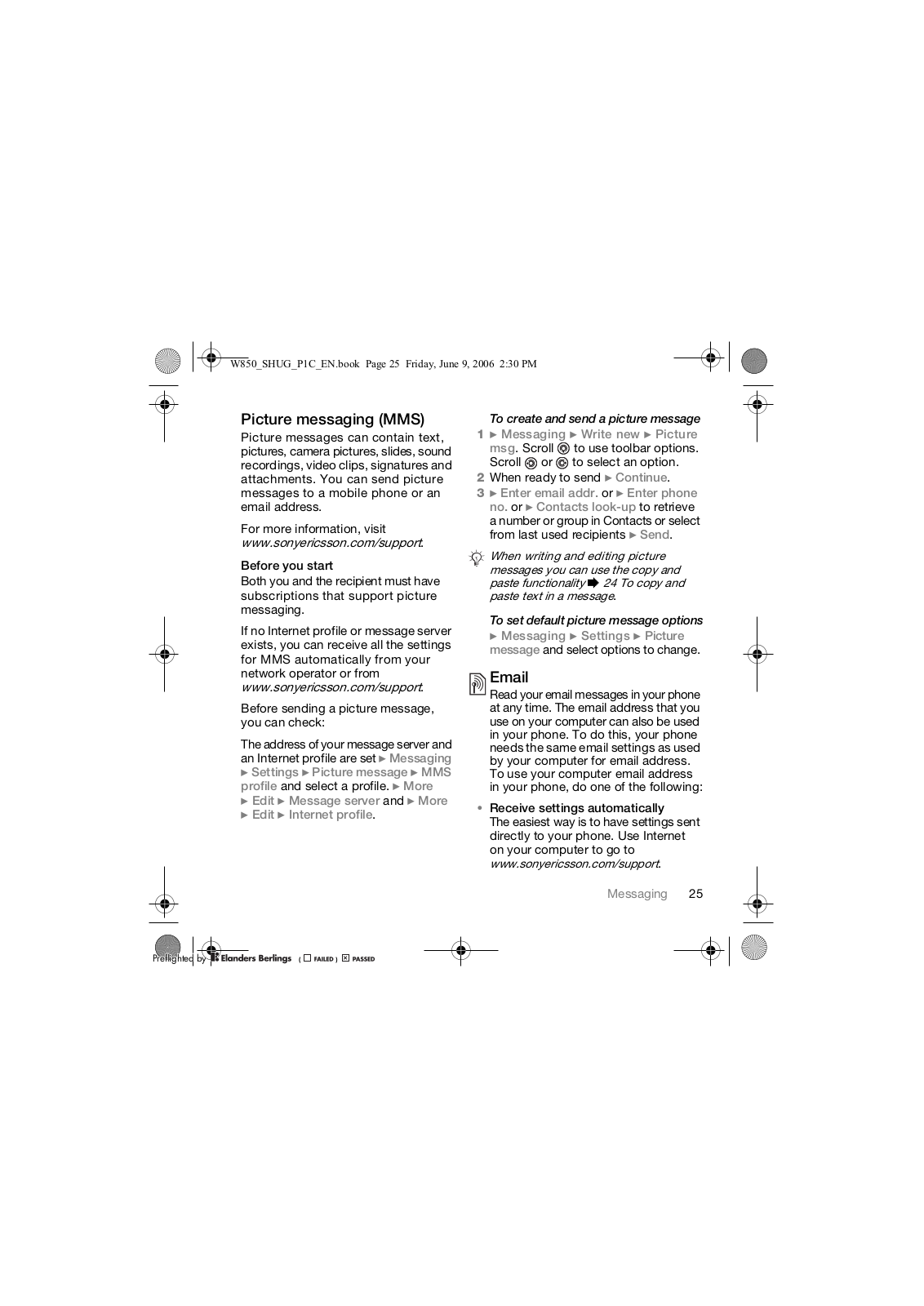

Text messaging, picture messaging, |
|
email, My friends. |
|
Imaging ............................. |
27 |
Camera, video, blog, pictures. |
|

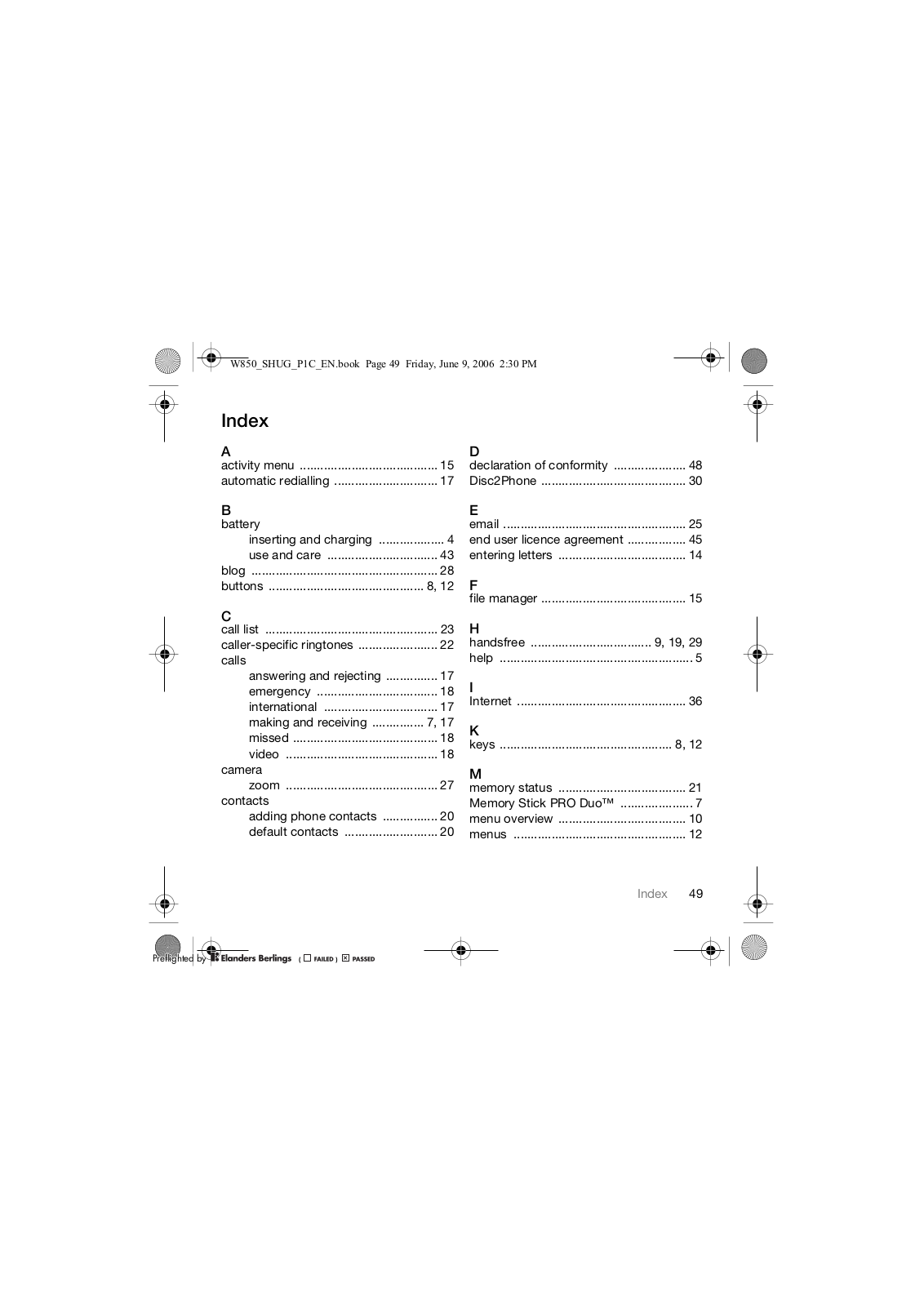

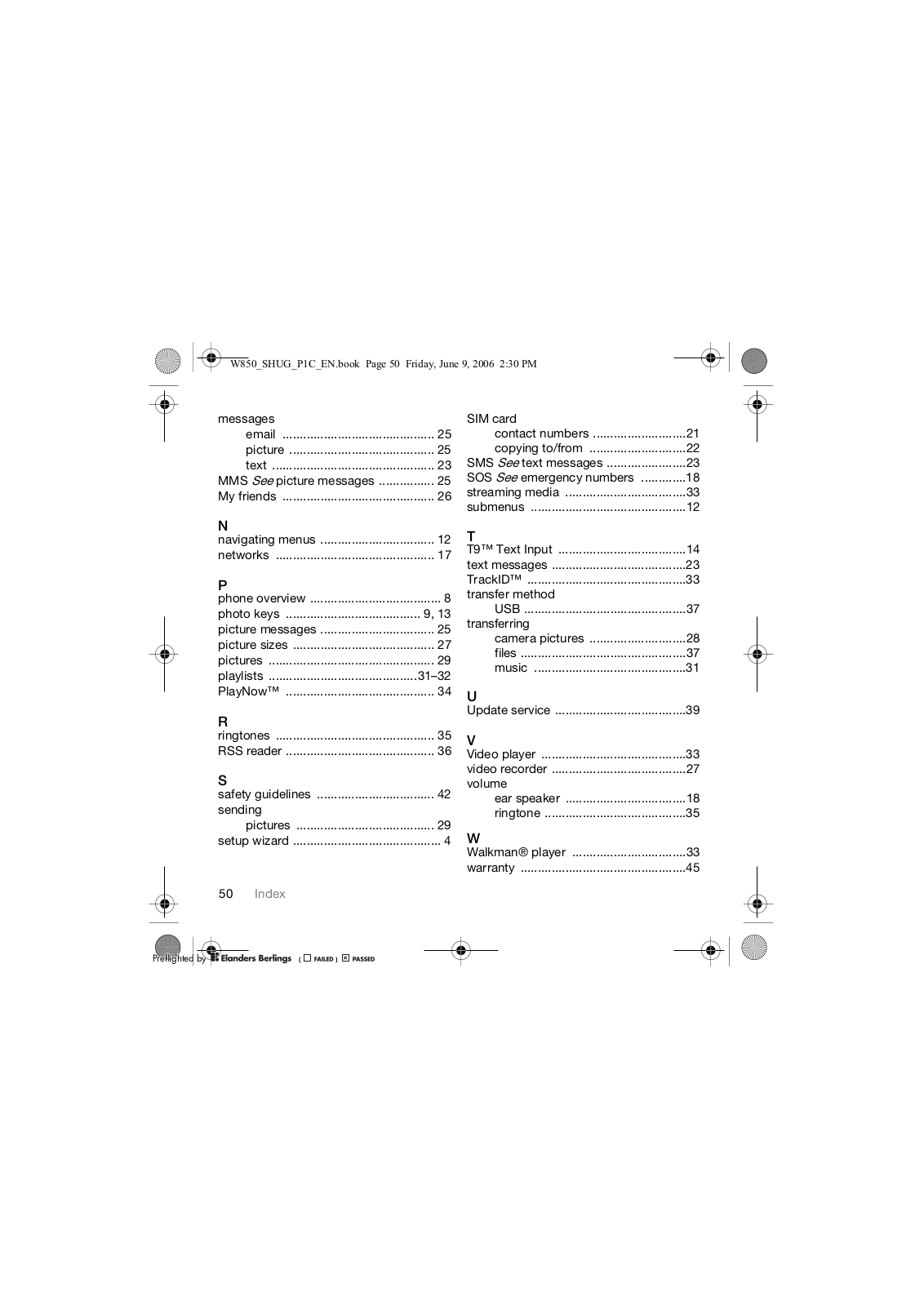

Index ................................. |
49 |
www.sonyericsson.com/support
At Sony Ericsson Product Support there is more information and help to get the most out of your product:
User guide with additional information, troubleshooting, tips and tricks, software, settings for Internet and messaging.

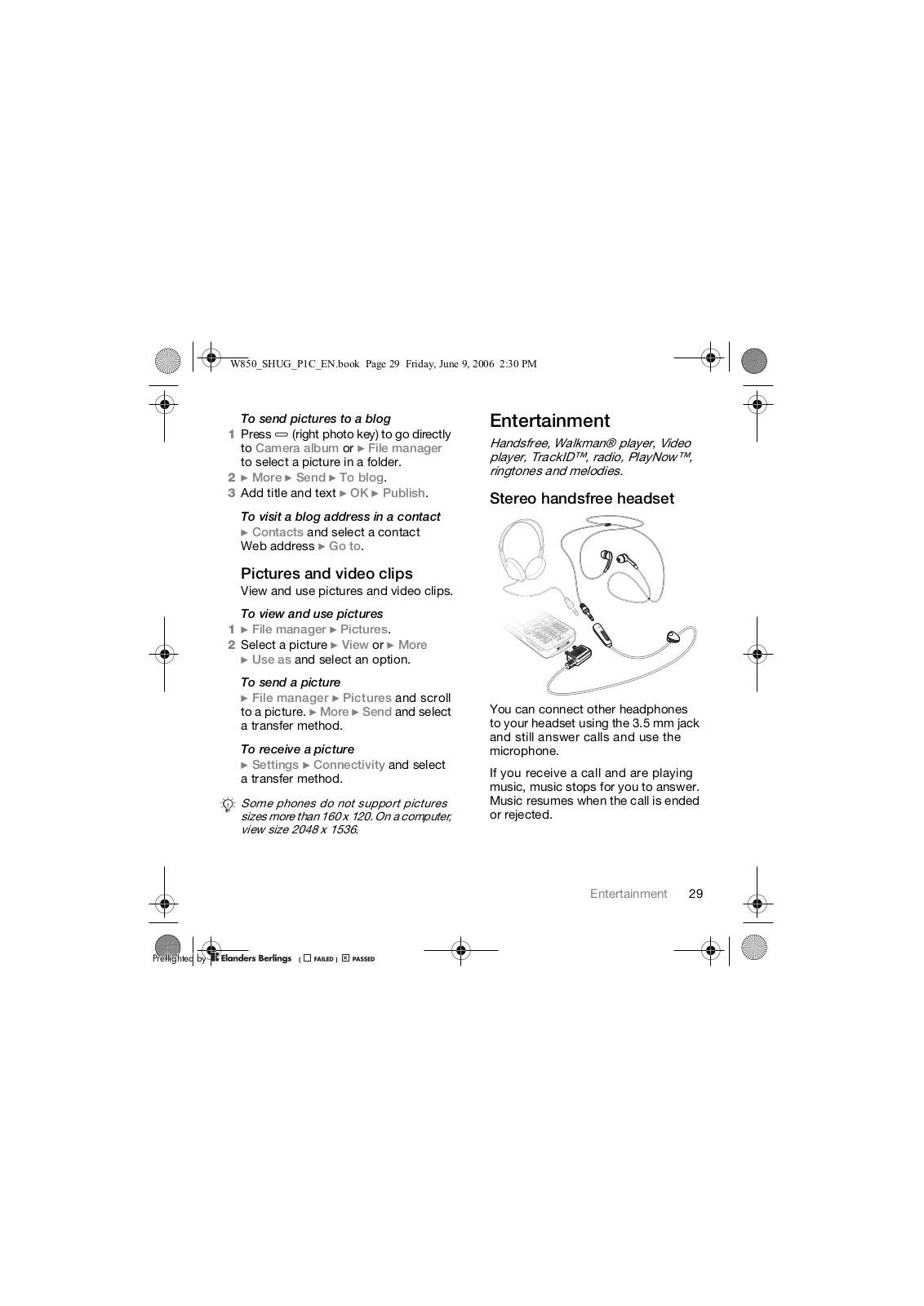

Entertainment ................... |
29 |
Handsfree, Walkman® player, Video player, TrackID™, radio, PlayNow™, ringtones and melodies.
Contents 1
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 2 Friday, June 9, 2006 2:30 PM
Sony Ericsson
UMTS 2100 GSM 900/1800/1900
This User guide is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this User guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this User guide.
All rights reserved.
©Sony Ericsson Mobile Communications AB, 2006
Publication number: EN/LZT 108 8291 R1A Please note:
Some of the services in this User guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not.
Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone.
Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your
improper use of additional content or other third party content.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Ericsson is under license.
TrackID, PlayNow, MusicDJ, PhotoDJ and VideoDJ are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB.
Memory Stick PRO Duo™ is a trademark or registered trademark of Sony Corporation.
The WALKMAN® logo and symbol are registered trademarks of Sony Corporation.
Real is a trademark or a registered trademark of RealNetworks, Inc. RealPlayer® for Mobile is included under license from RealNetworks, Inc.
Copyright 1995-2004, RealNetworks, Inc. All rights reserved.
Adobe™ Photoshop™ Album Starter Edition is a registered trademark of Adobe Systems Incorporated. Microsoft, Windows and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the U.S and other countries.
Mac OS is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
T9™ Text Input is a trademark or a registered trademark of Tegic Communications. T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383;
Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide.
Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. End-user license agreement for Sun™ Java™ J2ME™.
2 Contents
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 3 Friday, June 9, 2006 2:30 PM
1Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in
whole or in part.
2Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table
of Denial Orders.
3Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable.
Part of the software in this product is copyright © SyncML initiative Ltd. (1999-2002). All rights reserved. Other product and company names mentioned herein may be the trademarks of their respective owners.
Any rights not expressly granted herein are reserved. All illustrations are for illustration only and may not accurately depict the actual phone.
Instruction symbols
The following appear in the User guide:
Note
A service or function is networkor subscription-dependent. Contact your network operator for details.
%See also page...
}Use a selection or navigation key to scroll and select
% 12 Navigation.
Press the navigation key centre.
Press the navigation key up.
Press the navigation key down.
Press the navigation key left.
Press the navigation key right.
Contents 3
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 4 Friday, June 9, 2006 2:30 PM
Getting started
SIM card, battery, turning on, help, calls, keypad lock, Memory Stick PRO Duo™ and more.
SIM card and battery
To insert SIM card and battery
1 Remove the battery cover.
2Slide the SIM card into its holder with the contacts facing down.
3Insert the battery with the label side up and the connectors facing each other.
4 Slide the battery cover into place.
To charge the battery
1Connect the charger plug to the phone with the symbol facing upwards.
2It may take up to 30 minutes before the battery icon appears.
3Wait approximately 2.5 hours or until the battery icon indicates a full charge. Press a key to activate the screen.
4 Pull out the charger plug.
Turning on your phone
Make sure the phone is charged and a SIM card inserted before turning it on. After turning on, use the setup wizard to quickly and easily prepare for use.
4 Getting started
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 5 Friday, June 9, 2006 2:30 PM
To turn on the phone |
Flight mode menu |
1Press and hold . The first start-up may take a few minutes.
2 Select to use the phone in:
•Normal mode – full functionality or
•Flight mode – limited functionality with network, FM radio, Bluetooth™
transceivers off.
3 Enter your SIM card PIN, if requested.
4At first start-up, select the language for your phone menus.
5 } Yes for the setup wizard to help you. 6 Follow instructions to complete setup.
If predefined settings exist in your phone, you may not need more settings. If asked to register the phone at Sony Ericsson, no personal data, such as your phone number, will be transferred to or processed by Sony Ericsson if you accept to register your phone.
The Flight mode menu is activated by default. Select from Normal mode with full functionality or Flight mode with limited functionality. Network, radio and Bluetooth transceivers are turned off to prevent disturbance to sensitive equipment. You can, for example, play music but not make calls in an aeroplane.
Follow onboard regulations, flight crew
instructions for use of electronic devices.
Help in your phone
Help and information are available in your phone at any time.
To use the setup wizard
} Settings } the General tab } Setup wizard and select an option:
•Settings download or
•Basic setup or
•Tips and tricks.
To view information about functions
Scroll to a function } More } Information, if available.
To view the phone demonstration
} Entertainment } Demo tour.
Getting started |
5 |
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 6 Friday, June 9, 2006 2:30 PM
Take pictures or record video clips
Zoom in |
Take pictures |
||
or out |
Record video |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Screen options |
|
(top right) |
Delete |
Screen options |
|
|
|
|
Back |
|
|
|
|
||
|
|
|
|
||
|
|
|
|
|
|
(bottom right) |
|
|
|
||
|
|
|
|
|
|
2Use the navigation key to switch between camera and video recorder.
3 Camera: Press to take a picture.
Video: Press to start recording. To stop recording, press
again.
Your pictures and video clips are automatically saved in File manager
} Camera album.
4To take another picture or record another video clip, press to return to the viewfinder.
To stop using the camera or video recorder, press and hold .

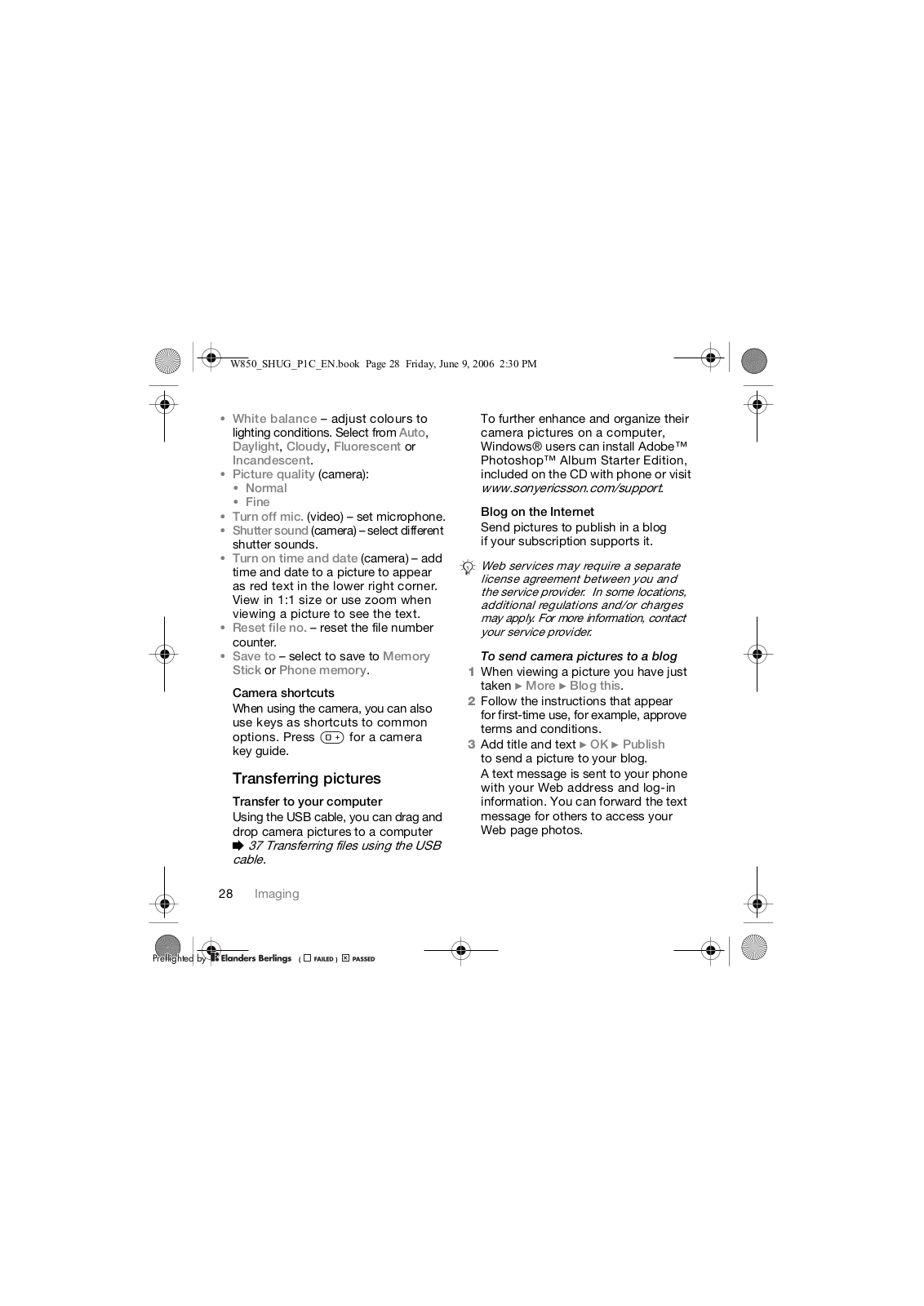

Your personal Web page
Publish your pictures on a Web page. The phone creates the Web page for you.
Switch camera/video or
Adjust brightness or
To take a picture or record video
1 From standby, press to activate the camera.
To blog a photo
1 Take a photo } More } Blog this.
2 Follow the instructions for first time use. 3 Add title and text } OK } Publish.
4You will receive a text message with your Web address and log-in data.
6 Getting started
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 7 Friday, June 9, 2006 2:30 PM

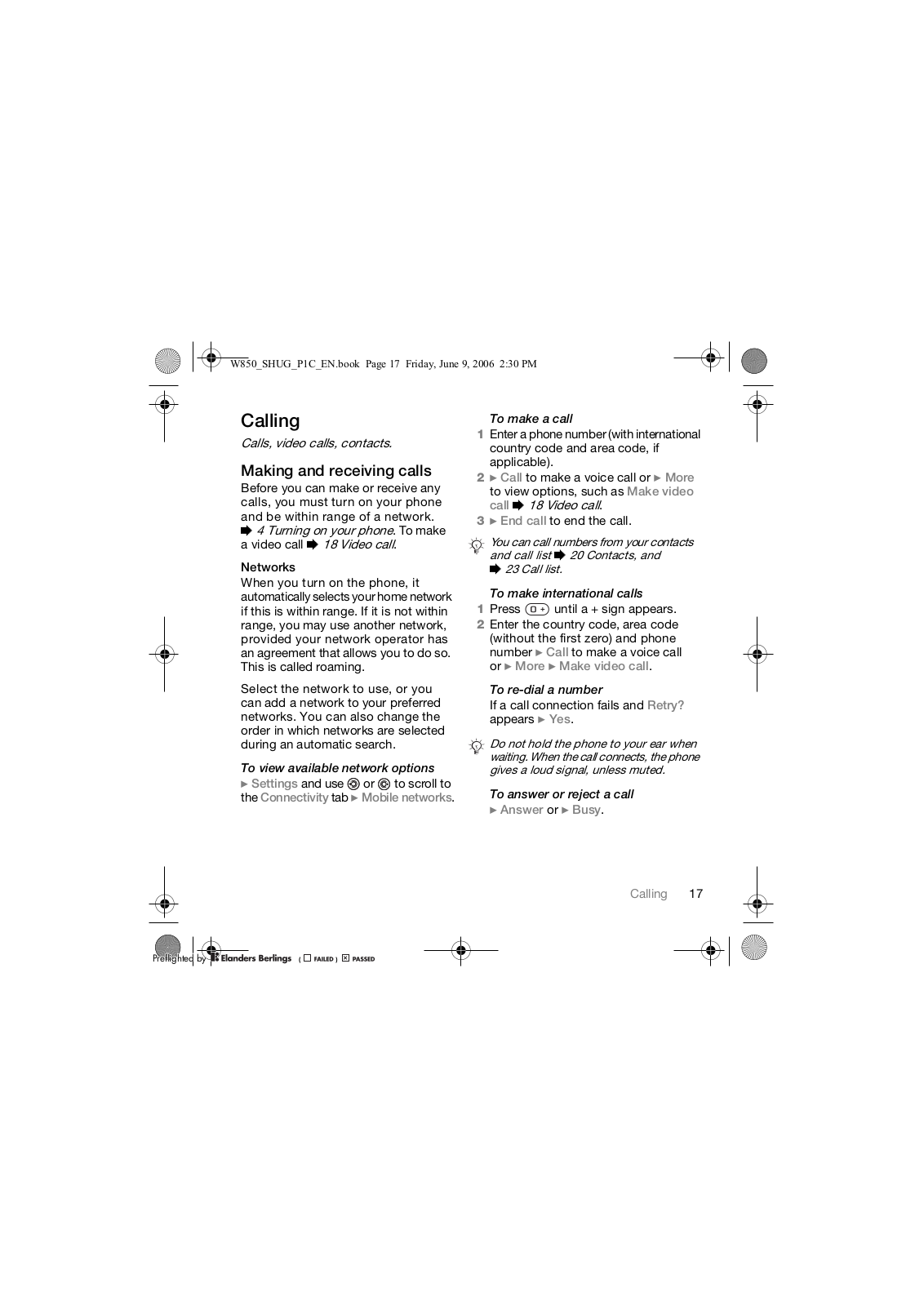

Make and receive calls
The phone must be in normal mode.
To make and receive calls
Enter a phone number (with international prefix and area code if applicable) }Call to make the call or } More } Make video call % 18 Video call. } End call to end the call.
To receive a call
When the phone rings } Answer or } Busy to reject the call.
To end a call
} End call.
Keypad lock
Lock the keypad to avoid dialling a number by accident.
Calls to the international emergency number 112 can still be made, even when the keypad is locked.
To set the automatic keylock
}Settings } the General tab
}Security } Automatic keylock.
To lock the keypad manually
When you close the phone, } Yes to lock the keypad. You can still answer an incoming call and the keypad locks again after the call. The keypad remains locked until you unlock it manually.
To unlock the keypad manually
From standby, press any key }Unlock
} OK.
Memory Stick PRO Duo™
Your phone supports Memory Stick PRO Duo™ memory card adding more storage space to your phone to save files containing pictures or music, for example.
To insert and remove a memory card
1 Open the cover and insert as shown.
2 Press the edge to release and remove.
Getting started |
7 |
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 8 Friday, June 9, 2006 2:30 PM
Getting to know the phone
Phone overview, menus, navigation, entering letters, activity menu, file manager.
Phone overview
1 |
|
|
|
2 |
8 |
16 |
17 |
|
9 |
|
|
|
|
14 |
|
3 |
10 |
|
|
4 |
|
|
|
11 |
|
|
|
5 |
|
18 |
|
6 |
12 |
|
|
7 |
|
15 |
|
|
|
|
|
|
13 |
19 |
20 |
|
|
|
Some icons on keys may differ.
8 Getting to know the phone
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 9 Friday, June 9, 2006 2:30 PM
1Video call camera, ear speaker
2 |
Photo key: (left) from standby, view camera album pictures in full view or |
|
(lower) with the camera for shoot modes. |
3 Walkman® key
4 |
|
|
|
Selection key |
|
|
|||
5 |
|
|
|
Back key |
|
|
|
||
|
|
|
||
6 |
|
|
|
Internet key |
7 |
|
|
|
Navigation key/Walkman® player control |
8 |
|
|
|
Photo key: (right) from standby, view camera album thumbnail pictures or |
|
|
|
|
(upper) with the camera to turn on/off the photo light. |
9Screen
10 |
Selection key |
11 |
C key |
12 |
Activity menu key |
13 |
Silent key |
14 |
Volume, camera digital zoom buttons |
15 |
Camera button |
16 |
Power on/off button |
17Memory Stick PRO Duo™ slot
18Microphone
19Connector for charger, handsfree and USB cable
20 |
Infrared port |
For more information % 12 Navigation.
Getting to know the phone |
9 |
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 10 Friday, June 9, 2006 2:30 PM
Menu overview
PlayNow™* |
Internet* |
Camera |
Messaging |
Write new
Inbox
RSS reader
Drafts
Outbox
Sent messages
Saved messages
My friends*
Call voicemail
Templates
Settings
File manager** |
Contacts |
Camera album |
New contact |
Music |
|
Pictures |
|
Videos |
|
Themes |
|
Web pages |
|
Games |
|
Applications |
|
Other |
|
10 Getting to know the phone
0REFLIGHTED BY
Entertainment
Online services*
Games
TrackID™
Video player
VideoDJ™
PhotoDJ™
MusicDJ™
Remote control
Record sound
Demo tour
WALKMAN
Radio
W850_SHUG_P1C_EN.book Page 11 Friday, June 9, 2006 2:30 PM |
|
||||
Calls** |
|
|
|
Organizer |
|
|
|
|
|
Alarms |
|
All |
Answered |
Dialled |
Missed |
Applications |
|
Video call |
|||||
|
|
|
|
||
|
|
|
|
Calendar |
|
|
|
|
|
Tasks |
|
|
|
|
|
Notes |
|
|
|
|
|
Synchronization |
|
|
|
|
|
Timer |
|
|
|
|
|
Stopwatch |
|
|
|
|
|
Light |
|
|
|
|
|
Calculator |
|
|
|
|
|
Code memo |
|
Settings** |
|
|
|
|
|
General |
Sounds & alerts |
Display |
Calls |
Connectivity* |
|
Profiles |
Ring volume |
Wallpaper |
Divert calls |
Bluetooth |
|
Time & date |
Ringtone |
Themes |
Manage calls |
Infrared port |
|
Language |
Silent mode |
Start-up screen |
Time & cost* |
USB |
|
Update service |
Increasing ring |
Screen saver |
Show/hide my no. |
Synchronization |
|
Voice control |
Vibrating alert |
Clock size |
Handsfree |
Device management |
|
New events |
Message alert |
Brightness |
Switch to line 2* |
Mobile networks |
|
Shortcuts |
Key sound |
Sleep mode clock |
|
Data communication |
|
Flight mode |
|
Edit line names* |
|
Internet settings |
|
Security |
|
|
|
Streaming settings |
|
Setup wizard |
|
|
|
Accessories |
|
Phone status |
|
|
|
|
|
Master reset |
|
|
|
|
* Some menus are operator-, networkand subscription-dependent.
** Use the navigation key to move across tabs in submenus. For more information %12 Navigation.
Getting to know the phone 11
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 12 Friday, June 9, 2006 2:30 PM
Navigation |
Navigation keys |
The main menus are shown as icons. Some submenus include tabs. Scroll to a tab by pressing the navigation key left or right and selecting an option.
Key
Go to the main menus or to select highlighted items.
Press to start and stop music when using the WALKMAN.
Move through the menus and tabs.
Select options shown immediately above these keys on the screen.
Go back one level in the menus.
Press and hold to return to standby or to end a function.
Delete items, such as pictures, sounds and contacts.
During a call, press and hold to mute the microphone.
Open the browser.
Open the activity menu % 15 Activity menu.
Open or minimize the WALKMAN.
Press to take a picture or record a video clip.
Press and hold to call your voicemail service (if set).
-
Press and hold any of these keys to reach a contact beginning with a specific letter.
12 Getting to know the phone
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 13 Friday, June 9, 2006 2:30 PM
- |
Press a number key and } Call to speed dial. |
||||
|
|
|
|
|
Turn off the ringtone when receiving a call. |
|
|
|
|
|
Press and hold to set the phone to silent. The alarm signals even |
|
|
|
|
|
if the phone is set to silent. |
|
|
|
|
|
|
|
|
|
|
|
View status information in standby. |
|
|
|
|
|
Increase the volume during a call, or when using the WALKMAN. |
|
|
|
|
|
Zoom out when using the camera or viewing pictures. |
|
|
|
|
|
Press and hold to go back one track. |
|
|
|
|
|
Press twice to reject a call. |
|
|
|
|
|
Press and hold to voice dial, alternatively say your magic word (if set). |
|
|
|
|
|
|
|
|
|
|
|
Decrease the volume during a call, or when using the WALKMAN. |
|
|
|
|
|
|
|
|
|
|
|
Zoom in when using the camera or viewing pictures. |
|
|
|
|
|
Press and hold to go forward one track. |
|
|
|
|
|
Press and hold to voice dial, alternatively say your magic word (if set). |
|
|
|
|
|
|
|
|
|
|
|
Use left or right photo keys to view camera album pictures from |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
standby, for full or thumbnail views. |
|
|
|
|
|
|
} Info |
Find more information, explanations or tips about selected features, |
||||
|
|
|
|
|
menus or functions available in your phone % 5 Help in your phone. |
|
|
|
|
|
|
} More |
Enter a list of options. There are different alternatives in the list |
||||
|
|
|
|
|
of options depending on where you are in the menus. |
|
|
|
|
|
|
Getting to know the phone 13
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 14 Friday, June 9, 2006 2:30 PM
Entering letters
Enter letters in one of the following ways (text input methods), for example, when writing messages:
•Multitap text input
•T9™ Text Input
To change the text input method
Before, or when entering letters, press and hold to change the method.
Options when entering letters
} More for options when writing a message.
To enter letters using multitap input
•Press -
repeatedly until the desired character appears.
•Press to shift between capital and lower-case letters.
•Press and hold -
to enter numbers.
•Press to delete letters or numbers.
•Press for the most common punctuation marks.
•Press to add a space.
T9™ Text Input
The T9 Text Input method uses a built-in dictionary to recognize the most commonly used word for each sequence of key presses. This way, you press each key only once, even if the letter you want is not the first letter on the key.
14 Getting to know the phone
To enter letters using T9 Text Input
1To enter text, you have to be in a function where text input is possible, for example, } Messaging } Write new } Text message.
2For example, to write the word “Jane”, press ,
,
,
.
3If the word shown is the one you want,
press to accept and add a space. To accept a word without adding a
space, press . If the word shown is not the one you want, press
or
repeatedly to view alternative words. Accept a word and add a space by pressing
.
4Continue writing the message. To enter
a mark, press and then
or
repeatedly, press
to accept and add a space.
To add words to the T9 Text Input dictionary
1When entering letters } More
} Spell word.
2Edit the word by using multitap input.
Use and
to move the cursor between the letters. To delete a
character, press . To delete
the entire word, press and hold . When you have edited the word }Insert. The word is added to the T9 Text Input dictionary. Next time you enter this word using T9 Text Input, it appears in alternative words.
0REFLIGHTED BY
W850_SHUG_P1C_EN.book Page 15 Friday, June 9, 2006 2:30 PM
Next word prediction
When writing a message, you can use T9 Text Input to predict the next word, if previously used in a sentence.
To turn next word prediction on/off
When entering letters } More } Writing options } Next word pred.
To use next word prediction
When entering letters, press to accept or continue.
Activity menu
You can open the activity menu almost anywhere in the phone to view and handle new events, and access bookmarks and shortcuts.
To open and close the activity menu
Press .
Activity menu tabs
•New events – such as missed calls and messages. When a new event
occurs, the tab appears. Press to dismiss an event from the event tab. New events can also be set
to appear as pop-up text instead,
}Settings } the General tab
}New events } Pop-up.
•Running apps – applications that are running in the background. Select an application to return
to it or press to end it.
•My shortcuts – add, delete and change the order of shortcuts. When you select a shortcut and the application opens, other programs are closed or minimized.
•Internet – your Internet bookmarks. When you select a bookmark and the browser opens, other programs are closed or minimized.

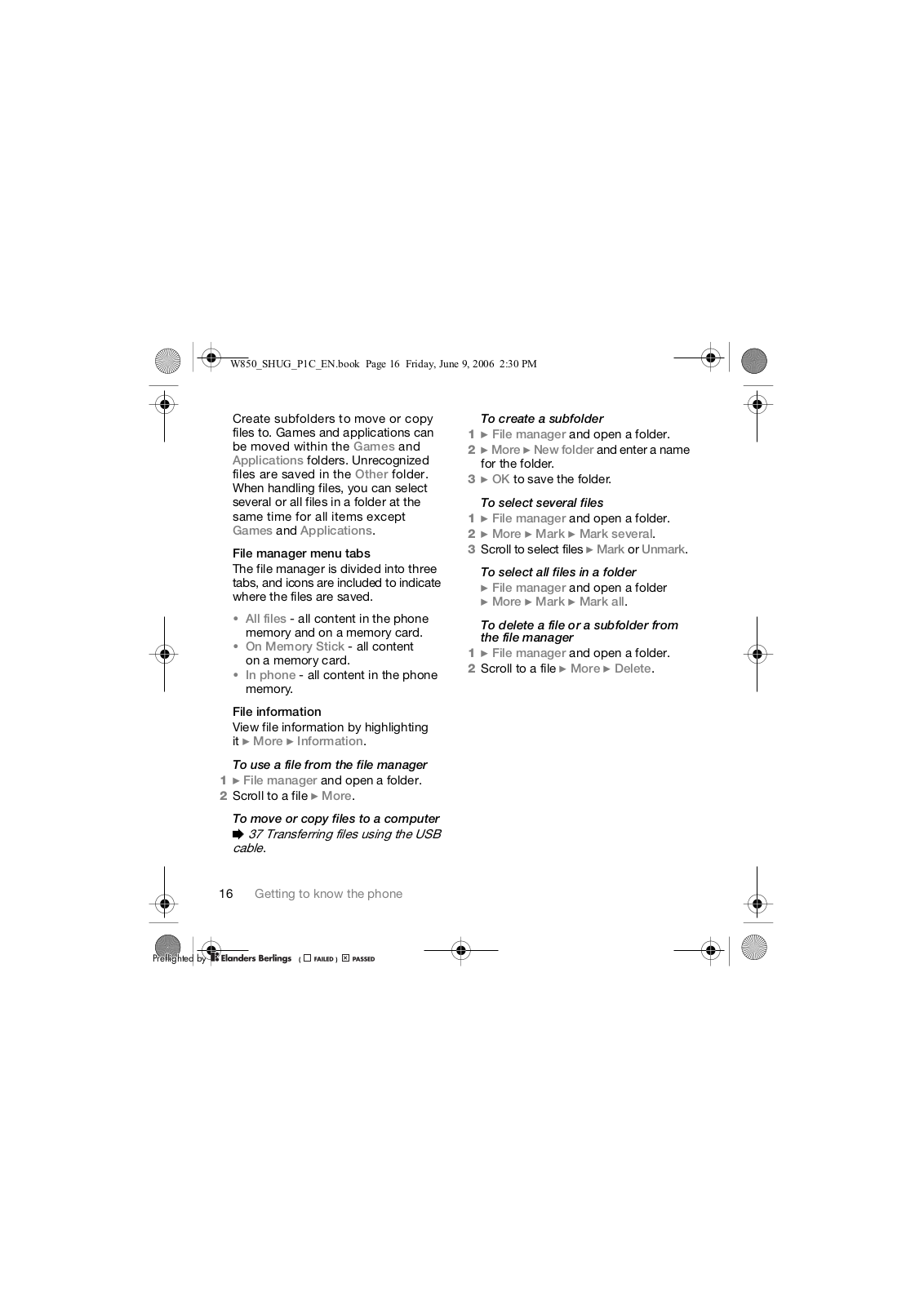

File manager
Use the file manager to handle items such as pictures, videos, music, themes, Web pages, games and applications saved in the phone memory or on a memory card.
You can also move and copy files between the phone, a computer and a memory card. If you have a memory card inserted, files are automatically saved to it first and then to phone memory.
If all available memory is full, you cannot save any files until content is removed.
Getting to know the phone 15
0REFLIGHTED BY
