Sony AD022011 User Manual

Draft for Sony Ericsson Internal Use Only P1C

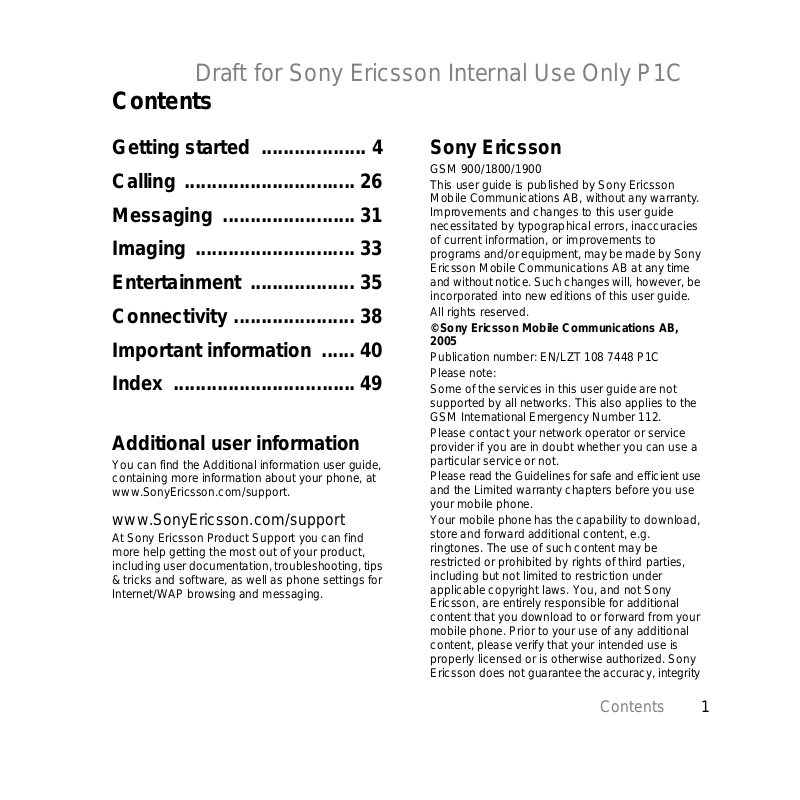

Contents
Getting started ................... 4
Calling ............................... 26
Messaging ........................ 31
Imaging ............................. 33
Entertainment ................... 35
Connectivity ...................... 38
Important information ...... 40
Additional user information
You can find the Additional information user guide, containing more information about your phone, at
www.SonyEricsson.com/support.
www.SonyEricsson.com/support
At Sony Ericsson Product Support you can find more help getting the most out of your product, including user documentation, troub leshooting, tips & tricks and software, as well as phone settings for Internet/WAP browsing and messaging.
Sony Ericsson
GSM 900/1800/1900 This user guide is published by Sony Ericsson
Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide. All rights reserved.
©Sony Ericsson Mobile Communications AB, 2005
Publication number: EN/LZT 108 7448 P1C Please note: Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a
particular service or not. Please read the Guidelines for safe and efficient use
and the Limited warranty chapters before you use your mobile phone. Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that y our intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity
1Contents
Draft for Sony Ericsson Internal Use Only P1C
or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Ericsson is under license. QuickShare, PlayNow, MusicDJ, PhotoDJ and VideoDJ are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB.
Memory Stick™, Memory Stick Duo™ and Memory Stick PRO Duo™ are trademarks or registered trademarks of Sony Corporation.
Walkman™ and the Walkman™ logo and symbol are registered trademarks of Sony Corporation. Real is a trademark or a registered trademark of RealNetworks, Inc. RealPlayer® for Mobile is included under license from RealNetworks, Inc. Copyright 1995-2004, RealNetworks, Inc. All rights reserved. Microsoft, Windows and PowerP oint are either registered trademarks or trademarks of Microsoft Corporation in the U.S and other countries. Mac OS is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. T9™ Text Input is a trademark or a registered trademark of Tegic Communications. T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pa t. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide.
Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.
End-user license agreement for Sun™ Java™ J2ME™.
1 Restrictions: Software is confidential copyrighted
information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part.
2 Export Regulations: Software, including technical
data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re­export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders.
3 Restricted Rights: Use, duplication or disclosure by
the United States government is subject to the restrictions as set forth in the Ri ghts in Technical Data and Computer Software Clauses in DFARS
252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable. Part of the software in this product is copyright© SyncML initiative Ltd. (1999-2002). All rights reserved.
Other product and company names mentioned herein may be the trademarks of their respective owners.
Any rights not expressly granted herein are reserved.
2 Contents
Draft for Sony Ericsson Internal Use Only P1C
Getting started
SIM card and battery
To insert the SIM card and battery
1 Remove the battery cover.
2 Slide the SIM card into its holder.
3 Insert the battery with the label side up
and the connectors facing each other.
4 Slide the battery cover into place.
5 Connect the charger to the phone.
4 Getting started
Draft for Sony Ericsson Internal Use Only P1C
6 It may take up to 30 minutes before
the battery icon appears on the screen.
To open and close the phone
7 Wait approximately 2.5 hours for the
battery to be fully charged.
8 Remove the charger.
1 Rotate the top section up until it clicks
into place.
2 Rotate the top section down in the
opposite direction.
Do not rotate the top section more than 180 degrees, in either direction, as the phone will be damaged.
5Getting started
Draft for Sony Ericsson Internal Use Only P1C
To turn on the phone
1 Open the phone, press and hold .
The first start-up may take a few minutes.
2 Select Start phone to use the phone
with full functionality or Music only to use the WALKMAN™ player only.
3 Enter your SIM card PIN, if requested. 4 At first start-up, select the language
for your phone menus. } Yes if you want the setup wizard to help you get started. Follow the instructions to complete the setup.
Music only
Select to listen to music only, with phone network transmitters turned off. This prevents disturbance of sensitive equipment, for example, in an
aeroplane where calls and messages are prohibited. Some limited phone functions are also available such as the alarm, calendar and task reminders.
Always follow regulations and any flight crew instructions with respect to onboard use of electronic devices.
To deactivate the start-up menu
1 } Settings and scroll to the General
tab } Start-up menu.
2 Select Don´t show.
Memory Stick PRO Duo™
Your phone supports Memory Stick PRO Duo™. To insert a Memory Stick, slide it into the slot as shown.
A Memory Stick adds more storage space to your phone to store, for example, music, ringtones, video clips and pictures.
6 Getting started
Draft for Sony Ericsson Internal Use Only P1C
Instruction symbols
The following instruction symbols appear in this user guide:
Note Indicates that a service or
function is network- or subscription-dependent. Contact your network operator for details.
% See also page ...
} Use a selection or navigation
key to scroll and select, Navigation.
Press the navigation key centre.
Press the navigation key up. Press the navigation key
down. Press the navigation key to
the left. Press the navigation key to
the right.
% 18
More information
To view more instructions in your phone
} Settings } the General tab } Tips and tricks and Setup wizard.
Make and receive calls
You can make and receive calls when the phone is open or closed:
When open, enter the phone number
(with international prefix and area code if applicable) } Call to make a voice call or press to make a video call. } End call to end the call.
When open or closed, } Contacts and
select the contact to call. Use or to select a number } Call to make a voice call or press to make a video call.
When the phone rings } Answer or } Busy to reject the call. This can be
done in either open or closed mode.
WALKMAN™ player
The WALKMAN™ player is an all in one music and video player. The following file types are supported: MP3, MP4, 3GP, AAC, AAC+, AMR, MIDI, IMY, EMY and WAV (16 kHz maximum sample rate) and Real®8.
7Getting started
Draft for Sony Ericsson Internal Use Only P1C
You can also use streamed files that are 3GPP compatible.
To play music and videos
1 } WALKMAN. The WALKMAN™
player browser opens.
2 Browse for songs by artist or track, or
in playlists. You can also browse for video clips. Select a list } Open.
3 Highlight a title } Play.
WALKMAN™ player controls
Press and hold to open or
minimize the WALKMAN™ player during playback.
Press to pause the playback.
Press again to resume playing.
Press to go to the next music file or
video clip.
Press to go to the previous music
file or video clip.
Press and hold or to fast forward
or rewind when playing music files or video clips.
Press or to view and scroll files
in the current playlist during playback.
Press Play to select a highlighted file
in a list.
When a video clip is playing, press
to play the video in slow motion. }
Play to resume normal playback.
When a video clip is paused, press
to play the video one frame at a time.
When in Now playing, press to
go to the WALKMAN™ player browser.
Press and hold to exit.
Browsing files
Browse music files and video clips in lists:
Artists – lists music files you have
transferred using Disc2Phone.
Tracks – lists all music files (not
ringtones) in your phone and on the Memory Stick.
Playlists – create or play your own
lists of music files.
Call – lists all video clips in your phone
and on the Memory Stick.
Playlists
To organize the media files that are stored in the File manager, you can create playlists. Files in a playlist can be sorted by artist, title or by the order in which the files were added to the playlist. You can add a file to more than one playlist.
When you delete a playlist or a file from the playlist, the actual music or video file is not deleted from the memory, just the playlist reference to it. You can still add the file to another playlist.
8 Getting started
Draft for Sony Ericsson Internal Use Only P1C
To create a playlist
1 } WALKMAN } Playlists } New
playlist } Add. Enter a name } OK.
2 Select from the files that are available
in the File manager. You can add several files at a time and you can also add folders. All files in the selected folders will be added to the playlist.
To add files to a playlist
1 } WALKMAN } Playlists select a
playlist } Open } More } Add media.
2 Select from the files that are available
in the File manager.
To remove files from a playlist
1 } WALKMAN } Playlists select a
playlist } Open.
2 Select the file and press .
To delete a playlist
} WALKMAN } Playlists select a
playlist and press .
WALKMAN™ player options
} More for options:
Now playing – go to the Now playing
view.
Add media – add files or folders to the
playlist.
Sort – sort by artist, title or by the
order in which files were added to the playlist.
Delete – remove a file from the playlist.
In user-created playlists only the reference to the file is removed. In the
Tracks list, the file is permanently
deleted from the memory.
Minimize – minimize the WALKMAN™
player and return to standby with the music still playing.
Rename – rename user-created
playlists.
Delete playlist – delete user-created
playlists. Files are not deleted from
File manager.
Information – view information about
the current file or video.
Play mode – change the playback
order of songs and videos. Select
Shuffle to play the playlist files in
random order, or Loop to restart the playlist when the last file has been played.
Equalizer – change treble and bass
settings.
Send – send a music file or video clip.
Fullscreen – play in fullscreen.
Capture frame – when a video clip is
paused, capture a picture from it.
Transferring music
Disc2Phone computer software and USB drivers are included on the CD that comes with the phone. Use Disc2Phone to transfer music from
9Getting started
Draft for Sony Ericsson Internal Use Only P1C
CDs or your computer to the phone memory or Memory Stick in your phone.
To install Disc2Phone
1 Turn on your computer and insert the
CD that came with your phone. The CD starts automatically and the installation window opens.
2 Select a language and click OK. 3 Click Install Disc2Phone and follow the
instructions. When the installation is complete, a Disc2Phone icon appears on the desktop.
To use Disc2Phone
1 Connect the phone to a computer with
the USB cable that came with your phone
% 33 Transferring files using
the USB cable.
2 } Settings } the Connectivity tab }
USB connection } File transfer. The
phone will turn off and prepare for transferral of files.
3 Start Disc2Phone by double-clicking
the icon on the computer desktop.
4 For details on transferring music,
please refer to Disc2Phone Help. Click
in the top right corner of the
Disc2Phone window.
Do not remove the USB cable from the phone or computer during transfer, as this may corrupt the Memory Stick and the phone memory. You cannot view the transferred files in your phone until you have removed the USB cable from the phone.
5 You can obtain CD information (artist,
track, etc.) via Disc2Phone if you are connected to the Internet while extracting music from a CD.
For safe disconnection of the USB cable in File transfer mode, right-click on the Removable Disk icon in Windows Explorer and select Eject.
www.SonyEricsson.com/ support
More information about moving files to your WALKMAN™ phone is available at www.SonyEricsson.com/support.
10 Getting started
Draft for Sony Ericsson Internal Use Only P1C
HPM-80
With the radio portable handsfree, HPM-80, you can listen to the radio and control the WALKMAN™ player in the phone. If you receive a call when using the HPM-80, the music stops and you can answer the call. When the call is ended or if the call is rejected the HPM-80 continues to play. The HPM-80 can be used as a standard handsfree device for receiving and making calls even if it is turned off.
You can use the HPM-80 to:
to manually or automatically search for
radio broadcasting frequencies.
play and pause music.
move between music files.
fast forward or rewind.
increase or decrease the volume.
mute the ear speakers or the
microphone.
% 14 Phone and menu overview.
To use the HPM-80
1 Turn on your phone and connect the
HPM-80.
2 Press and hold the MP/FM - ON/OFF
button to turn on the HPM-80.
3 Press the MP/FM - ON/OFF button to
switch between the radio and WALKMAN™ player.
To save battery power, turn off the HPM­80 when it is not in use.
To use to the radio
% 31 Radio.
To control the WALKMAN™ player
% 31 WALKMAN™ player.
11Getting started
Draft for Sony Ericsson Internal Use Only P1C
Camera
To take a picture or record a video clip
1 Close the phone. From
standby, press and hold to activate the camera. Use the navigation key to switch between camera and video recorder.
Camera overview
Select View or More displayed in the upper right part of the screen.
Press the volume button to zoom in or to zoom out.
2 Press to take a picture or star t
recording. To end video recording, press again.
To take another picture or record
another clip, press to return to the viewfinder.
To deactivate the camera or the video
recorder, press and hold .
Press to take a picture or record a video clip. To use Auto focus, press half way down.
Delete the picture or the video clip.
Photo light.
Camera lens.
Press or to adjust the brightness.
Select Settings displayed in the lower right part of the screen.
12 Getting started
Go back.
Press or to switch between still camera and video recorder.
Slide the lock switch to turn on the photo light or }
Settings } Light to set the
photo light to Auto, On or Off.
Draft for Sony Ericsson Internal Use Only P1C
Camera settings
When you are in the viewfinder }
Settings to view a number of options
to adjust and enhance your pictures and video clips before taking or recording them.
For more details video recorder.
Downloading settings
Download settings for Internet/WAP browsing, email and MMS (picture messaging) at www.SonyEricsson.com/support.
To download settings
1 On your computer, browse to
www.SonyEricsson.com/support.
2 Select a region and a country or
Global support area.
3 Select the Phone setup tab, and select
a phone model.
4 Select which setting to download to
your phone.
Browsing the internet
Browse the Internet using HTTP (Hyper Text Transfer Protocol). Download settings as described above.
% 29 Camera and
To select an Internet profile
} Settings and use or to scroll to
the Connectivity tab } Internet
settings } Internet profiles and select
a profile to use.
To start browsing
} Internet services and select a
service or } Internet services } More to view options.
To stop browsing
} More } Exit browser.
13Getting started
Draft for Sony Ericsson Internal Use Only P1C
Phone and menu overview
HPM-80
1
2 3
4 5
14 Getting started
10
7 8
9
11 12
6
13
14 15 16
17 18 19
20
21 22
Draft for Sony Ericsson Internal Use Only P1C
1 Video call camera 2 Selection key
3 Back key
4 Internet button 5 Video call key 6 Ear speaker
7Selection key 8 Navigation key/WALKMAN™ player control 9C key
10 Activity menu 11 Silent key 12 Power on/off button
13 Connector for charger and HPM-80
14 WALKMAN™ player button 15 Lock switch 16 Memory Stick PRO Duo™ slot 17 Infrared port
18 Camera button 19 Volume, camera and picture zoom buttons 20 HPM-80 buttons for radio, play/pause and mute/unmute control 21 HPM-80 volume buttons 22 HPM-80 On/Off, MP/FM button For more information
% 18 Navigation
15Getting started
Loading...
+ 30 hidden pages
