Sony 68552B Users Guide

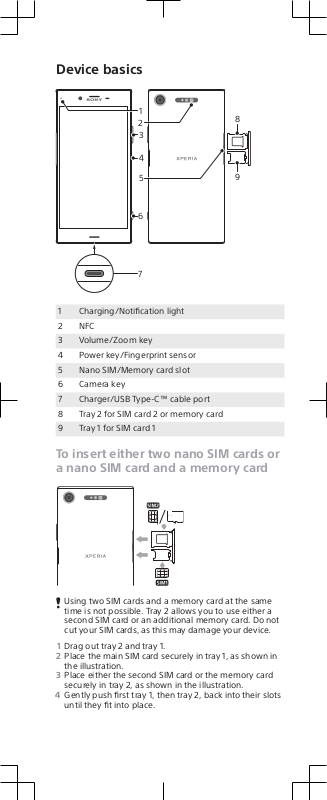

	Device basics
	1	8
	2
	3

4	SIM
5	9

6

7

1Charging/Notification light

2NFC

3Volume/Zoom key

4Power key/Fingerprint sensor

5Nano SIM/Memory card slot

6Camera key

7Charger/USB Type-C™ cable port

8Tray 2 for SIM card 2 or memory card

9Tray 1 for SIM card 1

To insert either two nano SIM cards or a nano SIM card and a memory card

SIM

Using two SIM cards and a memory card at the same time is not possible. Tray 2 allows you to use either a

second SIM card or an additional memory card. Do not cut your SIM cards, as this may damage your device.

1Drag out tray 2 and tray 1.

2Place the main SIM card securely in tray 1, as shown in the illustration.

3Place either the second SIM card or the memory card securely in tray 2, as shown in the illustration.

4Gently push first tray 1, then tray 2, back into their slots until they fit into place.

To turn on your device

It is important to use the USB Type-C cable provided when charging your device, as other types of USB cables can damage your device. It is recommended to charge the battery for at least 30 minutes before you turn on your device for the first time.

1Press and hold down the power key until your device vibrates.

2Wait a moment for your device to start.

To activate the screen

• Briefly press the power key .

Screen protection

Before using your device, remove the protection film by pulling up on the protruding tab.

Screen covers and protectors may help you protect your device against damage. We recommend you use only those screen covers intended for your Xperia™ device. The use of third party screen protection accessories may prevent your device from working correctly by covering sensors, lenses, speakers, or microphones and can invalidate the warranty.

Support for you

You can access our support website directly from your device by visiting support.sonymobile.com to find user guides, downloadable content, troubleshooting tips and contact information.

Even if you don’t have a network connection, you can access support contact information on your device.

Depending on the country or region where you purchased your device, you can find this information using the Support application.

To access the Support application

1From your Home screen, tap .

2Find and tap .

Connect to the internet when using the Support application for the best available support.

Warranty, SAR and usage guidelines

For information about warranty, SAR (Specific Absorption Rate) and safety guidelines, please read the Important information provided under Settings > System > About phone > Legal information on your device.

Transferring contacts and content

If you need help with transferring contacts, messages, photos or other data from an old device to your new device, we recommend that you use the Xperia™ Transfer application. Visit www.sonymobile.com/xperiatransfer for more information.
