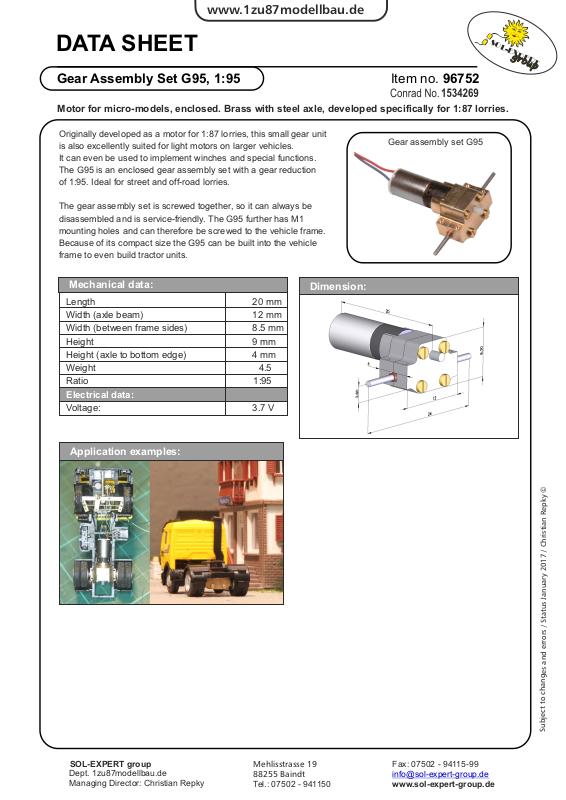

DATA SHEET
SOL-EXPERT
Gear Assembly Set G95, 1:95 Item no. 96752
Motor for micro-models, enclosed. Brass with steel axle, developed specifically for 1:87 lorries.
Originally developed as a motor for 1:87 lorries, this small gear unit
is also excellently suited for light motors on larger vehicles.
It can even be used to implement winches and special functions.
The G95 is an enclosed gear assembly set with a gear reduction
of 1:95. Ideal for street and off-road lorries.
The gear assembly set is screwed together, so it can always be
disassembled and is service-friendly. The G95 further has M1
mounting holes and can therefore be screwed to the vehicle frame.
Because of its compact size the G95 can be built into the vehicle
frame to even build tractor units.
Mechanical data:
Length 20 mm
Width (axle beam) 12 mm
Width (between frame sides) 8.5 mm
Height 9 mm
Height (axle to bottom edge) 4 mm
Weight 4.5
Ratio 1:95
Electrical data:
Voltage: 3.7 V
Dimension:
Gear assembly set G95
group
group
Application examples:
SOL-EXPERT group
Dept. 1zu87modellbau.de
Managing Director: Christian Repky
Mehlisstrasse 19
88255 Baindt
Tel.: 07502 - 941150
Subject to changes and errors / Status January 2017 / Christian Repky ©
Fax: 07502 - 94115-99
info@sol-expert-group.de
www.sol-expert-group.de
