Snapper Lancer 4400 User Manual

Parts Manual

g

Lancer / 4400

Series Riding Mower & Mower Decks

16HP Product

Mf

. No. Description

1694772 Lancer, 16HP Hydro (CE/Export)
1694785 4416XL, 16HP Hydro (CE/Export)
1694786 Lancer, 16HP Hydro (CE/Export)
1694787 4416XL, 16HP Hydro (CE/Export)
2690373 Lancer, 16HP Hydro and 40" Mower Deck (CE/Export)
2690374 4416XL, 16HP Hydro and 40" Mower Deck (CE/Export)
2690375 Lancer, 16HP Hydro and 44" Mower Deck (CE/Export)
2690376 4416XL, 16HP Hydro and 44" Mower Deck (CE/Export)

Mower Decks

Mfg. No. Description

1694344 40" Mower Deck (CE/Export)
1694783 44" Mower Deck (CE/Export)

Rev.

1735778
12/2007

Part No.:

TP 400-4827-00-LN-SM

Table Of Content

s

PRODUCT COMPONENTS PAGES

Frame Group ........................................................................................................................................................

Steering Group .....................................................................................................................................................

Engine & Electric Clutch - 16HP Briggs & Stratton ..............................................................................................

Transmission Group .............................................................................................................................................

Transmission SERVICE PARTS - Tuff Torq K-46Q ............................................................................................

Controls Group .....................................................................................................................................................

Electrical Group ....................................................................................................................................................

Seat Deck & Fuel Tank Group .............................................................................................................................

Lift Group ..............................................................................................................................................................

Wheels & Tires Group ..........................................................................................................................................

Decals - Brand & Model .......................................................................................................................................

Decals - Safety & Common ..................................................................................................................................

Mower Frame Group - with Height Adjustment ...................................................................................................

40" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................

40" Mower Deck - Height Adjustment & Roller Bar .............................................................................................

40" Mower Deck - Height Adjustment & Roller Bar (Later) .................................................................................

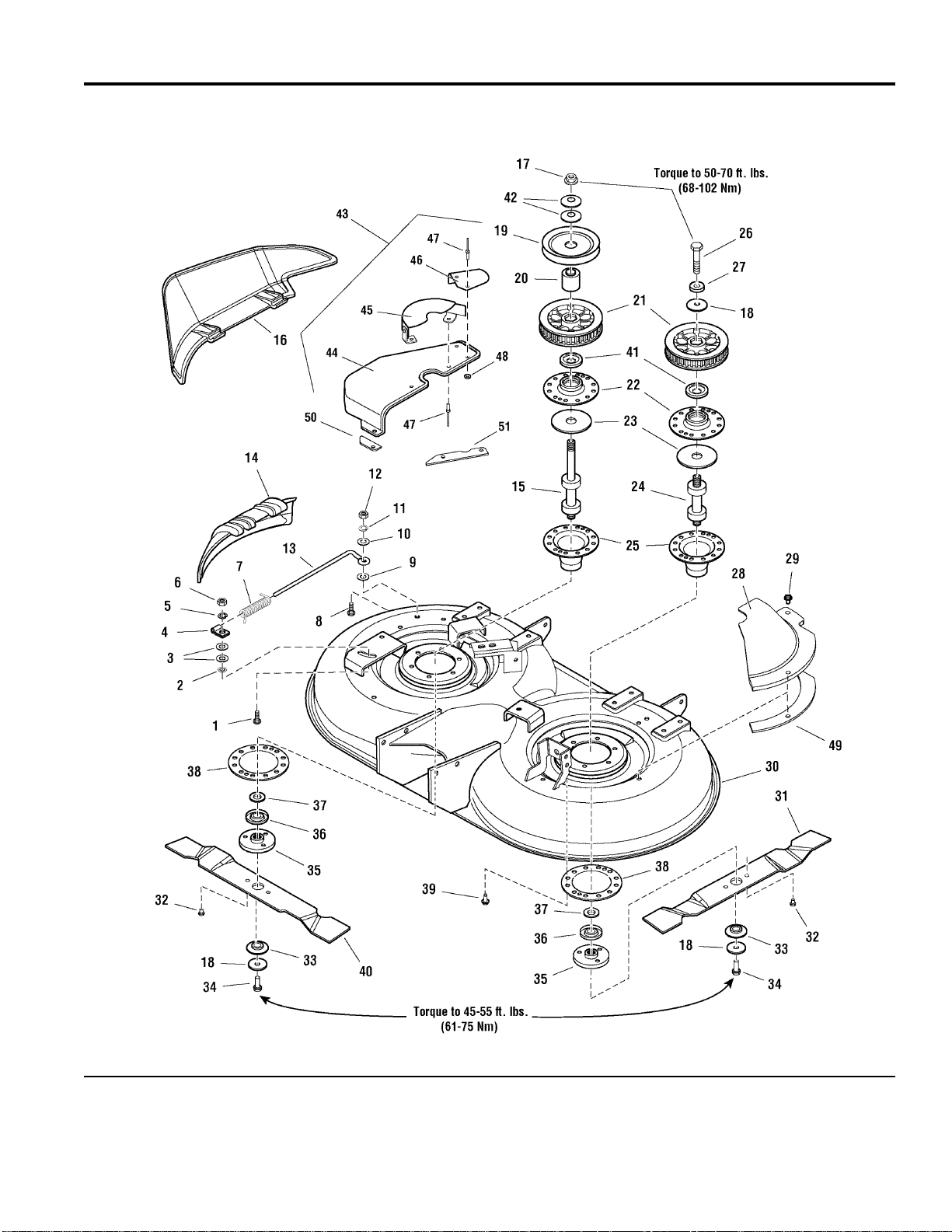

40" Mower Deck - Housing, Arbors & Blades ......................................................................................................

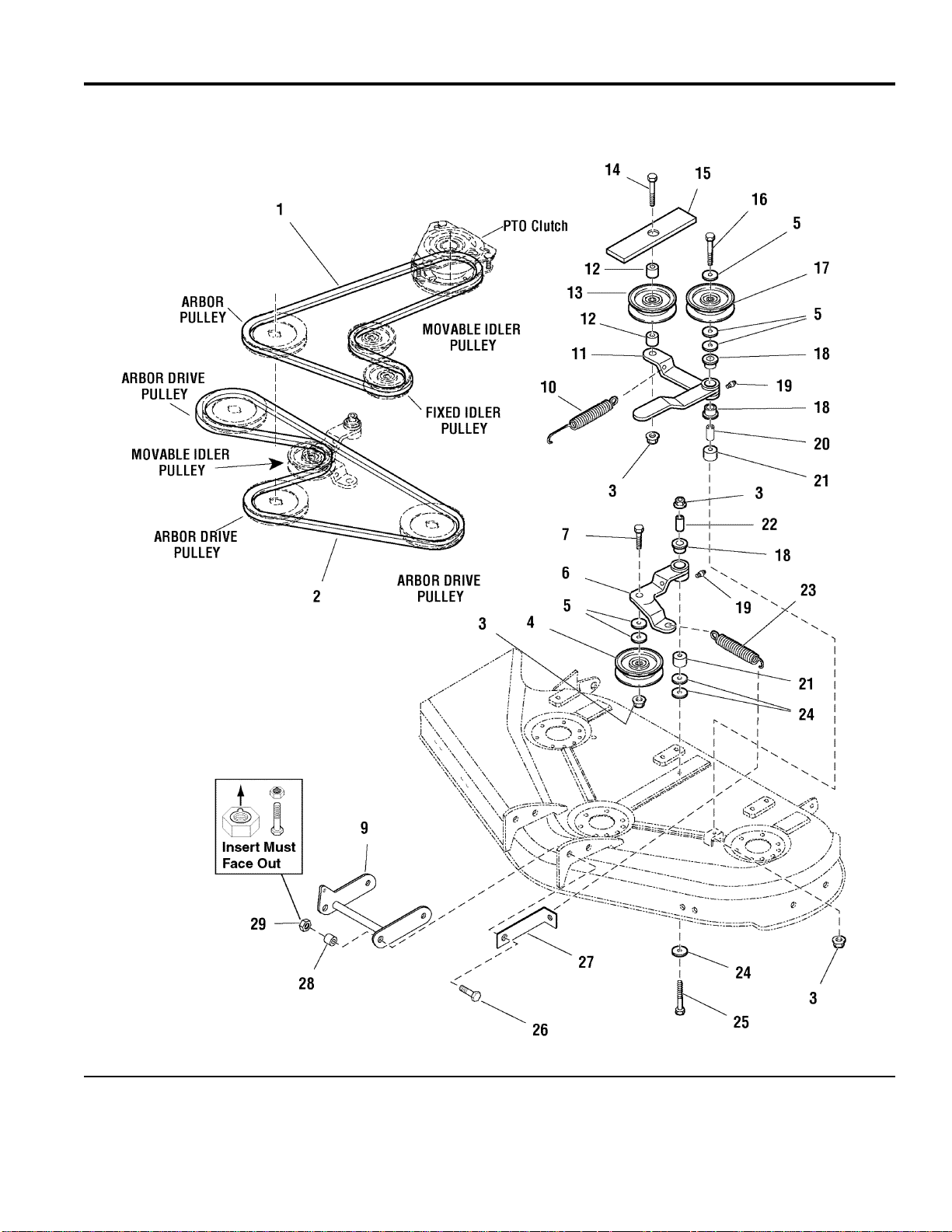

44" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................

44" Mower Deck - Height Adjustment & Roller Bar .............................................................................................

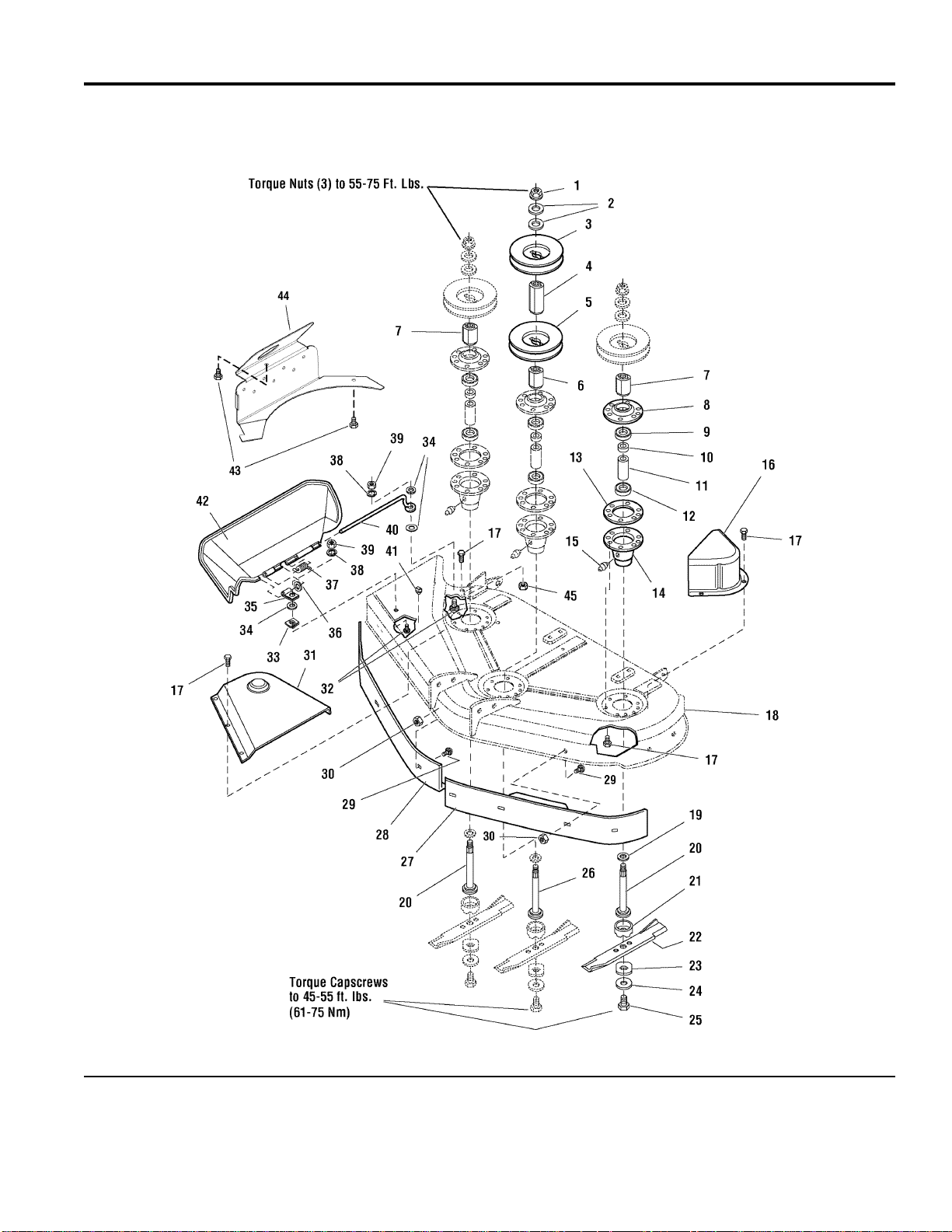

44" Mower Deck - Housing, Arbors & Blades ......................................................................................................

10
12
14
18
20
22
24
26
28
30
32
34
36
40
42
46
48
50

Torque Specification Chart ..................................................................... Inside Back Cover

4
6

Frame Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

985955

The above parts group applies to the following Mfg. Nos.:

1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
2690373 - Lancer
2690374 - 4416XL

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

2007

2690375 - Lancer
2690376 - 4416XL

4

TP 400-4827-00-LN-SM

Frame Group

PART NO. DESCRIPTIONREF NO QTY.

PLATE, Pivot 1 1722359ASM 2
CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black 2 1920415SM 8
WASHER, 3/8, Black 3 1960071SM 2
NUT, Hex Flange Lock, Black 4 1928352SM 6
SPACER 5 2154177SM 4
CAPSCREW, Hex Head, Flange Lock, 5/16-18 x 1/2, Black 6 1931648SM 6
SHROUD, Wheel, RH 7 1723144SM 1
SKIRT, Side, RH 8 1723290ASM 1
CAPSCREW, Hex Washer Head, Plastite, # 10-14 x 5/8, Black 9 1960001SM 2
CLIP, Shroud 10 1723691SM 2
PLUG, Hole 11 1715015SM 1
FASTENER, Panel 12 1704351SM 14
PAD, Footrest, RH 13 1714418SM 1
PAD, Footrest, LH 14 1714417SM 1
CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 3/4, Black 15 1930591SM 4
WRAPPER, Rear Frame 16 1722453ASM 1
NUT, Speed, Lug, 5/16-18 17 1935255SM 4
FRAME ASSEMBLY, Rear 18 1722514ASM 1
NUT, Hex, Flange, 1/4-20, Black 19 1960294SM 1
SKIRT, Side, LH 20 1723289ASM 1
CAPSCREW, Hex Head, 1/4-20 x 7/8, Black 21 1924009SM 1
SHROUD, Wheel, LH 22 1723145SM 1
FRAME ASEMBLY, Transmission 23 1722494ASM 1
NUT, Hex Lock Aluminum Insert, 3/8-16 24 2860681SM 2
WEIGHT & TAB ASSEMBLY, 75 lbs. 25 1723873ASM 1
CARRIAGE BOLT, 5/16-18 x 1 26 1931335SM 2
NUT, Hex, Flange Whiz Lock, 5/16-18 27 1927557SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
2690373 - Lancer
2690374 - 4416XL

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

2007

2690375 - Lancer
2690376 - 4416XL

5

TP 400-4827-00-LN-SM

Steering Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

985951

The above parts group applies to the following Mfg. Nos.:

1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
2690373 - Lancer
2690374 - 4416XL

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

2007

2690375 - Lancer
2690376 - 4416XL

6

TP 400-4827-00-LN-SM

Steering Group

PART NO. DESCRIPTIONREF NO QTY.

BUSHING, Nylon 1 2176440SM 6
PLATE, Mounting 2 1703508ASM 1
NUT, Hex Flange Whiz Lock, 3/8-16, Black 3 1928352SM 4
SHAFT & PINION ASSEMBLY 4 1722495SM 1
PIN, Cotter, Black 5 1919314SM 1
PIN, Spring, 5/16 x 2-1/2, Black 6 1960540SM 1
WASHER, 3/4 7 2860202SM 1
BUSHING, Metal 8 1666001SM 1
CARRIAGE BOLT, 1/4-20 x 3/4 9 1931317SM 2
SUPPORT ASSEMBLY 10 1722497ASM 1
NUT, Push, 1/4, Black 11 1960518SM 2
PLATE, Mounting 12 1721736ASM 1
NUT, Hex KEPS, 1/4-20, Black 13 2828732 2
COVER, Black Rubber 14 1722749SM 1
STEERING WHEEL 15 1722738SM 1
CAP, Steering Wheel 16 1722319SM 1
DASHBOARD 17 1723111SM 1
CAPSCREW, Hex Head, 1/2-13 x 1-3/4, Black 18 1921525SM 1
SPACER 19 2105386SM 1
SPACER 20 1723129SM 1
CAPSCREW, Hex Head, 1/2-13 x 3, Black 21 1960245SM 1
RING, Klip, External 3/4, Black 22 1611710SM 2
AXLE ASSEMBLY,w/Bushings & Lube Fitting 23 1724616SM 1
NUT, Hex Lock ESNA Heavy, 1/2-13, Black 24 1960355SM 2
WASHER, 1/2, Black 25 1918431SM 2
FITTING, Lube 26 2821133SM 3
CAPSCREW, Hex Head, 3/8-16 x 1, Black 27 1921210SM 2
SPACER, Powder Metal 28 1611705SM 2
ROD, Tie 29 1722387SM 1
SPINDLE & LEVER ASSEMBLY, RH (Lancer LH) 30 1677131ASM 1
CAPSCREW, Hex Head, 3/8-16 1-1/2 31 1921969SM 1
NUT, Hex Flange Lock, 3/8-16, Black 32 1960339SM 2
SPACER 33 1708236SM 1
SPINDLE & LEVER ASSEMBLY, LH (Lancer RH) 34 1677133ASM 1
BALL JOINT 35 1702779SM 2
NUT, Hex Flange Lock, 3/8-16, Black 36 1930645SM 1
NUT, Hex Head, 1/2-20, Black 37 1919262SM 2
DRAG LINK 38 1722504SM 1
NUT, Hex Flange Two Way Lock, 1/2-13, Black 39 1930644SM 1
SHAFT & GEAR ASSEMBLY 40 1724793ASM 1
CAPSCREW, Hex Head, 1/2-13 x 1-1/2, Black 41 1920328SM 1
CAPSCREW, Hex Head, 5/16-18 x 3/4 42 1930591SM 2
CARRIAGE BOLT, 3/8-16 x 1 , Black 43 1931350SM 4
NUT, Speed, 5/16-18 44 1935255SM 6

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
2690373 - Lancer
2690374 - 4416XL

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

2007

2690375 - Lancer
2690376 - 4416XL

7

TP 400-4827-00-LN-SM

Steering Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

985951

The above parts group applies to the following Mfg. Nos.:

1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
2690373 - Lancer
2690374 - 4416XL

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

2007

2690375 - Lancer
2690376 - 4416XL

8

TP 400-4827-00-LN-SM

Steering Group

PART NO. DESCRIPTIONREF NO QTY.

SHROUD, Steering 45 1715998CSM 1
CAPSCREW, Hex Head, 1/4-20 x 5/8, Black 46 1927429SM 3
WASHER, 3/4, Black 47 1960114SM 4
NUT, Hex Flange Lock, 5/16-18, Black 48 1927557SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
2690373 - Lancer
2690374 - 4416XL

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

2007

2690375 - Lancer
2690376 - 4416XL

9

TP 400-4827-00-LN-SM

Engine & Electric Clutch - 16HP Briggs & Stratton

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

986795

The above parts group applies to the following Mfg. Nos.:

1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
2690373 - Lancer
2690374 - 4416XL

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

2007

2690375 - Lancer
2690376 - 4416XL

10

TP 400-4827-00-LN-SM

Engine & Electric Clutch - 16HP Briggs & Stratton

PART NO. DESCRIPTIONREF NO QTY.

ENGINE, 16HP Briggs & Stratton Vanguard, Model 303777, Type 1114-E1 1* 1
VALVE, Shut Off 2 1708405SM 1
TIE, Self Locking, 7-5/16" Long 3 1701011SM 1
GUARD, Debris 4 1727907SM 1
BRACKET, L 5 1727452SM 4
SCREW, Hex Head w/SEMS Washer 6 2860732 4
SCREW, Hex Head Flange 7 1727474SM 4
CONTROL ASSEMBLY, Throttle (Dual) 8 1727375SM 1
CLAMP, Hose 9 2860112SM 2
HOSE, Fuel 10 1727438SM 1
CAPSCREW, Washer Head Taptite, 1/4*20 x 5/8 11 1927429SM 1
MUFFLER, Bracket 12 1727455ASM 1
HEALT SHIELD, Muffler 13 1727447ASM 1
DEFLECTOR, Muffler 14 1727465SM 1
SCREW, #8-18 x 3/8, Hex Head 15 2860731SM 3
MUFFLER, Briggs & Stratton 16 1727453SM 1
NUT, Hex 5/16-18 17 1917372SM 1
LOCKWASHER, Spring 5/16 18 1917356SM 5
CLAMP, Muffler 19 1676183SM 1
CARRIAGE BOLT, 5/16-18 x 1-1/4 20 1960748SM 1
CAPSCREW, Metric (for Manifold) 21 1960407SM 4
MANIFOLD 22 1727454SM 1
GASKET, Exhaust 23 1650670SM 2
SPACER 24 1723390SM 1
PULLEY & HUB ASSEMBLY 25 1713187SM 1
KEY, Hi Pro, 1/4 x 2 26 2105337SM 1
CLUTCH, Electric 27 1686883SM 1
WASHER, Hex 29 1708264SM 1
TIE, Self Locking, 3-5/8" Long 28 2832747SM 1
LOCKWASHER, 7/16 30 1918199SM 1
CAPSCREW, Hex Head, 7/16-20 x 3-1/2 31 1960649SM 1
CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/2 32 2830598SM 4
LOCKWASHER, External Tooth, 3/8 33 2820427SM 1

Footnotes

Note* See your local Briggs & Stratton distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
2690373 - Lancer
2690374 - 4416XL

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

2007

2690375 - Lancer
2690376 - 4416XL

11

TP 400-4827-00-LN-SM

Transmission Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

985949

The above parts group applies to the following Mfg. Nos.:

1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
2690373 - Lancer
2690374 - 4416XL

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

2007

2690375 - Lancer
2690376 - 4416XL

12

TP 400-4827-00-LN-SM

Transmission Group

PART NO. DESCRIPTIONREF NO QTY.

CAPSCREW, Hex Head, 3/8-16 x 2, Black 1 1923701SM 1
SPACER 2 1674669SM 1
WASHER, 3/8, Black 3 1924940SM 7
BUSHING 4 1676148SM 2
SPRING, Extension, 7-3/4" Long 5 1725250SM 1
ARM ASSEMBLY 6 1722969ASM 1
FITTING, Lube 7 2812808SM 1
CAPSCREW, Hex Head, 3/8-16 x 1-1/2, Black 8 1921969SM 1
PULLEY, Idler, 3-1/4 9 1724387SM 1
NUT, Hex Flange Lock, 3/8-16, Black 10 1960339SM 2
NUT, Hex Flange Lock, 5/16-18, Black 11 1927557SM 2
CAPSCREW, Hex Head 5/16-18 x 2 G5 12 1921978SM 1
CAPSCREW, Hex Head, 5/16-18 x 2-1/2, Black 13 1921719SM 6
SNAP RING 14 1724316SM 2
SPLINE COLAR 15 1724312SM 2
LOCKWASHER 16 1723415SM 1
V-BELT 17 1715128SM 1
PULLEY 18 1724313SM 1
FAN 19 1724314SM 1
"E" RING 20 1718076SM 1
ROD, Hydro Bypass 21 1723161SM 1
PIN, Cotter 22 1923360SM 1
TRANSMISSION ASSEMBLY, Foot Control, K46Q 23 1721022SM 1
KEY, Parallel 24 1717749SM 2
WASHER, 3/4 25 2860202SM 4
SPACER 26 1723820SM 2
NUT, Hex Flange Lock, 5/16-18 27 1935048SM 7
SPACER 28 1666294SM 1
CAPSCREW, Hex Head, 5/16-18 x 1-3/4 29 1960585SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
2690373 - Lancer
2690374 - 4416XL

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

2007

2690375 - Lancer
2690376 - 4416XL

13

TP 400-4827-00-LN-SM

Transmission SERVICE PARTS - Tuff Torq K-46Q

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

1721022

The above parts group applies to the following Mfg. Nos.:

1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
2690373 - Lancer
2690374 - 4416XL

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

2007

2690375 - Lancer
2690376 - 4416XL

14

TP 400-4827-00-LN-SM

Transmission SERVICE PARTS - Tuff Torq K-46Q

PART NO. DESCRIPTIONREF NO QTY.

LOWER HOUSING 3 1724278SM 1
RESERVOIR TANK 4 1731981SM 1
TUBE 5 1724335SM 1
MINIATURE CLAMP 6 1724336SM 2
VENT VALVE 7 1718052SM 1
MAGNET 8 1724279SM 2
HOLDER, MAGNET 9 1724337SM 1
SPRING 11 1725730SM 1
SHAFT, Bypass 12 1724338SM 1
LEVER, Bypass 13 1720418SM 1
RING 14 1718061SM 1
SEALING CAP 15 1724282SM 1
RING, Snap 16 1708650SM 1
"O" RING 19 1708691SM 2
SEAL 20 1708651SM 1
SCREW, Tapping 21 1707789SM 14
TAPPING SCREW 22 1724284SM 2
SUPPORT 23 1724339SM 1
CENTER CASE, Complete 24 1724340SM 1
PIN 25 1718070SM 1
FILTER K55 26 1724341SM 1
BOLT 27 1720805SM 3
IDS VALVE 28 1724286SM 2
IDS SPRING 29 1724287SM 2
BALL, 3/16 30 1724288SM 2
CYLINDER BLOCK 31 1718079SM 1
SPRING, Pump 32 1724290SM 1
PUMP SHAFT 33 1724291SM 1
RING, "E" 34 1718076SM 3
BEARING 35 1718083SM 1
HOUSING 36 1718077SM 1
BEARING 37 1718078SM 1
CYLINDER BLOCK 38 1725831SM 1
WASHER 39 1718084SM 1
SHAFT MOTOR 40 1724293SM 1
RING, Snap 41 1708672SM 1
MOTOR GEAR 42 1724294SM 1
BEARING 43 1718083SM 1
THRUST METAL 44 1724342SM 2
SWASH PLATE COMPLETE 45 1720426SM 1
BEARING 46 1718086SM 1
THRUST PLATE 47 1718087SM 1
THRUST PLATE 48 1718088SM 1
CONTROL SHAFT 49 1724343SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
2690373 - Lancer
2690374 - 4416XL

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

2007

2690375 - Lancer
2690376 - 4416XL

15

TP 400-4827-00-LN-SM

Transmission SERVICE PARTS - Tuff Torq K-46Q

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

1721022

The above parts group applies to the following Mfg. Nos.:

1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
2690373 - Lancer
2690374 - 4416XL

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

2007

2690375 - Lancer
2690376 - 4416XL

16

TP 400-4827-00-LN-SM

Transmission SERVICE PARTS - Tuff Torq K-46Q

PART NO. DESCRIPTIONREF NO QTY.

FULCRUM, Eccentric 50 1724344SM 1
SPRING, Torsion 51 1724345SM 1
CONTROL ARM 52 1724346SM 1
CONTROL LEVER 53 1724347SM 1
JERKY PLATE 54 1724348SM 1
WASHER 55 1708689SM 1
COTTER PIN 56 1724349SM 1
PIN, SPRING 57 1724311SM 2
PIN, Roll 58 1718100SM 1
"O" RING 59 1707879SM 2
NUT 60 1708692SM 1
DIFF PINION, Kit 61 1724297SM 2
FINAL GEAR 62 1724298SM 1
COLLAR, Final 63 1724299SM 1
REDUCTION SHAFT 64 1724300SM 1
WASHER 65 1720439SM 2
REDUCTION GEAR 66 1724301SM 1
FINAL PINION 67 1724302SM 1
AXLE SHAFT, LH 68 1724303SM 1
AXLE SHAFT, RH 69 1724304SM 1
THRUST WASHER 70 1718112SM 2
RING 71 1718113SM 2
SEAL 72 1718111SM 2
BUSHING 73 1718110SM 2
SHOE, BRAKE 75 1724305SM 1
ARM, Brake 76 1724306SM 1
SHAFT, BRAKE 77 1724307SM 1
RETURN SPRING 78 1724308SM 1
ACTUATOR, Brake 79 1724309SM 1
PIN 80 1724310SM 1
"O" RING 81 1708690SM 2
PIN 82 1707839SM 2
SPLINE COLLAR 83 1724312SM 2
PULLEY 84 1724313SM 1
FAN 85 1724314SM 1
LOCK WASHER 86 1724315SM 1
SNAP RING 87 1724316SM 2
UPPER HOUSING, (Includes Ref. No. 89A) 89 1729860SM 1
BUSHING 89A 1720814SM 2
ROLL PIN 90 1707839SM 1
OIL SEAL 91 1724318SM 1
WASHER, Seal 99 1708649SM 2
SCREW, Cap 100 1724324SM 2
BEARING, Thrust (Includes Ref. Nos. 46, 47 & 48) 199 1724942SM 1
SEAL KIT, K46 (Includes Ref. Nos. 8, 19, 20, 26, 59, 72, 81, 91, 99 & Sealant) 200 1727541 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
2690373 - Lancer
2690374 - 4416XL

© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.

2007

2690375 - Lancer
2690376 - 4416XL

17

TP 400-4827-00-LN-SM
