Snapper Lawn Mower Accessory User Manual

Parts Manual for

LAWN TRACTOR ACCESSORIES

FOR ALL SMALL FRAME LAWN TRACTORS WITH DISC, GEAR & HYDRO DRIVE SERIES 0, 1, 2 & SERIES A, B, C, D, E, F, G, H, I

COPYRIGHT © 2003

SNAPPER PRODUCTS INC.

ALL RIGHTS RESERVED

(Rev. 1, 1/24/03)

MANUAL No. 06613

CONTENTS

LAWN TRACTOR MODEL IDENTIFICATION

Positive identification of the machine will be necessary. Identify the machine with the model number to insure the correct kit is used for that model. The series number or letter of the model number is used in this manual to match the correct kit with the correct model. Refer to Owner’s Manual for correct Series number. The series number for all disc, gear and hydro drive two piece frame models is 0, 1, 2. The series number for all gear and hydro drive one piece frame models is A thru I. The Series number examples are as follows:

Lawn Tractor (Disc Drive Two Piece Frame) Example: LT12D330B - Series number is 0. Lawn Tractor (Disc Drive Two Piece Frame) Example: LT115D411KV - Series number is 1. Lawn Tractor (Gear Drive Two Piece Frame) Example: LT115G411KV - Series number is 1. Lawn Tractor (Hydro Drive Two Piece Frame) Example: LT140H412KV - Series number is 2. Lawn Tractor (Hydro Drive One Piece Frame) Example: LT160H42ABV - Series letter is A. Lawn Tractor (Gear Drive One Piece Frame) Example: LT120G38AB - Series letter is A. Lawn Tractor (Gear Drive One Piece Frame) Example: BH120G38BB - Series letter is B.

KIT No.	DESCRIPTION		PAGE
6-0609	Tire Chain (For 18” X 6.50” Tire) ..........................................................................		4
6-1085	Tire Chain (For 18” X 8.50” Tire) ..........................................................................		4
6-1399	Tire Chain (For 18” X 9.5” Tire) ............................................................................		4
6-1333	Tire Chain (For 20” X 10” Tire) .............................................................................		4
6-1245	Rear Weight ..................................................................................................		4 & 5
6-0870	Thatcherizer (LT12D Series) ........................................................................		6 & 7
6-1247	Thatcherizer (1 Piece Frame Models) ..........................................................		8 & 9
6-0737	Anti-Scalp Wheel (33” Deck) .............................................................................		10
6-0794	Anti-Scalp Wheel (41” Deck) .............................................................................		10
6-1400	Anti-Scalp Wheel (33” Deck) .............................................................................		11
6-3128	Anti-Scalp Wheel (48” Deck) .............................................................................		11
6-0943	33” Single Bag Grass Catcher ...............................................................		12 & 13
6-1312	38” Single Bag Grass Catcher (For Hydro Drive Models) .......................		14 & 15
6-1886	38” Single Bag Grass Catcher (Replaced 6-1249)..................................		16 & 17
6-0944	41 & 42” Single Bag Grass Catcher .......................................................		18 & 19
6-3289	Debris Shield Kit, (For All Single Bag Catchers) .................	14 & 15, 16 & 17, 19
6-3281	33” Twin Bag Grass Catcher (6-1334 Adapter Kit Required) ..................		20 & 21
6-1248	38” Twin Bag Grass Catcher (6-1334 Adapter Kit Required) ..................		22 & 23
6-1888	38” Twin Bag Grass Catcher (6-1334 Adapter Kit Required) ..................		22 & 23
6-0945	41” Twin Bag Grass Catcher...................................................................		24 & 25
6-3131	33” Clamshell Grass Catcher (6-1334 Adapter Kit Required) .................		26 & 27
6-3126	38” Clamshell Grass Catcher (6-1334 Adapter Kit Required) .................		28 & 29
6-1334	Grass Catcher Adapter (1 Piece Frame Models Series. A Thru D) ..................		30
6-1068	Grass Catcher Adapter (Hydro and Gear Drive) ...............................................		31
6-1311	Grass Catcher Adapter (Hydro Drive; w/20-10.00 X 8 Tires)............................		31
6-0860	Grass Catcher Adapter (LT12D Series)............................................................		32
	(continued on next page)
MANUAL No. 06613		LT SERIES (Small Frame)

2

	(continued)
KIT No.	DESCRIPTION		PAGE
6-1308	Bag-N-Wagon Adapter (Series “A” 1-Piece Frame)..........................................		33
6-0957	Bag-N-Wagon Adapter (LT12D Series).............................................................		34
6-1089	Bag-N-Wagon Adapter (Hydro and Gear Drive)................................................		35

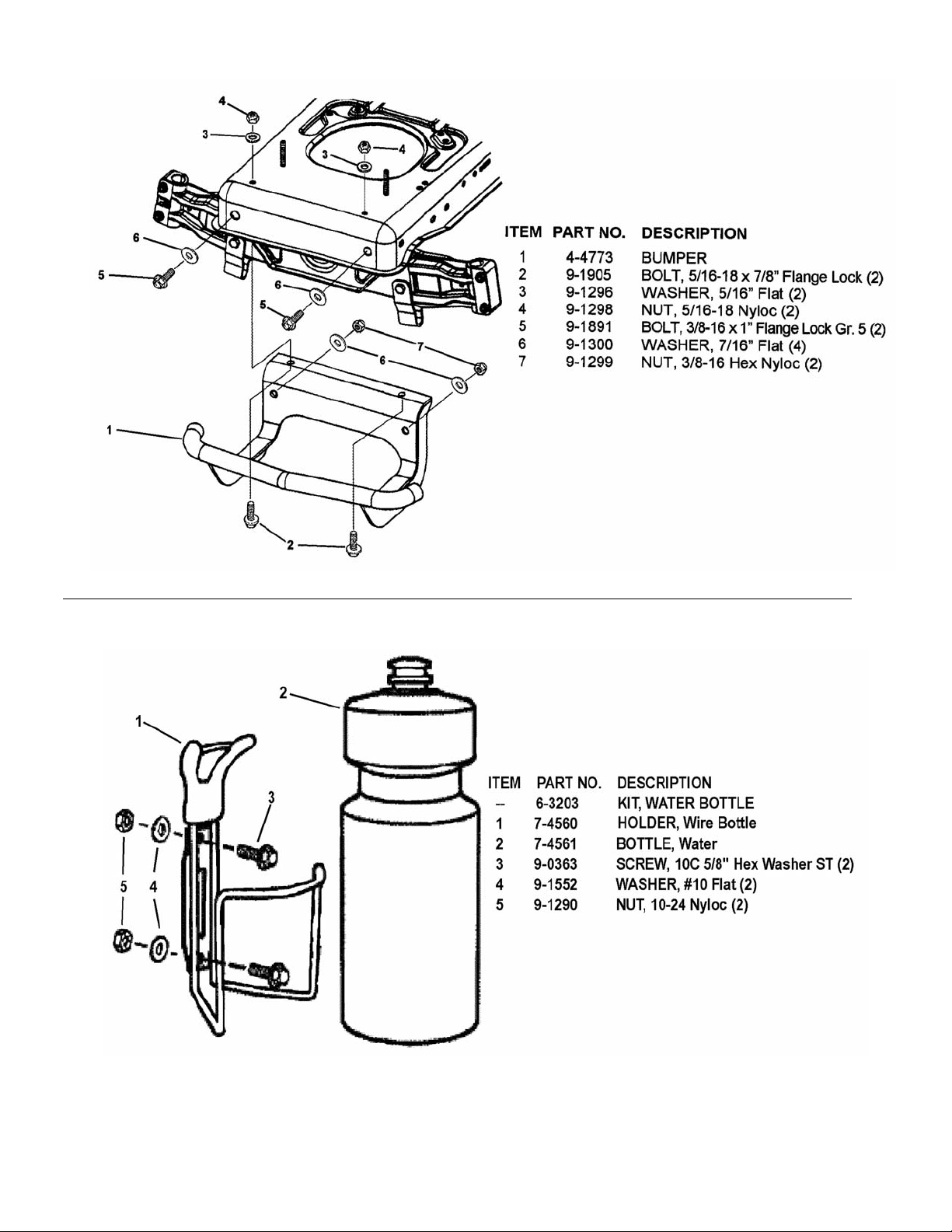

6-3123	Front Bumper Kit (1-Piece Frame Only) ...........................................................		36
6-3203	Water Bottle Kit .................................................................................................		36
6-1320	Implement Lift Lever Kit (Ground Following Deck Units Only)	.........................	37
6-3240	Bearing Pre-Seal Kit (For 48” Field Replaceable Spindle Decks Only).............		37
6-0697	Dump Wagon ............................................................................................		38 & 39
6-0947	Bag-N-Wagon (Complete).........................................................................		40 & 41
6-0734	Bag-N-Wagon (Hitch & Wagon Body).......................................................		42 & 43
6-0964	Bag-N-Wagon (Cover Assembly) ..............................................................		44 & 45
6-0873	36” Snow Blade (3-Piece Frame) .............................................................		46 & 47
6-1347	42” Snow Blade (3-Piece Frame, Series 1 & 2) .......................................		48 & 49
6-1352	42” Snow Blade (1-Piece Frame Hydro Only) ..........................................		50 & 51
	(6-1370 Snow Blade Support Required For Mounting 6-1352 Kit)
6-1370	Snow Blade Support Kit ...................................................................................		52
6-1781	Snow Thrower Support Update Kit..................................................................		52
6-0720	Lift Handle..........................................................................................................		53
6-1254	30” Recycling ....................................................................................................		54
6-1051	33” Recycling ....................................................................................................		55
6-1255	33” Recycling (Ninja Blade)...............................................................................		56
6-1257	38” Recycling/Mulcher (Ninja Blade) ................................................................		57
6-1877	38” Recycling(Wave Blade) ..............................................................................		58
6-1878	38” Recycling Kit (Ninja Blade) .........................................................................		58
6-1220	41” Recycling Cover (Ninja Blade)....................................................................		59
6-1987	42” Recycling Cover (Ninja Blade)....................................................................		60
6-3110	48” Wave Mulching Kit .....................................................................................		61
6-1094	Hood Replacement (Gear Drive Series 0)................................................		62 & 63
6-1383	Hood Replacement (1 & 3-Piece Frame) .................................................		64 & 65
3-2392	Smooth Clutch Tool ..........................................................................................		66
6-0327	Wheel Hub Puller Kit.........................................................................................		66
6-0694	Yoke Spring Attachment...................................................................................		66
6-1000	Reverse Assist Spring (LT12D Series).............................................................		66
6-1025	Brake Cable Extension .....................................................................................		66
6-1163	Cold Starting (Hydro Drive Series) ....................................................................		66
6-0691	Chute Brace (Snow Thrower Attachment) .........................................................		66
6-1289	30” Cutting Deck Replacement (Gear Drive) ...................................................		66
6-1288	33” Cutting Deck Replacement (Gear Drive) ...................................................		66
6-1290	38” Cutting Deck Replacement (Gear Drive) ...................................................		66
6-1314	38” Cutting Deck Replacement (Hydro Drive)..................................................		66
6-1299	38” Cutting Deck Replacement (Ground Following) (Gear Drive)....................		66
6-1283	42” Cutting Deck Replacement (Gear Drive) ...................................................		66
6-1266	48” Cutting Deck Replacement (Hydro Drive)..................................................		66
6-1335	Pivot Arm Replacement Kit (LTD Series 0) ......................................................		66
6-1787	Drive Disc Alignment Gauge Kit ......................................................................		66
LT SERIES (Small Frame)		MANUAL No. 06613

3

ACCESSORY, TIRE CHAINS

#6-0609 KIT, Tire Chains (18x6.50-8” Tires) (Contains 2 Chains) #6-1085 KIT, Chain for LTD & LTH (18x8.50-8” RS Tires) (Contains 2 Chains)

#6-1399 KIT, Tire Chains (18x9.50 Tires) (Contains 2 Chains) #6-1333 KIT, Tire Chains (20x10.00 Tires) (Contains 2 Chains)

ACCESSORY, REAR WEIGHT #6-1245	8
	7
	6
	5

6

7

8

1

9

2

MANUAL No. 06613

LT SERIES (Small Frame)

4

6-1245 ACCESSORY, REAR WEIGHT

SERIES 1 & 2

SERIES A & B

ITEM	PART NO. DESCRIPTION

--6-1245 REAR WEIGHT KIT

13-4103 BRACKET, Weight Holder

21-9759 WEIGHT, 38 LB. (2)

33-4172 SUPPORT, Stand-Up Tube (R.H.)

43-4173 SUPPORT, Stand-Up Tube (L.H.)

51-5002 ROD, 3/8-16 x 9” Threaded (2)

69-1514 WASHER, 3/8 Flat (4)

79-1320 WASHER, 3/8 Split Lock (4)

89-1302 NUT, 3/8-16 Hex, Grade B or 5 (4)

99-1601 NUT, 5/16-18 Hex Flange Lock, Grade 5 (8)

109-1592 BOLT, 5/16-18 x 2”, Hex Flange Lock, Grade 5 (4)

119-1591 BOLT, 5/16-18 x 1”, Hex Flange Lock, Grade 5 (4)

LT SERIES (Small Frame)

MANUAL No. 06613

5

ACCESSORY, THATCHERIZER (LT12D Series) 6-0870

				21		18
						17
	32	30
	31
				12
			33	16
			30			18
32	20
						17
30		6
7				18
		30
				17
		20		16
22		16
	8
					9
				4	26	16
					29
						11

5

3

2

22

10

MANUAL No. 06613

13

16

18

12

17

29

28

19

18

17

	18	27
17
		34

16

16

17

23

24	25	15

14

1

22

LT SERIES (Small Frame)

6

6-0870 ACCESSORY, THATCHERIZER (LT12D Series)

ITEM	PART NO. DESCRIPTION

--6-0870 THATCHERIZER KIT

1

1-9947

TRAY, Tine

22-3565 DECAL, Adjustment

31-4062 DECAL, Thatcherizer

42-3564 BRACKET, Frame Mounting (2)

51-4110 ROD, Tine (2)

61-8700 SUPPORT, Wheel

71-8189 WHEEL, 7 x 1.50 V21

81-8493 AXLE, Wheel

91-7046 ASSEMBLY, Mounting Bracket Mechanism

101-8491 TINE, Thatching (8)

111-9150 BRACKET, Lift

122-3532 BAR, Thatcher Mount (2)

131-9135 BAR, Mount Brace (2)

141-9137 HANDLE, Lift

151-9136 BRACKET, Lift Lock

169-0383 BOLT, 5/16-18 x 1” Short Neck Carriage, Grade 5 (22)

179-0196 NUT, 5/16-18 Hex (24)

189-0187 WASHER, 5/16” Split Lock (22)

191-4098 WASHER, 5/16” Flat (8)

209-0250 WASHER, 1/2” SAE Flat (2)

219-0015 BOLT, 1/4-20 x 1-3/4” Square Neck Carriage, Grade 2 (2)

229-0761 NUT, 1/4-20 Hex Top Lock (6)

239-0563 SCREW, 3/8-16 x 1” Hex Head Cap, Grade 5

249-0130 NUT, 3/8-16 Hex

259-0118 WASHER, 3/8 Split Lock

26	1-3113	PIN, Hair
27	1-4780	STRAP, Handle Retaining
28	1-4779	PIN, Clevis

299-0692 WASHER, 5/16” Flat (3)

301-4342 BEARING, Nylon (4)

311-4100 BUSHING, Wheel Adjustment

321-4101 NUT, 1/2” Push (2)

331-4103 SCREW, 5/16-18 x 1/4” Set

34

1-4784

GRIP, Vinyl

LT SERIES (Small Frame)

MANUAL No. 06613

7

ACCESSORY, THATCHERIZER 6-1247

(for 1-Piece Frame Tractors)

MANUAL No. 06613

LT SERIES (Small Frame)

8

6-1247 ACCESSORY, THATCHERIZER

(for 1-Piece Frame Tractors)

ITEM	PART NO. DESCRIPTION

--6-1247 KIT, Thatcherizer (Includes items 1 thru 35)

1	1-9947	TRAY, Tine
2	1-8491	TINE, Thatching (8)
3	1-8700	SUPPORT, Wheel
4	1-8493	AXLE
5	1-8189	WHEEL, Gauge
6	1-4110	ROD, Tine (2)
7	1-4778	BRACKET, Frame Mounting (2)
8	3-4184	SUPPORT, Lift Handle
9	4-1609	WELDMENT, Hitch Bar
10	1-4781	ASSEMBLY, Main Frame Weldment
11	9-0692	WASHER, 5/16 SAE Flat (3)
12	1-4113	LATCH, Frame Mount (2)
13	1-8666	BRACKET, Lift
14	3-4183	HANDLE, Lift
15	2-7168	SCREW, 5/16-18 x 1” Hex Head Cap, Grade 5
16	9-0798	BOLT, 1/4-20 x 2-1/2” Square Neck Carriage (2)
17	9-0383	BOLT, 5/16-18 x 1” Square Neck Carriage, Grade 5 (15)
18	1-4098	WASHER, Reinforcing (9)
19	9-0187	WASHER, 5/16” Split Lock (15)
20	9-0196	NUT, 5/16-18 Hex, Grade 5 (15)
21	1-4342	BEARING, Nyliner (4)
22	1-4100	BUSHING, Wheel Adjustment
23	1-4103	SCREW, 5/16-18 x 1/4” Set
24	1-4101	NUT, 1/2” Push (2)
25	9-0250	WASHER, 1/2” SAE Flat (2)
26	9-0761	NUT, 1/4-20 Hex Top Lock (8)
27	9-0831	SCREW, 5/16-18 x 2-1/2” Hex Head Cap, Grade 5 (2)
28	1-4114	SPRING, Compression (2)
29	9-0078	BOLT, 1/4-20 x 1-1/4” Square Neck Carriage, Grade 5 (2)
30	9-0598	WASHER, 1/4” SAE Flat (2)
31	1-4779	PIN, 5/16” Lift
32	1-4784	GRIP, Handle
33	1-3113	COTTER, Hairpin
34	1-4062	DECAL, Thatcherizer
35	1-4785	DECAL, Adjustment

LT SERIES (Small Frame)

MANUAL No. 06613

9

ACCESSORY, ANTI-SCALP 6-0737

6

5

5

1

2

3

	4
ITEM	PART NO. DESCRIPTION

--6-0737 KIT, Anti-Scalp Wheel (33” Decks) (Includes items 1 thru 6)

1	3-2478	BRACKET, Wheel (2)
2	1-9190	WHEEL (2)
3	1-5272	SPACER (2)
4	9-0859	SCREW, 3/8-24 x 3-3/4” Hex Head Cap, Grade 5 (2)
5	9-0289	NUT, 3/8-24 Hex Center Lock (6)
6	9-0292	SCREW, 3/8-24 x 3/4” Hex Head Cap, Grade 2 (4)

ACCESSORY, ANTI-SCALP 6-0794

	7	2
1		6
		6

6

5

4

7

6

4

5

		3
		3
ITEM	PART NO.	DESCRIPTION
--	6-0794	KIT, Anti-Scalp Wheel (41” Decks) (Includes items 1 thru 7)
1	4-7913	BRACKET, R.H.
2	4-7914	BRACKET, L.H.
3	1-9190	WHEEL (2)
4	1-5272	SPACER
5	9-0859	SCREW, 3/8-24 x 3-3/4” Hex Head Cap, Grade 5 (2)
6	9-0289	NUT, 3/8-24 Hex Lock Center Lock (6)
7	9-0292	SCREW, 3/8-24 x 3/4” Hex Head Cap, Grade 2 (4)
MANUAL No. 06613		LT SERIES (Small Frame)

10

6-1400 ACCESSORY, ANTI-SCALP

6-3128 ACCESSORY, ANTI-SCALP

LT SERIES (Small Frame)

MANUAL No. 06613

11

ACCESSORY, 33” SINGLE BAG GRASS CATCHER 6-0943

MANUAL No. 06613

LT SERIES (Small Frame)

12

6-0943 ACCESSORY, 33” SINGLE BAG GRASS CATCHER

ITEM	PART NO.	DESCRIPTION
1	5-1948	TOP, Container
2	1-6108	SKIRT, Dust

32-9840 WASHER, Faceted (5)

44-7973 FRAME, Grass Bag

5

2-9841

CLEVIS PIN, 5/16 x 1-11/16 (2)

63-1725 LATCH, Grass Catcher

79-0532 SCREW, 10-32 x 1-11/16 Hex Cap

89-0376 NUT, 10-32 Hex Lock w/Nylon Insert

9	3-7758	ROD, Bag
10	9-1503	PIN, 3/32 x 1-1/2 Hair (2)
11	1-2556	CONNECTOR, 1/2 x 3” Rod
12	1-9251	BAG, Single Zipperless
13	1-9912	ADAPTER, Bag
14	3-1951	LATCH, Tube
15	1-4517	TUBE, Grass

169-1576 NUT, 1/4-20 Hex (3)

179-1314 WASHER, 1/4 Lock (3)

183-7745 HANDLE, Tube

19	3-1952	BASE, Handle
20	9-1530	BOLT, 1/4-20 X 3/4" (3)

219-1537 WING-NUT, 5/16-18 Lock

229-1303 BOLT, 5/16-18 X 1" Carriage

--7-1677 SHIELD, Muffler (Shown on Page 1)

--4-2716 BRACKET, Bumper Reinforcement (Shown on Page 1)

LT SERIES (Small Frame)

MANUAL No. 06613

13

ACCESSORY, 38” SINGLE BAG GRASS CATCHER 6-1312 (for Hydro Drive Models)

9

8

17

13

10

		2	6
	3	4
		5

	7A
	7
	20
	18
	21
	18
32	16

31

14

15

28 KIT

11

14

30

29

MANUAL No. 06613

LT SERIES (Small Frame)

14

6-1312 ACCESSORY, 38” SINGLE BAG GRASS CATCHER (for Hydro Drive Models)

ITEM	PART NO.	DESCRIPTION
1	6-1312	KIT, Single Bag Grass Catcher (Incl. Items 2 thru 28)
2	5-1948	TOP, Container (Includes Decal No. 1-1910)
3	2-9840	WASHER, Faceted (5)
4	4-7973	FRAME, Structure
5	3-7758	ROD, Bag
6	1-2556	CONNECTOR, Bag Rod
7	1-9251	BAG, Grass
7A	1-6108	SKIRT, Dust
8	3-1725	LATCH, Top
9	9-0532	SCREW, #10-32 Hex Head Cap, Grade 2
10	2-9841	PIN, 5/16 x 1-11/16” Clevis
11	2-6814	ADAPTER, 38” Deck
12	3-3995	BAFFLE
13	9-0376	NUT, #10-32 Hex Nyloc
14	9-1530	BOLT, 1/4-20 x 3/4” Short Neck Carriage, Grade 5 (3)
15	3-1951	LATCH, Tube
16	3-1952	BASE, Handle
17	9-1503	PIN, 3/32 x 1-1/2” Hair
18	9-1576	NUT, 1/4-20 Hex, Grade 5 or B (3)
18A	9-1314	WASHER, 1/4” Internal Tooth Lock (3)
19	9-0824	SCREW, 3/8-24 x 1-1/4” Hex Head Cap, Grade 5
		(Blade Retaining Screwnot shown)
20	2-7915	TUBE, Grass
21	3-7745	HANDLE, Tube
22	6-0480	KIT, Air Lift (Includes items 22 thru 26)
23	9-0223	NUT, 5/16-24 Hex (6)
24	9-0391	WASHER, 5/16 Internal Tooth Lock (6)
25	3-7723	AIR-LIFT (2)
26	9-0228	SCREW, 5/16-24 x 11/16” Oval Head Machine, Grade 5
27	9-1575	NUT, 5/16-18 Hex Center Lock (4)
28	6-3289	KIT, Catcher, Debris Shield (Incl. items 29-32)
29	6-3287	SHIELD, Debris
30	9-0909	BOLT, 1/4-20 x 1-1/2” Hex (2)
31	9-1294	WASHER, 1/4” Flat (2)
32	9-1705	NUT, 1/4-20 Hex top Lock (2)

NOTE: 6-1068 Catcher Adapter Kit must be installed before Grass catcher can be mounted.

LT SERIES (Small Frame)

MANUAL No. 06613

15

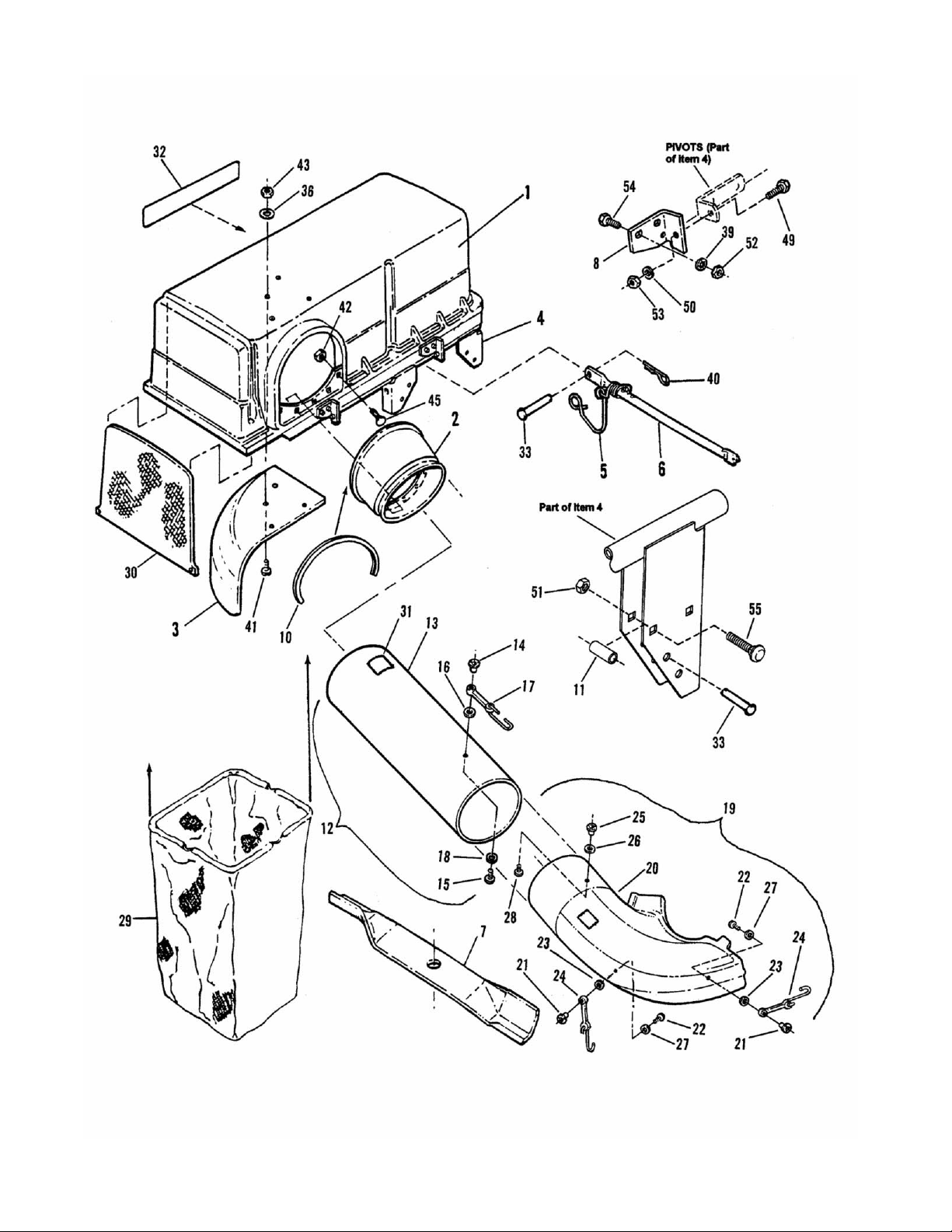

ACCESSORY, 38” SINGLE BAG GRASS CATCHER 6-1886 (Model Year 97; Replaced 6-1249)

1

					3
					35
					34
					37
					36
	32				4
					33
		49	48		38
2		46
				47	5
7
	8
	12
		45 KIT

	11
	6
	20
	21
	10
	9	14	40
	22	19	41
		18
			43 42
	17		17
	15
	13		16
	16
		19
	18		39
		15

MANUAL No. 06613

LT SERIES (Small Frame)

16

6-1886 ACCESSORY, 38” SINGLE BAG GRASS CATCHER (Model Year 97; Replaced 6-1249)

ITEM	PART NO. DESCRIPTION

--6-1886 KIT, Single Bag Grass Catcher (Incl. Items 1 thru 45)

1	5-1948	TOP, Container (Includes #1-1910 Decal)
2	1-6108	SKIRT, Dust
3	4-7973	FRAME
4	3-7758	ROD, Bag
5	1-9251	BAG, Grass Catcher
--	4-4726*	BAFFLE
6	5-4395	ASSEMBLY, Tube/Strap (Includes Indented Items)
7	3-9478	TUBE, Grass
8	3-6404	NUT, #10-24 Weld (3)
9	3-6415	SCREW, #10-24 x 5/8” Pan Head (3)
10	9-1552	WASHER, 7/32” Flat (2)
11	3-6433	ASSEMBLY, Strap Mounting (3)
12	3-6422	WASHER, 3/16” Flat (3)
13	5-4388	ASSEMBLY, Adapter/Strap (Includes Indented Items)
14	5-9469	ADAPTER
15	3-6404	NUT, #10-24 Weld (2)
16	3-6433	ASSEMBLY, Strap Mounting (2)
17	3-6422	WASHER, 3/16” Flat (2)
18	9-1552	WASHER, 7/32” Flat (2)
19	3-6415	SCREW, #10-24 x 5/8” Pan Head (2)
20	3-6543	NUT, 5/16-18 “T”
21	9-1296	WASHER, 11/32” Flat
22	9-1833	SCREW, 5/16-18 x 5/8” Pan Head

235-4514* ASSEMBLY, Blade (Includes #4-4686 Decal)

246-1887 HARDWARE BAG (Includes Indented Items)

25	9-0492*	NUT, 5/16-18 Wing (2)
26	9-1303*	BOLT, 5/16-18 x 1” Short Neck Carriage, Grade 5 (2)
27	9-1575*	NUT, 5/16-18 Hex Center Lock, Grade B or 5 (2)
28	9-1318*	SCREW, 5/16-18 x 3/4” Hex Head Cap, Grade 5 (2)
29	3-6543*	NUT, 5/16-18 “T” (2)
30	9-1296*	WASHER, 11/32” Flat (7)
31	9-1833*	SCREW, 5/16-18 x 5/8” Pan Head (2)
32	2-9840	WASHER, Faceted (5)
33	2-9841	PIN, 5/16 x 1-11/16” Clevis (2)
34	3-1725	LATCH, Grass Catcher
35	9-0532	SCREW, #10-32 x 1-1/16” Hex Head Cap, Grade 2
36	9-0376	NUT, #10-32 Hex Top Lock
37	9-1503	PIN, 3/32 x 1-1/2 Hair (2)
38	1-2556	CONNECTOR, Bag Rod
39	6-0480	KIT, Air Lift (Includes Indented Items)
40	3-7723	LIFTS, Air (2)
41	9-0228	SCREW, 5/16-24 x 21/32” Machine (6)
42	9-0391	WASHER, 5/16” Internal Tooth Lock (6)
43	9-0223	NUT, 5/16-24 Hex (6)

449-1296* WASHER, 11/32” Flat, Grade 5 (2)

456-3289 KIT, Catcher Debris Shield (Incl. items 46-49)

46	6-3287	SHIELD, Debris
47	9-0909	BOLT, 1/4-20 x 1-1/2” Hex (2)
48	9-1294	WASHER, 1/4” Flat (2)
49	9-1705	NUT, 1/4-20 Hex Top Lock (2)

*NOTE: For location, see Instruction Sheet #4-2686, included in 6-1886 Kit.

NOTE: 6-1334 Catcher Adapter Kit must be installed before Grass catcher can be mounted.

LT SERIES (Small Frame)

MANUAL No. 06613

17

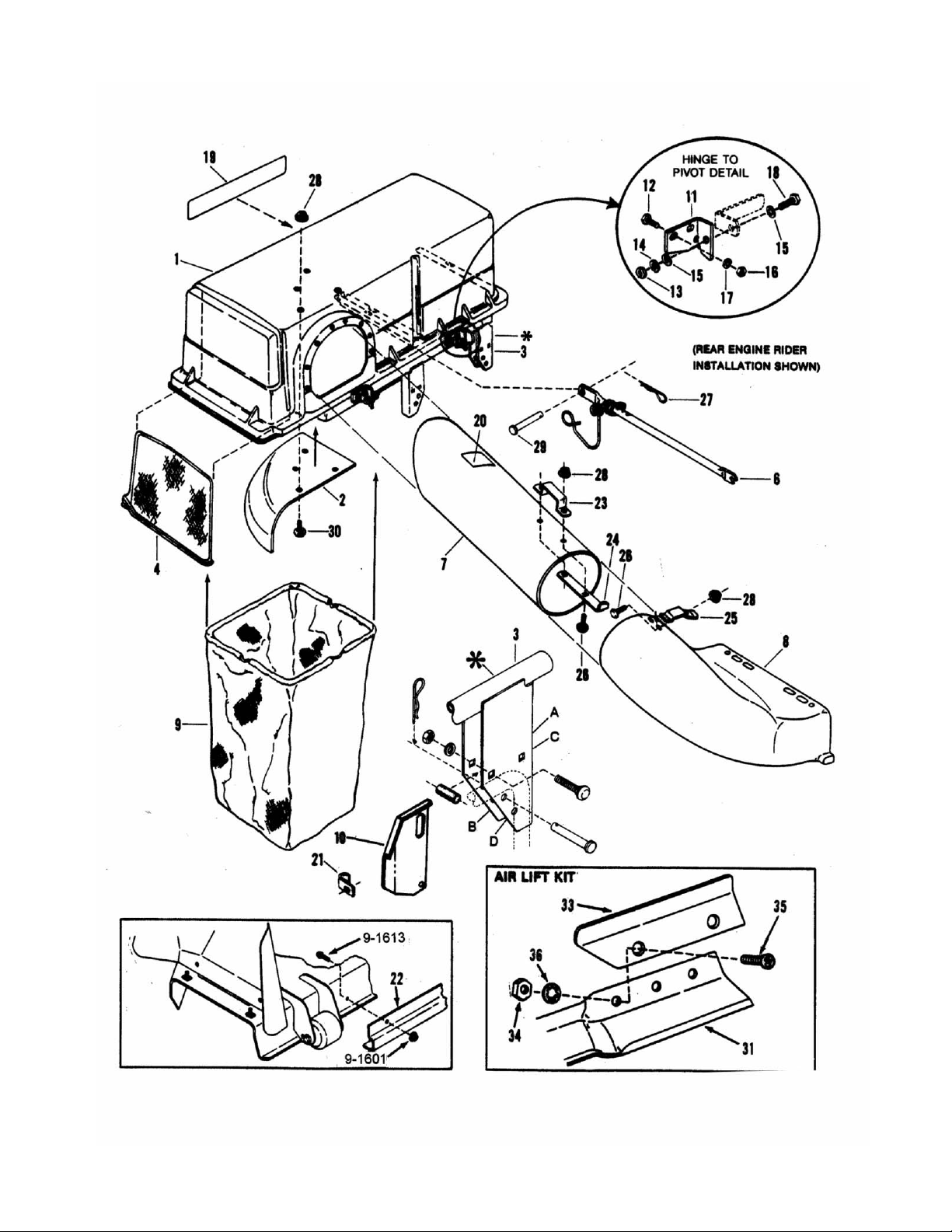

ACCESSORY, 42” SINGLE BAG GRASS CATCHER 6-0944

MANUAL No. 06613

LT SERIES (Small Frame)

18

6-0944 ACCESSORY, 42” SINGLE BAG GRASS CATCHER

ITEM

PART NO.

DESCRIPTION

-6-0944 KIT, Grass Catcher Single Bag (Includes 1 Thru 33)

1	5-1948	TOP, Container (Includes Decal #1-1910)
2	1-9251	BAG, Grass (Includes Item 3)
3	1-6108	SKIRT, Dust
4	4-7973	FRAME, Structure
5	3-7758	ROD, Bag (Includes Item 6)
6	1-2556	CONNECTOR, Bag Rod
7	3-1725	LATCH
8	9-0532	SCREW, #10-32 x 1-3/8” Hex Cap
9	9-0376	NUT, #10-32 Hex Lock
10	2-9840	WASHER, Faceted (5)
11	1-7316	TUBE, Grass
12	5-1663	ADAPTER, Deck (Includes Decal 4-6720)
13	3-7745	HANDLE, Tube
14	3-1952	BASE, Handle
15	3-1951	LATCH, Tube
16	7-1677	SHIELD, Muffler (See Figure 2)
17	9-0803	BOLT, 1/4-20 x 3/4” Carriage (3)
18	9-1503	PIN, 3/32 x 1-1/2” Hair (2)
19	9-1584	NUT, 1/4-20 Hex Lock (6)
20	6-0735	KIT, Air Lift (Includes Items 22 Thru 25) (See Figure 1)
21	2-9841	PIN, 5/16 x 1-11/16” Clevis (2)
22	9-0228	SCREW, 5/16-24 x 21/32” Cross Recess (6) (See Figure 1)
23	9-0391	WASHER, 5/16 Internal Tooth Lock (6) (See Figure 1)
24	9-0223	NUT, 5/16-24 Hex (6) (See Figure 1)
25	3-1724	LIFT, Air (2) (See Figure 1)
26	3-8277	BAFFLE (See Figure 3)
27	9-1613	SCREW, 5/16-18 x 3/4” Round Head (3) (See Figure 3)
28	9-1601	NUT, 5/16-18 Hex Lock (3) (See Figure 3)
29	9-1589	SCREW, 3/8-24 x 1-1/4” Hex Cap (Not Shown - Replacement Blade Bolt)
30	1-9795	BLADE, 21” Cutting (See Figure 1)
31	2-3797	PAD, Bumper Mount (2)
32	9-0577	BOLT, 5/16-18 x 1-1/2” Carriage (2)
33	9-1575	NUT, 5/16-18 Hex Center Lock (2)

LT SERIES (Small Frame)

MANUAL No. 06613

19

ACCESSORY, 33” TWIN BAG GRASS CATCHER 6-3281

MANUAL No. 06613

LT SERIES (Small Frame)

20

6-3281 ACCESSORY, 33” TWIN BAG GRASS CATCHER

ITEM	PART NO.	DESCRIPTION
1	5-9626	COVER ASS’Y
2	1-9295	DECAL, Snapper (11-1/2” Long)
3	9-1545	NUT, 1/4-20 Flange Lock (5)
4	5-9951	FRAME STRUCTURE (includes indented items)
-	2-3797	PAD, Bumper Mount (2)
-	9-0188	WASHER, 5/16” Flat (2)
-	9-0184	LOCKNUT, 5/16-18 (2)
-	9-0577	BOLT, 5/16-18 x 1-1/2" Carriage (2)
5	9-1611	SCREW, 1/4-28 X 3/4" Hex Cap (4)
6	3-8087	HINGE, Top (2)
7	9-0238	SCREW, 5/16-24 x 1" Hex Cap (2)
8	9-1296	WASHER, 5/16 Flat (6)
9	9-1605	NUT, 1/4-28 Hex (4)
10	9-1314	WASHER, 1/4" Lock (8)
11	9-1315	WASHER, 5/16" Split Lock (2)
12	9-1606	NUT, 5/16-24 Hex Lock (2)
13	9-1503	COTTER, Hairpin (3)
14	3-6073	BRACE, Short (includes indented item)
-	5-1407	SPRING & HOOK ASS’Y
-	4-6573	BRACE, Long (includes indented item)
-	5-1407	SPRING & HOOK ASS’Y
15	2-9841	PIN, Clevis (3)
16	1-9966	INLET
17	1-9725	SECTOR
18	9-1530	BOLT, 1/4-20 x 3/4" Carriage (4)
19	5-7652	SCREEN ASS'Y (includes indented items)
-	1-9732	FRAME
-	1-9731	SCREEN
20	5-1930	BAG ASS'Y (includes indented items) (2)
-	1-9250	BAG, Grass Catcher (2)
-	1-9965	ROD, Bag Support (2)
-	1-4456	CONNECTOR, Rod (2)
21	9-1604	BOLT, 1/4-20 x 1/2 Grade 5 (5)
22	9-1576	NUT, 1/4-20 Hex (8)
23	9-1294	WASHER, 9/32" Flat (4)
24	9-1314	WASHER, 1/4 Lock (4)
25	3-7745	HANDLE, Tube
26	3-1952	BASE, Tube Handle
27	9-1614	BOLT, 1/4-20 X 3/4" Carriage (4)
28	3-1951	LATCH, Chute Tube
29	1-9912	ADAPTER
30	1-1910	DECAL, Caution
31	1-4517	TUBE, Grass
32	9-1537	WING-NUT, 5/16-18
33	9-1303	BOLT, 5/16-18 X 1"
34	9-1575	NUT, 5/16-18 Hex Lock (2) (not used, extra)
35	9-1612	BOLT, 5/16-18 X 1-1/2" Carriage (2) (not used, extra)
--	3-1954	BRACKET, Bumper Reinforcement (Shown on page 1)
--	7-1677	SHIELD, Muffler (Shown on page 1)
--	7-2416	WEIGHT, Front Frame (6) (Rider only) (Shown on page 2)
--	9-1976	SCREW, 5/8-11 x 1-3/4 Hex Cap (2) (Rider only) (Shown on page 2)
--	9-0333	WASHER, 5/8 Split Lock (2) (Rider only) (Shown on page 2)
--	9-0537	NUT, 5/8-11 Hex (2) (Rider only) (Shown on page 2)
--	9-1553	SCREW, 3/8-16 x 1-3/4” Hex Cap (2) (Rider only) (Shown on page 3)
--	9-1320	WASHER, 3/8 Split Lock (2) (Rider only) (Shown on page 3)
--	9-1302	NUT, 3/8-16 Hex (2) (Rider only) (Shown on page 3)
LT SERIES (Small Frame)		MANUAL No. 06613

21
