1 Preface

1.1 Intended Use

This SMSC product is intended to be used for developing, testing or analyzing MediaLB and MOST based multimedia products and systems by persons with experience in developing multimedia devices.

The operation of this SMSC product is only admitted with original SMSC devices, e.g., provided power supply.

Do not interfere in the product’s original state, otherwise user safety, faultless operation and electromagnetic compatibility is not guaranteed.

1.2 Information Sources

• MediaLB Analyzer Hardware Manual (this document):

It describes the MediaLB Monitor and the MediaLB Active-Pods.

• OptoLyzer Suite Start-up Guide [1]:

It describes in a brief manner how to connect the hardware components of the MediaLB Analyzer and how to install the OptoLyzer Suite supporting MediaLB signal/data analysis and verification.

• Online Help of the OptoLyzer Suite [2]:

It describes the software usage in detail.

• Media Local Bus Specification [3]:

It defines the MediaLB Physical-Layer and Link-Layer Protocol.

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 8

MediaLB Analyzer

Hardware Manual

1.3 Term Definitions

For better understanding of the following sections, this section provides explanations of special terms, used within this manual.

Term Definitions

Active-Pod Part of the MediaLB Analyzer. It is a small housing that is directly connected to

the MediaLB Debug Header of the DUT. It buffers the MediaLB signals and transfers them to the MediaLB Monitor without compromising the signal integrity.

DUT Device Under Test

INIC Intelligent Network Interface Controller

LED Light Emitting Diode

LVTTL Low Voltage Transistor to Transistor Logic

MediaLB Media Local Bus

MediaLB Monitor Part of the MediaLB Analyzer. It formats, processes and buffers the incoming

serial data before for feeding it via USB to the Host PC.

S/PDIF Sony Philips Digital Interface

Trigger A hardware trigger defines when to capture data from MediaLB.

Table 1-1: Term Definitions

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 9

MediaLB Analyzer

Hardware Manual

2 Introduction

The MediaLB Analyzer is a tool defined by a combination of hardware and software components designed to allow observation and visualization of MediaLB data in a comfortable way.

The MediaLB Analyzer consists of the following main modules:

Hardware Modules

• MediaLB Monitor USB - converter box transferring MediaLB data received from the Active-Pods via USB2.0 to a Host PC (described in chapter 3). It represents a package of the MediaLB Monitor

(3) converter box, cables required to setup a MediaLB Analyzer, power supply and hardware

manual.

• Active-Pods (2) - functioning as interface to the MediaLB port of the Device Under Test (1)

(described in chapter 4)

Software Module

• OptoLyzer Suite (6) – software supporting analyzing and visualizing of MediaLB data (see

separate OptoLyzer Suite documentation for details). OptoLyzer Suite is running on a Host

PC/laptop (4). The USB connector on the PC has to be a USB 2.0 High Speed connector (5).

Figure 2-1: MediaLB Analyzer Overview

This manual describes the hardware modules MediaLB Monitor converter box and the Active-Pods.

All components of the MediaLB Analyzer including the MediaLB Monitor USB, the Active-Pods and the OptoLyzer Suite software need to be purchased to complete a MediaLB Analyzer setup. Especially the Active-Pods should be purchased in dependence of the requirement to analyze a 3-pin or 6-pin MediaLB interface and in relation to the required MediaLB Debug Header (Low Speed or High Speed).

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 10

MediaLB Analyzer

Hardware Manual

2.1 Features

The MediaLB Analyzer hardware modules provide the following features:

• MediaLB Monitor

o Streaming capable USB2.0 High Speed interface o MediaLB Clock-Activity, Speed, and Lock Detection o 256 MByte RAM for data buffering o Compact housing o High Speed Trigger Input

• Active-Pods

o 3-pin Active-Pod Low Speed

 Support for OS81050/OS81082/OS81110 Low Speed MediaLB Debug Header

 Support for 3-pin MediaLB interfaces up to and including 1024Fs

o 6-pin Active-Pod High Speed

 Support for OS81110 High Speed MediaLB Debug Header

 Support for 6-pin MediaLB interfaces up to and including 8192Fs

2.2 Scope of Delivery

The MediaLB Monitor USB is delivered with:

• MediaLB Monitor

• Power supply

• Cables (USB, Active-Pod)

• MediaLB Analyzer Hardware Manual (this document)

The 3-pin Active-Pod Low Speed is delivered with:

• 3-pin Active-Pod Low Speed

The 6-pin Active-Pod High Speed is delivered with:

• 6-pin Active-Pod High Speed

Check your shipment for completeness. If you have any complaints direct them to

sales-ais-usa@smsc.com (America). Providing the delivery note number eases the handling.

sales-ais-europe@smsc.com (Europe and Asia) or to

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 11

MediaLB Analyzer

Hardware Manual

3 MediaLB Monitor

The MediaLB Monitor formats, processes and buffers the incoming serial data before for feeding it via USB to the Host PC.

3.1 Front Panel

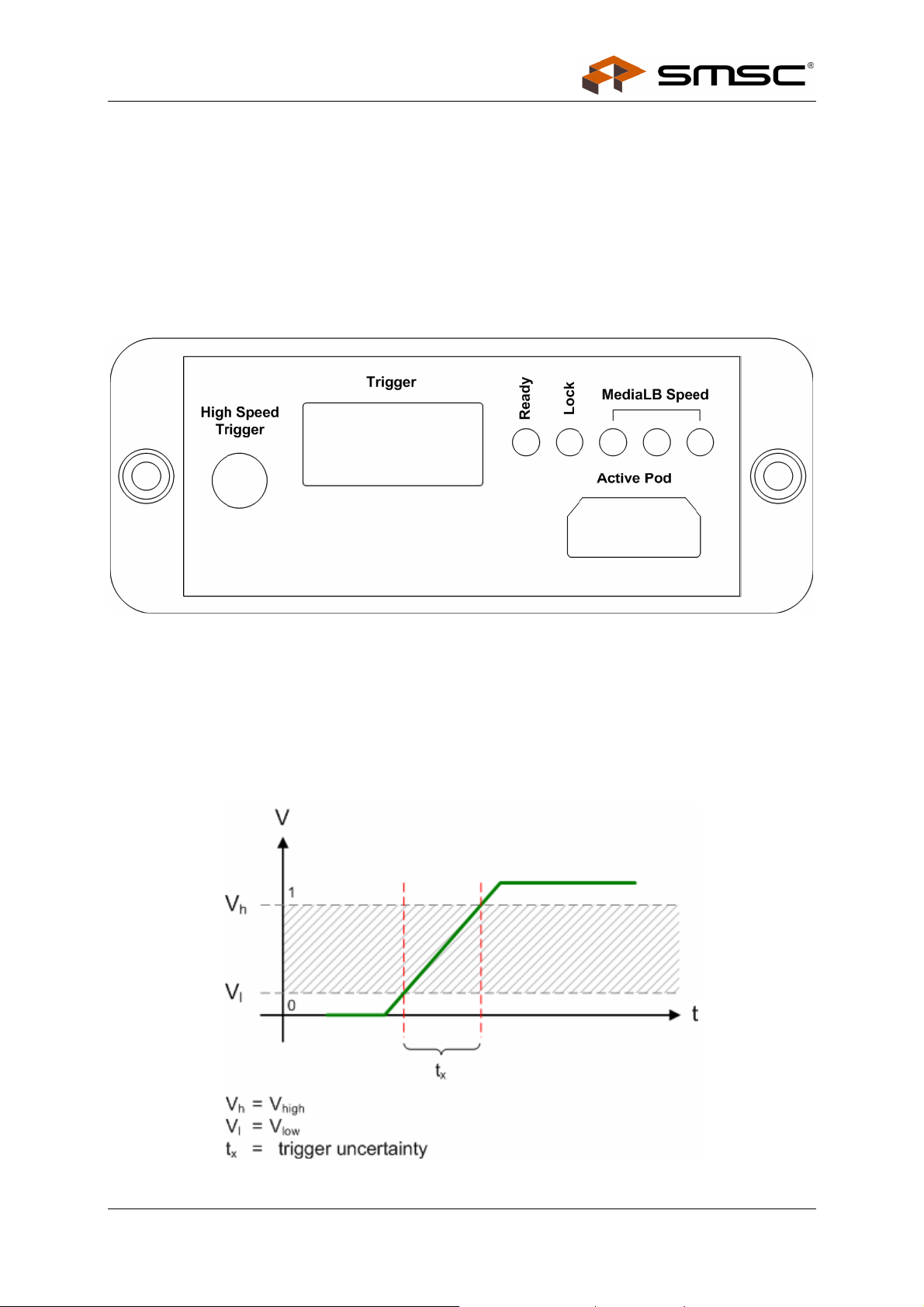

Figure 3-1: MediaLB Monitor - Front Panel

3.1.1 High Speed Trigger

High Speed Trigger connector is an SMA jack type connector accepting an LVTTL compatible input. It can be used to trigger on external events. The trigger event is generated upon the transition of logical low level to logical high level. For details about characteristic values refer to section 3.3.3 on page 16.

Figure 3-2: High Speed Trigger Characteristic

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 12

MediaLB Analyzer

Hardware Manual

3.1.2 Trigger

Will be activated in a later version of MediaLB Monitor.

3.1.3 Ready LED

Color

Status Description

of LED

Green On Indicates the MediaLB Monitor is powered and ready for

operation.

Red

Shortly Indicates the MediaLB Monitor is booting. Blinking Continuously Indicates booting cannot be completed. Refer to:

Possible reasons for a red Ready LED that is blinking continuously.

On Indicates an error is occurred. Refer to:

Possible reasons for a red Ready LED.

Table 3-1: Ready LED

Possible reasons for a red Ready LED that is blinking continuously:

Reason Action

OptoLyzer Suite is not yet started.

MediaLB Monitor device is not yet added in the OptoLyzer Suite.

Table 3-2: Red Ready LED Blinks Continuously

Start OptoLyzer Suite.

Add MediaLB Monitor device. Refer to the online help of the OptoLyzer Suite for details.

Possible reasons for a red Ready LED:

Reason Action

If the PC runs too slowly to process all MediaLB data the buffer will eventually get an overflow. This

Set the ‘Memory Depth’ on tab ‘License/Memory/MOST Speed’ to 100000 (default).

Use dedicated filters to focus only on the data of interest. occurs after some seconds to minutes (depending on the transmitted load).

Check the PC system requirements. Refer to the

OptoLyzer Suite’s online help. User stops streaming of data by clicking the Stop button of the

Click the Run button of the MediaLB Monitor device in the

OptoLyzer Suite. MediaLB Monitor device in the OptoLyzer Suite. MediaLB Monitor USB driver is not

Consider reinstallation of the OptoLyzer Suite. installed or not loaded properly.

Table 3-3: Red Ready LED

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 13

MediaLB Analyzer

Hardware Manual

3.1.4 Lock LED

Color of LED Description

Green Indicates a MediaLB lock state. Red Indicates there is no MediaLB lock but toggling (activity) of MediaLB clock pin. Dark Indicates there is no MediaLB lock and no toggling (activity) of MediaLB clock pin.

Table 3-4: Lock LED

3.1.5 MediaLB Speed

The yellow LEDs indicate the MediaLB speed. In the table below they are listed from left to right. ‘z’ means LED is off, ‘{’ means LED is on.

MediaLB Speed

LEDs Fs

zzz zz{ z{z z{{ {zz {z{ {{z {{{

256 only if Lock LED is on 512 1024 2048 3072 4096 6144 8192

Table 3-5: MediaLB Speed

3.1.6 Active-Pod Connector

The Active-Pod connector has to be connected with the respective Active-Pod via the delivered Active-Pod cable.

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 14

MediaLB Analyzer

Hardware Manual

3.2 Rear Panel

Figure 3-3: MediaLB Monitor - Rear Panel

3.2.1 Line Out

Will be activated in a later version of MediaLB Monitor.

3.2.2 S/PDIF Out

Will be activated in a later version of MediaLB Monitor.

3.2.3 USB 2.0 High Speed Connector

Type: USB type B connector

Notice

It is mandatory to connect this connector with a USB 2.0 High Speed connector on the PC! Check it in the Device Manager. If the Device Manager shows an Enhanced USB Host

Controller, the connector has USB 2.0 High Speed capability.

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 15

MediaLB Analyzer

Hardware Manual

3.2.4 Power Supply

Type: Binder, serial 718

Figure 3-4: Power Connector (Rear Panel)

The table shows the pin assignment of the power connector.

Pin Description

1 Power 2 Reserved 3 GND

Table 3-6: Power Supply Connector

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 16

MediaLB Analyzer

Hardware Manual

3.3 Specifications

3.3.1 Absolute Maximum Ratings

Parameter Min Max Unit

Power supply voltage -0.4 25 V

MediaLB signal voltage -0.4 3.7 V

Operating (ambient) temperature 0 40 °C

Storage temperature -20 85 °C

Table 3-7: Absolute Maximum Ratings

3.3.2 Recommended Operating Conditions

Parameter Min Typ. Max Unit

Operating (ambient) temperature 21 °C

Power supply 12 V

Table 3-8: Recommended Operating Conditions

3.3.3 DC Characteristics

DC characteristics:

Parameter Condition Min Typ. Max Unit

Power consumption

High Speed Trigger input voltage - Low 0 0.8 V High Speed Trigger input voltage - High 2 3.3 V High Speed Trigger input capacitance 20 pF

Line out (RLoad) Will be activated in a later version of MediaLB Monitor.

High Speed Trigger output voltage (high/low level)

Trigger input voltage (high/low level) Will be activated in a later version of MediaLB Monitor.

Trigger output voltage (high/low level) Will be activated in a later version of MediaLB Monitor.

Power supply

voltage 12V

Will be activated in a later version of MediaLB Monitor.

50 150 300 mA

Table 3-9: DC Characteristics

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 17

MediaLB Analyzer

Hardware Manual

3.3.4 Mechanical Characteristics

• Protection Rating: IP 42

• Dimensions: MediaLB Monitor: 113 / 82 / 32 mm (L / W / H)

USB cable: 1 m Active-Pod cable: 40 cm

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 18

MediaLB Analyzer

Hardware Manual

4 Active-Pods

An Active-Pod is a small device that is directly connected to the MediaLB Debug Header of the DUT. It buffers the MediaLB signals and transfers them to the MediaLB Monitor without compromising the signal integrity.

4.1 3-pin Active-Pod for Low Speed MediaLB Debug Header

A 3-pin Active-Pod Low Speed has three connectors: two of them (MediaLB Connector A and MediaLB Connector B) are used for connecting the Active-Pod to the MediaLB on the DUT and one Active-Pod Connector, which is used to connect the Active-Pod by means of a special cable to the

MediaLB Monitor. The cable is part of the MediaLB Monitor USB delivery!

MediaLB Connector A is a 10-pin male type, 2 mm pitch connector. It is placed on the front side of

the Active-Pod. This connector is used for connecting the Active-Pod by means of an extension connector to the DUT.

MediaLB Connector B is a 10-pin female type, 2 mm pitch connector placed on the bottom side of

the Active-Pod. This connector is used for connecting the Active-Pod directly (or by means of extension connector) on dedicated connector on the DUT.

Status LED

MediaLB Connector A

Front View

MediaLB

Connector A

Pin 1

MediaLB Connector B

Pin 1

Bottom View

Status LED

Active-Pod

Connector

Rear View

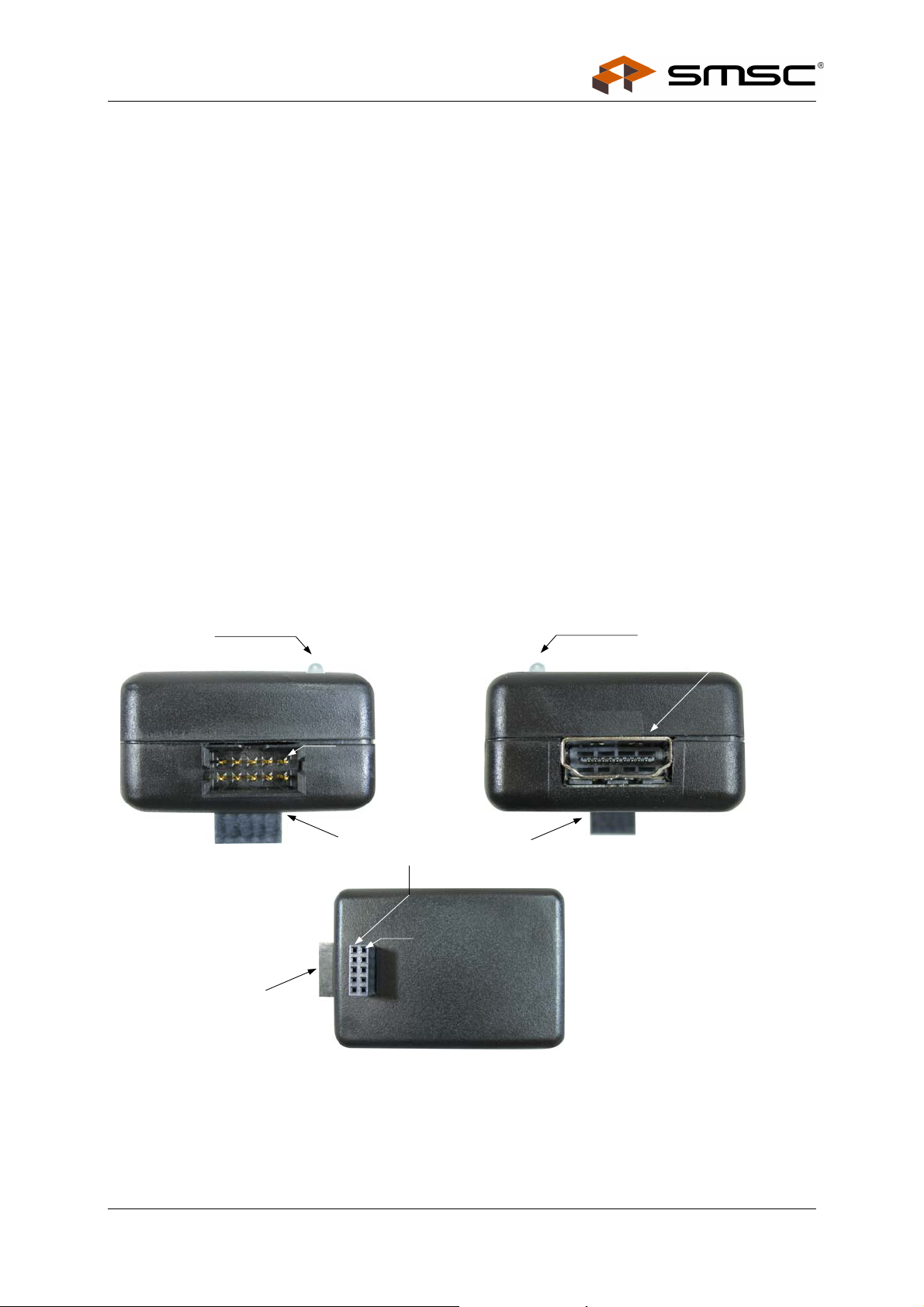

Figure 4-1: 3-pin Active-Pod Low Speed - Connectors and Status LED

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 19

MediaLB Analyzer

Hardware Manual

4.1.1 Pin-Out MediaLB Connectors A and B for 3-pin Low Speed MediaLB Debug Header

MediaLB Connectors A and B are electrically one-to-one interconnected, so that, the corresponding pins have the same function (pin 1 of MediaLB Connector A Ù pin 1 of MediaLB Connector B).

Notice

All pins are inputs (except GND) and are named according to the corresponding pins of the MediaLB Debug Header.

)

GND

Pin 7

Pin 8

n.c.

DUT

Detectio

Pin 5

Pin 6

MLBDAT

GND

Pin 3

Pin 1

Pin 4

Pin 2

MLBCK

MLBSIG

GND

Pin 9

Pin 10

n.c.

Table 4-1: 3-pin Active-Pod Low Speed - Connector A & B Pin-Out

On DUT this pin has to be connected to GND.

4.1.2 Status LED

The following table gives an overview of the possible LED states.

Status LED Description Action

Dark

Red

Yellow

Green

• MediaLB Monitor is not connected to ActivePod.

• MediaLB Monitor has no power.

• MediaLB Monitor has no connection to

MediaLB.

)

• The DUT detection pin*

on DUT is not

connected to ground.

MediaLB connector A or B is connected properly to MediaLB, but

• the MediaLB provides no clock signal.

MediaLB clock present.

• Check the connection.

• Check the power supply/USB.

• Check the connection.

• Check the pin assignment of

detection pin.

• Make sure MediaLB is initialized and running.

• Normal operation

Table 4-2: 3-pin Active-Pod Low Speed – Status LED Interpretation

*) Since the DUT detection pin detects the connection to MediaLB, it is important that the pin 5 on DUT is connected to ground.

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 20

MediaLB Analyzer

Hardware Manual

4.1.3 Specifications

4.1.3.1 Absolute Maximum Ratings

Parameter Min Max Unit

MediaLB signal voltage -0.4 3.7 V

Operating (ambient) temperature 0 40 °C

Storage temperature -20 85 °C

Table 4-3: Absolute Maximum Ratings

4.1.3.2 Recommended Operating Conditions

Parameter Min Typ. Max Unit

Operating (ambient) temperature 21 °C

Table 4-4: Recommended Operating Conditions

4.1.3.3 3-pin Active-Pod for Low Speed MediaLB Debug Header

DC characteristics:

Parameter Min Typ. Max Unit

Input resistance 100 kΩ

Input capacitance 5 6 10 pF

Input high voltage 1.70 3.6 V

Input low voltage -0.3 0.70 V

Table 4-5: 3-pin Active-Pod for Low Speed MediaLB Debug Header DC Characteristics

4.1.3.4 Mechanical Characteristics

• Protection Rating: IP 42

• Dimensions: Active-Pod: 56 / 37 / 25 mm (L / W / H)

Active-Pod cable: 40 cm

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 21

MediaLB Analyzer

Hardware Manual

4.2 6-pin Active-Pod for High Speed MediaLB Debug Header

A 6-pin Active-Pod High Speed has two connectors: one high speed MediaLB Connector, which is used for connecting the Active-Pod to the MediaLB on the DUT and one Active-Pod Connector,

which is used to connect the Active-Pod by means of a special cable to the MediaLB Monitor. The cable is part of the MediaLB Monitor USB delivery!

Figure 4-2: 6-pin Active-Pod High Speed – Active-Pod Connector

Figure 4-3: 6-pin Active-Pod High Speed - MediaLB Connector

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 22

MediaLB Analyzer

Hardware Manual

4.2.1 Pin-Out MediaLB Connectors for 6-pin High Speed MediaLB Debug Header

The high speed MediaLB Connector is of type QTH-020-01-L-D-DP-A (Samtec). It is a 40-pin

connector having a GND stripe in the middle. It is placed on the front side of the Active-Pod. This connector is used for connecting the Active-Pod by means of an extension connector to the DUT.

The DUT connector should be of type QSH-020-01-L-D-DP-A (Samtec).

)

MLBSP

MLBSN

Pin 1

Pin 3

Pin 5

Pin 7

MLBDN

Pin 9

MLBDP

Pin 11

Pin 13

MLBCKN

Pin 15

Pin 17

MLBCKP

Pin 19

Pin 21

Pin 23

Pin 25

Pin 27

Pin 29

Pin 31

Pin 33

Pin 35

Pin 37

DUT

Detection*

Pin 39

GND

Pin 2

Pin 4

Pin 6

Pin 8

Pin 10

Pin 12

Pin 14

Pin 16

Pin 18

Pin 20

Pin 22

Pin 24

Pin 26

Pin 28

Pin 30

Pin 32

Pin 34

Pin 36

Table 4-6: 6-pin Active-Pod High Speed – Pin-Out MediaLB Connector

*) On

DUT this pin has to be connected to 3.3 VCC.

4.2.2 Specifications

4.2.2.1 Absolute Maximum Ratings

Parameter Min Max Unit

MediaLB signal voltage -0.4 3.7 V

Operating (ambient) temperature 0 40 °C

Storage temperature -20 85 °C

Pin 38

Pin 40

Table 4-7: Absolute Maximum Ratings

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 23

MediaLB Analyzer

Hardware Manual

4.2.2.2 Recommended Operating Conditions

Parameter Min Typ. Max Unit

Operating (ambient) temperature 21 °C

Table 4-8: Recommended Operating Conditions

4.2.2.3 6-pin Active-Pod for High Speed MediaLB Debug Header

DC characteristics:

Parameter Min Typ. Max Unit

Input resistance 50 kΩ

Input capacitance 3 5 8 pF

Input common voltage 0.05 2.35 V

Input differential threshold ±7 ±50 mV

Table 4-9: 3-pin Active-Pod for High Speed MediaLB Debug Header DC Characteristics

4.2.2.4 Mechanical Characteristics

• Protection Rating: IP 42

• Dimensions: Active-Pod (High Speed): 35 / 22 / 8 mm (L / W / H)

Active-Pod cable: 40 cm

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 24

MediaLB Analyzer

Hardware Manual

Appendix A: List of Figures

Figure 2-1: MediaLB Analyzer Overview................................................................................................. 9

Figure 3-1: MediaLB Monitor - Front Panel........................................................................................... 11

Figure 3-2: High Speed Trigger Characteristic...................................................................................... 11

Figure 3-3: MediaLB Monitor - Rear Panel............................................................................................ 14

Figure 3-4: Power Connector (Rear Panel)........................................................................................... 15

Figure 4-1: 3-pin Active-Pod Low Speed - Connectors and Status LED .............................................. 18

Figure 4-2: 6-pin Active-Pod High Speed – Active-Pod Connector....................................................... 21

Figure 4-3: 6-pin Active-Pod High Speed - MediaLB Connector........................................................... 21

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 25

MediaLB Analyzer

Hardware Manual

Appendix B: List of Tables

Table 1-1: Term Definitions ..................................................................................................................... 8

Table 3-1: Ready LED ........................................................................................................................... 12

Table 3-2: Red Ready LED Blinks Continuously................................................................................... 12

Table 3-3: Red Ready LED ................................................................................................................... 12

Table 3-4: Lock LED.............................................................................................................................. 13

Table 3-5: MediaLB Speed.................................................................................................................... 13

Table 3-6: Power Supply Connector ..................................................................................................... 15

Table 3-7: Absolute Maximum Ratings ................................................................................................. 16

Table 3-8: Recommended Operating Conditions.................................................................................. 16

Table 3-9: DC Characteristics ............................................................................................................... 16

Table 4-1: 3-pin Active-Pod Low Speed - Connector A & B Pin-Out .................................................... 19

Table 4-2: 3-pin Active-Pod Low Speed – Status LED Interpretation ................................................... 19

Table 4-3: Absolute Maximum Ratings ................................................................................................. 20

Table 4-4: Recommended Operating Conditions.................................................................................. 20

Table 4-5: 3-pin Active-Pod for Low Speed MediaLB Debug Header DC Characteristics ................... 20

Table 4-6: 6-pin Active-Pod High Speed – Pin-Out MediaLB Connector.............................................. 22

Table 4-7: Absolute Maximum Ratings ................................................................................................. 22

Table 4-8: Recommended Operating Conditions.................................................................................. 23

Table 4-9: 3-pin Active-Pod for High Speed MediaLB Debug Header DC Characteristics................... 23

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 26

MediaLB Analyzer

Hardware Manual

Appendix D: INDEX

Active-Pod ............................................................ 8, 18

Active-Pod Connector............................................... 13

Definition of Terms ..................................................... 8

DUT ............................................................................ 8

Line Out.................................................................... 14

Lock LED.................................................................. 13

Mechanical Characteristics ...........................17, 20, 23

MediaLB ..................................................................... 8

MediaLB Monitor ........................................................ 8

MediaLB Speed........................................................ 13

Enhanced USB ......................................................... 14

Front Panel............................................................... 11

High Speed Trigger .................................................. 11

INIC ............................................................................ 8

Intended Use .............................................................. 7

LED

Lock............................................................... 13

MediaLB Speed ............................................ 13

Ready............................................................ 12

Status............................................................ 19

Legend ....................................................................... 2

Pin-Out..................................................................... 19

Ready LED............................................................... 12

Rear Panel ............................................................... 14

S/PDIF........................................................................ 8

S/PDIF Out............................................................... 14

Status LED ............................................................... 19

Term Definitions ......................................................... 8

Trigger.................................................................. 8, 12

USB 2.0 High Speed Connector............................... 14

USB Host Controller ................................................. 14

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 27

MediaLB Analyzer

Hardware Manual

Notes:

Document Version: V2.0.X-2 Date: 2008- 12-17

Page 28

SMSC MediaLB Analyzer, MediaLB Hardware Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Term Definitions

MediaLB Speed

It is mandatory to connect this connector with a USB 2.0 High Speed connector on the PC! Check it in the Device Manager. If the Device Manager shows an Enhanced USB Host

Status LED Description Action

Appendix A: List of Figures

Appendix B: List of Tables

Appendix D: INDEX
