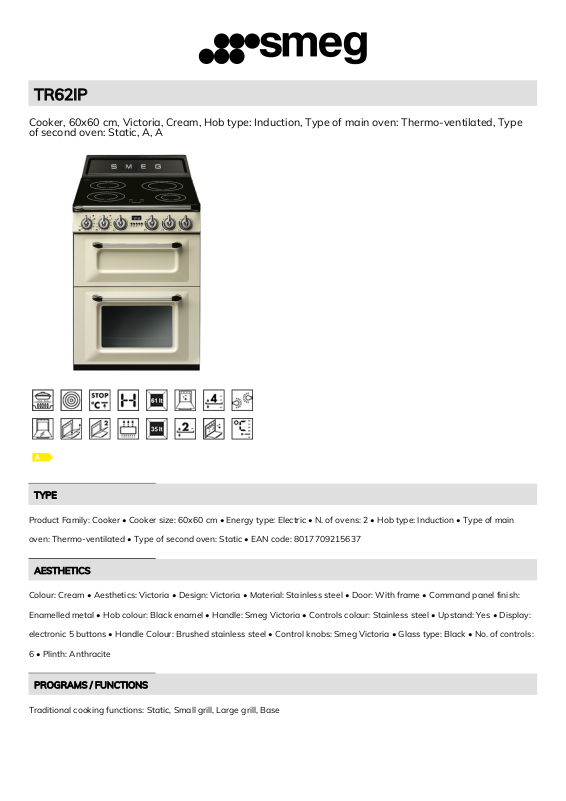

Smeg TR62IP Technical sheet

TR62IP

Cooker, 60x60 cm, Victoria, Cream, Hob type: Induction, Type of main oven: Thermo-ventilated, Type
of second oven: Static, A, A

TYPE

Product Family: Cooker • Cooker size: 60x60 cm • Energy type: Electric • N. of ovens: 2 • Hob type: Induction • Type of main

oven: Thermo-ventilated • Type of second oven: Static • EAN code: 8017709215637

AESTHETICS

Colour: Cream • Aesthetics: Victoria • Design: Victoria • Material: Stainless steel • Door: With frame • Command panel finish:

Enamelled metal • Hob colour: Black enamel • Handle: Smeg Victoria • Controls colour: Stainless steel • Upstand: Yes • Display:

electronic 5 buttons • Handle Colour: Brushed stainless steel • Control knobs: Smeg Victoria • Glass type: Black • No. of controls:

6 • Plinth: Anthracite

PROGRAMS / FUNCTIONS

Traditional cooking functions: Static, Small grill, Large grill, Base

OPTIONS MAIN OVEN

Timer: Yes • End of cooking acoustic alarm: Yes • Minimum Temperature: 50 °C • Maximum temperature: 245 °C

OPTIONS AUXILIARY OVEN

Minimum Temperature: 50 °C • Maximum temperature: 245 °C

HOB TECHNICAL FEATURES

Total no. of cook zones: 4 • 1st zone position: Front left • 2nd zone position: Rear left • 3rd zone position: Rear right • 4th zone

position: Front right • 1st zone type: Induction - single • 2nd zone type: Induction - single • 3rd zone type: Induction - giant • 4th

zone type: Induction - single • 1st zone dimensions: Ø 18.0 cm • 2nd zone dimensions: Ø 18.0 cm • 3rd zone dimensions: Ø 21.0

cm • 4th zone dimensions: Ø 14.5 cm • 1st zone power: 1.85 kW • 2nd zone power: 1.85 kW • 3rd zone power: 2.30 kW • 4th

zone power: 1.40 kW • 1st zone booster power: 3.00 kW • 2nd zone booster power: 3.00 kW • 3rd zone booster power: 3.70

kW • 4th zone booster power: 2.20 kW • Automatic switch off when overheat: Yes • Automatic pan detection: Yes • Minimum

pan diameter indication: Yes • Selected zone indicator: Yes • Residual heat indicator: Yes

MAIN OVEN TECHNICAL FEATURES

Net volume of the cavity: 61 l • Cavity material: Ever Clean enamel • No. of shelves: 4 • Type of shelves: Metal racks • No. of

lights: 1 • Light type: Halogen • Light Power: 40 W • Cooking time setting: Start and Stop • Removable door: Yes • Full glass

inner door: Yes • Removable inner door: Yes • Total no. of door glasses: 2 • No.of thermo-reflective door glasses: 1 • Safety

Thermostat: Yes • Cooling system: Tangential • Circular heating element - Power: 2700 W • Temperature control: Electro-

mechanical

SECOND OVEN TECHNICAL FEATURES

Net volume of the second cavity: 35 l • Cavity material: Ever Clean enamel • No. of shelves: 2 • Type of shelves: Metal racks •

No. of lights: 1 • Light type: Halogen • Light Power: 40 W • Removable door: Yes • Full glass inner door: Yes • Removable inner

door: Yes • No. total door glasses: 2 • No. thermo-reflective door glasses: 1 • Safety Thermostat: Yes • Cooling system:

Tangential • Grill type: Electric • Tilting grill: Yes • Grill element - power: 1700 W • Large grill - Power: 2700 W • Lower heating

element - power: 1200 W • Upper heating element - Power: 1000 W • Temperature control: Electro-mechanical

PERFORMANCE / ENERGY LABEL

Energy efficiency class: A • Energy consumption in forced air convection: 2.77 MJ • Energy consumption per cycle in fan-forced

convection: 0.77 KWh • Energy consumption zone 2: 167.5 Wh/Kg • Energy consumption zone 3: 172.8 Wh/Kg • Energy

consumption zone 4: 174.8 Wh/Kg

PERFORMANCE /ENERGY LABEL - SECOND CAVITY

Energy efficiency class, second cavity: A • Energy consumption in conventional mode, 2 cavity: 2.66 MJ • Energy consumption

per cycle in conventional mode, cavity 2: 0.74 KWh
