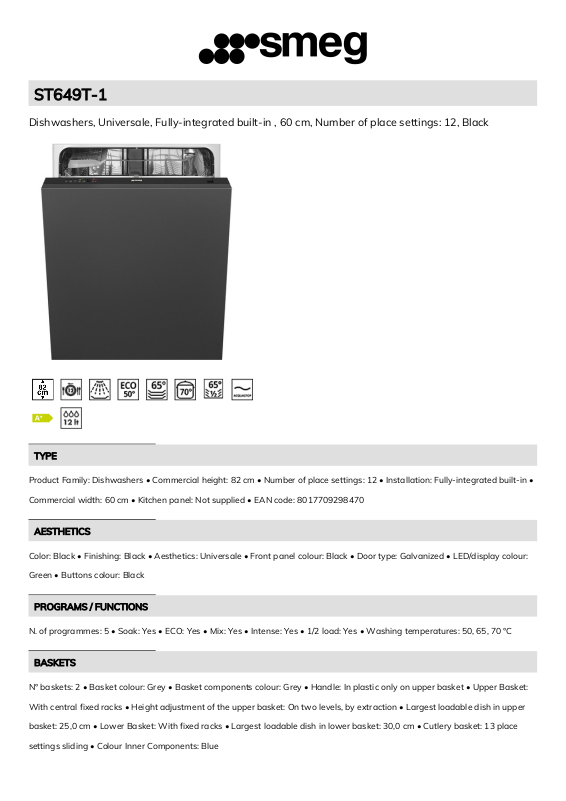

Smeg ST649T-1 Technical sheet

ST649T-1

Dishwashers, Universale, Fully-integrated built-in , 60 cm, Number of place settings: 12, Black

TYPE

Product Family: Dishwashers • Commercial height: 82 cm • Number of place settings: 12 • Installation: Fully-integrated built-in •

Commercial width: 60 cm • Kitchen panel: Not supplied • EAN code: 8017709298470

AESTHETICS

Color: Black • Finishing: Black • Aesthetics: Universale • Front panel colour: Black • Door type: Galvanized • LED/display colour:

Green • Buttons colour: Black

PROGRAMS / FUNCTIONS

N. of programmes: 5 • Soak: Yes • ECO: Yes • Mix: Yes • Intense: Yes • 1/2 load: Yes • Washing temperatures: 50, 65, 70 °C

BASKETS

N° baskets: 2 • Basket colour: Grey • Basket components colour: Grey • Handle: In plastic only on upper basket • Upper Basket:

With central fixed racks • Height adjustment of the upper basket: On two levels, by extraction • Largest loadable dish in upper

basket: 25,0 cm • Lower Basket: With fixed racks • Largest loadable dish in lower basket: 30,0 cm • Cutlery basket: 13 place

settings sliding • Colour Inner Components: Blue

TECHNICAL FEATURES

Controls: Electronic • On/off indicator: Yes • Salt light indicator: Light • Rinse aid indicator: Light • End of cycle indicator:

Acoustic signal • Washing system: Standard • Drying system: Natural condenser drying • Motor: Single phase • Third spray

arm: Single • Water softener: With electronic setting • Flood protection system: Single Acquastop • Water supply: Single; cold

/hot water max. 60°C - energysave with hot water up to 35% • Max water hardness: 100°fH;58°dH • Steam protection: In

plastic • Tub material: Stainless steel • Filter: Stainless steel • Concealed heating element: Yes • Min. and max. frontal panel

weight: 2 - 9 kg • Hinges: Self balancing with fixed hinges • Min. and max plinth height: 100 - 228 mm • Adjustable feet: 7cm,

from 820 to 890 mm

PERFORMANCE / ENERGY LABEL

Energy efficiency class: A+ • Cleaning performance: A • Noise level: 51 dB(A) re 1pW • Drying performance: A • Energy

consumption per cycle (kWh/cycle): 1.010 KWh • Water consumption per cycle (l/cycle): 12 l • Annual energy consumption: 286

kWh/a • Annual water consumption: 3360 l • Reference programme: ECO • Total cycle time of reference programme (min): 195

min • Energy consumption - stand by off mode: 0.02 W • Energy consumption - stand by on mode: 0.80 W • Duration of the

stand by on mode (min): 5 min

ELECTRICAL CONNECTION

Connected power: 1300 W • Voltage: 115 V • Type of connection: Single-phase • Frequency (Hz): 60 Hz • Power supply cable

length: 140 cm

LOGISTIC INFORMATION

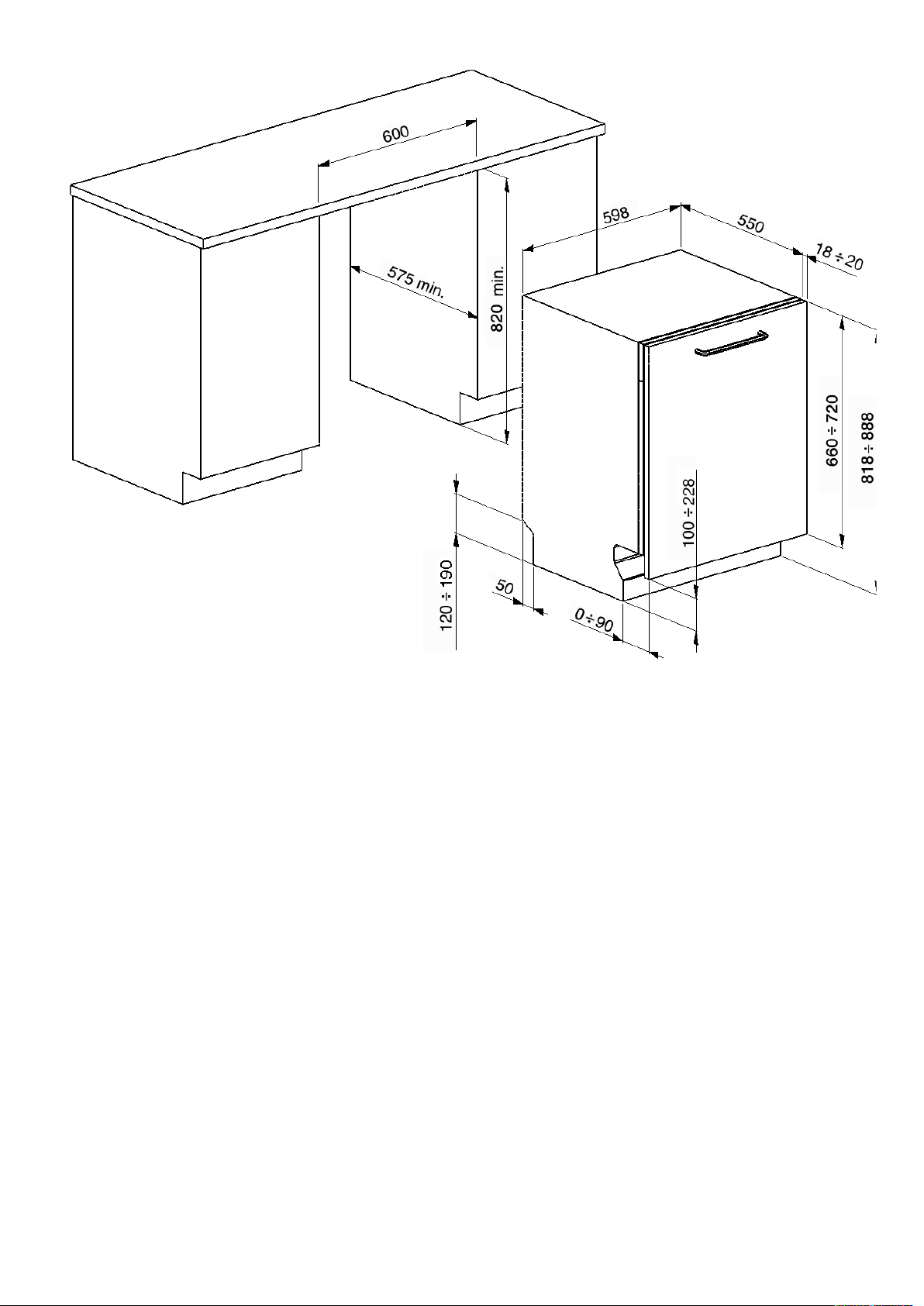

Dimensions of the product HxWxD (mm): 818x598x545

OPTIONAL

KITPLV2: Extension kit, DishwashersKITPL60FABB: Plinth Kit, DishwashersKITPL60FABN: Plinth Kit, DishwashersKITPL60FABX:

Plinth Kit, Dishwashers
