Smeg FP131B1 User Manual

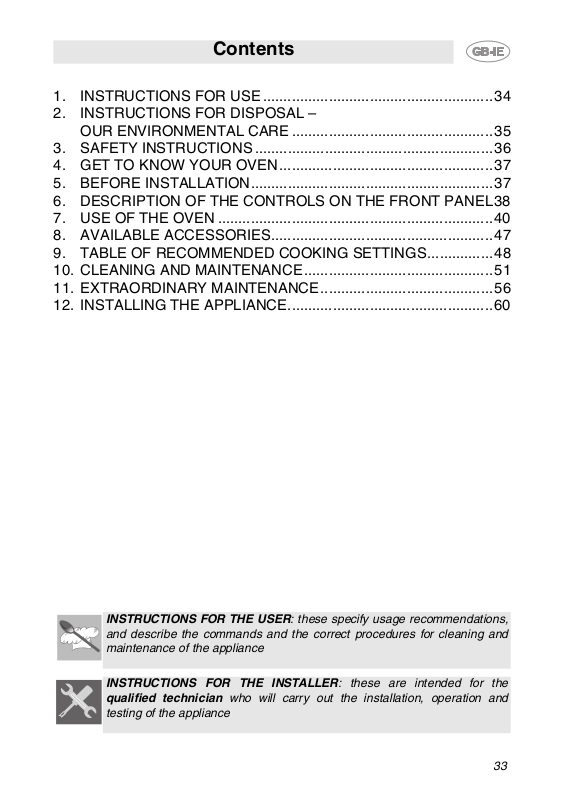

Contents

1. INSTRUCTIONS FOR USE ........................................................34

2. INSTRUCTIONS FOR DISPOSAL –

OUR ENVIRONMENTAL CARE .................................................35

3. SAFETY INSTRUCTIONS ..........................................................36

4. GET TO KNOW YOUR OVEN....................................................37

5. BEFORE INSTALLATION...........................................................37

6. DESCRIPTION OF THE CONTROLS ON THE FRONT PANEL38

7. USE OF THE OVEN ................................................................... 40

8. AVAILABLE ACCESSORIES...................................................... 47

9. TABLE OF RECOMMENDED COOKING SETTINGS................ 48

10. CLEANING AND MAINTENANCE..............................................51

11. EXTRAORDINARY MAINTENANCE..........................................56

12. INSTALLING THE APPLIANCE..................................................60

INSTRUCTIONS FOR THE USER: these specify usage recommendations, and describe the commands and the correct procedures for cleaning and maintenance of the appliance

INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified technician who will carry out the installation, operation and

testing of the appliance

Instructions for use

1. INSTRUCTIONS FOR USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. IT MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE OVEN. WE ADVISE CAREFUL READING OF THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE USING THE APPLIANCE. INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR HOUSEHOLD USE AND COMPLIES WITH THE EEC DIRECTIVES CURRENTLY IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING FOODS; ALL OTHER USES ARE TO BE CONSIDERED IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER USE.

DO NOT USE THIS APPLIANCE FOR HEATING ROOMS.

DO NOT DISCARD PACKING IN THE HOME ENVIRONMENT. SEPARATE THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST SPECIAL GARBAGE COLLECTION CENTRE.

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE 2002/96/CE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT – (WEEE). THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT.

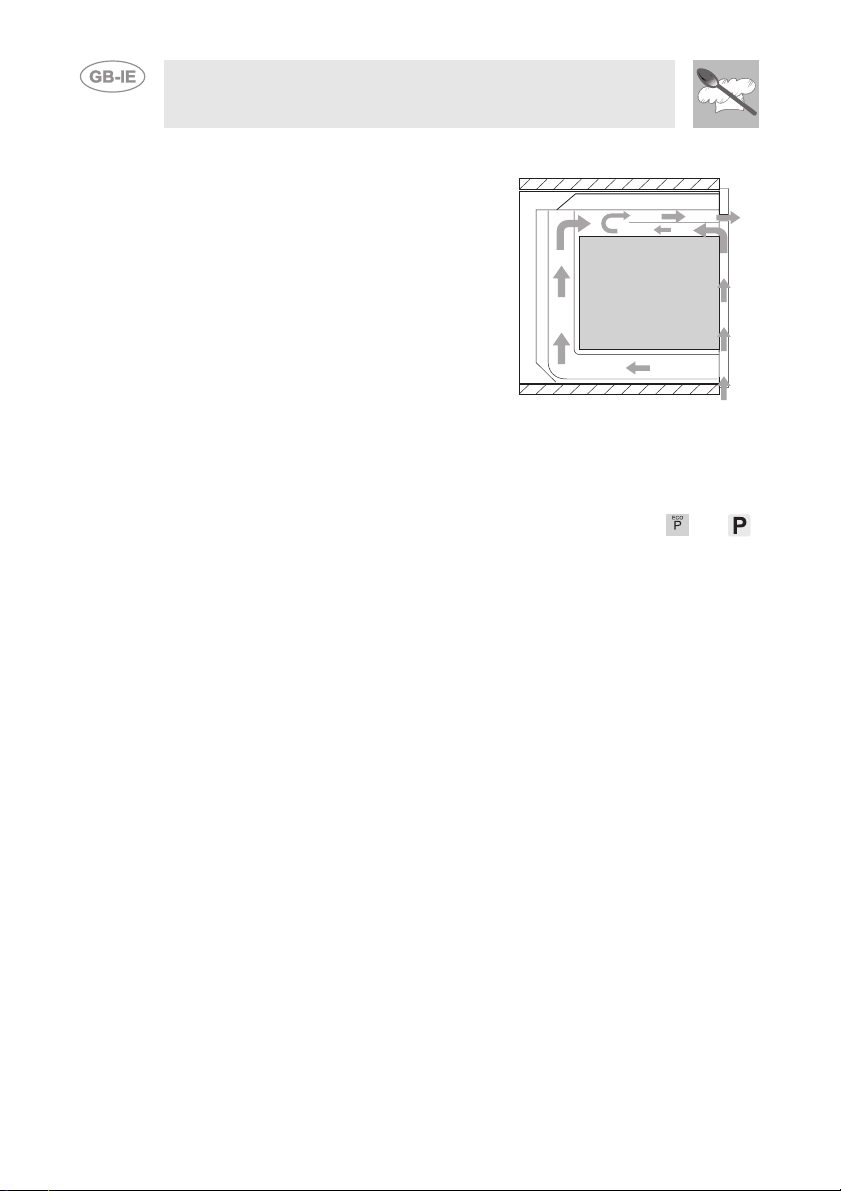

DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT DISPERSAL SLITS.

THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND BRAND NAME IS POSITIONED VISIBLY ON THE OVEN DOOR FRAME. THE PLATE MUST NOT BE REMOVED.

DO NOT USE METALLIC SPONGES OR SHARP SCRAPERS: THEY WILL DAMAGE THE SURFACE. USE ORDINARY NON-ABRASIVE PRODUCTS WITH THE AID OF WOODEN OR PLASTIC UTENSILS IF NECESSARY. RINSE THOROUGHLY AND DRY WITH A SOFT CLOTH OR CHAMOIS LEATHER. DO NOT ALLOW RESIDUES OF SUGARY FOODS (SUCH AS JAM) TO SET INSIDE THE OVEN. IF LEFT TO SET FOR TOO LONG, THEY MIGHT DAMAGE THE ENAMEL LINING OF THE OVEN.

Instructions for disposal

2. INSTRUCTIONS FOR DISPOSAL – OUR ENVIRONMENTAL CARE

Our product's packing is made of non-polluting materials, therefore compatible with the environment and recyclable. Please help by disposing of the packing correctly. Find the addresses of collection, recycling and disposal centres from your retailer or from the competent local organisations. Do not throw the packing or any part of it away. They can constitute a suffocation hazard for children, especially the plastic bags.

Your old appliance also needs to be disposed of correctly. Important: hand over your appliance to the local agency authorised for the collection of electrical appliances no longer in use. Correct disposal means intelligent recycling of valuable materials.

Before disposing of your old appliance remove the door and leave the racks in their normal working positions so that children cannot get stuck in the oven compartment whilst playing. It is also necessary to cut the electric power cord and remove it along with the plug.

Safety instructions

3. SAFETY INSTRUCTIONS

REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY REGULATIONS FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION FUNCTIONS. IN YOUR INTERESTS AND FOR YOUR SAFETY IT HAS BEEN ESTABLISHED BY LAW THAT THE INSTALLATION AND SERVICING OF ALL ELECTRICAL APPLIANCES IS TO BE CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN FORCE. OUR REGULAR INSTALLERS GUARANTEE A SATISFACTORY JOB. GAS OR ELECTRIC APPLIANCES MUST ALWAYS BE DISCONNECTED BY SUITABLY SKILLED PEOPLE.

THE PLUG TO BE CONNECTED TO THE POWER CORD AND ITS SOCKET MUST BE OF THE SAME TYPE AND CONFORM TO THE REGULATIONS IN FORCE. THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE IS BUILT IN. NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY LEAD.

IT IS OBLIGATORY FOR ALL ELECTRICAL SYSTEMS TO BE GROUNDED ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION TEST, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE SUPPLY AND CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE. NEVER ATTEMPT TO REPAIR THE APPLIANCE.

NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE ACCIDENTALLY LIGHTED AND CAUSE FIRES.

DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.

THE USE OF THIS APPLIANCE IS NOT PERMITTED TO PEOPLE (INCLUDING CHILDREN) OF REDUCED PHYSICAL AND MENTAL ABILITY, OR LACKING IN EXPERIENCE IN THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY ARE SUPERVISED OR INSTRUCTED BY ADULTS OR PEOPLE RESPONSIBLE FOR THEIR SAFETY.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE 0 (OFF) POSITION WHEN YOU FINISH USING THE OVEN.

BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE PROTECTIVE FILMS APPLIED ON THE OUTSIDE MUST BE REMOVED.

The manufacturer declines all responsibility for damage to persons or things caused by non-observance of the above prescriptions or by interference with any part of the appliance or by the use of non-original spares.

Instructions for the user

4. GET TO KNOW YOUR OVEN

CONTROL PANEL

OVEN LIGHT

OVEN FAN

SHELF AND TRAY RUNNERS

TEMPERATURE SENSOR

ROOF LINER

5. BEFORE INSTALLATION

Do not discard packing in the home environment. Separate the various waste materials and take them to the nearest special garbage collection centre.

In order to remove all manufacturing residues, it is recommended to clean the inside of the appliance. For further information on cleaning see point "10. CLEANING AND MAINTENANCE".

Before using the oven for the first time, pre-heat it to maximum temperature long enough to burn any manufacturing oily residues which could give the food a bad taste. After an interruption in the electricity supply, the programmer display flashes at regular intervals. For setting instructions, see point "7.3 First use".

Instructions for the user

6. DESCRIPTION OF THE CONTROLS ON THE FRONT PANEL

All the appliance's control and monitoring devices are placed together on the front panel. The symbols used are described in the table below.

THERMOSTAT-TIMER KNOB

PT1

This knob allows you to set the time, to select the cooking temperature and duration and to program the cooking start and end times. For

convenience, it will be referred to from this point onwards as PT1.

For its correct operation, refer to points “7.3 First use” and “7.5 Programmed cooking procedures”.

DSP1

DISPLAY

With the oven off, the 4-digit LED display shows the current time; when the oven is working, the selected cooking temperature and duration are displayed.

The function locking indicator light (see point “7.6 Secondary menu”),

the minute minder active indicator light , the symbols relating to

programmed cooking procedures , and the door locking indicator are also illustrated.

For convenience, it will be referred to from this point onwards as DSP1.

PT2

Instructions for the user

ON/OFF-FUNCTION KNOB

This knob allows you to select one of the following functions by simply turning it to the left or to the right.

For convenience, it will be referred to from this point onwards as PT2.

The following table provides a brief description of the functions that can be selected:

NO FUNCTION SET GRILL ELEMENT + VENTILATION

GRILL ELEMENT OPERATING ALTERNATING WITH BOTTOM HEATING ELEMENT + VENTILATION

UPPER + LOWER HEATING ELEMENT

GRILL ELEMENT AUTOMATIC CLEANING CYCLE

UPPER + LOWER HEATING ELEMENT + VENTILATION

BOTTOM HEATING ELEMENT + VENTILATION

AUTOMATIC ECO CLEANING CYCLE (PYROLYSIS WITH ENERGY SAVING)

(PYROLYSIS)

Instructions for the user

7. USE OF THE OVEN

7.1 Warnings and general advice

All cooking operations must be carried out with the door closed.

Before using the oven for the first time, pre-heat it to maximum temperature long enough to burn any manufacturing oily residues which could give the food a bad taste.

During cooking, do not cover the bottom of the oven with aluminium or tin foil and do not place pans or oven trays on it as this may damage the enamel coating. If you wish to use greaseproof paper, place it so that it will not interfere with the hot air circulation inside the oven.

The oven accessories intended to come into contact with food are made of materials that comply with the provisions of Directive 89/109/EEC, dated 21/12/88 and of Decree Law 108, dated 25/01/92.

To prevent any steam in the oven creating problems, open the door in two stages: half open (5 cm approx.) for 4-5 seconds and then fully open. To access food, always leave the door open as short a time as possible to prevent the temperature in the oven from falling and ruining the food.

To prevent excessive amounts of condensation from forming on the internal glass, food should not be left inside the oven for too long after cooking.

7.2 Operating modes

This product is programmed to have 3 operating conditions:

OFF setting: this condition is set when the knob PT2 is positioned on the “0” symbol and the current time appears on the viewer. ON setting: this condition is set when the selection knob PT2 is turned to any function and the selected temperature appears on the viewer. Stand-by setting: this condition is set when the selection knob PT2 is turned to any function and a cooking time has been set and the current time appears on the viewer.

Instructions for the user

7.3 First use

At first use, or after a power failure, the oven's display (DSP1) will show a flashing symbol. To be able to start any cooking function the current

time must be set. (For further information on setting or changing the current time see “7.6 Secondary menu”).

7.4 Function selection

To select a cooking function, turn PT2. Then use the PT1 knob to select the desired temperature

7.4.1 Cooking with preset temperature

Once the desired function has been selected, the oven will begin cooking at the pre-set time. Cooking is preceded by a pre-heating phase (common to all functions) which allows the oven to reach the cooking temperature more quickly.

This phase is indicated by the symbol flashing on the display (DSP1).

At the end of the pre-heating phase, the symbol will remain constantly on to indicate that the food can be placed inside the oven.

7.4.2 Changing the preset temperature

The temperature preset for each function can be changed to suit the user's requirements. At any time while cooking is in progress, turn PT1 in either direction to increase or decrease the cooking temperature by 5 degrees at a time. PT1 can also be held in the left or right position to increase or decrease the setting more quickly.

7.5 Programmed cooking procedures

7.5.1 Cooking timed with the timer

From ON status (see point “7.2 Operating modes”), press PT1 once. The display will show the figures (constantly on) and the symbol

(flashing). Turn PT1 to set the minutes of cooking (from 00:01 to 23:59:00). After a few seconds, the symbol will stop flashing and stay

on constantly; the countdown will start from that moment. At this point it is also possible to select the cooking function required and wait for the buzzer to sound, indicating that the cooking time is over. Press PT1 once to stop the buzzer. You can now set an additional cooking time by turning PT1, or return to display of the current time by pressing PT1 twice. Turn PT2 to the “0” symbol to switch off the oven.

The minute minder also works with no function set.
