Smeg DT70GA Various instructions [GB]

GSM MODULE CONFIGURATION

Rev. 01 Configurazione modulo GSM

1

Smeg S.p.A. – Instruments Division

Via Leonardo da Vinci, 4
42016 Guastalla (RE)
Tel. [phone]
Fax [phone]

Manufacturer's responsibility

The Manufacturer, the Installer or the Importer is considered responsible for the effects of safety, reliability and
performance of the appliance only if:

- extensions, adjustments, modifications or repairs have been carried out by persons authorized by him.

- the electrical installation of the corresponding room complies with the relevant provisions.

- the appliance is used in accordance with the instructions for use.

SPECIAL WARNINGS:

not to be used in the presence of explosive gases or mixtures and / or near sources with high magnetic or electric fields.

COPYRIGHT

All rights reserved. The information contained in this manual cannot be reproduced stored in archive systems or
transmitted in any form or electronic means or used for other purposes without the permission of SMEG S.p.A. The
contents of this manual are subject to change without notice.
Every care has been taken in the collection and verification of the documentation contained in this manual; however
SMEG S.p.A. cannot assume any responsibility deriving from the use of the same. The same applies to every person or
company involved in the creation and production of this manual.

Rev. 01 Configurazione modulo GSM

2

Compatible products for this procedure

This manual only applies to the following series of SMEG products.

Laboratory refrigerators, Pharmaceutical refrigerators Series FV
Temperature range that can be set by the user: low T = +2 ° C, high T = +15 ° C
Factory setting: +4 ° C

Models: FV10G1A, FV15G1A, FV20G1A, FV25G1A, FV30G1A, FV45G1A, FV52G1A, FV70G1A,
FV140G2A, FV10C1A, FV15C1A, FV20C1A, FV25C1A, FV30C1A, FV45C1A, FV52C1A,
FV70C1A, FV140C2A, FV10G16A, FV15G16A, FV20G16A, FV25G16A, FV30G16A, FV45G16A,
FV52G16A, FV70G16A, FV140G26A, FV10C16A, FV15C16A, FV20C16A, FV25C16A, FV30C16A,
FV45C16A, FV52C16A, FV70C16A, FV140C26A

Series C laboratory freezers
Temperature range that can be set by the user: low T = -25 ° C, -32 ° C, -42 ° C, high T = -10 ° C
Factory setting: -22 ° C (C20), -30 ° C (C30), -40 ° C (C40)

Models: C20V10C1A, C30S16C1A, C30S22C1A, C30S25C1A, C30S32C1A, C40S60C1A,
C25V70C1A, C25V140C2A, C20V10C16A, C30S16C16A, C30S22C16A, C30S16C16A,
C30S22C16A, C30S16C16A, C30S16C16A

DT Series Freezers
Temperature range that can be set by the user: low T = +2 * C / -25 ° C, high T = +12 ° C / -10 °

C
Factory setting: +4 ° C (refrigerator) / -25 ° C (freezer)
Models: DT28CA, DT70CA, DT140CA, DT28GA, DT70GA, DT140GA, DT28C6A, DT70C6A,
DT140C6A, DT28G6A, DT70G6A, DT140G6A

DTP Series double temperature laboratory refrigerators
Temperature range that can be set by the user: low T = +2 ° C, high T = +15 ° C
Factory setting: +4 ° C

Models: DTP30CA, DTP70CA, DTP140CA, DTP30GA, DTP70GA, DTP140GA, DTP30C6A,
DTP70C6A, DTP140C6A, DTP30G6A, DTP70G6A, DTP140G6A

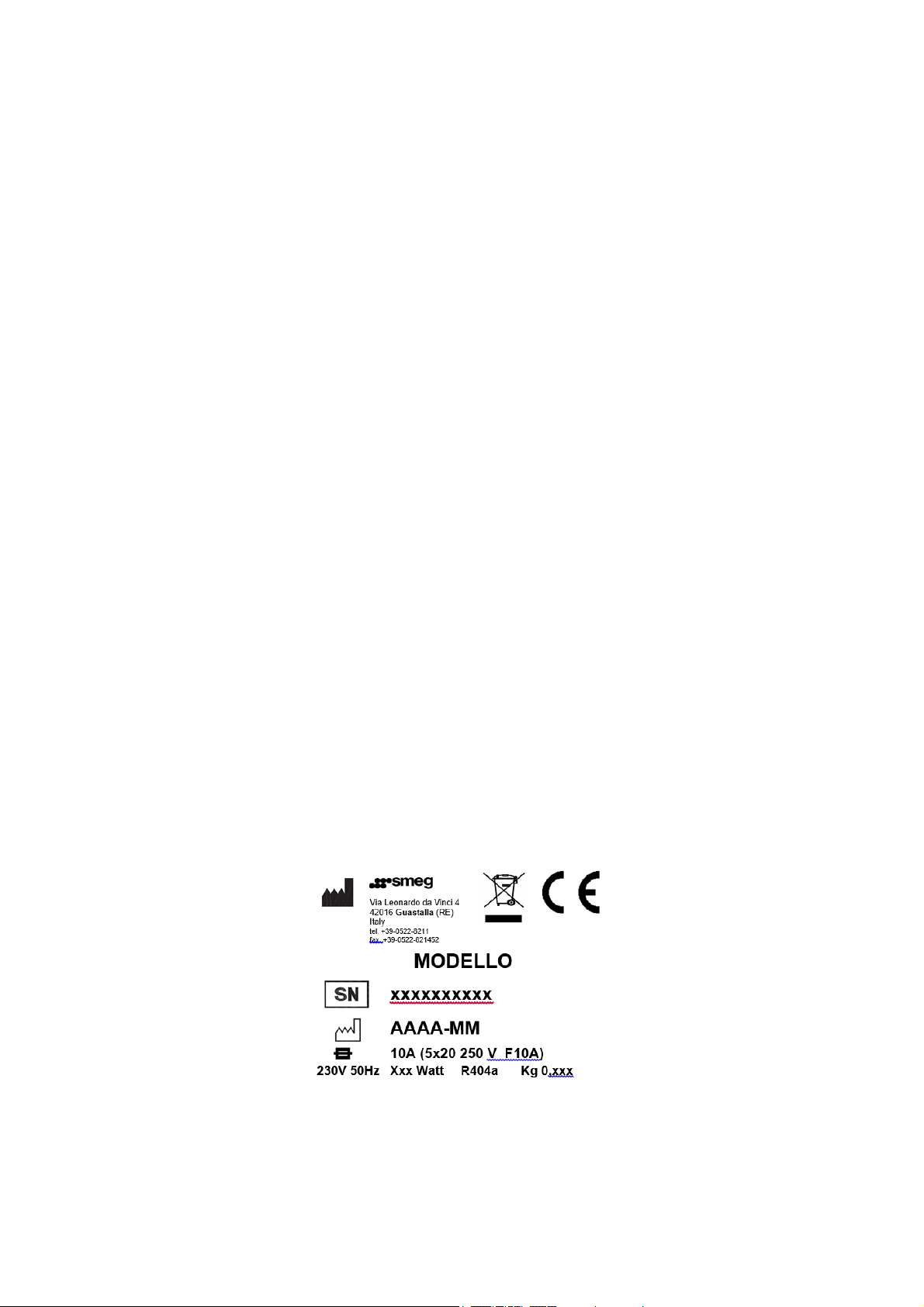

All the technical data referring to your SMEG unit can be found on the plate on the back of the
cabinet. Below is an example of plate data:

Rev. 01 Configurazione modulo GSM

3

Instructions for GSM Module

ATTENTION !! USE ONLY DATA SIM WITH PIN DISABLED

(SIM DATA IS REQUIRED FOR PROPER FUNCTIONING)




PROCEDURE (IF GSM MODULE IS PURCHASED IN CONNECTION WITH EQUIPMENT)

Please enter menu and insert SERVICE PASSWORD (1111).

Please go to section 9 and select:

9 SERIAL PORTS

9-1 GSM

Please reconfirm by pressing key YES and then select:

9-1-1 please insert SIM CARD number (GSM number) – SIM DATA

9-1-2 PIN (in case please insert PIN, otherwise let it exactly as it is)

9-1-3 insert first phone number you want to connect to the appliance

9-1-4 insert second phone number you want to connect to the appliance

9-1-5 insert third phone number you want to connect to the appliance

PROCEDURE (IF GSM MODULE IS NOT PURCHASED IN CONNECTION WITH EQUIPMENT, BUT ADDED

LATER)

Please see electric diagram on attachment. It is indicated the clamp (M7), to which you can connect the GSM clamp.

Please enter menu and insert SERVICE PASSWORD (1111).

Then select:

5 CONFIGURATION

5-4 ACCESSORIES

5-4-2 GSM

Please reconfirm by pressing key YES

Then go to section 9 and select:

9 SERIAL PORTS

9-1 GSM

Please reconfirm by pressing key YES and select:

9-1-1 please insert SIM CARD number (GSM number)

9-1-2 PIN (in case please insert PIN, otherwise let it exactly as it is)

9-1-3 insert first phone number you want to connect to the appliance

9-1-4 insert second phone number you want to connect to the appliance

9-1-5 insert third phone number you want to connect to the appliance

Rev. 01 Configurazione modulo GSM

4

SMEG S.p.A.

Instruments Division

Via Leonardo da Vinci, 4 – 42016 Guastalla (RE) Italy

Tel. [phone] – Fax [phone]

E-Mail: [e-mail] – [e-mail]

www.smeg-instruments.com
