Smeg CMS645X User Manual

SMEG S.p.A. Via Leonardo Da Vinci, 442016 Guastalla (RE) Italiawww.smeg.com

5713226771/02.15

MANUALE D’USO





INSTRUCTIONS MODE D’EMPLOI BEDIENUNGSANLEITUNG GEBRUIKSAANWIJZINGEN MANUAL DE INSTRUCCIONES MANUAL DE INSTRUÇÕES

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ UŽIVATELSKÁ PŘÍRUČKA INSTRUKCJA OBSŁUGI BRUKSANVISNING BRUGERVEJLEDNING

MACCHINA PER CAFFÈ E CAPPUCCINO

COFFEE AND CAPPUCCINO MAKER

MACHINE À CAFÉ ET À CAPPUCCINO

KAFFEE-/CAPPUCCINO-VOLLAUTOMAT

KOFFIE- EN CAPPUCCINOAPPARAAT

CAFETERA PARA CAFÉ Y CAPUCHINO

MÁQUINA DE CAFÉ E CAPPUCCINO

ΜΗΧΑΝΗ ΚΑΦΕ ΚΑΙ CAPPUCCINO

КОФЕМАШИНА ДЛЯ ПРИГОТОВЛЕНИЯ КОФЕ И КАПУЧЧИНО

PŘÍSTROJ NA PŘÍPRAVU KÁVY A KAPUČÍNA

EKSPRES DO KAWY I KAWY CAPPUCCINO

KAFFEMASKIN FÖR ESPRESSO OCH CAPPUCCINO

KAFFE- OG CAPPUCCINOMASKINE

A4 A5

A9A6A7

A10 A11

A23

A1A2

A15

A16 A17

A14

A24

A13A18

A22

A26

A12

A19

A20

A21

A25

A7 A9

B7B6 B8 B9 B2 B3 B4 B5

417

9101

13 14 16

19 20

1 2 3 4 5 6 7 8

9 10 11 12

INDEX

INTRODUCTION .........................7

Symbols used in these instructions ..........7

Letters in brackets .....................................7

Troubleshooting and repairs ......................7

SAFETY ...................................7

Fundamental safety warnings ....................7

Designated use...........................................9

Instructions ...............................................9

DESCRIPTION............................9

Description of the appliance .....................9

Description of control panel .......................9

PRELIMINARY CHECKS ................9

Controls after transport .............................9

Installing the appliance.............................10

Connecting the appliance .........................10

AUTOMATIC CUP TRAY LIGHT.......10

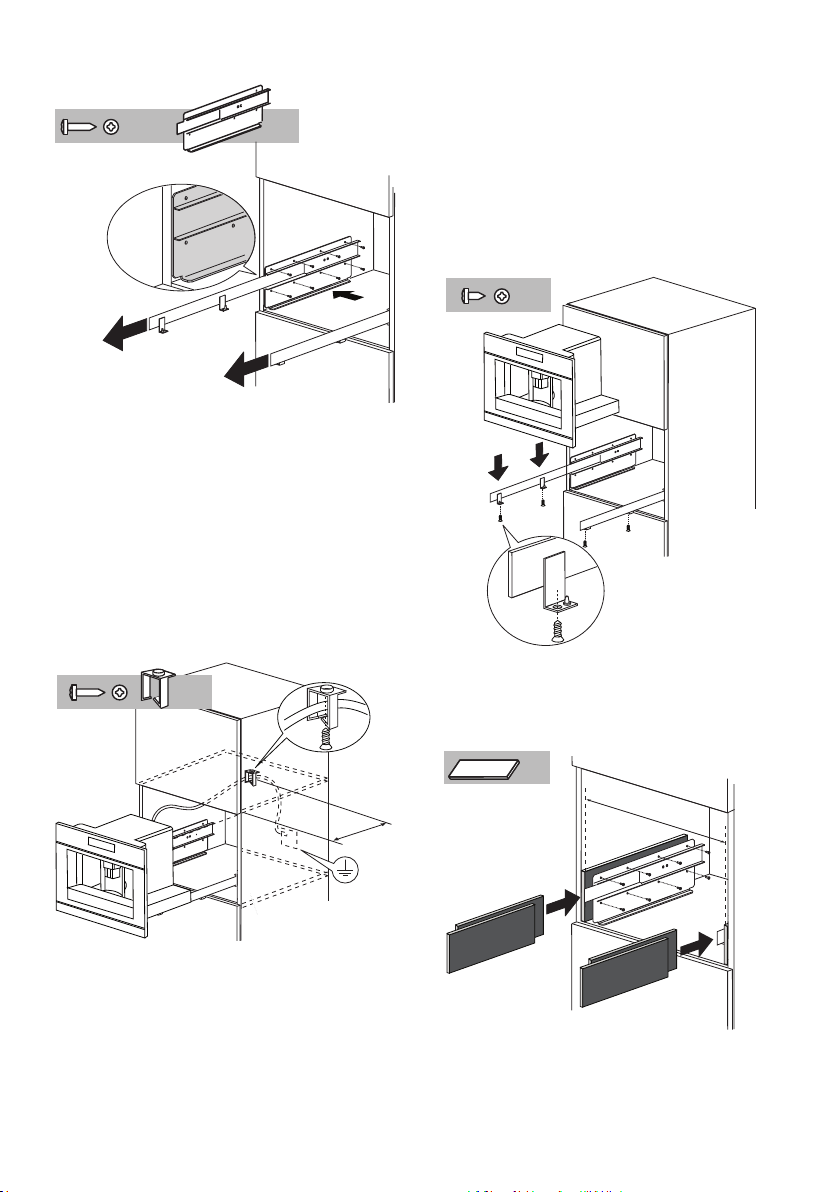

BUILT-IN INSTALLATION .............11

USING THE APPLIANCE FOR THE

FIRST TIME ............................13

Installing the filter ...................................13

Replacing the filter ..................................14

Removing the filter ..................................14

TURNING ON AND HEATING UP ...14

MAKING COFFEE USING COFFEE

BEANS ..................................14

MAKING CAPPUCCINO (USING THE

STEAM FUNCTION) ...................18

CLEANING AND MAINTENANCE .....18

Cleaning the coffee maker .......................18

Cleaning the coffee grounds container .....18

Cleaning the drip tray ...............................19

Cleaning the water tank ...........................19

Cleaning the spouts .................................19

Cleaning the pre-ground coffee funnel .....19

Cleaning the inside of the coffee maker....19

Cleaning the infuser ................................19

CHANGING AND SETTING MENU PA-

RAMETERS .............................20

Setting the clock ......................................20

Setting auto-start time .............................21

Descaling .................................................21

Changing coffee temperature ...................22

Changing the length of time the appliance

remains on ..............................................22

Setting water hardness ............................22

Resetting default values (reset) ...............23

CHANGING THE LANGUAGE .........23

TURNING THE APPLIANCE OFF .....23

TECHNICAL SPECIFICATION .........23

DISPOSAL ..............................23

DISPLAYED MESSAGES .............24

TROUBLESHOOTING .................26

CHANGING THE QUANTITY OF

COFFEE IN THE CUP .................16

ADJUSTING THE COFFEE MILL ....16

MAKING ESPRESSO COFFEE WITH PRE-GROUND COFFEE (INSTEAD OF

BEANS) ................................17

DELIVERING HOT WATER ............17

RECIPES ................................28

INTRODUCTION

Thank you for choosing the automatic coffee and cappuccino maker. We hope you enjoy using your new appliance. Take a few minutes to read these instructions. This will avoid all risks and damage to the machine.

Symbols used in these instructions

Important warningsareidentified by these symbols. These warnings must absolutely be respected. Failure to observe the instructions could result in electric shock, serious injury, burns, fire or damage to the appliance.

Danger!

Failureto observe the warning could resultin possibly life threatening injury from electric shock.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

N.B.!

This symbol identifies important advice or information for the user.

Letters in brackets

The letters in brackets refer to the legend in the Description of the Appliance on page 3.

Troubleshooting and repairs

If this does not resolve the problem or you require further information, you should consult Customer Services by calling the number given on the "Customer Service" sheet. If your country is not among those listed on the sheet, call the number given in the guarantee. If repairs are required, contact Customer Services only. The addresses are given in the guarantee certificate provided with the machine.

SAFETY

Fundamental safety warnings

The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Never immerse the appliance in water.

This is an household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

If the plug or power cable is damaged, it must be replaced by customer services only to avoid all risk.

For european markets only:

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazard involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of the reach of children aged less than 8 years.

Danger! This is an electrical appliance and may cause electric shock. You should therefore respect the following safety warnings:

• Never touch the appliance with damp hands.

• Never touch the plug with damp hands.

• Make sure the socket used is freely accessi-

ble at all times, enabling the appliance to be unplugged when necessary.

• Unplug directly from the plug only. Never pull

the power cable as you could damage it.

• To disconnect the appliance completely,

place the main switch (A23) on the side of the appliance in the 0 position.

• If the appliance is faulty, do not attempt to re-

pair. Turn it off using the main switch (A23), unplug from the mains socket and contact Customer Services.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

When not in use and before cleaning, always unplug the appliance.

Surfaces marked with this symbol become hot during use (the symbol is present in certain models only).

Important! Keep all packaging (plastic

bags, polystyrene foam) away from children.

Danger of burns! This appliance produces hot water and steam may form while it is in operation. Avoid contact with splashes of water or hot steam. Avoid touching hot surfaces when the appliance is in use. Use knobs and handles.

Import ant! Do not grasp the coffee maker when it is out of the cabinet. Do not rest recipients containing liquids or inflammable or corrosive materials on top of the appliance. Place the accessories required to prepare the coffee (the measure for example) in the special holder. Do not rest large objects which could obstruct movement or unstable objects on the appliance.

Important! Never make drinks, hot water or steam when the appliance is extracted. Always make sure the appliance is inactive before extracting it. Failure to observe this precaution could lead to damage to the appliance. The only exception is adjusting the coffee mill which must be done with the machine out (see the section

"Adjusting the coffee mill").

N.B.: Use original or manufacturer rec-

ommended accessories and spare parts only.

Designated use

This appliance is designed and made to prepare coffee and heat drinks. All other use is considered improper. This appliance is not suitable for commercial use. The manufacturer is not liable for damage deriving from improper use of the appliance. This appliance can be installed in combination with a built-in oven if the latter is fitted with a cooling fan at the rear (maximum oven power: 3 kW).

Instructions

Read these instructions carefully before using the appliance.

• Keep these instructions. If the appliance is passed to other persons, they must also be provided with these instructions.

• Failure to follow these instructions may result in burns or damage to the appliance. The manufacturer is not liable for damage deriving from failure to respect these instructions.

DESCRIPTION

Description of the appliance

(page 3 - A) A1. Cup tray A2. Service door A3. Coffee guide A4. Coffee grounds container A5. Infuser A6. Lights A7. ON-OFF/stand-by knob (*) A8. Control panel A9. Steam knob (*) A10. Cappuccino maker (removable) A11. Cappuccino maker nozzle A12. Water tank A13. Coffee spout (adjustable height) A14. Drip tray

A15. Beans container lid A16. Beans container A17. Grinding adjustment knob A18. Pre-ground coffee funnel door A19. Measure A20. Compartment for measure A21. Pre-ground coffee funnel A22. Power cable A23. Main switch A24. Tray A25. Water softener filter (if present) A26. IEC Connector (*) illuminated in certain models

Description of control panel

(page 3 - B)

A number of buttons on the panel have a double function. This is indicated in brackets in the description.

B1. Display: guides the user in using the

appliance. B2. Coffee taste button . B3. One/two cups short coffee button . B4. One/two cups standard coffee button . B5. One/two cups long coffee button . B6. Menu button to activate or deactivate

menu parameter setting mode B7. Pre-ground coffee button .

(When you access the MENU: NEXT

button to display the next menu

parameter).

B8. Rinse button : performs a brief rinse to

heat the infuser.

(When you access the MENU: "CHANGE"

button to modify menu parameters).

B9. button: to deliver hot water or confirm.

(When you access the MENU: OK button

to confirm menu parameters).

PRELIMINARY CHECKS

Controls after transport

After removing the packaging, make sure the product is complete and undamaged and that all accessories are present. Do not use the appliance if it is visibly damaged.
