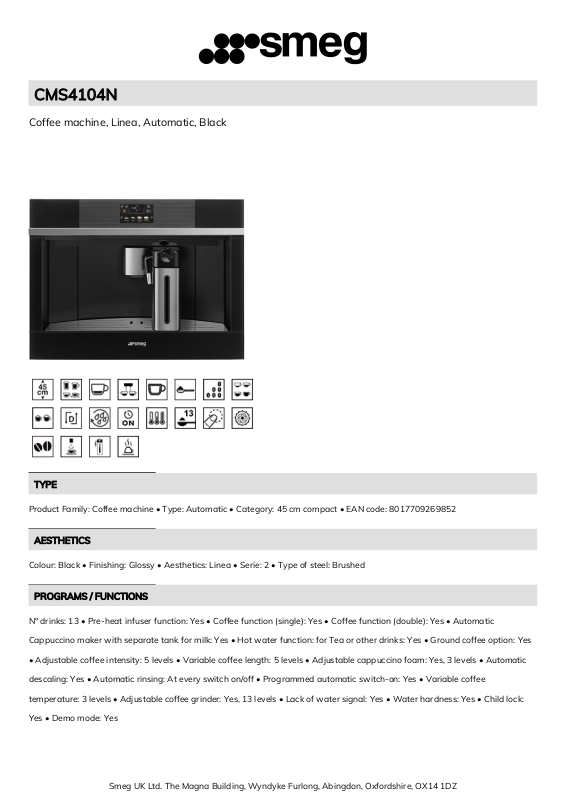

Smeg CMS4104N Technical sheet

CMS4104N

Coffee machine, Linea, Automatic, Black

TYPE

Product Family: Coffee machine • Type: Automatic • Category: 45 cm compact • EAN code: 8017709269852

AESTHETICS

Colour: Black • Finishing: Glossy • Aesthetics: Linea • Serie: 2 • Type of steel: Brushed

PROGRAMS / FUNCTIONS

N° drinks: 13 • Pre-heat infuser function: Yes • Coffee function (single): Yes • Coffee function (double): Yes • Automatic

Cappuccino maker with separate tank for milk: Yes • Hot water function: for Tea or other drinks: Yes • Ground coffee option: Yes

• Adjustable coffee intensity: 5 levels • Variable coffee length: 5 levels • Adjustable cappuccino foam: Yes, 3 levels • Automatic

descaling: Yes • Automatic rinsing: At every switch on/off • Programmed automatic switch-on: Yes • Variable coffee

temperature: 3 levels • Adjustable coffee grinder: Yes, 13 levels • Lack of water signal: Yes • Water hardness: Yes • Child lock:

Yes • Demo mode: Yes

Smeg UK Ltd. The Magna Building, Wyndyke Furlong, Abingdon, Oxfordshire, OX14 1DZ

CONTROLS

Display: 4,3'' TFT colour soft touch • Type of control setting: Touch control

TECHNICAL FEATURES

Grinder: Semiprofessional stainless steel conical grinder • Coffee granules compartment: Yes • Removable water container: Yes

• Ground coffee compartment: Yes • Height-adjustable coffee spout: Yes, 85-142 mm • Used coffee waste container: Yes (14

single, 7 double) • Drip tray: Yes • Steam dispenser: Yes • Thermal carafe: Yes, stainless steel 0,5 L with autoclean system •

Heating system: Thermoblock + Steamer • Removable milk jug: Yes • Cup holder: Yes, warmed • Pump pressure: 15 bar • Water

container capacity: 2.40 l • Coffee granule container capacity: 350 g • Lights: 4 • Light Type: LED • Installation: On telescopic

guides with soft closing

ELECTRICAL CONNECTION

Nominal power: 1350 W • Voltage (V): 220-240 V • Frequency (Hz): 50-60 Hz • Power supply cable length: 180 cm

LOGISTIC INFORMATION

Dimensions of the product (mm): 455x595x470 • Width (mm): 595 mm • Depth (mm): 470 mm • Height (mm): 455 mm
