INSTRUCTION MANUAL

AUTOMATIC BUILT-IN COFFEE MACHINE

Page 2

A16 A21 A15

A24

A17

A3 A2 A5 A6 A25 A8

A14

A23

A13 A18

A12

A22

A11

A20

A19

A10

Page 3

B2 B4

B5B3

B11

B10

PROFILE 1 QUANTITY

ESPRESSO

00:00

SELECT BEVERAGE

CAPPUCCINO

COFFEE

AROMA

LATTE

MACCHIATO

C5C2

Page 4

2 3

4 5

13 15

Page 5

17 18

2119

23 24

Page 6

31 32

Page 7

CONTENTS

INTRODUCTION .....................................................................8

Symbols used in these instructions

Letters in brackets ..........................................................8

Troubleshooting and repairs Instructions for use

DESCRIPTION OF THE APPLIANCE

Description of the appliance Description of homepage

Description of the accessories ........................................8

Description of milk container .........................................9

PRELIMINARY OPERATIONS

Checking the appliance ..................................................9

SETTING UP THE APPLIANCE

TURNING THE APPLIANCE ON................................................9

TURNING THE APPLIANCE OFF

MENU SETTINGS

Rinsing ......................................................................... 10

De-scaling ....................................................................10

Water lter ...................................................................10

Beverage settings ........................................................10

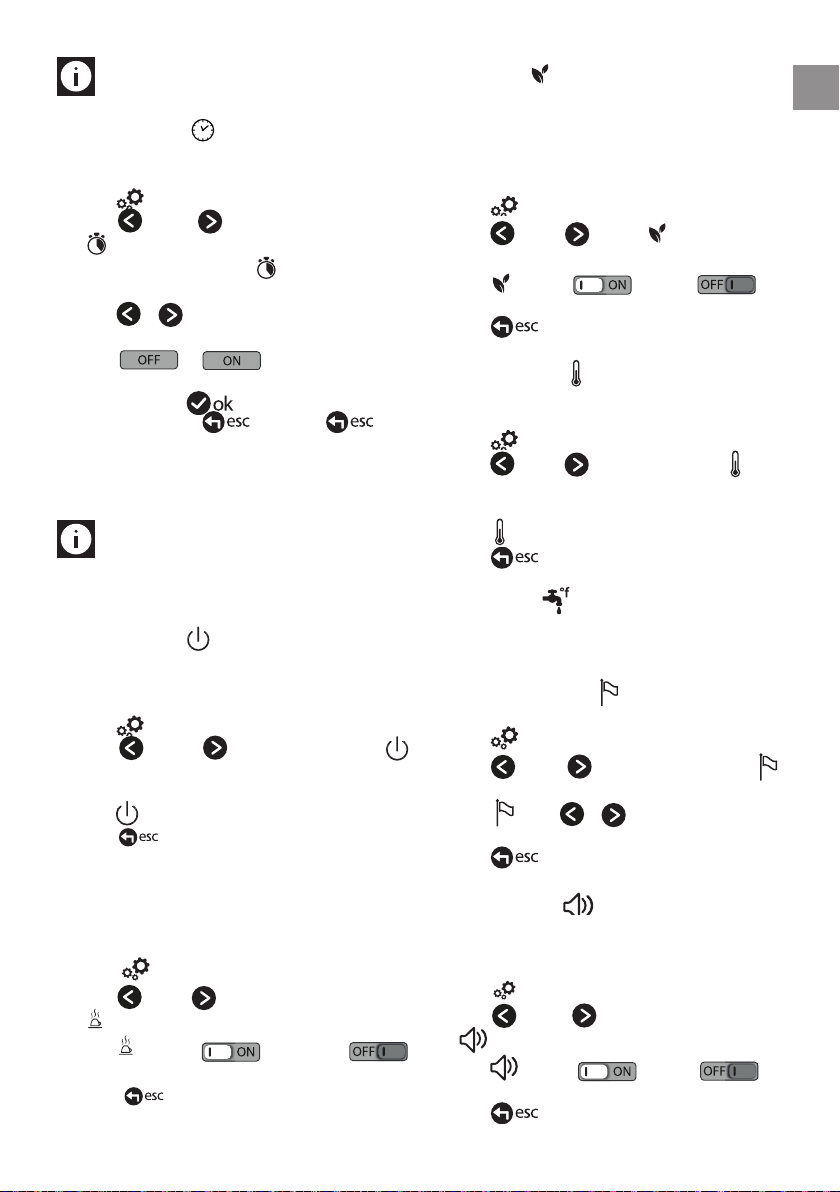

Set time ....................................................................... 10

Auto -start ................................................................... 10

Auto-o (standby) ....................................................... 11

Cup warmer .................................................................11

Energy saving ...............................................................11

Coee temperature ......................................................11

Water hardness ............................................................11

Selecting the language ................................................ 11

Sound notication .......................................................11

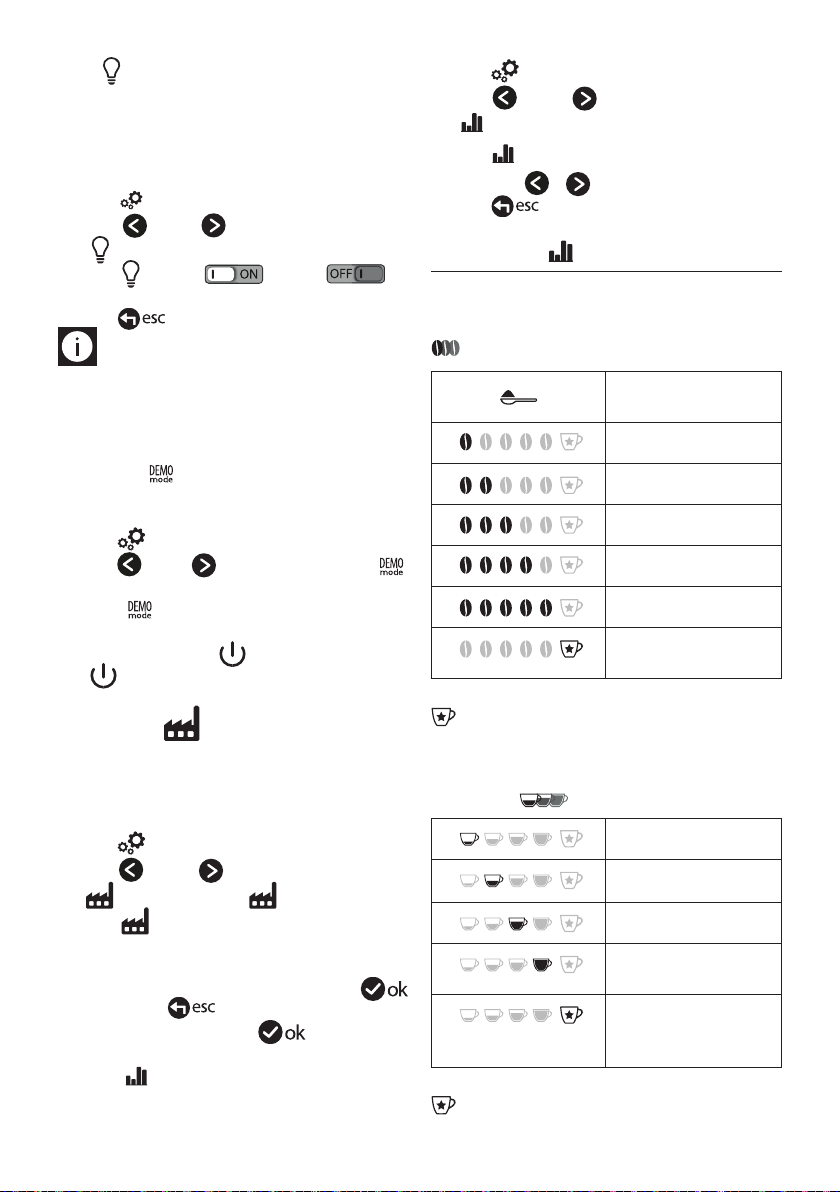

Light ............................................................................12

Demo mode ................................................................. 12

Default values .............................................................. 12

Statistics ......................................................................12

MAKING COFFEE

Selecting the coee aroma ..........................................12

Selecting the coee quantity ....................................... 12

Making coee using coee beans ................................13

Making coee using pre-ground coee .......................13

Adjusting the coee mill ..............................................13

Tips for a hotter coee .................................................14

........................................................ 8

.................................................. 9

.................................................................. 10

.................................................................. 12

................................ 8

..........................................8

.........................................8

..........................................8

............................................... 8

................................................. 9

.............................................. 9

MAKING MILKBASED HOT DRINKS

Filling and attaching the milk container

Adjusting the amount of froth .....................................14

Making milk based hot drinks automatically

Cleaning the milk container after use ..........................15

DELIVERING HOT WATER

STEAM DELIVERY

Tips for using steam to froth the milk...........................16

Cleaning the hot water/steam spout after use .............16

CUSTOMISING BEVERAGES

MEMORISING YOUR PERSONAL PROFILE

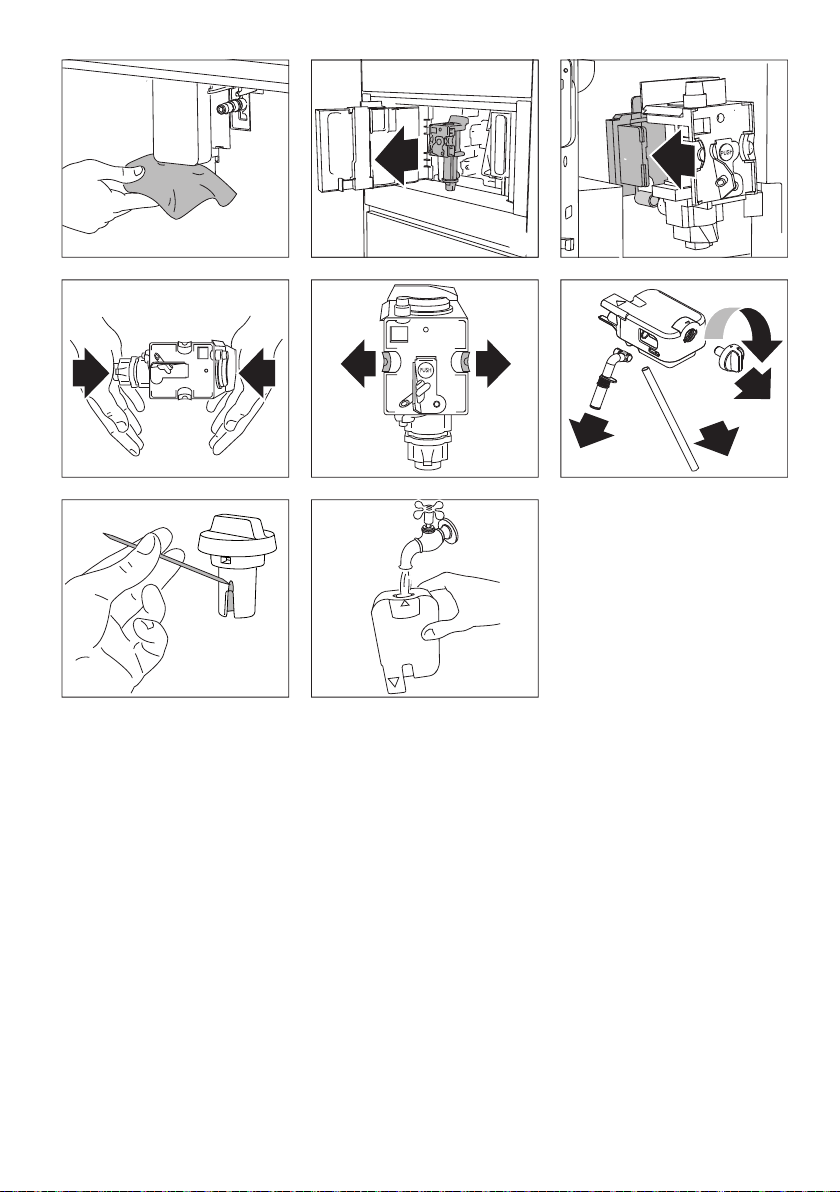

CLEANING

Cleaning the machine ..................................................16

Cleaning the appliance internal circuit .........................17

Cleaning the coee grounds container .........................17

Cleaning the drip tray ..................................................17

Cleaning the inside of the coee machine ...................17

Cleaning the water tank ...............................................17

Cleaning the coee spouts ...........................................17

Cleaning the pre-ground coee funnel .......................18

Cleaning the infuser .....................................................18

Cleaning the milk container .........................................18

Cleaning the hot water/steam connection nozzle ........18

DESCALING

PROGRAMMING WATER HARDNESS

Measuring water hardness ...........................................19

Setting water hardness ................................................20

TECHNICAL DATA

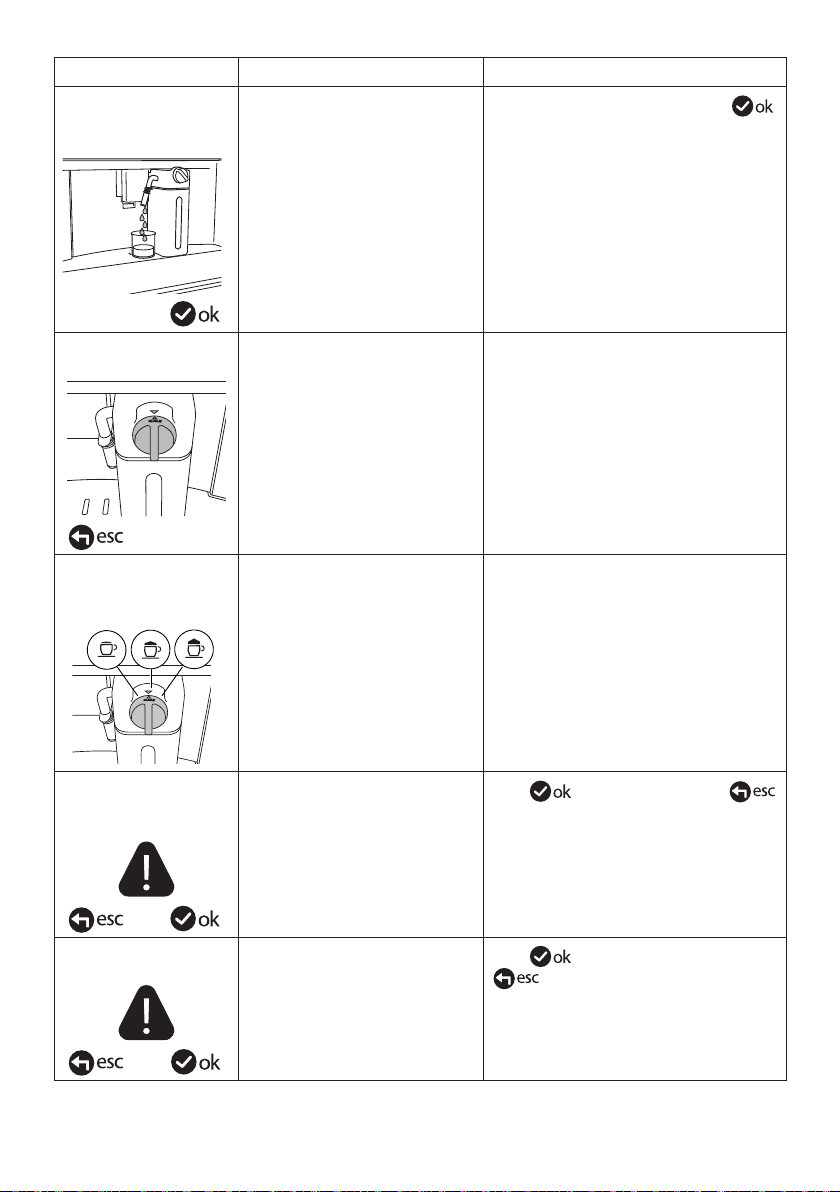

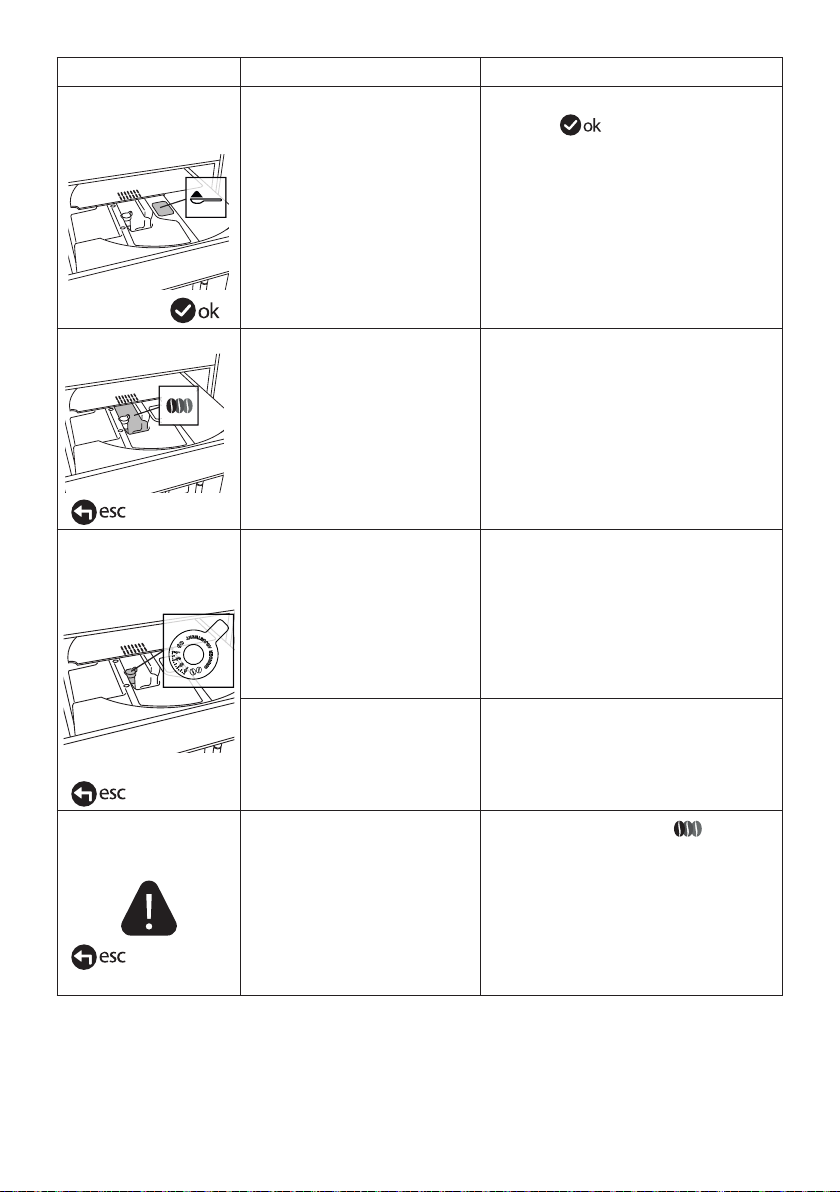

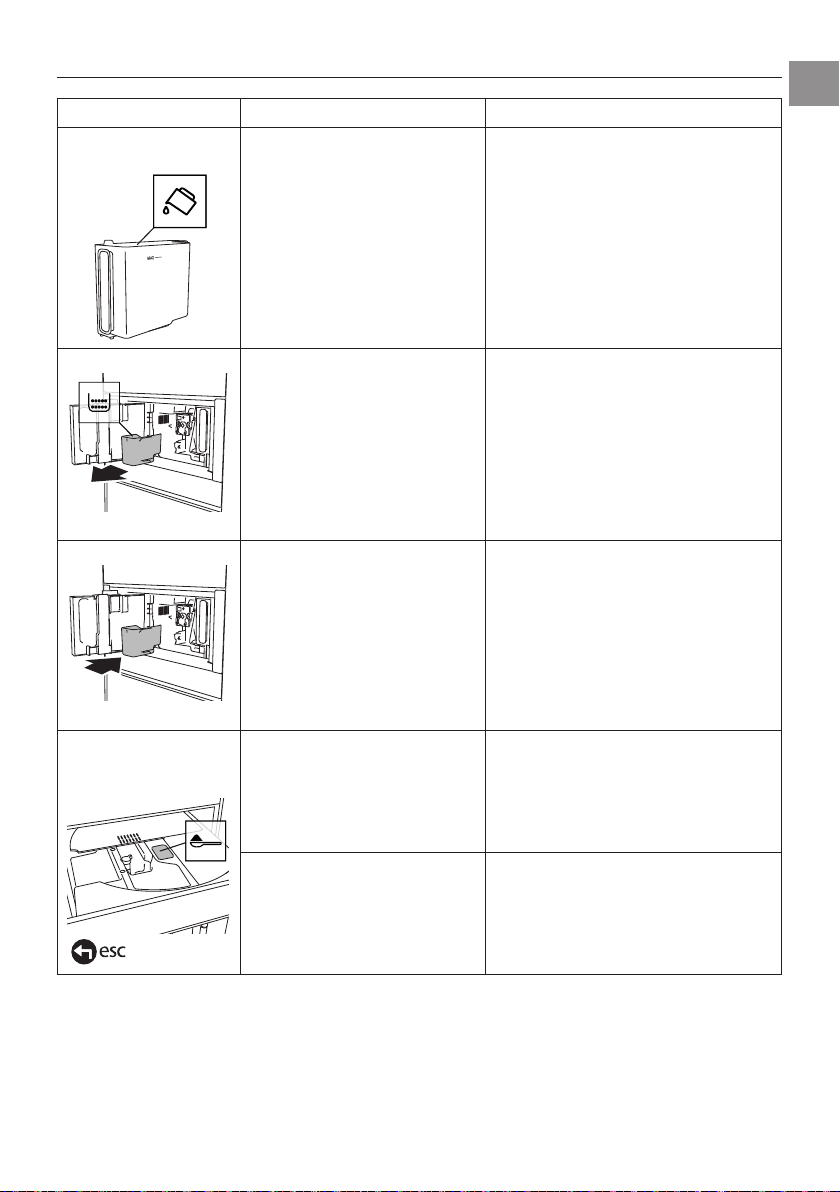

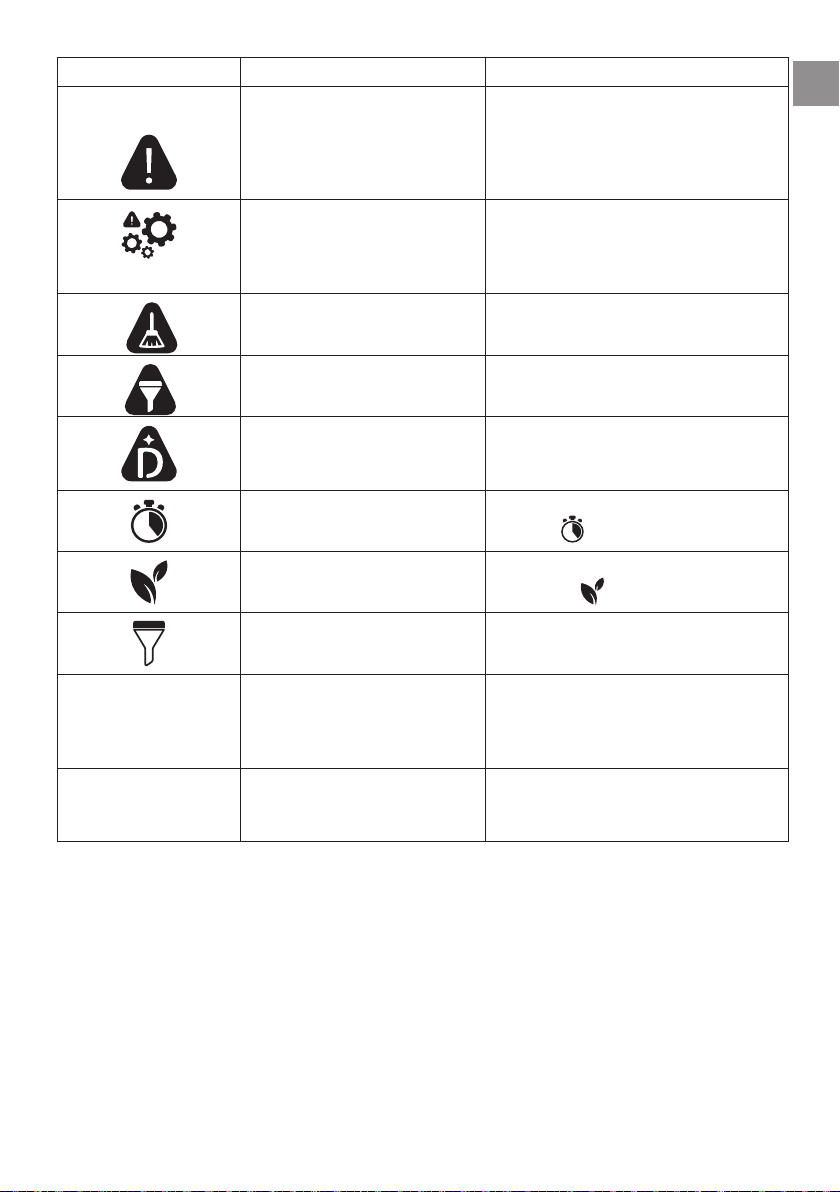

DISPLAYED MESSAGES ........................................................ 21

TROUBLESHOOTING ............................................................26

................................................................. 15

............................................................................ 16

.......................................................................... 18

................................................................. 2

..................................... 14

......................14

...............14

.....................................................15

.................................................. 16

............................ 16

.................................... 19

Page 8

INTRODUCTION Symbol used in these Instructions

Important warnings are identied by these symbols. Failure to observe the Instructions for Use could result in electric shock, serious injury, burns, re or damage to the appliance

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

Please note:

This symbol identies important advice or information for the user.

Letters in brackets

The letters in brackets refer to the key in the Description of the appliance.

Troubleshooting and repairs

In the event of problems, follow the information given in the sections "Displayed messages" and "Troubleshooting". If this does not resolve the problem, you should consult customer services. For repairs, contact customer services only.

Instructions for use

Read these Instructions for Use carefully before using the appliance.

• Keep these Instructions for Use carefully.

• Failure to follow these Instructions for Use may result in injury or damage to the appliance. The manufacturer is not liable for damage deriving from failure to respect these Instructions for Use.

Please note: The appliance is equipped with a fan. It

activates when necessary.

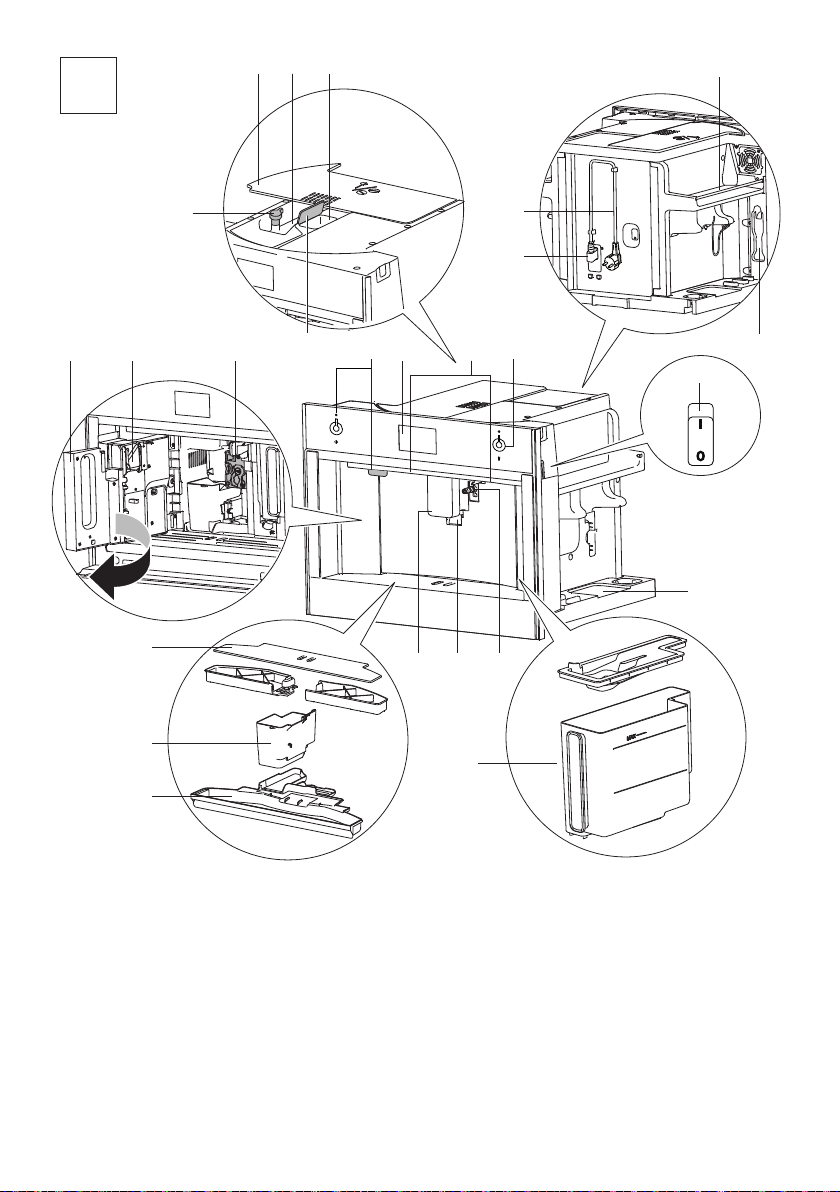

DESCRIPTION OF THE APPLIANCE Description of the appliance

(page 3 - A) A1. Cup holder tray A2. Service door A3. Coee guide A4. Coee grounds container

A5. Infuser A6. Lighting to illuminate interior compartment

A7. On/stand-by button / knob (only on some models)

A8. Control panel A9. Tray for objects A10. Hot water/steam connection nozzle A11. IEC connector A12. Water tank A13. Coee spouts (adjustable height)

Drip tray

A14. A15. Beans container lid A16. Beans container A17. Grinding adjustment dial A18. Lights to illuminate cup A19. Main ON/OFF switch A20. Measure holder A21. Ground coee funnel A22. Power cord A23. Pre-ground door A24. Cup warming ledge

A25. Lighting knob to illuminate the interior compartment

(only on some models)

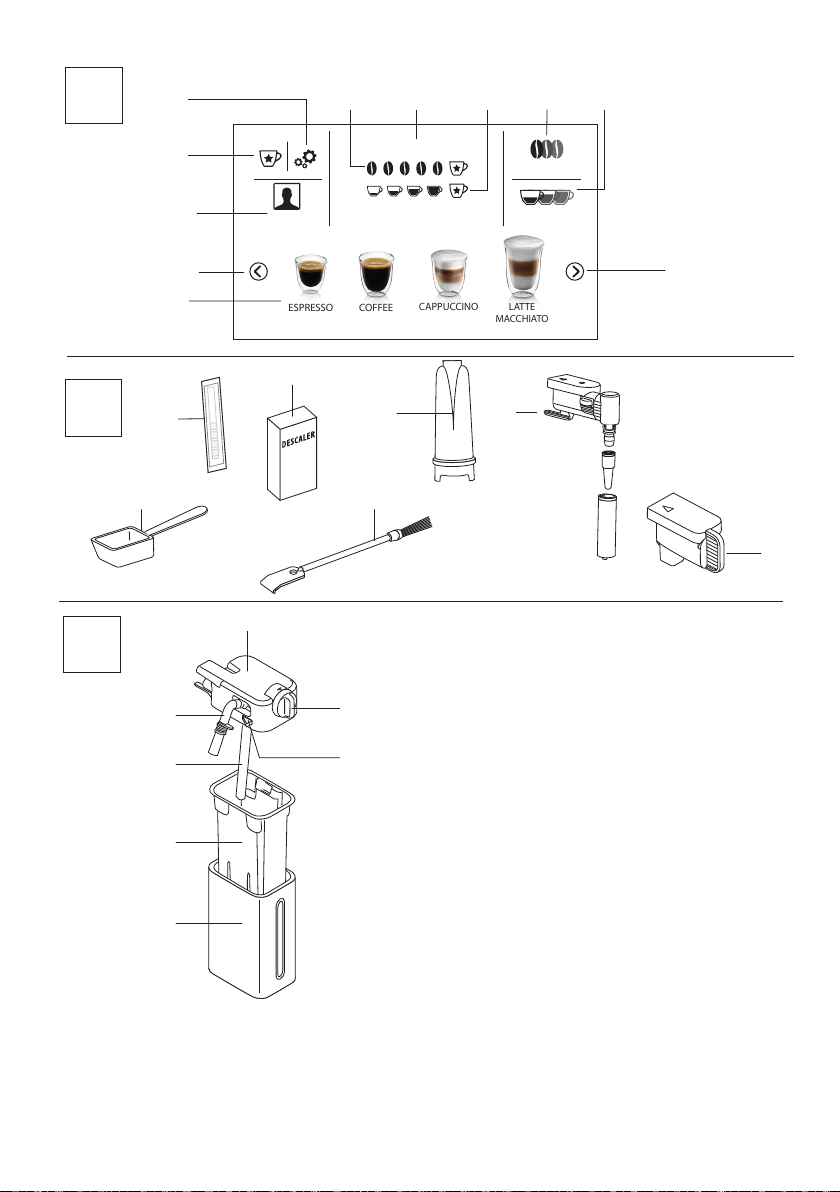

Description of homepage (page 3 - B)

B1. : menu to customise beverages settings B2. : appliance settings menu B3. Selected aroma B4. Clock B5. Selected quantity B6. : aroma selection B7. : quantity selection B8. : scroll arrow B9. Selectable drinks (press on the scrolling arrow or

to see all the drinks B10. : scroll arrow B11. Customisable proles (see “Memorising your personal pro-

le”)

Description of the accessories

(page 3 - C) C1. "Total Hardness Test" indicator paper C2. Ground coee measure C3. De-scaler C4. Water softener lter (certain models only) C5. Cleaning brush C6. Hot water/steam spout C7. Connection nozzle cover

Page 9

Description of the milk container

(page 3 - D) D1. Froth adjustment and CLEAN function dial D2 Lid with milk frother D3. Milk container D4. Milk intake tube D5. Adjustable frothed milk spout D6. Thermal casing D7. Lid release buttons

PRELIMINARY OPERATIONS Checking the appliance

After removing the packaging, make sure the product is complete and undamaged and that all accessories are present. Do not use the appliance if it is visibly damaged. Contact customer services Technical Assistance.

Please note:

• The rst time the appliance is used, it needs to make 4-5

cappuccinos before it starts to give satisfactory results.

• On rst use the water circuit is empty, the machine could

therefore be very noisy: the noise will lessen as the circuit

lls up.

• When making the rst 5-6 cappuccinos, it is normal to hear

the noise of boiling water: after this the noise will lessen.

• To improve the performance of the appliance, we recom-

mend installing a water softener lter (C4) as described in

section “Water softener lter”. If your model is not equipped

with a lter, it is possible to request one from Authorised

Customer Service Centres.

TURNING THE APPLIANCE ON

SETTING UP THE APPLIANCE

Please note:

• Coee has been used to factory test the appliance and it is therefore completely normal to nd traces of coee in the mill. The machine is, however, guaranteed to be new.

• You should customise water hardness as soon as possible following the instructions in section “Setting water hardness”.

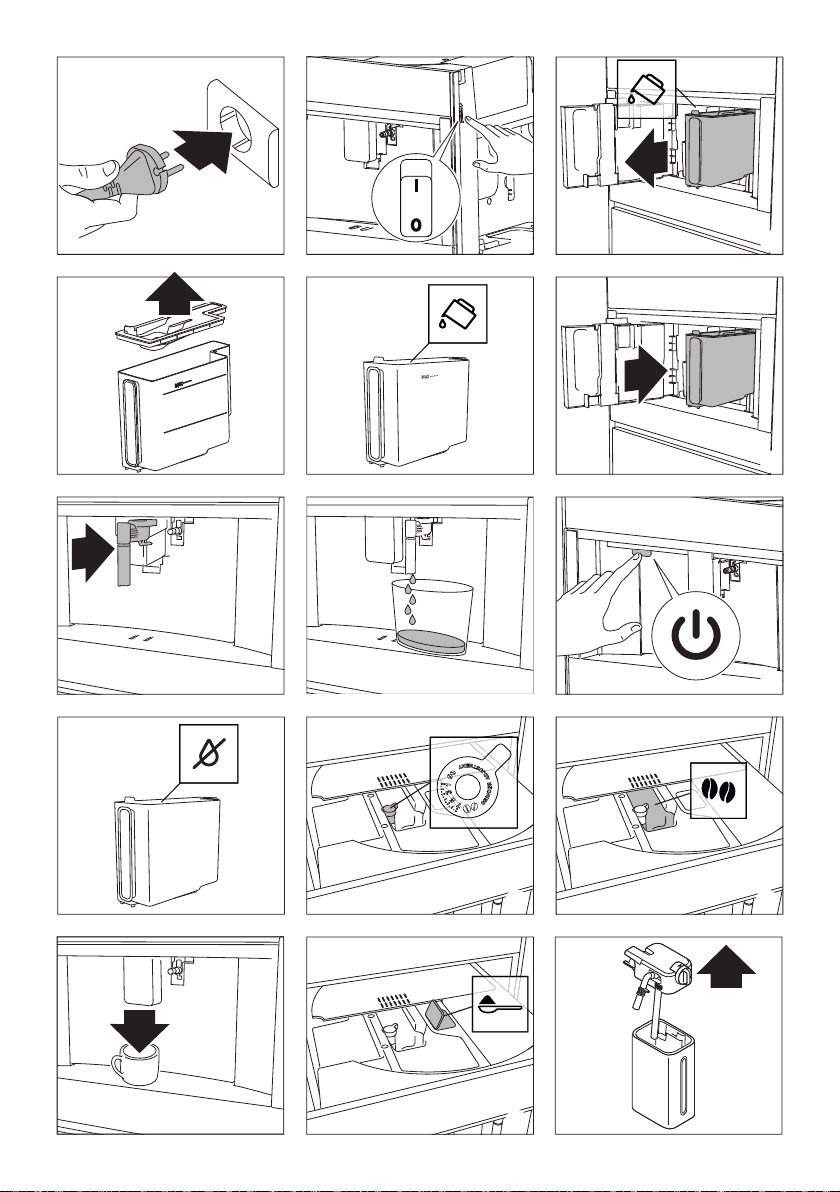

1. Connect the appliance to the mains electricity supply (g.1) and make sure the main switch (A19) on the side of the appliance is pressed down (g.2);

2. SELECT LANGUAGE (setting language): press (B10) or

(B8) until the ag corresponding to the required lan-

guage appears on the display (B), then press the ag;

To proceed follow the instructions indicated on the appliance display:

1. FILL WATER TANK WITH FRESH WATER: remove the water tank (A12) (g.3), open the lid (g.4), ll to the MAX line (marked on the inside of the tank) with fresh water (g.5); close the lid and put the tank back into the appliance (g.6);

2. INSERT WATER OUTLET: Check that the hot water/steam spout (C6) is inserted on the connection nozzle (A10) (g.7) and place a container with a minimum capacity of 100 ml underneath (g.8);

3. WATER CIRCUIT EMPTY PRESS OK TO START FILLING PROCESS is shown on the display;

4. Press to conrm: the appliance delivers water from the spout (g.8) then goes o automatically.

The coee machine is now ready for normal use.

Please note:

Before turning the appliance on, make sure the main switch (A23) is pressed (g.2). Each time the appliance is turned on, it performs an automatic preheat and rinse cycle which cannot be interrupted. The appliance is ready for use only after completion of this cycle.

Danger of burns!

During rinsing, a little hot water comes out of the coee spouts (A13) and is collected in the drip tray (A14) underneath. Avoid contact with splashes of water.

• To switch the appliance on, press the button (A7g.9): message HEATING UP PLEASE WAIT, is shown on the display.

• When heating is complete, the message changes to: RINS ING HOT WATER RUNNING; As well as heating the boiler, the appliance also continues to allow hot water to run in the internal pipework as they also heat up.

The appliance is at the desired temperature when the main screen, homepage, appears.

TURNING THE APPLIANCE OFF

Every time the appliance is turned o, it automatically carries out a rinse if it has made a coee.

Danger of burns!

During rinsing, a little hot water ows from the coee spouts (A13). Avoid contact with splashes of water.

• To turn the appliance o, press the button (A7-g.9).

• The message TURNING OFF PLEASE WAIT is shown on the display: if needed the appliance performs a rinse cycle and then goes o (standby).

Page 10

Please note:

If the appliance is not used for long periods, disconnect from the electricity supply as follows:

• rst turn the appliance o by pressing the button (g.9);

• release the main switch (A23) situated on the side of the appliance (g.2).

Important!

Never press the main switch while the appliance is on.

MENU SETTINGS Rinsing

Use this function to supply hot water from the coee spouts (A13) to clean and heat the appliance’s internal circuit. Place a container with a minimum capacity of 100ml under the coee and hot water spouts (g.8). To enable the function, proceed as follows:

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until the display shows (B) RINSING;

3. Press to start rinsing.

Danger of burns!

Do not leave the appliance unattended while hot water is being delivered.

1. After a few seconds, hot water comes out of the coee spout which cleans and heats the internal circuit of the appliance: the following message is shown on the display RINSING HOT WATER RUNNING as well as a progress bar which lls up as the preparation progresses;

2. To stop the rinsing cycle, press or wait for rinsing to stop automatically.

Please note:

• If the appliance is not used for more than 3-4 days, when switched on again, we strongly recommend doing 2/3 rinses before use;

• After rinsing, it is normal that there is some water in the grounds container (A10).

De-scaling

For instructions on de-scaling, see section “De-scaling”.

Water fil er

For instructions on how to install the lter (C4), see section “Water softener lter”.

Beverages settings

In this section, you can consult your customised settings and, if you wish, reset the default values for each beverage.

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until DRINKS SETTINGS appears on the display (B);

3. Press : The values for the rst beverage appear on the display;

4. The reference user prole is highlighted on the display. The values are shown on the vertical bars: the manufacturer de-

fault value is indicated by the symbol rent set value is highlighted by the lled part of the vertical bar;

5. To go back to the settings menu, press . To scroll and display the beverages, press ;

6. To return to the default manufacturer values for the beverage shown on the display, press RESET;

7. CONFIRM RESET?: to conrm, press (to cancel, press );

8. RETURN TO FACTORY: press .

The beverage has been reset to the default values. Continue with the other beverages, or go back to the settings menu.

Please note:

• To change the beverages for another prole, go back to the homepage, select the required prole (B11) and repeat the procedure.

• To reset all the beverages in the prole to the default values, see paragraph “Manufacturer Default values”.

while the cur-

Set time

To adjust the time on the display (B), proceed as follows:

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until the display (B) shows

SET TIME;

3. Press : The time setting panel appears on the screen;

4. Press or corresponding to the hours and minutes until the current time is displayed;

5. To conrm, press (to cancel, press ), then press to go back to the homepage.

The time is now set.

Auto-start

The auto-start time can be set in order to have the appliance ready at a certain time (for example in the morning) so that it can immediately make coee.

Page 11

Please note:

To enable this function, the time must already be set correctly, see paragraph “Set time

To enable auto-start, proceed as follows:

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until the display (B) shows AUTOSTART;

3. Select the function by pressing : The time setting panel

appears on the screen;

4. Press or corresponding to the hours and minutes

until the required auto-start time is displayed;

5. Press or to enable or disable au-

to-start.

6. To conrm, press (to cancel and go back to the

settings menu press ), then press to go

back to the homepage. The auto-start time is now set and the corresponding symbol is displayed next to the time to indicate that the function has been enabled.

Please note:

When the appliance is turned o using the main switch (A21), the auto-start setting if enabled, is lost.

”.

Auto-off (stand y)

Auto-o can be set so that the appliance goes o after 15 or 30 minutes, or 1, 2 or 3 hours of no use. To programme Auto-o, proceed as follows:

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until the display (B)

shows AUTO-OFF, together with the current selection (15 or

30 minutes, or 1, 2 or 3 hours);

3. Press on the display to select the required value;

4. Press to go back to the homepage. Auto-o is now programmed.

Energy saving

Use this function to enable or disable energy saving mode. When enabled, the function guarantees reduced energy consumption in compliance with European regulations. When it is disabled, warming time is reduced. To disable or enable "Energy Saving", proceed as follows:

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until ENERGY SAVING appears on the display (B);

3. Press to enable- or disable- energy saving.

4. Press to go back to the homepage.

Coee temperature

To modify the temperature of the water supplied to make the coee, proceed as follows:

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until the display (B) shows COFFEE TEMPERATURE together with the current selection (LOW, MEDIUM, HIGH, OR MAX);

3. Press to select the required temperature;

4. Press to go back to the homepage.

Water hardness

For instructions related to setting water hardness, see section “Setting water hardness”.

Selecting the language

To modify the language of the display (B), proceed as follows:

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until the display shows SET LANGUAGE;

3. Press : press or until the ag corresponding to the required language is shown and then select it;

4. Press 2 times to go back to the homepage.

Cup warmer

To warm the cups before making coee, it is possible to activate the cup warmer (A24) and put it above the cups.

1. Press " " (B2) to enter the menu;

2. Press (B10) or CUP WARMER";

3. Press to activate- or de-activate -

the cup warmer.

4. Press " " to go back to the homepage.

(B8)

until the display (B) shows "

Sound notifi ation

This enables or disables the beep emitted by the machine each time an icon is pressed or an accessory is inserted/removed. To disable or enable the beep, proceed as follows:

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until the display (B) shows BEEP;

3. Press to enable- or disable- the

sound notication;

4. Press to go back to the homepage.

Page 12

Light

This function enables or disables the lights (A6). The cup lights (A18) come on each time coee beverages are produced, hot milk is made and during each rinse cycle and turn o after a few seconds. To disable or enable this function, proceed as follows:

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until the display (B) shows LIGHT;

3. Press to enable- or disable- the

cup lighting;

4. Press to go back to the homepage.

Please

note: The lighting to illuminate the interior com-

partment A6 comes on when the appliance is turned on.

Models with knobs: it is possible to enables or disables the lights (A6) by turning the knob (A25).

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until the display (B) shows

STATISTICS ;

3. Press : it is possible to check all the available statistics by pressing or ;

4. Press : to go back to the homepage.

MAKING COFFEE

(see recipes on page 29)

Selecting the coee aroma

Select the required aroma from the homepage by pressing

AROMA (B6):

(see “Making coee using pre-ground coee”)

AROMA EXTRA LIGHT

Demo mode

By enabling this mode, the main functions of the machine are shown on the display:

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until the display shows DEMO MODE;

3. Press " " to start the demo;

4. To exit from the DEMO MODE, rst turn the appliance o by pressing the button (A7). Press again the button

to go back to the homepage.

Default values

This resets all menu settings and programmed quantities back to the default values (with the exception of the language which remains as set). To reset the default values, proceed as follows:

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until the display (B) shows

DEFAULT VALUES. Press ;

3. Press RESET ALL to reset all the proles to the original parameters, otherwise select the required prole (e.g.USER1);

4. RETURN TO FACTORY SETTINGS? RESET ALL: press to conrm (or to leave parameters unaltered);

5. FACTORY SETTINGS SET : press to conrm.

Statistics

This function displays statistical data relating to the machine. To display the statistics, proceed as follows:

LIGHT AROMA

MEDIUM AROMA

STRONG AROMA

X-STRONG AROMA

Custom (if programmed) / Standard

After delivering the beverage, the aroma setting is reset to the

value.

Selecting the coee quantity

From the homepage select the required quantity of coee in the cup by pressing

After delivering the beverage, the quantity setting is reset to the

value.

QUANTITY (B7):

SMALL SIZE (SMALL)

MEDIUM SIZE (MEDIUM)

LARGE SIZE (LARGE)

X-LARGE SIZE (EXTRA LARGE)

Custom quantity (if programmed) / Standard quantity

Page 13

Making coee using coee beans

Important!

Do not use green, caramelised or candied coee beans as they could stick to the coee mill and make it unusable.

1. Fill the beans container (A16) (g.12) with coee beans;

2. Place a cup under the coee spout (A13);

3. Lower the spout so that it is as near as possible to the cup

(g.13): this helps achieve a better cream;

4. Press (B10) or (B8) until the required coee is

displayed;

5. Then select your required coee from the homepage:

• ESPRESSO

• DOPPIO+

• COFFEE

• LONG

• 2 X ESPRESSO

• AMERICANO

6. Preparation begins and the display (B) shows the image of

the selected beverage together with a progress bar which gradually lls as preparation proceeds.

Please note:

• It is possible to prepare 2 cups of ESPRESSO coee at the

same time by also pressing X2 during preparation of 1 ESPRESSO (the image remains shown on the display for a few seconds at the start of preparation).

• While the machine is making coee, delivery can be inter-

rupted at any time by pressing .

• As soon as delivery has ended, to increase the quantity of

coee in the cup, just press : once the desired

quantity is reached, press . Once the coee has been made, the appliance is ready to make the next beverage.

Please note:

Various alarm messages may be displayed while using the appliance (FILL TANK, EMPTY GROUNDS CONTAINER, etc.). Their meaning is explained in section “Displayed messages”.

• For hotter coee, see paragraph “Tips for a hotter coee”.

• If the coee comes out in drops, too weak and not creamy

enough or too cold, read the tips in section “Adjusting the

coee mill” and the “Troubleshooting” chapter.

• Preparation of each coee can be customised (see sections

“Customising beverages” and “Memorising your personal

prole”).

• If "Energy Saving" mode is active, the rst coee may take

a few seconds before it is delivered.

Making coee using pre-ground coee

Important!

• Never add pre-ground coee when the machine is o in order to avoid it spreading through the inside of the machine and making it dirty. This could damage the appliance.

• Never use more than 1 level measure (C2) or it could dirty the inside of the coee machine or block the funnel (A4).

Please note:

If you use pre-ground coee, you can only make one cup of coffee at a time.

1. Repeat Press AROMA (B6) until the display (B) shows

(pre-ground).

2. Open the cover (A15) and the pre-ground door (A23).

3. Make sure the funnel (A21) is not blocked, then add one level measure of pre-ground coee (g.14).

4. Place a cup under the coee spouts (A13) (g.13).

5. Then select your required coee (ESPRESSO, COFFEE, LONG etc.) from the homepage;

6. Preparation begins and the image of the selected beverage appears on the display, together with a progress bar which gradually lls as preparation progresses.

Please note:

• While the machine is making coee, delivery can be interrupted at any time by pressing .

• As soon as delivery has ended, to increase the quantity of coee in the cup, just press : once the desired quantity is reached, press .

Once the coee has been made, the appliance is ready to make the next beverage.

Important! Making LONG coee : Halfway through preparation, the display will show message ADD PREGROUND COFFEE, MAXIMUM ONE MEASURING CUP. Add one level measure of pre-ground coee and press

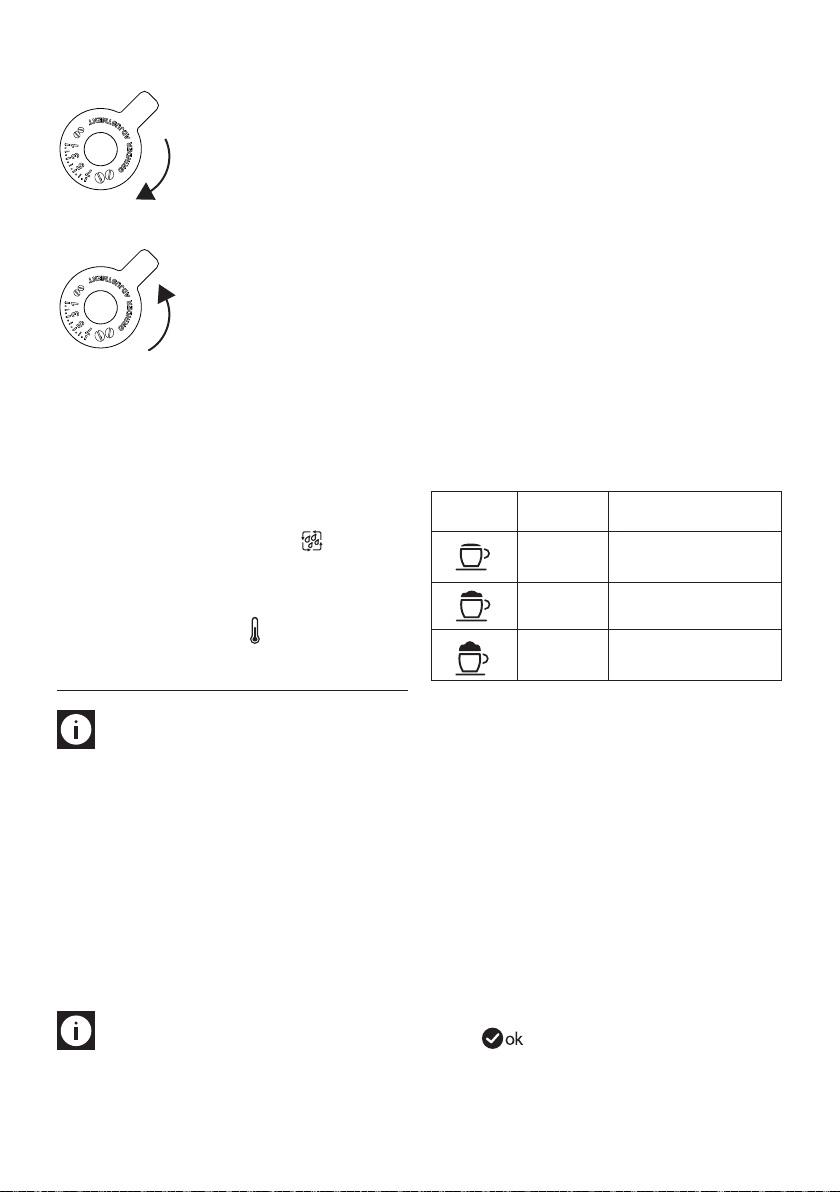

Adjusting the coee mill

The coee mill should not require adjusting, at least initially, because it has already been set by default in order to prepare coee correctly. However, if after making the rst few coees you nd that the coee is either too weak and not creamy enough or delivery is too slow (a drop at a time), this can be corrected by adjusting the grinding adjustment dial (g.11).

Please note:

The grinding adjustment dial must only be turned when the coee mill is in operation during the initial phase of coee

Page 14

preparation.

If the coee comes out too slowly or does not come out at all, a message will be shown GROUND TOO FINE. ADJUST GRIND LEVEL, turn the coee mill dial one or two clicks clockwise.

For fuller bodied creamier coee, turn one click anticlockwise towards 1 (do not turn more than one click at a time otherwise the coee could come out one drop a drop at a time).

The eect of these adjustments will only be evident after at least 2 cups of coee have been delivered. If this adjustment does not obtain the desired result, repeat the correction by turning the dial another click.

Tips for a hotter coee

For hotter coee, it is recommended to:

• carry out a rinse cycle by selecting the "Rinsing" func tion in the settings menu (paragraph “Rinsing ”);

• warm the cups with hot water (using the hot water function, see section “hot water supply”);

• increase the coee temperature in the settings menu (see section “Coee temperature ”).

MAKING MILK-BASED HOT DRINKS

(see recipes on page 30)

Please note:

To avoid milk with little froth or large bubbles, always clean the milk container lid (D2) and hot water connection nozzle (A9) as described in sections “Cleaning the milk container after use” , “Cleaning the milk container” and “Cleaning the hot water/ steam connection nozzle”.

Filling and attaching the milk container

1. Remove the lid (D2) (g.15);

2. Fill the milk container (D3) with a sucient quantity of milk, not exceeding the MAX level marked on the container (g.16). Each mark on the side of the container corresponds to about 100 ml of milk;

Please note:

• For a denser and more even froth, you must use skimmed or partially skimmed milk at refrigerator temperature (about 5°C).

• If "Energy Saving" mode is enabled, there may be a few seconds delay before the beverage is delivered.

1. Make sure the milk intake tube (D4) is correctly inserted in the bottom of the milk container lid (g.17);

2. Place the lid back on the milk container;

3. Remove the hot water/steam spout (C6) (g.18);

4. By pushing the bottom attach the milk container (D) to the nozzle (A10) (g.19): the machine will let out a noise signal (if the sound notication function is enabled);

5. Place a suciently large cup under the coee spouts (A13) and frothed milk spout (D5); adjust the length of the milk spout, to move it nearer to the cup, simply pulling it downwards (g.20).

6. Follow the instructions below for each function.

Adjusting the amount of froth

Turn the froth adjustment dial (D1) on the milk container lid, to adjust the amount of froth on the milk delivered while making the drinks. Follow the tips in the table below:

Dial position Description Recommended for...

No froth CAFFE LATTE /

MILK (hot milk)

Min. froth

Max. froth CAPPUCCINO /

LATTE MACCHIATO

MILK frothed milk

Making milk-based drinks automatically

1. Fill the milk container (D) and attach it as described above.

2. Select the required beverage from the homepage:

• CAPPUCCINO

• LATTE MACCHIATO

• CAFFE LATTE

• HOT MILK

• CAPPUCCINO+

• ESPRESSO MACCHIATO

• FLAT WHITE

• CAPPUCCINO MIX

3. On the display (B) the machine recommends turning the foam adjustment dial (D1) based on the foam requirements for the original recipe: therefore turn the dial on top of the milk container lid (D2) and conrm the selection by pressing .

4. After a few seconds, preparation begins automatically and an image of the selected beverage appears on the display, together with a progress bar which gradually lls as preparation progresses.

Page 15

Please note: general indications when preparing all

milk based drinks

• : press to interrupt preparation completely and go back to the homepage.

• : press to interrupt milk or coee delivery and move on to the next delivery (if applicable) to complete the beverage.

• At the end of delivery, to increase the quantity of coee in the cup, press .

• Preparation of each milk based drink can be customised (see sections “Customising beverages” and “Memorising your personal prole”).

• Do not leave the milk container out of the fridge for a long time: as the temperature increases (5°C ideal), the quality of the foam decreases.

Once the coee has been made, the appliance is ready to make the next beverage.

Cleaning the milk container after use

Danger of burns!

When cleaning the internal tubes of the milk container, a little hot water and steam leak out of the frothed milk spout (D5). Avoid contact with splashes of water. Each time a milk function is used, TURN MILK FROTH ADJUSTMENT KNOB TO CLEAN TO START CLEANING appears on the display and the milk frother lid must be cleaned:

1. Leave the milk container (D) in the machine (you do not need to empty it);

2. Place a cup or other recipient under the frothed milk spout (g.20);

3. Turn the foam adjustment dial (D1) to CLEAN (g.21): CLEANING MILK CONTAINER PLACE A CUP UNDER THE MILK OUTLET (FIG.22) appears on the display (B) together with a bar which gradually lls as cleaning proceeds. Cleaning stops itself automatically;

4. Turn the dial back to one of the froth selections;

5. Remove the milk container and always clean the steam connection nozzle (A10) with a sponge (g.23).

Please note:

• If a number of milk based drinks need to be made, only clean the milk container after preparing the last beverage. To proceed with making the next beverages, when the

CLEAN message is displayed, press

• If the milk container does not get cleaned, the symbol appears on the display as a reminder that the milk container needs cleaning.

• The milk container can be kept in the refrigerator.

• In some cases, to carry out the cleaning the appliance requires a short time to heat up.

DELIVERING HOT WATER

Danger of burns!

Do not leave the appliance unattended while hot water is being delivered.

1. Make sure the hot water/steam spout (C6) is attached correctly to the hot water/steam connection nozzle (A10);

2. Place a container under the spout (as close as possible to avoid splashes);

3. Select HOT WATER from the homepage. The corresponding image appears on the display (B), together with a progress bar which lls gradually as preparation proceeds;

4. The machine delivers hot water, then delivery stops automatically. To interrupt hot water delivery manually, press

Please note:

• If "Energy Saving" mode is active, there may be a few seconds delay before hot water is delivered.

• Preparation of hot water can be customised (see sections “Customising beverages” and “Memorising your personal prole”).

STEAM DELIVERY

Danger of burns!

Do not leave the appliance unattended while steam is being delivered.

1. Make sure the hot water/steam spout (C6) is attached correctly to the hot water/steam connection nozzle (A10);

2. Fill a container with the liquid to be heated or frothed and immerse the hot water/steam spout in the liquid;

3. Select " STEAM" from the homepage. The corresponding image appears on the display (B), together with a progress bar which lls gradually as preparation proceeds and after a few seconds, steam to heat the liquid is delivered from the hot water/steam spout;

4. When the required temperature or level of froth is reached, interrupt steam delivery by pressing ;

Important!

Always stop steam delivery before extracting the container containing the liquid to avoid burns from splashes.

Page 16

Please note:

If “Energy saving” mode is active, there may be a few seconds delay before steam is delivered.

Tips for using steam to froth milk

• When choosing the size of the container, bear in mind that the liquid doubles or triples in volume.

• For a richer denser froth, use skimmed or partially skimmed milk at refrigerator temperature (about 5°C).

• For a creamier froth, rotate the container with slow movements in an upward motion.

• To avoid milk with poor froth or large bubbles, always clean the spout (C6) as described in the following paragraph.

Cleaning the hot water/steam spout after use

Always clean the hot water/steam spout (C6) after use to avoid the build-up of milk residues and prevent it from clogging.

1. Place a container under the hot water/steam spout and let a little water out (see section “Delivering hot water”). Then stop the delivery of hot water by pressing .

2. Wait a few minutes for the hot water/steam spout to cool down; then extract it (g.18). Hold the spout steady with one hand and with the other, turn and detach the cappuccino maker pulling it downwards (g.24).

3. Also remove the steam connection nozzle by pulling it downwards (g.24).

4. Check the hole in the connection nozzle is not blocked. If necessary, clean using a toothpick.

5. Wash all parts of the spout thoroughly with a sponge and warm water.

6. Attach the connection nozzle and the cappuccino maker onto the spout by pushing it upwards and turning it clockwise until it is secure.

CUSTOMISING BEVERAGES

The aroma (for drinks where required) and length of the drinks can be customised.

1. Make sure that the prole for which customising the drink is required is active: it is actually impossible to select the drinks for all 6 proles ;

2. From the homepage, press (B1);

3. Choose the beverage you wish to customise in order to access the customising screens: the relative accessories must be inserted;

4. (Beverages with coee only) CHOOSE COFFEE AROMA LEVEL: Select the required aroma by pressing or and press ;

5. CUSTOMISING COFFEE (OR WATER) QUANTITY, PRESS STOP

TO SAVE: Preparation begins and the appliance displays the quantity customising screen in the form of a vertical bar. The star alongside the bar represents the current quantity set.

6. When the amount reaches the minimum quantity you can set, the display shows .

7. Press when the required quantity in the cup is reached.

8. SAVE NEW SETTINGS? : Press YES or NO.

The appliance conrms if the values have been saved or not (depending on the previous selection): press . The appliance goes back to the homepage.

Please note:

• Milk based drinks: the coee aroma is saved rst, followed by the quantity of rst milk, then coee;

• Hot water: the appliance supplies hot water: press

to save the desired quantity.

• It is possible to come out of programming by pressing

: the values will not be saved.

MEMORISING YOUR PERSONAL PROFILE

The appliance allows you to memorise 6 dierent proles, each associated with a dierent icon. In every prole the customised beverages aroma and quantity

values are saved (see section “Customising beverages and the order in which all the beverages are displayed is based on the frequency of selection. To select or enter a prole, press on the prole currently in use (B11), press displayed, then press on the prole.

• Prole GUEST : select this prole to deliver beverages with the default settings.

(B10) or

Please note:

(B8)

until the required prole is

CLEANING Cleaning the machine

The following parts of the machine must be cleaned regularly:

• appliance internal circuit;

• coee grounds container (A4);

• drip tray (A14);

• water tank (A12);

• coee spouts (A13);

• pre-ground coee funnel (A21);

• infuser (A5), accessible after opening the service door (A2);

• milk container (D);

• hot water/steam connection nozzle (A10);

• control panel (B).

”)

Page 17

Important!

• Do not use solvents, abrasive detergents or alcohol to clean the coee machine. It is not necessary to use chemical products to clean the machine.

• None of the components of the appliance can be washed in a dishwasher with the exception of the milk container (D).

• Do not use metal objects to remove encrustations or coee deposits as they could scratch metal or plastic surfaces.

Cleaning the appliance internal circuit

If the appliance is not used for more than 3/4 days, before using it again, we strongly recommend switching it on and:

1. performing 2/3 rinse cycles by selecting the "Rinse" function (paragraph “Rinsing

2. delivering hot water for a few seconds (section “Delivering hot water”).

Please note:

After cleaning, it is normal for the grounds container (A4) to contain water.

Cleaning the coee grounds container

When the display (B) shows the message EMPTY GROUND CON TAINER (g. 26) the grounds container must be emptied and cleaned. The appliance cannot be used to make coee until the grounds container (A4) has been cleaned. Even if not full, the empty grounds container message is displayed 72 hours after the rst coee has been prepared (for the 72 hours to be calculated correctly, the machine must never be turned o with the main switch). To clean (with the machine on):

1. Open the bottom door by rotating it downwards (g.25).

2. Open the door.

3. Remove the drip tray (A14) (g.27), empty and clean it.

4. Carefully empty and clean the coee grounds container (A4) taking care to remove all the residue that can be deposited on the bottom: the brush provided (C5) features a spatula especially for this job.

Cleaning the drip tray

Important!

The drip tray (A14) is tted with a level indicator (red) showing the level of water it contains (g.28). Before the indicator protrudes from the cup tray (A1), the drip tray must be emptied and cleaned, otherwise the water may ow over the edge and damage the appliance, the surface it rests on or the surrounding area. To remove the drip tray, proceed as follows:

1. Open the door (g.25). Remove the drip tray and coee grounds container (A4) (g.27);

2. Empty the drip tray and grounds container and wash them;

3. Replace the drip tray complete with grounds container.

Cleaning the inside of the coee machine

Danger!

Before cleaning internal parts, the machine must be turned o (see section “Turning the appliance o”) and unplugged from the mains power supply. Never immerse the coee machine in water.

1. Check regularly (about once a month) that the inside of the appliance (accessible after removing the drip tray - A14) is not dirty.

2. If necessary, remove coee deposits with the brush (C5) supplied and a sponge. Remove all the residues with a vacuum cleaner (g.29).

Cleaning the water tank

1. Clean the water tank (A12) regularly (about once a month) and whenever you replace the water softener lter (C4) (if provided) with a damp cloth and a small amount of mild washing up liquid.: rinse carefully before lling and replacing the tank;

2. Remove the lter (if present) and rinse with running water;

3. Replace the lter (if provided), ll the tank with fresh water and replace the tank;

4. (Models with water softener lter only) Deliver about 100ml of hot water to reactivate the lter.

Important!

When removing the drip tray it is obligatory to always empty the grounds container even if it contains few grounds. If this is not done, when you make the next coees, the grounds container may ll up more than expected and clog the machine.

Cleaning the coee spouts

1. Clean the coee spouts (A13) regularly with a sponge or cloth (g.31);

2. Check that the holes in the coee spouts are not blocked. If necessary, remove coee deposits with a toothpick (g.30).

Page 18

Cleaning the pre-ground coee funnel

Check regularly (about once a month ) that the pre-ground coee funnel (A21) is not blocked. If necessary, remove coee deposits with the brush (C5) supplied.

Cleaning the infuser

The infuser must be cleaned at least once a month.

Important! The infuser (A5) must not be removed

when the appliance is on. Do not use force to remove the infuser.

1. Make sure the machine is correctly turned o (see "Turning o").

2. Open the service door.

3. Remove the drip tray and waste coee container (g.27).

4. Press the two coloured release buttons inwards and at the same time pull the infuser outwards (g.32).

Important! Do not use washing up liquid to clean the infuser to avoid removing the lubricant applied to the inside of the piston.

5. Wash all the components of the frother thoroughly with hot water and mild washing-up liquid. All components and the container are dishwasher safe, placing them in the top basket of the dishwasher. Pay particular attention to check in the hollow and groove under the dial ( any residue from the groove with a toothpick.

6. Rinse inside the froth adjustment dial seat (g.38) and the milk frother connector hole using running water.

7. Check as well that the intake tube and spout are not clogged with milk residues.

8. Replace the dial, lining up the arrow with the word INSERT, the spout and milk intake tube.

9. Place the milk container in the thermal casing.

10. Place the lid back on the milk container.

g.37

) that no milk residues remain: scrape

Cleaning the hot water/steam connection nozzle

Each time you prepare milk, clean the connection nozzle (A13) with a sponge to remove milk residues deposited on the seals (g.23).

5. Soak the infuser in water for about 5 minutes, then rinse.

6. After cleaning, replace the infuser (A5) by sliding it onto the internal support and pin at the bottom, then push the PUSH symbol fully in until it clicks into place (g.33).

Please note carefully: If you encounter diculty in- serting the infuser, (before inserting it) you must adapt it to the right dimension by pressing it forcefully from the bottom and top as shown in the gure 34.

7. Once inserted, make sure the two coloured release buttons

have snapped out (g.35).

8. Replace the drip tray and waste coee container.

9. Close the service door.

Cleaning the milk container (D)

Clean the milk container after each time you prepare milk, as described below:

1. Lift and remove the lid (D2);

2. Extract the milk container (D3) from the thermal casing

(D6), holding it by the two side grips.

Important!

The thermal casing must not be filled or immersed in water: to clean it wipe with a damp cloth.

3. Remove the milk spout (D5) and intake tube (D4).

4. Turn the froth adjustment dial clockwise to the "INSERT"

position (g.36) and pull o.

DESCALING

Important!

• Before use, read the instructions and the labelling on the de-scaler packaging.

• You should use de-scaler authorised by the manufacturer only. Using unsuitable de-scaler and/or performing de-scaling incorrectly may result in faults not covered by the manufacturer's guarantee.

De-scale the appliance when the display (B) shows message DESCALING NEEDED PRESS OK TO START (~45 min) de-scale immediately, press from point 4. To postpone de-scaling to another time, press display the symbol is a reminder that the appliance needs to be de-scaled (the message will be re-proposed every time the machine is switched on). To access the de-scaling menu:

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until the display shows DESCALE;

3. Press to start the de-scaling cycle then follow the instructions on the display;

4. REMOVE WATER FILTER (g. 39):extract the water tank (A12), remove the water softener lter (C4) (if present) and empty the water tank. Press

5. ADD DESCALER (UP TO LEVEL A) AND WATER (UP TO LEVEL B) (g.40); Pour the de-scaler into the tank up to the level

and follow the instructions

: on the

;

 : to

Page 19

A marked inside the tank (equal to one 100 ml pack); then add water (one litre) up to level B; and put the water tank back in. Press

6. EMPTY GROUND CONTAINER AND DRIP TRAY (g. 27): remove, empty and replace the drip tray (A14) and the ground container (A4). Press

7. PLACE 2.5l CONTAINER UNDER OUTLET PRESS OK TO START DESCALING : Place an empty container with a minimum capacity of 2.5 litres under the hot water/steam spout (C6) and coee spouts (A13) (g.8);

Danger of burns!

Hot water ows out of the hot water/steam spout which contains acid. Take care to avoid contact with splashes of this solution.

8. Press to conrm that you have added the de-scaling solution. The display shows DESCALING PLEASE WAIT : the de-scale programme starts and the de-scaler liquid comes out of the hot water/steam and coee spouts. A series of rinses and pauses is automatically carried out to remove all the scale residues from the inside of the coee machine;

After about 25 minutes, de-scaling stops:

9. RINSE AND FILL WATER TANK UP TO MAX LEVEL (g.41): the appliance is now ready for a fresh water rinsing cycle. Empty the container used to collect the de-scaler solution and extract the water tank, empty, rinse under running water, ll with fresh water up to the MAX level and put back in the appliance;

10. PLACE 2.5l CONTAINER UNDER OUTLET PRESS OK TO START RINSING: Place the container used to collect the de-scaler solution empty under the coee spouts and hot water/ steam spout (g.8) again and press ;

11. Hot water is delivered rst from the coee spouts and the display shows RINSING PLEASE WAIT ;

12. When the water in the tank has run out, empty the container used to collect the rinsing water;

13. (If the lter is installed) INSERT FILTER INTO ITS HOUSING (g.42). Press and extract the water tank, reinsert the water softener lter if removed previously;

14. RINSE AND FILL WATER TANK UP TO MAX LEVEL (g.41): Fill the tank up to the MAX level with fresh water;

15. INSERT WATER TANK (g.6): Put the water tank back in the appliance;

16. PLACE 2.5l CONTAINER UNDER OUTLET PRESS OK TO START RINSING : Place the empty container used to collect the de-scaler solution under the hot water/steam spout (g.8) and press

;

17. Hot water is delivered from the hot water/steam spout and

;

RINSING PLEASE WAIT is displayed.

18. EMPTY DRIP TRAY (g.27): At the end of rinsing, remove, empty and replace the drip tray (A14) and grounds container (A4): press

19. For a few seconds DESCALE COMPLETE will be shown on the display; the appliance turn o.

De-scaling is complete.

Please note:

• If the de-scaling cycle is not completed correctly (e.g. no electricity) we recommend repeating the cycle;

• After de-scaling, it is normal for the grounds container (A4) to contain water.

• If the water tank has not been lled to the max level, at the end of de-scaling, the appliance requests a third rinse to guarantee that the de-scaler solution has been completely eliminated from the machine's internal circuits. Before starting rinsing, remember to empty the drip tray;

• The appliance may request de-scaling cycles at very short intervals. This is normal and due to the appliance’s advanced control system

;

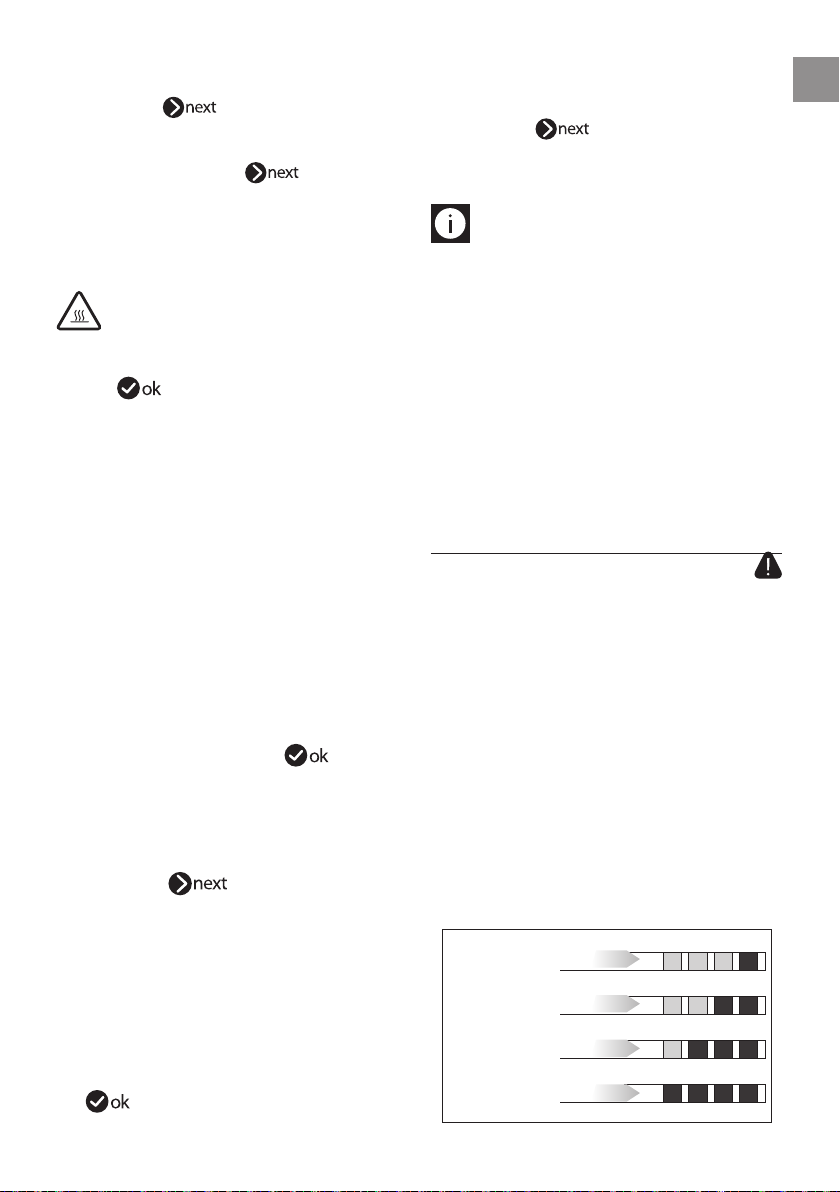

PROGRAMMING WATER HARDNESS

The DESCALING NEEDED - PRESS OK TO START (~45min) message is displayed after a period of time established according to water hardness. The appliance default is pre-set in manufacturing at "level 4" hardness. The machine can also be programmed according to the hardness of the mains water in the various regions so that the machine needs to be de-scaled less often.

Measuring water hardness

1. Remove the "Total hardness test" indicator paper (C1) provided from its packaging, attached to the instructions.

2. Immerse the paper completely in a glass of water for about one second.

3. Remove the paper from the water and shake lightly. After about a minute, 1, 2, 3, or 4 red squares form, depending on the hardness of the water. Each square corresponds to one level.

soft water - level. 1

slightly hard water - level. 2

hard water - level. 3

very hard water - level. 4

Page 20

Setting water hardness

1. Press (B2) to enter the menu;

2. Press (B10) or (B8) until the display (B) displays WATER HARDNESS ;

3. To change the level selected, press the symbol itself until

the r

equired level is displayed (Level 1 = soft water;

Level4=very hard water); Press The machine is now reprogrammed with the new water hardness setting.

to go back to the homepage.

TECHNICAL DATA

Voltage: 220-240 V~ 50/60 Hz max. 10A Absorbed power: 1350W Pressure: 15 bar Water tank capacity: 2.5 litres Size:LxHxD: 597x450x470 mm

Net weight: 20 kgg

Page 21

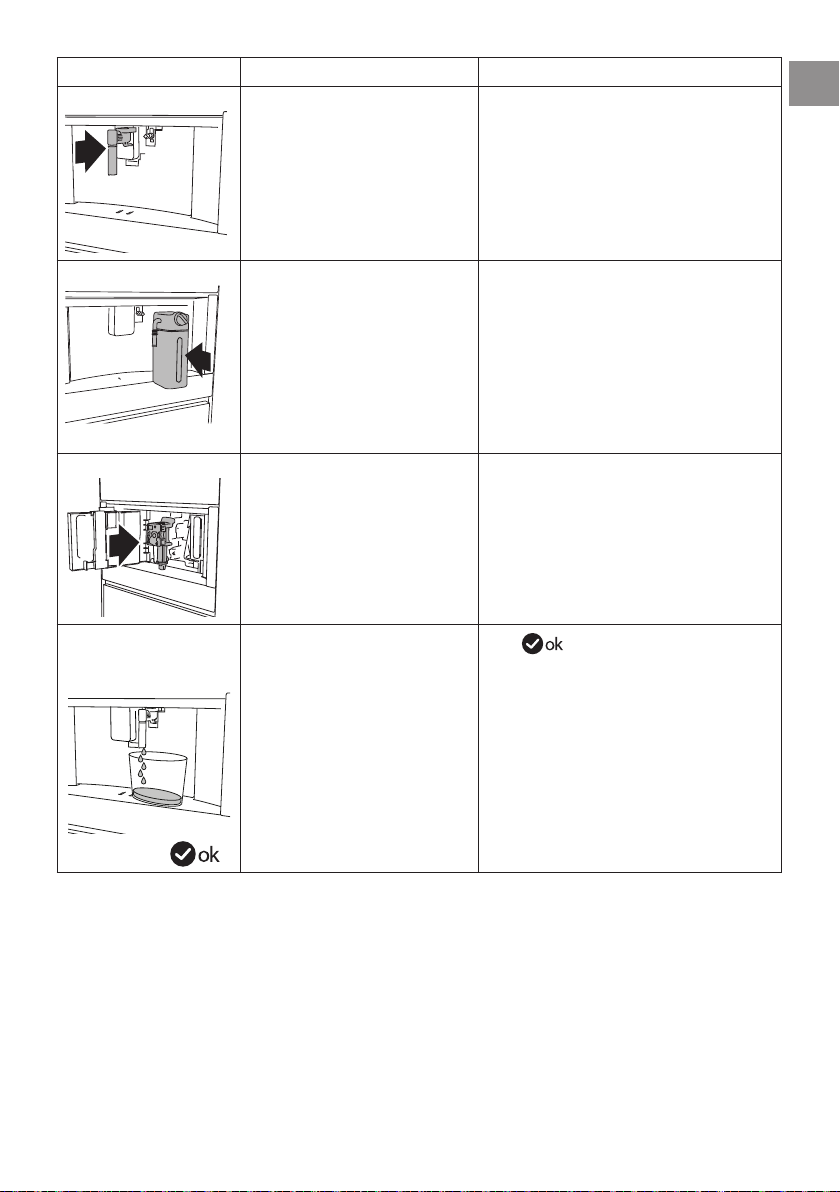

DISPLAYED MESSAGES

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY

FILL WATER TANK WITH FRESH WATER

Water in the tank

(A12)

is not sucient. Fill the tank with water and/or insert it correctly,

pushing it as far as it will go until it clicks into place.

EMPTY GROUND CONTAINER

INSERT GROUND CONTAINER After cleaning, the grounds container

ADD PREGROUND COFFEE PREGROUND MAXIMUM ONE MEASURING CUP

The grounds container (A4) is full.

(A4),

has not been replaced.

The "pre-ground coee" function has been selected, but without placing any pre-ground coee in the funnel

The funnel

(A21)

for pre-ground coee, is

clogged.

(A21)

Empty the grounds container and drip tray (A14), clean and then replace them. Important: when removing the drip tray, the grounds container must always be emptied, even if it contains few grounds. If this is not done, when you make the next coees, the grounds container may ll up more than expected and clog the machine.

Remove the drip tray (A14) and insert the grounds container.

Place pre-ground coee in the funnel repeat delivery

Empty the funnel with the help of the brush (C5) as described in par. "Cleaning the pre-ground coee funnel".

(g.14)

and

Page 22

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY

ADD PREGROUND COFFEE PREGROUND MAXIMUM ONE MEASURING CUP

A LONG coee with pre-ground coee has been requested

Place pre-ground coee in the funnel (A21) (g.14) and press to continue and complete delivery.

FILL BEAN CONTAINER

GROUND TOO FINE. ADJUST GRIND LEVEL 1 CLICK WHILE IN OPERATION

SELECT A MILDER TASTE OR REDUCE PREGROUND COFFEE QUANTITY

The coee beans have run out. Fill the beans container

The grinding is too ne and the coee is delivered too slowly or not at all.

Repeat coee delivery and turn the grinding adjustment dial

(g.11)

one click clockwise towards number 7 while the coee mill is in operation. If after making at least 2 coees delivery is still too slow, repeat the correction procedure, turning the grinding adjustment dial another click (par. "Adjusting the coee mill"

)

. If the problem persists, make sure the

water tank (A12) is fully inserted.

If the water softener lter (C4) is present, an air bubble may have been released inside the circuit, obstructing delivery.

Too much coee has been used.

Insert the hot water/steam spout (C6) in the appliance and deliver a little water until the ow becomes regular.

Select a milder taste by pressing AROMA (B6) or reduce the quantity of pre-ground coee (maximum 1 measure).

(A16 - g.12)

Page 23

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY

INSERT WATER OUTLET

The hot water spout (C6) is not inserted or is inserted incorrectly

Insert the water spout as far as it will go.

INSERT MILK CONTAINER

INSERT BREWING UNIT

WATER CIRCUIT EMPTY PRESS OK TO START FILLING PROCESS

The milk container (D) is not inserted correctly.

After cleaning the infuser has not been replaced.

The water circuit is empty

Insert the milk container as far as it will go

Insert the infuser as described in par. "Cleaning the infuser".

Press spout ( If the problem persists, make sure the water tank (A12) is fully inserted.

and allow water to drain out of the

C6)

: the ow will stop itself automatically.

(g.19)

Page 24

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY

PRESS OK TO START CLEANING PROCESS OR TURN MILK FROTH ADJUSTMENT KNOB

The milk container has been inserted with the froth adjustment dial (D1) in the CLEAN position .

To proceed with the CLEAN function, press or turn the froth adjustment dial to one of the milk positions.

TURN THE MILK FROTH ADJUSTMENT KNOB TO START CLEANING

TURN THE MILK FROTH ADJUSTMENT KNOB TOMILKPOSITION

DESCALING NEEDED PRESS OK TO START ~45MIN

Milk has been delivered recently and the tubes inside the milk container must be cleaned (D).

The milk container has been inserted with the froth adjustment dial (D1) in the CLEAN position.

Indicates that the machine must be de-scaled.

Turn the froth adjustment dial (D1) to CLEAN

(g.21).

Turn the dial to the required froth position.

Press

to start de-scaling or press to de-scale later. The de-scaling procedure described in section “De-scale” needs to be performed.

REPLACE WATER FILTER PRESS OK TO START

The water softener lter (C4) is exhausted.

Press

to replace or remove the lter, or

to carry out the procedure later. Follow the

instructions in section “Water softener lter”.

Page 25

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY

GENERAL ALARM: REFER TO USER MANUAL

The inside of the appliance is very dirty. Clean the inside of the appliance thoroughly, as

described in section “Cleaning”. If the message is still displayed after cleaning, contact an authorised Customer Service centre.

Reminder that appliance needs de-scaling and/or the lter (C4) must be replaced.

Reminder that tubes inside the milk container (D) must be cleaned.

Reminder that lter (C4) must be replaced.

Reminder that machine must be de-scaled.

Indicates that the auto-start function is enabled.

Energy saving is enabled. To disable energy saving, proceed as described in par.

Indicates that the lter (C4) has been enabled

CLEANING PLEASE WAIT

MACHINE TOO HOT Using the stirrers continuously for long

The appliance has detected impurities in its internal circuits.

periods may cause the appliance to overheat

The de-scaling procedure described in section “Descale” needs to be performed as soon as possible and/or the lter needs replacing or removing as described in section “Water softener lter”.

Turn the froth adjustment dial (D1) to CLEAN

Replace the lter or remove it as described in section “Water softener lter”.

The de-scaling procedure described in section “Descale” needs to be carried out as soon as possible.

To disable the function, proceed as described in par. "Auto-start

"Energy saving

To remove the lter, proceed as described in section “Water softener lter”.

Wait for the appliance to be ready for use again and reselect the required beverage. Contact an Authorised Customer Service Centre if the problem persists.

Wait for the appliance to cool down.

(g.21).

Page 26

TROUBLESHOOTING

Below is a list of some of the possible malfunctions. If the problem cannot be resolved as described, contact Customer Services Technical Assistance.

PROBLEM POSSIBLE CAUSE REMEDY

The coee is not hot. The cups were not preheated. Warm the cups by rinsing them with hot water

(Please note! the hot water function can be used).

The infuser has cooled down because 2/3 minutes have elapsed since the last coee was made.

A low coee temperature is set.

The coee is weak or not creamy

The coee is ground too coarsely. Turn the grinding adjustment dial one click an-

enough.

The coee is unsuitable. Use coee for espresso machines.

The coee is delivered too slowly or a

The coee is ground too nely. Turn the grinding adjustment dial one click

drop at a time.

Coee does not come out of one or

The coee spouts (A13) are blocked. Clean the spouts with a toothpick (g.30).

both of the spouts.

The appliance is not producing coee The appliance detects impurities in its

system: the display shows "CLEANING IN PROGRESS".

The appliance does not come on It is not plugged into the socket. Plug into the mains socket (g.1).

Before making the coee, heat the infuser by rinsing using the rinse function

(see par. "Rins-

ing ").

Set a hotter coee temperature in the menu (see par. "Coee temperature

" ).

ticlockwise towards number 1 while the coee mill is in operation (g.11). Continue one click at a time until coee delivery is satisfactory. The eect can only be noticed after delivering 2 coees (see par. "Adjusting the coee mill").

clockwise towards number 7 while the coee mill is in operation (g.11). Continue one click at a time until coee delivery is satisfactory. The eect can only be noticed after delivering 2 coees (see par. "Adjusting the coee mill").

Wait for the appliance to be ready for use again and reselect the required beverage. Contact an Authorised Customer Service Centre if the problem persists.

The main switch (A21) is not turned on. Press the main switch (g.2).

The infuser cannot be extracted The appliance has not been turned o

correctly

At the end of de-scaling, the appliance requests a third rinse

During the two rinse cycles, the water tank (A12) was not lled to the MAX level

Turn the appliance o by pressing the button (A7)

(see section “Turning the appliance

o”).

Follow the instructions displayed by the appliance, rst emptying the drip tray (A14) to avoid the water overowing.

Page 27

PROBLEM POSSIBLE CAUSE REMEDY

The milk does not come out of the milk spout (D5)

The milk contains large bubbles and squirts out of the milk spout (D5) or there is little froth

The machine emits noises or small pus of steam while not in use

The lid (D2) of the milk container (D) is dirty

The milk is not cold enough or is not semi-skimmed or skimmed.

The froth adjustment dial (D1) is incorrectly adjusted.

The milk container lid (D2) or froth adjustment dial (D1) is dirty

The hot water/steam connection nozzle (A13) is dirty

The machine is ready for use, or has recently been turned o, and condensate is dripping into the vaporiser which is still hot

Clean the milk container lid as described in par. "Cleaning the milk container".

Use fully skimmed or semi-skimmed milk at refrigerator temperature (about 5° C). If the result is not as you wished, try changing brand of milk.

Adjust following the instructions in section “Adjusting the amount of froth”.

Clean the milk container lid and froth adjustment dial as described in par. "Cleaning the milk container".

Clean the connection nozzle as described in par. "Cleaning the hot water/steam connection nozzle".

This is part of normal operation.To limit this, empty the drip tray.

Page 28

ESPRESSO

Origin Italy PROCESS Grinding Coee powder 6-11gr (according to aroma)

RESULT IN CUP Default Quantity ~ 40ml

OCCASION OF USE short-term pleasure, every moment of the day

Brewing Pre-infusion •

Infusion high pressure (9-12 bar)

Cream compact and nut-coloured Taste intense

COFFEE

Origin Germany & Central Europe PROCESS Grinding Coee powder 8-14gr (according to aroma)

RESULT IN CUP Default Quantity ~ 180ml

OCCASION OF USE long-lasting pleasure, every moment of the day

Brewing Pre-infusion no pre infusion

Infusion high pressure (9-12 bar)

Cream thinner than espresso Taste balanced and delicate

LONG

Origin USA, Australia PROCESS Grinding Coee powder 2 grindings of 5-9gr (according to aroma)

RESULT IN CUP Default Quantity ~ 160ml

OCCASION OF USE long-lasting pleasure, every moment of the day

Brewing Pre-infusion no pre infusion

Infusion impulse mode lower pressure than espresso

Cream thinner and lighter than espresso Taste perfect for drip coee lovers

DOPPIO+

Origin Italy PROCESS Grinding Coee powder 15gr

RESULT IN CUP Default Quantity ~ 120ml

OCCASION OF USE need for energy

Brewing Pre-infusion reduced pre infusion

Infusion higher pressure than espresso

Cream thicker and darker than espresso Taste stronger than espresso

AMERICANO

Origin USA, UK PROCESS Grinding Coee powder 6-11gr (according to aroma)

RESULT IN CUP Default Quantity ~ 150ml

Brewing Pre-infusion •

Infusion high pressure (9-12 bar)

Cream thinner and lighter than espresso Taste Light and delicate

ESPRESSO MACCHIATO

Origin Italy PROCESS Coee 6-11gr (according to aroma) (~ 30ml)

RESULT IN CUP Visual black with one thin layer or milk foam

OCCASION OF USE every moment of the day, people who want to taste a slightly sweet espresso

Milk few drops (~ 20ml) Milk foam maximum level Delivery order coee rst, milk afterwards

Milk foam

Page 29

CAPPUCCINO

Origin Italy PROCESS Coee balanced (~ 80ml)

Milk balanced (~ 70ml) Milk foam maximum level Delivery order milk rst, coee afterwards

RESULT IN CUP Visual separate layers of foam, coee and milk

Milk foam white with milky taste

OCCASION OF USE every moment of the day, people who want to taste coee and milk separately

CAPPUCCINO+

Origin Italy PROCESS Coee Doppio+ (~ 120ml)

Milk ~ 70ml Milk foam maximum level Delivery order milk rst, coee afterwards

RESULT IN CUP Visual darker than cappuccino

Milk foam separate layers of foam, coee and milk, with milky taste

OCCASION OF USE need for energy, people who want a cappuccino with a strong coee taste

CAPPUCCINOMIX

Origin Italy PROCESS Coee balanced (~ 80ml)

Milk balanced (~ 70ml) Milk foam maximum level Delivery order coee rst, milk afterwards

RESULT IN CUP Visual uniformly brown milk drink

Milk foam light brown with coee taste

OCCASION OF USE every moment of the day, people who loves melted milk and coee tastes

LATTE MACCHIATO

Origin Italy PROCESS Coee ~ 60ml

Milk ~ 90ml Milk foam medium level Delivery order milk rst, coee afterwards

RESULT IN CUP Visual separate layers of foam, coee and milk

Milk foam white with milky taste

OCCASION OF USE every moment of the day, people who want to taste coee and milk separately

FLAT WHITE

Origin USA, Australia PROCESS Coee ~ 60ml

Milk ~ 200ml Milk foam medium level Delivery order milk rst, coee afterwards

RESULT IN CUP Visual separate layers of foam, coee and milk

Milk foam served in a ceramic cup white with milky taste

OCCASION OF USE every moment of the day, people who want to taste coee and milk separately

CAFFELATTE

Origin Italy PROCESS Coee ~ 60ml

Milk ~240ml Milk foam medium level Delivery order milk rst, coee afterwards

RESULT IN CUP Visual separate layers coee and milk

Milk foam little layer of white foam with milky taste

OCCASION OF USE every moment of the day, people who want to taste coee and milk separately

Page 30

Page 31

The manufacturer reserves the right to make any changes deemed useful for improvement of its products without prior notice. The illustrations and descriptions contained in this manual are therefore not binding and are merely indicative.

Page 32

SMEG S.p.A.

Via Leonardo Da Vinci, 4 42016 San Girolamo di Guastalla (RE) ITALY

www.smeg.com

5713239521_01_1018

Smeg CMS4104G, CMS4303X User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
