SMC Networks SMCWTK-G User Manual

Copyright

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.

However, no responsibility is assumed by SMC for its use, nor for any infringements of patents

or other rights of third parties which may result from its use. No license is granted by implication

or otherwise under any patent or patent rights of SMC. SMC reserves the right to change

specifications at any time without notice.

Copyright © 2004 by

SMC Networks, Inc.

38 Tesla

Irvine, California 92618

All rights reserved.

Trademarks

SMC® is a registered trademark; and EZ-Stream, EZ Connect, Barricade and EZ Hub are

trademarks of SMC Networks, Inc. Other product and company names are trademarks or

registered trademarks of their respective holders.

Compliances

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiated radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

z Reorient or relocate the receiving antenna.

z Increase the separation between the equipment and receiver.

z Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

z Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, (example – use only shielded interface cables

when connecting to computer or peripheral devices). Any changes or modifications not

expressly approved by the party responsible for compliance could void the user’s authority to

operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20 cm

between the radiator & your body.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

Industry Canada - Class B

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital

apparatus as set out in the interference-causing equipment standard entitled “Digital

Apparatus,” ICES-003 of Industry Canada.

Cet appareil numerique respecte les limites de bruits radioelectriques applicables

aux appareils umeriques de Classe B prescrites dans la norme sur le material

brouilleur: “Appareils Numeriques,” NMB-003 edictee par l’Industrie.

EC Conformance Declaration

The following importer/manufacturer is responsible for making this declaration:

SMC Networks-Spain, S.L.

Edificio Conata II,

Calle Fructuós Gelabert 6-8, 2o, 4a,

08970 - Sant Joan Despí,

Barcelona, Spain.

This RF product complies with R&TTE Directive 99/5/EC. For the evaluation of the compliance

with this Directive, the following standards were applied:

• Electromagnetic compatibility and radio spectrum matters (ERM)

EN300 328-1 (2001-12)

EN300 328-2 (2001-12)

• Electromagnetic Compatibility (EMC) Standard for radio equipment and services

EN301 489-1

EN301 489-17

• Safety Test

EN60950

Intended for use in the following countries:

Austria

Belgium

Denmark

Finland

France

Germany

Italy

Luxembourg

Netherlands

Norway

Spain

Sweden

Switzerland

United

Kingdom

Portugal

Greece

Ireland

Iceland

Wichtige Sicherheitshinweise (Germany)

1. Bitte lesen Sie diese Hinweise sorgfältig durch.

2. Heben Sie diese Anleitung für den späteren Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie keine Flüssig-

oder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung.

4. Die Netzanschlußsteckdose soll nahe dem Gerät angebracht und leicht zugänglich sein.

5. Das Gerät ist vor Feuchtigkeit zu schützen.

6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen oder Fallen

könnte Beschädigungen hervorrufen.

7. Die Belüftungsöffnungen dienen der Luftzirkulation, die das Gerät vor Überhitzung schützt.

Sorgen Sie dafür, daß diese Öffnungen nicht abgedeckt werden.

8. Beachten Sie beim Anschluß an das Stromnetz die Anschlußwerte.

9. Verlegen Sie die Netzanschlußleitung so, daß niemand darüber fallen kann. Es sollte auch

nichts auf der Leitung abgestellt werden.

10. Alle Hinweise und Warnungen, die sich am Gerät befinden, sind zu beachten.

11.Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom Stromnetz

trennen. Somit wird im Falle einer Überspannung eine Beschädigung vermieden.

12. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten in das Gerät

gelangen. Dies könnte einen Brand bzw. elektrischen Schlag auslösen.

13. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit nur

von authorisiertem Servicepersonal geöffnet werden.

14. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von einer

qualifizierten Servicestelle zu überprüfen:

a. Netzkabel oder Netzstecker sind beschädigt.

b. Flüssigkeit ist in das Gerät eingedrungen.

c. Das Gerät war Feuchtigkeit ausgesetzt.

d. Wenn das Gerät nicht der Bedienungsanleitung entsprechend funktioniert oder Sie mit Hilfe

dieser Anleitung keine Verbesserung erzielen.

e. Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.

f. Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.

15. Stellen Sie sicher, daß die Stromversorgung dieses Gerätes nach der EN60950 geprüft ist.

Ausgangswerte der Stromversorgung sollten die Werte von AC 7,5-8V, 50-60Hz nicht über-

oder unterschreiten sowie den minimalen

Strom von 1A nicht unterschreiten. Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45

635 Teil 1000 beträgt 70dB(A) oder weniger.

1. Introduction

1.1 EZ Connect™ g 2.4GHz 802.11g Wireless Traveler’s Kit

SMCWTK-G is another innovative solution brought to you by SMC. It is the industry’s first

compact All-in-One device that fits in a convenient easy-to-carry case. The new product offers

5 different modes: Access Point, Ethernet Bridge, Repeater, Point-to-Point Bridging, and

Point-to-Multipoint Bridging.

The new EZ Connect™ g 802.11g Wireless Traveler’s Kit is the perfect business traveler’s

companion. Imagine checking into your hotel room with broadband connection after a long

day’s trip, plug in your SMCWTK-G as your Personal Access Point, you can now enjoy and

relax at your bed or sofa in your room to check email or surf the Internet.

SMCWTK-G can be used as an Ethernet Bridge that instantly converts any Ethernet device,

such as a gaming console, printer, set-top box, point-of-sale terminal, desktop or laptop

computer into a wireless network device. The new product does not require installing any

drivers. Simply plug it into your Ethernet device and your Ethernet device will become wireless!

The new SMCWTK-G is the ultimate convenient way to expand your wireless local area

network. The new product can also be configured as a Repeater via support for Wireless

Distribution System (WDS). Thus allowing you to connect your 802.11b and/or 802.11g clients

to the wireless network or extend the coverage of your WLAN in your home or office by simply

placing additional SMCWTK-G in the desired locations.

In cases where you need to bridge two networks together, the SMCWTK-G’s Point-to-Point and

Point-to-Multipoint Bridging functions is an ideal solution. That way the networks are

wirelessly connected without the need of expensive cabling.

1.2 Features

• IEEE 802.11b, and 802.11g-Compliant

• High Data Rates at up to 54 Mbps

• EZ Installation Wizard

• Plug-and-Play, no drivers needed

• USB powered, no power adapter is needed

• All-in-one compact device

• Supports 5 different modes – Access Point, Ethernet Bridge, Repeater, Point-to-Point

Bridging, and Point-to-Multipoint Bridging

• Personal Access Point mode

• 802.11g Wireless Ethernet Bridge converts any Ethernet-equipped device to wireless

• Repeater function (via WDS) extends the range of your wireless network

• Point-to-Point Bridging, and Point-to-Multipoint Bridging connects remote workgroup easily

• Supports highly secure wireless connections

1.3 System Requirements

• Internet Explorer/Netscape Navigator 5.0 or higher

• PC running Windows 98SE/ME/2000/XP

• CD-ROM drive

• An AC power outlet or an available USB port to supply power to the SMCWTK-G

• An available RJ-45 port on a 10/100 Mbps Ethernet hub or switch

• Another IEEE 802.11b or 802.11g compliant device installed on your network such as

the Barricade™ g Wireless Broadband Router with USB Print Server (SMC2804WBRP-G)

or another wireless adapter such as the EZ Connect™ g Wireless Cardbus Adapter

(SMC2835W)

1.4 Package Contents

After unpacking the SMCWTK-G EZ Connect™ g 2.4GHz 802.11g Wireless Traveler’s Kit,

check the contents of the box to be sure you have received the following components:

• 1 SMCWTK-G device

• 1 USB Cable

• 1 Power Adapter

• 1 Cat-5 Ethernet Cable

• 1 EZ Installation Wizard and Documentation CD

• 1 Quick Installation Guide

Immediately inform your dealer in the event of any incorrect, missing or damaged parts. If

possible, please retain the carton and original packing materials in case there is a need to

return the product.

Please register this product and upgrade the product warranty at SMC’s Web site:

http://www.smc.com

2. Using the EZ Installation Wizard

The installation method makes the process as simple as possible.

1. Connect the SMCWTK-G to a PC using the Cat-5 Ethernet Cable.

2. Plug in the 4V power supply or use the supplied USB cable to plug into an available USB

port on the PC.

3. Insert the EZ Installation Wizard and Documentation CD.

4. Select “Install Utility”.

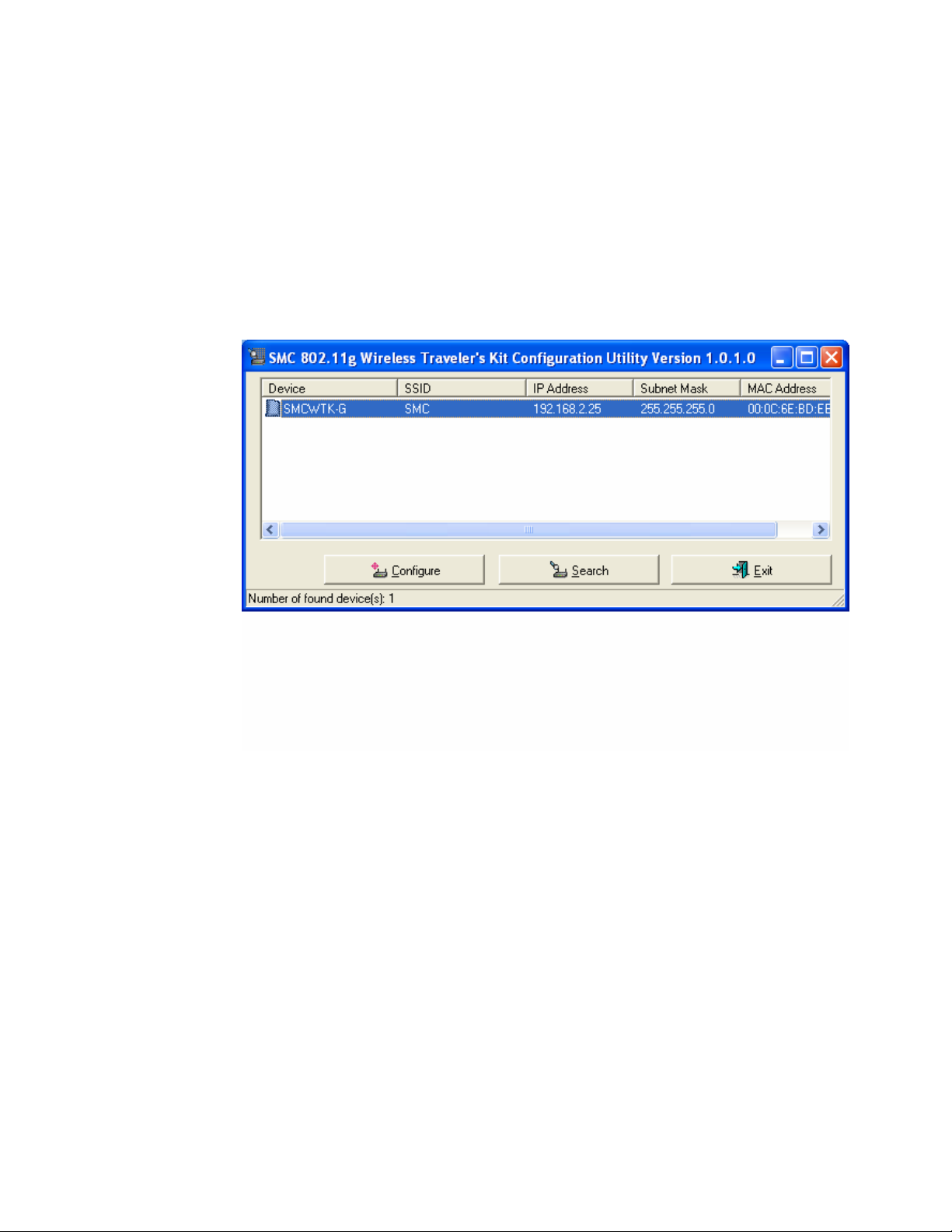

5. The Scan/Configuration Utility is now installed. Go to “Start”, then “Programs”, select “SMC

802.11g Wireless Traveler’s Kit”, and then “SMC 802.11g Wireless Traveler’s Kit Configuration

Utility” to start the SMCWTK-G Scan/Configuration Utility Program.

6. The Scan/Configuration automatically scans for SMCWTK-G on the network.

7. Highlight the SMCWTK-G that you would like to configure and click “Configure”. If your PC

has the same IP address subnet range as the SMCWTK-G, then the login screen will appear.

Enter the username and password. The default IP address of the SMCWTK-G is 192.168.2.25.

The username is “admin” and the password is “smcadmin”. Skip to Step 10.

8. Make sure the PC has an IP address on the 192.168.2.xxx subnet, such as 192.168.2.30. If

not, the IP window will appear, as shown below. From this window, set the static IP address of

the PC to be in the same subnet as the SMCWTK-G, e.g. 192.168.2.30. Set the “Subnet

Mask” to be “255.255.255.0”. Default Gateway is usually the IP address of your router, e.g.

192.168.2.1. Click OK. Your PC may require a reboot after changing the IP address. Click

“Yes” to reboot PC if prompted.

9. From Scan/Configuration Utility, select the SMCWTK-G that you would like to configure and

click “Configure”. You will be asked to enter the username and password to configure the

SMCWTK-G. By default, the username is “admin” and the password is “smcadmin”. Enter this

information and click OK.

10. The default mode of SMCWTK-G is Access Point (AP) mode. To switch to Client,

Repeater, Point-to-Point Bridging (P2P), or Point-to-Multipoint Bridging (PMP) mode, go to the

Mode Page and select the desired mode. Click Apply.

11. Then go to the Mode page and click Setup. Configure the applicable properties for that

mode, such as the SSID, Channel, and Security.

12. The SMCWTK-G is now ready to use.

3. Operating Modes

3.1 Introduction to Operating Modes

3.1.1 Traveler’s AP Mode

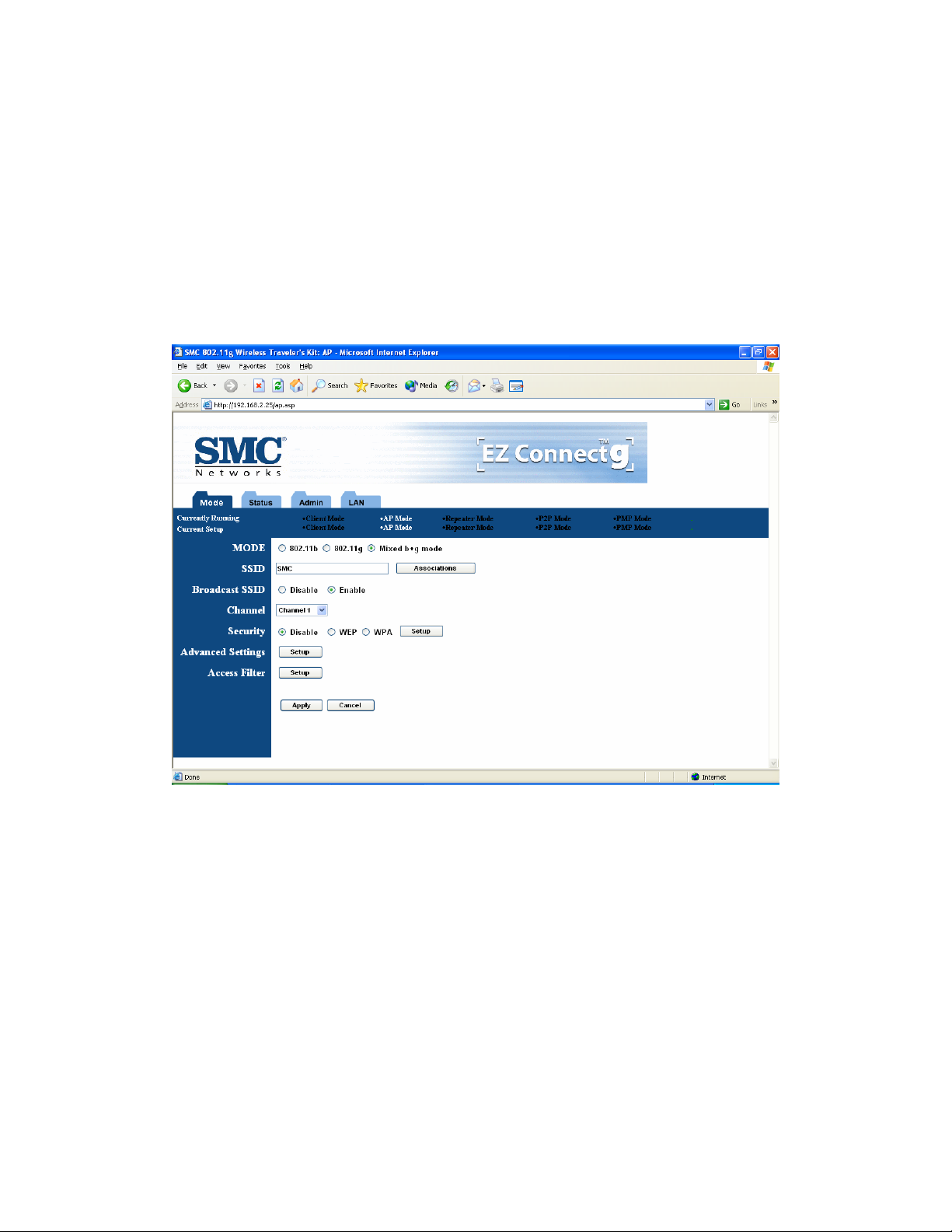

The Access Point (AP) mode is by default the out-of-box operational mode.

When the user resets the system to the default manufacturing settings, the

operational mode also reverts to AP mode. In the AP mode, the system functions as

a standard AP, where wireless clients connected to the AP can then connect to other

wireless clients or to the wired network. For example, when traveling to a hotel that

has high speed internet access, the user can connect to the Internet through the AP

which is connected to an Ethernet cable in the room.

Note that the SMCWTK-G AP does not act as a DHCP server. In other words,

it does not supply dynamic IP addresses and instead relies on the network to

supply them.

Figure 1: AP Mode.

3.1.2 Repeater Mode

Repeater mode extends the range of a wireless network. Repeater nodes

re-transmit the signal of an AP or wireless router to effectively extend the range of

that AP or wireless router. Wireless clients can associate with the repeater.

Figure2 shows the network with one repeater, and the repeater allowing

wireless clients to associate.

To configure the SMCWTK-G as a Repeater, please ensure the following:

. • Enter the MAC address of the Parent AP or wireless router in the Remote AP MAC

. address field in the SMCWTK-G Repeater.

• Enter the MAC address of the SMCWTK-G (Repeater mode) in the Repeater MAC

address field in the Parent AP or wireless router.

Figure 2: One Wireless Repeater Node

3.1.3 Point-to-Point (P2P) Mode

Two SMCWTK-G devices, each in Point-to-Point (P2P) mode, can establish a

wireless connection between two wired networks, as shown in Figure3. The two

SMCWTK-G devices operating in P2P mode do not allow client associations.

To configure the SMCWTK-G deivces to establish a P2P wireless bridge,

please ensure the following:

. • Enter the MAC address of SMCWTK-G P2P_2 device in the P2P MAC address

. field in the SMCWTK-G P2P_1 device.

• Enter the MAC address of SMCWTK-G P2P_1 device in the P2P MAC address

field in the SMCWTK-G P2P_2 device.

Figure 3: P2P Wireless Bridge

3.1.4 Point-to-Multipoint (PMP) Mode

A SMCWTK-G device operating in Point-to-Multipoint (PMP) mode can wirelessly

connect two or more wired networks, as shown in Figure4. The root SMCWTK-G device (LAN

1) operates in PMP mode, and the other SMCWTK-G devices (LAN 2, LAN 3) must operate in

P2P mode.

When operating in PMP mode, the SMCWTK-G device does not allow client

associations. The user must enter the MAC addresses of each (up to six) SMCWTK-G P2P

device into the PMP system's table of Remote AP addresses.

Figure 4: PMP Wireless Bridge

3.1.5 Client Mode

When set to Client mode, the SMCWTK-G device will associate to an AP within

its range in Infrastructure mode, as shown in Figure 5or join with another

SMCWTK-G device in Client mode in an Ad-Hoc network, as shown in Figure 6. The

Client behaves like a normal wireless client.

Figure 5: Client in Infrastructure Mode

Figure 6: Client in Ad-Hoc Mode

SMCWTK-G Client Mode SMCWTK-G Client Mode

4. Wireless Security Support

The SMCWTK-G will support WEP encryption and WPA/PSK encryption as shown in Table1.

Table 1: Wireless Security

Mode WEP WPA/PSK Comments

Access Point Yes Yes In AP mode, the SMCWTK-G acts like a regular

AP. Supports WEP and WPA/PSK.

The link between the Repeater and wireless clients

will support either WEP or WPA/PSK. However, the

Repeater Yes No (for

Repeater-

AP link)

Yes (for

Repeater-

Client link)

link between the Repeater and the AP will support

only WEP in the initial release. Future releases will

support WPA/ PSK.

The link between SMCWTK-G devices in P2P

Point-to-Point Yes No

(P2P)

Point-to-Multipoint Yes No

(PMP)

Client Yes Yes

and/or PMP mode support only WEP in the initial

release. Future releases will support WPA/PSK.

The link between SMCWTK-G devices in P2P

and/or PMP mode will support only WEP in the

initial release. Future releases will support

WPA/PSK.

In Client mode, the WTK-G acts like a regular

wireless client, so it will support WEP and

WPA/PSK when connecting with an AP in

Infrastructure mode or when connecting to an

Ad-Hoc network.

5. Mode Selection

The first step in using the SMCWTK-G is selecting the operating mode. The default operating

mode is the AP mode.

To view the device’s web page, go to 192.168.2.25 (default IP address of the device) in your

web browser. The default username is “admin” and the password is “smcadmin.”

To select a mode, click the Mode tab. Click the radio button next to the desired mode and click

the Apply button. The device will reboot in the selected mode. After the device reboots, click the

Setup button to begin configuring the device.

Figure 7: Mode Page

6. AP Setup

6.1 Basic Setup

To configure the AP, select AP from the Mode page and click Setup. The following

table shows the basic setup options.

Figure 8: AP Setup Page

Table 2: AP Setup

Field Description

Mode Selects 802.11g/b mode:

802.11g only, 802.11b only, or Mixed

SSID Wireless Network Name

Association Wireless clients association table

SSID Broadcast Enable/disable the SSID broadcast feature.

RF Channel Selects the channel

Security

security. If using WEP or WPA, click the Setup button to

key(s).

Advanced

Settings

Access Filter Click Setup to configure the access filter

Selects the option to disable security or to use WEP or

WPA

enter the

Click Setup to configure advanced settings.

6.2 Security Setup

To enable security, select the desired security mode (WEP or WPA) from the AP

setup page and click Setup to enter the keys.

Figure 9: WEP Configuration

The following tables describe the security setup options in more detail.

Table 3: WEP Setup

Field Description

WEP Length Selects the WEP key length

Mode Selects the WEP key format, ASCII or Hex

Passphrase

button to generate the keys.

Key 1-4 WEP keys

Default Tx key Selects the default WEP key (1-4)

Passphrase used to generate the WEP keys. Click the

Generate

Figure 10: WPA Configuration

Table 4: WPA Setup

Field Description

Authentication Selects Pre-Shared Key (PSK) only.

Method

Passphrase WPA key

Group Re-Key

Time

Group Re-Key interval (seconds)

6.3 Advanced Settings

The Advanced Settings page allows you to configure advanced Radio settings as well as

extend the SMCWTK-G (AP mode) range by wirelessly linking it to a SMCWTK-G (Repeater mode).

Figure 11: Advanced Settings

The following table describes the setup options in detail.

Table 5: AP Advanced Settings

Field Description

Beacon Interval Beacon interval (in milliseconds)

RTS Threshold RTS threshold (in bytes)

DTIM Interval DTIM interval

Protection Mode

Transmit Rate Selects the transmit rate: Auto or a fixed rate

Preamble Type Selects short preamble, long preamble, or Auto

Connect Repeater Enables/Disables the use of a Repeater

Repeater MAC MAC address of the Repeater, if used

Address

Allows user to force 802.11g protection (RTS/CTS) mode

off.

6.3.1 Adding a Repeater

If a Repeater is used along with the Access Point, go to the Advanced

Settings page. Select Enable for the “Connect Repeater” field. Enter the MAC

address of the Repeater in the “Repeater MAC address” field.

6.4 Access Filter

The Access Filter page allows you to configure the AP to allow or deny association

to the AP based on the client’s MAC address. Up to 32 MAC addresses can be added to

the list.

Figure 12: Access Filter Settings

The following table describes the setup options in detail.

Table 6: AP Access Filter Settings

Field Description

MAC filtering Enables/Disables MAC filtering mode

Filter List

listed

Filter MAC Up to 32 MAC addresses can be listed, but only 16 can be

viewed/modified at a time. This pulldown menu selects

group of 16 to view/modify.

MAC addresses List of MAC addresses to filter

Provides the option to allow or deny clients with MAC

addresses

which

7. Repeater Setup

7.1 Basic Setup

To configure the Repeater, select Repeater from the Mode page and click Setup.

The following table shows the basic setup options.

To set up the Repeater, you must enter the MAC address of the AP or AP/Router

you want to connect to the Repeater.

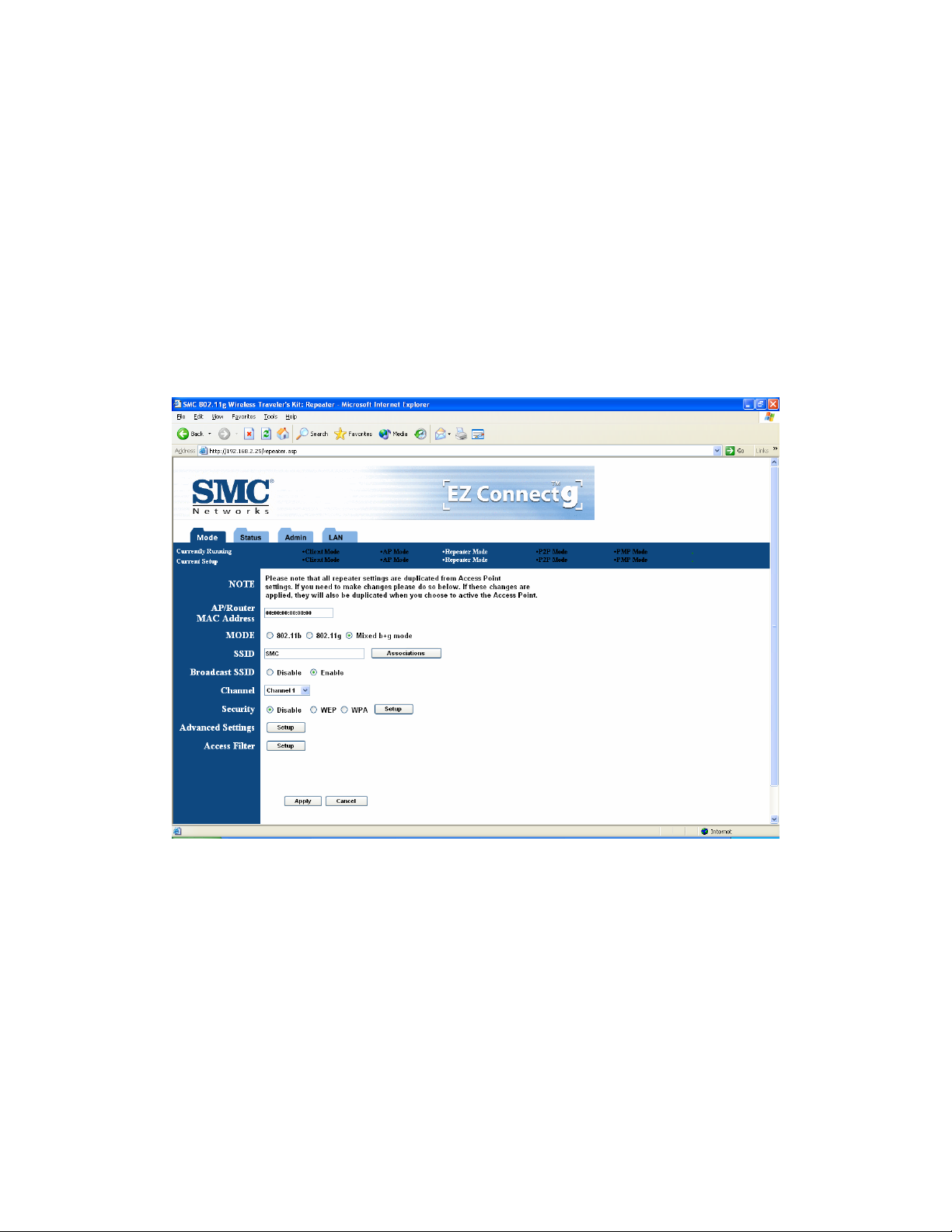

Figure 13: Repeater Setup

Table 7: Repeater Setup

Field Description

AP/Router MAC

Address

Mode Selects 802.11g/b mode:

802.11g only, 802.11b only, or Mixed

SSID Broadcast Enable/disable the SSID broadcast feature.

Channel Selects the channel

Security

Advanced

Settings

Access Filter Click Setup to configure the access filter

MAC address of AP/Router that this Repeater is connected

to.

Selects the option to disable security or to use WEP or

WPA security. If using WEP or WPA, click the Setup button

to enter the key(s).

Click Setup to configure advanced settings.

7.2 Security Setup

To enable security, select the desired security mode (WEP or WPA) from the setup

page and click Setup to enter the keys. The following tables describe the security setup

options in more detail.

Table 8: WEP Setup

Field Description

WEP Length Selects the WEP key length

Mode Selects the WEP key format, ASCII or Hex

Passphrase

Key 1-4 WEP keys

Default Tx key Selects the default WEP key (1-4)

Passphrase used to generate the WEP keys. Click the

Generate button to generate the keys

Table 9: WPA Setup

Field Description

Authentication Selects Pre-Shared Key (PSK) or 802.1x mode

Method

Passphrase WPA key

Group Re-Key

Time

Group Re-Key interval (seconds)

7.3 Advanced Settings

The Advanced Settings page allows you to configure advanced Radio settings. The

following table describes the setup options in detail.

Table 10: Repeater Advanced Settings Field

Field Description

Beacon Interval Beacon interval (in milliseconds)

RTS Threshold RTS threshold (in bytes)

DTIM Interval DTIM interval

Protection Mode

Transmit Rate Selects the transmit rate: Auto or a fixed rate

Allows user to force 802.11g protection (RTS/CTS) mode

off.

Preamble Type Selects short preamble, long preamble or Auto

7.4 Access Filter

The Access Filter page allows you to configure the Repeater to allow or deny

association to the Repeater based on the client’s MAC address. Up to 32 MAC addresses

can be added to the list. The following table describes the setup options in detail.

Table 11: Repeater Access Filter Settings

Field Description

MAC filtering Enables/Disables MAC filtering mode

Filter List

Filter MAC Up to 32 MAC addresses can be listed, but only 16 can be

viewed/modified at a time. This pulldown menu selects

MAC addresses List of MAC addresses to filter

Provides the option to allow or deny clients with MAC

addresses listed

which group of 16 to view/modify.

8. Point-to-Point (P2P) Setup

8.1 Basic Setup

To configure the P2P Bridge, select P2P from the Mode page and click Setup. The

following table shows the basic setup options.

To set up the P2P bridge, you must enter the MAC address of the other P2P

bridge you want to connect to this P2P bridge.

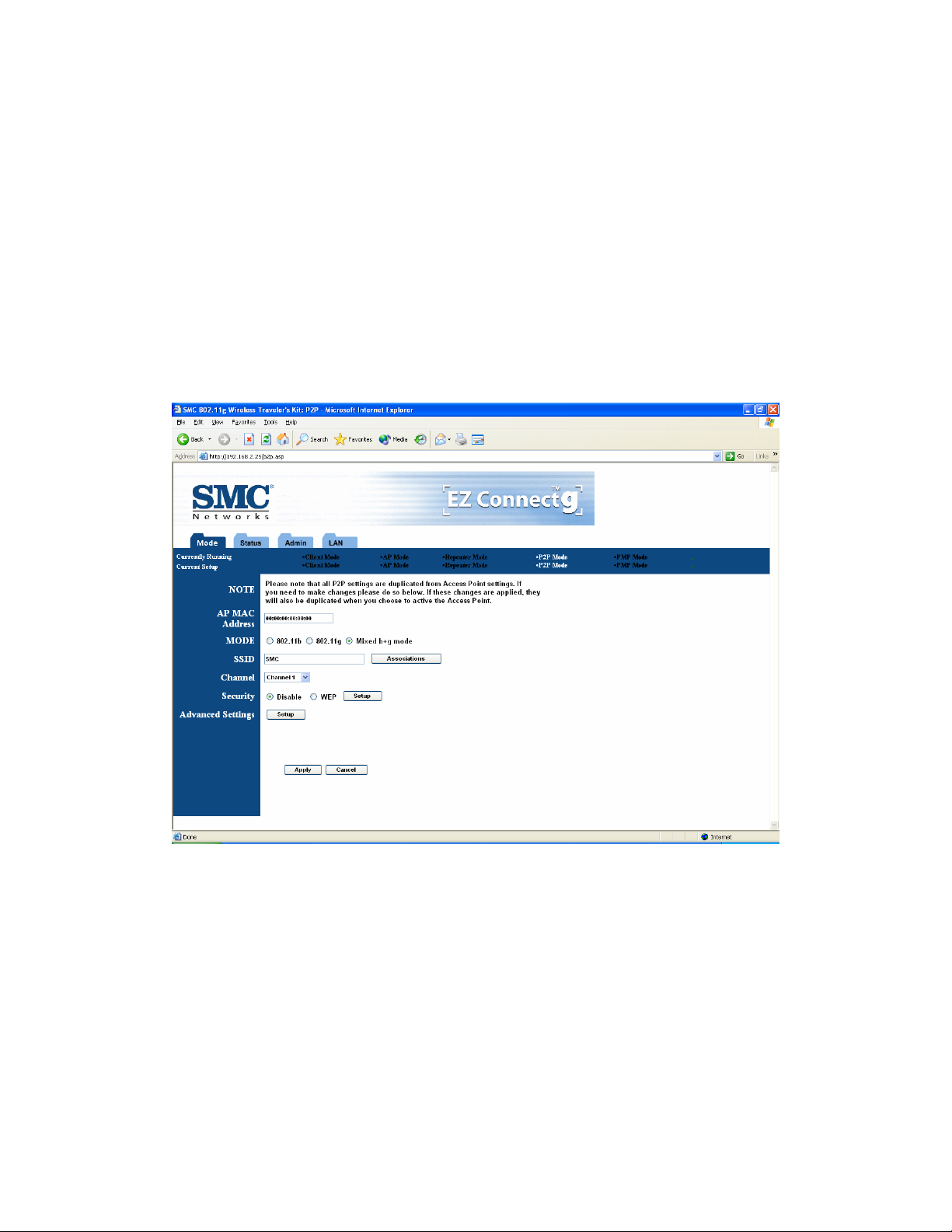

Figure 14: P2P Setup

8.2 Security Setup

To enable security, select WEP from the setup page and click Setup to enter the

keys. The following tables describe the security setup options in more detail.

Table 13: WEP Setup

Field Description

WEP Length Selects the WEP key length

Mode Selects the WEP key format, ASCII or Hex

Passphrase

Key 1-4 WEP keys

Default Tx key Selects the default WEP key (1-4)

Passphrase used to generate the WEP keys. Click the

Generate button to generate the keys

8.3 Advanced Settings

The Advanced Settings page allows you to configure advanced Radio settings. The

following table describes the setup options in detail.

Table 14: P2P Advanced Settings

Field Description

RTS Threshold RTS threshold (in bytes)

DTIM Interval DTIM interval

Protection Mode

Transmit Rate Selects the transmit rate: Auto or a fixed rate

Preamble Type Selects short preamble, long preamble or Auto

Allows user to force 802.11g protection (RTS/CTS) mode

off.

9. Point-to-Multipoint (PMP) Setup

9.1 Basic Setup

To configure the PMP Bridge, select PMP from the Mode page and click Setup.

The following table shows the basic setup options

To set up the PMP bridge, you must enter the MAC address(es) of the P2P bridge(s)

you want to connect to this PMP bridge.

Figure 15: PMP Setup

Table 15: PMP Setup

Field Description

AP MAC Address

(1-6)

Mode Selects 802.11g/b mode:

802.11g only, 802.11b only, or Mixed

Channel Selects the channel

Security

Advanced

Settings

MAC address(es) of the P2P bridges that are connected to

this PMP bridge

Selects the option to disable security or to use WEP

security. If using WEP, click the Setup button to enter the

key(s).

Click Setup to configure advanced settings.

9.2 Security Setup

To enable security, select WEP from the setup page and click Setup to enter the

keys. The following tables describe the security setup options in more detail.

Table 16: WEP Setup

Field Description

WEP Length Selects the WEP key length

Mode Selects the WEP key format, ASCII or Hex

Passphrase

Key 1-4 WEP keys

Default Tx key Selects the default WEP key (1-4)

Passphrase used to generate the WEP keys. Click the

Generate button to generate the keys.

9.3 Advanced Settings

The Advanced Settings page allows you to configure advanced Radio settings. The

following table describes the setup options in detail.

Table 17: PMP Advanced Settings

Field Description

RTS Threshold RTS threshold (in bytes)

DTIM Interval DTIM interval

Protection Mode

Transmit Rate Selects the transmit rate: Auto or a fixed rate

Preamble Type Selects short preamble, long preamble or Auto

Allows user to force 802.11g protection (RTS/CTS) mode

off.

10. Client Mode Setup

10.1 Basic Setup

To configure the Client, select Client from the Mode page and click Setup. The

following table shows the basic setup options.

Figure 16: Client Bridge Setup

Table 18: Client Bridge Setup

Field Description

Station Mode Selects 802.11g/b mode:

802.11b only or 802.11g/b

Wireless Network Name. You can enter it directly in this

SSID

field or click the Site Survey button to select from a list of

available networks.

Channel Selects the channel (Ad-Hoc network only)

Operation Mode Selects Ad-Hoc or Infrastructure mode

Security Selects the option to disable security or to use WEP or WPA

Preamble Type Selects short or long preamble

Transmit Rate Selects the transmit rate: a fixed rate or Auto

security. If using WEP or WPA, click the Setup button to enter the

key(s).

10.2 MAC Cloning

To enable MAC cloning mode, go to the MAC Cloning field on the LAN page and

select Enabled. MAC cloning clones all the MAC addresses of the devices connected to

the Ethernet (wired) port to a single MAC address sent out wirelessly to an AP or

Repeater.

11. Status Page

The status page reports relevant status information for the device, for both the Ethernet

and wireless interfaces.

Figure 17: Status Page

12. Admin Page

The admin page lets you upgrade the device’s firmware or change the password.

Figure 18: Admin Page

12.1 Firmware Upgrade

To upgrade the firmware, click the Browse button and select the image file. Click

Apply to upgrade.

12.2 Update Password

To change the password, enter the new password in the New Password and

Reconfirm Password fields and click Apply

12.3 Reboot

To reboot, check the reboot radio and click Apply.

.

12.4 Reset to Default Setting

To reboot, check the reset to default radio and click Apply.

13. LAN Page

The LAN page lets you set the device’s IP address. The device can be configured to use

an automatic (DHCP) address or a fixed IP address. The default IP address is 192.168.2.25.

When the device is in Client mode, the LAN page also provides the MAC cloning option.

It is important that before you configure the SMCWTK-G device (regardless of the mode it is in)

to Automatic IP, you should know how to determine the SMCWTK-G device’s IP address

from the device it is connected to.

Figure 19: LAN Page

14. Scan/Configuration Utility

14.1 Configuration Utility

The Configuration utility is a discovery tool for an SMCWTK-G. This utility is available in the

EZ Installation Wizard CD that came with the SMCWTK-G package. Use the Configuration utility to

find and condfigure a SMCWTK-G.

Figure 20: Configuration Utility

15. Telnet Management

15.1 Telnet Step-by-Step

the IP address of the SMCWTK-G device you want to access (The default IP address is

192.168.2.25)

Step1: From the remote host, go to Command Prompt, enter the Telnet command and

Step2: At the prompt, enter the username and password (The default username is

“admin” and password is “smcadmin”). The CLI will display the “SMCWTK-G” prompt.

Step3: Enter the necessary commands to complete your desired tasks. Type “help”

for HELP. Below is the “Command Reference Table” for each command and its associated

task.

Table 19: Command Reference Table

Type Command Format Example

Get command

Get all Get all

Get ssid

Get ssid

Get channel

Get channel

Get security

Get security

Get defaultkey

Get defaultkey

Get wepkey

Get wepkey

Get wpakey

Get wpakey

Get mode

Get mode

Get site Get site

Set command

Other command

Set ssid Set ssid MYSMC_AP0 (SSID: “MYSMC_AP0”)

Set Channel Set channel 12 (Channel: 12)

Set Security Set Security 0 (0 is for Disable)

Set defaultkey Set defaultkey 1 (Default WEP Key: 1)

Set wepkey Set wepkey 1 1234567890 (Wepkey1: 1234567890)

Set wpakey Set wpakey smcisgood! (Wepkey: “smcisgood!”)

Set mode Set mode 2 (SMCWTK-G change to Repeater mode)

Logout Quit the telnet management.

Save Save the configuration to the flash

Finish Save and reboot

Product Specifications

Standard

• 802.11g/ 802.11b

Ethernet interface

• RJ45 for 100BaseT with auto-crossover MDI/MDI-X

Data Rate

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

• 802.11b:1, 2, 5.5, 11Mbps

Modulation Type

• 64 QAM(54Mbps,48Mbps)

• 16 QAM(36Mbps,24Mbps)

• QPSK(18Mbps,12Mbps)

• BPSK(9Mbps,6Mbps)

• CCK (11Mbps, 5.5Mbps)

• DQPSK (2Mbps), DBPSK

Radio Technology

• OFDM, DSSS

Output Power

• 15 ~ 18 dBm (at nominal temperature range)

Antenna

• 2 internal diversity IFA antennas

Range

• Up to 1,155 feet

Receiver Sensitivity

PER< 8% @ length=1024 octets (at nominal temperature range)

• 11Mbps: -82 ~ -85 dBm

• 5.5Mbps: -85 ~ -88 dBm

• 2 Mbps: -88 ~ -91 dBm

• 1 Mbps: -91 ~ -93 dBm

Operating Frequency

• 2.412-2.462GHz (N. America)

• 2.412-2.484GHz (Japan)

• 2.412-2.472GHz (Europe ETSI)

Security

• 64-bit/128-bit Wired Equivalent Privacy (WEP)

• WPA-PSK

• Disable SSID Broadcast

• MAC Address Filtering

Management and Configuration

• Web-based and Windows-based Utility

Operation Mode

• Access Point mode

• Ethernet Adapter mode

• Repeater (WDS)

• Point to Point Bridging

• Point to Multipoint Bridging

DC Power Adapter

• AC Input: 100V~240V (50~60HZ)

• DC Output: 4V with max. 1 A current

Operating Temperature

• 0 ~ 55 C

Storage Temperature

• -20~ 70 C

Humidity

• 5~95% (non-condensing)

Emissions

• FCC

• CE/ETSI

• Industry Canada

• C-tick

Size

• 2.5” x 3.375” x 0.75”

Weight

• 0.14 lbs (not including power adaptor and cables)

FOR TECHNICAL SUPPORT, CALL:

From U.S.A. and Canada (24 hours a day, 7 days a week)

(800) SMC-4-YOU; Phn: [phone]; Fax: [phone]

From Europe : Contact details can be found on

www.smc-europe.com or www.smc.com

INTERNET

E-mail addresses:

[e-mail]
[e-mail]

Driver updates:

http://www.smc.com/index.cfm?action=tech_support_drivers_downloads

World Wide Web:

http://www.smc.com/
http://www.smc-europe.com/

For Literature or Advertising Response, Call:

U.S.A. and Canada: (800) SMC-4-YOU Fax [phone]
Spain: 34-91-352-00-40 Fax [phone]
UK: 44 (0) 1932 866553 Fax [phone]
France: 33 (0) 41 38 32 32 Fax [phone]
Italy: 39 (0) 3355708602 Fax [phone]
Benelux: 31 33 455 72 88 Fax [phone]
Central Europe: 49 (0) 89 92861-0 Fax [phone]
Nordic: 46 (0) 868 70700 Fax [phone]
Eastern Europe: 34 -93-477-4920 Fax [phone]
Sub Saharan Africa: 216-712-36616 Fax [phone]
North West Africa: 34 93 477 4920 Fax [phone]
CIS: 7 (095) 7893573 Fax [phone]
PRC: 86-10-6235-4958 Fax [phone]
Taiwan: 886-2-87978006 Fax [phone]
Asia Pacific: (65) 238 6556 Fax [phone]
Korea: 82-2-553-0860 Fax [phone]
Japan: 81-45-224-2332 Fax [phone]
Australia:

61-2-8875-7887 Fax [phone]

India: 91-22-8204437 Fax [phone]

If you are looking for further contact information, please
visit www.smc.com or www.smc-europe.com.

Model Number: SMCWTK-G

38 Te sla
Irvine, CA 92618
Phone: [phone]
