Smc 7003-PCI DESCRIPTION OF HARDWARE

DESCRIPTION OF HARDWARE

The SMC7003-PCI is a cost effective, controller less ADSL solution that requires minimal external components. (Only one external line driver is needed in the analog front-end circuit). The SMC7003-PCI achieves transmission rates of up to 8Mbps downstream and 768Kbps upstream over existing copper wire. This rate is more than 140 times faster than a 56K analog modem. The SMC7003-PCI designed to meet ANSI T1.413 Issue 2, ITU G.dmt and G.lite requirements with both splitter and splitterless operations. In addition, the SMC7003-PCI is interoperable with all major “central office” DSLAMs. It’s software offers maximum implementation flexibility, management and diagnosis capabilities.

Features

l Compliant with ANSI T1.413 i2, ITU G.992.1 (G.dmt) and G.992.2

(G.lite) and G.994.1 (G.hs) in ADSL layer.

l Supports PPP RFC2364 (PPPoA), RFC2516, IP RFC1483 and IP

RFC1577 over ATM.

l Data rates up to 8Mbps downstream and 768Kbps upstream.

l Compliant with Microsoft WHQL Specification.

l Supports Win 95, 98, 2000, Millennium and NT4.0.

l Standard Windows Wizard driver installation.

DESCRIPTION OF HARDWARE

Connector Pin-out

The SMC7003-PCI is equipped with a RJ-11 jack for connection to the ADSL data port. The center two pins, pins 2 and 3, are used for ADSL data. For the card to make a proper ADSL connection, the installed ADSL data port should also use pins 2 and 3 for data. If the ADSL data port installation uses pins 1 and 4 for data, then a wiring converter will be required. Do not alter or remove the wiring converter if present. Consult with your ADSL provider before attempting any wiring changes.

Jumper Pin Configuration Guide

ATTENTION!! Before Installing the SMC7003 -PCI:

It is important to verify that the ADSL data port RJ-11 jack is configured so that the center two pins, pins 2 and 3, are used for ADSL data, otherwise the SMC7003-PCI will not make a proper connection. Your SMC7003-PCI features pin jumpers that enable the user to set the configuration to make the proper connection. The default setting of the SMC7003-PCI is set to 2 and 3. If the ADSL data port installation uses pins 1 and 4 for data, then the jumper settings on your board will need to be reconfigured. To do this, orient your board per the diagram below (the RJ-11 connector should be facing towards you) and simply lift the jumper off of the pin setting for 2 and 3, and place it onto the pin setting for 1 and 2, which your ADSL modem utilizes.

1. The standard jumper configuration utilizes center pins 2 and 3 as shown

above:

2. If the alternative configuration for outer pins 1 and 4 is required, simply

move the jumper pins to the right, as shown below:

INSTALLING THE SMC7003-PCI

STEP 1 – KNOW YOUR PC’S OPERATING SYSTEM

You will need to know the exact version of Microsoft Windows installed in your computer. If you do not know or are unsure, please proceed as follows to determine your version of the Microsoft Operating System.

On your desktop, right-click My Computer. Then select Properties. The version number of the Microsoft Windows Operating System installed in your computer will be displayed on the General tab. Refer to the following table for more detailed information.

Windows OS System Properties Description Release (Microsoft Web)

Win 95A 4.00.950A Windows 95 OSR1

Win 95B 4.00.950B Windows 95 OSR2

Win 98 4.10.1998 Window 98 Win 98SE Win 2000

Win NT

If you have questions regarding your PC system and the Microsoft Windows Operating System, please contact your original PC manufacturer or Microsoft for assistance.

Before installing the SMC7003- PCI, it is important to verify that the ADSL data port RJ-11 jack is configured so that the center two pins, pins 3 and 4, are used for ADSL data, otherwise the SMC7003-PCI will not make a proper connection. If the ADSL

data port installation uses pins 2 and 5 for data, then a wiring converter will be required. Do not alter or remove a wiring converter if present. Consult with your ADSL service provider regarding a wiring converter or before attempting any wiring

changes.

4.10.2222A 2nd Edition Windows 98 2nd Edition

5.00.2195 Windows 2000

4.00.1381 Windows NT 4.0

INSTALLING THE SMC7003-PCI

ADSL Driver Selection

Step 2 – Determine your Connection settings

You need to know your PC systems Windows OS and Internet Protocol supplied by your ADSL service provider. Refer to the following chart for your ADSL Driver.

Protocol Selection RFC1483 ð Bridged Ethernet over ATM

RFC2364 ð Point -to-Point Protocol over ATM RFC1577 ð Classical Internet Protocol over ATM RFC2516 ð Point -to-Point Protocol over Ethernet

RFC1483 RFC2364 RFC1577 RFC2516

Win 95A & 95B 1483w95 2364w95 1577w95 Win 98 & 98SE 1483w98 2364w98 1577w98 Win NT 4.0 1483nt4 2364nt4 1577nt4 Win 2000 1483w2k 2364w2k 1577w2k Win Me 1483wMe 2364wMe 1577wMe

Note@ : RFC2516 (Point-to-Point Protocol over Ethernet) is supported by third party developers. See the PPPoE driver supplement for detailed information and installation instructions.

Having de termined the ADSL Driver you will be installing, you now need to gather the connection information supplied by your ADSL service provider.

VPI VALUE:_________ VCI value:_________ Framing: q VC/MUX q LLC/SNAP

Mode: q ANSI T1.413 q ITU G.lite q ITU G.dmt

For RFC 1483 or 2516 For RFC 2364 or 1577

Host: User Name: Domain: Password: Gateway: Host or IP Address: IP Address: Subnet Mask: DNS or server address:

See Note@ See Note@ See Note@ See Note@ See Note@

INSTALLING THE SMC7003-PCI

STEP 3 – INSTALL THE SMC7003 -PCI

Caution: To avoid possible damage to your SMC7003-PCI, touch the metal chassis of your PC system to remove static charge from your person, and then remove your SMC7003-PCI from the protective anti-static bag.

1. Shut down your computer and switch the power off.

2. Unplug the power cord for your computer from the electrical

outlet.

3. Remove the cover from your systems

chassis (see your PC manufacturer’s manual).

4. Unscrew “slot cover bracket” from an unused PCI (usually

white in color) slot.

5. Gently and evenly insert the PCI

modem card into your empty PCI slot.

6. Make sure the card is firmly seated, and then

secure the card with the bracket screw.

7. Replace the cover of your computer system.

8. Connect the ADSL/phone line to the connector

port on the modem card and plug the other end of the cable into your ADSL/phone service.

INSTALLING THE SMC7003-PCI

Step 4 – Install the drivers and make a connection

You will be installing drivers and then proceeding to make an Internet connection. This process requires you to enter in information as prompted by the Microsoft Installation Wizard.

NOTE: You may need the Microsoft Windows Operating System installation files (CAB files) to complete the installation. The CAB files are contained in the Microsoft’s system CD-ROM. Some systems may have already installed the CAB files to the hard drive, but you should have the Microsoft Windows CD- ROM handy just in case.

Proceed now to the installation procedure for the Windows Operating System installed in your computer.

Windows 95A ---------------------------------------------------------------------------Page 7

Windows 95B ---------------------------------------------------------------------------Page 9

Windows 98/98SE----------------------------------------------------------------------Page11

Windows 2000 --------------------------------------------------------------------------Page 18

Windows NT - RFC 1483 or RFC 1577 --------------------------------------------Page 24

Windows NT - RFC 2364--------------------------------------------------------------Page 27

Windows Me-----------------------------------------------------------------------------Page 31

INSTALLING THE SMC7003-PCI

Windows 95A

After installing the SMC7003-PCI, plug the power cable back into the PC system and turn the power on.

Before you proceed to install drivers you will need to upgrade your Dial-Up Networking (DUN) application to version 1.3 or above. The Microsoft DUN is conveniently contained on your ADSL Driver CD-ROM.

1. After restart, the Update Device Driver Wizard will detect the

ADSL modem as a PCI Network Controller. CANCEL the New hardware found window.

2. At your desktop, click Start, and then select Run .

3. The Run window appears. Insert the SMC Universal CD, then

click on Browse and proceed to locate the ADSL Driver 95 CD-ROM. Then locate and select the Msdun13.exe file. The Msdun13.exe appears in the Open box. Click OK.

4. The Microsoft Dial-Up Networking 1.3 window appears with the

message This will install Microsoft Dial-Up Networking 1.3 for

Windows 95. Do you wish to continue? Click Yes .

5. An End-User License Agreement will app ear. To accept, click

Yes.

6. Back in the Microsoft Dial -Up Networking 1.3 window. You will be asked: Do you want to restart your computer now? Click Yes.

INSTALLING THE SMC7003-PCI

7. After your computer reboots, the New Hardware Found window will detect the SMC7003-PCI as a PCI Network Controller. Select the Driver from disk provided by hardware manufacturer option. Click OK.

8. Insert the SMC Universal CD into your systems CD drive.

9. The Install From Disk window appears. Click Browse to locate the driver on your CD -ROM for the protocol supported by your ADSL provider: 1483w95, 2364w95, or 1577w95 (The example uses “D” as the CD-ROM drive letter. Drive letters may vary.) Then click OK.

NOTE : During the installation process you may be asked to insert your Windows 95 CD. Insert the Windows 95 CD into the CD drive and click OK.

NOTE : If during the file copying process a file is reported as “not found” enter the path with the CD Drive letter and : \Win95

(ex:D:/Win95).

10. You must now set the ADSL configuration. Go to page 13.

INSTALLING THE SMC7003-PCI

WINDOWS 95B

After installing the SMC7003-PCI, plug the power cable back into the PC system and turn the power on. Before you proceed to install drivers you will need to upgrade your Dial-Up Networking (DUN) application to version 1.3 or above. The Microsoft DUN is conveniently contained on your ADSL Driver CD-ROM.

1. After restart, the Update Device Driver Wizard will detect the SMC7003-PCI as a PCI Network Controller. CANCEL the New hardware found window.

2. At your desktop, click Start, and then select Run .

3. The Run window appears. Insert the SMC Universal CD, then click on Browse and proceed to locate the ADSL Driver 95 CD-ROM. Then locate and select the Msdun13.exe file. The Msdun13.exe appears in the Open box. Click OK.

4. The Microsoft Dial-Up Networking 1.3 window appears with the message This will install Microsoft Dial -Up Networking 1.3 for Windows 95. Do you wish to continue? Click Yes .

5. An End-User License Agreement will appear. To accept, click Yes.

6. Back in the Microsoft Dial-Up Networking 1.3 window.

You will be asked Do you want to restart your computer now? Click Yes.

You may need the Microsoft Windows Operating System installation files (CAB files) to complete the installation. The CAB files are contained in the Microsoft’s system CD-ROM. Some systems may have already installed the CAB files to the hard drive, but you should have the CD-ROM handy just in case.

INSTALLING THE SMC7003-PCI

12.

You must now set the ADSL configuration.

Go to page 13.

7. After your computer reboots, the Update Device Driver Wizard

will detect the SMC7003 -PCI as a PCI Network Controller, click Next.

8. Insert the SMC Universal CD into you systems CD drive.

9. The Update Device Driver Wizard will appear and in dicate that

“Windows was unable to locate a driver for this device ”. Click Other Locations .

10. The Select Other Location window appears. Click Browse to

locate the driver on your CD-ROM for the protocol supported by your ADSL provider: 1483w95, 2364w95 or 1577w95 (The example uses “E” as the CD -ROM drive letter. Your drive may have a different letter.) Then click OK.

11. The Update Device Driver Wizard will then find the SMC ADSL

PCI NIC. Click Finish.

NOTE: During the installation process you may be asked to insert your Windows 95 CD- ROM. Insert the Windows 95 CD into the drive and click OK.NOTE: During the installation

process you may be asked to insert your Windows 95 CD-ROM. Insert the Win95 CD into the drive. Click OK. NOTE: If during the file copying process a file is reported as “not found” enter the path (CD Drive letter) and :\Win95 (ex. D:\Win95)

INSTALLING THE SMC7003-PCI

WINDOWS 98/98SE

After installing the SMC7003-PCI, plug the power cable back into the PC system and turn the power on.

1. The Add New Hardware Wizard window will automatically

appear to indicate that a new PCI Network Controller has been found. Click Next.

2. Still in the Add New Hardware Wizard. You will be asked

“What do you want Windows to do?” Select the Search for the best driver for your device option, then click Next.

3. Insert the ADSL Driver CD into your systems CD- ROM drive.

4. Select Specify a location and click Browse to locate the driver on

your CD-ROM for the protocol supported by your ADSL provider:

1483w98 or 2364w98 or 1577w98 (The example uses “D” as the

CD-ROM drive letter. Your drive may have a different letter.) Then click Next.

5. The Add New Hardware Wizard will appear and indicate the

SMC ADSL PCI NIC has been recognized and will install a new driver. Click Next .

6. If prompted to insert your Windows CD, do so at this time, then

click OK.

7. Enter the [CD drive Letter] and then:\Win98 (ex: E:\Win98 ) and

click OK.

INSTALLING THE SMC7003-PCI

8. At the conclusion of the driver installation, the Add New

Hardware Wizard window appears and displays your newly

installed SMC ADSL PCI NIC. Click Finish.

9. The System Settings Change window appears. For the PC system

to setup the ADSL Modem Drivers , a system Restart is required. Click Yes.

NOTE: After restarting the system, the Diagnostic Tool icon (See Appendix) is active and monitoring connectivity.

10. You must now set the ADSL configuration. Go to page 13.

INSTALLING THE SMC7003-PCI

WINDOWS 95/98

click

Configuration

option

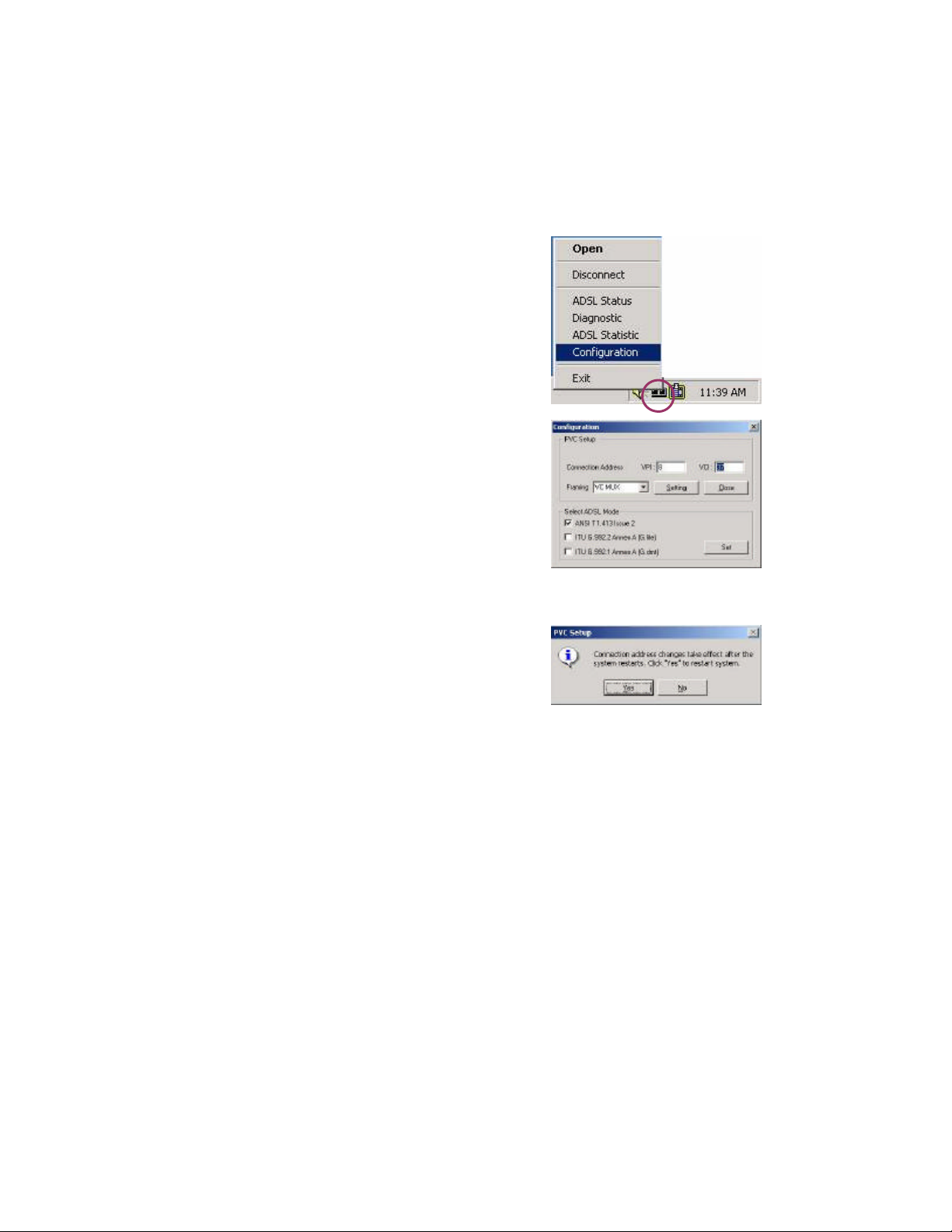

SETTING THE ADSL CONFIGURATION FOR RFC 1483/1577/2364

1. After your PC has rebooted, right-

on the Mapi Icon, and select the

NOTE: The service mode type will be one of the following:

c ANSI T1.413 Issue 2

c ITU G.992.2 Annex A (G.lite) c ITU G.992.1 Annex A (G.dmt)

4. The PVC Setup window appears. Click Yes to restart

your PC system and to allow the new changes to take effect.

5. You must now make an ADSL connection. Proceed to the section for your protocol.

RFC1483 Bridged Ethernet over ATM ð Go to page 14 RFC1577 Classical Internet Protocol over ATM ð Go to page 14 RFC2364 Point-to-Point Protocol over ATM ð Go to page 18

INSTALLING THE SMC7003-PCI

k component window and find

Scroll the installed network component window and

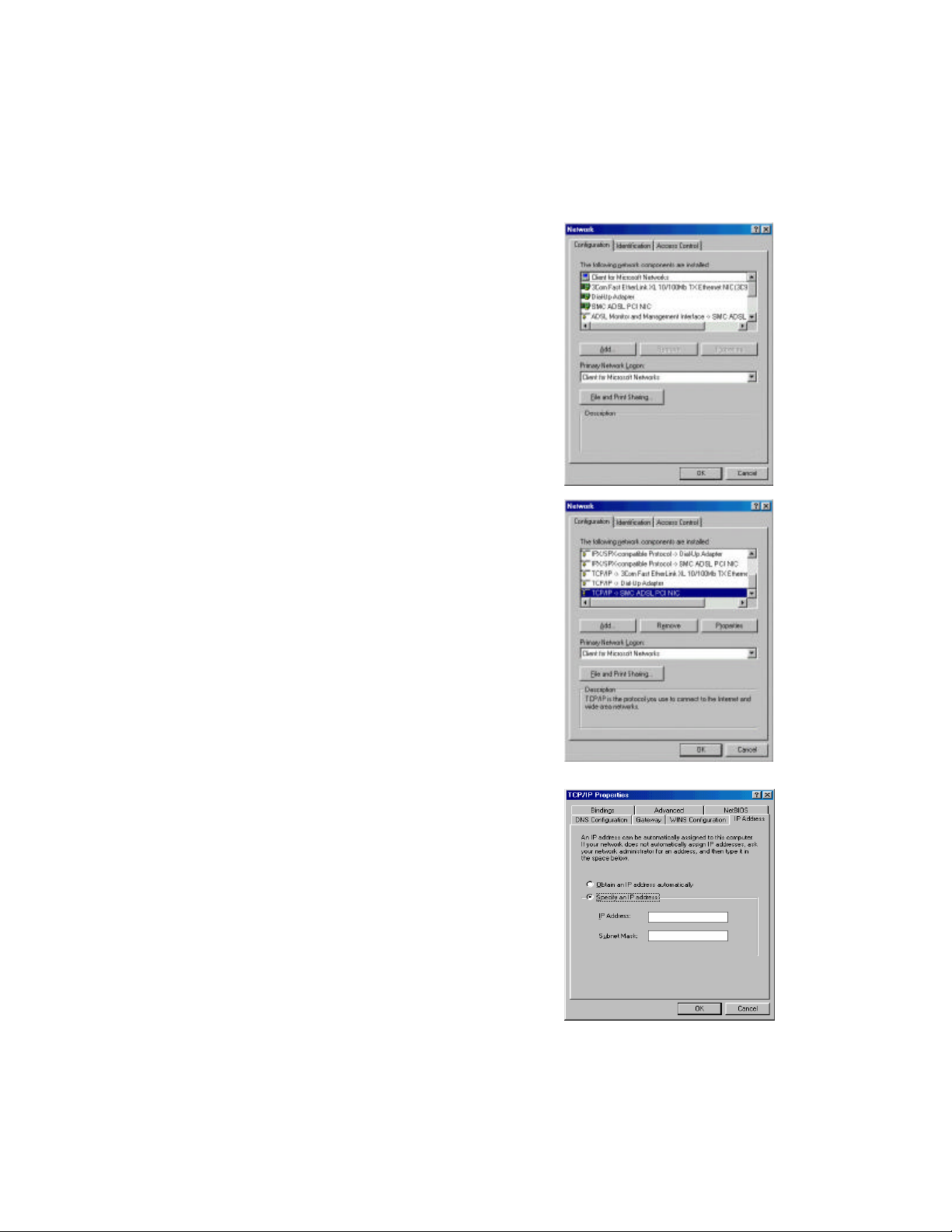

Making an ADSL connection RFC 1483 – Bridged Ethernet over ATM – 95/98

RFC 1577 - Classical Internet Protocol over ATM – 95/98

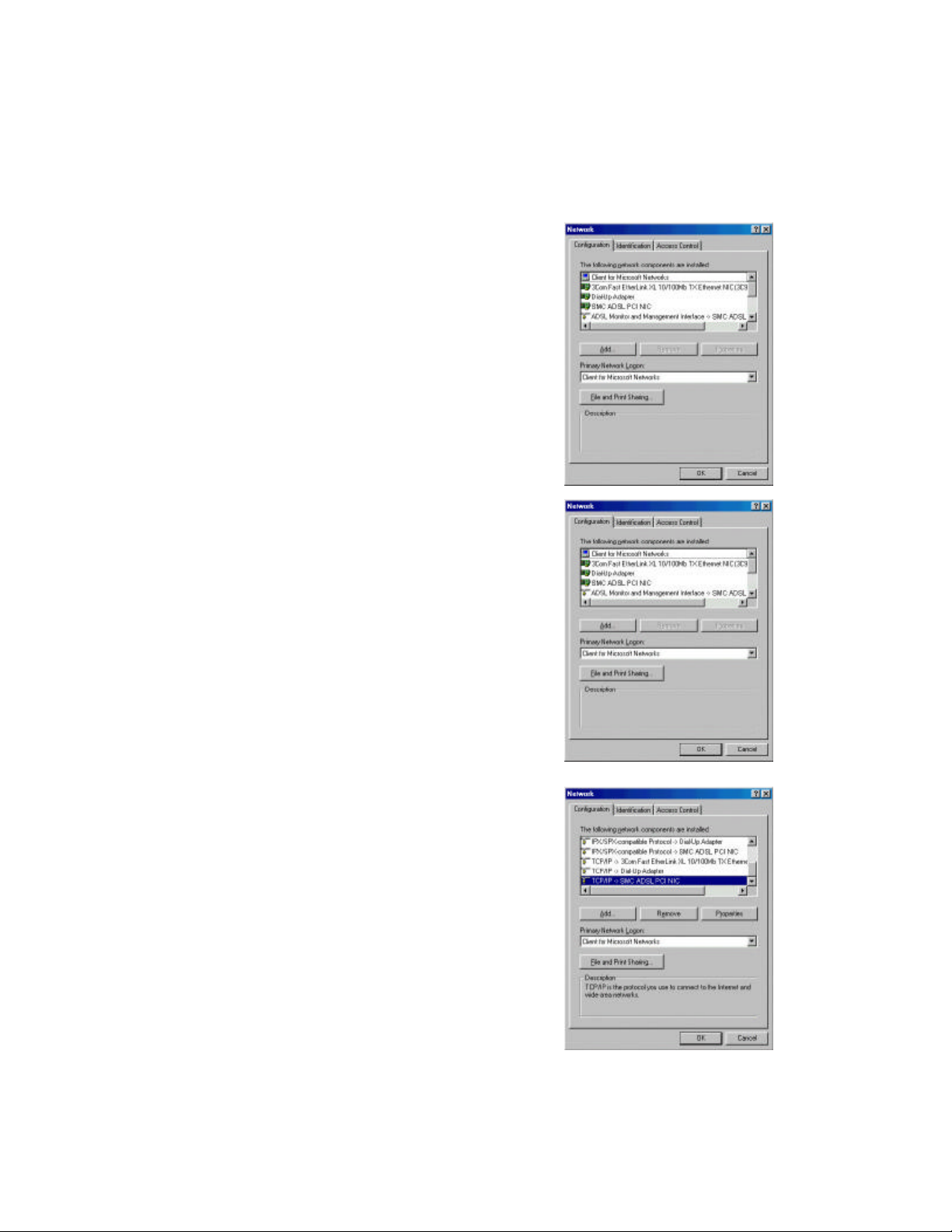

1. From the Start menu on the tool bar, select Settings,

Control Panel, and then double -click on the Network

icon.

2. The Network window appears. Select the Configuration

tab, scroll the installed networ

SMC ADSL PCI NIC

select TCP/IP àSMC ADSL PCI NIC. Then click the Properties button.

INSTALLING THE SMC7003-PCI

tab, and then

option.

the necessary TCP/IP properties, click

OK.

settings

4. The TCP/IP Properties window will appear. Select the

IP Address tab and then select the Specify an IP Address option. Enter the IP Address and Subnet Mask supplied by your ADSL provider.

5. To setup a new gateway, select the Gateway

enter the setting in the New Gateway section. Click Add.

6. Select DNS Configuration tab. Select the Enable DNS

NOTE: You now need to have available the Host, Domain and DNS settings supplied by your ADSL service provider.

7. Enter your host name into Host: box.

8. Enter your domain name into Domain: box.

9. Enter DNS number into DNS Server Search Order box

and click Add. If you have more than one DNS numbers, repeat this step.

10. After setting all

INSTALLING THE SMC7003-PCI

11. The Network window appears. Click OK.

12. The System Setting Change window appears. You will

be asked if you want to restart your computer. Click Yes.

Congratulations, you are done. Your ADSL Internet connection is established!

supplied by your Internet service provider (ISP).

INSTALLING THE SMC7003-PCI

Making an ADSL

RFC 2364 - Point-to-Point Protocol over ATM – 95/98

1. Double -click on the SMCA PPPoA icon that appears on

your desktop.

2. The Connect To window appears. Enter the User Name and

Password

Then click Connect.

3. The Connecting to My Connection window appears. The

message Logging on to network confirms a valid connecting process.

4. The Connection Established window appears. Internet

service is now established. Click Close and then the Diagnostic tool icon will appear on the task bar.

Congratulations, you are done. Your ADSL Internet connection is established!

INSTALLING THE SMC7003-PCI

WINDOWS 2000

After installing the SMC7003-PCI, plug the power cable back into the PC system and turn the power on.

1. After installing the SMC7003-PCI, power on the PC system. After start-up, the Found New Hardware Wizard will appear. Click Next.

2. Still in the Found New Hardware Wizard, select the Search for a suitable device... option. Click Next .

3. Next you will be prompted for software drivers. Select Specify a location. Click Next.

4. Insert the SMC Universal CD into the systems CD-ROM drive. Click Browse to locate the driver on your CD- ROM for the protocol supported by your ADSL provider: 1483w2K or

2364w2K or 1577w2K (The example uses “D” as the CD-ROM

drive letter. Your drive may have a different letter.) Click OK.

5. The Found New Hardware Wizard will then find the SMC ADSL

PCI NIC, click Next.

INSTALLING THE SMC7003-PCI

6. The Digital Signature Not Found window appears. You

will be asked; Do you want to continue installation? Click Yes .

7. The Found New Hardware Wizard will prompt that Windows

has finished install ing the software for this device. Click Finish.

NOTE: You may be asked if you want to restart your computer, if

so click Yes. If you are not asked, you need to restart your computer manually at this time.

8. You must now set the ADSL configuration. Go to page 20.

INSTALLING THE SMC7003-PCI

Configuration

option

WINDOWS 2000

SETTING THE ADSL CONFIGURATION FOR RFC 1483/1577/2364

1. After your PC has rebooted, right-click

on the Mapi Icon, and select the

2. The Configuration window appears. This is the Network

Protocol and PVC settings section. Enter in the VPI, VCI, and Framing values supplied by your ADSL service provider.

3. In the Select ADSL Mode section, select the mode(s)

recommended by your ADSL service provider. Click on the mode(s) required and then click on Settings.

NOTE: The service mode type will be one of the following:

q ANSI T1.413 Issue 2 q ITU G.992.2 Annex A (G.lite) q ITU G.992.1 Annex A (G.dmt)

4. The PVC Setup window appears.

Click Yes to restart your PC system and to allow the new changes to take

5. You must now make an ADSL connection. Proceed to the section for your protocol.

RFC1483 Bridged Ethernet over ATM ð Go to page 22 RFC1577 Classical Internet Protocol over ATM ð Go to page 22 RFC2364 Point -to-Point Protocol over ATM ð Go to page 24

INSTALLING THE SMC7003-PCI

Making an ADSL connection RFC 1483 – Bridged Ethernet over ATM – 2000

RFC 1577 - CLASSICAL INTERNET PROTOCOL OVER ATM – 2000

1. Double -click My Computer, Control Panel , and then Network

and Dial-up Connections .

2. The Network and Dial-up Connections window appears.

Right-click on the Local Area Connection, and then click on properties.

3. The Local Area Connection window appears. Click on

Internet Protocol (TCP/IP) , then click on Properties.

4. The Internet Protocol (TCP/IP) window appears. Under the

General tab, enable Use the following IP address. The default settings for IP configurations will turn from gray to clear. Enter in the IP address, Subnet Mask , and Default Gateway supplied by your ADSL service provider. Click OK.

w appears.

INSTALLING THE SMC7003-PCI

5. The previous General Tab window appears. Click OK.

6. The Network and Dial-up Connection windo

CLOSE this window and your connection is complete.

Congratulations, you are done. Your ADSL Internet connection is established!

window will appear. Enter your

supplied by your ADSL service

INSTALLING THE SMC7003-PCI

Making an ADSL connection

RFC 2364 - Point-to-Point Protocol over ATM – 2000

1. Double-click on the SMCA PPPoA

icon that appears on your desktop.

2. The Connect My Connection

User Name and Password provider. You are now ready to make a network connection. Click

3. The Connection complete window appears, click OK.

INSTALLING THE SMC7003-PCI

Windows NT4.0 RFC 1483 – Bridged Ethernet over ATM

RFC 1577 - CLASSICAL INTERNET PROTOCOL OVER ATM

1. On your desktop, double-click My Computer, and then double-click Control Panel.

2. In the Control Panel window, double-click the Network icon. The

Network window appears. Select the Adapters tab and then click Add .

3. The Select Network Adapter window appears. Click Have Disk.

4. Insert SMC Universal CD into your systems CD drive.

5. The Insert Disk window appears. Click Browse to locate the driver on your CD- ROM for the protocol supported by your ADSL provider: 1483NT4 or 1577NT4 (The example uses “d” as the CD-ROM drive letter. Your drive may have a different letter.) Click OK.

6. The Select OEM Option window will find the S MC ADSL PCI

NIC, Click OK.

INSTALLING THE SMC7003-PCI

7. The Network window will appear. Click the Adapters tab to verify that the SMC ADSL PCI NIC has been found. Click on the

Protocols tab and verify that the ADSL Management and Monitor Interface is present.

NOTE : To review the Network window properties at any time, right-click the Network Neighborhood icon and select Properties. NOTE : If no previous network devices have been installed, then

the Network Neighborhood icon will not be present on your desktop. To open the Network window, double-click My Computer then Control Panel then Network.

8. The Microsoft TCP/IP Properties window appears. Enter in the IP Address , Subnet Mask and Default Gateway supplied by your ADSL service provider. Click OK.

9. The Network Settings Change window appears. You must now

re-start your computer for the settings to take effect. Click Yes.

10. You must now set the ADSL configuration. Go to page 26.

WINDOWS NT 4.0

INSTALLING THE SMC7003-PCI

SETTING THE ADSL CONFIGURATION FOR RFC 1483 OR RFC 1577

1. After your PC has rebooted, right -click on the Mapi Icon

and select the Configuration option .

2. The Configuration window appears. This is the Network

Protocol and PVC settings section. Enter in the VPI, VCI, and Framing values supplied by your ADSL service provider.

3. In the Select ADSL Mode section, select the mode(s)

recommended by your ADSL service provider. Click on the mode(s) required and then click on Settings.

NOTE: The service mode type will be one of the following:

q ANSI T1.413 Issue 2 q ITU G.992.2 Annex A (G.lite) q ITU G.992.1 Annex A (G.dmt)

4. The PVC Setup window appears. Click Yes to restart your PC system and to allow the new changes to take effect.

5. Now you must create a Dial- up Connection. Please go to page 30.

INSTALLING THE SMC7003-PCI

WINDOWS NT4.0 RFC 2364 – Point to Point Protocol over ATM

1. On your desktop, double-click My Computer, and then double-click Control Panel.

2. In the Control Panel window, double-click the Network icon. The

Network window appears. Select the Adapters tab and then click Add .

3. The Select Network Adapter window appears. Click Have Disk.

4. Insert the ADSL Driver CD- ROM into your systems CD drive.

5. The Insert Disk window appears. Click Browse to locate the driver on your CD-ROM for the protocol supported by your ADSL provider: 2364NT4 (The example uses “d” as the CD-ROM drive letter. Your drive may have a different letter.) Click OK.

6. The Select OEM Option window will find the SMC ADSL PCI NIC, Click OK.

7. The Setup Message window appears. Click OK.

8. The Windows NT Setup window appears. Insert your NT4.0

CD-ROM into the PC system CD drive, and type in “D:\i386” Click Continue.

INSTALLING THE SMC7003-PCI

9. The Add RAS Device window appears. Click on the “Scroll

arrow” to locate ISDN1-SMCAwana. Then click OK.

10. The Remote Access Setup window appears. Click Continue.

11. The Network window will appear. Click the Adapters tab to verify that the SMC ADSL PCI NIC has been found. Click on the Protocols tab and verify that the ADSL Management and Monitor Interface is present. Click on the Services tab to verify that the Remote Access Service is present. Then click Close.

NOTE : To review the Network window properties at any time, right-click the Network Neighborhood icon and select Properties. NOTE : If no previous network devices have been installed, then the Network Neighborhood icon will not be present on your desktop. To open the Network window, double-click My Computer then Control Panel then Network.

12. The Network Settings Change window appears. You must now

re-start your computer for the settings to take effect. Click Yes.

13. You must now set the ADSL Configuration for RFC 2364. Go to page 30.

INSTALLING THE SMC7003-PCI

recommended by your ADSL service provider. Click on the

WINDOWS NT 4.0 Setting the adsl configuration for RFC 2364

1. After your PC has rebooted, right-click on the Mapi Icon,

and select the Configuration option .

2. The Configuration window appears. This is the Network

Protocol and PVC settings section. Enter in the VPI, VCI, and Framing values supplied by your ADSL service provider.

3. In the Select ADSL Mode section, select the mode(s)

mode(s) required and then click on Settings.

NOTE: The service mode type will be one of the following:

q ANSI T1.413 Issue 2 q ITU G.992.2 Annex A (G.lite) q ITU G.992.1 Annex A (G.dmt)

INSTALLING THE SMC7003-PCI

Windows NT4.0 CREATING A DIAL -UP NETWORK CONNECTION

1. Double-click on the SMCA PPPoA

icon that appears on your desktop.

2. The Dial-Up Networking window appears and prompts for the

phone number of the dial- up server. Unless instructed to enter a phone number by the ADSL service provider, enter zero “0”. Click Dial.

3. The Connect to MyDialUpServer window appears. Enter the User

name, Password and Domain supplied by your ADSL service provider. Click OK.

NOTE : If this screen persists and a connection logon error is reported, confirm that the correct User name and Password are entered and try the connection again. Also verify that the connection address is correct.

4. The Connection Complete window is displayed at the completion

of a successful Dial-Up logon. Choose a display behavior and click OK to close.

INSTALLING THE SMC7003-PCI

Windows MILLENNIUM

NOTE: After installing the SMC7003-PCI, plug the power cable back into the PC system and turn the power on. Insert the driver CD upon restart.

1. The Add New Hardware Wizard window will automatically appear to indicate that a new PCI

Network Controller has been found. Select the Specify the location of the driver option. Click Next.

2. The Install From Disk window appears. Click the scroll arrow to locate the driver on your CD -ROM for the protocol supp orted by your ADSL provider:

1483wME, 2364wME, or 1577wME (The

example uses “E” as the CD-ROM drive letter. Drive letters may vary.) Then click OK.

3. At the conclusion of the driver installation, the Add New Hardware Wizard window appears and displays your newly installed SMC ADSL PCI NIC . Click Finish.

4. The System Setting Change window appears. Click Yes to restart your PC system and to allow the new changes to take effect.

5. You must now set the ADSL configuration. Go to page 32.

INSTALLING THE SMC7003-PCI

WINDOWS MILLENNIUM

SETTING THE ADSL CONFIGURATION FOR RFC 1483/1577/2364

1. After your PC has rebooted, right-click on the ADSL

utilities icon and select the Configuration option.

2. The Configuration window appears. This is the Network Pro tocol and PVC settings section. Enter in the VPI, VCI, and Framing values supplied by your ADSL service

provider.

3. In the Select ADSL Mode section, select the mode(s) recommended by your ADSL service provider. Click on the mode(s) required and then click on Settings.

NOTE: The service mode type will be one of the following:

ANSI T1.413 Issue 2

ITU G.992.2 Annex A (G.lite) ITU G.992.1 Annex A (G.dmt)

4. The PVC Setup window appears. Click Yes to restart your PC system and to allow the new changes to take effect.

5. You must now make an ADSL connection. Proceed to the section for your protocol.

RFC1483 Bridged Ethernet over ATM ð Go to page 3 RFC1577 Classical Internet Protocol over ATM ð Go to page 3 RFC2364 Point-to-Point Protocol over ATM ð Go to page 5

INSTALLING THE SMC7003-PCI

MAKING AN ADSL CONNECTION

RFC 1483- BRRIDGED ETHERNET OVER ATM- WINDOWS ME

RFC 1577- CLASSICAL INTERNET PROTOCOL OVER ATM- WINDOWS ME

1. From the Start menu on the tool bar, select Settings, Control Panel, and then double-click on the Network icon.

2. Scroll installed network component window and select TCP/IP

àSMC ADSL PCI NIC. Now click the Properties button.

3. The TCP/IP Properties window will appear. Select the IP Address tab and then select the Specify an IP Address option. Enter the IP Address and Subnet Mask settings supplied by your ADSL service provider.

INSTALLING THE SMC7003-PCI

4. To setup a new gateway, select the Gateway tab, and then enter the setting in the New Gateway section. Click Add.

5. Select the DNS Configuration tab. Then select the Enable

DNS option.

NOTE: You now need to have available the Host, Domain and DNS settings supplied by your ADSL service provider.

7. Enter your name into the Host: box.

8. Enter your domain name into the Domain: box.

9. Enter the DNS number into the DNS Server Search Order box, and then click Add. If you have more than one DNS number, repeat this step.

10. After setting all the necessary TCP/IP properties, click OK.

11. The Network window appears. Click OK.

12. The System Setting Change window appears. Click Yes to restart your PC to allow the changes to take effect.

Congratulations, you are done. Your ADSL Internet connection is established!

INSTALLING THE SMC7003-PCI

MAKING AN ADSL CONNECTION

RFC 2364- Point to Point Protocol over ATM-Windows Me

1. Double -click on the SMCA PPPoA icon that appears on your desktop.

2. The Connect To window appears. Enter the User Name and Password supplied by your internet service provider (ISP). Then click Connect .

3. The Connecting to My Connection window appears. The message Logging on to network confirms a valid connecting process.

4. The Connection Established window appears. Internet service is now established. Click Close. Now the Diagnostic Tool icon will appear on the task bar.

Congratulations, you are done. Your ADSL Internet connection is established!

SMCA PPPoA

INSTALLING THE SMC7003-PCI

Editing Your Service Connection

Service Connection

1. To view or edit the ADSL connection service address, right -click the Diagnostic Tool icon (located on the

Taskbar), and select the Configuration option.

2. The PVC Setup (Permanent Virtual Connection) window displays the connection service address. Click

Close to exit window.

3. To edit the connection service address, select and enter the VPI and VCI address in the field shown and click

PVC Setting .

4. To accept a Connection Address that has been changed (restart the PC System ), click Yes.

NOTE: A PC system restart will begin once the connection address change is accepted.

IP Configuration

1. This section includes the IP configuration specifics for Windows NT4.0. The NT 4.0 windows are slightly

different from those of Windows 95 /98. Other than minor screen differences, the process for editing the IP address settings is the same for Windows NT 4.0 and Windows 95/98.

2. At your desktop, double -click My Computer, then double-click Control Panel to view the contents of the

control panel. In the Control Panel window, double-click the Network icon. Note: The Network window shortcut is a right-click on the Network Neighborhood icon on your desktop, and then a left-click on Properties.

3. Select the Protocols tab of the network window. Select TCP/IP Protocol and click Properties.

4. Select the IP address option and note that the IP Address and Subnet Mask regions will turn from gray to

active.

5. Enter the IP Address (e.g. 192.168.4.39) and Subnet mask (e.g. 255.255.255.0).

6. Enter the Default Gateway in this window, and then enter the Host Name and Domain.

NOTE : Please refer to your ADSL service provider. To enter the Domain search (DNS) entries, click Add, then enter the address. Click Add to save the address. Repeat the process for additional DNS entries. Click OK to update the changes.

INSTALLING THE SMC7003-PCI

nd then click on the

Removing Drivers

Windows 95/98/NT4.0/2000/Me

1. On the desktop, click the START Menu on the

Task Bar.

2. Select Programs. The system window appears.

3. Select the SMC Tab, a

Un-Installer Tab.

Note: For W95 -98-NT4, an Uninstall Finished windows message appears.

INSTALLING THE SMC7003-PCI

Diagnostic Tools

The diagnostic tool icon allows the user to monitor the ADSL connectivity, setup the service connection address, and run diagnostic tests. The Diagnostic Tools icon is displayed on the task bar as shown. By positioning the mouse cursor over the icon, the upstream and downstream rates are displayed.

Maximum receiving rate

Maximum transfer rate

The Diagnostic Tool icon consists of two lights side by side. The left light indicates data is being transmitted whereas the right light indicates data is being received. The state of the connection can be determined as follows:

Color Code Description

Red, Red

Black, Yellow or Yellow/Black

flashing

Black, Black ADSL connection established – no data traffic or idle connection

Black, Green

Green, Black

Green, Green

∅ NIC is disconnected or a driver problem exists.

On the Diagnostic Tool icon, located on the right hand side of the status bar, right-click the icon to display the menu, then click Open. The ADSL Diagnostic Tool window appears on your desktop. The four tabs of the Diagnostic Tools are ADSL Status, Diagnostic, ADSL Statistics and

Configuration. ADSL Status window displays the current state of the ADSL connection,

including the current ADSL State, ADSL protocol in use, and the Net Data

No ADSL connection and No ADSL handshaking. Check your cable connections.

ADSL handshaking – Connection not established. Precursor to establishing an ADSL connecting.

ADSL connection established – NIC is receiving data (TX/off, RX/on)

ADSL connection established – NIC is transmitting data (TX/on, RX/off)

ADSL connection established – NIC is transmitting and receiving data (TX/on, RX/on)

Rates for upstream and downstream data.

NOTE: ADSL protocols supported by the ADSL drivers are T1.413, G.dmt and G.lite. The protocol must be supported also by the ADSL equipment located at the central office.

ADSL Statistic window keeps tabs on errors that might affect overall system performance. The counts are reset whenever the PC system is restarted.

INSTALLING THE SMC7003-PCI

train the

(header error check) errors are recorded as

ation of ATM packet accuracy. As a measure of packet transfer

up sessions and close all

Click

Run Diagnostics

to run the

diagnostic program

that will test PC

up sessions.

performs a brief

Re-training Count tracks the number of ADSL connections performed. Due to unexpected line condition changes, the drivers can reconnection causing the Re-training Count total to increment. The Diagnostic Tool icon will flash yellow while reconnecting.

ADSL implements Reed Solomon (RS) error checking: FEC COUNT TRACKS THE FORWARD ERROR CORRECTION COUNT. CRC Count tracks the accuracy of correcting data errors over each

17msec.ATM HEC Count an indic performance, the Packet Errors are counted and tracked against the total number of Packets Received.

functionality and report the status. A warning message pops up that the ADSL service will disconnect before performing the diagnostic test. If

connected to the Internet at this time, disconnect any DialClick Yes to begin the diagnostic program or click No to exit diagnostic program. The diagnostic program hardware check and displays the hardware status.

The Diagnostic window is used to verify the SMC7003-PCI functionality. Running the Diagnostic program will disconnect the NIC from the ADSL line. Close all Dialfiles before running the Diagnostic program. Product Information (e.g. driver revisions) is displayed by clicking the Product Info tab. Product Information lists the versions of the Diagnostic Tools and the driver version. The DLL version describes the software being used by both the drivers and Diagnostic Tool software.

TROUBLESHOOTING

Trouble Shooting

If you have completed the SMC7003-PCI installation procedures and your ADSL connection is not operational, then refer to the following guidelines for assistance in getting your ADSL modem connection up and running.

IS THERE A DIAGNOSTIC ICON ON THE TASKBAR?

üTry Restarting the PC system. üAre the correct drivers installed for the Operating system used? üPoint-to-Point - If system OS is Windows 95, is the DUN upgraded v1.3? üHave you deleted the drivers and tried the installation again?

Is the NIC achieving ADSL connection?

üTry using the Diagnostic Tools Connect option. üIs the cable installed between the SMC7003-PCI and the ADSL service? üTry Restarting the PC system. üHas any cabling adapter or wiring converter been removed?

Is the NIC constantly trying to make a connection – with blinking yellow panels ?

üSelect Disconnect from the Diagnostic Tools then try to reconnect. üRestart the PC system and try to reconnect. üExamine the RJ-11 connectors and cable for any deterioration. üHas the wiring for your ADSL service been altered recently? üDoes condition change with time of day? (a possible problem with line noise) üAre appliances near the PC system introducing noise into your ADSL service? üPower down the PC system and re-seat the SMC7003 -PCI.

Is the NIC achieving ADSL connection - but you can’t reach the Internet?

üIs the service connection address correct? üBridged Ethernet – Are the TCP/IP, Gateway and DNS addresses correct (refer to your ADSL or ISP

provider documentation)

üPoint-to-Point – For Windows 95 is the Dial-Up Network Upgrade v1.3 installed? üBrowser configured correctly – check your browser documentation.

How can I determine the TCP/IP address for Point-to-Point?

For Windows 95/98, run the program Ipconfig from the DOS prompt (e.g. C:\Windows\IPCONFIG).

Must TCP/IP be loaded for both Point-to-Point and Bridged Ethernet protocols?

Yes. Please carry out the TCP/IP installation procedure before loading the driver.

Driver installation resulted in errors or warnings, and you can’t connect.

üPerform the driver removal procedure. üVerify which version of Microsoft Windows is loaded in the PC system. üPerform the driver removal procedure üFor Po int-to-Point – Reload Dial-Up Network upgrade 1.3 üInstall the driver again.

SMC SMC7003-PCI

ADSL Compatibility

ANSI T1.413 Issue 2 ITU-T G.992.1 (G.DMT): Downstream data rate up to 8Mbps Upstream data rate up to 1Mbps ITU-T G.992.2 (G.Lite): Downstream data rate up to 1.5Mbps Upstream data rate up to 512Mbps Rate adaptive modem at 32Kbps steps

ATM Support

Full ATM protocol stacks implementation over ADSL Including ATM TC layer ATM layer with traffic shaping

SPECIFICATIONS

AAL layer (AAL5& SAR) Ethernet over ATM (RFC-1483) PPP over ATM (RFC-2364) IP over ATM (RFC -1577) PPP over Ethernet (RFC-2516) (option) ATM Forum UNI 3.1/4.0 PVC Support VC -based and LLC multiplexing Support up to 16VCs

Temperature

Operating: 32 ° to 122°F ( 0° to 50°C ) Storage: -40° to 158°F ( -40° to 70°C )

Humidity, non-condensing

5% to 95%

Standards

IEEE 802.3, 802.3u, 802.3x

SPECIFICATIONS

EMC/Safety Compliances

EMI: EN50081- 1/1992->EN55022/1998, EN61000- 3-2/1995,EN61000-3-3/1995

EMS: EN50082- 1/1997 -> EN61000-4-2/1995, EN61000- 4-3/1995, EN61000-4-4/1995

LVD: EN60950:1992/A3:1995/A4:1997,EN41003:1993

Warranty

Limited Lifetime

Smc 7003-PCI DESCRIPTION OF HARDWARE

Specifications and Main Features

Frequently Asked Questions

User Manual
