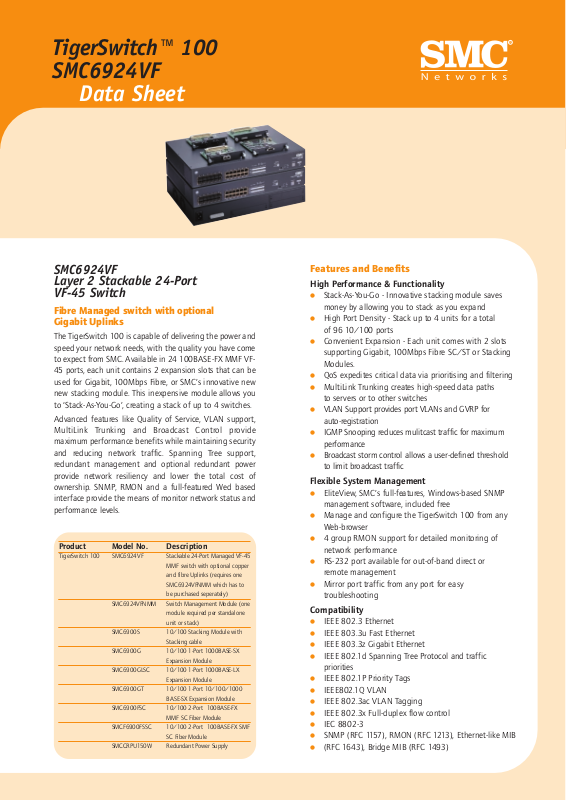

Smc 6924VF DATASHEET

Features and Benefits

High Performance & Functionality

●

Stack-As-You-Go - Innovative stacking module saves
money by allowing you to stack as you expand

●

High Port Density - Stack up to 4 units for a total
of 96 10/100 ports

●

Convenient Expansion - Each unit comes with 2 slots
supporting Gigabit, 100Mbps Fibre SC/ST or Stacking
Modules.

●

QoS expedites critical data via prioritising and filtering

●

MultiLink Trunking creates high-speed data paths
to servers or to other switches

●

VLAN Support provides port VLANs and GVRP for
auto-registration

●

IGMP Snooping reduces mulitcast traffic for maximum
performance

●

Broadcast storm control allows a user-defined threshold
to limit broadcast traffic

Flexible System Management

●

EliteView, SMC’s full-features, Windows-based SNMP
management software, included free

●

Manage and configure the TigerSwitch 100 from any
Web-browser

●

4 group RMON support for detailed monitoring of
network performance

●

RS-232 port available for out-of-band direct or
remote management

●

Mirror port traffic from any port for easy
troubleshooting

Compatibility

●

IEEE 802.3 Ethernet

●

IEEE 803.3u Fast Ethernet

●

IEEE 803.3z Gigabit Ethernet

●

IEEE 802.1d Spanning Tree Protocol and traffic
priorities

●

IEEE 802.1P Priority Tags

●

IEEE802.1Q VLAN

●

IEEE 802.3ac VLAN Tagging

●

IEEE 802.3x Full-duplex flow control

●

IEC 8802-3

●

SNMP (RFC 1157), RMON (RFC 1213), Ethernet-like MIB

●

(RFC 1643), Bridge MIB (RFC 1493)

TigerSwitch™ 100
SMC6924VF

Data Sheet

Product Model No. Description

TigerSwitch 100 SMC6924VF Stackable 24-Port Managed VF-45

MMF switch with optional copper
and fibre Uplinks (requires one
SMC6924VFNMM which has to
be purchased seperately)

SMC6924VFNMM Switch Management Module (one

module required per standalone
unit or stack)

SMC6900S 10/100 Stacking Module with

Stacking cable

SMC6900G 10/100 1-Port 1000BASE-SX

Expansion Module

SMC6900GLSC 10/100 1-Port 1000BASE-LX

Expansion Module

SMC6900GT 10/100 1-Port 10/100/1000

BASE-SX Expansion Module

SMC6900FSC 10/100 2-Port 100BASE-FX

MMF SC Fiber Module

SMCF6900FSSC 10/100 2-Port 100BASE-FX SMF

SC Fiber Module

SMCCRPU150W Redundant Power Supply

SMC6924VF
Layer 2 Stackable 24-Port
VF-45 Switch

Fibre Managed switch with optional
Gigabit Uplinks

The TigerSwitch 100 is capable of delivering the power and
speed your network needs, with the quality you have come
to expect from SMC. Available in 24 100BASE-FX MMF VF­45 ports, each unit contains 2 expansion slots that can be
used for Gigabit, 100Mbps Fibre, or SMC’s innovative new
new stacking module. This inexpensive module allows you
to ‘Stack-As-You-Go’, creating a stack of up to 4 switches.

Advanced features like Quality of Service, VLAN support,
MultiLink Trunking and Broadcast Control provide
maximum performance benefits while maintaining security
and reducing network traffic. Spanning Tree support,
redundant management and optional redundant power
provide network resiliency and lower the total cost of
ownership. SNMP, RMON and a full-featured Wed based
interface provide the means of monitor network status and
performance levels.

SMC Networks Europe
Head Office

Edificio Conata II
Fructuós Gelabert 6-8 20,4

a

08970 - Sant Joan Despi
Barcelona
Spain
Telephone
[phone]
Facsimile
[phone]

SMC Networks
Spain

Calle Josefa Valcarcel, 8
28027 - Madrid
Spain
Telephone
[phone]
Facsimile
[phone]

SMC Networks
Northern Europe

Ground Floor, Exa House
Alexandra Court
Denmark Street
Wokingham
Berkshire, RG40 2SL
United Kingdom
Telephone
[phone]
Facsimile
[phone]

SMC Networks
Nordic

Vallingbyplan 26, 2 tr
SE-162 65 Vallingby
Sweden
Telephone
[phone]
Facsimile
[phone]

SMC Networks
South Africa

Zonneblom Building
16th Road
Constantia Square
Midrand
South Africa
Telephone
[phone]
Facsimile
[phone]

SMC Networks
Southern Europe

2 - 8 rue des Bourets
92150 Suresnes
France
Telephone
[phone]
Facsimile
[phone]

SMC Networks
Central Europe

Freischützstr. 81
D-81927 Munich
Germany
Telephone
[phone]
Facsimile
[phone]

SMC is a registered trademark; and EtherPower, EZStart, SimulTasking, TigerSwitch and SuperDisk are trademark s of SMC Networks, Inc.
Other product and company names are trademarks or registered trademarks of their respective holders. © Copyright 2001 SMC Networks, Inc.

L

i

m

i

t

e

d

L

i

f

e

t

i

m

e

W

a

r

r

a

n

t

y

L

i

m

i

t

e

d

L

i

f

e

t

i

m

e

W

a

r

r

a

n

t

y

www.smc.com

TigerSwitch™ 100
SMC6924VF

Data Sheet

Specifications

Physical Characteristics

Ports

●

24 100BASE-FX VF-45 MMF ports

●

2 slots for expansion modules

Network Interface

●

10BASE-T: RJ45 UTP Cat. 3, 4, 5

●

100BASE-T: RJ-45 UTP Cat. 5

●

1000BASE-T: RJ-45 UTP Cat. 5

●

100BASE-FX:: SC/ST connector

●

1000BASE-SX: SC connector

●

1000BASE-LX: SC connector

Buffer Archetecture

●

32Kbps per 100Mbps

●

2Mbps per 1000Mbps port

Aggregate Bandwidth

●

8.8Gbps, non-blocking

Switching Database

●

8K MAC address entries

LEDs

●

System (power, RPU, Mgmt.)
Port: mode (flow control, full duplex,

activity)

Link (speed, link, disable,/partition)

Weight

●

4820Kgs

Size

●

17.37 x 1.22 x 2.53in

Temperature

●

Operating:

●

Storage:

Humidity (non-condensing)

●

Operating 5% to 95%

AC Input

●

100 to 240V, 47-63 Hz

Power Supply

●

Internal, auto-ranging transformer:
100 to 240VAC, 47-63Hz
Redundant DC Input

Power Consumption

●

<70W

Maximum Current

●

SMC6924VF: 0.80A @ 110VAC,

0.50A @ 240VAC

MTBF

●

6 years (estimated)

Switch Features

●

Spanning Tree Protocol

Forwarding Mode

●

Store-andFroward

Flow Control

●

Full-Duplex: IEEE 802.3x

●

Half-Duplex: back pressure

VLAN Support

●

Up to 256 groups, port-based or
with 802.1Q VLAN tagging, GVRP
for automatic VLAn learning

Quality of Service

●

Supports two levels or priority and
weighted Fair Queeing, Broadcast
Storm Control, MulitLink Trunking
& Port Mirroring

Management features

●

In band Management, Telnet, SLIP,
Web-based HTTP or SNMP Manager

Out-of-band Management

●

RS-232 DB-9 console port

Software Loading

●

TFTP in-band or Xmodem out-of­band

MIB Support

●

MIB II (RFC 1213), Bridge MIB (RFC

1493), Ethernet-like MIB (RFC

1643), RMON MIB (RFC 1757),
SMC proprietary MIB

RMON Support

●

Groups 1, 2, 3, 9 (Statistics, History,
Alarm, Event)

Standards Conformance

Standards

●

IIEEEEEE

802.3 Ethernet, 803.3u Fast

Ethernet, 803,3z Gigabit Ethernet,

802.1d Spanning Tree Protocol &
traffic Priorities, 802.1p Priority
Tags, 802.1q VLAN802.3ac VLAN
Tagging, 802.3x Full-Duplex flow
control; ISO IEC 8802-3

●

SNMP (RFC 1157), RMON (RFC 1757),
ARP (RFC 826), IGMP (RFC 1112),
MIB II (RFC 1213), Ethernet-like MIB
(RFC 1643), Bridge MIB (RFC 1493)

Compliances

●

CE Mark

●

Emissions

●

FCC Class A

●

Industry Canada Class A

●

EN55022 (CISPR 22) Class A

●

VCCI Class A

●

C-Tick - AS/NZS 3548 (1995) Class A

●

Immunity

●

IEC 1000-4 - 2/3/4/6

Safety

●

CSA/NRTL (CSA22.2.950 & UL 1950)
EN609050 (TUV/GS)

Slide in Modules

●

100BASE-FX Extender Module

Models

●

SMC6900FSC, SMC6900FST,
SMC6900FSSC

Ports

●

(2) 100BASE-FX (SC or multi-mode,
(1) 100BASE-FX, (SC) sungle-mode,

Model

●

SMC6900G, SMC6900GLSC

Ports

●

(1) 1000BASE-SX, (1) 1000BASE-LX
