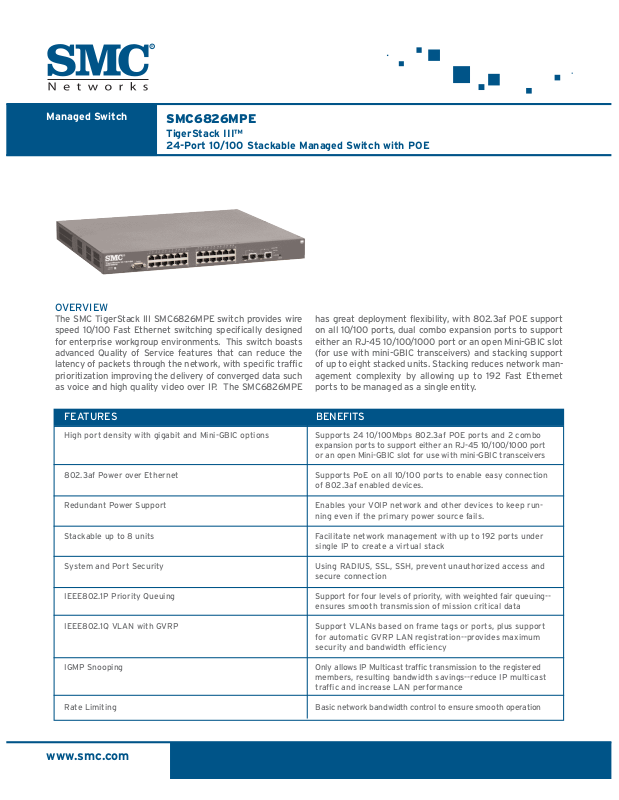

Smc 6826MPE DATASHEET
Managed Switch
SMC6826MPE
TigerStack III™
24-Port 10/100 Stackable Managed Switch with POE
www.smc.com
The SMC TigerStack III SMC6826MPE switch provides wire
speed 10/100 Fast Ethernet switching specifically designed
for enterprise workgroup environments. This switch boasts
advanced Quality of Service features that can reduce the
latency of packets through the network, with specific traffic
prioritization improving the delivery of converged data such
as voice and high quality video over IP. The SMC6826MPE
has great deployment flexibility, with 802.3af POE support
on all 10/100 ports, dual combo expansion ports to support
either an RJ-45 10/100/1000 port or an open Mini-GBIC slot
(for use with mini-GBIC transceivers) and stacking support
of up to eight stacked units. Stacking reduces network management complexity by allowing up to 192 Fast Ethernet
ports to be managed as a single entity.
FEATURES BENEFITS
OVERVIEW
High port density with gigabit and Mini-GBIC options
802.3af Power over Ethernet
Redundant Power Support
Stackable up to 8 units
System and Port Security
IEEE802.1P Priority Queuing
IEEE802.1Q VLAN with GVRP
IGMP Snooping
Rate Limiting
Supports 24 10/100Mbps 802.3af POE ports and 2 combo
expansion ports to support either an RJ-45 10/100/1000 port
or an open Mini-GBIC slot for use with mini-GBIC transceivers
Supports PoE on all 10/100 ports to enable easy connection
of 802.3af enabled devices.
Enables your VOIP network and other devices to keep running even if the primary power source fails.
Facilitate network management with up to 192 ports under
single IP to create a virtual stack
Using RADIUS, SSL, SSH, prevent unauthorized access and
secure connection
Support for four levels of priority, with weighted fair queuing-ensures smooth transmission of mission critical data
Support VLANs based on frame tags or ports, plus support
for automatic GVRP LAN registration--provides maximum
security and bandwidth efficiency
Only allows IP Multicast traffic transmission to the registered
members, resulting bandwidth savings--reduce IP multicast
traffic and increase LAN performance
Basic network bandwidth control to ensure smooth operation
TECHNICAL SPECIFICATIONS SMC6826MPE
PORTS
• 24 Auto-MDIX 10BASE-T/100BASE-TX
RJ-45 ports and 2 1000BASE-T/ SFP
Combo ports
• Built-in Network Management
• RPU port
NETWORK INTERFACE
• 10BASE-T: RJ-45 UTP CAT. 3,4,5
• 100BASE-TX: RJ-45 UTP Cat. 5
• 100BASE-FX: SC/ST connector
• 1000BASE-SX: SC connector
• 1000BASE-LX: SC connector
• 1000BASE-T: RJ-45 connector
• Multimode fiber cable; 62.5/125
or 50/125 microns
LEDs
• System: PWR, Diag, RPS, Stacking
• Ports: Link/Act, PoE
SWITCHING DATABASE
• 8K MAC address entries
SWITCH FABRIC
• 8.8 Gbps
STACK INTERFACE
• 1Gbps, full duplex, USB
Buffer Architecture
• 8Mbytes
WEIGHT
• 5.76 kg (12.70 lbs)
TEMPERATURE
• Operating: 0°C to 50°C (32°F to 122°F)
Storage: -40°C to 70°C (-40°F to 158°F)
• Humidity
Operating: 5% to 95% (non-condensing)
WARRANTY
• Limited Lifetime
DIMENSIONS
• 18 x 16 x 1.7 in
• 440 x 410 x 43 mm
HUMIDITY
• Operating: 5% to 95%
AC INPUT
• 100 to 240V, 47 to 63 Hz
POWER SUPPLY
• Internal, auto-ranging transformer:
100 to 240VAC, 50 to 60 Hz
POWER CONSUMPTION
• 48 Watts (Switching system)
• 375 Watts (Power-over-Ethernet)
POWER-OVER-ETHERNET
• Maximum output power per port: 15.4 W
• Output Voltage: 44 - 57 VDC
• Maximum output current per port: 350 mA
MAXIMUM CURRENT
• 6.8 A @ 100 V AC
• 3.2 A @ 240 V AC
MTBF
• 8 years
SWITCH FEATURES
• Spanning Tree Protocol
• Forwarding Mode
• Store-and-forward
• VLAN Support
• Up to 256 groups; port-based or
with 802.1Q
• VLAN tagging, GVRP for automatic
VLAN learning
• Quality of Service
• Supports four levels of priority
• MultiLink Trunking (LACP)
• Port Mirroring
• TACACS+ client authentication
• HTTPS and SSL
• SSH 2.0 for Telnet sessions
• Rate limiting
• Static port security
• Layer 3/4 Priority mapping
MANAGEMENT FEATURES
• In-Band Management
• Telnet, SLIP, Web-based HTTP, or SNMP
manager
• Out-of-Band Management
• RS-232 DB-9 console port
• Software Loading
• TFTP in-band or Xmodem out-of-band
• MIB Support
• MIB II (RFC 1213), Bridging MIB (RFC 1493),
Ethernet-Like MIB (RFC 1643), RMON MIB
(RFC 1757), SMC’s private MIB
RMON SUPPORT
• Groups 1,2,3, 9 (Statistics, History, Alarm, Event)
STANDARDS
• IEEE802.3 Ethernet,
IEEE802.3u Fast Ethernet
• IEEE802.1D Spanning Tree Protocol
and traffic priorities,
• IEEE802.1p Priority tags
• IEEE802.1Q VLAN
• IEEE802.1ac VLAN tagging
• IEEE802.1ad Link aggregation control protocol
• IEEE802.1w Rapid Spanning Tree
• IEEE802.1s Multiple Spanning Tree (future)
• IEEE802.3af Power over Ethernet
ISO
• IEC8802.3
• SNMP (RFC 1157), RMON (RFC 1757), ARP
(RFC826), IEGMP (RFC1157), IGMP (RFC1112),
MIB II (RFC 1213), Ethernet-like MIB
(RFC1643), Bridge MIB (RFC 1493)
COMPLIANCES
• CE Mark
• Emissions
• FCC Class A
• Industry Canada Class A
• EN55022 (CISPR 22) Class A
• VCCI Class A
• C-Tick – AS/NZS 3548 (1995) Class A
IMMUNITY
• IEC 1000- 4- 2/3/4/6
SAFETY
• UL
• CSA/NRTL (CSA22.2.2.950 &UL 1950)
• En60950 (TUV/GS)
OPTIONAL PLUG-IN TRANSCEIVERS
SMCBGSLCX1
• 1000BASE-SX
• LC Multimode fiber
• Range - 220m for 62.5/125m, 850nm
• Range - 550m for 50/125m, 850nm
SMCBGLLCX1
• 1000BASE-LX
• LC Singlemode fiber
• Range - 10Km for 9/125m, 1310nm
SMCBGZLCX1
• 1000BASE-ZX
• LC single mode fiber
• Range - 70 to 100Km for 9/125, 1310nm
STACKING CONNECTOR
• SMC6824P-S
• Stacking connector including cable
