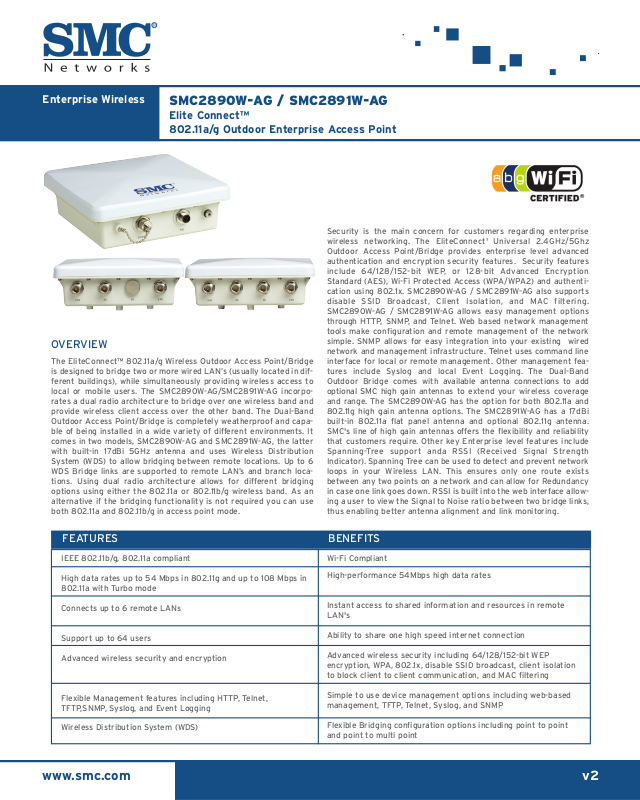

Smc 2891W-AG, 2890W-AG DATASHEET
Enterprise Wireless
SMC2890W-AG / SMC2891W-AG
Elite Connect™
802.11a/g Outdoor Enterprise Access Point
www.smc.com v2
The EliteConnect™ 802.11a/g Wireless Outdoor Access Point/Bridge
is designed to bridge two or more wired LAN’s (usually located in different buildings), while simultaneously providing wireless access to
local or mobile users. The SMC2890W-AG/SMC2891W-AG incorporates a dual radio architecture to bridge over one wireless band and
provide wireless client access over the other band. The Dual-Band
Outdoor Access Point/Bridge is completely weatherproof and capable of being installed in a wide variety of different environments. It
comes in two models, SMC2890W-AG and SMC2891W-AG, the latter
with built-in 17dBi 5GHz antenna and uses Wireless Distribution
System (WDS) to allow bridging between remote locations. Up to 6
WDS Bridge links are supported to remote LAN’s and branch locations. Using dual radio architecture allows for different bridging
options using either the 802.11a or 802.11b/g wireless band. As an
alternative if the bridging functionality is not required you can use
both 802.11a and 802.11b/g in access point mode.
Security is the main concern for customers regarding enterprise
wireless networking. The EliteConnect' Universal 2.4GHz/5Ghz
Outdoor Access Point/Bridge provides enterprise level advanced
authentication and encryption security features. Security features
include 64/128/152-bit WEP, or 128-bit Advanced Encryption
Standard (AES), Wi-Fi Protected Access (WPA/WPA2) and authentication using 802.1x. SMC2890W-AG / SMC2891W-AG also supports
disable SSID Broadcast, Client Isolation, and MAC filtering.
SMC2890W-AG / SMC2891W-AG allows easy management options
through HTTP, SNMP, and Telnet. Web based network management
tools make configuration and remote management of the network
simple. SNMP allows for easy integration into your existing wired
network and management infrastructure. Telnet uses command line
interface for local or remote management. Other management features include Syslog and local Event Logging. The Dual-Band
Outdoor Bridge comes with available antenna connections to add
optional SMC high gain antennas to extend your wireless coverage
and range. The SMC2890W-AG has the option for both 802.11a and
802.11g high gain antenna options. The SMC2891W-AG has a 17dBi
built-in 802.11a flat panel antenna and optional 802.11g antenna.
SMC's line of high gain antennas offers the flexibility and reliability
that customers require. Other key Enterprise level features include
Spanning-Tree support anda RSSI (Received Signal Strength
Indicator). Spanning Tree can be used to detect and prevent network
loops in your Wireless LAN. This ensures only one route exists
between any two points on a network and can allow for Redundancy
in case one link goes down. RSSI is built into the web interface allowing a user to view the Signal to Noise ratio between two bridge links,
thus enabling better antenna alignment and link monitoring.
FEATURES
IEEE 802.11b/g, 802.11a compliant
High data rates up to 54 Mbps in 802.11g and up to 108 Mbps in
802.11a with Turbo mode
Connects up to 6 remote LANs
Support up to 64 users
Advanced wireless security and encryption
Flexible Management features including HTTP, Telnet,
TFTP,SNMP, Syslog, and Event Logging
Wireless Distribution System (WDS)
Wi-Fi Compliant
High-performance 54Mbps high data rates
Instant access to shared information and resources in remote
LAN's
Ability to share one high speed internet connection
Advanced wireless security including 64/128/152-bit WEP
encryption, WPA, 802.1x, disable SSID broadcast, client isolation
to block client to client communication, and MAC filtering
Simple to use device management options including web-based
management, TFTP, Telnet, Syslog, and SNMP
Flexible Bridging configuration options including point to point
and point to multi point
BENEFITS
OVERVIEW
TECHNICAL SPECIFICATIONS SMC2890W-AG / SMC2891W-AG
NETWORK CONFIGURATION
• Bridge Mode: Point-to-Point, Point-to-Multipoint,
Wireless Distribution System (WDS)
• Access Point Mode: Infrastructure Mode
MAXIMUM CLIENTS
• 128 in Access Point Mode (64 per radio interface)
PHYSICAL PORTS
• SMC2890W-AG
• 1-port 10/100Mbps Fast Ethernet with support
for Power over Ethernet (PoE)
• 1-port Management Console
• 2x N-type antenna connector, 2.4GHz for
802.11b/g
• 2x N-type antenna connector, 5GHz for 802.11a
• SMC2891W-AG
• 1-port 10/100Mbps Fast Ethernet with support
for Power over Ethernet (PoE)
• 1-port Management Console
• 2x N-type antenna connector, 2.4GHz for
802.11b/g
• 1x N-type antenna connector, 5GHz for 802.11a
LED INDICATORS
• PWR (Power), Link (Ethernet Link/Activity), 11a
and 11g (Wireless Link/Activity)
• Built-in RSSI Meter (Receive Signal Strength
Indicator)
ADDITIONAL PACKAGE CONTENT
• 98 ft/ 30 m LAN/PoE cable with RJ-45 and
special outdoor connector
• 5.9 ft/ 1.8 m console cable with RS-232 and
special outdoor connector
• Power over Ethernet (PoE) Injector
• Outdoor pole- and wall-mounting bracket kit
DATA RAT E S
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, Turbo
Mode: up to 108 Mbps
• 802.11g: 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
MAXIMUM CHANNELS
• 802.11a
• US & Canada: 12 (base mode), 5 (turbo mode)
• Europe: 11 channels (base mode), 4 (turbo mode)
• Japan: 4 (base mode)
• 802.11b/g
• US & Canada: 11 (base mode)
• Europe: 13 channels (base mode)
• Japan: 14 (base mode)
OPERATING FREQUENCY
• 802.11a
• US/Canada: 5.15 ~ 5.35 GHz, 5.725 ~ 5.825 GHz
• Europe: 5.15 ~ 5.35 GHz, 5.47 ~ 5.825 GHz
• Japan: 4.9 ~ 5.0 GHz
• 802.11b/g
• US/Canada, Europe: 2400 ~ 2483.5 MHz
• Japan: 2400 ~ 2497 MHz
• Dynamic Frequency Selection (DFS)
MODULATION TYPES
• 802.11a: BPSK, QPSK, 16-QAM, 64-QAM
• 802.11b/g: CCK, BPSK, QPSK, OFDM
SENSITIVITY
• 802.11a: -71dBm@54Mbps (5.150 - 5.250GHz)
• 802.11g: -73dBm@54Mbps
• 802.11b: -90dBm@11Mbps
TRANSMIT POWER
• 802.11a: 17.5dBm@54Mbps (5.150 - 5.250GHz)
• 802.11g: 18dBm@54Mbps
• 802.11b: 20dBm@11Mbps
• Transmit Power Control (TPC)
SECURITY
• 64/128/152-bit WEP Encryption
• Wi-Fi Protected Access (WPA/ WPA2)
• IEEE802.1x Authentication
• RADIUS Client Support
• MAC Address Filtering
• Access Control Lists (ACL)
• Wireless Client Isolation
• SSL, SSHv2
MANAGEMENT
• Web-based Management, HTTP/HTTPS
• SNMP Management
• 802.1d Spanning Tree
• VLAN
• TELNET console interface
• Configuration file upload/download by FTP/TFTP
and SNMP
• System Watchdog
•SysLog
PHYSICAL SIZE
• 7.7 x 7.5 x 2.9 in/ 19.5 x 19 x 7.4 cm
WEIGHT
• 3.4 lbs/ 1.54kg
BUILT-IN ANTENNA (SMC2891W-AG ONLY)
• 17dBi Flat Panel Antenna
• Frequency Range: 4.9 - 5.875 GHz
• Gain: 17dBi
• VSWR: 2.0 : 1 max
• Polarization: Linear, vertical /horizontal
• HPBW: Horizontal/ Vertical 18º
• Impedance: 50 Ohms
POE INJECTOR
• Input: 90 ~ 264 AC, 47 to 63Hz
• Output: 48VDC, 1.2A
• Conducted EMI: CISPR/FCC Class B
• Short Circuit Protection: Auto-Recovery
• Over Voltage Protection: Auto-Recovery
• Dimensions: 5.91 x 2.76 x 1.38 in/ 15 x 7 x 4 cm
TEMPERATURE
• Operating: -40 to 60°C (-40 to 140 °F)
non-con densing @ 5 to 50°C
• Storage: -55 to 80°C (-67 to 176 °F)
non-condensing @ 5 to 70°C
HUMIDITY
• 15% to 95% (non-condensing)
STANDARDS
• IEEE 802.3, IEEE 802.3u, IEEE 802.11a, b, g
SAFETY
• UL/CUL (CSA60950-1,UL60950-1)
• CB (IEC 60950-1)
• UL/GS (EN60950-1)
• ICES-003 (Canada)
WIRELESS RADIO/REGULATORY CERTIFICATION
• ETSI 300 328 (11b/g), 301 893 (11a Full range), 301
489 (DC power)
• FCC Part 15C 15.247/15.207 (11b/g), Part 15E
15.407 (11a Full range)
• Wi-Fi, DGT, TELEC, RSS210(Canada), C-Tick
ELECTROMAGNETIC COMPATIBILITY
• CE Class B (EN55022), CE EN55024
• IEC61000-3-2, IEC61000-3-3, IEC61000-4-2,
IEC61000-4-3, IEC61000-4-4, IEC61000-4-5,
IEC61000-4-6, IEC61000-4-8, IEC61000-4-11
• FCC Class B Part 15
• VCCI Class B
