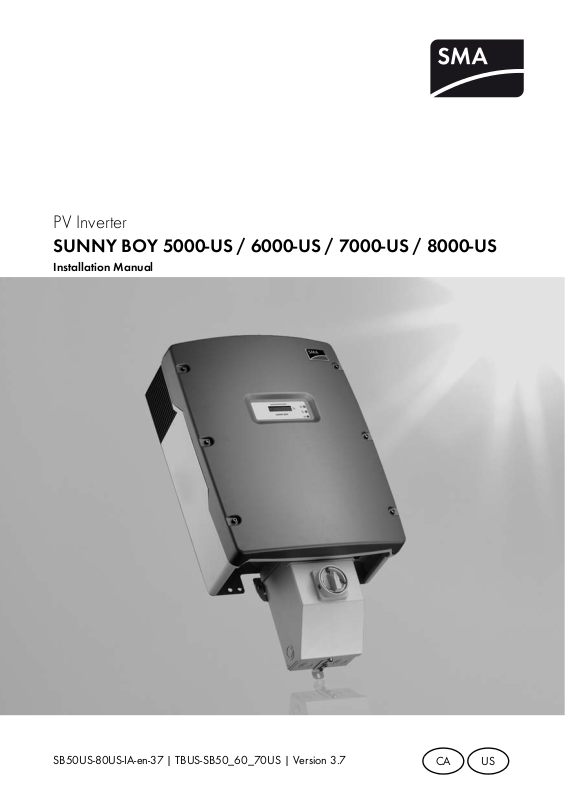

SMA SB 5000-US User Manual

Download

PV Inverter

SUNNY BOY 5000-US / 6000-US / 7000-US / 8000-US

Installation Manual

SB50US-80US-IA-en-37 | TBUS-SB50_60_70US | Version 3.7

SMA America, LLC Legal Restrictions

or by any means, electronic, mechanical, photographic, magnetic or otherwise, without the prior written permission of SMA America,LLC.

Neither SMA America,LLC nor SMA Solar Technology Canada Inc. makes representations, express or implied, with respect to this documentation or any of the equipment and/or software it may describe, including (with no limitation) any implied warranties of utility, merchantability, or fitness for any particular purpose. All such warranties are expressly disclaimed. Neither SMA America,LLC nor its distributors or dealers nor SMA Solar Technology Canada Inc. nor its distributors or dealers shall be liable for any indirect, incidental, or consequential damages under any circumstances.

(The exclusion of implied warranties may not apply in all cases under some statutes, and thus the above exclusion may not apply.)

Specifications are subject to change without notice. Every attempt has been made to make this document complete, accurate and up-to-date. Readers are cautioned, however, that SMAAmerica,LLC and SMA Solar Technology Canada Inc. reserve the right to make changes without notice and shall not be responsible for any damages, including indirect, incidental or consequential damages, caused by reliance on the material presented, including, but not limited to, omissions, typographical errors, arithmetical errors or listing errors in the content material.

All trademarks are recognized even if these are not marked separately. Missing designations do not mean that a product or brand is not a registered trademark.

The Bluetooth

word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by SMA America,LLC and SMA Solar Technology Canada Inc. is under license.

SMA America, LLC

3801 N. Havana Street

Denver, CO 80239 U.S.A.

SMA Solar Technology Canada Inc.

2425 Matheson Blvd. E, 8th Floor

Mississauga, ON L4W 5K5, Canada

Installation Manual SB50US-80US-IA-en-37 3

Important Safety Instructions SMA America, LLC

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

This manual contains important instructions for Sunny Boy inverter, that must be followed during installation and maintenance of the inverter.

The Sunny Boy is designed and tested according to international safety requirements, but as with all electrical and electronic equipment, certain precautions must be observed when installing and/or operating the Sunny Boy. To reduce the risk of personal injury and to ensure the safe installation and operation of the Sunny Boy, you must carefully read and follow all instructions, cautions and warnings in this installation guide.

Warnings in this document

A warning describes a hazard to equipment or personnel. It calls attention to a procedure or practice, which, if not correctly performed or adhered to, could result in damage to or destruction of part or all of the SMA equipment and/or other equipment connected to the SMA equipment or personal injury.

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to personal injury.

4 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Important Safety Instructions

1 Information on this Manual

1.1 Validity

Th is g uid e de scr ibe s th e mo unt ing , inst all ati on, com mis sio nin g an d ma int ena nce of t he f ollow ing SMA inverters:

• Sunny Boy 5000-US (SB 5000US and SB 5000US-12)

• Sunny Boy 6000-US (SB 6000US and SB 6000US-12)

• Sunny Boy 7000-US (SB 7000US and SB 7000US-12)

• Sunny Boy 8000-US (SB 8000US and SB 8000US-12)

This guide does not contain any information on the devices that are connected to the Sunny Boy. Information concerning the connected devices is available from the manufacturers of the devices.

1.2 Target Group

This manual is for qualified personnel. Qualified personnel have received training and have demonstrated skills and knowledge in the construction and operation of this device. Qualified personnel are trained to deal with the dangers and hazards involved in installing electric devices.

1.3 Storing the Documentation

Store all manuals for the Sunny Boy in such a way that they may be accessed at any time.

1.4 Additional Information

Additional information on specific topics can be found in the download area at www.SMA‑America.com.

1.5 Nomenclature

In this document, SMA America Production, LLC and SMA Solar Technology Canada Inc. will be referred to as SMA.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 11

Safety SMA America, LLC

2 Safety

2.1 Intended Use

The Sunny Boy is a PV inverter which converts the DC current of the PV array to AC current and feeds it into the power distribution grid. The Sunny Boy is suitable for use with fuel cells, small wind turbine systems, and other DC current sources. The Sunny Boy takes the current from a DC source and converts it into AC power for the power distribution grid. This power is then supplied to the local consumers (C). Surplus energy is fed into the power distribution grid (E). Due to the power that is consumed by the local devices, the amount of power required from the power distribution grid is reduced. An energy surplus may even result in the energy meter (D) of your plant running backward. This power may also be recorded as power credits by the electric utility company depending on the interconnection agreement.

Principle of a PV Plant with a Sunny Boy

Position Description

A PV array B Sunny Boy with DC disconnect C Local consumers D Energy meter E Power distribution grid

Ground Fault Detection and Interruption in the PV Array

All Sunny Boy inverters have a system for detecting ground fault errors in the PV array (GFDI) according to the National Electrical Code® 690.5.

The PV array is operated in a grounded configuration. Depending on the plant type, the negative or positive conductor of the PV array is connected to the grounding system in the Sunny Boy. According to UL 1741, the GFDI protection is always active when sufficient DC voltage is present to switch on the LC display in the Sunny Boy.

If a ground fault current larger than 1 A is flowing, the Sunny Boy switches off and displays the interference. After the ground fault has been located and eliminated, the ground fault interference must be cleared manually. Following this, the Sunny Boy resumes operation.

14 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Safety

Arc Fault Circuit Interrupter AFCI

Only the following Sunny Boy types are equipped with an automatic arc fault circuit interrupter (AFCI):

• SB 5000US-12

• SB 6000US-12

• SB 7000US-12

• SB 8000US-12

Edition 2011 of the National Electrical Code

®,

Section 690.11, requires that all PV plants attached to a building are fitted with a means of detecting and interrupting serial electric arcs (AFCI) on the PV side.

An ele ctr ic a rc w ith a po wer of 3 00 W o r gr eat er m ust be i nte rru pted by the AFCI in the time specified by UL 1699B. A triggered AFCI may only be reset manually.

The arc fault circuit interrupter (AFCI) can be deactivated in the "Electrically qualified person" mode via the communication device if this function is not desired.

Anti-Islanding Protection

A stand-alone grid is a status. It occurs when the power distribution grid is switched off and the Sunny Boy is in operation. For this to happen, the remaining load must be resonant at 60 Hz and exactly ma tch the pow er o f th e Su nny Boy . Al tho ugh the app ear anc e of these conditions is extremely unlikely, the Sunny Boy has an active safety algorithm to protect against islanding. The effect of this is that, in the event of the power distribution grid being switched off, the PV plant does not supply any power to a symmetrical load that is resonant at 60 Hz. In addition, the Sunny Boy regularly feeds leading and lagging reactive currents into the power distribution grid. This procedure is checked by the certification body in order to destabilize and switch off a stand-alone grid status.

Operating Temperature

The Sunny Boy delivers full performance in ambient temperatures up to +113 °F (+45 °C). Due to the fan cooling, this level of performance can be achieved in closed rooms. The Sunny Boy does re mai n op era tio nal abo ve + 113 ° F (+ 45 °C ), b ut i t re duc es t he l evel of performance so as to protect the internal component parts from overheating.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 15

Safety SMA America, LLC

Interconnection Code Compliance

The Sunny Boy has been checked by the certification body and certified according to the guidelines in UL 1741 Static Inverters and Charge Controllers for use in Photovoltaic Power Systems, IEEE 9292000 Recommended Practice for Utility Interface of Photovoltaic Systems, and IEEE 1547 Standard for Interconnecting Distributed Resources with Electric Power Systems.

UL 1741 is the standard that is used for the Sunny Boy by the certification body in order to certify that it complies with the regulations in National Electrical Code

and IEEE 929-2000. IEEE 929-2000 states recommendations regarding the appropriate equipment and functionality that is required to guarantee fault-free operation when the power generation is connected to the power distribution grid.

The Sunny Boy is also certified according to Canadian Electrical Code® CSA C22.2

N0. 107.1-01 (General Use Power Supplies).

Prior to setting up and installing your PV plant, contact the on site grid operator or the responsible authority.

2.2 Safety Instructions

DANGER

High voltages in the inverter Electric shock when touching live components.

• Prior to performing any work on the inverter, disconnect the inve rter from any volt age sources.

• Only connect the inverters as described in this manual.

• Only electrically qualified persons may work on the inverter.

CAUTION

The inverter can become hot during operation

• Burn injuries may be possible when touching the enclosure.

• During operation, touch the enclosure lid only.

The Sunny Boy may down over due to inappropriate transport Contusions or bone fractures due to the heavy weight of the Sunny Boy.

• Prior to transporting the Sunny Boy, take its weight of 148 lb. (67 kg) into consideration.

• Use suitable lifting techniques for the transport.

16 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Safety

2.3 Installation Overview

This section provides a brief overview of the installation process of a Sunny Boy.

Section 3: Unpacking and Inspection

This section provides instructions and information on unpacking the Sunny Boy and inspecting shipping damage.

Section 4: AC Voltage Configuration

This section contains information on removing the cover, determining the position of the fundamental component parts in the inverter and selecting the suitable voltage configuration for the installation.

Section 5: Mounting

This section provides guidelines to help you choose the best mounting location, recommendations for achieving optimal performance, safety measures and warnings to prevent injuries and/or damage to the device, and step-by-step instructions for mounting the Sunny Boy inverter.

Section 6: Wiring the Sunny Boy

This section contains guidelines for selecting the correct line cross-section, safety measures and warnings to prevent injuries and/or damage to the device, and step-by-step instructions for connecting the Sunny Boy to a PV array, to an electric circuit in the home, and to the power distribution grid. Procedures are also included for connecting optional data communication cables.

Section 7: Commissioning

Commissioning comprises applying DC input power to the Sunny Boy, observing the LED and LCD displays, and resolving any problems that occur.

Section 8: Displays and Messages

This section provides information on messages that may appear during commissioning and operation.

Section 9: Troubleshooting

This section provides information for troubleshooting and procedures for resolving problems that may occur during commissioning and operation.

Section 10: Maintenance

This section contains the maintenance and cleaning of the Sunny Boy and safety measures and warnings for preventing injuries and damage to the device.

Section 11: Technical Data

This section contains the technical data of the Sunny Boy, connection diagrams, and the correct tightening torques for connecting the cables and screws to the Sunny Boy.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 17

Unpacking and Inspection SMA America, LLC

3 Unpacking and Inspection

Check the delivery for completeness and any visible external damage. Contact your SMA specialty retailer or SMA if the delivery is incomplete or you find any damage.

If it is necessary to send the Sunny Boy back, use the original packaging. Contact information is provided in the "Contact" section, page 103.

3.1 Scope of Delivery

Position Quantity Description

A1 Sunny Boy B1 Wall mounting bracket C 1 Replacement screw and replacement conical spring washers for connecting

the enclosure lid to the Sunny Boy.

2 Screws and washers for fastening the Sunny Boy to the wall mounting bracket D 2 Spare jumpers for fan test E 2 Handle covers (left and right) F3DC varistors* G 1 Insertion tool for DC varistors* H1 DC Disconnect I1Screw and washer for closing the DC Disconnect lid

2 Screws and washers for fastening the DC Disconnect to the wall-mounting

bracket

* only SB 5000US-12/SB 6000US-12/SB 7000US-12/SB 8000US-12

18 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC AC Voltage Configuration

4 AC Voltage Configuration

4.1 Opening the Sunny Boy

1. Remove the six screws and conical spring washers from the enclosure cover. Pull the cover forward smoothly.

2. Put the cover, screws, and conical spring washers to one side so that they do not get in the way.

NOTICE

Ingress of moisture when mounting and installing the Sunny Boy Potential damage to the Sunny Boy.

• For condui t hubs, use UL listed rainti ght, wet location hubs for entry into the enclosure.

• Do not open the Sunny Boy in the event of rain or a high level of humidity (> 95 %).

Damage to the seal of the enclosure lid during frost When opening the Sunny Boy during frost, the seal of the enclosure lid can be damaged.

There may be an ingress of moisture damaging the Sunny Boy.

• Do not open the Sunny Boy when the outdoor temperature is below 23 °F ( − 5 °C).

Electrostatic discharges through touching component parts Potential damage to the Sunny Boy.

• Ground yourself before touching any electronic component.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 19

AC Voltage Configuration SMA America, LLC

1234 UNGROUNDED GROUNDED

L1 L2 N

240

2357 AB+-

GROUNDING ELECTRODE CONDUCTOR

COMBINED

4.2 Locating Internal Component Parts

Position Description

A Sockets for optional communication Piggy-Back (RS485 or wireless) BDisplay C Status LEDs D Jumpers for configuring the AC voltage and the fan test E Terminal blocks for configuring the AC voltage

F Ground terminal (PE)

20 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC AC Voltage Configuration

Position Description

G Output AC conductor terminals (N, L1, and L2) H Connecting terminal plate, PV grounding conductor, + DC grounding conductor

IDC varistor terminal with DC varistors*

K Output AC conductor terminals (L1, L2, N and PE)

L Terminal PV GROUNDED (PV array input) M Terminal PV UNGROUNDED (PV array input) N Combined terminal UNGROUNDED OTerminal DC− (PV array input)

P Terminal DC+ (PV array input) Q Flat male tab for grounding the cable shield for communication

R Terminal for optional communication (RS485)

* only SB 5000US-12/SB 6000US-12/SB 7000US-12/SB 8000US-12

4.3 AC Voltage Configuration

The Sunny Boy 8000-US must not be connected to a 208 V grid.

The Sunny Boy is compatible with the following grid types:

• 208 V AC (not Sunny Boy 8000-US)

• 240 V AC

• 277 V AC

The Sunny Boy is configured ex works for connection to the power distribution grid with a voltage of 240 V AC. The Sunny Boy can be configured for other voltages.

4 cables are inserted into the enclosure via a cable support sleeve. Each cable is labeled with its respective voltage.

1. Connect the cable with the correct voltage to the left terminal block (A).

2. To adjust the AC voltage, select the cable with the correct voltage at the right terminal block (C). Connect the selected cable to the left side of the left terminal block (A).

3. Secure all screw terminals. If spring-type terminals are available, close the levers of the terminals by pressing down.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 21

AC Voltage Configuration SMA America, LLC

Disturbance

XFMR

Tightening torque of the screw terminals for the left terminal block:

Gray terminal blocks (Weidmüller) 18 in-lb. (2 Nm) Green terminal blocks (Phoenix) 22 in-lb. (2.5 Nm)

Do not remove the cable in the left terminal block with the marking 0 V (B). This always remains connected to the right side of the left terminal block.

4. Connect and fasten all cables not being used to the right terminal block (C). Tightening torques of the screw terminals for the right terminal block (cables not being used):

Gray terminal blocks (Weidmüller) 11 in-lb. (1.2 Nm) Green terminal blocks (Phoenix) 15 in-lb. (1.7 Nm)

If the Sunny Boy is configured for the wrong input voltage, this error message appears in the display:

• Check if the configuration of the AC voltage is correct.

Automatic Grid Voltage Detection

The Sunny Boy automatically detects the grid voltage that it must feed in. Depending on the voltage and the phase angle between L1‑N and L2‑N, the inverter determines whether it is connected to a 208 V, 240 V, or 277 V grid. If the Sunny Boy is configured for the wrong grid voltage (for example, the inverter was configured for 240 V and then connected to a 208 V grid), the Sunny Boy displays an error message.

The table below contains the limiting values for voltage and frequency in the AC terminal:

Voltage range for 208 V nominal value, phase-phase (not Sunny Boy 8000-US)

Voltage range for 240 V nominal value, phase-phase 211 V … 264 V Voltage range for 277 V nominal value, phase-neutral conductor 244 V … 305 V Frequency range 59.3 Hz … 60.5 Hz

183 V … 229 V

If the power distribution grid uses a neutral conductor, the responsible authority can demand that a neutral conductor be connected to the inverter.

To set the configuration jumpers, observe the procedure in 4.4 ”Jumper for System Configuration” (page 24).

To connect a neutral conductor to the Sunny Boy, observe section 6.5.2 ”AC Connection in the DC Disconnect” (page 43) or section "AC Connection in the DC Disconnect" on page 43.

Configuration of Grid Voltage

The figure on the next page illustrates common grid forms. Note that it is not the phase relationship that is important when connecting the Sunny Boy to the power distribution grid, but the voltage compatibility.

22 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC AC Voltage Configuration

*The Sunny Boy 8000-US must not be connected to a 208 V grid.

When using grounded 240 V or 208 V Delta grids:

• Connect terminal L2 to the grounded phase.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 23

AC Voltage Configuration SMA America, LLC

208V with neutral conductor*240 V with neutral conductor or 277 V

208 V Delta, without neutral conductor or * 208 V Delta, grounded *

240 V Delta, without neutral conductor or 240 V Delta, grounded

Fan test

4.4 Jumper for System Configuration

By setting the jumper, you configure the Sunny Boy for different grid topologies. This means that operation in system configurations without neutral conductors, such as 208 V and 240 V Delta, is possible. The following figure provides an overview of the standard settings, the settings for grids without neutral conductors, and the settings for the fan test.

In the event of frost, the fan cannot be inspected

The fans are not activated under 32 °F (0 °C).

* The Sunny Boy 8000-US must not be connected to a 208 V grid.

24 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC AC Voltage Configuration

L2 L1

Inverter 3

Jumpers Settings

Inverter 1

Jumpers Settings

Inverter 2

Jumpers Settings

The following figures display the correct arrangement of the jumpers for the 240 V Delta system configuration: Note the order in which the inverters are connected to the phases.

Configuration Examples for Jumpers with 240 V Delta, 120 V Stinger

Configuration Examples for Jumpers with 240 V Delta, Grounded

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 25

When using grounded 240 V or 208 V Delta grids

• Connect terminal L2 to the grounded phase.

Assembly SMA America, LLC

5 Assembly

5.1 Safety

DANGER

Danger to life due to fire or explosions. With electrical devices, there is always a certain danger that a fire may break out.

• Do not install the inverter in the vicinity of combustible materials.

• Do not install the inverter in potentially explosive areas.

CAUTION

The Sunny Boy may fall down due to inappropriate mounting Contusions or bone fractures due to the heavy weight of the Sunny Boy.

• When mounting the Sunny Boy, take its weight of 148 lb. (67 kg) into consideration.

• Use appropriate mounting material for the mounting location of the inverter: – For mounting on plasterboard, do not use hollow wall anchors or toggle bolts. – Wooden supporting posts must be present behind the installation points on

plasterboard.

• Use suitable lifting technique when mounting.

The inverter can become hot during operation Burn injuries may be possible when touching the enclosure.

• Install the inverter in such a way that it cannot be touched accidentally.

26 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Assembly

max. 45°

5.2 Requirements for the Mounting Location

Observe the following conditions during installation:

• The installation method and mounting location must be suitable for the weight and dimensions of the Sunny Boy (see section 11 ”Technical Data” (page 91)).

• Note the dimensions of the DC disconnect (Page 34).

• Mount the inverter on a stable surface.

• The mounting location must be accessible at all times.

• Mount vertically or tilted backward at max. 45°.

• The connection area must point downward.

• Do not install the inverter tilting forward.

• Do not install the inverter horizontally.

• Install the inverter at eye level in order to be able to read out the operating state at any time.

• The ambient temperature must be below +113 °F (+45 °C).

• Do not expose the inverter to direct sunlight.

• In the living area, do not install inverters on a plasterboard wall or similar wall.

The Sunny Boy may emit noises when in use which can be regarded as a nuisance.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 27

Assembly SMA America, LLC

12 in.

2 in.

12 in.

• O bse rve rec omm end ed c lea ran ces to t he wal ls a s we ll a s to oth er inverters or objects. Thus, you will prevent the inverter's power output from being reduced due to excessive temperatures.

The National Electrical Code® may stipulate greater clearances (see National Electrical

, Section 110.26). Installations in Canada must be carried out in accordance with

Code

the applicable Canadian standards.

• If several inverters are mounted in areas with high ambient temperatures, increase the clearances and ensure a sufficient fresh-air supply. Thus, you will prevent the inverter power from being reduced due to too high temperatures.

Recommended clearances

Position Clearance

Top 12 in. (300 mm) Bottom 36 in. (900 mm) Left 12 in. (300 mm) Right 12 in. (300 mm) Front 2 in. (50 mm)

If the Sunny Boy is installed outdoors

• Observe minimum clearance to the ground of 36 in. (900 mm).

28 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Assembly

Dimensions of the Sunny Boy

5.3 Mounting with Wall Mounting Bracket

The Sunny Boy is supplied with a T-shaped wall mounting bracket that is suitable for most walls. The wa ll m ust be vert ica l an d st abl e en oug h to car ry a wei ght of 1 45 lb. (67 kg) for a long period of time. For the wall material, use suitable fastening elements no smaller than ¼ in.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 29

Assembly SMA America, LLC

2 in.

50 mm

2 in.

50 mm

2 in.

50 mm

2 in.

50 mm

2 in.

50 mm

2 in.

50 mm

2 in.

50 mm

2 in.

50 mm

23 in. (584 mm)

11 in. (280 mm)

(80 mm)

3 in. (74 mm)

Dimensions of the Wall Mounting Bracket

30 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Assembly

5.3.1 Possibilities for Mounting the Wall Mounting Bracket

Mounting on a Stone Wall

Secure the wall mounting bracket with at least 3 screws. The position of the screws on the wall mounting bracket is as follows:

• 1 screw on the upper left side.

• 1 screw on the upper right side.

• 1 screw below.

Mount the wall mounting bracket as described in section

5.3.2 ”Mounting the Wall Mounting Bracket” (page 32).

Mounting on a Wooden Wall with a Stud or on a Pillar

Secure the wall mounting bracket with at least 3 screws. The position of the screws on the wall mounting bracket is as follows:

• 2 screws at the upper middle.

• 1 screw below.

Mount the wall mounting bracket as described in section

5.3.2 ”Mounting the Wall Mounting Bracket” (page 32).

Mounting on a Wooden Wall with Two Studs

Secure the wall mounting bracket with at least 4 screws. The position of the screws on the wall mounting bracket is as follows:

• 2 screws on the upper left side.

• 2 screws on the upper right side.

Use the four outer mounting holes on the left and right sides of the wall mounting bracket.

Mount the wall mounting bracket as described in section

5.3.2 ”Mounting the Wall Mounting Bracket” (page 32).

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 31

Assembly SMA America, LLC

5.3.2 Mounting the Wall Mounting Bracket

1. Position the wall mounting bracket at the installation location. If possible, select eye level.

2. Align the wall mounting bracket with a spirit level. The bottom end of the wall mounting bracket reaches approximately to the bottom corner of the inverter.

WARNING

Electric shock due to damaged electric cables Electric cables may be located behind the installation points which can be damaged when

mounting the inverter.

• Ensure that no electric cables are located behind the installation points.

3. Use the wall mounting bracket as a template. Mark at least 3 holes in the horizontal or vertical position of the wall mounting bracket (see section 5.3.1 ”Possibilities for Mounting the Wall Mounting Bracket” (page 31)).

4. Remove the mounting bracket and drill the holes at the markings.

Information for the installation

The diameter of the bore holes must correspond to the fastening elements that you use for mounting the inverter.

Mounting on a concrete wall:

• The hole diameter must be the same as the outer diameter of the screw anchors.

• Insert suitable screw anchors into the bore holes.

Mounting on a wall with wooden studs:

• The hole diameter must correspond to the screw diameter used. The screws should be stainless steel. The diameter of the screws must correspond to the diameter of the ho les in t he w all mounting bra cke t. The scr ews mus t be long enou gh t o reach a d ept h in the wall of 1

⁄2in.

5. Insert the screws into the bore holes through the holes in the wall mounting bracket.

6. Tighten the screws clockwise until the wall mounting bracket hangs securely on the wall.

5.4 Mounting the DC Disconnect

Inserting the DC varistors

The supplied DC varistors must only be used for the following inverter types: SB 5000TLUS-12/SB 6000US-12/SB 7000US-12/SB 8000US-12.

32 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Assembly

Position Description

A Terminals for DC varistors

1. Open the DC disconnect as described in Section 6.4 ”Opening the DC Disconnect” (page 41).

2. Equip the 3 terminals (A) with DC varistors: – Insert the insertion tool into the rectangular

opening of the terminal.

– Insert the DC varistor into the terminal.

– Pull the insertion tool out of the rectangular

opening of the terminal.

3. Ensure that all DC varistors in the terminals are

securely in place.

4. Close the DC disconnect as described in Section 6.9 ”Closing the DC Disconnect” (page 57).

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 33

Assembly SMA America, LLC

5.4.1 Mounting the DC disconnect

Dimensions of the DC Disconnect

Attach the DC disconnect to the two lower holes of the wall mounting bracket using the two screws and washers provided.

1. Ins ert the scr ews wit h th e wa shers thr oug h th e ho les

of the anchorage brackets of the DC disconnect. The teeth of the washers must lie on the anchorage brackets of the DC disconnect.

2. Put the DC disconnect onto the wall mounting

bracket.

3. Tighten the screws with a tightening torque of

44 in‑lb. (5 Nm).

34 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Assembly

5.4.2 Mounting the Sunny Boy on a Wall Mounting Bracket

CAUTION

The Sunny Boy may fall down due to inappropriate mounting Contusions or bone fractures due to the heavy weight of the Sunny Boy.

• Transport the Sunny Boy between two persons, using the side handles above and below.

• Put a steel bar with a maximum diameter of 1 opening above and transport it between two people.

1. Remove the handle covers on the right and left side of the Sunny Boy.

2. Hook the Sunny Boy with the enclosure opening on to t he r ear pan el i n the w all mou nti ng b rac ket . Th e Sunny Boy must be seated on the middle of the wall mounting bracket.

⁄8 in. (30 mm) through the enclosure

3. Scr ew the Sun ny B oy ont o th e wa ll m ounti ng b rac ket on both sides with the screws supplied.

4. Tighten the screws clockwise with a tightening torque of 44 in-lb. (5 Nm).

5. Place handle covers on the handles. To help you identify the sides, the ventilation grids

are marked "rechts/right" and "links/left" on the inside.

The ventilation grids prevent dirt and insects from entering the inverter and can be reordered from SMA if required. See section 12 ”Spare Parts and Accessories” (page 101).

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 35

Electrical Connection SMA America, LLC

6 Electrical Connection

DANGER

High voltages on the AC and DC cables Risk of death or serious injury due to electric shock.

• Only connect the inverters as described in this manual.

• Only electrically qualified persons may work on the inverter.

NOTICE

Ingress of moisture when mounting and installing the Sunny Boy Potential damage to the Sunny Boy.

• For condui t hubs, use UL listed rainti ght, wet location hubs for entry into the enclosure.

• Do not open the Sunny Boy in the event of rain or a high level of humidity (> 95 %).

Damage to the seal of the enclosure lid during frost When opening the Sunny Boy during frost, the seal of the enclosure lid can be damaged.

There may be an ingress of moisture damaging the Sunny Boy.

• Do not open the Sunny Boy when the outdoor temperature is below 23 °F ( − 5 °C).

Electrostatic discharges through touching component parts Potential damage to the Sunny Boy.

• Ground yourself before touching any electronic component.

Ground faults, unreliable and highly resistive connections due to Wire Nuts

Potential damage to or failure of the Sunny Boy.

•Do not use Wire Nuts

Electrical Installations

All electrical installations must be carried out according to the applicable electrical standards on site and the National Electrical Code ANSI/NFPA 70. Installations in Canada must be carried out according to the applicable Canadian standards.

Before connecting the Sunny Boy to the power distribution grid, contact your local electric utility company. This connection must be made only by qualified personnel.

36 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Electrical Connection

AC Grounding

The AC outputs and the neutral conductors are not connected with PE

The circuits of the AC input and the AC output are isolated from the enclosure. The electrically qualified person is responsible for grounding the plant according to Section 250 of the National Electrical Code ANSI/NFPA 70.

The Sunny Boy must be connected to the AC grounding conductor of the power distribution grid via the ground terminal (PE) (see section 4.2 ”Locating Internal Component Parts” (page 20)).

PV Grounding

The grounding conductor in the framework of the PV array must be connected to the PV grounding conductor and the DC grounding conductor (see section 4.2 ”Locating Internal Component Parts” (page 20)). The cross-section of the grounding conductor corresponds to the cross-section of the largest conductor in the DC system.

The PV array is operated in a grounded configuration. The grounding of a PV plant is established as per the specifications of Section 690.41 to 690.47 of the National Electrical Code ANSI/NFPA70 and is the responsibility of the electrically qualified person. Installations in Canada must be carried out in accordance with the applicable Canadian standards.

DC Grounding Conductor

A DC grounding conductor may be required by the Authority Having Jurisdiction (AHJ). Use the connecting terminal plate for the PV grounding conductor and DC grounding conductor (see section

4.2 ”Locating Internal Component Parts” (page 20)).

6.1 Connection Area of the Sunny Boy

The DC input of the PV array and the output of the AC power distribution grid are connected inside the enclosure. The internal AC and DC connecting terminal plates are designed for a maximum size of 6 AWG. Suitable enclosure openings are on the underside of the Sunny Boy.

Position Description

A B C

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 37

⁄2in. screws for communication cable with filler-plugs

⁄4in. DC opening with double membrane adapter

⁄4in. AC opening with double membrane adapter

Electrical Connection SMA America, LLC

2p 50 Amp

NL1L2

B e

b O p

Betrieb Operation

E r

ss E a

rt h

Erdschluss Earth Fault

S t

g F

ilu r

Störung Failure

PV-Ungrounded

PV-Grounded

SMA DC-Disconnect

SUNNY BOY

SMA SOLAR TECHNOLOGY

B e

b O p e

io n

Betrieb Operation

E r

d s

s E a

h F

Erdschluss Earth Fault

S t

ö ru

g F

ilu

Störung Failure

PV-Ungrounded

PV-Grounded

SMA DC-Disconnect

SUNNY BOY

SMA SOLAR TECHNOLOGY

1p 40 Amp

6.2 Sunny Boy Circuit Diagrams

Sunny Boy Connections for 208 V and 240 V AC Grids

Sunny Boy Connections for 277 V AC Grids

38 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Electrical Connection

6.2.1 Wiring with DC disconnect

Procedure and Order

1. Switch off all energy sources. Open all AC and DC disconnect switches and breakers.

2. Wiring from AC breaker to DC disconnect.

3. AC wiring from DC disconnect to Sunny Boy.

4. Wiring from PV array to DC disconnect.

5. DC wiring from DC disconnect to Sunny Boy.

6. Switch DC disconnect to position "1".

7. Switch on AC breaker.

Removing Sunny Boy from Wiring

• Disconnect all AC disconnect switches.

• Switch DC disconnect to position "0".

• Always disconnect the AC side before the DC side.

• When the Sunny Boy is switched off, remove the wiring in reverse order.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 39

Electrical Connection SMA America, LLC

6.3 Opening the Sunny Boy

DANGER

High voltages are present in the Sunny Boy during operation. Death or serious injury due to electric shock.

• Only open the Sunny Boy in the order described as follows.

1. Switch off all AC and DC breakers or switch-disconnectors. Ensure they cannot reconnect accidentally.

2. Wait at least 5 minutes until the residual voltage has been drained.

3. Remove the 6 screws and conical spring washers from the enclosure lid. Pull the lid smoothly off forwards.

NOTICE

Moisture can penetrate the open Sunny Boy Potential damage to the Sunny Boy.

• Do not open the Sunny Boy in the event of rain or a high level of humidity (> 95 %).

• Handle the enclosure lid with care.

Damage to the seal of the enclosure lid during frost When opening the Sunny Boy during frost, the seal of the enclosure lid can be damaged.

There may be an ingress of moisture damaging the Sunny Boy.

• Do not open the Sunny Boy when the outdoor temperature is below 23 °F ( − 5 °C).

Electrostatic discharges through touching component parts Potential damage to the Sunny Boy.

• Ground yourself prior to touching a component part.

☑ The Sunny Boy is open.

40 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Electrical Connection

6.4 Opening the DC Disconnect

1. Switch the DC disconnect to "0".

2. Loosen the screw on the rotary switch of the DC disconnect. Use a cross-head screwdriver (screw used: UNC no. 5x

/4in., cross-head, flat-head, metal).

Do not fully remove the screws.

• I f th e ro tary s wit ch of t he D C di sco nnect can not be rem ove d, l oos en the scr ew f urthe r.

3. Remove the screw and the washer of the cover on the underside of the DC disconnect.

4. Remove the rotary switch.

5. Remove the cover of the DC disconnect: – Pull the cover on the underside forward. – In the process, simultaneously remove it from the

enclosure.

DANGER

High voltages at the DC terminals with connected PV modules Risk of death or serious injury when touching the DC terminal.

• Do not touch any live component of the DC terminals.

☑ The DC disconnect is open.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 41

Electrical Connection SMA America, LLC

6.5 AC Connection

CAUTION

Rist of fire Overcurrent may lead to a cable fire.

• The electrical installation must include overvoltage protection for the AC output circuit.

• Set up the overvoltage protection for a maximum of 50 A.

Carry out all electrical installations according to all of the applicable on-site electrical standards and the National Electrical Code® (NE, ANSI/NFPA 70).

See National Electrical Code, Section 690-64(b) (2). For installations in Canada, observe the applicable Canadian standards.

6.5.1 AC Connection Requirements

For all AC cable connections to the Sunny Boy, use a max. 6 AWG copper wire that is designed for +194 °F (+90 °C) – even if vo ltage drop and oth er considerations mean that the use of larger cable cross-sections is required.

Only use solid wire or stranded wire

• Do not use fine-wire strands.

• Use the free of charge "Sunny Design" at www.SMA-America.com to design your PV plant.

Ambient temperature

The higher the ambient temperature, the higher the power losses.

• Use cables with large cable cross-sections in installation sites with high ambient temperatures.

Routing method

The cables heat up during operation. If there are several cables in a conduit, the temperature of all cables increases.

• Use cables with a large cross-section if you lay several cables in one conduit.

42 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Electrical Connection

1 23 4 UNGROUNDED GROUNDED

L1L2 N

2357 AB+-

GROUNDING ELECTRODE CONDUCTOR

COMBINED

L1 L2 N

1 23 4 UNGROUNDED GROUNDED

L1L2 N

2357 AB+-

GROUNDING ELECTRODE CONDUCTOR

COMBINED

L1 L2 N

6.5.2 AC Connection in the DC Disconnect

If you replace an existing inverter

• In the switchbox, disconnect the cables for the AC line on which you are working.

1. Switch off the main switch in the main switchbox.

2. Install a

3. Between the main switchbox and the breakout opening for the AC cables of the DC disconnect,

4. Pull the AC cables from the switchbox through the cable conduit into the DC disconnect.

5. Connect the AC device grounding conductor to the

208 V and 240 V System Configuration

Do not connect the Sunny Boy 8000-US to a 208 V grid.

6. Connect conductor L1 (AC conductor 1 or

⁄4in. cable gland in the breakout opening for the AC cables of the DC disconnect.

install a 3⁄4in. cable conduit.

Open terminals fully before feeding through the cables

PE terminal labeled in the DC disconnect.

UNGROUNDED) to terminal L1.

7. Connect conductor L2 (AC conductor 2) to terminal L2.

8. Connect conductor N (AC conductor N) to terminal N.

When using grounded 240 V or 208 V Delta grids

• Connect terminal L2 to the grounded phase.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 43

Electrical Connection SMA America, LLC

2357 AB+-

277 V System Configuration

9. Connect conductor L1 (AC conductor 1 or UN GROU NDE D) to ter mina l L1. Do not u se te rmi nal L2.

10. Connect conductor N (AC conductor N) to terminal N.

11. Tighten the cables with a torque of 15 in-lb. (1.7 Nm).

12. Check that all terminals have the correct wiring and that the cables are secure.

6.5.3 Connecting the AC Cables in the Sunny Boy

1. Using a screwdriver, make a hole in the rubber grommet in the inverter.

2. Remove the rubber membrane.

3. Feed the cable through the rubber grommet into the inverter.

44 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Electrical Connection

2357 AB+-

1 23 4 UNGROUNDED GROUNDED

L1L2 N

2357 AB+-

GROUNDING ELECTRODE CONDUCTOR

COMBINED

1 23 4 UNGROUNDED GROUNDED

L1L2 N

2357 AB+-

GROUNDING ELECTRODE CONDUCTOR

COMBINED

X X X

4. Pull the cable back slightly so as to seal the rubber grommet.

5. Connect the green-yellow cable of the SMA DC disconnect to the terminal labeled .

208 V and 240 V System Configuration

Do not connect the Sunny Boy 8000-US to a 208 V grid.

6. Connect the white cable of the DC disconnect to the terminal labeled N. Connect the black cable of the DC disconnect to the terminal labeled L1.

7. Connect the red insulated conductor to the terminal labeled L2.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 45

Electrical Connection SMA America, LLC

1 23 4 UNGROUNDEDUNGROUNDED GROUNDEDGROUNDED

L1L2 N

2357 AB+-

GROUNDINGGROUNDING ELECTRODEELECTRODE CONDUCTORCONDUCTOR

COMBINEDCOMBINED

black

277 V System Configuration

8. Connect the white cable of the DC disconnect to the terminal labeled N. Connect the black insulated conductor of the DC disconnect to the terminal labeled L1.

9. Connect the red insulated conductor to the terminal labeled .

10. Tighten the AC terminal blocks in the inverter with the following torques: Gray terminal blocks (Weidmüller) 10 … 6 AWG: 18 in-lb. (2 Nm) Green terminal blocks (Phoenix) 8 … 6 AWG: 40 in-lb. (4.5 Nm)

10 AWG: 22 in-lb. (2.5 Nm)

11. Check that all terminals have the correct wiring and that the cables are secure.

6.6 DC Connection

DANGER

High voltages on PV modules that are exposed to light Risk of death due to electric shock from touching a DC conductor.

• Do not touch the DC conductor.

High voltages in the DC cables Risk of death or serious injury from touching a DC cable.

• Only connect the DC cable from the PV module to the inverter as described in this manual.

NOTICE

Potential damage to the inverter due to overvoltage.

• The DC input voltage of the PV modules must not exceed the maximum values of the inverter. Observe the information on the type label.

• Check the polarity and the open-circuit voltage of the PV strings before connecting the DC cables to the inverter.

• C onf igu re t he D C inpu t vo lta ge range accordingly before connecting the PV modules to the inverter. Use "Sunny Design" on www.SMA-America.com for string configuration.

46 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Electrical Connection

Simplified Circuit Diagram of a PV Plant

6.6.1 DC Connection Requirements

Cable Dimensioning

All electrical installations must be carried out according to all of the applicable on-site electrical standards and the National Electrical Code CSA C22.1 and the applicable standards in Canada.

When selecting the cable type and the line cross-section, observe the following requirements depending on the type of installation:

• For all DC copper wire cable connections, use size 10 ... 6 AWG (6 ... 16 mm²), which is designed for +194 °F (+90 °C).

• Use only solid wire or rough wire strands. Do not use fine-wire strands.

• Route the PV lines precisely in the entire PV plant and do not coil.

Correct String Configuration

• Use "Sunny Design" on www.SMA-America.com for string configuration.

ANSI/NFPA 70 or the Canadian Electrical Code®

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 47

Electrical Connection SMA America, LLC

Fuses

The DC disconnect for the inverter must have a minimum rating of 600 V DC and 36 A continuous. The DC disconnect is supplied with 4 fuses (one fuse per string) designed for 15 A and 600 V DC. The 4 fuses of the DC disconnect may be used for a maximum of 20 A and 600 V DC.

When dimensioning the fuses, observe the National Electrical Code

690.8 and 690.9.

6.6.2 DC Input Grounding

The Sunny Boy is configured ex works for plants with negative PV array grounding. Certain types of PV modules may make it necessary to ground the negative pole rather than the positive pole.

Position of the GFDI Fuse and the Jumper for Negative Grounding

1. Insert the fuse in position (1).

2. Insert the jumper in position (2).

Position of the GFDI Fuse and the Jumper for Positive Grounding

1. Insert the fuse in position (1).

2. Insert the jumper in position (2).

48 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Electrical Connection

6.6.3 Connecting the DC Cables in the DC disconnect

Fully open the terminal before feeding through the cables

1. Open the AC breaker and secure against turning on again.

2. Install a 3⁄4in. cable gland in the breakout opening for the DC cables of the DC disconnect. The breakout opening is on the left side of the DC disconnect. Secure the cable gland to the inner side of the SMA DC disconnect with the matching locknut.

3. Install a 3⁄4in. cable conduit between the enclosure of the DC disconnect and the PV array.

4. Pull the DC cables, the grounding cables of the PV array, and the grounding conductor through the cable conduit and inside the SMA DC disconnect.

The DC disconnect has provisions for up to 4 PV strings. The terminal blocks PVUNGROUNDED and PV GROUNDED each have 4 termination points. This means that 4 pairs of DC input cables can be connected in parallel.

5. Connect the grounding cable of the PV array to the terminal (A) for the grounding conductor.

6. Connect the grounding conductor to the terminal (B) for the grounding conductor.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 49

Electrical Connection SMA America, LLC

2357 AB+-

Negative Grounding

In order to check whether your inverter is grounded as intended, observe section

6.6.2 ”DC Input Grounding” (page 48).

7. Connect the positive DC cables to the terminal (A) labeled PV UNGROUNDED in the DC disconnect.

8. Connect the negative DC cables to the terminal (A) labeled PV GROUNDED in the DC disconnect.

9. Tighten all cables in the terminal blocks in the DC disconnect wi th a tor que of 1 5 i n‑l b. ( 1.7 N m).

10. Using a screwdriver, make a hole in the left sealing grommet.

11. Remove the rubber membrane.

50 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Electrical Connection

2357 AB+-

12. Pull the DC cables from the SMA DC disconnect inside the Sunny Boy.

13. Pull the cable back slightly so as to seal the sealing grommet.

14. Connect the black cable (PV UNGROUNDED) to the terminal labeled DC+ in the Sunny Boy.

15. Connect the white cable (PV GROUNDED) to the terminal labeled DC − in the Sunny Boy.

16. Tighten all cables in the AC and DC terminal blocks in the Sunny Boy:

Gray terminal blocks (Weidmüller) 10 … 6 AWG: 18 in-lb. (2 Nm) Green terminal blocks (Phoenix) 8 … 6 AWG: 40 in-lb. (4.5 Nm)

10 AWG: 22 in-lb. (2.5 Nm)

17. Check whether all connections are correctly wired. Carry out a tensile test to see whether all cables are tight.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 51

Electrical Connection SMA America, LLC

2357 AB+-

Positive Grounding

In order to check whether your inverter is grounded as intended, observe section

6.6.2 ”DC Input Grounding” (page 48).

1. Connect the negative DC cable to the terminal labeled PV UNGROUNDED (A) in the DC disconnect.

2. Connect the positive DC cable to the terminal labeled PV GROUNDED (A) in the DC disconnect.

3. Tighten all cables in the terminal blocks in the DC disconnect wi th a tor que of 1 5 i n-lb. (1.7 Nm).

4. Using a screwdriver, make a hole in the left sealing grommet.

5. Remove the rubber membrane.

52 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Electrical Connection

2357 AB+-

6. Pull the DC cables from the SMA DC disconnect inside the Sunny Boy.

7. Pull the cable back slightly so as to seal the sealing grommet.

8. Connect the white cable (PV GROUNDED) to the terminal labeled DC+ in the Sunny Boy.

9. Connect the black cable (PV UNGROUNDED) to the terminal labeled DC − in the Sunny Boy.

10. Tighten all cables in the AC and DC terminal blocks in the SMA DC disconnect: Gray terminal blocks (Weidmüller) 10 … 6 AWG: 18 in-lb. (2 Nm)

Green terminal blocks (Phoenix) 8 … 6 AWG: 40 in-lb. (4.5 Nm)

10 AWG: 22 in-lb. (2.5 Nm)

11. Check whether all connections are correctly wired. Carry out a tensile test to see whether all

cables are tight.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 53

Electrical Connection SMA America, LLC

6.6.4 DC Connection with Additional DC Distribution

For a parallel connection of more than 1 string in front of the integrated DC disconnect, use the COMBINED terminal on the non-grounded side.

Using the Spring Terminal labeled COMBINED

1. Insert an insulated screwdriver into the slot in the spring terminal provided.

2. Press the screwdriver upward. ☑ The spring terminal is open.

3. Feed the stripped cable into the spring terminal.

4. Pull the screwdriver back into its original position.

5. Remove the screwdriver. ☑ The spring terminal is closed and the cable is fixed.

6. Pull on the cable to check whether it is secure.

Negative Grounding

1. Connect the positive DC cable to the terminal (A) labeled COMBINED in the DC disconnect.

2. Connect the negative DC cable (B) to the terminal labeled PV GROUNDED in the DC disconnect.

3. Tighten all cables in the terminal blocks in the DC disconnect wi th a tor que of 1 5 i n‑l b. ( 1.7 N m).

54 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Electrical Connection

Positive Grounding

1. Connect the negative DC cable to the terminal (A) labeled COMBINED in the DC disconnect.

2. Connect the positive DC cable to the terminal (B) labeled PV GROUNDED in the DC disconnect.

3. Tighten all cables in the terminal blocks in the DC disconnect wi th a tor que of 1 5 i n‑l b. ( 1.7 N m).

6.7 Communication

The Sunny Boy can be equipped with a communication interface in order to communicate with SMA communication products.

You will find further information and a list of applicable communication products at www.SMA‑America.com.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 55

Electrical Connection SMA America, LLC

6.8 Closing the Sunny Boy

NOTICE

Damage to the enclosure lid may affect the seal between the enclosure lid and the enclosure.

There may be an ingress of moisture. Potential damage to the Sunny Boy.

• Handle the enclosure lid with care.

• Check the seal on the inner side of the enclosure lid for damage.

• When closing, no moisture may remain in the enclosure.

1. Mount the enclosure lid onto the Sunny Boy. The 6 ho les in t he cov er m ust be a lig ned with t he 6 t hread bores of the enclosure.

Check the line routing

Cables must not obstruct the seal of the enclosure lid. The enclosure lid must not exert any pressure on the connections.

2. Hold t he e nclos ure lid. T ighte n th e 6 scr ews with t he conical spring washers through the holes in the enclosure lid into the threaded bores of the enclosure.

The toothing of the conical spring washers must point toward the enclosure lid

Do not damage the thread of the screws. Do not use power tools to tighten the screws.

3. Check whether the enclosure lid is laying evenly on the enclosure.

4. Tighten the 6 screws with 53 in-lb. (6 Nm).

All fastening elements are required for the grounding and weatherproof sealing of the Sunny Boy

• To fasten the enclosure lid, use all 6 screws with conical spring washers.

56 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Electrical Connection

1 3

2 4

GROUNDING ELECTRODE CONDUCTOR

COMBINED

1234 UNGROUNDED GROUNDED L1 L2 N

1 3

2 4

COMBINED

1234 UNGROUNDED GROUNDED

6.9 Closing the DC Disconnect

All string fuses must be securely mounted

1. Mount the cover onto the DC disconnect and insert the rotary handle. Turn the rotary handle to position "0".

2. Tighten the screw on the right side of the rotary handle. Use a cross-head screwdriver (screw used: UNC no. 5x3⁄4in. cross-head, flat-head).

3. Insert the screw and conical spring washer of the DC disconnect into the underside. Tighten the screw with a torque of 44 in-lb. (5 Nm).

The toothing of the conical spring washer must point toward the cover for the DC disconnect to be grounded

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 57

Commissioning SMA America, LLC

0 0

7 Commissioning

DANGER

High voltages in the PV plant when exposed to sunlight. Risk of death or serious injuries due to incorrect commissioning.

• Only commission the Sunny Boy in the following order.

• Do not insert the GFDI fuse into the Sunny Boy without a fuse holder.

7.1 Switching On the Sunny Boy

1. Remove all covers from the PV array.

2. Switch on the AC main conductor breaker.

3. Turn the DC disconnect to position "1".

☑ The Sunny Boy performs an AFCI self-test.

AFCI self-test

Only the following types of Sunny Boy perform an AFCI self-test:

• SB 5000US-12

• SB 6000US-12

• SB 7000US-12

• SB 8000US-12

58 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Commissioning

☑ If the AFCI self-test is successful: The Sunny Boy goes into "Waiting" mode

and the green LED flashes.The "Waiting" mode ends when solar irradiation reaches a certain level. The green LED lights up permanently and the Sunny Boy feeds into the power distribution grid.

☑ If the AFCI self-test fails: The yellow LED flashes. The Sunny Boy repeats

the AFCI self-test until it is successful. Observe section 7.2 ”The Sunny Boy Does Not Resume Operation” (page 59).

If the feed-in to the power distribution grid was interrupted by a detected AC failure and then resumed, the inverter waits 5 minutes before feeding in again.

For this, the input voltage must be greater than the start voltage of the Sunny Boy. For the corresponding values, see section 11 ”Technical Data” (page 91).

If the inverter is not able to feed into the power distribution grid three times in a row, it waits 10 minutes before the next attempt.

7.2 The Sunny Boy Does Not Resume Operation

DANGER

Danger to life due to high voltages in the PV system. Risk of death or serious injury due to electric shock.

• Only qualified personnel may perform work on the PV array.

• Watch the display and the LEDs.

• Observe section 8 ”Displays and Messages” (page 62) and section 9 ”Troubleshooting” (page 78).

No Operation Despite Sufficient Irradiation

1. Check whether the input voltage is sufficient. For the input voltage values, see 11 ”Technical Data” (page 91).

2. If the input voltage is not sufficient, perform troubleshooting in the PV array and rectify the fault.

3. If the input voltage is sufficient, contact the SMA Service Line. Observe section 14 ”Contact” (page 103).

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 59

Commissioning SMA America, LLC

0 0

The Message "Disturbance AFCI" Is Displayed

An electric arc occurred in the PV system. The yellow LED is continuously lit up. The AFCI has been triggered and operation of the Sunny Boy is permanently inhibited.

CAUTION

Danger of fire from electric arc

• Only test the AFCI for false triggering in the order described below.

• Do not deactivate the AFCI permanently.

1. Turn the DC disconnect to position "0". ☑ Wait for the display to go out.

2. Perform troubleshooting in the PV system: Check all PV strings for the correct open-circuit voltage.

3. After the fault is rectified, restart the Sunny Boy: Turn the DC disconnect to position "1".

☑ The Sunny Box starts and performs another

AFCI self-test.

4. If the following message appears on the display, knock on the enclosure lid: "Electric arc detected — Knock to restart."

The message "Error AFCI. Knock to reset." appears for only 10 seconds. After this, it is no longer possible to restart the unit by knocking on the enclosure lid.

• To restart the system, repeat step 1 to step 3.

60 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Commissioning

0 0

5. If the AFCI self-test is successful: The Sunny Boy goes into "Waiting" mode and the green LED flashes.

☑ The "Waiting" mode ends when solar irradiation reaches a certain level.

The green LED lights up permanently and the Sunny Boy feeds into the power distribution grid.

6. If the AFCI self-test fails: The Sunny Boy repeats the AFCI self-test until it is successful.

7. If the AFCI self-test continues to fail: Turn the DC disconnect to position "0" and switch off the AC disconnect switch to the inverter.

If the AFCI self-test fails permanently

• Contact the SMA Service Line. Observe section 14 ”Contact” (page 103).

In the event of inverter inspection

1. Turn the DC disconnect to position "0". ☑ The Sunny Boy switches itself off.

2. Disconnect the Sunny Boy on the AC side.

The Message "EarthCurrentMax“ Is Displayed

A ground fault is present in the PV array. The GFDI fuse is cleared.

1. Turn the DC disconnect to position "0" and switch off the AC disconnect switch to the inverter.

2. Perform troubleshooting in the PV array.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 61

Displays and Messages SMA America, LLC

8 Displays and Messages

The Sunny Boy LED Status Indicators

Each Sunny Boy inverter is equipped with three LED status indicators that display the operating mode of the inverter.

The green LED indicates standard operation of the inverter.

The red LED indicates the status of the GFDI fuse, located inside the Sunny Boy. If this LED lights up, the GFDI fuse has cleared or is not present.

The inverter does not feed into the power distribution grid.

The yellow LED indicates that there is a fault in either the inverter or the PV plant. The inverter will not operate until the fault has been corrected.

The possible error messages and causes are explained later in section 9 ”Troubleshooting” (page 78) and in section 8.2 ”LED Fault Indicators” (page 66).

62 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Displays and Messages

If the yellow LED and the red LED light up simultaneously, the inverter has a ground fault.

The ground fault may also trip the GFDI fuse.

• Observe section 8.2 ”LED Fault Indicators” (page 66).

In "Turbine" mode, all GFDI fuses are suspended.

8.1 LED Operation Indicators

Standby (Night)

The inverter is in standby mode. The input voltage is too low for operation.

Initialization

The inverter initializes. The power available from the PV array is not sufficient for standard operation. Data transmission is not possible during initialization.

In the event of inclement weather or low solar irradiation, all LEDs may light up simultaneously or flash. This is not an interference.

The inverter is attempting to initialize. The power available fro m th e PV arr ay i s no t su ffi cie nt for standard operation.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 63

Displays and Messages SMA America, LLC

Start

The inverter calibrates the internal systems. The calibration lasts 10 seconds and the inverter begins standard operation. If the inverter was manually placed into STOP mode, this status is displayed as well.

Waiting

The inverter checks the grid requirements and whether enough voltage from the array is available to feed into the power distribution grid.

If the feed-in to the power distribution grid was interrupted and then resumed, the inverter always waits 5 minutes before feeding in.

If the inverter is not able to feed into power distribution grid three times in a row, it waits 10 minutes before the next attempt.

64 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Displays and Messages

Standard Operation

The inverter feeds into the power distribution grid in either "MPP", "Constant Voltage", or "Turbine" mode.

"MPP" mode:

The Sunny Boy adjusts the voltage and the current from the PV array in order to receive the highest possible PV output power.

"Constant Voltage" mode:

The array voltage is set to a fixed value. This value is set using the Sunny Boy Control or the Sunny Data Software. The parameter name is

"V-Const":

This mode is suitable for using the inverter with fuel cells or small hydroelectric power plants.

"Turbine" mode:

This mode is suitable for using the inverter with a rectified DC generator and dynamic power characteristic curve. The inverter can be adjusted to the form and slope of the power characteristic curve of a specific generator. A small wind turbine system is a suitable generator for this.

Derating

The Sunny Boy can be operated with nominal power at an ambient temperature of up to +113 °F (+45 °C). The Sunny Boy does remain operational at temperatures above +113 °F (+45 °C), but it reduces the level of performance so as to protect the internal component parts from overheating.

Unwanted derating due to blocked fan inlets

Clean the fan inlets regularly.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 65

Displays and Messages SMA America, LLC

8.2 LED Fault Indicators

CAUTION

Risk of electric shock Normally grounded conductors may be ungrounded and energized when a ground-fault

is indicated by the inverter.

• Check the PV-system for a ground fault and replace the ground fuse as described in this document.

Ground Fault

If the yellow and red LEDs light up simultaneously, the inverter detected a ground fault. The inverter will not restart automatically after detecting a ground fault.

• Locate the ground fault and rectify it. Observe section 9 ”Troubleshooting” (page 78).

• Then restart the inverter.

GFDI fuse

The ground fault may also trip the GFDI fuse. In "Turbine" mode, all GFDI fuses are deactivated.

66 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Displays and Messages

Cleared GFDI Fuse

The GFDI fuse was cleared or is not present. This fuse protects the PV plant if a ground fault is present in the PV array.

• Locate and rectify the ground fault. Observe section 9 ”Troubleshooting” (page 78).

• Then replace the GFDI fuse. The GFDI fuse is located in the fuse holder on the inverter board.

CAUTION

Risk of fire due to incorrectly dimensioned fuse. Risk of injury due to fire.

• Only replace faulty fuses with fuses of the same type and size.

• The Sunny Boy is shipped with a Littelfuse KLKD 1 Amp, 600 V AC/DC type fuse.

Control System Fault

The yellow LED is continuously lit up. Operation of the Sunny Boy is permanently inhibited The inverter no longer feeds into the power distribution grid and must be serviced by a qualified

service technician.

• Follow section 7.2 ”The Sunny Boy Does Not Resume Operation” (page 59) or contact SMA.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 67

Displays and Messages SMA America, LLC

Grid Failure

The yellow LED lights up for 5 seconds, goes out for 3 seconds, then flashes 2 times. This sequence is repeated 3 times. As long as a grid failure continues to be present, this flashing code will repeat itself.

The flashing code can be caused by one of the following conditions:

• Grid undervoltage (< Vac Min)

• Grid overvoltage (> Vac Max)

• Grid underfrequency (< fac Min)

• Grid overfrequency (> fac Max)

• Sudden change in the power frequency or the grid voltage

DANGER

Danger to life due to high voltages in the inverter. Risk of death or serious injury due to electric shock.

• Only qualified personnel may perform work on the inverter.

Monitor the status of the power distribution grid at the AC terminal blocks in the Sunny Boy and the AC disconnect switch between the Sunny Boy and the power distribution grid.

68 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Displays and Messages

High DC Input Voltage

The yellow LED lights up for 5 seconds, goes out for 3 seconds, then flashes 4 times. This sequence is repeated 3 times. If the status does not change, the flashing code repeats itself.

The inverter has detected a DC input voltage that is too high for safe operation.

NOTICE

Damage to the inverter due to high DC input voltage.

• Disconnect the inverter from the PV array immediately.

Inverter Interference

The yellow LED lights up for 5 seconds, goes out for 3 seconds, then flashes 5 times. The message is repeated 3 times. If the status does not change, the flashing code repeats itself.

The inverter has detected an internal fault that interrupts standard operation. The inverter must be maintained by a qualified service technician. Contact SMA.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 69

Displays and Messages SMA America, LLC

Sunny Boy

WRXKuxxx

BFR Version x.xx.

SRR Version x.xx

E-today 8.86kWh

Mode MPP

Gridtype - 208V L1 120V L2 120V

Pac 500W Vpv 380V

8.3 Status Messages on the LCD Display

The Sunny Boy is equipped with the LCD "Sunny Display" in the enclosure lid as standard.

Activation of the Background Illumination

Tapping on the enclosure lid activates the background illumination. Additional taps will scroll through the display messages.

The background illumination shuts off automatically after 2 minutes.

INIT Messages

The inverter displays the following messages during initialization:

After 6 seconds, the installed firmware versions of the operation control unit (OCU) and the current control system (SRR) are displayed.

Operation Messages

The LCD scrolls consecutively through all operation messages. Every message is displayed for 5seconds. After all messages have been displayed, the LCD repeats all of the messages.

Message 1 "E-Today": Total energy generated today. The current operating mode is displayed under this.

Message 2 "Gridtype”: System configuration of the inverter and measured values of the voltage between the conductor and the neutral conductor.

Message 3: Current AC power and current DC input voltage.

70 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Displays and Messages

E-Total 724.4kWh h-total 512h

Disturbance

Fac-Bfr

at: 59.29Hz present: 59.30Hz

Warning

GFDI Fuse Open

Error

ROM

Message 4: Energy output accrued since the installation of the inverter and the total operating hours.

Knocking on the lid of the inverter takes you to the next display message.

Error Messages

If a fault occurs, the LCD switches into "Fault" mode and the background illumination is activated. The upper line of the display shows one of the following fault types:

Interference

The Sunny Boy has detected a problem with the frequency of the power distribution grid. The message ends automatically as soon as the fault is rectified. Interference is caused if a measured value exceeds a preset limit.

Th e di splay sho ws the val ue o f the f aul t (at: ) as well a s th e current value for the corresponding parameter (present:).

Warning

The GFDI fuse is cleared. Warning messages display a pl ant sta tus tha t mu st be i nve stigated. The inverter may be operational despite a warning message.

Error

The inverter has detected a problem with the internal ROM. A fault status prevents a restart of the inverter until the fault is rectified.

Each error message is displayed for 5 seconds. After 5 seconds, the LCD scrolls through the regular operation messages.

The error message will be displayed in the display sequence until the fault is rectified.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 71

Displays and Messages SMA America, LLC

8.4 Setting the Display Language

The LCD can display information in 1 of 4 different languages. The language is configured via 2 slide switches that are located on the lower edge of the LCD.

1. Open the Sunny Boy as described in Section 6.3 ”Opening the Sunny Boy” (page 40).

2. Set the switches to the required language, as shown below.

Language Switch S2 Switch S1

German B B English B A French A B Spanish A A

3. Close the Sunny Boy as described in Section

6.8 ”Closing the Sunny Boy” (page 56).

☑ The display language is set.

8.5 Measuring Channels and Parameters

The communication options support a number of measuring channels and messages from the Sunny Boy inverters. The following abbreviations are used:

OCU Operation Control Unit SRR Current Control System (German abbreviation for

"Stromregelungsrechner")

The OCU and SRR are redundant processor control systems for the utility protection functions.

72 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Displays and Messages

8.5.1 Measurement Channels

Vpv: PV input voltage Vpv Setpoint: MPPT DC target voltage Iac: Grid current Vac: Grid voltage L1 - L2 Vac L1: Grid voltage L1 - N Vac L2: Grid voltage L2 - N Fac: Power frequency Pac: Power fed to grid Vpv-PE: PV voltage to earth (for troubleshooting PV ground faults) Temperature: Temperature measured at IGBT module Ipv: PV current Max Temperature: Max temperature measured at IGBT Max Vpv: Max. PV input voltage I-dif: Fault current Vfan: Fan voltage E-Total: Total energy yield h-Total: Total operating hours h-on: h-on displays how long sufficient DC voltage has been applied at the Sunny

Boy and how long the Sunny Boy has been in operation. The displayed value contains the time when the Sunny Boy was unable to feed into the power distribution grid due to the DC voltage being too low or due to

"STOP" mode. Power On: Total number of system starts Event-Cnt: Event counter Serial Number: Serial number of the Sunny Boy CO2 saved: Amount of CO2 saved during the operating time Mode: Current operating mode Grid Type: Type of grid the Sunny Boy is connected to Error: Description of fault

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 73

Displays and Messages SMA America, LLC

8.5.2 Operating Mode

Stop: Manual system stop Offset: Offset calibration of the electronics (at start-up) Waiting: PV voltage is not high enough to start Grid monitoring: Synchronizing to grid (at start-up) MPP-Search: MPPT range test (at start-up) MPP: Sunny Boy is in MPP mode (standard operation) V-Const: Sunny Boy is in MPP mode with constant voltage Derating: Reduction of the power fed into the grid due to increased cooling element

temperatures Disturba nce: Fault sta tus relating to the g rid. As soon as the cause of the fault is no longer

present, this fault will be reset automatically. Error: Inverter fault, user interaction required Warning: System warning advising further investigation

8.5.3 Operating Parameters of the Sunny Boy

Changes to the preset parameters can negatively influence the oper ation a nd th e performance of the inverter

• Changes to the operating parameters must be made by trained qualified personnel.

Changes to the parameters labeled with * can lead to changes regarding conformity with IEEE 1547 and must be approved by the on site electric utility company and/or the responsible authority.

8.5.4 Operating Parameters of the Sunny Boy

Name Unit Range Standard Password

AfciIsOn yes/no yes Electrically

AntiIsland-Ampl* deg 0 ... 10 0 Electrically

AntiIsland-Freq* mHz 0 ... 2000 500 Electrically

CO2-Fact lb./kWh 0 ... 2 1.7 Electrically

74 SB50US-80US-IA-en-37 Installation Manual

Level

qualified person

Description

Arc fault circuit interrupter (AFCI)

Amplification of the anti-island process

Repetition rate of the anti-island process

The Sunny Boy evaluates the yield and displays the approximate amount of CO2 that the Sunny Boy has saved.

This CO2 amount is calculated by multiplying the generated kWh (Etotal) by the factor defined in the parameter "CO2".

SMA America, LLC Displays and Messages

Name Unit Range Standard Password

Default USA/UL1741/

dFac-MAX* Hz/s 0.005 ... 4 0.5 (for

E_total kWh 0 ... 200000 0 Electrically

Fac-delta–* Hz 0.2 ... 3 0.69 (for

Fac-delta+* Hz 0 ... 4.5 0.49 (for

Fac-MinTripTime* s 0.16 ... 300 0.16 Electrically

Fan-Test 1 / 0 0 Electrically

h_Total h 0 ... 200000 0 Electrically

Memory Function no function, Default

2005, OFF_Grid, NON IEEE1547

param., Reset Op.Data, Reset errors

USA/ UL1741/ 2005

country setting USA/ UL1741/

2005)

country setting USA/ UL1741/

2005)

country setting USA/ UL1741/

2005)

no function Electrically

Level

Electrically qualified person

qualified person

Electrically qualified person

qualified person

Description

Used for adjusting the country specific parameter settings.

Note: After changing one of the parameters marked with "*", the parameter "default" changes to "adjusted" automatically.

Maximum "number of frequency changes" before the anti-islanding protection switches on

Total energy yield of the inverter. Changing the value may be necessary if a Sunny Boy is replaced and you wish to compare the data obtained previously.

Maximum permissible operating frequency above and below 60 Hz. Standard value is optimal for plants < 30 kW.

Switch-off time having fallen below power frequency. The standard value is optimal for plants < 30 kW.

By setting this parameter to "1" you can check the function of the fans. This test turns the fans at maximum speed.

Total operating hours of the inverter. Changing the value may be necessary if a Sunny Boy is replaced and you wish to compare the data obtained previously.

Default param.: Sets all parameters to the standard value.

Reset Op.Data: Sets all parameters to the standard values that are displayed on the user level.

Reset errors: Resets all permanent errors that lead to device disconnection.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 75

Displays and Messages SMA America, LLC

Name Unit Range Standard Password

Operating Mode MPP-Operation,

V-Const Setval G SB 5000-US -

Vac-Min* % 0 ... 50 12 Electrically

Vac-Max* % 0 ... 20 10 Electrically

Vac-Min-Fast* % 0 ... 50 50 Electrically

Vac-Max-Fast* % 0 ... 20 20 Electrically

Vac-Min-Recnet % 0 ... 50 11.7 Electrically

Vac-Max-Recnet % 0 ... 20 5.83 Electrically

Turb ine, V-con st, Stop

SB 7000-US:

250 ... 600 SB 8000-US:

300 ... 600

MPP Electrically

600 Electrically

Level

qualified person

Description

Operating modes of the Sunny Boy: MPP-Operation: Sets the Sunny Boy

in Maximum Power Point Tracking Mode

V-const: Constant Voltage Mode (target value defined in "VconstSetval")

Turbine: Operating mode for wind turbine systems

Stop: Disconnection from grid, no operation

PV target voltage for constant voltage operation. These parameters only are important in the event that the parameter "Operating Mode" is set to "V-const".

Values are used to calculate the lower limit of permissible AC voltage.

Standard value is optimal for plants < 30 kW. Standard value 12 results in a trip value of 88 %, as the list of trip limits shows.

Values are used to calculate the upper limit of permissible AC voltage.

Standard value is optimal for plants < 30 kW. Standard value 10 results in a tr ip v alu e of 110 % , as the lis t of trip limits shows.

Values are used to calculate the lower limit of allowable AC voltage for fast disconnection. Standard value is optimal for plants < 30 kW. Standard value 50 results in a trip val ue o f 50 %, as the l ist o f tr ip li mits shows.

Values are used to calculate the upper limit of allowable AC voltage for fast disconnection. Standard value is optimal for plants < 30 kW. Standard value 20 results in a trip value of 120 %, as the list of trip limits shows.

Values are used to calculate the lower and upper limits to reconnect to the grid after a grid failure.

76 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Displays and Messages

Name Unit Range Standard Password

Vpv-Start G SB 5000-US -

SB 7000-US:

250 ... 600 SB 8000-US:

300 ... 600

SB 500 0-U S SB 7000-US:

300 SB 8000-US:

365

Level

Electrically qualified person

Description

Minimum DC voltage for the Sunny Boy to connect to the grid.

8.5.5 Fixed Operating Parameters of the Sunny Boy

Name Unit Range Standard Description Plimit V fixed SB 5000-US: 5100

SB 6000-US: 6100 SB 7000-US: 7100 SB 8000-US: 8100

SMA-SN Serial number of the Sunny Boy Software-OCU Firmware version of the operation

Software-SRR Firmware version of the current

Upper limit of AC output power

control unit (OCU)

control system (SRR)

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 77

Troubleshooting SMA America, LLC

9 Troubleshooting

9.1 General

Every inverter is checked prior to leaving the plant. If there are faults in the operation of the inverter, perform the following steps to rectify the faults.

• Pay attention to Sunny Boy flashing codes. Look up the meaning of the flashing code being displayed in section 7 ”Commissioning” (page 58).

• Monitor operating modes and error messages on the LCD of the Sunny Boy or via connected PV plant monitoring. Look up the meaning of messages being displayed in section 8 ”Displays and Messages” (page 62).

• Monitor the DC and AC voltage at the terminals in the inverter. Please observe all safety precautions listed in the course of this manual.

• If the fault cannot be rectified, contact SMA Service Line. For contact data, see section 14 ”Contact” (page 103).

If it is necessary to return the Sunny Boy for maintenance, use the original box in order to prevent shipping damage.

9.2 Error Messages

Error type Error code Description

Interference Ocu-Srr Communication between micro-controllers is

interrupted.

Warning Derating The inverter reduces the outpu t po wer due to hig h

internal temperatures.

Interference Disturbance AFCI Electric arc in the PV system. Eliminate the fault in

the PV system. Perform an AFCI self-test. Observe section ”The Message "Disturbance AFCI" Is Displayed” (page 60).

Error EarthCurMax-B The ground current of the OCU between PV+ and

GND is outside of the tolerable range.

Error EarthCurMax-S The ground current of the SRR between PV+ and

GND is outside of the tolerable range.

Interference EEPROM Transfer fault while reading or writing data from

the EEPROM. This data is not essential for safe operation. This fault does not have any influence on performance.

Error EEPROM p Data from the EEPROM are defective. The

operation of the inverter is permanently inhibited as the data loss affects important functions of the inverter. Contact SMA.

Interference EeRestore Internal interference.

78 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Troubleshooting

Error type Error code Description

Interference Fac-Ocu, Fac-Srr The AC power frequency is exceeding the

permissible range. To prevent islanding, the Sunny Boy disconnects itself from the power distribution grid.

If the power frequency is within the tolerable range and the error message "Fac-Ocu" or "FacSrr" continues to be displayed, contact SMA.

Warning GFDI Fuse Open The GFDI fuse is cleared. Before replacing the

fuse, check the PV array for a ground fault error.

Interference Grid-Timeout, Grid-

Fault-S

The system configuration cannot be detected (208 V/240 V/277 V).

If a 277 V grid is configured: Check whether the cables for L1 and N are located in the correct connection terminals.

Interference Imax Overcurrent on the AC side. The current to the AC

grid exceeds the guidelines. The reason for this may be severe grid interference. If "Imax" appears frequently, check the AC grid. If you

require help, contact SMA. Interference K1-Close Relay test failed. Contact SMA. Error K1-Open, K2-Open Interference MSD-FAC, MSD-Idif Internal measurement comparison fault: Error MSD-VAC

The OCU and SRR values measured by the Sunny

Boy differ too strongly from one another.

Contact SMA. Interference OFFSET Grid monitoring self-test failed. Error ROM The internal test of the Sunny Boy control system

firmware failed. If this fault occurs frequently,

contact SMA. Interference Shut-Down Continuous internal overcurrent. Interference Vac-Ocu, Vac-Srr The AC grid voltage is exceeding the permissible

range. The cause may be disconnection from the

power distribution grid or from an AC cable. To

prevent islanding, the Sunny Boy disconnects

itself from the power distribution grid.

If the error message "Vac-Ocu" or "Vac-Srr" is

displayed despite the grid voltage being within

the tolerable range, contact SMA.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 79

Troubleshooting SMA America, LLC

Error type Error code Description

Interference VacL1-Ocu, VacL2-

Ocu, VacL1-Srr, VacL2-

Voltage is too high or too low on the indicated

branch.

Srr

Interference VpvMax

!PV Overvoltage! !Disconnect DC!

The DC input voltage is exceeding the maximum

tolerable value.

Disconnect the DC line immediately.

Interference Watchdog Watchdog for operation control triggered. Interference XFMR The transformer is connected to the wrong grid.

Check the connection of the transformer.

For grounded Delta grids: Monitor whether the

grid grounding conductor is connected to

terminal L2.

In the event of unbalanced load in 200 V and

240 V grids, swapping L1 and L2 may rectify the

fault. Interference XFMR_TEMP_F High transformer temperature. The Sunny Boy

stops and the fans run at maximum speed. Warning XFMR_TEMP_W After the reduction of the high transformer

temperatures, the Sunny Boy restarts. Monitor the

function of the fans.

80 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Maintenance

10 Maintenance

Regular maintenance ensures a long operating life and optimal efficiency of the entire PV plant.

10.1 Cleaning the Fans

The Sunny Boy is fitted with two fans on its underside. The fan intakes and handle covers should be cleaned periodically with a vacuum cleaner. For more

thorough cleaning, completely remove the fans.

NOTICE

Potential damage to the fans due to compressed air.

• Do not use compressed air for cleaning.

• Use a soft brush or a cloth for cleaning.

• Always remove the fans for cleaning.

1. Disconnect the Sunny Boy on the AC and DC sides.

2. Wait 5 minutes until the residual voltage has been drained and the fans are no longer turning.

Cleaning the Fan Guard

3. Remove the ventilation grids. – Press both latches on the right edge of the fan

guard to the right using a screwdriver and loosen from the bracket.

– Carefully remove the fan guard.

4. Clean the ventilation grid with a soft brush, a paint brush, a cloth or compressed air.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 81

Maintenance SMA America, LLC

Cleaning the Fans

5. Press the front latches backward and the rear latch forward.

6. Remove the fan by pulling it slowly and carefully downward.

7. Unlock and remove the plug. The cables of the fans are long enough to disconnect the plug in the inside of the Sunny Boy.

8. Remove the fan.

9. Clean the fan with a soft brush, a paintbrush, or a cloth.

10. After cleaning, mount the fans and the ventilation grids in reverse order.

11. Check the function of the fans as described in section "Fan Test" on page 84.

82 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Maintenance

0 0 0 0

10.2 Cleaning the Handle Covers

For optimal heat dissipation of the device, the handle covers must be clean. Clean the handle covers regularly.

NOTICE

Insects can enter the Sunny Boy Potential damage to the Sunny Boy.

• The handle covers must not be removed permanently, otherwise the inverter is not protected against the ingress of insects.

1. Remove the handle covers. To do this, put your finger up into the space between the handle covers and the enclosure and pull the handle covers to the side

2. Clean the handle covers with a soft brush or a paintbrush.

3. Re-secure the handle covers on the inverter. The side on which they are to be mounted is stated on the inside of the handle covers ("links/left" and "rechts/right").

10.3 Checking the DC Disconnect

In the case of normal use, the DC Disconnect does not require any maintenance.

Operating the switch cleans the contacts and extends the life of the DC Disconnect.

It is recommended, though not compulsory, to:

• Check the DC disconnect regularly.

• Activate the DC disconnect 10 times in a row once a year.

Operating the switch cleans the contacts and extends the life of the DC disconnect.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 83

Maintenance SMA America, LLC

10.4 Fan Test

In the event of frost, the fan cannot be inspected

The fans are not activated under 32 °F (0 °C).

You can check the operation of the fans in 2 ways:

• Set the p arameter "Fan Test" in instal ler mode to "1". To do this, use the Sunny Data, Sunny Data Control, Sunny Boy Control, or the Sunny WebBox.

• Set the jumper on the sequential control system board. The jumper for checking the fans is included in the scope of supply of the Sunny Boy.

Setting the Parameter

1. Ask for the installer password from SMA Service Line. See "Contact" on page 103.

2. Set the "Fan Test" parameter to "1" in installer mode.

3. Check the air flow of the fans. – The Sunny Boy draws in cold air through the fans and lets it out again through the handle

covers.

– Pay attention to unusual sounds.

4. After checking the fans, set the parameter "Fan Test" back to "0".

84 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Maintenance

Setting the Jumper

The Sunny Boy recognizes the jumpers after the restart.

All LEDs must be off prior to a restart.

1. Disconnect the Sunny Boy on the AC and DC sides. Wait 5 minutes until the residual voltage has been drained.

2. Open the Sunny Boy as described in section 6.3 ”Opening the Sunny Boy” (page 40).

3. Insert the jumper supplied into the slot on the sequential control system board shown below.

4. Close the Sunny Boy as described in section 6.8 ”Closing the Sunny Boy” (page 56).

5. Check the air flow of the fans. – The Sunny Boy draws in cold air through the fans and lets it out again through the handle

covers.

– Pay attention to unusual sounds.

6. After checking the fans, remove the jumper.

10.5 Exchanging the Fuses

CAUTION

Risk of fire due to incorrectly dimensioned fuse. Risk of injury due to fire.

• Only replace faulty fuses with fuses of the same type and size.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 85

Maintenance SMA America, LLC

1 3

2 4

GROUNDING ELECTRODE CONDUCTOR

COMBINED

1234 UNGROUNDED GROUNDED L1 L2 N

1 3

2 4

COMBINED

1234 UNGROUNDED GROUNDED

10.5.1 Exchanging the GFDI Fuse within the Sunny Boy

1. Disconnect the Sunny Boy on the AC and DC sides.

2. Wait 5 minutes until the residual voltage has been drained and the fans are no longer turning.

1. Open the Sunny Boy as described in section 6.3 ”Opening the Sunny Boy” (page 40).

2. Replace the fuse (A). For the correct position of the fuse, observe section "DC Input Grounding" on page 48.

3. Completely insert the fuse into the terminal.

4. Close the Sunny Boy as described in section 6.8 ”Closing the Sunny Boy” (page 56).

5. Switch the AC and DC disconnect switches back on.

10.5.2 Exchanging PV String Fuses within the DC disconnect

1. Disconnect the Sunny Boy on the AC and DC sides.

2. Wait 5 minutes until the residual voltage has been drained.

3. Open the DC disconnect as described in section 6.4 ”Opening the DC Disconnect” (page 41).

4. Replace the fuse (1, 2, 3, or 4).

5. Close the DC disconnect as described in section 6.9 ”Closing the DC Disconnect” (page 57).

6. Switch the AC and DC disconnect switches back on.

86 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Maintenance

PV String Fuse Sizing

If the fuses are designed too small, they may open too early and cause interference. If fuses are designed too large, they do not provide the required protection as they open too late.

For PV plants, the minimum and maximum size of a fuse connected in series is specified by the electrical nominal sizes of a PV module and by UL and the National Electrical Code. Contact the manufacturer of the PV modules in order to obtain the corresponding nominal sizes of the PV string fuses.

The minimum sizes of fuses and cables are calculated using the Short Circuit Current Rating (Isc) of the PV module. The National Electrical Code stipulates that all fuses and cables are designed to be at least 1.56x as large as the Isc of the PV module being used in the plant.

The correct size of the PV string fuse is specified by calculating 1.56x the Isc (of the PV module) and then rounding this up to the nearest standard size for fuses.

For example, if the Isc of the PV module is 6.9 Adc, then the size of the PV string fuses is determined as follows: 1.56 x 6.9 = 10.76

The nearest standard size for fuses would be a 12 A and 600 Vdc fuse. The size of a string fuse may not be greater than the maximum nominal value of a PV

module fuse. Observe the data sheet of the PV module. If no maximum size for fuses is stated, contact the manufacturer of the PV module.

DC Disconnect Requirements

National Electrical Code 690.15-18 enables the use of fuse holders as a suitable medium for disconnecting PV arrays for maintenance. Additional DC disconnects external to the inverter may be required by the local authority having jurisdiction.

WARNING

Electric arc and electric shock when removing the fuses under load. Risk of death or serious injury.

• Do not remove any fuses when the inverter is under load.

PV String Fuses

The DC disconnect is shipped with 15 A, 600 V DC fuses in the fuse holders. The maximum nominal size for string fuses in the DC disconnect is 20 A at 600 V DC.

When dimensioning the fuses, observe the National Electrical Code® 690.8 and 690.9.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 87

Maintenance SMA America, LLC

10.6 Testing and Replacing the DC Varistors

Only the following inverter types are equipped with DC varistors: SB 5000US-12/SB 6000US-12/SB 7000US-12/SB 8000US-12.

In regions where storms or other DC overvoltages frequently occur, the DC varistors loose their functionality if the PV plant is not equipped with an additional overvoltage protection. To ensure that the functionality of the DC varistors remains at a constant level, SMA recommends in such cases to replace the DC varistors after an operating time of 10 years with new ones.

NOTICE

No protection against overvoltage due to faulty or missing varistors Destruction of the inverter is possible.

• Do not operate the inverter with faulty varistors or no varistors at all.

• Replace faulty varistors immediately.

Position Description

A Terminals for DC varistors B Fuse holders for fuse extractor with string fuses

1. Disconnect the Sunny Boy on the AC and DC sides.

2. Wait 5 minutes for the components to cool down.

3. Open the DC disconnect as described in Section 6.4 ”Opening the DC Disconnect” (page 41).

DANGER

High voltages at the DC terminals with connected PV modules Risk of death or serious injury when touching the DC terminal.

• Do not touch any live component of the DC terminals.

88 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Maintenance

4. Check the DC varistors (A) for discoloration and visible damage.

• If one of the DC varistors is discolored or damaged, replace all DC varistors:

DANGER

Danger to life due to short circuits in the DC varistors Death or serious injury due to electric shock

• Check whether current is flowing the DC cables.

Tip: Use a current clamp to measure the current.

5. Disconnect the DC varistors:

– Disconnect the string connectors of all ungrounded DC cables from the PV array. – Remove the four fuse extractors with the string fuses from the fuse holders (B) of the DC

disconnect. – Remove the four string fuses from the fuse extractors. – Insert the four fuse extractors without the string fuses into the fuse holders (B) of the DC

disconnect.

6. Ensure that no voltage is present at the DC varistors.

• If no voltage is present, replace all DC varistors:

Only use spare parts from SMA

• Always replace the entire set of DC varistors.

• Order number in Section 12 ”Spare Parts and Accessories” (page 101).

– Insert the insertion tool into the rectangular

opening of the terminal.

– Remove the DC varistor.

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 89

Maintenance SMA America, LLC

– Insert the new DC varistor into the terminal.

– Pull the insertion tool out of the rectangular

opening of the terminal.

7. Ensure that all DC varistors in the terminals are securely in place.

8. Re-insert all string fuses into the DC disconnect: – Remove the four fuse extractors without string fuses from the fuse holders (B) of the DC

disconnect. – Equip the four fuse extractors with functional string fuses. – Insert the four fuse extractors with the string fuses in the fuse holders (B) of the DC

disconnect.

9. Close the DC disconnect as described in Section 6.9 ”Closing the DC Disconnect” (page 57).

10. Re-connect the string connectors of all ungrounded DC cables to the PV array. ☑ Testing and replacement of the DC varistors is completed.

90 SB50US-80US-IA-en-37 Installation Manual

SMA America, LLC Technical Data

11 Technical Data

11.1 Sunny Boy 5000-US (SB 5000US and SB 5000US-12)

PV Array Connection

Maximum MPP voltage 250 V … 480 V Nominal operating voltage 310 V Range of input operating voltage 250 V … 600 V Maximum generator input power 6 250 W Maximum DC power 5 300 W PV start voltage 300 V Maximum DC input current 21 A Maximum input short-circuit current 36 A Maximum utility backfeed current to PV array 50 A AC DC voltage ripple < 10 %

Grid Connection

AC operating voltage range at 208 V nominal value 183 V … 229 V AC operating voltage range at 240 V nominal value 211 V … 264 V AC operating voltage range at 277 V nominal value 244 V … 305 V AC operating frequency range 59.3 Hz … 60.5 Hz AC frequency, nominal value 60 Hz Maximum continuous AC output power 5 000 W Current THD < 4 % Maximum continuous AC output current at 208 V 24 A Maximum continuous AC output current at 240 V 20.8 A Maximum continuous AC output current at 277 V 18 A Maximum output failure current 57.6 A Maximum output overcurrent protection 50 A Synchronization of inrush current 9.23 A Trip limit accuracy ±2 % Trip time accuracy ±0.1 % Power consumption at night 0.1 W

General Data

Inverter technology True sine, low-frequency transformer Cooling concept OptiCool

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 91

Technical Data SMA America, LLC

250

480

SB 5000-US

0.4

1.0

0.80.2 0.6

Output power / Rated power

0.0

Efficency [%]

V [V]

MPP

V = 250 V DC

= 310 V DC

= 480 V DC

* weighted in accordance with CEC-operating points

weighted Eta* [%]

Efficiency

Range of output power factor 0.95 … 1.0 Output power factor, nominal value 0.99 Peak inverter efficiency 96.8 % CEC weighted efficiency at 208 V AC 95.5 % CEC weighted efficiency at 240 V AC 95.5 % CEC weighted efficiency at 277 V AC 95.5 %

Ambient Conditions

Ambient temperature range SB 5000US − 13 °F … +113 °F

Ambient temperature range SB 5000US-12 − 40 °F … +113 °F

Mechanical Data

Width x height x depth 18

Weight 147 lb. (67 kg) Noise emission 44 dB(A) Electronics degree of protection NEMA 3R

92 SB50US-80US-IA-en-37 Installation Manual

( − 25 °C … +45 °C)

( − 40 °C … +45 °C)

⁄8in. x 241⁄8in. x 91⁄16in.

(468 mm x 613 mm x 242 mm)

SMA America, LLC Technical Data

11.2 Sunny Boy 6000-US (SB 6000US and SB 6000US-12)

PV Array Connection

Maximum MPP voltage 250 V … 480 V Nominal operating voltage 310 V Range of input operating voltage 250 V … 600 V Maximum generator input power 7 500 W Maximum DC power 6 400 W PV start voltage 300 V Maximum DC input current 25 A Maximum input short-circuit current 36 A Maximum utility backfeed current to PV array 50 A AC DC voltage ripple < 10 %

Grid Connection

AC operating voltage range at 208 V nominal value 183 V … 229 V AC operating voltage range at 240 V nominal value 211 V … 264 V AC operating voltage range at 277 V nominal value 244 V … 305 V AC operating frequency range 59.3 Hz … 60.5 Hz AC frequency, nominal value 60 Hz Maximum continuous AC output power 6 000 W Current THD < 4 % Maximum continuous AC output current at 208 V 29 A Maximum continuous AC output current at 240 V 25 A Maximum continuous AC output current at 277 V 21.6 A Maximum output failure current 57.6 A Maximum output overcurrent protection 50 A Synchronization of inrush current 9.23 A Trip limit accuracy ±2 % Trip time accuracy ±0.1 % Power consumption at night 0.1 W

General Data

Inverter technology True sine, low-frequency transformer Cooling concept OptiCool

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 93

Technical Data SMA America, LLC

250

480

SB 6000-US

0.4

1.0

0.80.2 0.6

Output power / Rated power

0.0

Efficency [%]

V [V]

MPP

V = 250 V DC

= 310 V DC

= 480 V DC

* weighted in accordance with CEC-operating points

weighted Eta* [%]

Efficiency

Range of output power factor 0.95 … 1.0 Output power factor, nominal value 0.99 Peak inverter efficiency 97.0 % CEC weighted efficiency at 208 V AC 95.5 % CEC weighted efficiency at 240 V AC 95.5 % CEC weighted efficiency at 277 V AC 96.0 %

Ambient Conditions

Ambient temperature range SB 6000US − 13 °F … +113 °F

Ambient temperature range SB 6000US-12 − 40 °F … +113 °F

Mechanical Data

Width x height x depth 183⁄8in. x 241⁄8in. x 91⁄16in.

Weight 147 lb. (67 kg) Noise emission 44 dB(A) Electronics degree of protection NEMA 3R

94 SB50US-80US-IA-en-37 Installation Manual

( − 25 °C … +45 °C)

( − 40 °C … +45 °C)

(468 mm x 613 mm x 242 mm)

SMA America, LLC Technical Data

11.3 Sunny Boy SB 7000-US (SB 7000US and SB 7000US-12)

PV Array Connection

Maximum MPP voltage 250 V … 480 V Nominal operating voltage 310 V Range of input operating voltage 250 V … 600 V Maximum generator input power 8 750 W Maximum DC power 7 500 W PV start voltage 300 V Maximum DC input current 30 A Maximum input short-circuit current 36 A Maximum utility backfeed current to PV array 50 A AC DC voltage ripple < 10 %

Grid Connection

AC operating voltage range at 208 V nominal value 183 V … 229 V AC operating voltage range at 240 V nominal value 211 V … 264 V AC operating voltage range at 277 V nominal value 244 V … 305 V AC operating frequency range 59.3 Hz … 60.5 Hz AC frequency, nominal value 60 Hz Maximum continuous AC output power 7 000 W Current THD < 4 % Maximum continuous AC output current at 208 V 34 A Maximum continuous AC output current at 240 V 29 A Maximum continuous AC output current at 277 V 25.3 A Maximum output failure current 57.6 A Maximum output overcurrent protection 50 A Synchronization of inrush current 9.23 A Trip limit accuracy ±2 % Trip time accuracy ±0.1 % Power consumption at night 0.1 W

General Data

Inverter technology True sine, low-frequency transformer Cooling concept OptiCool

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 95

Technical Data SMA America, LLC

250

480

SB 7000-US

0.4

1.0

0.80.2 0.6

Output power / Rated power

0.0

Efficency [%]

V [V]

MPP

V = 250 V DC

= 310 V DC

= 480 V DC

* weighted in accordance with CEC-operating points

weighted Eta* [%]

Efficiency

Range of output power factor 0.95 … 1.0 Output power factor, nominal value 0.99 Peak inverter efficiency 97.1 % CEC weighted efficiency at 208 V AC 95.5 % CEC weighted efficiency at 240 V AC 96.0 % CEC weighted efficiency at 277 V AC 96.0 %

Ambient Conditions

Ambient temperature range SB 7000US − 13 °F … +113 °F

Ambient temperature range SB 7000US-12 − 40 °F … +113 °F

( − 25 °C … +45 °C)

( − 40 °C … +45 °C)

Mechanical Data

Width x height x depth 18

Weight 141 lb. (64 kg) Noise emission 46 dB(A) Electronics degree of protection NEMA 3R

96 SB50US-80US-IA-en-37 Installation Manual

⁄8in. x 241⁄8in. x 91⁄16in.

(468 mm x 613 mm x 242 mm)

SMA America, LLC Technical Data

11.4 Sunny Boy SB 8000-US (SB 8000US and SB 8000US-12)

PV Array Connection

Maximum MPP voltage 300 V … 480 V Nominal operating voltage 345 V Range of input operating voltage 300 V … 600 V Maximum generator input power 10 000 W Maximum DC power 8 600 W PV start voltage 365 V Maximum DC input current 30 A Maximum input short-circuit current 36 A Maximum utility backfeed current to PV array 50 A AC DC voltage ripple < 10 %

Grid Connection

AC operating voltage range at 240 V nominal value 211 V … 264 V AC operating voltage range at 277 V nominal value 244 V … 305 V AC operating frequency range 59.3 Hz … 60.5 Hz AC frequency, nominal value 60 Hz AC maximum continuous output power at 240 V 7 680 W AC maximum continuous output power at 277 V 8 000 W Current THD < 4 % Maximum continuous AC output current at 240 V 32 A Maximum continuous AC output current at 277 V 29 A Maximum output failure current 61.7 A Maximum output overcurrent protection 50 A Synchronization of inrush current 14.32 A Trip limit accuracy ±2 % Trip time accuracy ±0.1 % Power consumption at night 0.1 W

General Data

Inverter technology True sine, low-frequency transformer Cooling concept OptiCool

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 97

Technical Data SMA America, LLC

300

480

SB 8000-US

0.4

1.0

0.80.2 0.6

Output power / Rated power

0.0

Efficency [%]

V [V]

MPP

V = 300 V DC

= 345 V DC

= 480 V DC

* weighted in accordance with CEC-operating points

weighted Eta* [%]

Efficiency

Range of output power factor 0.95 … 1.0 Output power factor, nominal value 0.99 Peak inverter efficiency 96.5 % CEC weighted efficiency at 240 V AC 96.0 % CEC weighted efficiency at 277 V AC 96.0 %

Ambient Conditions

Ambient temperature range SB 8000US − 13 °F … +113 °F

Ambient temperature range SB 8000US-12 − 40 °F … +113 °F

Mechanical Data

Width x height x depth 18

Weight 147 lb. (67 kg) Noise emission 49 dB(A) Electronics degree of protection NEMA 3R

Specifications subject to change without notice. Values under nominal conditions.

98 SB50US-80US-IA-en-37 Installation Manual

( − 25 °C … +45 °C)

( − 40 °C … +45 °C)

⁄8in. x 241⁄8in. x 91⁄16in.

(468 mm x 613 mm x 242 mm)

SMA America, LLC Technical Data

11.5 DC Disconnect

Maximum DC input current 30 A Maximum DC short-circuit current 36 A Maximum system voltage 600 V Maximum nominal size for string fuses 20 A Maximum AC operating current 34 A Dimensions W x H x D 7

Weight 8 lb. (3.5 kg) Electronics degree of protection NEMA 3R

Specifications subject to change without notice.

⁄8in. x 12 13⁄64in. x 7 31⁄64in.

(200 mm x 310 mm x 190 mm)

SB50US-80US-IA-en-37 SB50US-80US-IA-en-37 99

Technical Data SMA America, LLC

11.6 Trip Limits/Trip Times

Frequency

Nominal

Trip Limit Trip Frequencies Trip Times

Frequency

60 Hz > 60.5 Hz 60.45 Hz … 60.55 Hz max. 0.1602 s

< 57.0 Hz … 59.8 Hz

(standard 59.3 Hz)

56.95 Hz … 59.85 Hz (standard 59.25 Hz …

adjustable, 0.16 s … 300 s

(standard max. 0.1602 s)

59.35 Hz)

< 57.0 Hz 56.95 Hz … 57.05 Hz max. 0.1602 s

Voltage

Nominal

Voltage

208 V 50 %

240 V 50 %

277 V 50 %

* The intervals result from the measuring accuracies listed below.

Trip Limit Trip Voltages

Conductor-

Neutral

Conductor*

57.6 V … 62.4 V

88 % 110 % 120 %

103.2 V … 108.0 V

129.6 V … 134.4 V

141.6 V … 146.4 V

57.6 V … 62.4 V

88 % 110 % 120 %

103.2 V … 108.0 V

129.6 V … 134.4 V

141.6 V … 146.4 V

133.0 V … 144.0 V

88 % 110 % 120 %

238.2 V … 249.3 V

299.2 V … 310.2 V

326.9 V … 337.9 V

Trip Voltages

Conductor-

Conductor*

99.8 V … 108.2 V

max. 0.1602 s

178.9 … 187.2 V

224.6 V … 233.0 V

245.4 V … 253.8 V

115.2 V … 124.8 V

max. 0.1602 s max. 0.1602 s

206.4 V … 216.0 V

259.2 V … 268.8 V

283.2 V … 292.8 V

max. 0.1602 s

Not applicable max. 0.1602 s

max. 0.1602 s

Accuracy

Trip limits: ±2 % of nominal grid voltage Trip time: ±0.1 % of nominal trip time Trip frequency: ±0.1 % of nominal frequency

Trip Times

max. 2.002 s max. 1.001 s

100 SB50US-80US-IA-en-37 Installation Manual

SMA SB 5000-US User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Information on this Manual

1.1 Validity

1.2 Target Group

1.3 Storing the Documentation

1.4 Additional Information

1.5 Nomenclature

2 Safety

2.1 Intended Use

2.2 Safety Instructions

2.3 Installation Overview

3 Unpacking and Inspection

3.1 Scope of Delivery

4 AC Voltage Configuration

4.1 Opening the Sunny Boy

4.2 Locating Internal Component Parts

4.3 AC Voltage Configuration

4.4 Jumper for System Configuration

5 Assembly

5.1 Safety

5.2 Requirements for the Mounting Location

5.3 Mounting with Wall Mounting Bracket

5.3.1 Possibilities for Mounting the Wall Mounting Bracket

5.3.2 Mounting the Wall Mounting Bracket

5.4 Mounting the DC Disconnect

5.4.1 Mounting the DC disconnect

5.4.2 Mounting the Sunny Boy on a Wall Mounting Bracket

6 Electrical Connection

6.1 Connection Area of the Sunny Boy

6.2 Sunny Boy Circuit Diagrams

6.2.1 Wiring with DC disconnect

6.3 Opening the Sunny Boy

6.4 Opening the DC Disconnect

6.5 AC Connection

6.5.1 AC Connection Requirements

6.5.2 AC Connection in the DC Disconnect

6.5.3 Connecting the AC Cables in the Sunny Boy

6.6 DC Connection

6.6.1 DC Connection Requirements

6.6.2 DC Input Grounding

6.6.3 Connecting the DC Cables in the DC disconnect

6.6.4 DC Connection with Additional DC Distribution

6.7 Communication

6.8 Closing the Sunny Boy

6.9 Closing the DC Disconnect

7 Commissioning

7.1 Switching On the Sunny Boy

7.2 The Sunny Boy Does Not Resume Operation

8 Displays and Messages

8.1 LED Operation Indicators

8.2 LED Fault Indicators

8.3 Status Messages on the LCD Display

8.4 Setting the Display Language

8.5 Measuring Channels and Parameters

8.5.1 Measurement Channels

8.5.2 Operating Mode

8.5.3 Operating Parameters of the Sunny Boy

8.5.4 Operating Parameters of the Sunny Boy

8.5.5 Fixed Operating Parameters of the Sunny Boy

9 Troubleshooting

9.1 General

9.2 Error Messages

10 Maintenance

10.1 Cleaning the Fans

10.2 Cleaning the Handle Covers

10.3 Checking the DC Disconnect

10.4 Fan Test

10.5 Exchanging the Fuses

10.5.1 Exchanging the GFDI Fuse within the Sunny Boy

10.5.2 Exchanging PV String Fuses within the DC disconnect

10.6 Testing and Replacing the DC Varistors

11 Technical Data

11.1 Sunny Boy 5000-US (SB 5000US and SB 5000US-12)

11.2 Sunny Boy 6000-US (SB 6000US and SB 6000US-12)

11.3 Sunny Boy SB 7000-US (SB 7000US and SB 7000US-12)

11.4 Sunny Boy SB 8000-US (SB 8000US and SB 8000US-12)

11.5 DC Disconnect
