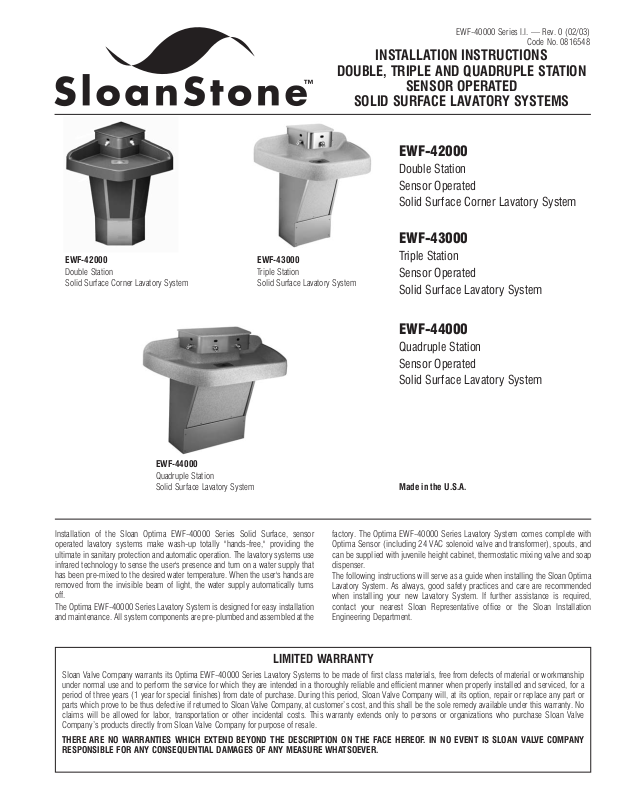

Sloan EWF-42000 Installaton

EWF-40000 Series I.I. — Rev. 0 (02/03)

Code No. 0816548

INSTALLATION INSTRUCTIONS

DOUBLE, TRIPLE AND QUADRUPLE STATION

SENSOR OPERATED

SOLID SURFACE LAVATORY SYSTEMS

LIMITED WARRANTY

Sloan Valve Company warrants its Optima EWF-40000 Series Lavatory Systems to be made of first class materials, free from defects of material or workmanship
under normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a
period of three years (1 year for special finishes) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or
parts which prove to be thus defective if returned to Sloan Valve Company, at customer’s cost, and this shall be the sole remedy available under this warranty. No
claims will be allowed for labor, transportation or other incidental costs. This warranty extends only to persons or organizations who purchase Sloan Valve
Company’s products directly from Sloan Valve Company for purpose of resale.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY
RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.

Installation of the Sloan Optima EWF-40000 Series Solid Surface, sensor
operated lavatory systems make wash-up totally "hands-free," providing the
ultimate in sanitary protection and automatic operation. The lavatory systems use
infrared technology to sense the user's presence and turn on a water supply that
has been pre-mixed to the desired water temperature. When the user's hands are
removed from the invisible beam of light, the water supply automatically turns
off.

The Optima EWF-40000 Series Lavatory System is designed for easy installation
and maintenance. All system components are pre-plumbed and assembled at the

factory. The Optima EWF-40000 Series Lavatory System comes complete with
Optima Sensor (including 24 VAC solenoid valve and transformer), spouts, and
can be supplied with juvenile height cabinet, thermostatic mixing valve and soap
dispenser.

The following instructions will serve as a guide when installing the Sloan Optima
Lavatory System. As always, good safety practices and care are recommended
when installing your new Lavatory System. If further assistance is required,
contact your nearest Sloan Representative office or the Sloan Installation
Engineering Department.

EWF-43000

Triple Station
Solid Surface Lavatory System

EWF-42000

Double Station
Sensor Operated
Solid Surface Corner Lavatory System

EWF-43000

Triple Station
Sensor Operated
Solid Surface Lavatory System

EWF-44000

Quadruple Station
Sensor Operated
Solid Surface Lavatory System

Made in the U.S.A.

EWF-42000

Double Station
Solid Surface Corner Lavatory System

EWF-44000

Quadruple Station
Solid Surface Lavatory System

2

LAVATORY SYSTEM ROUGH-IN

Triple Station Lavatory System

MODEL EWF-43000 — 0.5 gpm (1.9 Lpm) Max. — Aerator

SINK WEIGHT (Empty) — 140 Lbs. (63 Kg)

Standard Height Cabinet

Juvenile Height Cabinet

Standard Height Cabinet

Juvenile Height Cabinet

Quadruple Station Lavatory System

MODEL EWF-44000 — 0.5 gpm (1.9 Lpm) Max. — Aerator

SINK WEIGHT (Empty) — 170 Lbs. (77 Kg)

Double Station Corner Lavatory System

MODEL EWF-42000 — 0.5 gpm (1.9 Lpm) Max. — Aerator

SINK WEIGHT (Empty) — 120 Lbs. (54 Kg)

VARIABLE MOUNTING HEIGHT CHART — ALL MODELS

DIMENSION T.A.S. T.A.S. A.D.A.

DESCRIPTION AGES 4-10 AGES 11-15 STANDARD
A ROUGH-IN 20½” (521 mm) 22½” (572 mm) 24” (610 mm)
B KNEE CLEARANCE 26” (660 mm) 28” (711 mm) 29½ (749 mm)
C RIM HEIGHT 30” (762 mm) 32” (813 mm) 33½” (851 mm)
D TOE CLEARANCE 13½” (343 mm) 15½” (394 mm) 17” (432 mm)
