Page 1

Code No. 0816178

Rev. 4 (06/15)

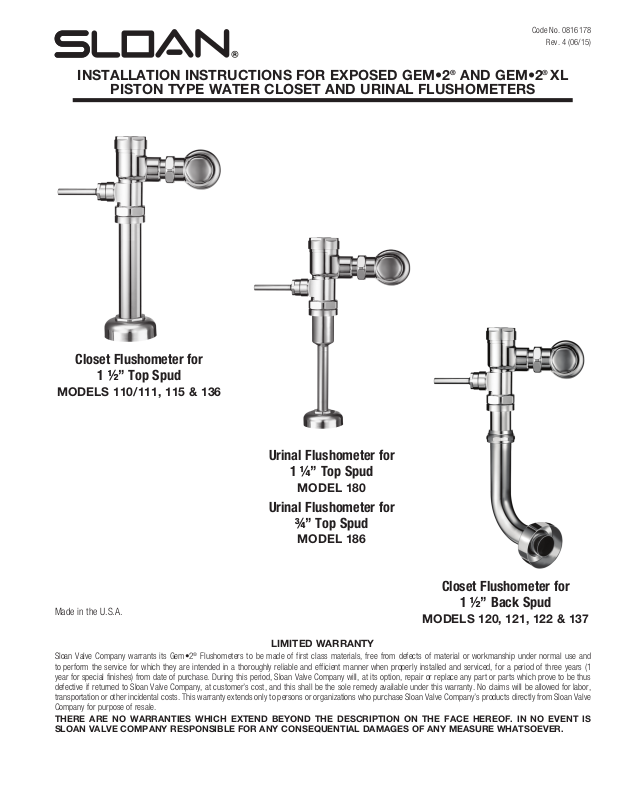

INSTALLATION INSTRUCTIONS FOR EXPOSED GEM•2

PISTON TYPE WATER CLOSET AND URINAL FLUSHOMETERS

Closet Flushometer for

1 ½” Top Spud

MODELS 110/111, 115 & 136

AND GEM•2® XL

Urinal Flushometer for

1 ¼” Top Spud

MODEL 180

Urinal Flushometer for

¾” Top Spud

MODEL 186

Closet Flushometer for

Made in the U.S.A.

LIMITED WARRANTY

Sloan Valve Company warrants its Gem•2® Flushometers to be made of first class materials, free from defects of material or workmanship under normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years (1 year for special finishes) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Sloan Valve Company, at customer’s cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labor, transportation or other incidental costs. This warranty extends only to persons or organizations who purchase Sloan Valve Company’s products directly from Sloan Valve Company for purpose of resale.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.

MODELS 120, 121, 122 & 137

1 ½” Back Spud

Page 2

VALVE ROUGH-IN

MODELS 110/111, 115

MODELS 120, 121,

122

MODEL 136

MODEL 180

NOTE: Requires 1” I.P.S.

(DN 25 mm) Supply.

MODEL 137

MODEL 186

NOTES:

• WHEN MOUNTED ON AN ADA ACCESSIBLE BOWL, THE ROUGH-IN TO THE SUPPLY INLET SHOULD BE NO HIGHER THAN 37½” (953 mm) OR THE HANDLE WILL EXCEED MAXIMUM HEIGHT ALLOWANCES UNDER ADA GUIDELINES.

• NEW ADAAG GUIDELINES ALLOW FOR SPLIT OR OFFSET GRAB BARS, CHECK WITH LOCAL AUTHORITIES OR REFERENCE SECTION

604.5.2 OF ADAAG.

† 1” CONTROL STOP IS AVAILABLE WITH

WHITWORTH THREAD.

Page 3

PRIOR TO INSTALLATION

Before you install the GEM•2® Flushometer, be sure the items listed below are installed. Also, refer to the rough-in diagram on Page 2.

• Closet/urinal fixture

• Drain line

• Water supply line

Important:

• ALL PLUMBING SHOULD BE INSTALLED IN ACCORDANCE WITH APPLICABLE CODES AND REGULATIONS.

• WATER SUPPLY LINES MUST BE SIZED TO PROVIDE AN ADEQUATE VOLUME OF WATER FOR EACH FIXTURE.

• WHEN INSTALLING A FLUSHOMETER, IT IS IMPORTANT THAT THE FLUSH MODEL MATCHES THE REQUIREMENTS OF THE PLUMBING FIXTURE.

• FLUSH ALL WATER LINES PRIOR TO MAKING CONNECTIONS.

!!! IMPORTANT !!!

With the exception of Control Stop Inlet, DO NOT use pipe sealant or plumbing

grease on any valve component or coupling!

!!! IMPORTANT !!!

Never open Control Stop to where the flow from the valve

exceeds the flow capability of the fixture. In the event of a

valve failure, the fixture must be able to accommodate a continuous flow from the

valve.

!!! IMPORTANT !!!

Protect the chrome or special finish of Gem•2 Flushometers — DO NOT USE

toothed tools to install or service these valves. Use a Sloan A-50 Super-Wrench™,

Sloan A-109 Plier Wrench or smooth jawed spud wrench to secure all couplings.

Also see “Care and Cleaning” section of this manual.

The Sloan GEM•2 (69 to 689 kPa) of water pressure. THE MINIMUM PRESSURE REQUIRED TO THE VALVE IS DETERMINED BY THE TYPE OF FIXTURE SELECTED. Consult fixture manufacturer for minimum pressure requirements. Most Low Consumption water closets require a minimum flowing pressure of 25 psi (172 kPa). Many building codes and the ASME A112.19.2 fixture standard list maximum static water pressure as 80 PSI.

Flushometer is designed to operate with 10 to 100 psi

TOOLS REQUIRED FOR INSTALLATION

• Straight blade screwdriver

• Sloan A-50 Super-Wrench™, Sloan A-109 Plier Wrench or smooth jawed spud wrench

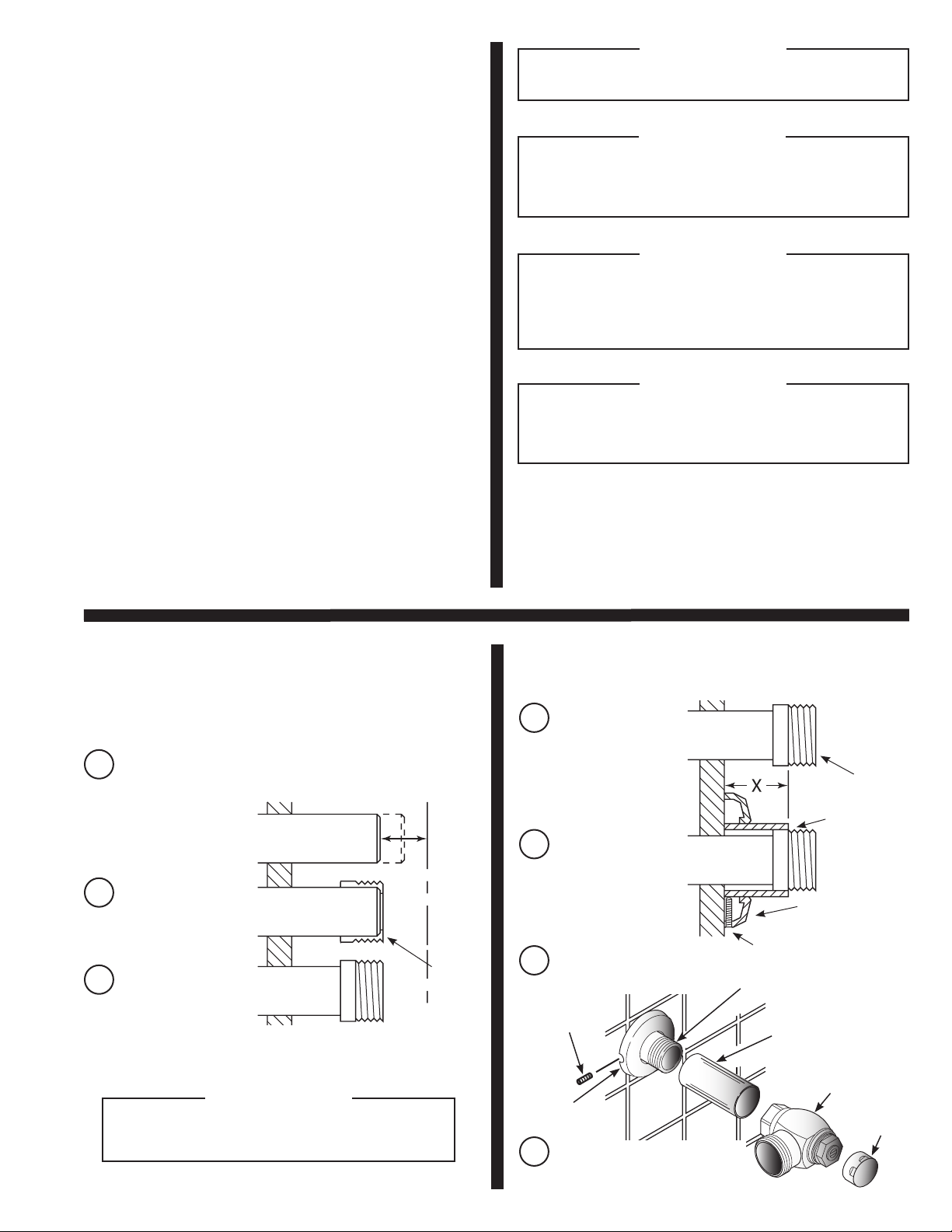

Install Optional Sweat Solder

Adapter (only if your supply pipe does not have a male thread)

Measure from finished

wall to C/L of Fixture Spud. Cut pipe 1¼” (32 mm) shorter than this measurement. Chamfer O.D. and I.D. of water supply pipe.

Slide Threaded Adapter

fully onto pipe.

Sweat solder the Adapter

to pipe.

With the exception of Control Stop Inlet, DO NOT use pipe sealant or

plumbing grease on any valve component or coupling!

WATER SUPPLY PIPE

!!! IMPORTANT !!!

FINISHED WALL

1-1/4”

(32 mm)

SWEAT SOLDER ADAPTER

C/L OF

FIXTURE

SPUD

!!! IMPORTANT !!!

This product contains mechanical and/or electrical components that are subject to

normal wear. These components should be checked on a regular basis and replaced

as needed to maintain the valve’s performance.

If you have questions about how to install your Gem•2 Flushometer, consult your local

Sloan Representative or call Sloan Installation Engineering Department at:

1-888-SLOAN-14 (1-888-756-2614)

Install Cover Tube, Wall Flange and

SET SCREW

SUPPLY FLANGE

Control Stop to supply pipe

Measure from finished wall to first thread of Adapter or threaded supply pipe (dimension “X”). Cut Cover Tube to this length.

Slide Cover Tube over pipe. Slide Wall Flange over Cover Tube until against wall.

Thread Control Stop onto pipe. Tighten with a wrench.

Tighten Set Screw with a 1/16” hex wrench. DO NOT install Vandal Resistant Stop Cap at this time.

WATER

SUPPLY PIPE

IRON PIPE NIPPLE OR COPPER PIPE WITH SWEAT SOLDER ADAPTER

SWEAT SOLDER ADAPTER

COVER TUBE

WALL FLANGE

SET SCREW

COVER TUBE (COVERING TUBE AND CAST SET SCREW AVAILABLE IN “YBYC” SWEAT SOLDER KIT)

BAK-CHEK CONTROL STOP

CONTROL STOP CAP

Page 4

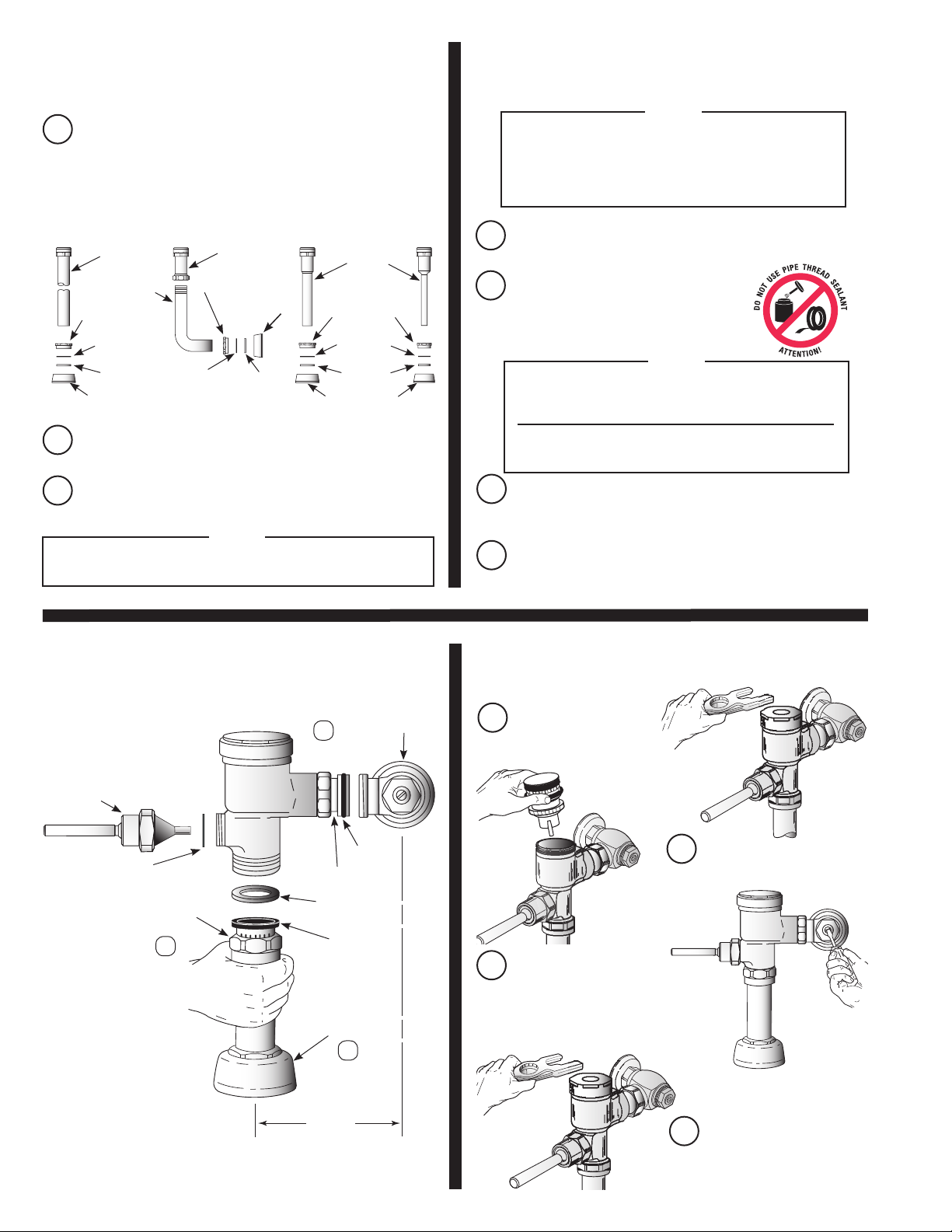

Install Vacuum Breaker Flush

MODELS 110/111, 115, 136

Connection

Slide Spud Coupling, Nylon Slip Gasket, Rubber Gasket and Spud Flange over Vacuum Breaker Tube.

MODELS 120, 121, 122, 137

MODEL 180 MODEL 186

Install Flushometer

NOTE

For high efficiency urinal flushometers (0.5, 0.25 and 0.125

gpf), it is necessary to first insert the flow control component

into the tailpiece assembly. See the H1015A flow control kit

and separate instructions for details on how to install.

VACUUM

BREAKER

TUBE

ELBOW FLUSH

CONNECTION

SPUD COUPLING

NYLON SLIP

GASKET RUBBER

GASKET

SPUD FLANGE

Insert Tube into Fixture Spud.

Hand tighten Spud Coupling onto Fixture Spud.

On valves furnished less vacuum breaker (XYV Variation) connect flush

tube to the bottom of the valve using the slip gasket supplied.

NYLON SLIP GASKET

VACUUM

BREAKER

SPUD COUPLING

SPUD FLANGE

RUBBER GASKET

NOTE

VACUUM

BREAKER

TUBE

SPUD COUPLING

NYLON SLIP

GASKET

RUBBER GASKET

SPUD FLANGE

Install Flushometer (Continued)

Lubricate tailpiece O-ring with water. Insert Adjustable Tailpiece

into Control Stop. Tighten Tailpiece Coupling by hand.

Align Flushometer directly above the

Vacuum Breaker Flush Connection by sliding the Flushometer Body IN or OUT as needed. Tighten Vacuum Breaker Coupling by hand.

Maximum adjustment of the Sloan Adjustable Tailpiece is

1/2” (13 mm) IN or OUT from the standard 4-3/4” (121 mm)

(centerline of Flushometer to centerline of Control Stop).

If roughing-in measurement exceeds 5-1/4” (133 mm),

consult factory for longer tailpiece.

Align Flushometer Body and securely tighten first the Tailpiece

Coupling (1), then the Vacuum Breaker Coupling (2), and finally the Spud Coupling (3). Use a wrench to tighten these couplings in the order shown.

If not installed, install Handle Assembly with Gasket to handle

opening on Flushometer Body. Tighten Handle Assembly securely.

NOTE

Flush Out Supply Line

HANDLE

ASSEMBLY

FLUSHOMETER

BODY

GASKET

VACUUM

BREAKER

COUPLING

VACUUM

BREAKER

FLUSH

CONNECTION

O-RING

RING

VACUUM

BREAKER

REPAIR

KIT

SPUD

CONTROL

STOP

C/L

SUPPLY

Make sure Control Stop

is CLOSED and remove Flushometer Cover.

Install Flushometer Cover wrench

tight. Open Control Stop to flush supply line. Close Control Stop and remove Flushometer Cover.

Lift out Piston Assembly.

Reinstall Piston Assembly and

Flushometer Cover. Tighten Flushometer Cover wrench tight.

TAILPIECE COUPLING

ADJUSTABLE TAILPIECE

G-44 FRICTION

COUPLING

4-3/4”

(121 mm)

±1/2”

C/L

FIXTURE

(13 mm)

Page 5

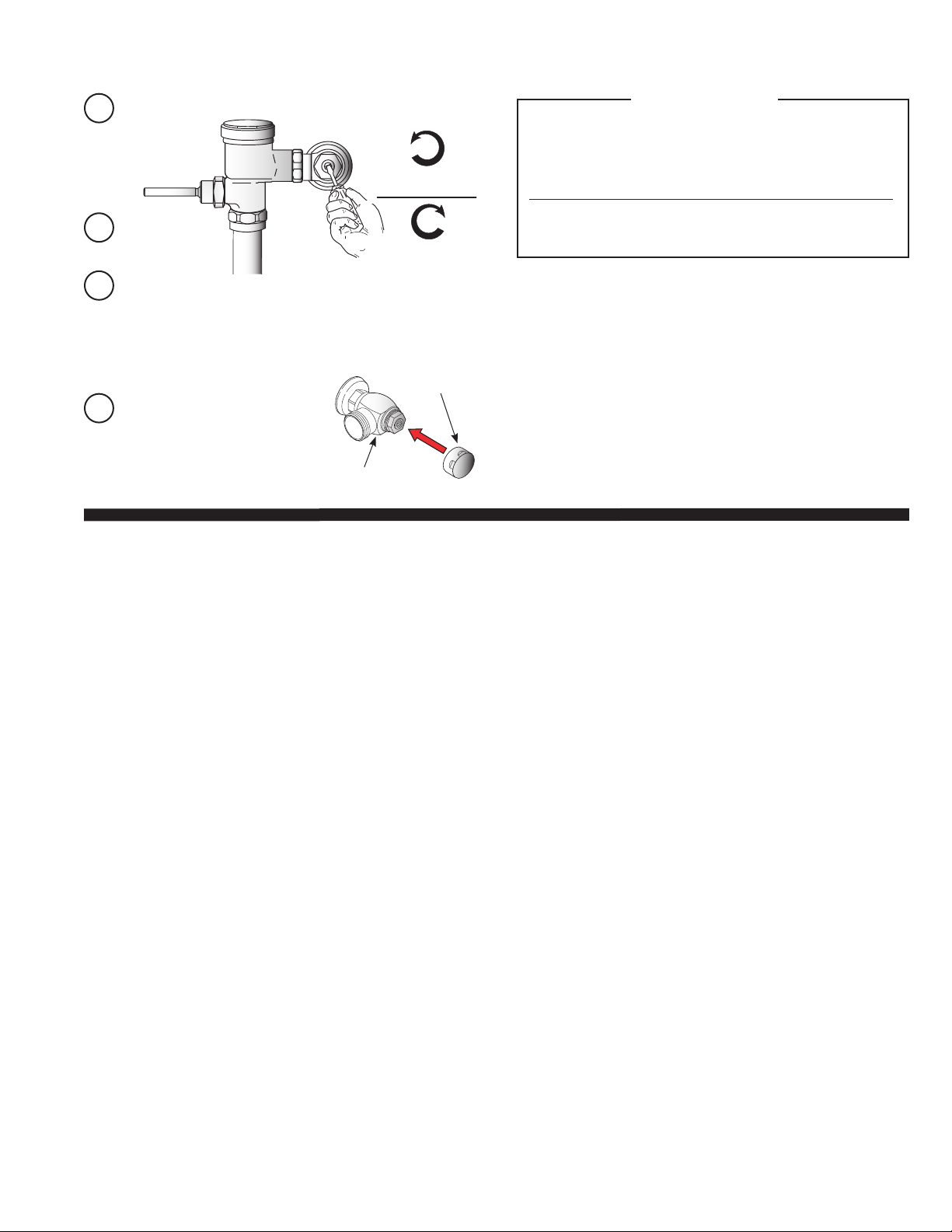

Adjust Control Stop and Install

Vandal Resistant Stop Cap

Open Control Stop COUNTERCLOCKWISE 1/2 turn from closed position.

CLOCKWISE TO OPEN

Activate Flushometer.

Adjust Control Stop after each flush until the rate of flow delivered properly cleanses the fixture.

CONTROL STOP CAP

Install Vandal Resistant Control Stop Cap onto Control Stop.

H-700-A BAK CHEK

CONTROL STOP

TURN COUNTER-

TURN CLOCKWISE

TO CLOSE

!!! IMPORTANT !!!

The Sloan Gem•2 Flushometer is engineered for quiet operation.

Excessive water flow creates noise, while too little water flow may

not satisfy the needs of the fixture. Proper adjustment is made when

plumbing fixture is cleansed after each flush without splashing water out

from the lip AND a quiet flushing cycle is achieved.

Never open Control Stop to where the flow from the valve exceeds the

flow capability of the fixture. In the event of a valve failure, the fixture

must be able to accommodate a continuous flow from the valve.

TROUBLESHOOTING GUIDE

1. Valve does not function (no flush).

A. Control Stop or Main Valve is Closed. Open Control Stop or Main Valve. B. Handle Assembly is worn. Replace Sloan Handle Assembly (G-143-A). C. Relief Valve is worn and sticking in UP position. Replace Piston.

2. Volume of water is not sufficient to siphon fixture.

A. Control Stop not open enough. Adjust Control Stop for desired delivery of

water.

B. Urinal Piston Parts inside a Closet Flushometer. Replace Piston Parts with

proper Closet Piston.

C. Low Consumption Flushometer installed on a non-Low Consumption fixture.

Replace with proper Piston Kit.

D. Inadequate volume or pressure at supply. Increase water pressure or supply

(flow) to Flushometer. Consult Factory for assistance.

3. Length of flush is too short (Short Flushing) or Flushometer closes off immediately.

A. Piston Assembly is not hand-tight. Screw the assembly hand-tight. B. Enlarged Bypass orifice from corrosion or damage. Install NEW Inside Piston

Kit to correct problem and update Flushometer. C. Urinal Piston in Closet Flushometer. Replace Piston with proper Closet Piston. D. Low Consumption Piston installed in non-Low Consumption fixture. Replace

Piston with proper Closet Piston. E. Handle Assembly is worn. Replace Sloan Handle Assembly (G-143-A).

4. Length of flush is too long (Long Flushing) or fails to close off.

A. Piston is not seating properly or Bypass orifice is clogged because of foreign

material, or Bypass orifice is closed by an invisible gelatinous film from “overtreated” water.

Disassemble the working parts and wash thoroughly. NOTE: SIZE OF THE

ORIFICE IN THE BYPASS IS OF UTMOST IMPORTANCE FOR THE PROPER METERING OF WATER INTO THE UPPER CHAMBER OF THE FLUSHOMETER. DO NOT ENLARGE OR DAMAGE THIS ORIFICE. REPLACE PISTON IF CLEANING DOES NOT CORRECT PROBLEM.

B. Line pressure has dropped and is not sufficient to force Relief Valve to seat.

Shut off all control stops until pressure has been restored, then open them again.

C. 3.5 gpf Closet Piston has been used in a 1.0 or 1.5 gpf Urinal or on a 1.6 gpf

Toilet. Replace with proper Piston.

D. G-21 Main Seat is fouled with debris or is worn. Clean or replace G-21 Main

Seat.

5. Leaking at Handle Assembly.

A. The B-39 Seal is worn or deteriorated. Install new B-39 Seal. NOTE: The B-39

Seal will easily slide onto the Bushing if it is wet. B. Handle gasket has been omitted. Replace Sloan Handle Assembly (G-143-A). C. Valve Handle Bushing is worn. Replace Sloan Handle Assembly (G-143-A).

Refer to the GEM•2 Flushometer Maintenance Guide for additional Troubleshooting and Repair Part information.

When assistance is required, please contact Sloan Valve Company Installation Engineering Department at:

1-888-SLOAN-14 (1-888-756-2614)

CARE AND CLEANING OF CHROME AND SPECIAL FINISHES

DO NOT use abrasive or chemical cleaners (including chlorine bleach) to clean Flushometers that may dull the luster and attack the chrome or special decorative finishes. Use ONLY mild soap and water, then wipe dry with clean cloth or towel.

While cleaning the bathroom tile, protect the Flushometer from any splattering of cleaner. Acids and cleaning fluids will discolor or remove chrome plating.

Page 6

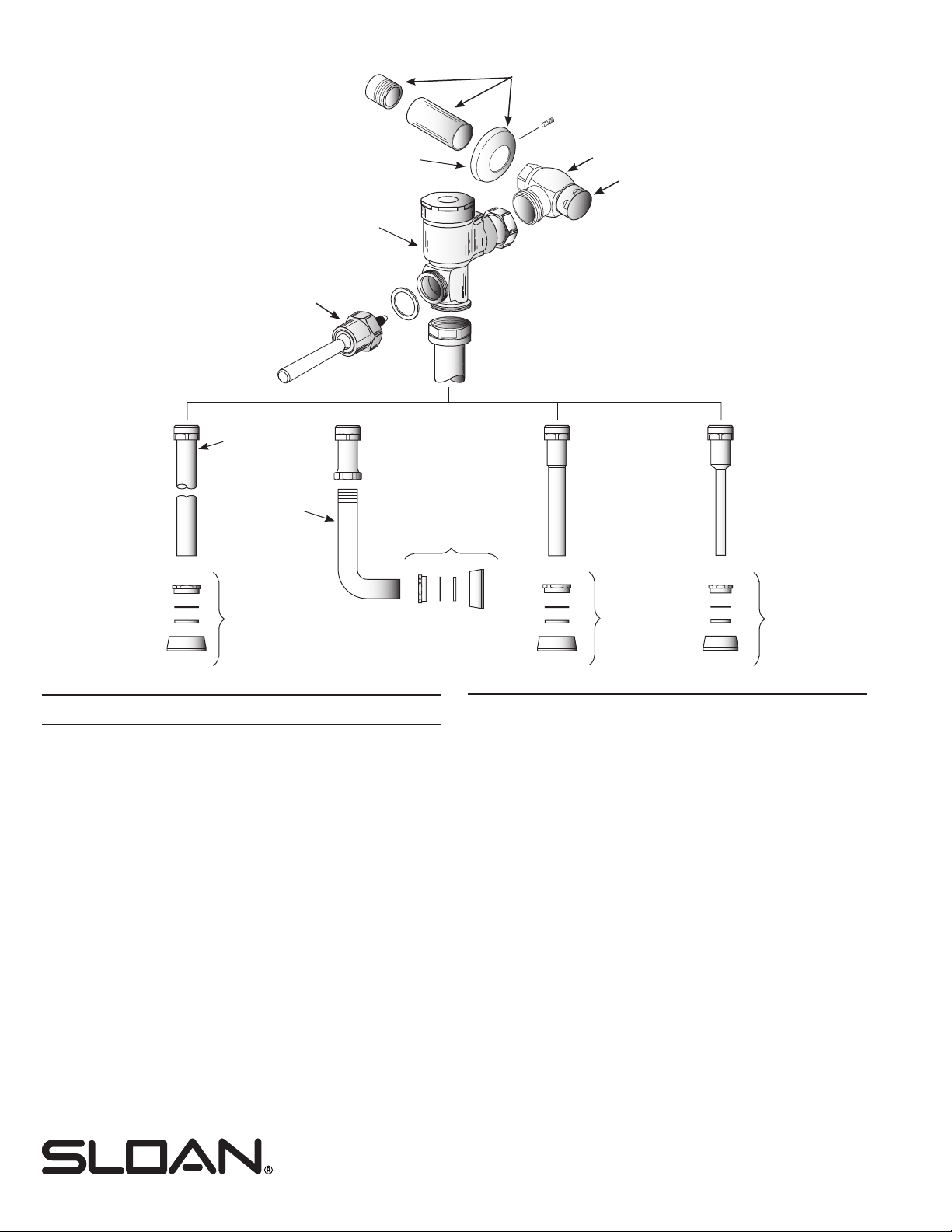

PARTS LIST

8 §

‡

4D ‡

4B ‡ 4C ‡

Item Part Description No. No.

1 † Valve Assembly 2 G-143-A Handle Assembly 3 H-700-A Bak-Chek

Control Stop

4A V-500-AA 1-1/2” (38 mm) x 9” (229 mm) Vacuum Breaker

Assembly CP (Model 110/111) ‡

V-500-AA 1-1/2” (38 mm) x 21-1/2” (546 mm) Vacuum Breaker

Assembly CP (Model 115) ‡

4B V-500-AA 1-1/4” (32 mm) x 9” (229 mm) Vacuum Breaker

Assembly CP (Model 180) ‡

4C V-500-AA 3/4” (19 mm) x 9” (229 mm) Vacuum Breaker

Assembly CP (Model 186) ‡

4D V-500-A 1-1/2” (38 mm) Vacuum Breaker Assembly CP ‡

Item Part Description No. No.

5 F-109 1-1/2” (38 mm) Elbow Flush Connection 6A CR-1010-A 1-1/2” (38 mm) Spud Coupling Assembly

(Models 110/111, 115, 120, 121 & 122)

6B CR-1009-A 1-1/4” (32 mm) Spud Coupling Assembly

(Model 180) 6C CR-1008-A 3/4” (19 mm) Spud Coupling Assembly (Model 186) 7 F-7 Supply Flange (Supplied when Valve is Not Ordered with Sweat Solder Kit) 8 H-633-AA 1” (25 mm) Sweat Solder Kit with Cast Set Screw Flange (XL Models) § H-636-AA 3/4” (19 mm) Sweat Solder Kit with Cast Set Screw Flange (XL Models) §

9 H-573-A VR Hex Cap

† Part number varies with valve model variation; consult factory. ‡ If valve was specified less vacuum breaker (XYV variation), a straight flush tube is supplied in place of the vacuum breaker assembly. Consult Factory for part

number.

§ Furnished only when ordered with XL Version.

For a complete listing of GEM•2 Flushometer Valve Components and Repair Kits, refer to the Maintenance Guide or consult your nearest plumbing wholesaler. For optimum water conservation and Flushometer performance, use only Genuine Sloan Parts.

NOTICE: The information contained in this document is subject to change without notice.

SLOAN VALVE COMPANY • 10500 Seymour Avenue • Franklin Park, IL 60131

Phone: 1-800-982.5839 • Fax: 1-800-447-8329

www.sloanvalve.com Printed in the U.S.A. 06-15

0816178 Rev4 06-15
