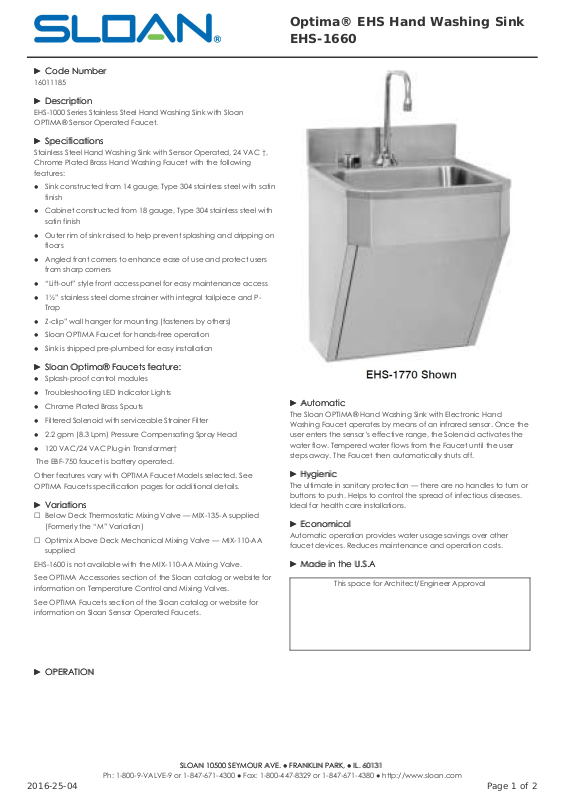

Page 1
►► Code NumberCode Number
16011185
►► DescriptionDescription
EHS-1000 Series Stainless Steel Hand Washing Sink with Sloan
OPTIMA® Sensor Operated Faucet.
►► SpecificationsSpecifications
Stainless Steel Hand Washing Sink with Sensor Operated, 24 VAC †,
Chrome Plated Brass Hand Washing Faucet with the following
features:
● ● Sink constructed from 14 gauge, Type 304 stainless steel with satin
finish
● ● Cabinet constructed from 18 gauge, Type 304 stainless steel with
satin finish
● ● Outer rim of sink raised to help prevent splashing and dripping on
floors
● ● Angled front corners to enhance ease of use and protect users
from sharp corners
● ● “Lift-out” style front access panel for easy maintenance access
● ● 1½” stainless steel dome strainer with integral tailpiece and PTrap
● ● Z-clip” wall hanger for mounting (fasteners by others)
● ● Sloan OPTIMA Faucet for hands-free operation
● ● Sink is shipped pre-plumbed for easy installation
►► Sloan Optima® Faucets feature:Sloan Optima® Faucets feature:
● ● Splash-proof control modules
● ● Troubleshooting LED Indicator Lights
● ● Chrome Plated Brass Spouts
● ● Filtered Solenoid with serviceable Strainer Filter
● ● 2.2 gpm (8.3 Lpm) Pressure Compensating Spray Head
● ● 120 VAC/24 VAC Plug-in Transformer†
The EBF-750 faucet is battery operated.
Other features vary with OPTIMA Faucet Models selected. See
OPTIMA Faucets specification pages for additional details.
►► VariationsVariations
☐ Below Deck Thermostatic Mixing Valve — MIX-135-A supplied
(Formerly the “M” Variation)
☐ Optimix Above Deck Mechanical Mixing Valve — MIX-110-AA
supplied
EHS-1600 is not available with the MIX-110-AA Mixing Valve.
See OPTIMA Accessories section of the Sloan catalog or website for
information on Temperature Control and Mixing Valves.
See OPTIMA Faucets section of the Sloan catalog or website for
information on Sloan Sensor Operated Faucets.
►► AutomaticAutomatic
The Sloan OPTIMA® Hand Washing Sink with Electronic Hand
Washing Faucet operates by means of an infrared sensor. Once the
user enters the sensor’s effective range, the Solenoid activates the
water flow. Tempered water flows from the Faucet until the user
steps away. The Faucet then automatically shuts off.
►► HygienicHygienic
The ultimate in sanitary protection — there are no handles to turn or
buttons to push. Helps to control the spread of infectious diseases.
Ideal for health care installations.
►► EconomicalEconomical
Automatic operation provides water usage savings over other
faucet devices. Reduces maintenance and operation costs.
►► Made in the U.S.AMade in the U.S.A
This space for Architect/Engineer Approval
►► OPERATIONOPERATION
Optima® EHS Hand Washing Sink
EHS-1660
2016-25-04 Page 1 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
Page 2

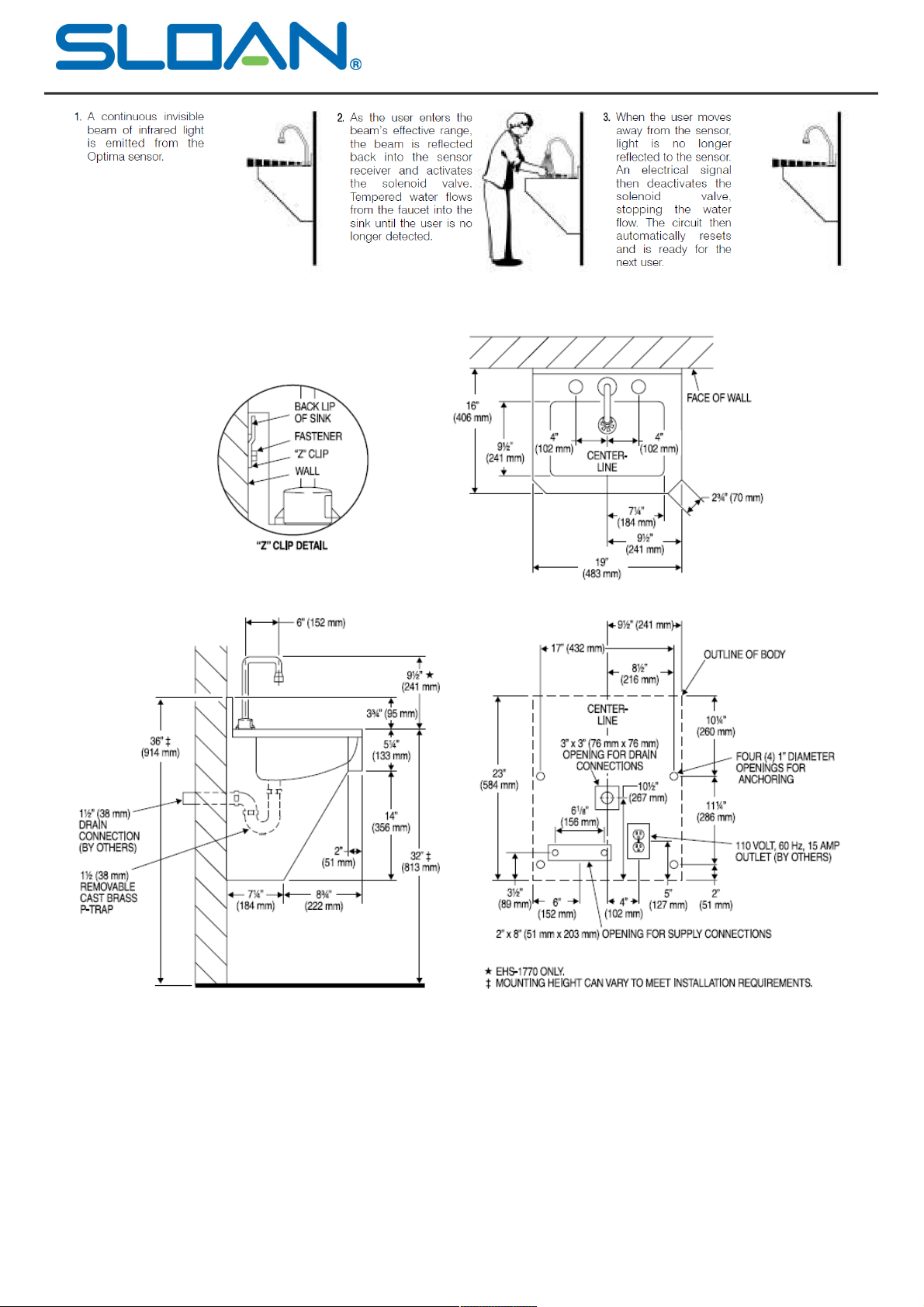

►► ROUGH-INROUGH-IN
Shown w/ETF-770 Faucet
Optima® EHS Hand Washing Sink
EHS-1660
2016-25-04 Page 2 of 2
