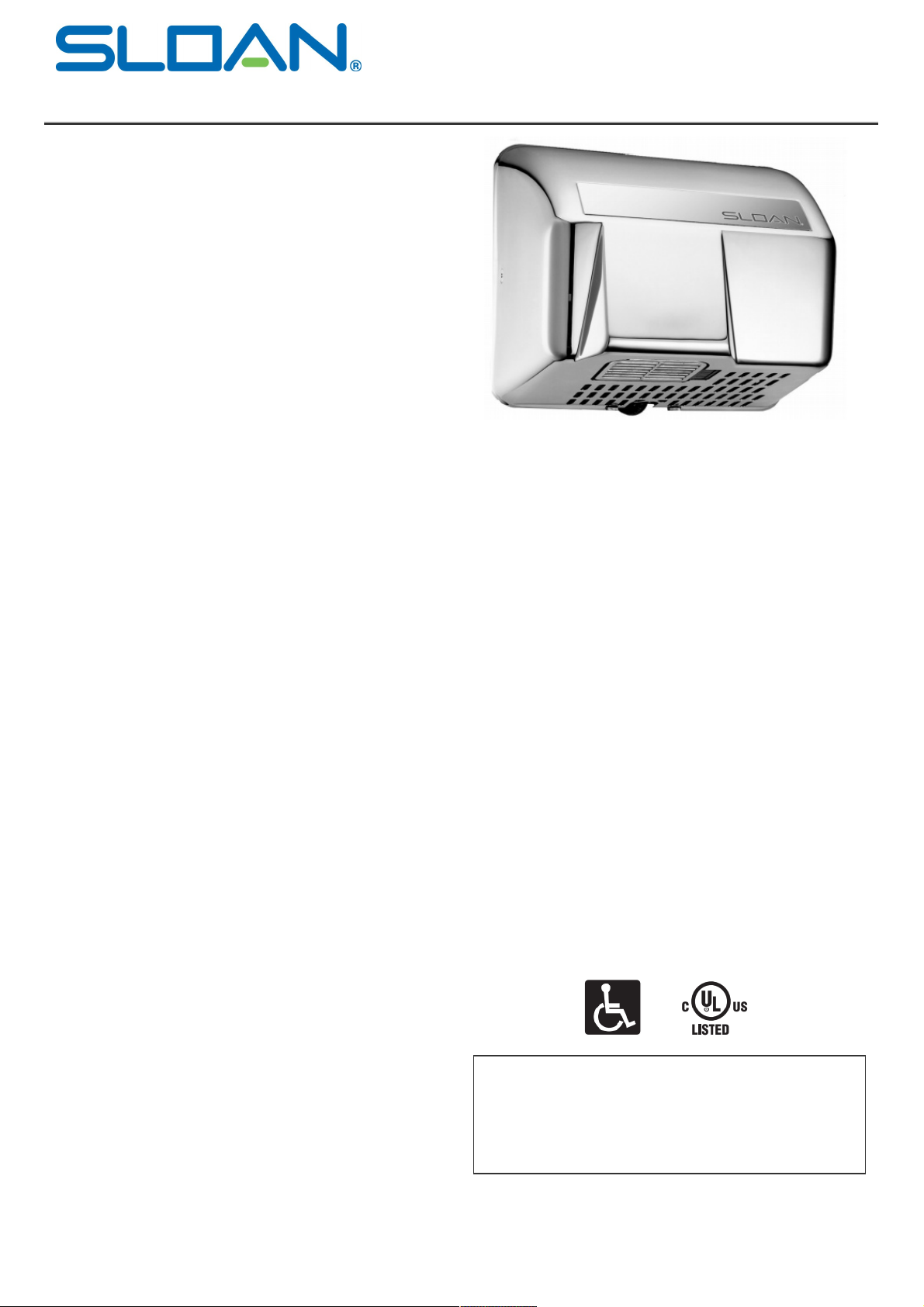

►► Code NumberCode Number
3366037
►► SpecificationsSpecifications
● ● Model EHD-404 277 VAC, 8 Amp, 60 Hz
● ● Maintenance free brushless motor with self-lubricating bearings,
capacitor initiated for quick starts
● ● Infrared Optical Sensor with ninety (90) second lockout feature
● ● Air delivery of approximately 180 CFM at an outlet temperature
of 145°F/63°C at a 72°F/22°C ambient room temperature
● ● Decibel Rating of 70 dB
● ● Heating element constructed of Nichrome wire and protected
by an automatic resetting thermostat
● ● Vandal resistant metal protective grill to prevent the entry of
foreign objects into the blower housing
● ● One piece heavy-duty rib reinforced die cast zinc alloy housing
● ● Bright chrome plate or chip-proof electrostatically-applied epoxy
finish
● ● Tamper-proof cover fasteners are included
►► ColorsColors
☐ White
☐ Chrome Plate
►► Electrical RequirementsElectrical Requirements
● ● Install electrical line in the location shown in the Wiring Diagram
below.
● ● Electrical Connection Specifications
● ● Connect 110/120 VAC dryer to not more than a 20 Amp branch
circuit using #12 gauge or larger wire, and a 208/230/277 VAC
dryer to not more than a 15 Amp branch circuit using #14 gauge
or larger wire. DO NOT attach any other electrical devices to this
branch circuit.
● ● Important: ALL ELECTRICAL WIRING SHOULD BE INSTALLED IN
ACCORDANCE WITH NATIONAL/LOCAL CODES AND
REGULATIONS.
►► Sensor ActivatedSensor Activated
Sloan OPTIMA® EHD-401, EHD-402 and EHD-404 Sensor Activated
Electronic Hand Dryers operate by means of an Infrared Optical
Sensor. Once the user enters the sensor’s effective range, the Hand
Dryer activates for as long as the users hands are under the air
outlet. The Hand Dryer will operate up to ninety (90) seconds of
continuous operation.
►► HygienicHygienic
Offers the ultimate in sanitary protection — there are no handles to
turn or buttons to push. Helps control the spread of infectious
diseases.
►► Installation PrecautionsInstallation Precautions
Mounting surface should be smooth and flat.
Mount dryer at least 24 inches (610 mm) away from basins and at
least 20 inches (508 mm) away from corners.
Mount multiple hand dryers a minimum separation distance of 20
inches (508 mm) (measured center to center).
Avoid installing hand dryers in narrow hallways and behind swinging
doors.
►► EconomicalEconomical
Automatic operation provides energy savings. Reduces
maintenance and operating costs. Designed for quick and easy
installation.
►► Compliance & CertificationsCompliance & Certifications
This space for Architect/Engineer Approval
Sensor Activated Surface
Mounted Electronic Hand Dryer
EHD-404
2016-07-04 Page 1 of 3
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
Page 2
►► OPERATIONOPERATION
When the Infrared Sensor detects hands beneath the exhaust port, it activates the Hand Dryer. A powerful flow of warm air dries hands
within thirty (30) seconds.
After hands are withdrawn from the Sensor’s detection zone, or after a maximum of ninety (90) seconds of continuous operation, the
Hand Dryer automatically stops. It is then ready for the next user.

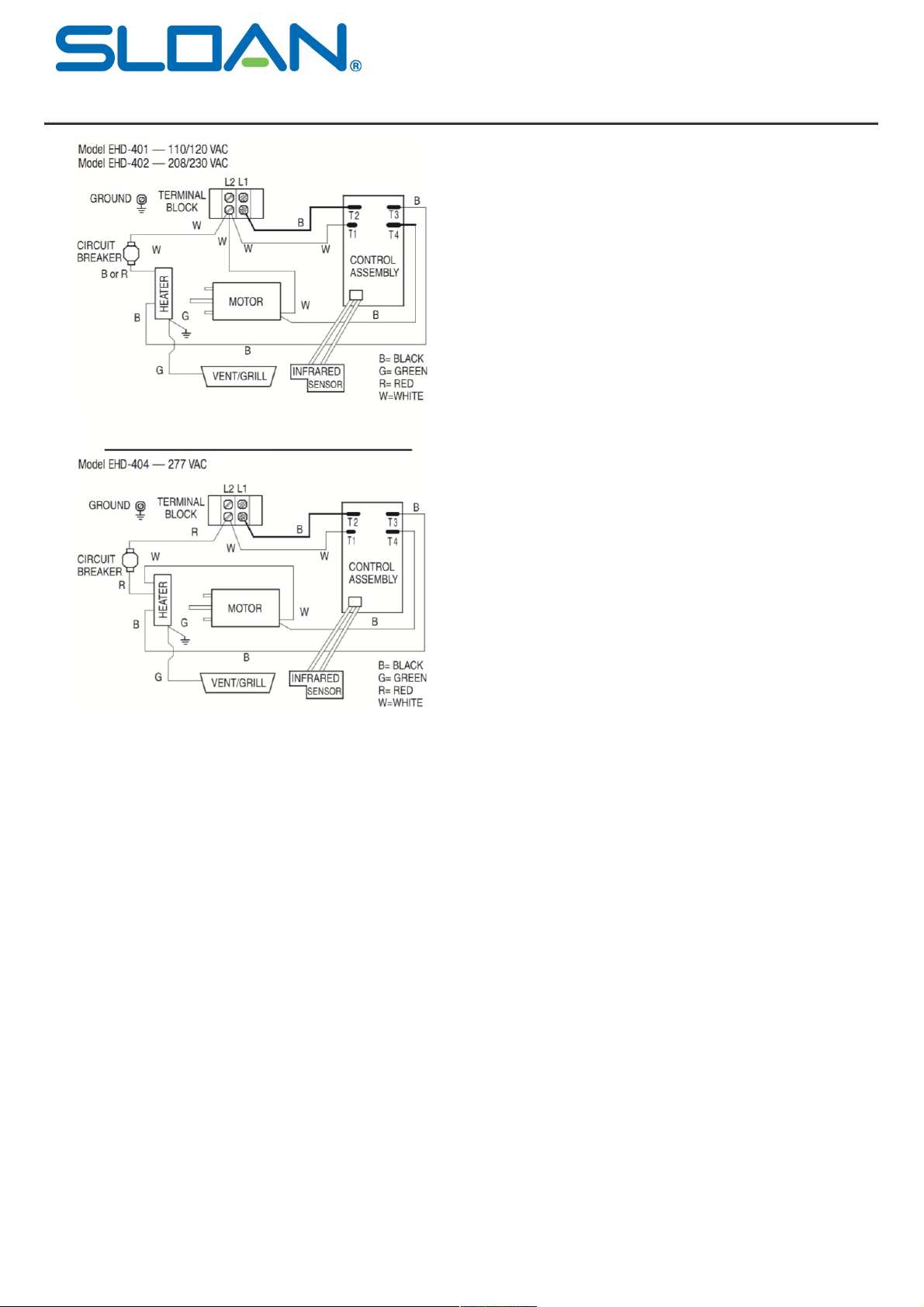

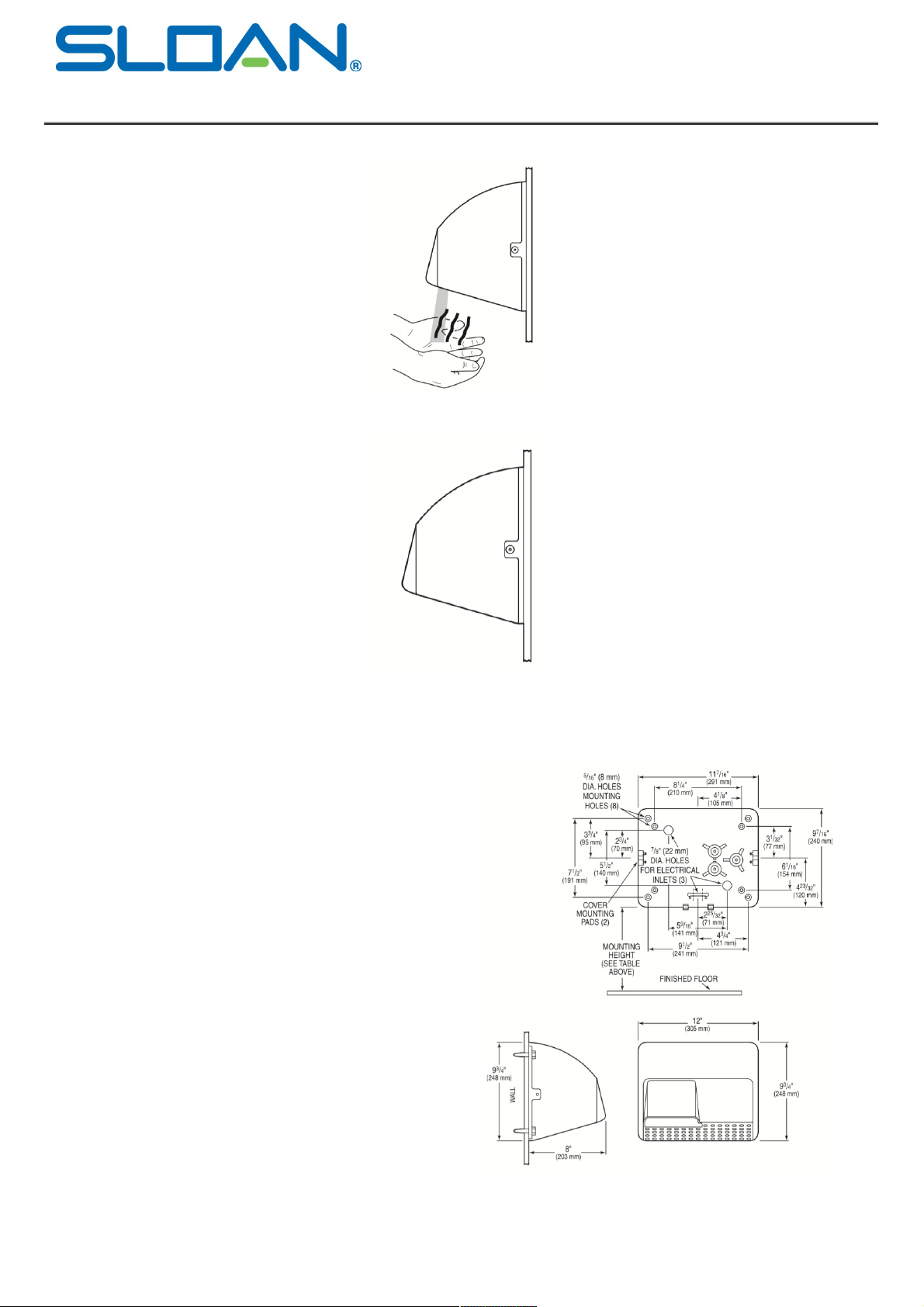

►► ROUGH-INROUGH-IN►► WIRING DIAGRAMWIRING DIAGRAM
