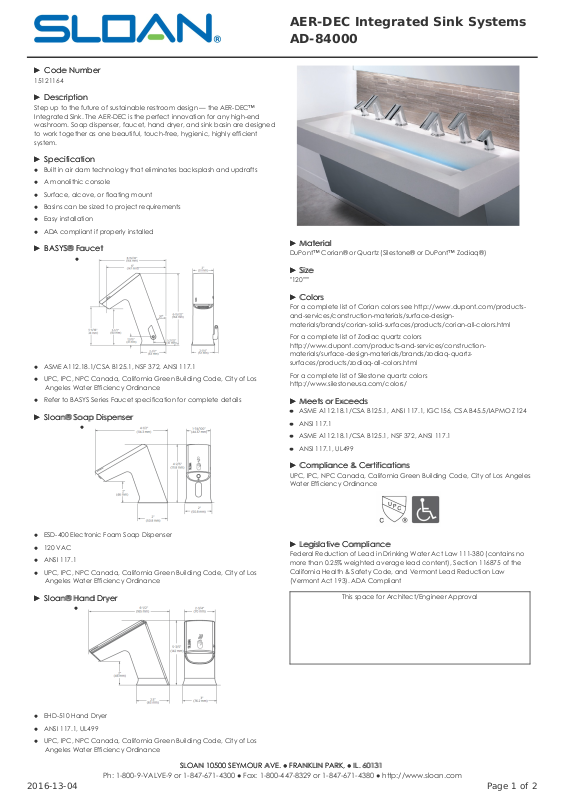

Sloan AD-84000 User Manual
►► Code NumberCode Number
15121164
►► DescriptionDescription
Step up to the future of sustainable restroom design — the AER-DEC™
Integrated Sink. The AER-DEC is the perfect innovation for any high-end
washroom. Soap dispenser, faucet, hand dryer, and sink basin are designed
to work together as one beautiful, touch-free, hygienic, highly efficient
system.
►► SpecificationSpecification
● ● Built in air dam technology that eliminates backsplash and updrafts
● ● A monolithic console
● ● Surface, alcove, or floating mount
● ● Basins can be sized to project requirements
● ● Easy installation
● ● ADA compliant if properly installed
►► BASYS® FaucetBASYS® Faucet
● ●
● ● ASME A112.18.1/CSA B125.1, NSF 372, ANSI 117.1
● ● UPC, IPC, NPC Canada, California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
● ● Refer to BASYS Series Faucet specification for complete details
►► Sloan® Soap DispenserSloan® Soap Dispenser
● ●
● ● ESD-400 Electronic Foam Soap Dispenser
● ● 120 VAC
● ● ANSI 117.1
● ● UPC, IPC, NPC Canada, California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
►► Sloan® Hand DryerSloan® Hand Dryer
● ●
● ● EHD-510 Hand Dryer
● ● ANSI 117.1, UL499
● ● UPC, IPC, NPC Canada, California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
►► MaterialMaterial
DuPont™ Corian® or Quartz (Silestone® or DuPont™ Zodiaq®)
►► SizeSize
"120"""
►► ColorsColors
For a complete list of Corian colors see http://www.dupont.com/productsand-services/construction-materials/surface-designmaterials/brands/corian-solid-surfaces/products/corian-all-colors.html
For a complete list of Zodiac quartz colors
http://www.dupont.com/products-and-services/constructionmaterials/surface-design-materials/brands/zodiaq-quartzsurfaces/products/zodiaq-all-colors.html
For a complete list of Silestone quartz colors
http://www.silestoneusa.com/colors/
►► Meets or ExceedsMeets or Exceeds
● ● ASME A112.18.1/CSA B125.1, ANSI 117.1, IGC156, CSA B45.5/IAPMO Z124
● ● ANSI 117.1
● ● ASME A112.18.1/CSA B125.1, NSF 372, ANSI 117.1
● ● ANSI 117.1, UL499
►► Compliance & CertificationsCompliance & Certifications
UPC, IPC, NPC Canada, California Green Building Code, City of Los Angeles
Water Efficiency Ordinance
►► Legislative ComplianceLegislative Compliance
Federal Reduction of Lead in Drinking Water Act Law 111-380 (contains no
more than 0.25% weighted average lead content), Section 116875 of the
California Health & Safety Code, and Vermont Lead Reduction Law
(Vermont Act 193). ADA Compliant
This space for Architect/Engineer Approval
AER-DEC Integrated Sink Systems
AD-84000
2016-13-04 Page 1 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
►► Line DrawingLine Drawing
AER-DEC Integrated Sink Systems
AD-84000
2016-13-04 Page 2 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
