Page 1

REQUIREMEN

¾” IPS (19 mm DN)

MODEL 8152

Code No. 0816436

Rev. 8 (06/13)

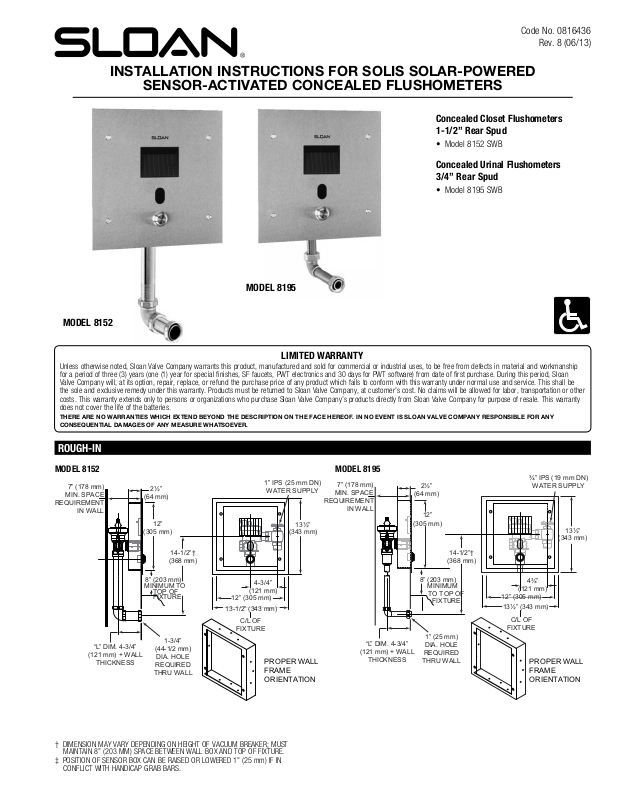

INSTALLATION INSTRUCTIONS FOR SOLIS SOLAR-POWERED

SENSOR-ACTIVATED CONCEALED FLUSHOMETERS

Concealed Closet Flushometers 1-1/2” Rear Spud

• Model 8152 SWB

Concealed Urinal Flushometers 3/4” Rear Spud

• Model 8195 SWB

MODEL 8195

LIMITED WARRANTY

Unless otherwise noted, Sloan Valve Company warrants this product, manufactured and sold for commercial or industrial uses, to be free from defects in material and workmanship for a period of three (3) years (one (1) year for special finishes, SF faucets, PWT electronics and 30 days for PWT software) from date of first purchase. During this period, Sloan Valve Company will, at its option, repair, replace, or refund the purchase price of any product which fails to conform with this warranty under normal use and service. This shall be the sole and exclusive remedy under this warranty. Products must be returned to Sloan Valve Company, at customer’s cost. No claims will be allowed for labor, transportation or other costs. This warranty extends only to persons or organizations who purchase Sloan Valve Company’s products directly from Sloan Valve Company for purpose of resale. This warranty does not cover the life of the batteries.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.

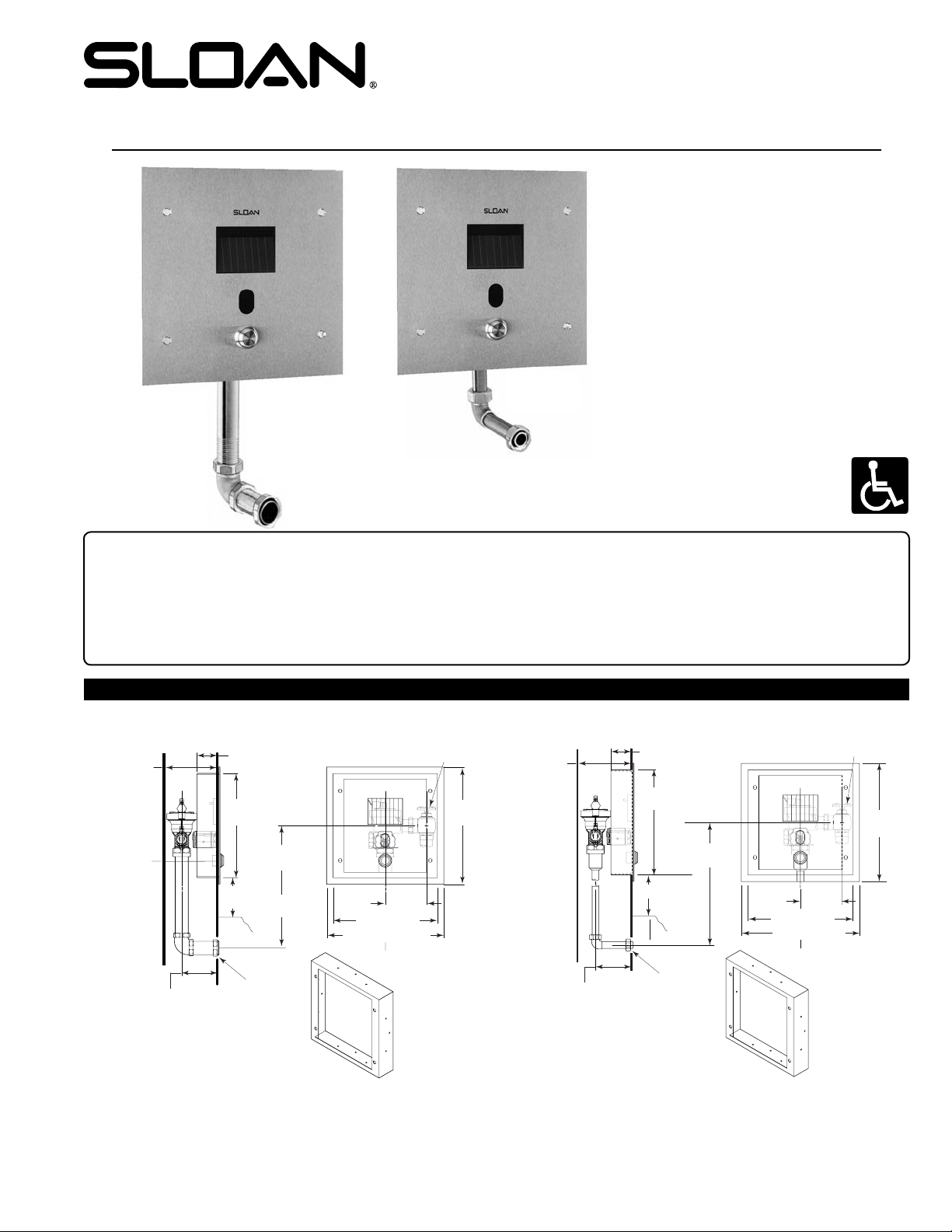

ROUGH-IN

MODEL 8152 MODEL 8195

7” (178 mm)

MIN. SPACE

IN WALL

“L” DIM. 4-3/4”

(121 mm) + WALL

THICKNESS

4-3/4”

(121 mm)

C/L OF

FIXTURE

1” IPS (25 mm DN)

WATER SUPPLY

13½”

(343 mm)

PROPER WALL FRAME ORIENTATION

2½”

(64 mm)

12”

(305 mm)

14-1/2”†

(368 mm)

8” (203 mm)

MINIMUM TO

TOP OF FIXTURE

1-3/4”

(44-1/2 mm)

DIA. HOLE

REQUIRED

THRU WALL

12” (305 mm)

13-1/2” (343 mm)

7” (178 mm)

MIN. SPACE

REQUIREMENT

IN WALL

(121 mm) + WALL

“L” DIM. 4-3/4”

THICKNESS

2½”

(64 mm)

12”

(305 mm)

8” (203 mm)

MINIMUM

TO TOP OF

FIXTURE

1” (25 mm) DIA. HOLE

REQUIRED

THRU WALL

14-1/2”†

(368 mm)

(121 mm)

12” (305 mm)

13½” (343 mm)

C/L OF

FIXTURE

WATER SUPPLY

13½”

(343 mm)

4¾”

PROPER WALL FRAME ORIENTATION

† DIMENSION MAY VARY DEPENDING ON HEIGHT OF VACUUM BREAKER; MUST

MAINTAIN 8” (203 MM) SPACE BETWEEN WALL BOX AND TOP OF FIXTURE.

‡ POSITION OF SENSOR BOX CAN BE RAISED OR LOWERED 1” (25 mm) IF IN

CONFLICT WITH HANDICAP GRAB BARS.

Page 2

TOOLS REQUIRED FOR INSTALLATION

• Sloan A-50 Super-Wrench™, Sloan A-109 Plier Wrench or smooth jawed spud wrench

• Slotted screwdriver

• Plastic Tube Cutter (PTC)

PRIOR TO INSTALLATION

Prior to installation, install the items listed below.

• Closet/urinal fixture

• Water supply line

• Drain line

• 12” x 12” (305 mm x 305 mm) opening for wall box

IMPORTANT:

• INSTALL ALL ELECTRICAL WIRING IN ACCORDANCE WITH NATIONAL/ LOCAL CODES AND REGULATIONS.

• INSTALL ALL PLUMBING IN ACCORDANCE WITH APPLICABLE CODES AND REGULATIONS.

• WATER SUPPLY LINES MUST BE SIZED TO PROVIDE AN ADEQUATE VOLUME OF WATER FOR EACH FIXTURE.

• FLUSH ALL WATER LINES PRIOR TO MAKING CONNECTIONS.

Sloan’s flushometers are designed to operate with 15 to 100 psi (104 to 689 kPa) of water pressure. THE MINIMUM PRESSURE REQUIRED TO THE VALVE IS DETERMINED BY THE TYPE OF FIXTURE SELECTED. Consult fixture manufacturer for minimum pressure requirements. Most Low Consumption water closets (1.6 gallon/6.0 liter) require a minimum flowing pressure of 25 psi (172 kPa).

Protect the chrome or special finish of this flushometer — DO NOT USE TOOTHED TOOLS TO INSTALL OR SERVICE THE VALVE. Also, see “Care and Cleaning” section of this manual.

IMPORTANT: EXCEPT FOR CONTROL STOP INLET, DO NOT USE PIPE SEALANT OR PLUMBING GREASE ON ANY VALVE COMPONENT OR COUPLING!

• Strap wrench, supplied

• 8-32 x 3/4” drilled spanner head - spanner bit provided

• 5/64” hex wrench

• 1 gal. bucket

!!! IMPORTANT !!!

NEVER OPEN CONTROL STOP TO WHERE THE FLOW FROM THE VALVE

EXCEEDS THE FLOW CAPABILITY OF THE FIXTURE. IN THE EVENT OF

A VALVE FAILURE, THE FIXTURE MUST BE ABLE TO ACCOMMODATE A

CONTINUOUS FLOW FROM THE VALVE.

!!! IMPORTANT !!!

THIS PRODUCT CONTAINS MECHANICAL AND/OR ELECTRICAL COMPONENTS THAT ARE SUBJECT TO NORMAL WEAR. THESE

COMPONENTS SHOULD BE CHECKED ON A REGULAR BASIS AND

REPLACED AS NEEDED TO MAINTAIN THE VALVE’S PERFORMANCE.

!!! IMPORTANT !!! PROTECT THE FINISH OF SLOAN FLUSHOMETERS — DO NOT USE TOOTHED TOOLS TO INSTALL OR SERVICE THESE VALVES. USE A

SLOAN A-50 Super Wrench™, SLOAN A-109 PLIER WRENCH OR

SMOOTH JAWED SPUD WRENCH TO SECURE ALL COUPLINGS.

ALSO SEE “CARE AND CLEANING” SECTION.

!!! IMPORTANT !!!

WITH THE EXCEPTION OF THE CONTROL STOP INLET, DO NOT USE

PIPE SEALANT OR PLUMBING GREASE ON ANY VALVE COMPONENT

OR COUPLING!

NOTE: BREAK THE TILES, IF APPLICABLE, TO ALLOW SCREW HOLES IN PLASTER TO SHOW.

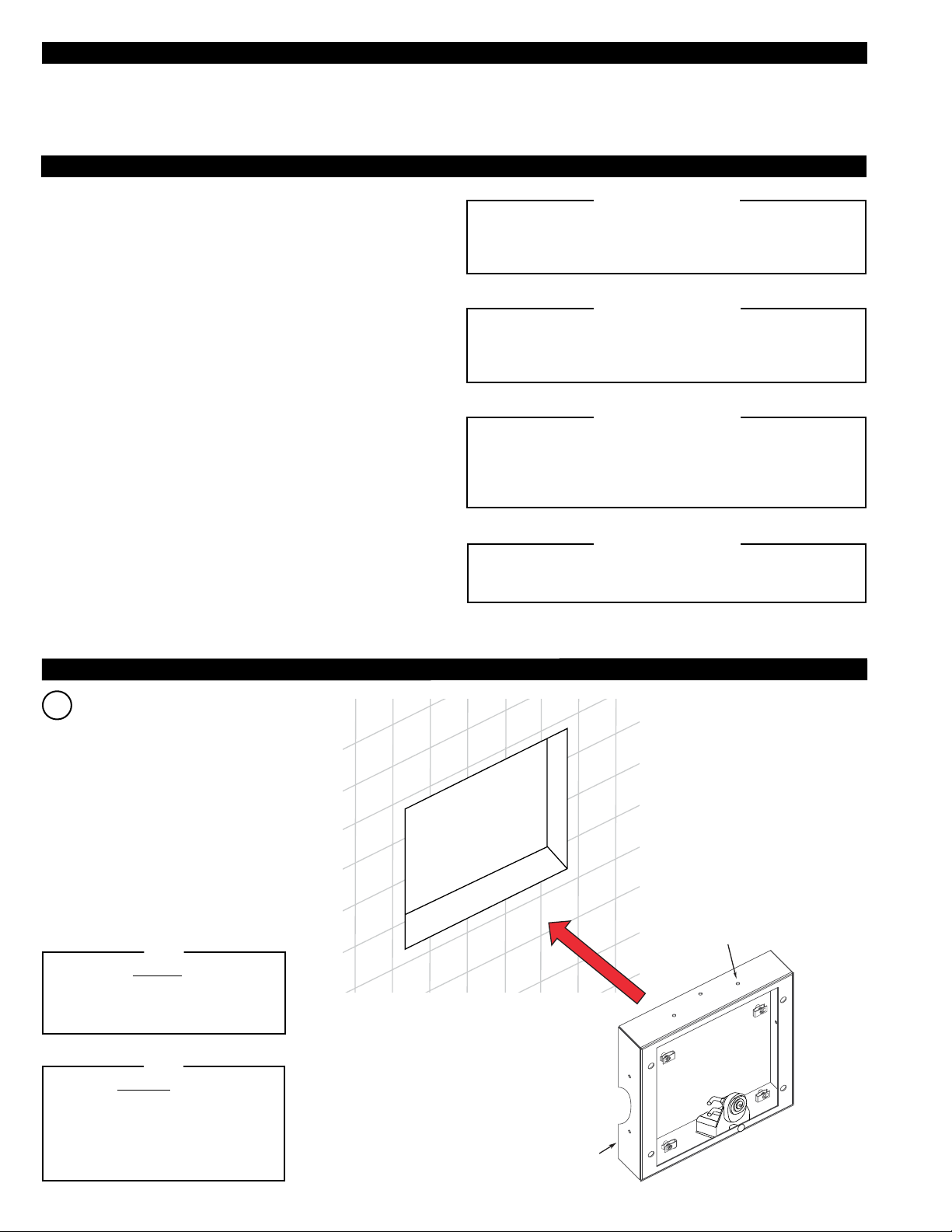

1 - INSTALL THE WALL BOX

Install Wall Box in the exact location

as illustrated in rough-in. Secure using appropriate fasteners.

NOTE

IF Inner Wall EXCEEDS 9” valve center

located at 5¾” from the front of the stud.

Inlet centerline distance to the lower

surface of the box is 2½”-6”.

NOTE

Inner Wall BETWEEN 6-9” Valve center

located at 2½” from the front of the stud.

Inlet centerline distance to the lower

surface of the box is 6-7½”. (In some

cases, studs must be drilled to allow

proper installation.)

WALL BOX

FASTENER HOLES (9 TOTAL)

Page 3

1-1/2” (38 mm) MIN.

MINIMUM OF 1-1/2” (38 mm)

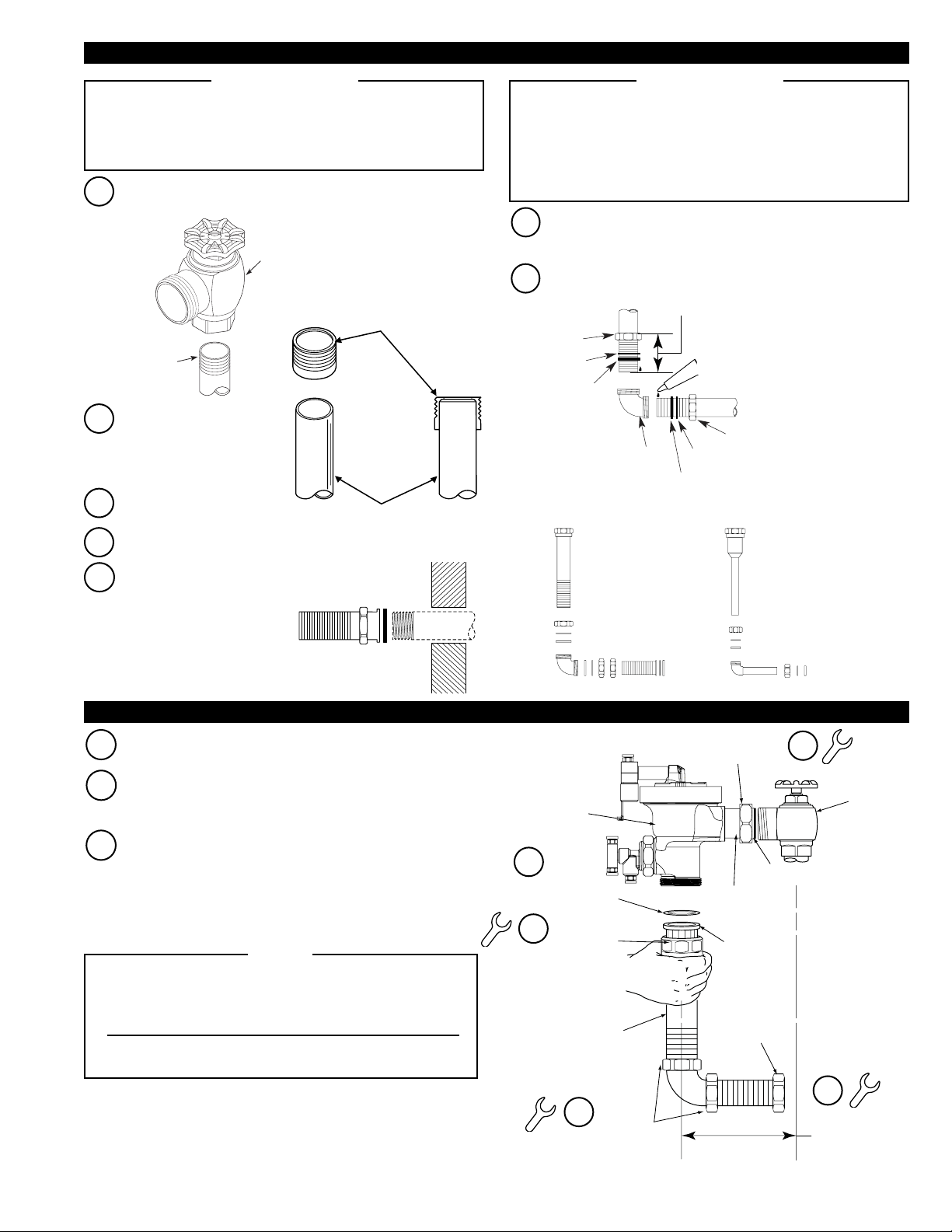

2 - INSTALL CONTROL STOP TO SUPPLY PIPE AND VACUUM BREAKER FLUSH CONNECTION

SWEAT

Tailpiece

THREADED

!!! IMPORTANT !!! !!! IMPORTANT !!!

DUE TO THE HIGH BACK PRESSURES THAT CAN BE CREATED BY

WATER CLOSETS AND COMBINATION FIXTURES, THE FOLLOWING

PROCEDURES MUST BE FOLLOWED WHEN INSTALLING THE

FLUSH CONNECTIONS. FAILURE TO FOLLOW THESE PROCEDURES

CAN RESULT IN SEPARATION.

Thread control stop onto water supply line. Tighten with a wrench

making sure outlet is positioned as required.

BAK-CHEK

CONTROL STOP

BEFORE INSERTING THE SCORED ENDS INTO THE ELBOW THE

SCORED OUTLET TUBES MUST BE CLEAN AND FREE OF OIL AND CHIPS

BEFORE APPLYING SEALANT. APPLY SEVERAL DROPS OF THREAD

SEALANT (SUPPLIED BY SLOAN) TO THE SCORED ENDS OF THE

TUBES (SEE BELOW ILLUSTRATION). THIS SEALANT HELPS PREVENT

SEPARATION UNDER HIGH-PRESSURE CONDITIONS – DO NOT USE ANY

OTHER PIPE SEALANT OR LUBRICANT ON THIS CONNECTION.

Connect scored ends of vacuum breaker tube and F-100 ush connection to the elbow using the coupling nut, slip gasket and rubber compression gasket as illustrated.

AFTER applying sealant to scored ends, tighten securely.

ADAPTER

IRON PIPE NIPPLE OR

COPPER PIPE WITH

SOLDER ADAPTER

Make sure control stop is

closed. Turn water supply on. NOTE: Be prepared to collect water with a bucket near the control stop.

Turn control stop on to flush

out supply lines of any debris.

Turn off control stop.

A 1-1/2” pipe connection (NOT

WATER SUPPLY

SUPPLIED by Sloan) must be used to connect the xture inlet from the wall to the ush connection. Secure anged end of F-100 ush connection to the 1-1/2” pipe using a 1-1/2” F-2-A coupling with S-21 gasket and coupling nut.

3 - INSTALL FLUSHOMETER

Lubricate tailpiece O-ring with water. Insert Adjustable Tailpiece into

control stop. Tighten Tailpiece Coupling by hand.

Align flushometer directly above the vacuum breaker flush connection

by sliding the flushometer Body IN or OUT as needed. Tighten breaker coupling by hand.

Align flushometer body and securely tighten first the tailpiece coupling

(1), install the vacuum breaker kit and friction ring (2), then the vacuum breaker coupling (3) and pipe couplings (4), and finally the spud coupling (5). Use a wrench to tighten these couplings in the order shown.

MAXIMUM adjustment of the Sloan adjustable

tailpiece is 1/2” (13 mm) IN or OUT from the

standard 4-3/4” (121 mm) (CL of flushometer to

If rough-in measurement exceeds 5-1/4” (133 mm),

NOTE

CL of control stop).

consult factory for longer tailpiece.

PIPE

COUPLING

NYLON SLIP GASKET

RUBBER GASKET

MODEL 8152 SWB

Flushometer

Body

G-44 Friction

Ring

Vacuum Breaker

Coupling

Vacuum

Breaker Flush

Connection

ELBOW

APPLY THREAD SEALANT TO SCORED ENDS OF TUBES

NYLON SLIP GASKET

RUBBER GASKET

MODEL 8195 SWB

Coupling

Adjustable

Tailpiece

COUPLING

IMPORTANT:

WHEN CUTTING SCORED PIPE TO LENGTH A

OF SCORING TO ENSURE PROPER ENGAGEMENT IS REQUIRED.

Control

Stop

O-Ring

Vacuum

Breaker

Spud

Coupling

Couplings

FixtureC

Pipe

4¾” (121 mm) ± ½“ (13 mm)

Supply

Page 4

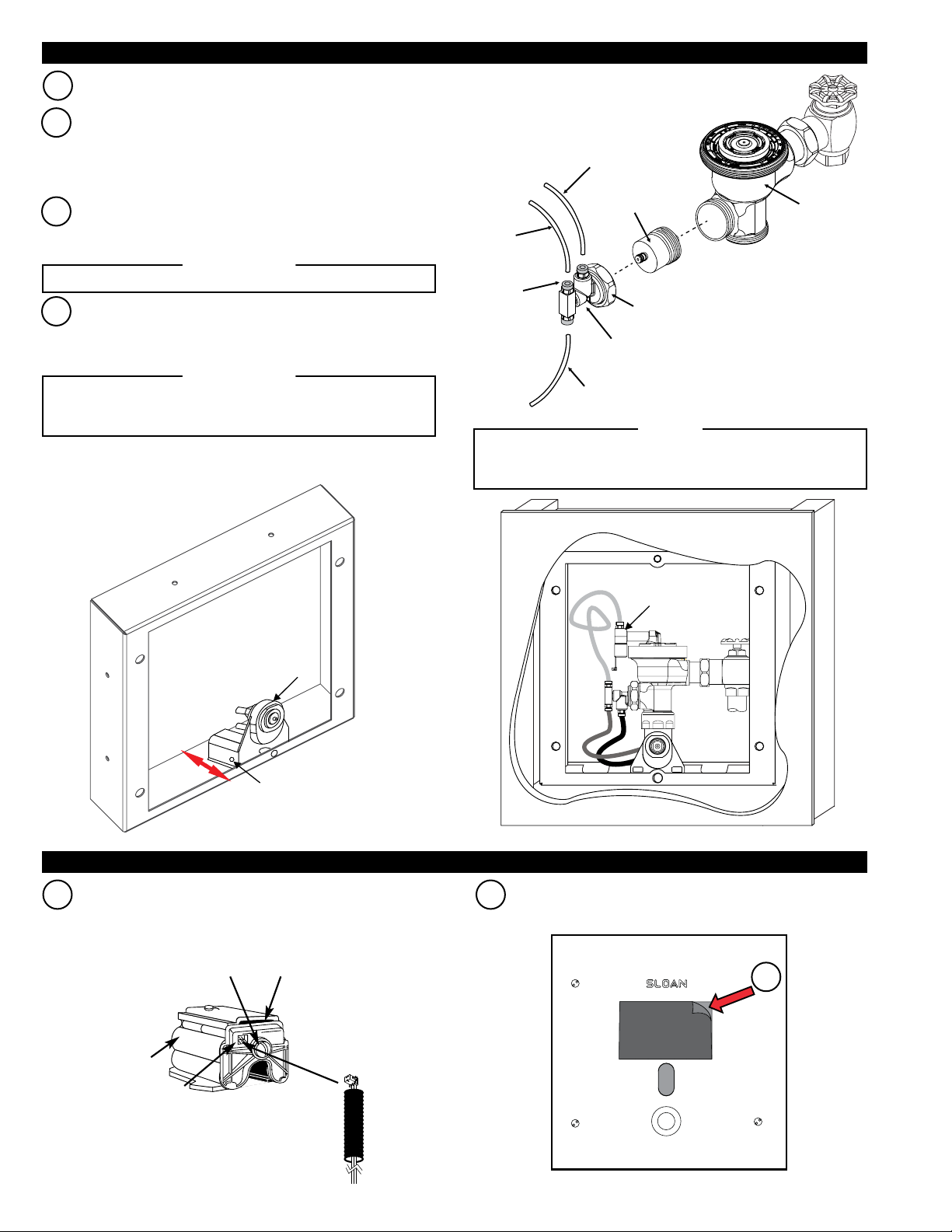

4 - HYDRAULIC HOOK-UP

SOLENOID HOUSING

SLIDE ACCESS PANEL OVER WALL BOX ALIGNING ALL FOUR

(4) MOUNTING HOLES

INSTALL ACCESS PANEL ONTO WALL BOX USING FOUR (4) SCREWS

Make sure control stop is closed.

IMPORTANT: Mark one plastic tube “L” and the other “O”.

Cut off excess plastic tubing with plastic tube cutter (PTC) so that there will be no less than 12” (304 mm) of slack when the actuator is installed. If the “L” and “O” markings on the tubing will be cut off, then re-mark the tubing appropriately so as not to lose identification.

Slide each plastic tube into its corresponding actuator tting. Pull

tubing to make sure connection is secure. (Tubing can be removed by pressing on blue connection button to release.)

!!! IMPORTANT !!!

MUST USE SLOAN APPROVED TUBING ONLY

Hold plate up to button actuator assembly and slide assembly, as

needed, for proper orientation. Allow about 1/8” ‘play’ between plate button and actuator. Once positioned properly, secure assembly with Allen wrench supplied on wall box.

!!! IMPORTANT !!!

IT IS IMPORTANT TO ORIENT THE ASSEMBLY

PROPERLY – IF THE ASSEMBLY IS TOO FAR BACK (OR

TOO CLOSE) THE BUTTON WILL NOT ACTIVATE THE FLUSH.

PLASTIC TUBING TO BUTTON ACTUATOR

HY-1005-A ACTUATOR

PLASTIC TUBING TO BUTTON ACTUATOR

QUICK CONNECT FITTINGS (3)

CARTRIDGE

PLASTIC TUBING TO SOLENOID

HOUSING

HOUSING NUT

VALVE ACTUATOR HOUSING

FLUSHOMETER VALVE BODY

NOTE

OBSERVE “L” AND “O” MARKINGS ON TUBING. TUBING MUST BE

CONNECTED TO CORRESPONDING “L” AND “O” MARKINGS ON

PUSH BUTTON ACTUATOR AND VALVE BODY ACTUATOR.

BUTTON ACTUATOR

SECURE WITH

ADJUST AS NECESSARY

5 - SOLENOID CONNECTION

Connect solenoid cable from valve to back of sensor module, located

HEX SCREW HERE

on back side of wall plate.

BATTERY

RETAINING

SCREW

COMPARTMENT

COVER

SENSOR MODULE

ELECTRICAL CONNECTOR RECEPTACLE

Remove the tape from the wall plate solar panel to activate.

Page 5

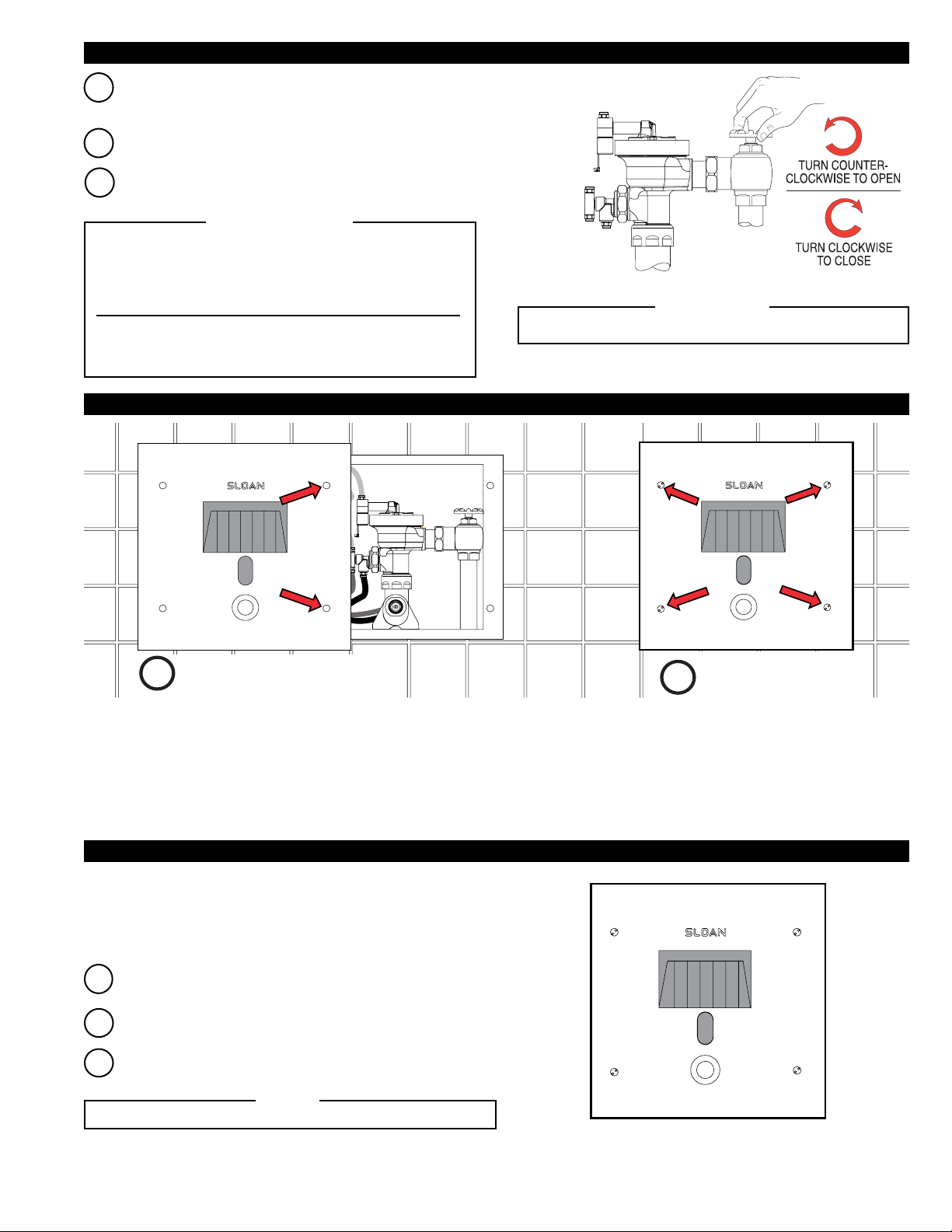

5 - TURN WATER ON AND ADJUST CONTROL STOP

SLIDE ACCESS PANEL OVER WALL BOX ALIGNING ALL FOUR

(4) MOUNTING HOLES

INSTALL ACCESS PANEL ONTO WALL BOX USING FOUR (4) SCREWS

Adjust control stop to meet the flow rate required for proper cleansing

of the fixture. Open control stop COUNTERCLOCKWISE one (1) FULL turn from the closed position.

Activate flushometer by placing hand in front of sensor module lens

for ten (10) seconds and then moving it away.

Adjust control stop after each flush until the rate of flow delivered

properly cleanses the fixture.

!!! IMPORTANT !!!

ALL SLOAN FLUSHOMETERS ARE ENGINEERED FOR QUIET

OPERATION. EXCESSIVE WATER FLOW CREATES NOISE, WHILE

TOO LITTLE WATER FLOW MAY NOT SATISFY THE NEEDS OF THE

FIXTURE. PROPER ADJUSTMENT IS MADE WHEN PLUMBING FIXTURE

IS CLEANSED AFTER EACH FLUSH WITHOUT SPLASHING WATER OUT

FROM THE LIP AND A QUIET FLUSHING CYCLE IS ACHIEVED.

NEVER OPEN CONTROL STOP TO WHERE THE FLOW FROM THE

VALVE EXCEEDS THE FLOW CAPABILITY OF THE FIXTURE. IN THE

EVENT OF A VALVE FAILURE, THE FIXTURE MUST BE ABLE TO

ACCOMMODATE A CONTINUOUS FLOW FROM THE VALVE.

7 - INSTALL ACCESS PANEL

IF VALVE DOES NOT SHUT OFF SEE

!!! IMPORTANT !!!

TROUBLESHOOTING GUIDE ON PAGE 7.

8 - TEST SENSOR ACTIVATION

The SOLIS Water Closets: 22” to 42” (559 mm to 1067 mm) Urinals: 15” to 30” (381 mm to 762 mm)

For the first ten (10) minutes of operation, a visible light flashes in the sensing window of the SOLIS ushometer when a user is detected.

Stand in front of sensor for ten (10) seconds.

Step away from sensor and listen for “CLICK.”

The factory setting should be satisfactory for most installations.

has a factory set sensing range:

NOTE

Page 6

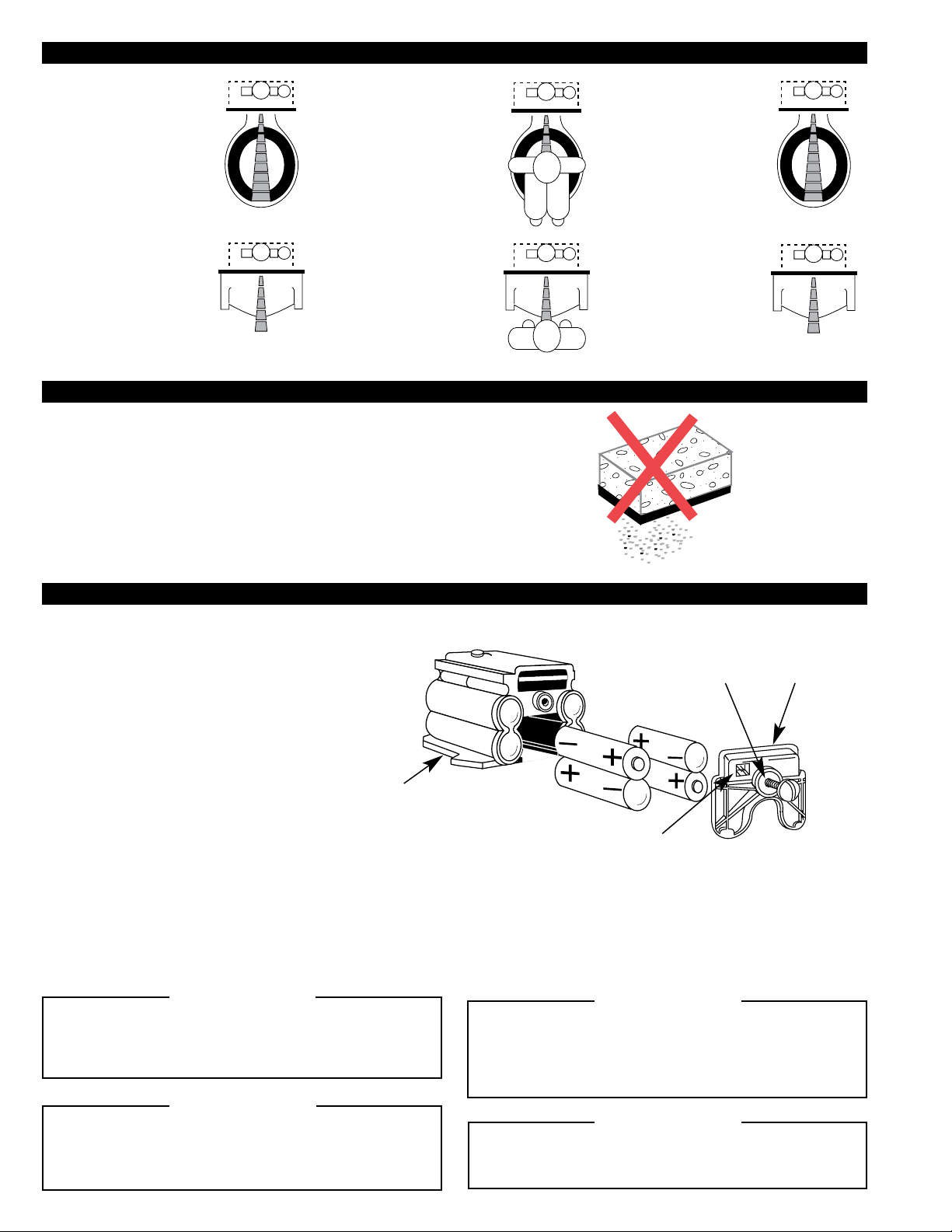

OPERATION

1. A continuous, invisible light beam is emitted from the sensor module.

2. When a user enters the beam’s effective range, the beam is reflected into the sensor module’s scanning window and transformed into a low voltage electrical signal that activates a ten-second time delay circuit. The time delay circuit eliminates false operation from passers-by in the rest room. Once the time delay is completed, the output circuit is alerted and continues in a “hold” mode for as long as the user remains within the effective range of the sensor.

CARE AND CLEANING

DO NOT USE abrasive or chemical cleaners to clean flushometers as they may dull

the luster and attack the chrome or special decorative finishes. Use ONLY soap and warm water, then wipe dry with clean cloth or towel.

While cleaning the bathroom tile, the flushometers should be protected from any splattering of cleaner. Acids and cleaning fluids can discolor or remove chrome plating.

3. When the user steps away from the sensor module, the loss of reflected light initiates an electrical “onetime” signal that energizes the solenoid operator, and activates the flushometer to flush the fixture. This occurs approximately three (3) seconds (for water closets) one (1) second (for urinals) after indication. This delay is built into the sensor to help prevent false flushing due to movement by the user. The circuit then automatically resets and is ready for the next user.

BATTERY REPLACEMENT

When required, replace batteries with four (4) alkaline AA-size batteries. NOTE: WATER DOES NOT HAVE TO BE

TURNED OFF TO REPLACE BATTERIES.

Remove the wall plate assembly from wall. Unplug the electrical connector of solenoid from battery compartment cover. Loosen the retaining screw on battery compartment cover and remove battery compartment cover. Install four (4) NEW alkaline AA-size batteries exactly as illustrated.

Install battery compartment cover and secure the retaining screw. Make certain that the battery compartment cover is fully compressed against gasket to provide a seal; DO NOT over tighten. Plug the electrical connector of solenoid into the battery compartment cover. Reinstall wall plate assembly.

!!! IMPORTANT !!!

NEVER OPEN CONTROL STOP TO WHERE THE FLOW FROM THE VALVE

EXCEEDS THE FLOW CAPABILITY OF THE FIXTURE. IN THE EVENT OF

A VALVE FAILURE, THE FIXTURE MUST BE ABLE TO ACCOMMODATE A

CONTINUOUS FLOW FROM THE VALVE.

!!! IMPORTANT !!!

THIS PRODUCT CONTAINS MECHANICAL AND/OR ELECTRICAL COMPONENTS THAT ARE SUBJECT TO NORMAL WEAR. THESE

COMPONENTS SHOULD BE CHECKED ON A REGULAR BASIS AND

REPLACED AS NEEDED TO MAINTAIN THE VALVE’S PERFORMANCE.

SENSOR MODULE

RETAINING

SCREW

COMPARTMENT

COVER

ELECTRICAL

CONNECTOR

RECEPTACLE

!!! IMPORTANT !!!

PROTECT THE FINISH OF SLOAN FLUSHOMETERS — DO NOT USE

TOOTHED TOOLS TO INSTALL OR SERVICE THESE VALVES. USE A

SLOAN A-50 SUPER-WRENCH™, SLOAN A-109 PLIER WRENCH OR

SMOOTH JAWED SPUD WRENCH TO SECURE ALL COUPLINGS. ALSO

SEE “CARE AND CLEANING” SECTION OF THIS MANUAL.

!!! IMPORTANT !!!

WITH THE EXCEPTION OF CONTROL STOP INLET,

DO NOT USE PIPE SEALANT OR PLUMBING GREASE

ON ANY VALVE COMPONENT OR COUPLING!

BATTERY

Page 7

TROUBLESHOOTING GUIDE

NOTE: Upon detection of the user, the indicator light flashes slowly, during start-up (first 10 minutes). After a period of eight seconds unit is ready to flush. When the user leaves the detection range, the sensor initiates the flush sequence. Then the indicator light stops flashing and the valve flushes. The valve will flush after a three-second (water closets) or one-second (urinals) delay.

1. Sensor flashes continuously only when user steps within range.

A. Unit in Start-Up mode; no problem. This feature is active for the first ten

(10) minutes of operation.

2. Valve DOES NOT flush; Sensor DOES NOT Pick Up User.

A. Range too short; increase the range. Consult factory.

3. Valve DOES NOT flush; sensor picking up opposite wall or surface, or only flushes when someone walks by. Light flashes continuously for first 10 minutes even with no one in front of the sensor.

A. Range too long; shorten range. Consult factory.

4. Valve DOES NOT flush even after adjustment.

A. Batteries completely used up; replace batteries. B. Problem with electronic sensor module; replace electronic sensor

module.

C. Problem with solenoid; replace solenoid.

5. Unit flashes a sequence of 4 quick times when user steps within range.

A. Batteries low; replace batteries.

6. Valve does not shut off.

A. Bypass orifice in diaphragm is clogged with dirt or debris, or bypass

is clogged by an invisible gelatinous film due to “over-treated” water. Remove diaphragm and wash under running water. NOTE: Size of

Orifice in the Bypass is of utmost importance for the proper metering of water by the valve. DO NOT ENLARGE OR DAMAGE THIS ORIFICE. Replace diaphragm if cleaning does not correct the

problem.

B. Dirt or debris fouling relief valve or diaphragm. Remove diaphragm and

wash under running water.

C. O-ring on stem of diaphragm is damaged or worn. Replace o-ring if

necessary.

D. Problem with electronic sensor module; replace sensor module.

7. Not enough water to fixture.

A. Wrong relief valve installed in diaphragm kit. Install the correct relief

valve.

B. Wrong SOLIS® model installed; i.e., 1.0 gpf urinal installed on 3.5 gpf

closet fixture. Replace with proper SOLIS

model. C. Enlarged bypass in diaphragm. Replace diaphragm. D. Control stop not adjusted properly. Re-adjust control stop. E. Inadequate volume or pressure at supply. Increase water pressure or

supply (flow) to valve. Consult factory for assistance.

8. Too much water to fixture.

A. Wrong relief valve installed in diaphragm it. Install the correct relief

valve. B. Control stop not adjusted properly. Readjust control stop. C. Wrong SOLIS

1.5 gpf urinal fixture. Replace with proper Sloan SOLIS

model installed; i.e., 3.5 gpf model installed on 1.0 gpf or

model.

D. Dirt in diaphragm bypass. Clean under running water or replace

diaphragm.

PUSH BUTTON ACTUATOR

9. Leakage occuring at the push button.

A. Damage or worn seals or lime build-up in the actuator cartridge. Replace

with new cartridge.

10. The flushometer DOES NOT flush and a small amount of leakage is visible below the valve.

A. Foreign material lodged in the cartridge. Remove the cartridge and

inspect for foreign material. Clean under running water.

B. Damaged or worn seals or lime build-up in the actuator cartridge.

Replace with new cartridge.

C. Plastic tubing installed incorrectly. Match tubing ends from valve body

actuator to button actuator, so that “L” to “L” and “O” to “O”.

FLUSHOMETER ACTUATOR ASSEMBLY

11. The flushometer does not flush or flushes only once and will not flush a second time when the button is pushed.

A. The plunger is lodged in the actuator cartridge or the plunger by-pass

hole is clogged. Remove the actuator housing and cartridge from the flushometer. Clean under running water. If cartridge parts are worn, deteriorated or limed up and problem persists after cleaning, replace with new cartridge.

B. Plastic tubing installed incorrectly. Match tubing ends from valve body

actuator to button actuator, so that “L” to “L” and “O” to “O”.

TO REMOVE THE ACTUATOR FROM THE FLUSHOMETER

A. Turn off water from control stop. B. Unscrew the housing coupling nut from the flushometer. C. Remove the actuator housing from the flushometer. The tubing

connections can be left intact.

D. Remove the actuator cartridge from the flushometer body. Care should

be taken so that upon removal the actuator and the o-ring do not separate due to spring compression within. If the actuator cartridge is lodged in the body cavity, grip the exposed portion gently with a pair of channel-lock pliers and rotate back and forth to loosen the o-ring seal.

E. Separate the actuator housing to reveal the spring and plunger.

If further assistance is required,

please contact Sloan Tech Support at:

1-888-SLOAN-14 (1-888-756-2614)

or visit us online at www.sloanvalve.com

!!! IMPORTANT !!!

LAWS AND REGULATIONS PROHIBIT THE USE OF

HIGHER FLUSHING VOLUMES THAN LISTED ON

FIXTURE OR FLUSHOMETER.

Page 8

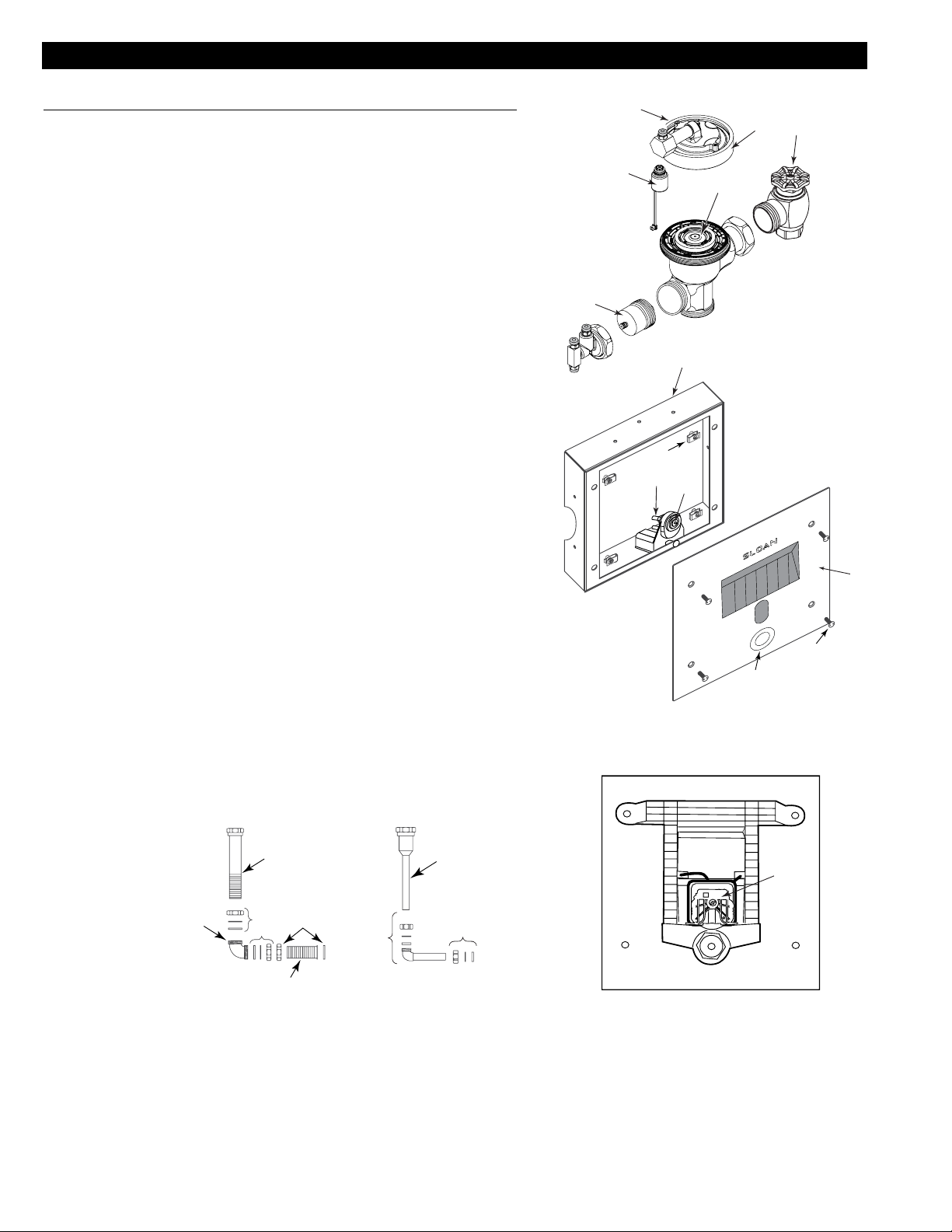

PARTS LIST

Item Part Description No. No.

1 A-143-A RB Hydraulic Valve Body 2 H-730-A Bak-Chek® Control Stop 3A V-500-AA 1-1/2” (38 mm) Vacuum Breaker Assembly RB (Model 8152) 3B V-500-AA 3/4” (19 mm) Vacuum Breaker Assembly RB (Model 8195) 4 F-2-AA 1-1/2” (38 mm) Slip Joint Coupling RB (Set of Two) 5 F-15-A ELL with 3/4” (19 mm) Tail RB (Model 8195) 6 F-21 1-1/2” (38 mm) Double Male Slip Elbow 7 F-100 1-1/2” (38 mm) Outlet Tube RB 8 F-2-A 1-1/2” (38 mm) Coupling with S-21 Gasket 9 F-2-AW 3/4” (19 mm) Slip Joint Coupling RB 10 –– Frame 11 WB-18 U-Type Nuts (4) 12 HY-71-A Hydraulic Actuator Assembly with Fittings 13 ‡ Override Mount Assembly 14 –– 1/4-20 x 1-1/2 Tamper Resistant Screws (4) 15 ‡ Wall Plate Assembly 16 –– Override Button Assembly 17 ‡ Sensor Assembly 18 † Diaphragm 19 EBV-355-A Cover Assembly (includes item 20) 19A EBV-14 Coupling 20 EBV-356-A Solenoid 21 HY-1005-A Actuator Cartridge –– HY-30-84 1/4” (6 mm) x 84” (2134 mm) Connecting Tubes (not shown) –– HY-30-24 1/4” (6 mm) x 24” (610 mm) Connecting Tubes (not shown)

19A

† Flow volume varies with valve model and desired flush volume. ‡ Part number varies with valve model variation; consult factory.

SOLIS 8152 SWB SOLIS 8195 SWB

FRONT

VIEW

REAR

VIEW

The information contained in this document is subject to change without notice.

SLOAN HEADQUARTERS • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131

Phone: 1-800-982-5839 • Fax: 1-800-447-8329 or 1-847-671-4380 • www.sloanvalve.com
