►► Code NumberCode Number

3980066

►► DescriptionDescription

Exposed Hydraulically Operated Water Closet Flushometer, for floor
mounted or wall hung top spud bowls.

►► Flush CycleFlush Cycle

1.6 gpf / 6 lpf

►► SpecificationsSpecifications

Quiet, Exposed, Diaphragm Type, Chrome Plated Closet
Flushometer with the following features:

● ● Low Consumption flush accuracy controlled by Para-FloTM
Technology

● ● ADA Compliant Non-Hold-Open Actuator

● ● Spud Coupling and Flange for 11⁄2" Top Spud

● ● Spud Coupling and Flange for 1½” Top Spud

● ● 1” I.P.S. Screwdriver Bak-Chek® Stop with free spinning vandal
resistant stop cap

● ● Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall
Flange

● ● Diaphragm, Stop Seat and Vacuum Breaker to be molded from
PERMEX® rubber compound for Chloramine resistance

Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi-Red Brass.
Valve shall be in compliance to the applicable sections of ASSE
1037, ANSI/ASME 112.19.2.

►► Actuator Types: (not included-order separately-Actuator Types: (not included-order separately-

please check one)please check one)

See Actuator Specification pages for details on Actuators.

☐ FW - Fixture Wall Actuator (HY-33-A) (rear access required)

☐ MP - Metal Partition Actuator (HY-49-A)

☐ SW - Side Wall Mounted Actuator (HY-72-A)

☐ MBFW - Metal Button Fixture Wall Actuator (HY-100-A) (rear

access required)

☐ MBPM - Metal Button Panel Mount (HY-108-A)

►► VariationsVariations

See Accessories Section of the Sloan catalog for details on these
and other Flushometer variations.

Hydraulic Flushometer can also be provided in Regal® Models. All
rough-in dimensions remain the same. Consult the factory.

►► Compliance & CertificationsCompliance & Certifications

This space for Architect/Engineer Approval

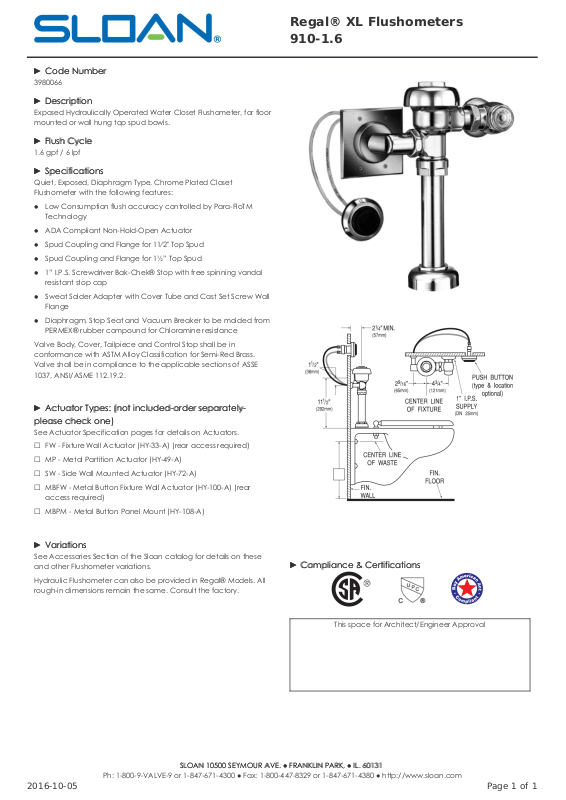

Regal® XL Flushometers
910-1.6

2016-10-05 Page 1 of 1
