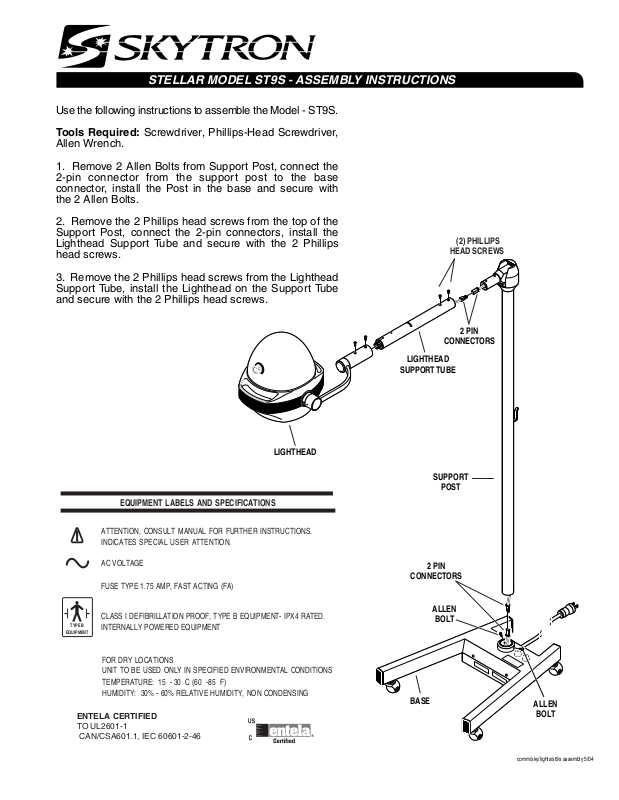

STELLAR MODEL ST9S - ASSEMBLY INSTRUCTIONS
Use the following instructions to assemble the Model - ST9S.
Tools Required: Screwdriver, Phillips-Head Screwdriver,
Allen Wrench.

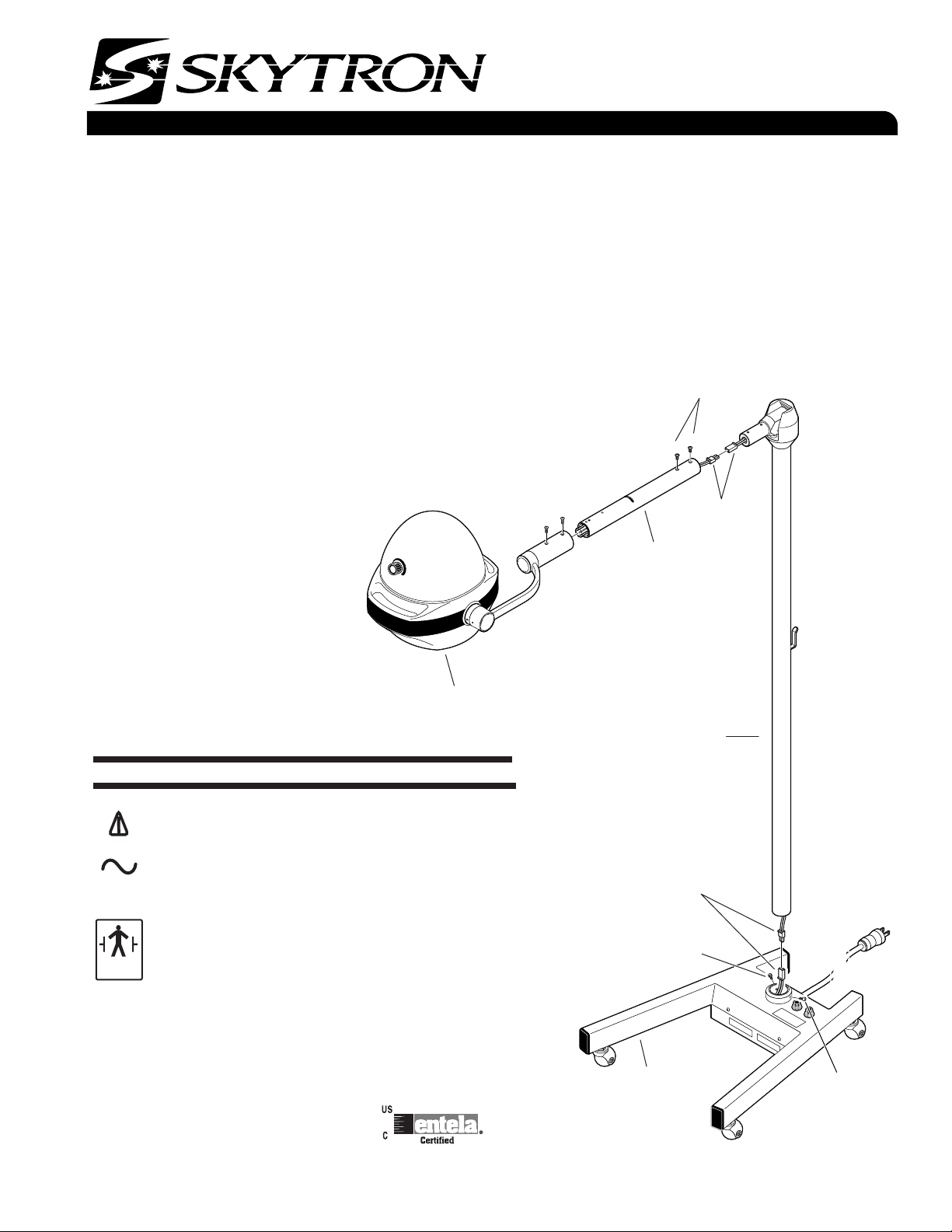

1. Remove 2 Allen Bolts from Support Post, connect the
2-pin connector from the support post to the base
connector, install the Post in the base and secure with
the 2 Allen Bolts.
2. Remove the 2 Phillips head screws from the top of the
Support Post, connect the 2-pin connectors, install the
Lighthead Support Tube and secure with the 2 Phillips
head screws.
3. Remove the 2 Phillips head screws from the Lighthead
Support Tube, install the Lighthead on the Support Tube
and secure with the 2 Phillips head screws.
(2) PHILLIPS
HEAD SCREWS
2 PIN
CONNECTORS
LIGHTHEAD
SUPPORT TUBE
EQUIPMENT LABELS AND SPECIFICATIONS
ATTENTION, CONSULT MANUAL FOR FURTHER INSTRUCTIONS.
INDICATES SPECIAL USER ATTENTION.
AC VOLTAGE
FUSE TYPE 1.75 AMP, FAST ACTING (FA)
TYPE B
EQUIPMENT
CLASS I DEFIBRILLATION PROOF, TYPE B EQUIPMENT- IPX4 RATED.
INTERNALLY POWERED EQUIPMENT
FOR DRY LOCATIONS
UNIT TO BE USED ONLY IN SPECIFIED ENVIRONMENTAL CONDITIONS
TEMPERATURE: 15 - 30 C (60 -85 F)
HUMIDITY: 30% - 60% RELATIVE HUMIDITY, NON CONDENSING
ENTELA CERTIFIED
TO UL2601-1
CAN/CSA601.1, IEC 60601-2-46
LIGHTHEAD
SUPPORT
POST
2 PIN
CONNECTORS
ALLEN
BOLT
BASE
ALLEN
BOLT
comm/sky/lights/st9s assembly 5/04
