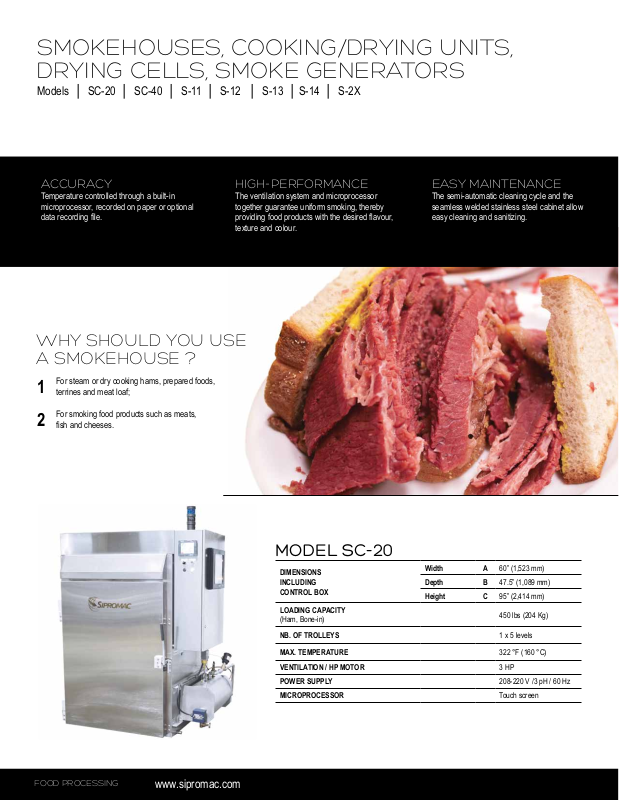

SmOkEHOuSES, COOkINg/dRyINg uNITS,
dRyINg CEllS, SmOkE gENERaTORS
Models │ SC-20 │ SC-40 │ S-11 │ S-12 │ S-13 │ S-14 │ S-2X
aCCuRaCy
Temperature controlled through a built-in
microprocessor, recorded on paper or optional
data recording file.
HIgH-pERfORmaNCE
The ventilation system and microprocessor
together guarantee uniform smoking, thereby
providing food products with the desired flavour,
texture and colour.
WHy SHOuld yOu uSE
a SmOkEHOuSE ?
For steam or dry cooking hams, prepared foods,
1
terrines and meat loaf;
For smoking food products such as meats,
2
fish and cheeses.
EaSy maINTENaNCE
The semi-automatic cleaning cycle and the
seamless welded stainless steel cabinet allow
easy cleaning and sanitizing.
FOOD PROCESSING
www.sipromac.com
Model Sc-20
DIMENSIONS
INCLUDING
CONTROL BOX
LOADING CAPACITY
(Ham, Bone-in)
NB. OF TROLLEYS 1 x 5 levels
MAX. TEMPERATURE 322 °F (160 °C)
VENTILATION / HP MOTOR 3 HP
POWER SUPPLY 208-220 V /3 pH / 60 Hz
MICROPROCESSOR Touch screen
Width A 60” (1,523 mm)
Depth B 47.5” (1,089 mm)
Height C 95” (2,414 mm)
450 lbs (204 Kg)
SmOkEHOuSES
Models │ SC-20 │ SC-40 │ S-11 │ S-12 │ S-13 │ S-14 │ S-2X
Model Sc-40
DIMENSIONS
INCLUDING
CONTROL BOX
LOADING CAPACITY
(Ham, Bone-in)
NB. OF TROLLEYS 1 x 8 levels
MAX. TEMPERATURE 322 °F (160 °C)
VENTILATION / HP MOTOR 3 HP
POWER SUPPLY 208-220 V /3 pH / 60 Hz
MICROPROCESSOR Touch screen
Width A 57” (1,444 mm)
Depth B 48.75” (1,240 mm)
Height C 115” (2,922 mm)
700 lbs. (317 Kg)
ModelS S-11, S-12, S-13 and S-14
S-11 S-12 S-13 S-14
DIMENSIONS
INCLUDING
CONTROL BOX
LOADING CAPACITY
(Ham, Bone-in)
NB. OF TROLLEYS 1 x 8 levels 2 x 8 levels 3 x 8 levels 4 x 8 levels
MAX. TEMPERATURE 322 °F (160 °C) 322 °F (160 °C) 322 °F (160 °C) 322 °F (160 °C)
VENTILATION / HP
MOTOR
POWER SUPPLY 208-220 V /3 pH / 60 Hz 208-220 V /3 pH / 60 Hz 208-220 V /3 pH / 60 Hz 208-220 V /3 pH / 60 Hz
MICROPROCESSOR Touch screen Touch screen Touch screen Touch screen
Width A 57” (1,444 mm) 57” (1,444 mm) 57” (1,444 mm) 57” (1,444 mm)
Depth B 48.75” (1,240 mm) 48.75” (1,240 mm) 48.75” (1,240 mm) 48.75” (1,240 mm)
Height C 115” (2,922 mm) 115” (2,922 mm) 115” (2,922 mm) 115” (2,922 mm)
1,200 lbs. (544 Kg) 2,400 lbs (1,089 Kg) 3,600 lbs. (1,633 Kg) 4,800 lbs. (2,178 Kg)
5 HP 10 HP 15 HP 20 HP
FOOD PROCESSING
www.sipromac.com
SmOkEHOuSES
Models │ SC-20 │ SC-40 │ S-11 │ S-12 │ S-13 │ S-14 │ S-2X
Model S-2X
DIMENSIONS
INCLUDING
CONTROL BOX
LOADING CAPACITY
(Ham, Bone-in)
NB. OF TROLLEYS Based on model
MAX. TEMPERATURE Based on model
VENTILATION / HP MOTOR Based on model
POWER SUPPLY 208-220 V /3 pH / 60 Hz
MICROPROCESSOR Touch screen
Width A 134” (3,404 mm)
Depth B Based on model
Height C 114” (2,896 mm)
Based on model
maCHINE dImENSIONS
*STEAM COOKING CABINETS ALSO AVAILABLE
FOOD PROCESSING
www.sipromac.com
SmOkEHOuSES
Models │ SC-20 │ SC-40 │ S-11 │ S-12 │ S-13 │ S-14 │ S-2X
BaSIC fEaTuRES
• Stainless-steel fabrication – door, floor, ceiling, inside & outside walls,
ventilation etc.
• Welded assembly in factory
• 3” (76 mm) insulation (including the door) of high grade density rock wool
• 3 temperature controls: dry & humidity and inside product temperature
• Automatic damper (closing & opening system)
• Variable speed
• Semi-automatic cleaning and rinsing system for cabinet,
smoke generator and piping
• Automatic water feeding of probe water tank
• End of cycle alarm
• Certification CSA
OpTIONal fEaTuRES
• Vertical or Horizontal Air Flow
• Industrial units welded on site
• Showering system
• Automatic dual temperature recorder (digital - paperless or analog - charts)
• Liquid smoke system (pressure tank, regulator, valves, nozzles)
• Automatic smoke generator (sawdust type)
• Steam Generator 6 KW, 12 KW and 18 KW (selected models)
• Cooling system for cold smoking (with compressor)
• Gas heating direct fired (selected models)
• Gas heating indirect including ventilation box (selected models)
• Steam heating with stainless steel exchanger coils (selected models)
• Steaming Ramp for steam
• Automatic door opener
• Door (extra) for Tunnel Type
• Additional Trucks
• Additional levels
• Stainless steel screens
• Stainless steel trays
• Stainless steel sticks and round and triangular
• Other voltages available
• Service kit for standard maintenance
All features are subject to change without notice.
