Sinclair Spectrum Series, Spectrum ASH-xxBIS Series, Spectrum ASH-18BIS2, Spectrum ASH-24BIS2 User Manual

Content

Operation Notices

Precautions............................................................................................................2

The Refrigerant......................................................................................................1

Parts Name............................................................................................................7

ScreenOperation Guide

Buttons on remote controller .................................................................................9

Introduction for icons on display screen.................................................................9

Introduction for buttons on remote controller .......................................................10

Introduction for special function ...........................................................................16

Operation guide ...................................................................................................18

Replacement of batteries in remote controller .....................................................18

Emergency operation ..........................................................................................19

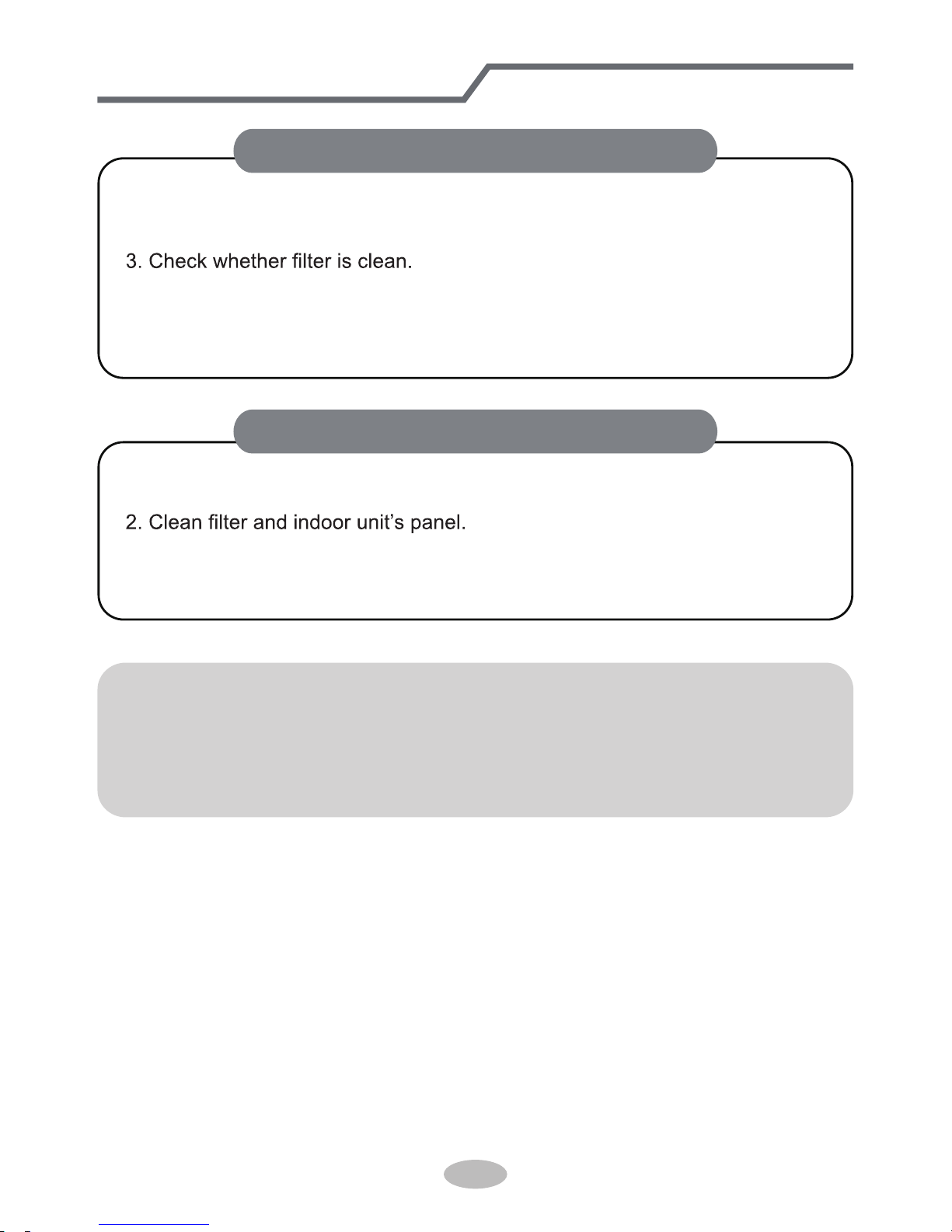

Maintenance

Clean and Maintenance.......................................................................................19

Malfunction

Malfunction analysis ............................................................................................22

Installation Notice

Installation dimension diagram ............................................................................26

This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from un­controlled waste disposal, recycle it responsibly to promote the sustainable reuse of mate­rial resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for envi­ronmental safe recycling.

R32: 675

This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

If it needs to install, move or maintain the air conditioner, please contact dealer or local service
center to conduct it at first. Air conditioner must be installed, moved or maintained by appointed
unit. Otherwise, it may cause serious damage or personal injury or death.

Frequency band(s) in which the radio equipment operates：2400MHz-2483.5MHz
Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment
operates：20dBm

Explanation of Symbols

Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.

Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.

Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.

Indicates important but not hazard-related information,
used to indicate risk of property damage.

Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.

WARNING

CAUTION

DANGER

N OT IC E

1

The Refrigerant

WARNING

To realize the function of the air conditioner unit, a special refrigerant circulates in
the system. The used refrigerant is the fluoride R32, which is specially cleaned.
The refrigerant is flammable and inodorous. Furthermore, it can leads to explosion
under certain conditions. But the flammability of the refrigerant is very low. It can
be ignited only by fire.

Compared to common refrigerants, R32 is a nonpolluting refrigerant with no harm
to the ozonosphere. The influence upon the greenhouse effect is also lower. R32
has got very good thermodynamic features which lead to a really high energy
efficiency. The units therefore need a less filling.

Do not use means to accelerate the defrosting process or to clean, other than those

recommended by the manufacture. Should repair be necessary, contact your nea­rest authorized Service Centre. Any repairs carried out by unqualified personnel
may be dangerous. The appliance shall be stored in a room without continuously
operating ignition sources. (for example: open flames, an operating gas appliance
or an operating electric heater.) Do not pierce or burn.

Appliance shall be installed, operated and stored in a room with a floor area larger
than Xm .(Please refer to table "a" in section of " Safety Operation of Inflammable
Refrigerant" for Space X.)

Appliance filled with flammable gas R32. For repairs, strictly follow manufacturer’s
instructions only. Be aware that refrigrants not contain odour. Read specialist’s
manual.

2

Appliance filled with flammable gas R32.

Before use the appliance, read the owner’s manual first.

Before repair the appliance, read the service manual first.

Before install the appliance, read the installation manual first.

Precautions

WARNING

Do not connect air conditioner to multi-purpose socket.

This appliance can be used by children aged from 8

Operation and Maintenance

If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

Do not spray water on indoor unit. It may cause electric
shock or malfunction.

Otherwise, it may cause fire hazard.

Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by

children without supervision.

years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.

Do not wash the air conditioner with water to avoid
electric shock.

After removing the filter, do not touch fins to avoid injury.
Do not use fire or hair dryer to dry the filter to avoid

deformation or fire hazard.

Do disconnect power supply when cleaning air
conditioner. Otherwise, it may cause electric shock.

.

2

Do not block air outlet or air inlet. It may cause
malfunction.

remote controller may be broken.

● Power cord is overheating or damaged.

● There’s abnormal sound during operation.

● Circuit break trips off frequently.

● Air conditioner gives off burning smell.

● Indoor unit is leaking.

contact the dealer or qualified professionals for service.

When turning on or turning off the unit by emergency
operation switch, please press this switch with an insulating
object other than metal.

outlet. It may cause personal injury or damage.

Precautions

WARNING

conditioner and disconnect power immediately, and then

If the air conditioner operates under abnormal conditions,
it may cause malfunction, electric shock or fire hazard.

Do not spill water on the remote controller, otherwise the

electric shock or damage. Please contact dealer when
you need to repair air conditioner.

Do not repair air conditioner by yourself. It may cause

objects. It may cause damage or personal injury.

Do not step on top panel of outdoor unit, or put heavy

When below phenomenon occurs, please turn off air

Do not extend fingers or objects into air inlet or air

Maintenance must be performed by qualified
professionals. Otherwise, it may cause personal injury

or damage.

3

Do install the circuit break. If not, it may cause malfunction.

of at least 3mm in all poles should be connected in fixed
wiring.

magnet buckle

and heating buckle function, it can protect

the circuit-short and

overload.

power supply circuit and circuit break.

Precautions

WARNING

note

the following table.Air switch should be included

Make sure the power supply matches with the
requirement of air conditioner.Unstable power supply or
incorrect wiring or malfunction. Please install proper power
supply cables before using the air conditioner.

An all-pole disconnection switch having a contact separation

Must follow the electric safety regulations when installing
the unit.

grounding wire of power socket.

Properly connect the live wire, neutral wire and

any work related to electricity and safety.

Be sure to cut off the power supply before proceeding

Including an circuit break with suitable capacity, please

Air Conditioner should be properly grounded. Incorrect

Don't use unqualified power cord.

grounding may cause electric shock.

According to the local safety regulations, use qualified

Installation must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage.

Attachment

4

Installation must be performed in accordance with the

persons in order to avoid a hazard.

must be properly grounding with specialized grounding
device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.

The appliance must be positioned so that the plug is
accessible.

If the length of power connection wire is insufficient, please
contact the supplier for a new one. Avoid extending the
wire by yourself.

All wires of indoor unit and outdoor unit should be
connected by a professional.

national wiring regulations.

requirement of NEC and CEC by authorized personnel
only.

Precautions

WARNING

wire, which can't be used for other purposes.

The grounding resistance should comply with national
electric safety regulations.

The air conditioner is the first class electric appliance. It

keep the interconnection cable away from the copper
tube.

The temperature of refrigerant circuit will be high, please

the manufacturer, its service agent or similarly qualified

If the supply cord is damaged, it must be replaced by

The yellow-green wire in air conditioner is grounding

The appliance shall be installed in accordance with

Do not put through the power before finishing installation.

5

The indoor unit should be installed close to the wall.
Instructions for installation and use of this product are

provided by the manufacturer.

Precautions

WARNING

place, only the qualified person can perform the work.
Otherwise, it may cause personal injury or damage.

If you need to relocate the air conditioner to another

must be installed in the line.

For the air conditioner without plug, an circuit break

far away from animals or plants.If it is unavoidable,
please add the fence for safety purpose.

Select a location which is out of reach for children and

reachable after finishing installation.

For the air conditioner with plug, the plug should be

Working temperature range

NOTICE:

6

Indoor side DB/WB(℃) Outdoor side DB/WB(℃)

Maximum cooling 32/23 43/26

Maximum heating 27/- 24/18

● The operating temperature range (outdoor temperature) for cooling only unit is

-15℃~ 43℃; for heat pump unit is -15℃~ 43℃.

NOTICE:

Indoor side DB/WB(℃) Outdoor side DB/WB(℃)

Maximum cooling 32/23 52/32

Maximum heating 27/- 24/18

● The operating temperature range (outdoor temperature) for cooling only unit is

For models:GWH18YE-S6DBA2A、GWH24YE-S6DBA2A

For some models:

-18℃~ 52℃; for heat pump unit is -30℃~ 52℃.

For models: ASH-18BIS2, ASH-24BIS2

(Display content or position may be different from above
graphics, please refer to actual products)

Parts Name

Indoor Unit

remote control

NOTICE:

Actual product may be different from above graphics, please refer to actual
products.

7

air inlet

panel

filter

aux.button

horizontal louver

air outlet

temp.
indicator

display

For some model:

receiver
window

Power indicatior

Parts Name

Display content or position may be different from above graphics, please refer to actual
products.

Display

W R G

temp.
indicator

display

receiver
window

W R O

temp.
indicator

display

receiver
window

heating
indicator

temp.
indicator

cooling
indicator

power
indicator

receiver
window

drying
indicator

display

For some model:

For some model:

For some model:

For some model:

heating
indicator

temp.
indicator

cooling
indicator

power
indicator

receiver
window

drying
indicator

display

For some model:

heating
indicator

temp.
indicator

cooling
indicator

power
indicator

receiver
window

drying
indicator

G

W

R

Power LED color indicator:
Green-status-ON.
Red -status-OFF.

Mode LED color indicator:
White-W-Cool Mode-

Red-R-Heat Mode­Green-G-Dry Mode-

O

W

R

Power LED color indicator:
Green-status-ON.
Red -status-OFF.

Mode LED color indicator:
White-W-Cool Mode­Red-R-Heat Mode-

Orange-O-Dry Mode-

(only for heating model)

(only for heating model)

8

Parts Name

Outdoor Unit

air inlet

Connection wire

air outlet

NOTICE:

Actual product may be different from above graphics, please refer to actual
products.

7

1
2
3
4
5
6
7
8
9

10
11
12

button

button

WiFi button
QUIET button
SLEEP button

TEMP button

I FEEL button

13
14

15
16

TURBO button

LIGHT button

button

TIMER ON/
TIMER OFF button

CLOCK button

ON/OFF button

FAN button

+/- button

MODE button

(after opening cover

/

1

15

5

2

6

3

12
16

4

11

8

9

13

7

10
14

WiFi



Buttons on remote controller

Introduction for icons on display screen

1
2
3
4

ON/OFF button
FAN button

+/- button

MODE button

3

4

2

1

(before opening cover

Send signal

Turbo mode

8℃ heating function
Set temperature

Set time

X-FAN function

TIMER ON /TIMER OFF
Child lock

Up & down swing
Left & right swing

Set fan speed

Light

Temp. display type

: Set temp.

: Outdoor ambient temp.

: Indoor ambient temp.

Sleep mode

Clock

Heat mode

Fan mode

Dry mode

Cool mode

Auto mode

Operation mode

I feel

Healthy mode
Scavenging functions

Quiet

This is a general remote controller. Some
models have this function while some do
not. Please refer to the actual models.

● It’s Low fan speed under Dry mode.

This function indicates that moisture on evaporator of indoor unit will be blowed
after the unit is stopped to avoid mould.

Having set X-FAN function on: After turning off the unit by pressing ON/OFF
button indoor fan will continue running for a few minutes. at low speed. In this
period, Hold fan speed button for 2s to stop indoor fan directly.

Having set X-FAN function off: After turning off the unit by pressing ON/OFF
button, the complete unit will be off directly.

X-FAN function：Hold fan speed button for 2s in COOL or DRY mode, the icon “ ” is
displayed and the indoor fan will continue operation for a few minutes in order to dry
the indoor unit even though you have turned off the unit. After energization, X-FAN
OFF is defaulted. X-FAN is not available in AUTO, FAN or HEAT mode.

●

●

●

Introduction for buttons on remote controller

Note:

● After putting through the power, the air conditioner will give out a sound.
Operation indictor " " is ON (red indicator the colour is different for different
models). After that, you can operate the air conditioner by using remote controller.

●

Under on status, pressing the button on the remote controller, the signal icon " "

on the display of remote controller will blink once and the air conditioner will give
out a “de” sound, which means the signal has been sent to the air conditioner.

● Under off status, set temperature and clock icon will be displayed on the display
of remote controller (If timer on, timer off and light functions are set, the corre­ sponding icons will be displayed on the display of remote controller at the same

time); Under on status, the display will show the corresponding set function icons.

ON/OFF button

1

Press this button to turn on the unit. Press this button again to turn off the unit.

FAN button

2

Press this button, Auto, Low, Medium-low, Medium, Medium-high, High speed can
be circularly selected. After powered on, Auto fan speed is default. Under DRY
mode, Low fan speed only can be set up.

Note:

Medium fanLow fan

High fan

Medium-low fan

Medium-high fan

ATUO

●This is a general use remote controller, it could be used for the air conditioners
with multifunction; For some function, which the model don't have, if press the

corresponding button on the remote controller that the unit will keep the original
running status.

10

When setting TIMER ON, TIMER OFF or CLOCK, press " + " or " - " button to
adjust time. (Refer to CLOCK, TIMER ON, TIMER OFF buttons) When setting
TIMER ON, TIMER OFF or CLOCK, press " + " or " - " button to adjust time. (Refer
to CLOCK, TIMER ON, TIMER OFF buttons)

Press " + " or " - " button once increase or decrease set temperature 1°C(°F).
Holding " + " or " - " button, set temperature on remote controller will change
quickly. On releasing button after setting is finished, temperature indicator
on indoor unit will change accordingly.

7

Press this button to set swing angle, which circularly changes as below:

This remote controller is universal. If it receives threes kinds of following status, the

button

OFF

TURBO button

5

Under Cool or Heat mode, press this button can turn on or turn off the Turbo function.
After the Turbo function turned on, the signal of Turbo will display. The signal will

6

Press this button to set left & right swing angle cycling as below:

be automatically cancelled if changing the mode or fan speed.

button

OFF

MODE button

3

Press this button, Auto, Cool, Dry, Fan, Heat mode can be selected circularly. Auto

+/- button

4

mode is default while power on. Under Heat mode, the initial value is 28

℃(82 ) ℉

Under other modes, the initial value is 25

(only for cooling and heating unit. As for cooling only unit, it won’t have any action
when it receives the signal of heating operation.)

AUTO COOL DRY

FAN

HEAT

℃(77

℉

).

1

Introduction for buttons on remote controller

depends on the other received signal within 3s.

TEMP button

10

button, 2 seconds later, it quickly change, the way of change is: During the initial

2.5 seconds, ten numbers change in the one place of minute, then the one place
is constant, ten numbers change in the tens place of minu te at 2.5 seconds speed
and carry. During 5s blink, press the Timer button, the timer setting succeeds. The
Timer On has been set up, repress the timer button, the Timer On will be canceled.
Before sett ing the Timer, please adjust the Clock to the current actual time.

One press this key to enter into TIMER OFF setup, in which case the TIMER OFF

icon will blink. The method of setting is the sameas for TIMER ON.

Press this button, you can see indoor set temperature, indoor ambient temperature
or outdoor ambient temperature on indoor unit’s display. The setting on remote co­ntroller is selected circularly as below:

When selecting " " with remote controller or no display, temperature indicator on
indoor unit displays set temperature; When selecting " " with remote controller,
temperature indicator on indoor unit displays indoor ambient temperature; When
selecting " " with remote controller, temperature indicator on indoor unit displays
outdoor ambient temperature. 3s later it will return to the setting temprature or it

no display

1

Introduction for buttons on remote controller

Timer On setting: Sign al “ON” will blink and display, signal will conceal, the num­erical section will become the timer on setting status. During 5 seconds blink, by
pressing + or - button to adjust the time value of numerical section, every press of
that button, the value will be increased or decreased 1 minute. Hold pressing + or -

swing angle will remain original.

If guide louver is stopped when it is swinging up and down, it will remian its present
position.

indicates guide louver swings back and forth in the five places, as shown in the figure.

8

Press this button, the clock can be set up, signal blink and display. Within 5 seconds,
the value can be adjusted by pressing + or - button, if continuously press this button for 2
seconds above, in every 0.5 seconds, the value on ten place ofMinutewill be increased 1.
During blinking, repress the Clock button or Confirm button, signal will be constantly
displayed and it denotes the setting succeeded. After powered on, 12:00 is defaulted to
display and signal will be displayed. If there is signal be displayed that denotes
the current time value is Clock value, otherwise is Timer value.

CLOCK button

9

TIMER ON/TIMER OFF button

● This function is only available for some models.

Press " WiFi " button to turn on or turn off WiFi function. When WiFi function is
turned on, the " WiFi " icon will be displayed on remote controller; Under status
of remote controller off, press "MODE" and " WiFi " buttons simultaneously for 1s,
WiFi module will restore to factory default setting.

LIGHT button

13

Press this button at unit On or Off status, Light On and Light Off can be set up.
After powered on, Light On is defaulted.

WiFi button

14

Introduction for buttons on remote controller

11

Press this button to achieve the on and off of healthy and scavenging functions in
operation status. Press this button for the first time to start scavenging function;

LCD displays " " . Press the button for the second time to start healthy and sc­avenging functions simultaneously; LCD displays " " and " ". Press this button
for the third time to quit healthy and scavenging functions simultaneously. Press the
button for the fourth time to start healthy function; LCD display " " . Press this bu-

tton again to repeat the operation above.
NOTE: This function is applicable to partial of models.

Attention: When displaying the outdoor ambient, the displaying range is 0-60℃
When it goes beyond the range, it keeps the threshold data (the smallest—0℃
and the largest 60℃).

Warm tips: When operating buttons on the cover please make sure the cover is

closed completely.

button

/

12

Press this button once, to turn on the I FEEL function, then the figure of "I FEEL"
will be displayed, after every press of other function button, every 200ms to send
I FEEL once, after this function started, the remote controller will send temperature
to the main un it in every 10 minutes. When repress this button, this function will be
turned off. When I FEEL function is turned on, the remote controller should be put
within the area where indoor unit can receive the signal sent by the remote controller.

I FEEL button

1

Note:

Outdoor temperature display is not available for some models. At that time,

indoor

unit receives " " signal, while it displays indoor set temperature.

perature all along.

In Heat mode:
(1) Under the initial presetting temperature 16℃, it will run under this setting tem-

QUIET button

15

Press this button, the Quiet status is under the Auto Quiet mode (display " "
and "Auto" signal) and Quiet mode (display " " singal) and Quiet OFF (there
is no signal of " " displayed), after powered on, the Quiet OFF is defaulted.

(4) When setting the initial temperature 30℃, under this temperature setting, after

7hours, the temperature will be decreased 1℃, after that the unit will keep on
running under this temperature;

Introduction for buttons on remote controller

SLEEP button

16

Press this button, can select Sleep 1 ( ), Sleep 2 ( ), Sleep 3 ( ) and
cancel the Sleep, circulate between these, after electrified, Sleep Cancel is de­faulted.

Under the Quiet mode (Display " " signal).

Sleep 1 is Sleep mode 1, in Cool modes: sleep status after run for one hour,
the main unit setting temperature will increase 1℃, 2 hours, setting te

mperature

increased 2℃, the unit will run at this setting temperature; In Heat mode:

sleep
status after run for one hour, the setting temperature will decrease 1 ℃, 2 hours,
setting temperature will decrease 2℃, then the unit will run at this setting
temperature.

Sleep 2 is sleep mode 2, that is air conditioner will run according to the presetting
a group of sleep temperature curve.

In Cool mode:
(1) When setting the initial temperature 16℃-23℃, after turned on Sleep function,

(2) When setting the initial temperature 24℃-27℃, after turned on Sleep function,

(3) When setting the initial temperature 28℃-29℃, after turned on Sleep function,

the temperature will be increased 1℃ in every hour, after 3℃ the temperature
will be maintained, after 7hours, the temperature will be decreased 1℃, after
that the unit will keep on running under this temperature;

the temperature will be increased 1℃ in every hour, after 2℃ the temperature
will be maintained, after 7hours, the temperature will be decreased 1℃, after
that the unit will keep on running under this temperature;

the temperature will be increased 1℃ in every hour, after 1℃ the temperature
will be maintained, after 7hours, the temperature will be decreased 1℃, after
that the unit will keep on running under this temperature;

1

The Quiet function is only

available for some models.

up, the temperature will decrease 1℃ in every hour, after 1℃ decreased, this
temperature will be maintained.

(2) Under the initial presetting temperature17℃-20℃, after Sleep function started

up, the temperature will decrease 1℃ in every hour, after 2℃ decreased, this
temperature will be maintained.

(3) Under the initial presetting temperature 21℃-27℃, after Sleep function started

1

Introduction for buttons on remote controller

Sleep 3 - the sleep curve setting under Sleep mode by DIY:

Sleep3 - the sleep curve setting under Sleep mode by DIY could be inquired:
The user could accord to sleep curve setting method to inquire the presetting sleep
curve, enter into user individuation sleep setting status, but do not change the tem­perature, press "Turbo" button directly for confirmation.

Note: In the above presetting or enquiry procedure, if continuously within10s, there

is no button pressed, the sleep curve setting status will be automatically quit
and resume to display the original displaying. In the presetting or enquiry pr­ocedure, press "ON/OFF" button, "Mode" button, "Timer" button or "Sleep"
button, the sleep curve setting or enquiry status will quit similarly.

up, the temperature will decrease 1℃ in every hour, after 3℃ decreased, this
temperature will be maintained.

(4) Under the initial presetting temperature 28℃-30℃, after Sleep function started

ters into user individuation sleep setting status, at this time, the time of remote
controller will display "1hour", the setting temperature "88" will display the corr­esponding temperature of last setting sleep curve and blink (The first entering
will display according to the initial curve setting value of original factory);

(1) Under Sleep 3 mode, press "Turbo" button for a long time, remote controller en-

after adjusted, press "Trubo" button for confirmation;

(2) Adjust "+" and "-" button, could change the corresponding setting temperature,

remote controller, (that are "2hours" or "3hours" or "8hours"), the place of se­tting temperature "88" will display the corresponding temperature of last setting
sleep curve and blink;

(3) At this time, 1hour will be automatically increased at the timer postion on the

sleep curve setting finished, at this time, the remote controller will resume the
original timer display; temperature display will resume to original setting tem­perature.

(4) Repeat the above step (2)~(3) operation, until 8hours temperature setting finished,

1

Introduction for special function

About AUTO RUN

When AUTO RUN mode is selected,

the unit will be in accordance with the room temp.

automatically to select the

suitable running method and to make ambient comfortable.

About turbo function

If start this function, the unit will run at super-high fan speed to cool or heat quickly so
that the ambient temp. approachs the preset temp. as soon as possible.

About lock

Press + and - buttons simultaneously to lock or unlock the keyboard. If the remote co­ntroller is locked, the icon will be displayed on it, in which case, press any button,
the mark will flicker for three times. If the keyboard is unlocked, the mark will disappear.

About swing up and down

1. Press swing up and down button continuously more than 2s, the m ain unit will swing
backand forth from up to down , and then loosen the button, the unit will stop swing
and present position of guide louver will be kept immediately.

2. Under swing up and down mode, when the status is switched from off to , if press
this button again 2s later, status will switch to off status directly; If press this button
again within 2s, the change of swing status will also depend on the circulation seque­nce stated above.

About swing left and right

1. Press swing left and right button continuously more than 2s, the main unit will swing
back and forth from left to right, and then loosen the button, the unit will stop swing
and present position of guide louver will be kept immediately.

2. Under swing left and right mode, when the status is switched from off to , if press
this button again 2s later, status will switch to off status directly; if press this button
again within 2s, the change of swing status will also depend on the circulation sequ­ence stated above.

1

Introduction for special function

About switch between Fahrenheit and Centigrade

Under status of unit off, press MODE and - buttons simultaneously to switch ℃ and ℉.

Combination of "TEMP" and "CLOCK" buttons:
About Energy - saving Function

Press “TEMP” and “CLOCK” simultaneously in COOL mode to start energy-saving fun­ction. Nixie tube on the remote controller displays “SE”. Repeat the operation to quit
the function.

About Quiet function

When quiet function is selected:

About Sleep function

Under the Fan、Dry and Auto mode, the Sleep function cannot be set up, Select and
enter into any kind of Sleep mode, the Quiet function will be attached and stared,
different Quiet status could be optional and turned off.

1. Under cooling mode: indoor fan operates at notch 4 speed. 10 minutes later or when

indoor ambient temperature≤28℃, indoor fan will operate at notch 2 speed or quiet

mode according to the comparison between indoor ambinet temperature and set tem­perature.

2. Under heating mode: indoor fan operates at notch 3 speed or quiet mode according
to the comparison between indoor ambient temperature and set temperature.

cooling, heating or fan mode.

3. Under dry, fan mode: indoor fan operates at quiet mode.

4. Under auto mode: the indoor fan operates at the auto quiet mode according to actual

Combination of "TEMP" and "CLOCK" buttons:
About 8

℃

Heating Function

Press “TEMP” and “CLOCK” simultaneously in HEAT mode to start 8℃ Heating Function

Nixie tube on the remote controller displays “ ” and a selected temperature of “8℃”.
(46℉ if Fahrenheit is adopted). Repeat the operation to quit the function.

1

Operation guide

Replacement of batteries in remote controller

General operation

1. After powered on, press ON/OFF button, the unit will start

2. Press MODE button, select desired running mode.

3. Pressing + or - button, to set the desired temperature.

4. Pressing FAN button, set fan speed, can select AUTO FAN,

5. Pressing and button, to select the swing.

to run. (Note: When it is powered on, the guide louver of
main unit will close automatically.)

LOW, MEDIUM-LOW, MEDIUM, MEDIUM-HIGH and HIGH.

Optional operation

1. Press SLEEP button, to set sleep.

2. Press TIMER ON and TIMER OFF button, can set the

3. Press LIGHT button, to control the on and off of the

scheduled timer on or timer off.

displaying part of the unit (This function may be not
available for some units).

4. Press TURBO button, can realize the ON and OFF of
TURBO function.

1. Press the back side of remote controller marked

the cover of battery box along the arrow direction.

2. Replace two 7# (AAA 1.5V) dry batteries, and
make sure the position of "+" polar and "-" polar

are correct.

3. Reinstall the cover of battery box.

battery

Cover of battery box

remove

reinstall

● During operation, point the remote control signal sender at the receiving
window on indoor unit.

● The distance between signal sender and receiving window should be no

● Signal may be interfered easily in the room where there is fluorescent lamp

more than 8m, and there should be no obstacles between them.
or wireless telephone; remote controller should be close to indoor unit during

operation.

● Replace new batteries of the same model when replacement is required.

● When you don’t use remote controller for a long time, please take out the

batteries.

● If the display on remote controller is fuzzy or there’s no display, please
replace batteries.

5

1

2

3

4

1

2

3

4

NOTICE

WiFi

WiFi

Emergency operation

air conditioner. When the air conditioner is turned on, it will operate under
auto mode.

aux. button

panel

WARNING

NOTICE:

WARNING:

Use insulated object to press the auto button

If remote controller is lost or damaged, please use auxiliary button to turn
on or turn off the air conditioner. The operation in details are as below:

1

Clean and maintenance

■ Turn off the air conditioner and disconnect the power before cleaning the air
conditioner to avoid electric shock.

■ Do not wash the air conditioner with water to avoid electric shock.

■ Do not use volatile liquid to clean the air conditioner.

Clean surface of indoor unit

When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth
or wet cloth to wipe it.

● Do not remove the panel when cleaning it.

Clean and Maintenance

1

2

3

4

Open panel

Pull out the panel to a certain ● Use dust catcher or water to

the water (below 45℃) to clean
it, and then put it in a shady
and cool place to dry.

panel cover tightly.

operation environment, clean frequency can be increased.

WARNING



Clean and Maintenance

1. Check whether air inlets and air outlets are blocked.

2. Check whether air switch, plug and socket are in good condition.

4. Check whether mounting bracket for outdoor unit is damaged or corroded.
If yes, please contact dealer.

5. Check whether drainage pipe is damaged.

1. Disconnect power supply.

3. Check whether mounting bracket for outdoor unit is damaged or corroded.
If yes, please contact dealer.

Notice for recovery

1. Many packing materials are recyclable materials.
Please dispose them in appropriate recycling unit.

2. If you want to dispose the air conditioner, please contact local dealer or
consultant service center for the correct disposal method.

2

NOTICE: Checking before use-season

NOTICE: Checking after use-season

Malfunction analysis

General phenomenon analysis

Please check below items before asking for maintenance. If the malfunction still

Phenomenon Check items Solution

Indoor unit
can’t receive
remote
controller’s
signal or
remote
controller
has no
action.

● Whether it's interfered severely

(such as static electricity, stable
voltage)?

● Whether remote controller is

within the signal receiving
range?

● Whether there are obstacles?

● Whether remote controller is

pointing at the receiving
window?

● Is sensitivity of remote contro­ ller low; fuzzy display and no
display?

● No display when operating

remote controller?

● Fluorescent lamp in room?

● Pull out the plug. Reinsert

the plug after about 3min, and
then turn on the unit again.

● Signal receiving range is 8m.

● Remove obstacles.

●

Select proper angle and point

the remote controller at the re-

ceiving window on indoor unit.

● Check the batteries. If the

power of batteries is too low,
please replace them.

● Take the remote controller
close to indoor unit.

and then try it again.

● Check whether remote cont-

roller appears to be damaged.

If yes, replace it.

No air

emitted
from
indoor
unit

● Air inlet or air outlet of indoor
unit is blocked?

● Eliminate obstacles.

● Under heating mode, indoor

temperature is reached to set
temperature?

● After reaching to set temper-
ature, indoor unit will stop bl-

owing out air.

● Heating mode is turned on just

now?

● In order to prevent blowing

out cold air, indoor unit will be

started after delaying for sev­ eral minutes, which is a nor-

mal phenomenon.

2

Malfunction analysis

● Power failure?

● Is plug loose?

● Air switch trips off or fuse is
burnt out?

● Wiring has malfunction?

● Unit has restarted immediately
after stopping operation?

● Whether the function setting
for remote controller is
correct?

● Reset the function.

● Wait for 3min, and then turn
on the unit again.

● Ask professional to replace it.

● Ask professional to replace
air switch or fuse.

● Reinsert the plug.

● Wait until power recovery.

Air condit­ioner can’t
operate

Mist is em­itted from
indoor unit’s
air outlet

● Indoor temperature and hum­ idity is high?

● Because indoor air is cooled
rapidly. After a while, indoor
temperature and humidity will
be decrease and mist will
disappear.

Phenomenon Check items Solution

Set temper­ature can’t
be adjusted

● Unit is operating under auto
mode?

● Temperature can’t be adju-
sted under auto mode.
Please switch the operation
mode if you need to adjust
temperature.

● Your required temperature
exceeds the set temperature
range?

● Set temperature range:
16℃~30℃.

Cooling
(heating)
effect is
not good.

● Voltage is too low?

● Wait until the voltage
resumes normal.

● Filter is dirty?

● Set temperature is in proper
range?

● Adjust temperature to proper
range.

● Door and window are open? ● Close door and window.

2

Phenomenon Check items Solution

Odours are
emitted

● Whether there’s odour source,
such as furniture and cigarette,
etc.

● Eliminate the odour source.

● Whether there’s interference,

such as thunder, wireless
devices, etc.

● Disconnect power, put back
power, and then turn on the

unit again.

“Water

noise

● Air conditioner is turned on or
turned off just now?

● The noise is the sound of

the unit, which is a normal

phenomenon.

Cracking
noise

● Air conditioner is turned on or
turned off just now?

● This is the sound of friction
caused by expansion and/or
contraction of panel or other
parts due to the change of
temperature.

Malfunction analysis

Air conditio­ner operates

abnormally

2

Error code

E5

E8

H6

C5

F1

F2

Troubleshooting

It can be eliminated after restarting the unit. If not, please

It can be eliminated after restarting the unit. If not, please

It can be eliminated after restarting the unit. If not, please

F0

H3

It can be eliminated after restarting the unit. If not, please

It can be eliminated after restarting the unit. If not, please

E1

It can be eliminated after restarting the unit. If not, please

E6

Note: If there're other error codes, please contact qualified professionals for

service.

■ When below phenomenon occurs, please turn off air conditioner and discon-

for service.

● Power cord is overheating or damaged.

● There’s abnormal sound during operation.

● Air switch trips off frequently.

● Air conditioner gives off burning smell.

● Indoor unit is leaking.

■ If the air conditioner operates under abnormal conditions, it may cause

Malfunction analysis

Error Code

● When air conditioner status is abnormal, temperature indicator on indoor unit will

ation of error code.

25

WARNING

26

All the work men who are engaging in the refrigeration system should bear the
valid certification awarded by the authoritative organization and the qualification
for dealing with the refrigeration system recognized by this industry. If it needs
other technician to maintain and repair the appliance, they should be supervised
by the person who bears the qualification for using the flammable refrigerant.

It can only be repaired by the method suggested by the equipment’s manufacturer.

Safety operation of flammable refrigerant

Qualification requirement for installation and maintenance man

Installation notes

The air conditioner is not allowed to use in a room that has running fire (such as fire
source, working coal gas ware, operating heater).

Maintenance notes

Check whether the maintenance area or the room area meet the requirement of the

nameplate.

- It’s only allowed to be operated in the rooms that meet the requirement of the

Check whether the maintenance area is well-ventilated.

- The continuous ventilation status should be kept during the operation process.

Check whether there is fire source or potential fire source in the maintenance area.

- The naked flame is prohibited in the maintenance area; and the “no smoking”
warning board should be hanged.

nameplate.

Check whether the appliance mark is in good condition.

- Replace the vague or damaged warning mark.

It is not allowed to drill hole or burn the connection pipe.
The air conditioner must be installed in a room that is larger than the minimum room
area. The minimum room area is shown on the nameplate or following table a.
Leak test is a must after installation.

table a - Minimum room area ( m )

2

Charge amount (kg)

≤1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 2.1 2.2 2.3 2.4 2.5

/

/

/

/

14.5 16.8 19.3 22 24.8 27.8 31 34.3 37.8 41.5 45.4 49.4 53.6

7 7.9 8.9 10 11.2 12.4 13.6 15 16.3 17.8 19.35.2 6.1

1.6 1.9 2.1 2.4 2.8 3.1 3.4 3.8 4.2 65.554.6

1.1 1.3 1.4 1.6 1.8 2.1 2.3 2.6 2.8 3.1 3.4 3.7 4

floor location

wall mounted

window mounted

ceiling mounted

Minimum

room

2

area( m )

NOTE CONCERNING PROTECTION OF
ENVIRONMENT

This product must not be disposed of via normal household waste after its service life, but must be
taken to a collection station for the recycling of electrical and electronic devices. The symbol on the
product, the operating instructions or the packaging indicate such disposal procedures. The materials
are recyclable in accordance with their respective symbols. By means of re-use, material recycling or
any other form of recycling old appliances you are making an important contribution to the protection
of our environment. Please ask your local council where your nearest disposal station is located.

INFORMATION CONCERNING USED REFRIGERANT
MEDIUM

This unit is containing fluorinated gases included in the Kyoto protocol. The maintenance and the liquidation must be
carried out by qualified personnel.
Type of refrigerant: R32
The quantity of the refrigerant: please see the unit label.
The value GWP: 675 (1 kg R32 = 0,675 t CO2 eq)
GWP = Global Warming Potential

Appliance filled with flammable gas R32.

In case of quality problem or other please contact your local supplier or authorized service center.

Emergency number: 112

PRODUCER

SINCLAIR CORPORATION Ltd.
1-4 Argyll St.
London W1F 7LD
Great Britain

www.sinclair-world.com

This product was manufactured in China (Made in China).

REPRESENTATIVE

SINCLAIR Global Group s.r.o.
Purkynova 45
612 00 Brno
Czech Republic

TECHNICAL SUPPORT

SINCLAIR Global Group s.r.o.
Purkynova 45
612 00 Brno
Czech Republic

Tel.: [phone]
Fax: [phone]

www.sinclair-solutions.com
[e-mail]
