Simrad RS10U, RS10E User Manual

www.simrad-yachting.com A brand by Navico - Leader in Marine Electronics

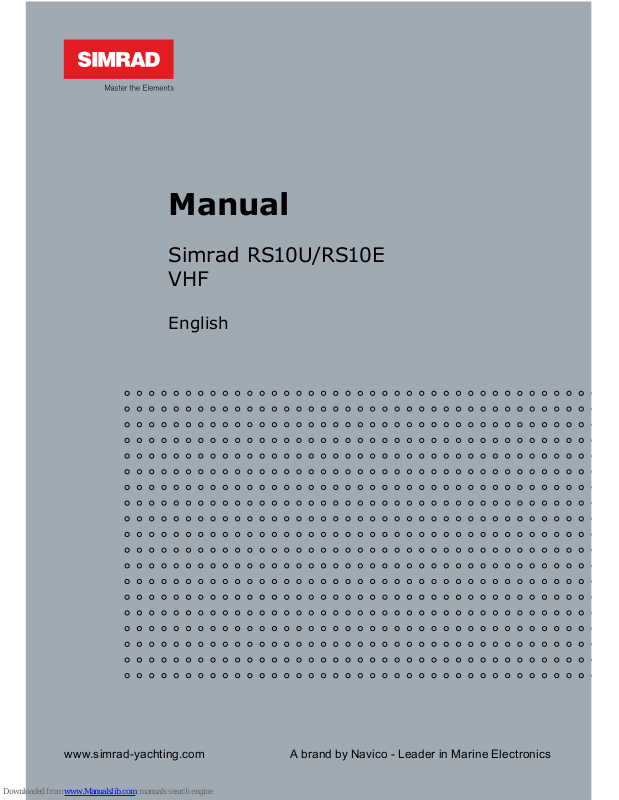

Manual
Simrad RS10U/RS10E VHF
English
1
FCC Statement
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a normal installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an output on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced technician for help.
A shielded cable must be used when connecting a peripheral to the serial ports.
IMPORTANT SAFETY INFORMATION
Please read carefully before installation and use.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards, Obey all safety messages that follow this symbol to avoid possible injury or death.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury
CAUTION indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.
CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.
DISCLAIMER: It is the owner’s sole responsibility to install and use the instrument and transducers in a manner that will not cause accidents, personal injury or property damage. The user of this product is solely responsible for observing safe boating practices.
NAVICO HOLDING AS. AND ITS SUBSIDIARIES, BRANCHES AND AFFILIATES DISCLAIM ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE OR THAT MAY VIOLATE THE LAW.
Governing Language: This statement, any instruction manuals, user guides and other information relating to the product
(Documentation) may be translated to, or has been translated from, another language (Translation). In the event of any conflict between any Translation of the Documentation, the English language version of the Documentation will be the official version of the Documentation.
This manual represents the RS10 as at the time of printing. Navico Holding AS. and its subsidiaries, branches and affiliates reserve the right to make changes to specifications without notice.
Copyright © 2010 Navico Holding AS. Simrad© is a registered trademark of Navico Holding AS.
2
IMPORTANT:
1. DSC functions will not operate on the RS10U or the RS10E until your MMSI has been entered. Refer to section 4.2 for details.
2. The radio channels installed into the Simrad VHF radio may vary from country to country, depend­ing upon the model, and government or national communications authority regulations.
3. Navico recommends that you check the radio operating licensing requirements of your country before using the Simrad VHF radio. The operator is solely responsible for observing proper radio installation and usage practices.
4. A DSC warning label is supplied with the RS10U. To comply with FCC regulations, this label must be axed in a location that is clearly visible from the operating controls of this radio. Make sure that the chosen location is clean and dry before applying this label.
RF Emissions Notice:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environ­ment. This device’s antenna must be installed in accordance with provided instructions; and it must be operated with minimum 96 cm spacing between the antennas and all person’s body (excluding extremities of hands, wrist and feet) during operation. Further, this transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
3
Contents
Section 1 - General Information ................................................................................................................5
1-1 Features ..........................................................................5
1-2 Customizing your Simrad VHF Radio ..............................................5
1-3 How to Display and Navigate Menus ..............................................6
1-4 How to Enter Alphanumeric Data .................................................6
1-5 LCD Symbols and Meanings ......................................................6
1-6 Basic Operation and Key Functions ...............................................8
Section 2 - The Radio Menu (MENU)
..............................................................................................11
2-1 Radio Menu Options (Menu) ....................................................11
2-2 Maintain Your Buddy List (BUDDY LIST) ..........................................12
2-3 Local or Distance Sensitivity (LOCAL/DIST) .......................................13
2-4 Backlighting (BACKLIGHT) and Contrast (CONTRAST) ............................13
2-5 GPS Data and Time (GPS/DATA) ..................................................14
2-6 GPS Simulator (SIMULATOR) .....................................................17
2-7 Reset to Factory Defaults (RESET) ................................................17
Section 3 - Radio Setup Menu (RADIO SETUP) ........................................................................................... 18
3-1 Radio Setup Menu (RADIO SETUP) ...............................................18
3-2 Channel Names (CH NAME) .....................................................18
3-3 RING & BEEP Volume (RING VOL) and (BEEP VOL) ................................19
3-4 Internal Speaker Connections (INT SPEAKER) ....................................19
3-5 Set the Priority Channel (WATCH MODE) .........................................19
3-6 Weather Alert (Wx ALERT) .......................................................20
3-7 NMEA protocol (COM PORT) .....................................................20
Section 4 - DSC Setup Menu (DSC SETUP) ................................................................................................... 21
4-1 DSC Setup - Menu Options ......................................................21
4-2 Enter Your USER MMSI (USER MMSI) ..............................................21
4-3 Maintain Your Groups (GROUP SETUP) ...........................................22
4-4 Response to Individual Calls (INDIV REPLY) ......................................23
4-5 ATIS MMSI & ATIS Functionality ..................................................23
4-6 DSC functionality options (DSC FUNC) ...........................................24
4-7 Response Type to LL Polling Calls (LL REPLY) .....................................25
4
Section 5 - Sending and Receiving DSC Calls ............................................................................................. 26
5-1 What is DSC? ....................................................................26
5-2 Sending DSC calls ...............................................................26
5-3 Receiving DSC Calls ..............................................................30
Section 6 - Distress Calls ..........................................................................................................................32
6-1 Sending a Distress Call ..........................................................32
6-2 Receiving a Distress Call (DISTRESS!) .............................................33
6-3 Distress Acknowledgement (distress ack) or Relay ..............................33
Section 7 - Installation Section ................................................................................................................ 34
7-1 Checklist .........................................................................35
7-2 Installation Options ..............................................................36
7-3 Location Requirements ..........................................................36
7-4 Gimbal Installation ..............................................................37
7-5 Change the Viewing Angle ......................................................37
7-6 Recessed Installation ............................................................38
7-7 Install the Microphone Bulkhead Mount .........................................38
7-8 Connecting the Radio ...........................................................39
7-9 Wiring Details ...................................................................39
RS10 ................................................................................40
Appendix B - Troubleshooting .................................................................................................................42
Appendix C - VHF Marine Channel Charts ................................................................................................. 43
C-1 International Channel Chart .....................................................43
C-2 USA Channel Chart ..............................................................45
C-3 CANADA Channel Chart .........................................................47
C-4 WEATHER Channels .............................................................49
C-5 EU Inland Waterway Channels ..................................................50
C-6 Special Channels ................................................................53
5
Section 1 - General Information
1-1 Features
Congratulations on your purchase of a Simrad RS10U or RS10E marine band VHF radio. All of these models provide the following useful features:
• Prominentchanneldisplay
•  AdjustablecontrastsettingsfortheLCD
•  Adjustablekeypadbacklightingforeasynight-timeuse
•  WaterproofandsubmersibletocomplywithJIS-7
•  GPSlatitudeandlongitude(LL)andtimedisplay(whenconnectedtoaGPS)
•  ChoiceofHighorLow(25Wor1W)transmissionpower
•  TopcentredPTTbuttonforcomfortableleft-orright-handeduse
•  Powerful4Wexternalaudiooutput
•  Accesstoallcurrently-availablemarineVHFchannelbanks(USA,Canada,International)
including weather channels where available
•  SpecialCH16orCH16/9keyforquickaccesstothepriority(internationaldistress)channel
•  Special3CHkeytoselectyourthreefavouritechannels
•  PSCAN(similartodualwatch)facility
•  DSC(DigitalSelectCalling)capabilitythatmeetsUSCGSC101RS10Uonly.
•  DSC(DigitalSelectCalling)capabilitythatmeetsECClassDStandards.RS10Eonly.
•  DISTRESScallbuttontoautomaticallytransmittheMMSIandpositionuntilan
acknowledgement is received
•  Easyaccesstoabuddylistofupto20favouritepeople
•  MMSIstorageforthreefavouritegroups
•  GroupCallandAllShipsCallfacility
•  LLpositionpollinginformation
•  Weatheralertfacility.RS10Uonly.
•  ATISfacilityforinlandwaterways.RS10Eonly.
1-2 Customizing your Simrad VHF Radio
You can customize the radio to suit your individual preferences. Some preferences can be set directly through the keys as explained in this Section.
Other preferences are set up through the built-in menus and these are explained in the other Sections.
6
1-3 How to Display and Navigate Menus
1. Hold down MENU (or CALL/MENU). Note that only four menu items can be displayed at any one time on the screen.
2. Press + CH - to scroll up and down the menu until the cursor is positioned at the desired option. Press ENT to display that option.
3. Make any entries or changes as explained in the following section.
4. Press ENT to confirm changes. Otherwise, press ESC to keep the original entry.
5. Press ESC to backup one screen or exit. Any changes are active as soon as you exit the screen.
1-4 How to Enter Alphanumeric Data
If your radio does not have the optional alphanumeric microphone, use the + CH - key to enter alphanumeric data.
Press - to count through numbers, or hold down to scroll rapidly to the desired number.
Press + to step through the alphabet, or hold down to scroll rapidly to the desired character.
If you make an error, press - until < is displayed, then press ENT to backup and correct the entry.
1-5 LCD Symbols and Meanings
This simulation shows the locations of all the following information symbols:
7
Symbol Meaning
TX Transmitting.
HI LO Transmission power. High (HI) 25 W or Low (LO) 1 W.
WX Weather channel.
WX ALT Weather Alert. Alarm beeps will sound. RS10U only.
BUSY Receiver busy with an incoming signal.
PRI Priority channel is selected.
D Duplex operation. Otherwise, blank for Simplex operation.
LOCAL Local calling is selected. Otherwise, blank for distance calling.
DSC DSC capability is available.
Indicates an incoming DSC call, or blinks to notify you of any unread Call Log
messages
Low Battery warning (activates at 10.5 V)
88 Channel selected.
USA INT CAN Selected channel bank for VHF radio operations and regulations.
X Channel is temporarily deleted from the ALL SCAN operation.
B A Channel sux, if applicable.
CH1 CH2 CH3 Shows which of the 3 favourite channels, if any, are selected.
Otherwise blank.
ATIS Enabled for use in European inland waterways. Otherwise blank.
RS10E only.
A typical operational display is shown here.
The latitude and longitude of the vessel and the local time are shown.
A transmission on Channel 16 is being made at high power using the International channel bank.
Channel 16 is set as the Priority channel. It is also set as favourite channel 1.
There is an incoming DSC call so the receiver is busy.
8
1-6 Basic Operation and Key Functions
All possible keys and their functions are listed. Note that some of the keys are not available depending on your Simrad VHF radio model.
Key Function
VOL/PWR Volume and Power. Turn clockwise to power on. Continue to turn until a comfortable
volume is reached. VOL/PWR will also adjust the settings of an external speaker, if connected.
SQL Squelch or Threshold Level. Sets the threshold level for the minimum receiver
signal. Turn fully counterclockwise until random noise is heard, then turn slowly clockwise until the random noise disappears. Make another 1/4 turn clockwise for best reception in open sea conditions.
In areas of high noise (eg close to large cities) reception may improve if sensitivity
is reduced. Either turn SQL slowly clockwise or use the LOCAL setting. See section
2.3.
16/9 Priority Channel. RS10U only. Also on the microphone. Press to cancel all other
modes and to tune into the priority channel. Press again to return to your original channel.
The default is Channel 16. To make Channel 09 the priority channel, hold down
16/9 until a beep sounds and 09 is displayed.
16 Priority Channel. RS10E. Also on the microphone. Press to cancel all other modes
and to tune into the priority channel, Channel 16, on high power. Press again to return to your original channel.
WX Weather Channel. RS10U. In USA and Canadian waters, press to hear the most
recently selected weather station. The WX symbol is displayed on the LCD.
Press + or - to change to a dierent weather channel. Press WX again to return to
the most recent channel.
If the weather alert mode (ALT) is ON and an alert tone of 1050Hz is broadcast from
the weather station, it is picked up automatically and the alarm sounds. Press any key to hear the weather alert voice message.
VOL
PWR
SQL
DISTRESS
CH
16/9
3CH
UIC
SCAN
WX ESC
CALL
MENU
ENT
RS10
9
H/L Transmission Power. High (HI) 25 W or Low (LO) 1 W. Press to toggle between high
or low transmission power for the entire channel bank. The HI or LO selection is shown on the LCD.
Some channels allow only low power transmissions. Error beeps will sound if the
power transmission setting is incorrect.
Some channels allow only low power transmissions initially, but can be changed
to high power by holding down H/L and PTT at the same time. See Appendix C for a complete listing of channel charts.
3CH Three Favourite Channels. Also on the microphone. Press to toggle between your
favourite channels. The CH1, CH2, or CH3 symbol appears on the LCD to show which favourite channel is selected.
To scan only one of your favourite channels, press 3CH then immediately press
and release SCAN. If you want to scan all three favourite channels, press 3CH then immediately press and hold SCAN.
To add a favourite channel for the rst time, select that channel then hold 3CH
to store it in the CH1 location. Repeat the procedure to store two more favourite channels in the CH2 and CH3 locations respectively.
If you try and add another favourite channel it will overwrite the existing CH3. CH1
and CH2 remain unless you delete them.
To delete a favourite channel, select that channel then hold down 3CH until the
CH1, CH2 or CH3 symbol disappears o the LCD.
UIC Channel Bank. RS10U only. Press to toggle between USA, International or Canadian
channel banks. The selected channel bank is displayed on the LCD along with the last used channel. All the channel charts are shown in Appendix C.
U/I Channel Bank. RS10. Press to toggle between channel banks. Note that the channel
banks available are dependent upon your VHF radio model. The selected channel bank is displayed on the LCD along with the last used channel. All the channel charts are shown in Appendix C.
DIM Backlighting. RS10E only. Press to toggle between the backlighting settings. OFF
will extinguish all the backlighting except for the DISTRESS key. (Otherwise, use the menu to change the backlight setting.)
SCAN Scan. Press to scan between your current channel and the priority channel in DUAL
or TRI WATCH mode. The weather channel is also scanned if the USA channel bank is selected and the weather alert mode (ALT) is ON.
Hold down SCAN to enter ALL SCAN mode where the priority channel is checked
every 1.5 seconds.
When a signal is received, scanning stops at that channel and BUSY appears on
the screen. If the signal ceases for more than 5 seconds, the scan restarts.
Press ENT to temporarily skip over (lock out) an “always busy” channel when in
ALL SCAN mode and resume the scan. An X is shown on the screen to designate a skipped channel. Note that it is not possible to skip over the priority channel.
Press SCAN to stop at the current channel.
+ CH - Channel Select. Also on the microphone. The current channel is shown on the screen
in BIG digits with an appropriate designator sux A or B in small letters below the channel number.
10
Press + or - to step through the available channels one at a time, or hold down
to scroll rapidly through all the available channels. See Appendix C for a listing of channel charts.
Alphanumeric Entry. This key can also be used for menu selection and for alpha-
numeric entry. Press + or - to scroll the cursor up or down menu options when navigating menus.
When editing an item containing only numbers, press - to count through the
numbers or hold down to scroll rapidly.
To enter a character, press + to step through the alphabet or hold down to scroll
rapidly.
ENT Enter. Use ENT when navigating menus, to conrm entries and edits.
ESC Escape. Use ESC when navigating menus, to clear incorrect entries, to exit from a
menu without saving changes, and to back up to the previous screen.
CALL/MENU DSC Call Menu. Press to enter the DSC Call Menu and make DSC calls. See Section
5.
Hold down to enter MENU SELECT. Scroll to DSC SETUP to setup your MMSI and
other DSC information. Go to RADIO SETUP to customize your Simrad VHF radio. See Section 4.
DISTRESS Send DSC Distress Call. RS10U & RS10E only. See Section 6.
PTT Press To Talk. Press PTT to transmit at any time on an allowable channel. This au-
tomatically exits you from menu mode and stops scanning. You must release PTT to receive a signal.
If PTT sticks, a built-in timer will automatically shut down a transmission after ve
minutes and sound the error beeps.
This time out is required by FCC regulations.
11
BUDDY LIST
LOCAL/DIST
BACKLIGHT
CONTRAST
GPS/DATA
DSC SETUP
RADIO SETUP
GPS SIM
RESET
CH NAME
RING VOLUME
BEEP VOLUME
INT SPEAKER
WATCH MODE
WX ALERT
COM PORT
Maintain your buddy list.
See Section 2-2.
Set radio sensitivity.
See Section 2-3.
Set backlight level.
See Section 2-4.
Set contrast level.
See Section 2-4.
Set position & UTC manually.
See Section 2-5.
Set local time and time format.
See Section 2-5.
Radio Setup Menu.
See Section 3.
Turn the GPS Simulator on/o.
See Section 2.6.
Reset factory settings.
See Section 2.7.
Section 2 - The Radio Menu (MENU)
2-1 Radio Menu Options (Menu)
The following options are available through MENU (or CALL/MENU):
MANUAL SETTING
USER MMSID
GROUP SETUP
INDIV REPLY
DSC FUNC
ATIS MMSID
ATIS FUNC
LL REPLY
DSC Setup Menu.
RS10U and RS10E only.
See Section 4.
Make DSC calls.
RS10U and RS10E only.
See Section 5.
12
2-2 Maintain Your Buddy List (BUDDY LIST)
Use the Buddy List to store the names and associated MMSIs of 20 favourite people.
Names are stored in the order of entry, with the most recent entry shown rst.
The following sections show to use BUDDY LIST to add, edit, and delete entries on
your buddy list.
Section 3 explains how to call a buddy.
2-2-1 Add an Entry
1. Select BUDDY LIST. The cursor is at MANUAL NEW. Press ENT.
2. Enter the buddy name, one character at a time (this may be alphanumeric) then press ENT
repeatedly until the cursor moves to the MMSID entry line.
4. Enter the MMSI associated with that buddy name (this must be numeric) then press ENT.
5. The new buddy name and MMSI are displayed. Press ENT to store the new entry, which is
displayed at the top of your buddy list.
Note that when the BUDDY LIST is full (20 entries), you cannot make a new entry until you have deleted an existing entry
.
2-2-2 Edit an Entry
1. Select BUDDY LIST. Press ENT to display the list of entries.
2. Scroll down (if required) to the incorrect entry and press ENT.
3. Select EDIT. The cursor is at the first character of the name.
4. Edit the buddy name or, to edit only the MMSI, press ENT repeatedly until the cursor moves to
the MMSID line.
5. When you are finished, press ENT (repeatedly if necessary) to display the next screen.
6. Press ENT to store the changes. The buddy list is displayed again. If more changes are required,
repeat Steps 2 through 6. Otherwise, press ESC to exit.
MENU SELECT >BUDDY LIST LOCAL/DIST BACKLIGHT
BUDDY LIST > MANUAL NEW ALEX TOM
ENTER NAME –––––––––––– ENTER MMSID –––––––––
BOB 123456789 > STORE CANCEL
ENTER NAME BOB ENTER MMSID 123456789
BUDDY LIST > MANUAL NEW ALEX TOM
ALEX > EDIT DELETE
ALEX 111223344 > STORE CANCEL
EDIT NAME ALEX EDIT MMSID 112233445
13
2-2-3 Delete an Entry
1. Select BUDDY LIST. Press ENT to display the list of entries.
2. Scroll down (if required) to the entry you want to delete and press ENT.
3. Select DELETE then select YES.
4. The entry is deleted immediately and the buddy list is displayed again.
2-3 Local or Distance Sensitivity (LOCAL/DIST)
Use LOCAL/DIST to improve the sensitivity of the receiver either locally (LOCAL)
or over distances (DIST).
LOCAL is not recommended for use in open sea conditions. It is designed for use
in areas of high radio noise; for example, close to cities.
See also SQL (Squelch Control) in Section 1.6.
2-3-1 Set Distance Sensitivity
1. Select LOCAL/DIST then select DIST.
2. Press ENT to activate the DIST setting. This disables local sensitivity and the menu is displayed again.
2-3-2 Set Local Sensitivity
1. Select LOCAL/DIST then scroll to LOCAL.
2. Press ENT to activate the LOCAL setting. This disables distance sensitivity and the menu is displayed again.
LOCAL is displayed on the LCD as a reminder that local sensitivity is selected.
2-4 Backlighting (BACKLIGHT) and Contrast (CONTRAST)
Use BACKLIGHT to set the backlight levels for the LCD and the keypad at a comfortable level.
The microphone keypad backlighting is either ON or OFF.
Use CONTRAST to set the contrast level for the LCD.
BUDDY LIST > MANUAL NEW ALEX TOM
BUDDY LIST MANUAL NEW ALEX > TOM
DELETE BUDDY TOM > YES NO
TOM EDIT > DELETE
MENU SELECT BUDDY LIST > LOCAL/DIST BACKLIGHT
SENSITIVITY > DISTANT LOCAL
SENSITIVITY DISTANT > LOCAL
MENU SELECT LOCAL/DIST > BACKLIGHT CONTRAST
14
2-4-1 Set the Backlighting Level
1. Select BACKLIGHT.
2. Select a comfortable backlight level using + or - to change the setting.
3. Press ENT to enable the setting and return to the menu.
Note that the DISTRESS key backlighting cannot be switched o.
2.4.2 Set the Contrast Level
1. Select CONTRAST.
2. Select a comfortable contrast level using + or - to change the setting.
3. Press ENT to enable the setting and return to the menu.
2-5 GPS Data and Time (GPS/DATA)
If the boat has an operational GPS navigation receiver, the VHF radio automati­cally detects and updates the vessel position and the local time.
However, if the GPS navigation receiver is disconnected or absent, you can specify the vessel position and the local time manually, using the GPS/DATA option.
This information is important because it will be used if a DSC distress call is transmitted.
You can also enter the course (COG) and speed (SOG) and select GPS Alert and GPS Simulator options.
2-5-1 Manually Enter Position and UTC Time (MANUAL)
Note that this function is available only if an operational GPS receiver is not connected.
1. Select GPS/DATA, then MANUAL.
2. Enter the latitude, then the longitude, then the UTC.
3. Press ENT when all the information is correct.
The vessel’s latitude and longitude are shown on the screen, with the UTC time. The prex MAN
indicates a manual entry. The manual entries are cancelled if a real GPS position is received.
BACKLIGHT LO HI
CONTRAST LO HI
MENU SELECT BACKLIGHT CONTRAST > GPS/DATA
GPS/DATA > MANUAL SETTING
MANUAL LL ––’ ––’ ––––N ––’ ––’ ––––W MAN ––:––UTC
15
2-5-2 Local Time (TIME OFFSET)
The local time can be set by entering the time oset between UTC and local time as follows.
1. Select GPS/DATA, then SETTING.
2. Select TIME OFFSET to enter the dierence between UTC and local time. Half hour increments can be used with a maximum oset of ±13 hours.
In this example, a dierence of +1.5 hours has been entered and the local time is displayed with the
sux LOC.
Z
A
B
C D F
G
H
I
N
O
P
Q
R
S
T
U
W
E
STANDARD TIME ZONES
Corrected to June 2010
Zone boundaries are approximate
Daylight Saving Time (Summer Time),
usually one hour in advance of Standard
Time, is kept in some places
Map outline © Mountain High Maps
Compiled by HM Nautical Almanac Office
V
X
K
L
P
Q
Q
R
V
U
T
S
R
Q
P*
T
S
A
A
Z
B
C
Z
A
B
B
B
C
S
S
S
R
H
I*
K
K
M
M
H
H
H
I
K
F
G
E
D
*
*
E
*
*
C
C
D
G
H
E
F
H
I
G
C
E
K
L
Z
Z
P
N
0°
30°E
60°E
90°E
120°E
150°E
30°W
60°W
90°W
120°W
150°W
180°
180°
L
Z
N
O
O
Z
Z
Z
C
D
D
E
F
E
*
F
*
K
L
*
*
L
L
M
M
Q
O
Q
A
S
U
W
V
*
A
Y
M
L
M Y
P
K
H
M
X
X
W
W
X
M*
W
M
*
M
*
M
M
L
M
M
†
K
I
D
F
G
I
I
I
K
L
L
Z
International Date Line
International Date Line
WORLD MAP OF TIME ZONES
R
C
B
B
A
P
R
I
C
R
Q
*
T
U
Q
§
§
W
M
E
†
M
K
C
G H I I* K K*
– 7 – 8 – 9 – 9 30 –10 –10 30
L L* M M M* M†
–11 –11 30 –12 –12 45 –13 –14
V V* W X Y
+ 9 + 9 30 +10 +11 +12
h
h
h
m
m
m
m
Z A B C C* D
0 – 1 – 2 – 3 – 3 30 – 4
h
m
E E* E† F F*
– 5 30 – 5 45 – 6 – 6 30
D*
– 4 30 – 5
N O P P* Q
+ 1 + 2 + 3 + 3 30 + 4
Q* R S T U
+ 4 30 + 5 + 6 + 7 + 8
Standard Time = Universal Time – value from table
h
No Standard Time legally adopted
Universal Time = Standard Time + value from table
h
h
m m
§
GPS/DATA MANUAL >SETTING
GPS/DATA > TIME OFFSET TIME FORMAT TIME DISPLY
TIME OFFSET >+01:30
02:30PM LOC
16
2-5-3 Time Format Options (TIME FORMAT)
Time can be shown in 12 or 24 hour format.
1. Select GPS/DATA, then SETTING.
2. Select TIME FORMAT.
3. Select 12 Hr or 24 Hr as desired. In this example, 12 hour format has been selected and so the
LCD shows the AM or PM suffix.
2-5-4 Time Display Options (TIME DISPLAY)
If you have entered the time manually as described in the previous sections, the time is always shown on the screen with the prex M.
However, if the vessel position is being updated through a GPS navigation receiver, you can switch the time display on the screen ON or OFF as follows:
1. Select GPS/DATA, then SETTING.
2. Select TIME DISPLAY.
3. Select ON (on) or OFF (o) as desired. In this example, OFF has been selected and so the screen no longer shows the time.
If the time display is set ON, course and speed data are not displayed on the LCD (see section 2-5-6).
2-5-5 Position Display Options (LL display)
If you have entered the vessel position manually as described in the previous section, the vessel position is always shown on the screen with the sux M.
However, if the time is being updated through a GPS navigation receiver, you can switch the vessel posi­tion display on the screen on or o as follows:
1. Select GPS/DATA, then SETTING.
2. Select LL DISPLAY.
3. Select ON (on) or OFF (o) as desired. In this example, OFF has been selected and the screen no longer shows the vessel position.
2-5-6 Course & Speed Display Options (COG/SOG)
Use this option to display course over ground (COG) and speed over ground (SOG) data on the screen.
1. Select GPS/DATA, then SETTING.
2. Select COG/SOG.
3. Select ON (on) or OFF (o) as desired. In this example, ON has been selected and so the screen shows the bearing and speed.
If COG/SOG is set ON (on), the time is not displayed on the screen (see section 2-5-4).
GPS/DATA TIME OFFSET TIME FORMAT > TIME DISPLY
TIME DISPLY ON > OFF
GPS/DATA TIME FORMAT TIME DISPLY > LL DISPLAY
LL DISPLAY ON > OFF
GPS/DATA TIME DISPLY LL DISPLY > COG/SOG
COG/SOG > ON OFF
GPS/DATA MANUAL > SETTING
SETTING TIME OFFSET > TIME FORMAT TIME DISPLAY
TIME FORMAT > 12 Hr 24 Hr 07:15AM LOC
Loading...
+ 39 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
