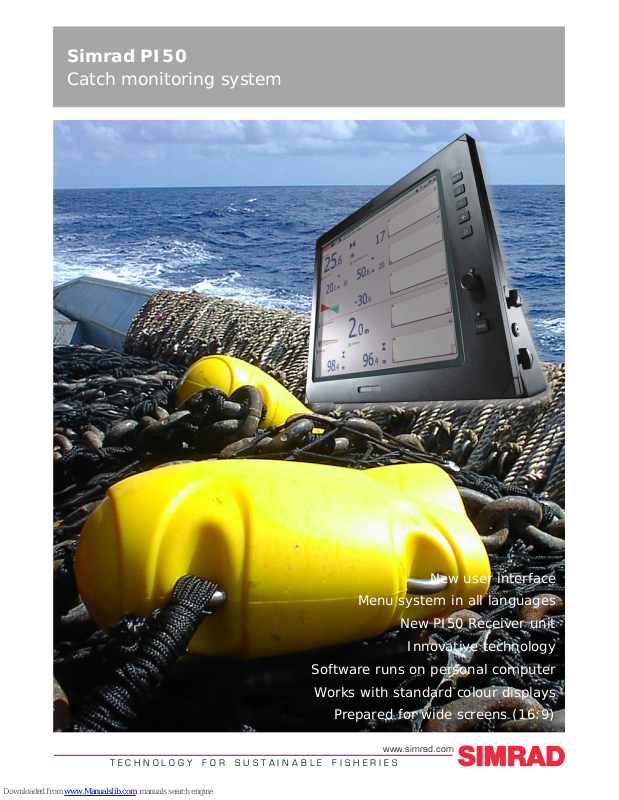

Simrad PI50 - DATASHEET REV A Datasheet
Simrad PI50
Catch monitoring system
TECHNOLOGY FOR SUSTAINABLE FISHERIES
www.simrad.com
New user interface
Menu system in all languages
New PI50 Receiver unit
Innovative technology
Software runs on personal computer
Works with standard colour displays
Prepared for wide screens (16:9)
SIMRAD PI50
The new PI50 system is easy to operate, and opens up new
possibilities for future applications and features.
A brand new receiver
The new PI50 receiver is
small, light and easy to install. It
communicates with your computer
using a serial line. The hydrophone
is connected using the same plug as
on the other PI systems. The new
receiver can thus easily replace an
old system.
Catch monitoring is becoming
more and more important in today’s
shing where efciency on all levels
is crucial to stay protable. The
Simrad PI50 has been developed
with this in mind where all important
information is easy to nd and
understand. The new menu structure
is the same as with Simrad sonars
and sh nders making it a natural
companion to those on the bridge.
A completely new “black box”
PI50 Receiver has been designed with
signal reception stability as the main
focus. The receiver can easily replace
any former PI system installed, thus
making it an easy upgrade from older
systems.
The main system operates on a
regular PC with Simrad’ own award
winning MMI. Setting up sensors and
channels has never been easier and
information displayed has never been
more instant accessible than now.
The system can receive up
to six channels, or six different
measurements/sensors. This will
enable you to measure critical
parameters like door spread and
door stability, trawl geometry,
catch volume etc. The information
is displayed in big and easily read
numbers, along with graphical
presentation of certain sensors.
The PI50 uses the highly
acclaimed robust PI sensors used
in numerous systems around the
world. All previous PI sensors can
be received making an upgrade
from older systems economical and
effortless. By combining up to six of
these sensors the Simrad PI50 will
ensure you safe and efcient trawling
or purse seining.
