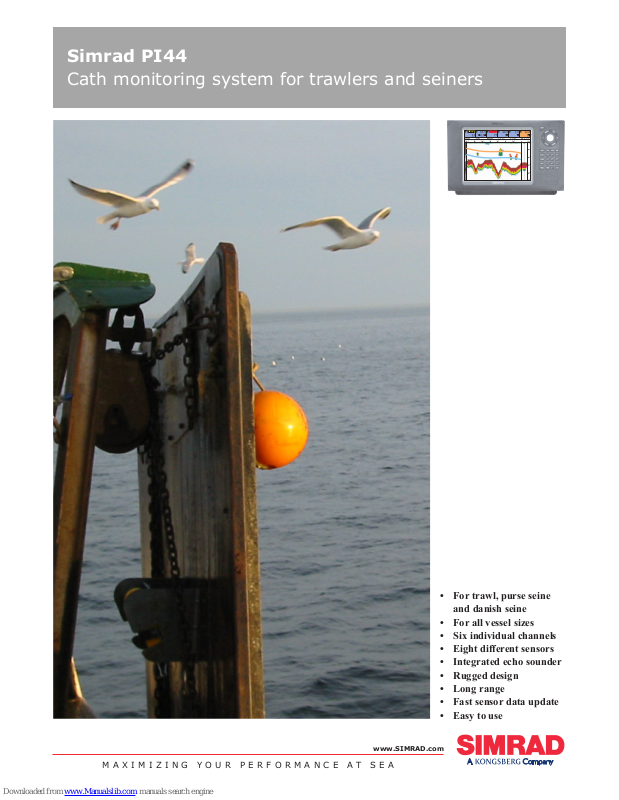

Simrad PI44 - DATASHEET REV C Datasheet
• For trawl, purse seine
and danish seine
• For all vessel sizes
• Six individual channels
• Eight different sensors
• Integrated echo sounder
• Rugged design
• Long range
• Fast sensor data update
• Easy to use
Simrad PI44
Cath monitoring system for trawlers and seiners
M A X I M I Z I N G Y O U R P E R F O R M A N C E A T S E A
www.SIMRAD.com
SIMRAD PI44
Graphic mode
with echo sounder
Numerical data and echo
sounder data on a split screen
Only a few buttons give you access
and control over advanced features.
The majority of the functions are
controlled by direct access to the
relevant menu.
The PI sensors are not developed
for trawlers alone. They are just as
valuable for those working with
purse seine and danish seine.
Depth, temperature and bottom
contact are valuable information for
seining too, and with the Simrad
PI44 you have an efcient tool
providing numerous opportunities.
The Operator unit is the
“heart” of the Simrad PI44
Catch Monitoring System. In
spite its modest physical size
and simple installation, this
unit will give you the current
status of the trawl, purse
seine or danish seine, as well
as accurate echo sounder
images of sh and bottom.
By means of the Simrad PI44
Operator unit you can read the
data from six different sensors
simultaneously. Several sensor types
are available, such as depth, height,
temperature, catch, rip, bottom contact
and door spread.
The PI44 Operator unit provides
you with a 10.4” colour display, as
well as simple menu operation using
dedicated buttons. On the inside we
have supplied the advanced electronic
hardware and software.
One important design condition
was to create a system to be used on
both small and large vessels. For this
reason the Operator unit is small, and
by means of the mounting bracket
you can place it on a table, on the
bulkhead, or below the deckhead.
Using the mounting material included
you can also ush mount the unit into
a console.
