Page 1
NSS
QuickStart Guide

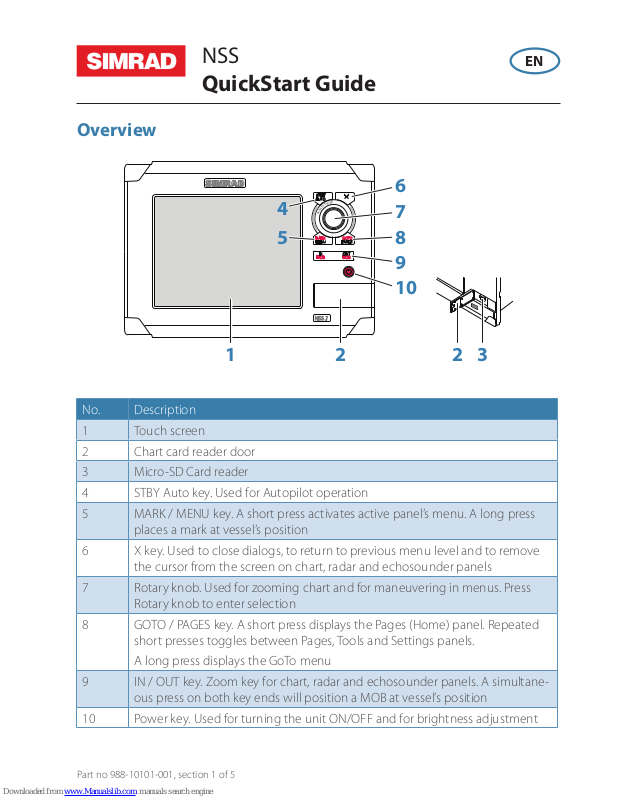

Overview
MARK
MOB
GOTO
MENU
PAGES
STBY
IN
MOB
OUT
AUTO
SIMRAD
NSS 7
P
U
S
H
T
O
E
N
T
E
R
1 2 2 3
4
5
6
7
8
9
10
No. Description
1 Touch screen
2 Chart card reader door
3 Micro-SD Card reader
4 STBY Auto key. Used for Autopilot operation
5 MARK / MENU key. A short press activates active panel’s menu. A long press
places a mark at vessel’s position
6 X key. Used to close dialogs, to return to previous menu level and to remove
the cursor from the screen on chart, radar and echosounder panels
7 Rotary knob. Used for zooming chart and for maneuvering in menus. Press
Rotary knob to enter selection
8 GOTO / PAGES key. A short press displays the Pages (Home) panel. Repeated
short presses toggles between Pages, Tools and Settings panels.
A long press displays the GoTo menu
9 IN / OUT key. Zoom key for chart, radar and echosounder panels. A simultane-
ous press on both key ends will position a MOB at vessel’s position
10 Power key. Used for turning the unit ON/OFF and for brightness adjustment
Part no 988-10101-001, section 1 of 5
EN
Page 2
2
|
NSS | QuickStart Guide - EN
The power button
• Press and hold: Turn unit on/off
• Single press:
Display dialog for light
adjustment and standby
mode
• Repeated presses:
Toggle preset brightness
levels
Displaying the menu
MARK
MENU
• Press button
• Tap screen area
• Press and hold on active panel
Positioning a Man Over Board mark
+
MOB
IN
MOB
OUT
Cancel navigation Delete MOB mark
Page 3
|
3
NSS | QuickStart Guide - EN
The NSS Control pages
GOTO
PAGES
ToolsPages (Home) Settings
Selecting pages
GOTO
PAGES
¼ NOTE: Select active panel on a multi-panel page by tapping selected panel.
Using charts
Zoom Pan, any direction
20 nm
or
MOB
IN
MOB
OUT
Page 4
4
|
NSS | QuickStart Guide - EN
Placing waypoints
MARK
MENU
2 s
At vessel position At cursor position
Creating routes
Displaying radar overlay on chart pages
Navigating
GOTO
PAGES
2 s
¼ NOTE:
This prompt will
appear only with
optional Simrad
autopilot integration.
Page 5
|
5
NSS | QuickStart Guide - EN
Using the Echosounder
Adjusting sounder image
Auto -
Manual
2 s
Select Auto/Manual Adjust
Using the radar
Turning radar transmitting On/O
Adjusting radar image
“Auto” - Manual
“Hrbr” - “Ofsh”
2 s
Select Select preset Adjust
Page 6
6
|
NSS | QuickStart Guide - EN
Using the Autopilot
Activating the Autopilot
STBY
AUTO
Returning to Standby mode and manual steering
A short press on the STBY/AUTO key switches the system to Standby
mode.
Turning the Pilot pop-up ON/OFF
2 s
STBY
AUTO
¼ NOTE: The Pilot pop-up must be ON to operate the autopilot.
Selecting autopilot mode from Pilot pop-up window
MARK
MENU
STBY
AUTO
Page 7
|
7
NSS | QuickStart Guide - EN
Changing course in Auto mode
1° heading adjustHeading change
The Autopilot panel
Sailing with autopilot
¼ NOTE: Only available when Sail is selected during comissioning.
Maintaining a xed wind angle
Adjust the boat heading until wind is according to selected wind angle, then:
MARK
MENU
Tacking
MARK
MENU
Page 8
8
|
NSS | QuickStart Guide - EN
The StructureScan™ panel
¼ NOTE: Only available when StructureScan is detected on the network.
Selecting views
Adjusting color intensity
Left water
column
Right water
column
Surface
Select Adjust
