Simrad NSE8, NSE12 Operation Manual

Download

Operation Manual

Simrad NSE8 and NSE12 Multi-function Displays

English

www.simrad-yachting.com

A brand by Navico - Leader in Marine Electronics

Preface

Disclaimer

As Navico is continuously improving this product, we retain the right to make changes to

he product at any time which may not be reflected in this version of the manual. Please

t contact your nearest distributor if you require any fur ther assistance.

It is the owner’s sole responsibility to install and use the instrument and transducers in a manner that will not cause accidents, personal injury or property damage. The user of this product is solely responsible for observing safe boating practices.

NAVICO HOLDING AS AND ITS SUBSIDIARIES, BRANCHES AND AFFILIATES DISCLAIM ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE OR THAT MAY VIOLATE THE L AW.

Governing Language: This statement, any instruction manuals, user guides and other information relating to the product (Documentation) may be translated to, or has been translated from, another language (Translation). In the event of any conflict between any Translation of the Documentation, the English language version of the Documentation will be the official version of the Documentation.

This manual represents the product as at the time of printing. Navico Holding AS and its subsidiaries, branches and affiliates reserve the right to make changes to specifications without notice.

Feedback from you

Your feedback is important and helps Navico ensure that this manual is a valuable

esource for all marine technicians. E-mail your comments or suggestions about this

r manual to the following address:

tech.writing@navico.com

Warranty

The warranty card is supplied as a separate document.

n case of any queries, refer to the brand web site of your display or system:

www.simrad-yachting.com

Declarations and conformance

This equipment is intended for use in international waters as well as coastal sea areas

dministered by countries of the E.U. and E.E.A. For more information refer to the

a separate NSE8/NSE12 Installation manual.

About this manual

This manual is a reference guide for operating the Simrad NSE8 and NSE12 systems. It

ssumes that all equipment is installed and configured, and that the system is ready to

a use.

The manual assumes that the user has basic knowledge of navigation, nautical terminology and practices.

The manual does not cover basic background information about how equipment such as radars, echo sounders and AIS work. Such information is available from our web site: www.simrad-yachting.com/en/Support/Library/.

Important text that requires special attention from the reader is emphasized as follows:

Used to draw the reader’s attention to a comment or some important information.

Used when it is necessary to warn personnel that they should proceed carefully to prevent risk of injury and/or damage to equipment/personnel.

Preface | 1

In this manual you will see few direct text references to keys, menus and menu entries, and few step-by-step descriptions. By using graphics we will guide you to the key and the required menu selections.

In the illustrations throughout the manual the following symbols are used:

MENU WIN

Press twice on illustrated key

MENU WIN

3 s

Single short press on illustrated key

Press and hold on illustrated key with

MENU WIN

time indication

Single short

Rotate rotary knob

press on rotary knob

References to keys on the operator panel are written in boldface, e.g. WIN key.

The so

ftware

This manual is written for Simrad NSE Release to Market 1 (RTM1). Please check web site for details on release version.

MENU WIN

2 | Preface

The About dialog above is an example only and may not match the sw installed on your unit!

The manual will be continuously updated to match new sw releases. The latest available manual version can be downloaded from www.simradyachting.com.

Contents

1 Overview ........................................................................................7

Front panel ....................................................................................... 7

The NSE screen structure ................................................................... 8

Communicating with the NSE unit ........................................................ 9

2 Basic operation ............................................................................. 11

Turning the unit on/off ..................................................................... 11

Positioning a Man Over Board mark ................................................... 11

Adjusting the backlight..................................................................... 12

Operating the menu system .............................................................. 12

Using the cursor .............................................................................. 13

Adding entries in dialog boxes ........................................................... 13

Working with pages and panels ......................................................... 14

3 Using the simulator....................................................................... 15

Simulator mode .............................................................................. 15

Demonstration mode ....................................................................... 15

Advanced simulator settings ............................................................. 15

4 Using charts .................................................................................. 17

The chart panel ............................................................................... 17

The vessel symbol ........................................................................... 18

Using the cursor on chart panel ......................................................... 18

Chart scale ..................................................................................... 19

Searching for chart objects ............................................................... 19

Displaying chart information ............................................................. 19

Positioning the chart on the panel ..................................................... 20

Selecting chart details level .............................................................. 20

Chart categories ............................................................................. 21

Chart imagery style ......................................................................... 21

Chart overlay .................................................................................. 21

Chart data ...................................................................................... 21

Chart options in Navionics chart database .......................................... 22

Photo overlay .................................................................................. 22

5 Waypoints, routes & tracks ........................................................... 25

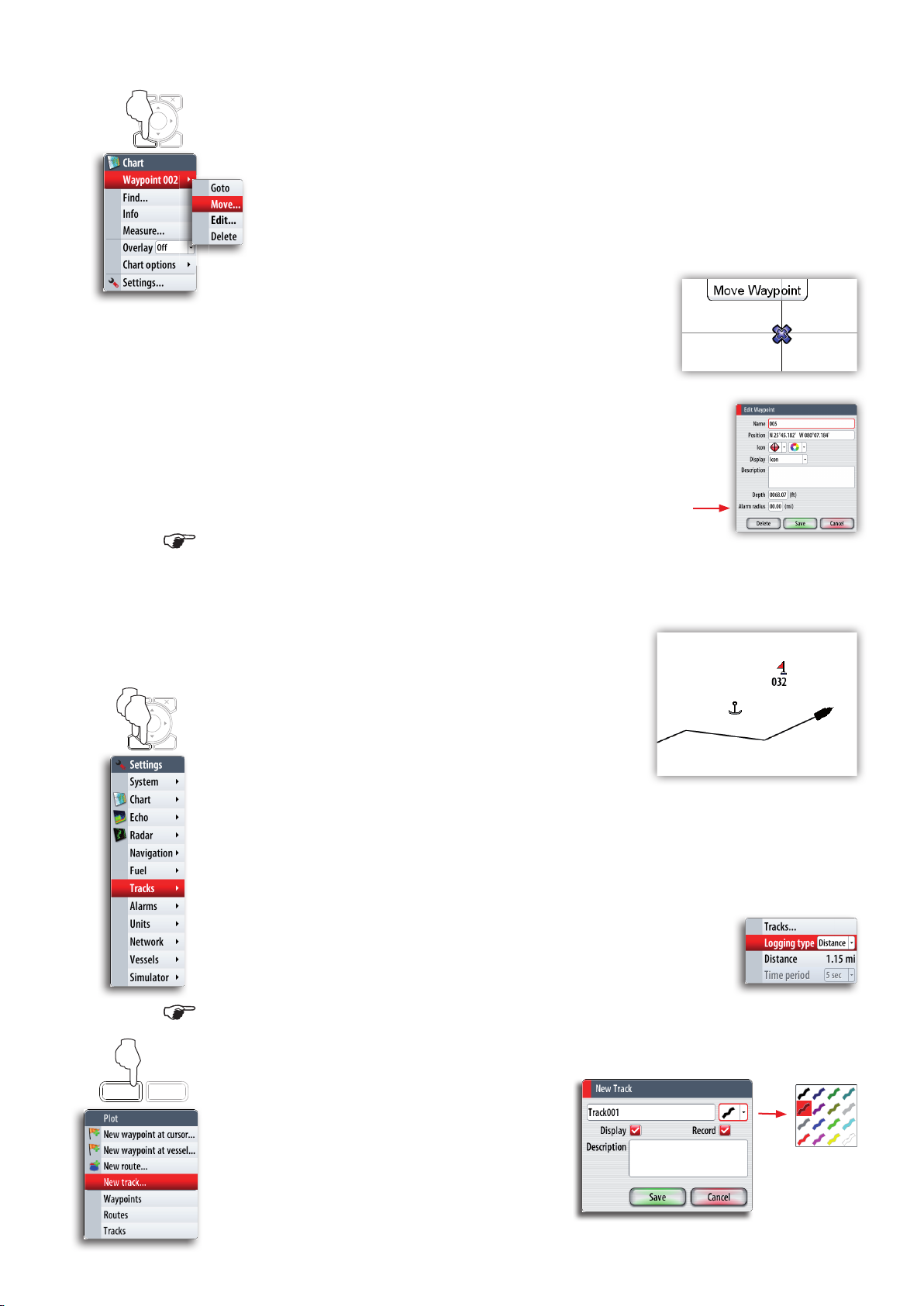

Waypoints ...................................................................................... 25

Tracks............................................................................................ 26

Routes ........................................................................................... 27

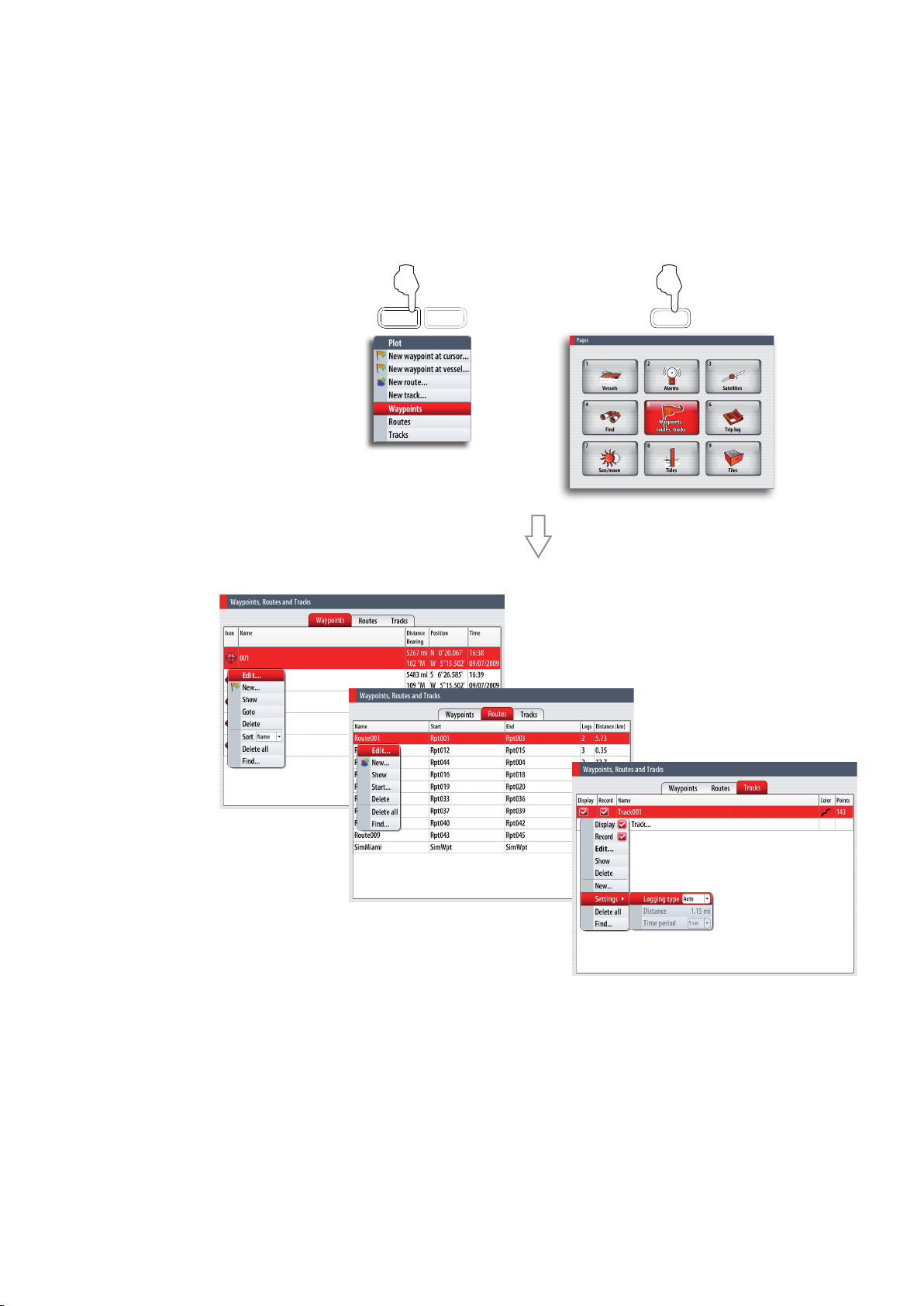

The waypoints, route and tracks page ................................................ 28

6 Using the radar .............................................................................29

Table of contents | 3

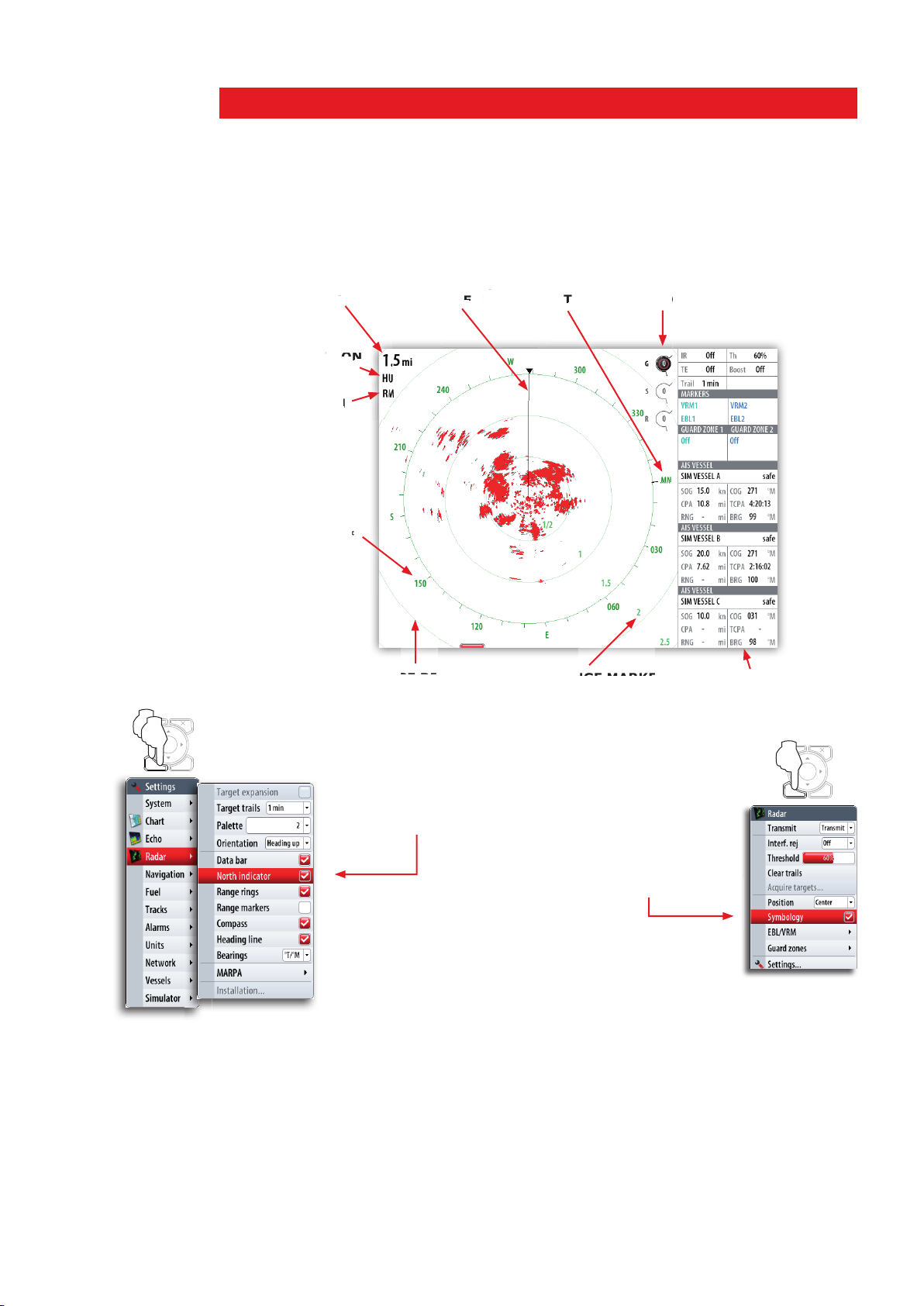

The radar panel .............................................................................. 29

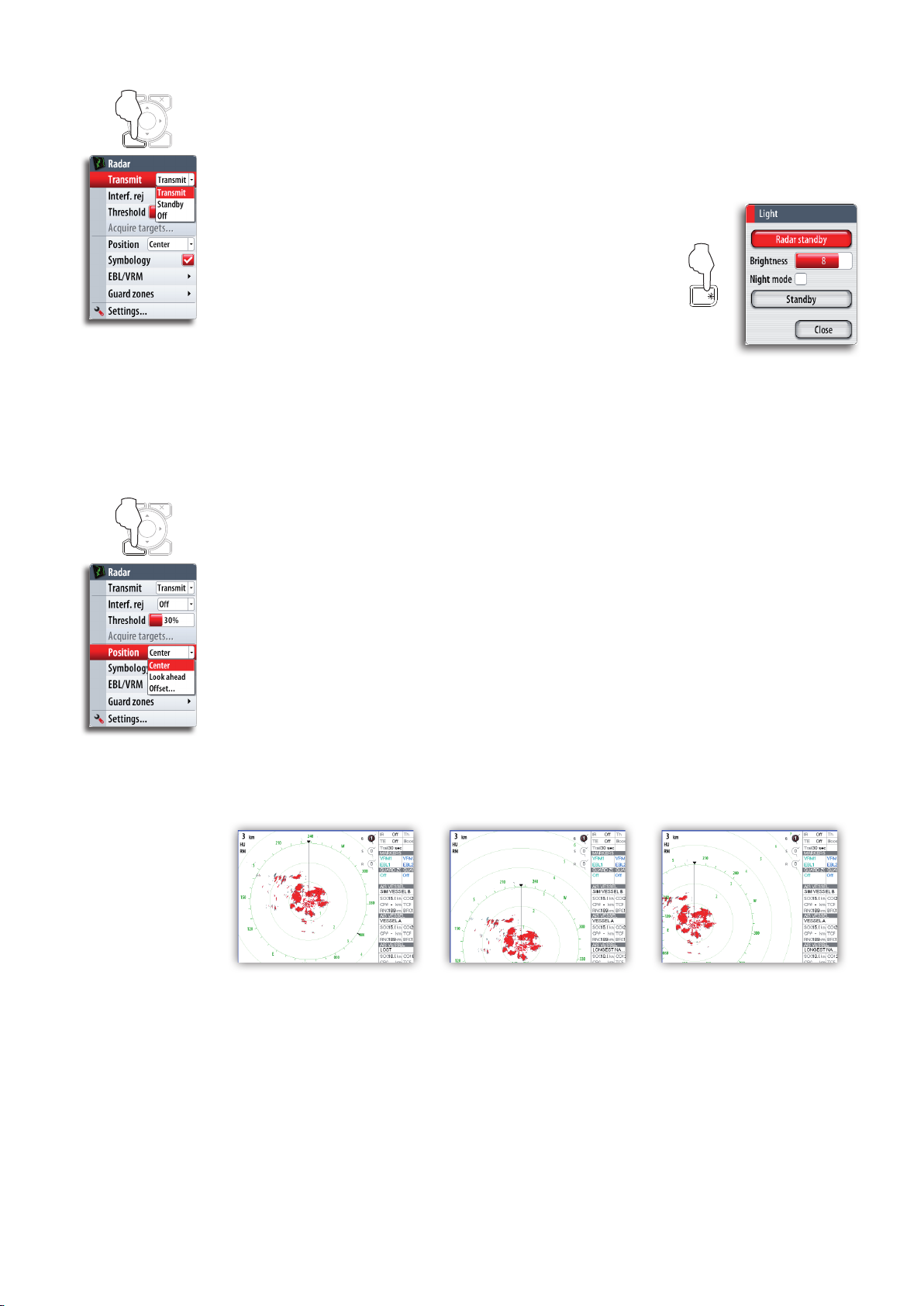

The radar operational modes ............................................................ 30

Setting up the radar image ............................................................... 30

Using the cursor on the radar panel ................................................... 31

Optimizing the radar image............................................................... 32

Setting a guard zone around your vessel ............................................ 33

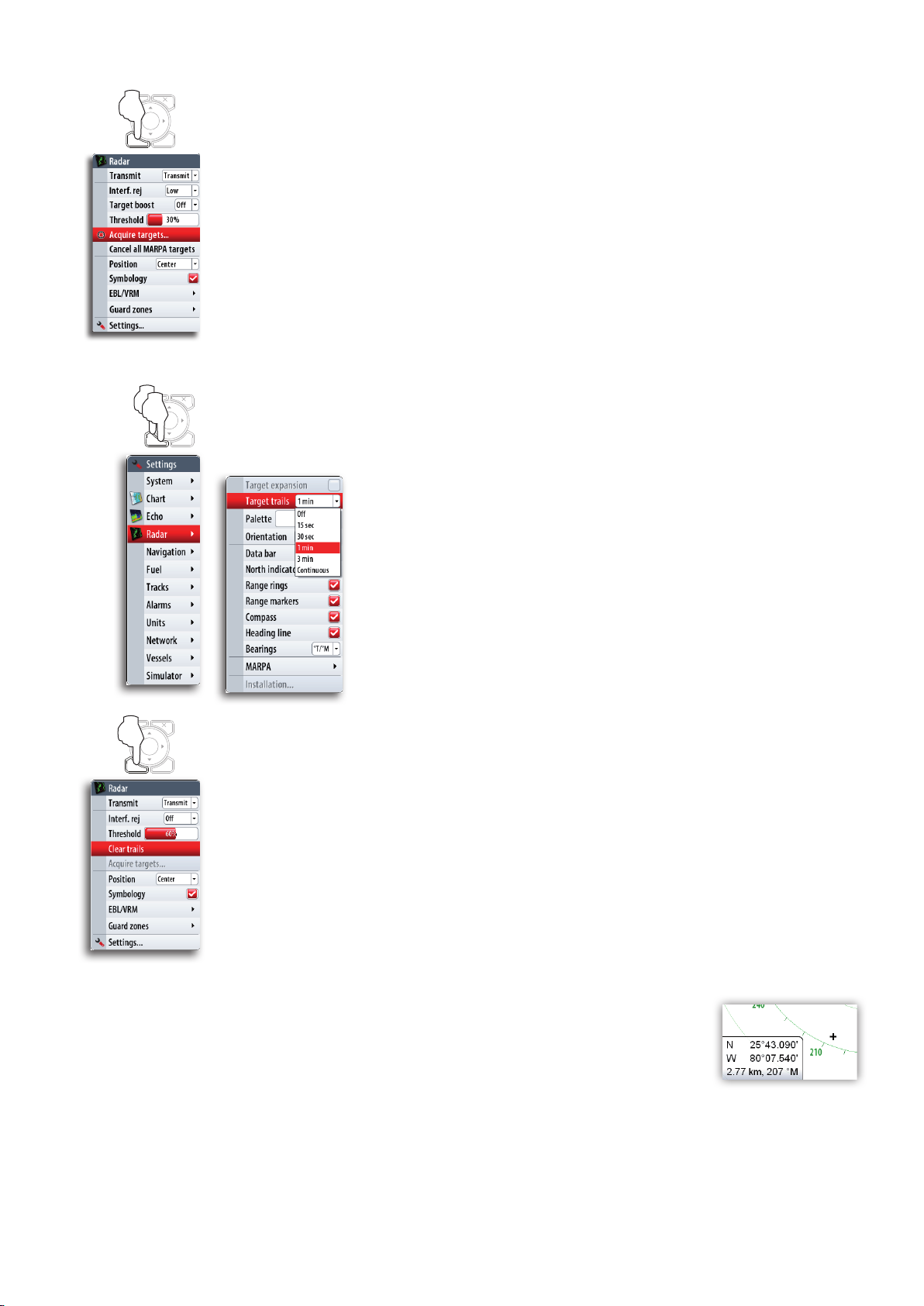

Other vessels on the radar image ...................................................... 34

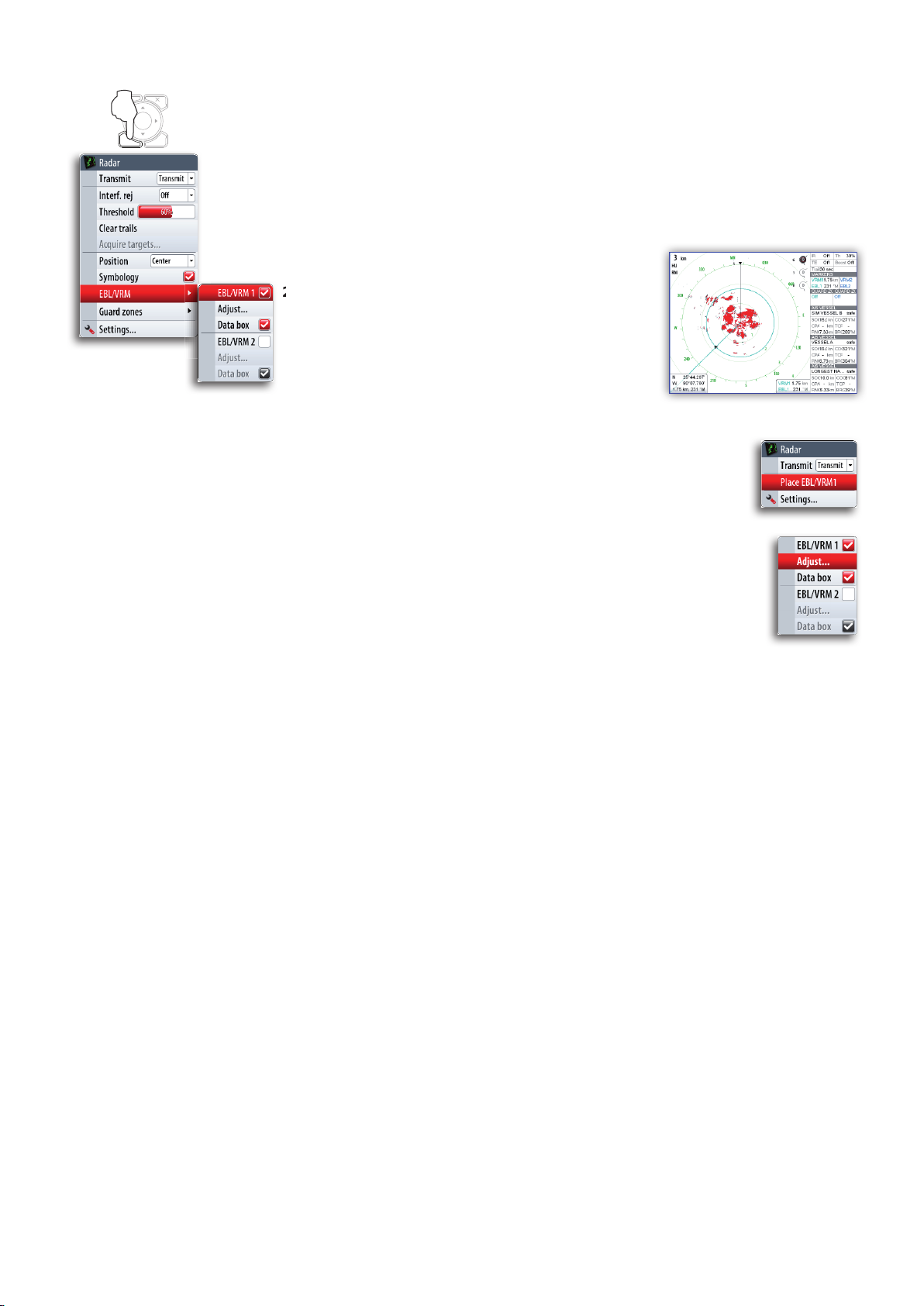

Measuring range and bearing to a target ............................................ 34

7 Other vessels on chart and radar image .......................................37

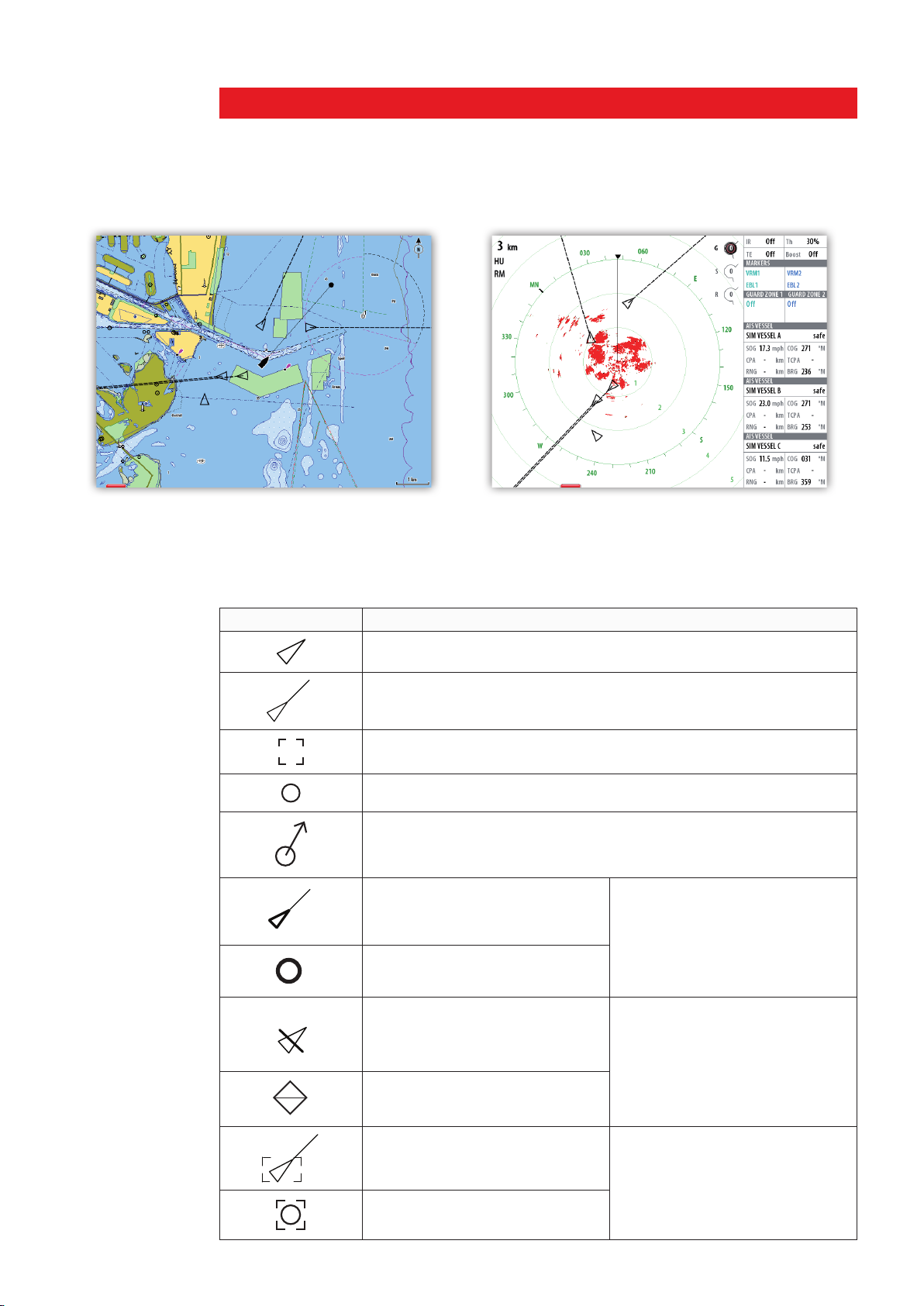

Target symbols ............................................................................... 37

How to display other vessels ............................................................. 38

Receiving MMSI messages ................................................................ 38

Deﬁ ning a guard zone around you vessel ............................................ 38

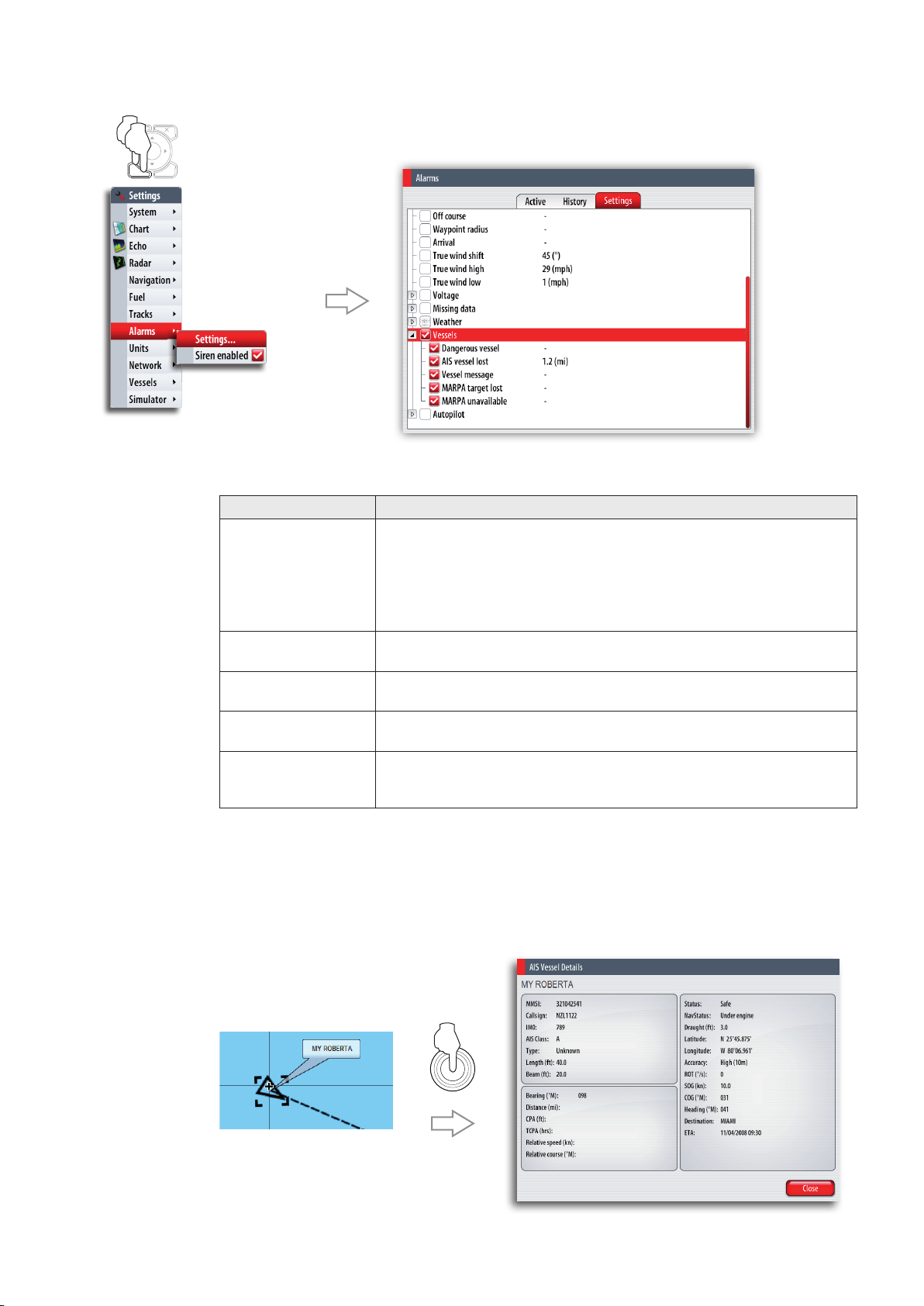

Target alarm settings ....................................................................... 39

Viewing information about targets ..................................................... 39

Finding other AIS vessels ................................................................. 40

8 Using the echosounder .................................................................41

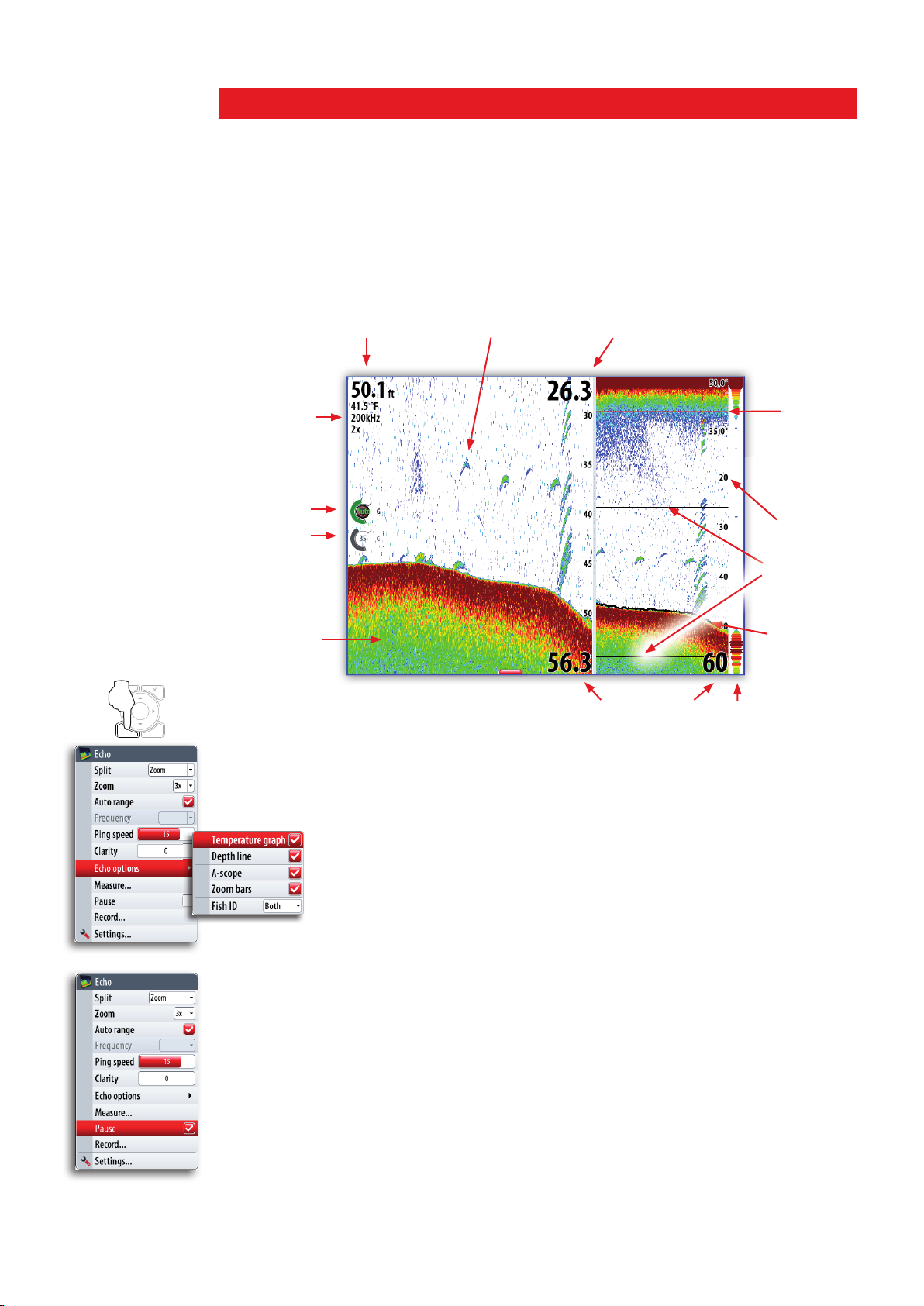

The echosounder image ................................................................... 41

Pausing the sounder image .............................................................. 41

Setting up the sounder display ......................................................... 42

Using colors .................................................................................... 43

Using the cursor on the echosounder panel ......................................... 44

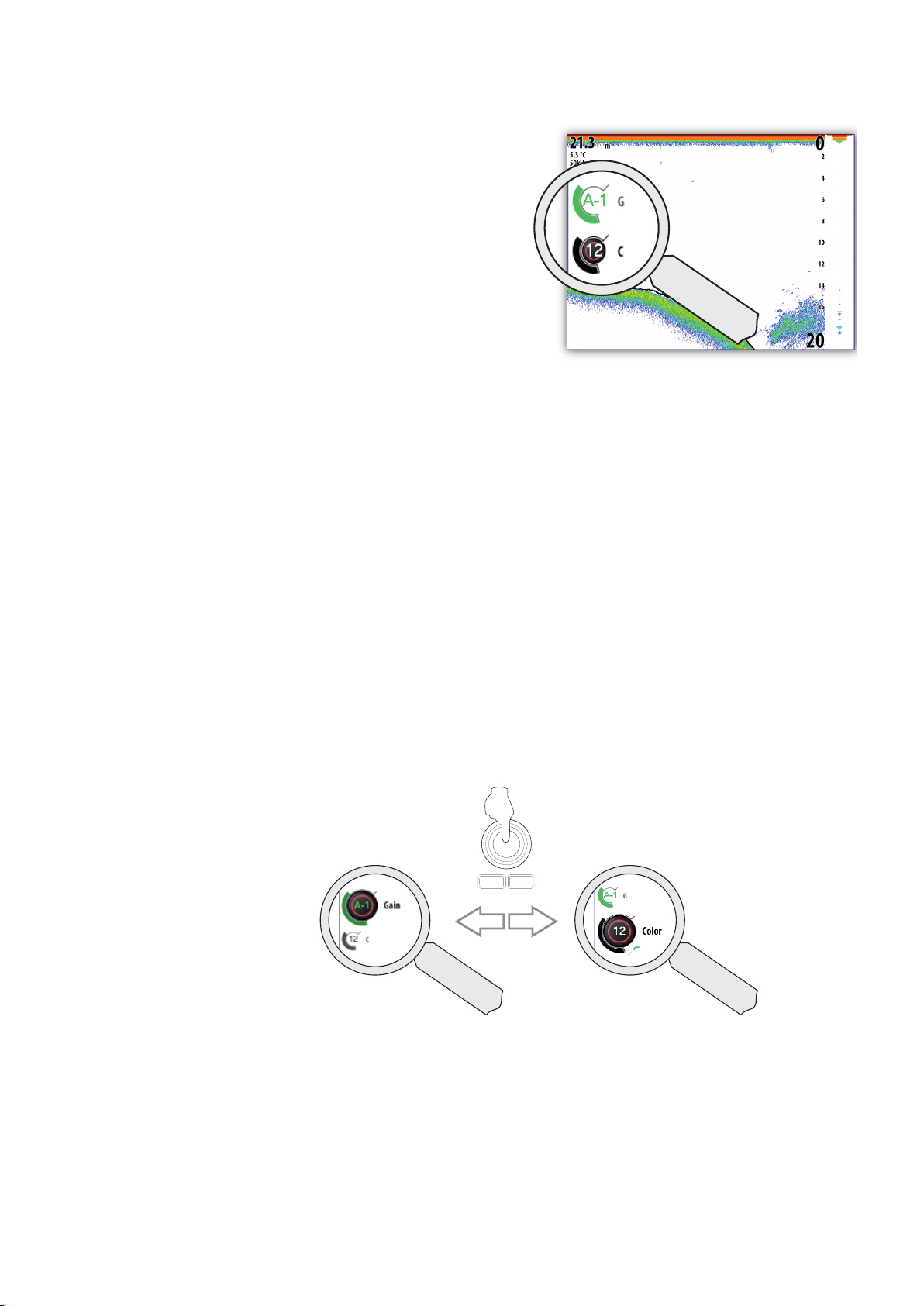

Optimizing the echosounder image .................................................... 45

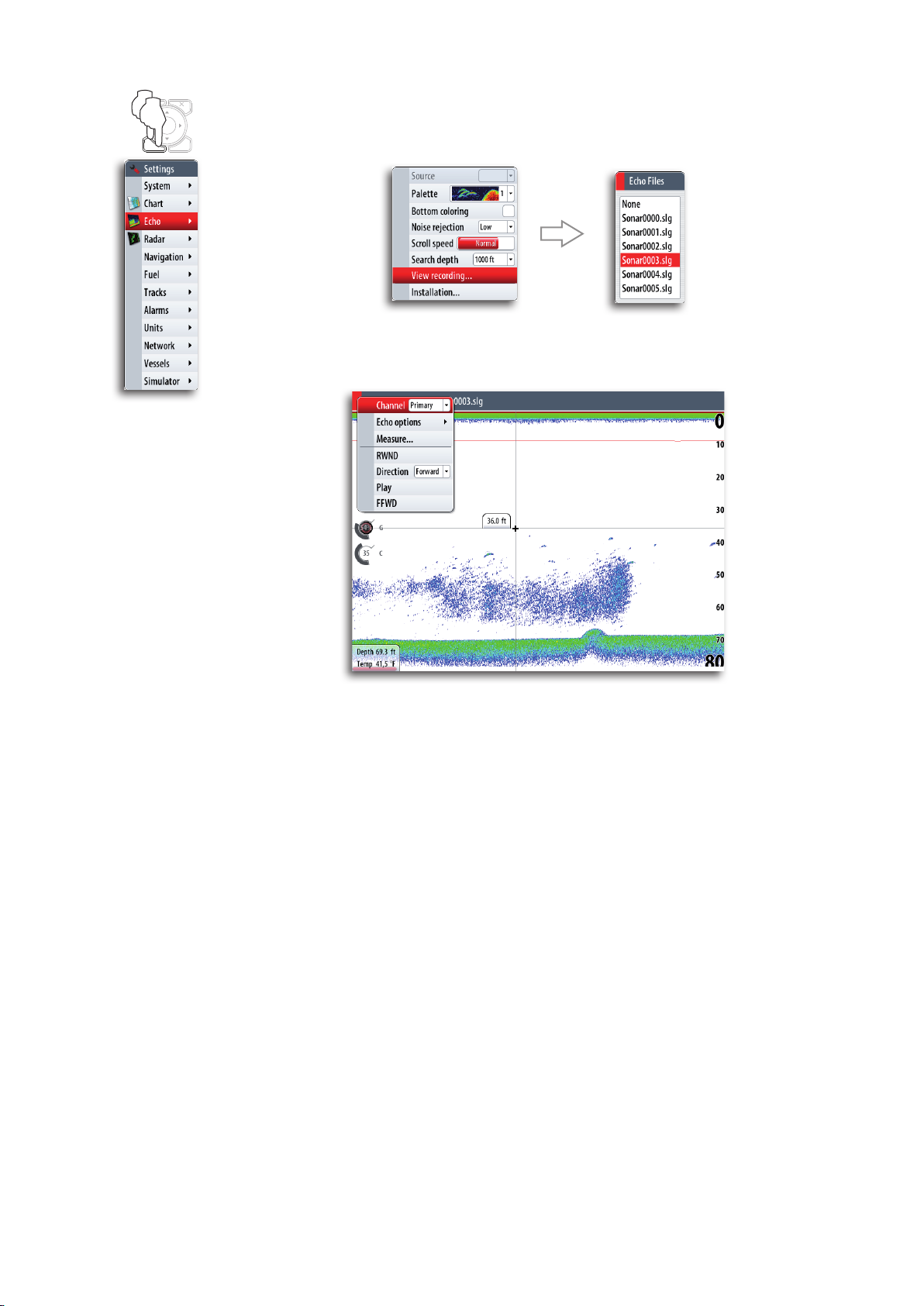

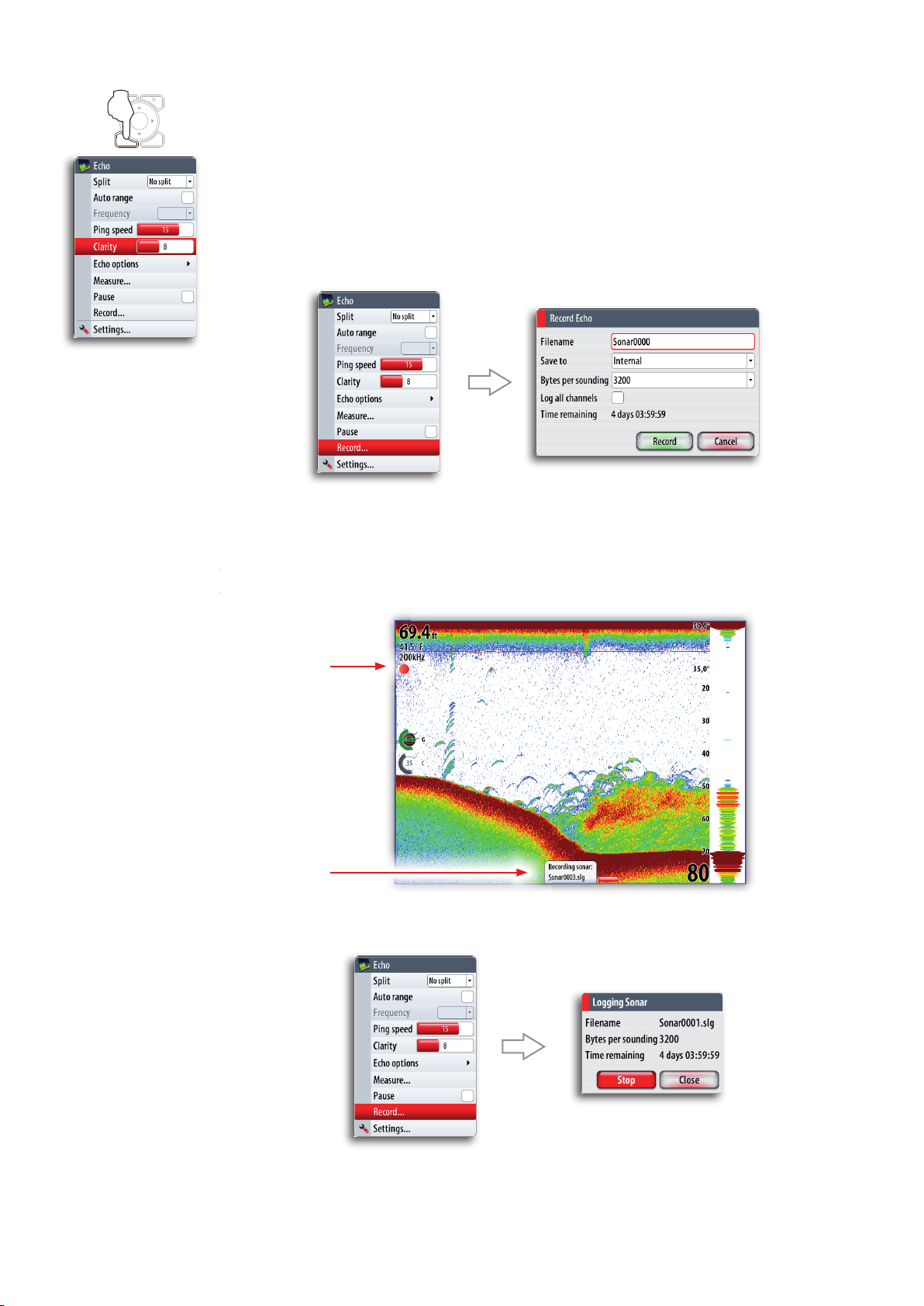

Recording the echosounder data ....................................................... 46

9 Navigating ....................................................................................49

Start navigating .............................................................................. 49

Cancel navigation ............................................................................ 49

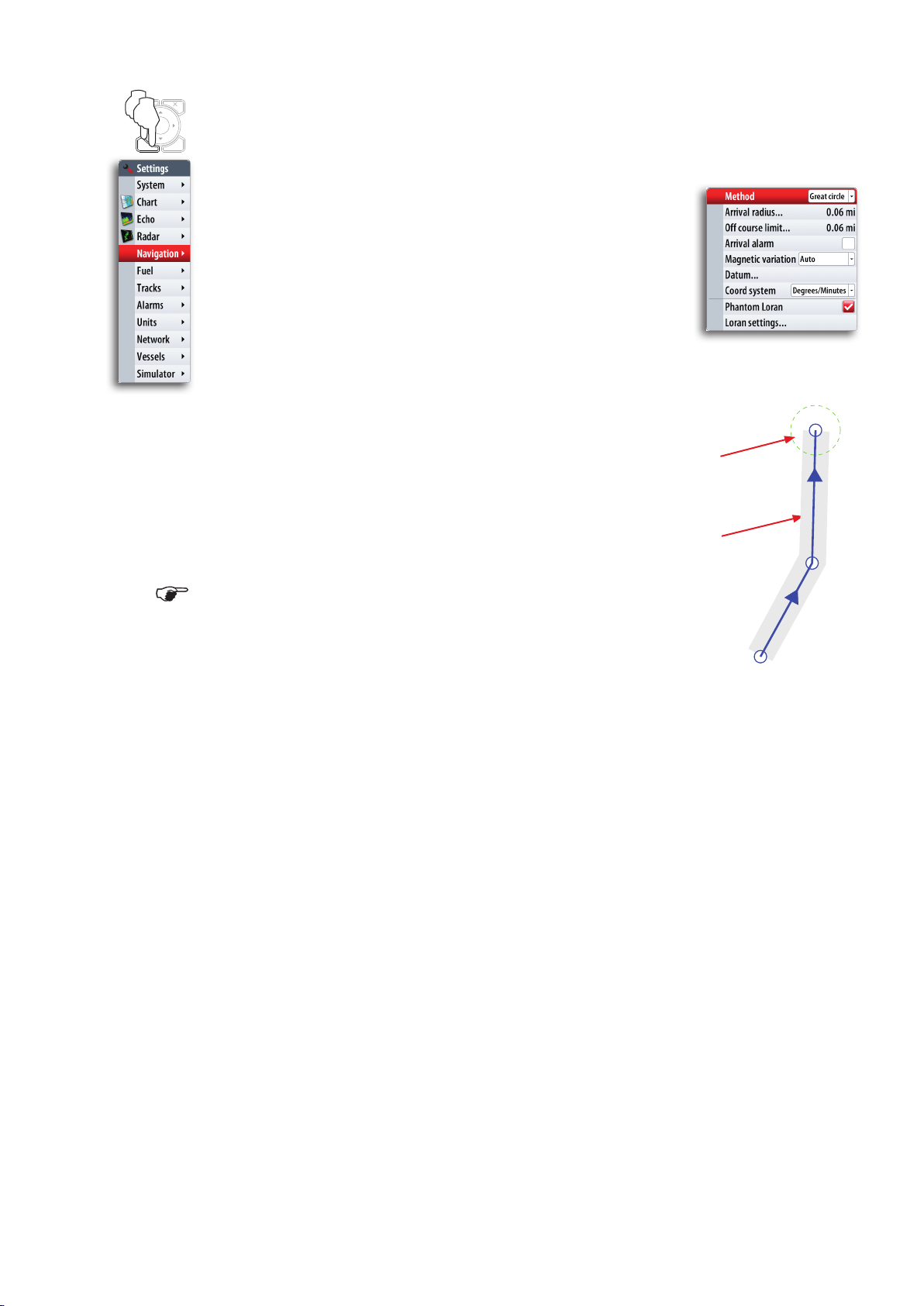

Navigation parameters ..................................................................... 50

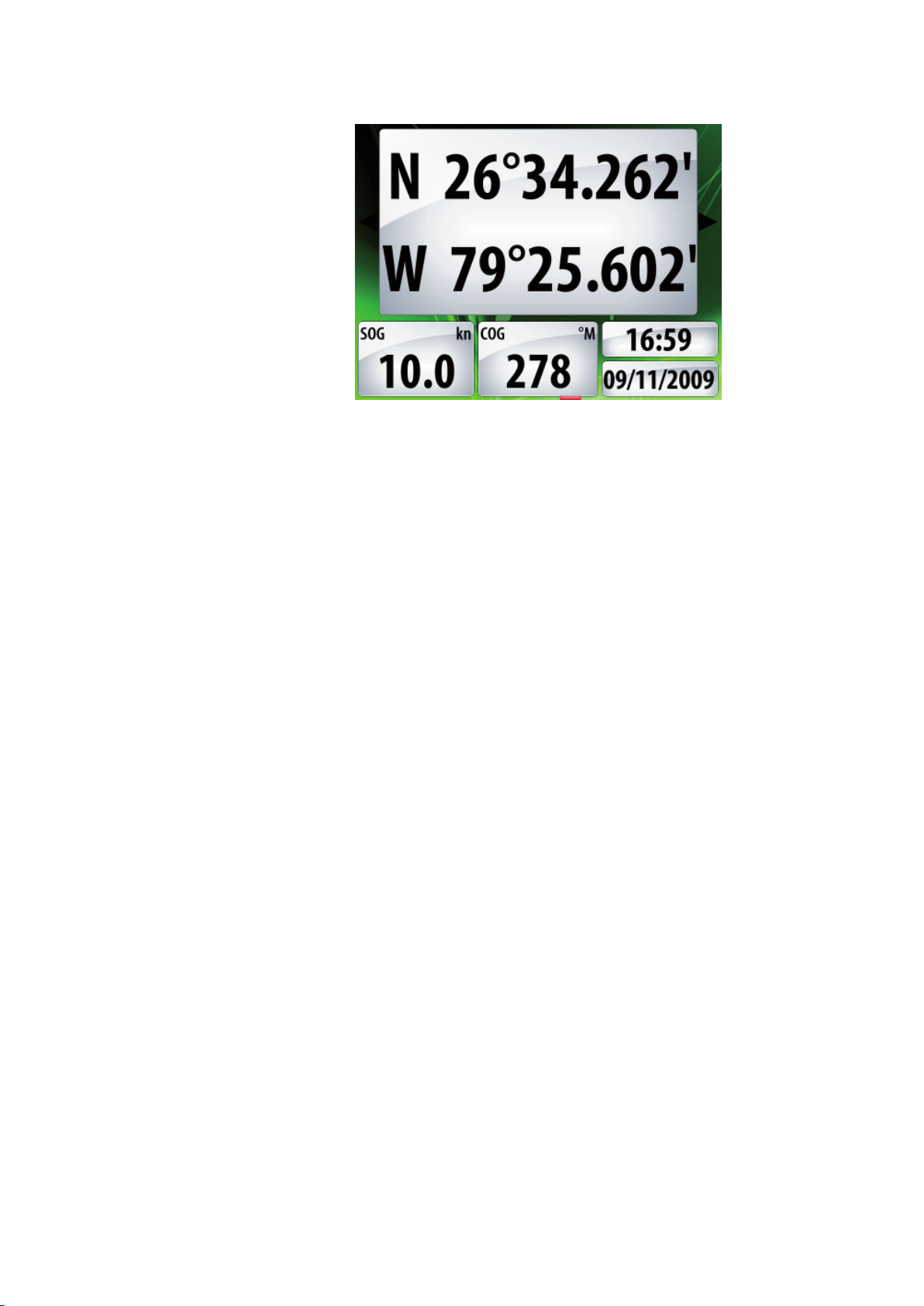

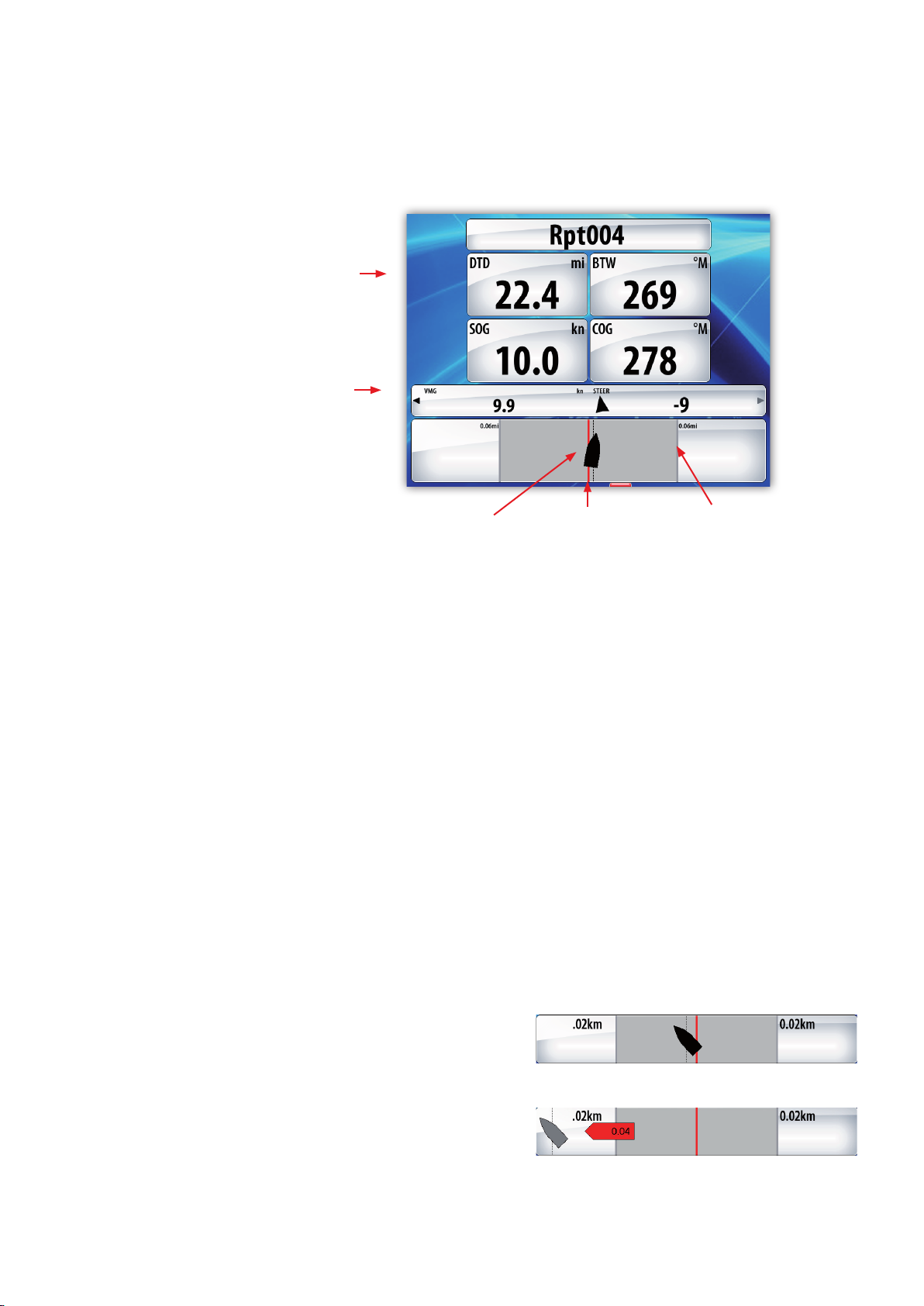

Navigation panels ............................................................................ 51

10 The instrument panel ....................................................................53

Switching between dashboards ......................................................... 53

Dashboard styles ............................................................................ 53

4 | Table of contents

Adding dashboards .......................................................................... 53

Customizing a dashboard ................................................................. 53

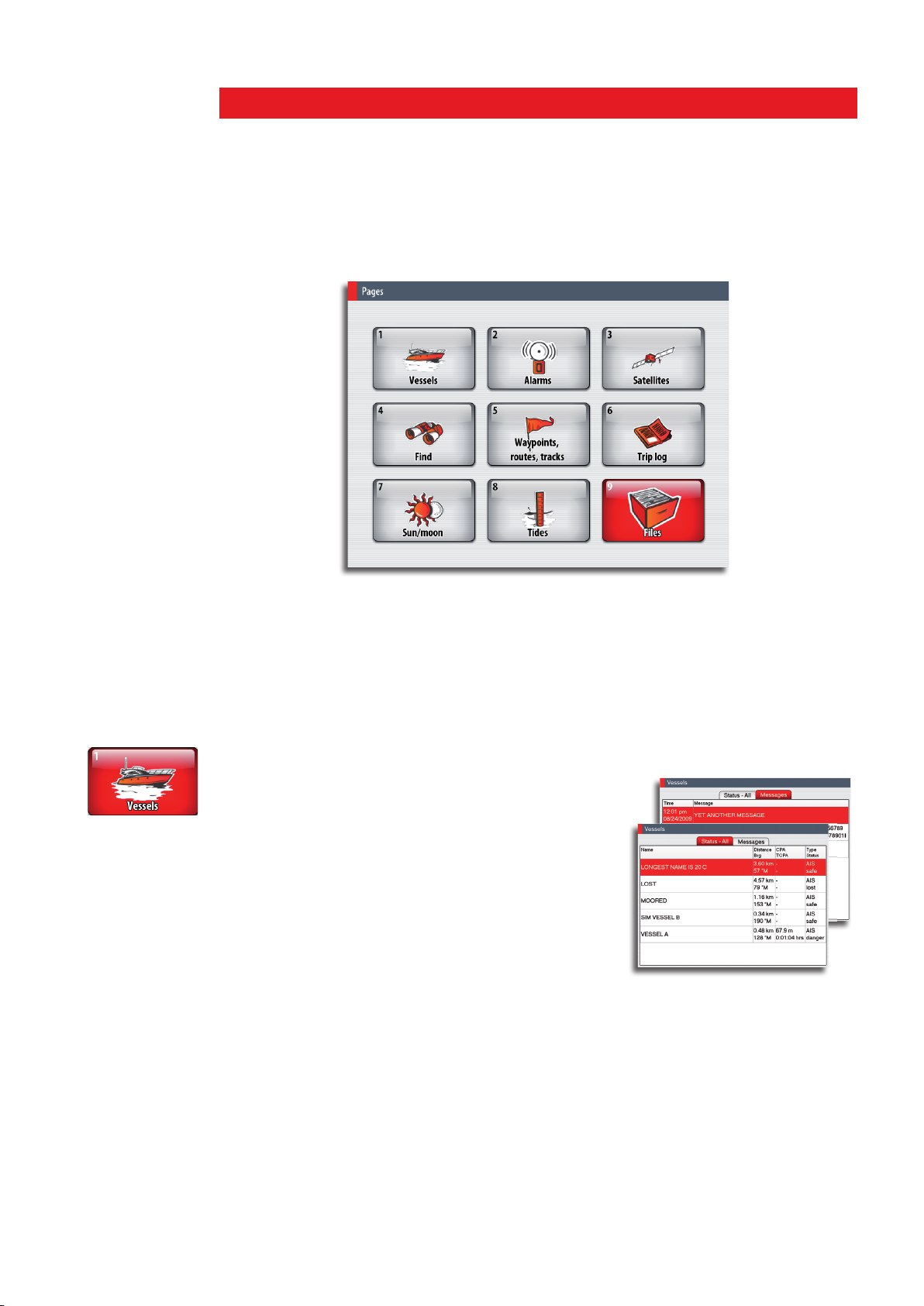

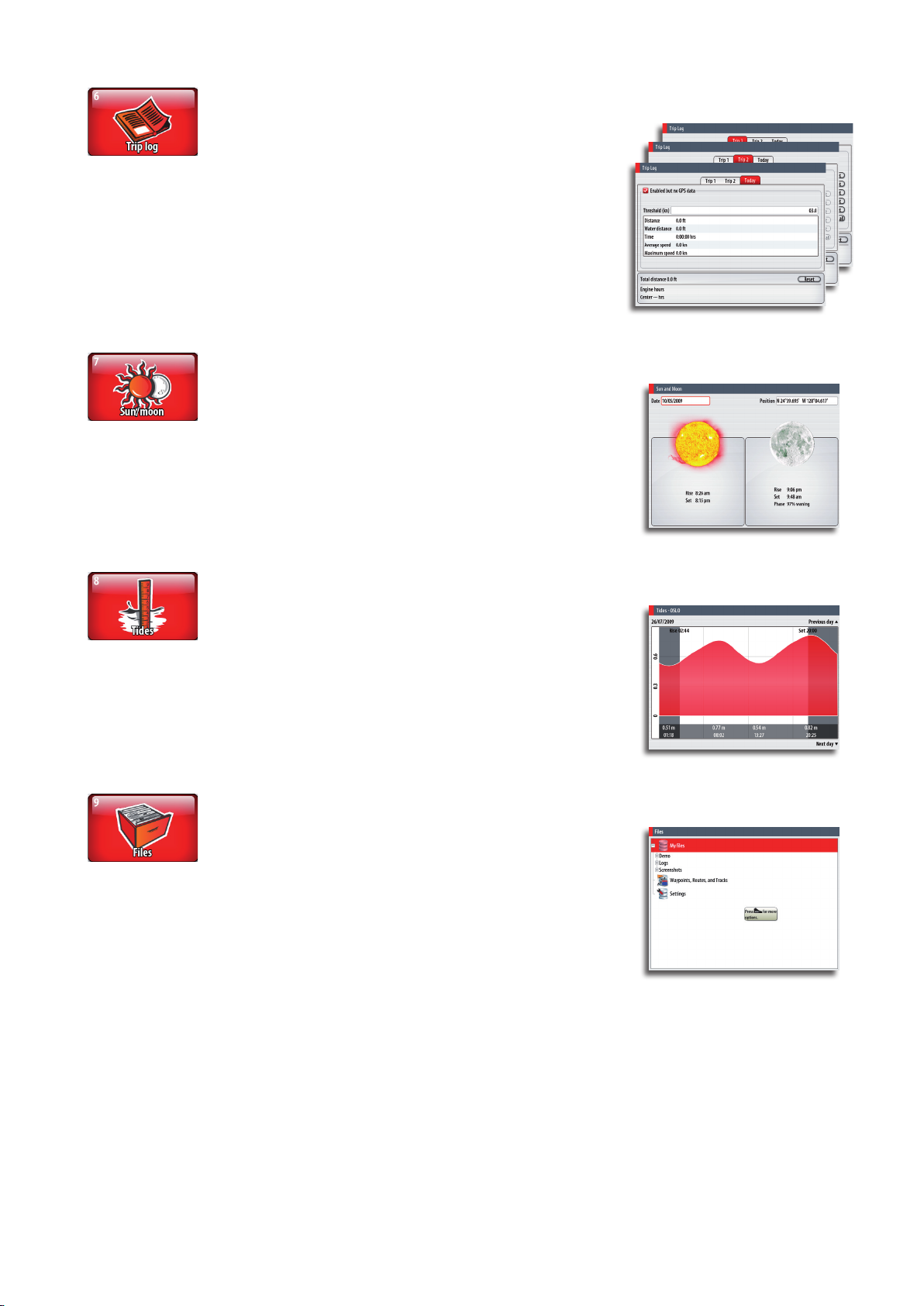

11 The utilities pages ........................................................................55

Vessels .......................................................................................... 55

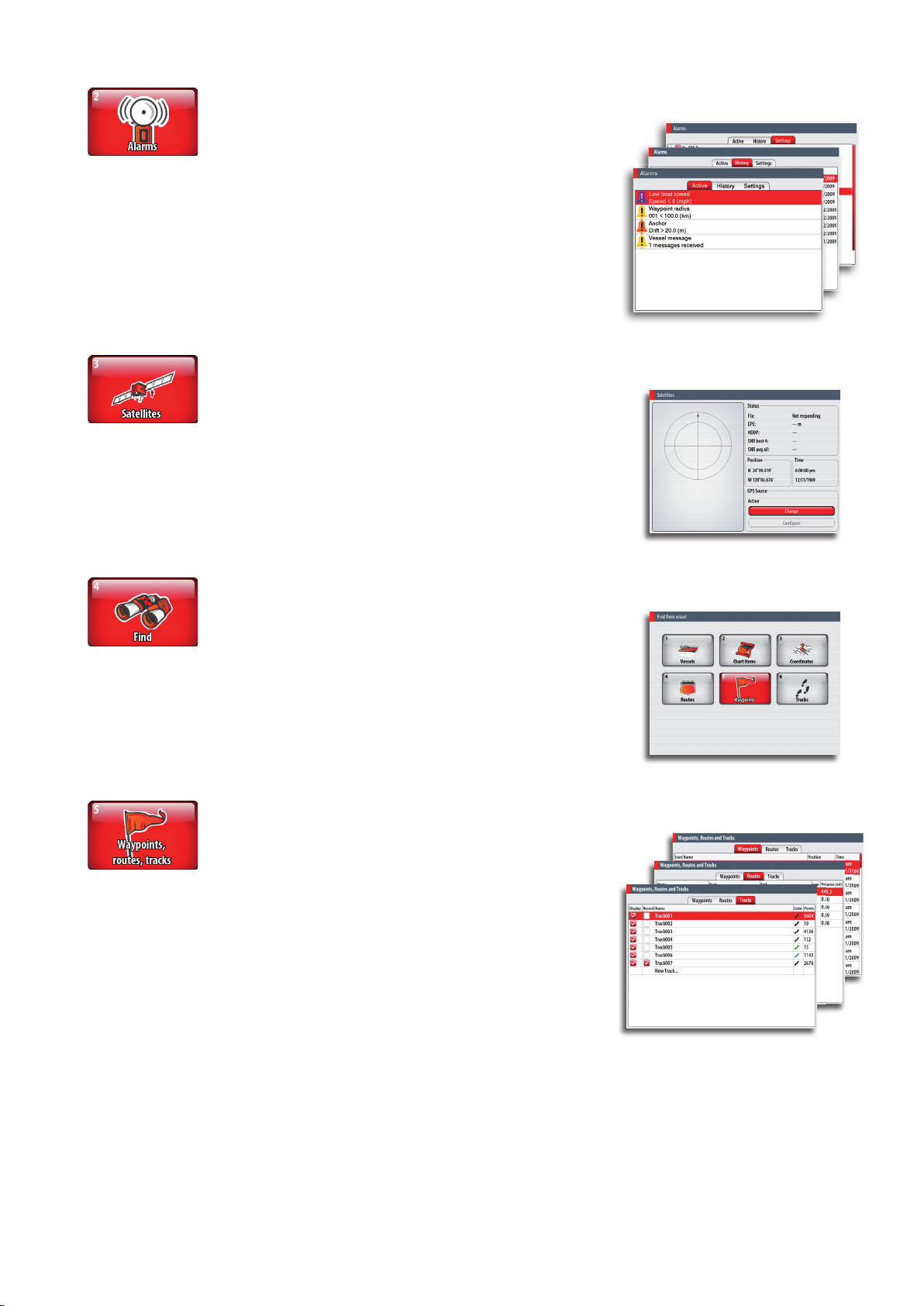

Alarms ........................................................................................... 56

Satellites ........................................................................................ 56

Find ............................................................................................... 56

Waypoints/routes/tracks .................................................................. 56

Trip Log ......................................................................................... 57

Sun/moon ...................................................................................... 57

Tides ............................................................................................. 57

Files .............................................................................................. 57

12 Customizing your system .............................................................. 59

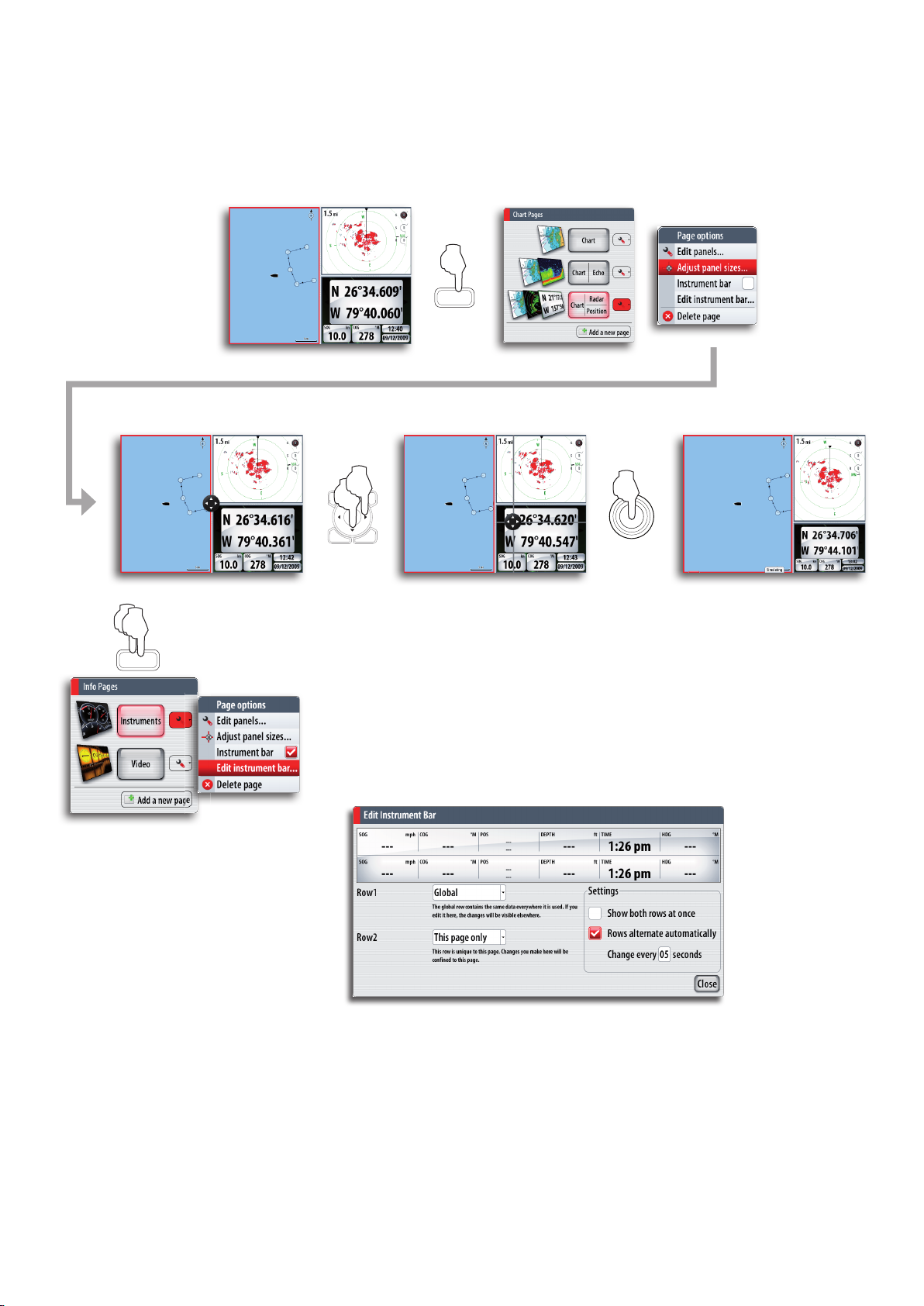

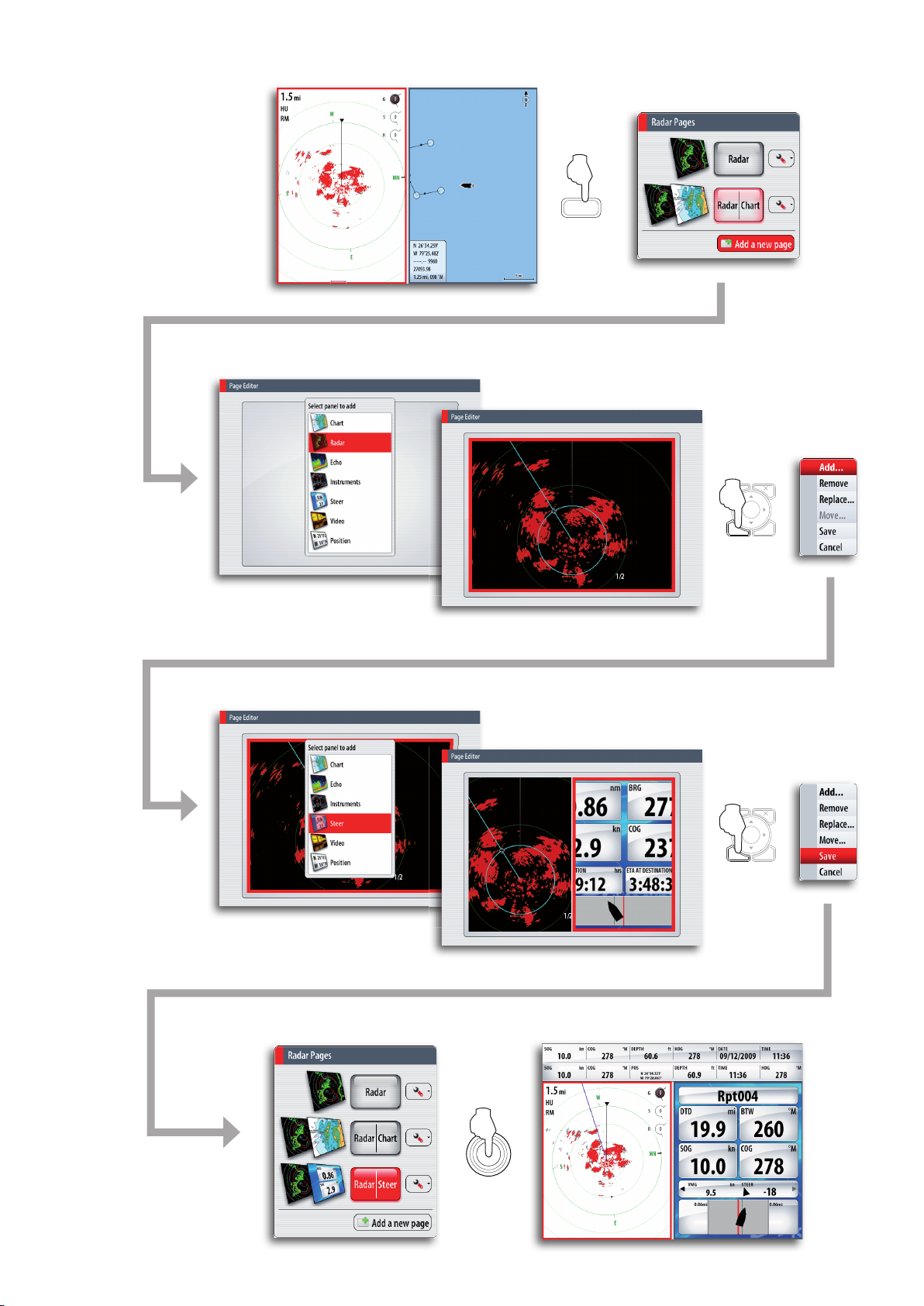

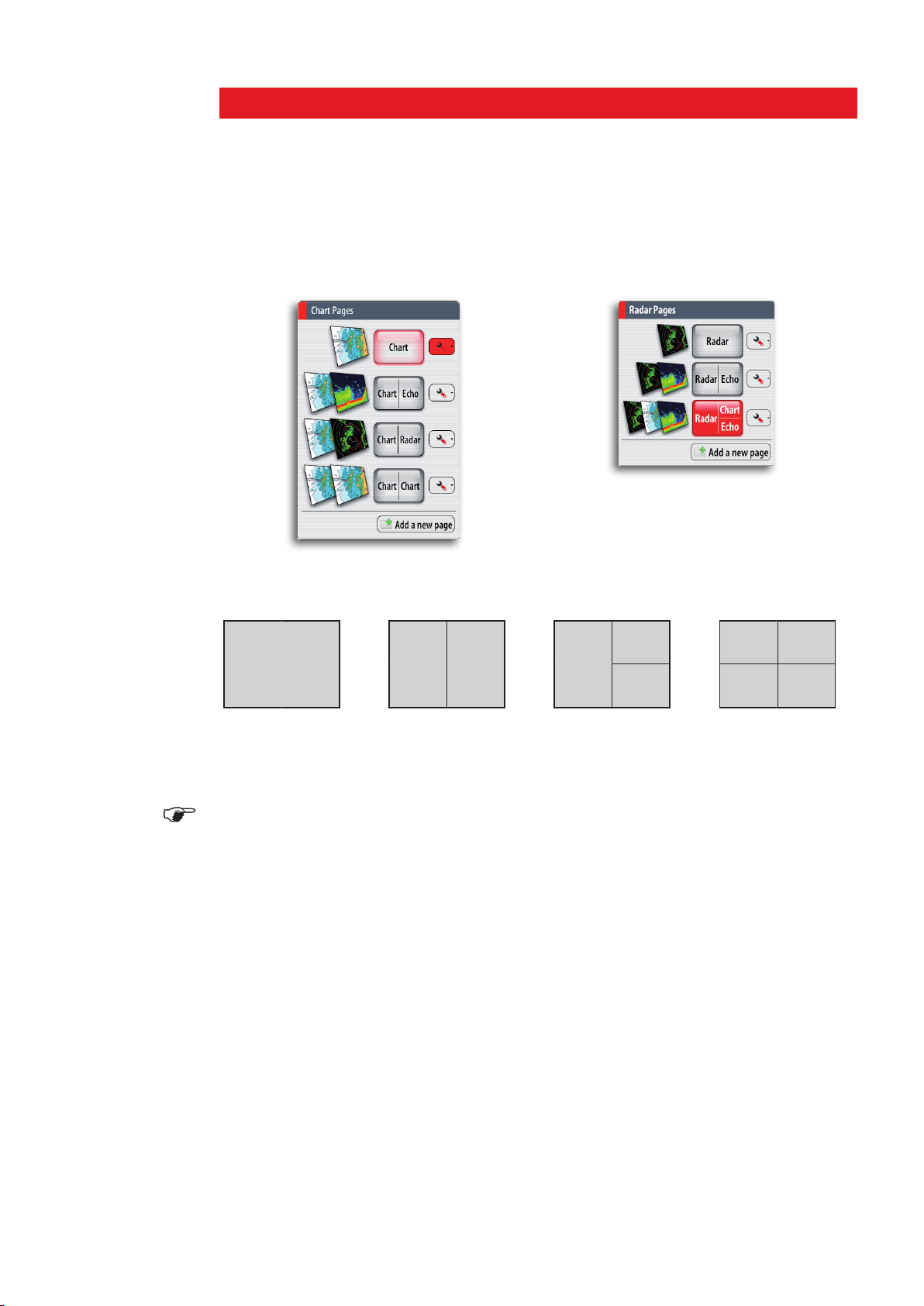

Page setup ..................................................................................... 59

Adjusting panel size ......................................................................... 61

Setting the appearance of the instrument bar ..................................... 61

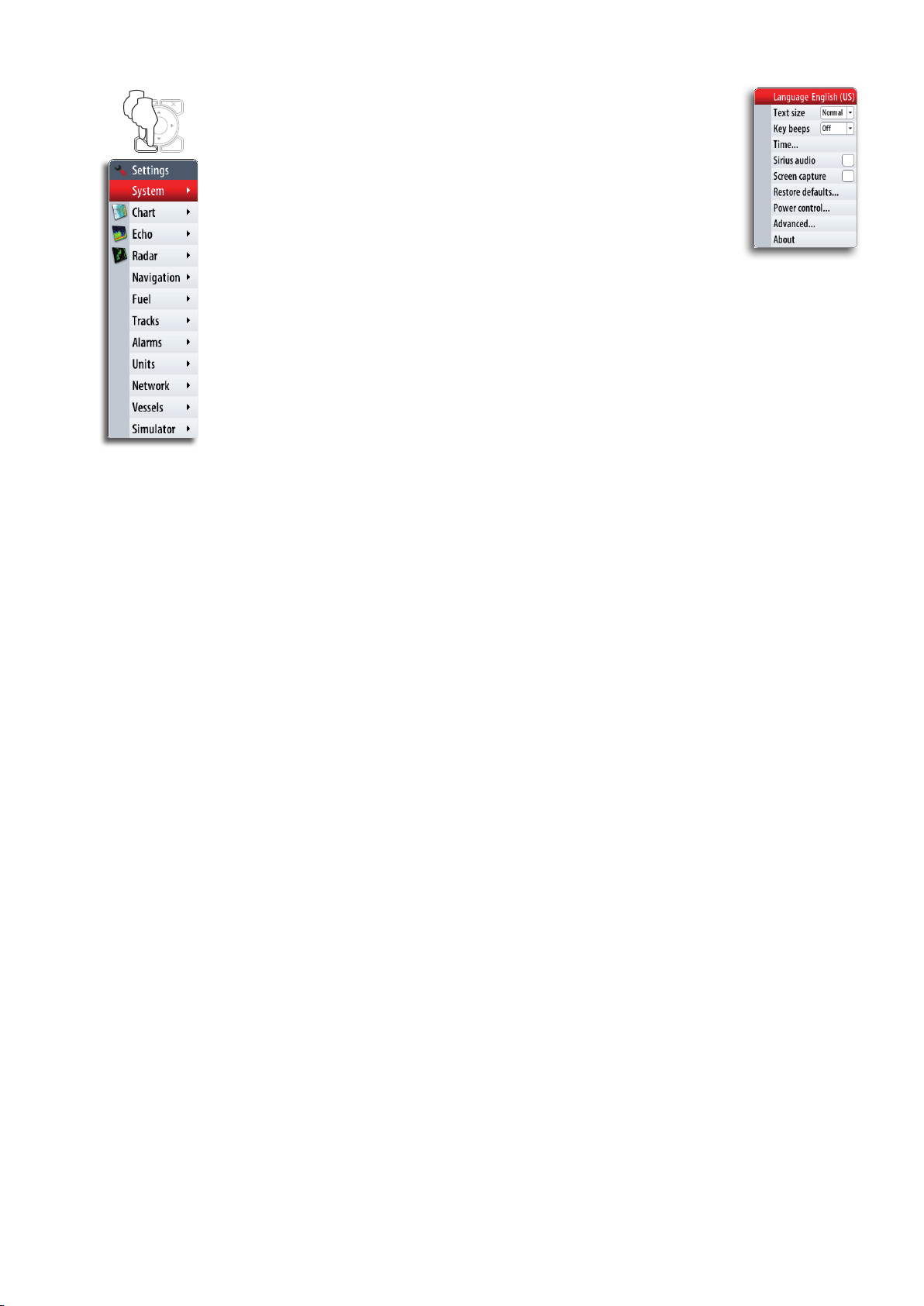

Changing system settings ................................................................. 62

13 Sirius audio and weather (North America only) ............................ 63

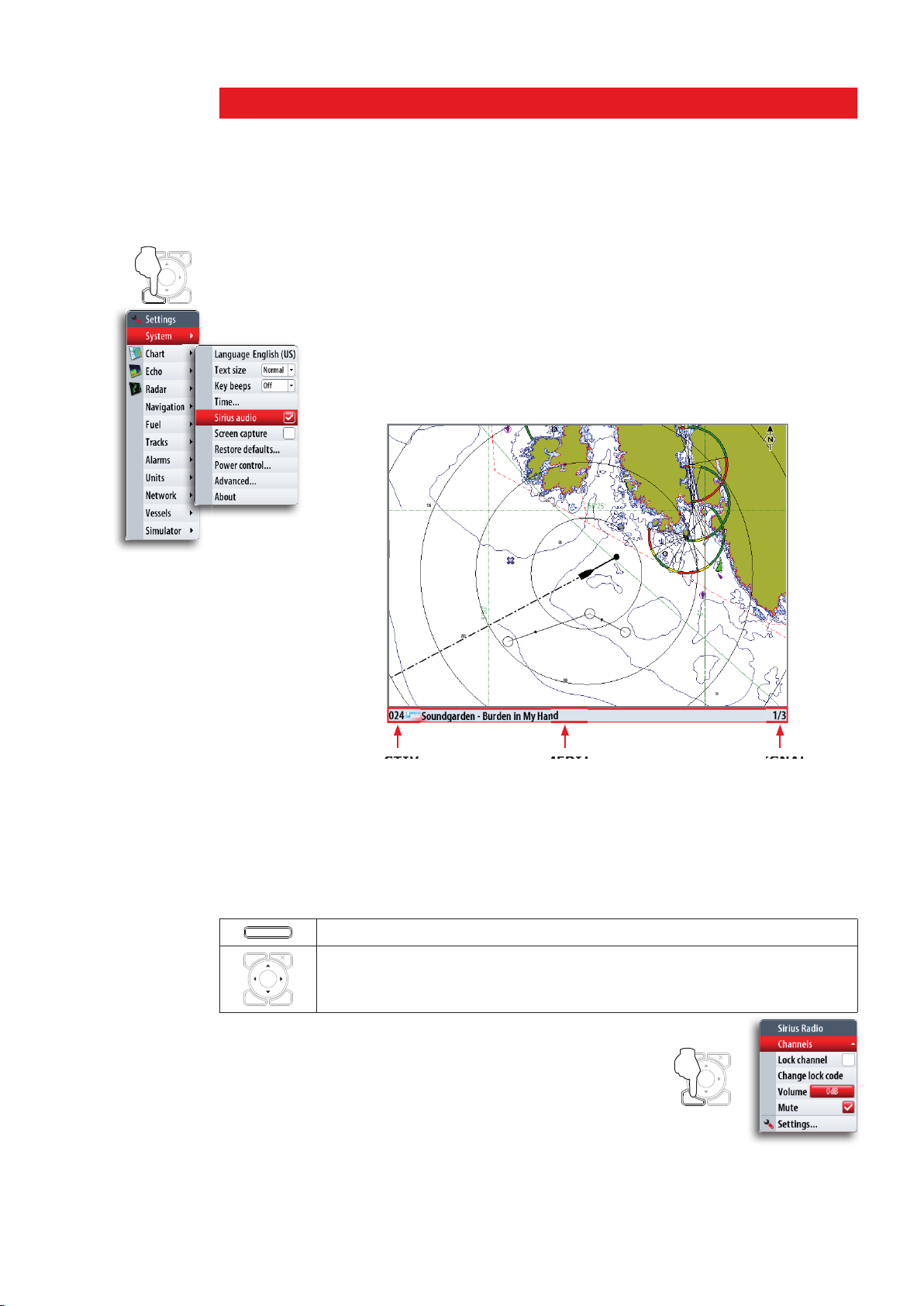

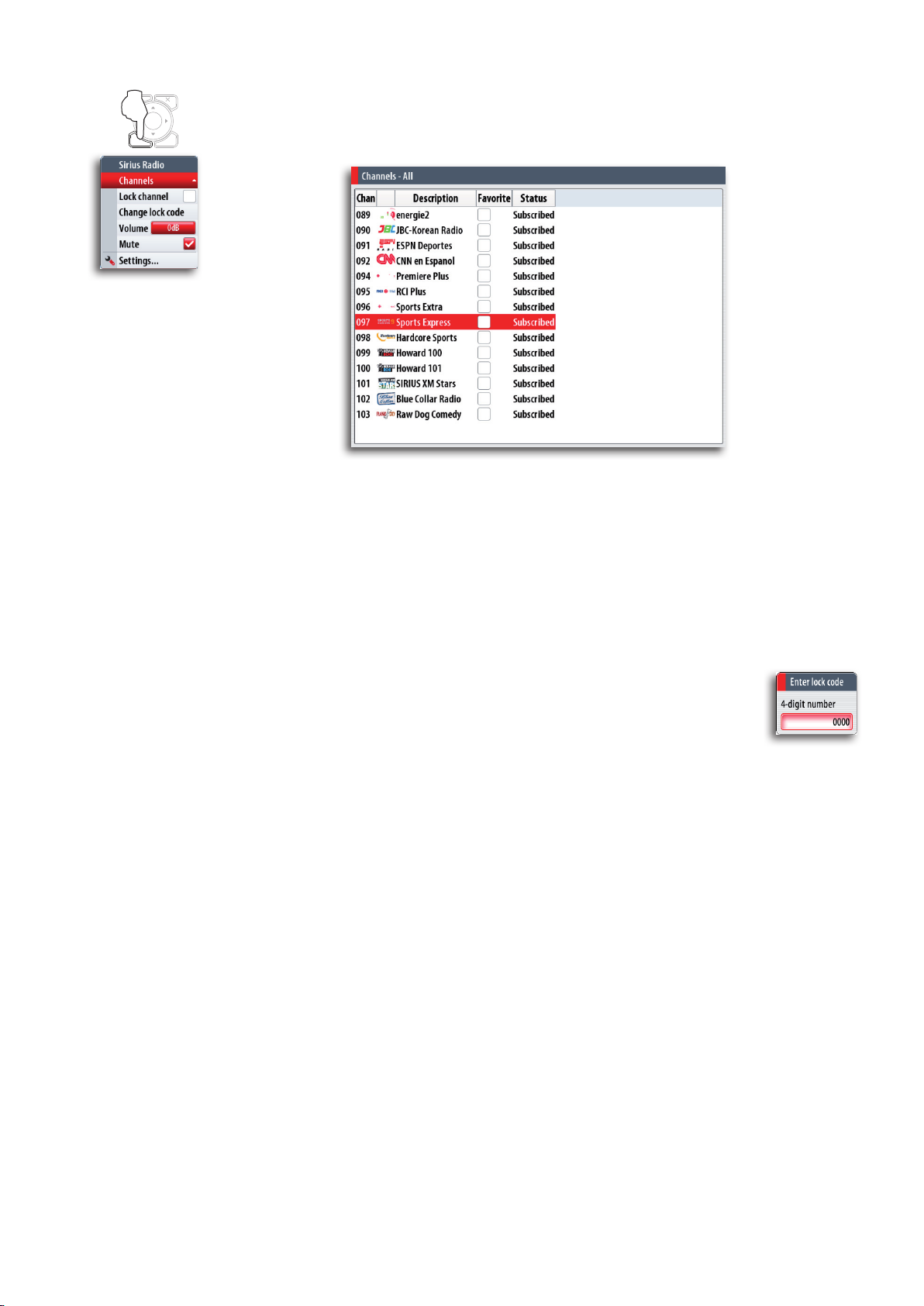

Sirius audio .................................................................................... 63

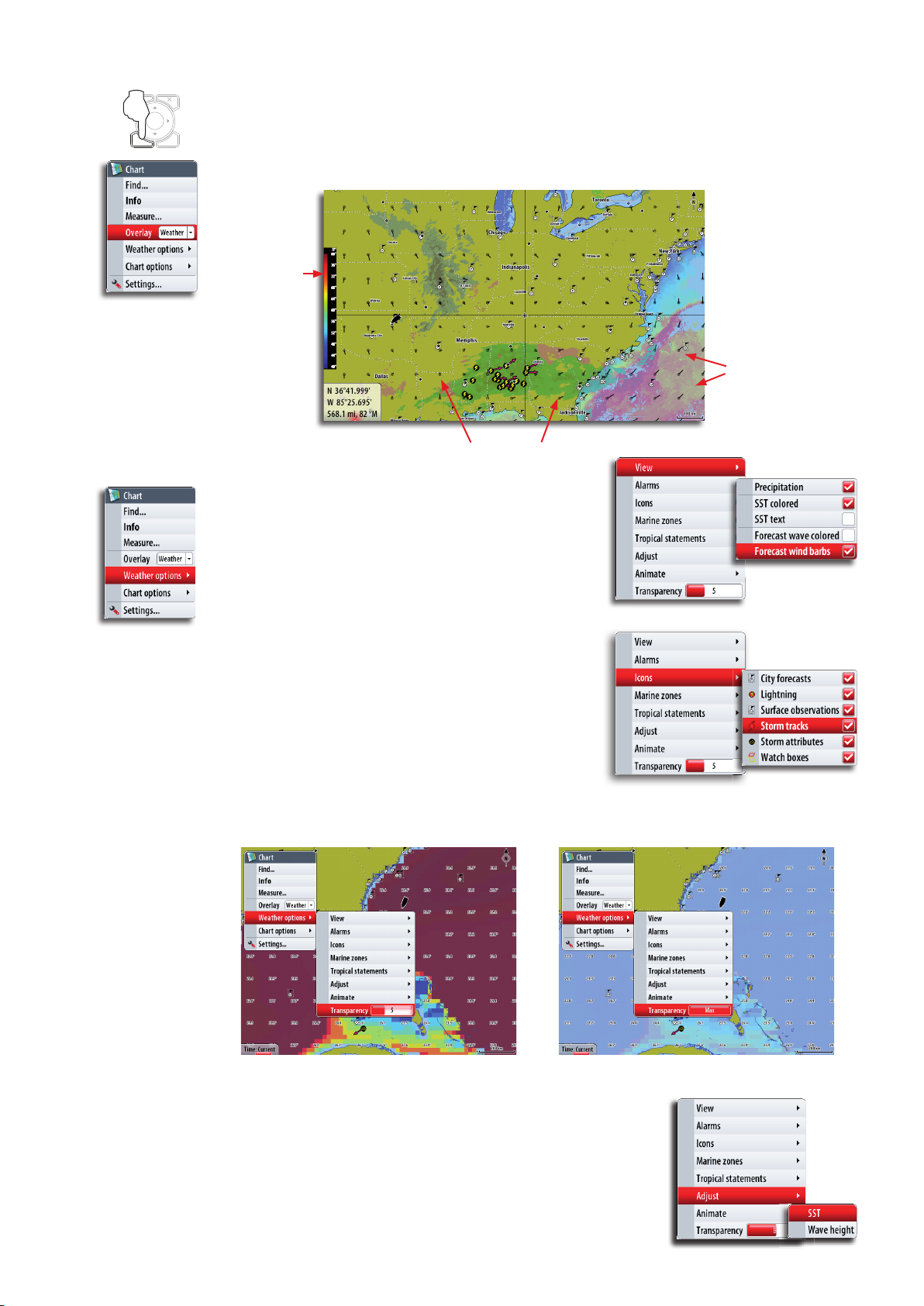

Sirius weather ................................................................................. 65

Setting up the weather image ........................................................... 65

Weather forecast ............................................................................. 66

Weather alarm settings .................................................................... 66

Animating weather graphics .............................................................. 66

14 Using video ................................................................................... 67

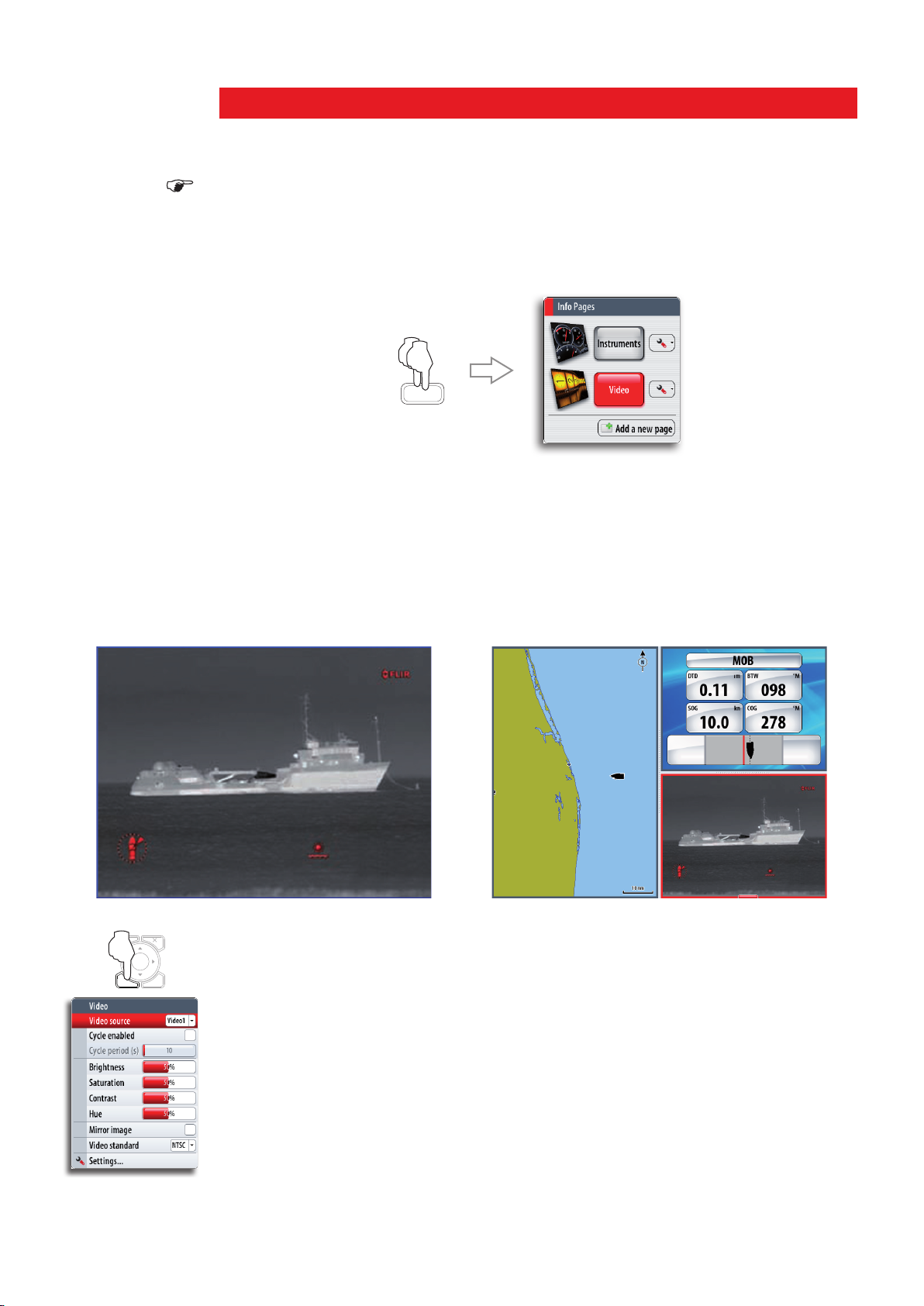

The video panel .............................................................................. 67

Customizing your video settings ........................................................ 67

Optimizing the video image .............................................................. 68

Selecting video standard .................................................................. 68

15 The alarm system ......................................................................... 69

Type of messages ............................................................................ 69

Acknowledging a message ................................................................ 69

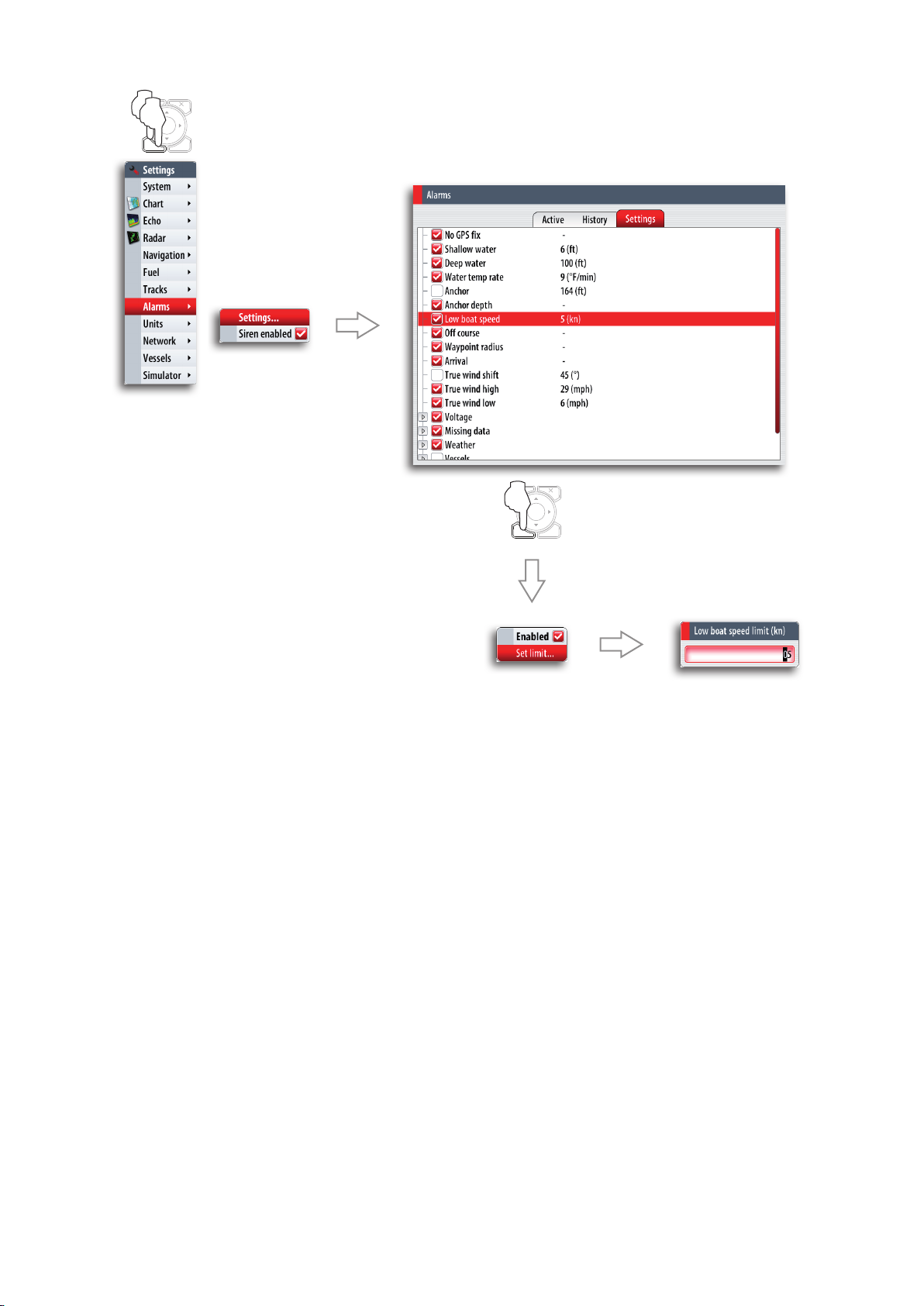

Customizing the alarm settings ......................................................... 70

16 Maintenance ................................................................................. 71

Preventive maintenance ................................................................... 71

Simple maintenance procedures ........................................................ 71

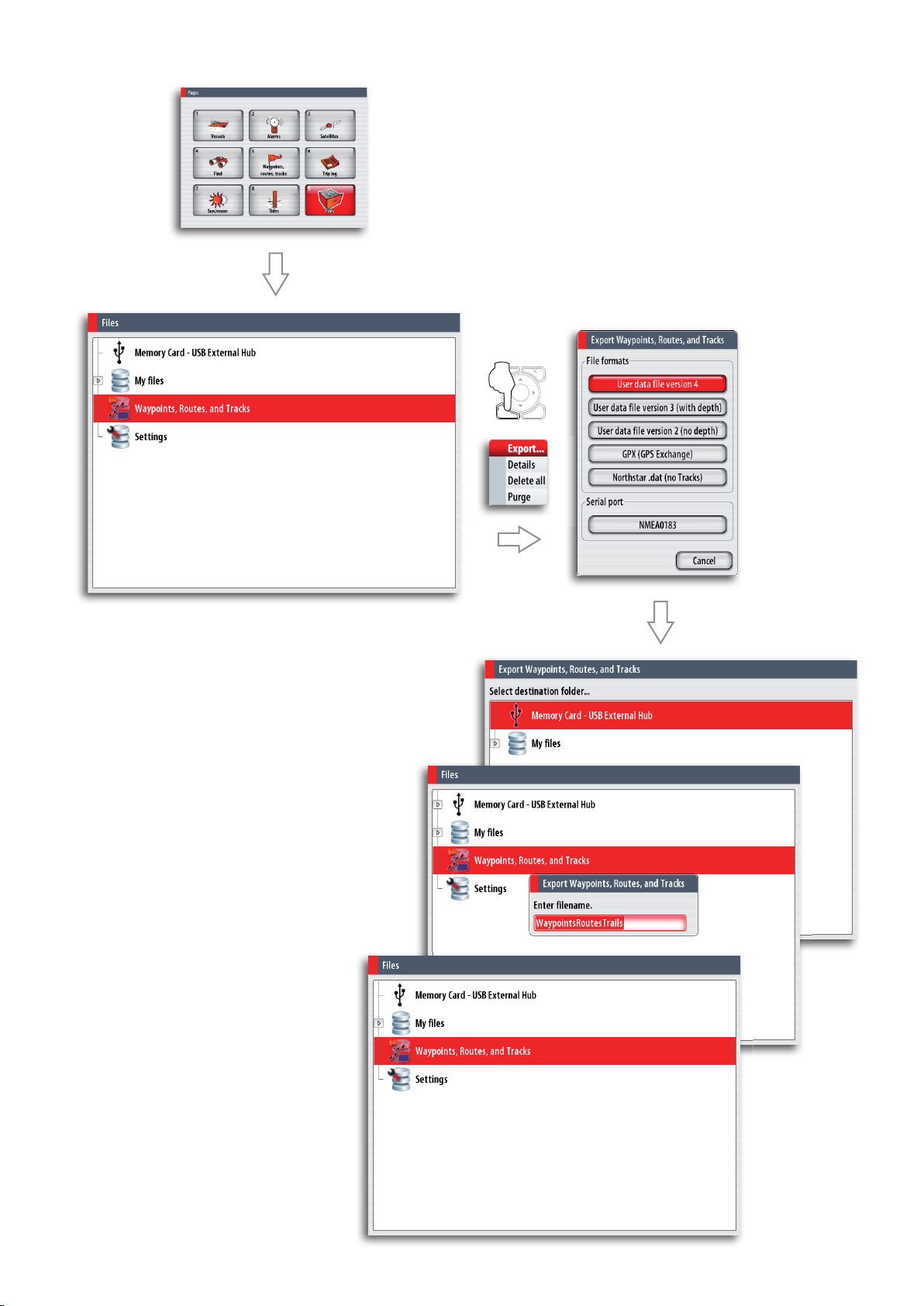

Backing up your system data ............................................................ 71

17 Menu overview ..............................................................................73

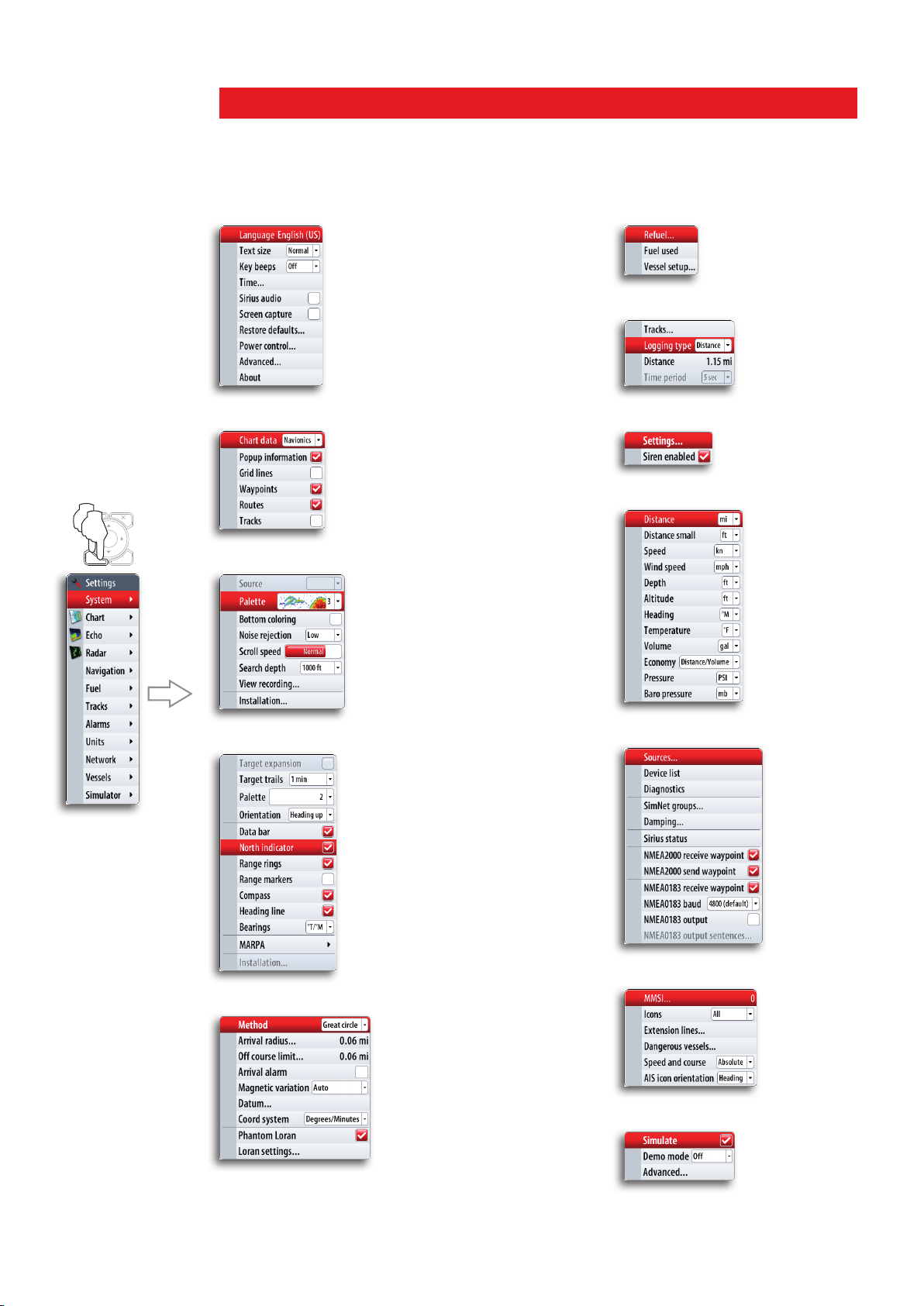

Settings menus ............................................................................... 73

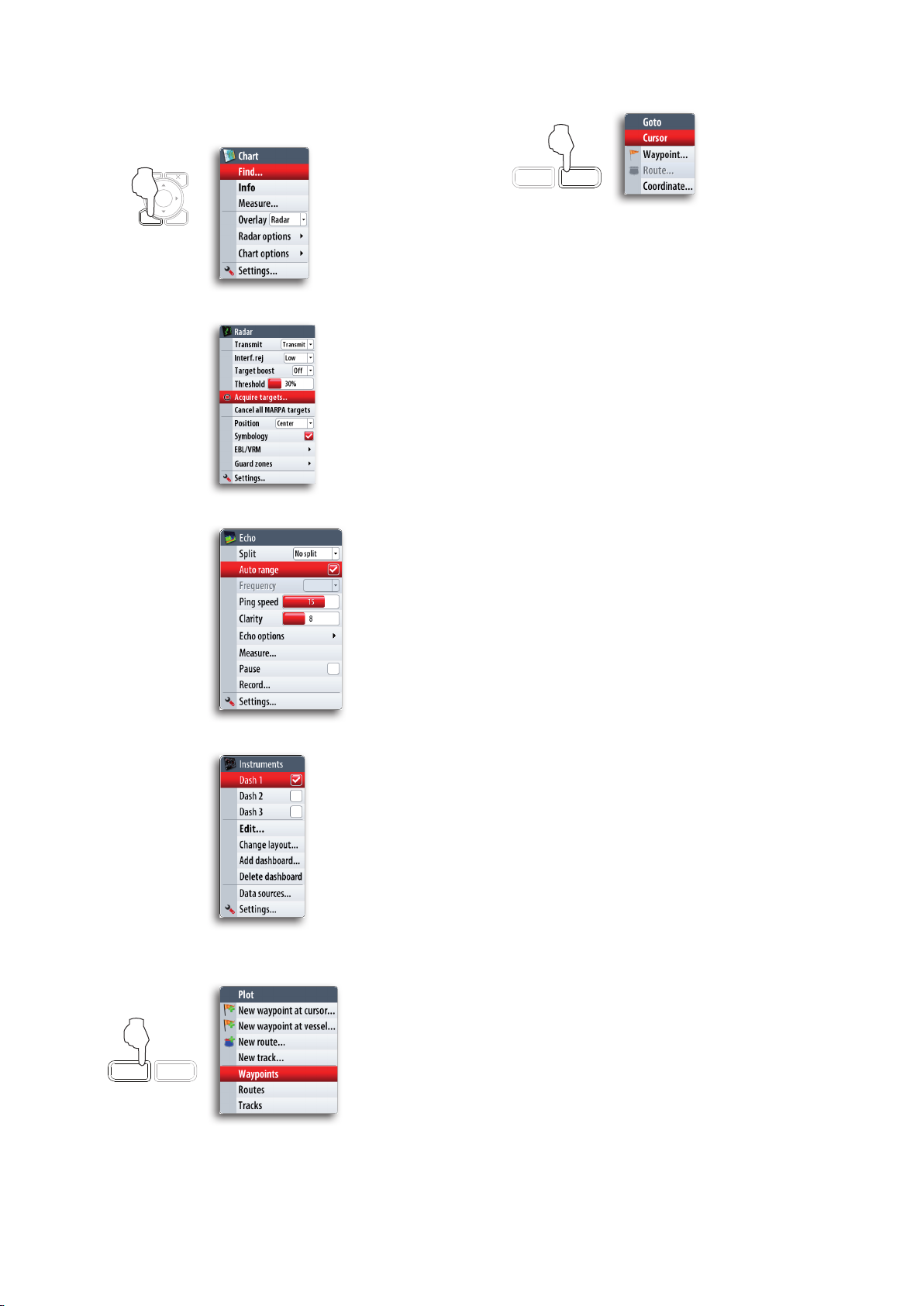

Context menus ............................................................................... 74

Plot menu....................................................................................... 74

Goto menu ..................................................................................... 74

18 Index ............................................................................................ 75

Table of contents | 5

Blank page

6 | Table of contents

Overview1

Front panel

ECHORADARCHART NAV INFO PAGES

2 4

PLOT

GO TO

MARK

VESSEL

WIN

OUT

MOB

ABC DEF

123

JKLGHI MNO

456

TUV

PQRS

WXYZ

809

STBY

PWR

AUTO

Direct Access Keys (DAK). Provide direct access to a page. Repeated presses

of each DAK cycles through several different pages that relate to the DAK

PLOT/MARK key. A short press activates the Plot menu, a long press positions

a waypoint at the vessel position

Rotary knob. Used to maneuver in the menu system, and for context specific

operation

GOTO/VESSEL key. A short press activates the Goto menu, a long press

centers the chart to vessel position

3 ( Tick) key. Activates/conﬁ rms current selection

X (Exit) key. Used to close dialogs, and to return to previous menu level.

Toggles between cursor and vessel position on chart panels. Removes the cursor from the screen on radar and echosounder panels

Cursor keypad used to move the cursor on the display, and to maneuver in the

menu system

MENU key. A single press displays the context menu for active panel/overlay/

operation. Pressing the key twice displays the Settings menu

WIN key, used on multiple panels pages. A short press toggles between the

panels, a long press expands active panel to a full page panel

10 Zoom keys for radar, echosounder and chart pages

11 MOB key. A long press positions a MOB waypoint at the vessel’s position

Alpha numeric keypad used for entering numbers and text in dialog boxes.

NOTE: The STBY/AUTO key is reserved for future use.

Power key. A short press activated the Light dialog, a long press turns the unit

off

Overview | 7

The NSE screen structure

Pages and page groups

The NSE screen is comprised of page groups, accessed by pressing one of the Direct Access Keys (DAK).

CHART RADAR ECHO NAV INFO PAG ES

Chart Radar Echosounder Navigation Info Utilities

Each page group (except the Utilities pages) may include 5 pages. The first page in a page group will always be a full screen panel.

The system comes pre-configured with some commonly used pages, and you can also define your own pages. Refer the Customizing your system section.

Chart page group example Radar page group example

Panels

Each application connected to the NSE system is presented on panels, and you can have up to 4 panels per page.

1-panel page 2-panels page 3-panels page 4-panels page

The following panels are available:

Panel Description

Chart Marine chart. Can be displayed as 2D or 3D (Navionics charts)

Radar Radar PPI (Position Plan Indicator)

Echo Echosounder

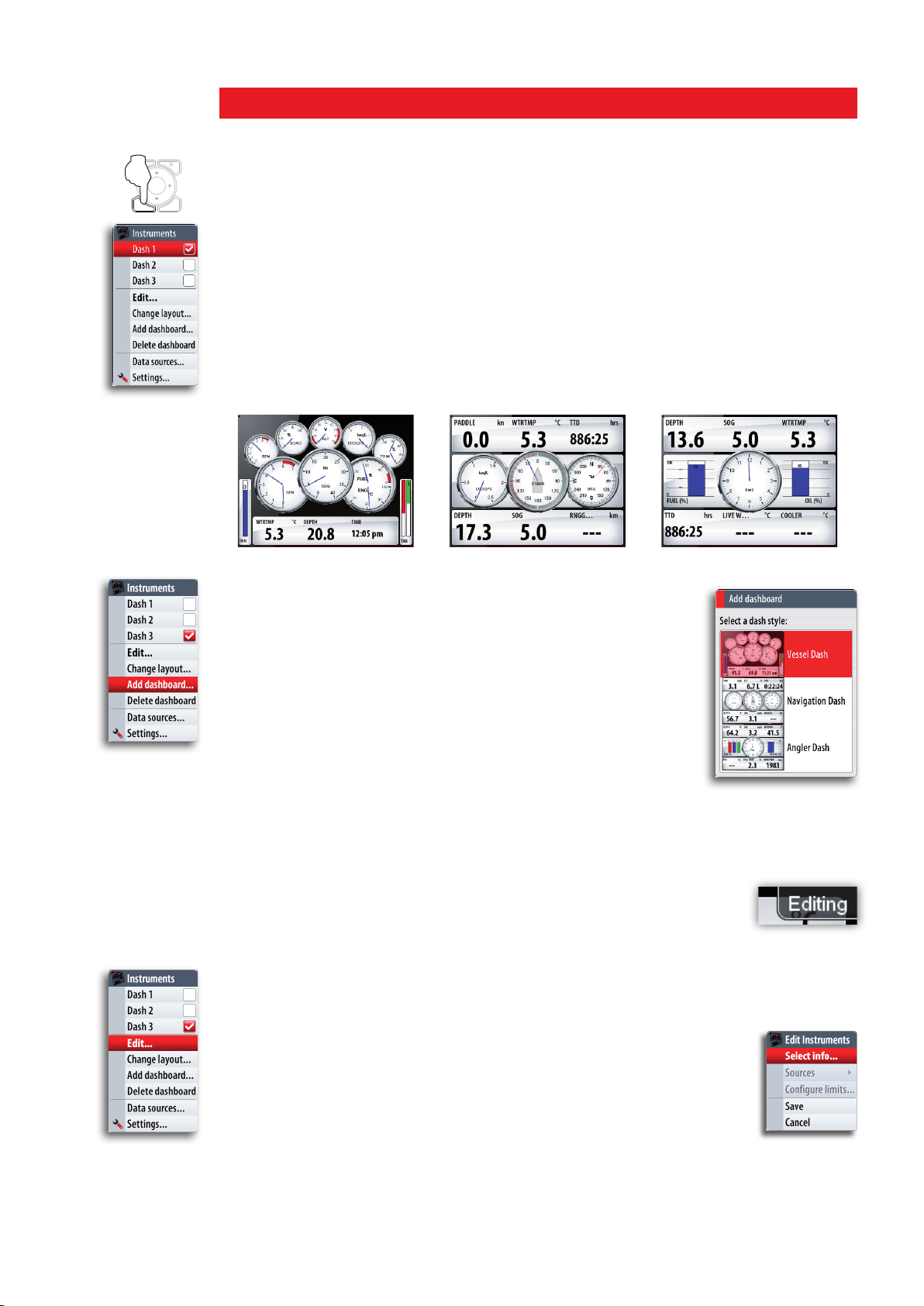

Instruments Conﬁ gurable set of screens representing live data from the vessel.

Shown as digits analog/linear gauges

Steer Navigation information

Video Live video

Position GPS Position, SOG/COG and time

8 | System overview

In addition to these panels the following applications can be connected and displayed on other panels:

Application Description

AIS AIS information as overlay on chart and radar panels

Weather Weather graphics and data as overlay on chart panel.

Sirius Weather application is available in North America only.

Audio Satellite radio functions as a panel along the bottom of a page.

Sirius Audio application is available in North America only.

Instrument bar

Sensors connected to the system can be viewed in an instrument bar on top of your screen.

Several display options are available for this bar; refer Customizing your system section.

Communicating with the NSE unit

The NSE system communicates with the user by using menus and dialogs.

PLOT

MARK

MENU WIN

GO TO

VESSEL

Settings menu

The system includes one Settings menu, accessed by pressing the MENU key twice. It provides access to system settings, advanced settings for each function and for vessel specific settings.

Context menus

A context menu contains items that are relevant to the current context. A context menu is accessed by pressing the MENU key.

Each panel has its own context menu which gives access to basic functions for that panel.

Plot menu

Used for creating new waypoints, routes and tracks, and for accessing the waypoints, routes and tracks library.

The menu can be accessed independent on which panel that is active. When the PLOT key is pressed any other menu action will be interrupted.

PLOT

MARK

GO TO

VESSEL

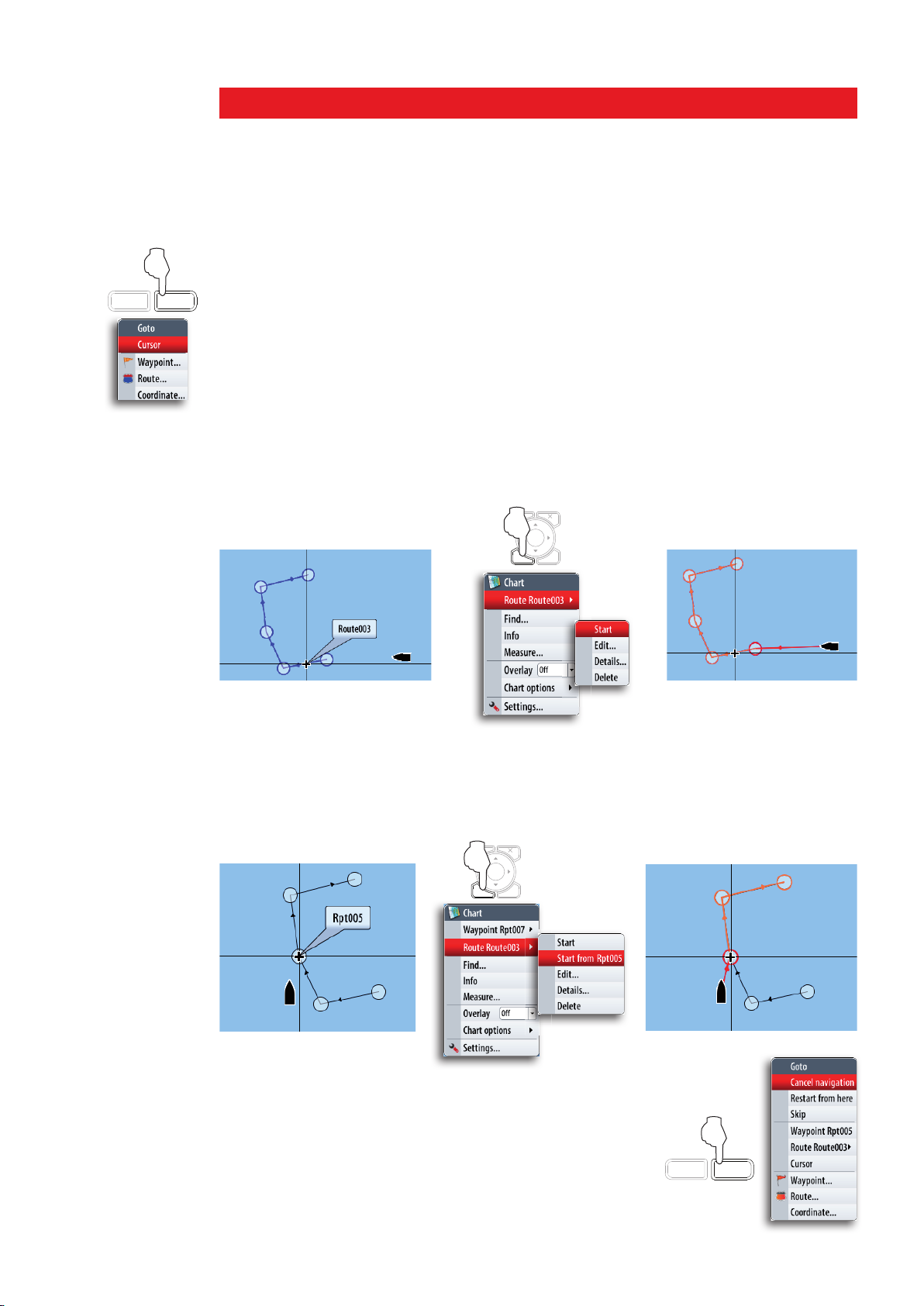

Goto menu

Used to start the navigating function.

When the vessel is navigating the menu will be expanded to include options to stop or change navigation.

The menu can be accessed independent on which panel that is active. When the GOTO key is pressed any other menu action will be interrupted.

System over view | 9

Dialogs

Dialogs are used for entering user input or for presenting information to the user.

A dialog may be presented in full-screen, or as a popup dialog in the centre of the screen.

Depending on type of information or entry, different keys are used to confirm, cancel and close the dialog.

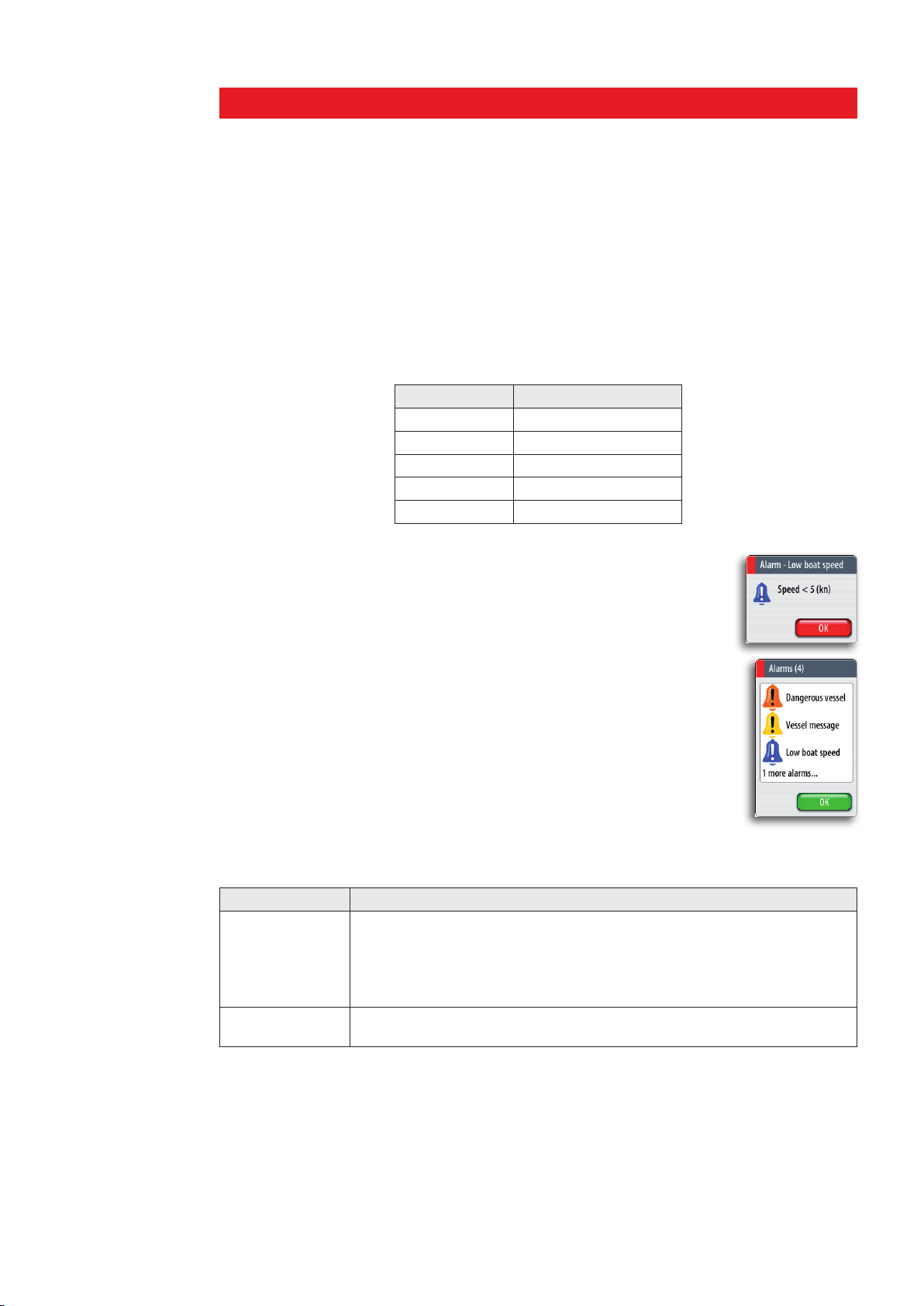

Alarm messages

The NSE system will continually check for dangerous situations and system faults while the system is running.

When an alarm situation occurs, the Alarm window will pop up.

If you have enabled the siren, an audible alarm will be activated when any alarm situation occurs.

Refer to The alarm system section for further information.

10 | System overview

Basic operation2

Turning the unit on/off

POWER ON STAND BY POWER OFF

3 s

PWR

If you turn the unit ON when no external equipment is connected you will be asked to run in simulator mode.

When you turn ON the system after the first-time initialization, the system will start with the same page and with settings that were activated when the system was turned OFF.

If the radar is running you can turn it to standby mode from within the Light dialog.

PWR

Positioning a Man Over Board mark

If an emergency situation should occur, you can position a Man Over Board waypoint at the vessel’s current position by pressing and holding the “1” key.

When you activate the MOB function the following actions are automatically performed:

a MOB waypoint is positioned at the vessel’s position -

the display switches to a zoomed - Chart panel, centered on vessel position

the vessel starts navigating towards the MOB waypoint -

3 s

MOB

The vessel will continue navigating towards the MOB point until the waypoint is reached or until you select to stop this navigation.

PLOT

MARK

GO TO

VESSEL

Basic operation | 11

Adjusting the backlight

The backlight for LCD and keys can be adjusted at any time independent of what is on the screen.

PWR

MENU WIN

1 6

PWR

A night mode is included and optimized for low light conditions.

Details on the chart may be less visible when the Night mode is selected!

Operating the menu system

Selecting menu item and conﬁ rming selection

You operate a menu by using the rotary knob to select menu item, and then pressing the knob to confirm your selection.

You can also operate the menu by using the arrow keypad to select an item, and then the Tick key to confirm a selection.

MENU WIN

The illustrations for menu operation throughout this manual will refer to the rotary knob!

MENU WIN

12 | Basic operation

MENU WIN

Exiting the menu

By pressing the X key the menu will return to previous menu level, and then exit.

Using the cursor

The cursor is by default not shown on any panel.

When you use one of the arrow keys on a Chart, Radar or Echosounder panel the cursor will become visible. The cursor information window will show position coordinates at the cursor position, and range and bearing to the vessel.

On an Echosounder panel the cursor information window will include the depth at cursor position.

Further use of the cursor is described in the Chart, Radar and Echosounder sections.

To remove the cursor and cursor elements from the panel, press the X key.

Adding entries in dialog boxes

Selecting entry ﬁ eld

You switch between the entry fields and keys in a dialog box by using the rotary knob or the arrow keys.

You can enter information by pressing the rotary knob or the Tick key when a field is highlighted.

MOB

ABC DEF

123

JKLGHI MNO

456

TUV

PQRS

STBY AUTO

809

WXYZ

PWR

OUT

Adjusting values

You adjust a numeric value in a field by using the keypad or the rotary knob.

You need to press the rotary knob first to change the function from selecting fields to editing the slider.

Entering text

The alpha numeric keypad is used for entering digits and text in dialog boxes.

If digit entries are required the keyboard will input digits only.

If both digits and letters are accepted in a dialog repeated short presses on the key will cycle through the letters for that key, while a long press will enter the respective digit.

KEY 1st press 2nd press 3rd press 4th press/or press

and hold

ABC

Press the IN key for uppercase letters and the OUT key for lowercase.

Depending on type of information or entry different keys are used to confirm the entries. When confirmed or cancelled the dialog box will close.

ABC 2

Context help in the dialog boxes

When you select an input field, a context help for that field will be shown.

Basic operation | 13

Working with pages and panels

Selecting pages

You access a page group by pressing the corresponding DAK (Direct Access Key).

PAG ESINFONAVECHORADARCHART

Active DAK is indicated with a red symbol right above the key.

When you press a DAK for the first time, the default page for that group is displayed. When you later switch between the page groups, the last active page in each group will be displayed.

If you repress a page group’s DAK a list of available pages for that group will be displayed.

Selecting active panel

In a split screen you can have multiple panels, but only one panel can be active at a time. You will only be able to access the context menu of the active panel. Active panel is outlined with a red border.

You switch between active panels by pressing the WIN key.

ECHORADARCHART

MENU WIN

Maximizing active panel

You press and hold the WIN key to maximize the selected panel. By repressing the WIN key the panel will return to the previous split screen view.

3 s

MENU WIN

Editing a page

You can edit any page in a page group except the first page. You can also define your own pages for each DAK as described in the Customizing your system section.

14 | Basic operation

3 Using the simulator

MENU WIN

Simulator mode

The simulation feature main data sources, so you can see how the unit works without being connected to echosounder, radar, GPS etc.

You can use the simulator to help you become familiar with your unit before using it out on the water.

When the simulator is toggled on this is indicated in the lower part of the display.

Demonstration mode

In this mode the unit automatically runs through the main features of the product; it changes pages automatically, adjusts settings, opens menus etc.

If you press a key when demo mode is running, the demonstration will pause. After a time-out period, demo mode will resume again.

Advanced simulator settings

The advanced simulator settings allows you to define how to run the simulator. When the settings are saved these will be used as default when starting the simulator mode.

Source ﬁ le

Selects data to be used.

A set of source files is included in your system, and you can import files by using a USB stick or a memory card. Refer to The utilities pages section.

You can also use your own recorded echosounder files in the simulator.

For how to record echosounder files, refer to the Using

the echosounder section.

GPS source

Selects where the G

Speed, Course and Route

Used for manually enter values when GPS source is set to

mulated course or Simulated route. Otherwise, GPS

Si data including speed and course comes from the selected echosounder or radar files.

Set start position

Moves the vessel to current cursor position.

PS data is generated from.

Simulator | 15

Blank page

16 | Simulator

Using charts4

On the chart panel you can determine your vessel’s position in relation to land. You can use the chart display for planning routes and sailing along a predefined route.

The chart function can also display your vessel’s position relative to other chart objects, plan and navigate routes, create waypoints; overlay a radar image and display AIS targets and information.

On a chart panel you can overlay radar image, AIS information and weather symbols (North America only).

The chart panel

MENU WIN

RANGE

RINGS *

WAYPOINT *

VESSEL

TRACK *

GRID LINES *

EXTENSION

LINE *

ROUTE *

CHART RANGE RANGE

NORTH

INDICATOR

SCALE

* Optional chart image items

You turn the optional images on/off individually.

Using char ts | 17

MENU WIN

The vessel symbol

When a GPS and a suitable compass sensor is connected to the system, the vessel symbol indicates vessel position and heading.

The vessel’s extension line can be activated to show course over ground. The length of the line indicate the distance that the vessel will travel with current speed in selected period.

If no GPS is available the vessel symbol will include a question mark.

Using the cursor on chart panel

The cursor by default is not shown on the chart panel.

When you press one of the arrow keys the cursor will become visible, and the cursor position window will be activated.

When you are in cursor mode, the chart will not pan or rotate to follow the vessel.

Pressing the X key will toggle the chart position between the vessel and the previous cursor position.

To remove the cursor and cursor elements from the panel, press the X key.

Selecting objects

When you rest the cursor over a chart item, a waypoint, a route or a target, basic information for the selected item will be displayed.

By pressing the rotar y knob or the tick key when a chart item is selected all available information about that item will be shown.

Popup information has to be enabled.

Creating waypoints and routes

You can use the cursor to position waypoints and routes as described in Waypoints, Routes and Tracks section.

18 | Using charts

MENU WIN

Measuring distance

The cursor can be used to measure the distance between your vessel and a position or between 2 points on the chart panel.

Use the following process to measure a distance.

Start the Measure function1

Move the cursor towards the second measuring 2 point

A line will be drawn from the vessel center to the cursor position, and the distance will be listed in the Cursor Information window

You can reset the measurement and start measuring from cursor position by pressing the Tick key.

You terminate the measuring function by pressing the X key.

Chart scale

You zoom in and out in the chart by using the IN/OUT keys or by using the rotary knob.

Chart scale will be shown in the lower right corner of the chart panel.

Searching for chart objects

The chart context menu includes a search function used to find and display chart objects.

This function is also available from the Utilities pages.

Displaying chart information

You can display available information for the chart and chart items in cursor or vessel position.

You can select further details about a selected item by pressing the rotary knob or the Tick key.

Using char ts | 19

MENU WIN

Positioning the chart on the panel

Selecting chart center

When the cursor is active on the panel, the chart will be centered around the cursor position (cursor mode).

Pressing X key will remove the cursor, and the chart center will be positioned at the vessel (vessel mode).

You can toggle between cursor mode and vessel mode by pressing the X key .

Panning

By moving the cursor to the edge of the panel, the chart will be panned in the cursor’s direction.

Look ahead

This option moves the vessel backwards on the chart image so that you can have maximum view ahead of your vessel.

Setting the chart orientation

Several options are available for how the chart is rotated in the panel. The chart orientation symbol in the panel’s upper right corner indicates the north direction.

North up

Displays the chart with the north direction upward. Corresponds to the usual orientation of nautical charts.

Heading up

Displays the chart with the vessel’s heading directly up on the chart image.

Heading information is received from a compass. If heading is not available, then the COG from the GPS will be used.

Course up

Rotates the chart in the direction of the next waypoint when in navigation mode.

This option works only when there’s an active route. If no route is active the heading up orientation will be used until a route is made active.

Selecting chart details level

Low

This is the basic level of information that cannot be removed, and includes information that is required in all geographic areas. It is not intended to be sufficient for safe navigation.

20 | Using charts

Medium

This is the minimum information sufficient for navigation.

Full

This is all available information for the chart in use.

Chart categories

This option enables you to select which chart categories you want to display on your chart.

Chart imagery style

The charts can be displayed in two different imagery styles.

2D presents chart information in a basic mapping mode, while the shaded relief option presents chart including terrain information.

MENU WIN

2D Shaded relief

Chart overlay

Radar and weather information can be displayed as overlay on your chart panel.

When one of the overlay options are selected the chart context menu will be expanded to include basic function for the selected overlay.

Radar and Sirius weather functions are described in separate sections in this manual.

Chart data

The NSE system can use Simrad and Navionics chart databases.

The Navionics chart includes options that not are available in the Simrad database. Navionics options are described in the following sections.

Using char ts | 21

Chart options in Navionics chart database

MENU WIN

Chart view

The Navionics chart database provides you with 2D and 3D view options.

2D presents chart information in a basic mapping mode, but with Navionics Platinum details.

3D provides a three dimensional graphical view of land and sea contours.

3D Zooming

You zoom the 3D chart by using the IN/OUT keys.

Viewing the chart in 3D

There are two modes available for moving the camera in 3D views; Vessel mode and Cursor mode. You switch between these two modes by pressing the X key.

Vessel mode

In this mode the camera follows the vessel. The vessel’s position will be in center if not

ook ahead option is selected. The camera angle is by default as seen from above and

L behind the vessel, looking forward. You can tilt the camera by using the up/down arrow keys, but you cannot rotate the camera horizontally.

Cursor mode

This mode includes two different options for moving the camera; Camera Pan and

amera Rotate. You switch between these two camera modes by pressing the rotary

C knob or the √ key. Active camera mode is shown on top of the panel.

Camera Pan

In this mode you move the camera away from the vessel position and

ound in the chart by using the arrow keys, and rotate horizontally by

ar using the rotating knob.

You can return to vessel position (vessel mode) by pressing the X key.

Camera Rotate

In this mode the camera position is fixed, and the camera can only be

otated. You rotate the camera horizontally by using the left/right arrow

r keys or the rotating knob. You tilt the camera vertically by pressing the up/down arrow keys.

Photo overlay

This option enables you to view satellite photo images of an area as an overlay on the chart.

The availability of such photos is limited to certain regions.

You can view photo overlays in either 2D or 3D modes.

22 | Using charts

MENU WIN

The Photo overlay function is disabled as you zoom out beyond a certain level.

Photo transparency

The transparency sets the opaqueness of the photo overlay.

Optional settings for Navionics charts

Annotation

Determines what area information— such as names of locations and notes of areas—is

vailable on display.

Presentation type

Provides marine charting information such as symbols, colors of the na

vigation chart and

wording for either International or US presentation types.

Chart details

Provides you with different levels of geographical layer information.

Safety depth

The Navionics charts use different shades of blue to distinguish between shallow and

ep water.

The safety depth sets the limit for which depts that shall be drawn without blue this blue shading.

Using charts | 23

Contours depth

Determines which c value.

ontours you see on the chart down to the selected dontours depth

24 | Using charts

Waypoints, routes & tracks5

Waypoints

A waypoint is a mark positioned on a chart, on a radar image or on an echosounder image. Each waypoint has an exact position with latitude and longitude coordinates. A waypoint positioned on an echosounder image, will in addition to position information, have a depth value.

A waypoint is used to mark a position you later may want to return to. Two or more waypoints can also be combined to create a route.

Positioning waypoints

You can position a waypoint at the vessel position from any panel by pressing the PLOT key:

Short press: activates the Plot menu allowing you to specify waypoint details in the Waypoint dialog

Press and hold: plots a waypoint at the vessel’s current position -

PLOT

GO TO

MARK

VESSEL

You can position a waypoint at the cursor position on a chart, radar and echosounder panel by moving the cursor to selected position and then pressing the PLOT key.

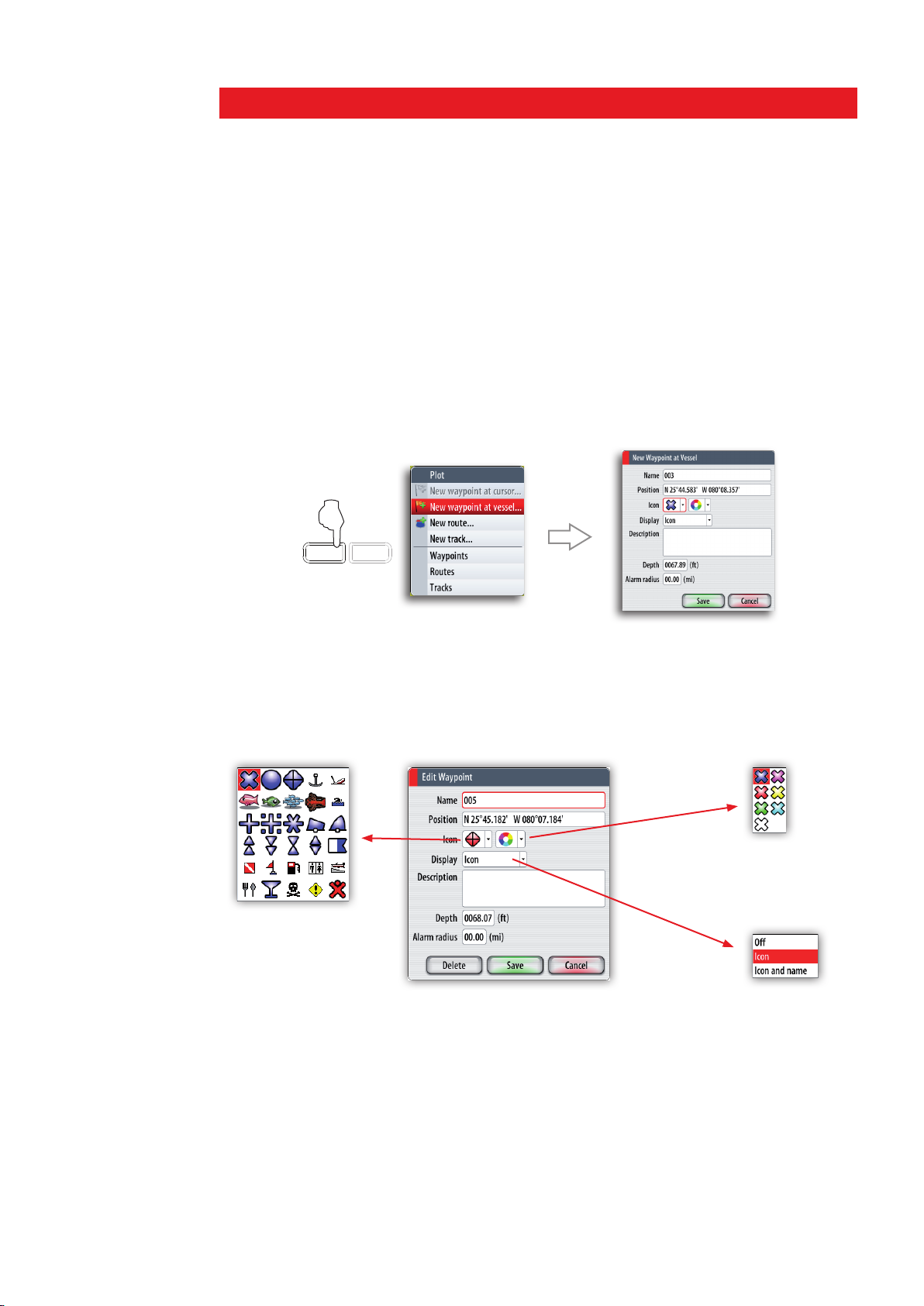

The waypoint dialogs

You can enter details for a waypoint in the wa

ypoint dialog, activated by pressing the

rotary knob or the Tick key when a waypoint is selected.

The waypoints dialog can also be activated from the Waypoint list. Refer The Waypoints, Route and Tracks library later in this section.

Waypoints, routes and tracks | 25

MENU WIN

Editing waypoints

A waypoint can be edited in the Waypoint dialog. You can also move the waypoint manually by using the cursor;

Select the waypoint by resting the cursor over it1

Press the 2 MENU key and select the move option

Use the arrow keys to move the cursor to a new position3

Conﬁ rm the new position by pressing the rotary knob or the tick key4

The moving waypoint mode is indicated on top of the panel.

The waypoints can also be edited from the Waypoint list as described later in this section.

Waypoint alarm settings

You can set an alarm radius for each individual waypoint you create.

When the waypoint alarm is toggled ON in the alarm panel, an alarm message will be activated when your vessel comes within the defined radius.

If you want to set an alarm radius for a route point this point must ﬁ rst be converted to a waypoint.

MENU WIN

Trac ks

A track is a graphical presentation of the historical path of the vessel, allowing you to retrace your travel. A track can later be converted to a route in the Tracks dialog described later in this section.

From the factory, the system is set to automatically track the vessel’s movement. The system will continue to record the track until the track length reaches the maximum trail point setting, and will then automatically begin overwriting the oldest track points.

The automatic tracking function can be turned off from the Tracks library as described later in this section.

Track se t ting s

The track is made up of a series of track points connected by line segments whose length depends on the frequency of track recording.

You can select to position track points based on time settings, distance, or by letting the NSE system position a waypoint automatically when a course change is registered.

The Tracks option must also be turned ON in the chart settings to be visible! Refer the Chart section.

PLOT

MARK

GO TO

VESSEL

Creating a new track

You define the track settings and start the new track from the Plot menu.

A new track can also be started from the Tracks library described later in this chapter.

26 | Waypoints, routes and tracks

PLOT

MARK

GO TO

VESSEL

Routes

A route consists of a series of waypoints entered in the order that you want to navigate them.

When you rest the cursor over a route, it will turn blue and the route name will be displayed.

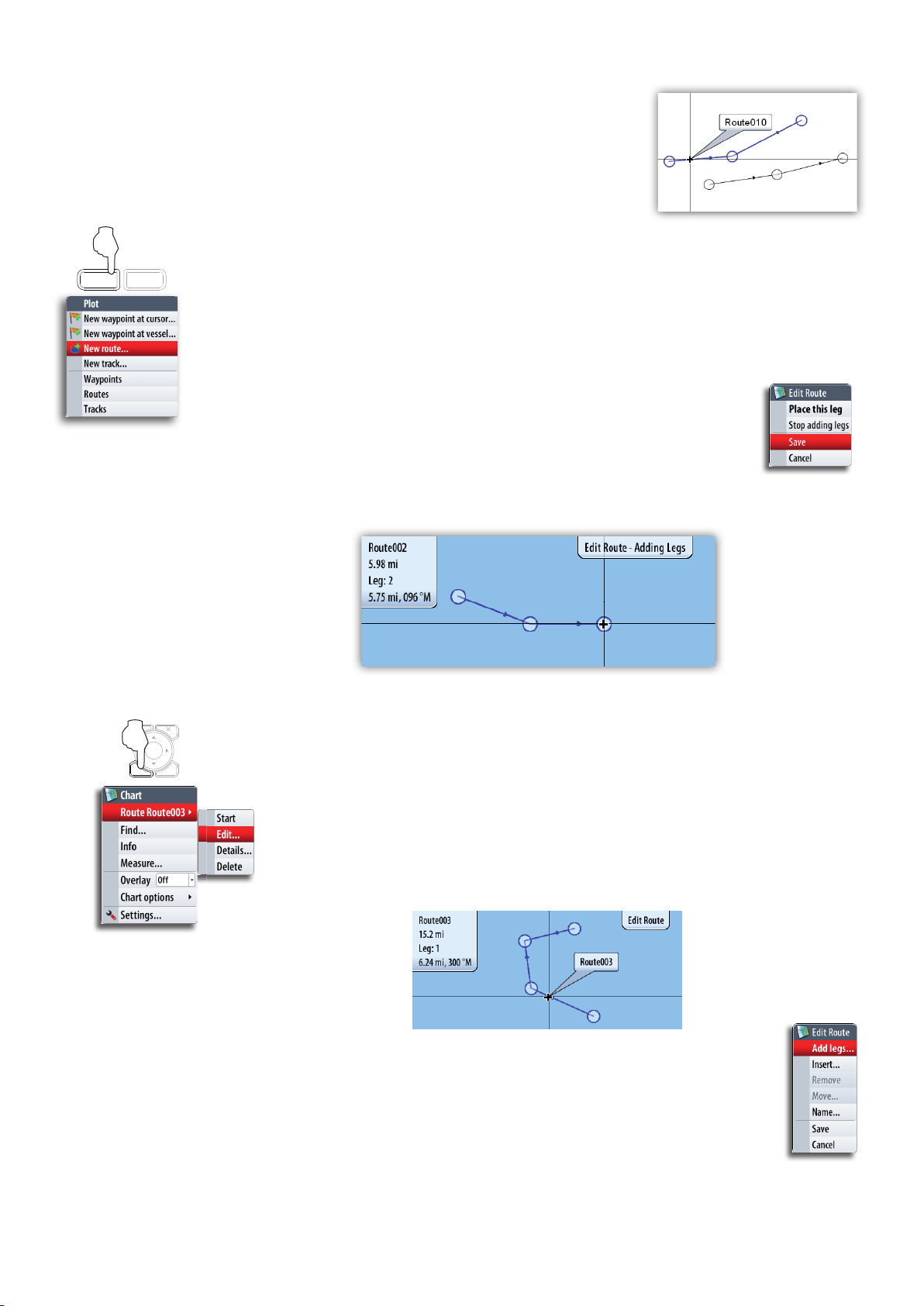

Creating new routes by using the cursor

You can create a new route on the Chart panel as follows:

Press the 1 PLOT key and select the new route option

Use the arrow keys to move the cursor to the position for the ﬁ rst waypoint2

Conﬁ rm the position by pressing the rotary knob3

Move the cursor to the position for the next waypoints, and conﬁ rm the position by 4 pressing the rotary knob again

Repeat moving the cursor and pressing the rotary knob until all 5 waypoints in the route are created

Press the 6 MENU key to save the route

The Edit route mode and route information is indicated on top of the panel until the route is saved.

MENU WIN

The route can also be created from the Routes list as described later in this section.

Editing a route by using the cursor

You can edit a route on a chart panel by using the cursor;

Select the route by resting the cursor over it1

The route will be highlighted -

Press the 2 MENU key and select the edit option

The Edit route mode and route information is indicated on top of the panel -

Move the cursor to where you want to make the edit; a waypoint or a 3 leg, and press the MENU key again to select edit options

The options available in the Edit route menu depend on if the cursor is rested over a waypoint or over a leg

Use the cursor to add, move or remove any item4

Press the 5 MENU key again and save your edits

Waypoints, routes and tracks | 27

The waypoints, route and tracks page

The Utilities pages includes a Waypoints, Routes and Tracks page. This gives access to advanced edit functions and settings for all these items available on your system.

There are several ways to access the library. A couple of them are illustrated below.

You move between the tabs in the library by using the left/right arrow keys.

The edit and settings options are accessed by pressing the MENU key when one of the items is selected.

PLOT

MARK

GO TO

VESSEL

PAG ES

28 | Waypoints, routes and tracks

Using the radar6

ONONN

TOR

TO *

IND

symbology on/

The radar panel can be set up as a full screen view or combined with other panels.

The radar image can also be displayed as an overlay to existing 2D chart views and 3D for Navionics. Refer to the Chart section.

The radar panel

MENU WIN

RANGE

ORIENTATION

MOTION

COMPASS *

* Optional radar symbology

HEADING

LINE *

NORTH

INDICATOR *

RANGE MARKERS *RANGE RINGS *

ROTARY

CONTR

CONTROLS

DATA BAR*

You can turn the optional symbology on/off individually.

The activate symbology can be turned on/off collectively.

MENU WIN

Using radar | 29

MENU WIN

The radar operational modes

The radar’s operational modes are controlled from the NSE unit. The following modes are available:

Off

The power to the radar scanner is turned off

Standby

The power to the radar scanner in on, but the radar is not

ransmitting any signals.

The radar can also be turned to standby mode by pressing the

PWR

PWR key.

Tran s m i t

canner is on and transmitting signals to detect surrounding targets. When

The s transmitting is will always be communication with the NSE system.

Setting up the radar image

Positioning the radar center

You can move the radar center to different positions within the radar panel.

The following options are available:

Center

Default setting. The r

adar center is centered on the radar panel.

Look Ahead

Moves the radar center to the bottom of the panel to give maximum view ahead.

Offset

Allows you to move the center to any location on the radar panel.

elect the offset option1

Use the arrow keys to position the radar center2

Conﬁ rm the settings with the 3 Tick key

Center Look ahead Custom

30 | Using radar

MENU WIN

Setting the radar orientation

Heading up

Rotates the radar image to display the current heading directly up on

he radar image.

North up

Rotates the radar image with the north direction upwards.

Course up

Rotates the radar image to display the current na

vigation course

directly up.

This option works only when the vessel is navigating. If the vessel not is navigating the heading up orientation will be used until the navigation function is started.

Setting the radar motion

You can select how your vessel symbol moves on the radar image.

The radar motion can only be changed when the radar is transmitting. If there’s no heading data or COG, only Relative Motion mode is available.

True motion (not included in sw RTM1)

Your vessel, and m you travel. All stationary objects remain in a fixed position.

oving targets, move across the Radar screen as

Relative motion

Your vessel remains in a fixed location on the Radar screen and all

her objects move relative to your position. You can choose the

ot position of the fixed location, refer as described in Positioning the radar center.

Relative motion is the default setting.

Changing the image color

Different colors (palettes) can be used to represent detail on your radar panel.

Using the cursor on the radar panel

The cursor is by default not shown on the radar image.

When you press one of the arrow keys the cursor will be visible, the cursor position window will be activated.

The cursor can be used to measure a distance to a target, and to select targets as described later in this section.

To remove the cursor and cursor elements from the panel, press the X key.

Using radar | 31

Optimizing the radar image

You may be able to improve the radar image by adjusting the radar sensitivity, and by filtering the signals from effect of random echoes from sea and weather conditions.

The parameters are adjusted by using the rotary knob. You select between the control images by pressing the rotary knob. Active control will expand and display its name in full. You can then adjust the value by turning the knob

Gain

The gain controls the sensitivity of the radar receiver.

A higher gain makes the radar more sensitive to radar returns, allowing it to display weaker targets. If the gain is set too high, the image might be cluttered with background noise.

Gain has 2 modes; Auto and Manual. You cycle through the modes by pressing and holding the rotary knob. You can only adjust the gain value by turning the rotary knob when it is in manual mode.

Sea clutter

Sea clutter is used to filter the effect of random echo returns from waves or rough water near the vessel.

When you increase Sea Clutter filtering the on-screen clutter caused by the echoes of waves will be reduced.

Sea clutter has 3 modes: auto harbor, auto offshore and manual. A long-press on the rotary knob will cycle through the modes. You can only adjust the clutter value by turning the rotary knob when it is in manual mode.

MENU WIN

Rain Clutter

The Rain clutter is used to reduce the effect of rain, snow or other weather conditions on the radar image.

The value should not be increased too much as this may filter out real targets.

Rejecting radar interference

Interference could be caused by radar signals from other radar units operating in the same frequency band.

A high setting will reduce the interference from other radars.

In order to not miss weak targets, the interference rejection should be set low when no interference exists.

Target b o o st

This feature increases the size of radar targets, making them easier to see on the radar panel.

Setting the radar threshold

The threshold sets required signal strength for the lowest radar signals. Radar returns below this limit will be filtered and not displayed.

Default value: 30%.

32 | Using radar

MENU WIN

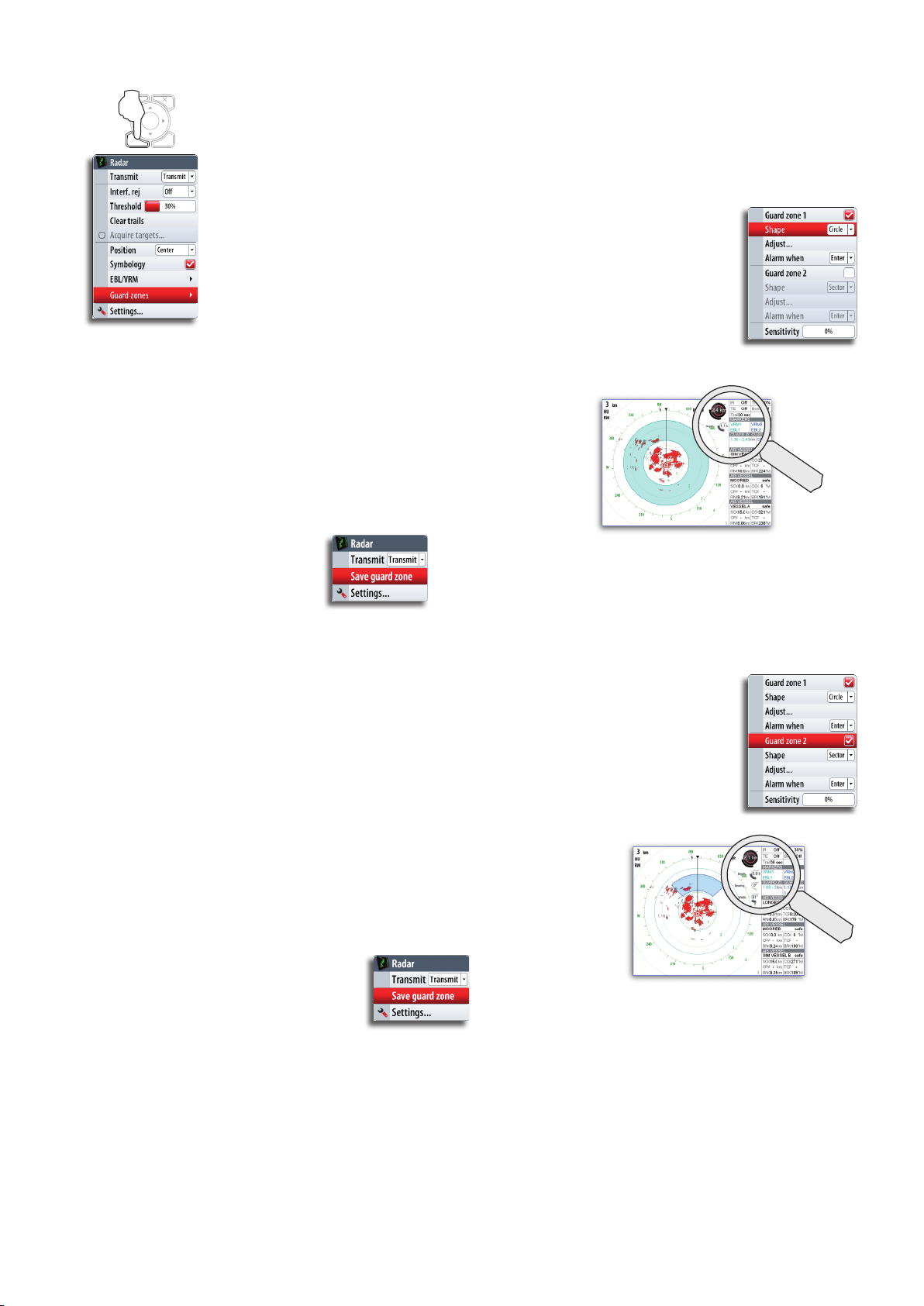

Setting a guard zone around your vessel

A guard zone is a region (either circular or a sector) that you can define on the radar image. You can also define if an alarm is activated when a radar target enters or exits the zone.

Deﬁ ning a circular zone

Activate one of the guard zones1

Select circular shape2

A circular guard zone will now be positioned on the radar image

Select the menu option used for adjusting the zone3

The menu will be removed from the display, and the rotary symbol for range will be enlarged

Use the rotary knob to adjust the 4 range and depth.

You switch between the range and depth settings by pressing the rotary knob

Press the 5 Menu key to save the guard zone settings

Deﬁ ning a sector zone

Activate one of the guard zones1

Select a sector shape2

A sector guard zone will now be positioned on the radar image

Select the menu option used for adjusting the zone3

The menu will be removed from the display, and the rotary symbol for range will be enlarged.

Use the rotary knob to adjust the range, depth, 4 bearing and width. You switch between the adjustable settings by pressing the rotary knob

Press the 5 Menu key to save the guard zone settings

Using radar | 33

MENU WIN

Other vessels on the radar image

If MARPA radar(s) or AIS devices are connected to the NSE system, any targets detected by these devices will be displayed as an overlay on the chart and on the radar image. You can also see messages and position for DSC transmitting devices within range.

For more information refer to the Other vessels on chart and radar image section.

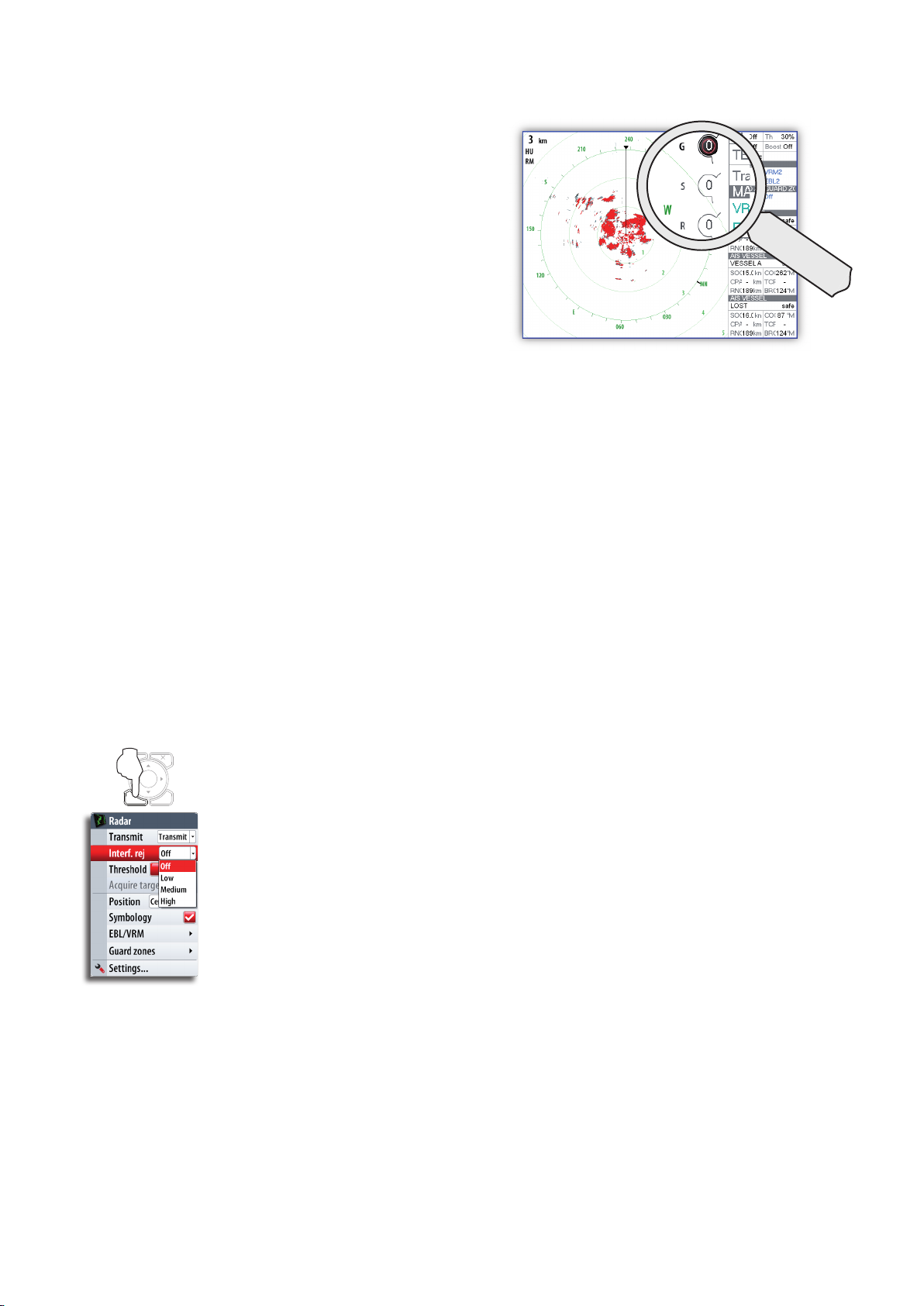

Target t r a cking

Any MARPA target detected by the NSE system can be tracked by the radar.

Select 1 Acquire targets from the menu

Position the cursor over the target, and press the tick key to conﬁ rm2

Repeat process for more targets3

Once your targets are identified, it may take up to 10 radar sweeps to acquire and then track the target.

MENU WIN

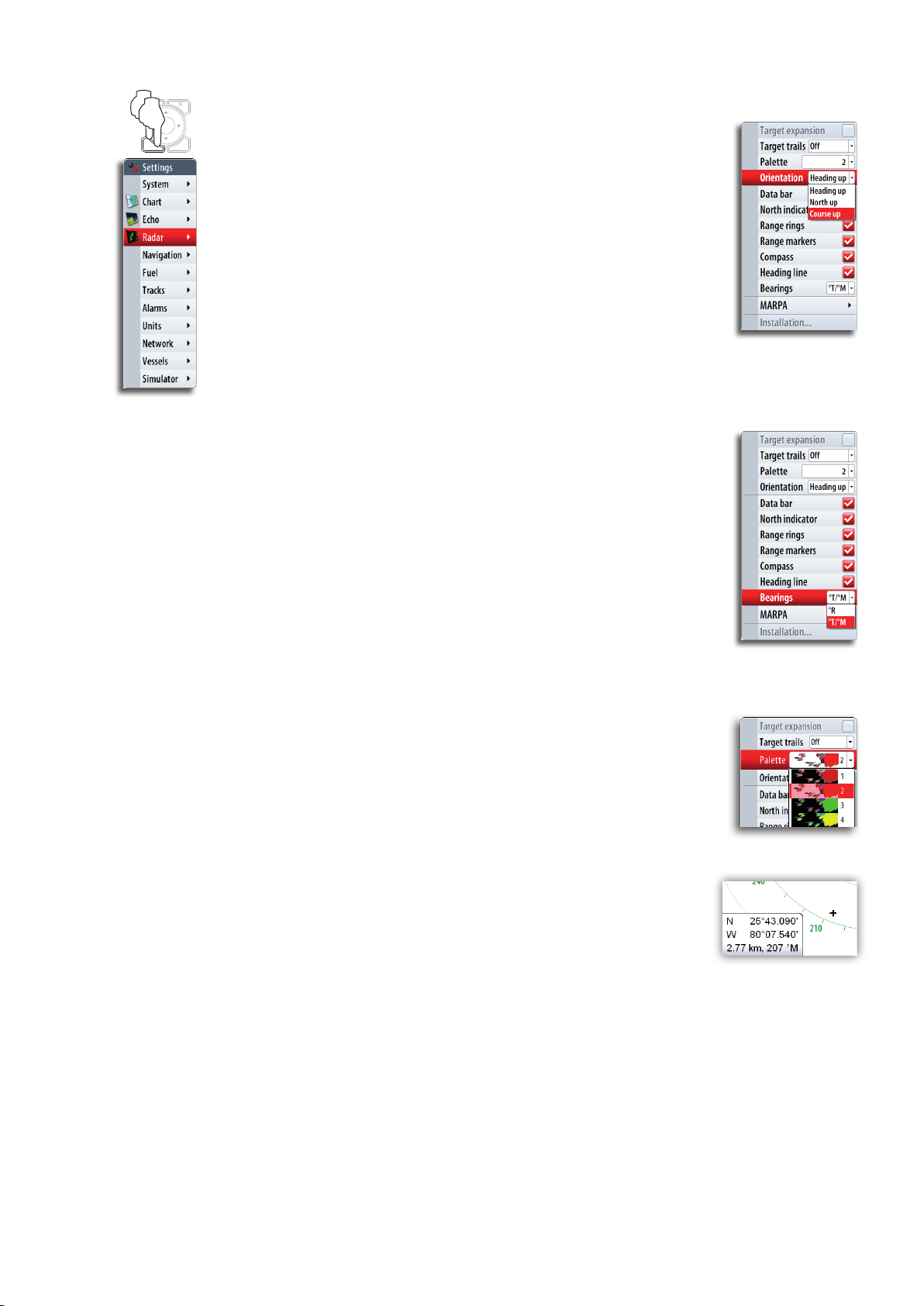

Tar g e t setup

Target trails

You can deﬁ ne how long time the trail that each target leaves should remain on your radar panel. You can also turn OFF target trails.

Clearing target trails from the panel

You can clear target trails from your radar panel temporarily. The target trails will start to appear again unless you switch them off as described above.

34 | Using radar

Tar g e t e x p a n s ion

You can select to increase the size for all thin targets on the radar panels.

Measuring range and bearing to a target

Using the cursor

When you move the cursor on a radar panel the cursor information window will be activated.

The cursor window shows range and bearing from your vessel to cursor position.

Range rings

The range rings are displayed at preset distances from the vessel based on the radar range.

You can use the range ring to estimate the distance between a radar echo and your vessel.

MENU WIN

EBL/VRM

The electronic bearing line (EBL) is a line from the center of the vessel. The line’s bearing remains constant as the vessel moves. The variable range marker (VRM) is a usercontrolled range ring that surrounds the vessel.

The EBL/ VRM function is used to measure distance and bearing from the vessel’s position to a target. Two different EBL/VRMs can be placed on the radar image.

Positioning an EBL/VRM

Move the cursor to a selected object1

Press the 2 Menu key

Select one of the EBL/VRM options3

The menu will be removed from the display, and the EBL line and the VRM circle will be drawn on the radar image.

The EBL/VRM information window will display range and bearing from the vessel to the marker

If required, use the arrow keys to reposition the marker4

Press the 5 Menu key again to save the position

You can reposition a fixed EBL/VRM, turn Off the EBL /VRM info window and remove the marker from the same menu.

When you reposition the EBL/VRM marker you use the cursor and save the position as described above.

Radar overlay

You can overlay the Radar image on the Chart. This can help you to easily interpret the radar image by correlating the radar targets with charted objects.

When the radar overlay is selected, basic radar operational functions are available from the Chart page’s context menu.

More information on Radar Overlay is available in the Using chart section of this manual.

Using radar | 35

Blank page

36 | Using radar

Other 7 vessels on chart and radar image

If MARPA radar(s) or AIS devices are connected to the NSE system, any targets detected by these devises can be displayed as an overlay on the chart. You can also see messages and position for DSC transmitting devices within range.

You can define alarms to notify you if a target gets too close or if the target is lost.

AIS vessels on a chart panel AIS vessels on a radar panel

Targ et symb ols

The NSE system use the target symbols shown below:

Symbol Description

Sleeping AIS target (not moving or at anchor).

Moving and safe AIS target with course extension line.

Acquiring MARPA target. Typically it takes up to 10 full rotations of scanner

Tracking MARPA target, not moving or at anchor.

Tracking and safe MARPA target with extension lines.

Dangerous AIS target, illustrated with bold line.

Dangerous MARPA target

Lost AIS target.

Lost MARPA target

A target is deﬁ ned as dangerous based on the CPA, TCPA and AIS Range settings. Refer Deﬁ ning alarm limits later in this section.

When no signals have been received within a time limit a target will be deﬁ ned as lost.

The target symbol represents the last valid position of the target before the reception of data was lost.

Selected AIS target, activated by positioning the cursor over a target symbol.

Selected MARPA target

Other vessels on chart and radar image | 37

The target will return to default target symbol when the cursor is moved.

MENU WIN

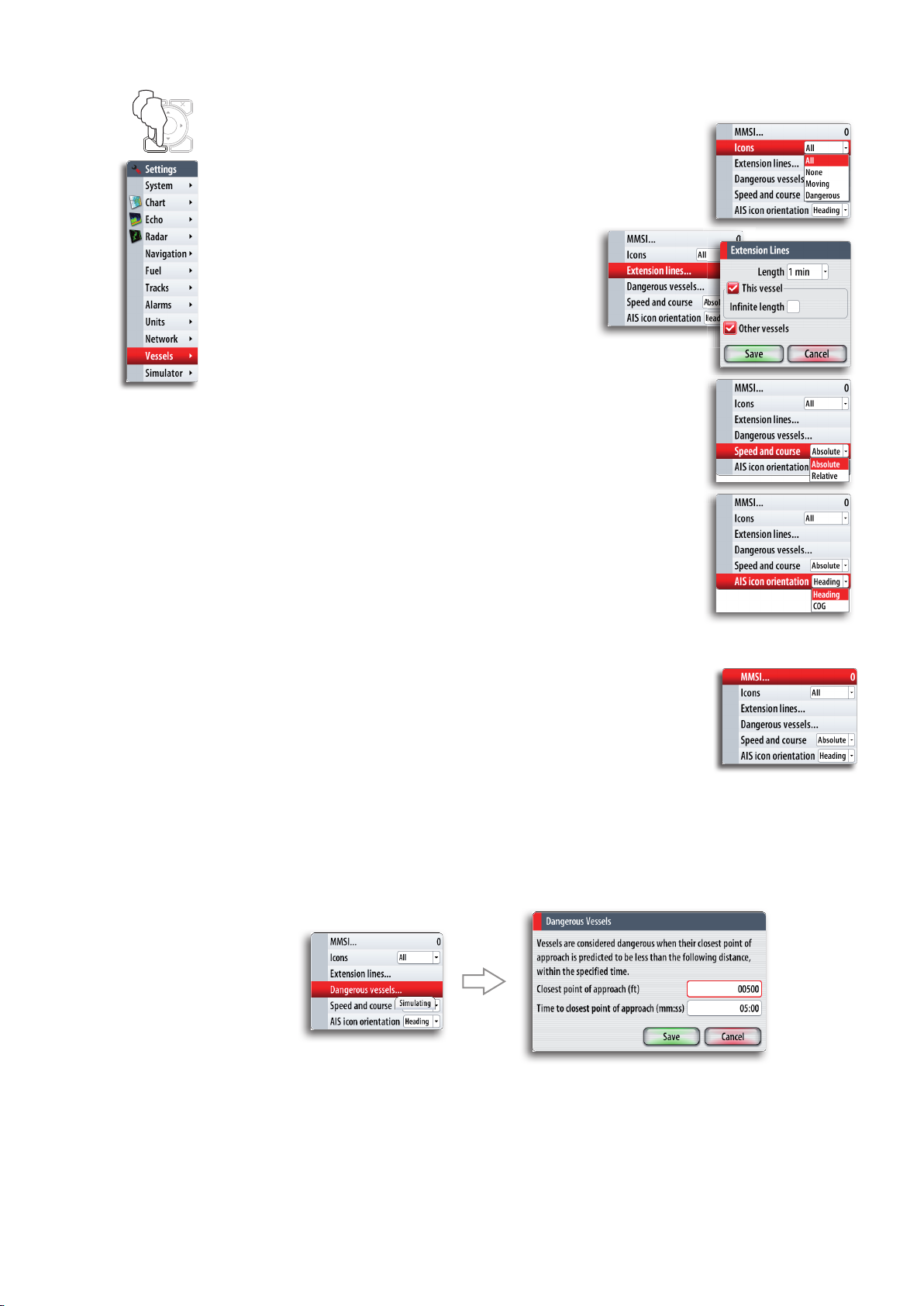

How to display other vessels

Selects which targets to display.

Sets the length of the extension line for your vessel and for other vessels.

The length of the extension line indicates the distance the vessel will move in the selected time period.

Selects how to use the extension line to indicate speed and course for targets; either as true motion in the chart or relative to your vessel.

Sets the orientation of the AIS icon; either based on heading or COG information.

Receiving MMSI messages

You need to have your own MMSI number entered in the NSE system to be able to receive addressed messages from AIS and DSC vessels.

The Vessel message option in the alarm settings must be toggled on if any MMSI message shall be displayed, refer to next page.

Deﬁ ning a guard zone around you vessel

You can define an invisible guard zone around your vessel. When a target comes within this distance from your vessel, the symbol will change to the “dangerous” target symbol. An alarm will be triggered if activated in the Alarm settings panel.

38 | Other vessels on chart and radar image

MENU WIN

Target alarm settings

You can define several alarms to alert you if a target comes within predefined range limits, or if a previously identified target is lost.

The following alarms can be set:

Alarm ID Description

Dangerous vessel Controls whether an alarm shall be activated when a vessel

comes within the predeﬁ ned guard zone.

The check box controls whether the alarm pop-up box is displayed and if the siren will sound. The guard zone deﬁ nes when a vessel is dangerous regardless of the enabled/disabled state.

AIS vessel lost Sets the range for lost vessels. If a vessel is lost within this range

this will trigger an alarm

Vessel message Controls whether an alarm shall be activated when a message is

received from an AIS target

MARPA target lost Controls whether an alarm shall be activated when a MARPA

target is lost

MARPA unavailable Controls whether an alarm shall be activated if you do not have

the required inputs for MARPA to work (valid GPS position and heading sensor connected to the radar server)

Viewing information about targets

When you select a vessel on the chart the symbol will change to Selected target symbol, and the vessel name will be displayed.

You can display detailed information for a selected target by pressing the rotary knob or the MENU key.

Other vessels on chart and radar image | 39

MENU WIN

You can also display information about other vessels from the Vessels page as described in the Utilities pages section.

Finding other AIS vessels

You can search for other vessels equipped with suitable AIS devices from your chart menu or from the Find or Vessels feature in the utilities pages (refer to the Utilities pages section).

40 | Other vessels on char t and radar image

Using the echosounder8

The Echosounder function provides a view of the water and bottom beneath your vessel, allowing you to detect fish and examine the structure of the sea floor.

The echosounder image

The echosounder displays the water column moving from right to left on the panel.

You can select between single panel view and several split views as described later in this chapter.

MENU WIN

TEMPERATURE

FREQUENCY

ZOOM

GAIN/

COLOR

INDICATORS

SEA BED

DEPTH

FISH ARCHES

UPPER RANGE

LOWER RANGE

TEMP

GRAPH *

RANGE

SCALE

ZOOM BARS

DEPTH LINE

A-SCOPE

* Optional echosounder image items

You turn the optional echosounder images on/off individually.

Pausing the sounder image

It is not possible to turn OFF the sounder transmission from the NSE unit. When the echosounder is connected and configured the sounder information will be transferred to the NSE system as long as the echosounder is running.

You can freeze the sounder image, allowing you to examine the sounder echoes.

This function is useful when you need to position a waypoint exactly on the echosounder panel, and if you are using the cursor to measure a distance between 2 elements on the image.

When the image is paused the echosounder will continue to run and the depth indication on the panel will be updated.

Using echosounder | 41

MENU WIN

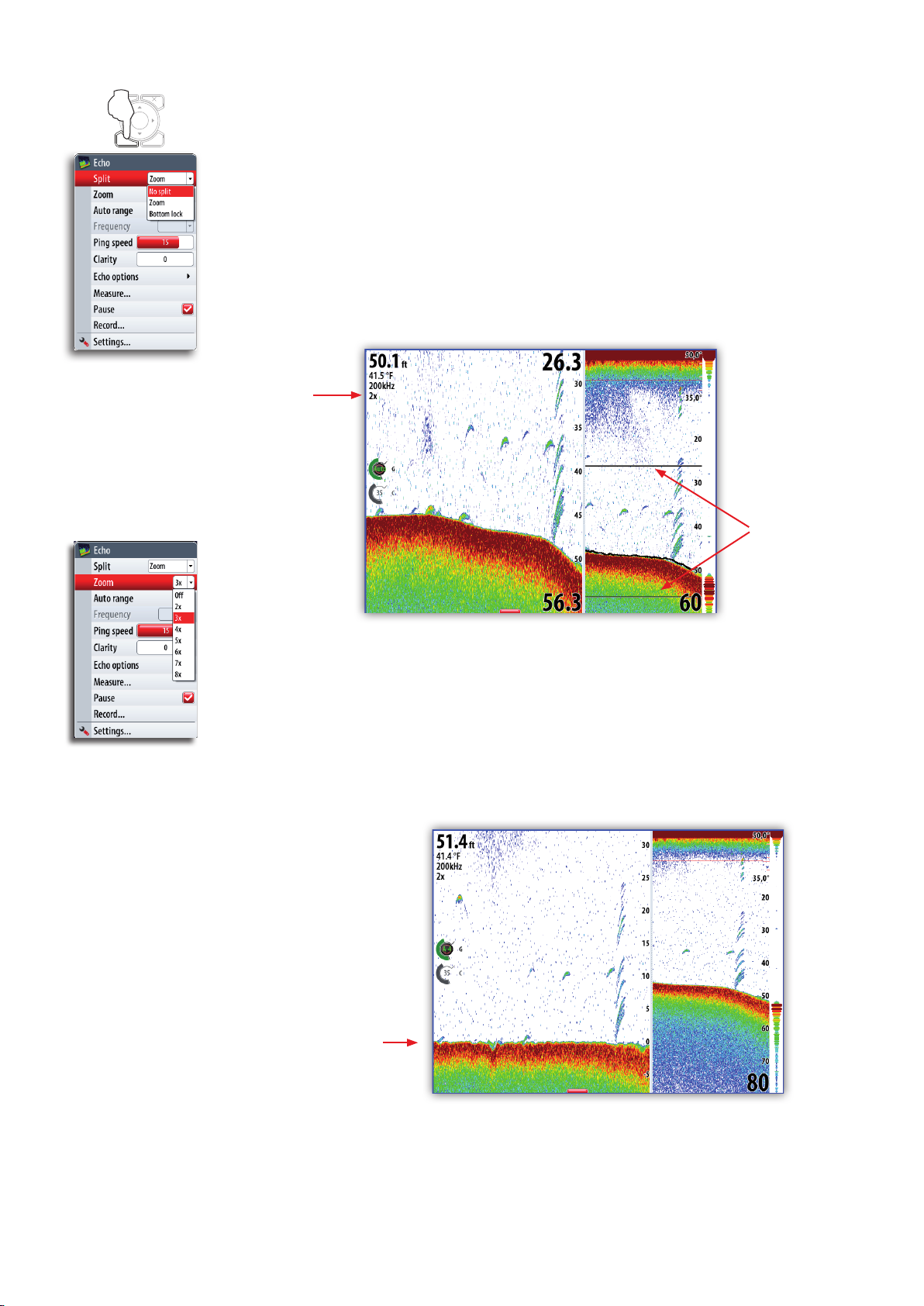

Setting up the sounder display

The echosounder panel can be setup as a single view, or with split view where the left and the right side presents different images.

Split screen options

Zoom

The Zoom m panel. By default the zoom level is set to 2x.

The range zoom bars on the right side of the display shows the range that is magnified. If you increase the zooming factor the range will be reduced. You will see this as reduced distance between the zoom bars.

ode presents a magnified view of the sounder image on the left side of the

ZOOM LEVEL

ZOOM

BARS

When Zoom mode is selected, the context menu will expand to include a drop down menu from where you can select the zoom factor.

Bottom lock

ottom lock mode is useful when you want to view echoes close to the bottom.

The b

In this mode the left side of the panel shows an image where the bottom is flattened. The range scale is changed to measure from the seabed (0) and upwards. The bottom and the zero line will always be shown on the left image, independent on range scale.

ZERO LINE

42 | Using echosounder

The scaling factor for the image on the left side of the panel is adjusted as described for Zoom mode.

MENU WIN

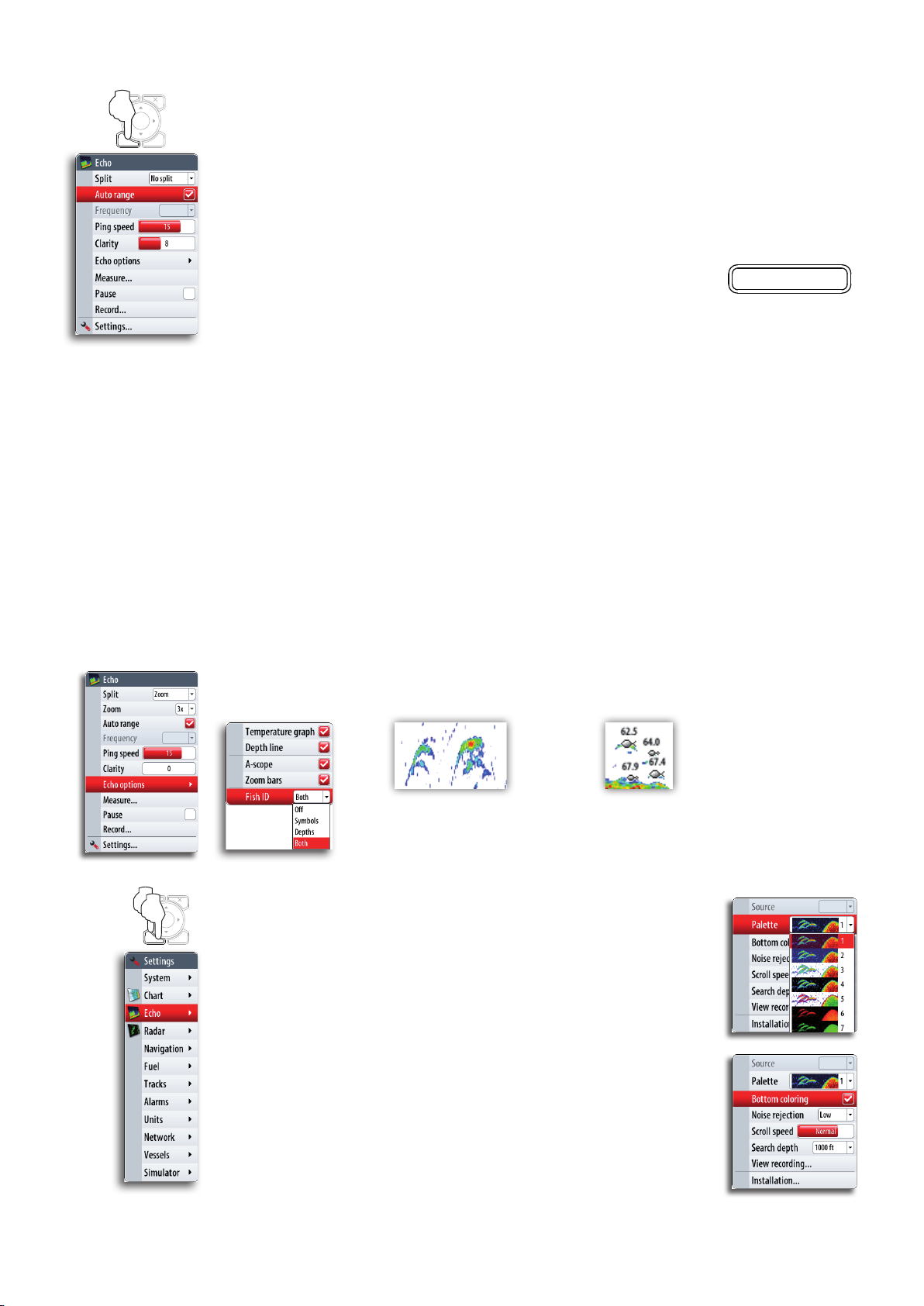

Setting the echosounder range

The range setting determines the depth shown on the display.

Auto

If you select Au

to, the system will automatically display the whole range from the water

surface to the bottom.

Auto range will automatically be turned off once you adjust the range manually.

Manually changing the range

You can increase or decrease the range by pressing the zoom keys.

ressing and holding one of the zoom keys will toggle between auto

OUT

and manual range. Autorange is resumed by pressing the “0” key.

When manually change the range the lower depth line will be moved upwards or downwards. The upper depth line will always be at the water surface.

This options allows you to focus on echoes at the upper part of the water column.

The echosounder frequency

This NSE unit supports several transducer frequencies. Available frequencies depend on what transducer that is connected.

You can view two frequencies at the same time by setting up a echosounder split screen.

MENU WIN

Selecting the ping speed

The Ping Speed controls the rate the transducer uses to send echosounder waves into the water. A higher ping speed will yield the best results when you are moving across the water at a high rate of speed or fishing from a dock. The reverberation of too much ping speed can cause interference on the screen.

The ﬁ sh echoes

You can select how you want the echoes to appear on the echosounder image.

TRADITIONAL

FISH ECHOES

FISH SYMBOLS AND DEPTH INDICATION

Using colors

Color palette

Several display color templates with varying degrees of color and brightness are available.

Bottom coloring

The bottom coloring option colors the entire bottom area in one brown shade. This will clearly separate fish and structure from the bottom.

Using echosounder | 43

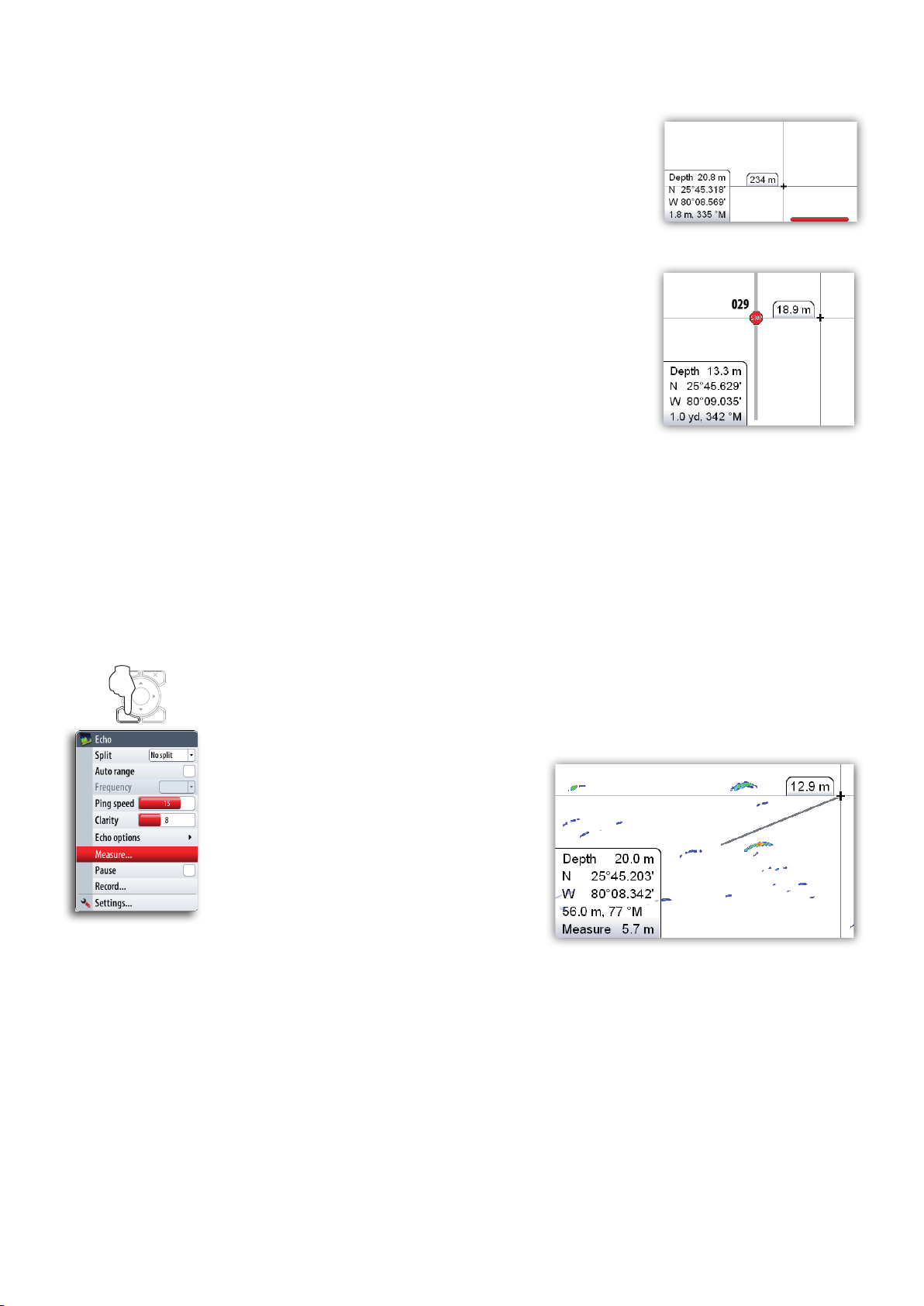

Using the cursor on the echosounder panel

The cursor is by default not shown on the sounder image.

When you press one of the arrow keys the cursor will be visible, the depth at the cursor position will be shown, the information window and the history bar will be activated.

You use the arrow keys to move the cursor in any direction on the display.

To remove the cursor and cursor elements from the panel, press the X key.

Using the cursor to position a waypoint

You can position a waypoint at the cursor position by pressing the PLOT key as described in the Waypoints, routes and tracks section.

When the key is pressed the waypoint symbol and ID are positioned at the cursor position.

Viewing sounder history

Whenever the cursor is shown on a sounder panel, the red scroll bar is also shown. The scroll bar shows the image you are currently viewing in relation to the total echosounder image history stored.

When the scroll bar is on the far right side it indicates that you are viewing the latest soundings. If you move the cursor to the left side of the screen the history bar will start scrolling towards left, and the automatic scrolling as new soundings are received will be turned off.

To resume echosounder scrolling, move the cursor to the right until the red history bar reaches the right side of the image, or press the X key.

ress the X key

MENU WIN

Measuring distance

The cursor can be used to measure the distance between the position of two observations on the sounder image. It is easier to use the measure function when the sounder image is paused.

Use the following process to measure a distance:

Move the cursor to the ﬁ rst 1 measuring point

Start the Measure function2

Move the cursor towards the second 3 measuring point

A line will be drawn from the first point to the cursor, and the distance will be listed in the Information window

You can reset the measurement by pressing the Tick key.

When you press the X key the echosounder will resume to normal scrolling.

he Ti k key

44 | Using echosounder

Optimizing the echosounder image

Several parameters can be adjusted to optimize the sounder image.

Gain

The gain controls the sensitivity of the echosounder.

The more you increase the gain, the more details will be shown on the image. However, a higher gain setting may introduce more background clutter on the image. Conversely, if the gain is set too low weak echoes may not be displayed.

Auto gain

The Auto gain option will keep the sensitivity at a level that works well under most

onditions.

With the gain in auto mode, you can set a positive or negative offset that gets applied to the auto gain. This is indicated as A-40 - A40.

Color

The strength of the echo is symbolized by colors. A strong return will be shown with reddish-brown color, while a weak signal will be light blue (depending on which palette you select).

The more you increase the Color, the more echoes will be displayed as reddish-brown.

Adjusting the Gain and Color gain settings

Gain and Color are adjustable by using the rotary knob.

You select between Gain and Color by pressing the rotary knob. The active control will expand and display it’s name in full. You can then adjust the value by turning the knob.

If you press and hold the rotary knob when Gain is selected, you switch between Auto and Manual gain option.

PLOT

GO TO

MARK

VESSEL

If no adjustments are made within 3 seconds the controls will return to default size.

Noise rejection

Echosounder signal interference from bilge pumps, engine vibration and air bubbles can clutter the sounder image.

The noise rejection option filters the impact of echosounder signal interference by reducing the on-screen clutter.

Using echosounder | 45

MENU WIN

Clarity

Wave action, boat wakes and temperature inversion can cause on-screen clutter near the surface.

The surface clarity option reduces surface clutter by decreasing the sensitivity of the receiver near the surface.

Recording the echosounder data

You can record echosounder data and save the file internally in the HDS unit.

You can select how many bytes per seconds that is to be used when saving the log file. More bytes yields better resolution, but will cause the record file to increase in size compared to using lower byte settings.

ompared to using lower

hen the echosounder im

When the echosounder image is being recorded, there will be a flashing red symbol and

logging mess

a logging message will appear periodically at the bottom of the screen.

e will a

46 | Using echosounder

The sounder recording is stopped by repressing the MENU key.

MENU WIN

Viewing the recorded sounder data

The recorded sounder images are stored internally in the HDS unit, and can be reviewed when selected.

The log file is displayed as a paused image, and you get access to the replay and echo options by pressing the MENU key.

You exit the replay mode by pressing the X key.

Using echosounder | 47

Blank page

48 | Using echosounder

Navigating9

The navigation function included in the NSE allows you to navigate towards the cursor position, a position defined by latitude and longitude values, a waypoint or along a predefined route.

For information about positioning waypoints and creating routes, refer the Waypoints, Tracks and Routes section.

PLOT

MARK

GO TO

VESSEL

Start navigating

Using the GOTO key

You can start navigation from any panel by pressing the GOTO key. The go to cursor option will only be available when the cursor is active on a Chart, Radar or Echosounder panel.

Using the cursor

You can start navigating a route on a chart panel by moving the cursor over the route and then pressing the MENU key.

MENU WIN

Selecting start point

You can navigate a route starting from any waypoint by positioning the cursor over the

elected waypoint and pressing the MENU key.

MENU WIN

Cancel navigation

You cancel navigation by pressing the GOTO key.

PLOT

MARK

GO TO

VESSEL

Navigating | 49

Navigation parameters

MENU WIN

Navigation method

Different methods are available for calculating the distance and bearing between any two points on a chart.

The great-circle route is the shortest path between two points. However, if you are to travel along such a route, it would be difficult to steer manually as the heading would constantly be changing (except in the case of due north, south, or along the equator).

Rhumb lines are tracks of constant bearing. It is possible to travel between two locations using Rhumb line computation, but the distance would usually be greater than if Great circle is used.

Steering alarm limits

Arrival radius

Sets an invisible radius around the destination waypoint.

en the arrival alarm is activated, an alarm will appear when the

Wh vessel is within this radius.

Off course limit

This parameter defines the vessel’s accepted offset distance from the

eg. If the vessel goes beyond this limit an alarm will be activated.

Off course alarm must be enabled/disabled in the alarm panel.

Magnetic variation

Converts magnetic north data to true north, increasing the accuracy of navigation information.

Auto automatically converts magnetic north to true north. When using manual mode, you will have to input the local magnetic variance.

Datum

Most paper charts are done by using the WGS84 format, which also is used by the NSE system.

If your paper charts are made by using a different format you can change the settings accordingly on the NSE system to match your paper charts.

Coordinate system

Controls the format for lat./lon coordinates displayed on the panels.

Phantom Loran

Enables phantom loran, for waypoint entry, vessel and cursor position display.

50 | Navigating

Loran settings

Allows setting of GRI and preferred TD pairs for vessel and cursor position display.

Navigation panels

The Steer and Position panels can be used to display information when you are navigating.

The Steer panel

DATA

FIELDS

USE LEFT/

RIGHT

ARROW TO

TOGGLE

VESSEL

SYMBOL

COURSE

LINE

OFF COURSE

LIMIT

Data ﬁ elds

The Steer panel offers the following information:

DTD Distance to destination

BTW Bearing to waypoint

SOG Speed over ground

COG Course over ground

TTD: Time to destination

ETA: Estimated time of arrival at next waypoint

VMG: Velocity Made Good towards next waypoint.

STEER: Course to steer towards next waypoint

The co

urse line

When travelling on a route the course line shows the intended course from one waypoint towards the next.

When navigating towards a waypoint (cursor position, MOB or an entered lat/ lon position), the course line will show the intended course from the point at which navigation was started towards the next waypoint.

Vessel symbol

The vessel symbol indicates distance and

earing relative to the intended course.

Off course limit

If the XTE exceeds the defined off course

t (refer below), this will be indicated

limi with a red arrow including the distance from the track line

If the off course alarm is enabled, the alarm will activate if the XTE exceeds the defined off course limit.

Navigating | 51

Position panel

Data ﬁ elds

Position in lat. and lon.

Time and date

SOG Speed over ground

COG Course over ground

52 | Navigating

MENU WIN

The instrument panel10

The instrument panel consists of multiple gauges — analog, digital and bar — that can be customized to display selected data. The instrument panel displays data on dashboards, and you can define up to ten dashboards within the instrument panel.

Switching between dashboards

You switch between a panel’s dashboards by using the left and right arrow keys or by

selecting the dashboard from the menu.

Dashboard styles

Three dashboard layouts are predefined to display gauges showing information about vessel, navigation information and angler requirement.

Vessel dashboard Navigation dashboard Angler dashboard

Adding dashboards

There can be up to 10 dashboards within each instrument panel. In addition to the 3 predefined dashboards you can design your own based on the predefined dashboard styles.

Customizing a dashboard

You can customize a dashboard by changing the dashboard style, and by changing the data for each of the gauges in the dashboard. You can also set limits of analog gauges.

Available editing options will depend on type of gauge and which data sources that are connected to your system.

When a dashboard is in editing mode, this will be indicated in the upper right corner.

Select the dashboard you want to edit1

Press 2 MENU key to enter edit mode

The upper right gauge will be selected. Active gauge will be indicated with red border

Use the arrow key to select the gauge you want to change3

Repress the 4 MENU key to select edit options

Repeat until all edits are done5

Press the 6 MENU key to save your changes

Instruments | 53

Blank page

54 | Instruments

The utilities pages11

The utilities pages includes options and tools that are not specific to any panel.

These pages act different to the char t, radar, echo etc. They are always full screen, and you cannot use them in a split page with any other panels.

A utility page will open on top of your previous page. When you close a dialog in one of the utilities pages the utilities function will close and the display will return to last active page.

The utilities pages are accessed and operated as for normal menu operation.

You switch between different tabs in a page by using the arrow keys. You can also access a page by using the numeric key as indicated on each icon.

Any listing in the utilities pages has a context menu, giving access to available options for the selected item. The context menu is displayed by pressing the MENU key.

Vessels

Status listing

List of all AI information.

Message listing

List of all messages received from other AIS vessels wi

th time stamp.

S, MARPA, and DSC vessels with available

Utilities pages | 55

Alarms

Active alarms

List of active alarms.

Alarm history

List of all alarms with time stamp.

Alarm settings

List of all available alarm options in the system, with c

urrent settings.

Satellites

Status page for active satellites.

Find

Search function for several chart items.

By pressing the MENU key you get access to available options for the selected item.

Waypoints/routes/tracks

List of waypoints, routes and tracks with details.

56 | Utilities pages

Tr ip L og

Trip 1 / Trip 2

Displays voyage and engine information, with reset o

ption for all data ﬁ elds.

Today

Displays voyage and engine information for current dat

e. All data ﬁ elds will be automatically reset when the

date changes.

Sun/moon

Displays sunrise, sunset, moonrise and moonset for a position based on entered date and the position’s latitude/longitude

Tides

Displays tide information for the tide station nearest to your vessel.

You can use the arrow keys to page to selected date.

Available tide stations can be selected by using the MENU key.

Files

File management system for ﬁ les, waypoints, routes, tracks and settings.

By pressing the MENU key you get access to available options for the different ﬁ le types.

Utilities pages | 57

Blank page

58 | Utilities pages

Customizing your system12

Page setup

You r NSE system includes a set of predefined pages for each page group accessed by the Direct Access Key (DAK). The list of available pages is displayed when you press the DAK for the active page.

Each page group can have up to 5 pages, organized as single panels or as a combination of panels. The first item in each page list will always be a full size page for the panel related to that page group.

There can be up to 4 panels on each page, and the layout can be arranged as illustrated below. The numbers indicated on each page shows the order in which the panels will be added.

1121

The graphics on the next page illustrates how a page is added and panels defined for the R ADAR page group. The process is identical for each page group.

You can add, remove and replace panels from the same menu.

The illustration does not indicate how you use the rotary knob to maneuver in the menu and conﬁ rm a selection. This is described in the Basic Operation section.

Customizing your system | 59

RADAR

MENU WIN

60 | Customizing your system

MENU WIN

Adjusting panel size

You can adjust the size of the panels in a multi panel’s page by pressing the page group’s DAK.

The illustration below shows how you change the size of a 3-panels Chart page.

CHART

MENU WIN

INFO

Setting the appearance of the instrument bar

Data sources connected to the system can be viewed in an instrument bar on top of your screen.

You can choose to turn the instrument bar off; display either one or two rows, or set it to alternate the rows automatically.

You can also select to show it on a specific page only, or on all pages.

Selecting data sources

Turn the 1 rotary knob to highlight the instrument bar on top of the dialog

Press the rotary knob to highlight the ﬁ rst instrument ﬁ eld2

Rotate the knob to select data source, and press the knob to conﬁ rm3

Use the rotary knob to move to next data ﬁ eld4

Continue using the rotary knob until all data ﬁ elds are deﬁ ned5

Press the 6 X key to return to normal operation

Customizing your system | 61

MENU WIN

Changing system settings

The system settings menu provides access to advanced settings for your NSE unit and determines the way your NSE unit displays various user interface information on the display.

Selecting language

When you select your desired language; all panels, menus and dialogs will change accordingly.

Text s i ze

Used for adjusting the size of the text on the menus.

Default setting: Normal

Key beeps

A tone (key beep) will sound when any key is pressed on your NSE unit.

Default settings: On

Time

Allows you to select time format, date format and account for differences in time zone when using the NSE unit in a different time zone (Local Offset).

Sirius Audio

Used for activating the Sirius satellite radio function (US only).

Screen capture

Saves images of your unit’s screen.

The image files can be moved or copied to USB or memory card. Refer to the Utilities pages section.

Restore defaults

Allows you to restore all settings back to factory default.

Power control

Defines how power is controlled on NSE units in a networked system.

Advanced

Contains advanced setup features.

About

Displays your NSE unit’s current software version.

62 | Customizing your system

Sirius audio and weather (North America only)13

When connected to a Navico Weather Module MKII, you can subscribe and include Sirius audio and Sirius Marine Weather Service on your NSE system.

Sirius audio and weather service covers inland US waters and coastal areas into the Atlantic and Pacific oceans, Gulf of Mexico and the Caribbean Sea.

The audio and weather products received vary depending on your selected subscription package. For more information refer to www.sirius.com.

MENU WIN

Sirius audio

When the Sirius audio is turned on, a scrolling media bar will appear at the bottom of the active panel.

The media bar acts as a panel, and you switch focus between other panels and the media bar by pressing the WIN key.

ACTIVE

CHANNEL

MEDIA

BAR

SIGNAL

STRENGTH

Operating the Sirius audio

When the media bar is active on your screen, you can operate the audio by using the following keys:

OUT

Increase/decrease volume

Up/down arrow keys to page to next/previous radio channel

MENU WIN

The audio can be muted and the volume adjusted from the Sirius Radio menu.

MENU WIN

Sirius audio and weather | 63

MENU WIN

The radio channels list

The channels list displays all available Sirius channels, whether or not you have a subscription for the channel.

Adding channels to favorites list

You can create of list of your favorite channels from within the channels list.

en a favorite list is available, you page through this list when you use arrow keys; not

Wh through the entire list of subscribed channels.

Locking channels

You can lock selected channels from being broadcast unless an unlock code is entered.

When the function is activated, the lock code dialog will be displayed and a 4 digit code must be entered before the locking is activated.

The same dialog will be displayed and correct code must be entered before a locked channel can be released.

64 | Sirius audio and weather

MENU WIN

Sirius weather

The Sirius weather option can be displayed as overlay to your chart panel.

When activated, weather options become available in the Chart menu.

SST

COLORED

BAR *

PRECIPITATION *

FORECAST WIND

BARBS *

* Optional weather image items

You turn the optional weather graphics on/off individually.

Setting up the weather image

Weather icons

The NSE system use different icons to present weather conditions. The weather icons can be turned on/off individually.

Weather overlay transparency

The transparency sets the opaqueness of the weather overlay.

Color codes

The system uses shades of color on the weather image to indicate sea surface temperature (SST), and also for indicating wave height.

By adjusting these limits you can select how the system uses the color scheme to separate between warm/cool water and minimum/maximum wave height.

Sirius audio and weather | 65

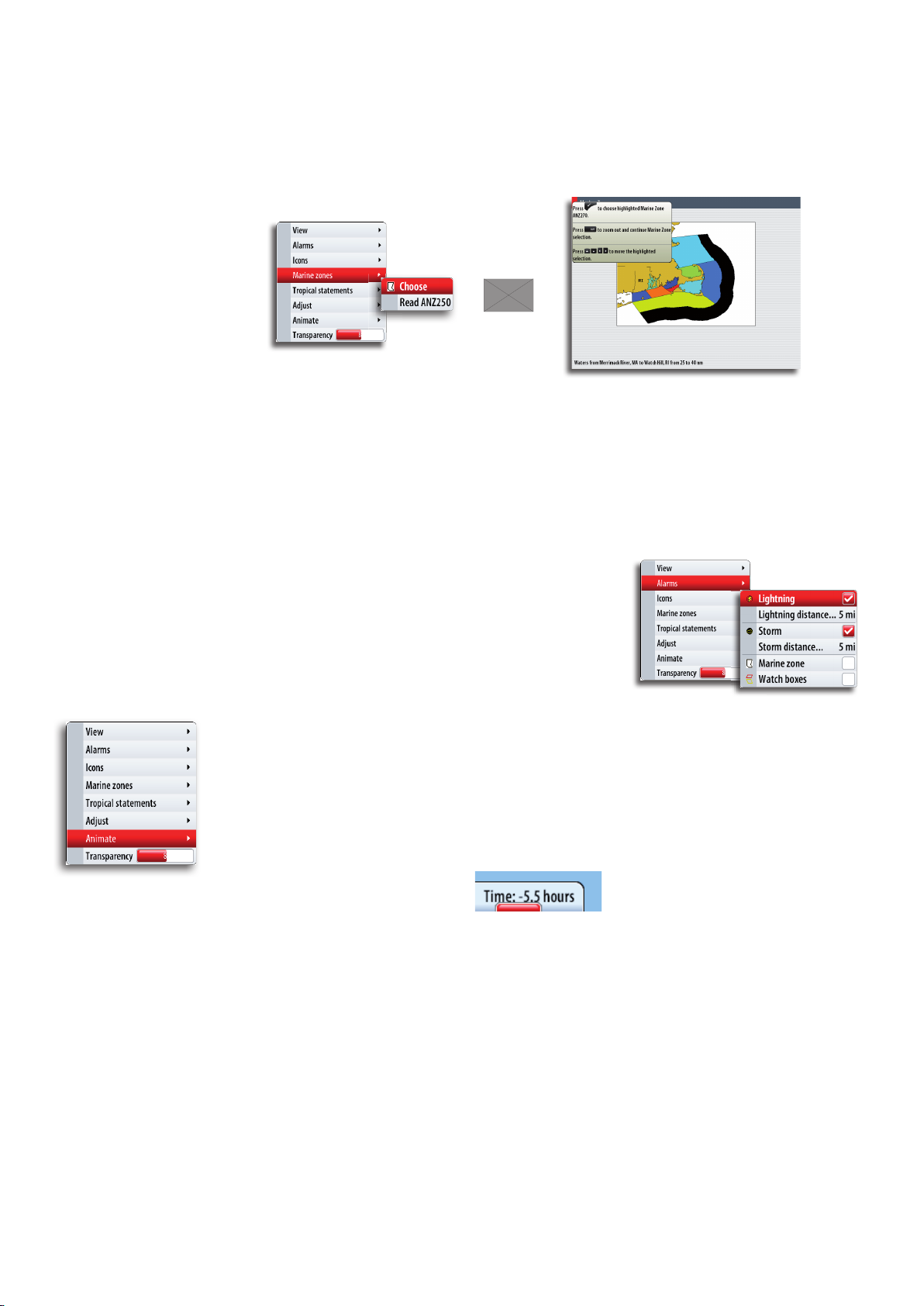

Weather forecast

Selecting a marine forecast zone

You can setup the system to read the forecast for a selected area.

The context help in the dialog shows how to use the keys to select marine zone.

If no area is selected the system will read the forecast for your current vessel position.

Tropic a l state m ents

You can read tropical statements including information about tropical weather conditions. These statements are available only for specific areas.

Weather alarm settings

You can define several alarms to warn you when severe weather forecast is received within the specified range of your vessel, within your selected marine zone or within a specific range from your vessel (watch box).

Animating weather graphics

The animated weather options gives you a graphic overview of how the weather conditions changed for a selected period. This can be used as a guide to potential fishing and sailing conditions in the immediate future.

When activated the time for the current graphic animation will be displayed in the lower left corner of the chart panel.

66 | Sirius audio and weather

Using video14

The video function allows you to connect optional cameras to your NSE system.

The video images will not be shared with other NSE units via the network!

The video panel

The video panel is accessed via the INFO key.

INFO

The video panel can also be set up in one of the other page groups accessed by the DAK keys. It can be set up as single panel or as one of the panels in a multi-panel page.

The video image will be proportionally scaled to fit into the video panel. Area not covered by the image will be colored black.

If a multi-panel page layout is selected for the video image, it is recommended to adjust the panel size to fit the image size. For how to adjust panel size, refer to the Customizing your NSE system section.

The graphics below show images from a thermal imaging camera.

MENU WIN

Customizing your video settings

Selecting video source

NSE supports two video input channels. You can select to view one channel only, or to cycle the image between available video cameras.

The cycle period can be set from 5 to 120 seconds.

Mirroring the video image

Video input can be set to display a mirror image. This setting can be helpful for rearfacing cameras used to back-down the vessel.

Video | 67

Optimizing the video image

You can optimize the video display by adjusting the video image settings.

Default for all settings: 50%.

Selecting video standard

NSE supports NTSC and PAL video. The two channels are set up individually. Check the local video standard or the standard of your cameras.

68 | Video

The alarm system15

The NSE system will continuously check for dangerous situations and system faults while the system is running. When an alarm situation occurs, an alarm message will pop up on the screen.

If you have enabled the siren, the alarm message will be followed by an audible alarm.

The alarm is recorded in the alarm listing so that you can see the details and take the appropriate corrective action.

Ty pe of mes sag es

The messages are classified according to how the reported situation will affect your vessel. The following color codes are used:

COLOR IMPORTANCE

Red Vital

Orange Important

Yel low St a ndard

Blue Warning

Green Light warning

Single alarms

A single alarm is displayed with the name of the alarm as the title, and with details for the alarm.

Multiple alarms

If more than one alarm is activated simultaneously, the alarm message will display a list of up to 3 alarms. The alarms are listed in the order they occur with the alarm activated first at the top. The remaining alarms are available in the Alarm listing. Refer to The utilities pages section.

Acknowledging a message

The following options are available in the alarm dialog for acknowledging a message:

OPTION RESULT

OK Sets the alarm state to acknowledged, meaning that you are aware

of the alarm condition. The siren / buzzer will stop and the alarm dialog will be removed.

The alarm will however remain active in the alarm listing until the reason for the alarm has been removed.

Disable Disables the current alarm setting. The alarm will not show again

unless you turn it back on in the Alarm settings dialog.

There is no time-out on the alarm message or siren. These remain until you acknowledge it or until the reason for the alarm is removed.

Alarm system | 69

MENU WIN

Customizing the alarm settings

The alarms can be setup in Settings tab in the Alarms page. This page also includes information about active alarms and alarm history.

The Alarms page can also be activated from the Utilities pages.

MENU WIN

The alarms are described in the chapter describing the corresponding feature. E.g. vessel alarms are described in the Tracking other vessel’s movement section.

70 | Alarm system

Maintenance16

Preventive maintenance

The NSE unit does not contain any field serviceable components, therefore the operator is required to perform only a very limited amount of preventative maintenance.

It is recommended that you always fit the supplied protective sun cover when the unit not is in use.

Simple maintenance procedures

Cleaning the display unit

Clean the housing and the front glass of the NSE8/12 unit with a damp cloth and mild detergent.

Checking the keys

Make sure that no keys are stuck in the down position. However, if one is stuck, wiggle the key to free it back to normal.

Checking the connectors

The connectors should be checked by visual inspection only.

Push the connector plugs into the connector, if the connector plugs are equipped with a lock; ensure that this is in the correct position.

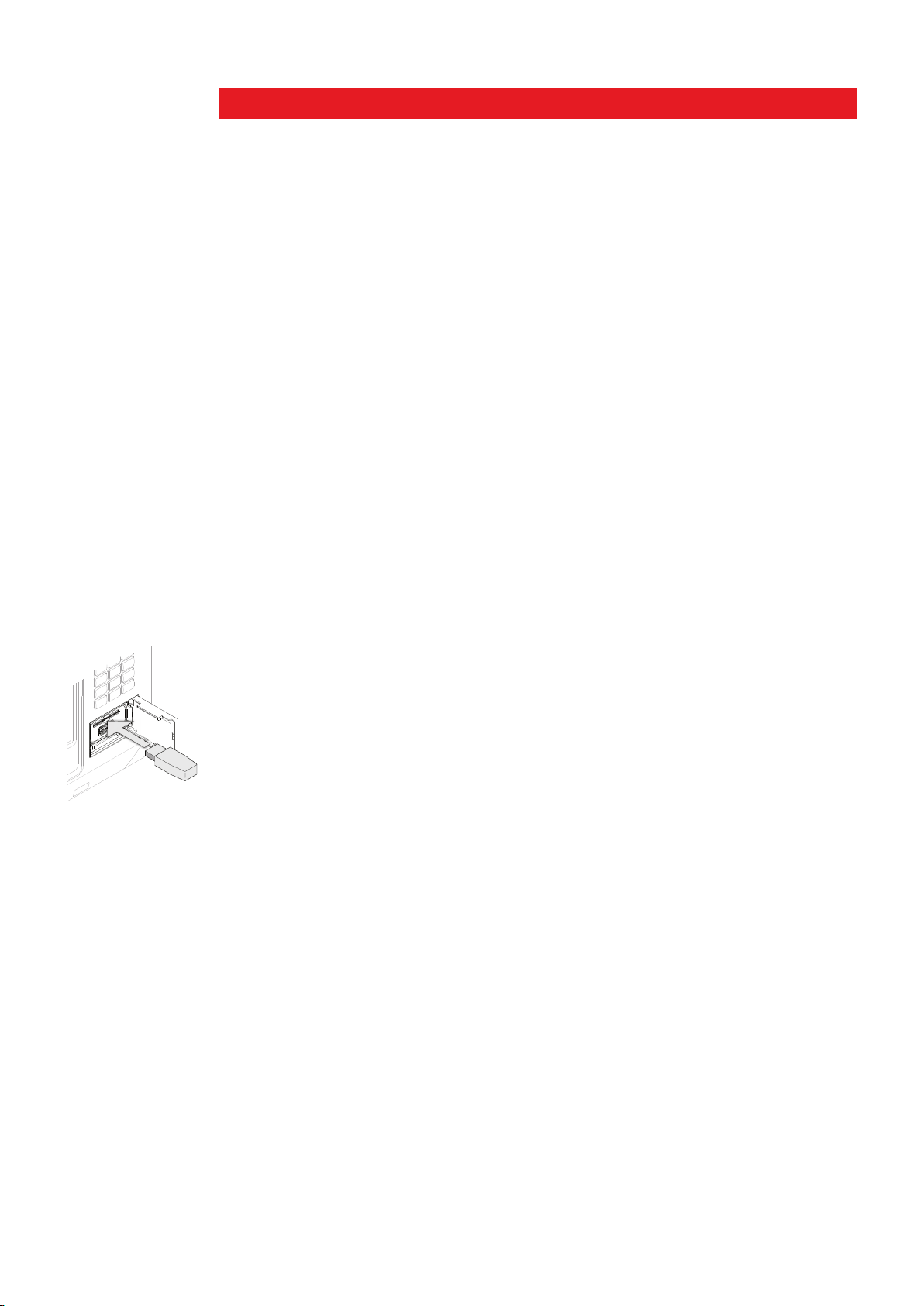

Backing up your system data

Waypoints, routes, tracks that you create on your system are filed on your system. It is recommended to regularly export these files and your settings file as part of your backup routine.

The files are exported to a memory stick or SD card inserted in the card slot on the front of your unit.

An illustration on the next page shows the process when exporting waypoints, routes and tracks. Other files are exported by the same process.

Maintenance | 71

MENU WIN

72 | Maintenance

Menu overview17

Settings menus

MENU WIN

System

Chart

Echo

Fuel

Trac ks

Alarms

Units

Radar

Navigation

Network

Vessels

Simulator

Menu overview | 73

MENU WIN

Context menus

Chart

Radar

Echo

PLOT MARK

GO TO

VESSEL

Goto menu

PLOT

MARK

GO TO

VESSEL

Info

Plot menu

74 | Menu overview

Index18

AIS 15, 53 AIS devices 32 AIS targets 15 Alarm messages 8 Alarms 53

Active alarms 53 Alarm history 53 Alarm settings 53 Waypoint alarm settings 24

Alarm system

Alarm message 67 Alarm settings dialog 67 Alarms page 68 Alarm state 67 Type of messages 67

Alpha numeric keypad 11 Animated weather options 64 Animating weather 64 Annotation 21 Arrival radius 48 Arrow keys 11 Audible alarm 8 Audio 7

Backing up 69 Bearing to next waypoint

BTW 49

Bottom coloring 41 Bottom lock 40

Camera Pan 20 Camera Rotate 20 Chart 6, 15, 17

3D 19

Chart categories 19 Chart context menu 17 Chart data 19 Chart database 20 Chart details 21 Chart details level 19

Look Ahead 18 Low 18 Medium 18 Full 19

Chart function 15 Chart imagery 19 Chart item 16 Chart items 54 Chart orientation 18, 19

Course up 18 Heading up 18 North up 18

Chart overlay 19 Chart page 59 Chart panel 15, 63 Chart scale 18 Chart view 9, 20 Checking the keys 69 Cleaning 69 COG 29 COG information 36 Color 43 Color codes 63

Color palettes 29 Color templates 41 Compass 18 Context help 11 Context menu 7 Contours 22 Coordinate system 48 Course extension line 35 Course over ground

COG 49, 50

Course to steer to destination

STEER 49

Course up 18 Cursor 16

Remove the cursor 16 Using the cursor 11

Cursor information window 11, 32 Cursor keypad 5 Cursor mode 18, 20 Cursor position 11, 42 Cursor to position a waypoint 42

DAK 12, 59 Dangerous situations 67 Dashboard 51

Customize 51 Customizing 51 Editing options 51 Gauges 51 Layout 51

Data ﬁ elds 54 Data source 13, 51 Data sources 59 Date format 60 Datum 48 Default 60 Demo mode 13 Dialog box 11

Selecting entry ﬁ elds 11 Adjusting values 11 Entering text 11

Dialogs 8 Digits 11 Direct Access Key (DAK) 5, 57 Distance to destination

DTD 49

DSC 53 AIS 36

EBL/VRM function 33 Echo 6 Echoes 41 Echoes of waves 30 Echo returns 30 Echo Sounder 6 Echo sounder function 39 Edit 25 Edit route mode 25 Electronic bearing line (EBL) 33 Estimated time of arrival

ETA 49

Extension line 16, 36

75 | Maintenance Index | 7575 | Index

File management system 55 Filtering the signals 30 Find 54 Freeze the sounder image 39

Menu key 5 MENU key 37 MMSI messages 36 MOB 49 MOB function 9 Moving targets 29

Gain 30

Auto and Manual 30 Color 43

Gain and Color 43 Gain control 43 Goto menu 7 GPS 16 GPS data 13 GPS source 13 Great-circle route 48 Guard zone 31

Heading data 29 Heading up 18 Heading up orientation 29

Info 6 Instrument bar 59 Instrument panel (INFO) 51

Analog 51 Analog bar 51 Digital bar 51

Instruments 6 Interference 30

Key beeps 60

Language 60 Latitude/longitude 49, 55 Lock selected channels 62 Loran settings 48 Low light conditions 10

Magnetic variation 48 Maintenance 69 Man Over Board 9 Man Over Board waypoint 9 Mapping mode 19 Marine forecast 64 MARPA 32, 53 MARPA target lost 37 Measure a distance to a target 29 Measure distance and bearing 33 Measure function 42 Measuring 17 Measuring distance 17 Measuring range and bearing 32

Using Cursor 32 Range Rings 32 EBL/VRM 32

Menu 5, 10

Exiting the menu 11 Cancelling 11

Navigate routes 15 Navigating 47 Navigating function 7 Navigating to one waypoint 49 Navigation 6, 21 Navigation course 29 Navionics 20, 21 Navionics Platinum 20 Night mode 10 Noise rejection 43 North up 18 NSE 66

NSE system 57 NSE unit 60

NSE screen 6 NSE system 6, 8, 36, 61 NSE unit 28

Communicating with, 7

Off course alarm 48 Off course limit 48, 49 On-screen clutter 30 Optimize the video display 66

Page group 57 Page groups 6 Pages

Selecting pages 12

Panels 6, 57

Selecting active panel 12

Panning 18 Phantom Loran 48 Photo Overlay

2D 20 3D 20

Photo transparency 21 Ping speed 41 Planning routes 15 PLOT/MARK key 5 Plot menu 7 Popup dialog 8 Position 6 Positioning the radar 28

Center 28 Look ahead 28 Offset 28

Predeﬁ ned pages 57 Presentation type 21 Preset distances 32

Radar 6 Radar center 28 Radar image 15 Radar motion 29 Radar operational functions 33 Radar operational modes 28

I | IndexIndex | 76

Off 28 Standby 28 Tran s m it 28

Radar orientation 29

Heading up 29 North up 29 Course up 29

Radar overlay 33 RADAR page 57 Radar panel 27, 28, 29, 32 Radar range 32 Radar returns 30 Radar returns on the Chart 33 Radar screen 29 Radar signals 30 Radar threshold 30 Radio channels 62 Rain clutter 30 Range limit 37 Range rings 32 Range settings 35 Range zoom bars 40 Record echo sounder data 44 Record sounder data

Viewing 42, 45

Red scroll bar 42 Relative motion 29 Relative Motion mode 29 Rhumb line computation 48 Rhumb lines 48 Rotary knob 2, 5, 10, 11, 37, 59 Rough water 30 Route 25, 49

Edit route mode 25

Safety depth 22 Satellite photo images 20 Satellites 54 Scaling factor 40 Scanner 28 Screen capture 60 Screen view 27 Scroll bar 42 Sea clutter 30 Sea level temperature 63 Search function 54 Sector zone 31 Selecting language 60 Serviceable components 69 Settings menu 7 Settings menus 71 Shaded relief 19 Short press 2 Simple maintenance procedures 69 Simulated course 13 Simulated route 13 Simulating mode 13 Simulation 13 Simulator mode 13 Simulator settings 13 Sirius 61

Sirius audio 61

Sirius antenna 61 Sirius Audio 60 Sirius Marine Weather Service 61 Sirius satellite radio function 60 Software 2 Software version 60

Sounder frequency 41 Sounder panel 40 Sounder range 41

Auto 41 Manually changing the range 41

Source ﬁ les 13 Speed over ground

SOG 49, 50

Steer 6 Sun/moon 55 Surface clarity 44 Symbology 27 System settings 60

Target 32 Target expansion 32 Targets 36 Target symbol 35, 36, 37 Target t r a i l s 3 2

Setup 32

Text 11 Tick key 5 Tides 55 Time 60 Time format 60 Time stamp 53 Time to destination 49

TTD 49

Track 24 Track length 24 Track line 49 Track point 24 Track settings 24 Track the vessel’s movement 24 Transducer frequencies 41 Trip log 54 Tropical statements 64 True motion 29 True north 48

USB stick 13 Using colors 41

Color palettes 41 Bottom coloring 41

Using the arrow keypad 10 Utilities 6 Utilities function 53 Utilities pages 53 Utility page 53

Velocity Made Good

VMG 49

Vessel message 37 Vessel mode 20 Vessels 32, 53

Message listing 53 Status listing 53

Vessels on the chart 35, 36 Video 6

Camera 65 Mirror image 65 NTSC 66 PAL 66

Video function 65 Video image 65

Index | I77 | Index

Video input channels 65 VRM function 33

Water column 39 Waypoint 23

Positioning 24 Positioning on echo sounder image 23

Waypoint dialog 23 Waypoints, routes and tracks 54 Weather 7 Weather conditions 30, 63 Weather forecast 64 Weather icons 63 Weather image 63 Weather overlay 63 Weather overlay transparency 63 Weather symbols 15 WIN key 5

X key 5

Zoom buttons 5 Zoom mode 40

I | Index Index | 78

*988-0175-02A*

NSE-8, NSE-12 Operation Manual, English, 988-0175-02-A

Simrad NSE8, NSE12 Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
