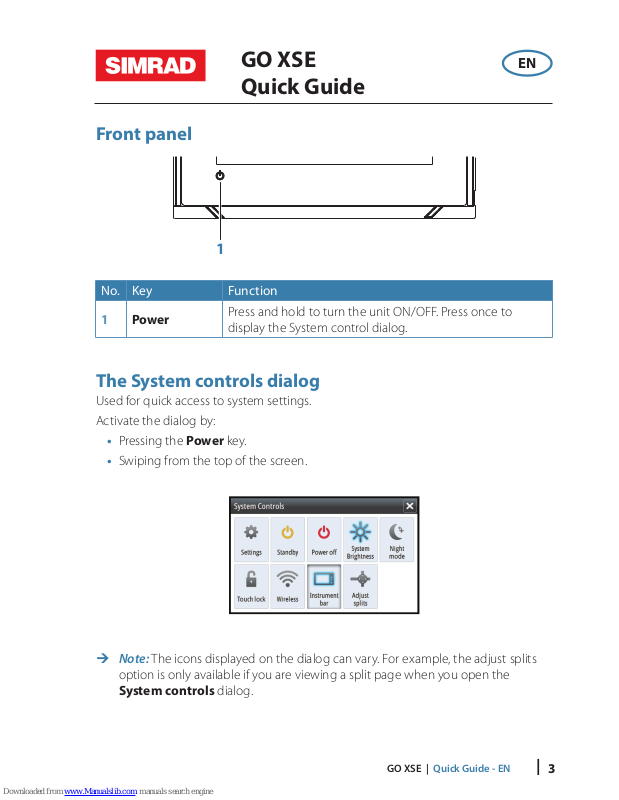

GO XSE | Quick Guide - EN
GO XSE
Quick Guide
Front panel
1
No. Key Function
1 Power
Press and hold to turn the unit ON/OFF. Press once to
display the System control dialog.
The System controls dialog
Used for quick access to system settings.
Activate the dialog by:
• Pressing the Power key.
• Swiping from the top of the screen.
¼ Note: The icons displayed on the dialog can vary. For example, the adjust splits
option is only available if you are viewing a split page when you open the
System controls dialog.
EN
4
|
GO XSE | Quick Guide - EN
The Home page
Accessed from any operation by selecting the home button in the upper left corner
of a panel.
1 2
3
4
5
No. Item Function
1 Tools
Select a button to access dialogs used for carrying out a
task, or for browsing stored information.
2 Applications
Select a button to display the application as a full page
panel. Press and hold a button to display pre-configured
split page options for the application.
3 Close button
Select to exit the home page and return to the previous
active page.
4 Favorites
Select a button to display the panel combination.
Press and hold a favorite button to enter edit mode for the
favorites panel.
5
Man Over
Board (MOB)
button
Select to save a Man Over Board (MOB) waypoint at the
current vessel position.
|
5
GO XSE | Quick Guide - EN
Application pages
Each application connected to the system is presented on panels. All application
pages are accessed from the home page.
4
3
1
5
8
7
2
6
No. Item
1 Application panel
2 Instrument bar
3 System controls dialog
4 Status bar
5 Dialog
6 Control Bar
7 Alarm message
8 Menu
Adjust panel size
Change the panel size for an active split page:
1. Activate the System controls dialog
2. Select the adjust splits option in the dialog
3. Adjust the panel size by dragging the adjustment icon
4. Confirm your changes by tapping one of the panels or selecting the save option
in the menu
