Simplicity Whoosh User Manual

(The chances are you’re
never going to read me)
Owner’s Manual
www.simplicityvac.com
Contents
IMPORTANT SAFETY INSTRUCTIONS .............................................................. 2
Polarization Instructions .................................................................................. 3
Description of the Vacuum .............................................................................. 4
Operation
Turning the Vacuum On/Off ........................................................................... 6
Carrying the Vacuum ...................................................................................... 6
Power Cord Storage ......................................................................................... 6
Vacuuming Floors ........................................................................................... 7
Cleaning Tools ................................................................................................. 8
Cleaning Tools Holder ..................................................................................... 8
Adjusting the Suction Power ........................................................................... 9
Using the Blower Exhaust Port ....................................................................... 9
Micro Tool Kit and Angle Adapter .................................................................... 10
Maintenance and Care
Replacing the Vacuum Bag ............................................................................ 11
When to Change the Filter .............................................................................. 12
Replacing the Filter ......................................................................................... 12
Problem Solving Guide
Troubleshooting ............................................................................................... 13
How to Contact Your Authorized Retailer ....................................................... 13
Visit Simplicity Online ...................................................................................... 13
Warranty ................................................................................................................. 14
1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
The manufacturer cannot accept responsibility for damage
caused when the appliance is not used according to the instructions or for uses other than those for which it was intended.
To reduce the risk of fire, electric shock or injury:
• Do not leave appliance when plugged in.
Unplug from outlet when not in use and
before servicing.
• WARNING: ELECTRIC SHOCK COULD OCCUR IF USED OUTDOORS OR ON
WET SURFACES.
• Do not allow to be used as a toy. Close
attention is necessary when used by or near children.
• Use only as described in this manual.
Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If
appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to your
Authorized Retailer for service.
• Do not pull or carry by cord, use cord as
a handle, close a door on the cord, or pull cord around sharp edges or corners. Do
not run appliance over cord. Keep cord
away from heated surfaces.
• Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do
not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
• Keep hair, loose clothing, ngers and all
parts of body away from openings and
moving parts.
• Do not pick up anything that is burning or
smoking, such as cigarettes, matches or hot ashes.
• Do not use without vacuum bag and/or lter in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up ammable or
combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not attempt to service the unit while
appliance is plugged in.
SAVE THESE INSTRUCTIONS.
2
Polarization Instructions
POWER CORD, 2-WIRE POLARIZED CORD
To reduce the risk of electric shock, this product is
equipped with a polarized alternating current line plug
(a plug having one blade wider than the other). This
plug will fit into the power outlet only one way. This
is a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If the plug
should still fail to fit, contact a qualified electrician to
replace the obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
State of California Proposition 65 Warnings: WARNING: This product contains one or more chemicals known to the State of California to cause cancer. WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.
3
Description of the Vacuum
12
8
2
by
1
3
17
4
9
5
10
11
6
7
16
14
13
15
12
4
Description of the Vacuum
1 Carrying Handle
2 Crevice Tool
3 Shoulder Strap
4 Main On/Off Power Switch
5 Bag Compartment Cover and Retaining Latch
6 Suction Intake Port
7 Power Cord / Cord Storage
8 Suction Relief Ring
9 Hose Assembly
10 Cleaning Tools Holder
11 Blower Exhaust Port
12 Upholstery Tool
13 Extension Wands
14 Adjustable Angle Adapter
15 Bare Floor Tool
16 Micro Tool Kit
17 Dusting Brush
5
Operation
Turning the Vacuum On/ Off (Fig. 1)
• To start the vacuum cleaner, push the
“On/Off” switch located on the handle
to the “On” (I) position.
• To stop the vacuum cleaner, push the
“On/Off” switch to the “Off” (O) position.
• Turn the vacuum cleaner off before
unplugging from electrical outlet.

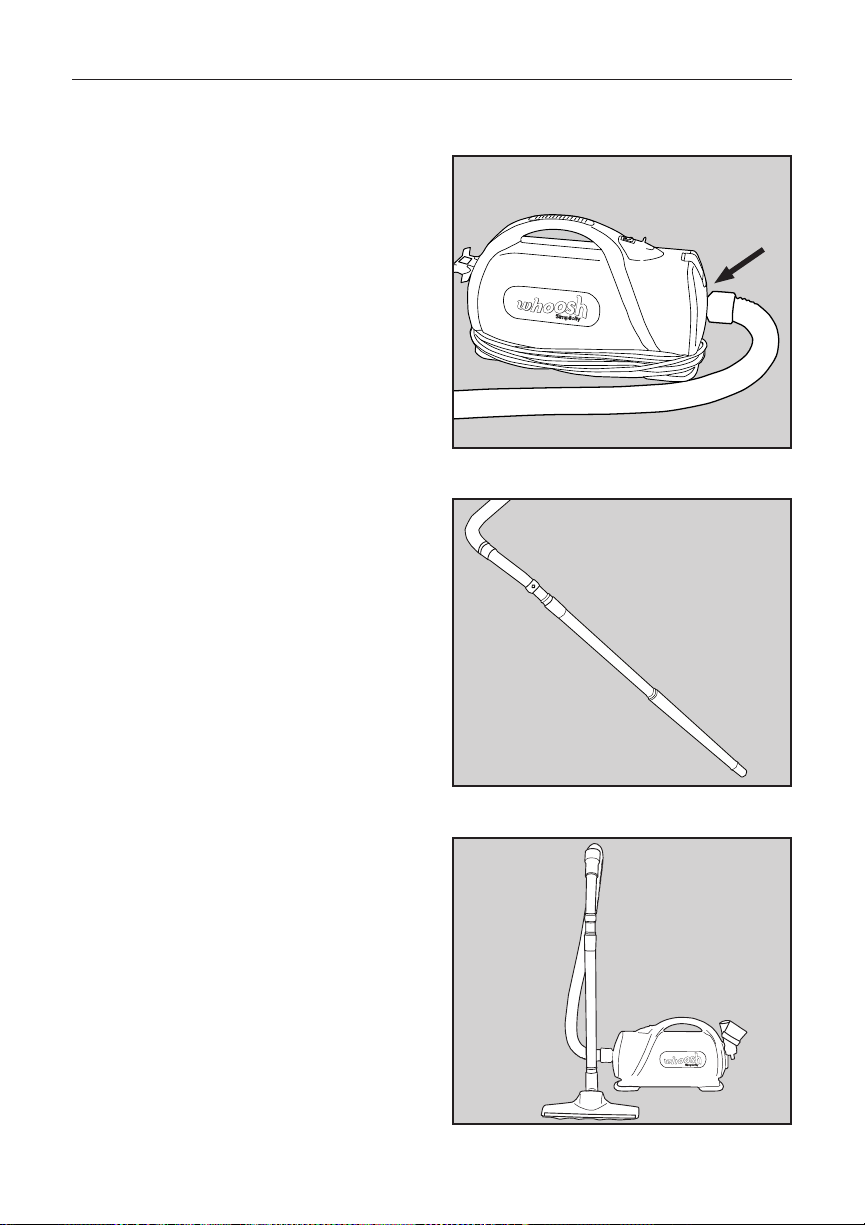

Carrying the Vacuum (Fig. 2)
To safely transport your vacuum,
especially when carrying the vacuum up
and down stairs, use the carry handle
and/or the shoulder strap.
Fig. 1
by
Storing the Power Cord (Fig. 3)
The power cord conveniently wraps
around the base of the vacuum for
easy storage.
Fig. 2
by
Fig. 3
6
Vacuuming Floors
With the cleaning tools and vacuum wands,
your vacuum is a comprehensive cleaning
system.
Operation

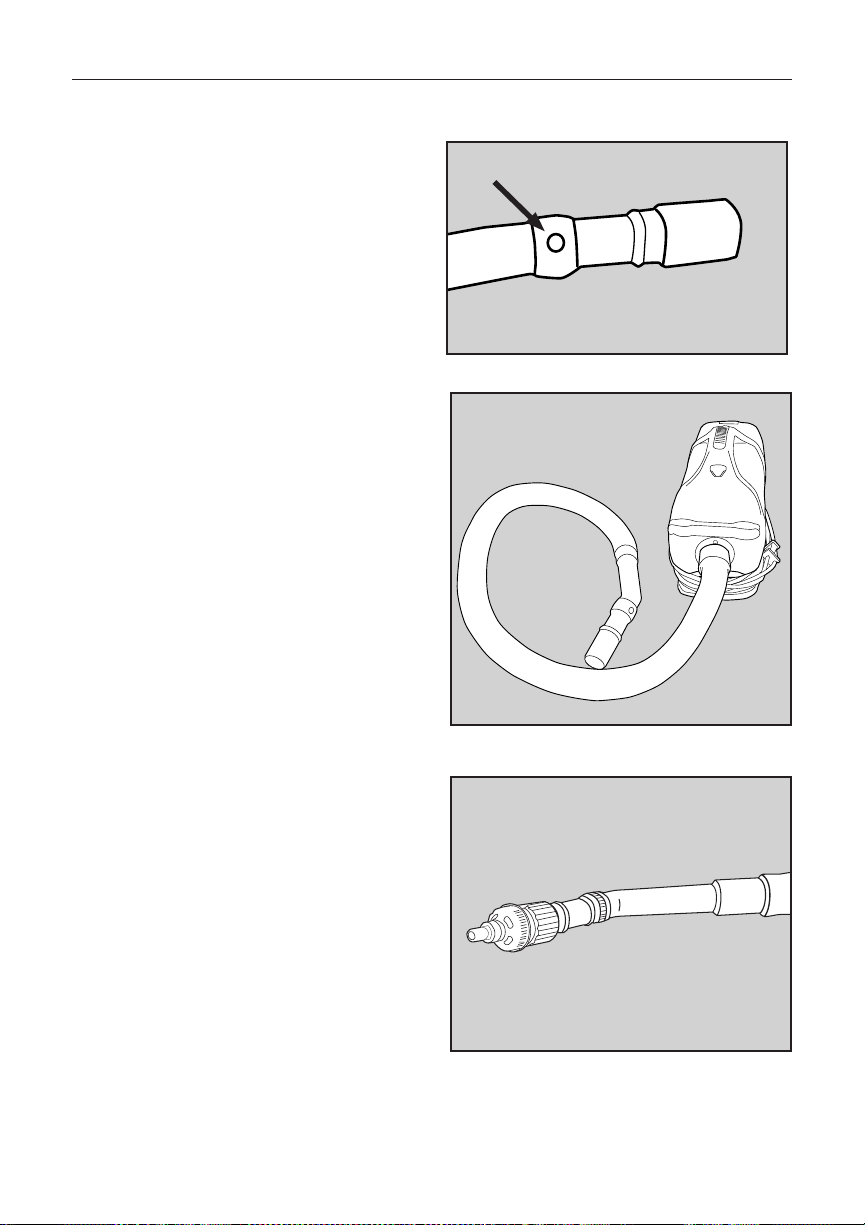

• Attach the vacuum hose to the suction inlet
port and twist to lock into place (Fig. 4).
• Attach the extension wand(s) to the curved
handle end of the hose (Fig. 5).
• Attach the oor tool to the end of the
extension wand(s) for cleaning oors and
area rugs (Fig. 6).
NOTE: You can connect any of the cleaning
tools to the end of the extension wand(s) and
twist for a secure t. To remove the cleaning
tool from the extension wand(s) simply twist
and pull apart.
by
Fig. 4
Fig. 5
by
Fig. 6
7
Attachment Cleaning
Cleaning Tools
Your vacuum is equipped with a deluxe dusting
brush, upholstery tool and crevice tool. Other
tools are available at your Authorized
Simplicity Retailer.
• Attach the vacuum hose to the suction inlet port
and twist to lock into place (Fig. 4).
• Attach the extension wand(s) to the curved
handle end of the hose (Fig. 5).
• Insert any of the tools onto the end of the
wand(s).
Fig. 7
Dusting Brush (Fig. 7)
Ideal for table tops, shelves, blinds or hard
surface floors.
Upholstery Tool (Fig. 8)
Ideal for soft surfaces like chairs and couches.
Crevice Tool (Fig. 9)
Ideal for tight places like between seat
cushions or corners.
Cleaning Tools Holder (Fig. 10)
Your vacuum is equipped with a convenient
holder for the cleaning tools.
• Slide the holder onto the clip above the
blower exhaust port and attach the tools
onto the holder.
Fig. 8
Fig. 9
Fig. 10
8
Adjusting the Suction Power for Tool Cleaning (Fig. 11)
On the hose handle, locate the suction
relief ring and turn it to the desired
position. This reduces the suction power
coming through the hose. Close the
suction relief ring when nished to restore
full suction power.
Using the Blower Exhaust Port
Attachment Cleaning
Fi g. 11
Attach the vacuum hose to the blower
exhaust port (Fig. 12). Then, attach the
inflation adapter (included in the micro
tool kit) to the end of the hose for inating
mattresses, rafts, etc (Fig. 13).
Fig. 12
Fig. 13
9
Attachment Cleaning
Additional Cleaning Tools
The micro tool kit and adjustable
angle adapter are standard
accessories with your vacuum.
Micro Tool Kit (Fig. 14)
All the tools needed for cleaning
delicate collectibles, computer
keyboards or inflating an air mattress.
Adjustable Angle Adapter (Fig. 15)
Attach the angle adapter onto the
end of the wand to clean hard to
reach areas.
Fig. 14
10
Fig. 15
Replacing the Vacuum Bag
• Lift up the cover retaining clip to remove
the cover (Fig. 16).
• Remove and discard the used bag.
• Install a new bag with the arrow on the
cardboard pointing to the top of the
vacuum (Fig. 17).
Maintenance and Care
by
• Replace the cover and latch the
retaining clip.
NOTE: The vacuum bag cannot
be reused.
Fig. 16
Fig. 17
11
Maintenance and Care
When to Change the Filter
At a minimum, it’s recommended to replace
the filters once a year or after using 12
vacuum bags, whichever comes first.
If someone in your household is sensitive
to airborne allergens, it is recommended to
change the filter after every six vacuum bags.
Replacing the Charcoal Filter
• Lift up the cover retaining clip to remove
the cover (Fig. 18).
• Remove the bag.
• Remove and discard the used filter from
the inside back wall of the vacuum.
• Place the new charcoal filter in the back
wall of the vacuum. It should fit snugly
against the inside walls of the vacuum
(Fig. 19).
• Replace the vacuum bag.
by
Fig. 18
by
Fig. 19
• Replace the cover and latch retaining clip.
12
Problem Solving Guide
Troubleshooting
PROBLEM POSSIBLE REASON POSSIBLE SOLUTION
Vacuum won’t turn on
• Power cord not rmly
plugged in
• Plug unit in rmly
Vacuum won’t pick up or low suction
Dust escaping from
vacuum
To locate your nearest retailer, visit our website at
• Blown fuse or tripped
breaker
• Needs service • Take to Authorized Retailer
• Vacuum bag full • Install new bag
• Clogged lter • Install new lter
• Hose clogged • Remove obstacle
• Bag compartment cover not
installed properly
• Filter not installed correctly • Review lter installation
• Vacuum bag not installed
correctly
Any other service should be done by an
Authorized Service Representative.
• Check house fuse or
breaker. Replace fuse / reset breaker.
(1-888-9-SIMPLY)
• Reinsert the cover and
secure latch
(page 12)
• Review bag installation (page 11)
Service 1-888-9-SIMPLY
www.simplicityvac.com
13
Warranty
What is Covered:
This warranty covers any defects in material and workmanship in your new Simplicity Whoosh vacuum.
How Long Coverage Lasts:
Warranty coverage for the Simplicity Whoosh vacuum lasts three years. Household
models used commercially are only warranted for 90 days.
What is Not Covered:
• Damage to the vacuum which occurs from neglect, abuse, alterations, accident, misuse or improper maintenance.
• Normal replacement items: disposable bags and disposable filters.
What Simplicity Vacuums Will Do:
This warranty provides, at no cost to you, all labor and parts to keep this vacuum in correct operating condition during the warranted period.
How to Get Service:
Warranty service can only be obtained by presenting the vacuum to an Authorized Simplicity Retailer. A proof-of-purchase and product serial number will be required
before service is rendered. To locate your nearest Simplicity Retailer, please call 1-888-9-SIMPLY or visit the Simplicity website at www.simplicityvac.com.
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER WARRANTIES WHETHER WRITTEN, ORAL, EXPRESSED OR IMPLIED, (INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE). THIS WARRANTY DISCLAIMS LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
How State Law Applies:
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Register your warranty online at www.simplicityvac.com
14
Date of purchase
Serial number
Model number
Purchased from:
Store name
Owner’s Warranty Information
keep this for your records…
Address
City, State, Zip
Telephone
15
www.simplicityvac.com
B503-7400B ©2015 Tacony Corporation
