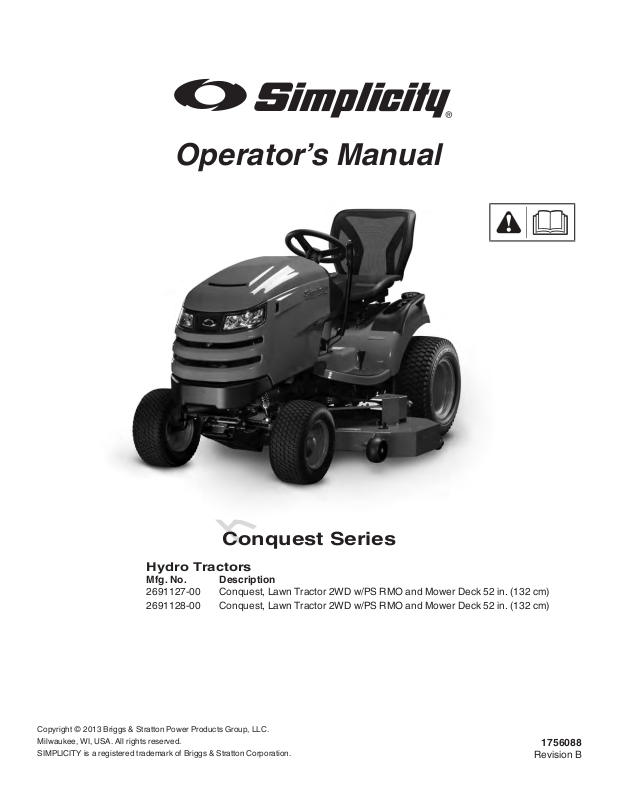

Simplicity 2691127-0, 2691128-00 Operator's Manual
Not for
Reproduction
Operator’s Manual
Conquest Series
Hydro Tractors
Mfg. No. Description
2691127-00 Conquest, Lawn Tractor 2WD w/PS RMO and Mower Deck 52 in. (132 cm)
2691128-00 Conquest, Lawn Tractor 2WD w/PS RMO and Mower Deck 52 in. (132 cm)
Copyright © 2013 Briggs & Stratton Power Products Group, LLC.
Milwaukee, WI, USA. All rights reserved.
SIMPLICITY is a registered trademark of Briggs & Stratton Corporation.
1756088
Revision B
Not for
Reproduction
2
Not for
Reproduction
CONTENTS
Operator Safety ..........................................................................................................4
Features and Controls
Operation
Safety Interlock System Tests
Maintenance
Troubleshooting

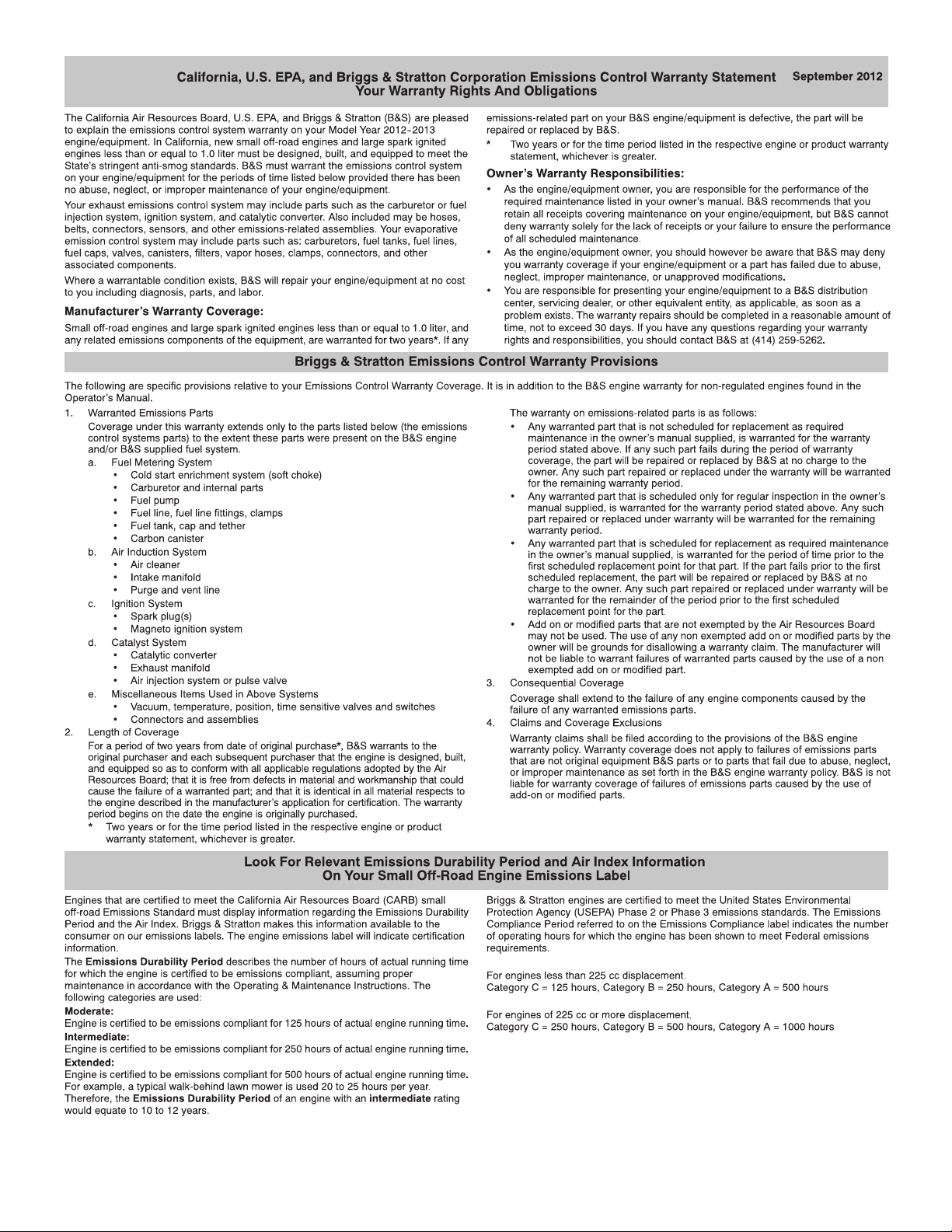

Warranties
..................................................................................................................17
.............................................................................................................22
...........................................................................................................36
.................................................................................................................37
.............................................................................................12
.................................................................................17
.......................................................................................................34
General Information
Thank you for purchasing this quality-built SIMPLICITY riding mower. We’re pleased that you’ve placed your confidence
in the SIMPLICITY brand. When operated and maintained according to the instructions in this manual, your SIMPLICITY
product will provide many years of dependable service.
This manual contains safety information to make you aware of the hazards and risks associated with mowers and how
to avoid them. Because Briggs & Stratton Power Products Group, LLC does not necessarily know all the applications
this mower could be used for, it is important that you read and understand these instructions. Save these original
instructions for future reference.
Product Identification Tag
Product Identification Tag
Model / Modéle / Model xxxxxxxx
Serial / Sèrie / Serie xxxxxxxxxx
Briggs & Stratton Power Products Group, L.L.C.
Milwaukee, WI 53201 USA
Product Reference Data
When contacting your authorized dealer for replacment
parts, service, or information you MUST have these
numbers.
Record your model name/number, manufacturer’s identification numbers, and engine serial numbers in the space provided for easy access. These numbers can be found in the
locations shown.
PRODUCT REFERENCE DATA
Model Description Name/Number
Unit MFG
Number
Mower Deck MFG Number
Dealer Name
ENGINE REFERENCE DATA
Engine Make
Unit SERIAL Number
Mower Deck SERIAL
Date Purchased
Engine Model
Number
Engine Type/Spec
Product ID Tag
The Illustrated Parts List for this machine can be downloaded from www.simplicitymfg.com. Please provide model and
serial number when ordering replacement parts.
Engine Code/Serial Number
en
3
Not for
Reproduction
Operator Safety
Important Safety Instructions
SAVE THESE INSTRUCTIONS - This manual contains
important instructions that should be followed during the
initial set-up, the operation, and the maintenance of the
equipment. Save these original instructions for future
reference.
Safety Symbols and Meanings
FIRE
TOXIC FUMES
WEAR EYE
PROTECTION
MOVING PARTS SHOCK
KICKBACK EXPLOSION
HAZARDOUS
CHEMICAL
HOT SURFACE
STOP
ON OFF
CHOKE
DANGER indicates a hazard which, if not avoided, will
result in death or serious injury.
WARNING indicates a hazard which, if not avoided,
could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided,
could result in minor or moderate injury.
NOTICE indicates a situation that could result in damage
to the product.
WARNING
The engine exhaust from this product contains
chemicals known to the State of California to cause cancer,
birth defects, or other reproductive harm.
WARNING
Certain components in this product and its related
accessories contain chemicals known to the State
of California to cause cancer, birth defects, or other
reproductive harm. Wash hands after handling.
READ MANUAL FAST
FUEL
SHUT-OFF
ROLL-OVER
HAZARD
The safety alert symbol is used to identify safety
information about hazards that can result in personal injury.
A signal word (DANGER, WARNING, or CAUTION) is used
with the alert symbol to indicate the likelihood and the
potential severity of injury. In addition, a hazard symbol may
be used to represent the type of hazard.
SLOW
OIL
AMPUTATION
HAZARD
FUEL
WARNING
Battery posts, terminals, and related accessories
contain lead and lead compounds - chemicals known to the
State of California to cause cancer, birth defects, or other
reproductive harm. Wash hands after handling.
WARNING
Running engine gives o carbon monoxide, an
odorless, colorless, poison gas.
Breathing carbon monoxide can cause headache,
fatigue, dizziness, vomiting, confusion, seizures,
nausea, fainting or death.
• Operate equipment ONLY outdoors.
• Keep exhaust gas from entering a conned area through
windows, doors, ventilation intakes, or other openings.
4
Not for
Reproduction
Safe Operation Practices
Operating Safety
Power equipment is only as safe as the operator. If it is misused,
or not properly maintained, it can be dangerous! Remember, you are
responsible for your safety and that of those around you. Use common
sense, and think through what you are doing. If you are not sure that the
task you are about to perform can be safely done with the equipment you
have chosen, ask a professional: contact your local authorized dealer.
Read the Manual
The operator’s manual contains important safety information you
need to be aware of BEFORE you operate your unit as well as
DURING operation.
Safe operating techniques, an explanation of the product’s features
and controls, and maintenance information is included to help you
get the most out of your equipment investment.
Be sure to completely read the Safety Rules and Information found
on the following pages. Also completely read the Operation section.
Children
Tragic accidents can occur with children. Do not allow them
anywhere near the area of operation. Children are often
attracted to the unit and mowing activity. Never assume that
children will remain where you last saw them. If there is a
risk that children may enter the area where you are mowing,
have another responsible adult watch them.
DO NOT GIVE CHILDREN RIDES ON THIS UNIT! This
encourages them to come near the unit in the future while it
is running, and they could be seriously hurt. They may then
approach the unit for a ride when you are not expecting it,
and you may run over them.
en
Reverse
Do not mow in reverse unless
absolutely necessary.
Always look down
and behind before
and while traveling
in reverse even with
the mower blades
disengaged.
5
Not for
Reproduction
Slope Operation
You could be seriously injured or even killed if you use this unit on too steep
an incline. Using the unit on a slope that is too steep or where you don’t have
adequate traction can cause you to lose control or roll over.
A good rule of thumb is to not operate on any slope you cannot back up (in
2-wheel drive mode). You should not operate on inclines with a slope greater
than a 3.5 foot rise over a 20 foot length. Always drive up and down slopes:
never cross the face.
3.5 ft
(1,5 m)
20.0 ft (6,0 m)
Also note that the surface you are driving on can greatly impact stability and
control. Wet grass or icy pavement can seriously affect your ability to control
the unit.
If you feel unsure about operating the unit on an incline, don’t do it. It’s not
worth the risk.
Moving Parts
This equipment has many moving parts that can injure you or someone else.
However, if you are seated in the seat properly and follow all the rules in this book,
the unit is safe to operate.
The mower deck has spinning mower blades that can amputate hands and feet. Do
not allow anyone near the equipment while it is running!
To help you, the operator, use this equipment safely, it is equipped with an operatorpresent safety system. Do NOT attempt to alter or bypass the system. See your
dealer immediately if the system does not pass all the safety interlock system tests
found in this manual.
Thrown Objects
This unit has spinning mower blades. These blades can pick up and throw
debris that could seriously injure a bystander. Be sure to clean up the area to
be mowed BEFORE you start mowing.
Do not operate this unit without the entire grass catcher or discharge guard
(deflector) in place.
Do not allow anyone in the mowing area while the unit is running! If someone
does enter the area, shut the unit off immediately until they leave.
Fuel and Maintenance
Gasoline is extremely flammable. Its vapors are also extremely flammable
and can travel to distant ignition sources. Gasoline must only be used as
a fuel, not as a solvent or cleaner. Fuel should never be stored any place
where its vapors can build up or travel to an ignition source like a pilot light.
Fuel belongs in an approved, plastic, sealed gas can, or in the tractor fuel
tank with the cap securely closed. Spilled fuel needs to be cleaned up
immediately.
Proper maintenance is critical to the safety and performance of your unit.
Be sure to perform the maintenance procedures listed in this manual and be
sure to periodically test the safety system.
6
Not for
Reproduction
Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit,
severe personal injury or death to you, or bystanders, or damage to property or equipment. This mowing deck is
capable of amputating hands and feet and throwing objects. The triangle in text signifies important cautions
or warnings which must be followed.
GENERAL OPERATION
1. Read, understand, and follow all instructions in the
manual and on the unit before starting.
2. Do not put hands or feet near rotating parts or under
the machine. Keep clear of the discharge opening at all
times.
3. Only allow responsible adults, who are familiar with the
instructions, to operate the unit (local regulations can
restrict operator age).
4. Clear the area of objects such as rocks, toys, wire, etc.,
which could be picked up and thrown by the blade(s).
5. Be sure the area is clear of other people before mowing.
Stop the unit if anyone enters the area.
6. Never carry passengers.
7. Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while travelling
in reverse.
8. Never direct discharge material toward anyone. Avoid
discharging material against a wall or obstruction.
Material may ricochet back toward the operator. Stop the
blade(s) when crossing gravel surfaces.
9. Do not operate the machine without the entire grass
catcher, discharge guard (deflector), or other safety
devices in place.
10. Slow down before turning.
11. Never leave a running unit unattended. Always
disengage the PTO, set parking brake, stop engine, and
remove starter insert before dismounting.
12. Disengage blades (PTO) when not mowing. Shut off
engine and wait for all parts to come to a complete
stop before cleaning the machine, removing the grass
catcher, or unclogging the discharge guard.
13. Operate the machine only in daylight or good artificial
light.
14. Do not operate the unit while under the influence of
alcohol or drugs.
15 Watch for traffic when operating near or crossing
roadways.
16. Use extra care when loading or unloading the unit into a
trailer or truck.
17. Always wear eye protection when operating this unit.
18. Data indicates that operators, age 60 years and above,
are involved in a large percentage of power equipmentrelated injuries. These operators should evaluate their
ability to operate the equipment safely enough to protect
themselves and others from injury.
19. Follow the manufacturer’s recommendations for wheel
weights or counterweights.
20. Keep in mind the operator is responsible for accidents
occurring to other people or property.
21. All drivers should seek and obtain professional and
practical instruction.
22. Always wear substantial footwear and trousers. Never
operate when barefoot or wearing sandals.
23. Before using, always visually check that the blades and
blade hardware are present, intact, and secure. Replace
worn or damaged parts.
24. Disengage attachments before: refueling, removing an
attachment, making adjustments (unless the adjustment
can be made from the operator’s position).
25. When the machine is parked, stored, or left unattended,
lower the cutting means unless a positive mechanical
lock is used.
26. Before leaving the operator’s position for any reason,
engage the parking brake, disengage the PTO, stop the
engine, and remove the starter insert.
27. To reduce fire hazard, keep the unit free of grass,
leaves, & excess oil. Do not stop or park over dry leaves,
grass, or combustible materials.
TRANSPORTING AND STORAGE
1. When transporting the unit on an open trailer, make sure
it is facing forward, in the direction of travel. If the unit is
facing backwards, wind lift could damage the unit.
2. Always observe safe refueling and fuel handling
practices when refueling the unit after transportation or
storage.
3. Never store the unit (with fuel) in an enclosed poorly
ventilated structure. Fuel vapors can travel to an ignition
source (such as a furnace, water heater, etc.) and cause
an explosion. Fuel vapor is also toxic to humans and
animals.
en
4. Always follow the engine manual instructions for storage
preparations before storing the unit for both short and
long term periods.
5. Always follow the engine manual instructions for proper
start-up procedures when returning the unit to service.
6. Never store the unit or fuel container inside where there
is an open flame or pilot light, such as in a water heater.
Allow unit to cool before storing.
7
Not for
Reproduction
SLOPE OPERATION
Slopes are a major factor related to loss-of-control and tipover accidents, which can result in severe injury or death.
Operation on all slopes requires extra caution. If you cannot
back up the slope or if you feel uneasy on it, do not operate
on it.
Control of a ride-on machine sliding on a slope will not be
regained by the application of the brake. The main reasons
for loss of control are: insufficient tire grip on the ground,
speed too fast, inadequate braking, the type of machine
is unsuitable for its task, lack of awareness of the ground
conditions, incorrect hitching and load distribution.
1. Mow up and down slopes, not across.
2. Watch for holes, ruts, or bumps. Uneven terrain could
overturn the unit. Tall grass can hide obstacles.
3. Choose a slow speed so that you will not have to stop
or change speeds while on the slope.
4. Do not mow on wet grass. Tires may lose traction.
5. Always keep unit in gear especially when traveling
down slopes. Do not shift to neutral and coast
downhill.
6. Avoid starting, stopping, or turning on a slope. If tires
lose traction, disengage the blade(s) and proceed
slowly straight down the slope.
7. Keep all movement on slopes slow and gradual. Do
not make sudden changes in speed or direction, which
could cause the machine to rollover.
8. Use extra care while operating machines with grass
catchers or other attachments; they can affect the
stability of the unit. Do not use on steep slopes.
9. Do not try to stabilize the machine by putting your foot
on the ground (ride-on units).
10. Do not mow near drop-offs, ditches, or embankments.
The mower could suddenly turn over if a wheel is over
the edge of a cliff or ditch, or if an edge caves in.
11. Do not use grass catchers on steep slopes.
12. Do not mow slopes if you cannot back up them.
13. See your authorized dealer/retailer for
recommendations of wheel weights or counterweights
to improve stability.
14. Remove obstacles such as rocks, tree limbs, etc.
15. Use slow speed. Tires may lose traction on slopes
even through the brakes are functioning properly.
16. Do not turn on slopes unless necessary, and then, turn
slowly and gradually downhill, if possible.
1. Tow only with a machine that has a hitch designed for
towing. Do not attach towed equipment except at the
hitch point.
2. Follow the manufacturer’s recommendations for
weight limit for towed equipment and towing on slopes.
3. Never allow children or others in or on towed
equipment.
4. On slopes, the weight of the towed equipment may
cause loss of traction and loss of control.
5. Travel slowly and allow extra distance to stop.
6. Do not shift to neutral and coast down hill.
WARNING
Never operate on slopes greater than 17.6 percent
(10°) which is a rise of 3-1/2 feet (106 cm) vertically in
20 feet (607 cm) horizontally.
When operating on slopes use additional wheel
weights or counterweights. See your dealer/retailer to
determine which weights are available and appropriate
for your unit.
Select slow ground speed before driving onto slope.
In addition to front weights, use extra caution when
operating on slopes with rear-mounted grass catchers.
Mow UP and DOWN the slope, never across the face,
use caution when changing directions and DO NOT
START OR STOP ON SLOPE.
CHILDREN
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the unit
and the mowing activity. Never assume that children will
remain where you last saw them.
1. Keep children out of the mowing area and under the
watchful care of another responsible adult.
2. Be alert and turn unit off if children enter the area.
3. Before and during reverse operation, look behind and
down for small children.
4. Never carry children, even with the blade(s) off. They
may fall off and be seriously injured or interfere with
safe unit operation. Children who have been given rides
in the past may suddenly appear in the mowing area
for another ride and be run over or backed over by the
machine.
5. Never allow children to operate the unit.
6. Use extra care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.
EMISSIONS
1. Engine exhaust from this product contains chemicals
known, in certain quantities, to cause cancer, birth
defects, or other reproductive harm.
2. Look for the relevant Emissions Durability Period and Air
Index information on the engine emissions label.
IGNITION SYSTEM
1. This spark ignition system complies with Canadian
ICES-002.
8
Not for
Reproduction
SERVICE AND MAINTENANCE
Safe Handling of Gasoline
1. Extinguish all cigarettes, cigars, pipes, and other
sources of ignition.
2. Use only approved gasoline containers.
3. Never remove the gas cap or add fuel with the engine
running. Allow the engine to cool before refueling.
4. Never fuel the machine indoors.
5. Never store the machine or fuel container where there is
an open flame, spark, or pilot light such as near a water
heater or other appliance.
6. Never fill containers inside a vehicle or on a truck bed
with a plastic bed liner. Always place containers on the
ground away from your vehicle before filling.
7. Remove gas-powered equipment from the truck or
trailer and refuel it on the ground. If this is not possible,
then refuel such equipment on a trailer with a portable
container, rather than from a gasoline dispenser nozzle.
8. Keep nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete.
Do not use a nozzle lock-open device.
9. If fuel is spilled on clothing, change clothing immediately.
10. Never over-fill the fuel tank. Replace gas cap and tighten
securely.
11. Use extra care in handling gasoline and other fuels.
They are flammable and vapors are explosive.
12. If fuel is spilled, do not attempt to start the engine but
move the machine away from the area of spillage and
avoid creating any source of ignition until fuel vapors
have dissipated.
13. Replace all fuel tank caps and fuel container caps
securely.
Service & Maintenance
1. Never run the unit in an enclosed area where carbon
monoxide fumes may collect.
2. Keep nuts and bolts, especially blade attachment bolts,
tight and keep equipment in good condition.
3. Never tamper with safety devices. Check their proper
operation regularly and make necessary repairs if they
are not functioning properly.
4. Keep unit free of grass, leaves, or other debris build-up.
Clean up oil or fuel spillage and remove any fuel-soaked
debris. Allow machine to cool before storage.
5. If you strike an object, stop and inspect the machine.
Repair, if necessary, before restarting.
6. Never make adjustments or repairs with the engine
running.
7. Check grass catcher components and the discharge
guard frequently and replace with manufacturer’s
recommended parts, when necessary.
8. Mower blades are sharp. Wrap the blade or wear gloves,
and use extra caution when servicing them.
9. Check brake operation frequently. Adjust and service as
required.
10. Maintain or replace safety and instructions labels, as
necessary.
11. Do not remove the fuel filter when the engine is hot
as spilled gasoline may ignite. Do not spread fuel line
clamps further than necessary. Ensure clamps grip
hoses firmly over the filter after installation.
12. Do not use gasoline containing METHANOL, gasohol
containing more than 10% ETHANOL, gasoline
additives, or white gas because engine/fuel system
damage could result.
13. If the fuel tank must be drained, it should be drained
outdoors.
14. Replace faulty silencers/mufflers.
15. Use only factory authorized replacement parts when
making repairs.
16. Always comply with factory specifications on all settings
and adjustments.
17. Only authorized service locations should be utilized for
major service and repair requirements.
18. Never attempt to make major repairs on this unit
unless you have been properly trained. Improper
service procedures can result in hazardous operation,
equipment damage and voiding of manufacturer’s
warranty.
19. On multiple blade mowers, take care as rotating one
blade can cause other blades to rotate.
20. Do not change engine governor settings or over-speed
the engine. Operating the engine at excessive speed
can increase the hazard of personal injury.
21. Disengage drive attachments, stop the engine, remove
the starter insert, and disconnect the spark plug wire(s)
before: clearing attachment blockages and chutes,
performing service work, striking an object, or if the unit
vibrates abnormally. After striking an object, inspect the
machine for damage and make repairs before restarting
and operating the equipment.
22. Never place hands near the moving parts, such as a
hydro pump cooling fan, when the tractor is running.
(Hydro pump cooling fans are typically located on top of
the transaxle).
23. Units with hydraulic pumps, hoses, or motors:
WARNING: Hydraulic fluid escaping under pressure
may have sufficient force to penetrate skin and cause
serious injury. If foreign fluid is injected into the skin
it must be surgically removed within a few hours by a
doctor familiar with this form of injury or gangrene may
result. Keep body and hands away from pin holes or
nozzles that eject hydraulic fluid under high pressure.
Use paper or cardboard, and not hands, to search for
leaks. Make sure all hydraulic fluid connections are tight
and all hydraulic hoses and lines are in good condition
before applying pressure to the system. If leaks occur,
have the unit serviced immediately by your authorized
dealer.
24. WARNING: Improper release of springs can result in
serious personal injury. Springs should be removed
by an authorized technician.
25. Models equipped with an engine radiator:
WARNING: To prevent serious bodily injury from hot
coolant or steam blow-out, never attempt to remove the
radiator cap while the engine is running. Stop the engine
and wait until it is cool. Even then, use extreme care
when removing the cap.
en
9
Not for
Reproduction
Decal Locations (Safety and Operation)
SS
OO
SSTTOO
PP
1723143
DANGER - Main Panel,
Part No. 1755389
DANGER - Amputation
Hazard
Part No. 7101665
Starter Insert
Part No. 1756186
DANGER - Amputation
Hazard
Part No. 7101665
PP
Decal: Transmission Release
Part No. 1723160
1723160
Figure 1
10
Not for
Reproduction

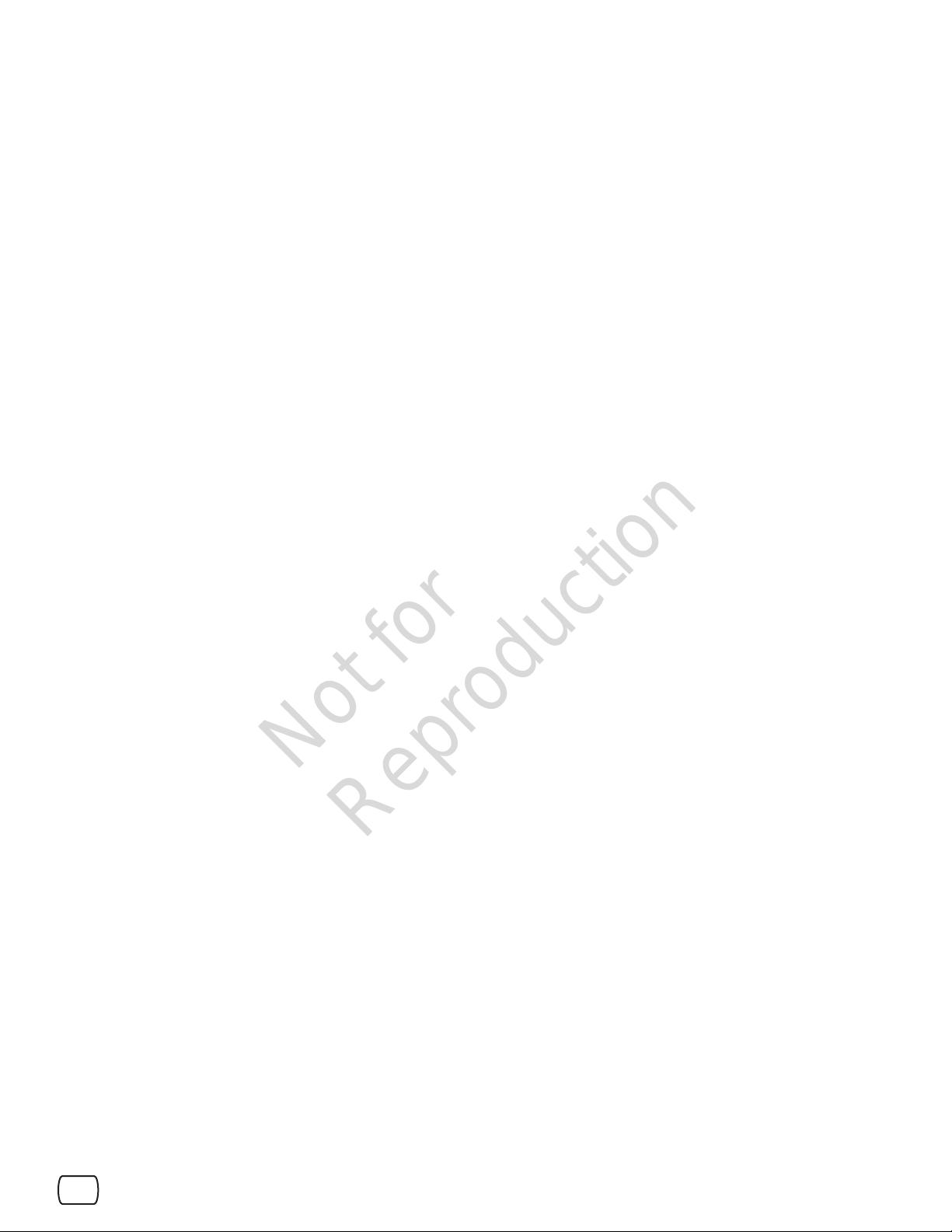

This page intentionally left blank.
en
11
Not for
Reproduction

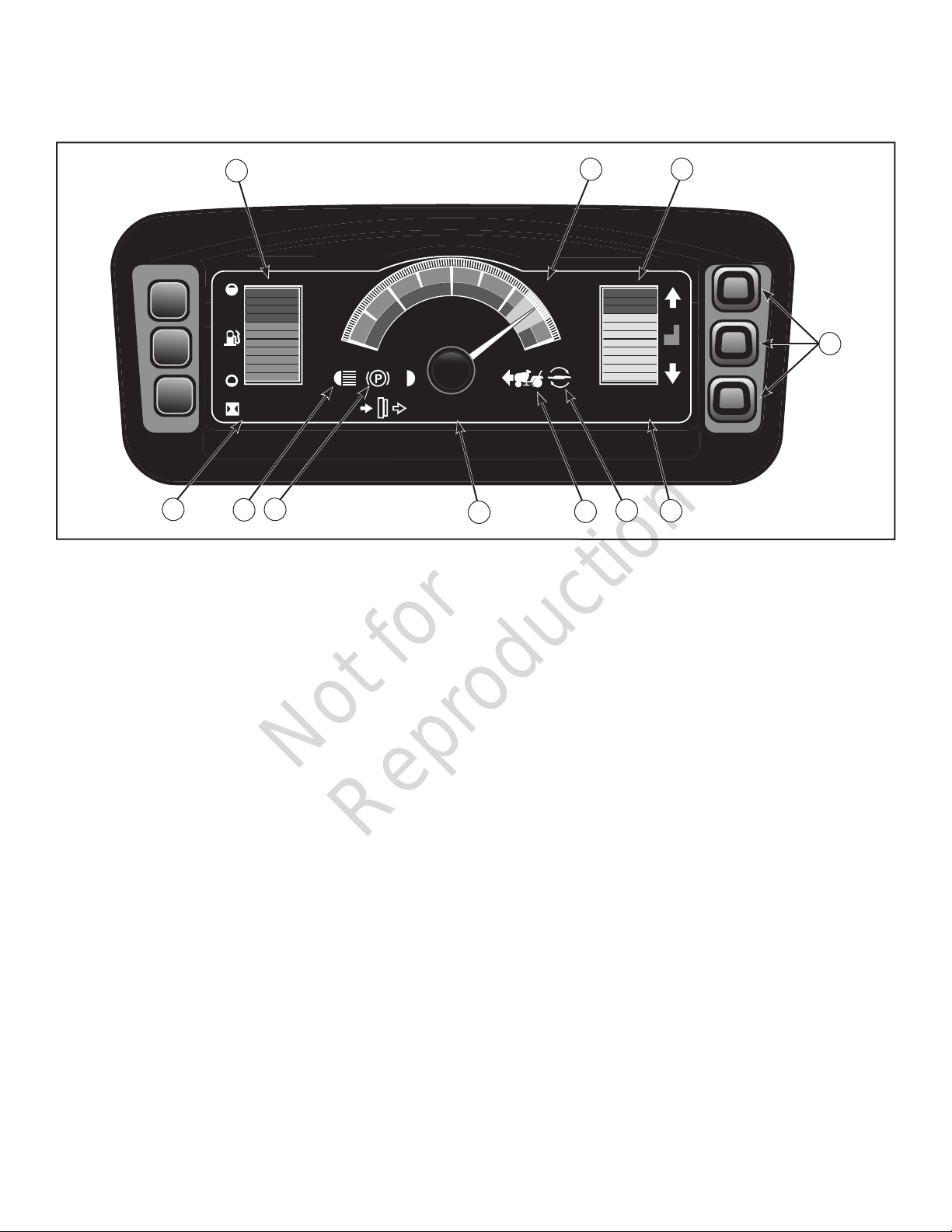

Features and Controls
STOPSTOP
12V
12
Figure 2
Loading...
