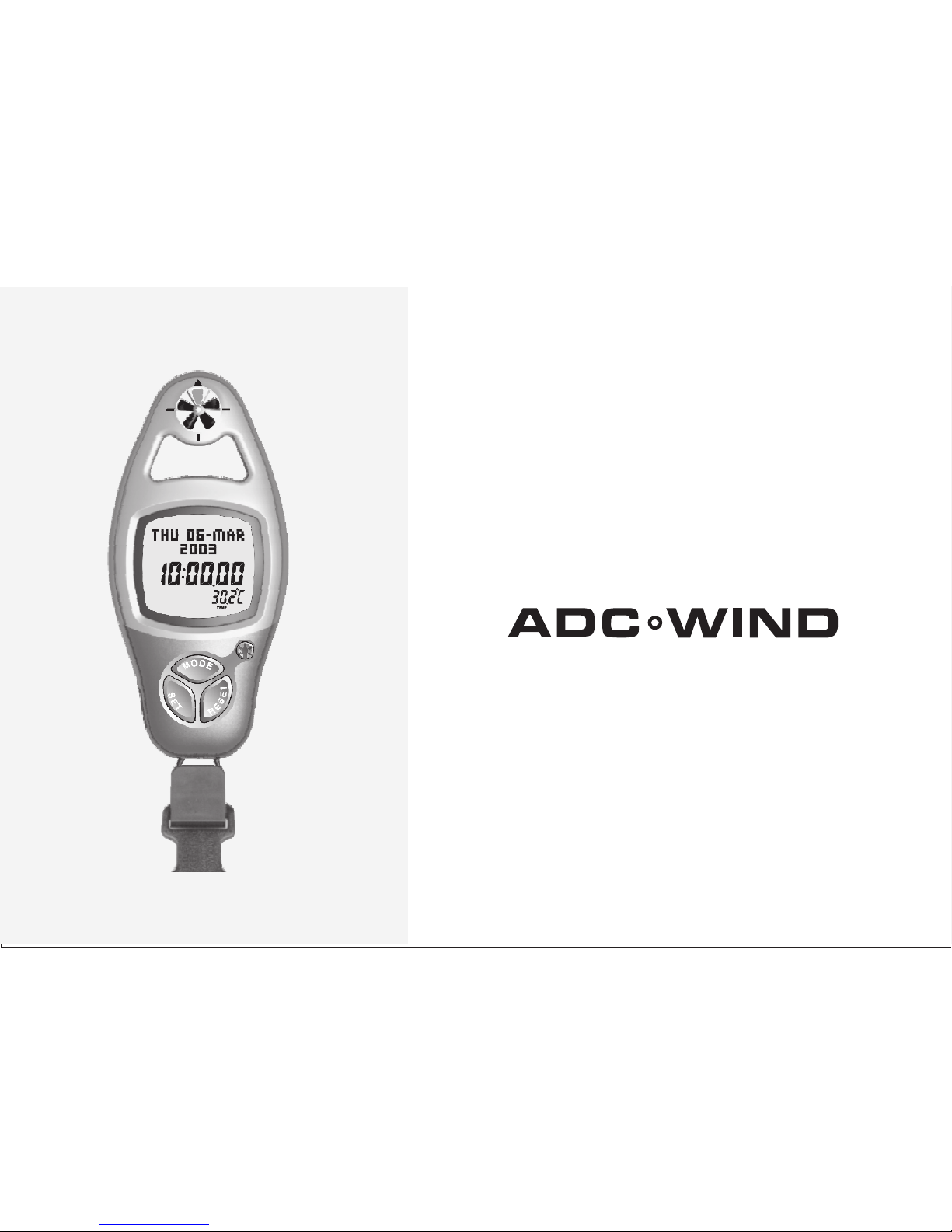

Silva ADC Wind User Manual

User Manual

1.0 General Guide

Thank you for purchasing your new ADC.
We recommend reading this manual, and
practicing the operations before using your
ADC in the field.

The ADC is designed to provide you with
information essential to your needs. Data
such as temperature, wind speed, barometric
pressure, altitude and humidity are features
specific to four different ADC models: Wind,
Summit, Pro and JetSet.

Each ADC model is constructed to withstand
water submersion and is ideal for conditions
you endure during outdoor activities such as
hiking, climbing, hunting, kayaking, skiing,
and racing. Every ADC also includes current
time, daily alarm, chronograph and race
timer functions. ADCs are equipped with a
propeller and other precise sensors to
measure outdoor conditions.

WARNING !

!

Make sure that you fully understand the
functions and limitations of the ADC
before relying on it.

!

The ADC is an assisting device for the
outdoor user, and is not a substitute for
weather advisories from a weather
station. It is helpful to check the
readings provided by this product
periodically with those broadcasted by
the weather station.

2.0

Prevent getting dirt in the ADC propeller. It
could clog the mechanism.

Avoid exposing this product to extreme heat
or extreme cold for an unreasonable amount
of time.

Avoid severe impacts to the ADC.

Store the ADC in a dry place when it is not in
use.

Clean the ADC with a soft moistened cloth
occasionally.

DO NOT expose the ADC to strong
chemicals such as gasoline and alcohol, as
they will damage this product.

Care and Maintenance

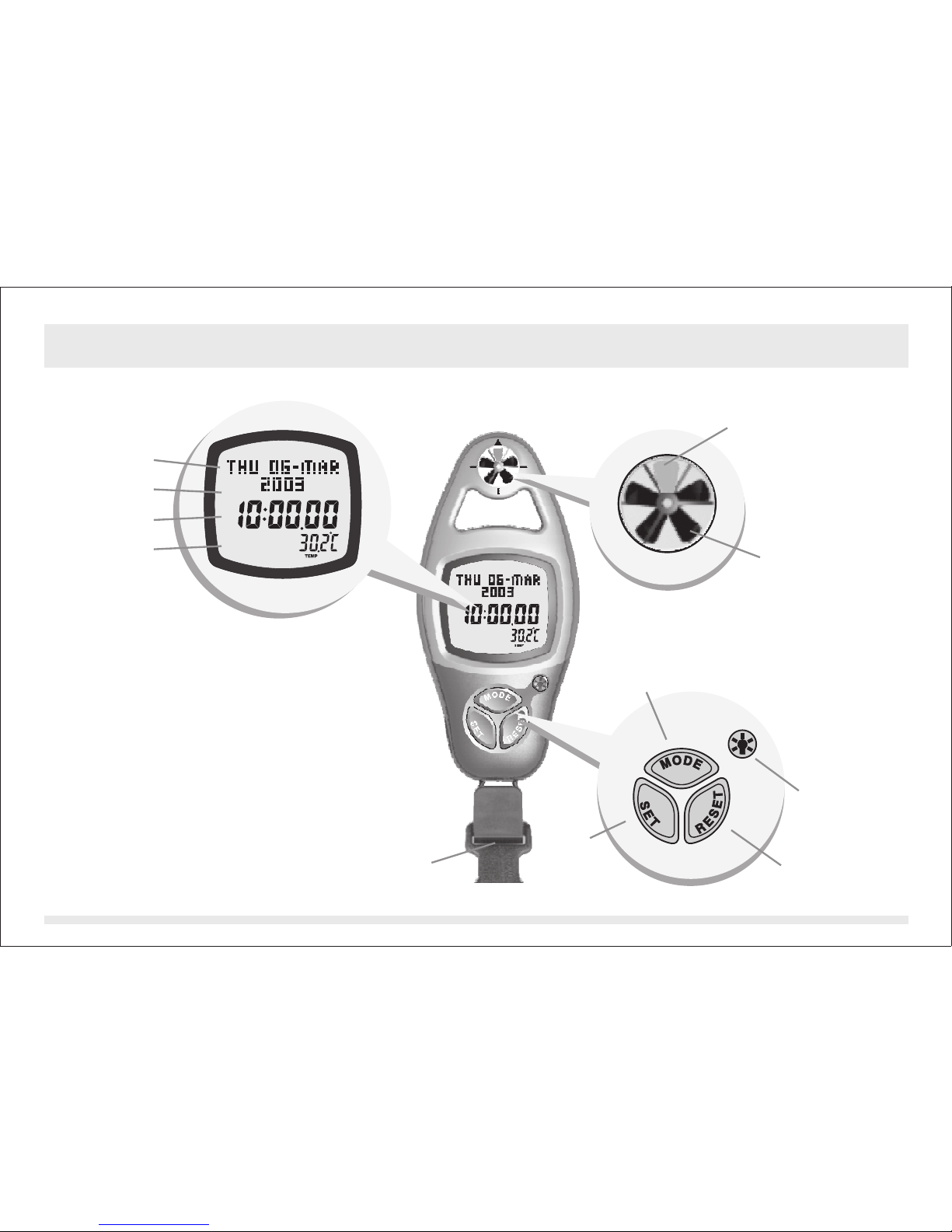

3.0 Part description

1st row

2nd row

3rd row

Red-colored
blade

4nd row

Display

Detachable
Belt Clip

[set]

Propeller

[mode]

Push Button

Propeller
blade

[light]

[reset]

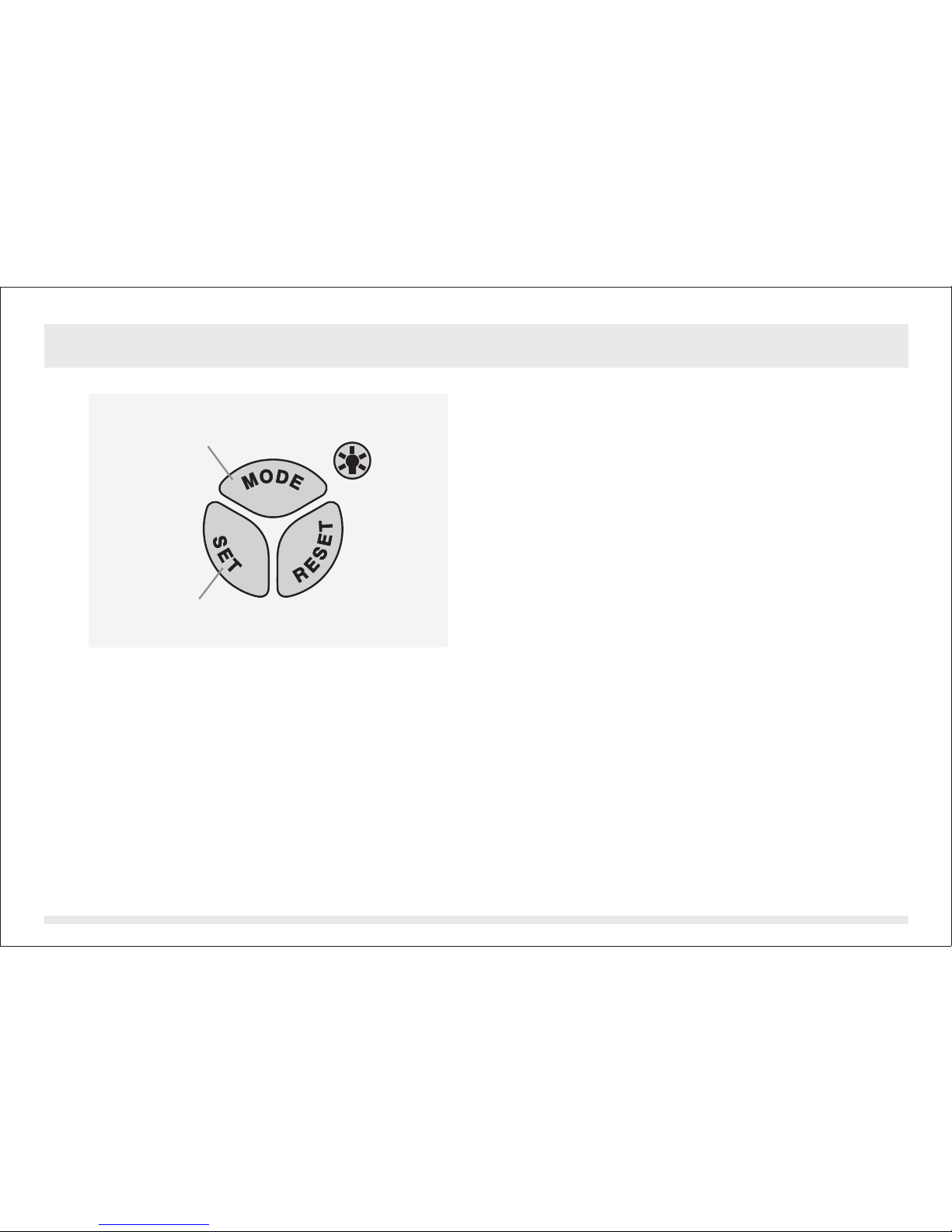

4.0 Button Operation Summary 1

[mode]

[mode] Button

Press the mode button to select among the

major function modes

In function modes: Press and hold the mode

button to select setting display

In any setting display: Press the mode button to

select among different settings. Press and
hold the mode button to exit setting sequence.

[set]

Note:

The button operations are
summarized in the following
paragraphs, for detail operating
instructions, please continue
reading.

[set] Button

In Current Time Mode: press the set button to

select the Daily Alarm Display.

In Daily Alarm Mode: Press the set button to

switch the daily alarm between ON and OFF.

In Chronograph Mode and Race Timer Mode:

Press the set button to start or stop the
counting.

In Lap Time Recall Mode: Press the set button

to select the available lap time(s).

In setting displays: press the set button to scroll

the through the settings.

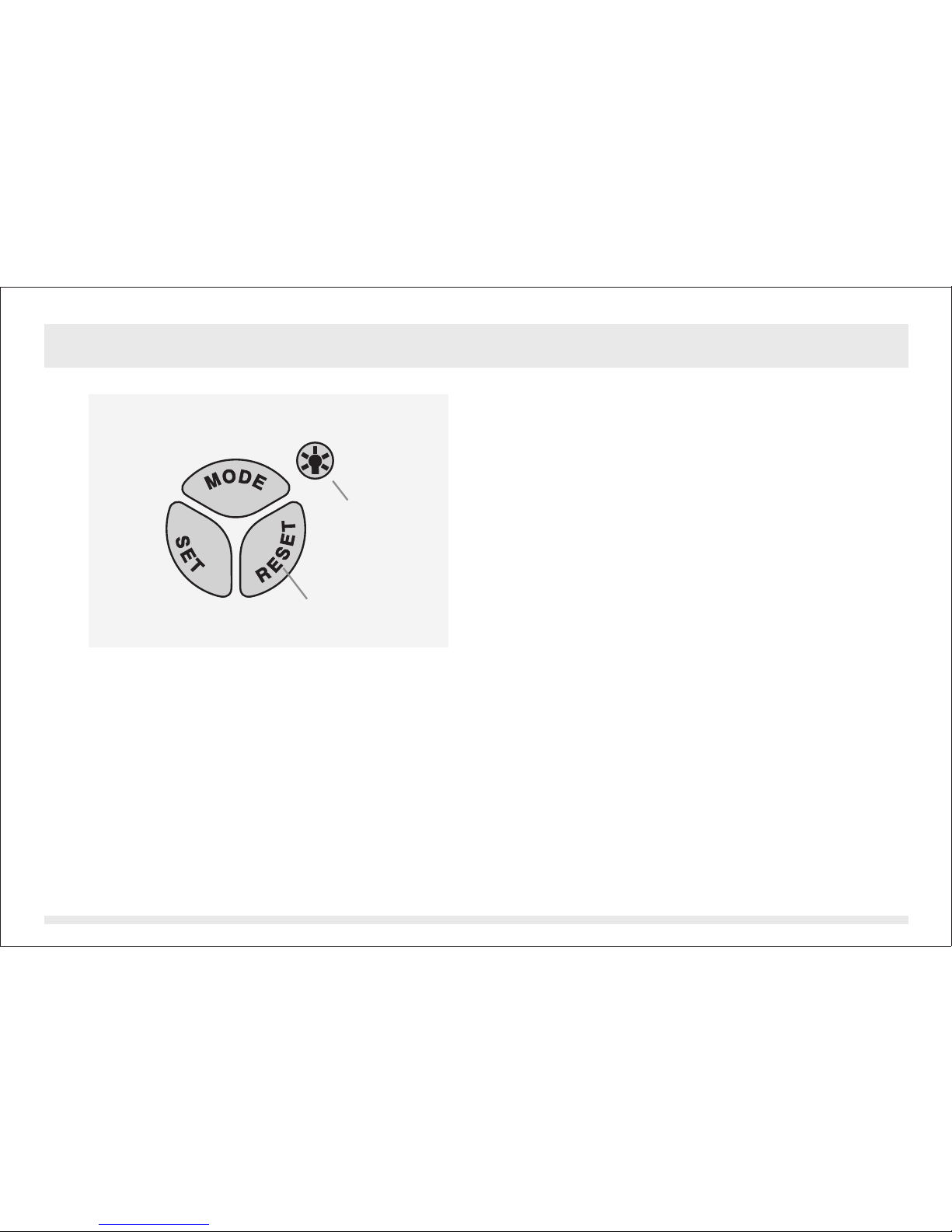

4.1 Button Operation Summary 2

[light]

[reset]

Note:

The button operations are
summarized in the following
paragraphs, for detail operating
instructions, please continue
reading.

[reset] Button

In Chronograph Mode (counting): Press the

reset button to get Lap Time Display.

In Chronograph Mode (stop-counting): Press

the reset button to reset the display to zero.

In Timer Mode (stop-counting): Press the

reset button to reset the timer to target time.

In Lap Time Recall Mode: Press the reset

button to select the available lap time(s).

In setting displays: press the reset button to

scroll the through the settings.

[light] Button

In any functional mode/display, press the light

button once to turn ON the EL backlight for
about 3 seconds.

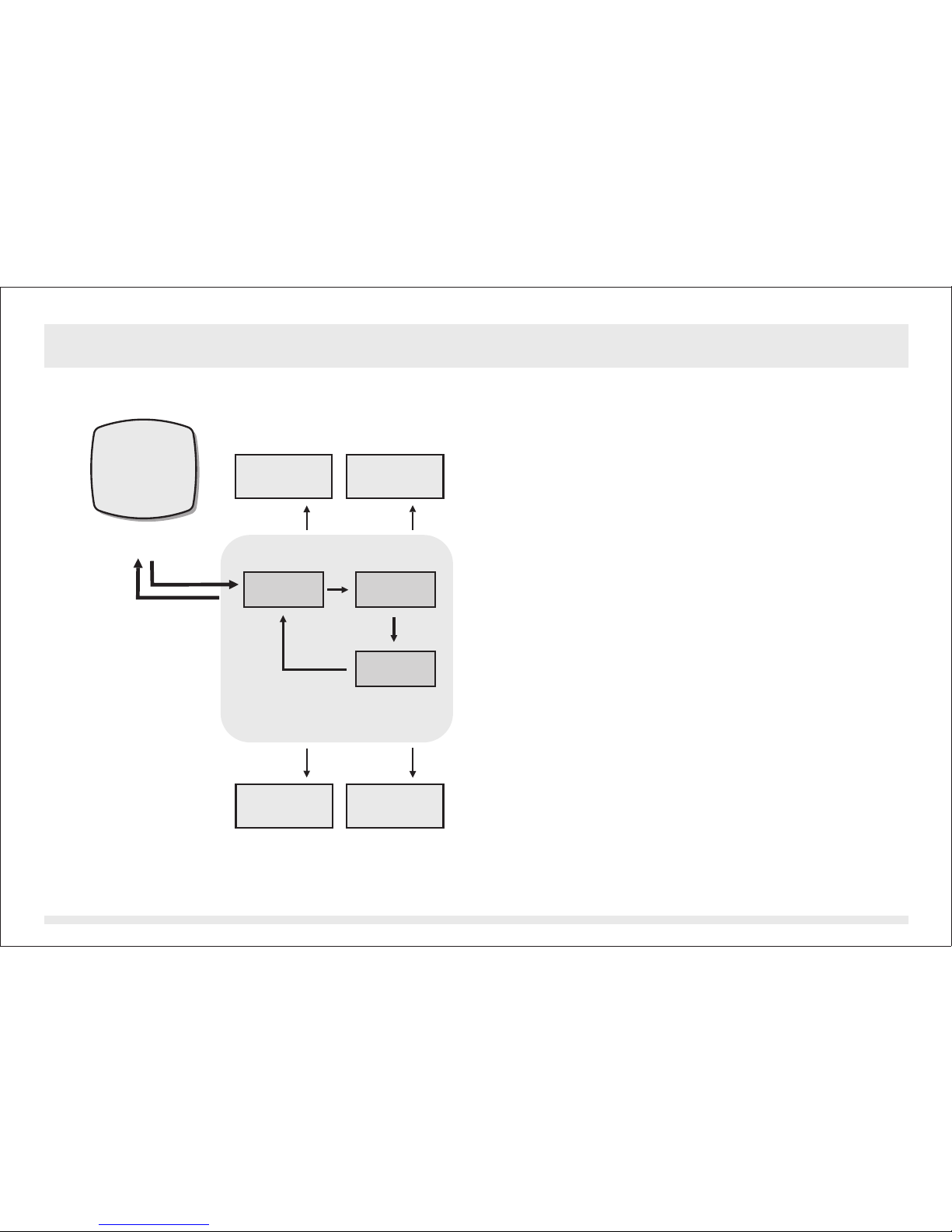

5.0 Major Functional Modes

WIND Km/H

21.3

18.3 8.3

[mode]

TEMP C8

28.3

18.2 13.2

Temperature Mode

Sensor Function

THU 06-MAR

2003

12:38 28

28.0 C8

Current Time ModeWind Mode

[mode]

[mode]

Major Functional Modes

[set][mode]

DAILY ALARM

12:00

Daily Alarm Mode

RACE TIMER

0:10.00

Race Timer Mode

ON

[mode]

Chronograph Mode

Time Function

CHRONO

GRAPH

0:00.00

00

[mode]

6.0

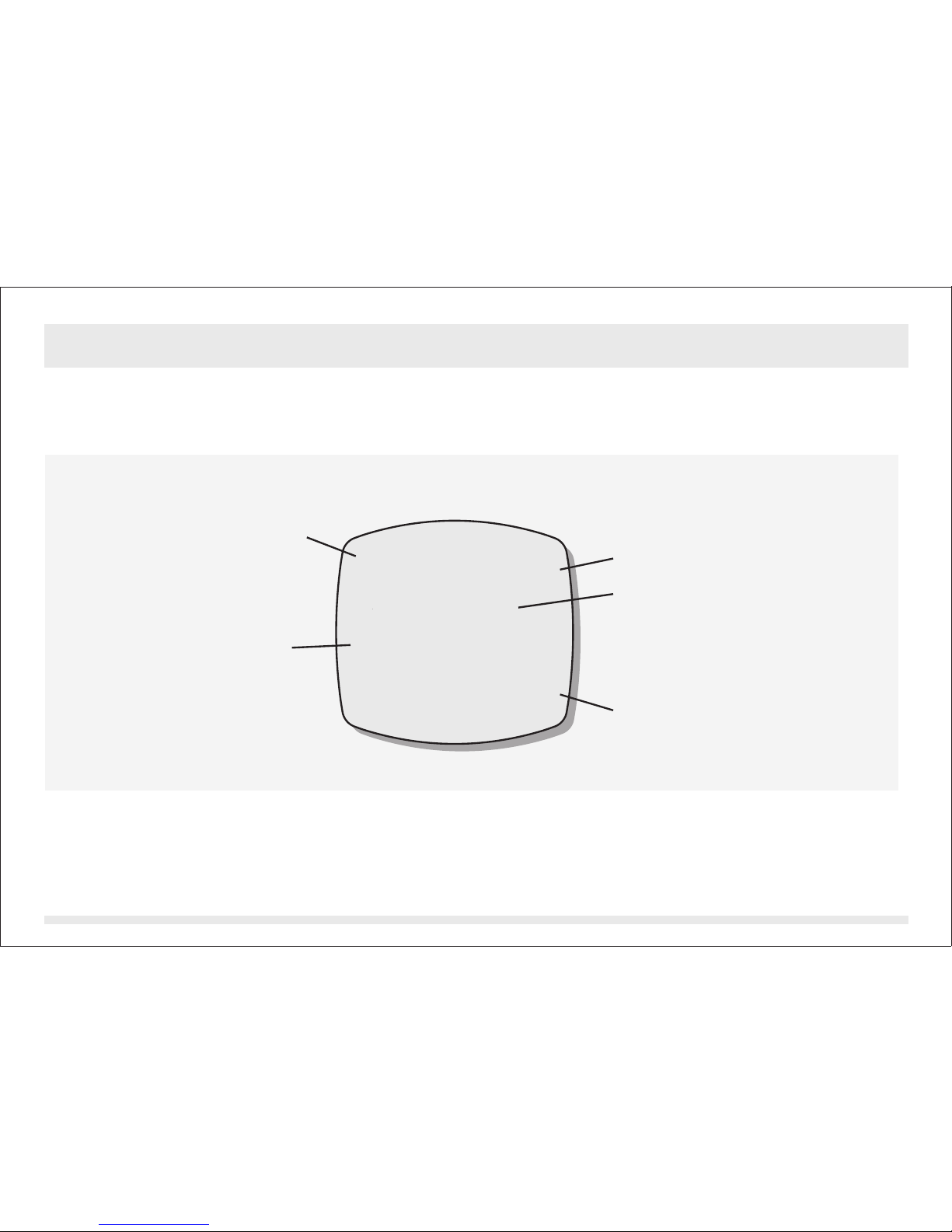

Current Time Mode - Functional Displays

Day of week

THU

06MAR

2003

Current
Time

12:38.28

Date

Year

28.0 C

Current Time Mode

Current
Temperature

6.1

Current Time Mode - Setting the Current Time Mode

06MAR

THU

12:38.28

28.0 C888.2%

Current Time Mode

hold

[mode]

scroll through

the settings by

increment

scroll

the setting at

a faster pace

scroll through

the settings by

decrement

scroll

the setting at

a faster pace

hold

[mode]

[reset]

hold [reset]

hold [set]

reset Second to zero

'12' changes to '24';
'24' changes to '12'.

[set]

or [reset]

12/24

hour

[mode]

[set]

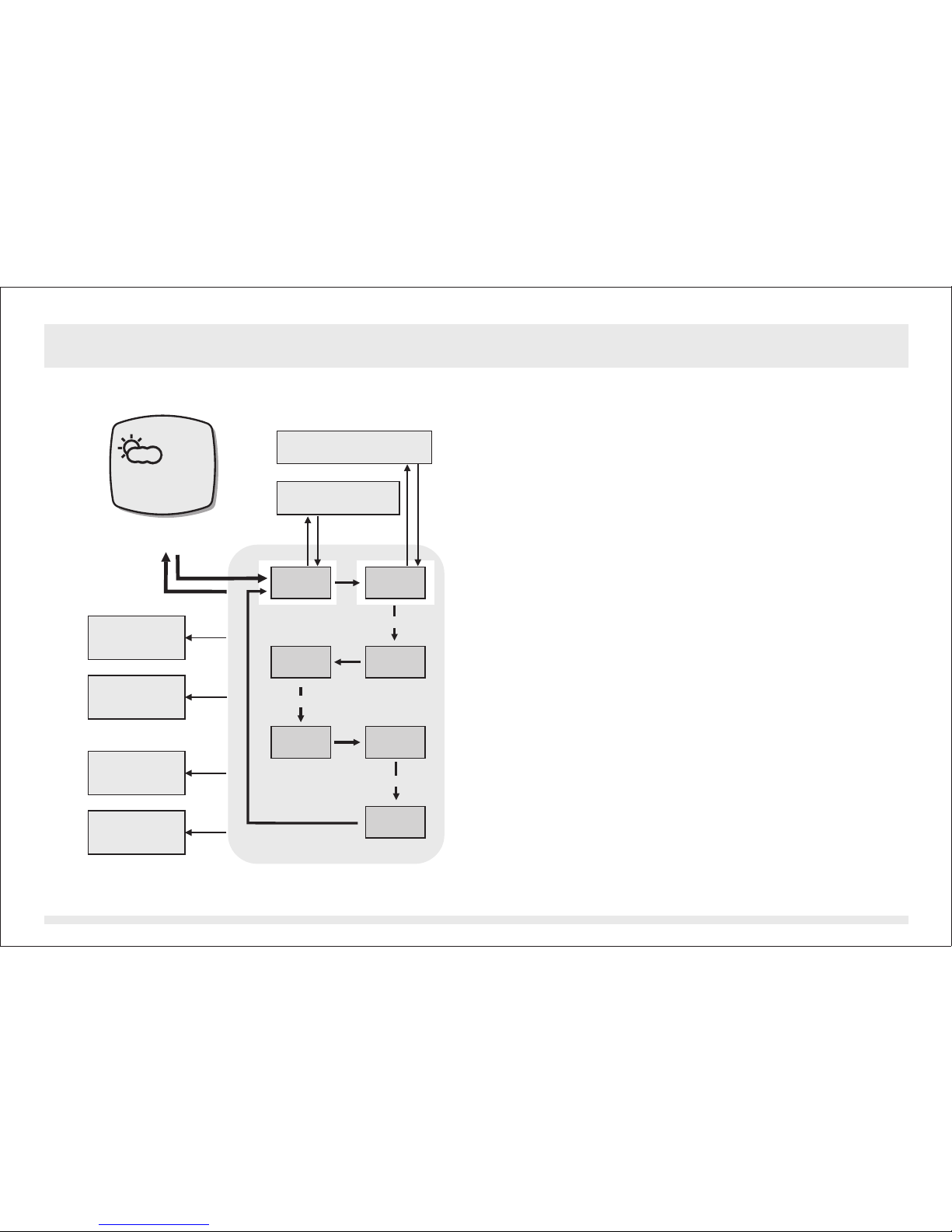

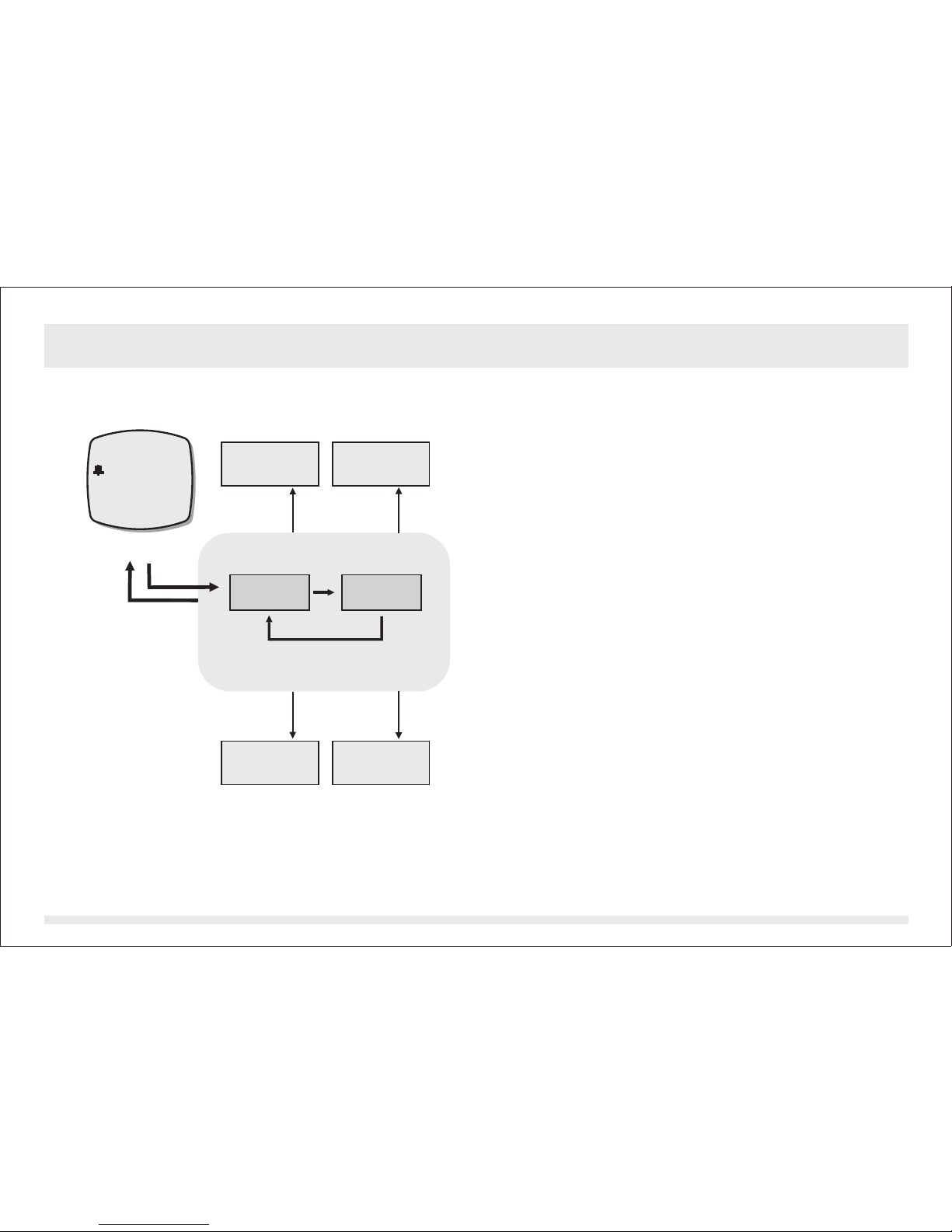

Current Time Setting Sequence

year

or [reset]

[mode]

[mode]

[mode]

[mode]

[set]

second

[mode]

minute

month

[mode]

date

To Select Setting Display

!

Setting the current time and date, and their
display formats, press and hold the [mode]
button for about 2 seconds to select the
setting display (the '12' indicator will start
flashing).

The Setting Sequence

In setting display, press the [mode] button to

!

move the setting following the adjacent
diagram.

When the ' ' or ' ' digits starts flash,

!

12 24

press the [set] or [reset] button to switch
between ' ' (12 hour format) and ' ' (24
hour format). When the ' ' digits starts

12 24

second

flash on the display, press [set] or [reset]
button to reset the second to zero.

If one of the settings (minute, hour, year,

!

month, date) starts flash, press the [set] or
[reset] button to scroll through the setting
(hold down the button to scroll the setting at
a faster pace).

When the above settings finished, press and

!

hold the [mode] button for about 2 seconds
to exit the setting sequence.

7.0 Daily Alarm Mode - Daily Alarm Display

Alarm ON
Indicator

DAILY ALARM

ON

12:00

Alarm ON Display

[set]

DAILY ALARM

OFF

--:--

-- :

Alarm OFF Display

Daily Alarm Mode

Mode indicator

Alarm ON/OFF
Status

Alarm time

Daily Alarm Display

In Daily Alarm Mode, the display will show

!

the following:

1) The mode indicator ' ' appears

DAILY ALARM

on the 1st row of the display.

2) The ' ' or ' ' status indicator appears

ON OFF

on the 2nd row of the display.

3) The alarm time (hour and minute) appears
on the 3rd row of the display.

To Select Daily Alarm between ON and OFF

!

To select the daily alarm between ON and
OFF, press the [set] button once.

!

When the daily alarm is ON, the Alarm ON
Indicator ' ' appear otherwise it is OFF.

Daily Alarm Sound

!

When the daily alarm is ON, the product will
beep at the predefined alarm time for about
30 seconds.

!

When the beep sounds, it can be stopped
prematurely by pressing any of the buttons
except the [light] button.

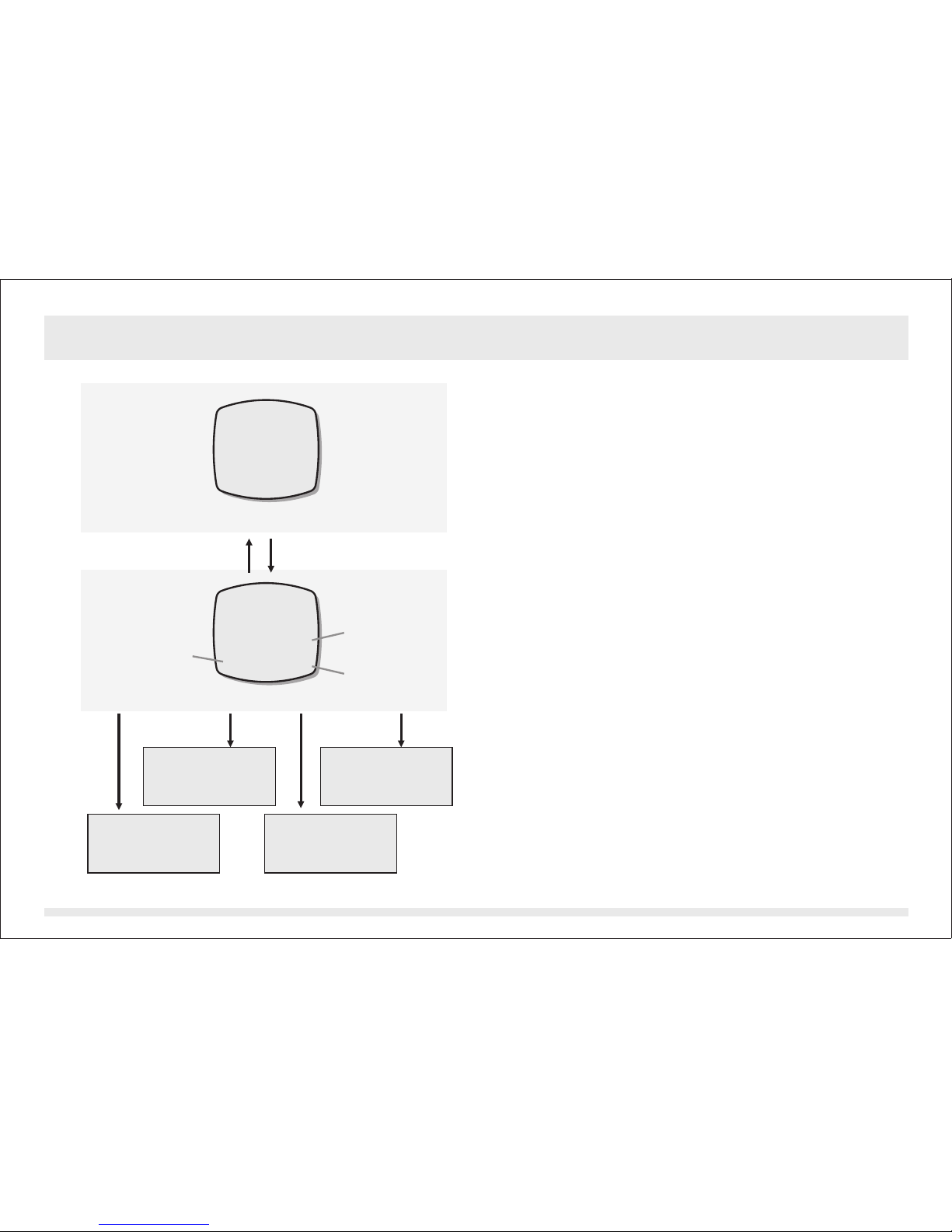

7.1 Daily Alarm Mode - Setting the Daily Alarm Mode

To Select the Setting Display

!

Setting the Daily Alarm Time, press and

DAILY ALARM

ON

12:00

Daily Alarm Mode

hold

[mode]

hold

[mode]

scroll the

setting by

increment of 1

[reset]

Daily Alarm Mode
Setting Sequence

[set]

scroll the

setting by

decrement of 1

[mode]

[mode]

scroll

the setting

faster

hold

[reset]

HourMinute

hold [set]

scroll

the setting

faster

hold the [mode] button for about 2 seconds
to select the setting display (the 'minute'
digits will start flashing).

The Setting Sequence

In setting display, press the [mode] button to

!

move the setting between minute and hour
settings.

When one of the settings (minute and hour)

!

digits start to flash on the display, press the [set]
or [reset] button to scroll through the setting
(hold down the button to scroll the setting at a
faster pace).

When the setting finished, press and hold the

!

[mode] button to exit the setting sequence.
The setting display will change to Current Time

!

Mode automatically if no key-stoke has been
activated for about 1 minute.

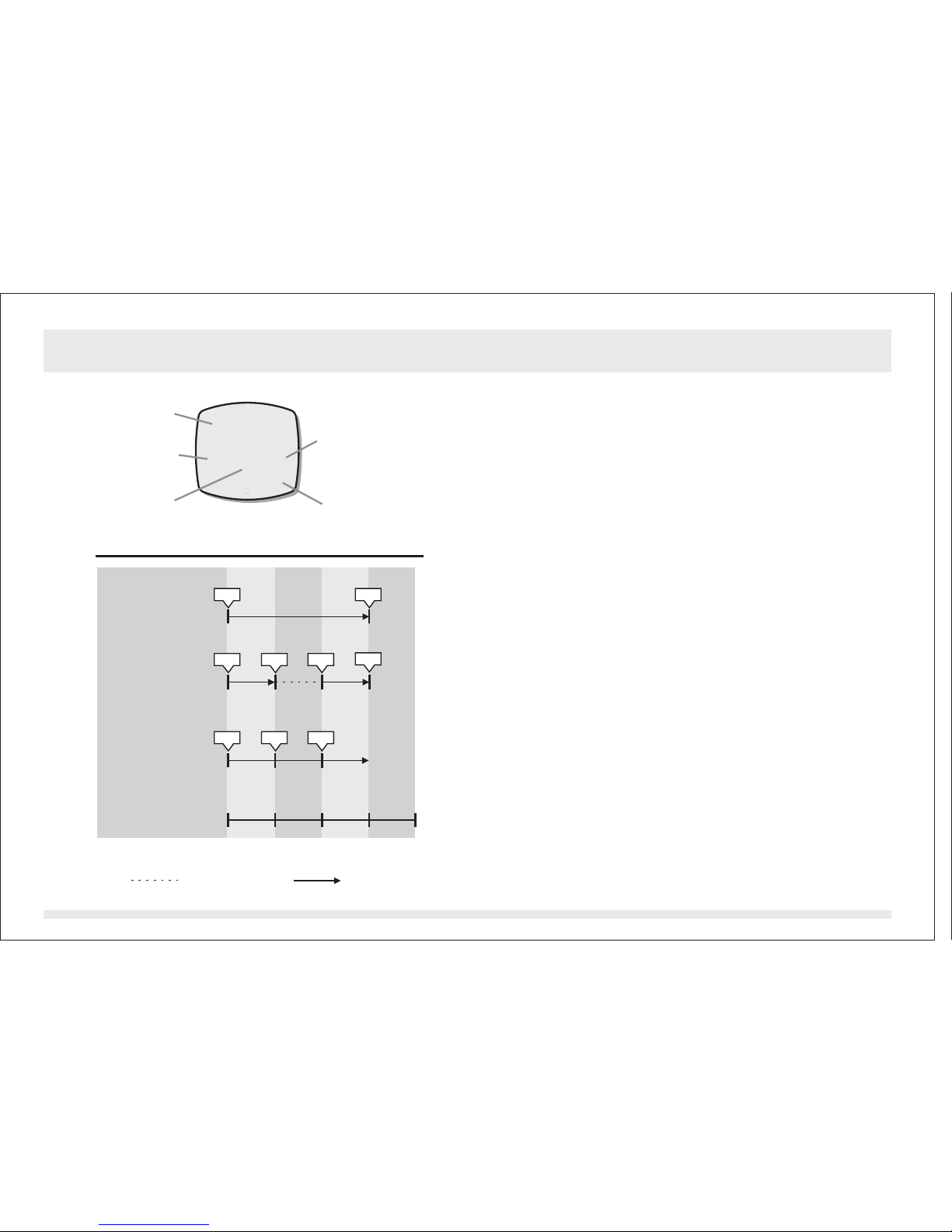

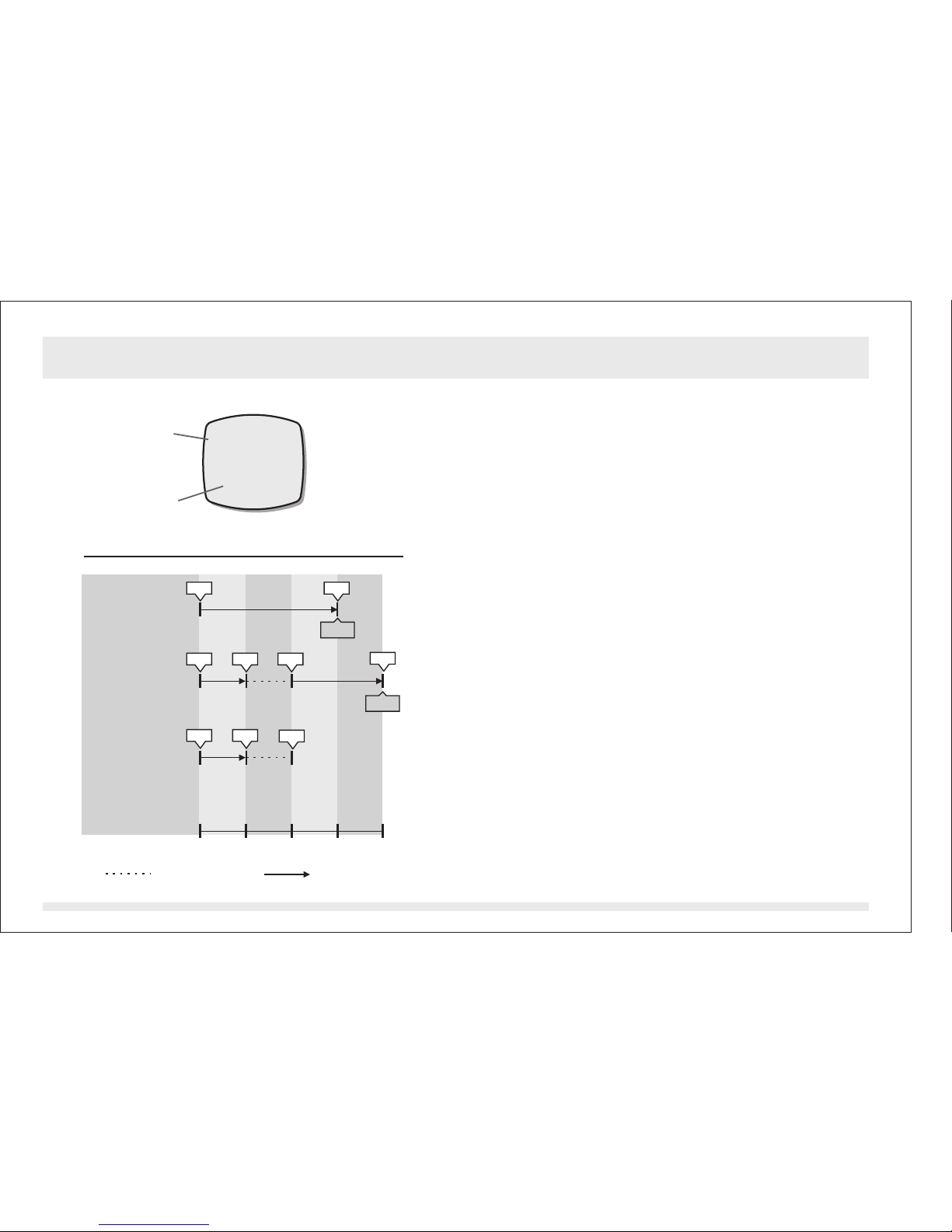

8.0 Chronograph Mode - Chronograph Display

Chronograph Function

Mode Indicator

Chronograph
Time (hour)

Chronograph
Time (minute)

1. Elapsed time

2. Accumulative
elapsed time

3. Lap time

Elapsed Time, Accumulative Elapsed Time and Lap Time

CHRONO

GRAPH

Chronograph
Time (second)

0:00.00

00

Chronograph Time

Chronograph Mode

(Zero Display)

[set]

10010

[set] [set] [set] [set]

[set]

[reset] [reset]

010203040

time

: Stop Counting : Counting

(1/100 Second)

300

[set]

20

10100

!

The ADC is equipped with a Chronograph
Mode, it can measure 3 different periods of
time. They are:

1) Elapsed time,

2) Accumulative elapsed time

3) Lap time

Chronograph Display

!

In Chronograph Mode, the display will show
the following:

1)The mode indicator ' '
appears on the 1st and 2nd row of the
display.

2) The chronograph time (hours, minutes,
seconds) appears on the 3rd row of the
display.

3) The lap number and chronograph time
(1/100 second) appears on 4th row of the
display.

!

The display shows the 'Zero' display, if the

product or the chronograph has been reset.

!

The maximum counting range of the

chronograph is 99 hours, 59 minutes and

59.99 seconds. The chronograph can record
up to 50 laps.

CHRONOGRAPH

8.1 Chronograph Mode - Using the Chronograph

Chronograph Function

Lap Time
(the chronograph
is counting in the
background)

Lap No.

CHRONO

GRAPH

0:00.00

00

Chronograph Mode

('Zero' Display)

Note:

This diagram illustrates the
general flow among different
functional displays only, and
may NOT conform to fact in all
instances.

counting

Elapsed Time
(the chronograph
is stop counting)

[reset]

CHRONO

RUNNING

0:00.00

Chronograph Mode

(Lap Time Display)

[set]

CHRONO

RUNNING

0:00.00

Chronograph Mode

(Counting Display)

CHRONO

STOP

0:00.00

Chronograph Mode

(Stop Counting Display)

011L

[reset]10 seconds

01

[set]

20

!

In 'Zero' Display, press the [set] button once
to start the counting. When it is counting,
press the [set] button again to stop the
counting, and the elapsed time of which the
chronograph is counting will appear.

When the elapsed time is displaying, repeat

!

the key operations above to get the
accumulative elapsed time or press the
[reset] button to reset the chronograph.
Check the below 'To Reset the Chronograph'
section for more detail on how to reset the
chronograph.

To Record a Lap Time

When the chronograph is counting in the

!

previous operations, press the [reset] button
to display Lap Time Display for 10 seconds.

When the Lap Time is displaying, the

!

chronograph remains counting in the
background.

To Reset the Chronograph

To reset the chronograph, to be ready for a

!

new operation, press the [reset] button once
when the chronograph has stopped counting.
The display will then return to 'Zero' Display.

8.2 Chronograph Mode - Recall the Lap Time

Select the lap time by

backward scrolling

(fast scrolling)

hold [set]

CHRONO

STOP

hold

[mode]

0:00.00 0:02.02

20 20

Stop Counting Display Lap Time Recall Display

hold [reset]

Select the lap time by

forward scrolling

(fast scrolling)

CHRONO

RECALL

[reset] [reset]

[set] [set]

CHRONO

0:02.02 0:04.02

Lap No.

20 201L 2L

Lap Time

Lap Time Recall Display

(Lap 1 Time)

Lap Time Recall Display

Select the lap time by

backward scrolling

CHRONO

Select the lap time by

RECALL

(Lap 2 Time)

(1 lap per step)

[set]

RECALL

(Total Time)

forward scrolling

(1 lap per step)

[reset]

Available

Lap Time(s)

Next

To Recall the Lap Time

In Stop Counting Display, press and hold

!

the [mode] button to select the Chronograph
Recall Display.

In Chronograph Recall Display, the total

!

elapsed time will appear. To recall the
individual lap time, press the [set] or [reset]
button to select the target lap time (hold
down the button to scroll the setting faster)
following the adjacent diagram.

In Chronograph Recall Display, press and

!

hold the [mode] button to return to the Stop
Counting Display.

Chronograph Recall Display

In Chronograph Recall Display, the display

!

will show the following:

1)The mode indicator ' '

CHRONO RECALL

appears on the 1st and 2nd row of the
display.

2)The lap time (hours, minutes,
seconds) appears on the 3rd row of the
display.

3) The lap number and lap time (1/100

second) appears on the 4th row of the display.

9.0 Race Timer Mode - Race Timer Display

The Target Time

Mode
Indicator

Target Time
(Hour, minute,
second)

1. Single-phase
down
counting

2. Multi-phases
down
counting

3. Reset to
preset
target time

RACE TIMER

0:10.00

Race Timer Mode

30

[set]

30

20

20 0

[set]

30 30

[set]

[set][set]

20

[set] [reset]

0

beep

beep

!

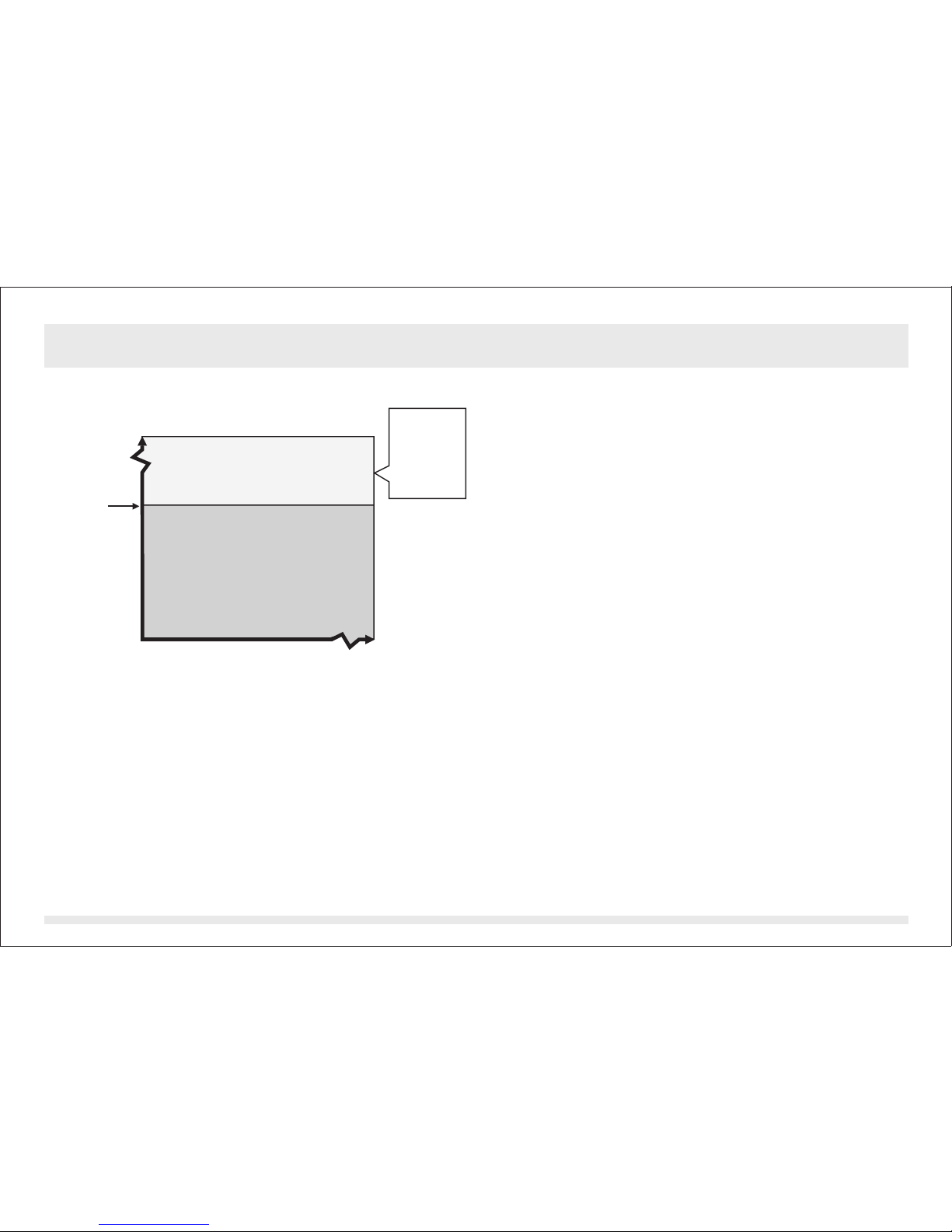

The ADC is equipped with a countdown timer to
keep track of a fixed period of time (target time).

!

The user can set a target time of up to 99 hours,
59 minutes 59 seconds.

!

Check the coming

Mode'

target time in Racer Timer Mode.

Race Timer Display

!

In Race Timer Mode, the display will show the

following:

1) The mode indicator ' ' appears
on the 1st row of the display.

2)The target time (hours, minutes,
seconds) appears on the 3rd row of the
display.

!

The maximum counting range of the Race

Timer is 99 hours, 59 minutes and 59
seconds.

'Setting the Race Timer

section for more detail on how to set the

RACE TIMER

010203040

time

Single/multi-down Counting & Reset

: Stop Counting : Counting

9.1 Race Timer Mode - Setting the Race Timer Mode

To Select the Setting Display

!

Setting the target time in Race Timer Mode,

RACE TIMER

0:10.00

Race Timer Mode

hold

[mode]

hold

[mode]

scroll the

scroll through

setting by

the settings by

increment of 1

increment

[reset]

Second

[mode]

Race Timer Mode

Setting Sequence

[set]

[mode]

scroll

scroll

the setting

the setting at

faster

a faster pace

hold

[reset]

Minute

[mode]

Hour

hold
[set]

press and hold the [mode] button for about 2
seconds to select the setting display (the
second digits will start flashing).

Setting Sequence

!

In setting display, press the [mode] button to
move setting following the adjacent diagram.

!

When the one of the settings (second, minute,
hour) start to flash, press the [set] or [reset]
button to scroll through the settings (hold down
the button to scroll at a faster pace).

When the setting finished, press and hold the

!

[mode] button for about 2 seconds to exit the
setting sequence.

The setting display will change to Race Timer

!

Mode automatically if no key-stoke has been
activated for about 1 minute.

scroll the

scroll through

setting by

the settings by

decrement of 1

decrement

scroll

scroll

the setting

the setting at

faster

a faster pace

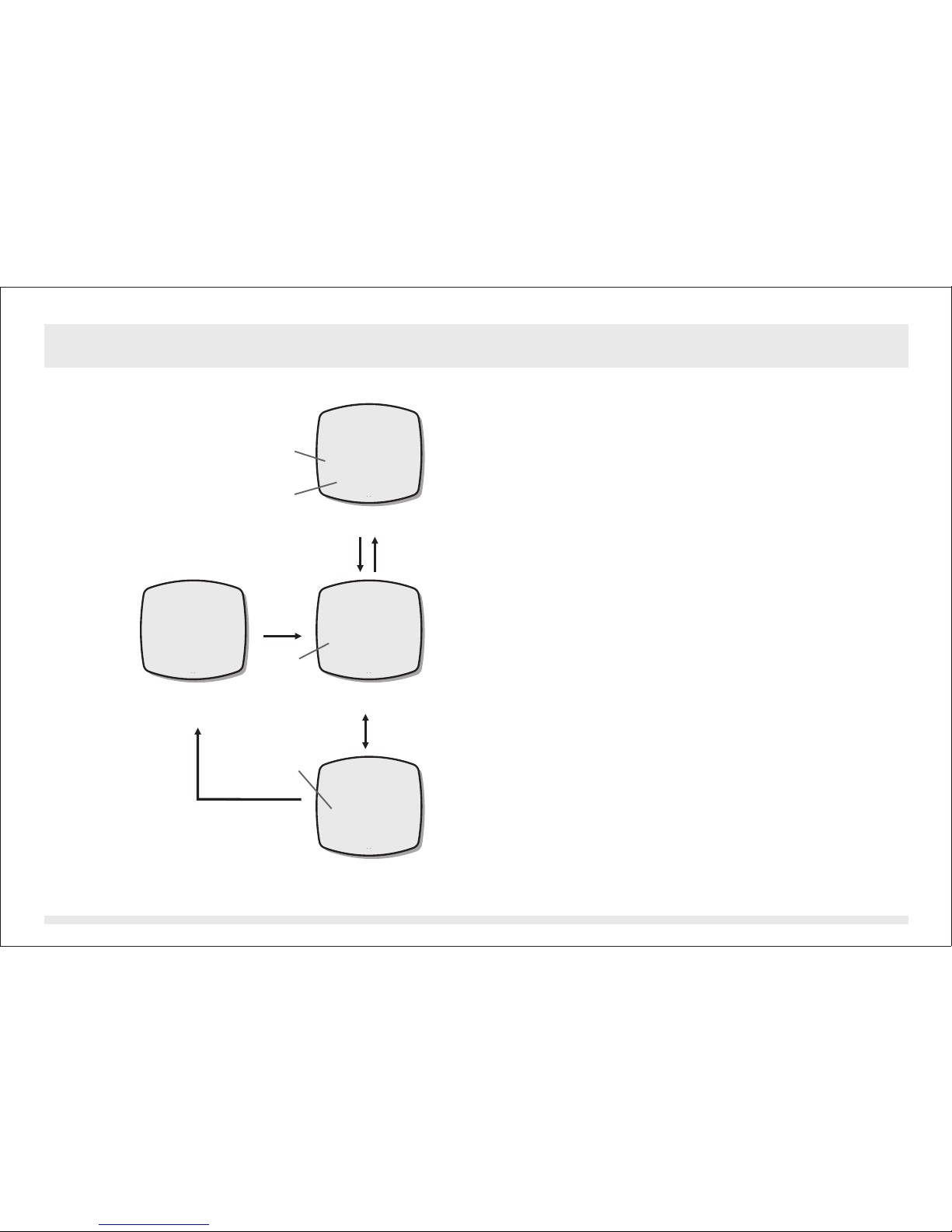

9.2 Race Timer Mode - Using the Race Timer

To Use the Race Timer

RACE TIMER

0:10.00

Stop-Counting Display

set the
target
time to
30 minute

RACE TIMER RACE TIMER

0:30.00 0:29.59

Stop-Counting Display

[reset]

Note:
This diagram illustrates the

general flow among different
functional displays only, and
may NOT conform to fact in all
instances.

beeps

stop
counting

[set]

counting

stop
counting

RACE TIMER

STOPPED

0:00.00

Stop-Counting Display

29'59"

RUNNING

Counting Display

[set]

RACE TIMER

STOP

0:29.59

Stop-Counting Display

!

!

To Reset the Timer

!

!

Race Timer Alarm Sound

!

!

!

Once a target time has been set, press the
[set] button once to start the countdown.
When it is running, press the [set] button
again to stop the countdown.

The countdown time will be displayed
continuously throughout the operation.

To reset the timer to the preset target time
before the countdown reaches zero, press
the [reset] button once when the timer has
been stopped.

To set a new value for the target time, check
the previous 'Setting the Race Timer Mode'
section for more detail on how to set the
Racer Timer Mode.

At the last 10 minutes, the Alarm will beep
once for every minute.

At the last 10 seconds, the Alarm will beep
once for every second.

At zero, the Alarm will beep for about 2
seconds.

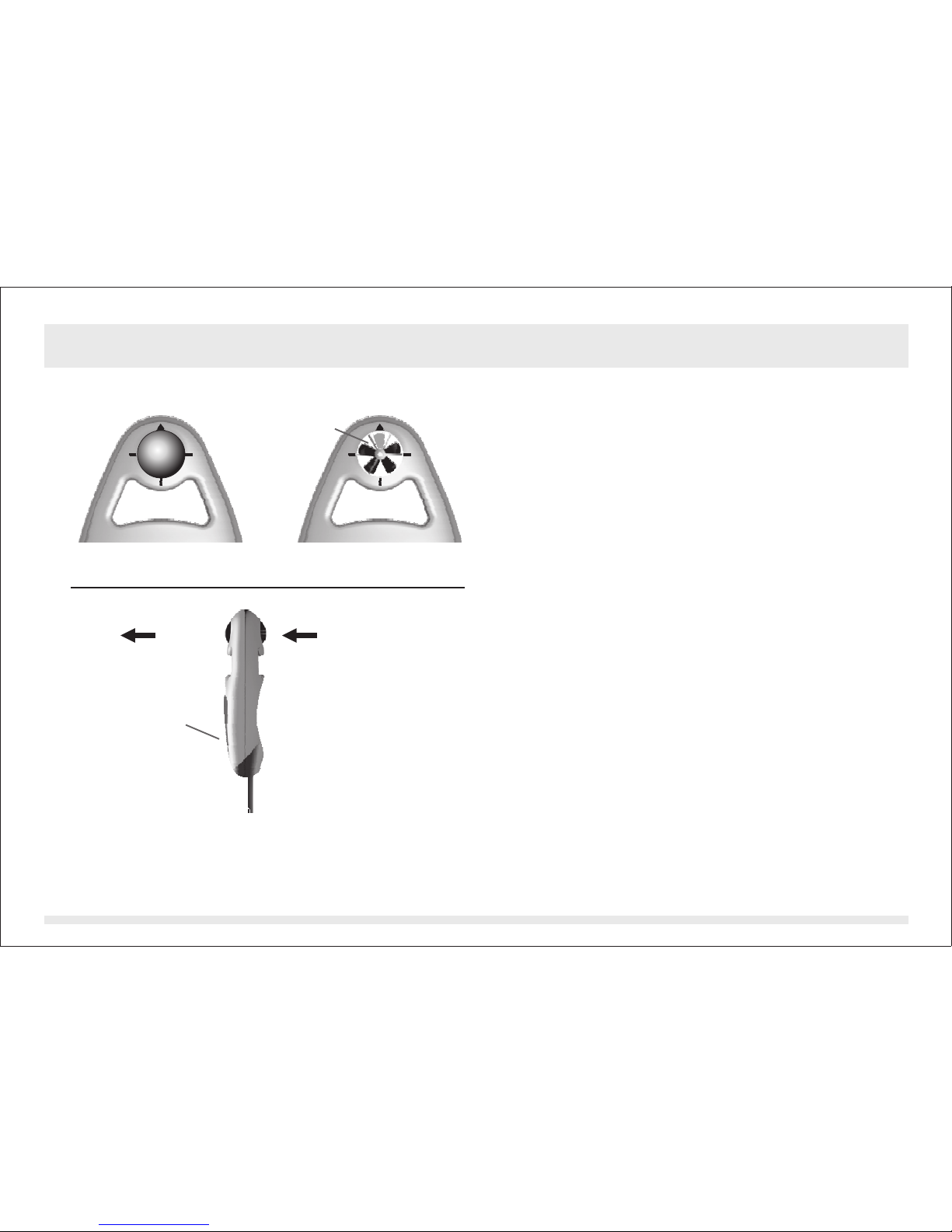

10.0 Wind Speed Mode - Before Using the Wind Speed Mode

the propeller
blades are entirely
exposed to air

Propeller Closed Propeller Opened

windwind

display

How Wind Speed is Measured

The ADC is equipped with a propeller that is

!

similar to a traditional aerovane.
When the propeller faces the wind, it

!

rotates and generates signal. This product
will pick up the signal and converts it into
wind speed.

Before and After Measuring a Wind Speed

Turn the ball-shape propeller by your thumb

!

and index finger until the propeller blades
are entirely exposed, and it is not sheltered
by the case.

! After a wind speed measurement, rotate the

propeller to a closed position to prevent dirt
from getting into it.

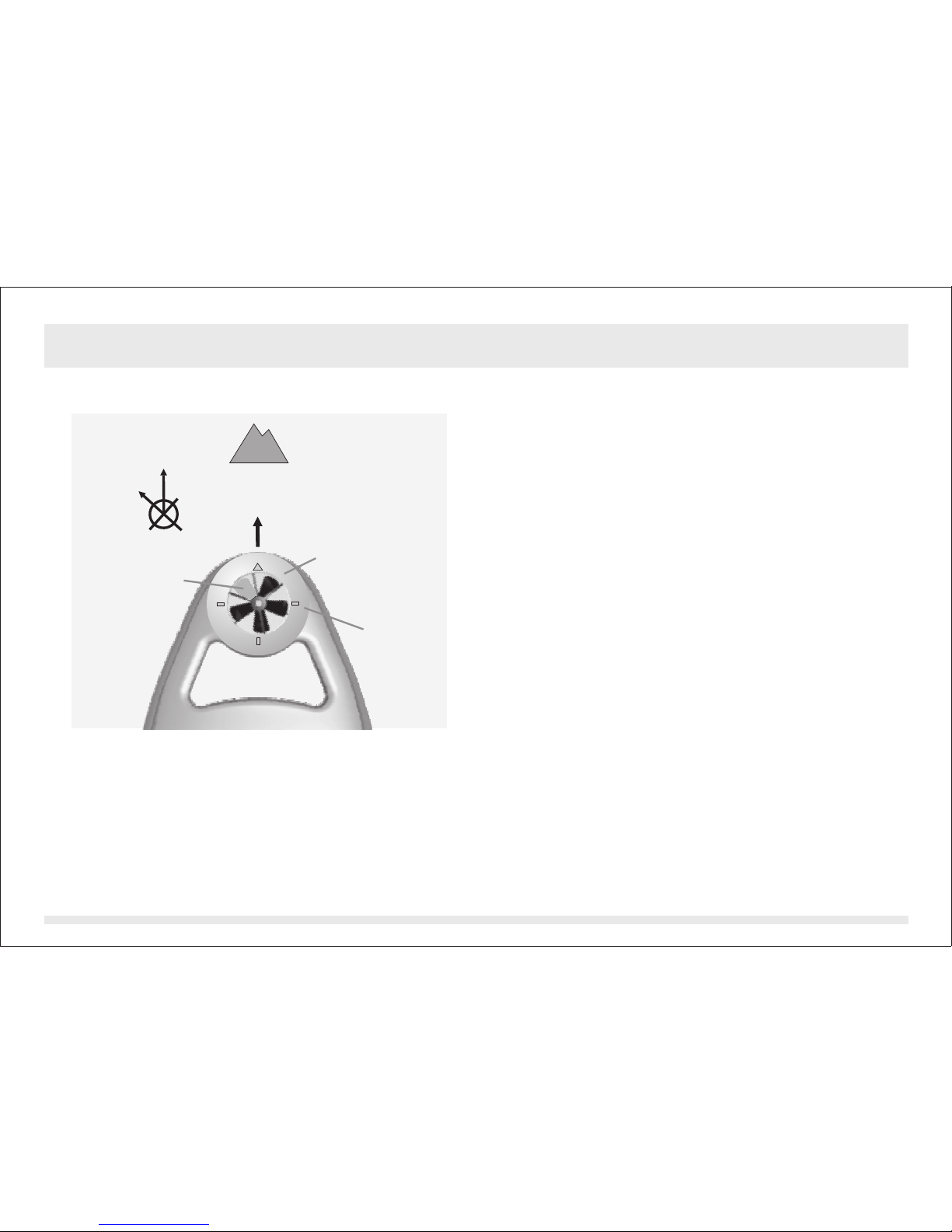

To Measure Wind Speed

Select Wind Speed Mode. Point the blades

!

directly towards the wind direction, and
make sure that the blades rotate freely.

When the wind passes through the propeller,

!

the blades rotate. The ADC starts to
measure, and shows the current, average
and maximum wind-speed readings.

Point the Propeller towards the wind direction

10.1

Wind Speed Mode -

Beaufort

Scale

Wind Speed

Display Lock

Time Span

Setting

Wind Speed Mode Functions

Current, Max
and Average

Wind Speed

Wind

Speed

Alarm

Wind Speed Mode Function

Wind Speed Mode Functions

! This ADC has the following wind speed

functions:

1) The Beaufort Scale: The longest and
most widely used set of criteria to
describe the wind conditions. Check the
coming ' ' section for more
detail on Beaufort Scale.

2) The Current, Maximum and Average

Average Wind Speed.

3) Wind Speed Alarm: alarm that alerts the

user when the current wind speed is higher
than the predefined level.

4) Wind Speed Display Lock: This feature
can lock the wind speed display for 5
seconds.

5) Time Span Setting: This feature defines
the time for the Average Wind Speed
Calculation. Check the coming '

Span Setting for Average Wind Speed

section for more detail on the setting.

Beaufort Scale

Time

'

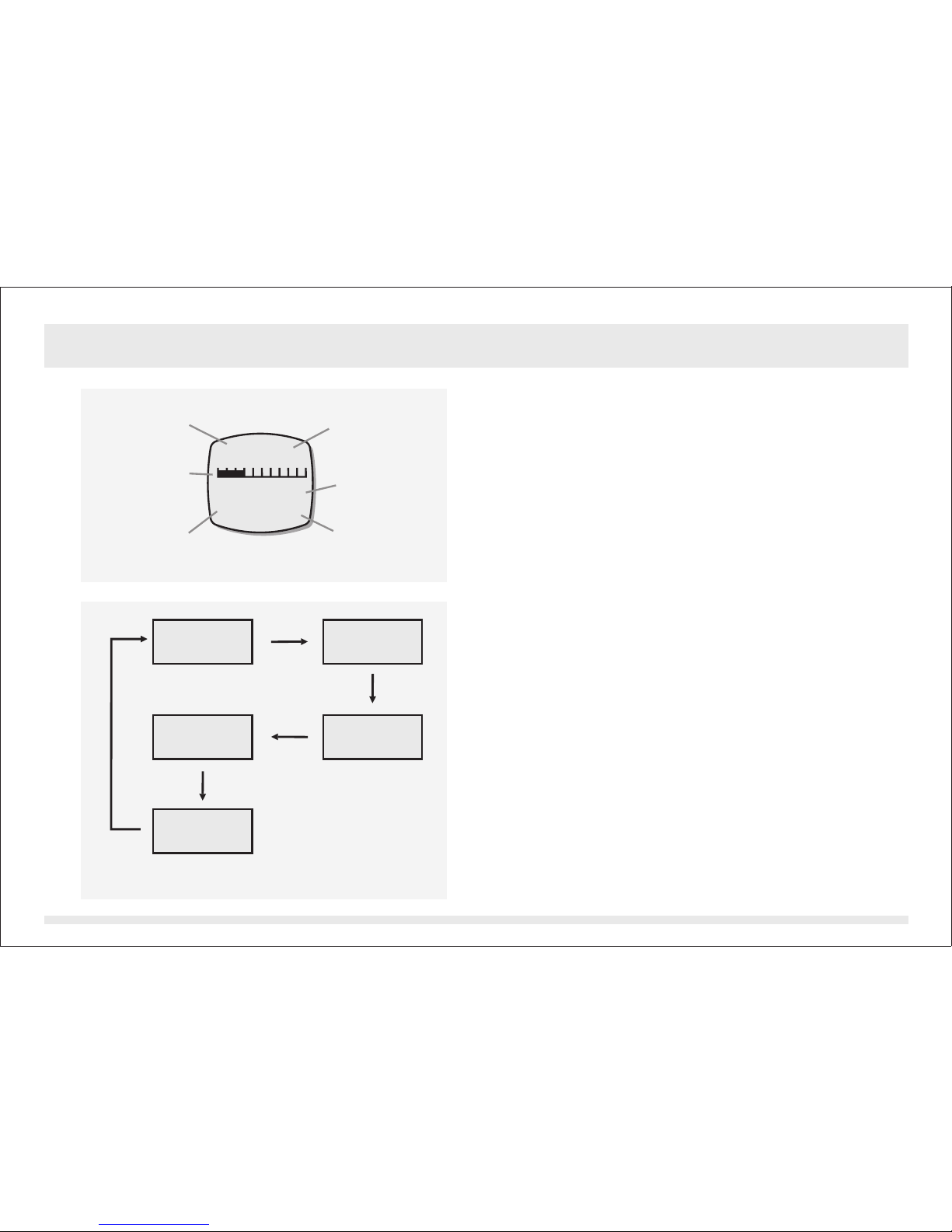

10.2 Wind Speed Mode - Wind Speed Display

Wind Speed Display

Mode
Indicator

Beaufort

Scale
(by average
wind speed)

Maximum

Wind Speed

[reset]

WIND mph

21.3

18.3 8.3

Wind Speed Mode

[reset]

Km/h

[reset]

[reset]

Knots

Wind
Speed Unit

Current
Wind Speed

Average
Wind Speed

mph

[reset]

feet/sm/s

!

In Wind Speed Mode, the display will show
the following:

1) The ' ' Indicator and the wind speed

WIND

unit appear on the 1st row of the display.

2) The Beaufort Scale (calculated by
average wind speed) appears on the 2nd
row of the display.

3) The Current Wind Speed appears on the
3rd row of the display.

4) The maximum and average wind speed
appears on the 4th row of the display.

To Change Wind Speed Unit

!

This ADC can display wind speed in the
following wind speed units:

1) Km/h (Kilometer per hour),

2) mph (mile per hour),

3) feet/s (feet per second)

4) m/s (meter per second) and

5) Knots.

!

In Wind Speed Mode, press the [reset]
button to change the wind speed unit
following the adjacent diagram.

Wind Speed Unit Selection Sequence

Wind Speed Mode - What is Beaufort Scale?10.3

Beaufort

Scale
(by average
wind speed)

(calculated by average wind speed)

force

no. 1

Example A: Number 5 of Beaufort Scale

(calculated by average wind speed)

force

no. 1

Example B: Number 8 of Beaufort Scale

WIND mph

21.3

18.3 8.3

Wind Speed Mode

Beaufort Scale

force
no. 5

Beaufort Scale

force

no. 8

force

no. 10

force

no. 10

Average
Wind Speed

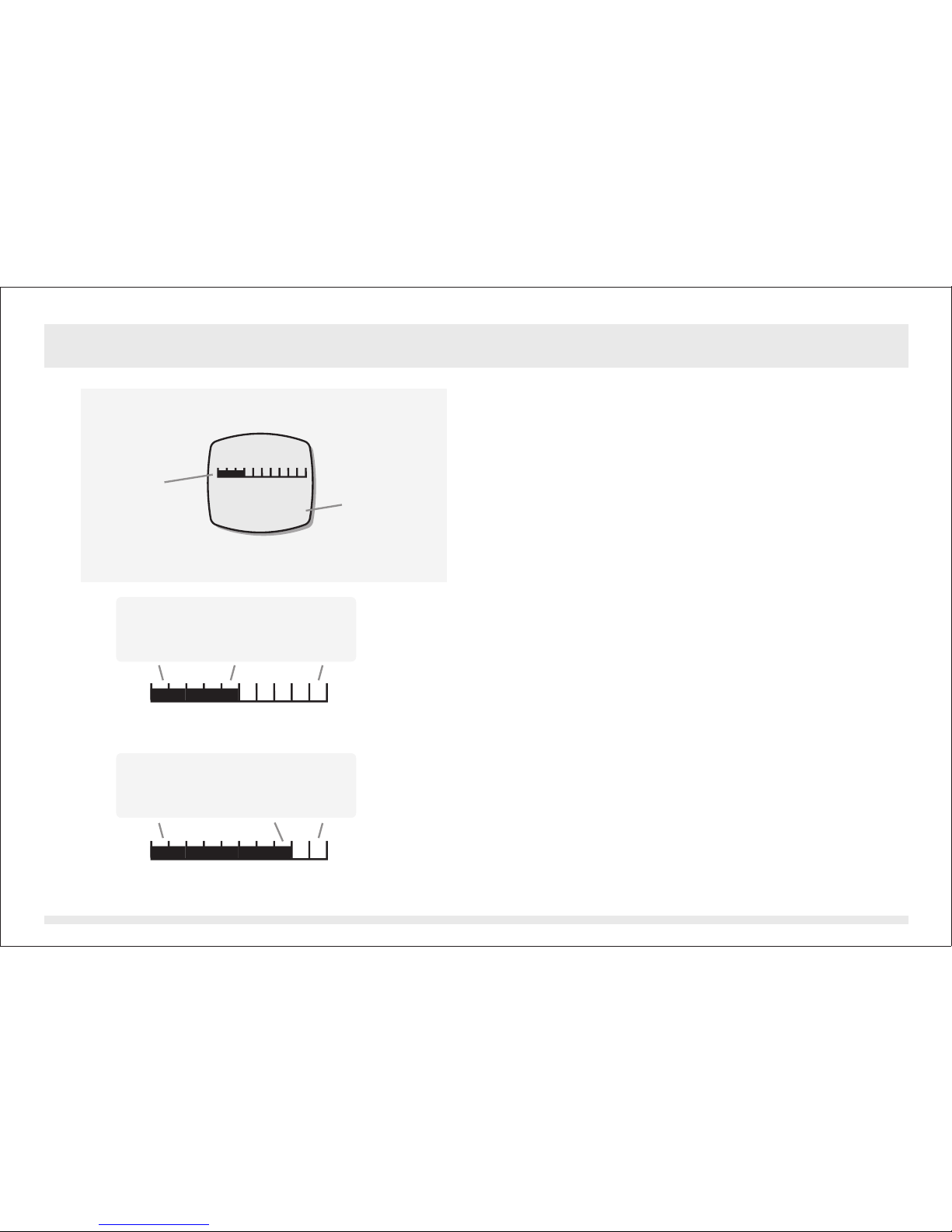

What is Beaufort Scale?

!

Beaufort Scale is the longest and most
widely used set of criteria to describe the
wind conditions and its effects on land as
well as on sea.

It categorizes the wind speed into 13 force

!

numbers, from 0 (calm) to 12 (hurricane).
Check the 'Beaufort Scale Table' section
below for more detail on the Beaufort Scale.

Beaufort Scale Bar

For user's convenience, the ADC displays

!

Beaufort Scale for average wind speed.
The ADC exhibits Beaufort Scale by

!

displaying different number of bars on the
upper row of the display. One exhibited bar
is equivalent to one Beaufort Scale force
number. For example, if there are 5 bars on
the display, the average wind speed is
equivalent to force number 5 of Beaufort
Scale.

The ADC displays the Beaufort Scale force

!

number from 0 to 10 (if the average wind
speed is higher than force number 10, the
ADC will display 10).

10.4

Wind Speed Mode - Beaufort Scale Table

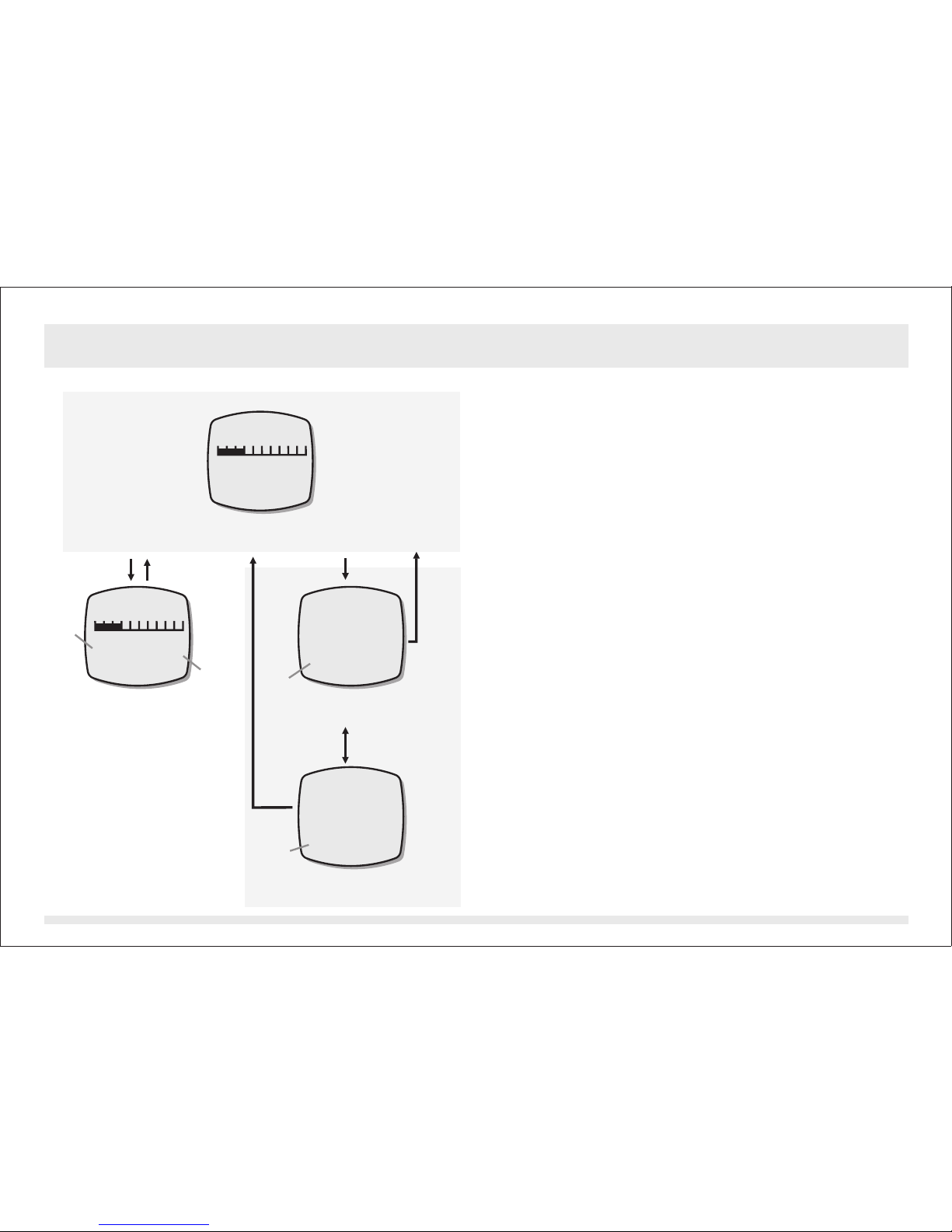

10.5 Wind Speed Mode - Wind Speed Display Lock, Reset Max Wind Speed

[set]

WIND mph

lock
indicator

L 21.3

18.3 8.3

Wind Speed Mode

(Display Locked)

Note:

This diagram illustrates
the general flow among
different functional
displays only, and may
NOT conform to fact in
all instances.

5 seconds

WIND mph

21.3

18.3 8.3

Wind Speed Mode

display
keep still

flashing

hold
[mode]
(confirm
the
reset)

flashing

hold
[reset]

RESET MAX

WIND? NO

18.3 8.3

Maximum Wind Speed

Reset Display - NO

[set]

RESET MAX

WIND? YES

18.3 8.3

Maximum Wind Speed

Reset Display - Yes

hold
[mode]
(abort the
reset)

Wind Speed Display Lock

!

The ADC is equipped with a function to hold
the fluctuating wind speed reading on the
display.

In Wind Speed Mode, press the [set] button

!

to lock the wind speed reading (the display
will hold the current reading for 5 seconds).

Reset the Maximum Wind Speed

To reset the maximum wind speed, press

!

and hold the [reset] button for 2 second to
select the Reset Display.

When the Reset Display is displayed, press

!

the [set] button to select between 'YES' and
'NO'.

In the ' ' display, press and hold the [mode]

!

YES

button for 2 about seconds to confirm the
reset (the maximum wind speed will reset to
zero).

To abort the reset, press and hold the [mode]

!

button for 2 seconds in the ' ' display.

NO

10.6

Wind Speed Mode - Wind Speed Alarm

Wind Speed

preset
wind speed
level

Alarm Range

Below Alarm Range

0

The Wind Speed Alarm Range

'beep'
for 5
seconds
(every 2
minutes)

Time

Wind Speed Alarm

The ADC is equipped with a wind speed

!

alarm.
That alarm alerts user when the current

!

wind speed is equal to or higher than the
preset wind speed level.

Wind Speed Alarm Sound

In Wind Speed Mode, if the Current Wind

!

Speed is equal to or larger than the preset
wind speed level, the ADC will start beeping
for about 5 seconds.

After the first beeping, the ADC will beep

!

again for every 2 minutes if the current wind
speed holds above the preset level.

The above repeated alarm will stop unless

!

the wind speed again exceeds the preset
level or the wind speed alarm is set to OFF.

10.7

Wind Speed Mode - Setting the Wind Speed Alarm and Time Span

hold

[mode]

WIND mph

21.3

18.3 8.3

Wind Speed Mode

Wind Speed Alarm Setting

WIND mph

OFF

hold

[mode]

[set]

----

18.3 8.3

scroll

scroll

the setting

the setting at

faster

a faster pace

scroll through

the settings by

increment

Wind Speed Alarm and
Time Span Setting Sequence

[mode]

Wind Speed

Alarm

Alarm ONAlarm OFF

WIND mph

ON

flash

50.3

18.3 8.3

scroll
the setting at
a faster pace

Time Span

Setting

Time Span

Setting

WIND mph

AVG PERIOD

10

SEC

[reset][reset] hold [reset]hold [reset]

scroll through

the settings by

decrement

To Set the Wind Speed Alarm, and Time Span
for Average Wind Speed Calculation

To set the wind speed alarm, press and hold

!

the [mode] button for about 2 seconds to
select the setting display (wind speed starts
flashing).

When the 'wind speed' is flashing, press the

!

[mode] button to select between time span
setting and wind speed alarm setting.

When 'wind speed' is flashing, press the

!

[reset] button to scroll the target wind speed
level by 1 step (hold down the button to
scroll the setting faster). To select the wind
speed alarm between ON and OFF, press
the [set] button.

When 'time' is flashing, press the [set] or

!

[reset] button to scroll the target time span
for average wind speed calculation by 1
(hold down the button to scroll the setting
faster).

Press and hold the [mode] button for about

!

2 seconds to exit the setting sequence.
The setting display will change to Wind

!

Mode automatically if no key-stoke has
been activated for about 1 minute.

10.8

North East

North
pole

red-colored
blade

Wind Speed Mode - Using the Propeller as a Mechanical Compass

Propeller as a Mechanical Compass

The ADC measures ambient temperature,

!

wind speed, and it also tells compass
directions.

Target object

propeller

reference
points

Using the Propeller as a

Mechanical Compass

!

One of the propeller blades is red-colored to
indicate the magnetic north pole.

!

Four reference points were engraved on the
ADC as reference points.

To use the Mechanical Compass

!

To check bearing of an object, make sure
that the propeller cover is opened, and the
blades are entirely exposed to air.

!

Tilt the ADC until the propeller blades are
parallel to the horizon, and the propeller
blades rotate freely.

The red-colored blade of the propeller will

!

points to the magnetic north pole. Make use
of the reference points (marked on the
product) to check the direction of the target
object.

11.0

Temperature - Temperature Functions

Temperature Mode Functions

! The ADC has the following temperature

Current

Temperature

Temperature

History Graph

Temperature

Calibration

Current, Minimum

Wind Chill

Temperature

Wind Chill

Temperature

Alarm

Temperature Mode Functions

functions:

1) The Current Temperature: The Current
Temperature readings.

2) The Current and Minimum Wind Chill
temperature: The wind effect on

temperature. Check the'WindChill
Temperature' section below for more detail
on Wind Chill Temperature.

3) The Temperature History Graph: The
temperature memory for the last 24 hours.

4) The Wind Chill Temperature Alarm: alarm
to alert the user when the current Wind
Chill Temperature is lower than the
predefined limit.

5) The Calibration: The process to calibrate
the temperature reading.

Temperature - Temperature Display11.1

Mode
Indicator

Current Wind Chill
Temperature

TEMP C8

28.3

18.2 13.2

Temperature Mode

C

[reset]

F

Temperature
Unit

Current
Temperature

Minimum Wind Chill
Temperature

Temperature Display

!

In Temperature Mode, the display will show

the following:

1) The ' ' Indicator and the temperature

TEMP

unit appear on the 1st row of the display.

2) The Current Temperature appears on the
3rd row of the display.

3) The Current and Minimum Wind Chill
Temperature appear on the 4th row of the
display.

To Change Temperature Unit

!

The ADC can display temperature in the
following units:

1) Degree Celsius (C)

2) Degree Fahrenheit (F)

!

In Temperature Mode, press the [reset]
button once to change the temperature unit.
See adjacent figure.

11.2

Case

1.

2.

3.

Temperature Mode- Wind Chill Temperature

What is Wind Chill Temperature

!

Wind

Conditions

NO wind

wind speed

at 50 mph/

80.5 km/h

NO wind

Wind Chill Temperature Effects

Current

Temperature

15F/ -9.4C

15F/ -9.4C

-10F/ -23.3C

Wind Chill

Temperature

15F/ -9.4C

-10F/ -23.3C

-10F/ -23.3C

Weather

Cold

Very
Cold

Very
Cold

Wind chill is a temperature factor that
combines air temperature and the effect of
blowing wind.

!

As blowing wind makes you feel as though
the temperature is lower than simple air
temperature.

!

For example, if it is -9.4 degrees Celsius
and the wind blows at 80.5 km per hour:
People will feel as if the temperature is -23.3
degrees Celsius. In this case, the wind chill
temperature is -23.3 degrees Celsius.

The ADC is also equipped with wind chill

!

temperature functions, including displaying
current and minimum wind chill temperature,
and having a wind chill temperature alarm.

Note:

Wind chill temperature is the effect that

!

combines wind speed and temperature, the
ADC must measure the wind speed in order
to display the wind chill temperature.

Check the previous '

!

Speed Mode

Wind Speed Measurement.

Before Using the Wind

' section for more detail on

Temperature Mode - To Reset Minimum Wind Chill Temperature11.3

Temperature Mode

Note:

This diagram illustrates
the general flow among
different functional
displays only, and may
not conform to fact in
all instances.

TEMP C8

28.3

18.2 13.2

RESET MIN

W.CHILL? NO

18.2 13.2

Maximum Wind Speed

Reset Display - NO

hold
[mode]
(confirm
the
reset)

RESET MIN

W.CHILL? YES

18.2 13.2

Maximum Wind Speed

Reset Display - Yes

hold
[reset]

[set]

hold
[mode]
(abort the
reset)

flashing

flashing

To Reset the Minimum Wind Chill
Temperature

!

To reset the minimum wind chill temperature,
press and hold the [reset] button for 2
seconds to select the Reset Display.

!

When the Reset Display is displaying, press
the [set] button to select between the ' '
and ' ' Display.

NO

!

In the ' ' display, press and hold the [mode]

YES

YE

S

button for about 2 seconds to confirm the
reset (the minimum wind chill temperature
will reset to zero).

!

To abort the reset, press and hold the [mode]
button for 2 seconds in the ' ' display.

NO

11.4

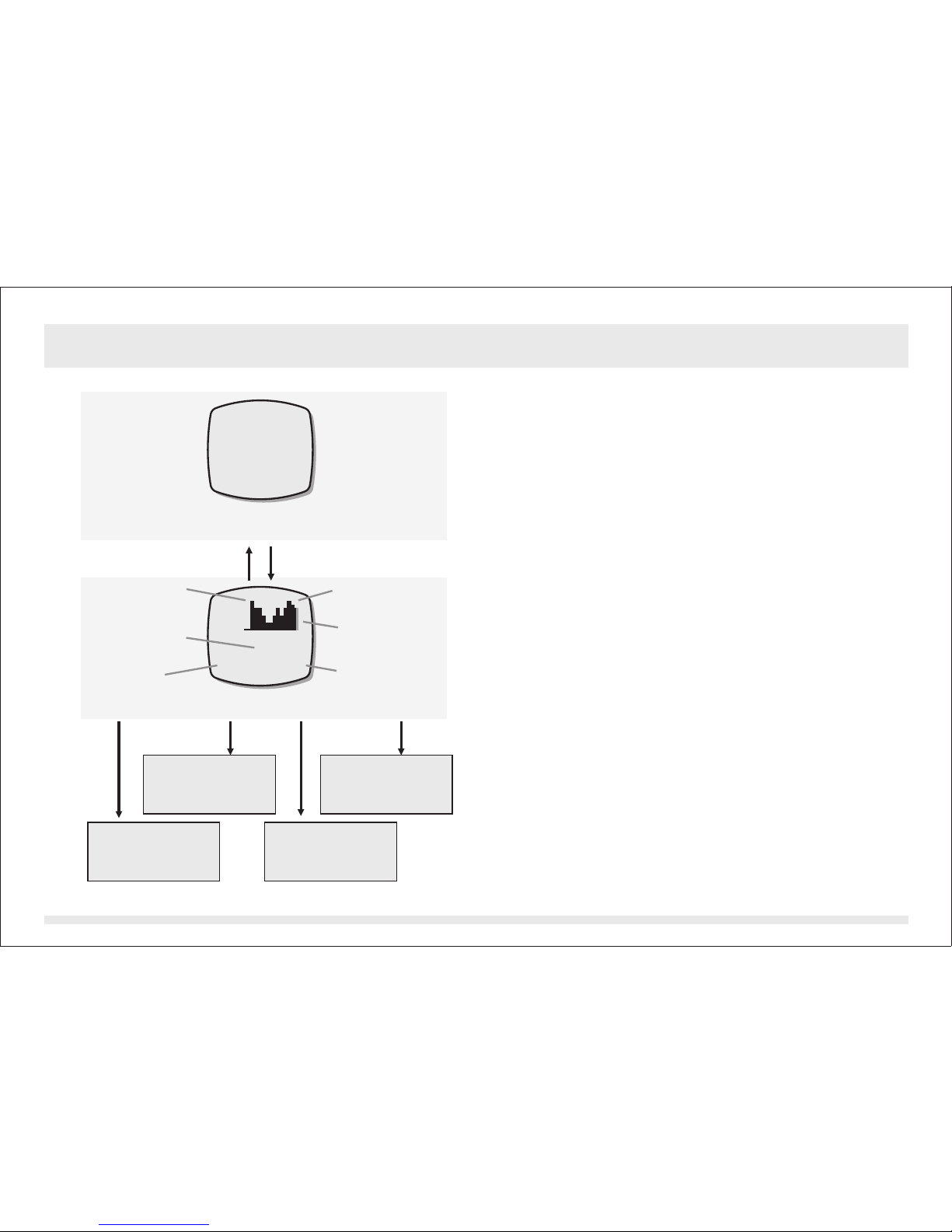

Temperature Mode - Temperature History Graph for the Last 24 Hours

the temperature
of the selected
record (numeric)

current
wind chill

Temperature History Graph Display

Select the lap time by

forward scrolling

(fast scrolling)

TEMP C8

18.2 13.2

Temperature Mode

[mode]

TEM

C8

18.2 1-00

[reset]hold [reset]

Select the record by

forward scrolling
(1 hour per step)

28.3

[set]

0 hour (current)-24 hour

flashing bar
represents
the selected record

28.3

Select the lap time by

backward scrolling

(fast scrolling)

(graphical bar)

the time that took
this record

Select the record by

backward scrolling

(1 hour per step)

Temperature History Graph

!

The ADC is equipped with a temperature
memory function. It records the last 24-hour
temperature and displays them by bar-graph.

!

In Temperature Mode, press the [set] button
to select the Temperature History Graph
Display.

While in the Temperature History Graph

!

Display setting, the right most bar will start
flashing.

The right most bar represents the current

!

temperature (0 hour). While the other bars
represent the temperature records of the last
24 hours. Each temperature record is taken
at the hour (i.e. 12:00, 1:00, 2:00 ...)

To browse the temperature record at

!

[set]hold [set]

different times, press the [set] button to
select the record by backward scrolling or
[reset] button to select time by forward
scrolling (hold down the button to scroll the
setting at a faster pace).

Press the [mode] button once to exit the

!

Pressure History Graph Display.

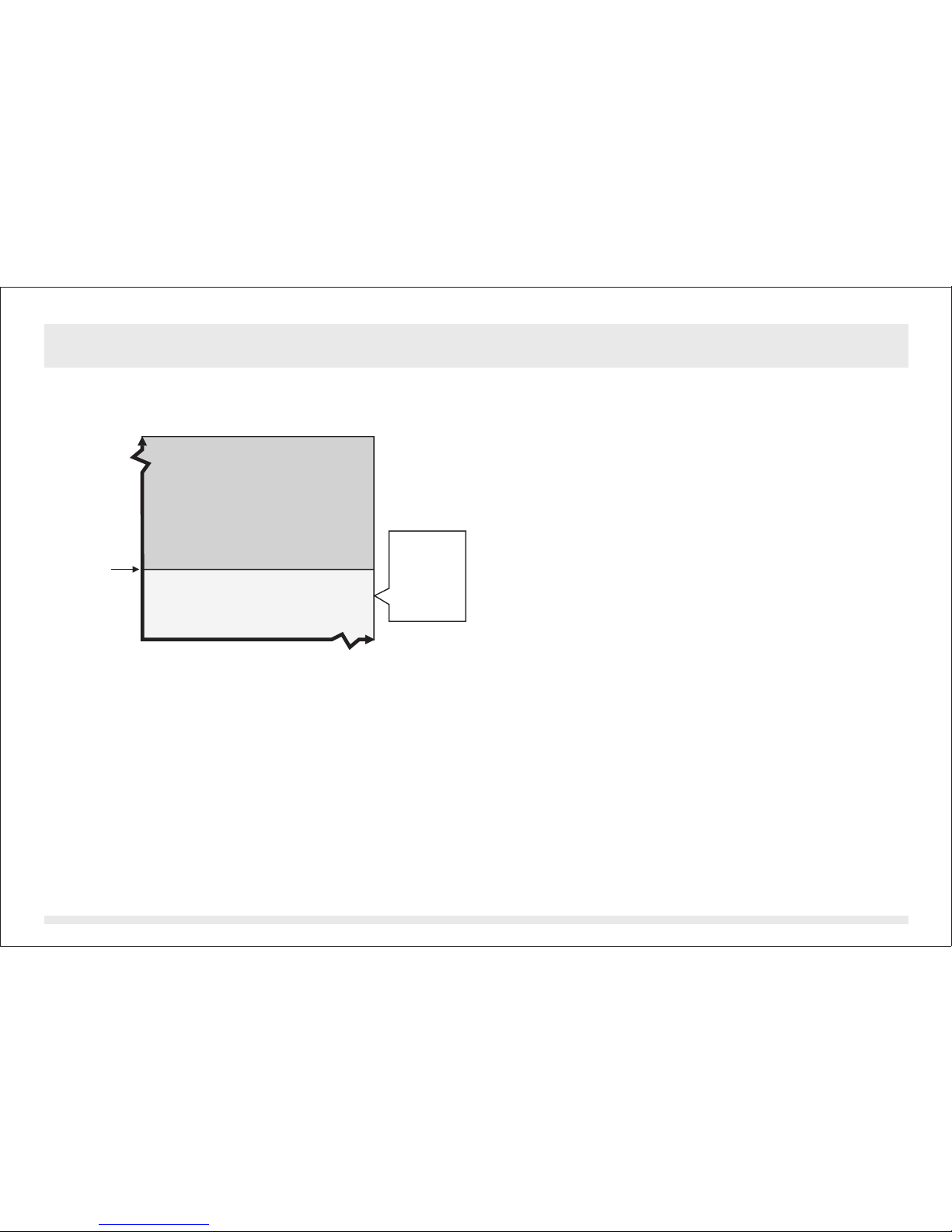

Temperature Mode - Wind Chill Temperature Alarm11.5

Wind Chill

Temperature

preset
wind chill
temperature
level

High Temperature Range

Low Temperature Range

0

The Wind Chill Temperature Alarm

'beep'
for 5
seconds
(every 2
minutes)

Time

Wind Chill Temperature Alarm

!

The ADC is equipped with a wind chill
temperature alarm.

!

That alarm alerts user when the current
wind chill temperature is equal to or lower
than the preset wind chill temperature level.

Wind Chill Temperature Alarm Sound

!

In Temperature Mode: When the Current

Wind Chill Temperature is equal to or lower
than the preset wind chill temperature level,
the ADC starts beeping for about 5 seconds.

After the first beeping, the ADC will beep

!

again for every 2 minutes if the current wind
chill temperature holds at or below the preset
value.

The above repeated alarm will stop unless

!

the wind chill temperature equals or drops
below the preset value or the wind chill
temperature alarm is set to OFF.

Temperature Mode - Setting the Wind Chill Temperature Alarm11.6

TEMP C8

28.3

18.2 13.2

Temperature Mode

Wind Chill Temperature

Alarm Setting

Alarm OFF

W.CHILL C8

OFF

[set]

----

18.3 8.3

hold
[reset]

scroll

the setting

faster

Wind Chill Temperature Alarm and

hold

[mode]

Temperature Calibration
Setting Sequence

Temperature

hold

[mode]

Alarm ON

W.CHILL C8

ON

18.3 8.3

scroll the
setting by
increment

of 1 step

Wind Chill

Alarm

-10.0

[mode]

Temperature

Calibration

Temperature

Calibration Display

TEMP C8

OFFSET

0.0

18.3 8.3

flash

[mode][reset]

Calibration Setting Display

Check 'Calibrating

the Temperature' section

below for more detail

hold
[reset]

To Select Setting Display

!

To select the setting display, press and hold
the [mode] button for about 2 seconds to
select the setting display (temperature digits
will start flashing).

The Setting Sequence

!

When the temperature digits are flashing,
press the [mode] button to select between
the Wind Chill Temperature Alarm Setting
and Temperature Calibration Display
following the adjacent diagram. Check the
'Calibrating the Temperature' section below
for more detail on temperature calibration.

When the temperature digits are flashing,

!

press the [reset] button to scroll through to
select target wind chill temperature level
(hold down the button to scroll the setting at
a faster pace), or press the [set] button to
select the between wind chill temperature
alarm ON and OFF.

When the above settings finished, press and

!

hold the [mode] button for about 2 seconds
to exit the setting sequence.

Temperature Mode - Calibrating the Temperature11.7

Temperature Calibration Display

wind chill
temperature

Calibration Setting Display

Select the
setting by

forward scrolling

Select the setting by

forward scrolling

(fast scrolling)

TEMP C8
OFFSET

0.0

18.3 8.3

hold [reset][mode]

TEMP C8
OFFSET

0.0

18.3 8.3

Select the setting by

backward scrolling

the offset
value

current
temperature

backward scrolling

(fast scrolling)

Select the

setting by

To Select Setting Display

!

Following the previous '

Chill Temperature Alarm

Setting the Wind

' section to select

the Calibration Display.
In the Calibration Display, press and hold

!

the [reset] button for 2 seconds to select the
Calibration Setting Display.

The Setting Sequence

When the 'offset value' digits are flashing,

!

press the [set] or [reset] buttons scroll
through to select target offset value (hold
down the button to scroll the setting at a
faster pace).

When the above settings finished, press the

!

[mode] button once to exit the setting
sequence.

[set]hold [set][reset]hold [reset]

Note:

1) When the temperature has been calibrated,
the ADC will offset the current temperature
by the target offset value. For example:
If the offset value is +2 and the current
temperature is 26 degrees C, the ADC will
display 28 degrees C (26+2).

2) The current wind chill temperature will be

updated as above accordingly.

Specifications12.0

Current Time Mode

Hour, minute and second

!

Month, day, day of week and year

!

12 / 24 hour format selectable

!

Auto calendar from year 2003 to 2099

!

Wind Speed Mode

Current, Average and Maximum Wind Speed

!

Beaufort Scale for Average Wind Speed

!

5 Wind Speed Unit Selection (Km/h, mph,

!

feet/s, m/s, and Knots).
User defined time span for Average Wind

!

Speed calculation.
User defined Wind Speed Alarm.

!

Temperature Mode

Current Temperature, and Current and

!

Minimum Wind Chill Temperatures.
User defined Wind Chill Temperature Alarm.

!

Graphical and numerical displays for

!

temperature for the last 24 hour

Daily Alarm Mode

Daily Alarm: 1 daily alarm

!

Alarm Duration: about 30 seconds

!

Chronograph Mode

Resolution: 1/100 second

!

Counting range: 99 hours, 59 minutes, 59.99

!

seconds

Measurement: Elapsed time, accumulative

!

elapsed time and lap time.

Lap memory: 50 laps

!

Race Timer Mode

Resolution: 1 second

!

Setting limit: 99 hours, 59 minutes, 59

!

seconds

!

Alarm sound:

!

Last 10 minutes: beep once for every
minute.

!

Last 10 seconds: beep once for every
second.

!

0 second: beeps for about 2 seconds.

Others

Electro-luminescent back-light turns on for 3

!

seconds when activated.

Specikation

Dimensions: 109x50x20 mm
Wind Measuring Range: 0,3 to 40m/s
Temperature Measuring Range: -20 to +40°C
Weight: 70 gram including battery and strap.
Only the strap incl. bracket on ADC 6 gram
Wind Chill: Is measured from 12°C degrees and colder.

Accuracy, resolution and units12.1

Wind Speed

Up to 3.0 m/s, better than +/-10%
Over 3.0 m/s, better than +/-5%
Resolution: 0.1 m/s
Units: m/s, km/h, mph, knots, ft/s

Temperature

Better than +/-1 Celsius degree (offset
calibration possible)
Resolution: 0.1 degree
Units: Celsius, Fahrenheit

Time

Better than +/- 1 sec/day

Warranty13.0

Warranty

2 years against manufacturing/material faults.
The warranty does not apply to modifications,
normal wear and tear or abuse.

Responsibility

Silva is not responsible for any consequences,
direct or indirect, or damage resultant from use
of this product.

Silva Sweden AB

BOX 998, SE-191 29 Sollentuna

[e-mail] - www.silva.se
