Silex technology X-1 User Manual

Download

Multicast Video Distribution System

MVDS X-1

Installation / User's Guide

Introduction

Thank you very much for purchasing Silex's MVDS X-1, the Multicast Video

Distribution System (this product).

This manual provides how to setup and use this product.

About notation

- Copying all or a part of this manual without our permission is prohibited.

- The contents of this manual may be changed without advance notice.

- Please note that the actual screens may vary from the examples in this manual.

This can be caused by dierent versions of operating systems on the PC,

upgrades, etc.

- This manual has been edited very carefully. However, Silex Technology, Inc. is

not responsible for any mistakes included in this manual or any damages, direct

or indirect, arising from the use of this manual.

- Information and descriptions contained herein are the property of Silex

Technology, Inc. Such information and descriptions may not be copied,

disseminated, or distributed without the express written consent of Silex

Technology, Inc. This publication is subject to change without notice.

About trademarks

- Microsoft and Windows are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries.

- Ethernet is a registered trademark of Xerox Corporation.

- Other brand or product names are registered trademarks or trademarks of their

respective owners.

Index

Product Overview..................................................... 1

1.1 About this product ........................................................................................2

1.2 Specication.....................................................................................................4

1.2.1 Hardware specication.....................................................................................................................4

1.2.2 Software specication ......................................................................................................................6

1.2.3 Interface specication ......................................................................................................................7

1.2.4 Notes on the radio wave..................................................................................................................8

1.3 Network composition ..................................................................................9

1.4 Parts and function

.......................................................................................

Installation .............................................................. 15

2.1 Before you begin......................................................................................... 16

2.1.1 Necessary items ...............................................................................................................................16

2.1.2 Create environment for setup ....................................................................................................17

2.2 Congure this product.............................................................................. 19

2.2.1 Assign IP address

2.2.2 Congure via Web browser

Host name / Password conguration............................................................................................. 22

Network conguration ........................................................................................................................23

Adjusting a screen image (at transmitter)

.............................................................................................................................

..........................................................................................................

....................................................................................

Adjusting a screen image (at receiver(s))...................................................................................... 27

2.3 Hardware installation................................................................................. 28

2.3.1 Connect to a wired network

2.3.2 Connect to a wireless network................................................................................................... 29

Vertical convergence angle and minimum distance................................................................ 30

Vertical coverage and Line-of-sight

........................................................................................................

................................................................................................

Monitor and Maintenance ..................................... 33

3.1 Front panel..................................................................................................... 34

3.1.1 Menu structure and how to use it............................................................................................. 34

3.1.2 Functions available in each menu............................................................................................. 36

Initial screen (Level:0)........................................................................................................................... 36

SERVICE ACTIVITY..................................................................................................................................37

CONNECTION STAT

DEVICE INFO............................................................................................................................................ 39

ADMIN MODE MENU............................................................................................................................ 40

................................................................................................................................

3.2 Web interface................................................................................................ 46

3.2.1 Status ................................................................................................................................................... 48

General...................................................................................................................................................... 48

Network

Video/Audio/Data

3.2.2 Conguration.................................................................................................................................... 51

General...................................................................................................................................................... 51

Network ....................................................................................................................................................52

Video/Audio/Data (at transmitter).................................................................................................. 54

Video/Audio/Data (at receiver).........................................................................................................57

....................................................................................................................................................

.................................................................................................................................

Static Node (at transmitter) ...............................................................................................................59

Static Node (at receiver)......................................................................................................................60

Dynamic Node (at transmitter).........................................................................................................61

Dynamic Node (at receiver) ...............................................................................................................62

3.2.3 Tools

Common...................................................................................................................................................63

Video/Audio (at transmitter) .............................................................................................................64

Video/Audio (at receiver).................................................................................................................... 65

.....................................................................................................................................................

Appendix................................................................A-1

A-1 Conguration item list............................................................................ A-2

1.Product Overview

Product Overview

MVDS X-1 User's Guide

A/D

D/A

Encode

Decode

IP Network

X-1T X-1R

Audio

deo

Serial

1.1 About this product

MVDS stands for "Multicast Video Distribution System", which allows to distribute video

or audio data from Player (e.g. PC, DVD player, etc) to Display (e.g. TV, Monitor, etc) by IP

Multicast.

The MVDS consists of transmitter and receiver(s). The transmitter is connected to Player

and the receiver(s) are connected to Display. Transmitter encodes the signal output

from the Player (e.g. video, audio, etc.) and distributes its codec data to receiver(s) in

real time, and the receiver(s) decodes and outputs it on Display.

1.Product Overview

Feature

Video and Audio control

- Adopts JPEG2000 codec. High compression with less image degradation available

- Audio codec: 16bit stereo PCM (Sampling rate: 32KHz)

- Screen size supports WXGA (1280x768)

- Up to 30fps of frame rate

- Synchronization function for video and audio (Lip-sync)

Network control

Allow simultaneous distribution to multiple receivers by multicast (up to 32 receivers)

- Time correction between transmitter and receivers allows simultaneous

output among receivers

- Support Wired LAN(10Base-T/100Base-TX) and Wireless LAN (IEEE802.11a/g:

Infrastructure/ad hoc mode)

Others

- Support 1ch of serial port for remote monitoring and control

- Various congurations are available on embedded Web page

- Switch the transmitter automatically at a specied interval

- Connection and communication status can be veried at LCD (Transmitter only)

- Receiver's ID (host name) can be set by rotary switch (Receiver only)

MVDS X-1 User's Guide

1.2 Specication

1.2.1 Hardware specication

Hardware specication is as follows:

CPU TOSHIBA TX4939 400MHz (32/64bit MIPS) RAM 128MB DDR ROM 8MB Interface Video Analog RGB D-SUB15 x 1

Audio 16bit Stereo line in / out (Mini Jack) Serial RS-232C (D-SUB9) x 1 Ethernet 10BASE-T/100BASE-TX Auto detection (RJ-45) x 1

Wireless IEEE802.11a/b/g mini PCI module x 1 (SX-10WAG) Power AC adapter (Operating voltage 15V) LCD 16 Characters x 2 Lines (Transmitter only) LED 4 Front Side

"Power" / "Status" / "Wireless" / "Ether"

2 Back Side

RJ-45 "Link" / "Status"

Push Switch 4 Front Side

"MEMU" / "-" / "+" / "SET"

Rotary Switch 2 (Receiver only)

1.Product Overview

FCC Notices

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, it

may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit dierent from that to

which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for assistance.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

MVDS X-1 User's Guide

1.2.2 Software specication

Software specication is as follows:

Protocol

TCP/IP Network Layer ARP , RARP , IPv4 , ICMP

Multicast : IPv4 Organization Local Scope 239.192.0.0/14 Transport Layer TCP , UDP Application Layer TELNET , BOOTP , DHCP , HTTP , UPnP ,

JCP (proprietary #19541) ,

RTP (proprietary #50001 - #65535) ,

MVDS Announcement Protocol (proprietary #50000)

SX-RPC (proprietary via HTTP/RTP)

Others FLDP For rmware version up

Other

Serial Data Transfer Protocol Proprietary

1.Product Overview

1.2.3 Interface specication

Interface specication is as follows:

Video

Interface Analog RGB (15pin Dsub) Codec JPEG2000 Resolution 1280 x 768 pixel (WXGA) Flame rate 30 fps (MAX) Conguration Video Adjustment(Contrast , Bright , Position etc…) Others Startup screen, Stop signal screen, Maintenance screen

(Display a still image specied in each mode.)

Audio

Interface Stereo mini jack Codec 16bit PCM Sampling rate 32 (KHz)

Serial Data

Baud rate 300 , 600 , 1200 , 2400 , 4800 , 9600 , 14400 , 19200 , 38400 , 57600 , 115200 (bps) Bit length 8 , 7 (bit) Stop bit 1 , 2 (bit) Parity NONE , EVEN , ODD Flow Control NONE , XON/XOFF , RTS/CTS Timeout 50 to 1000(ms)

MVDS X-1 User's Guide

1.2.4 Notes on the radio wave

Do not use this product near the following equipment or places.

The following equipment may use the same band. If you use this product near

this equipment, the radio waves from this product and the following devices may

interfere with each other.

- Microwave, scientic instruments, pacemaker or other medical equipment.

- Licensed radio station in a factory.

- Small power radio station (a non-licensed radio station).

Do not use this product near a cellular phone, TV or Radio.

A cellular phone, TV, and radio use dierent radio bands than our product.

Generally if they are used near this product, it will not cause a problem. However,

when near this product, sound or image noise can happen.

If there is reinforced concrete/metal between wireless devices, they may not

connect.

This product can connect through wood or glass, but can have trouble

communicating through reinforced concrete/metal.

Wireless Equipment for 2.4GHz and 5GHz band

This frequency band is used by a microwave, industry, science, medical equipment

and licensed in room or low power (non licensed) radio stations.

- Before you use this equipment, verify that it will not interfere with other

broadcasting.

- If interference happens, stop using the equipment or change the band.

1.Product Overview

{

AV Cable Ethernet (100Base, PLC) Wireless (IEEE802.11a/g)

1.3 Network composition

A MVDS network is composed of one MVDS transmitter and 32 MVDS receivers

(at maximum). In each group, a video or audio data are distributed in multicast (or

unicast).

As for network interface, both Wired and Wireless LAN ports are supported. Since

MVDS transmitter and receivers exchange their status each other regularly, you

can easily install and congure this product as well as support various network

environment.

- UDP is used as a protocol for data distribution and information exchange.

- Not available via an Internet.

Wireless system - Network composition for Infrastructure mode

The player (e.g. PC, DVD player, etc.) outputs data (e.g. video, audio, serial data,

etc.) to MVDS transmitter. The transmitter captures and sends them to Access Point

via a wired LAN. These data are distributed to the MVDS receivers being connected

to the Access Pint in Infrastructure mode.

MVDS X-1 User's Guide

{

AV Cable Wireless (IEEE802.11a/g)

AV Cable Ethernet (100Base, PLC)

Wireless system - Network composition for Ad-Hoc mode

The player (e.g. PC or DVD player, etc.) outputs data (e.g. video, audio, serial data,

etc.) to MVDS transmitter. The transmitter captures and sends them to the MVDS

receivers being connected to the transmitter in Adhoc mode.

Network composition for wired connection

The player (

etc.) to MVDS transmitter. The transmitter captures and distributes it to the MVDS

receivers being connected to an Ethernet LAN.

e.g.

PC or DVD player, etc) outputs data (

e.g.

video, audio, serial data,

1.Product Overview

{

AV Cable Ethernet (100Base, PLC) Wireless (IEEE802.11a/g)

Network composition for wired/wireless connection mix

If the wired/wireless system are mixed, you can support wider variety of

environment.

MVDS X-1 User's Guide

1.4 Parts and function

The name of each part and the function are explained below:

Front

Transmitter

Push button Description MENU Go into LCD menu from initial screen.

Return to initial screen from LCD top menu.

Go back to higher level in LCD menu.

Start a factory default conguration when this button and [SET] button are

pushed together while turning on this product.

- Return to previous option in LCD menu.

Select a value to set.

+ Move to next option in LCD menu.

Select a value to set.

SET Go into the selected menu in LCD menu.

Enable the selected value.

Start a factory default conguration when this button and [MENU] button are

pushed together while turning on this product.

1.Product Overview

Receiver

Push button Description MENU Start a factory default conguration when this button and [SET] button are

pushed together while turning on this product.

- Not use. + Not use. SET Start a factory default conguration when this button and [MENU] button are

pushed together while turning on this product.

LED (both Transmitter and Receiver)

LED Description POWER OFF: Powered o or being on boot process.

ON: Powered on (Normal status)

STATUS Blink: Blink every time when codec of 1 frame data is complete.

ON: Factory default conguration using push buttons is complete.

WIRELESS OFF: Wireless communication is disabled.

Blink: Wireless communication is not established. (Detecting AP or other node,

or unable to connect for wireless conguration mismatch).

ON: Wireless communication is established.

ETHER OFF: Not connected to wired LAN (Not linked)

ON: Connected to wired LAN (Being linked)

MVDS X-1 User's Guide

Back

Both Transmitter and Receiver

Part Description DCIN 15V1A AC connector (15V 1A)

* In case of X-1ER, AC power can be supplied via internal DC connector. ETHER Ethernet interface (RJ45) RS232C Serial interface (9pin Male) AUDIO Audio interface (3.5mm mini) ANALOG RGB RGB interface (D-Sub15pin) Antenna SMA Connector

(Connect the antenna to either or both of the connectors.)

LED (both Transmitter and Receiver)

Ethernet LED Description Backside

(Ethernet Connector)

Green

Orange

OFF: Not connected to a wired LAN (Not linked) ON: Connected to a wired LAN (Linked) Blink: Blink when receiving a packet via wired or wireless LAN. Flash: Data error in a conguration area

ROM/RAM check error

2.Installation

Installation

MVDS X-1 User's Guide

2.1 Before you begin

This section explains the necessary actions that should be taken before you

connect and setup this product.

2.1.1 Necessary items

Please prepare the following items.

MVDS Transmitter

( X-1T ) MVDS Receiver

( X-1R )

(used for setup) Player A media player with VGA interface and 1280x768 60Hz support (the player

Monitor A monitor with VGA interface and 1280 x 768 60Hz support (up to 32

Speaker Up to 32 stereo speaker pairs (not necessary if the speaker is embedded in the

VGA cable VGA cable (male/male) with D-Sub15 pin connector and noise suppression.

Audio cable Cables with 3.5mm mini plug connector and noise suppression.

LAN cable

(used for setup)

Antenna An antenna is required for each transmitter and receiver. The MVDS

Conguration Software Use AdminManager. You can download AdminManager from the Silex

One transmitter is required.

As many receivers as you need for your environment. Each receiver supports

one monitor, and up to 32 receivers can be congured for use with a single

MVDS transmitter. A PC with a wired LAN (100BASE-T) port.

can be a PC or any other device that can output video in the required format

using a VGA interface)

monitors total)

monitor above).

One cable is required for each transmitter and each receiver.

One cable is required for each transmitter and receiver. Category 5 or better LAN cables for connecting the PC to the transmitter and

to the receiver(s) for conguration purposes.

* Either straight cable or crossover cable can be used as Auto MDI-X is

supported.

* An Ethernet hub can be used, but is not required.

transmitters and receivers include 2dB antennas, but you may wish to use

more specialized antennas to provide better performance.

Select the antenna according to your location status, distance from the

receiver or layout.

The MVDS transmitters and receivers have 2 antenna terminals. You can use

both terminals as they automatically recognize which terminal is in use. The

antenna is not required during the installation.

website:

http://www.silexamerica.com/adminmanager-software-download.html

2.Installation

2.1.2 Create environment for setup

The rst step is to connect the cables to the MVDS transmitter and receiver, and to

the player, monitor(s) and PC. All the conguration can be performed via a wired

LAN network.

Connect the LAN cables

Connect the MVDS transmitter and receiver(s) to the PC using LAN cables.

Connect the VGA cables

Connect the player to the MVDS Transmitter, and connect the monitor(s) to the

receiver(s).

Connect the audio cables

Connect the player to the MVDS transmitter, and connect the speaker(s) to the

receiver.

Power ON

Turn on the MVDS transmitter and receiver, the PC, the player and the

monitor(s) and speakers.

Start output from the player

Output a movie (1280 x 768) from the player.

Or to make an adjustment to the screen image at the MVDS transmitter, output

a still image (white or any other light color) from the player.

MVDS X-1 User's Guide

ransmitter Receiver

Player

Displa

LAN Cable

Audio Cable Audio CableVGA Cable VGA Cable

An example MVDS installation is shown below:

2.Installation

2.2 Congure this product

When the cable connections and power on are completed, congure the network

settings and adjust the screen images for the MVDS transmitter and receivers.

2.2.1 Assign IP address

To simplify the conguration process, the MVDS transmitter and receivers support

automatic conguration of the IP address. By default, they attempt to load an

IP address via DHCP when powered on. If no DHCP server is found, then the

transmitter and each of the receivers are loaded with a random IP address of

169.254.xxx.xxx. Note that the same IP address is used for both the wireless and

wired networking functionality.

- If you are using the automatic conguration process, you may skip to the next section.

Note

If you prefer, you can use Admin Manager to manually assign an IP address for the

MVDS transmitter and for each MVDS receiver:

First assign a static IP address to the PC that you are using for setup.

(Example: 10.10.10.10)

When you run the Admin Manager program, a list of the available MVDS

transmitters (model X-1T) and receivers (X-1R) will appear on the main Admin

Manager screen.

MVDS X-1 User's Guide

Select the MVDS transmitter or receiver that you wish to congure. From the

top menu, click Conguration - Set IP address.

Congure a unique IP address that is not used by other network devices.

(Example: 10.3.0.1)

Repeat this process and enter a unique IP address into each of the MVDS

transmitters and receivers.

2.Installation

2.2.2 Congure via Web browser

After you have assigned the IP address for each MVDS transmitter and receiver,

you can congure these devices using a PC with any standard web browser. For

each MVDS transmitter and receiver, access the Web page using the IP address

you have congured into the device. By default the user name is "root" and no

password is set.

To view the IP address of the transmitter and the receivers, you can use the Admin

Manager program.

- When an IP address is set to the transmitter, it can be seen on the front panel.

Note

TIP

- Please note that the PC must be congured with a unique IP address that is compatible with

the IP addresses used in the transmitters and receivers (for example, if the transmitter has an

IP address of 169.254.3.111, the PC could have an IP address of 169.254.3.1, assuming that

this address is not used by any of the receivers).

MVDS X-1 User's Guide

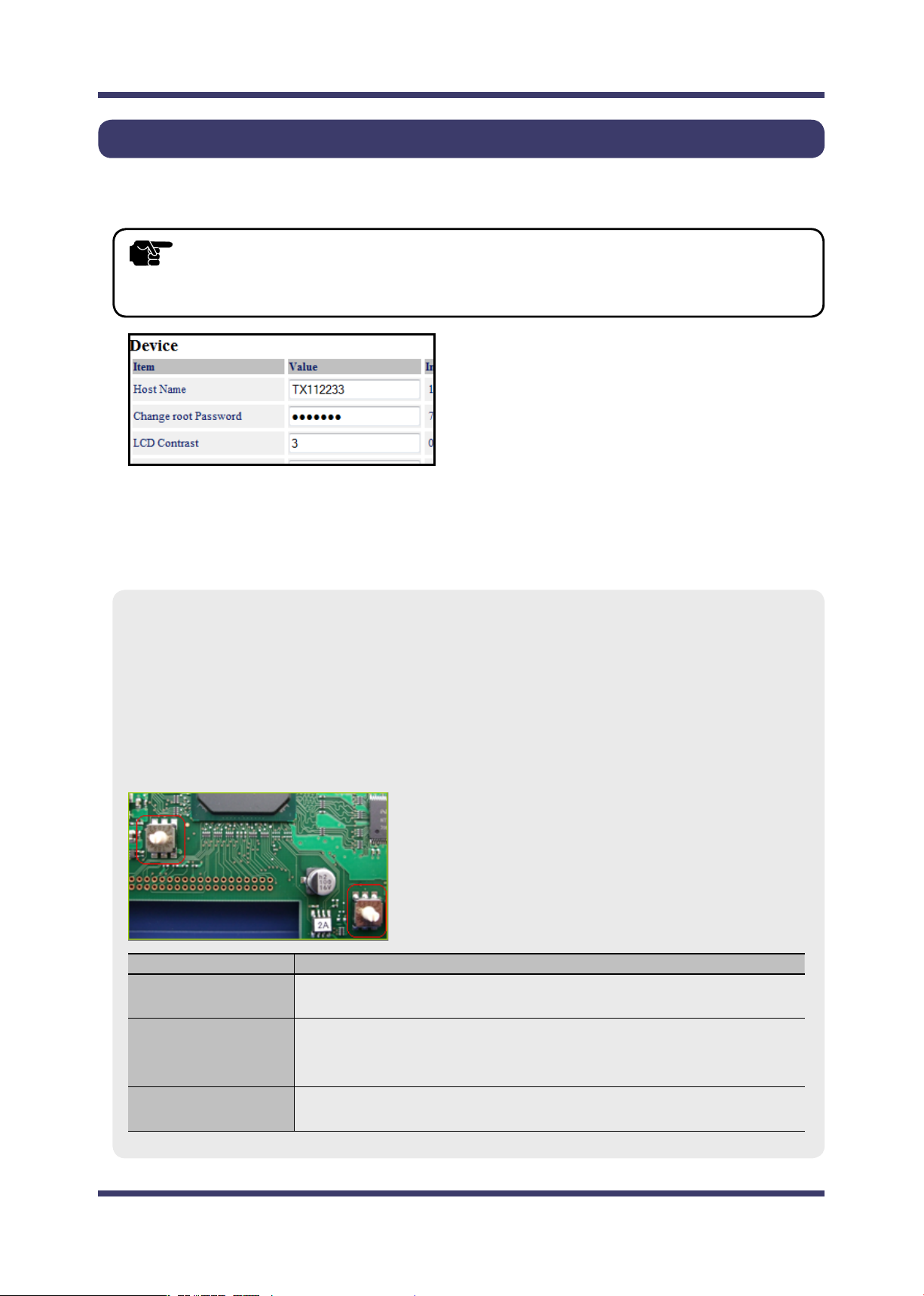

Host name / Password conguration

Congure Host Name and Password.

- Be sure to set a password, especially if you are using the MVDS with a public network.

TIP

In factory default, the last six hexadecimal digits of the Ethernet MAC address is

used as the host name of the MVDS transmitter and receiver(s). You can change

the host name if desired, but make sure that is a unique name.

In some cases, it is desirable to change this host name on the receivers using hardware switches (for example, to allow receivers to be deployed with precongured host name). The MVDS receiver has internal rotary switches that can be used to set a hexadecimal value for the host name (note that you must remove the cover of the enclosure to access these switches). The right switch is for the upper byte and left switch is for the lower byte of the host name. When set to 01-3E, the value is applied and set as host name at the time of power on. When set to 00, the value congured in the Web page is applied as the host name.

Value (hexadecimal) Description 00h This value is not used as a host name. The receiver will run with the host

name congured through Web browser or TELNET. 01h - 3Eh

3Fh - FFh

The string, "01" to "3E", will be used as a host name. This host name will be stored

(overwritten) in internal memory as a setting value. Therefore, even if "00" is set

again, the host name will not be reset to the previous name.

Do not set these values as it may cause unstable operation. (As only 6bit out of

8bit can be recognized, the same host name may be used twice.)

2.Installation

Network conguration

* Required for both Transmitter and Receivers

Congure the IP address and wireless settings. Select Network under

Conguration in the Web page.

- The MVDS transmitter and receivers operate without the need to manually congure an IP

TIP

<DHCP, IP, Subnet, Gateway>

Congure these settings according to your network environment (by default,

DHCP and the Auto IP function are enabled).

address as they supports Auto IP function.

- It is impossible to broadcast a movie across a router.

Select Enable for the Wireless Interface. Select the options for Wireless Mode,

SSID, WEP, etc. appropriate for your environment.

- Be sure to use WEP security, especially if you are using MVDS with a public wireless network.

TIP

MVDS X-1 User's Guide

Example: The following are the sample settings to use this product in AdHoc

mode.

Transmitter Receiver Interface Enable Enable Mode AdHoc AdHoc SSID Optional Optional (same as Transmitter) Ch.AutoSearch DISABLE N/A Channel Optional N/A DataRate 36Mbps 36Mbps Authentication Open Open WEP ON ON Key Index 1 1 Key Size 128bit 128bit WEP Key1 Optional Optional (same as Transmitter)

2.Installation

Adjusting a screen image (at transmitter)

Connect to the web page of the transmitter to adjust a screen image appropriate

for the player.

If you are sure of what value to set for screen image, click Video/Audio/Data under

Conguration and congure each setting. If you are not sure what values to set,

you can use the auto-adjustment feature to automatically adjust the screen image.

The use of the auto-adjustment function is described below:

Output a still image (white or any other light color) from the player.

You can use the default values, however, if you want to make better

adjustment, access the Video/Audio/Data Conguration page by clicking

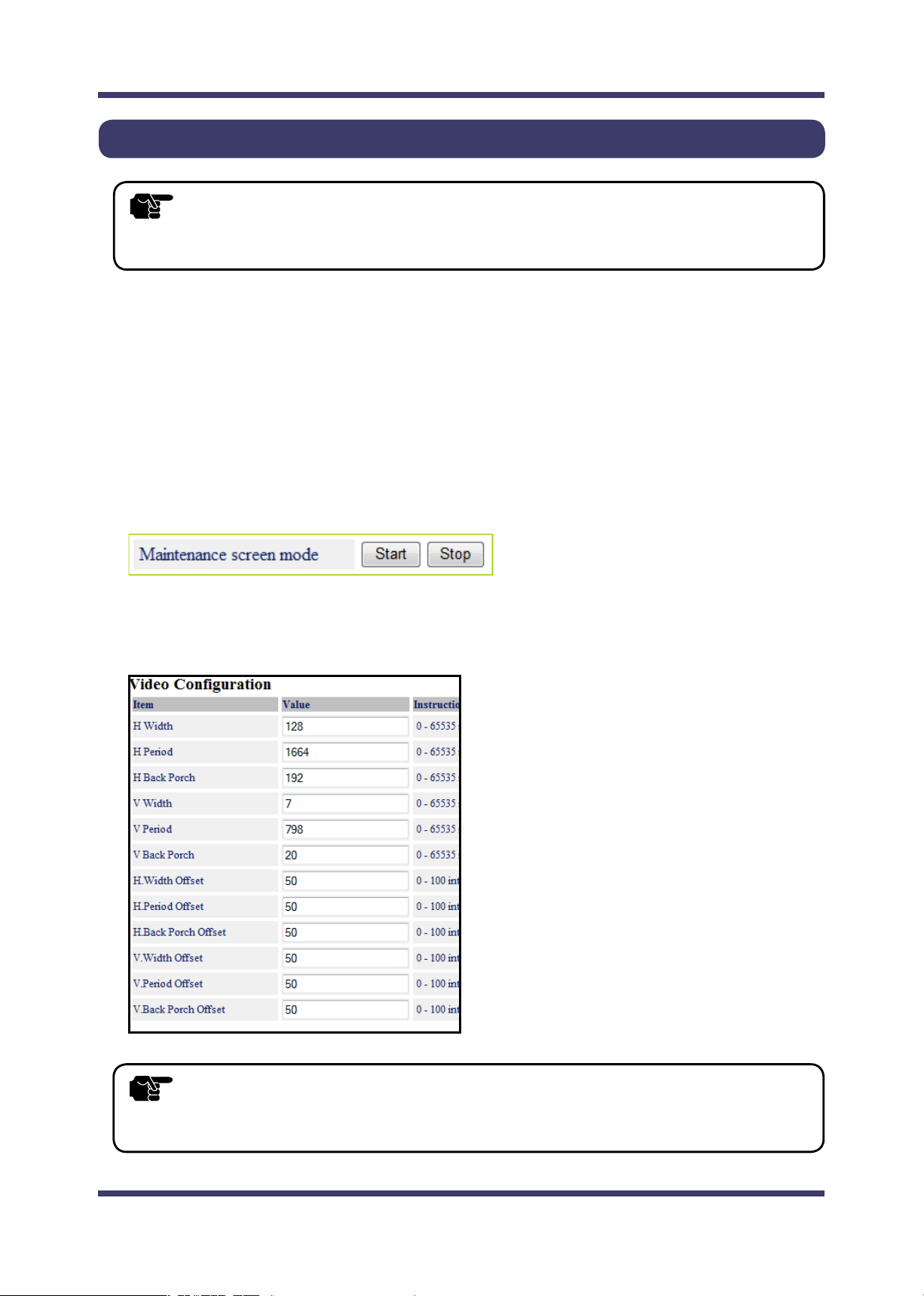

Video/Audio/Data under Conguration, and enter the following values.

Gain 32 Oset 160 Filter 15

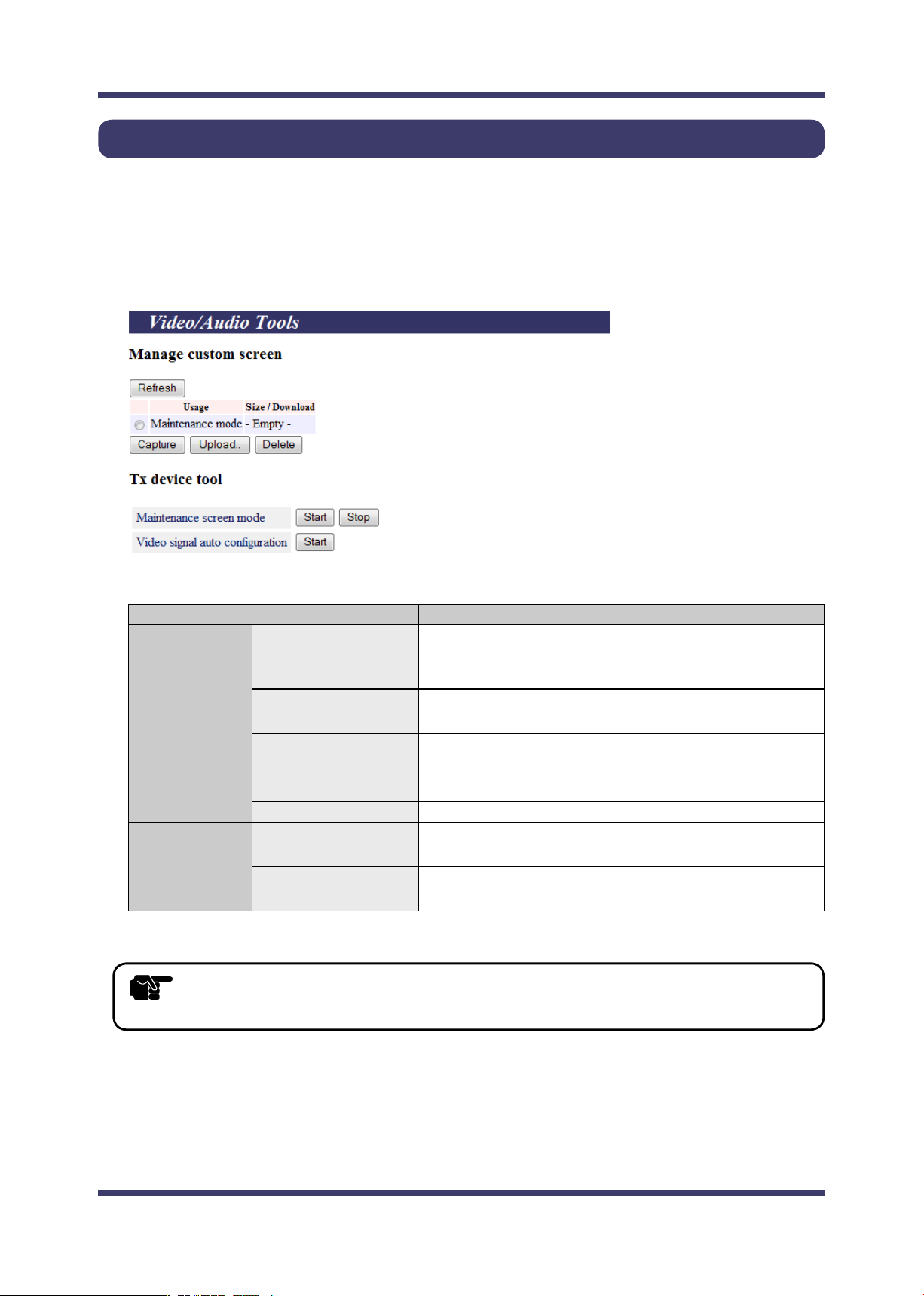

Select Video/Audio under Tools and click the Start button next to

Maintenance screen mode. Click the Stop button to take eect.

Select Video/Audio under Tools and click the Start button next to Video

signal auto conguration. Auto-adjustment will begin. If the video signal is

not scanned correctly or an error occurs, congure it manually.

MVDS X-1 User's Guide

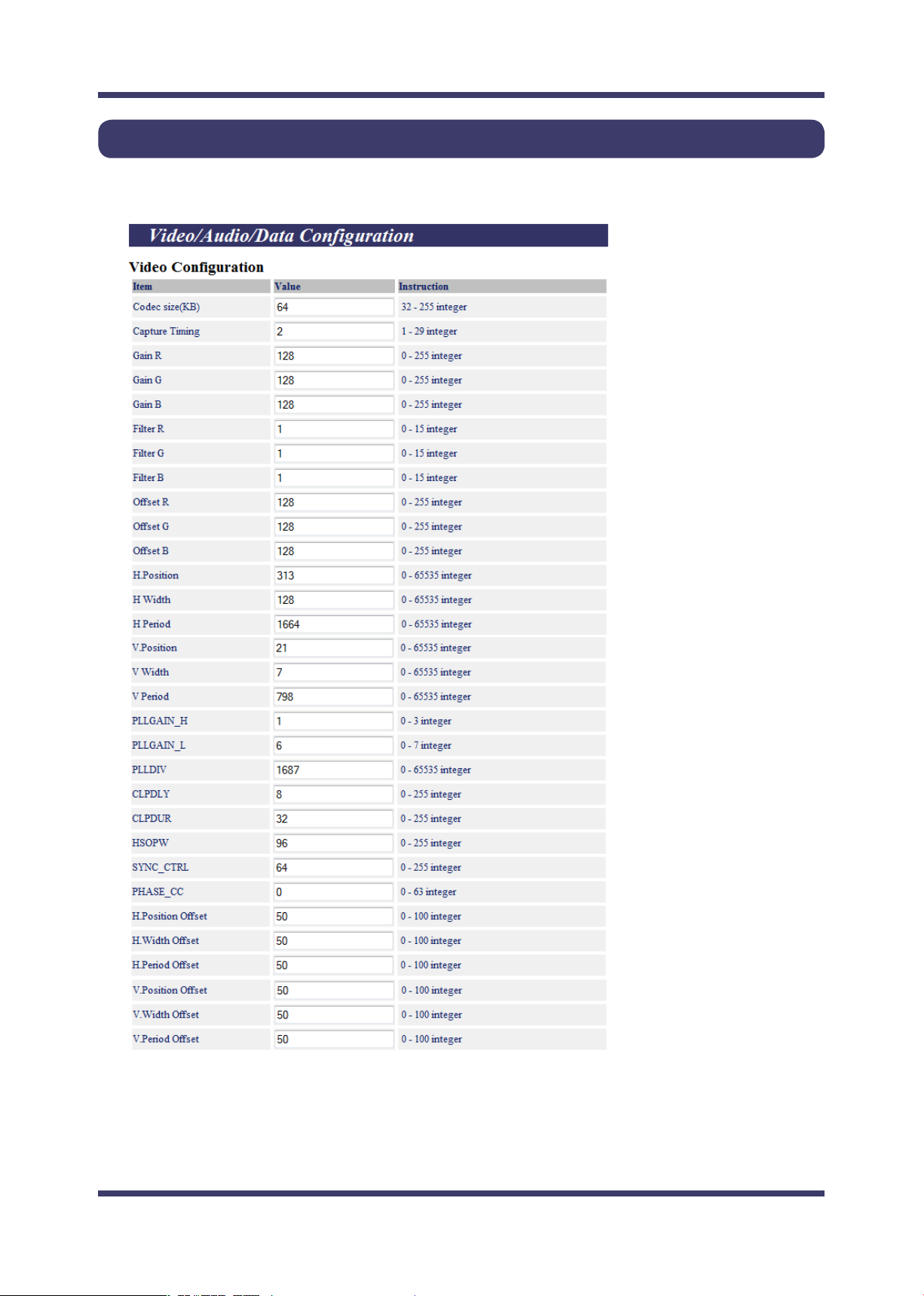

Click Video/Audio/Data under Conguration and adjust the settings such as

PHASE_CC, etc. to make the image quality better.

2.Installation

Adjusting a screen image (at receiver(s))

- You normally do not have to adjust a screen image at the receivers since the monitor will

TIP

If adjustment is necessary, go to the Web page of the transmitter. Click

Video/Audio under Tools and click the Start button next to Maintenance

screen mode to switch to maintenance mode and output the maintenance

screen to the receivers. The MVDS will automatically adjust the image quality

and position, etc. of the monitor.

When the adjustment of the screen image for the monitor is complete, click

Stop button to nish the maintenance mode.

automatically make adjustments.

If the adjustment does not go properly, click Video/Audio/Data under

Conguration and congure each value manually.

TIP

- Congure each parameter appropriate for your monitor. If incorrect parameters are set, the

monitor may malfunction.

MVDS X-1 User's Guide

Ethernet HUB

Transmitter

LAN Cable

Player

Receiver

Display

Receiver

Display

Receiver

Display

Receiver

Display

Sample connection for wired network

2.3 Hardware installation

2.3.1 Connect to a wired network

To congure this product in a wired network, connect the transmitter and

receivers via Ethernet HUB.

2.Installation

2.3.2 Connect to a wireless network

Below is a sample connection to install this product outdoors.

Select the antenna according to your location status, distance from the receiver or

layout.

MVDS X-1 User's Guide

Vertical convergence angle and minimum distance

Every 'high-gain' antenna has vertical and horizontal selectiveness. The narrower

the coverage, the higher the possible gain. However, this selectiveness also

creates 'blind spot' in close range, especially if antennas located in dierent

height.

2.Installation

Vertical coverage and Line-of-sight

From a vertical convergence point of view, less height dierence is better to

minimize distance problems. However, it also creates more Non-Line-Of-Sight

(NLOS) problems.

In this diagram, the other side of the oce building could not covered by single

TX antenna, so another TX set needs to be provided if there are other stations

there.

MVDS X-1 User's Guide

3.Monitor and Maintenance

Monitor and Maintenance

MVDS X-1 User's Guide

CONNECTION STAT

DEVICE INFO

Level 0 Level 1 Level 3Level 2

ETHERNET

HOST NAME

IP ADDRESS

MAC ADDR

F/W VERSION

FPGA VER.

WIRELESS

RTP LINK

AUDIO

DATA

MAIN MENU

SERVICE ACTIVITY

VIDEO

ADMIN MODE MENU

LCD CONTRAST

NETWORK CONFIG

WIRELESS CONFIG

VIDEO CONFIG

SERIAL CONFIG

REBOOT

MAINTENANCE SCR

For Level 3 of ADMIN MODE MENU, refer to ADMIN MODE MENU which will come later.

3.1 Front panel

The MVDS transmitter has a LCD which provides the operating status and

conguration for transmitters.

Use the push buttons to the right of LCD ( MENU, -, +, SET ) to switch the panel

menu as well as change the settings.

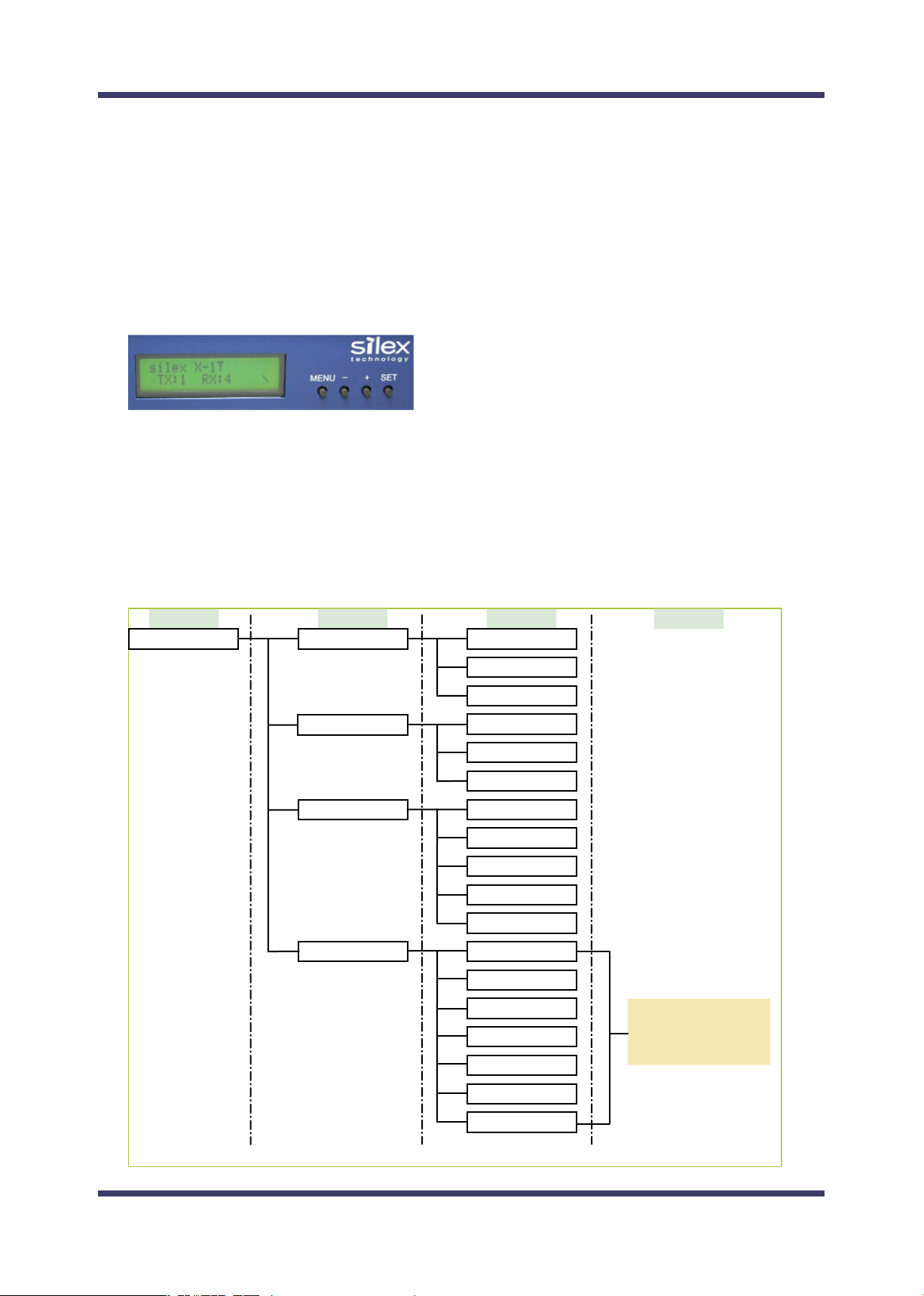

3.1.1 Menu structure and how to use it

The LCD menu has the structure below. "Level 0-3" at the top of this diagram

indicate the hierarchy level.

3.Monitor and Maintenance

silex X-1T TX:1 RX:3

MAIN MENU SERVICE ACTIVIT

MAIN MENU CONNECTION STAT

SERVICE:VIDEO ACTIVE 1280x768

SERVICE:AUDIO ACTIVE STEREO

TOP Menu

( Level 0 )

( Level 1 )

( Level 2 )

To Connection Status Menu

MENUSET

Each menu can be switched by pushing the push buttons to the right of LCD. To

switch the menu levels, use [MENU] and [SET] buttons. To switch the options in

the same level, use [ + ] and [ - ] buttons. The menu transition diagram is as below.

In each menu, if no push buttons are pushed for a certain period, the LCD menu

automatically returns to the initial screen. The amount of time before the LCD

menu returns to the initial screen can be congured from the Wep page by

changing a value at Menu idle timeout.

MVDS X-1 User's Guide

3.1.2 Functions available in each menu

This section explains the functions available in LCD menu.

Initial screen (Level:0)

This screen is always displayed while this product is turned on. When this product is

running properly, the model name and operating status are shown in the upper line

and lower line respectively. When an error occurs or the rmware of this product is

being updated, operating status is displayed in both upper and lower lines.

Initial screen (sample)

silex X-1T

TX:1 RX:10

Model name

Operating status

Upper line Operating status Lower line Details

Normal status

(Model name)

NO VGA SIGNAL!

Out of range

Operating

normally

Error

TX:** RX:****

Please wait... Processing MVDS boot.

*** REBOOTING ***

(None)

V **Hz or H **kHz

EEPROM ERASE....

The number of transmitters and receivers

being connected is displayed.

Rebooting

Displayed when rebooted via Web page,

Telnet or LCD panel. No VGA signal is input.

Check th e co n n ec t i o n between t h e

player(s) and this product. Incorrect VGA signal

The frequenc y of t he input signa l is

displayed in the lower line.

Refresh note error: V **Hz

Resolution error: H **kHz

Please check the output settings of player. Deleting an old rmware.

** F/W UPDATE**

Updating

rmware

>>>>*

CHK-SUM:XXXX OK! Succeeded in the rmware update. CHECKSUM ERROR! Failed in the rmware update.

Writing a new rmware.

The progress is displayed.

3.Monitor and Maintenance

SERVICE ACTIVITY

Shows the service status for each data transfer.

SERVICE ACTIVITY (sample)

SERVICE:VIDEO

ACTIVE 1280x768

Menu options and status

Menu Description Status Denition

VIDEO

AUDIO

SERIAL

Displays a service status for

video data transfer.

Displays the service status for

audio data transfer.

Displays the service status for

serial data transfer.

Selected menu

Current status of the selected menu

Video data is being transferred.

ACTIVE ****x***

NO SIGNAL No video data is input. ACTIVE STEREO Audio data is being transferred.

WAIT VIDEO SYNC

READY Serial data transfer is ready. ACTIVE Serial data has been transferred.

The detected resolution is also

displayed.

Waiting for synchronization with

video data.

MVDS X-1 User's Guide

Shows a network status.

CONNECTION STAT (sample)

CONNECTION STAT

CONN:ETHERNET

LINK 100Mb/Full

Menu options and status

Menu Description Status Denition

ETHERNET

WIRELESS

RTP LINK

Show the Ethernet link status.

Show a wireless link status.

Show the link status in RTP

level.

Selected menu

Current status of the selected menu

LINK 100Mb/Full LINK 100Mb/Half LINK 10Mb/Full LINK 10Mb/Half NOT CONNECTED Cable is not connected.

CONNECTED CH:**

NOT CONNECTED

NOT AVAILABLE

DISABLED

** CLIENT(S)

NOT CONNECTED

Communicatin g via a wired

network. The link speed is also

displayed.

Communicating wirelessly. The

current channel is also displayed. Th e wi r el ess conn e ctio n i s

not established for being out

of se rvice a re a or in c o r re c t

encryption key. The wireless communication is

not available since a wireless card

is not detected. The wireless communication is

disabled by the settings. The number of receivers in the

group is displayed. There ar e no t r a ns m i t t e r or

receivers in the group.

3.Monitor and Maintenance

Shows the device information.

DEVICE INFO (sample)

DEVICE INFO

DEV:HOST NAME

TX012345

Menu options and status

Menu Information displayed in the lower line HOST NAME IP ADDRESS MAC ADDR F/W VERSION FPGA VER.

Show the host name. Show the IP Address. Show the Mac Address. Show the rmware version. Show the FPGA version.

Selected menu

Current status of the selected menu

MVDS X-1 User's Guide

Level 1 Level 3Level 2

IP ADDRESS (CFG)

IP SUBNET MASK

IP GATEWAY ADDR

WIRELESS MODE

SSID

CH AUTO SEARCH

CHANNEL

DATA RATE

CAPTURE GAIN

CAPTURE OFFSET

HORIZONTAL POS

PHASE_CC

BUFFER LEVEL

BIT LENGTH

STOP BIT

PARITY

FLOW CONTROL

DATA TIMEOUT

BAUD RATE (bps)

AUTO CONFIG

WIRELESS I/F

IP DHCP/BOOTP

ADMIN MODE MENU

LCD CONTRAST

NETWORK CONFIG

WIRELESS CONFIG

VIDEO CONFIG

SERIAL CONFIG

REBOOT

MAINTENANCE SCR

( * )

VERTICAL POS

( * )

Only the settings with ( * ) can be configured.

ADMIN MODE MENU

Part of settings can be congured, referred and maintained through ADMIN

MODE MENU. This menu has a hierarchic structure below.

3.Monitor and Maintenance

To enter into LEVEL2 in ADMIN MODE MENU, the PIN CODE is required (In the

factory default setting, the PIN CODE is "0000").

PIN CODE entry screen

ADMIN:PIN CODE PIN CODE? 0 _ _ _

Enter the PIN CODE.

To enter the PIN CODE, select each number by pushing [ + ] and [ - ] buttons and

save it by pushing [SET] button. If a correct PIN CODE is entered, conguration

menus are displayed. If a wrong PIN CODE is entered, the error message, "WRONG

PIN CODE!" is displayed and the LCD menu returns to LEVEL 1.

Each conguration menu in ADMIN MODE MENU are explained as follows.

LCD CONTRAST

Sets a contrast for LCD.

LCD CONTRAST screen

LCD CONTRAST

-> 3 . . . | . . . . .

Enter a value.

Select the value by pushing [ + ] and [ - ] buttons and determine it by pushing

[SET] button.

NETWORK CONFIG

Congures the network settings.

NETWORK CONFIG (sample)

IP DHCP/BOOTP

ENABLE

Menu Information IP DHCP/BOOTP Displays whether DHCP/BOOTP are enabled or disabled. IP ADDRESS(CFG) Displays an IP Address. IP SUBNET ADDR Diplays a Subnet Mask. IP GATEWAY ADDR Displays a Default Gateway Address.

Selected menu

Current setting of the selected menu

MVDS X-1 User's Guide

WIRELESS CONFIG

Shows or Changes the wireless LAN settings.

WIRELESS CONFIG (sample)

WIRELESS I/F

ENABLE

Menu Information WIRElESS I/F Displays whether the wireless LAN setting is enabled or disabled. WIRELESS MODE Displays a wireless LAN mode (AdHoc/Infra.). SSID Displays the SSID. CH AUTO SEARCH Displays or Enables/Disables the channel auto-search function setting.

You can switch to the conguration screen by pushing [SET] button.

Selected menu

Current setting of the selected menu

CH AUTO SEARCH *

-> DISABLE

Select [ENABLE] or [DISABLE] by pushing [ + ] and [ - ] buttons and save it by

pushing [SET] button.

* Reboot this product to take eect.

CHANNEL Displays or Congures the wireless channel for Ad hoc mode.

You can switch to the conguration screen by pushing [SET] button.

Enter a value.

CHANNEL *

-> 1

Select a channel by pushing [ + ] and [ - ] buttons and save it by pushing [SET]

button.

* Reboot this product to take eect.

DATA RATE Displays or Congures a transmission dit rate for wireless LAN.

Enter a value.

DATA RATE *

-> 36 Mbps

Select a value by pushing [ + ] and [ - ] buttons and save it by pushing [SET]

button.

* Reboot this product to take eect.

Enter a value.

3.Monitor and Maintenance

VIDEO CONFIG

Shows or Congures the video settings.

VIDEO CONFIG (sample)

CAPTURE GAIN *

R 128 G 128 B 128

Menu Information AUTO CONFIG Starts the auto-adjustment for image parameters.

By pushing [SET] button, you can switch to the auto-adjustment screen.

Push [ + ] and [ - ] buttons to select [OK] (the current setting is enclosed with [ ]).

Push [SET] button to start auto-adjustment.

Selected menu

Current setting of the selected menu

VGA CONFIG

CANCEL [ OK ]

The result is displayed in the lower line of LCD. The denition of each message

is as follows:

Message Status COMPLETE & SAVED Suceeded in VGA auto-adjustment. ERR: OUT RANGE Failed in VGA auto-adjustment.

Incorrect VGA signal is input.

Check that the resolution and refresh note

settings are respectively set to "1280x768" and

"60Hz" in the player(s).

ERR: NO VGA IN Failed in VGA auto-adjustment.

VGA signal is not input.

Check that a VGA cable is properly plugged

in or player(s) have proper settings to output

video signals.

ERR: SCAN FAILED Failed in VGA auto-adjustment.

Play anoth er movie or still image at t he

player(s) and try the auto-adjustment again.

ERR: N/A VGA auto-adjustment unavailable

VGA auto-adjustment is not available while

this product is sending a maintenance screen.

Stop sending a maintenance screen and try the

auto-adjustment again.

Select [OK].

MVDS X-1 User's Guide

VIDEO CONFIG

Menu Information

CAPTURE GAIN Displays or Congures the Gain value (R/G/B).

You can switch to the conguration screen by pushing [SET] button.

CAPTURE GAIN *

R 128 G 128 B 128 s

Set the value in the order of R -> G -> B.

Select a value by pushing [ + ] and [ - ] buttons and determine it by pushing

[SET] button. When one value is determined, the cursor will move to the

other. When the cursor came to "s", push [SET] button to save the settings.

CAPTURE OFFSET Displays or Congures the Oset value (R/G/B).

You can switch to the conguration screen by pushing [SET] button.

Enter a value.

CAPTURE OFFSET *

R 128 G 128 B 128 s

Set the value in the order of R -> G -> B.

Select a value by pushing [ + ] and [ - ] buttons and determine it by pushing

[SET] button. When one value is determined, the cursor will move to the

other. When the cursor came to "s", push [SET] button to save the settings.

HORIZONTAL POS Displays or Congures the horizontal position (P: Position, W: Width, E: Period)

settings.

You can switch to the conguration screen by pushing [SET] button.

Enter a value.

HORIZONTAL POS * P 50 W 50 E 50 s

Set the value in the order of Position -> Width -> Period.

Each can be a value from 0 to 100, with 50 being the center, less than 50

being minus, and greater than 50 being plus.

Select a value by pushing [ + ] and [ - ] buttons and determine it by pushing

[SET] button. When one value is determined, the cursor will move to the

other. When the cursor came to "s", push [SET] button to save the settings.

PHASE_CC Displays or Congures the PHASE_CC settings.

You can switch to the conguration screen by pushing [SET] button.

Enter a value.

PHASE_CC *

-> 0 | . . . . . . . . .

Select a value by pushing [ + ] and [ - ] buttons and save it by pushing [SET]

button.

BUFFER LEVEL Displays the value for retransmission buer.

Enter a value.

3.Monitor and Maintenance

SERIAL CONFIG

Shows the serial settings.

SERIAL CONFIG (sample)

BAUD RATE (bps)

19200

Menu Information BAUD RATE (bps) Displays a baudrate. BIT LENGTH Displays a bit length. STOP BIT Displays a stop bit. PARITY Displays a parity bit. FLOW CONTROL Displays a ow control setting. DATA TIMEOUT Displays a serial input timeout setting.

Selected menu

Current setting of the selected menu

MAINTENANCE SCR

Sends or Stops a maintenace screen.

MAINTENANCE SCR screen

MAINTENANCE SCR? [ STOP ] START

Select [START] or [STOP].

Push [ + ] and [ - ] buttons to select [START] or [STOP] (the current setting is

enclosed with [ ]).

Push [SET] button to send or stop the maintenance screen data.

REBOOT

Reboots this product.

REBOOT screen

REBOOT? CANCEL [ OK ]

Select [OK].

Push [ + ] and [ - ] buttons to select [OK] (the current setting is enclosed with [ ]).

Push [SET] button to reboot this product.

MVDS X-1 User's Guide

3.2 Web interface

Congure using a Web browser

Since this product implements HTTP protocol, advanced settings for this product

can be congured or changed using a Web browser. Also, a convenient function

such as a remote reboot is available.

- To use a Web browser, the TCP/IP settings need to be enabled, and an IP address needs to be

TIP

congured to this product.

- We recommend a Web browser below.

Microsoft Internet Explorer 6.0 or later

- The explanation below is an example when using Internet Explorer in a Windows Vista

environment. Actual screens may vary depending on your Web browser.

Display the Web page

To access the Web page of this product, enter the IP address of this product into

the address bar of the Web browser and press the ENTER key.

Example: http://10.2.0.4/

3.Monitor and Maintenance

Congure from the Web page

Click the menu item that you wish to congure. When the screen below is

displayed, type a user name (root) and password, then click OK.

In the factory default settings, no password is set.

MVDS X-1 User's Guide

3.2.1 Status

Operating status for each audio, video and serial port is displayed.

General

Displays general status for each audio, video and serial port.

Services

Connection

Device

Name Details Video Display a transfer status for video data. Audio Display a transfer status for audio data. Data Display a transfer status for serial data. Status Ethernet Link Display a wired connection status and link speed.

Wireless Link

RTP Clients (Receiver only) Display a number of receivers. RTP Server Name (Receiver only) Display a host name of transmitter. Host Name Display a host name. MAC Address Display the MAC Address. Firmware Version Display a rmware version. FPGA Version Display the FPGA version.

Display the wireless connection status and channel number.

(Receiver only) Display a signal strength by dbm.

3.Monitor and Maintenance

Network

Displays current network status (IP Address and wireless).

Ethernet Status

Wireless Status

Name Details IP Address Display an IP address. Subnet Mask Display a subnet mask. Default Gateway Display a default gateway address. Link Status Display a link status.

SSID

Channel Display a current channel number. RSSI (dbm) Display a signal strength. Rate Display a transmission data rate.

Encryption Mode

Country Code

Display SSID of the wireless network which this product is

connected to.

Display the encryption mode being used.

Blank when no connection is made. Display a country code.

Available wireless bands dier depending on the destination

country.

MVDS X-1 User's Guide

Video/Audio/Data

Displays status for each audio, video and serial port.

Video Status

Audio Status

Serial Status

Name Details Resolution Display a capture resolution. Frame size (byte) Display a data size of the last frame. Interval (ms) Display a capture interval. FPS Display a frame rate. Frame count (frame) Display a number of the captured frame.

Codec error count

Frame lost count

Sampling Rate Display PCM sampling rate.

Data lost count

Baudrate (bps) Display a baudrate. Bit length Display a bit length. Stop bit Display a stop bit. Parity Display a parity bit. Flow control Display a ow control. Transmitted data count Display a number of transmitted data. Received data count Display a number of received data.

Display a number of codec error (the errors notied from

codec chip). (Receiver only) Display a number of frame that could not be

captured.

(Receiver only) Display a number of data that could not be

received.

3.Monitor and Maintenance

3.2.2 Conguration

Congure the network settings and transmission conditions for audio, video and

serial port.

Click the item that you wish to congure. Select an option or enter a value and

click Submit.

General

Common settings for Transmitter and Receivers. Congure a host name and

password.

Device

TIP

Name Details Host Name Set a host name. Change root Password Set passwords for Web and Telnet. LCD Contrast Set a contrast for LCD.

Menu idle timeout

PIN CODE Set a PIN CODE to limit an access to LCD menu conguration.

- Be sure to set a password, especially if you are using the MVDS with a public network.

Set the amount of time before the LCD menu returns to the

initial screen when it is idle.

MVDS X-1 User's Guide

Congures the network settings.

Network

3.Monitor and Maintenance

Ethernet

Conguration

Wireless

Conguration

WEP

Conguration

WPA

Conguration

Name Details

DHCP/BOOTP Enable/Disable a DHCP function. IP Address Set an IP Address. Subnet Mask Set a Subnet Mask. Default Gateway Set a Default Gateway. Wireless Interface Enable/Disable the wireless. Wireless Mode Select the wireless connection mode. SSID Specify the SSID.

Ch Auto Search

Channel (Transmitter only) Specify a channel to use. Data Rate Specify a transmission bit rate. Network

Authentication

SSID Broadcast

WEP Enable/Disable the WEP. Key Index Specify an index number for WEP key. Key Size Specify a key length for WEP key. WEP Key1 Specify the WEP key (index number:1). WEP Key2 Specify the WEP key (index number:2). WEP Key3 Specify the WEP key (index number:3). WEP Key4 Specify the WEP key (index number:4). WEP Encryption Mode Select an encryption mode of WPA.

Pre-Shared Key Specify the Pre-Shared Key.

(Transmitter only) Enable/Disable the function to search for

an available channel automatically.

Specify an authentication method.

(Receiver only) Enable/Disable SSID broadcast.

If this setting is disabled, this product will not be searched

by other PCs over a wireless network. It allows to limit an

access to MVDS network.

MVDS X-1 User's Guide

Video/Audio/Data (at transmitter)

Congures the video signal parameters, serial port and buer size of transmitter.

3.Monitor and Maintenance

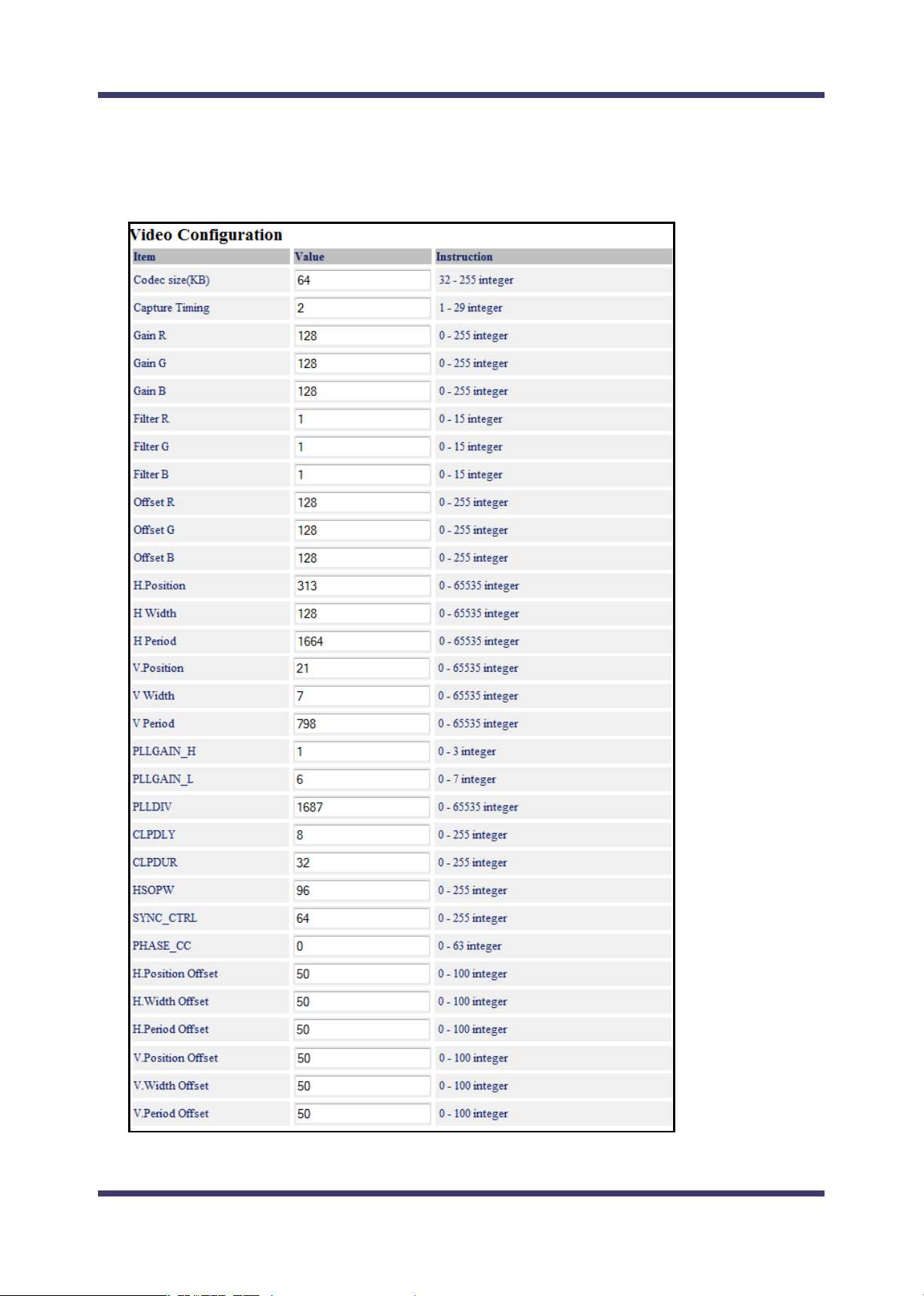

Video

Conguration

Name Details

Capture Timing

Gain R Adjust a red gain. Gain G Adjust a green gain. Gain B Adjust a blue gain. Filter R Adjust a red lter. Filter G Adjust a green lter. Filter B Adjust a blue lter. Oset R Adjust a red oset. Oset G Adjust a green oset. Oset B Adjust a blue oset. H.Position Specify a horizontal position. H Width H Period Specify a period for horizontal synchronization by dot clock. V.Position Specify a vertical position.

V Width

V Period

PLLGAIN_H Specify the PLLGAIN VCO Range. PLLGAIN_L Specify the PLLGAIN Charge Pump Current.

PLLDIV

CLPDLY Specify the Clamp Pulse Delay. CLPDUR Specify the Clamp Pulse width. HSOPW Specify a pulse width of ADC HSOUT. SYNC_CTRL Perform a synchronization control. PHASE_CC Specify the PHASE for image sampling.

Vertical frequency / (1+x) = FPS

Example: 60[Hz]/(1+[capture timing]2)= 20[fps]

Specify a width of horizontal synchronization signal by dot clock.

Specify a width of vertical synchronization signal by

horizontal synchronization signal. Specify a period for vertical synchronization signal by

horizontal synchronization signal.

Specify the ADC PLL Divider ratio. Usually, equivalent to the

value of H.Period minus one.

MVDS X-1 User's Guide

Name Details

Displays the oset value for H.Position setting that you may

H.Position Oset

H.Width Oset

H.Period Oset

Video

Conguration

V.Position Oset

V.Width Oset

V.Period Oset

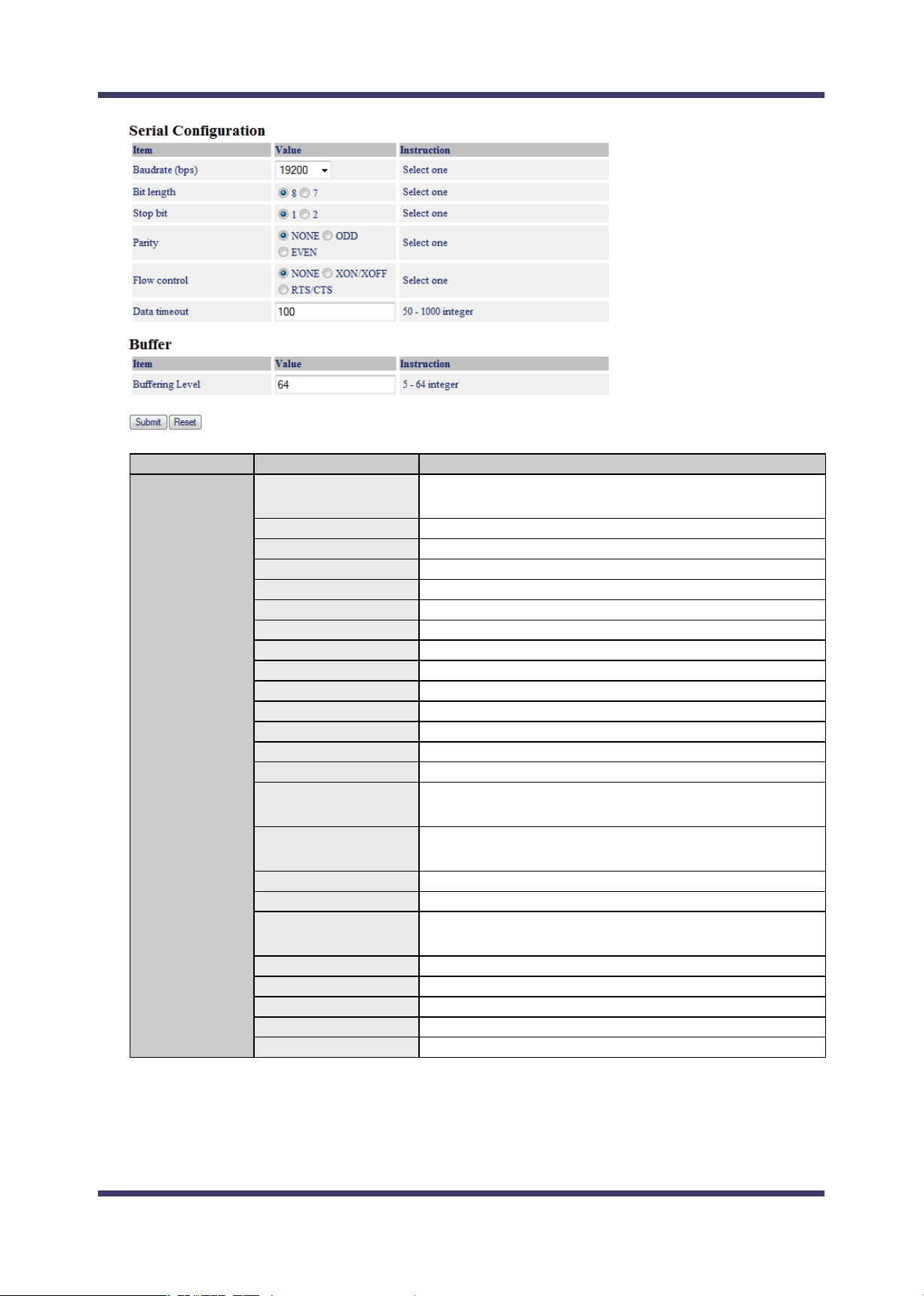

Baudrate (bps) Specify a baudrate. Bit length Specify a bit length.

Serial

Conguration

Buer Buer Level Specify the number of buer for retransmission.

Stop bit Specify a stop bit. Parity Specify a parity check method. Flow control Specify a ow control method. Data timeout Specify a serial input timeout by millisecond.

have congured from LCD menu.

This value is added to H.Position setting and then take eect

in the video image. Displays the oset value for H.Width setting that you may

have congured from LCD menu.

This value is added to H.Width setting and then take eect

in the video image. Displays the oset value for H.Period setting that you may

have congured from LCD menu.

This value is added to H.Period setting and then take eect

in the video image. Displays the oset value for V.Position setting that you may

have congured from LCD menu.

This value is added to V.Position setting and then take eect

in the video image. Displays the oset value for V.Width setting that you may

have congured from LCD menu.

This value is added to V.Width setting and then take eect in

the video image. Displays the oset value for V.Period setting that you may

have congured from LCD menu.

This value is added to V.Period setting and then take eect

in the video image.

3.Monitor and Maintenance

Video/Audio/Data (at receiver)

Congures the video signal parameters, serial port and buer size of receivers.

MVDS X-1 User's Guide

Name Details H Width H Period Specify a period for horizontal synchronization by dot clock.

H Back Porch

V Width

V Period

V Back Porch Specify the Back Porch by horizontal synchronization signal.

H.Width Oset

H.Period Oset

Video

Conguration

H.Back Porch Oset

V.Width Oset

V.Period Oset

V.Back Porch Oset

Baudrate (bps) Specify a baudrate. Bit length Specify a bit length.

Serial

Conguration

Buer Buering Level Specify the number of buer for retransmission.

Stop bit Specify a stop bit. Parity Specify a parity check method. Flow control Specify a ow control method. Data timeout Specify a serial input timeout by millisecond.

Specify a width of horizontal synchronization signal by dot clock.

Specify the Back Porch of horizontal synchronization signal

by dot clock. Specify a width of vertical synchronization signal by

horizontal synchronization signal. Specify a period for vertical synchronization signal by

horizontal synchronization signal.

Displays the oset value for H.Width setting that you may

have congured from receivers. This value is added to

H.Width setting and then take eect in the video image.

(* The conguration from receiver is not currently supported.) Displays the oset value for H.Period setting that you may

have congured from receivers. This value is added to

H.Period setting and then take eect in the video image.

(* The conguration from receiver is not currently supported.) Displays the oset value for H.Back Porch setting that you

may have congured from receivers. This value is added to

H.Back Porch setting and then take eect in the video image.

(* The conguration from receiver is not currently supported.) Displays the oset value for V.Width setting that you may

have congured from receivers. This value is added to

V.Width setting and then take eect in the video image.

(* The conguration from receiver is not currently supported.) Displays the oset value for V.Period setting that you may

have congured from receivers. This value is added to

V.Period setting and then take eect in the video image.

(* The conguration from receiver is not currently supported.) Displays the oset value for V.Back Porch setting that you

may have congured from receivers. This value is added to

V.Back Porch setting and then take eect in the video image.

(* The conguration from receiver is not currently supported.)

3.Monitor and Maintenance

Static Node (at transmitter)

Congures Static Node control of transmitter. Usually, the default settings are used.

Node

Conguration

- Use this only for irregular situations such as when you need to specify the node for your

network environment. Usually, the default settings are used.

Note

Use this when you specify receivers. Up to 8 receivers can be specied.

Change the method of transmission to receiver.

Name Details Node List Method Specify a node search method. Static Node 0 Static Node 1 Static Node 2 Static Node 3 Static Node 4 Static Node 5 Static Node 6 Static Node 7

Specify an IP address for node when Node List Method is set

to Static.

MVDS X-1 User's Guide

Static Node (at receiver)

Congures Static Node control for receivers. Usually, the default settings are used.

Node

Conguration

- Use this only for irregular situations such as when you need to specify a node for your

Note

network environment or you need to switch the transmitter every certain period of time.

Usually, the default settings are used.

Use this when you specify the contents (transmitter) or switch it every certain period of time.

Use this when you switch the group manually.

Name Details Node List Method Specify a node search method.

Set a ti me inter val to s witch th e MVDS transm itter

Switch source interval

Static Node 0 Static Node 1 Static Node 2 Static Node 3 Static Node 4 Static Node 5 Static Node 6 Static Node 7

automatically when two or more transmitters are installed

to the network.

Specify an IP address for node when Node List Method is set

to Static.

3.Monitor and Maintenance

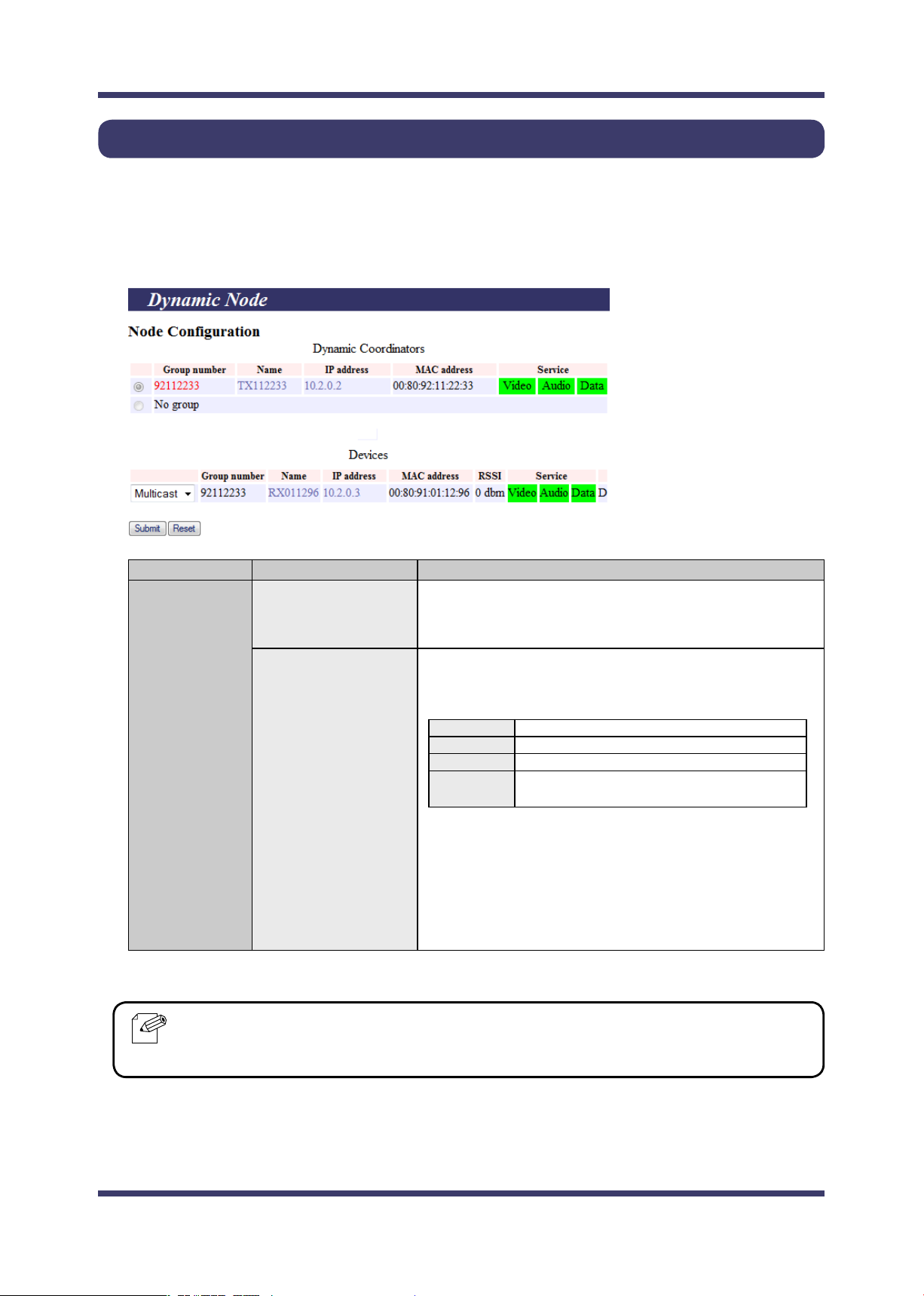

Dynamic Node (at transmitter)

Congures Dynamic Node control for transmitter.

Shows the list and status of receivers connected to a particular group and changes

the transmission method.

Node

Conguration

Name Details

Dynamic Coordinators

Devices

Display a list of the discovered groups. The group number in

red is the group where the transmitter belongs to. The group

number is last 8 digits of Mac Address of the transmitter. Display a list of receivers. Also, the method to transfer data

to receivers can be switched here.

Name Details Multicast Distributing data in multicast. Unicast Distributing data in unicast.

OFF

By changing "Multicast" or "Unicast" to "OFF", the data

distribution to the receiver is disabled. By changing "OFF"

to "Multicast" or "Unicast", the distribution is enabled (the

receiver is added to the group).

"RSSI" indicates a signal strength of each receiver.

Re ceivi ng data from ot her tran sm itter, or data distribution is disabled.

Note

Change the method of transmission to receiver.

MVDS X-1 User's Guide

Dynamic Node (at receiver)

Congures Dynamic Node control for receivers.

Shows or Changes which transmitter the receivers should connect to.

Name Details

Display the list of discovered groups. The group where the

receiver belongs to is checked on its radio button. The group

Node

Conguration

Dynamic Coordinators

number is the last 8 digits of MAC Address of the transmitter.

To switch to the other group, check the radio button of that

group. If "No group" is checked, the receiver will not receive

data.

Note

Use this when you switch the group manually.

3.Monitor and Maintenance

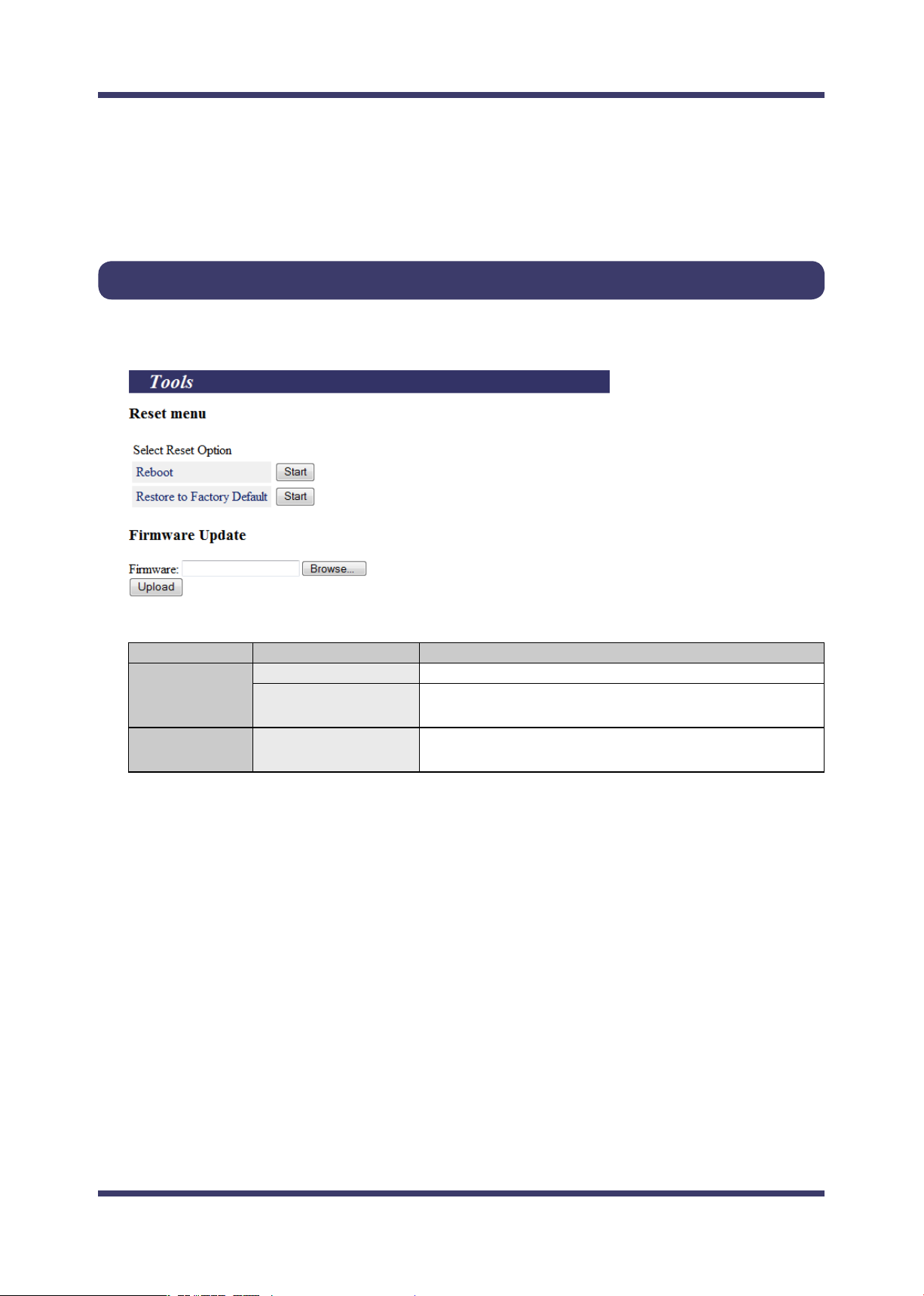

3.2.3 Tools

Performs reboot, factory default conguration and rmware update.

Click the button of item that you wish to execute.

Common

Reboots, resets and updates the rmware of this product.

Reset menu

Firmware

Update

Name Details Reboot Reboot this product. Restore to Factory

Default

- Load a new rmware released by Silex into this product.

Reset this product to the factory default settings.

Please note that IP address is also reset after the reboot.

MVDS X-1 User's Guide

Video/Audio (at transmitter)

Adjusts the screen image for transmitter and changes the maintenance screen to

be displayed for receivers.

The screen currently being captured can be applied as a maintenance screen.

Manage custom

screen

Tx device tool

- To Capture, Upload and Delete the image data, the radio button next to Maintenance

TIP

mode needs to be checked.

Name Details

Refresh Refreshes the Web page.

Maintenance mode

Capture

Upload

Delete Deletes the image data. Maintenance s c r e e n

mode V i d e o s ig n a l au t o

conguration

Check a radio button of the screen you wish to congure.

By clicking the data size, you can download the image. Cap tures the image being inpu t and appli es to the

maintenance screen. Uploads the image data from the PC. The image data that

can be uploaded are limited to the one that you have

downloaded.

Sends the maintenance screen for monitor adjustment to

receivers. Output with Start button and stop with Stop button. Adjusts the video signal parameters of the transmitter

automatically. Click Start to begin.

3.Monitor and Maintenance

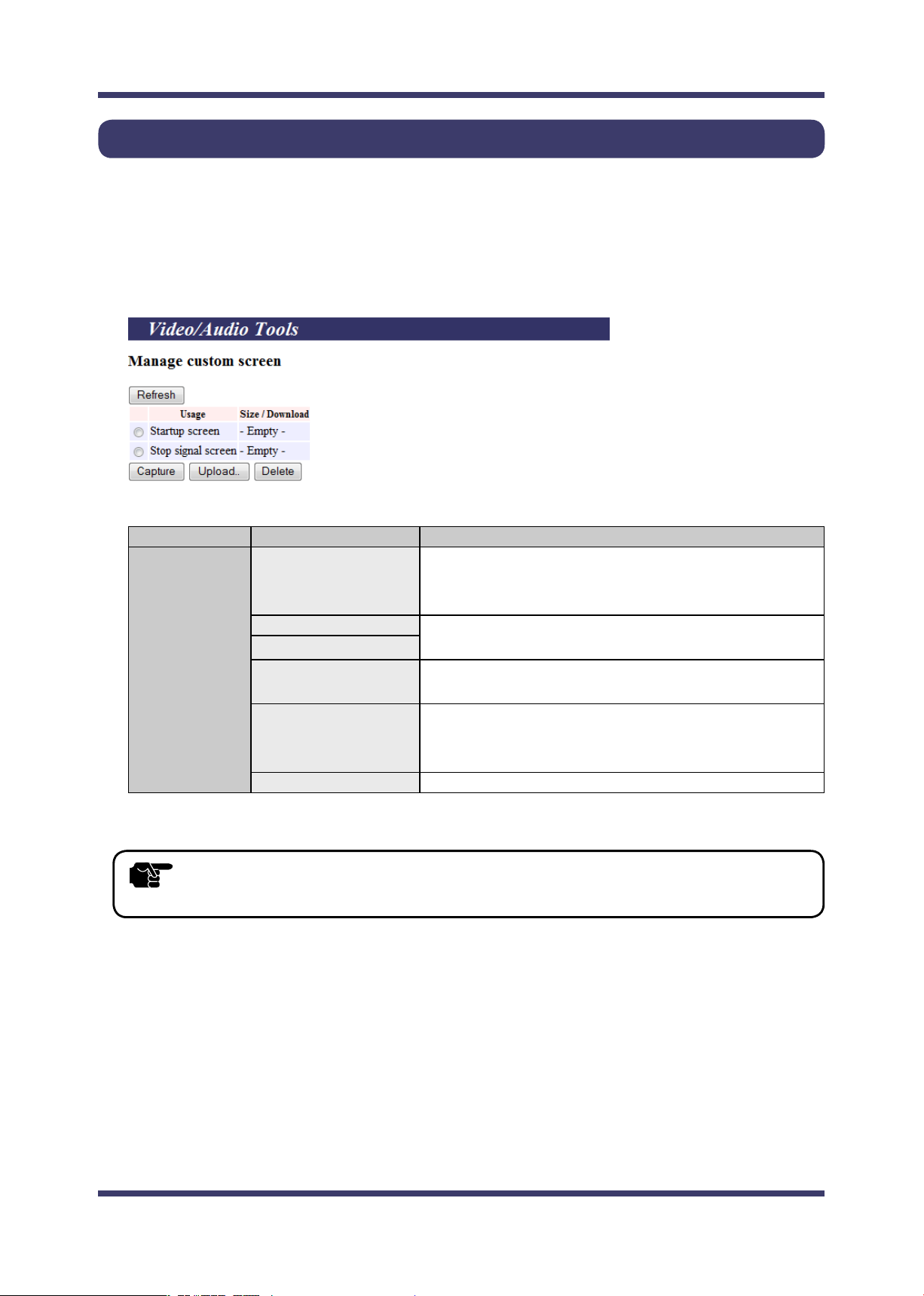

Video/Audio (at receiver)

Changes the startup screen and stop signal screen for receivers.

The screen currently being output to monitors from receivers can be captured

and then applied as startup screen and/or stop signal screen of receiver.

Manage custom

screen

- To Capture, Upload and Delete the image data, the radio button next to Startup screen or

TIP

Stop signal screen needs to be checked.

Name Details

Refreshes the Web page. (After the capture process below,

Refresh

Startup screen Check a radio button of the screen you wish to congure. Stop signal screen

Capture

Upload

Delete Deletes the image data.

the data size status will not be refreshed automatically. By

clicking this button, the Web page can be refreshed.)

By clicking the data size, you can download the image. Captures the image being played and applies to the

selected screen. Uploads the image data from the PC. The image data that

can be uploaded are limited to the one that you have

captured.

MVDS X-1 User's Guide

Appendix

A-1

A-2

MVDS X-1 User's Guide

A-1 Conguration item list

The below is the list of conguration item:

Parameter name Description Value range Default value

Transmitter:

"TX" plus the last 6 di gi ts o f the M ac Ad dr es s, or the va lu e of

Host Name Set a host name. Up to 15 characters

Root password Set passwords for Web and Telnet. Up to 7 characters None * * LCD Contrast Set a contrast for LCD. 0 - 8 (0:Darkest, 8: Lightest) 3 * Menu idle timeout Set the amount of time before the LCD

menu returns to the initial screen

when it is idle. (1=10sec)

PIN CODE Set a PIN CODE to enter into ADMIN

MODE MENU in LCD. IP Address Set an IP Address. IP Address 0.0.0.0 * * Subnet Mask Set a Subnet Mask. IP Address 0.0.0.0 * * Default Gateway Set a Default Gateway. IP Address 0.0.0.0 * * Wireless Interface Enable/Disable the Wireless. ENABLE, DISABLE DISABLE * * Wireless Mode Select the Wireless connection mode. AdHoc, Infra. AdHoc * * SSID Specify the SSID. 1 - 32 characters mvds * *

Ch Auto Search

Channel Specify a Channel to use.

Data Rate Specify a transmission bit rate.

Network Authentication Specify an authentication method. Open, Shared, WPA, WPA2 Open * * SSID Broadcast Enable/Disable SSID Broadcast. ON, OFF ON * WEP Enable/Disable the WEP. OFF, ON OFF * * Key Index Specify an index number for WEP key. 1 - 4 1 * * Key Size Specify a key length for WEP key. 64bit, 128bit 64bit * *

WEP Key 1

WEP Key 2

WEP Key 3

WEP Key 4

WPA Encryption Mode Select an encryption mode of WPA. TKIP, AES, AUTO AUTO * *

Enable/Disable an available channel

auto-search function.

Specify the WEP key.

0 - 60 18 * -

0 - 9999 0000 * -

ENABLE, DISABLE ENABLE * -

(When the location is US:)

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11,

36, 40, 44, 48, 52, 56, 60, 64,

149, 153, 157, 161, 165 A U TO, 6M bp s, 9M bp s,

12Mbps, 18Mbps, 24Mbps,

36Mbps, 48Mbps, 54Mbps

When 64bit key is specied:

10 hexadecimal characters or

5 ASCII characters.

When 128bit key is specied:

26 hexadecimal characters or

13 ASCII characters.

rotary switch

Receivers:

" RX " pl u s t he last 6 di gits of the Mac Address, or the va lu e of rotary switch

1 * *

36Mbps * *

None * *

TXR

* *

Appendix

A-3

Parameter name Description Value range Default value

Pre-Shared Key Specify the Pre-Shared Key. 8 - 64 characters silex technology * * Codec size Specify a codec size for 1 frame. 32 - 255 64 * -

Vertical frequency / (1+x) = FPS

Capture Timing

Gain R Adjust a red gain.

Gain B Adjust a blue gain.

Filter R Adjust a red lter.

Filter G Adjust a green lter.

Filter B Adjust a blue lter.

Oset R Adjust a red oset.

Oset B Adjust a blue oset. H.Position Specify a horizontal position. 0 - 65535 313 * -

H.Width

H.Period

H.Back Porch

V.Position Specify a vertical position. 0 - 65535 21 * -

V.Width

V.Period

V.Back Porch

(Example)

60[Hz]/(1+[capture timing]2)= 20[fps]

S pec if y a wi dth of h ori zon ta l

synchronization signal by dot clock.

Spe c if y a peri o d for horizon t a l

synchronization by dot clock.

Specify the Back Porch of horizontal

synchronization signal by dot clock.

S p e c i f y a w i d t h o f v e r t i c a l

synchronization signal by horizontal

synchronization signal.

S pe ci f y a pe ri od f o r v e r t ic a l

synchronization signal by horizontal

synchronization signal.

Specify the Back Porch by horizontal

synchronization signal.

1 - 29 2 * -

0 - 255 128 * -Gain G Adjust a green gain.

0 - - - 300 MHz

1 - - - 150 MHz

2 - - - 75 MHz

3 - - - 50 MHz

4 - - - 30 MHz

5 - - - 15 MHz

6 - - - 7 MHz

7 - - - 4 MHz

8 - - - 550 MHz

9 - - - 500 MHz

10 - - - 450 MHz

11 - - - 400 MHz

12 - - - 350 MHz

13 - - - reserved

14 - - - reserved

15 - - - 600 MHz

0 - 255 128 * -Oset G Adjust a green oset.

0 - 65535 128 * *

0 - 65535 1664 * *

0 - 65535 192 - *

0 - 65535 7 * *

0 - 65535 798 * *

0 - 65535 20 - *

15 * -

TXR
