Sigma C21EN0291 User Manual

Download

C21EN0291

E ENGLISH

Digital Single Lens Reflex Camera

USER’S MANUAL

This manual explains how to use SIGMA SD9 digital SLR camera.

Please refer to the SIGMA Photo Pro User Guide, which is available in the PDF

format of the supplied CD-ROM, to get information about installation of SIGMA

Photo Pro software to your computer, connection between camera and computer

and for detailed explanation of SIGMA Photo Pro software.

Thank you for purchasing

the Sigma Digital Autofocus Camera

The Sigma SD9 Digital SLR camera is a technical breakthrough! It is powered by the Foveon® X3™ image sensor, the world’s first image sensor to capture red, green and blue light at each and every pixel. A high-resolution digital single-lens reflex camera, the SD9 delivers superior-quality digital images by combining Sigma’s extensive interchangeable lens line-up with the revolutionary Foveon X3 image sensor.

You will get the greatest performance and enjoyment from your new SD9 camera’s features by reading this instruction manual carefully before operating it. Enjoy your new Sigma camera!

SPECIAL FEATURES OF THE SD9

■

Uses a lossless compression RAW data format to eliminate image deterioration,

■

giving superior pictures without sacrificing original image quality.

"Sports finder" covers action outside the immediate frame.

■

Dust protector keeps dust from adhering to the image sensor.

■

Mirror-up mechanism and depth-of-field preview button support advanced

■

photography techniques.

· Please keep this instruction booklet handy for future reference. Doing so will

allow you to understand and take advantage of the camera’s unique features at any time.

· The warranty of this product is one year from the date of purchase. Warranty

terms and warranty card are on a separate sheet, attached. Please refer to these materials for details.

NOTES ON COPYRIGHT

This camera is intended only for personal use and should never be used in a way that infringes upon or contravenes international or domestic copyright laws and regulations. In addition, although it is intended purely for personal use, some restrictions may be applied to the photographing of demonstrations, performances, shows, exhibitions, or commercial properties, etc. Copyright or other legal rights should not be contravened.

FOVEON is a registered trademark of Foveon, Inc. X3, and the X3 Logo are

■

trademarks of Foveon, Inc.

CompactFlash is a trademark of SanDisk Corporation.

■

IBM PC/AT series computer and Microdrive are trademarks or registered trademarks

■

of International Business Machines Corporation (IBM) in the U.S.A.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft

■

Corporation in the United States and/or other countries.

Macintosh and FireWire are registered trademarks or trademarks of Apple Computer

■

Inc. in the U.S.A. and /or other countries.

Adobe and Photoshop are trademarks of Adobe Systems Incorporated.

■

All other company or product names used in documents are trademarks or registered

■

trademarks of their respective holders.

PACKAGE CONTENTS / ACCESSORIES

Please make sure that following standard accessories are included with your camera. If any of them is missing, contact the retailer from which you

urchased your camera.p

Camera Body (SD9)

①

Body Cap (on the camera)

②

Eyepiece Cup (on the camera)

③

LCD Monitor Cover

④

Strap

⑤

Finder Cap

⑥

AC Adapter (SAC-1)

⑦

AC Cable

⑧

IEEE1394 (FireWire™) Cable

⑨

USB Cable

⑩

Video Cable

⑪

SIGMA Photo Pro Disk

⑫

Instruction Manual

⑬

Warranty Card

⑭

SIGMA Limited Warranty

⑮

· No batteries or CF card are included with this camera. Please purchase batteries

and the brand and capacity CF card or that you desired separately.

TABLE OF CONTENTS

PACKAGE CONTENTS / ACCESSORIES.......................................................................... 2

SAFETY PRECAUTIONS ................................................................................................... 5

HANDLING PRECAUTIONS............................................................................................... 8

DESCRIPTION OF THE PARTS........................................................................................11

TOP LCD PANEL .............................................................................................................. 13

VIEWFINDER ................................................................................................................... 13

CONTROL DIALS ............................................................................................................. 14

BASIC OPERATION AND QUICK REFERENCE.............................................................. 15

PREPARATION...........................................................................................................18

ATTACHING THE CARRY STRAP ................................................................................... 18

HOW TO USE THE FINDER CAP .................................................................................... 18

LOADING THE BATTERIES............................................................................................. 19

CHECKING THE BATTERY STATUS ............................................................................... 21

USING A HOME POWER SUPPLY .................................................................................. 22

MOUNTING AND REMOVING THE LENS ....................................................................... 23

SETTING THE LANGUAGE ............................................................................................. 25

SETTING THE TIME AND DATE ...................................................................................... 26

INSERTING AND REMOVING THE CF CARD................................................................. 27

FORMATTING THE CF CARD.......................................................................................... 29

FILE NUMBERING SYSTEM............................................................................................ 30

FRAME NUMBER COUNTER .......................................................................................... 32

DIOPTER ADJUSTMENT ................................................................................................. 34

SPORTS FINDER............................................................................................................. 34

HOLDING THE CAMERA ................................................................................................. 35

SHUTTER BUTTON ......................................................................................................... 35

SETTING THE ELECTRONIC SOUND ............................................................................ 36

BASIC OPERATION ...................................................................................................37

SELECTING THE EXPOSURE MODE.......................................................................37

P PROGRAM AE ............................................................................................................ 37

A APERTURE PRIORITY AE ......................................................................................... 39

S SHUTTER SPEED PRIORITY AE............................................................................... 40

M MANUAL EXPOSURE................................................................................................ 41

BULB SETTING ................................................................................................................ 41

FOCUSING .................................................................................................................43

HOW TO USE AUTOFOCUS............................................................................................ 43

FOCUS LOCK................................................................................................................... 45

MANUAL FOCUS.............................................................................................................. 45

OPERATION OF THE DRIVE MODE .........................................................................46

DRIVE-AREA.................................................................................................................... 46

SINGLE FRAME SHOOTING ........................................................................................... 46

CONTINUOUS SHOOTING.............................................................................................. 47

SELF TIMER..................................................................................................................... 47

MIRROR LOCK-UP .......................................................................................................... 48

ADVANCED OPERATION..........................................................................................49

SETTING THE WHITE BALANCE（WB）....................................................................... 49

SETTING THE SENSITIVITY（ISO EQUIVALENCY）.................................................... 52

SETTING THE RESOLUTION .......................................................................................... 53

SELECTING THE METERING MODE.............................................................................. 53

AE LOCK .......................................................................................................................... 54

EXPOSURE COMPENSATION ........................................................................................ 55

AUTO BRACKETING........................................................................................................ 56

REMOTE CONTROLLER (RS-11 AND RS-21) ................................................................ 58

DEPTH-OF-FIELD PREVIEW BUTTON ......................................................................... 60

FLASH PHOTOGRAPHY.................................................................................................. 61

REVIEWING, DELETING AND MODIFYING IMAGES ..............................................63

QUICK PREVIEW .......................................................................................................63

CHANGING THE QUICK PREVIEW DURATION ............................................................. 63

CHANGING THE QUICK PREVIEW STYLE .................................................................... 65

QUICK DELETE................................................................................................................ 66

REVIEWING IMAGES ................................................................................................67

VIEWING ONE IMAGE AT A TIME.................................................................................... 68

MAGNIFYING IMAGES VIEWING NINE IMAGES AT A TIME VIEWING IMAGES A PAGE AT A TIME

VIEWING IMAGE INFORMATION .................................................................................... 72

IMAGE INFO SCREEN FOR MAGNIFIED IMAGES......................................................... 73

HISTOGRAM .................................................................................................................... 74

OVER-EXPOSURE WARNING......................................................................................... 75

VIEWING IMAGES ON A TV............................................................................................. 76

(ZOOMED-IN VIEW)

(CONTACT SHEET VIEW)

(JUMP MODE)

.................................................................. 69

..................................... 70

.................................................... 71

DELETING IMAGES ...................................................................................................77

DELETING A SINGLE IMAGE .......................................................................................... 78

DELETING MULTIPLE IMAGES....................................................................................... 79

RECOVERING A DELETED IMAGE ................................................................................. 80

MODIFYING IMAGES.................................................................................................81

LOCKING IMAGES........................................................................................................... 82

MARKING IMAGES .......................................................................................................... 85

ROTATING IMAGES......................................................................................................... 88

USING THE OK BUTTON SHORTCUT............................................................................ 90

SHOWING A SLIDESHOW............................................................................................... 92

CHANGING SLIDESHOW SETTINGS ............................................................................. 95

CAMERA SET-UP MENU ...........................................................................................96

USING THE CAMERA SET-UP MENU............................................................................. 96

LIST OF MENU FUNCTIONS........................................................................................... 97

CAMERA INFO PAGE....................................................................................................... 99

REFERENCE .............................................................................................................100

OPTIONAL ACCESSORIES ........................................................................................... 100

MAINTENANCE.............................................................................................................. 101

CLEANING THE IMAGE SENSOR................................................................................. 101

EXPLANATION OF TERMS............................................................................................ 104

AUTO POWER OFF ....................................................................................................... 107

WARNING DISPLAYS .................................................................................................... 109

TROUBLESHOOTING.....................................................................................................111

SPECIFICATIONS ...........................................................................................................113

CONNECTING YOUR CAMERA TO A COMPUTER .......................................................114

SAFETY PRECAUTIONS

To avoid causing damage or injury, please read this instruction manual carefully, before using the camera. Please take special note of the following two cautionary symbols.

Warning !!

Caution !!

This symbol denotes warning or point, where caution is required.

Symbol contains information regarding the actions that must be avoided.

Using the product and disregarding this warning sign may

ause serious injury or other dangerous results.c

Using the product disregarding this caution sign may cause injury or damage.

WARNING (BATTERY AND AC ADAPTER)

Keep batteries in a safe place out of children’s reach. If a battery is swallowed, call for emergency medical aid immediately.

Do not use any battery other than the designated battery types. Doing so may cause battery explosion, battery leakage, camera damage, injury or fire.

Replace all the batteries with new ones at the same time; do not mix old batteries with new ones. Always use fresh batteries of the same brand. Otherwise, it might cause battery explosion, battery leakage, camera damage, injury or fire.

Insert the batteries into the chamber according to the + and – polarity marks. Incorrectly, placed batteries can cause battery explosion, battery leakage, camera damage, injury or fire.

Never disassemble, short circuit, heat batteries or put batteries into fire. Ignoring this warning may cause battery explosion, battery leakage, injury or fire.

Please do not try to charge non-rechargeable batteries; doing this causes battery explosion, battery leakage, camera damage, injury or fire.

If for some reason, camera or batteries emit smoke, or overheating or the smell of burning is detected, remove the batteries, taking care to avoid being burned, Take the camera to the retailer where you bought it, or to an authorized Sigma service station.

Please follow all guidelines, rules and regulations of your community regarding the disposal of batteries.

If you do not use the camera for a long period of time, remove the batteries.

Do not use any AC adapter other than the one provided with your camera. Using other brands may cause electrical shock and fire

SAFETY PRECAUTIONS

The AC adapter is designed for use with this product only. Do not use it with any other appliance. Doing so may cause overheating, fire, electric shock or injury.

If this adapter is emitting smoke, generating a strange odor or making an abnormal noise, while in use, disconnect the power plug from the outlet immediately. Otherwise, fire or electric shock may result.

If water or a foreign object gets into the adapter, unplug from the AC outlet immediately. It could cause fire or electric shock.

Do not attempt to modify or disassemble this product. Doing so can cause fire or electric shock.

Do not place any heavy objects on the power cord, or pull it, bend it unduly, or heat it. It could damage the cord, and could cause fire or electric shock.

Do not use this product with AC voltage other than the specified power supply voltage (AC100V - 240V). Doing so could cause fire or electric shock.

Use a safety approved AC power cord as is specified by each country.

WARNING (CAMERA)

Never use your camera in an environment where flammable or burnable, gas, liquids or chemicals, exist, such as Propane, Gasoline, etc.

Keep the camera in a safe place that children cannot reach. Playing with the camera strap around one’s neck can cause strangulation.

Do not disassemble the camera; it can cause electric shocks and burns.

Do not touch internal parts of the camera that become exposed as a result of damage, it could cause fire or electric shock. Remove the batteries and contact an authorized Sigma service station.

After attaching a lens, do not look directly at the sun, through the viewfinder. Doing so can cause damage to the eye or loss of eyesight.

Do not look at the sun with the lens of your camera; otherwise you can lose your eyesight.

Keep the camera away from moisture or water. If you drop your camera/lens in water, please contact the retailer where you purchased the camera, or a service station immediately. If you use the camera with this condition it can cause electric shock or fire.

Prevent water, or metallic and other conductive objects from coming into contact with the terminals of Camera Body. This can result in electric shock, overheating and fire.

SAFETY PRECAUTIONS

Do not pull the AC power cord when disconnecting the AC adapter from the AC outlet. It could cause fire or electric shock due to damaged cord. Always take hold of the moulded AC plug when unplugging it from the outlet.

Do not cover the AC adapter with cloth, cushions, etc. It could cause excessive heat, deform the case, and cause fire.

When this AC adapter is not being used, unplug it from the socket to ensure safety.

Do not aim your lens or camera & lens combinations toward the sun; light entering through the lens could cause concentrate-light phenomenon, and fire.

CAUTION (AC ADAPTER)

CAUTION (CAMERA)

Please do not carry your camera while a tripod is attached, as this could result in injury or a fall.

Please do not grasp the camera with wet hand, as it might cause electric shock

Do not leave the camera in a hot place or in a car parked in the sun. If the camera becomes hot, it might cause burns to the skin.

If the liquid crystal display (LCD) monitor becomes damaged, be careful of the fragments of glass. This could lead to injury. Moreover, if the liquid inside the LCD monitor leaks out, and you are faced with the following situations, please follow the directions below.

n If the liquid adheres to clothes or the skin, please wash away with soap

immediately.

n If the liquid enters the eye, flush the affected eye with clean water

immediately for 15minutes and seek medical assistance.

n If the liquid is swallowed, drink large quantity of water, induce vomiting and

seek medical assistance.

HANDLING PRECAUTIONS

Please read this section before using the camera.

Study and familiarize yourself with the functions of your camera before using it. No compensation or guarantee is provided for unsatisfactory pictures or loss of profit, etc.

Carry spare batteries when you use the camera in a cold environment, on a field trip, or when taking many pictures at one time.

Do not use this camera with any external flash unit other than Sigma Flash EF-500 DG SUPER or EF-500 DG ST, which have special contact pins on the hot shoe. The flash units are offered as optional accessories. Other brands of external flash units may damage the camera’s circuit boards or may not function properly.

ENVIRONMENT

Your camera is a precision instrument. Do not drop it or subject it to physical shock.

■

This camera is not waterproof, and cannot be used underwater. Wipe off any water

■

droplets with a dry cloth as soon as possible. If the camera gets really wet, promptly consult your nearest Sigma Service Center.

Do not leave the camera in a dusty, hot, or highly humid environment for a long

■

period of time.

If the camera is moved from a cold place to a warm room, water droplets may

■

appear on the camera. Please keep the camera in a bag until it is acclimatized to the ambient room temperature.

The camera will work within a temperature range between 0˚C/32˚F and

■

+40˚C/104˚F and humidity less than 80% (no condensation). However, in cold temperatures below 0˚C, the power performance of the battery reduced. Please carry a spare battery in these circumstances and keep the batteries warm.

Static electricity or magnetic fields, may effect the operation of the camera. If such

■

exposure occurs, please remove the battery from the camera and re-insert it, to reset the camera’s microprocessors.



HANDLING PRECAUTIONS

HOW TO STORE THE CAMERA

If you intend to store the camera for a long time, remove the batteries.

■

To avoid growth of fungus, store the camera and lens in a dry, cool and ventilated

■

place with a drying agent such as silica gel. Keep your equipment away from chemicals.

NOTE ON THE TFT COLOR LCD MONITOR

A few pixels may always be lit or may never light on the LCD monitor. This is not a

■

failure or malfunction. Images recorded with the camera will not be affected.

Excessive rubbing of, pushing on or impact to the LCD monitor may cause failure.

■

Because of the normal physical characteristics of the liquid crystal, the reaction of

■

the display may become slow at low temperatures. Moreover, the display may become dark at high temperature, but it will return to normal at room temperature.

NOTES ON CF CARD AND MICRODRIVE

Although CF card is resistant to vibration compared to a hard disk and it is the optimal recording medium for a digital camera, however the effects of strong shock, static electricity or magnetism, may cause the data memorized by the CF card to be lost.

Microdrive

and magnetism, may cause data loss and might damage the Microdrive main component. Therefore, careful handling is required and caution is required especially during the writing, and reading-out of data.

■

(trademark of IBM Corp.) is a hard disk. Shock, vibration, static electricity,

Do not leave the CF card or Microdrive in direct sunlight or near a heating device.

Avoid storing CF cards and Microdrives in environments of high temperature and

humidity or where static electricity or electromagnetic fields may be generated

For proper usage of the CF card and Microdrive, please refer to their instruction

manuals.

HANDLING PRECAUTIONS

NOTES ON THE TFT COLOR LCD MONITOR COVER

A cover is provided to protect the TFT Color LCD Monitor of the SD9 from dirt and scratches. Before operating your camera or taking pictures, please remove the TFT Color LCD Monitor cover.

Even if the TFT Color LCD Monitor cover is attached to the camera, the following operations are still possible.

1． Normal photography 2．Deleting the last image（P. 6 6



）

TO REMOVE THE TFT COLOR LCD MONITOR COVER

Pull up the projecting lip at the lower edge of the cover, unclip and remove it.

TO ATTACH THE TFT COLOR LCD MONITOR COVER

Inset the upper tabs of the LCD monitor cover into the two holes in along the upper part of the LCD monitor. Push the lower part in until it clicks.

DESCRIPTION OF THE PARTS

1. DUST PROTECTOR

2. LENS MOUNT

3. LENS RELEASE BUTTON

4. BATTERY COVER

POWER PACK CONNECTION COVER

6. TRIPOD SOCKET

DEPTH-OF-FIELD PREVIEW BUTTON

8. REMOTE CONTROL SENSOR

9. CONNECTOR COVER

10. BATTERY LATCH

11. D-DIAL（DRIVE DIAL

12. METERING MODE BUTTON

13. FUNCTION BUTTON

14. AF MODE BUTTON

15. CAMERA STRAP EYELET

16. RESOLUTION BUTTON

17. ISO BUTTON

18. EYEPIECE CUP

19. DIOPTER ADJUSTER

20. HOT SHOE

21. S-DIAL（SHUTTER DIAL

）

22. C-DIAL（COMMAND DIAL

23. SHUTTER BUTTON

24. TOP LCD PANEL

25. RELEASE SOCKET

26. CF CARD COVER

27.

EXPOSURE COMPENSATION BUTTON

28. AE LOCK BUTTON

29. MODE SELECTOR

30. MAIN MENU BUTTON

31. VIEW BUTTON

32. INFORMATION BUTTON

33. MODIFY MENU BUTTON

34. DELETE BUTTON

35. COLOR LCD MONITOR

36. CF CARD BUSY LIGHT

37.＋/− CONTROLLER

38. COVER RELEASE LEVER

39. 4-WAY CONTROLLER

40. CANCEL BUTTON

41. OK BUTTON

）

TOP LCD PANEL

SOUND SETTING

SHUTTER SPEED

COUNTER

SENSITIVITY

／

AUTO BRACKETING

SENSITIVITY SETTING

EXPOSURE METER

RESOLUTION

VIEWFINDER

APERTURE VALUE

METERING MODE

REMOTE CONTROL

AF MODE

BATTERY INDICATORS

AUTO WHITE

BALANCE

CENTER AREA METERING

FLASH INDICATOR

FOCUS INDICATOR

SHUTTER SPEED

AUTO FOCUS FRAME

EXPOSURE METER

AUTO BRACKETING

APERTURE VALUE

AE LOCK INDICATOR

CONTROL DIALS

D-DIAL

AUTO BRACKETING

MIRROR LOCK-UP

SELF-TIMER (2s)

SELF-TIMER (10s) CONTINUOUS

HOOTINGS

SINGLE FRAME SHOOTING

POWER OFF

S-DIAL / MODE SELECTOR㻃

DRIVE AREA

MANUAL EXPOSURE

SETTING

SHUTTER SPEED

PRIORITY AE

APERTURE

PRIORITY AE

PROGRAM AE

BASIC OPERATION AND QUICK REFERENCE

The SD9 camera has many advanced features. This section, describes basic camera operation. You can find more details in following sections.

Load the batteries (P.19)

Be sure the batteries are oriented correctly. Incorrect positioning of the poles may damage the camera.

The AC adapter and AC cable can be used with a household power supply. (P. 2 2 )

Mount the lens (P.23)

Align the red mark on the camera’s lens mount with the red dot on the lens. Insert the lens into the mount of the camera, and rotate the lens clockwise until it clicks into the locked position.

Remove the LCD monitor cover (P.10)

BASIC OPERATION AND QUICK REFERENCE

Set the language (P.25)

Set the date and time (P.26)

Loading the Compact-Flash Card (P.27)

Slide the cover release button and open the CF card cover. Position the CF card label facing toward you as shown in the illustration and push the CF card gently all the way into the slot. (*The eject button pops out) Close the CF card cover until it clicks shut.

Turn the “D”-dial to the

□

frame shooting) position.（P. 4 6

(single

）

Set the AF/MF switch on the lens to the AF position. (P.43)

BASIC OPERATION AND QUICK REFERENCE

Select the exposure mode

Set the “Mode”-Selector toP “Program AE” position

Focus

Compose the subject on the Focusing Screen in the viewfinder, and then press the shutter button “Half-way” to activate exposure metering and autofocus.

（

P. 4 3

）

（

P. 3 7

）

Take a picture

Press the shutter button “All-the way-down” to take a picture

Review the image.（P. 6 3

The image is displayed for 2 seconds on the LCD monitor.

）

This section describes necessary preparations before using the camera.

ATTACHING THE CARRY STRAP

Undo the strap end.

Thread the Finder Cap onto the strap.

Attach the carry strap as shown.

HOW TO USE THE FINDER CAP

When using the self-timer or remote control, cover the viewfinder eyepiece with the Finder Cap, to prevent stray light from entering the camera.

Remove the eyecup from the viewfinder.

Attach the Finder Cap onto the viewfinder.

LOADING THE BATTERIES

The SD9 uses two sets of batteries. Make sure that both sets of batteries are in place before using the camera.

LOADING THE LITHIUM BATTERIES

Two CR123A or two DL123A ; for mechanical operation of the camera

（

Be sure that the “D”-dial is set to the OFF position. Then use a coin or similar

object to turn the battery cover lock to the OPEN position.

）

Insert the lithium batteries into the chamber according to the + and – marks as

indicated.

Close the battery cover and turn the battery-cover lock to the CLOSE position.

INSERTING AND REMOVING THE 4 AA OR 2 LITHIUM CR-V3 BATTERIES

Two Lithium CR-V3 Battery or 4pcs”AA” type battery for the operation of

（

camera by color LCD monitor

）

TO INSERT THE BATTERIES

Be sure to set the “D” –Dial to the OFF

position. Turn the battery latch in the direction of the arrow to unlock and then pull out the battery case.

LOADING THE BATTERIES

AA Type

CR-V3

Insert the batteries as indicated on the battery compartment.

Insert the battery case into the camera; turn the battery latch to the opposite

position to lock.

n AA Type Batteries that can be used with SD9 Camera; Alkaline Dry Cell Batteries,

Ni-Mh “Nickel-Metal Hydride”, Nickel Zinc Primary Batteries.

n This camera cannot be used for battery charging. Use only the recommended

chargers of the battery makers, when you use Ni-Mh “Nickel-Metal Hydride” Batteries.

WARNING!!

· Always use same battery type and do not mix battery types. Avoid using

following battery combinations.

CR-3V and “AA” type battery combination.

①

Alkaline Dry Cell Battery and Ni-Mh, and other battery type combinations.

②

Using the same type but different brands.

③

Do not mix the old batteries with new ones, replace them at the same time.

④

· While CF Card busy light is on, please do not remove the batteries. Doing so can

result data loss. Moreover, Camera, CF card and Microdrive may be damaged.

TO REMOVE THE BATTERIES

When you remove the batteries from the battery case, please remove, as shown in the illustration. Pulling up the lever, facilities removal.

CHECKING THE BATTERY STATUS

When “D”-dial is set to drive area (p.14), the battery icon, which shows the capacity of the battery, is shown on the top LCD panel. The remaining battery power of CR123A (DL123A) and CR-V3 (or AA type) is displayed separately. Explanations of the symbols are given as follows.

CR-V3

AA Type Batteries

CR123A

DL123A

Battery Status

The battery strength is sufficient.

The battery level is low and the battery will need to be changed soon.

The power of the battery is insufficient, replace the battery immediately.

AUTO POWER OFF

To conserve the batteries, the camera has several power-saving features. After six seconds of non-operation certain camera systems automatically shut down: the shutter speed and aperture value disappear from the top LCD panel, the display in the viewfinder turns off, and some buttons no longer work (however, it is still be possible to review images or change menu settings on the color LCD monitor). Press the shutter button halfway to reactivate the camera. To prevent the shutter from being accidentally released, turn the D-dial to the OFF position whenever the camera is not in use.

Additionally, if the color LCD monitor is not used for a set amount of time, the camera goes into a low-power mode. The VIEW and MENU buttons are not active when the camera is in low-power mode. This feature prevents the color LCD from being accidentally turned on and draining the batteries while the camera is not being used. To reactivate the VIEW and MENU buttons, press the shutter button halfway. For more information see p.107.

USING A HOME POWER SUPPLY

You can power the camera from a wall outlet using the provided AC Adapter (SAC-1). When using your camera for an extended period of time or reviewing the pictures or connecting the camera to a computer, we recommend that you operate the camera from a household power outlet.

Plug and wall socket types may vary depending on country.

Connnect AC cable to the AC adapter.

①

Connect the plug of the AC adapter to the camera.②,

③

Insert the plug of the AC cable into a wall socket.

When you finish using, please disconnect the plug from the wall socket.

When using the SD9 with AC power supply, the battery icon shows the symbol full, regardless the power level of the batteries. If you start to operate the camera with batteries the display will change and will show the remaining power level of the batteries.

WARNING!!

④

· While CF card busy light is on, please do not change the power supply by any

means. Doing so can result data lost. Moreover, Camera, CF card and a microdrive may be damaged.

MOUNTING AND REMOVING THE LENS

The SD9 camera use SA type inside and outside bayonet mount (SA-IB and SA-OB) respectively.

Make sure to turn the “D”-Dial to OFF position (Power Off position)

Remove the Camera’s body cap and the lens’ rear cap.

Align the red mark on the Camera’s mount with red dot on the lens. Insert the lens into the mount of the camera, and rotate the lens clockwise until it clicks into the locked position.

CAUTION !!

· To ensure proper connection, please do not press the lens lock button while

mounting the lens.

· The SD9 camera contains an Dust Protector, located just behind the camera

mount. Dust Protector is a very delicate device, be careful not to cause any scratch on its surface. Touching or pushing it with your fingers can easily damage it. If there is dirt and dust on it, please refer to Maintenance part of your manual (P.101).



MOUNTING AND REMOVING THE LENS



 



To remove the lens, press the lens lock button and turn the lens counter–clockwise until it stops. Gently remove the lens from the camera body.

 

   

CAUTION !!

· On the mount surface of the lens, there are a number of electric contacts. Please

keep them clean to ensure proper connection. To avoid damaging them, be sure to place the lens with its front end down when it is off the Camera.



SETTING THE LANGUAGE

Camera menus and messages appearing on the color LCD monitor can be displayed in either English, Japanese, German or French. You should receive the SD9 camera pre-set to English, however, if necessary, you can change the camera language yourself.

Make sure the camera is turned on.

Press the the camera to display the Camera Set-up Menu. (See P. 9 6 )

＜

Use the controller to select “Language”.

＜

MENU＞button on the back of



／

arrows on the 4-way

＞

Press the sub-menu.

＜

arrow or

＞



＜



to open

＞

Use the controller to select desired language. Language options are English, Japanese,

German and French.

＜

／

arrows on the 4-way

＞

Press the setting or the

close sub-menu without making any changes.

＜

arrow or

＞



＜＞

＜

arrow or



＜

to apply the

＞

CANCEL



＞

SETTING THE TIME AND DATE

The SD9 camera records the date and time when each image is captured and stores this information with the image. To ensure that the correct information is recorded with each image, set the camera’s internal clock to the correct date and time before using the camera for the first time or after extended periods of disuse.

Make sure the camera is turned on.

Press the the camera to display the Camera Set-up Menu.

(See P. 96 )

＜ 

Use the controller to select “Date/Time…”.

＜／＞

Press the open the date/time set-up page.

＜

＞



＞

arrows on the 4-way

arrow or the

button on the back of

＜

OK＞ to



Use the controller to select a setting and use the arrows to cycle through the setting options.

＜／＞

arrows on the 4-way

／

＜



TIP

Once all changes have been made, press

menu.

· Press the date/time set-up page without saving any of the changes.

to save the settings and return to the main

＞

CANCEL＞ at any time to close

＜



＜

· The date can be displayed in one of three formats: mm/dd/yyyy (month/day/year),

dd/mm/yyyy (day/month/year), or yyyy/mm/day (year/month/day).

· The camera’s internal clock is powered by a capacitor that receives its charge from

both sets of batteries. If the camera is without batteries for an extended period of time, such as after prolonged storage, the internal clock will need to be reset.

· The date and time on the SD9 camera can be synchronized to your computer by

using the “Set Date and Time…” option in the Camera menu of SIGMA Photo Pro software (See SIGMA Photo Pro Manual provided on the CD-ROM).

＞



INSERTING AND REMOVING THE CF CARD

The SD9 camera uses CompactFlash™ (CF) cards to store images. The camera supports both Type I and Type II CF cards, including Microdrives.

TO INSERT THE CF CARD

Set the “D”-Dial to the OFF position.

Slide the cover release lever downward until the

CF card cover pops open.

Position the CF card label facing toward you and

insert the CF card smoothly in the direction of

the arrow as far as it can go into the slot.

· The eject button will pop out slightly.

Close the CF card cover until it clicks shut.

TIP

It may be necessary to format the CF card before use. (See P.29)·

Approximate number of images (256MB Card)

256MB

HI 2268 x 1512 pixels 32

MED 1512 x 1008 pixels 54

LOW 1134 x 756 pixels 102

These figures are based on estimated file size created under standard shooting

◆

conditions. Actual totals may vary depending on the subject, shooting conditions, shooting mode, CF Card brand and model.

INSERTING AND REMOVING THE CF CARD

TO REMOVE THE CF CARD

Set the “D”-Dial to the OFF position.

· Make sure that the CF card busy light is off

before continuing.

Slide the cover release lever downward until the

CF card cover pops open.

Press the eject button to eject the CF card.

Remove the CF card and close cover until it

clicks shut.

CAUTION !!

· Never open the CF card cover or remove the CF card while the camera is on.

· Never do any of the following while the CF Card busy light is on. (The CF card

busy light indicates when the camera is writing, reading, or erasing images from

the CF card. Doing any of the following may cause image data to be lost or corrupted.)

Do not open the CF card cover or remove the CF card.

①

Do not open the battery cover or remove the batteries.

②

Do not apply shocks or vibrations to the camera.

③

TIP

· If the “D”-Dial is set to the OFF position while the CF Card busy light is on, the

camera will remain on until it is done processing images or accessing the CF card.

FORMATTING THE CF CARD

New CF cards must be formatted before use. Additionally, cards with corrupt or incompatible file systems may need to be formatted before use.

TO FORMAT THE CF CARD

Make sure the camera is turned on.

Press the

the camera to display the Camera Set-up Menu.

(See P. 9 6 )

＜ 

button on the back of

＞

Use

＜

／

to select “Format CF Card…”.

arrows on the 4-way controller

＞

Press

confirmation dialog.

＜

arrow or

＞



＜



to open the

＞

Press

CANCEL

without formatting the card.

＜

to format the CF card or

＞



to close the confirmation dialog

＞

＜



CAUTION !!

· Formatting erases all card contents, including locked SD9 images and all

non-SD9 files. Review card contents carefully before formatting. The card usage graphic on the formatting page will indicate how much space on the CF card is being taken up by SD9 images and other files.

TIP

· Cards formatted in other cameras or devices may not operate correctly in the

SD9 camera or may have reduced capacity. To store the maximum number of SD9 images, format the CF card in the SD9 camera before use.

FILE NUMBERING SYSTEM

The images you take are automatically assigned file numbers from 00001 to

99999. When images are being reviewed, the file number of each image is displayed in the left corner of the Info Strip (see incorporated into the filename of the image. The filename consists of “IMG” followed by the five-digit file number and extension. For example: image number 00023 will be stored in the file IMG00023.X3F. All SD9 image files will be stored in the /IMAGES folder on the CF card.

File numbering can be continuous, or can be reset every time an empty card is detected. Use the Camera Set-up Menu to set the file numbering system.

FILE NUMBERING OPTIONS

OPTION DESCRIPTION

P. 6 8 ). The file number is also

Continuous

(Default)

Auto Reset

Numbering is continuous. The first file number assigned on an empty card will be one higher than the last assigned number. (If the inserted card contains SD9 images with file numbers greater than the last assigned number, file numbering will continue with one higher than the highest file number on the card.)

Each time an empty CF card is inserted, or all images on the current card are deleted, the file number will reset to its default value of 00001. (If the inserted card already contains SD9 images, the file number will not be reset).

TO SET FILE NUMBERING SYSTEM

Make sure the camera is turned on.

Press the the camera to display the Camera Set-up Menu.

(See P. 9 6 )

＜ 

button on the back of

＞

Use

＜

／

to select “File Numbering”.

arrows on the 4-way controller

＞

FILE NUMBERING SYSTEM

TIP

Press

sub-menu.

＜

＞



arrow or

＜



to open

＞

Use

＜／＞

to select numbering system.

arrows on the 4-way controller

Press

setting or

close sub-menu without making any changes.

＜

arrow or

＞

 ＜＞

＜

arrow or



＜



to apply the

＞

CANCEL



＞

· Using continuous file numbering helps prevent files from being accidentally

overwritten when they are transferred to a computer.

· In continuous file numbering, the file number assigned to an image may be

different from its frame number. For example, the frame number of the first image on an empty card will always be 1, but it’s file number can be anything from 00001 to 99999.

FRAME NUMBER COUNTER

This display shows the number of images that can be recorded on the CF-Card.

l The number of images that can be recorded on

the CF card is depending on the settings you choose.

For example, in the illustration on the left, 32 pictures can be stored on the CF card. (The number shown in the counter is only an estimate. The actual number of images, which can be recorded, will depend on the subject, shooting conditions and shooting mode.)

l Even if it is possible to record more than 999

images on the CF –Card, the maximum number

of frames that can be displayed by the counter is

999. See the camera Info Page (P. 9 9 ) for more

detailed information.

l If there is no more space available to store

images on CF-Card then the frame number will

be “0” and Shutter Speed will show “FuL”. Both

“0” and “FuL” will blink on the display.

l You can also see the “FuL” indication from the

viewfinder.

l If CF-Card is not inserted to camera then

appears on the LCD panel.



- - -



FRAME NUMBER COUNTER

l When the camera is occupied with image

processing, the frame number value blinks on the top LCD panel. A cursor will be in motion on the frame number value to show the progress.

l The shutter will not release when the camera is

busy with processing. It is necessary to await the end of the processing before taking a picture.

DIOPTER ADJUSTMENT

Adjust the viewfinder diopter so that you can see clearly through the viewfinder.

While looking through the viewfinder, slide the

Diopter Adjuster to the left or to the right, until the

image appears sharp on the focus screen.

TIP

· The camera’s adjustable diopter range is –3 to +1dpt.



· If you still cannot see the viewfinder clearly, we suggest that you purchase a

viewfinder diopter adjustment eyepiece and use it together with the built-in Diopter Adjuster.



SPORTS FINDER

Sports Finder can reveal the objects and activity surrounding the photographic subject. 4slits in the viewfinder help to determine the vertical and horizontal composition.

1.2.Active picture area.

The area that can be seen outside the image

sensor coverage area.

CAUTION!!

· Do not look at the sun with the lens of your camera; otherwise you can lose your

eyesight. Pointing your camera toward the sun may damage the sports finder.

HOLDING THE CAMERA

To avoid the camera shake, which can result in blurriness of your photograph, hold the camera steady.

Firmly grasp the camera’s grip with your right hand.

Ɣ Ɣ Hold the camera steady with your left hand and support the bottom of the camera

and the lens.

Ɣ Place your eye as close to the viewfinder as possible. Ɣ Keep your elbow close to your body and take a half step forward for a more stable

stance.

SHUTTER BUTTON

The shutter button of the SD9 cameras has two positions. When you press the shutter button “Halfway Down”, the camera’s Autofocus and Exposure Systems activate. Then you press the button “All-the-way Down”, and the shutter will release to take a picture.

TIP

· Before you start to take pictures, we recommend that you operate the camera,

to become familiar with the “Halfway Down” position and other operations of the camera.

SETTING THE ELECTRONIC SOUND

This camera will inform you with an Electronic Sound “Pi-Pi”, when the camera confirms focus. It is possible to cancel this electronic sound, if you desire.

Press the “FUNC” button 2 times (Press and

hold the button at 2 indicate

mark.

Press the and hold the “FUNC” button and turn the “C”-dial, to select “on” for choosing “beep” sound. If you want to cancel this electronic sound then choose “ - - ”.

time). The LCD panel will

TIP

· When the Mark is indicated on the LCD panel, Electronic Sound is on. If

there is no mark indicated on the LCD panel, the Electronic Sound is off.

· When you set the self-timer mode or use remote control, the electronic sound

cannot be erased.



SELECTING THE EXPOSURE MODE

The features and the operation methods of four different exposure modes of the camera are explained below.

To make picture taking easier, the camera will automatically select an appropriate combination of shutter speed and aperture value, according to brightness of the subject.

PROGRAM AE

Set the “D”-Dial to the “Drive Area” (P. 1 4).

Set the “Mode”-Selector to theP position.

Press the shutter button “Half-way” to verify the focus and exposure display in the viewfinder.

If the subject is too bright or dark, both shutter speed and aperture value indicators will blink and will show the limit values. If you take a picture with these settings, the picture will be overexposed or underexposed.

PROGRAM AE

When this mark blinks, shutter speed may

㻃

become slow and picture can be blurred. In this

case, please perform flash photography (P. 61 ) or

to prevent blurring, please use a tripod etc.

PROGRAM SHIFT

You can change the combination of shutter speed and aperture value, which were selected by the camera, if you desire. If you turn the “C”-Dial, the combination of the shutter speed and aperture value will change within the range of combinations, which give the equivalent exposure.

䕋

It will be canceled automatically, after taking the picture.



A program shift cannot be performed while using the flash.

䕋



CAUTION!!

· The range of available slow shutter speeds varies depending on the ISO setting

(P.52). At ISO 100, shutters speeds up to 15 sec. can be used. At ISO 200 and 400, shutter speeds up to 1 sec. can be used.

After you set the aperture value you desire, the camera will determine the appropriate shutter speed. If you select smaller apertures, depth of field will be greater. The larger apertures tend to blur the background, as depth of field will be shallower.

APERTURE PRIORITY AE

Set the “D”-Dial to “Drive–Area” (P. 1 4 ).

Set the “Mode” –Selector to A position

Press the shutter button “Half-Way” to verify the focus, and select the desired aperture value by turning the “C” –Dial.

Verify the setting in the viewfinder.

If the appropriate shutter speed is out of the range of suitable combinations due to the subject being too bright or too dark, the shutter speed indicator will blink. If the subject is too bright, set the aperture value to a smaller one (larger F-number), or if the subject is too dark, set the aperture value to a larger one (smaller F-number) until the indicator stops blinking.

 

CAUTION!!

· The range of available slow shutter speeds varies depending on the ISO setting

(P.52). At ISO 100, shutters speeds up to 15 sec. can be used. At ISO 200 and 400, shutter speeds up to 1 sec. can be used.

When you set the desired shutter speed, the camera will select the appropriate aperture value for correct exposure. You can achieve stop action effects by selecting a fast shutter speed, or express the feeling of motion speed for a moving subject by selecting a slow shutter speed.

SHUTTER SPEED PRIORITY AE

Set the “D”-Dial to the “Drive –Area” (P. 1 4 ).

Set the “Mode”-Selector to the “S” position.

Press the shutter button “Half-Way” to verify the focus, and select the desired Shutter Speed value by turning the “S” –Dial.

Verify the setting in the viewfinder.

If the appropriate aperture value is beyond the range of the lens in use, due to the subject being too bright or too dark, the aperture value indicator will blink. If the subject is too bright, set the shutter speed to a faster one, or if the subject is too dark, set the shutter speed to a slower one, until the indicator stops blinking.

CAUTION !!

· The range of available slow shutter speeds varies depending on the ISO setting

(P.52). At ISO 100, shutters speeds up to 15 sec. can be used. At ISO 200 and 400, shutter speeds up to 1 sec. can be used. Bulb setting is only available at ISO 100

Set both the shutter speed and aperture value according to the indication of the exposure meter. You can change the exposure, as you desire.

MANUAL EXPOSURE

Set the “D”-Dial to the “Drive-Area” (P. 1 4 ).

Set the “Mode”-Selector to the “M” position.

Press the shutter button “Half-Way” to verify the

focus, and select the desired aperture value by

turning the “C” –Dial and Shutter Speed by

turning the “S” –Dial.

Verify the settings in the viewfinder.

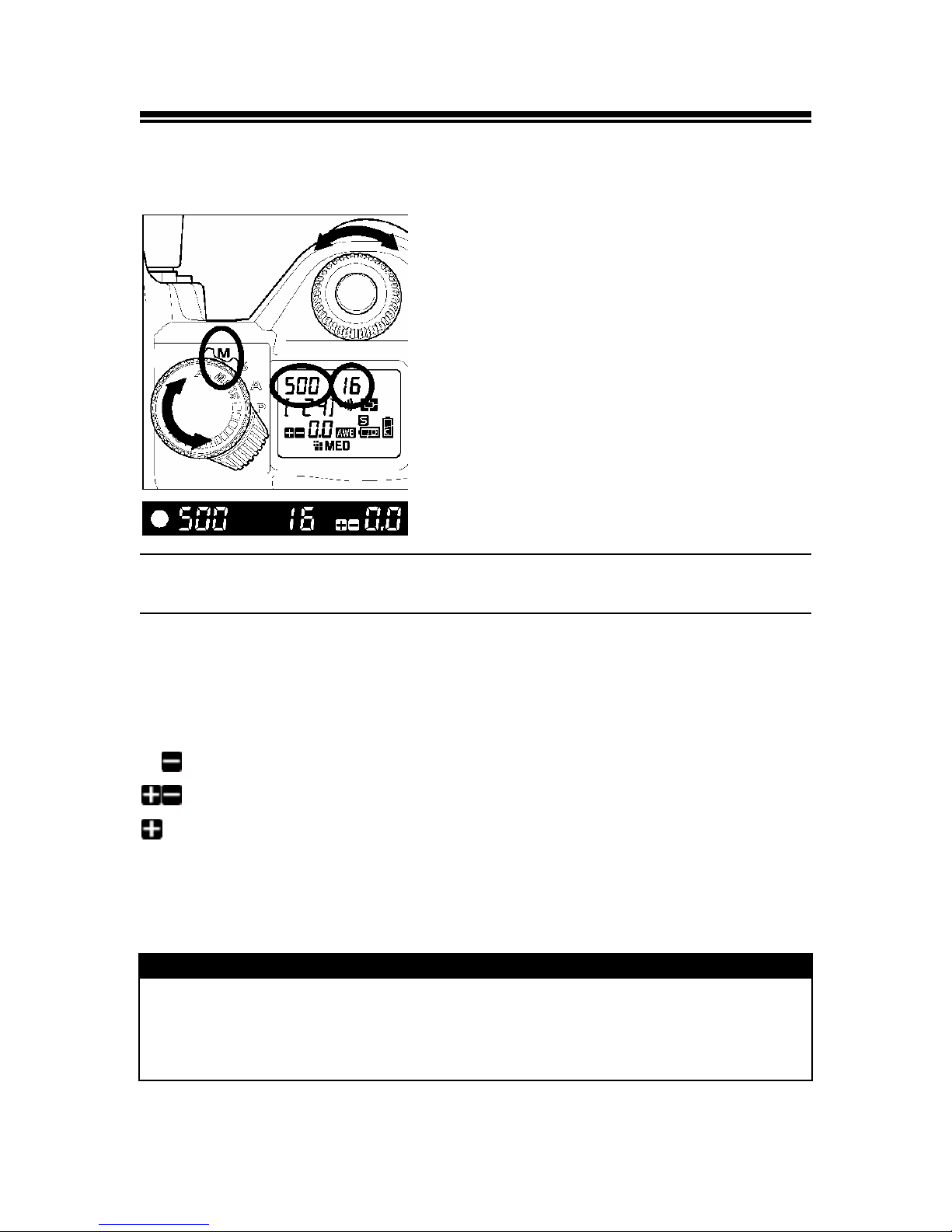

If you want to determine the exposure value using the Camera’s Exposure Meter

Rotate the “Mode” Selector to theM position. When you press the shutter button “Half-way”, the shutter speed and aperture value are displayed in the viewfinder, and the display indicates the difference between selected exposure and the correct exposure. Such as

1.5 1.5 Step Below (under exposure)

0.0

3.0



The Exposure Meter can display the exposure error up to ± 3 stops from correct exposure in 0.5 steps. If the exposure error is more than 3stops, the Exposure Meter will blink.

CAUTION !!

l The range of available slow shutter speeds varies depending on the ISO setting

(P.52). At ISO 100, shutters speeds up to 15 sec. can be used. At ISO 200 and 400, shutter speeds up to 1 sec. can be used. Bulb setting is only available at ISO 100.

Correct Exposure



3.0 Over (over exposure)



BULB SETTING

When long time exposures are required (for shooting night scenes or very dark subjects) the use of the “Bulb” setting is recommended. Please use tripod when taking pictures with this setting. Bulb photography can be performed only when ISO sensitivity is set to ISO100. (Please refer to P.52 about setting ISO sensitivity.)

Set the dial to the “D”-Dial on the “Drive Area”

(P. 1 4 ).

Set the “Mode”-Selector to the “M” position.

Turn the “S” –Dial until “bulb is displayed on the

top LCD panel. And select the aperture value by

“C” –Dial.

Depress the shutter button fully to take the

picture.

CAUTION !!

· Bulb photography is possible only when ISO sensitivity is set to ISO100. Bulb

photography cannot be performed at ISO 200 and ISO 400.

· It is not possible to use Bulb photography for more than 15 seconds. The shutter

will automatically close about 15 seconds after the shutter button was pressed.

· Self-timer function and the bulb exposure function cannot operate together. If the

“D”-dial set to self-timer function in “bulb” exposure mode, the shutter defaults to 1/180 second for SD9.

    

Adjustment of autofocus and manual focus operation are explained below.

HOW TO USE AUTOFOCUS

It is possible to use Autofocus function only with AF Lenses. Your camera is equipped with highly precise AF System and incorporates two different autofocus modes.(In the case of Mirror lenses and some specialized lenses, the camera can be use only in Manual Focus mode).

SETTING THE AUTOFOCUS MODE

Set the focus mode switch of the lens, to AF.

Press the shutter button “Half-way” and check the sharpness of the subject on the focusing screen.

This camera will inform you with an Electronic Sound, to confirm correct focus in Single AF Mode.

Although your camera is equipped with highly precise AF system, in some cases autofocus cannot set correctly.

Low-contrast subjects, such as blue sky or blank wall, etc. or when the color of the

䕋



subject is same as background.

䕋

The subject is located in a very low light environment



䕋

Overlapping near and far objects, such as an animal behind a fence



䕋

A subject, which moves with a high speed



䕋

Subjects, which have repeated patterns such as building windows.



HOW TO USE AUTOFOCUS

In such cases, please use one of the following focusing methods.

1. Use the Focus Lock function to focus on another subject, which has a similar

focusing distance as your subject.

2. Set the lens to MF mode and focus manually.

SELECTING THE AUTOFOCUS MODE

Press the AF mode button and turn the “C”-dial to select either Mode) or

(Continuous Mode) icon on the LCD panel.

SINGLE AF MODE

Depress and hold the shutter button “Half-way”

to activate the autofocus function. In order to

avoid out of focus exposures, the shutter cannot

be released until the subject is in focus. This is

called “focus priority”. Focus indicator appears

in the viewfinder, when the camera focuses on

the subject and the focus is locked. Press the

shutter button the rest of the way to take the

picture. If the camera cannot focus on the

subject properly, remove your finger from the

shutter button and press again.

Focus indicator will blink, if the subject is out of focus.

■

Use your camera in this mode for regular photography.

■

(Single AF

CONTINUOUS AF MODE



Press the shutter button “Half-way” to activate the autofocus function. If the subject is in motion, the camera will focus continuously with motion prediction function. You can release the shutter any time, even if the subject is not precisely in focus. However, depending on the subject situation, (i.e. speed and direction of moving subject, the lens and shutter speed etc.) there is a possibility that the picture may be out of focus.

Focus indicator will not appear.

■

Autofocus lock does not work.

■

Depending on some unusual conditions of the subject, sometimes autofocusing is

■

not possible.

FOCUS LOCK

If you want to take the picture of a subject, which is out of the focus detecting area, use focus lock function. This function can be used only in mode)

Compose the desired focusing subject in the center of viewfinder and then press the shutter button “Half-way”.

Keep the shutter button depressed “Half-way” while you compose the picture as desired. Then press the shutter button the rest of the way to take picture.

(single AF

MANUAL FOCUS

In situations, where autofocus or focus lock are not effective, you can focus manually.

Set the focus mode switch, on the lens to the M position (AF mode mark will disappear from the LCD panel).

While looking through the viewfinder, turn the focusing ring on the lens until you get a clear sharp image.

When you use a lens, which has maximum aperture of F5.6 or faster, the focus

䕋



indicator in the viewfinder will appear, when correct focus is attained.

OPERATION OF THE DRIVE MODE

Operation of the self-timer, and other functions of the camera are explained by the following:

DRIVE-AREA

Some of the important operations and settings of the camera can be activated by the drive area of the “D”-dial. Such as single frame shooting, continuous shooting, self-timer, and mirror lock-up.

MIRROR LOCK-UP

SELF-TIMER (2s)

SELF-TIMER (10s)

CONTINUOUS

SHOOTING

SINGLE FRAME

SHOOTING

DRIVEAREA

SINGLE FRAME SHOOTING

When you press the shutter button in the single frame-shooting mode, only one frame will be exposed. Then the camera will be ready for the next shot by advancing one frame. Single frame shooting mode is recommended for ordinary photography.

CONTINUOUS SHOOTING

In this mode, when you keep the shutter button fully depressed, the camera will take pictures continuously. At the time of continuous shooting the number of frames per sec. is given below.

Burst Rate 1.9fps for 6frames 2.4fps for 14 frames 2.5fps for 30frames

MED

LOW

CAUTION !!

· When AF mode is set to AF (Single AF mode) mode and the focus indicator

in the viewfinder is on, focus distance and exposure value are fixed at the setting for the first picture. It is possible that focus and exposure could be incorrect, if subject moves or the brightness changes. When AF mode is set to AF mode (Continuous AF mode), then camera will focus on the subject continuously. However, depending on the subject situation, since the shutter release has the first priority there is a possibility that the picture may be out of focus.

· When you use the continuous shooting mode with external flash, the camera

may be slow, because the camera will not take pictures, while the flash is re-charging.

· Images taken in rapid succession, such as during Continuous shooting, are

initially stored in the camera's internal memory buffer. This allows you to continue shooting without having to wait for images to be recorded to the CF card. The internal memory buffer can store up to 6 images (at HI resolution). Once the memory buffer is full, the shutter will be disabled until some images have been transferred to the CF card.

SELF TIMER

When you want to include yourself in the picture or avoid camera shake, please use the self-timer.

When you set the self-timer to 10s, then the shutter will be released 10seconds after you fully press the shutter button. When you set the self-timer to 2s, then the shutter will be released 2seconds after you fully press the shutter button.

After you decide the composition of your picture, press the shutter button ”Half-way” and adjust the focusing. Then, when you press the shutter button the rest of the way, the display in the viewfinder will disappear and the self –timer will be activated. During the self-timer operation you will hear an electronic beeping sound. The beeping sound will be much faster during the last two seconds, before the shutter is released. The LCD panel will also countdown the remaining time.

SELF TIMER

You will hear the electronic sound during “Self-timer” operation, even if you set the

■

electronic sound option to OFF.

If you want to cancel the “Self-timer” operation, turn the “D”-dial to another position.

■

When you start the “Self-timer” and do not look through the viewfinder, attach the

■

finder cap to the viewfinder eyepiece to prevent light entering.

MIRROR LOCK-UP

If you want to reduce the camera’s vibration such as during Macro Photography or when using long telephoto lenses, use the Mirror Lock-up function.

Set the “D”-Dial to the “UP” position. When you press the shutter button “Half-way” the camera will set the focus and exposure. As you press the shutter button further, the mirror will move up and the exposure value will be memorized. Remove your finger from the shutter button and lightly press again to release the shutter.

Mirror lock-up function can be cancelled manually by turning the “D”-dial away from the “up” position.

CAUTION !!

· Mirror lock up will cancel automatically, and mirror will return to its original

position, after 30 seconds. You can reactivate the mirror lock-up function by pressing the shutter button “Half-way” again.

WARNING !!

· If you are using this function in a strong light source, there is a possibility that

light entering through the lens, might degrade the image. Please refrain from using the mirror lock-up function in such an environment.

TIP

· It is possible to use Mirror Lock-up with remote control (Sold Separetely). Please

refer to page 58,59.

This section explains the application of the more advanced functions of your camera, when composing the expressions of your picture.

SETTING THE WHITE BALANCE䟺WB

䟻

The color of light reflected by an object can vary depending on the color of the light source illuminating it. For example, a neutral colored object will reflect reddish light under incandescent lighting, and greenish light under fluorescent lighting. The human brain is able to compensate for differences in the color of a light source, allowing us to see white objects as white independent of the lighting condition. Film cameras rely on special color-correcting filters and film types to adjust for these differences in lighting. Digital cameras, however, are able to use software to mimic the adjustments made by the brain, so that colors that appear white to the human eye also appear white in your photographs.

In order for the digital camera to do the necessary corrections, it needs to know the lighting type you are photographing under. The "White Balance" setting can be used to specify a lighting type from a list of pre-defined lighting conditions. The default setting for White Balance is Auto. In this setting the camera will automatically adjust for the lighting conditions. When the camera is set to Auto White Balance, ” the top LCD panel. If you are uncertain of the lighting conditions, or you do not know how to set the white balance correctly, it is best to leave the White Balance set to Auto.

” will be displayed in

WHITE BALANCE OPTIONS

SETTING THE WHITE BALANCE

OPTION

Auto (Default)

Sunlight

Shade

Overcast

Incandescent

Fluorescent

Flash

Custom

COLOR TEMP.



Approx. 5400 K

Approx. 8000 K

Approx. 6000 K

Approx. 3150 K

Approx. 4100 K

Approx. 5850 K



DESCRIPTION

Select this setting to allow the camera to automatically determine the appropriate white balance adjustments.

Select this setting when taking pictures in full sunlight.

Select this setting when taking pictures in the shade under sunny skies.

Select this setting when taking pictures under cloudy, overcast skies.

Select this setting when taking pictures indoors under incandescent (tungsten) lighting.

Select this setting when taking pictures indoors under fluorescent lighting.

Select this setting when taking pictures with the Sigma EF-500 DG flash.

Select this setting when using a custom white balance. Use the "Set Custom WB" menu option to create a custom white balance setting. The "Custom" option will not be available if no custom white balance has been set.

Make sure the camera is turned on.

Press the the camera to display the Camera Set-up Menu.

(See P. 9 6 )

＜

button on the back of

＞

Use

＜／＞

to select “White Balance”.

arrows on the 4-way controller

Press

＜

sub-menu.



＞



arrow or

＜



＞

to open

Use

＜／＞

to select desired white balance setting.

arrows on the 4-way controller

Press

＜

setting or close sub-menu without making any changes.



arrow or

＞



＜



arrow or



＞

＜



to apply the

＞

CANCEL



＞

SETTING THE WHITE BALANCE

SETTING A CUSTOM WHITE BALANCE

For more precise control of the white balance setting or when photographing under unusual lighting conditions, the "Set Custom WB" option can be used to capture a

ample of neutral object in a scene to be used for color correction.s

Make sure that "D"-dial is set to Single Frame Shooting

＜＞

Press the the camera to display the Camera Set-up Menu.

(See P. 9 6 )

＜ 

button on the back of

＞

Use

＜／＞

to select “Set Custom WB”.

arrows on the 4-way controller

Press custom white balance dialog screen.

＜

arrow or

＞



＜



to open the

＞

Under the lighting conditions that will be used for the final photograph, frame a white or neutral color object, such as a sheet of white paper or a white wall, so that it fills the Center Area Metering circle inside the viewfinder.

Press capture a custom white balance setting.

· If you press the shutter button instead, the

custom white balance dialog will be dismissed and a regular image will be captured and stored on the CF card.

＜



to release the shutter and

＞

If a valid white balance setting was captured, a message will appear indicating that the white balance image was captured successfully. If the capture was not successful, "Failed!" will be displayed on the color LCD monitor. Repeat steps setting or press dialog.

and6 to capture a valid white balance

CANCEL＞to dismiss the

＜



SETTING THE WHITE BALANCE

TIP

· When a custom white balance setting is successfully captured, "Custom" will

automatically become the selected item in the White Balance menu.

· It will not be possible to capture a custom white balance setting if the "D"-dial is

set to Continuous Shooting mode.

＜＞

, Self Timer

＜＞

, or Mirror Lock-up

＜＞

· It is recommended that an automatic exposure mode such as

used when capturing a custom white balance setting to ensure proper exposure.

P,A

, or S be

· It may be necessary to set the lens to manual focus (P.45) when capturing a

custom white balance setting since auto focus may not work properly when photographing low contrast subjects.

SETTING THE SENSITIVITY䟺ISO EQUIVALENCY

The photosensitivity of digital cameras is described in terms of “ISO equivalent” like silver-halide film cameras. (ISO sensitivity P.105)

To choose a sensitivity setting, turn the “C”-dial while depressing the “ISO Button”.

ISO sensitivity can be set to 100, 200, 400.

䟻

To check or confirm the ISO sensitivity, depress

＊

the ISO button. The ISO icon and current setting

of the sensitivity value will be displayed on the

top LCD panel.

NOTE

· The lower ISO photosensitivity (the smaller ISO number) generally gives better

results, however, it is hard to set higher shutter speed in dim light. The higher ISO number will give greater ISO photosensitivity, which is advantageous for taking picture in dim light conditions, but pictures would contain more noise and be less sharp. Thus it is necessary to choose the ISO sensitivity properly depending on the photographic subject.

SETTING THE RESOLUTION

(

)

(MB)

(

)

(

)

(

)

To set the image quality, please use the following procedure. Depress RES button and turn the “C”–Dial to set

he resolution.t

RESOLUTION AND FILE SIZE

Mode

MED

LOW

All pictures are recorded as RAW data and compressed

＊

using a lossless compression algorithm that does not degrade image quality. Reported file sizes are approximate. The actual file size will vary depending on the subject, shooting conditions, and shooting mode.

Resolution

Pixel

2268 x 1512

3.43Million

1512 x 1008

1.52Million

1134 x 756

0.85Million

SELECTING THE METERING MODE

File Size

The camera has three advanced metering modes. To select the metering mode, depress and hold the Metering Mode Button, then turn the “C”-dial to select the desired mode and display it on the LCD panel. Then, release the metering button. The selected metering mode is now set.

8 SEGMENT METERING

The camera measures the brightness of the

scene by independently measuring each

segment of the focusing screen and analyzing

the correct exposure for the main subject under

any lighting situation.

Even under strong back lighting or complex

lighting situations, the camera will give you the

orrect exposure.c

AVERAGE METERING

The camera will measure the average brightness

of the entire scene with additional emphasis on

the center area. It will determine the most

suitable exposure with respect to lighting

conditions.

CENTER AREA METERING

The camera will measure the brightness only inside of the circle as shown in the viewfinder. This mode is suitable when you wish to set exposure for a portion of the scene and ignore the influence of rest of the scene.

AE LOCK

The camera will fix and memorize the exposure value, while you press the “AE” Lock button. When you wish to lock the exposure of a subject off-center, AE lock is very useful. Use of this function with Center Area Metering Mode is recommended.

Center the subject inside the viewfinder, then

press the shutter button “Half-way”.

Keep shutter button “Half-way” depressed, and

then push the “AE” lock button. (While operating

the AE lock, the displays of the shutter speed

and aperture value in the viewfinder are locked

and “AEL” is visible). You can release the shutter

button.

Hold the AE lock button while you compose the

picture. Then press the shutter button to take the

picture.

When the subject is out of focus during AE lock operation, remove your finger

䕋



from shutter button and press the shutter button “Half-way” again, or remove your finger from the AE lock button and restart from the beginning.

EXPOSURE COMPENSATION

If you want to intentionally overexpose or underexpose the picture, use this function.

While pressing the Exposure Compensation

button, turn the “C”-dial to set the desired

compensation value. Then, release the Exposure

Compensation button.

The LCD panel will show “ 0.0” when you initially press the exposure

■

compensation button. The “ underexposure.

Exposure compensation can be set in 0.5EV increments from +3.0 to –3.0 stops.

■

For example, if you set +1.0 then the shutter speed will be one stop slower in

■

Aperture Priority mode. In Shutter Speed Priority mode, the aperture will be one-stop larger (smaller F-number). In the case of Program mode, the shutter speed will be 0.5 stop slower and the aperture will increase 0.5 stop.

” indicates overexposure, and “ ” indicates

CAUTION !!

· Once you set the Exposure Compensation, the camera will continuously hold this

mode, until the compensation amount is set to 0.0 value.

· Exposure compensation function cannot be used with Manual Operation mode.

AUTO BRACKETING

This function of the camera lets you take a sequence of pictures of the same subject at three different exposure levels; Appropriate Exposure, Under Exposure and Over Exposure. If it is difficult to determine the proper exposure, please use this function.

Set the “D”-dial to position.

Turn the “C”-dial to set the bracketing amount. (It

can be set in 0.5 EV step increments up to ±3

EV).

Set the “D”-dial to drive area (P. 1 4 ).

䕋

The camera will take three pictures in the following sequence; Appropriate



exposure, under exposure and over exposure.

䕋

For example: If you set the bracketing amount to 2.0, the indicator in the



viewfinder will show as follow.

P,A,S

First Frame Second Frame Third Frame

(* Measured value is the difference between the correct exposure value of the camera and your setting value).

The exposure bracketing can be used with 4 different modes.

■

Mode ; Both shutter speed and aperture value will be changed.

Mode ; Only shutter speed will be changed.

Mode ; Only aperture value will be changed.

Mode ; Only shutter speed will be changed.

mode

0.0

2.0

* Measured Value

-2.0 EV deviation from Measured Value +2.0 EV deviation from Measured Value

mode

WARNING !!

· Once you set the auto bracketing mode, the camera will continuously hold that

auto bracketing mode until you set the bracketing amount to “0.0”.

AUTO BRACKETING

For the first frame, “

䕋



For the second frame, “ blink quickly for the third frame. When you set the self-timer mode, the camera will automatically take three

䕋



consecutive pictures.

䕋

It is possible to change the drive mode during the Auto Bracketing operation. But



if you set the self-timer mode, the camera will take three continuous pictures.

䕋

It is not possible to use Auto Bracketing mode for flash photography. Auto



Bracketing will not affect the output level of the flash.

” mark will be displayed continuously on the LCD panel.

” mark on the LCD panel, will blink slowly, then it will

Auto Bracketing mode can be used in combination with Exposure Compensation.

You can take pictures with Auto Bracketing mode based on a compensated exposure which you set. To do so, please set both the Auto Bracketing mode and Exposure Compensation mode as desired.

The combined value (Exposure Compensation and Auto Bracketing) will be indicated on the viewfinder display.

Example

Exposure Compensation +1.5 with Auto Bracketing amount 1.0

First Frame Second Frame Third Frame

1.5 (Exposure compensation +1.5 & no shift value)

0.5 (Exposure compensation +1.5 & shift value -1.0)

2.5 (Exposure compensation +1.5 & shift value +1.0)

REMOTE CONTROLLER (RS-11 AND RS-21)

This accessory permits releasing the camera’s shutter from up to 16 feet (5m) away from in front of the camera, or up to 9.8 feet (3m) away if you are 30 degrees to either side. (Depending on the lens, there may be some restrictions when using it from the left side of the camera.) All without wires or cables.

Description of Parts

Transmit Button

①

Time Delay Selector

②

Transmitting diode

③

Channel Selector (for RS-21 only)

④

OPERATION

SETTING OF THE REMOTE CONTROLLER

Select the delay time.

Shutter will be released immediately after the transmit button is pressed.



Shutter will be released 3 second after the transmit button is pressed.

Select the channel (for RS-21 only)

SETTING OF THE CAMERA

Press and hold the “FUNC” button once, the

LCD panel will indicate the

Keep pressing the “FUNC” button depressed,

and turn the “C”-dial to select the channel (same channel as Remote Controller). Release the “FUNC” button. After setting the

channel, the panel.

Check that the subject is framed correctly.

After you set the focus, we recommend setting the lens switch to MF position.

mark will appear on the LCD

mark.

Point the transmitting diode at the camera and press the transmit button.

REMOTE CONTROLLER (RS-11 AND RS-21)

After taking the picture, please cancel the remote control mode following the above

procedure from number control function.

The remote control mode cannot be used together with continuous shooting mode.

䕋



If the “D”-dial is set to the continuous shooting mode, the camera will expose only one frame for each activation by the remote controller.

䕋

The remote controller may not work properly if strong sunlight is shining directly



on the camera’s remote control sensor.

䕋

The camera will switch itself off after about 5 minutes of inactivity, while in the



remote control mode.

To reactivate the camera, press the shutter button “half-way down”; the remote control mode will work again.

䕋

The light entering the viewfinder can affect the exposure system of the camera. To



prevent this, use the finder cap while using the remote controller.

to 4, and then choose “- -“ mark to cancel remote

USING THE MIRROR LOCK-UP WITH REMOTE CONTROL

When using mirror-up mode with the remote controller, we recommend that after adjusting the focus, fully depress the shutter button of the camera once, to lock-up the mirror, and then release the shutter by remote control. This procedure saves your time.

Set the “D”-dial to “UP” position, and set the remote control mode.

Press the shutter button “half-way” to focus on the subject, and set the desired

exposure. Then press the shutter button “all-way down” to raise the mirror-up and retain the focus and exposure. To take the picture, point the remote controller’s transmitting diode at the camera

and press the transmit button.

REPLACING THE REMOTE CONTROLLER BATTERY

Use two CR 1220 3V Lithium coin type batteries.

Remove the bottom cover screws with a screwdriver.

Open the bottom cover and replace the batteries.

Replace the cover and tighten the screws. Be careful not to over tighten.

Check controller operation after replacing batteries.

DEPTH-OF-FIELD PREVIEW BUTTON

Normally, the lens’ aperture is always fully opened, except at the time the picture is actually taken, for looking through the viewfinder under maximum brightness conditions.

However, by pressing the depth-of-field preview

button, the aperture can be closed down to the

selected shooting aperture before the picture is

taken, enabling you to check depth of field

through the viewfinder before shooting.

DEPTH OF FIELD

When you set the focus for a particular subject, there is an area in front of and behind your subject, which will also be in focus. This is called the Depth-of-Field.

Depth of Field will increase when

Using a smaller aperture value (Larger F-number)

i.e. When you photograph the subject under the same conditions but change the

aperture value from F8 to F22, F22 will show more area in focus (more depth of field).

Using shorter focal length (wide-angle) lens.

i.e. When you photograph the subject under the same conditions, changing only focal

length from 50mm to 28mm, the 28mm lens will show more area in focus (more depth

of field).

Photographing the subject at greater distance

When you photograph the subject with same focal length lens and aperture value but

change the camera-to-subject distance, the subject at the greater distance shows

more area in focus (more depth of field) compared to subject at the shorter distance.

FLASH PHOTOGRAPHY

ELECTRONIC FLASH EF-500 DG SUPER (Sold Separately)

ELECTRONIC FLASH EF-500 DG ST (Sold Separately)

Optional Sigma Electronic Flashes EF-500 DG SUPER SA and EF-500 DG ST SA with the STTL system allow you to use features such as Auto Flash with the SD9. The EF-500 DG SUPER lets you do even more, such as use Multi Flash and other advanced features.

EF-500 DG SUPER SA, EF-500 DG ST SA

High light output. Maximum guide number of 50 (165 ft)（ISO100, 105mm zoom



head position）. Easy to use. The flash automatically sets the zoom position according to the focal



length of the lens in use (from 28 to 105mm). A built-in wide panel can provide the ultra-wide-angle coverage of a 17mm lens. Flexible. For bounce flash, the flash head can be tilted up or down, or swiveled to



the left or right. Additionally, the flash head can be tilted 7° downward for close-ups. High-speed. For stop action photography, shutter speeds up to 1/6000 of a second



can be used with the high-speed sync FP flash (EF-500 DG Super SA only). Versatile. Both flash models can be used with Sigma SA300n, SA-5, SA-7 and



SA-9 cameras.

WARNING !!

· The SD9 is compatible only with the EF-500 DG SUPER SA and EF-500 DG ST

SA external flashes. Non-DG flashes such as EF-500 SUPER SA, or flashes for the other camera brands made by Sigma, or flashes made by other manufacturers, cannot be used with Sigma SD9 camera.

FLASH PHOTOGRAPHY

PC SYNCHRO TERMINAL ADAPTER ST-11

With the PC Synchro Terminal Adapter ST-11 (sold separately), you can use flash units that synchronize with a PC-type sync cable. This accessory is very convenient for studio photography.

CAUTION!!

· STTL automatic flash exposure control does not work when the PC Synchro

Terminal Adapter ST-11 is used.

· Set the camera’s exposure mode to

than the 1/180sec. flash synchronized speed. See the instruction manual of the particular flash used for additional information.

and set the shutter speed no faster

· The PC terminal on the PC Synchro Terminal Adapter ST-11 is compatible with

plugs that have a positive (+) polarity on the central pin and a negative (-) polarity on the shield. If the plug has reverse polarity, use a commercially-available polarity conversion cord.

WARNING!!

· The PC terminal cannot accept flashes that use a voltage of more than 250V.

Higher voltage will damage the camera. Please ask the manufacturer of the flash about the voltage and compatibility with the PC terminal.

This section explains how to review, delete, and modify images after they have been captured.

TIP

· The SD9 may not be able to display images captured by other cameras, or

“SD9” images that have been renamed or moved from the IMAGES folder on the CF card. For more information on SD9 file names, see File Numbering System (P.30).

The SD9 camera can be set to automatically display a preview of each image immediately after it is taken. This is useful for instantly checking exposure and framing.

CHANGING THE QUICK PREVIEW DURATION

The Quick Preview image can be completely disabled, displayed for 2, 5, or 10 seconds, or set to remain on until further action. Use the Camera Set-up Menu to

hange Quick Preview duration.c

QUICK PREVIEW OPTIONS

OPTION DESCRIPTION

Off

2 sec. (Default)

5 sec.

10 sec.

Hold

No preview image is displayed.

Preview image is displayed for 2 seconds. (Color LCD monitor shuts off automatically after 2 seconds.)

Preview image is displayed for 5 seconds.

Preview image is displayed for 10 seconds.

The image is displayed on the LCD monitor until 1) the shutter button is pressed half-way, 2) the CANCEL or MENU buttons are pressed or 3) the LCD Sleep or Auto Power Off time is reached.

CHANGING THE QUICK PREVIEW DURATION

TO CHANGE PREVIEW DURATION

Make sure the camera is turned on.

Press the the camera to display the Camera Set-up Menu.

(See P.96)

＜



button on the back of

＞

Use the controller to select “Quick Preview”.

＜／＞

arrows on the 4-way

Press the sub-menu.

＜

＞



arrow or

＜



to open

＞

Use the controller to select a duration.

＜／＞

arrows on the 4-way

Press the

setting or the to close sub-menu without making any changes.

＜

TIP

· To manually turn off the Quick Preview image, press the

or the shutter button half-way.

· While the Quick Preview image is being displayed, the

be used as a shortcut key to temporarily toggle the over-exposure warning overlay on or off, or to mark, lock or rotate the image. (See P.90 to set OK key shortcut.)

arrow or

＞



＜＞

＜

arrow or

CANCEL＞ button

＜



＜

to apply the

＞



CANCEL

＜



OK＞ button can

· It will not be possible to zoom in to the preview image, use the Modify Menu, or

change to another image while the Quick Preview is up.

· Pressing the

enables all image review features and overrides the Quick Preview time-out.

＜

VIEW＞ button while the Quick Preview image is up



＞

CHANGING THE QUICK PREVIEW STYLE

The preview image can be a full-screen image or an Image Info Screen. Use the Camera Set-up Menu to change Quick Preview style.

PREVIEW STYLE OPTIONS

OPTION DESCRIPTION

Image only

(Default)

Info screen

Full-screen image

Image Info Screen

TO CHANGE PREVIEW STYLE

Make sure the camera is turned on.

Press the the camera to display the Camera Set-up Menu.

(See P. 9 6 )

Use the controller to select “Preview Style”.

Press the sub-menu.

＜ 

＜／＞

arrow or

＞

＜



button on the back of

＞

arrows on the 4-way

＜



to open

＞

Use the controller to select a style.

＜／＞

arrows on the 4-way

Press the setting or the

close sub-menu without making any changes.

＜

TIP

· The

Image Info Screen for the currently displayed preview image, regardless of style setting.

INFO＞button can be used to toggle between the full-screen view and

＜



arrow or

＞

＜＞

＜

arrow or



＜

to apply the

＞

CANCEL



＞

QUICK DELETE

Undesirable images can be deleted as soon as their preview is displayed.

TO DELETE A PREVIEW IMAGE

Press image is displayed.

· The Quick Delete confirmation dialog will open.

＜

DEL



Press

CANCEL

without deleting the image.

· If the image is deleted, the confirmation window will close and the color LCD monitor will turn off.

＜



to close the confirmation dialog

＞

while the Quick Preview

＞

to delete the image or

＞

＜



TIP

· If an image is deleted accidentally, it may be possible to recover it. (See P.80 for

recovering images.)

The pictures captured by the SD9 can be reviewed in various ways.

To review images captured by the SD9 camera press the button on the back of the camera. The last image recorded on the CF card will be displayed on the color LCD monitor in Single-Image View.

＜

VIEW



＞

TO REVIEW IMAGES

Press

camera to turn on LCD monitor and display

image.

· Pressing

LCD monitor.

＜ 

VIEW

＜

button on the back of the

＞

VIEW＞again will turn off the



TIP

· If no new images have been captured in the meantime, the last reviewed image

will be displayed instead.

· If there are no images on the CF card an error message will be displayed (see

P.110 for more information).

· Since the SD9 camera does not have a separate "playback mode" for looking at

captured images, it is always ready to take pictures, even while displaying captured images.

The＋/−Controller is used to change between different review options as shown.

VIEWING ONE IMAGE AT A TIME

TO SEE IMAGES IN SINGLE-IMAGE VIEW

Press

䕋



camera to see recorded images in Single-Image View.

䕋

If you are in Jump Mode, Contact Sheet View



or Zoomed-in View, press return to Single-Image View.

VIEW＞button on the back of the

＜ 

CANCEL＞ to

＜



While in Single-Image View:

Press

＜ ＜＞＜＞＜＞

arrow on the 4-way controller to see next image.

＞



arrow on the 4-way controller to see previous image.

arrow on the 4-way controller to jump forward three images.

arrow on the 4-way controller to jump back three images.

TIP

· It is not necessary to wait for the current image to finish loading before

proceeding to another image.

· To scroll through images more quickly, press and hold a button on the 4-way

controller. Images will advance automatically until the button is released.

· The first and last recorded images on the CF card are linked. Pressing the

arrow on the 4-way controller while the first image is displayed brings up the last recorded image on the card. Pressing the while the last image is displayed brings up the first recorded image on the card.

＜

arrow on the 4-way controller

＞



＜＞

MAGNIFYING IMAGES

(ZOOMED-IN VIEW)

To view image detail or check focus, recorded images can be magnified up to 5 levels, depending on the resolution of the image.

TO MAGNIFY IMAGE

While in Zoomed-in View:

Press magnification is 400%. Press

Press the image. Press

＜＞

＜



on the＋/−Controller to increase magnification. Maximum

on the＋/−Controller to decrease magnification.

＜／／／

CANCEL



＞



to return to Single-Image View.

Press

Single-Image View.

arrows on the 4-way controller to pan around the

＞

＜＞

on the ＋/−Controller from

TIP

· While in Zoomed-In View, the 4-way controller cannot be used to change

images. Press Single-Image View by pressing

4-way controller to change the image selection.

＜

CANCEL＞ to get out of Zoomed-In View, or return to



＜＞

on the ＋/−Controller, then use the

VIEWING NINE IMAGES AT A TIME

(CONTACT SHEET VIEW)

Images can be viewed in a "contact sheet" of nine thumbnail images.

TO GO TO CONTACT SHEET VIEW

Press

Single-Image View.

＜＞

on the

＋/−

Controller from

While in Contact Sheet View:

Use the

selection.

Press

View.

Press

＜＞

＜／／／

on the＋/−Controller or

on the＋/−Controller to go to Jump Mode.

arrows on the 4-way controller to change the image

＞



CANCEL＞to return to Single-Image

＜



TIP

· When the last row of images is reached, pressing

will jump to the first 9 images on the card.

＜＞

on the 4-way controller

VIEWING IMAGES A PAGE AT A TIME

(JUMP MODE)

Use Jump Mode to browse large sets of images more quickly, or to skip right to the first or last page of images on the CF card.

TO GO TO JUMP MODE

While in Jump Mode:

Press the

＜＞

arrow on the 4-way controller to jump to the next page of images.

Press

from Single-Image View (or once from Contact

Sheet View).

＜＞

on the

Controller twice

＋/−

Press the

images.

Press the

Press the Press

Press

＜＞

＜



＜＞

＜ ＜＞

on ＋/−Controller to return to Contact Sheet.

CANCEL＞to return directly to Single-Image View.



arrow on the 4-way controller to jump to the previous page of

arrow on the 4-way controller to jump to the last page of images.

＞



arrow on the 4-way controller to jump to the first page of images.

TIP

· The first and last pages of images are linked. Pressing the

4-way controller while the first page of 9 images is displayed brings up the last page of images. Pressing the page of images is displayed brings up the first page of images.

＜＞

arrow on the 4-way controller while the last

＜＞

arrow on the

VIEWING IMAGE INFORMATION

The Image Info Screen contains additional information about each image.

TO DISPLAY IMAGE INFO SCREEN

Press the

Contact Sheet, or Zoomed-In View.

INFO＞button from Single-Image,

＜



While in Image Info Screen:

Press and return to the previous view. Use

selection the same way as in Single-Image View. (See next section for the exception.)

＜

INFO＞ again or



／／／

＜

arrows on the 4-way controller to change the image

＞



CANCEL＞ to close the Image Info Screen



IMAGE INFO SCREEN FOR MAGNIFIED IMAGES

It is possible to obtain detailed histogram information for a particular section of an image by opening the Image Info Screen from Zoomed-In View.

· For more information on the histogram see next section.

TO DISPLAY MAGNIFIED IMAGE INFO

SCREEN

Magnify the image to the desired level and pan

to the area of interest. (See P. 6 9 )

Press

The magnified segment of the image will be shown in the thumbnail and the values displayed in the histogram will correspond to that segment only.

＜

INFO



＞

While in Image Info Screen for a Magnified Image:

Press the part of the image. (Histogram will update automatically to reflect the new values.) Press Press full image. (Press Press

＜＜

＜



／／／

＜

／＞



INFO＞to close the Image Info Screen and return to Zoomed-In View.



on the＋/−Controller to increase/decrease magnification.

CANCEL＞to cancel magnification and view the Image Info Screen for

＜



TIP

· While viewing an Image Info Screen for a magnified image, the 4-way controller

cannot be used to change images. Press magnification or return to full image view by pressing Controller, then use the 4-way controller to change the image selection.

arrows on the 4-way controller to pan to another

＞



CANCEL＞again to close the Image Info Screen.)



＜

CANCEL＞ to cancel



＜＞

on the ＋/

−

HISTOGRAM

The histogram is a graph depicting the distribution of brightness values in the image for each of the three color channels (Red, Green, and Blue). The horizontal axis shows the brightness level, with darker pixels towards the left side and brighter pixels toward the right. The vertical axis shows the proportion of pixels at each level of brightness.

By examining the histogram of the full image, you can gauge the over-all exposure of that image. You can also use the histogram to determine if zoomed-in sections of an image are over or under exposed.

This histogram shows that the higher pixel

values are never used in the image, indicating

that the image is underexposed, and therefore

will appear dark. In general, when the histogram

is higher on the left side, the image is mostly

composed of dark pixels, causing it to appear

dark—either because the image is

underexposed or because it is a dark scene

such as night shot or sunset.

This histogram shows a fairly even distribution of

pixel values, indicating that the image is well

exposed, with good contrast. However, the

histogram distribution of a well exposed image

will vary greatly depending on the subject.

This histogram shows that many of the pixel

values are at their brightness limit, indicating that

some areas of the image may be blown out. In

general, when the histogram runs off the right

side, the image will have many white

pixels—either because the image is

overexposed or because it is a bright scene such

as the beach or snow.

OVER-EXPOSURE WARNING

Highlight areas of an image where detail may be lost due to over-exposure will be indicated by a solid red overlay when Exposure Warning is set to On in the Camera Set-up Menu. The over-exposure overlay will be visible in the all views except for Contact Sheet and Jump Mode. The over-exposure overlay will also be hidden during a slideshow.

TO TURN OFF OVER-EXPOSURE WARNING

Make sure the camera is turned on.

Press the the camera to display the Camera Set-up Menu. (See P. 9 6 )

＜

Use

＜

controller to select “Exposure Warning”.

MENU＞button on the back of



／

arrows on the 4-way

＞

Press sub-menu.

＜

＞



arrow or

＜

OK＞to open



Use

＜

controller to select “Off”.

／

arrows on the 4-way

＞

Press

setting or to close the sub-menu without making any

changes.

＜

TIP

· The

over-exposure warning overlay on or off. Using the shortcut key will not change the Exposure Warning setting in the Set-up Menu. (See P.90 to set OK key shortcut.)

OK＞button can be used as a shortcut key to temporarily toggle the

＜



＜

arrow or

＞



＞



＜

arrow or

OK＞to apply the



CANCEL



＜

＞

VIEWING IMAGES ON A TV

The SD9 camera can be connected to a television or a videocassette recorder using the provided video cable, allowing the recorded images to be viewed on the television monitor or recorded on videotape.

TO CONNECT THE CAMERA

TO A VIDEO DEVICE

Open the cover protecting the camera’s VIDEO

OUT, DC-IN, and IEEE-1394 connectors.

Connect the video cable to the ＜VIDEO OUT

terminal on the camera and to the video input

terminal on the television or video cassette

recorder.

＞

Turn on the camera and the video device.

WARNING !!

· Please do not use any video cable other than provided with your Sigma SD9

camera, when connecting a video input terminal. Using other brands may cause damage.

TIP

· It is recommended that the camera be powered with the provided AC adapter

during television playback to avoid draining the battery.

· The default mode for the video signal is NTSC. When connecting the camera to

a PAL device, the Video Mode setting in the Camera Set-up Menu must be changed. (See P.96)

This section describes how to delete the image(s) recorded on a CF card.

Images recorded on the CF card can be deleted one at a time or several at once using the Delete Menu. Images deleted accidentally can also be recovered.

· The Delete Menu can be opened from all views (Single-Image, Contact Sheet, and Zoomed-In), as well as from Jump Mode and the Image Info Screen.

TO DISPLAY THE DELETE MENU

Press the

the camera.

· Press

to close the Delete Menu without deleting any

images.

DELETE MENU

MENU ITEM DESCRIPTION

Current image

All marked

All / All unlocked

Recover last delete

Delete the currently selected image only. (Not available if the Delete Menu is opened from the Jump Mode.)

Delete all marked images on the CF card. (See P.85 for information on marking images.)

Delete all images on the CF card. If some images are locked, the menu item changes to “All unlocked”. (See P.82 for information on locking images.)

Recover accidentally deleted images.

DEL

＜



DEL＞ again or

＜



button on the back of

＞

CANCEL

＜



＞

DELETING A SINGLE IMAGE

TO DELETE A SINGLE IMAGE

Use the 4-way controller to select the image to be

deleted in Contact Sheet or Single-Image View.

Press

· “Current image” will be the default selection.

Press

＜／／ ／

DEL＞to display the Delete Menu.

＜



OK＞to delete the image.

＜



arrows on the

＞



· If the image is unlocked, it will be deleted without any further confirmation.

· If the image is locked, a confirmation dialog will come up asking if you are sure you want to delete the locked image. Press

unlock and delete the image or to return to reviewing images without deleting.

＜

OK＞ to



CANCEL



TIP

· If an image is deleted accidentally, it may be possible to recover it. (See P.80 for

recovering images.)

＞

· If the Delete Menu was opened from the Jump Mode, the “Current image” menu

item will not be available and “All marked” will be the default selection.

DELETING MULTIPLE IMAGES

TO DELETE MULTIPLE IMAGES

Press

Use the

controller to select “All marked” or “All”.

· If some images are locked , the “All” menu item

will change to “All unlocked” to indicate that only

the unlocked images will be deleted. To delete

the locked images, they must first be unlocked.

(See P. 8 2 ) If all images are locked, neither

option will be available.

· If there are no marked images, or all the

marked images are locked, the “All marked”

menu item will not be available from the Delete

Menu.

＜



＜

DEL

to display the Delete Menu.

＞

／

arrows on the 4-way

＞

Press

dialog.

＜

OK＞to display the confirmation



TIP

Press

press

images without deleting.

＜

OK＞to delete all the images or



CANCEL＞to return to reviewing



· Marked images that are also locked will not be deleted with the “All marked”

menu item. The locked images must be unlocked first. Marked images are not protected from deletion unless they are also locked.

· To erase all files from the CF card, including locked images as well as all

non-SD9 files, use the “Format CF Card” menu item in the camera Set-up Menu (see P.29).

RECOVERING A DELETED IMAGE

One of the unique features of the SD9 camera is the ability to recover accidentally deleted images.

CAUTION !!

· Image recovery must take place immediately after images are deleted, or they

may be permanently lost.

Image(s) may be recovered if they are deleted in one of the two following ways:

Using the Quick Delete feature from an image preview. (See P. 6 6)

Ɣ Ɣ Using the Delete Menu during image review. (See P. 77 )

TO RECOVER A DELETED IMAGES

Immediately after accidental deletion, press

DEL> to display the Delete Menu.

Use the controller to select “Recover last delete”.

· The “Recover last delete” menu item will not be available if there are no images available for recovery.

＜

／

arrows on the 4-way

＞

Press

· Once images are recovered, they will return to their original position in the sequence of recorded images. The first image in the recovered set will become the currently selected image.

It will not be possible to recover images once the following actions are performed:

Additional images are deleted.

ƔAdditional images are captured and recorded to the CF card. ƔThe camera is turned off either manually or automatically after the delay time

indicated in the Auto Power Off setting.

ƔThe CF card is removed from the camera. ƔIf the CF card is formatted

ƔThe CF card was completely full prior to deleting images.

＜



to recover the deleted images

＞

Image modifications, such as locking, marking, and rotating, as well as automatic image playback, can be performed from the Modification Menu.

The Modification Menu contains the Lock Menu, Mark Menu, Rotate Menu, and Slideshow Menu.

TO DISPLAY THE MODIFICATION MENU

Press the

the camera.

· Press

to close the Modification Menu without applying

any changes.

＜

MOD＞ button on the back of



MOD＞ again or



＜

CANCEL



TIP

· The Modification Menu can be opened from all views (Single-Image, Contact

Sheet, and Zoomed-In), as well as from Jump Mode and Image Info Screen.

＞

· To make it easier to apply the same modification to a number of images, the last

action performed will be the default selection when the Modification Menu is opened again.

LOCKING IMAGES

Locking protects images from being accidentally deleted. Locked images must be unlocked before they can be deleted by the Delete Menu functions.

LOCK MENU

MENU ITEM DESCRIPTION

Lock/Unlock

Lock all marked / Unlock all marked

Lock all

Unlock all

Lock the currently selected image only. If the image is already locked, the menu item changes to “Unlock”. (Not available if the Lock Menu is opened from Jump Mode.)

Lock all marked images on the CF card. (See P.85 for information on marking images.) If all marked images are already locked, the menu item

changes to “Unlock all marked”.

Lock all images on the CF card.

Unlock all locked images on the CF card.

CAUTION !!

· Locking does not prevent images from being erased when the CF card is

formatted. Review card contents carefully before formatting.

TIP

· Locked images have a “read-only” status when viewed on a computer.

LOCKING IMAGES

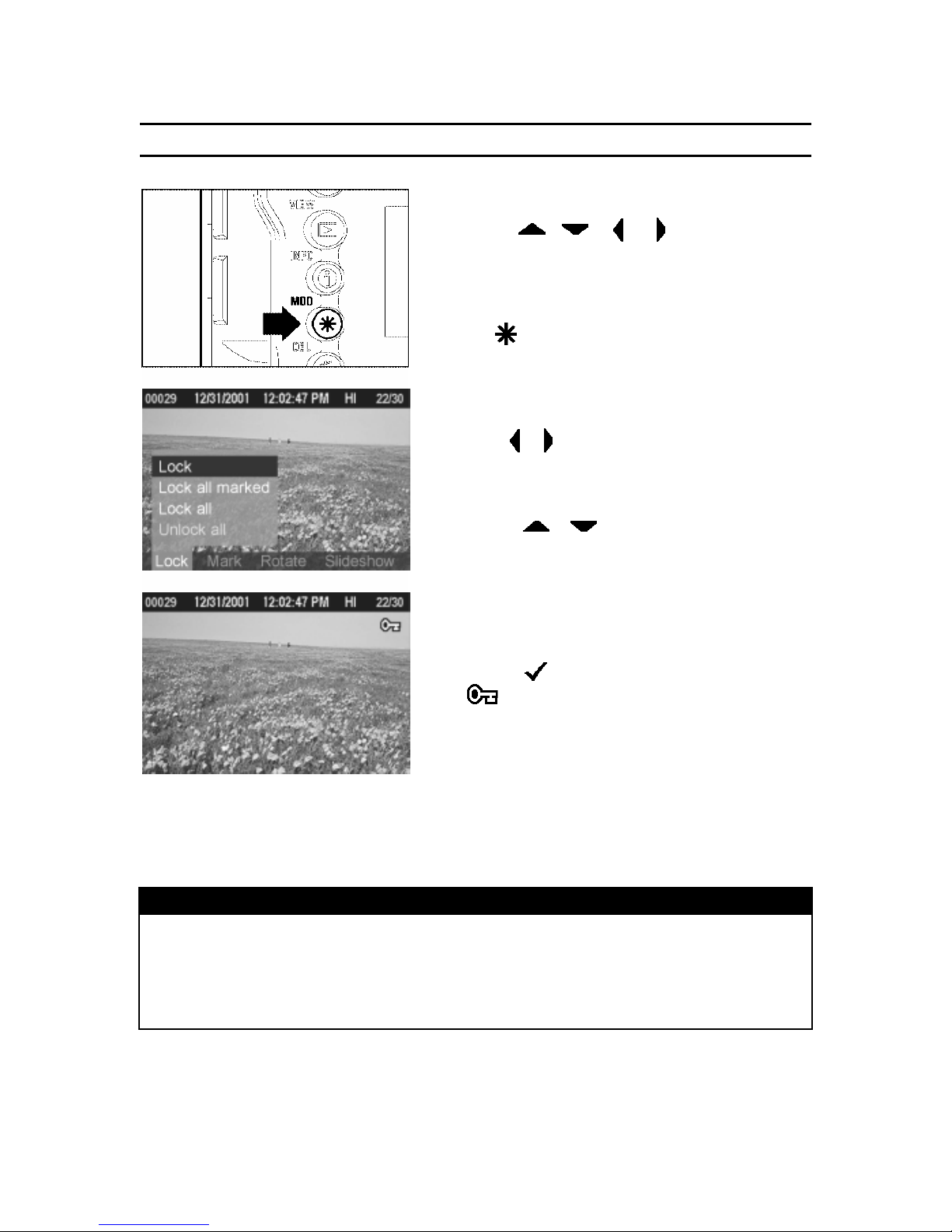

TO LOCK A SINGLE IMAGE

Use the 4-way controller to select the image to be locked

in Contact Sheet or Single-Image View.

＜／／／ ＞

arrows on the

Press Menu.

MOD＞to display the Modification

＜



Use the to select the Lock Menu.

＜ ／ ＞

arrows on the 4-way controller

Use the controller to select “Lock”.

· If the selected image is already locked, the “Lock” menu item will change to “Unlock”.

＜／＞

arrows on the 4-way

Press OK icon will appear in the upper-right corner of the image indicating that the image is locked.

TIP

＜



to lock the image. A key

＞

· To unlock a locked image, select the locked image and follow the same steps as

above.

· If the Lock Menu was opened from Jump Mode, the “Lock” menu item will not be

available.

TO LOCK MULTIPLE IMAGES

Press Menu.

Use the controller to select the Lock Menu.

Use the controller to select “Lock all marked” or “Lock

all”.

· If all marked images are already locked, the “Lock all marked” menu item changes to “Unlock all marked”.

· If all images are already locked, the "Lock all" menu item will not be available.

＜

MOD



＜／

＜／＞

LOCKING IMAGES

to display the Modification

＞

arrows on the 4-way

＞



arrows on the 4-way

Press dialog.

＜



to display the confirmation

＞

Press

CANCEL＞to return to reviewing images without

locking. A key icon upper-right corner of all locked images.

TIP

OK＞to lock the images or press

＜



will appear in the



＜

· Select “Unlock all” from the Lock Menu to unlock all locked images on the CF

card.

· The

P.90)

OK＞button can be used as a shortcut key for locking images. (See

＜



MARKING IMAGES

Images can be marked for various reasons, such as to identify favorites, to select images for a slideshow, or to select images to be deleted with the “All marked” menu item in the Delete Menu (P. 7 9 ).

MARK MENU

MENU ITEM DESCRIPTION

Mark/Unmark

Mark all

Unmark all

Mark the currently selected image only. If the image is already marked, the menu item changes to “Unmark”. (Not available if the Mark Menu is opened from Jump Mode.)

Mark all images on the CF card. (If all images on the card are already marked, this menu item will not be available.)

Unmark all marked images on the CF card.

TIP

· Images marked on the camera will retain their marked status when viewed in

SIGMA Photo Pro.

TO MARK A SINGLE IMAGE

MARKING IMAGES

Use the

4-way controller to select the image to be

marked in Contact Sheet or Single-Image View.

／／／

＜

arrows on the

＞



Press

Menu.

＜

MOD＞to display the Modification



Use the

controller to select the Mark Menu.

＜



／

arrows on the 4-way

＞



Use the

controller to select “Mark”.

· If the selected image is already marked, the

“Mark” menu item will change to “Unmark”.

＜

／＞

arrows on the 4-way

Press

will appear in the upper-right corner of the

image indicating that the image is marked.

TIP

OK＞to mark the image. A flag icon

＜



· To unmark a marked image, select the marked image and follow the same steps

as above.

· If the Mark Menu was opened from Jump Mode, the “Mark” menu item will not

be available.

· The

P.90)

OK＞button can be used as a shortcut key for marking images. (See

＜

MARKING IMAGES

MARKING ALL IMAGES

Press Menu.

MOD＞to display the Modification

＜



Use the controller to select the Mark Menu.

＜／

arrows on the 4-way

＞



Use the controller to select “Mark all”.

· If all images are already marked, the “Mark all” menu item will not be available.

＜

／

arrows on the 4-way

＞

Press dialog.

＜

OK＞to display the confirmation



TIP

Press

CANCEL＞to return to reviewing images

＜



without marking.

A flag icon corner of all marked images.

OK＞to mark the images or press

＜



will appear in the upper-right

· Select “Unmark all” from the Mark Menu to unmark all marked images on the CF

card.

ROTATING IMAGES

Images taken with a vertical (portrait) orientation can be rotated for more convenient viewing on the color LCD monitor or on an attached television. The images’ new orientation will be used in all views as well as in the slideshow.

TIP

· Rotating an image will make it appear smaller on the display, but will have no

effect on the quality of the image data.

· Images rotated on the camera will be displayed in their rotated orientation in

SIGMA Photo Pro.

ROTATE MENU

MENU ITEM DESCRIPTION

Rotate

Rotate the currently selected image 90 degrees to the right (clockwise).

Rotate the currently selected image 90 degrees to the left (counterclockwise).

TO ROTATE AN IMAGE

Use the

4-way controller to select the image to be rotated

in Contact Sheet or Single-Image View.

＜／／／

arrows on the

＞



Press

Menu.

MOD＞ to display the Modification

＜



Use the

to select the Rotate Menu.

＜／

arrows on the 4-way controller

＞



Use the

controller to select the rotation direction:

clockwise

＜／＞

or counterclockwise .

arrows on the 4-way

ROTATING IMAGES

Press

the Modification Menu or

return to reviewing images without rotating.

TIP

OK＞to rotate the image and close

＜

CANCEL＞to

＜

· To rotate an image 180 degrees, rotate it twice in the same direction.

· To get an image back into its original orientation, rotate it in the opposite

direction.

· The

P.90)

OK＞button can be used as a shortcut key for rotating images. (See

＜

· If the Rotate Menu was opened from Jump Mode, both “Rotate” menu items will

be unavailable.

USING THE OK BUTTON SHORTCUT

The

＜

rotating images. By setting the

OK＞button can be used as a shortcut key for locking, marking, or



＜



button to perform the most

＞

commonly used operation, images can be easily locked, marked, or rotated with a single button press. Alternatively, the

＜

OK＞button shortcut can be



used to temporarily toggle the over-exposure overlay on or off.

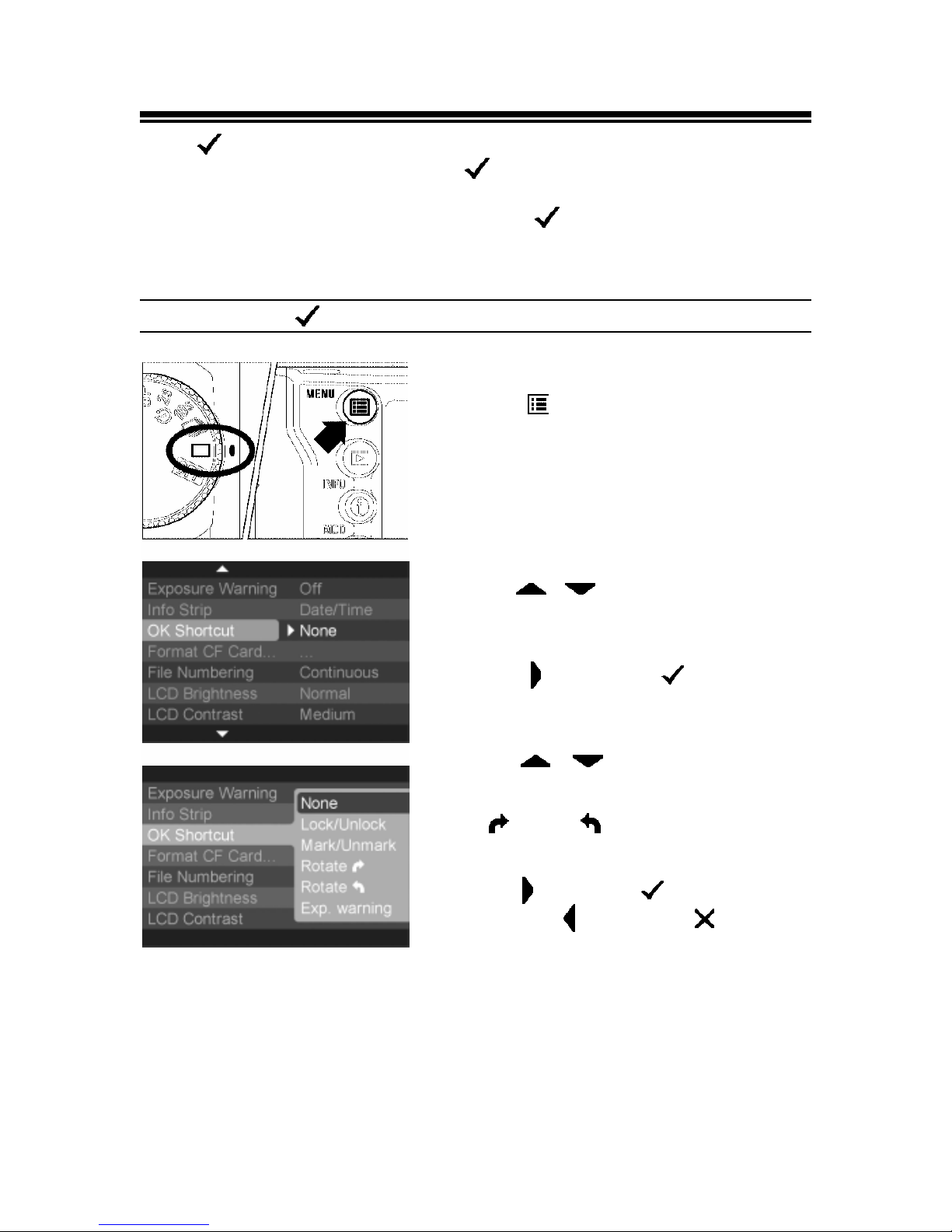

TO SET THE

＜

OK＞SHORTCUT

Press the the camera to display the Camera Set-up Menu.

(See P. 9 6 )

MENU＞button on the back of

＜ 

Use the controller to select “OK Shortcut”.

＜／＞

arrows on the 4-way

Press the the sub-menu.

＜

arrow or

＞



＜

OK＞ to open



Use the controller to select desired shortcut. Shortcut options are: None, Lock/Unlock, Mark/Unmark, Rotate

＜

／

, Rotate , or Exp. Warning.

arrows on the 4-way

＞

Press the

setting or the to close sub-menu without making any changes.

＜

arrow or

＞



＜＞

＜

arrow or

OK＞to apply the



CANCEL



＜

＞

TO USE THE

＜

OK＞SHORTCUT

Press

＜ 

VIEW

to see recorded images.

＞

Use the

4-way controller to select an image .

＜／／ ／

arrows on the

＞



Press

image or toggle exposure warning (depending on

the shortcut setting).

TIP

＜



to lock, mark, or rotate the

＞

· If the shortcut is set to “Lock”, images that are already locked can be unlocked

by pressing the images that are already marked can be unmarked by pressing the button.

· The

or error screen is open or if the camera is in Jump Mode.

OK＞button can’t be used as a shortcut key while a dialog box, menu,

＜

OK＞button. Similarly, if the shortcut is set to “Mark”,

＜

＞

SHOWING A SLIDESHOW

All images on the CF card, or only selected images, can be shown in an automatic playback mode using the SD9 camera’s Slideshow feature.

SLIDESHOW MENU

MENU ITEM DESCRIPTION

Resume show

Show all

Show marked

Show locked

Settings…

Resume a stopped slideshow. (Not available if there is no slideshow to resume)

Start an automated slideshow of all images on the CF card.

Start an automated slideshow of all marked images on the CF card.

Start an automated slideshow of all locked images on the CF card.

Change slideshow settings.

TO START A SLIDESHOW

Identify the images that you wish to include in the slideshow by marking or locking them. (See P.82-87)

Press Menu.

＜

MOD



to display the Modification

＞

Use the controller to select the Slideshow Menu.

＜／

arrows on the 4-way

＞



Use the controller to select the slideshow contents: all

images on the card, only the marked images, or only the locked images.

＜／＞

arrows on the 4-way

Press and begin the slideshow.

＜



to close the Modification Menu

＞

SHOWING A SLIDESHOW

TIP

· The

while a slideshow is in progress. To get additional information on an image, delete an image, or modify an image, press slideshow.

＜

INFO＞,

＜

MOD＞,

＜

DEL＞,

and＋/− Controller will not work

CANCEL＞to stop the

＜

· The Auto Power Off and LCD Sleep functions are disabled during slideshow

playback.

· It is recommended that the camera be powered with the provided AC adapter

during automatic slideshow playback to avoid draining the battery.

· For best results, rotate all slideshow images to the correct orientation and use

an attached television monitor to display the slideshow.

TO MANUALLY ADVANCE OR REWIND A SLIDESHOW

Press the

＜ ＜＞

arrow on the 4-way controller to advance to the next image

＞



arrow on the 4-way controller to return to the previous image.

TIP

· Once manual navigation stops, the slideshow will continue to automatically

advance to the next image after the duration set in the slideshow set-up page. (See Page 95).

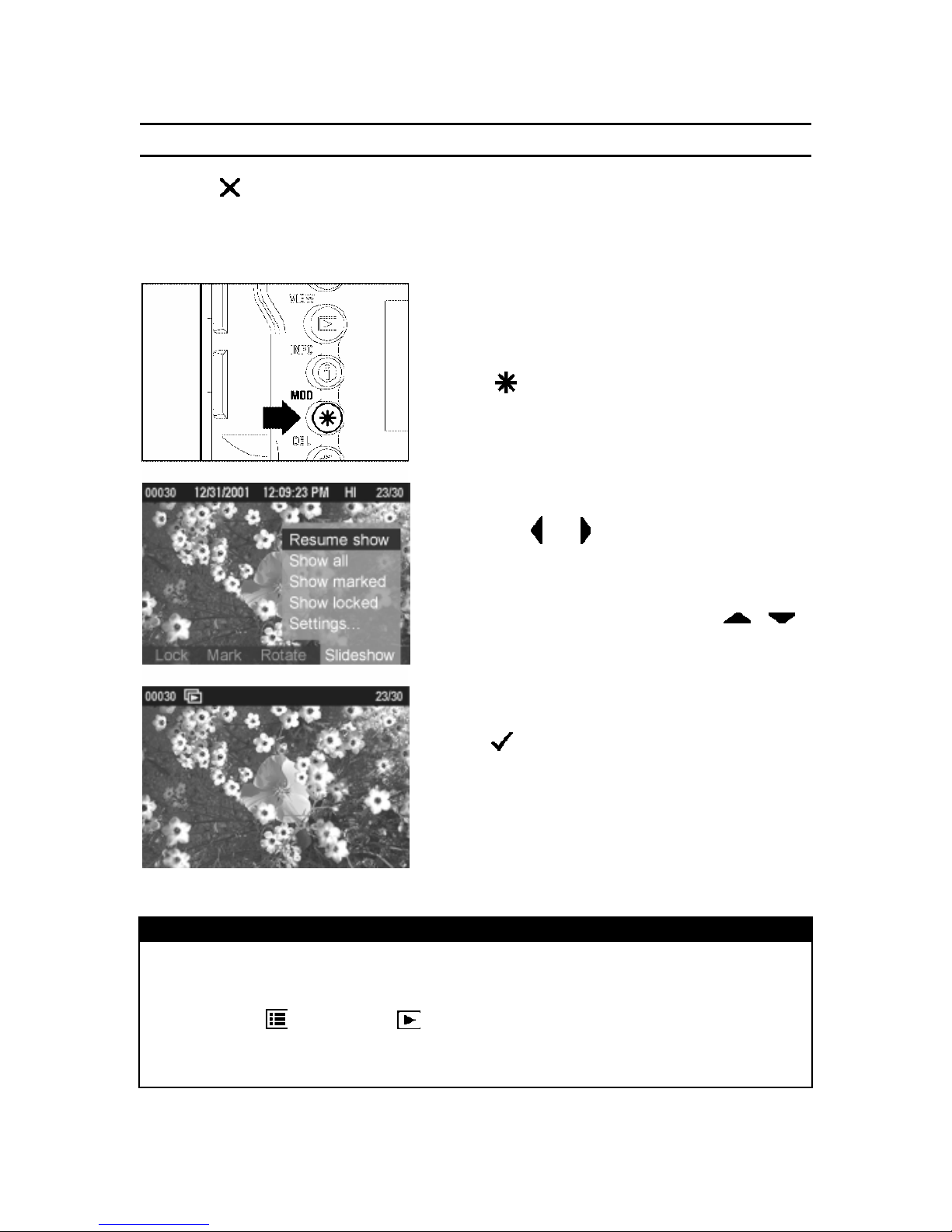

TO STOP/PAUSE A SLIDESHOW

SHOWING A SLIDESHOW

Press (Single-Image, Contact Sheet, etc.).

· The image that the slideshow stops on will become the currently selected image.

＜



CANCEL



to stop a slideshow and return to the previous view

＞

TO RESUME A STOPPED SLIDESHOW

Press Menu.

MOD＞to display the Modification

＜



Use the controller to select the Slideshow Menu.

＜／

arrows on the 4-way

＞



If not already selected, use the arrows on the 4-way controller to select “Resume show”.

＜／＞

Press and resume the slideshow.

· The slideshow will resume with the next image in the sequence following the one the slideshow was stopped on.

TIP

OK＞to close the Modification Menu

＜



· It will not be possible to resume a slideshow that has stopped automatically after

the last image. (See P.95 for setting slideshow repetition.)

· Pressing

slideshow, however, it will not be possible to resume a slideshow stopped in this manner.

＜

MENU＞,

＜

VIEW＞or the shutter release will also stop a

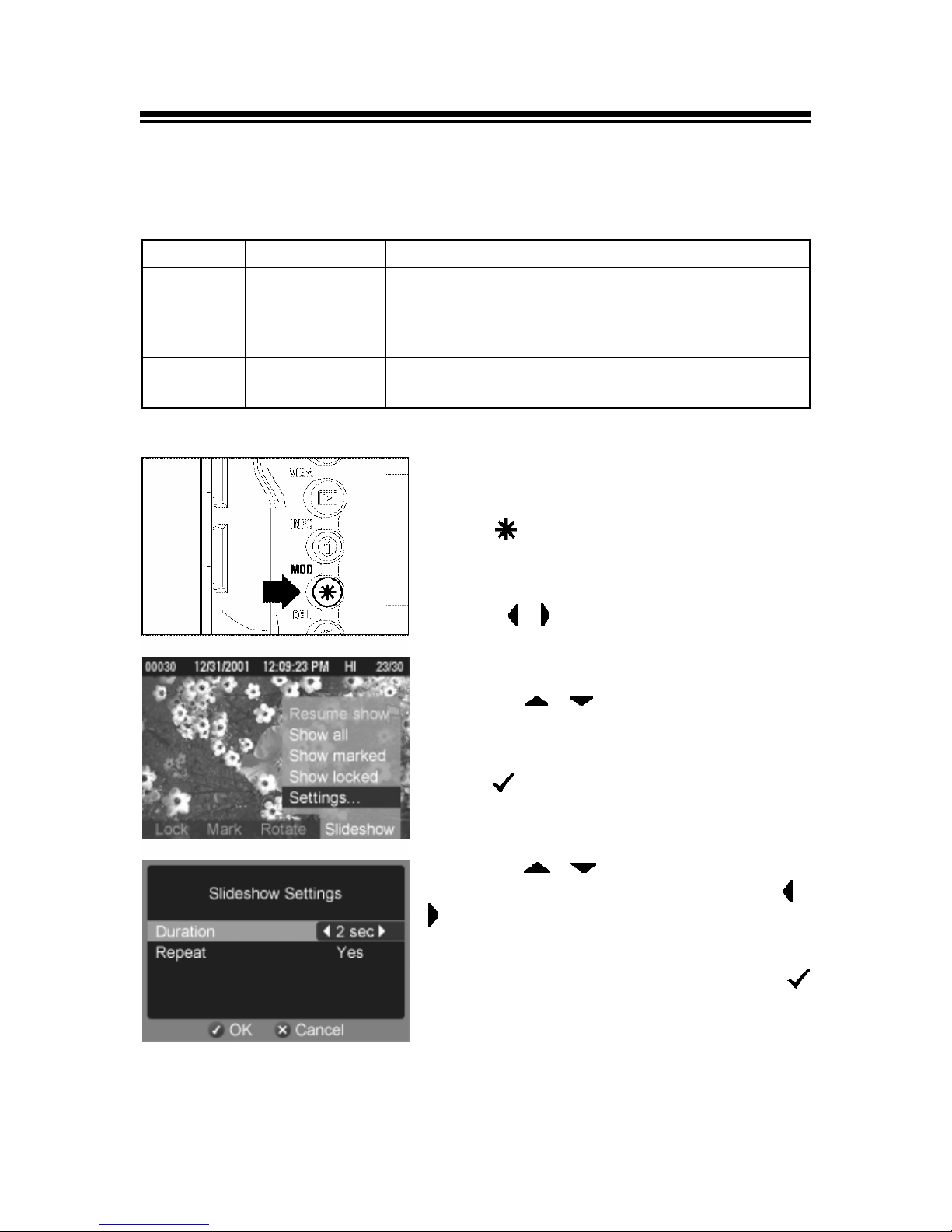

CHANGING SLIDESHOW SETTINGS

You can customize slideshows by setting the length of time that images will be displayed and specifying whether or not the slideshow will repeat itself continuously.

SETTING OPTIONS DESCRIPTION

Duration

2 sec (default), 5 sec, 10 sec, Manual

Set the length of time that each image in a slideshow is displayed. (When set to “Manual”, each image will remain on the screen until the slideshow is manually advanced.)

Repeat

Yes (default), No

Set whether the slideshow loops continuously or stops on the last image.

TO CHANGE SLIDESHOW SETTINGS

Press Menu.

MOD＞to display the Modification

＜



Use the to select the Slideshow Menu.

＜ ／ ＞

arrows on the 4-way controller

Use the controller to select “Settings…”.

＜／＞

arrows on the 4-way

Press page.

OK＞to open the slideshow set-up

＜



Use the controller to select a setting and use the

arrows to cycle through the setting options.

＞

＜／＞

arrows on the 4-way

＜ ／

Once all changes have been made, press

OK＞to save the settings and return to the

Slideshow Menu.

＜



This section describes the various settings in the Camera Set-up Menu.

USING THE CAMERA SET-UP MENU

The Set-up Menu contains two types of menu items; items followed by an ellipsis (…) open dialog windows, all other items open sub-menus listing the setting options.

TO DISPLAY SET-UP MENU

While in the Set-up Menu:

Use the

Press the

＜／＞

＞

＜



arrows on the 4-way controller to select menu items.

arrow or

OK＞to open sub-menus or dialogs.

＜



While in set-up sub-menus:

Use the

Press the

changes.

＜／＞

＞

＜



＜＞

arrows on the 4-way controller to select setting options.

arrow or

OK＞to apply new settings.

＜



＜



Press the

the camera.

· Press

Set-up Menu and turn off the color LCD monitor.

CANCEL＞to close sub-menus without applying



＜

MENU＞button on the back of



MENU＞ again to close the



LIST OF MENU FUNCTIONS

Menu Item Options Description Page

Camera Info…

White Balance

Set Custom WB…

Date/Time…

Language/

言語

[Dialog] Opens the Camera Info Page

with at-a-glance information about current camera settings and CF card status..

Auto * Sunlight Shade Overcast Incandescent Fluorescent Flash Custom

[Dialog] Captures the image to be used

[Dialog] Sets the date and time in the

English *

日本語

Deutsch Français

Sets the white balance according to the light source.

for the custom white balance setting.

camera’s internal clock and the format in which the date and time will be displayed.

Sets the language in which menus and messages will be displayed.

49~52

51,52

Quick Preview

Preview Style

Exposure Warning

Info Strip

OK Shortcut

Off 2 sec.* 5 sec. 10 sec. Hold

Image only * Info screen

On * Off

Exposure info * Date/Time

None * Lock/Unlock Mark/Unmark

Rotate Rotate

Exp. warning

Sets the duration of the Quick Preview image that is automatically displayed on the color LCD monitor after the image is captured.

Sets the type of information displayed in the Quick Preview image.

Sets whether or not the over-exposure warning is shown on images.

Sets the type of information that will be displayed in the Info Strip for each image.

Sets the function that the button will perform during image review.

＜

＞

63,64

—

90,91

LIST OF MENU FUNCTIONS

Format CF Card…

File Numbering

LCD Brightness

LCD Contrast

LCD Sleep

Auto Power Off

[Dialog] Formats the CF card.

(Formatting will erase all data on the card.)

Continuous * Auto reset

Sets the file numbering system used when a new CF card is inserted in the camera.

Dim Normal *

Sets the color LCD monitor brightness.

Bright

High Medium *

Sets the color LCD monitor contrast.

Low

30 sec.* 1 min. 2 min. 5 min.

Sets the delay before the color LCD monitor turns off automatically if no operation has

occurred. 10 min. 15 min. 30 min. Off

10 sec. 30 sec.* 1 min.

Sets the delay before the camera

shuts down automatically if no

operation has occurred. 5 min. Off

—

107,108

Key Sound

Long Short * Off

Sets the duration of the tone that

indicates a successful button

press. (This setting will not affect

—

the electronic sound setting,

which indicates image focus.

See P. 3 6 for setting the

electronic sound.)

Video Mode

NTSC * PAL

Sets the standard to be used for

video output when the camera is

connected to a television or VCR.

Camera Reset…

[Dialog]

Restores all menu options to

—

their default settings. (Default

settings are indicated by a *.)

* Designates the default option. Some defaults may vary depending on country of purchase.

CAMERA INFO PAGE

The Camera Info Page can be used to get at-a-glance information about image-capture settings (like ISO, resolution, and white balance) and CF card status.

TO VIEW THE CAMERA INFO PAGE

Make sure the camera is turned on.

Press the the camera to display the Camera Set-up Menu. (See P. 9 6 )

Use the controller to select “Camera Info…”.

＜／＞

Press the the Camera Info Page.

＜

MENU＞button on the back of



＜

arrows on the 4-way

＞



arrow or

OK＞to open

＜



Once you are done reviewing your settings, press and return to the main menu.

OK＞to close the Camera Info Page

＜



Sigma C21EN0291 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
