Sierra SRHP-2-12 Parts List

PARTS BREAKDOWNS

DESPIECE

SRHP-2-12

Nov/2016

PARTS BREAKDOWNS

2

DESPIECE

Nov/2016

1

Item Code Description Qty.

1 S853143002
2 S853141003
3 S853159001

4

3

4

S855068000

INNER PANEL HP 12"

OUTER PANEL HP-12"

GAS SYSTEM HP-12 NG

SIERRA KNOB 2

1
1
1

S853141003

DESPIECE

PARTS BREAKDOWNS

7

5

4

9

OUTER PANEL HP-12

2

Item Code Description Qty.

Nov/2016

1 S85290800 CONTROL PANEL 12" 1
2 S86285800 CHIMNEY 12" SIERRA 1
3 S86287900 ADJUSTABLE FEET 4-6" 4
4 S85540400 BLACK TOP GRATE 2
5 S86285900 UPPER FRONT 12" 1
6 S85507300 SIERRA NAME PLATE 1

6

1

3

8

7 S86283000 LEFT OUTER PANEL 1
8 S862831002 RIGHT OUTER PANEL 1
9 S862610300 LEG SUPPORT 12" 2

S853143002

DESPIECE

PARTS BREAKDOWNS

7

9

2

4

INNER PANEL HP-12 NG

Item Code Description Qty.

1 S86264200 INNER RIGHT PANEL 1

8

2 S862641002 INNER LEFT PANEL 1
3 S86264900 FRONT MANIFOLD 1
4 S86264800 SIDE MANIFOLD 2
5 S902610002 TRAY SLIDERS 2
6 S85273400 TRAY COLLECTOR 1
7 S85273300 UPPER FRONT 4
8 S86267800 BOLT COVER 12" 2
9 S853110200 BURNER SUPPORT 1

3

Nov/2016

5

1

6

S853159001

DESPIECE

PARTS BREAKDOWNS

7

5

4

3

2

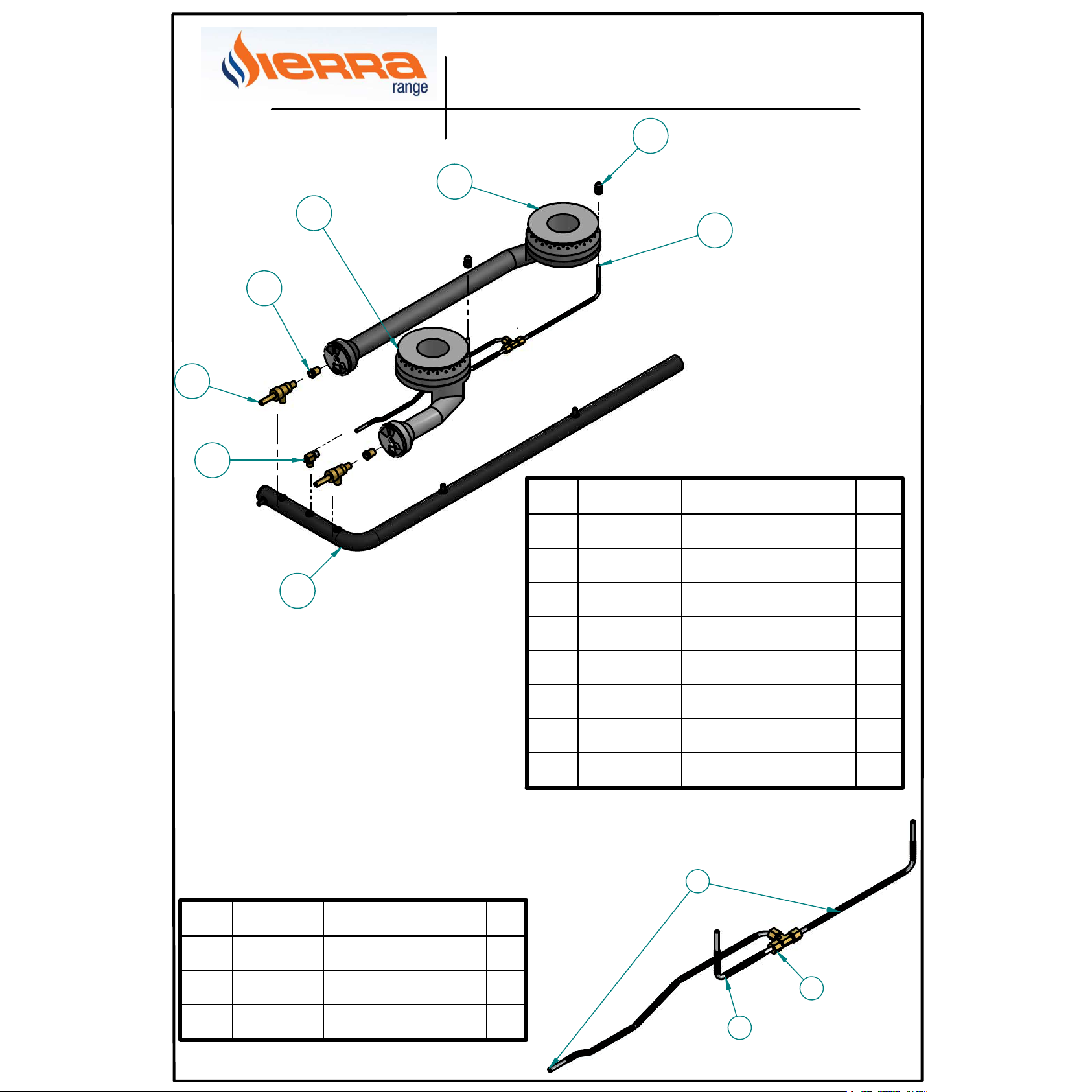

GAS SYSTEM HP-12

8

6

Item

1 S855036000 MANIFOLD 12" HP 1

2 S862103000 PILOT REGULATOR AP7-1 1

1

3 S862101000 TOP VALVE 2

4 S862413000 FEMALE ORIFICE # 40 2

5 S855709000 FRONT BURNER BODY 1

6 S853328000 CONNECTION TOP BURNERS 1

7 S855710000 REAR BURNER BODY 1

8 S865006000 PILOT TIP A73007 2

Code Description Qty.

Item

1 S855028000 "T" COMPRESSION PLUG 1

2 S855060000 SS FLEXIBLE PIPE 150 1

3 S855061000 SS FLEXIBLE PIPE 350 1

Nov/2016

Code Description Qty

3

1

2

S750400900 - Conversion Kit

PARTS BREAKDOWNS

DESPIECE

HP-2-12 NG to LP

1

Nov/2016

Item Code Description Qty

1 S862410000 FEMALE ORIFICE #54 2

ACCPAC N0. CODE QTY.

SUB XV 1

109-0557 1 S853143002 #S853143002 INNER PANEL HP 12" 1

109-0558 2 S853141003 #S853141003 OUTER PANEL HP-12" 1

109-0559 3 S853159001 #S853159001 GAS SYSTEM HP-12 NG 1

109-0036 4 S855068000 #S855068000 TEMP CONTROL KNOB SIERRA 2

SUB XV 2

109-0022 1 S85290800 #S852908001 CONTROL PANEL 12 1

109-0061 2 S86285800 #S862858001 CHIMNEY 12 " 1

108-SAL 3 S86287900 #S862879000 ADJUSTABLE LEG FOR COUNTER UNITS 4-6" 4

109-0039 4 S85540400 #S855404000 TOP BURNER SUPPORT BLACK 2

109-0062 5 S86285900 #S862859001 PREVIOUS TABLE 12 " 1

109-0037 6 S85507300 #S855073000 PLATE SAW 1

109-0350 7 S86283000 #S862830002 LEFT OUTER PANEL 1

109-0351 8 S862831002 #S862831002 RIGHT OUTER PANEL 1

109-0433 9 S862610300 #S862610300 LEG SUPPORT 12" 2

SUB XV 3

109-0434 1 S86264200 #S862642002 INNER RIGHT PANEL 1

109-0435 2 S862641002 #S862641002 INNER LEFT PANEL 1

109-0259 3 S86264900 #S862649002 FRONT MANIFOLD SUPPORT 1

109-0255 4 S86264800 #S862648002 SIDE MANIFOLD SUPPORT 2

109-0342 5 S902610002 #S902610002 TRAY SLIDERS 2

109-0017 6 S85273400 #S852734001 TRAY COLLECTS GREASE 12 " 1

109-0436 7 S85273300 #S852733002 UPPER FRONT SUPPORT 12" 4

109-0437 8 S86267800 #S862678002 BOLT COVER 12" 2

109-0256 9 S853110200 #S853110200 BURNER SUPPORT 1

SUB XV 4

109-0031 1 S855036000 #S855036000 MANIFOLD 12 1

109-0048 2 S862103000 #S862103000 PILOT REGULATOR 1

109-0047 3 S862101000 #S862101000 TAP / GAS VALVE 2

109-0053 4 S862413000 #S862413000 ORIFICE 40 2

109-0044 5 S855709000 #S855709000 FRONT BURNER BODY 1

109-0335 6 S853328000 #S853328000 #19 CONEXION TOP BURNERS 1

109-0045 7 S855710000 #S855710000 REAR BURNER BODY 1

109-0073 8 S865006000 #S865006000 PILOT TIP A73007 2

SUB XV 4

109-0028 1 S855028000 #S855028000 COMPRESSION CONNECTOR T 41714 1

109-0033 2 S855060000 #S855060000 PILOT TUBE STAINLESS STEEL 150 1

109-0034 3 S855061000 #S855061000 PILOT TUBE STAINLESS HOSE 350 1

109-0560 1 S750400900 CONVERSION KIT NG TO LP 1

109-0052 1 S862410000 #S862410000 ORIFICE 54 2

108-SRHP-2-12 NG
