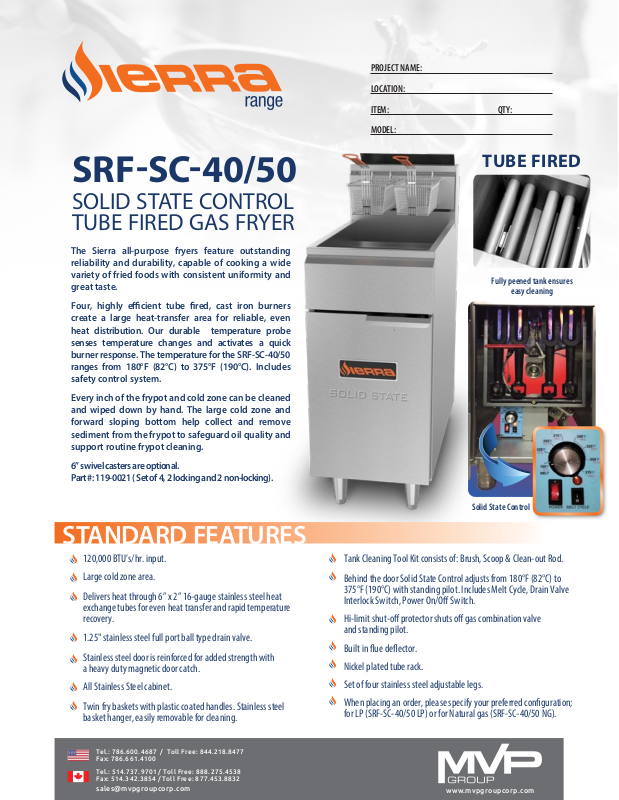

Sierra SRFSC4050 Specifications
PROJECT NAME:
LOCATION:
SRF-SC-40/50
SOLID STATE CONTROL
TUBE FIRED GAS FRYER
The Sierra all-purpose fryers feature outstanding
reliability and durability, capable of cooking a wide
variety of fried foods with consistent uniformity and
great taste.
Four, highly ecient tube red, cast iron burners
create a large heat-transfer area for reliable, even
heat distribution. Our durable temperature probe
senses temperature changes and activates a quick
burner response. The temperature for the SRF-SC-40/50
ranges from 180°F (82°C) to 375°F (190°C). Includes
safety control system.
Every inch of the frypot and cold zone can be cleaned
and wiped down by hand. The large cold zone and
forward sloping bottom help collect and remove
sediment from the frypot to safeguard oil quality and
support routine frypot cleaning.
ITEM:
MODEL:
QTY:
TUBE FIRED
Fully peened tank ensures
easy cleaning
6” swivel casters are optional.
Part #: 119-0021 ( Set of 4, 2 locking and 2 non-locking).
STANDARD FEATURES
120,000 BTU’s/hr. input.
Large cold zone area.
Delivers heat through 6” x 2” 16-gauge stainless steel heat
exchange tubes for even heat transfer and rapid temperature
recovery.
1.25" stainless steel full port ball type drain valve.
Stainless steel door is reinforced for added strength with
a heavy duty magnetic door catch.
All Stainless Steel cabinet.
Twin fry baskets with plastic coated handles. Stainless steel
basket hanger, easily removable for cleaning.
Tel.: 786.600.4687 / Toll Free: 844.218.8477
Fax: 786.661.4100
Tel.: 514.737.9701 / Toll Free: 888.275.4538
Fax: 514.342.3854 / Toll Free: 877.453.8832
sales@mvpgroupcorp.com
Solid State Control
Tank Cleaning Tool Kit consists of: Brush, Scoop & Clean-out Rod.
Behind the door Solid State Control adjusts from 180°F (82°C) to
375°F (190°C) with standing pilot. Includes Melt Cycle, Drain Valve
Interlock Switch, Power On/O Switch.
Hi-limit shut-o protector shuts o gas combination valve
and standing pilot.
Built in ue deector.
Nickel plated tube rack.
Set of four stainless steel adjustable legs.
When placing an order, please specify your preferred conguration;
for LP (SRF-SC-40/50 LP) or for Natural gas (SRF-SC-40/50 NG).
www.mvpgroupcorp.com
3.25”
Print Date:
02/2018
TECHNICAL DRAWINGS
SPECIFICATIONS
15.5”
31.1”
MODEL NUMBER
EXTERNAL DIMENSIONS
INCLUDING HANDLE
NUMBER OF BURNERS
FRYER CAPACITY
EACH BURNER AT 5” W.C
BTU
TOTAL BTU
NET WEIGHT
SHIPPING WEIGHT
WxDxH
SRFSC40/50 NG OR LP
15.5” x 31.1” x 45.8“
4
40 50 LBS
30,000
120,000
140 LBS
158 LBS
6.7”
C US
SANITATION
NSF/ANSI 4
CERTIFIED
39.8”
45.8”45.8”
34.8”
SOLID STATE
6”
15.5”29.5”
Warranty: 12 months parts & labor. Additional fry tank warranty to the original purchaser only: If the fry tank has leaked because of a
manufacturing defect, as conrmed by an MVP Group servicer within the rst two years of operation, MVP Group shall replace the fryer.
Refer to Operators Manual for full details. Freight or installation charges shall not be included.
Gas Connection: 3/4” NPT on the right-hand rear of the appliance.
Gas pressure: 4” W.C. - Natural Gas | 10” W.C. - Propane
Electrical Requirement: 120 Volts AC, 1 Amp, NEMA 5-15P
Clearances: Combustible: 6 inches sides, 6 inches rear, 16 inches to adjacent open ame burner units | Non-combustible: 0 inches sides,
0 inches rear, 16 inches to adjacent open burner ame units. Specify type of gas and altitude, if over 2,000 feet, when ordering.
SIERRA RANGE is a registered trademark of MVP Group.
Due to continuing product development, to ensure best possible performance, the specications are subject to change without prior notice.
