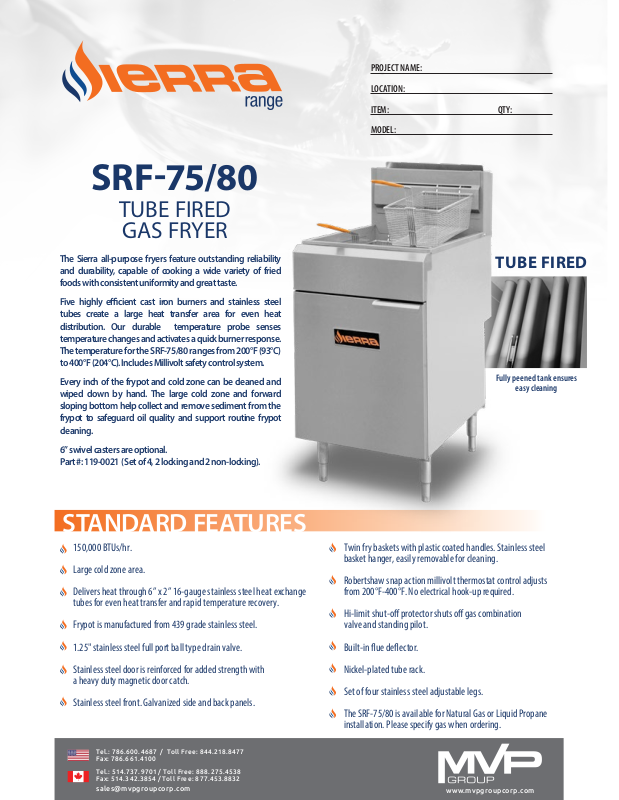

Sierra SRF7580 Specifications
PROJECT NAME:
LOCATION:
SRF-75/80
TUBE FIRED
GAS FRYER
The Sierra all-purpose fryers feature outstanding reliability
and durability, capable of cooking a wide variety of fried
foods with consistent uniformity and great taste.
Five highly ecient cast iron burners and stainless steel
tubes create a large heat transfer area for even heat
distribution. Our durable temperature probe senses
temperature changes and activates a quick burner response.
The temperature for the SRF-75/80 ranges from 200°F (93°C)
to 400°F (204°C). Includes Millivolt safety control system.
Every inch of the frypot and cold zone can be cleaned and
wiped down by hand. The large cold zone and forward
sloping bottom help collect and remove sediment from the
frypot to safeguard oil quality and support routine frypot
cleaning.
ITEM:
MODEL:
QTY:
TUBE FIRED
Fully peened tank ensures
easy cleaning
6” swivel casters are optional.
Part #: 119-0021 ( Set of 4, 2 locking and 2 non-locking).
STANDARD FEATURES
150,000 BTUs/hr.
Large cold zone area.
Delivers heat through 6” x 2” 16-gauge stainless steel heat exchange
tubes for even heat transfer and rapid temperature recovery.
Frypot is manufactured from 439 grade stainless steel.
1.25" stainless steel full port ball type drain valve.
Stainless steel door is reinforced for added strength with
a heavy duty magnetic door catch.
Stainless steel front. Galvanized side and back panels.
Twin fry baskets with plastic coated handles. Stainless steel
basket hanger, easily removable for cleaning.
Robertshaw snap action millivolt thermostat control adjusts
from 200°F-400°F. No electrical hook-up required.
Hi-limit shut-o protector shuts o gas combination
valve and standing pilot.
Built-in ue deector.
Nickel-plated tube rack.
Set of four stainless steel adjustable legs.
The SRF-75/80 is available for Natural Gas or Liquid Propane
installation. Please specify gas when ordering.
Tel.: 786.600.4687 / Toll Free: 844.218.8477
Fax: 786.661.4100
Tel.: 514.737.9701 / Toll Free: 888.275.4538
Fax: 514.342.3854 / Toll Free: 877.453.8832
sales@mvpgroupcorp.com
www.mvpgroupcorp.com
When placing an order, please specify your
Print Date:
02/2018
**
preferred conguration; for LP (SRF-75/80 LP)
or for Natural Gas (SRF-75/80 NG)
TECHNICAL DRAWINGS
SPECIFICATIONS
MODEL NUMBER
SRF75/80 NG OR LP
2.7 ”
18”
35.1”
35.1”
34.5 ”
18”
21.0”
EXTERNAL DIMENSIONS
INCLUDING HANDLE
NUMBER OF BURNERS
FRYER CAPACITY
EACH BURNER AT 5” W.C
BTU
TOTAL BTU
NET WEIGHT
SHIPPING WEIGHT
WxDxH
21” x 35.1“ x 53.2”
5
7580 LBS
30,000
150,000
210 LBS
265 LBS
6.8 ”
SANITATION
NSF/ANSI 4
CERTIFIED
47.2”
53.2”
34.8”
6”
6”
21.0”
Warranty: 12 months parts & labor. Additional fry tank warranty to the original purchaser only: If the fry tank has leaked because of a
manufacturing defect, as conrmed by an MVP Group servicer within the rst two years of operation, MVP Group shall replace the fryer.
Refer to Operators Manual for full details. Freight or installation charges shall not be included.
Gas Connection: 3/4” NPT on the right-hand rear of the appliance.
Gas pressure: 4” W.C. - Natural Gas | 10” W.C. - Propane
Clearances: Combustible: 6 inches sides, 6 inches rear, 16 inches to adjacent open ame burner units | Non-combustible: 0 inches sides,
0 inches rear, 16 inches to adjacent open burner ame units. Specify type of gas and altitude, if over 2,000 feet, when ordering.
SIERRA RANGE is a registered trademark of MVP Group.
Due to continuing product development, to ensure best possible performance, the specications are subject to change without prior notice.
