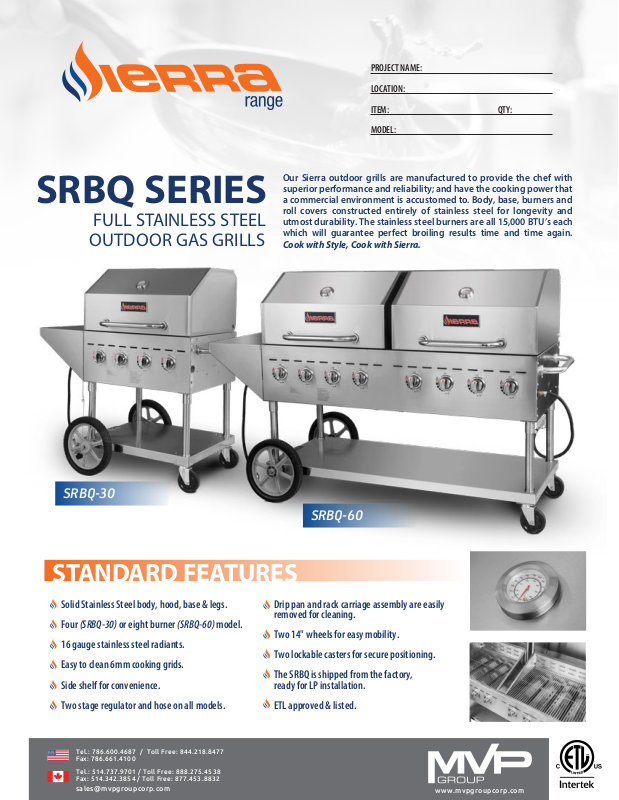

Sierra SRBQ60 Specifications
PROJECT NAME:
LOCATION:
SRBQ SERIES
FULL STAINLESS STEEL
OUTDOOR GAS GRILLS
ITEM:
MODEL:
Our Sierra outdoor grills are manufactured to provide the chef with
superior performance and reliability; and have the cooking power that
a commercial environment is accustomed to. Body, base, burners and
roll covers constructed entirely of stainless steel for longevity and
utmost durability. The stainless steel burners are all 15,000 BTU’s each
which will guarantee perfect broiling results time and time again.
Cook with Style, Cook with Sierra.
QTY:
SRBQ-30
STANDARD FEATURES
Solid Stainless Steel body, hood, base & legs.
Four (SRBQ-30) or eight burner (SRBQ-60) model.
16 gauge stainless steel radiants.
Easy to clean 6mm cooking grids.
Side shelf for convenience.
Two stage regulator and hose on all models.
Tel.: 786.600.4687 / Toll Free: 844.218.8477
Fax: 786.661.4100
Tel.: 514.737.9701 / Toll Free: 888.275.4538
Fax: 514.342.3854 / Toll Free: 877.453.8832
sales@mvpgroupcorp.com
Drip pan and rack carriage assembly are easily
removed for cleaning.
Two 14" wheels for easy mobility.
Two lockable casters for secure positioning.
The SRBQ is shipped from the factory,
ready for LP installation.
ETL approved & listed.
SRBQ-60
www.mvpgroupcorp.com
TECHNICAL DRAWINGS
Print Date:
05/2019
49.21”
15.25”
49.61”
SRBQ-30
14.37”
14”
29.57”
2.05”
23.23”
28.11”
5.00”
12.40”13.78”
15.25”
49.61”
SRBQ-60
14.37”
80.31”
29.57” 29.57”
14”
80.31”
28.11”
23.23”
12.40”13.78”
2.05”
5.00”
30.91”
SPECIFICATIONS
MODEL NUMBER
SRBQ30
SRBQ60
Tel.: 786.600.4687 / Toll Free: 844.218.8477
Fax: 786.661.4100
Tel.: 514.737.9701 / Toll Free: 888.275.4538
Fax: 514.342.3854 / Toll Free: 877.453.8832
sales@mvpgroupcorp.com
EXTERNAL DIMENSIONS
(W/ HANDLE) (WxDxH)
49.21" X 30.91" X 49.61"
1250 X 785 X 1260
80.31" X 30.91" X 49.61"
2040 X 785 X 1260
Warranty: 12 months parts & labor.
Gas Connection: Q.C.C.1 Type 1 connector and hose supplied with unit(2 with the SRBQ-60). Gas pressure: 10” W.C. - Propane
Combustible Clearances: For use in non-combustible locations | Non-combustible Clearances: 0 inches sides, 0 inches rear
SIERRA RANGE is a registered trademark of MVP Group.
Due to continuing product development, to ensure best possible performance, the specications are subject to change without prior notice.
28.74”
MM
MM
COOKING AREA
(WxDxH)
27.8” X 21.3”
705 X 540
27.8” X 21.3”
2 X
705 X 540 MM
MM
30.91”
NUMBER OF
BURNERS
4 STAINLESS STEEL
TUBE BURNERS
8 STAINLESS STEEL
TUBE BURNERS
30.87”
TOTAL
BTU
60,000
120,000
www.mvpgroupcorp.com
NET
WEIGHT
193.5 LBS
338 LBS
SHIPPING
WEIGHT
216 LBS
368 LBS
