PARTS BREAKDOWNS
SR-G24-4B-48
December/2017
PARTS BREAKDOWNS
2
4
1
3
Item Code Description Quantity
December/2017
1 S852132000 KNOB BEZEL THERMOSTAT ABJ 2
2 S852570000 MOUNT KIT SHELF 48" 1
3 S853331000 SIERRA DOOR 24" 2
4 S855068000 SIERRA KNOB 6
OUTER PANEL
PARTS BREAKDOWNS
1
3
4
December/2017
5
2
Item Code Description Quantity
1 S855404001 IRON BURNER 4
2 S852563000 BOTTOM FRONT PANEL 2
3 S852561000 FRONT TABLE 48" SIERRA 1
4 S852560000 COMMAND PANEL SR-G24-4B-48 1
5 S852103000 PIEZOELECTRIC 1
11
6
10
9
1

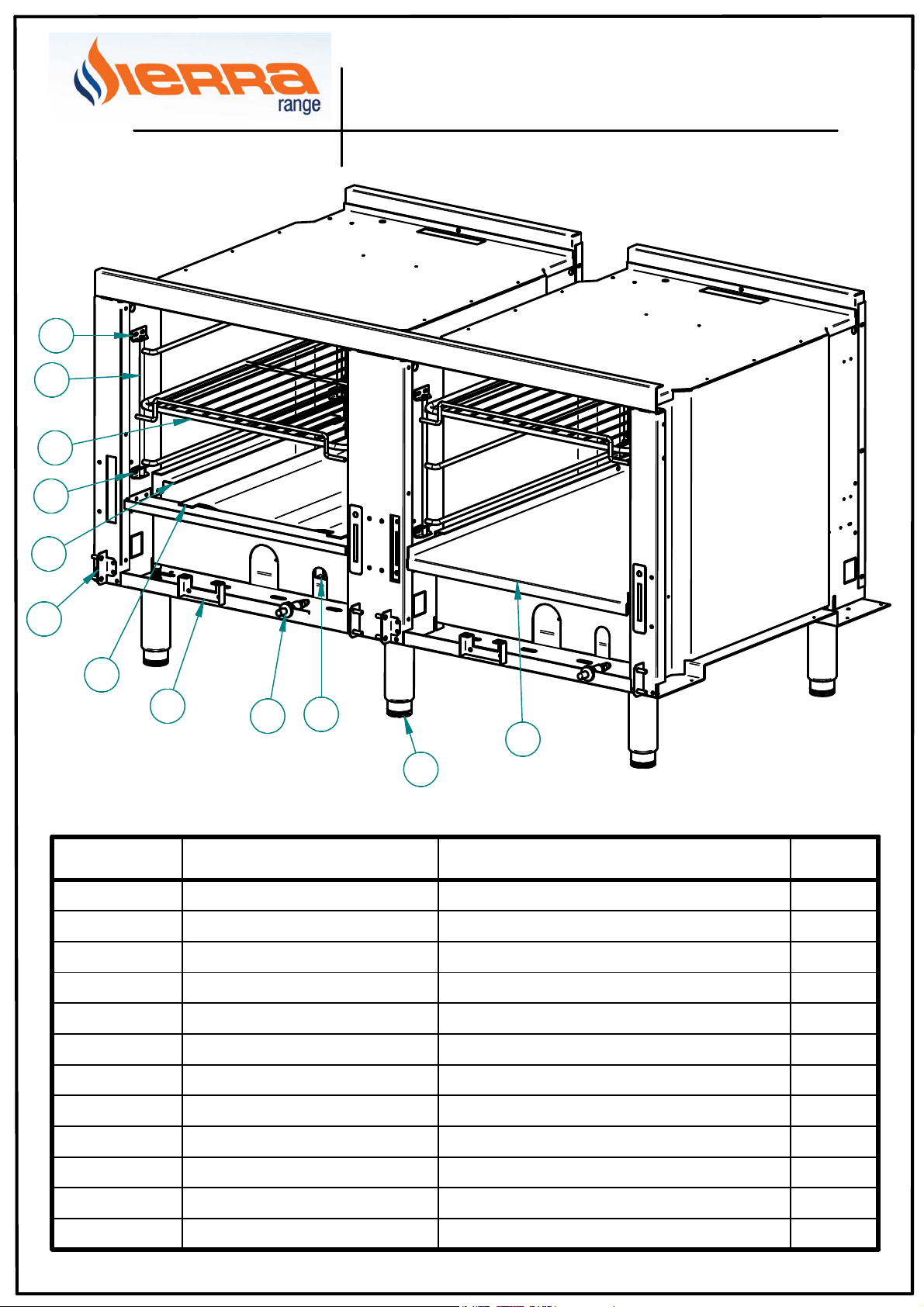

INNER LOWER PANEL 48"
PARTS BREAKDOWNS
8
2
5
4
12
3
7
Item Code Description Quantity
1 S852710500 FLOOR SLIDER 4
2 S852968003 OVEN DEFLECTOR 24 2
3 S855675003 OVEN INNER FLOOR 24" 2
4 S852103000 PIEZOELECTRIC 2
5 S852617001 VALVE SUPPORT RANGE 2
6 S855624001 CHROME GRATE GUIDE 24 4
7 S852961000 ADJUSTABLE LEG 6-8 IN Ø 2" 6
8 S852808000 BOTTOM PANEL SUPPORT 4
9 S852601001 BOTTOM SUPPORT CHROME GRIDDLE GUIDE 8
10 S855641003 OVEN CHROME GRIDDLE 24" 2
11 S852601002 RACK SUPPORT 8
12 S852516000 PILOT SUPPORT OVEN 2
December/2017

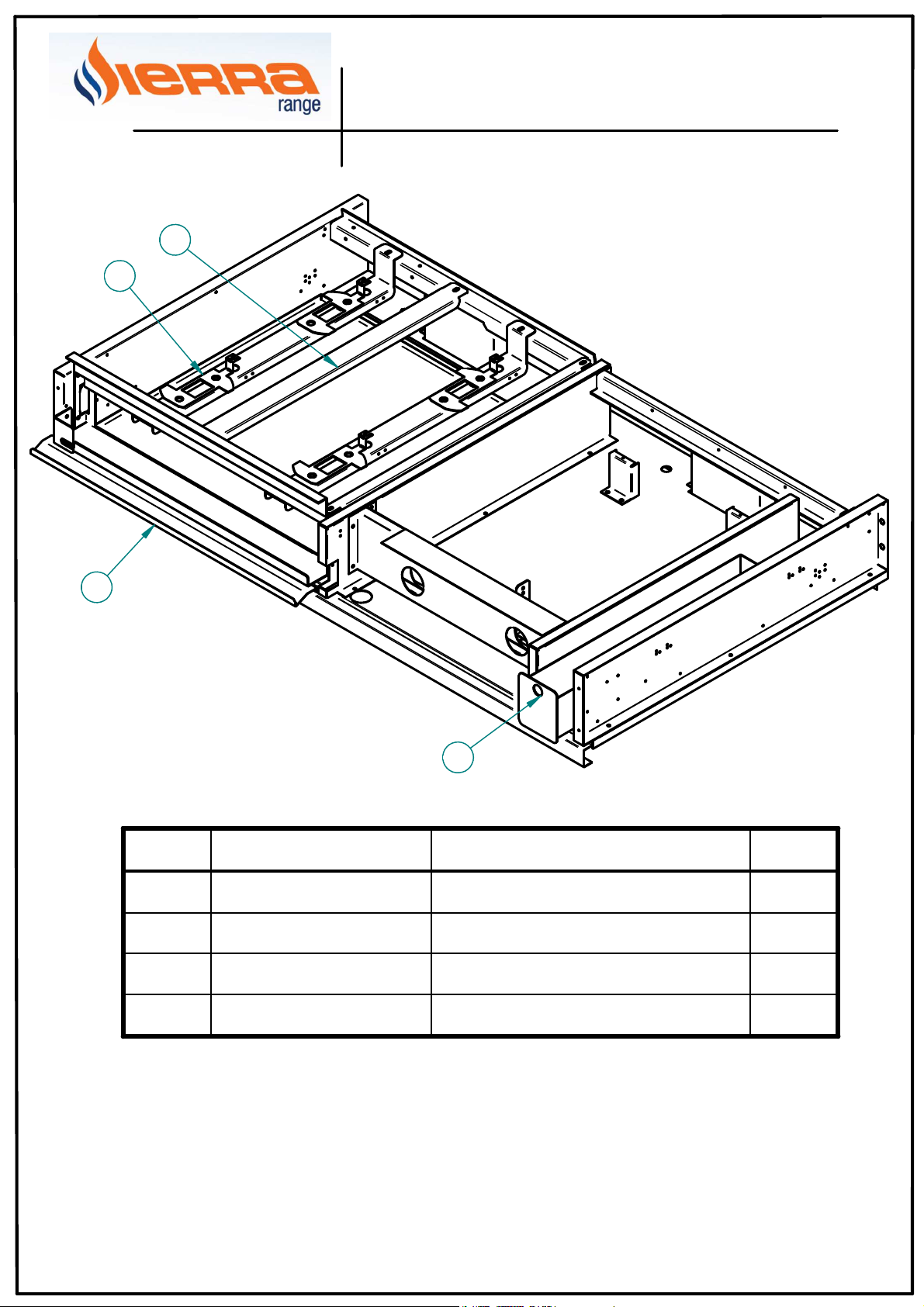

INNER UPPER PANEL 48"
PARTS BREAKDOWNS
3
4
1
2
Item Code Description Quantity
1 S8529920000 GREASE TRAY OVEN 24" 1
2 S853365000 TRAY COLLECT MULTIPLE 1
3 S852700003 CENTRAL GRATE SUPPORT 1
4 S853110200 BURNER SUPPORT 2
December/2017
PARTS BREAKDOWNS
11
7
6
GAS SYSTEM - SR-G24-4B-48
5
4
8
10
3
6
1
11
2
Item Code Description Quantity
1 S852102000 OVEN VALVE 2
2 s852104000 THERMOCOUPLE 2
3 S852105000 OVEN PILOT COMPLETE 3
4 S855709000 FRONT BODY BURNER 2
5 S855710000 BACK BODY BURNER 2
6 S852101000 THERMOSTAT ABJ 2
7 S862101000 TOP VALVE 6
8 S855712000 "U" BURNER 3
9 S855092000 TUBE PILOT-VALVE OVEN 2
10 S855704000 FLUTE BURNER 1
11 S862413000 FEMALE ORIFICE # 40 6
12 S862414000 FEMALE ORIFICE # 44 2
12
8
9
4
3
3
1
December/2017
Item Code Description Quantity
1 S855028000 "T" COMPRESSION PLUG 1
2* S855060000 SS FLEXIBLE PIPE 150 1
3 S855061000 SS FLEXIBLE PIPE 350 1
4 S865006000 PILOT TIP A73007 2
BACK SPLASH 48"
PARTS BREAKDOWNS
1
2
Item Code Description Quantity
1 S852810800 BACK SPLASH SHELF 48 1
2 S852810900 FRONT PANEL BS 60" 1
December/2017
