The new washing machine that you have just purchased is a modern, high-quality
household appliance.
Your washing machine is distinguished by its economical consumption of energy, water
and detergent.
Every washing machine that leaves our factory is carefully checked to ensure that it is
functioning properly and is free of defects. If there are any questions - especially
in regards to installing and connecting your washing machine - please do not hesitate
to contact our Customer Service department.
For further information about products, accessories, spare parts and services visit
our web site www.siemens-home.com or contact our after-sales service centres.
Please read and follow these operating and installation instructions and all other
information supplied.
Differences in installation and operating instructions for different models are noted
in the appropriate places.
Retain all documentation for subsequent use or for the next owner of the appliance.
4
Safety Instructions
Protection of the environment/Hints and tips
Your washing machine uses water, energy
and detergent efficiently. This protects our
environment and reduces your household
costs.
To use your washing machine in an efficient
and environmentally friendly manner:
•
Do not exceed recommended loads.
Cottons and Coloureds ....................5.5 kg
Easy Care............................................2.5 kg
Delicates/Silk......................................1.0 kg
Woollens..............................................1.5 kg
Automatic load sensing reduces the water
and energy consumption, as well as the
programme duration, for smaller loads.
•
Instead of ”Cottons 90°C”, select the
”60°C” programme + the ”Intensive”*
pushbutton. The extended washing time of
this 60°C programme achieves a cleaning
result comparable to that of the 90°C
programme, but uses considerably less
energy.
•
Do not use Prewash* for lightly to normally
soiled washing.
•
Use detergent according to Pollution
index, amount of laundry and water
hardness and follow the manufacturer's
directions.
* Depending upon the model.
Intended use
Your washing machine is intended
•
strictly for household use
•
for washing machine washable fabrics in
water
•
for use with cold drinking water and
standard commercial washing and
cleaning products that are suitable for use
in washing machines.
Safety Instructions
Do not leave children unsupervised near the
washing machine.
Keep pets away from the washing machine.
Do not insert/pull out the mains plug with
wet hands.
Do not pull out the mains plug by tugging on
the cable.
Exercise care when draining the hot water.
Do not climb onto the washing machine.
Follow the installation instructions.
Danger of suffocation!
Keep children away from shipping carton
and packaging components. Danger of
suffocation from folding cartons and plastic
film.
Danger!
On out-of-service appliances, unplug mains
plug. Cut off power chord and discard with
mains plug. Break the lock on the lid as this
will prevent children from locking themselves
in and suffocating.
Packaging and discarded appliances
Environmentally friendly disposal
• Dispose of packaging in an environmentally
friendly manner.
• This appliance meets European guideline
2002/96/EG for discarded electrical and
electronic appliances (waste electrical and
electronic equipment - WEEE).
• The guideline provides an EU wide valid
framework for recycling of discarded appliances.
5
Introducing your washing machine
Control panel
Lid handle (remains
locked during
the programme)
Unlocking of detergent
dispenser
Removable detergent
dispenser
Button for opening
the drum lids
Locking lever
(depending upon
the model)
Water drainage hose
Water inlet hose
(not connected)
Mains connection with plug
Securing bar for
transport
Identification plate
(appliance and
production number)
click!
Properly close drum lids!
YYYYEEEESS
SS
NNNNOO
OO
6
Removing the transportation protection
devices
Figure 1 Figure 2.1
Figure 2.3
13
1
1
2
2
A
1 Remove the machine from the transport
base. Remove
wedge
(
Figure
1
).
2
Remove the 4 screwswith a screwdriver
(Figure
2.1
).
3 Remove transportation protection devices
C: Both bolts are for this purpose
(Figure
2.2)remove with a 10 mm or 13
mm spanner (depending upon model).
Check to see that both plastic inserts on
the connecting carrier have also been
removed.
Refasten the screwsat their original
locations.
4
Both holes must be covered with the
caps provided
(found in the accessories
package)
(
Figure 2.3
)!
Before the machine is used for the first time, all transportation protection devices
from the back of the appliance must be removed and stored for any later transport
(i.e., relocation)!
Figure 2.2
7
Removing the transportation protection
devices
5
Remove theprotection devices
(Figure 3)
.
To do this:
- Lift the lid on the machine
- Remove wedge
- Remove wedge
- Release the drum doors, locked in the
lower position, by pressing down on both
eaves simultaneously.
6
Remove hose retainers➀and cover
the holes with the caps provided
➁
(found
in the accessories package)
(Figure 4)
.
a
b
a
b
➀
➁
Figure 4
We suggest saving all transportation
protection devices because these must
be reinstalled in case of possible later
transport.
Before leaving the factory, this
appliance was carefully checked
.
There may be some water in the tub or
in the detergent compartments
because of testing that took place.
(depending upon model)
If the machine is fitted with hidden castors,
it can easily be moved.
To set the machine on the castors, turn the
lever below the appliance to the left until it
encounters a stop (
Figure
5).
The appliance must always be stood
firmly on its feet before it is used for
washing (lever to the right)!
Figure 5
Moving the appliance
Figure 3
F
G
8
Connections
Figure 6
Figure 7.1
Figure 7.2
Drain
Mount drain hose with the supplied elbow,
connect to a vented drain
(Figure 7.1/7.2)
.
The elbow must be between 65 and 90 cm
above the floor.
Secure drain hose against slipping off.
Replacing the water-inlet hose
After replacement, check to ensure
connections are tight and that there are
seals on both ends.
Regularly check the condition of the
water-inlet and drain hose Replace
damaged hoses only with original
replacement parts which are available
through Customer Service.
Cold water supply
Connect water-inlet hose
(Figure 6)
- Minimum water pressure: 0.1 MPa or 1 bar
- Maximum water pressure: 1 MPa or 10 bar
min. 10 mm
3/4”
9
Connections
Electrical connections
Connect the washing machine only to
alternating current via a properly installed
earthed socket.
The mains voltage must correspond to the
voltage specification on the washing
machine (nameplate).
Connection specifications as well as the
required fuses are stipulated on the
appliance nameplate.
Ensure that:
•
the mains plug and socket are compatible,
• the cable cross-section is adequate,
• the earthing system has been installed
correctly.
Do not use multiple plugs/sockets or
extension cables.
In the event that an earth-leakage circuit
breaker is to be used, only use types
marked with the following symbol:
.
Only this symbol can guarantee
compliance with all current regulations.
Do not insert/pull out the mains plug with
wet hands.
Do not pull out the mains plug by tugging
the cable.
Installation
Safety Instructions
Risk of Injury!
The washing machine is very heavy. Take
care when lifting it.
Frozen hoses may tear or burst. Do not
install the washing machine in an area
where there is a risk of freezing or
outdoors.
Do not lift the washing machine by any
projecting parts (e.g., lid handle). The
washing machine may be damaged.
In addition to the safety information listed here,
the local water and electricity supplier may
have special requirements.
If in doubt, have the appliance connected by
a specialist.
Installation surface
Stability is important so that the washing
machine does not ”wander“ during the spin
cycles. Surfaces used for installation must
be solid and even. Soft floor coverings, e.g.
carpets or floor coverings with a foam
backing are not suitable.
Adjustable feet:
(depending upon model)
Some appliances have two adjustable feet
available at the front with can be used to
correct for surface unevenness. Level and
stabilise the machine in the following
manner:
- Tip the washing machine gently
backwards.
- Depending upon the condition of the floor,
either turn out or screw in the foot or feet
(Figure 8)
.
- Check the stability of the washing machine.
Figure 8
Changing the mains lead
For reasons of safety, the mains lead is only
to be replaced by Customer Service which
is authorised to do so.
10
International Laundry Care Symbols
In order to assist you in taking care of your textiles, these contain a label with the necessary
information. The information is given by the following symbols :
©
COFREET
Before the first washing - wash once without laundry articles
Before you wash laundry for the first time, we suggest running the ”COTTONS 90°C without
Prewash“ wash cycle without laundry and with 1/2 measuring cup of detergent. In this
way, any water left over from testing the machine will be removed.
The dots indicate the drying levels of the tumbler (laundry dryer).
The letters are for dry cleaning. They provide information in regards to solvents.
The line below the circle indicates that a reduction of mechanical action, moisture and temperature
is required during cleaning.
The dots indicate the temperature ranges of the automatically controlled iron.
The values in the washtub correspond to the maximum water temperatures that are not to be
exceeded. A line below the washtub indicates gentle (mechanical) handling (for example, washing
with slow rhythm). It denotes wash cycles that are suitable, for example, for Easy-Care and delicate
articles.
Chlorine bleach may be used
Normal
washing
prog.
Gentle
washing
prog.
Normal
washing
prog.
Gentle
washing
prog.
Normal
washing
prog.
Gentle
washing
prog.
Gentle
washing
prog.
Hand
washing
Do not
wash
WASHING
(Washtub)
CHLORINE
(Triangle)
IRONING
(Flatiron)
CHEMICAL
CLEANING
(Cleaning
drum)
DRYING
in the
washer-dryer
Do not use
chlorine bleach
medium iron cold iron no ironing
no cleaning with
chemicals
Drying with reduced
thermal loading
Drying in the washer-
dryer not possible
cl
95
95
60
F
A
P
F
60
40
40
40
30
P
Special
Gentle
washing
prog.
hot iron
Drying with normal
thermal loading
11
Treating stubborn stains
USING STAIN REMOVERS:
To avoid the danger of a fire or explosion:
(*) When using the solutions mentioned above, rinse the articles thoroughly before putting
them into the washing machine.
- Strictly follow the manufacturer's instructions when using common stain removers.
Perspiration, blood, fruit, wine and chocolate stains are generally removed by using detergents
with biologically active ingredients. Other stains however require special treatment before washing.
First test on an inconspicuous area of the article and then rinse thoroughly. When applying
stain remover, always start from the outside to avoid forming a border.
After stained fabrics have been washed and then dried in the dryer or ironed, the stains
can no longer be removed.
GRASS: Dab the stain with clear vinegar or
90 percent alcohol* (if the material permits),
rinse out and wash.
BALLPOINT PEN - FELT TIP: Dab the stain
with paper towels to absorb as much ink as
possible. Put a white, clean cloth under the
stain and then dab it with another cloth. For
synthetics, the second cloth should be
moistened with clear vinegar, for other fibres
with 90 percent alcohol* (in so far as the
material allows).
RUST: Sprinkle light stains with salt. Sprinkle
the salt with lemon juice and let work
overnight. Next day, rinse thoroughly and
wash. For larger stains, use a special rust
remover, paying especial attention to the
manufacturer’s instructions.
CHEWING GUM: Cool down with an ice
cube. As soon as it is hard enough, remove
using your fingernails. Remove the border
that remains using a grease remover*.
AUTOMOBILE GREASE - TAR: Use spot
remover*. If none is available, smear the
stain with some fresh butter, let work and
then dab with oil of turpentine*.
PAINT: Do not allow paint stains to dry;
immediately treat with the solvent indicated
on the paint can (water, turpentine*, light
petrol*) . Soap and rinse out.
CANDLE WAX: Scrape off most of the stain.
Then put paper towels on both sides of the
item and melt the remaining wax using an
iron.
MAKE-UP: Lay the side of the material with
the stain on a piece of paper towel and
moisten the other side of the article with 90
percent alcohol* insofar as the item permits
and the stain is not greasy. Otherwise, use a
grease solvent (e.g. trichloroethylene*).
COFFEE - TEA:
-
On white cottons: dab the stain with
hydrogen peroxide* and afterwards wash
as usual.
-
On coloured cottons: dab the stain with
a vinegar solution (2 tablespoons of clear
vinegar in ¼ litre of water) and afterwards
wash as usual.
-
On woollens: dab the stain with a mixture
of equal parts of alcohol* and clear vinegar
and afterwards wash the article.
CHOCOLATE - FRUIT - FRUIT JUICE - WINE:
Dab the stain with a vinegar solution
(2 tablespoons of clear vinegar in ¼ litre of
water). Rinse thoroughly and wash as usual.
GREASE: Immediately sprinkle talcum
powder on the material. Let dry and gently
brush off the talcum powder. Then dab with
a grease solvent, such as gasoline*. Rinse
out and wash as usual.
BLOOD: Immerse the stained item in cold
salt water as quickly as possible; afterwards
wash as usual.
KETCHUP - TOMATO SAUCE: Prepare
a solution of equal parts glycerine and warm
water. Soak the item for an hour and
afterwards wash as usual.
12
Preparing the laundry
Average weight of several dry, ”heavy“ laundry items
Average weight of several dry, ”light“ laundry items
Bed linen for 1 person . . . . . . . . . .400 to 500 g
Bed linen for 2 persons . . . . . . . . . . . . . . .800 g
Pillow cover . . . . . . . . . . . . . . . . . . . . . . . . .200 g
Light night-gown . . . . . . . . . . . . . . . . . . . . .150 g
Children's cloth pants . . . . . . . . . . . . . . . .120 g
Cloth trousers . . . . . . . . . . . . . . . . . . . . . . .500 g
Man's shirt cotton/polyester . . . . . . . . . . . 200 g
Cotton T-shirt, large . . . . . . . . . . . . . . . . . .150 g
Tea towel . . . . . . . . . . . . . . . . . . . . . . . . . . .100 g
Table cloth . . . . . . . . . . . . . . . . . . . . . . . . .250 g
Delicate lady's items . . . . . . . . . . . . . . . . . . . .50 g
Children's knitted synthetics . . . . . . . . . . . .50 g
Socks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 g
Cloth pyjamas . . . . . . . . . . . . . . . . . . . . . . .250 g
Jeans . . . . . . . . . . . . . . . . . . . . . . . . 800 g to 1 kg
Terry cloth bath towel . . . . . . . . . . . . . . . . .700 g
Terry cloth hand towel . . . . . . . . . . . . . . . .300 g
Jogging pants . . . . . . . . . . . . . . . . . . . . . . .350 g
Children's terry cloth pyjamas . . . . . . . . . .100 g
Bathrobe . . . . . . . . . . . . . . . . . . . . . . . . . .1,200 g
Sweatshirt . . . . . . . . . . . . . . . . . . . . . . . . . . .250 g
Plumeau case . . . . . . . . . . . . . . . . . . . . . .1,500 g
Do not exceed the following load limits:
COTTONS / COLOUREDS / MIXED: ................................................................................ 5.5 kg
EASY-CARE: ........................................................................................................................ 2.5 kg
WOOLLENS: ..........................................................................................................................1.5 kg
DELICATES / SILK: ..................................................................................................................1 kg
To prepare the laundry
Foreign objects (e.g. coins, paperclips,
needles, nails) may damage laundry items
or washing machine components (the drum
for example).
• Empty the pockets of the laundry items.
• Brush sand out of pockets and
cuffs/turn-ups.
• Close zippers, button covers.
• Remove curtain rollers or tie up in
a net/bag.
• In a net/cushion cover, wash:
- Delicate items e.g. tights, curtains,
- Small laundry items, e.g. socks or
handkerchiefs
- Underwired bras (underwires may
become detached during washing and
cause damage). )
• Trousers, knitwear and knitted textiles,
e.g. jersey garments, T-shirts or
sweatshirts, should be turned inside out.
13
Loading the wash
Danger of explosion!
If laundry treated with cleaning agents
containing solvents, e.g. stain removers or
benzene, is loaded into the washing
machine, an explosion may result.
Thoroughly rinse out laundry items in
advance by hand.
Foreign objects in the washing drum
may damage laundry. Check the drum
for foreign objects before putting in the
laundry.
Opening the washing machine
• Lift handle to open.
• Press button to open the drum lid.
• Unfold pre-sorted laundry items and
loosely load into the washing drum. Mix
large and small items.
Laundry items of different sizes distribute
themselves better during the spin cycle.
Do not exceed suggested loads (see also
PROGRAMME CHART). Overfilling reduces
washing efficiency and promotes creasing.
Water and energy consumption by the
washing machine is automatically reduced
for smaller loads.
• Close drum lid.
Do not wedge laundry items between the
drum and the drum lid.
Ensure that the drum lid is properly
closed.

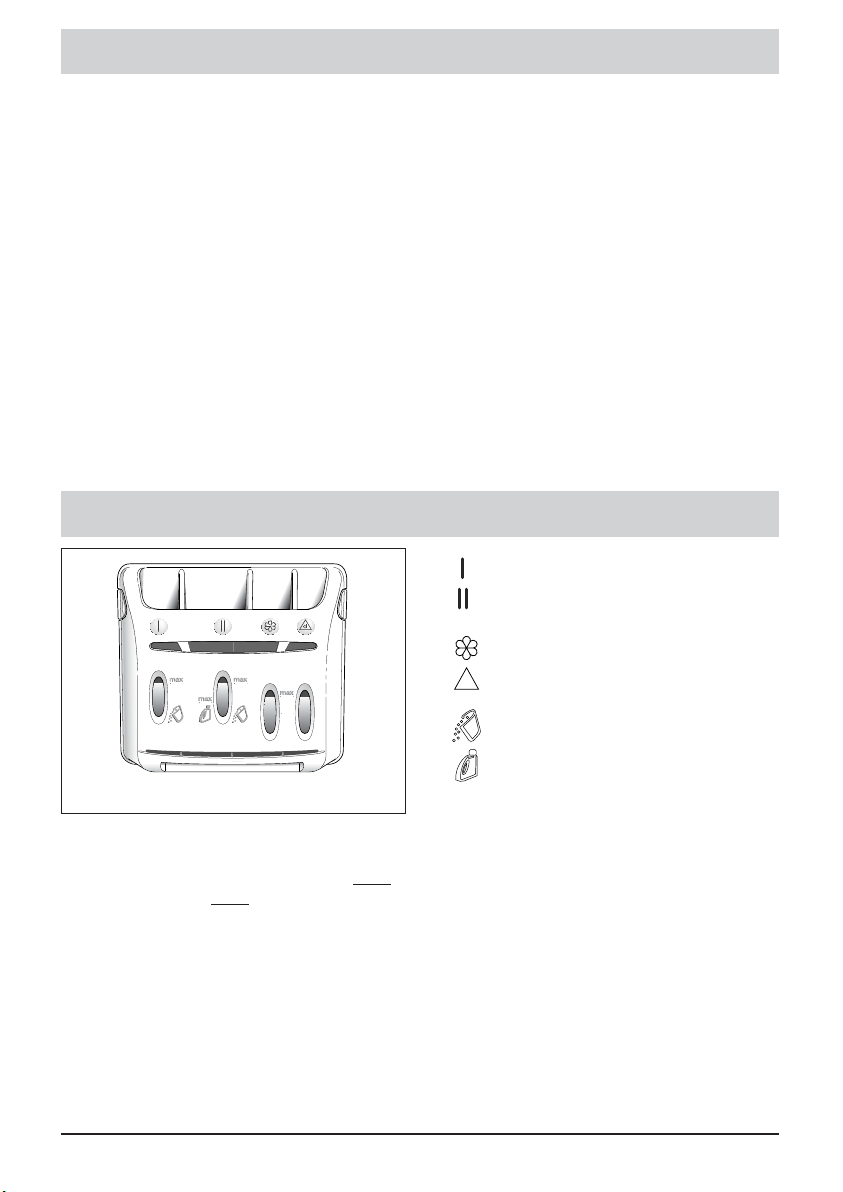

Putting in detergent
➀
➁
➃➂
:
WASHING POWDER
:
LIQUID DETERGENT
➀
Prewash compartment (powder)
➁
Main wash compartment
(powder or liquid)
➂
Fabric softener
➃
Function not available
cl
The main wash compartment can hold
powder as well as liquid. However, do not
use liquid detergent for the program WITH
Prewash and/or WITH ”Delayed Start“
(depending upon the model).
Concentrated fabric softener must be
diluted with warm water!
Do not exceed the level indicated by MAX.
Do not put detergent directly into the drum.
Loading detergent
Use the amount of detergent appropriate for
- The hardness of the water. The hardness of
the water can be found from the water utility
company.
- The size of the load.
- The degree of soiling.
- The specifications of the detergent
manufacturer.
Put liquid detergent in the appropriate
dispenser.
Risk of poisoning!
Keep detergents and additives out of the
reach of children.
Figure 9
14

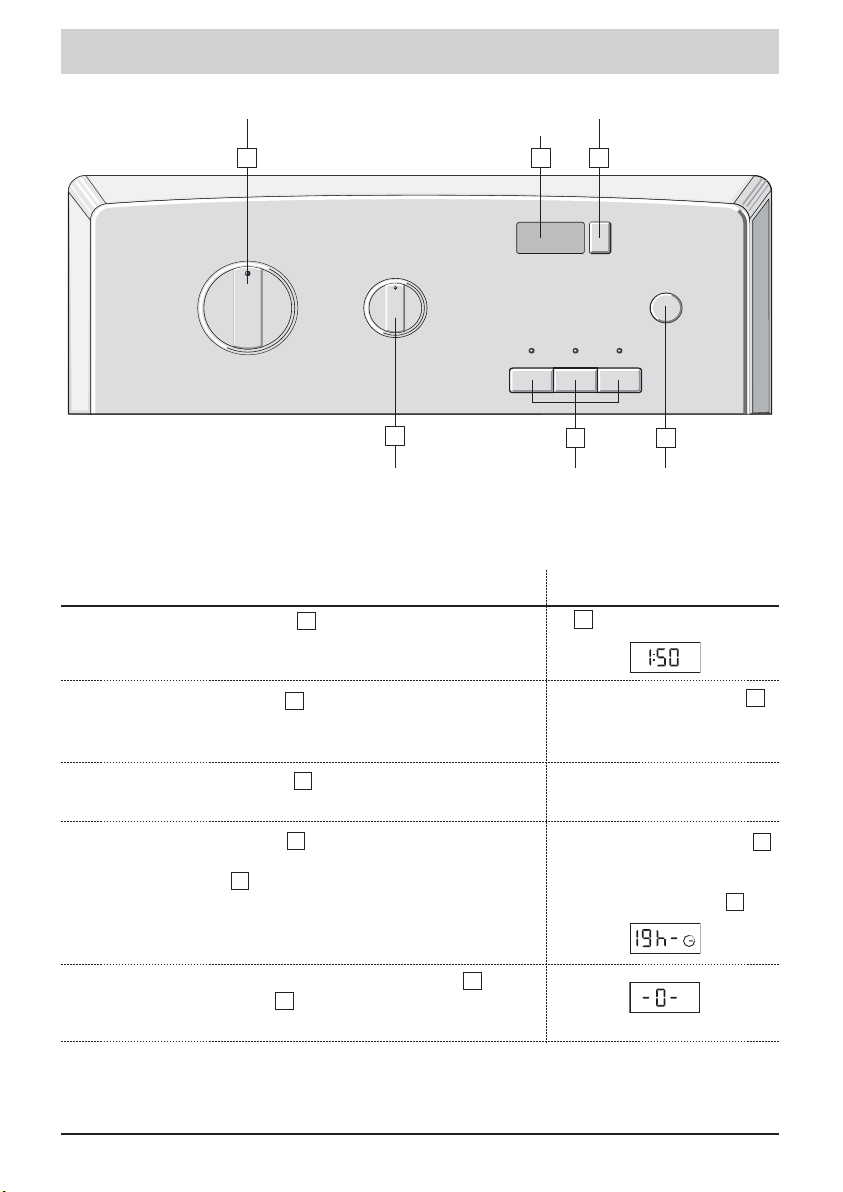

Setting the programme
Start/Pause button
Display panel for programme
length and Delayed Start
Programme selector
5
A 31
Spin speed selector
2
Additional function
buttons
4
Starting time button
Selecting the programme:
Display panel and the position of
the spin speed selector
•Select the desired programme using the programme
selector.
•
Set the desired spin speed using the spin speed selector
(see chart, page 16).
•
If applicable, select options using the additional function
buttons.
•
Start the programme using the ”Start“ button.
...
or a Delayed Start of 1 to 19 hours can be selected
using the button.
•
At the end of the cycle, the display panel indicates ”- 0 -“.
Turn programme selector to ”Off“.
Open lid and remove laundry.
1
A
3
5
4
2
1
In Programme length, e.g.
Set spin speed selector
to desired position (e.g.
”800“).
The indicator light for the
selected option lights up.
Remaining time indicator
Time remaining until start of
the programme in
A
A
2
A
Selecting the programme
15
Basic programme
Select the desired programme - also see the
Programme Chart.
For the maximum spin speed of the
programme, see the chart on the next page.
Cottons + Linens y 90°C
Energy intensive programme for heatresistant textiles, e.g. made of cotton or
linen.
To protect the wastewater pipes, the hot
wash water is mixed with cold water and
cooled before being drained.
Coloureds y 60°C + ”Intensive“ button*
For stained, heavily soiled textiles, e.g.
cotton or linen.
Energy saving programme. The extended
washing time achieves a cleaning result
comparable to that of the 90°C programme,
but uses considerably less energy.
Coloureds y 60°C + Prewash
For heavily soiled, hard-wearing textiles.
Coloureds y cold, 40°, 60°C
For hard-wearing textiles.
Easy-Care A cold, 30°, 60°C
For Easy-Care textiles, e.g. made of cotton,
linen, synthetic or blended fabrics.
Delicates q cold 30°C
For Easy-Care textiles, e.g. made of cotton,
linen, synthetic or blended fabrics.
(e.g. curtains).
Wool U cold, 30°, 40°C
For hand- and machine-washable wool or
wool-rich textiles, e.g. cashmere, mohair or
angora.
Silk u cold
For hand- and machine-washable silk
textiles.
Quick 40°C/30 min I
For a load of lightly soiled laundry items up to
2.5 kg. To freshen up cottons, linens, coloureds
or hard-wearing synthetics.
Washing temperature automatically set to
40°C. Time limited to 30 minutes.
For this programme, reduce the
amount of detergent by half!
Additional programme selections
Rinse K
Separate rinse cycle with subsequent spin
for Easy-Care textiles.
Spin B
Separate spin cycle. Wash or rinse water is
pumped out before the spin cycle.
When choosing ”rinsing“ and
”spinning“ programmes, note the
appropriate spin speed, see chart on
page 16.
* Depending upon the model.
Spin speed selector
16
Programme setting for testing in accordance with or following EN 60 456 and IEC 60 456.
PROGRAMME FOR STANDARD AND COMPARISON
TESTS
Programme ......................................................................................................COTTONS 60°C
Load ....................................................................................................................................5.5 kg
Duration ..........................................................................................................................140 min
Programme
COTTONS+LINENS/COLOUREDS
COLOUREDS with Prewash
EASY-CARE*
WOOL/SILK*
DELICATES*
HANDWASHABLE TEXTILES*
GENTLE SPIN (Drip Dry)**
RINSE STOP (No Final Spin)***
with
spin speed selector*
8009001000
———
8009001000
8009001000
8009001000
800800
600
600
800
600600
600600
QUICK 40°/30 min
900 8001000
100 100100
Spin speed (depending upon model)
* In the ”Easy-Care“, ”Delicates“ and ”Woollens/Silk“ programmes, the spin speed is limited
automatically.
** Gentle Spin: Gentle reduced spin cycle at 100 rpm.
*** Rinse Stop: Laundry remains in the last rinse water.
y
y
A
1100
—
1100
1100
1100
800
600
600
1000
100
1200
—
1200
1200
1000
800
600
600
1000
100
q
u
I
Q
D
U
Additional function buttons
17
PREWASH P (depending upon model)
For heavily soiled, hard-wearing textiles,
e.g. from cotton or linen.
The Prewash washing temperature is
30°C. Prewash not available for Woollens
or Delicates programme.
If the Prewash programme is aborted,
the washing water is drained and the
programme continues with the main
washing cycle.
Detergent must be put into detergent
compartment ”I“.
EXTRA RINSE K
(depending upon model)
Especially for sensitive skin and for areas
with very soft water.
Adds an additional rinse cycle.
ANTI-CREASE or EASY IRON wf
(depending upon model)
This option washes your laundry more
gently, but with an identical washing
performance. The spin speed is slower so
that your laundry creases less.
INTENSIVE X (depending upon model)
For heavily soiled laundry, the washing
times are increased for the Cottons,
Coloureds and Easy-Care programmes.
By selecting 30--60°C, the wash
temperature is increased 4°C.
RINSE STOP (No Final Spin) D
For delicate textiles and curtains. The
laundry remains in the final rinse water.
The laundry goes through a short
intermediate spin cycle; also for
”Delicates
“,
”Wool/Silk”.
In this way, better rinsing takes place.
For RINSE STOP, both symbols
alternate on the
panel display: and .
- The machine should be emptied and the
laundry spun.
Using the spin selector choose one of
the spin speeds appropriate for the type
of laundry. The programme ends
automatically. The remaining time
is indicated on the display panel.
- Machine is only to be drained.
Using the spin speed selector select
the
”
Gentle Spin” (Drip Dry) function.
The laundry is gently spun dry. The
remaining time is indicated on the
display panel.
2
2
A
By pressing the pushbutton multiple times,
the
start of the programme can be delayed from
1 to 19 hours.
The selection is confirmed after a few
seconds. To activate the delayed starting,
press the ”Start“ button.
The course of the Delayed Start is displayed
every hour from 19 hours to 1 hour, and
then every minute from 59 minutes to
1 minute. During the entire process, the
Delayed Start symbol is illuminated.
The four segments flash in succession.
After the Delayed Start time ends, the
programme starts and the remaining time
is indicated on the display panel.
During the course of the Delayed Start, the
settings may be changed at any time, see
section ”Changing the programme“.
A
A
3
Delayed Start
18
Topping up laundry + changing programs
Changing the programme
If you have chosen the wrong programme:
• Turn programme selector to ”Off“.
• Set programme selector to the desired
programme.
• Press
”Start“ if applicable.
The spin speed may be changed at
any time during the programme.
As long as they have not finished, all
options may be activated or
deactivated at any time during the
course of the programme.
Terminating the programme
If you would like to terminate a programme
before it is completed:
• Turn programme selector to ”Off“.
• Set programme selector to ”Spin“.
Select desired spin speed for ”Spin“ (but not
Rinse Stop).
• Press
”Start“ button.
During the washing cycle, laundry may be added or removed.
• Press the ”Start“ button to abort the programme.
• Remove or add laundry if necessary.
(*) It may be 1 to 2 minutes until the lid unlocks.
• Press the ”Start“ button to restart the programme.
If a Delayed Start has been selected, the drum may be opened
at any time before the start of the programme without aborting
the programme and having to start anew.
5
5
In the indicated
remaining time is stopped.
In the remaining time
function is again activated
(two dots flash).
A
A
Adding or removing laundry
(not possible during spin cycle):
19
Before switching on the machine,check that the mains lead is connected and the tap is
open.
Ensure that all lids are properly closed.
For purposes of safety, it is suggested that the mains cable be unplugged and the tap
closed when the programme has ended.
After a power outage, the programme resumes from the point at which it was broken
off.
Changing the programme
(continued)
Changing the programme:
All modifications are possible before the ,
”Start“ button has been pressed.
- immediately after the start of the
programme:
Change programme (e.g. from ”COTTONS“ to
”DELICATES“ etc.). Then press ”Start“ button
again.
- during the washing programme:
Change programme (e.g. from ”DELICATES“
to ”COTTONS“ etc.). Then press ”Start“
button again. Some of the water may be
drained. The entire programme begins anew.
The temperature can be changed during the
programme without pressing the ”Start“ button
again.
The spin speed may be changed at any time.
All additional functions may be activated or
deactivated during the entire programme as
long as they have not finished.
- during the preselection of starting time:
During the preselection of the starting time,
all programme changes are allowed.
The preselection of starting time may be
changed at any time, e.g. from to 18
hours.
If the programme should start immediately,
set the starting time back (a step after 19 h)
and press the ”Start“ button.
All available additional functions may be
activated during the preselection of starting
time.
- at the end of the programme:
If appears in the display, a new
programme may be selected without first
having to set the programme selector on
”Off“.
1
A
3
5
5
5
Safety features
20
Lid opening safeguards:
After the programme starts, the appliance lid
is locked.
After the programme ends or during ”Rinse
Stop“, the lid is unlocked.
Depending upon the model: Depending upon
the model, if a ”Delayed Start“ was
programmed, the lid remains unlocked
during the entire waiting period before the
start of the programme.
If the lid is to be opened during the
programme, quickly push the ”Start“ - button
and wait approximately 1 to 2 minutes until
the lid safety unlocks.
In order to avoid scalding, the lid remains
locked until the wash water has cooled
down somewhat.
Water safeguards:
During operation, the constant water level
control prevents possible overflows.
Spin safeguards:
The washing machine is equipped with
a safety feature that can reduce the spin
speed if imbalanced loading occurs.
In this case, the laundry may be insufficiently
spun dry. Evenly distribute the laundry in the
drum and programme a new spin cycle.
Safeguards against excess
foaming:
Too much foam may be produced in your
washing machine during spinning.
In this case, the spinning is stopped and the
machine is drained.
The programme continues. The spin speed is
adjusted and an additional rinse cycle is
performed.
Special applications
Soaking
•Insert washing of the same colour.
•Pour soaking agent into dispenser
II
according to the manufacturer’s
instructions.
•Select the ”Cottons/Coloureds 30°C”
programme.
•Press the ”Start“ button.
The programme starts.
•After approx. 10 minutes press the ”Start“
button.
The washing is now in the water.
•After the required soaking time select and
start a programme.
No additional detergent required, the
soaking solution is used for washing.
Starching
The washing should not be treated with
fabric softener.
•Insert the washing.
•Dose a quantity of starch for approx. 15
litres of water.
Dissolve starch according to the
manufacturer’s instructions.
•Select the ”Rinse” programme.
•Set the spin speed.
•Pour starch solution into dispenser .
•Press the ”Start“ button.
Dyeing / Bleaching
Do not dye too frequently. The salt can have
an aggressive action on stainless steel!
Respect the indications of the manufacturer
of the dye!
Never bleach washing in the washing
machine.
21
Cleaning and Care
Danger of electric shock!
Completely disconnect the washing machine
from the mains.
Never clean the washing machine with a jet
of water.
Danger of explosion!
Never use solvents for cleaning.
Danger of freezing
When there is danger of freezing, remove the
water-inlet hose and completely drain the
washing machine.
In this way, excess water that could still be in
the dispenser will be drained out.
Cabinet
Use only soap and water.
Control panel, base, etc.:
Use only a moist towel.
Do not use:
• Scouring powder
• Metal pads or plastic sponges
• Alcohol-based products (alcohol, diluents,
etc.)
Interior components
It is suggested:
• To leave the lid open for some time after
washing.
• To clean the plastic and rubber parts of
the washtub inlet about once a month with
soapy water. Rinse thoroughly to remove
all traces of this cleaning material.
• It is suggested that the 90°C washing
program be run at regular intervals.
Filter in the water inlet
•It is recommended to clean the filter in the
water inlet regularly.
Detergent compartment
Clean the detergent dispenser regularly. For
this purpose:
- To remove the detergent dispenser,
squeeze both pressure points
simultaneously
(Figure 10)
. The dispenser
then detaches itself from the compartment
(Figure 10)
.
- Remove components
at the rear
of the dispenser
and separate from the
front cover
(Figure 11)
.
- Rinse the parts under running water.
Completely empty the dispenser.
- Reassemble all components in the proper
order. Snap the detergent compartment
into place under the lid of the washing
machine.
Figure 10
Figure 11
22
Cleaning the Filter
If the pump filter is not regularly
cleaned, then this may adversely affect
the performance of the machine.
Cleaning the pump filter
This filter collects bits of fluff and small
objects, e.g. detached buttons that have
fallen into the container.
To clean, proceed as follows:
• Open the drum lids.
On the floor of the drum, there is a laundry
agitator
(Figure 12)
.
Unfasten this part
(Figure 13)
.
For this purpose:
• Insert a dowel (for example, a pencil or
a screwdriver) in the hole in part
.
• Press this dowel downwards and
simultaneously slide part towards the
right until it releases
.
• Remove part .
• Gently turn the drum with the open lids to
front side of the machine
(Figure 14)
.
• Remove pump filter
from its holder
(Figure 14)
.
• Remove foreign objects and fluff.
• Clean filter under running water
(Figure 15)
.
• Press filter back into its holder up to the
stop.
• Reinstall laundry agitator
. Slide the
laundry agitator to the left until part
engages audibly
(Figure 16)
.
A
Figure 12
Figure 14
B
Figure 15
Figure 13
➀
➁
CLANG
Figure 16
➀
➁
click!
23
Troubleshooting minor faults
Malfunctions of the washing machine are indicated on the display panel.
Flashing
indicator
Cause / Remedial action
Drain hose condition: The connection must not be blocked (see chapter
”APPLIANCE CONNECTIONS: Water drainage“).
Drum blocked. Check if a small laundry item (e.g. handkerchief, sock...)
has got between the detergent dispenser and drum. For access to the
bottom of the dispenser, refer to the chapter ”CLEANING THE FILTER“
Lid improperly closed. Check if the lid is closed. Start the programme
using the ”Start“ button.
No water flows in. Open tap and press the ”Start“ button again. This
malfunction may be caused by an improper water supply hose connection
(see chapter ”APPLIANCE CONNECTIONS: Water-inlet hose“).
Pump filter blocked. Clean the pump filter (see chapter ”CLEANING THE
FILTER“) and restart the program with the ”Start“ button.
Check drain hose: The connection must not be blocked (see chapter
”APPLIANCE CONNECTIONS: Water drainage“).
24
Malfunctions that require repair service
Please check if the display indicates a malfunction that you may fix by yourself
(see above)!
The following indicators require repair service:
etc.
Flashing
indicator
If these indicators appear:
- Turn programme selector to ”Off“.
- Pull out mains plug for 10 s.
- Reinsert mains plug.
- Select programme and start again.
If the indicated malfunction remains, the service department is to be notified.
SUGGESTION:
Disconnect washing machine from mains and turn off tap.
25
What to do if...
Problem
The programme does
not start
Severe vibrations during
the spin cycle
The laundry was not or
was insufficiently spun
dry
Water issues from/under
the machine
The machine does not
drain out
The lid does not open
The drum lid opens too
slowly
(depending upon model)
Possible cause / Remedial action
• The selection of the programme was not fully completed:
- The ”Start“ button has not been pressed.
- Programme selector remains in the Stop position.
• The washing machine is not supplied with power:
- Check if the mains cable is connected.
- Check protection devices.
• The tap is closed.
• The inlet hose is torn
• The lid is not properly closed.
• Filter in the water inlet is blocked. -->Clean filter.
• The transportation protection devices for the appliance have not
been completely removed:
- Check if all the transportation protection devices were removed.
(see chapter ”REMOVING THE TRANSPORTATION PROTECTION
DEVICES“)
• The floor is not level.
• The appliance rests on the two ”front“ castors (depending upon
model).
- Push the locking lever towards the right.
• You have chosen a programme without a spin cycle, i.e. ”Gentle Spin“.
• The imbalance control system has detected an improper distribution
of laundry in the drum:
- Resort the laundry and again select ”Spin“.
• The drain hose is improperly inserted into the drainage line.
• The water-inlet hose leaks at the machine and at the tap:
- Check the gaskets and connections.
• ”Rinse Stop“ was chosen.
• The drain pump filter is blocked:
- clean the filter (see chapter
”CLEANING THE FILTER“)
• The drain hose is broken or crimped.
• The programme has not yet ended.
The lid remains locked during the entire time of the programme.
• The washing machine has not been used for a long time.
• The washing machine is in a room that is too cold.
• Residual detergent (powder) is blocking the hinges.
- remove residual detergent.
If a malfunction can not be remedied with the assistance of the following chart:
•Turn programme selector to ”Off“.
•Disconnect washing machines from mains.
•Turn off tap.
Danger of electric shock!
Have repairs carried out only through the service department or by authorised specialists.
26
Customer Service
Every washing machine that leaves our factory is carefully checked to ensure that it is functioning
properly and is free of defects. If there are any questions - especially in regards to installing and
connecting the washing machine - our Customer Service is at your disposal.
If you cannot rectify the fault yourself (Troubleshooting –> page 25, 26), please contact our
after-sales service. We will always find a suitable solution and will avoid a visit from a service
technician wherever possible.You can find the contact details for your nearest after-sales service
here or in the after-sales service directory (depending on model).. When calling Customer Service,
please specify the product number (E-No.) and production number (FD-No.) of your appliance.
This information can be found on the identification plate.
By specifying the product number and production number of your appliance, you help us in our
attempts to prevent unnecessary travelling. You save the associated extra costs.
Further information and a selection of our products may be found on our Internet site:
http://www.siemens-home.com
- GB 0844 8928999 Calls from a BT landline will be charged at up to 3 pence per minute.
A call set-up fee of up to 6 pence may apply.
- IE 01450 2655
The product number (E-No.) may be
found behind the detergent dispenser.
Directions for removal may be found in
the chapter entitled CLEANING AND
CARE.
This is not a fault. The duration shown at the start of the programme
is updated according to the amount of laundry loaded. This ensures
a good washing result and optimum water and energy consumption.
The safety system for the spin cycle and the foam protection function
may lengthen the duration that is initially displayed.
Problem
The programme duration
is shortened or
lengthened while the
programme is in progress.
What to do if...
Possible cause / Remedial action
Rely on the professionalism of the
manufacturer. Please contact us. This
will ensure that the repair is carried out
by trained service technicians who
arrive equipped with genuine spare
parts for your appliance.
E-Nr
FD
27
(**)
The programme length was given as an average value ”without options”. During the start phase (approx. 10
minutes), the programme duration is determined based on the selected temperature and load (automatic load sensing).
- If a programme with ”Prewash“ is selected, the programme is extended from 18 - 25 minutes.
- If a programme with ”Intensive“ is selected, the programme is extended from 5 - 17 minutes.
- If a programme with ”Extra Rinse“ is selected, the programme is extended from 9 - 20 minutes.
*Functions or options depending upon model
●
Options for additional functions
O
Only one option possible in this programme
To select the most suitable programme, follow directions on the labels that are found in most pieces of laundry.
SPIN DRY only
Quick 40°C/ 30min*
Gentle Spin*
(Drip Dry)
w f
Q
X
K
P
●●●
1.5
1.0
●●●
cold
Programme Chart
Laundry type
Maximum
load
(kg)
Depending
upon
textile type
Temperature
(°C)*
Prewash*
Extra
Rinse*
Anti-Crease*
Easy Iron*
Rinse Stop
(No Final Spin)
COTTONS+LINENS/COLOUREDS
cold - 90°
cold - 60°
60°
cold - 30°
cold - 40°
40° 2.5
5.5
O
●●●
●●●
●●
O
O
O
O
●●●
O
●
●
●●●●
●
2.5
5.5
1.0
EASY-CARE
COLOUREDS with PREWASH*
DELICATES
WOOL / SILK
HANDWASHABLE TEXTILES
RINSE only
Additional programmes
Programme length
(**)
30
min
32
min
32 - 41
min
33 - 43
min
1:20 - 1:41 hrs
2:37 hrs
1
:
56 - 2
:
13 hrs
8 - 18
min
9 - 10
min
Intensive*
●
●
Special programmes
y
y
A
q
u
K
B
U
D
I
SIEMENS ELECTROGERÄTE GMBH 0710 en
G7522-04
9000370813
Siemens-Electrogeräte GmbH
Carl-Wery-Straße 34
81739 MÜNCHEN
DEUTSCHLAND
Loading...
