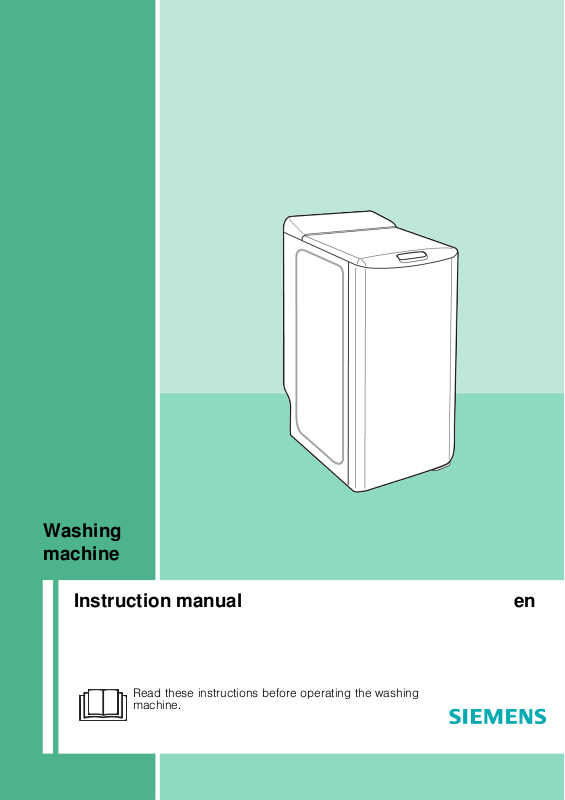

Siemens WP09T352, WP08T351 Operating Instructions
Washing
machine
Instruction manual
Read these instructions before operating the washing
machine.
en
2
Contents
In addition, the following symbols indicate:
Safety measures (for the machine or the laundry) that must be carried out without fail,
Electrical danger,
Suggestions and important information.
Page
Safety instructions...................................................................................................... 4
Protection of the environment/Hints and tips........................................................ 4
Disposal information .................................................................................................. 4
Introducing your washing machine ........................................................................ 5
1 - Installation instructions
Transportation protection devices .......................................................................... 6 and 7
Moving the washing machine .................................................................................. 7
Connections - Water supply- .................................................................................... 8
Connections - Water drainage .................................................................................. 8
Electrical connections................................................................................................ 9
Replacement of mains cable .................................................................................... 9
Installation....................................................................................................................9
2 - Operating instructions
International laundry care symbols.......................................................................... 10
Before the first wash .................................................................................................. 10
Treating stubborn stains............................................................................................ 11
Preparing the laundry ................................................................................................ 12
Loading the laundry.................................................................................................... 13
Putting in detergent.................................................................................................... 13
Setting the programme.............................................................................................. 14
Choosing programme ................................................................................................ 15
Spin speed selector.................................................................................................... 16
Additional function buttons ...................................................................................... 17
Adding wash + Changing programme .................................................................... 18
and 19
Special applications .................................................................................................. 20
Safety features ............................................................................................................ 20
3 - Cleaning and care
Cabinet ........................................................................................................................ 21
Control panel, base, etc. interior components ...................................................... 21
Detergent dispenser .................................................................................................. 21
Cleaning the filter........................................................................................................ 22
4 - Display lights.............................................................................................................. 23
5 - What to do if .............................................................................................................. 25
6 - Customer Service .................................................................................................... 26
7 - Programme chart ...................................................................................................... 28
3
The new washing machine that you have just purchased is a modern, high-quality
household appliance.
Your washing machine is distinguished by its economical consumption of energy, water
and detergent.
Every washing machine that leaves our factory is carefully checked to ensure that it is
functioning properly and is free of defects. If there are any questions - especially
in regards to installing and connecting your washing machine - please do not hesitate
to contact our Customer Service department.
For further information about products, accessories, spare parts and services visit
our web site www.siemens-home.com or contact our after-sales service centres.
Please read and follow these operating and installation instructions and all other
information supplied.
Differences in installation and operating instructions for different models are noted
in the appropriate places.
Retain all documentation for subsequent use or for the next owner of the appliance.
4
Safety Instructions
Protection of the environment/Hints and tips
Your washing machine uses water, energy
and detergent efficiently. This protects our
environment and reduces your household
costs.
To use your washing machine in an efficient
and environmentally friendly manner:
•
Do not exceed recommended loads.
Cottons and Coloureds ....................5.5 kg
Easy Care............................................2.5 kg
Delicates/Silk......................................1.0 kg
Woollens..............................................1.5 kg
Automatic load sensing reduces the water
and energy consumption, as well as the
programme duration, for smaller loads.
•
Instead of ”Cottons 90°C”, select the
”60°C” programme + the ”Intensive”*
pushbutton. The extended washing time of
this 60°C programme achieves a cleaning
result comparable to that of the 90°C
programme, but uses considerably less
energy.
•
Do not use Prewash* for lightly to normally
soiled washing.
•
Use detergent according to Pollution
index, amount of laundry and water
hardness and follow the manufacturer's
directions.
* Depending upon the model.
Intended use
Your washing machine is intended
•
strictly for household use
•
for washing machine washable fabrics in
water
•
for use with cold drinking water and
standard commercial washing and
cleaning products that are suitable for use
in washing machines.
Safety Instructions
Do not leave children unsupervised near the
washing machine.
Keep pets away from the washing machine.
Do not insert/pull out the mains plug with
wet hands.
Do not pull out the mains plug by tugging on
the cable.
Exercise care when draining the hot water.
Do not climb onto the washing machine.
Follow the installation instructions.
Danger of suffocation!
Keep children away from shipping carton
and packaging components. Danger of
suffocation from folding cartons and plastic
film.
Danger!
On out-of-service appliances, unplug mains
plug. Cut off power chord and discard with
mains plug. Break the lock on the lid as this
will prevent children from locking themselves
in and suffocating.
Packaging and discarded appliances
Environmentally friendly disposal
• Dispose of packaging in an environmentally
friendly manner.
• This appliance meets European guideline
2002/96/EG for discarded electrical and
electronic appliances (waste electrical and
electronic equipment - WEEE).
• The guideline provides an EU wide valid
framework for recycling of discarded appliances.
5
Introducing your washing machine
Control panel
Lid handle (remains
locked during
the programme)
Unlocking of detergent
dispenser
Removable detergent
dispenser
Button for opening
the drum lids
Locking lever
(depending upon
the model)
Water drainage hose
Water inlet hose
(not connected)
Mains connection with plug
Securing bar for
transport
Identification plate
(appliance and
production number)
click!
Properly close drum lids!
YYYYEEEESS
SS
NNNNOO
OO
6
Removing the transportation protection
devices
Figure 1 Figure 2.1
Figure 2.3
13
1
1
2
2
A
1 Remove the machine from the transport
base. Remove
wedge
(
Figure
1
).
2
Remove the 4 screwswith a screwdriver
(Figure
2.1
).
3 Remove transportation protection devices
C: Both bolts are for this purpose
(Figure
2.2)remove with a 10 mm or 13
mm spanner (depending upon model).
Check to see that both plastic inserts on
the connecting carrier have also been
removed.
Refasten the screwsat their original
locations.
4
Both holes must be covered with the
caps provided
(found in the accessories
package)
(
Figure 2.3
)!
Before the machine is used for the first time, all transportation protection devices
from the back of the appliance must be removed and stored for any later transport
(i.e., relocation)!
Figure 2.2
7
Removing the transportation protection
devices
5
Remove theprotection devices
(Figure 3)
.
To do this:
- Lift the lid on the machine
- Remove wedge
- Remove wedge
- Release the drum doors, locked in the
lower position, by pressing down on both
eaves simultaneously.
6
Remove hose retainers➀and cover
the holes with the caps provided
➁
(found
in the accessories package)
(Figure 4)
.
a
b
a
b
➀
➁
Figure 4
We suggest saving all transportation
protection devices because these must
be reinstalled in case of possible later
transport.
Before leaving the factory, this
appliance was carefully checked
.
There may be some water in the tub or
in the detergent compartments
because of testing that took place.
(depending upon model)
If the machine is fitted with hidden castors,
it can easily be moved.
To set the machine on the castors, turn the
lever below the appliance to the left until it
encounters a stop (
Figure
5).
The appliance must always be stood
firmly on its feet before it is used for
washing (lever to the right)!
Figure 5
Moving the appliance
Figure 3
F
G
8
Connections
Figure 6
Figure 7.1
Figure 7.2
Drain
Mount drain hose with the supplied elbow,
connect to a vented drain
(Figure 7.1/7.2)
.
The elbow must be between 65 and 90 cm
above the floor.
Secure drain hose against slipping off.
Replacing the water-inlet hose
After replacement, check to ensure
connections are tight and that there are
seals on both ends.
Regularly check the condition of the
water-inlet and drain hose Replace
damaged hoses only with original
replacement parts which are available
through Customer Service.
Cold water supply
Connect water-inlet hose
(Figure 6)
- Minimum water pressure: 0.1 MPa or 1 bar
- Maximum water pressure: 1 MPa or 10 bar
min. 10 mm
3/4”
9
Connections
Electrical connections
Connect the washing machine only to
alternating current via a properly installed
earthed socket.
The mains voltage must correspond to the
voltage specification on the washing
machine (nameplate).
Connection specifications as well as the
required fuses are stipulated on the
appliance nameplate.
Ensure that:
•
the mains plug and socket are compatible,
• the cable cross-section is adequate,
• the earthing system has been installed
correctly.
Do not use multiple plugs/sockets or
extension cables.
In the event that an earth-leakage circuit
breaker is to be used, only use types
marked with the following symbol:
.
Only this symbol can guarantee
compliance with all current regulations.
Do not insert/pull out the mains plug with
wet hands.
Do not pull out the mains plug by tugging
the cable.
Installation
Safety Instructions
Risk of Injury!
The washing machine is very heavy. Take
care when lifting it.
Frozen hoses may tear or burst. Do not
install the washing machine in an area
where there is a risk of freezing or
outdoors.
Do not lift the washing machine by any
projecting parts (e.g., lid handle). The
washing machine may be damaged.
In addition to the safety information listed here,
the local water and electricity supplier may
have special requirements.
If in doubt, have the appliance connected by
a specialist.
Installation surface
Stability is important so that the washing
machine does not ”wander“ during the spin
cycles. Surfaces used for installation must
be solid and even. Soft floor coverings, e.g.
carpets or floor coverings with a foam
backing are not suitable.
Adjustable feet:
(depending upon model)
Some appliances have two adjustable feet
available at the front with can be used to
correct for surface unevenness. Level and
stabilise the machine in the following
manner:
- Tip the washing machine gently
backwards.
- Depending upon the condition of the floor,
either turn out or screw in the foot or feet
(Figure 8)
.
- Check the stability of the washing machine.
Figure 8
Changing the mains lead
For reasons of safety, the mains lead is only
to be replaced by Customer Service which
is authorised to do so.
Loading...
